USER MANUAL TC2135 Vevor

Affordable. Reliable. Home Improvement.

BEHIND SPREADER

MODEL:TC2135

VEVOR

Affordable. Reliable. Home Improvement.

BEHIND SPREADER

MODEL:TC2135

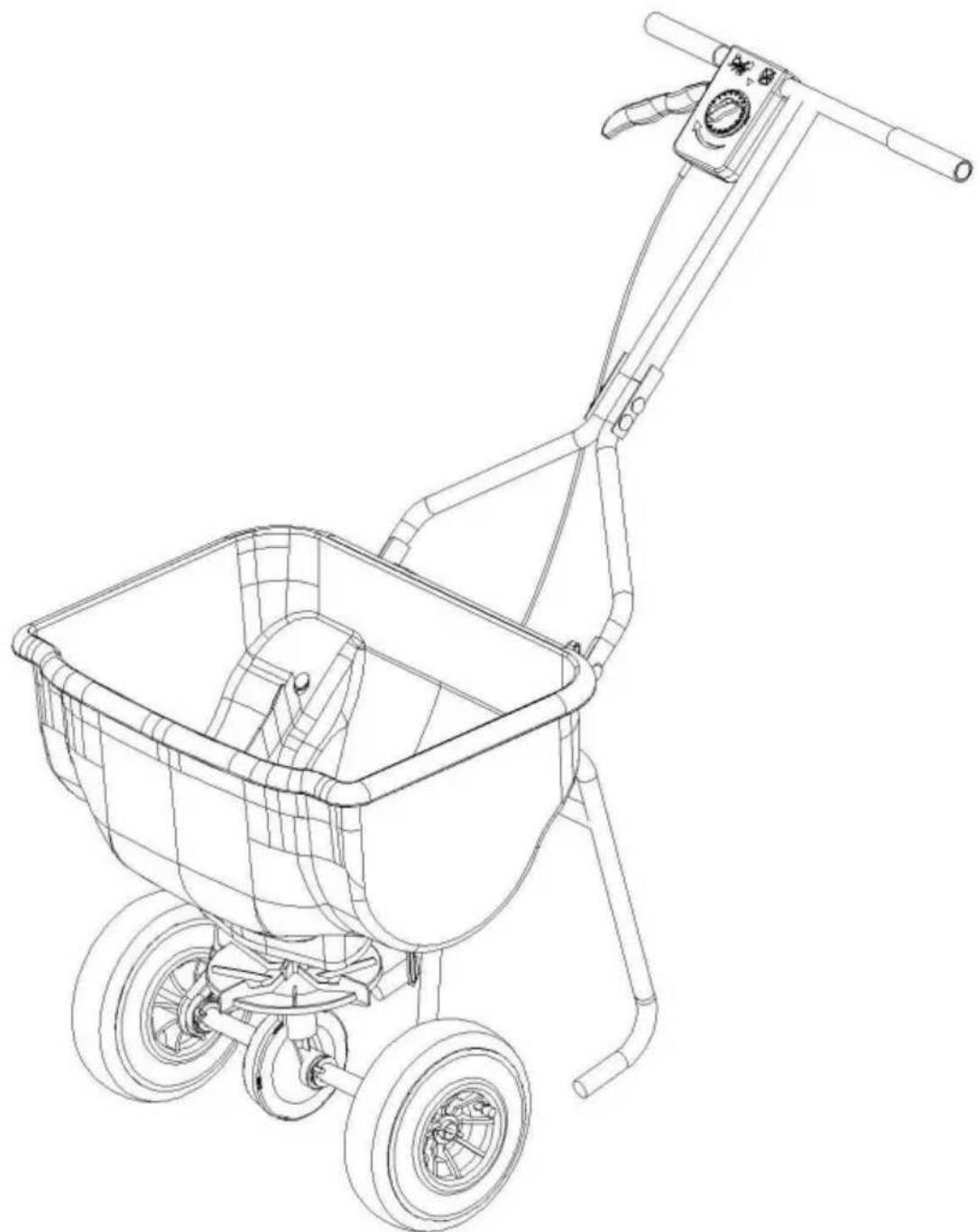

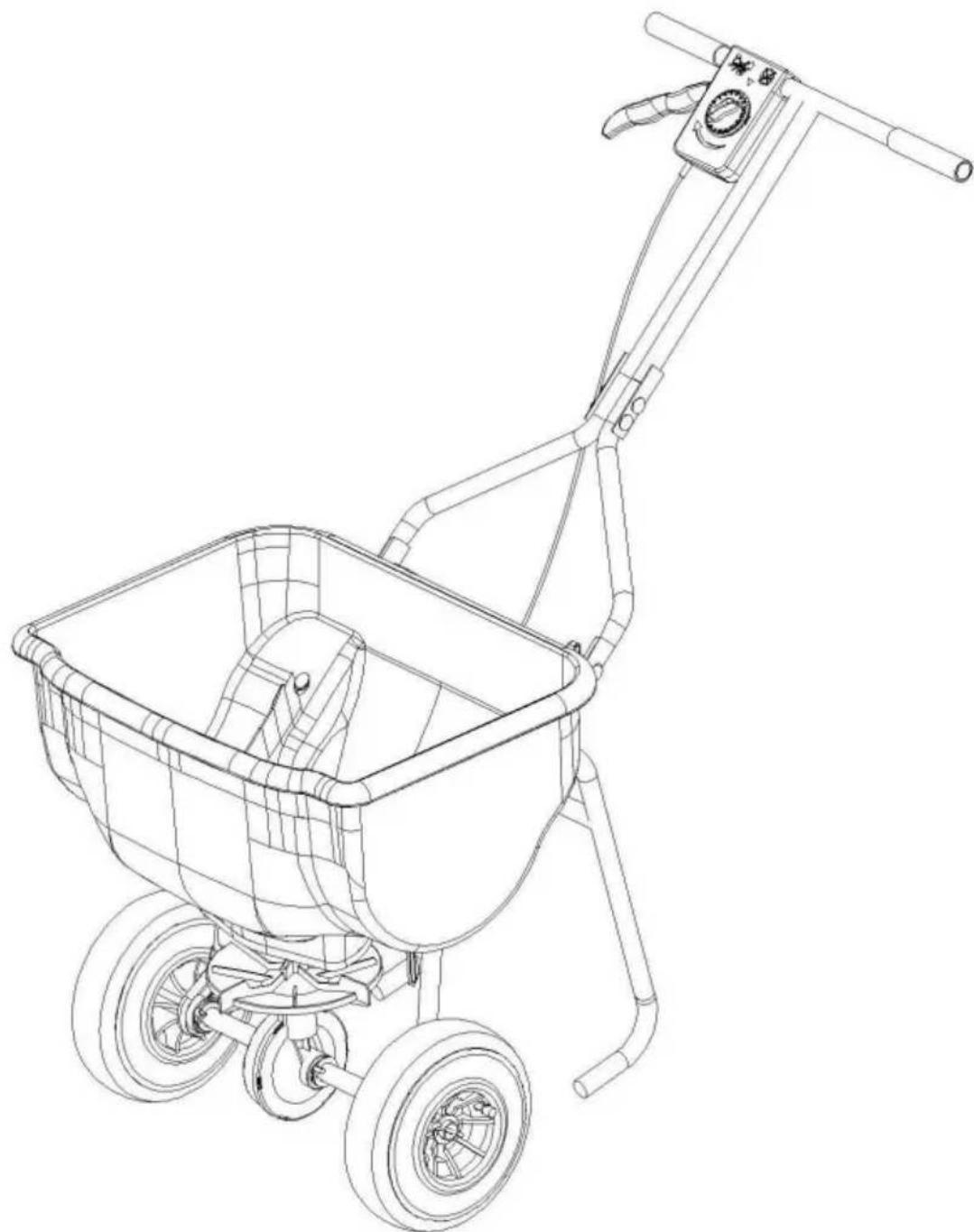

Line drawing of a bicycle push cart with wheels and handle (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there a technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Behind Spreader.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

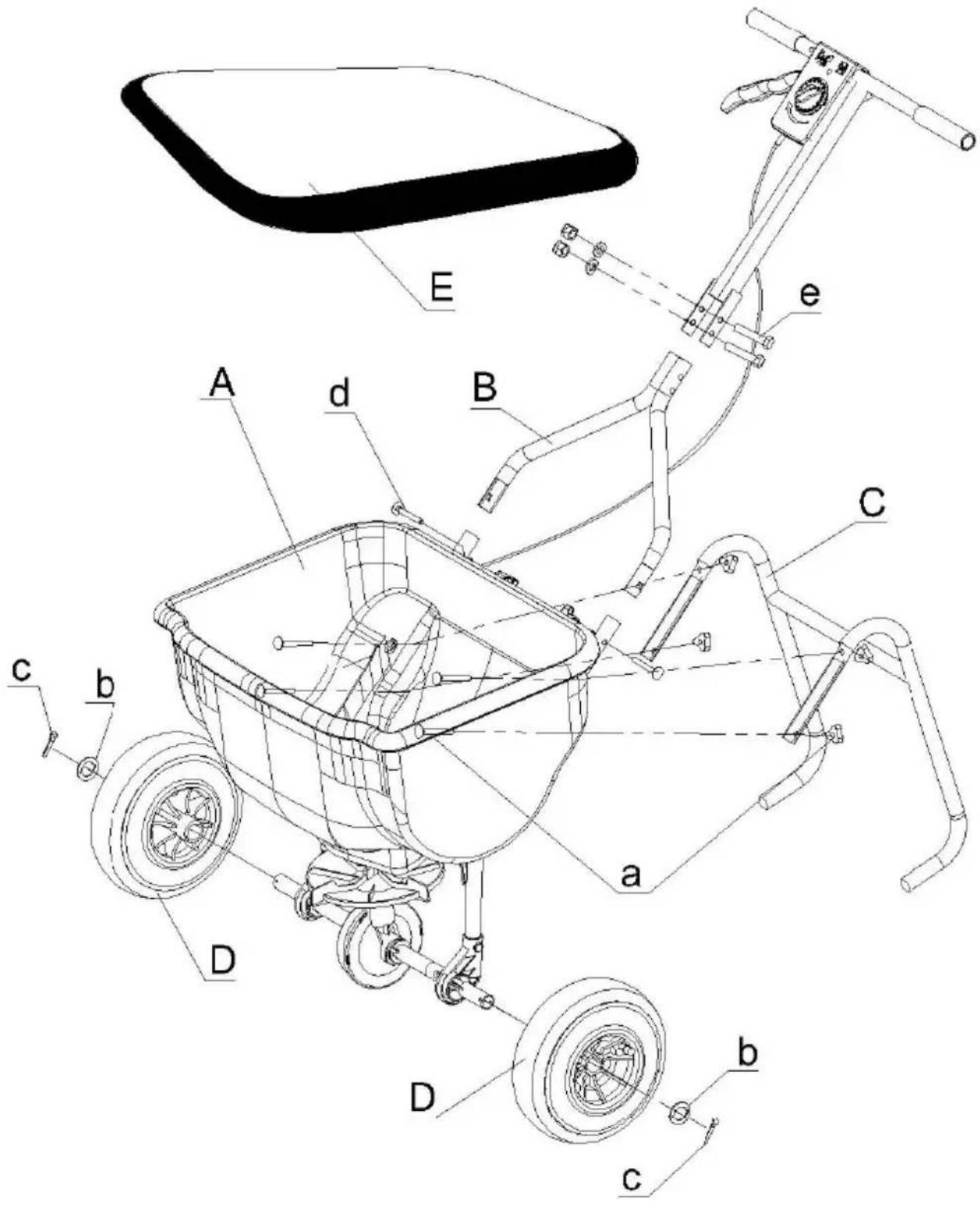

PARTS LIST

A	Main body x1	B	Square tube x1
C	Support frame x1	D	Wheel x2
E	Transparent cover x1	a	Plastic knob+ screw(M6*50) ×4
b	Large washer x2	c
d	Plastic knob+ screw(M6*40) ×2	e	Screw M6*55 ×2

E A d B e C a b c D D b c

ASSEMBLY STEP

Line drawing of a bicycle pushpin with a basket and wheels (no text or symbols)

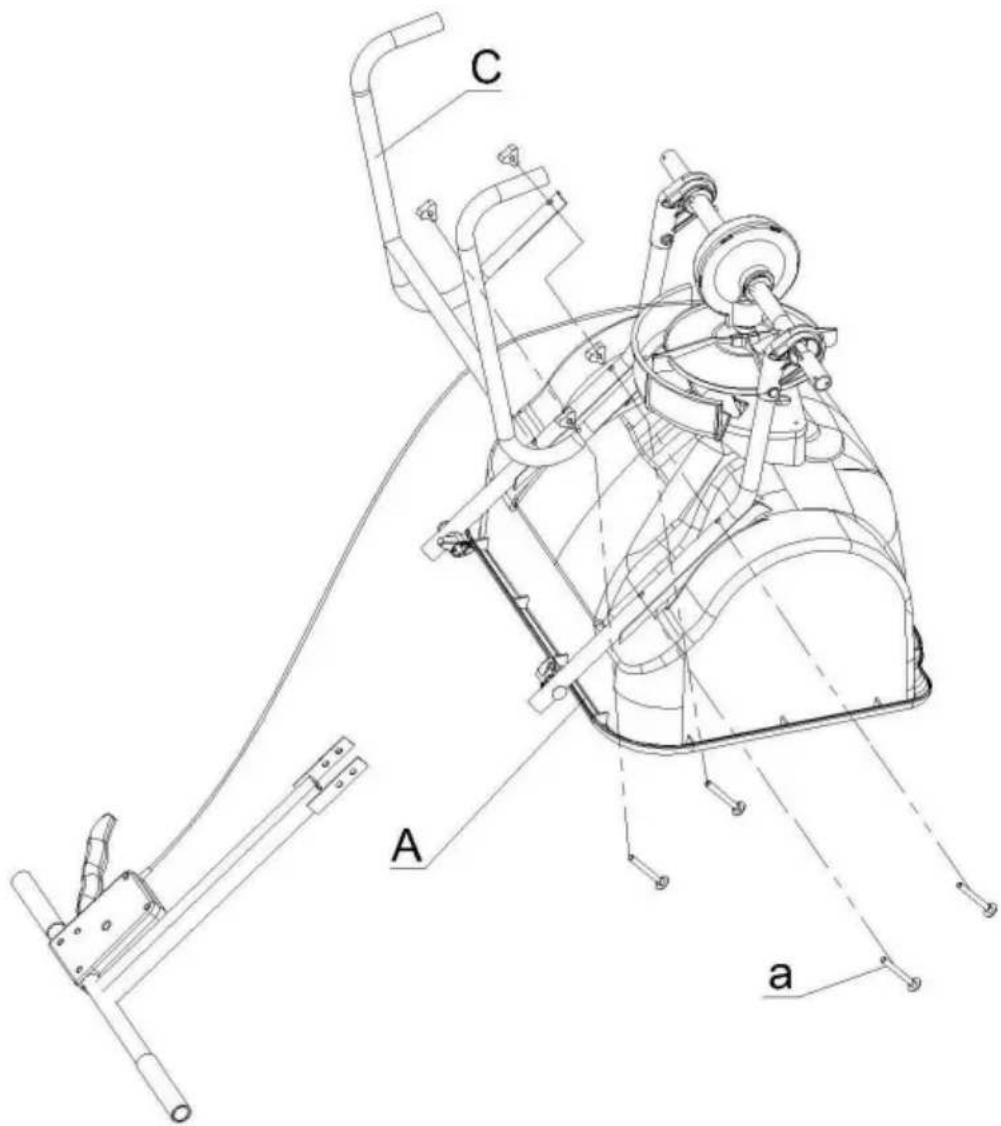

A Main body x1

Line drawing of two curved pipe fittings with no text or symbols

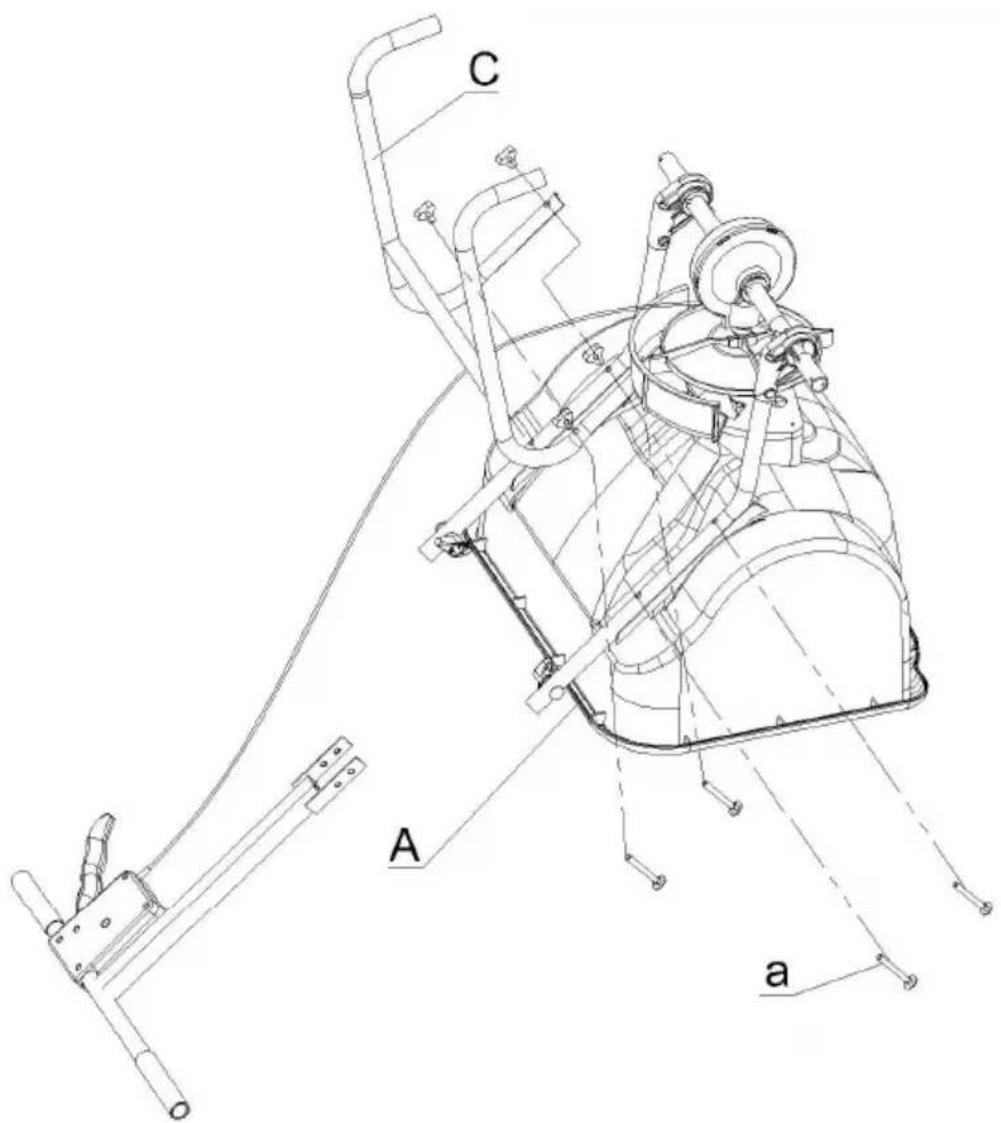

C Support frame x1

a Plastic knob+screw(M6*50) ×4

C A a

Fix the support frame (C) to the main body (A) using plastic knobs+scre

D Wheel x2	b Large washer x2
	c Pin x2
Insert the wheel(D x2) into the axle, placegether washer(b x2)n it and fix it with a pin(c x2). Note: The inflation hole should face outwa

Simple line drawing of two connected pipe-like structures with no text or symbols

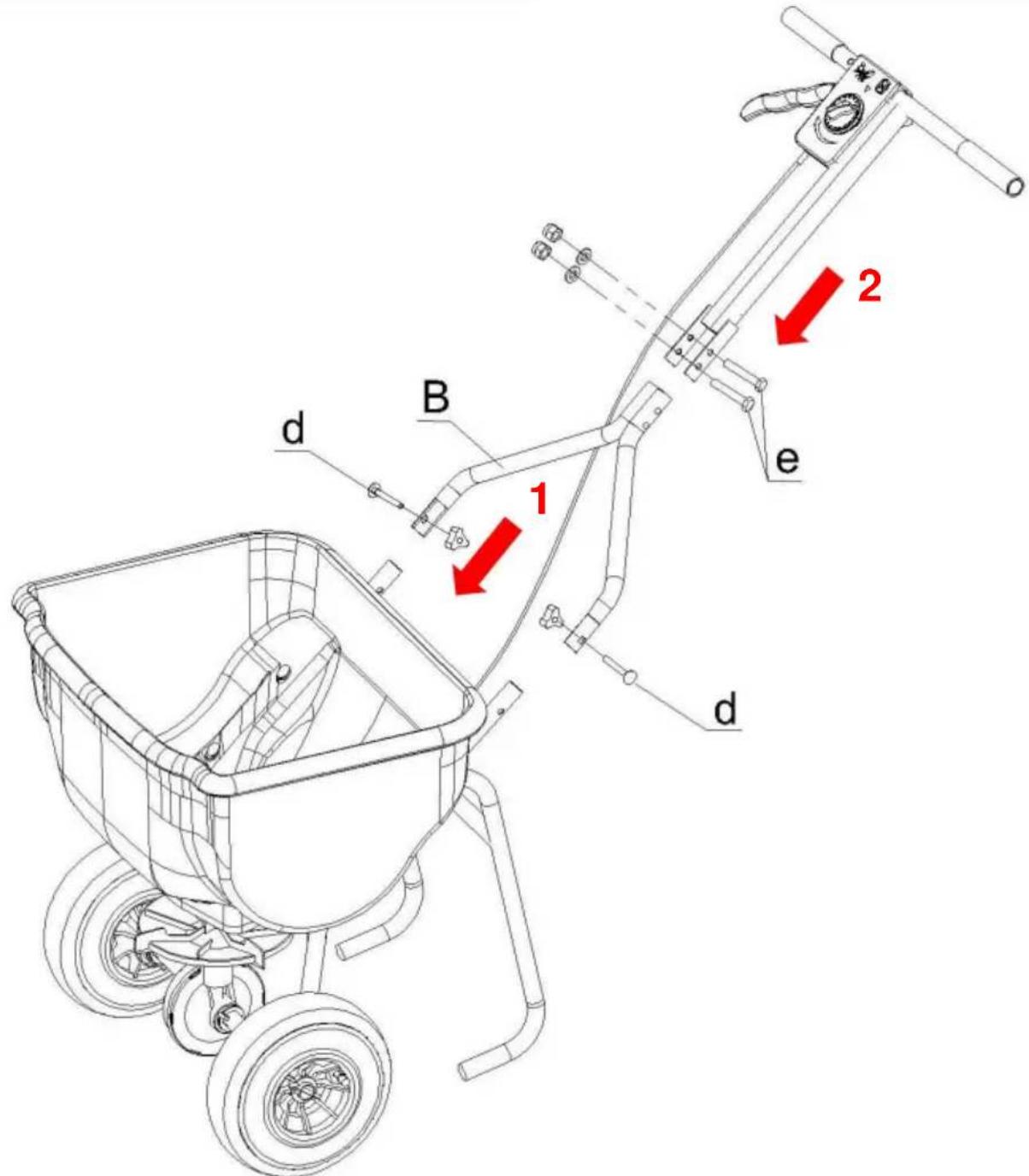

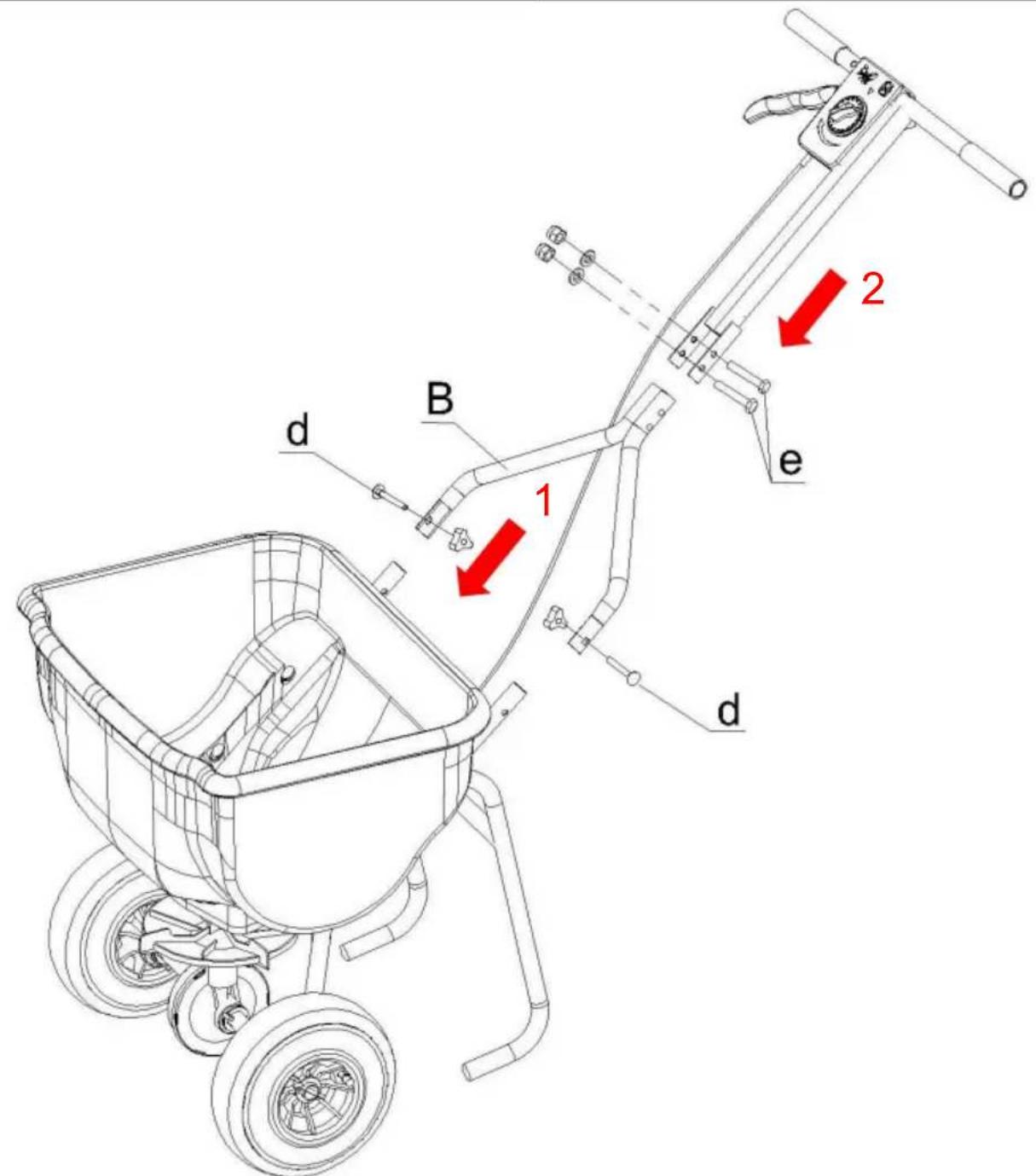

B Square tube x1

d Plastic knob+ crew(M6*40) ×2

e Screw M6*55 ×2

d B 1 e 2 d

1. Fix the square tube (B) to the main body (A) using plastic knobs+cre
2. Fix the handle to the square tube (B) using screws (e x2).

Simple black rounded square icon with white center, no text or symbols

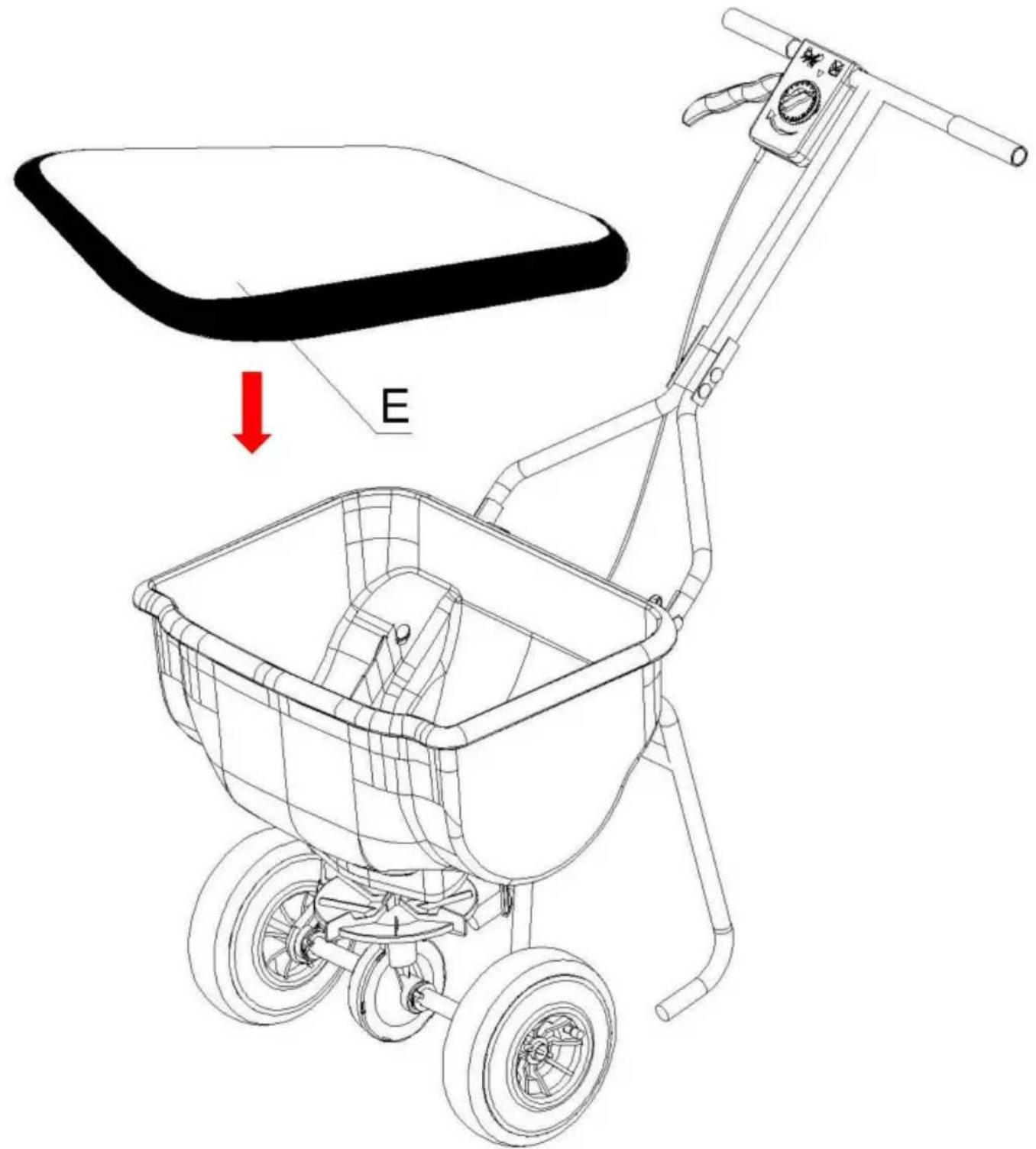

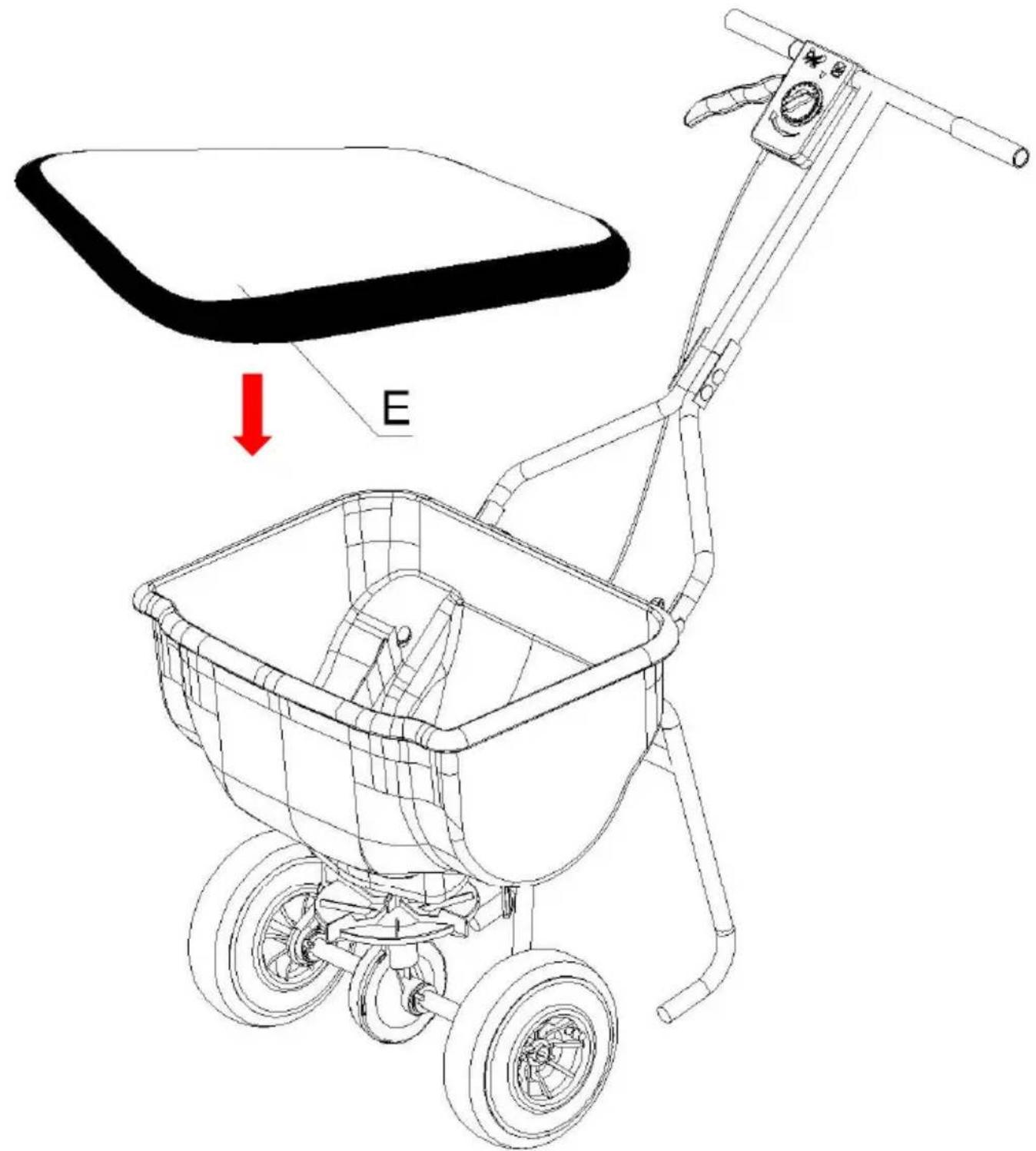

E Transparent cover x1

E

The assembly is completed.

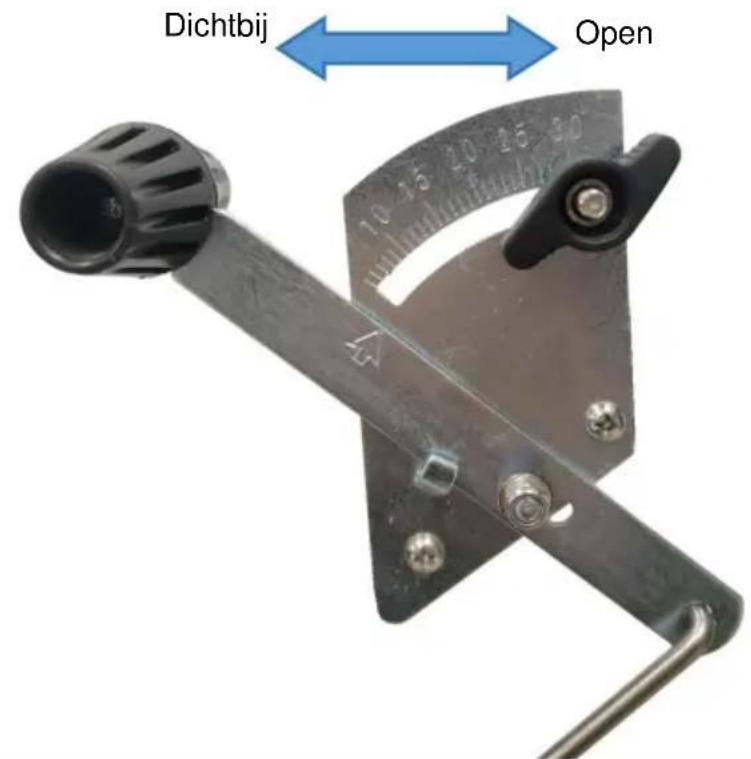

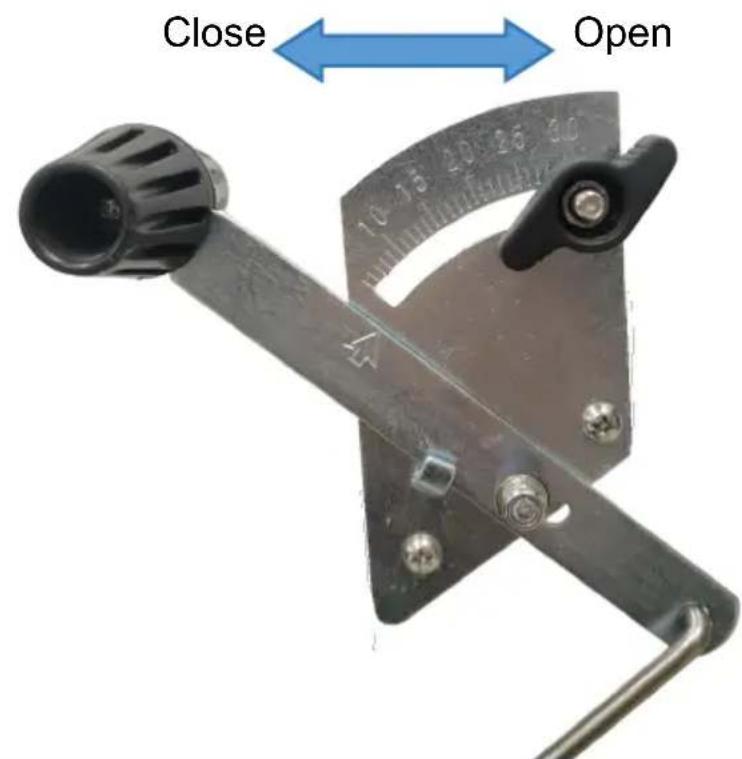

Close Open

HOW TO USE THE SPREADER TROLLEY

TO OPEN- Push the Control Level forward until it stops against TO CLOSE- Pull the control Lever fully back toward Operator.

Follow the instructions provided by the manufacturer of the spread material.

NOTE: Make sure that the spreading material is evenly distributed spreading material must be dry.

1. Before feeding in the spreading material, set the dispensing le OFF position (dispensing flap closed).
2. Fill the spreader trolley hopper.
3. To adjust the volume of spread, set the dispensing lever to the position.
4. In order to spread or scatter the material, drive the spreader even speed (the higher the speed, the greater the scattering distance).
5. Close the dispensing flap as soon as you stop the spreader (dispensing lever in OFF position).

USING YOUR SPREADER

1. Determine approximate square footage of area to be covered and estimate amount of material required.

2. Before filling the hopper, make sure the flow control arm is in the off po and the closure plate is shut.

3. Break up any lumpy fertilizer as you fill the hopper.

4. Set the adjustable stop with the flow control arm still in the off position. the application chart on this page and to the instructions on the fertilizer bag select the proper flow rate setting.

5. The application chart is calculated for light to heavy application at a vehicle speed of 3 mph , or 100 ft. in 23 seconds. A variation in speed will require adjustment of the flow rate to maintain the same coverage. The faster you do the wider the broadcast width.

6. Make sure the drive pin is in stalled in the axle before starting the spread

7. Always start the spreader in motion before opening closure plate.

8. Always shut the closure plate before turning or stopping the spreader.

9. If fertilizer is accidentally deposited too heavily in a small area, soak the thoroughly with a garden hose or sprinkler to prevent burning of the lawn.

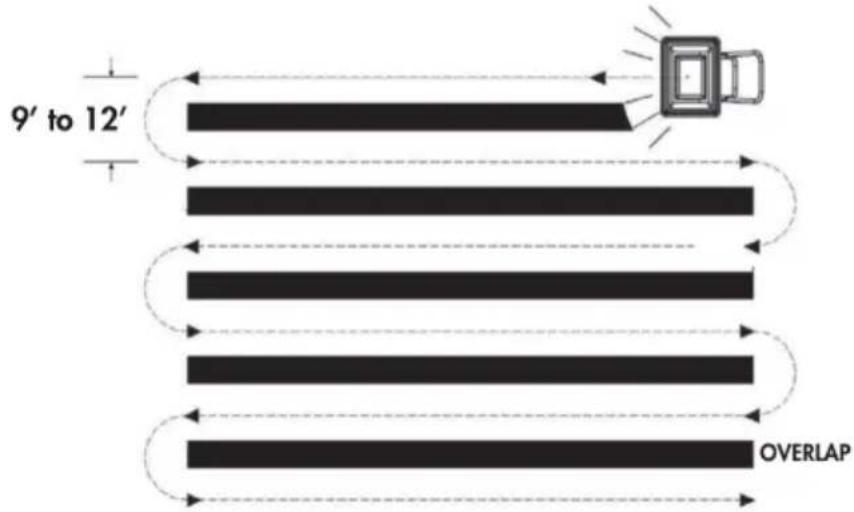

10. To insure uniform coverage, make each pass so that the broadcast pattern slightly overlaps the pattern from the previous pass as shown in figure below approximate broadcast widths for different materials are shown in the application chart on this page.

11. When broadcasting weed control fertilizers, make sure the broadcast pattern does not hit evergreen trees, flowers or shrubs.

9' to 12' OVERLAP

PRODUCT SPREADER SETTINGS

CAUTION

These are approximate settings and are intended as a guide only. Variations in materials, walking speed, terrain, weather conditions, condition of spreader, etc. can affect setting. If unsure, start at a setting and increase if necessary. Always calibrate your spreader using.

GRASS SEEDS	OVERSEEDING	NEW LAWNS
Black Beauty (Original)	14	Apply a
Black Beauty Ultra	13	second
Dense Shade	14
Fall Magic	14	time to the
Fast Grow	13
Full Sun (Sunny)	12	same area
Heavy Traffic	13	using the
Quik-Start	12
Shady Nooks	14	rates listed
Sun & Shade	12	on left.
Sod Maker	9
Touch-Up	14

SOIL FOODS

Love Your Soil	12
MAG-I-CAL - Acidic (silver)	12
MAG-I-CAL - Alkaline (blue)	14

ORGANICS

Organic Lawn Food	17
Organic Weed Preventer	12
Organic Insect Control	10

LAWN FOODS

Green-Up with Crabgrass Preventer	15
Green-Up Weed & Feed	14
Summer Survival Lawn Food	14
Winter Survival Fall Lawn Food	12
Crabgrass Preventer plus New Seeding	12
Green-Up Lawn Food	15
Green-Up Lawn Foodfor Seeding and Sodding	12

LAWN CONTROLS

Crabgrass & Weed Preventer	11
Grub & Insect Control	10
Lawn Fungus Control	10
Lawn Moss Control	13
Lawn Weed Control	11

USAGE TIPS

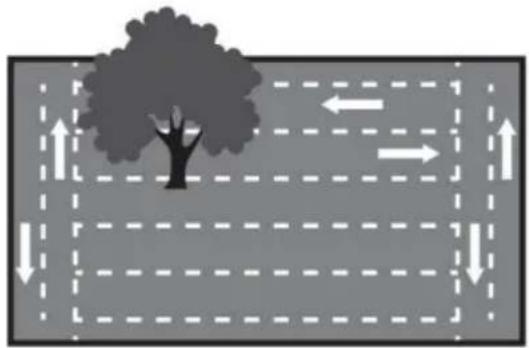

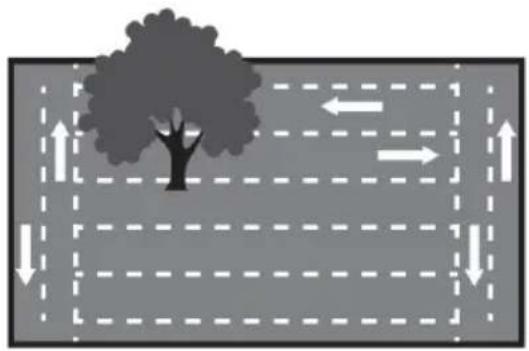

For rectangular lawns

Apply two header strips across each end for a turning area. Then apply back and forth in the longest direction.

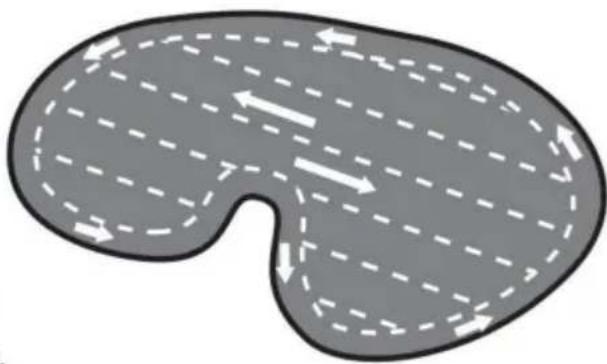

For irregular-shaped lawns

Apply a header strip around the entire lawn for a turning area, then apply back and forth.

Note:

Each pass should be within 5 feet of each other to ensure an overlap.

Diagram showing a tree with directional arrows and dashed grid lines, no text or symbols present

Abstract diagram of a curved, irregular shape with dashed and dotted lines indicating directional flow (no text or symbols)

• Do not leave spreader open when making turns.
• For best results, do not apply on a windy day.
• Swath will vary due to conditions. (see above caution)

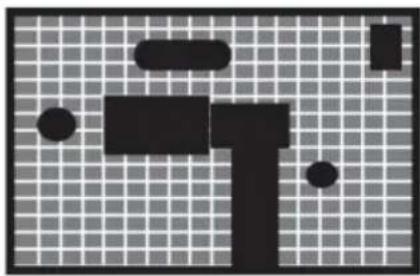

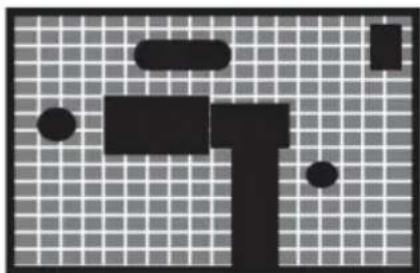

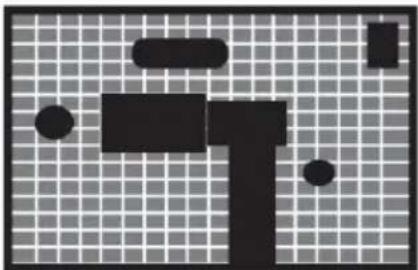

• To determine how much coverage you need, multiply the length of your lawn by its width. This equals your total square footage. Deduct any non-lawn areas (house, gardens, walkways, etc.).

Length (Feet)

X____ Width (Feet)

=____ Total Square Feet

- Non-Lawn Areas (Feet)

=____ Total Square Feet coverage you need

Abstract geometric pattern with black shapes on a grid background (no text or symbols)

Maintenance

• After each use clean material out of hopper.
• Rinse/dry inside and outside of the spreader after each use.
• Before operating make sure the tires have the RECOMMENDED TIRE PRESSURE 25 PSI.
• Periodically check all fasteners for tightness.
• Annually clean and lightly lubricate parts.
• Use a glossy enamel spray paint to touch up scratched or worn painted surfaces.
• Never exceed load capacity rating, it will damage the spreader.

Important

The warnings, cautions, and instructions outlined in this instruction manual can cover all possible conditions or situations that may occur. It must be understood the operator that common sense and caution are factors which cannot be but this product and must be supplied by the operator.

Storage

• Never allow material to remain in the hopper for extended periods of time.
• Before storing make sure the spreader is clean and dry for years of trouble service.
• Store indoors or protected area during severe weather and winter months.

PRODUCT PARAMETER

Model	TC2135
Safe Loading Weight	60lb(27.2kg)
Colour	Black
Spreading width	0-3m/0-9.8ft

ASSEMBLY PROBLEMS

(I) Missing or Damaged Parts

Problem Description: After opening the parts packaging, it is found that quantity of some parts is insufficient or there are obvious damages.

Solution: Immediately conduct a careful check against the parts list to o missing or damaged parts. Contact the VEVOR customer service, provide product model TC2029A and relevant part information, and apply for the replacement or reissue of the parts. During the waiting period for the ne not attempt to assemble with incomplete or damaged parts to avoid affected product performance and safety.

(II) Assembly Difficulties

Problem Description: When operating according to the assembly steps in instruction manual, situations such as difficult alignment of parts and inab screw in screws smoothly occur.

Solution: Check again whether the installation direction of the parts is or refer to the illustrations in the instruction manual, and ensure that each installed in the correct position. For the situation where it is difficult to screw, check whether there are foreign objects blocking the threads. A be used to clean the threads. If the threads are damaged, contact the service in a timely manner to replace the corresponding parts. If it is align due to part size deviation, do not force the assembly, but commun the customer service to obtain further guidance or replacement of parts. prepare installation videos. Please contact VEVOR customer service if you them.

USAGE PROBLEMS

(I) Uneven Spreading

Problem Description: When using the spreader, the materials are uneven distributed on the ground, with some areas having more and some areas less.

Solution: Check whether there is any caking phenomenon of the material hopper. If so, the caked materials need to be broken up before use. C whether the walking speed of the spreader is uniform. Try to keep a un speed, as changes in speed may affect the spreading effect. Check whe setting of the flow control arm of the spreader is appropriate. According of materials and the usage scenario, refer to the recommended values in spreading setting precautions of the product, and readjust the position of control arm.

(II) Spreading Width Does Not Meet Expectations

Problem Description: The actual spreading width does not conform to the specified in the instruction manual, being either too wide or too narrow.

Solution: Check the driving speed of the spreader. The faster the speed the spreading width. Adjust the driving speed to an appropriate range as Confirm whether the setting of the flow control arm is correct. An inapp setting may indirectly affect the spreading width. Readjust it according to correct setting method. If the components of the spreader are loose or may affect the spreading width. Carefully check each component of the Tighten any loose parts in a timely manner, and contact the customer s replace any damaged parts.

(III) The Spreader is Jammed or Cannot Be Pushed

Problem Description: During the use process, the spreader is jammed, push, or even cannot be pushed normally.

Solution: Check whether the tire pressure reaches the recommended value. PSI. Insufficient air pressure will increase the pushing resistance. Inflate in standard air pressure in a timely manner. Check whether there are foreign wrapped around the wheels. If so, clean up the sundries wrapped around wheels. Check whether there is material accumulation inside the spreader blocking the components. Clean up the accumulated materials in the hop, other components. If the problem still exists, it may be a mechanical component failure, such as a damaged bearing, etc. Contact a professional maintenance personnel or VEVOR customer service for maintenance.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
