TC2032B - Agricultural spreader Vevor - Free user manual and instructions

USER MANUAL TC2032B Vevor

Affordable. Reliable. Home Improvement.

BEHIND SPREADER

MODEL:TC2032B

VEVOR

Affordable. Reliable. Home Improvement.

BEHIND SPREADER

MODEL:TC2032B

Line drawing of a manual pushrower with two wheels and handle (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there a technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Behind Spreader.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

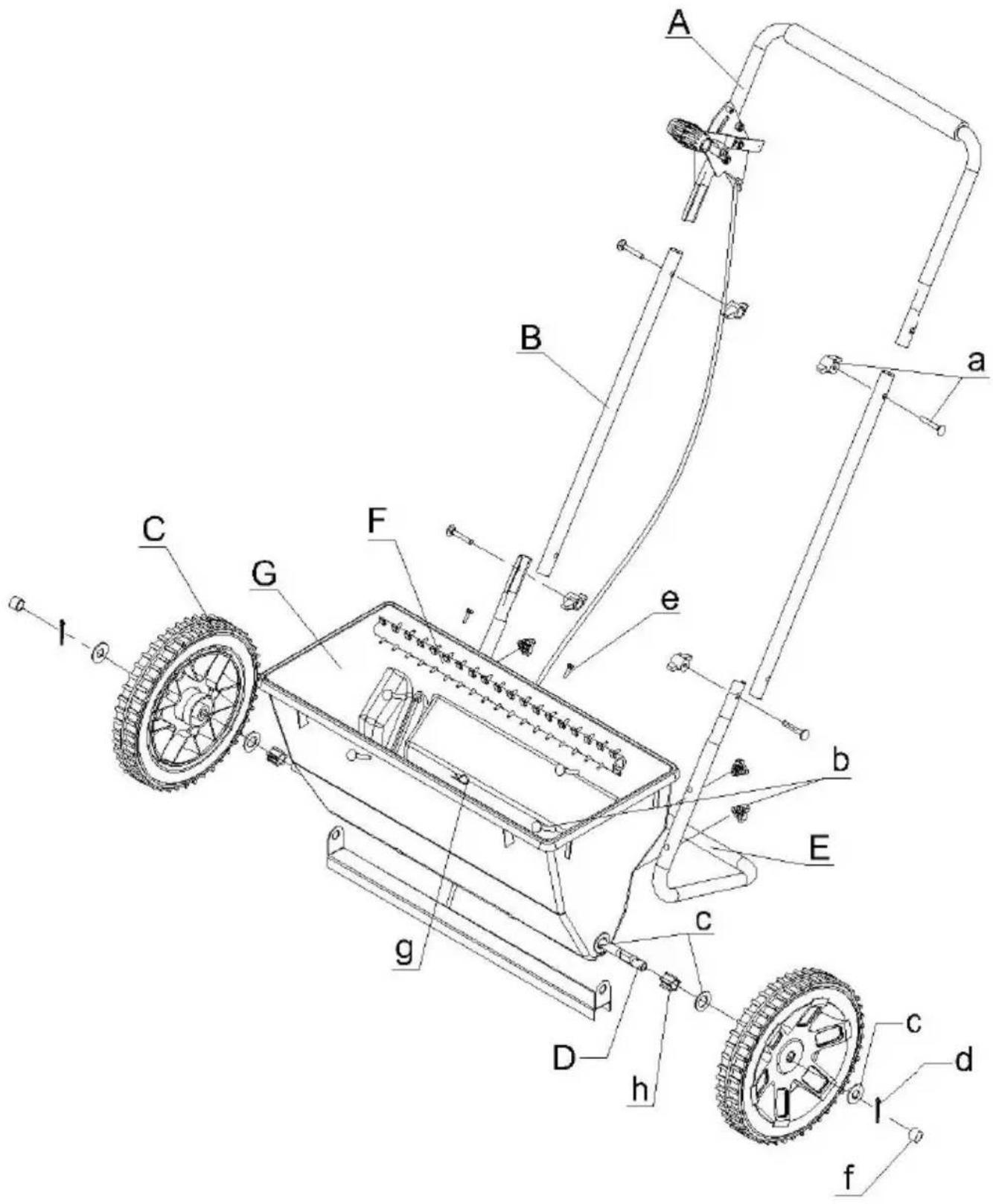

PARTS LIST

A	Handle x1	B	Square tube x2
C	Wheel x2	D	Shaft x1
E	Support frame x1	F	mixing shaft x1
G	Hopper x1
a	Plastic knob+screw ×4	b	Plastic knob+screw ×4
c	Large washer x6	d	Pin ×2
e	Screw M4*30 ×2	f	Sleeve x2
g	R-shape pin ×1	h	Plastic parts ×2

Technical diagram of a manual lawn mower with labeled parts from A to J

ASSEMBLY STEP

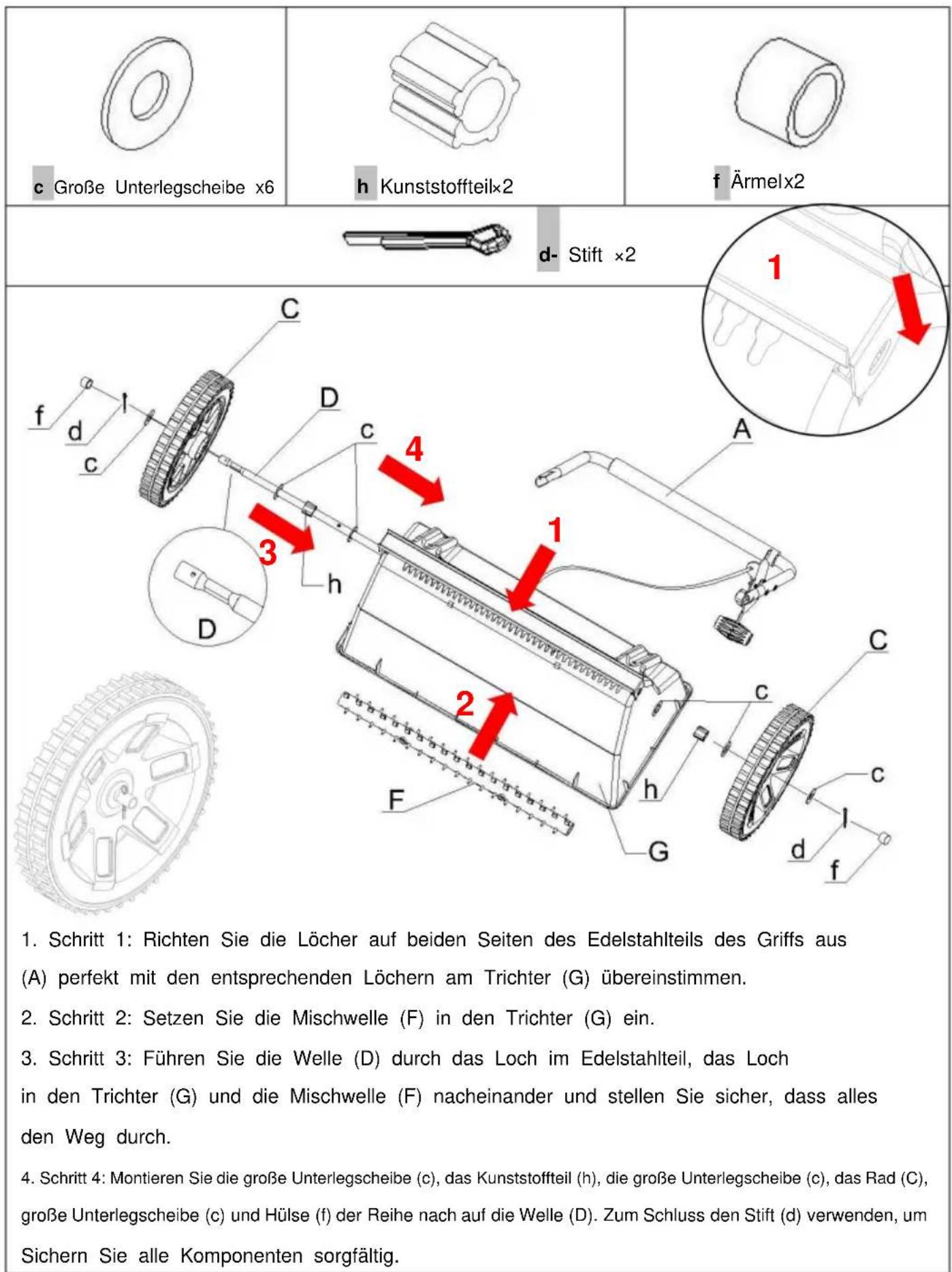

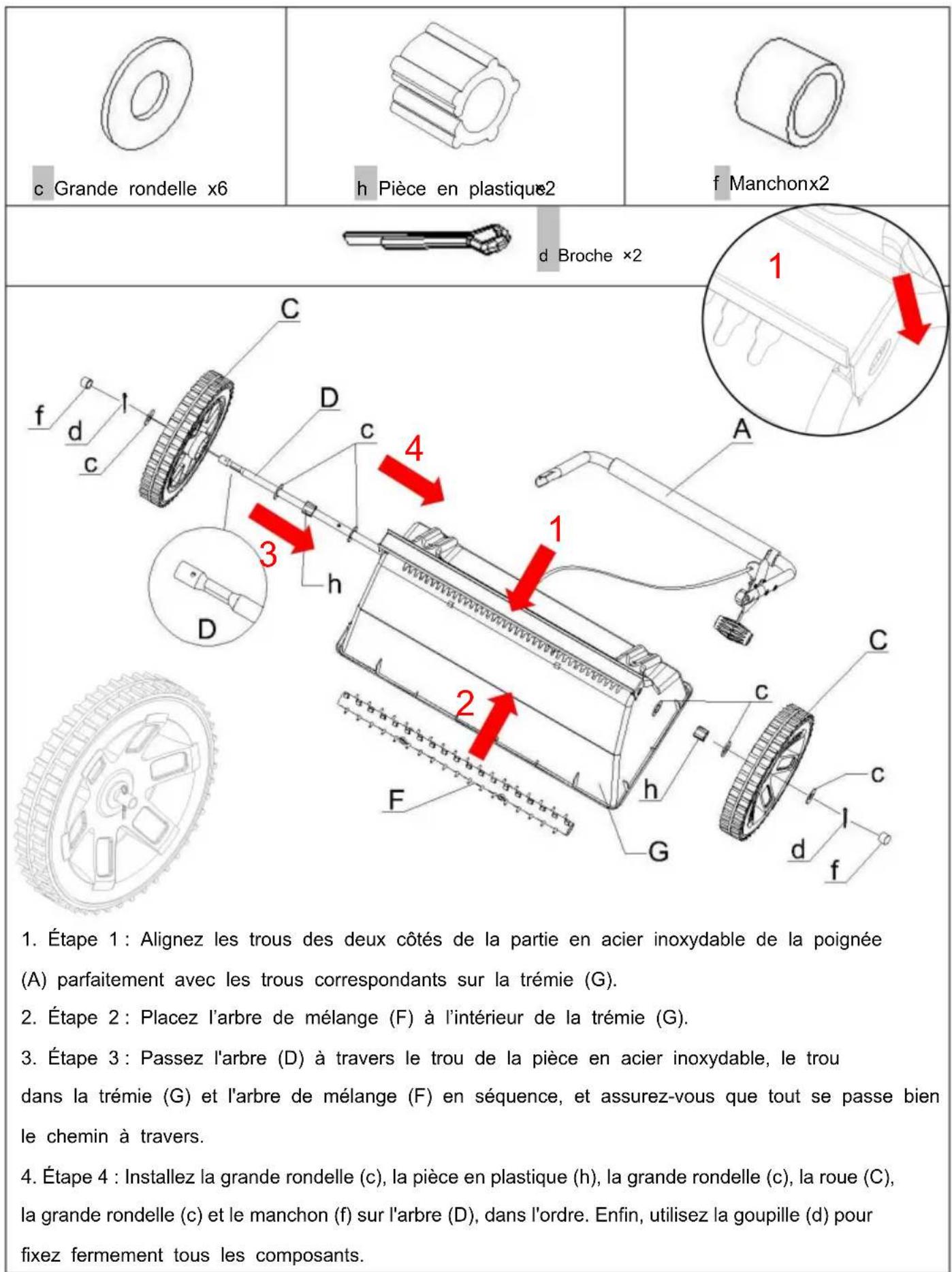

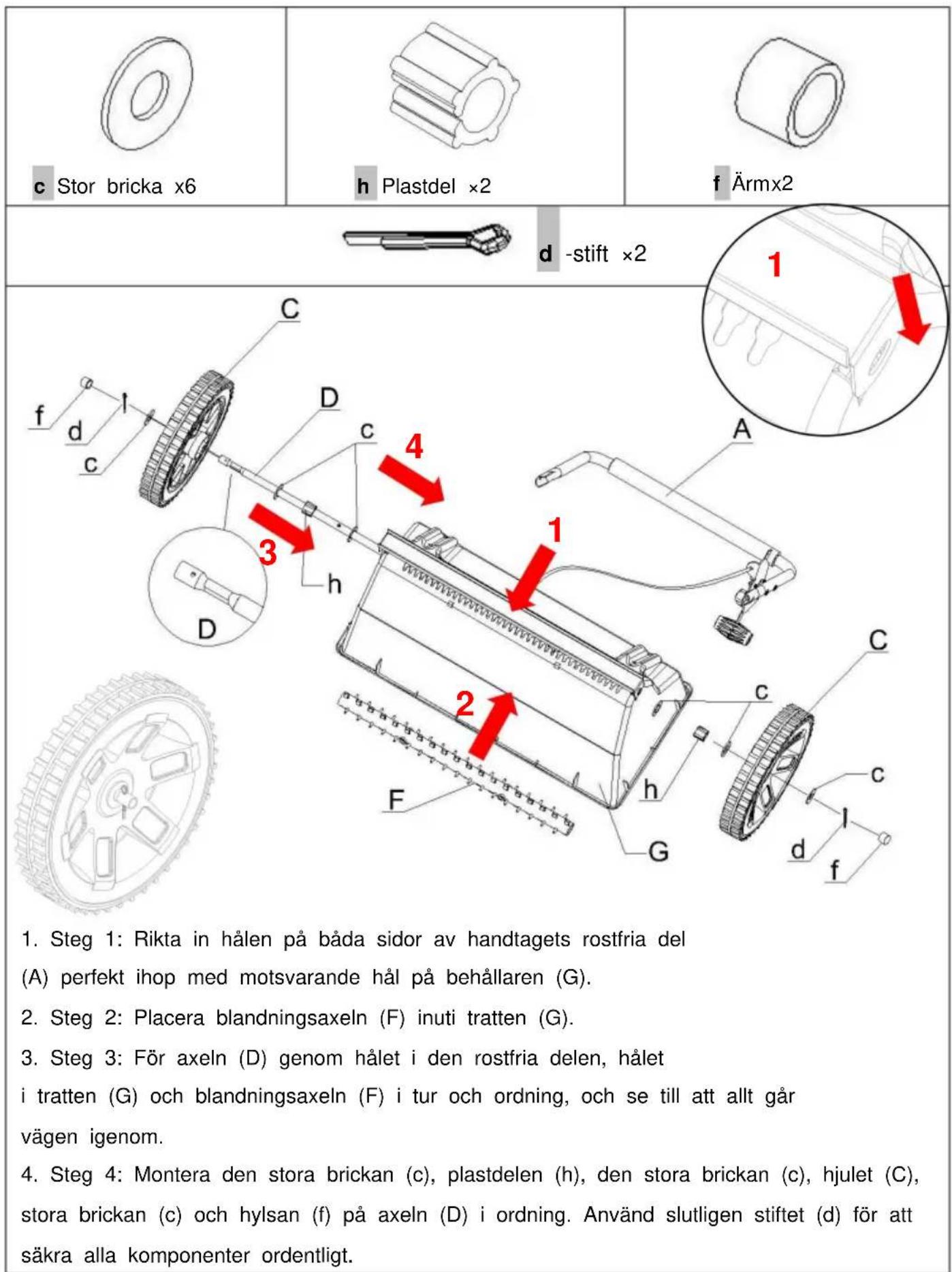

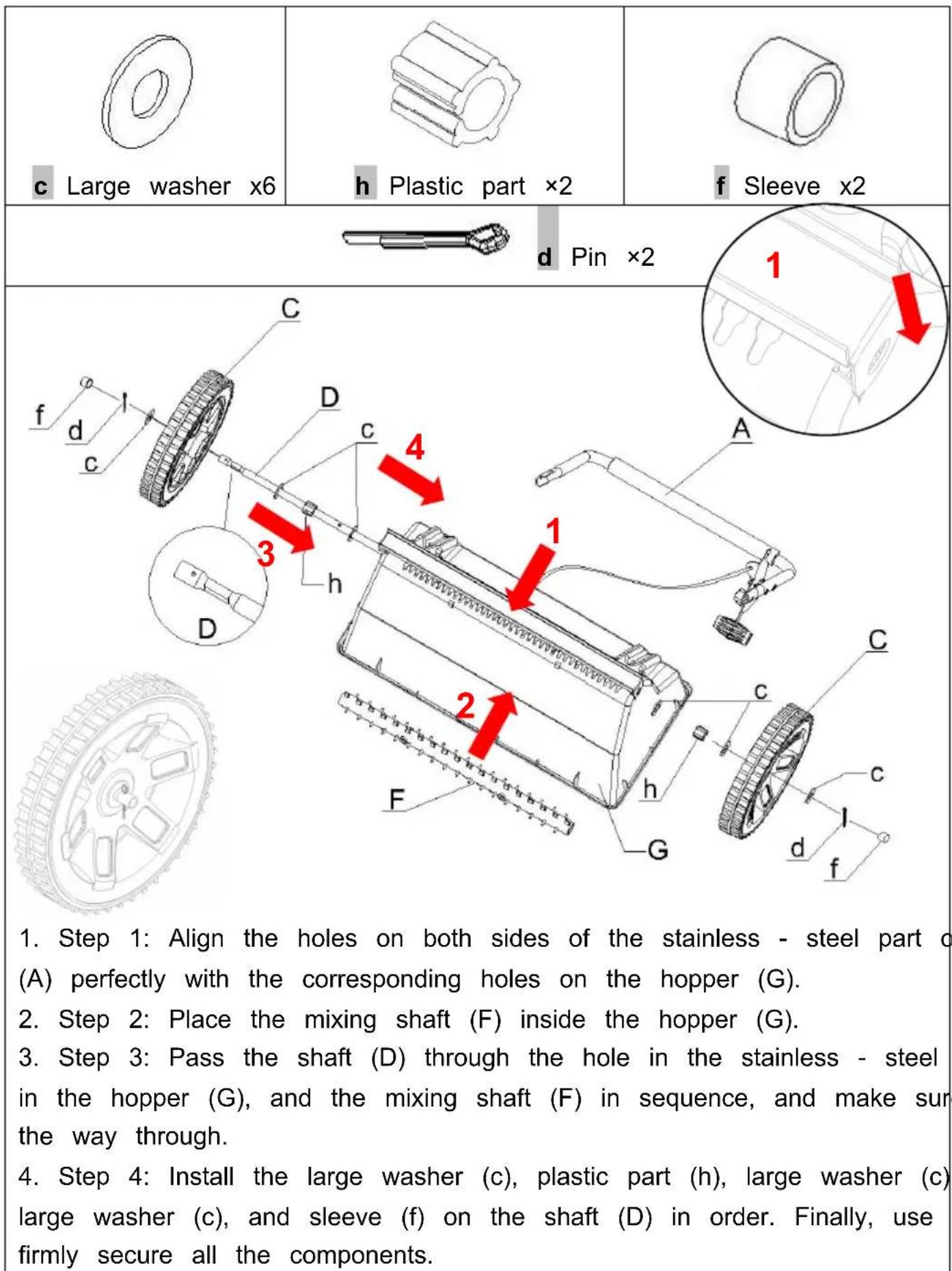

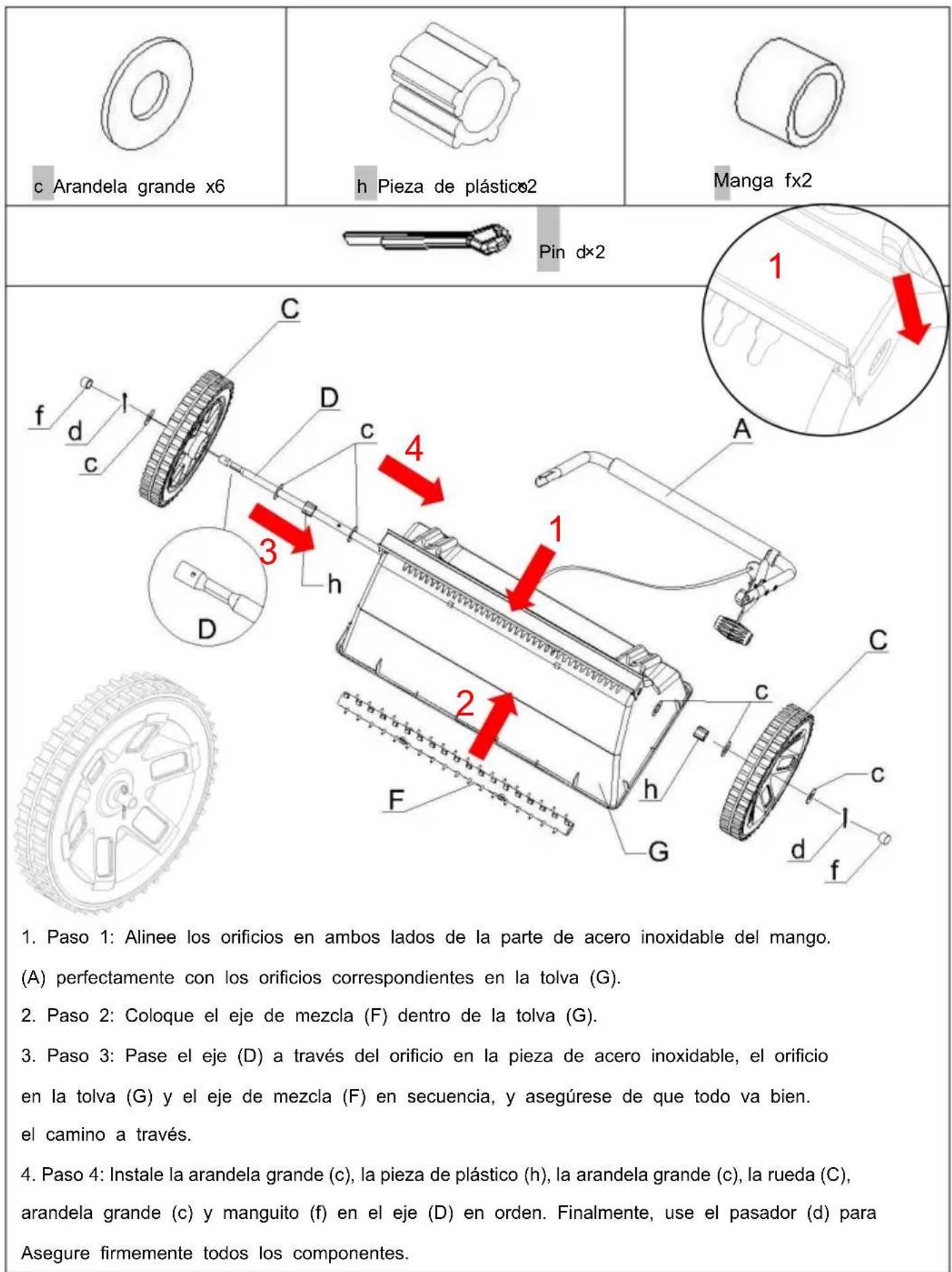

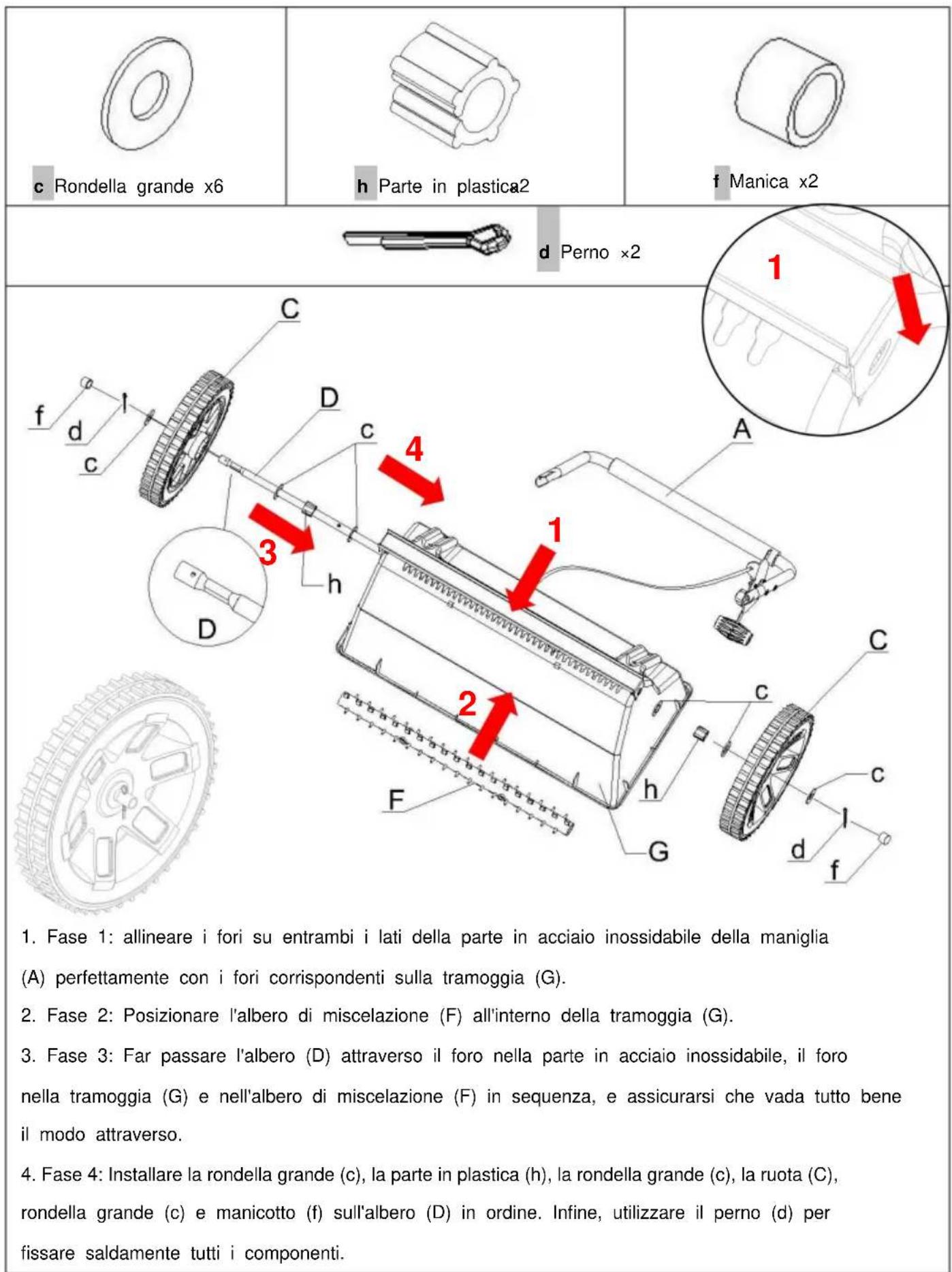

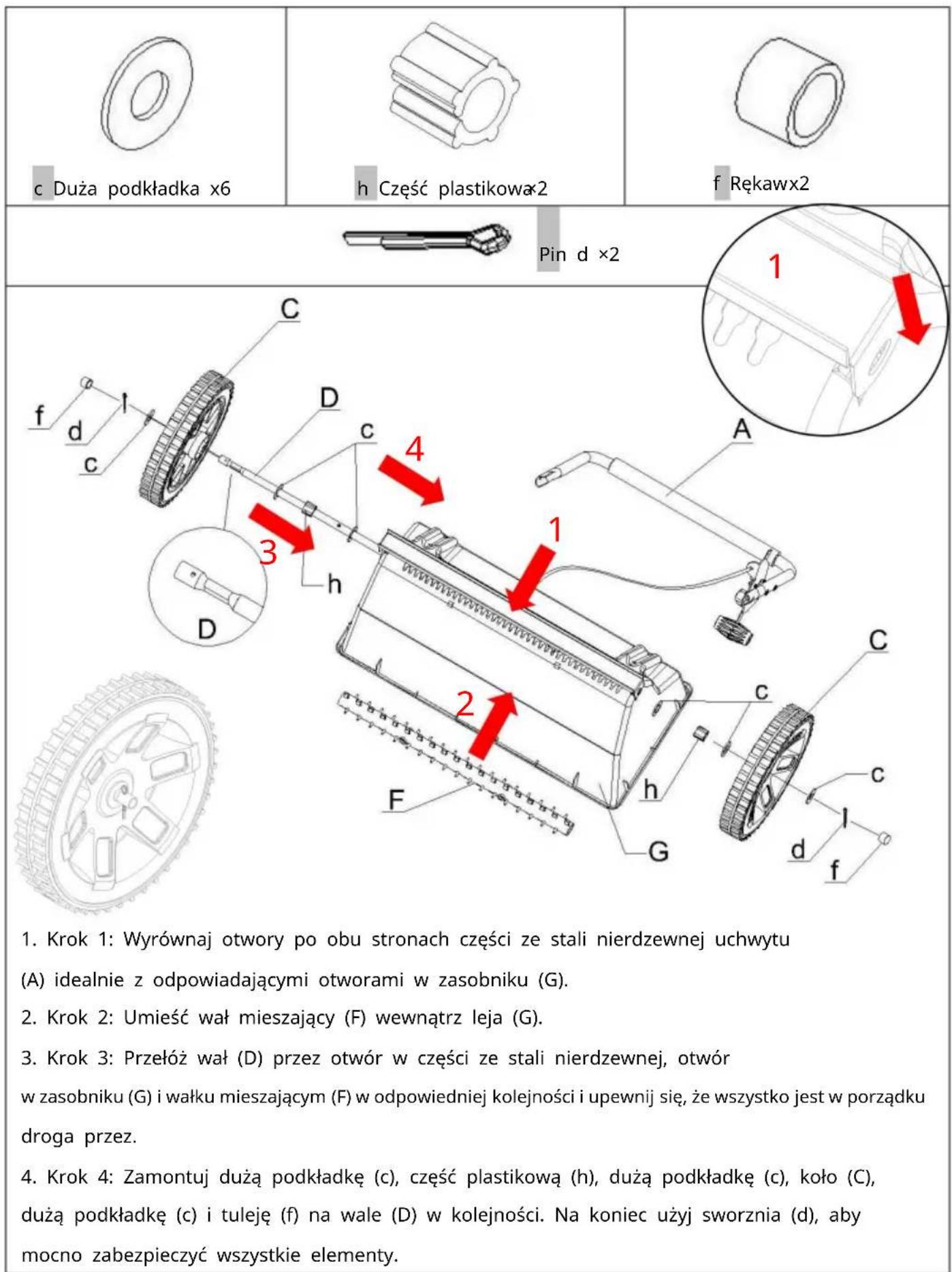

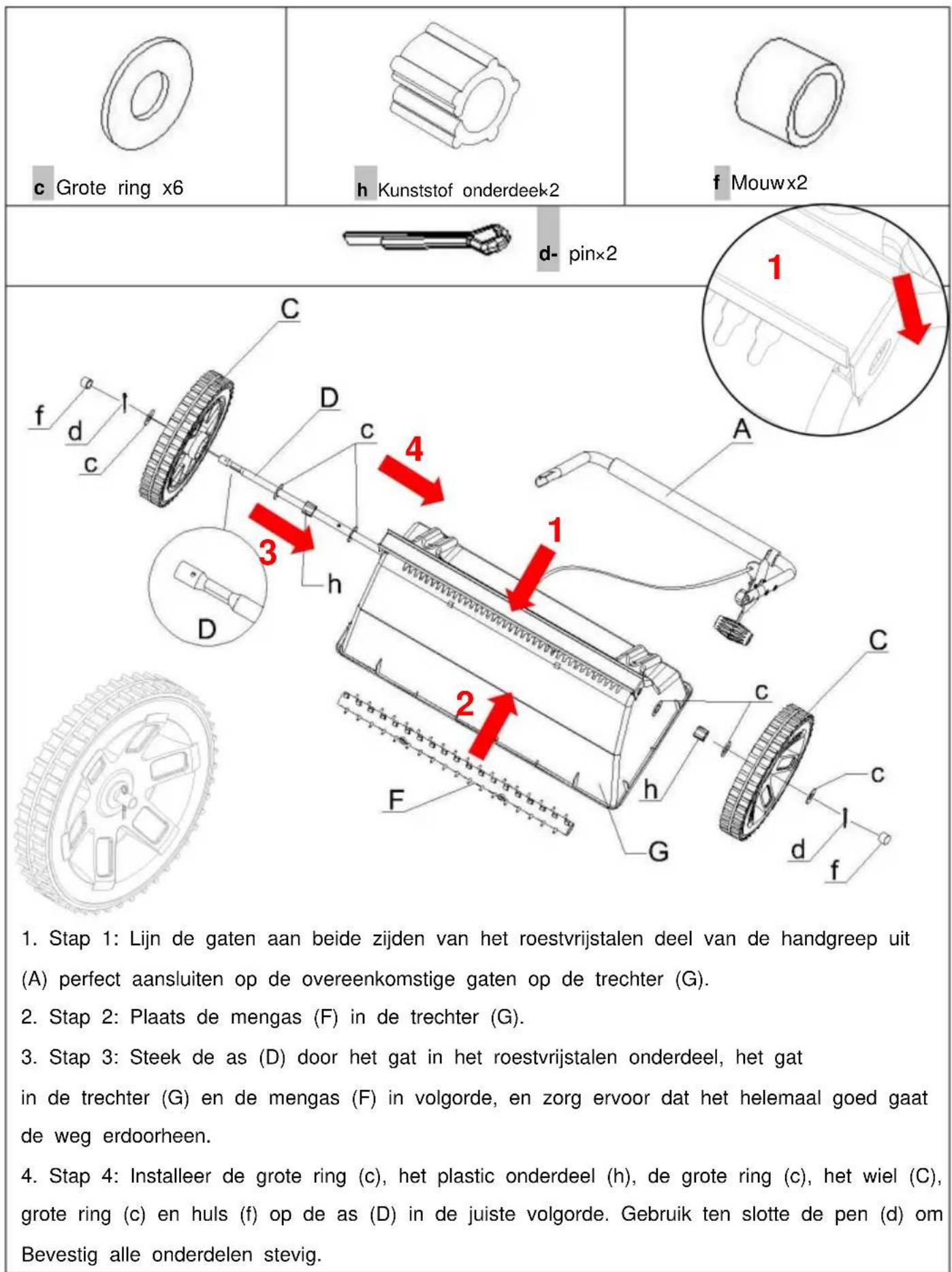

c Large washer x6 h Plastic part x2 f Sleeve x2 d Pin x2 1 C f d C D 3 h A D 2 h G C c d f 1. Step 1: Align the holes on both sides of the stainless - steel part o (A) perfectly with the corresponding holes on the hopper (G). 2. Step 2: Place the mixing shaft (F) inside the hopper (G). 3. Step 3: Pass the shaft (D) through the hole in the stainless - steel in the hopper (G), and the mixing shaft (F) in sequence, and make sur the way through. 4. Step 4: Install the large washer (c), plastic part (h), large washer (c) large washer (c), and sleeve (f) on the shaft (D) in order. Finally, use firmly secure all the components.

Pure line drawing of a bent pipe or conduit without any text, numbers, or symbols

E Support frame x1

Technical line drawing of a mechanical component with a cylindrical pin and flanged housing (no text or symbols)

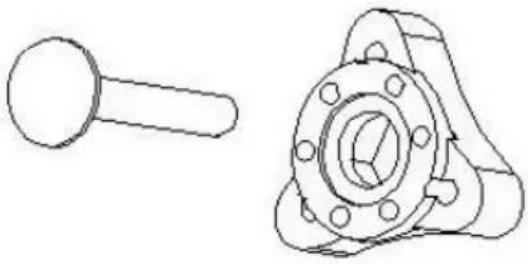

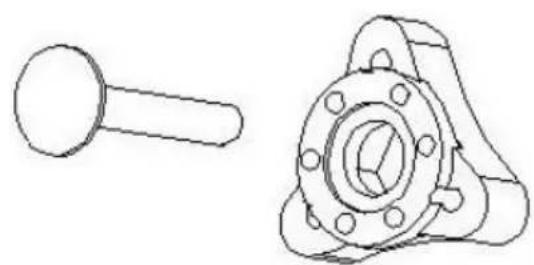

b Plastic knob+screw ×4

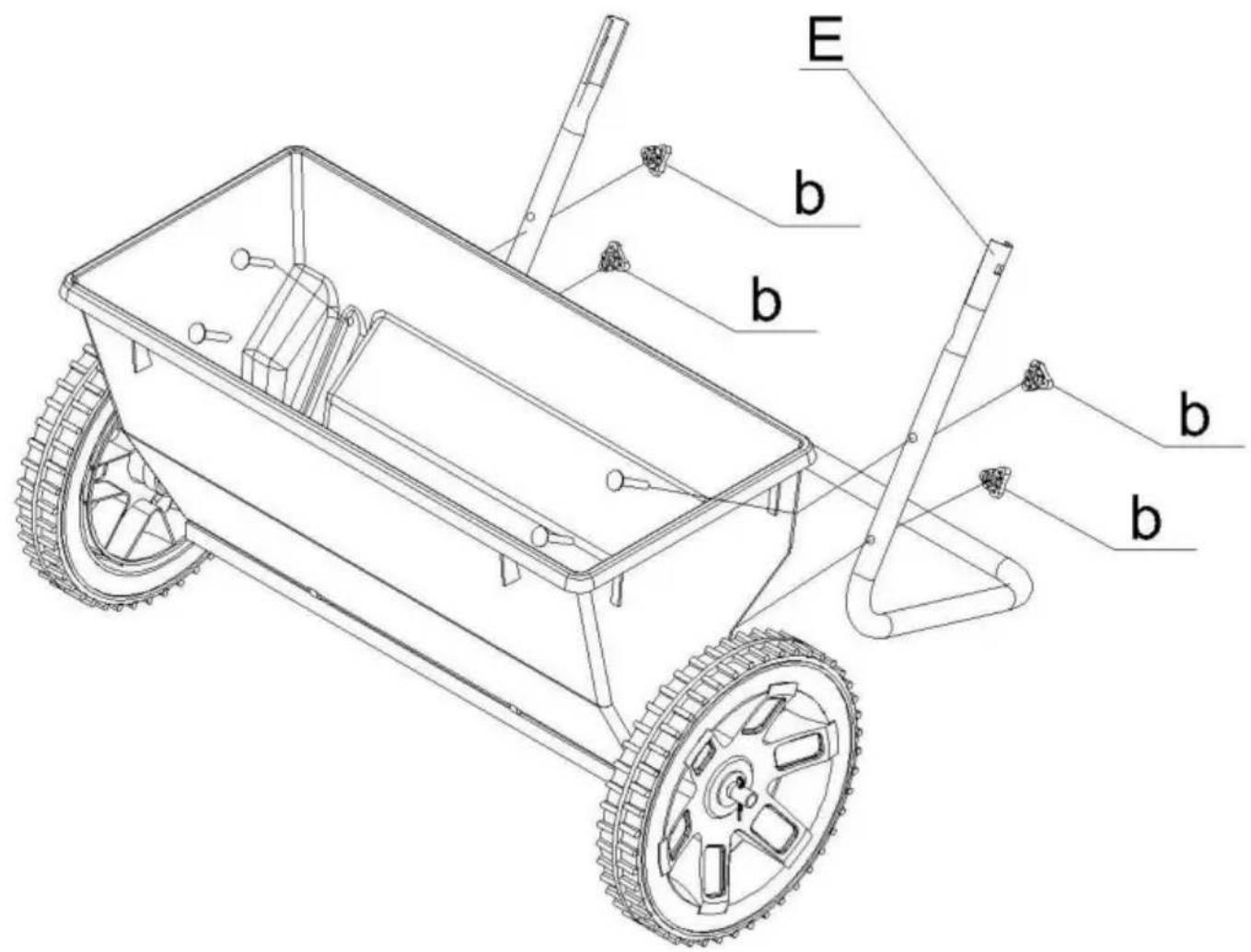

E b b b b b

Fix the support frame (E) to the hopper (G) using plastic knobs+screws

B Square tube x1	a Plastic knob+screw ×4

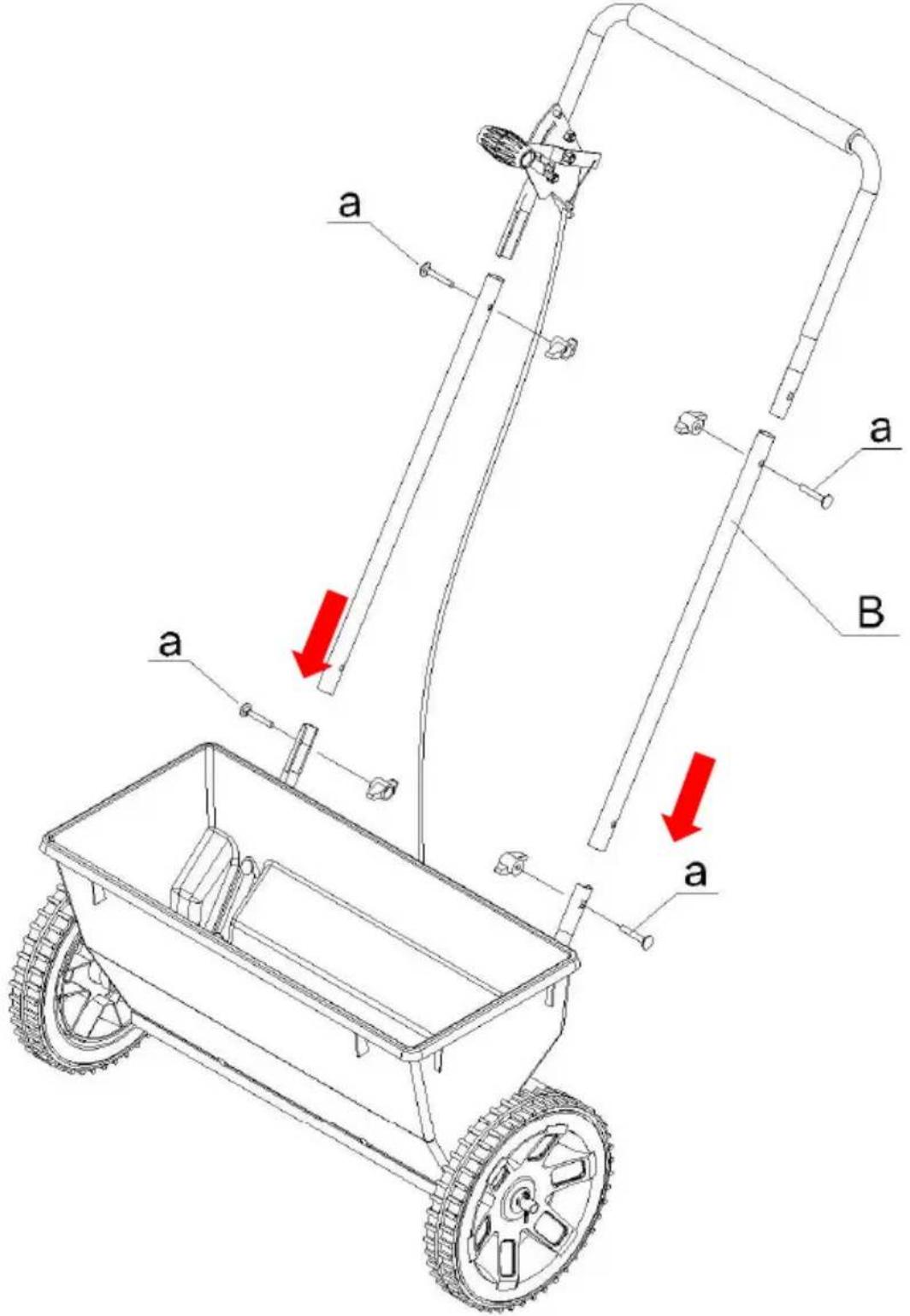

Fix the square tube (B) and the handle (A) to the hopper (G) with Pla screws (a x 4).

e Screw M4*30 ×2

Technical diagram of a lawn mower with labeled parts and exploded view, showing mechanical components and assembly details.

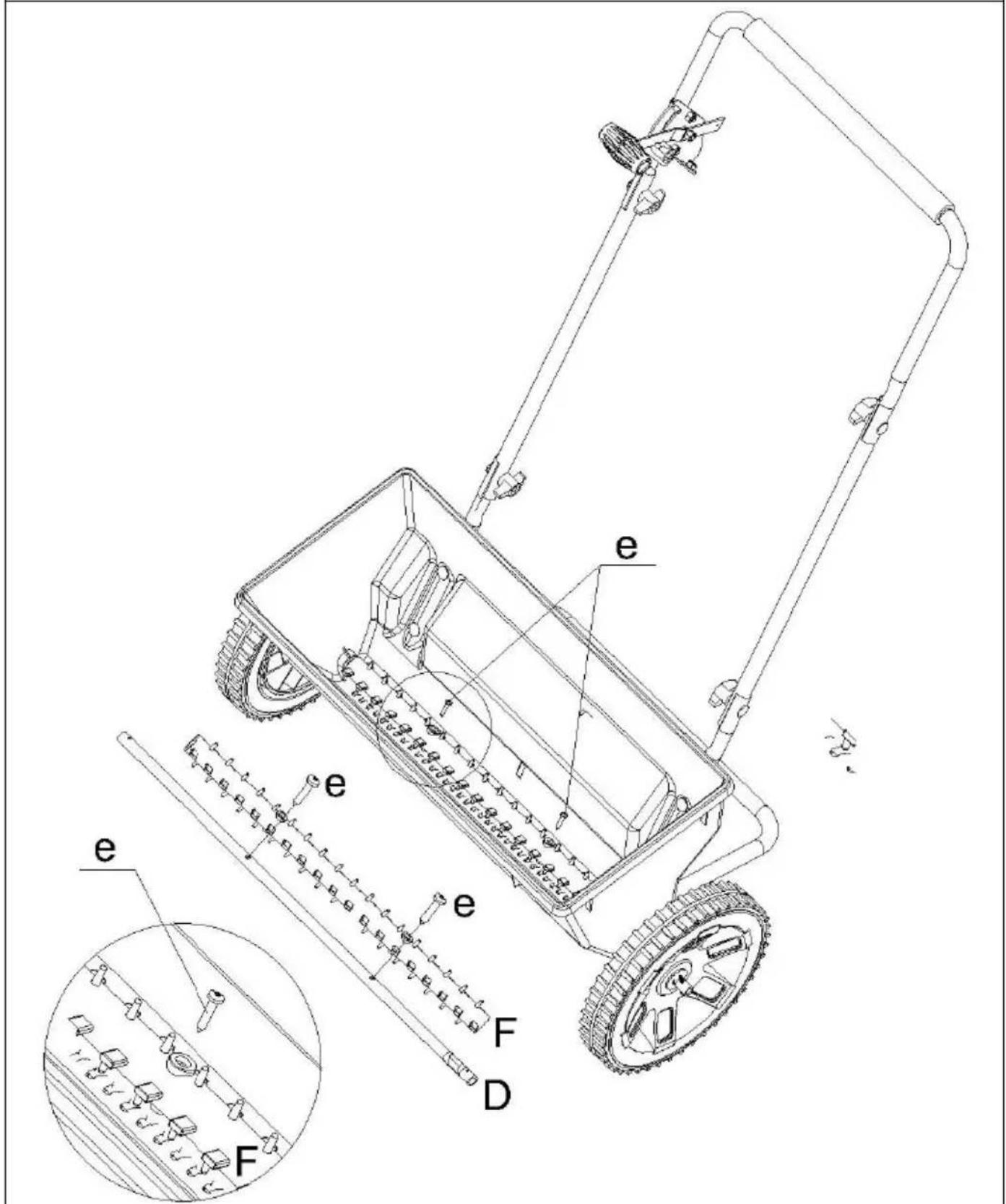

Rotate the wheel so that the holes of the shaft (D) and the mixing shaft and then lock them with screws (e x 2).

A

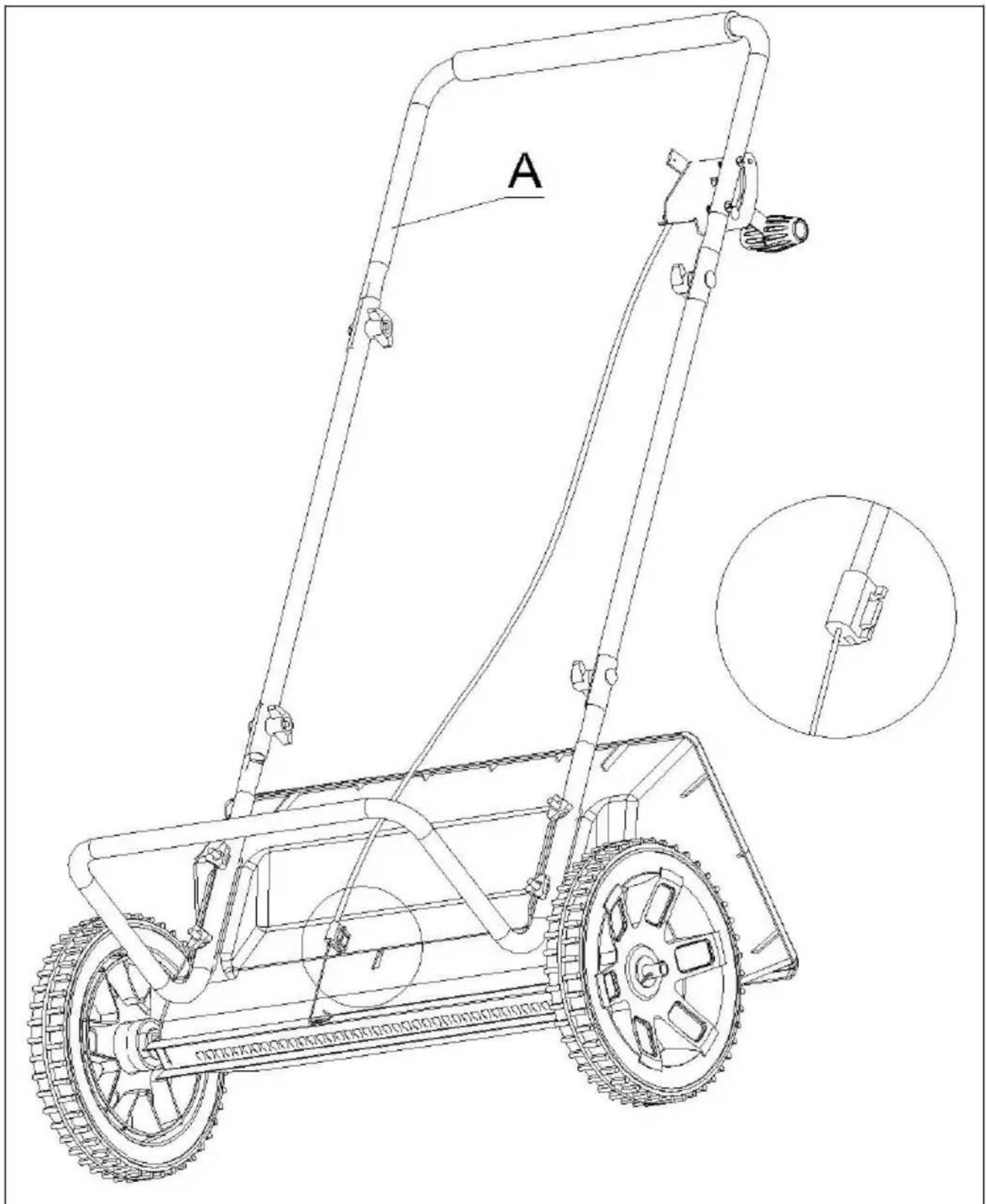

Insert the buckle of the wiring harness into the hole of the hopp which can prevent the wiring harness from falling off.

g R-shape pin ×1

Technical diagram of a manual lawn mower with labeled parts and close-up insets showing gear alignment.

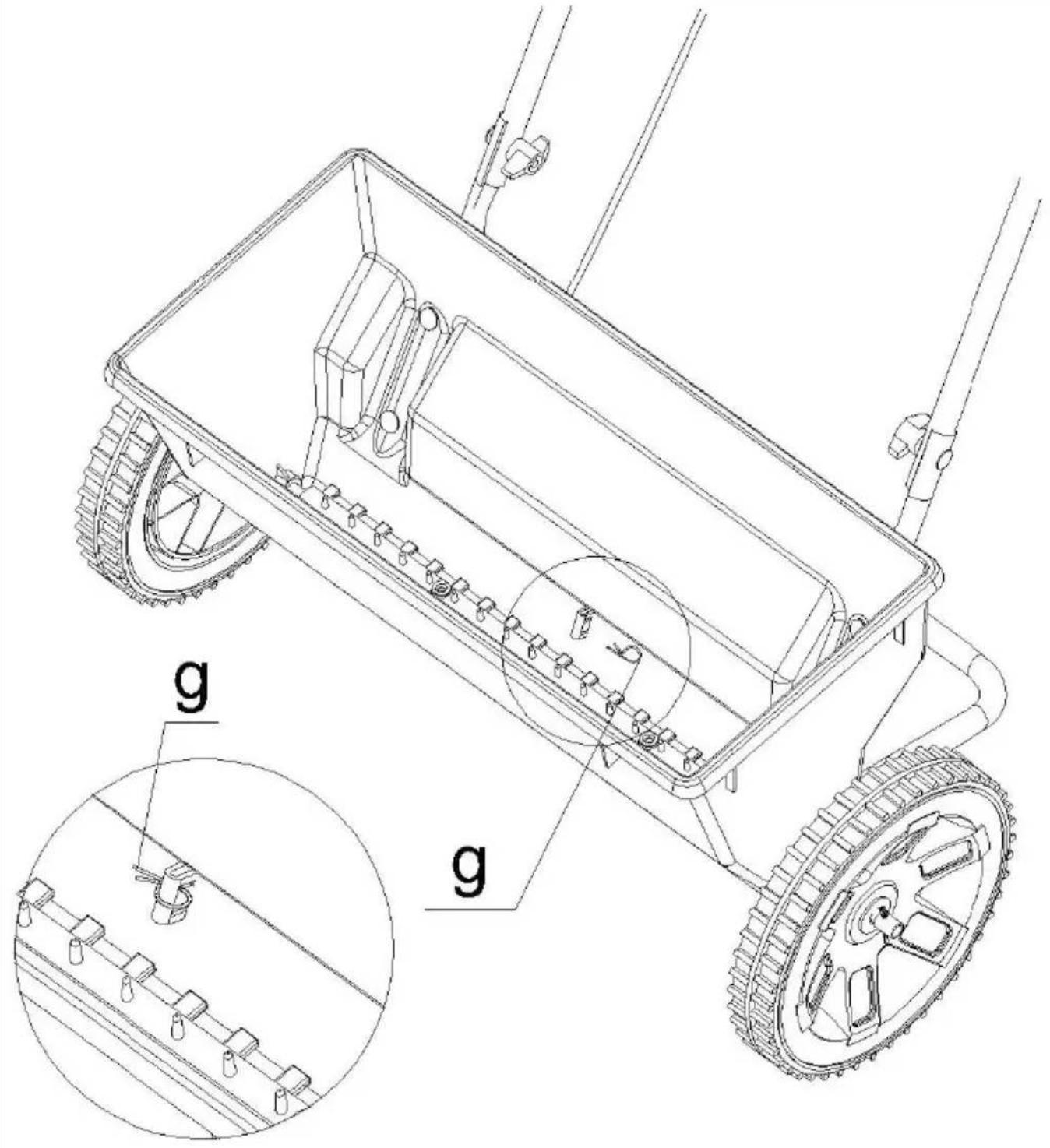

Insert the R-shaped pin (g) into the buckle part of the wiring ha prevent the buckle from falling off.

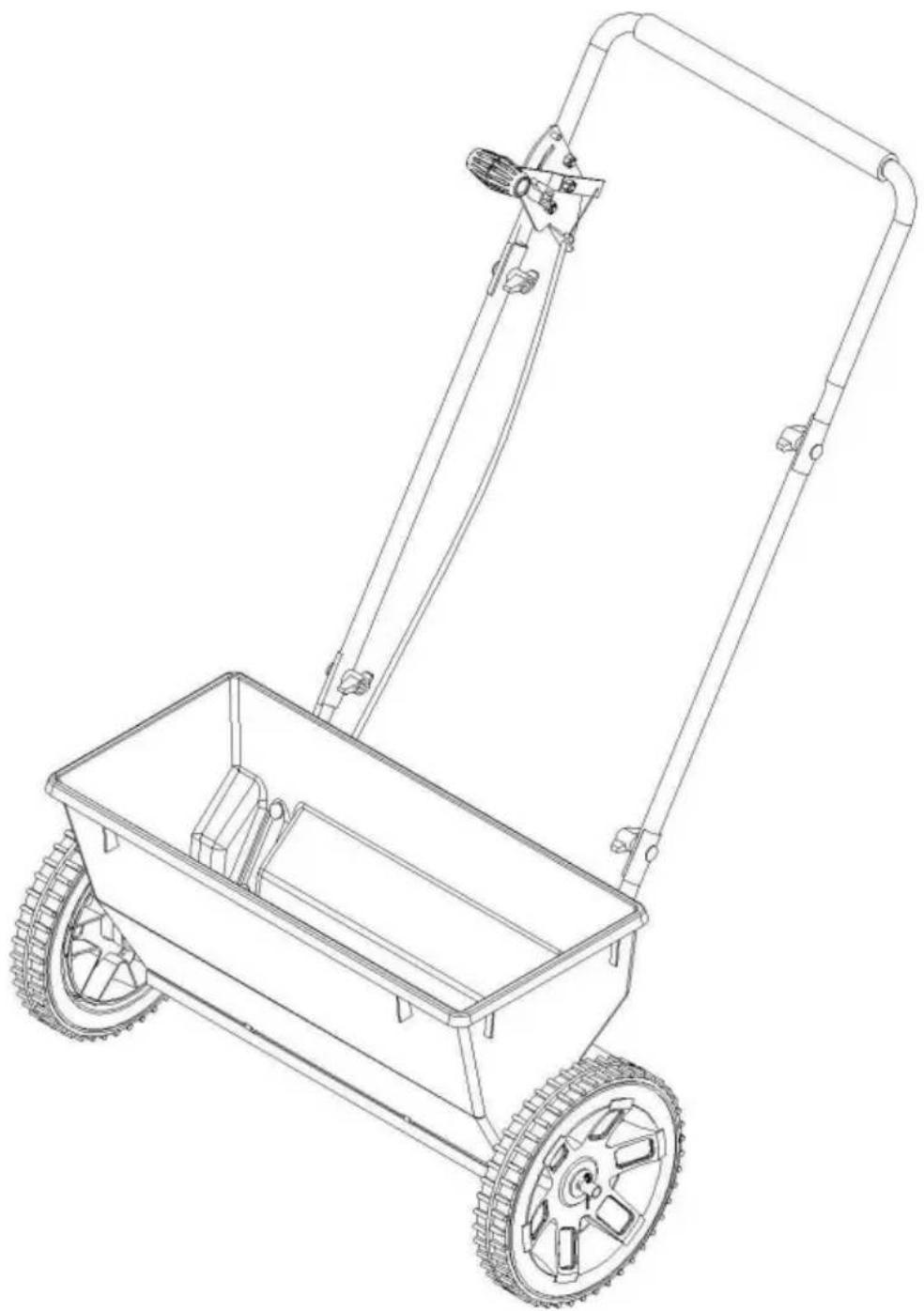

Line drawing of a manual pushrower with two wheels and handle (no text or symbols)

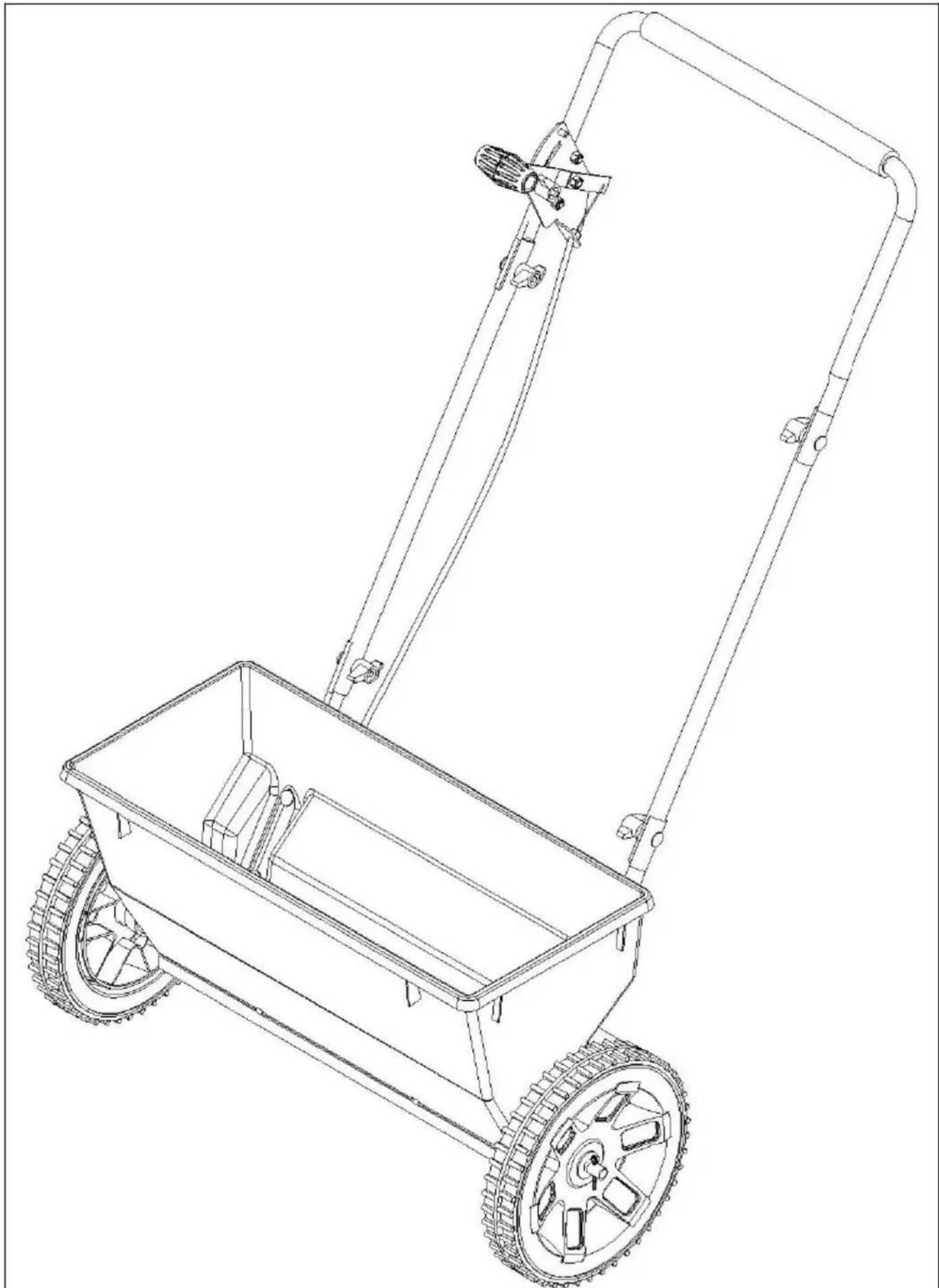

The assembly is completed.

Close ← Open 10 15 40 25 30

HOW TO USE THE SPREADER TROLLEY

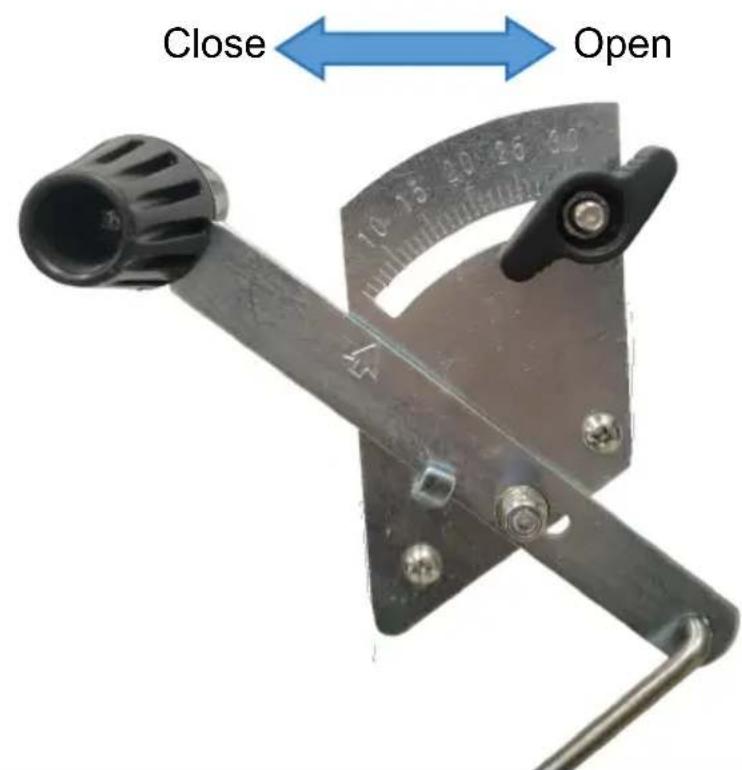

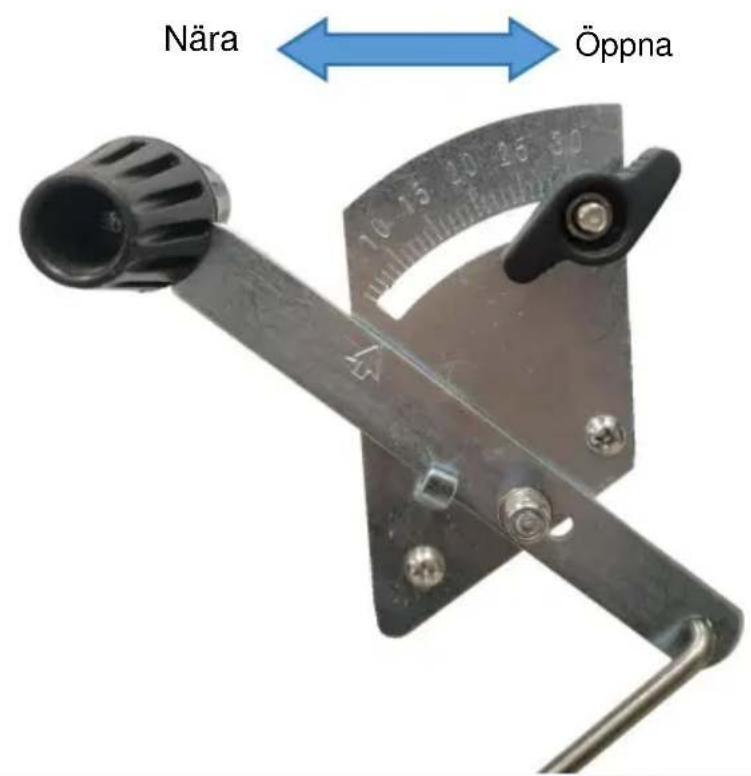

TO OPEN- Push the Control Level forward until it stops against TO CLOSE- Pull the control Lever fully back toward Operator.

Follow the instructions provided by the manufacturer of the spread material.

NOTE: Make sure that the spreading material is evenly distributed spreading material must be dry.

1. Before feeding in the spreading material, set the dispensing le OFF position (dispensing flap closed).

2. Fill the spreader trolley hopper.

3. To adjust the volume of spread, set the dispensing lever to the position.

4. In order to spread or scatter the material, drive the spreader even speed (the higher the speed, the greater the scattering distance).

5. Close the dispensing flap as soon as you stop the spreader (dispensing lever in OFF position).

PRODUCT PARAMETER

Model	TC2032B
Safe Loading Weight	50lb(22.6kg)
Colour	Black
Spreading width	18.1in/46cm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
