USER MANUAL TC2029A Vevor

Affordable. Reliable. Home Improvement.

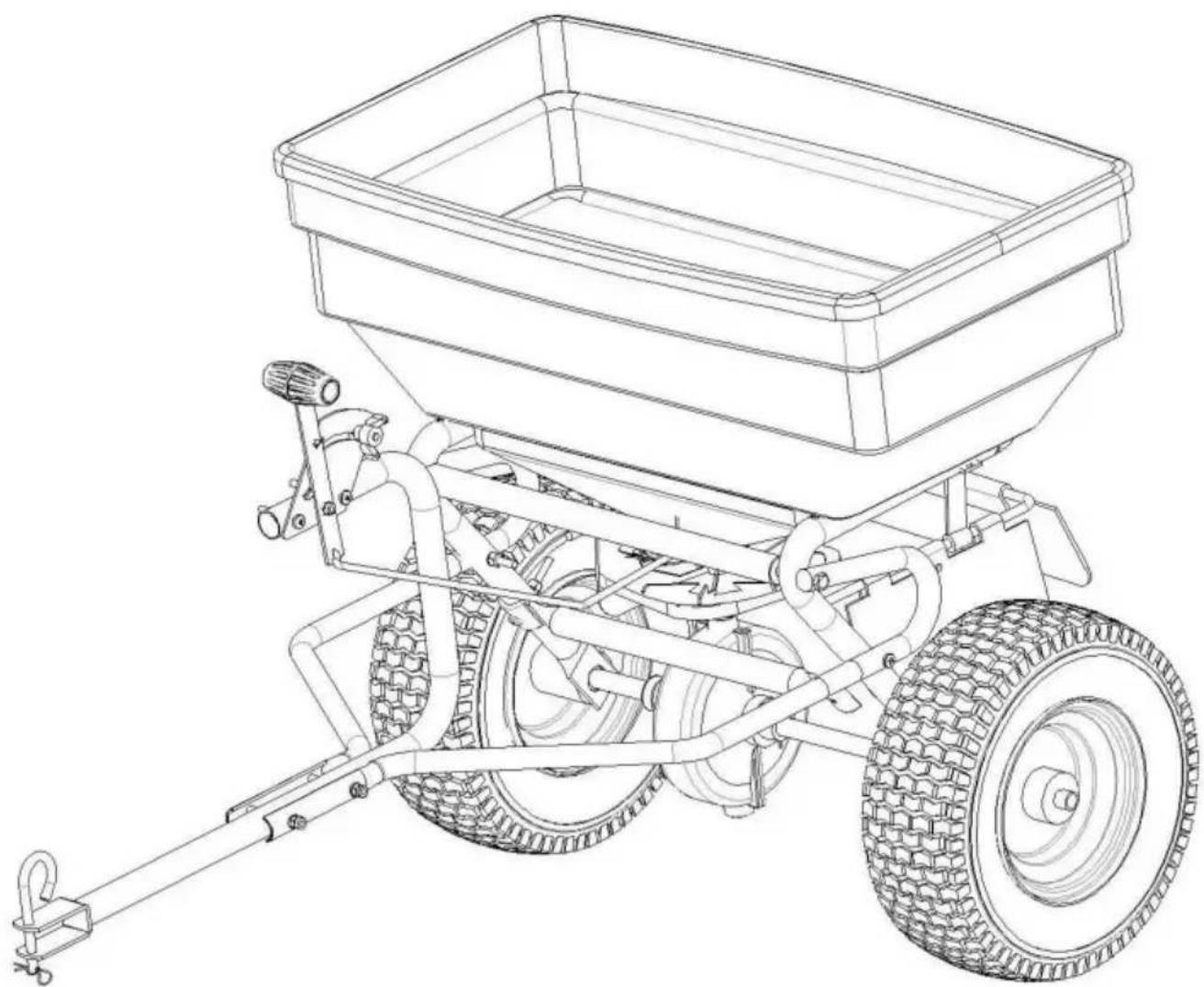

BEHIND SPREADER

MODEL:TC2029A

MODEL:TC2029A

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the produ received. Please forgive us that we won't inform you again if there a technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so can result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the behind spreader.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or in item.
3. Do not exceed specified weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damag

SAVE THIS MANUAL

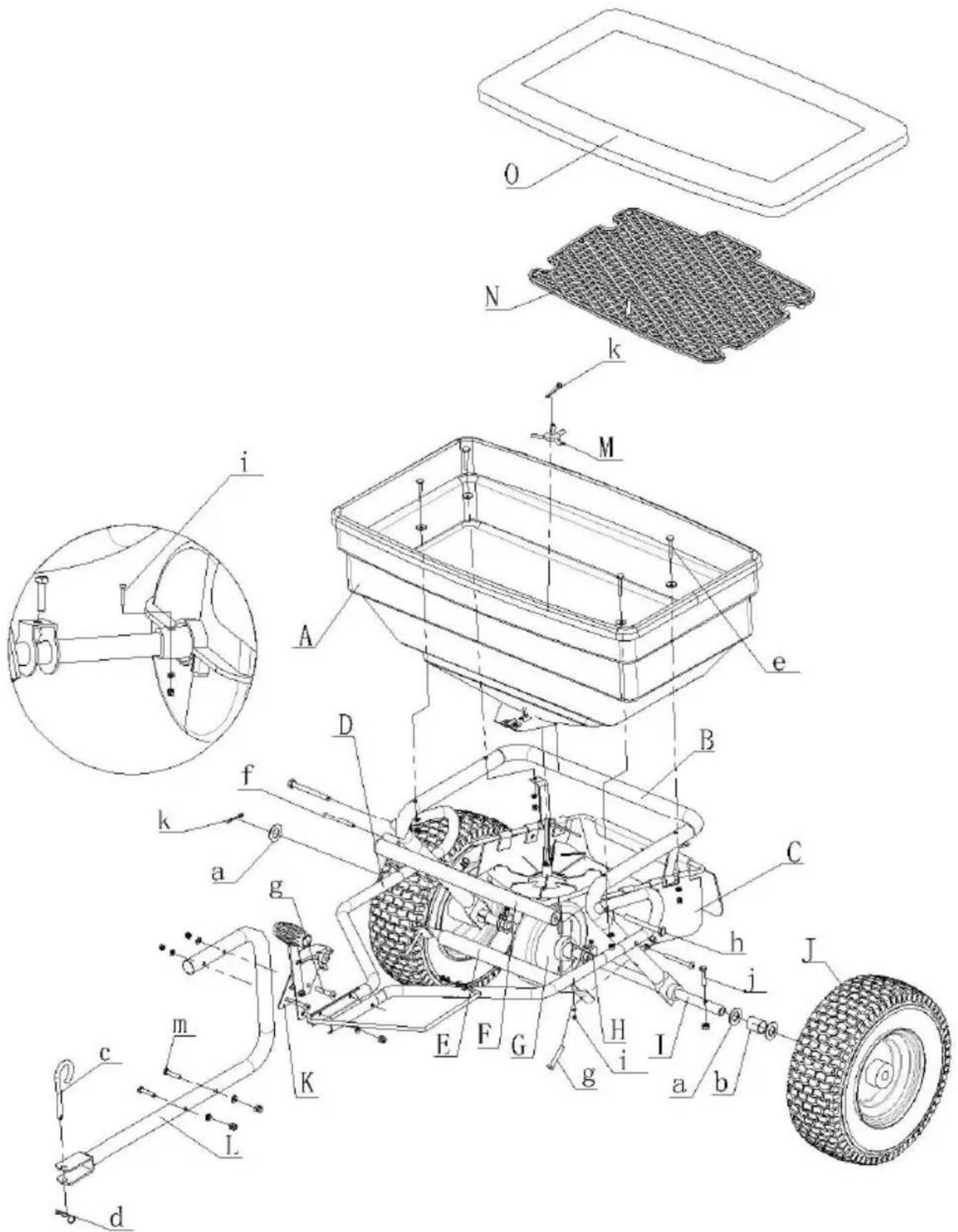

PARTS LIST

A	Hopper x1	B	Supporting rod x1
C	Blocking plate x1	D	Left and Right Bracket x1
E	Reinforcing rod x1	F	Strut x1
G	Gearbox x1	H	Positioning part x2
I	Axis x1	J	Wheel x2
K	Gear position adjuster x1	L	Tow Bar
M	Rotating head x1	N	Poly Filter Mesh x1
O	Transparent cover x1
a	Large washer x5	b	Sleeve x2
c	Pin axle x1	d	R-shape pin x1
e	Screw M6*40 x4	f	Screw M6*60 x2
g	Screw M6*40 x4	h	Screw M8*80 x2
i	Screw M3*30 x1	j	Screw M6*50 x1
k	Pin x2	m	Screw M6*60 x2

ASSEMBLY STEP

A x1	B x1	C x1
e Screw M6*40x4
1. Place the hopper (A) on the ground with the opening facing 2. Place the supporting rod (B) on the hopper (A) in the direction the figure. 3. First, fix the supporting rod (B) with two screws (e x2). 4. Place the mounting feet of the blocking plate (C) on the supp (B) and lock them with two screws (e x2).

D x1	F x1
f x2	h x2

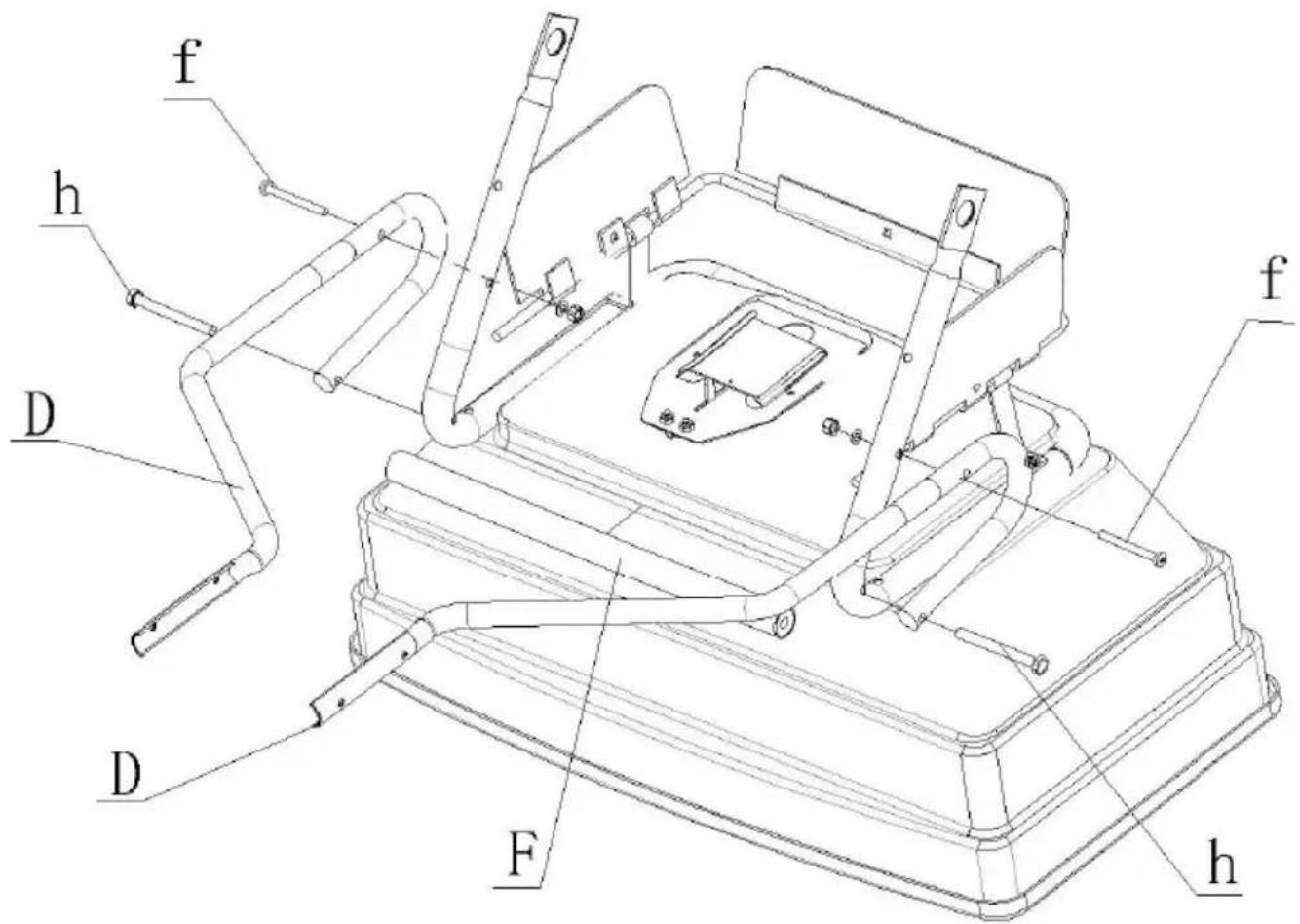

Assemble the left and right bracket (D) with the supporting rod (fasten them with screws (h x2) and screws (f x2) respectively. Pay attention to the orientation of the left and right bracket

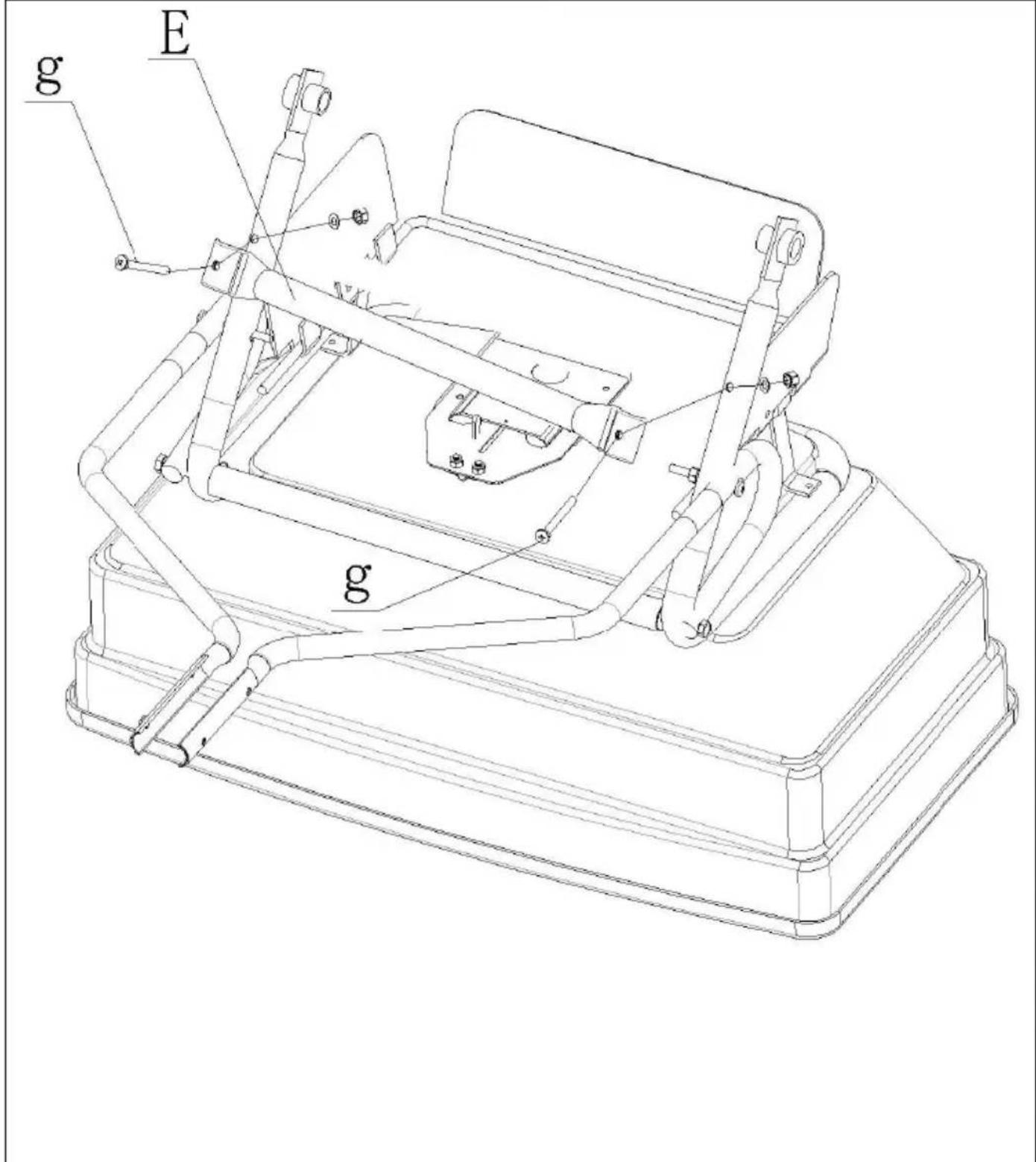

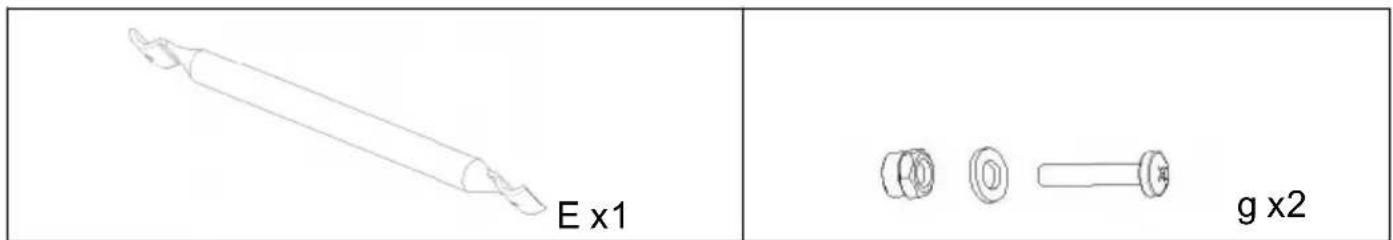

Install the reinforcing rod (E) on the supporting rod (B) and lock screw (g x2).

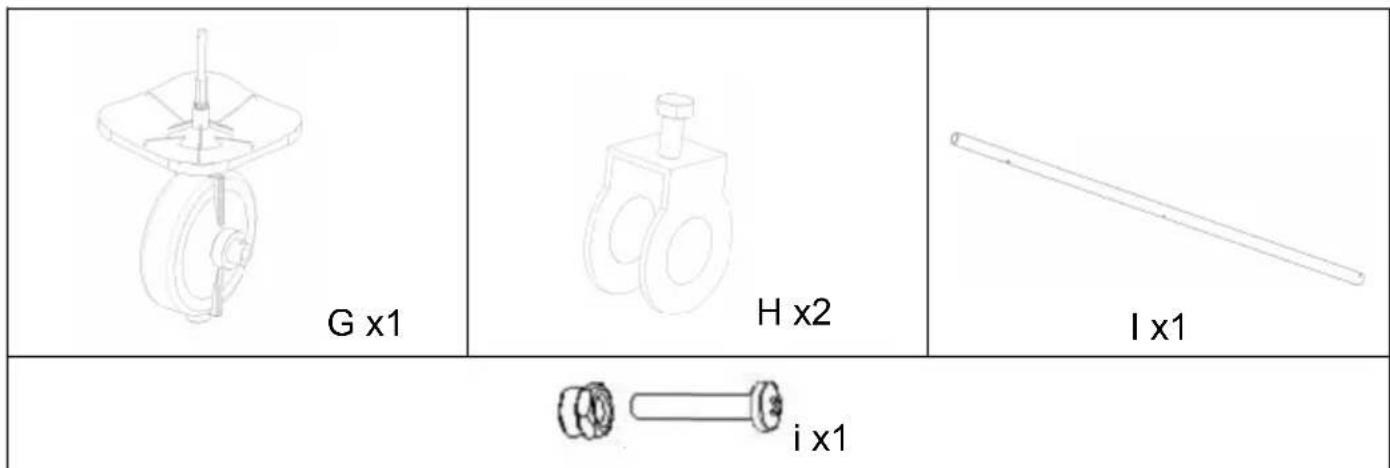

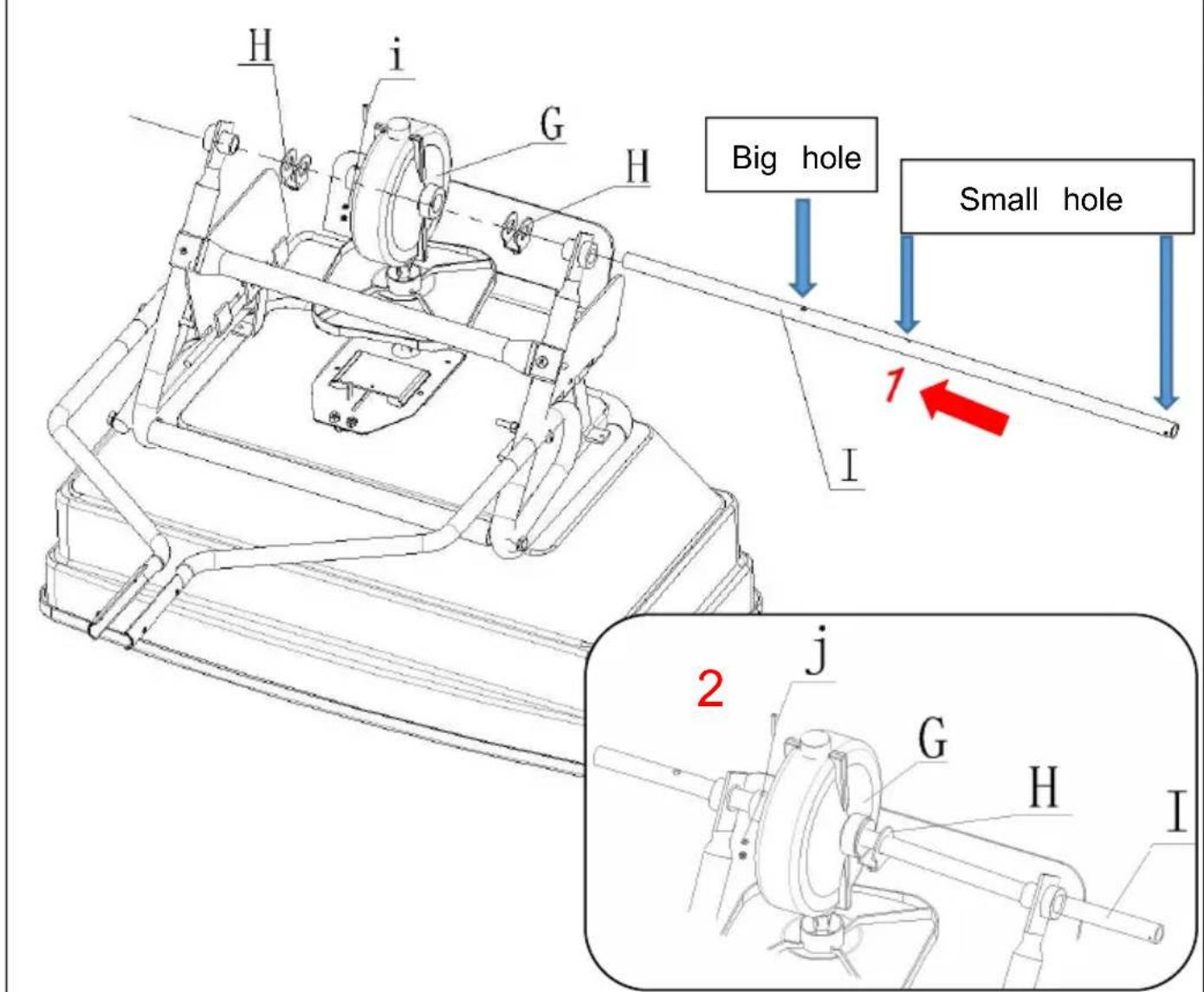

1. Determine the orientation of the axle(I) according to the marked hole in the above picture. Then, pass the axle(I) through the bracket(B) in the of the arrow. Next, install the positioning part(H) and the gearbox(G), and install another positioning part(H) and the bracket(B) onto the axle.
2. Secure the axle(I) and the gearbox(G) with an M3×30 screw(j) as shown detailed drawing.

J x1	a x5	b x2	j x1
k x1
1. On the left side, place a large washer (a), a sleeve (b), another large (a), and a wheel (J) in sequence, and then fix them with an M6*50 sc 2. On the right side, place a large washer (a), a sleeve (b), a large wide wheel (J), and a large washer (a) in sequence, and then fix them with Note: The inflation valve should face outward.

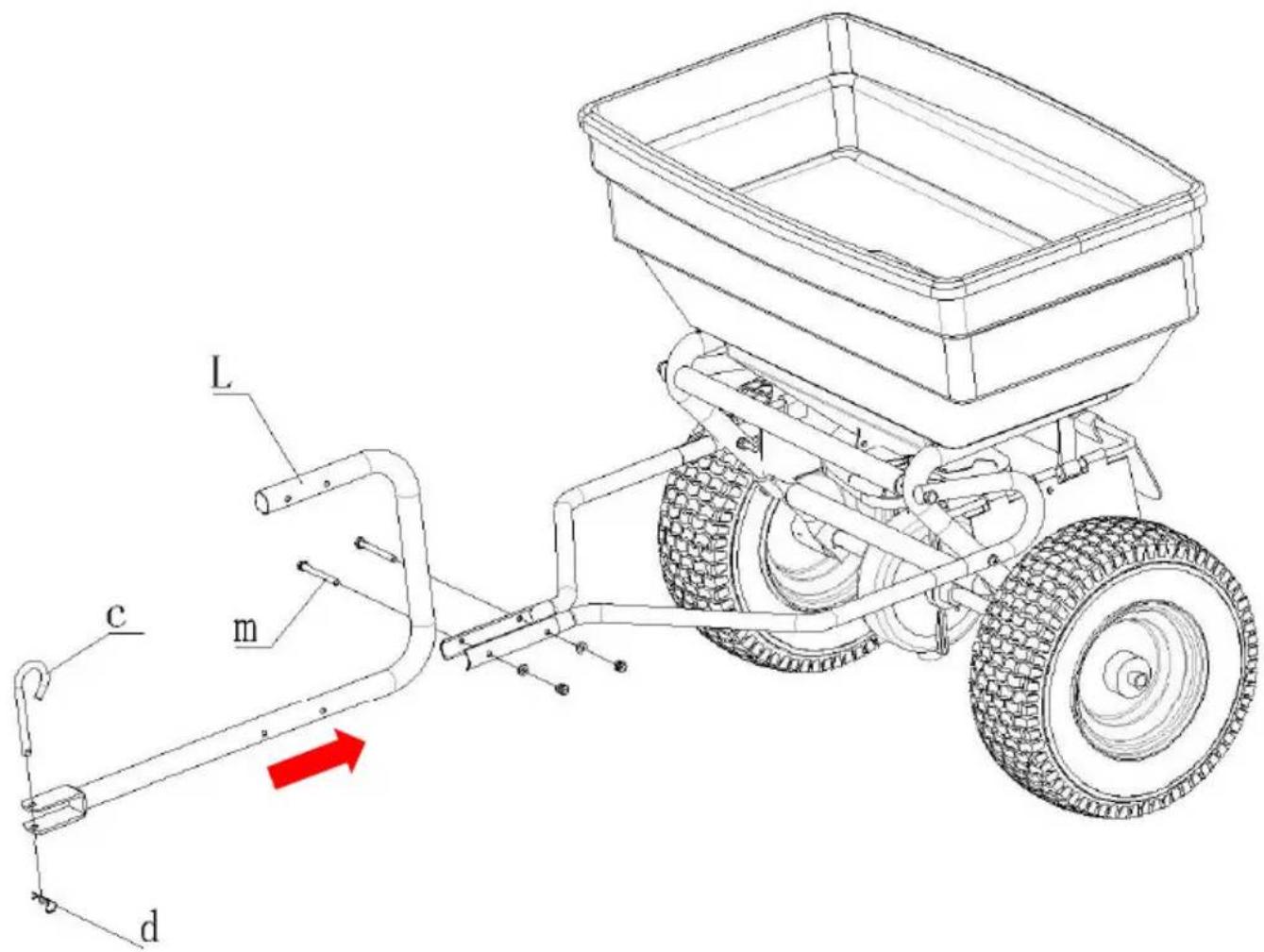

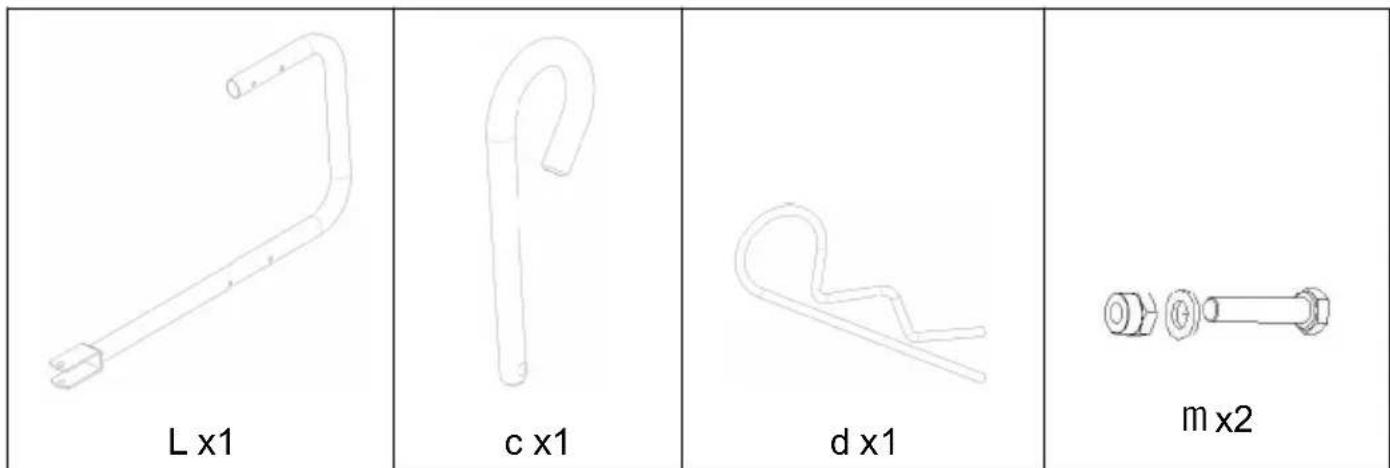

1. Install the tow bar (L) onto the Left and Right Bracket (D), and fast M6*60 screws (m).
2. Insert the pin axle (c) and the R - shaped pin (d) into the holes at tow bar (L).

M×1

k×1

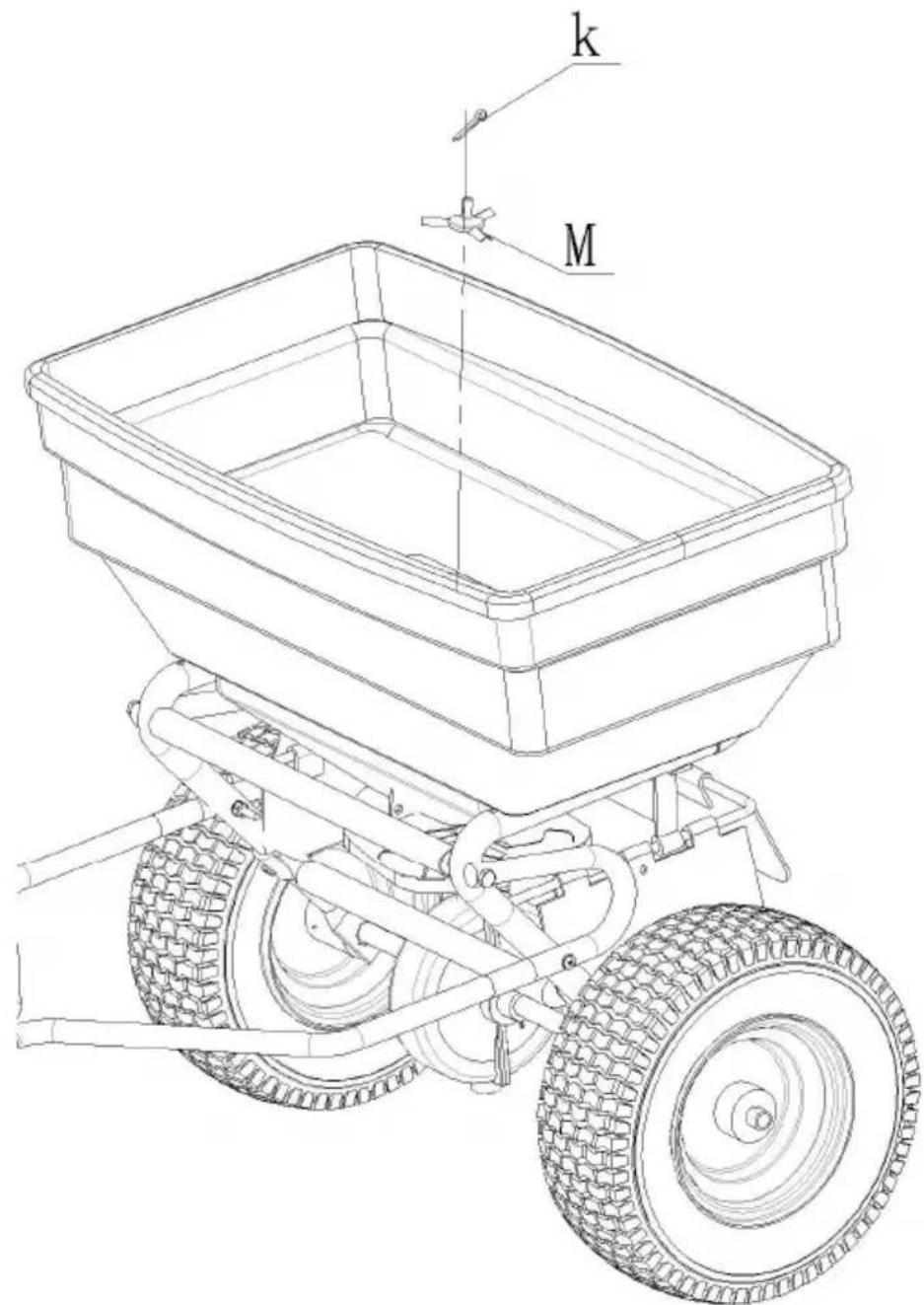

Install the rotating head (M) inside the hopper (A) and fix it with the p

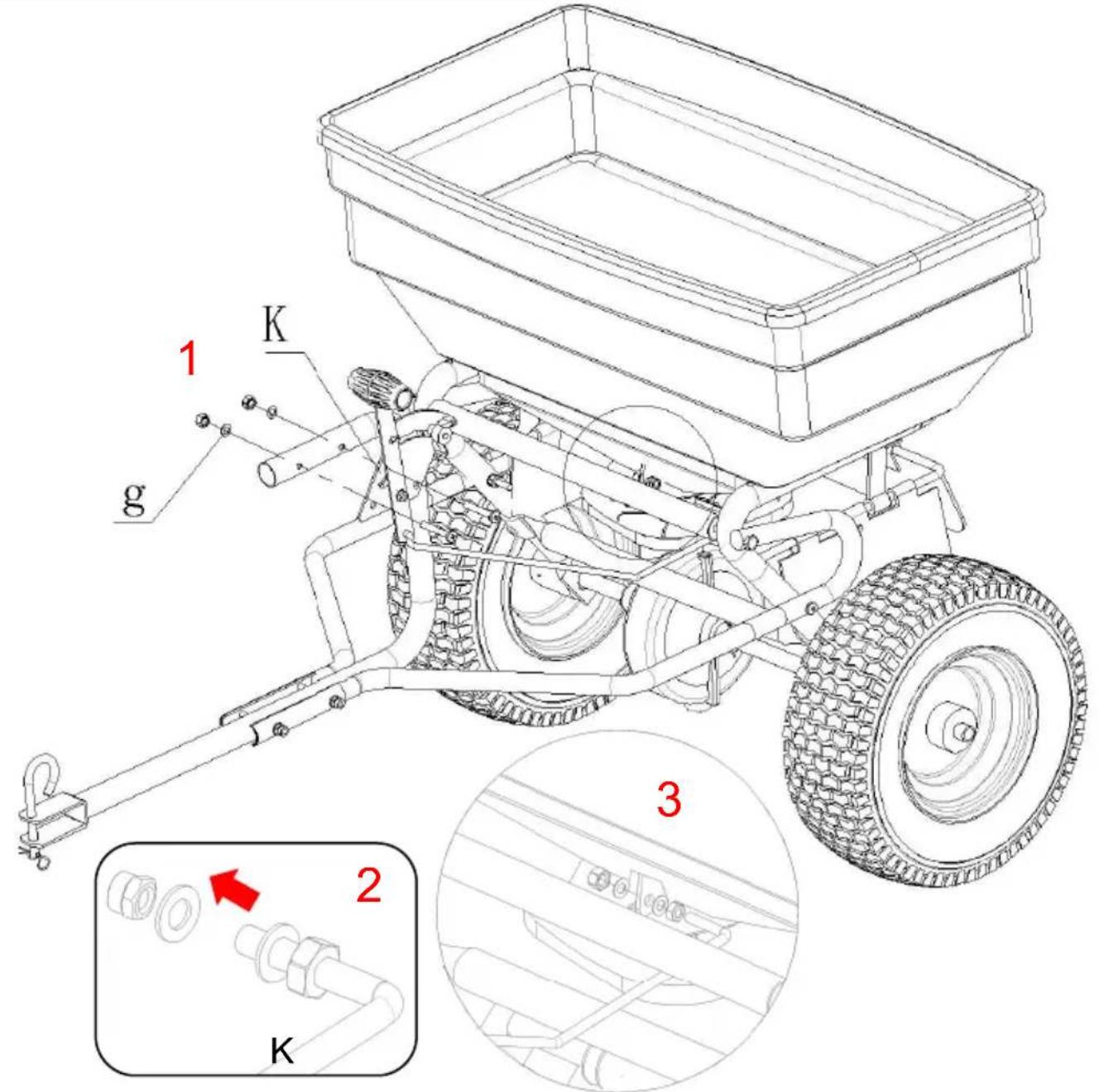

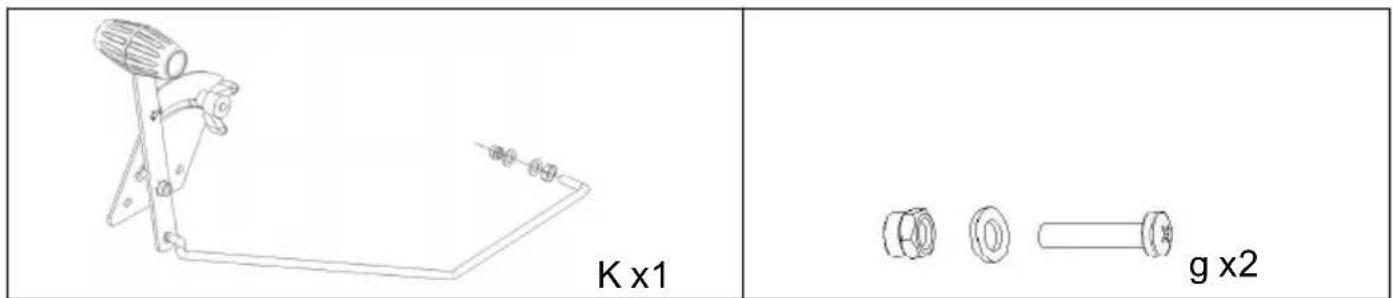

1. Install the gear position adjuster (K) onto the tow bar (L), and faster M6*40 screws (g).
2. First, remove one screw and one washer from the gear position adjustments pre-assembled with two screws and two washers).
3. Insert the end of the gear position adjuster (K) into the adjuster of t (A), and then fasten it with the removed screw and washer.

Nx1

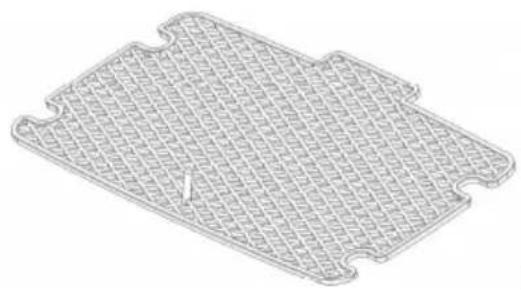

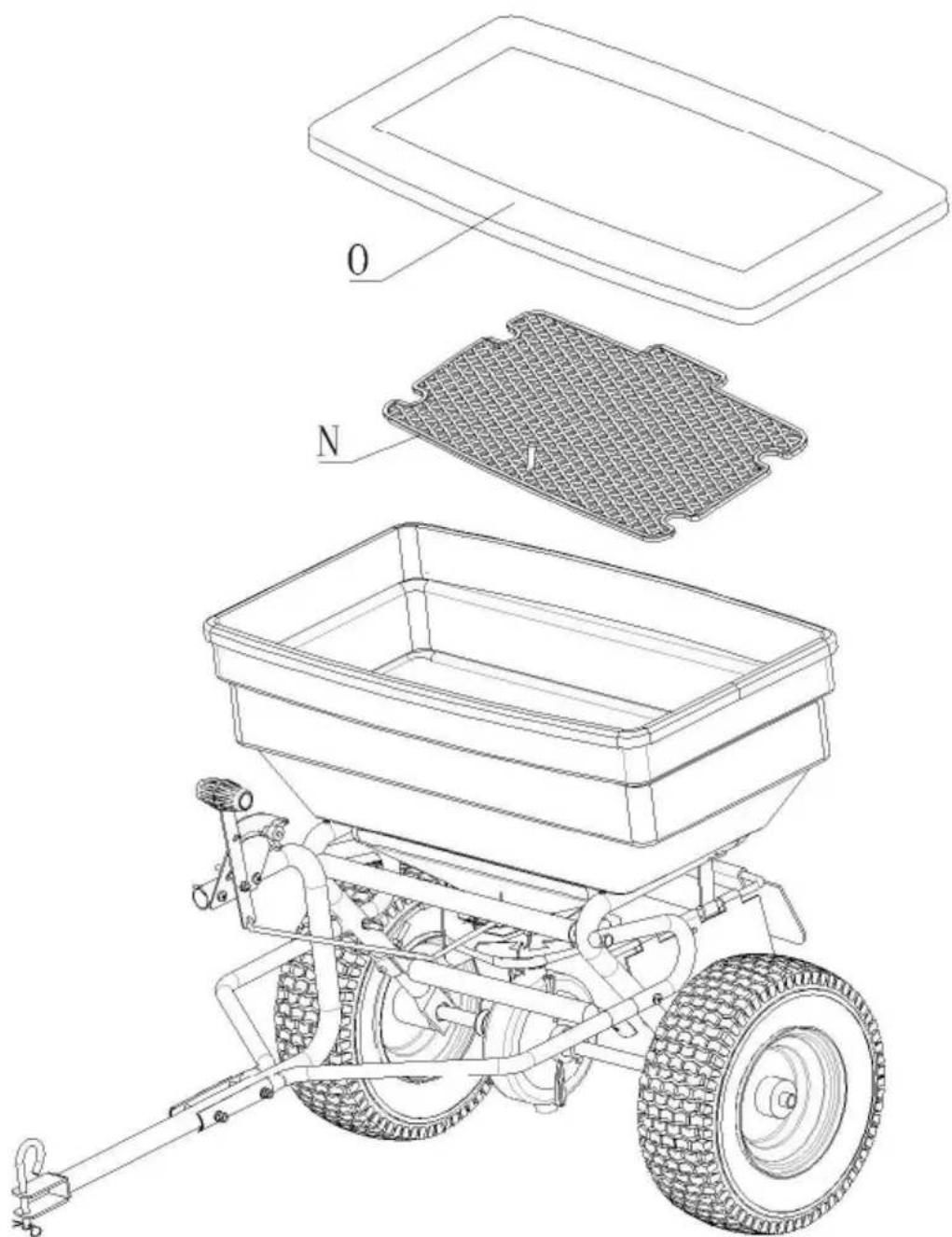

1. Install the polyester filter mesh (N) inside the hopper (A) to serve as
2. Put the transparent cover (O) over the hopper (A) to protect the mat the hopper.
3. The assembly is completed.

HOW TO USE THE SPREADER TROLLEY

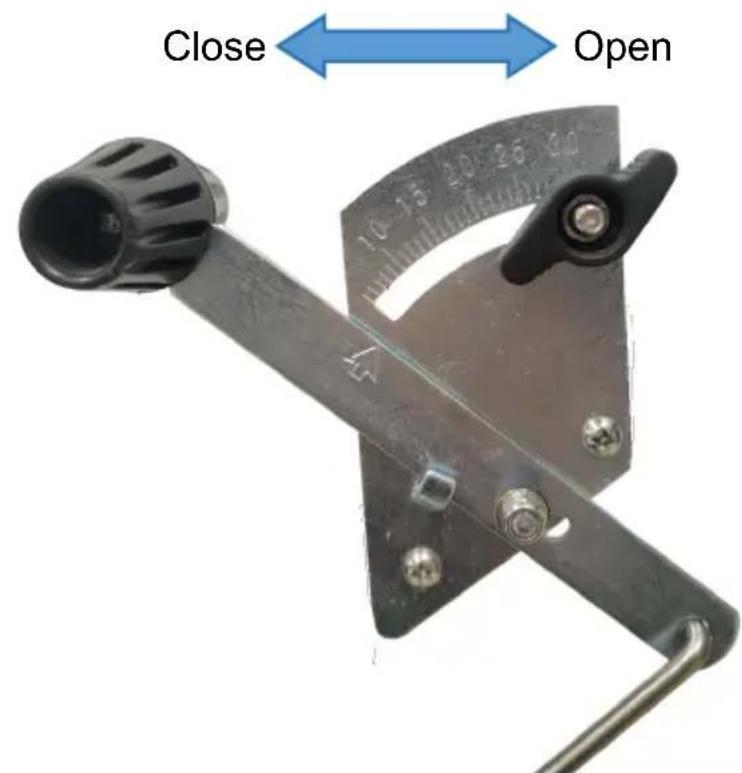

TO OPEN- Push the Control Level forward until it stops against TO CLOSE- Pull the control Lever fully back toward Operator. Follow the instructions provided by the manufacturer of the spread material.

NOTE: Make sure that the spreading material is evenly distributed, spreading material must be dry.

1. Before feeding in the spreading material, set the dispensing lever OFF position (dispensing flap closed).
2. Fill the spreader trolley hopper.
3. To adjust the volume of spread, set the dispensing lever to the position.
4. In order to spread or scatter the material, drive the spreader even speed (the higher the speed, the greater the scattering distance)

5. Close the dispensing flap as soon as you stop the spreader (dispensing lever in OFF position).

6. Determine approximate square footage of area to be covered and estimate amount of material required.

7. Before filling the hopper, make sure the flow control arm is in the off position and the closure plate is shut.
8. Break up any lumpy fertilizer as you fill the hopper.
9. Set the adjustable stop with the flow control arm still in the off position. the application chart on this page and to the instructions on the fertilizer bag select the proper flow rate setting.
10. The application chart is calculated for light to heavy application at a vehicle speed of 3 mph, or 100 ft. in 23 seconds. A variation in speed will require adjustment of the flow rate to maintain the same coverage. The faster you c the wider the broadcast width.
11. Make sure the drive pin is in stalled in the axle before starting the spread
12. Always start the spreader in motion before opening closure plate.
13. Always shut the closure plate before turning or stopping the spreader.
14. If fertilizer is accidentally deposited too heavily in a small area, soak the thoroughly with a garden hose or sprinkler to prevent burning of the lawn.
15. To insure uniform coverage, make each pass so that the broadcast pattern slightly overlaps the pattern from the previous pass as shown in figure below. Approximate broadcast widths for different materials are shown in the application chart on this page.
16. When broadcasting weed control fertilizers, make sure the broadcast pattern does not hit evergreen trees, flowers or shrubs.

PRODUCT SPREADER SETTINGS

CAUTION

These are approximate settings and are intended as a guide only. Variations in materials, walking speed, terrain, weather conditions, condition of spreader, etc. can affect setting. If unsure, start at a setting and increase if necessary. Always calibrate your spreader using.

GRASS SEEDS	OVERSEEDING	NEW LAWNS
Black Beauty (Original)	14	Apply a
Black Beauty Ultra	13
Dense Shade	14	second
Fall Magic	14	time to the
Fast Grow	13
Full Sun (Sunny)	12	same area
Heavy Traffic	13	using the
Quik-Start	12
Shady Nooks	14	rates listed
Sun & Shade	12
Sod Maker	9	on left.
Touch-Up	14

SOIL FOODS
Love Your Soil	12
MAG-I-CAL - Acidic (silver)	12
MAG-I-CAL - Alkaline (blue)	14

ORGANICS
Organic Lawn Food	17
Organic Weed Preventer	12
Organic Insect Control	10
LAWN FOODS
Green-Up with Crabgrass Preventer	15
Green-Up Weed & Feed	14
Summer Survival Lawn Food	14
Winter Survival Fall Lawn Food	12
Crabgrass Preventer plus New Seeding	12
Green-Up Lawn Food	15
Green-Up Lawn Food for Seeding and Sodding	12
LAWN CONTROLS
Crabgrass & Weed Preventer	11
Grub & Insect Control	10
Lawn Fungus Control	10
Lawn Moss Control	13
Lawn Weed Control	11

USAGE TIPS

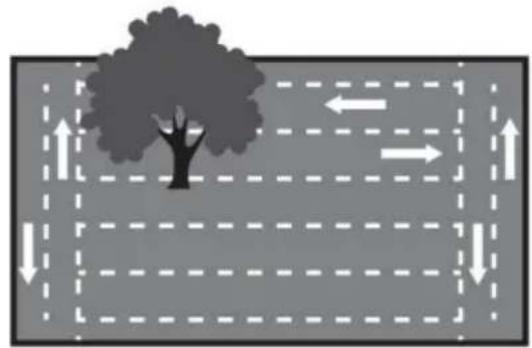

For rectangular lawns

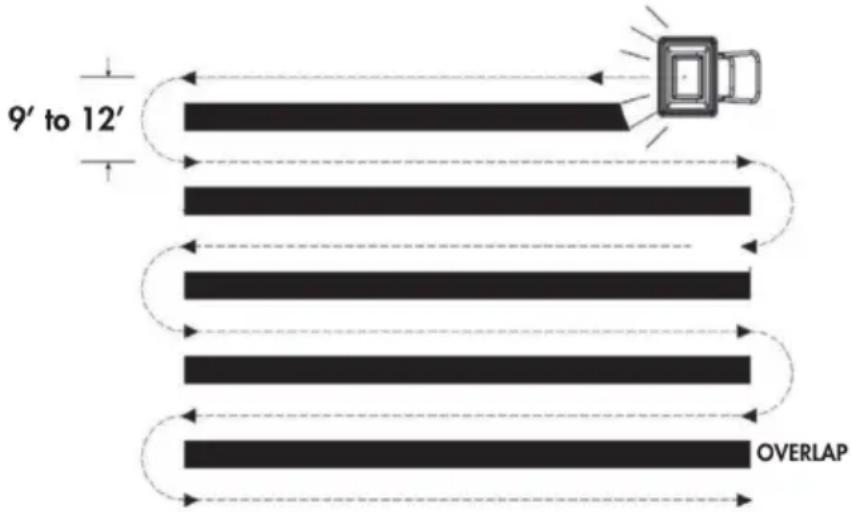

Apply two header strips across each end for a turning area. Then apply back and forth in the longest direction.

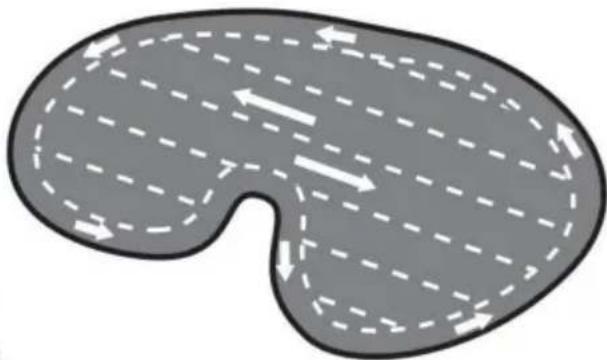

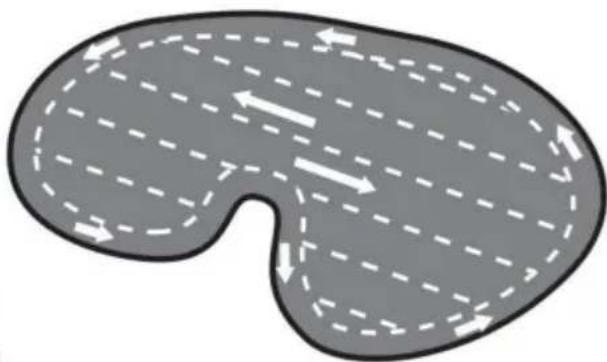

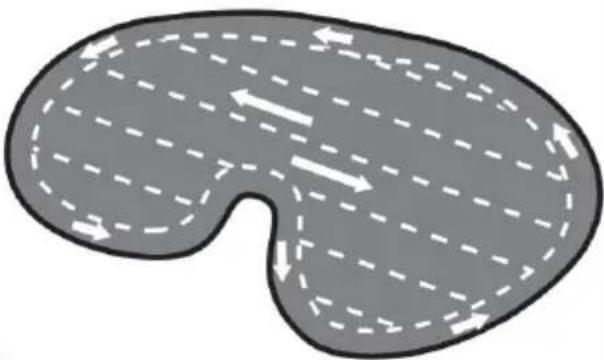

For irregular-shaped lawns

Apply a header strip around the entire lawn for a turning area, then apply back and forth.

Note:

Each pass should be within 5 feet of each other to ensure an overlap.

• Do not leave spreader open when making turns.
• For best results, do not apply on a windy day.
• Swath will vary due to conditions. (see above caution)

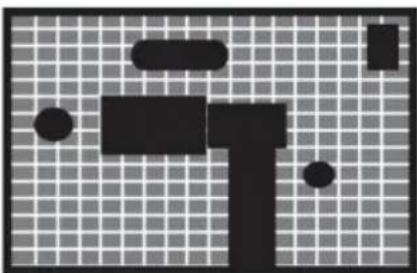

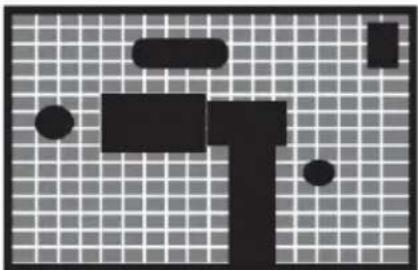

• To determine how much coverage you need, multiply the length of your lawn by its width. This equals your total square footage. Deduct any non-lawn areas (house, gardens, walkways, etc.).

Length (Feet)

X Width (Feet)
Total Square Feet
Non-Lawn Areas (Feet)
= Total Square Feet coverage you need

Maintenance

• After each use clean material out of hopper.
• Rinse/dry inside and outside of the spreader after each use.
• Before operating make sure the tires have the RECOMMENDED TIRE PRESSURE 25 PSI.
• Periodically check all fasteners for tightness.
• Annually clean and lightly lubricate parts.
• Use a glossy enamel spray paint to touch up scratched or worn painted n surfaces.
• Never exceed load capacity rating, it will damage the spreader.

Important

The warnings, cautions, and instructions outlined in this instruction manual can cover all possible conditions or situations that may occur. It must be understood the operator that common sense and caution are factors which cannot be but this product and must be supplied by the operator.

Storage

• Never allow material to remain in the hopper for extended periods of time.
• Before storing make sure the spreader is clean and dry for years of troub service.
• Store indoors or protected area during severe weather and winter months.

PRODUCT PARAMETER

Model	TC2029A
Safe Loading Weight	130lbs (59kg)
Colour	Black
Spreading width	0-3m/0-9.8ft

(I) Missing or Damaged Parts

Problem Description: After opening the parts packaging, it is found that quantity of some parts is insufficient or there are obvious damages.

Solution: Immediately conduct a careful check against the parts list to o missing or damaged parts. Contact the VEVOR customer service, provide product model TC2029A and relevant part information, and apply for the replacement or reissue of the parts. During the waiting period for the ne not attempt to assemble with incomplete or damaged parts to avoid affect product performance and safety.

(II) Assembly Difficulties

Problem Description: When operating according to the assembly steps in instruction manual, situations such as difficult alignment of parts and inab screw in screws smoothly occur.

Solution: Check again whether the installation direction of the parts is c refer to the illustrations in the instruction manual, and ensure that each installed in the correct position. For the situation where it is difficult to s screws, check whether there are foreign objects blocking the threads. A be used to clean the threads. If the threads are damaged, contact the service in a timely manner to replace the corresponding parts. If it is di align due to part size deviation, do not force the assembly, but commun the customer service to obtain further guidance or replacement of parts. prepare installation videos. Please contact VEVOR customer service if you them.

USAGE PROBLEMS

(I)Uneven Spreading

Problem Description: When using the spreader, the materials are never distributed on the ground, with some areas having more and some areas less.

Solution: Check whether there is any caking phenomenon of the material hopper. If so, the caked materials need to be broken up before use. C whether the walking speed of the spreader is uniform. Try to keep a un speed, as changes in speed may affect the spreading effect. Check whe setting of the flow control arm of the spreader is appropriate. According of materials and the usage scenario, refer to the recommended values in spreading setting precautions of the product, and readjust the position of control arm.

(II) Spreading Width Does Not Meet Expectations

Problem Description: The actual spreading width does not conform to the specified in the instruction manual, being either too wide or too narrow.

Solution: Check the driving speed of the spreader. The faster the speed the spreading width. Adjust the driving speed to an appropriate range as Confirm whether the setting of the flow control arm is correct. An inapp setting may indirectly affect the spreading width. Readjust it according to correct setting method. If the components of the spreader are loose or may affect the spreading width. Carefully check each component of the Tighten any loose parts in a timely manner, and contact the customer s replace any damaged parts.

(III) The Spreader is Jammed or Cannot Be Pushed

Problem Description: During the use process, the spreader is jammed, push, or even cannot be pushed normally.

Solution: Check whether the tire pressure reaches the recommended value PSI. Insufficient air pressure will increase the pushing resistance. Inflate in standard air pressure in a timely manner. Check whether there are foreign wrapped around the wheels. If so, clean up the sundries wrapped around wheels. Check whether there is material accumulation inside the spreader blocking the components. Clean up the accumulated materials in the hopper other components. If the problem still exists, it may be a mechanical or failure, such as a damaged bearing, etc. Contact a professional maintenance personnel or VEVOR customer service for maintenance.
