USER MANUAL SSG-04 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a mechanical device with a circular component and mounting bracket (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject product you received. Please forgive us that we won't inform you again if there are any technology software updates on our product.

TIPS

Assembling this Score Arcade Game machine will take approximately 3 hours, it is recommended that operate it.

SAFETY INSTRUCTIONS

Thank you for using this product. Please read all of the instructions before using it. The information \ you achieve the best possible results.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious in

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
CE	Compliance is a EC security certification.
	CORRECT DISPOSALThis product is subject to the provision of european Directive 2012/19/EU. The symbol show wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be acollection point for recycling electrical and electronic devices.
FC	FCC Information:CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:1) This product may cause harmful interference.2) This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable pr against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed a used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a partici installation. If this product does cause harmful interference to radio or television reception,wh can be determined by turning the product off and on, the user is encouraged to try to cc interference by one or more of the following measures.Reorient or relocate the receiving antenna.Increase the distance between the product and receiver.Connect the product to an outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for assistance.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or under the influence of alcohol, drugs or medication.
4. Weight capacity and other product capabilities only apply to a wholly and correctly assembled pro

5. Keep the assembly area clean and well-lit.

6. Keep bystanders out of the area during assembly.

7. The weight of plate is heavy; pay attention to the installation to avoid hurting it, and if necessary someone to assist with the installation.
8. Assembly should be done by adults only.
9. WARNING: This product contains small parts. If swallowed, it will pose a choking hazard. Keep tl parts away from children when assembling!
10. Before using the appliance for the first time, peel off any promotional materials and packaging n

ATTENTION!

WARNING! Keep children and pets away.

WARNING! Remove all packaging materials and keep them for future use. Packaging mater are not a toy.

WARNING! Don't let children play with the packaging materials. If they swallow the packaging materials, they will suffocate!

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. To avoid accidents or sharp edges injuries please assemble and use carefully.
2. Use as intended only. Do not sit or stand on the product.
3. Inspect before every use. Do not use it if parts are loose or damaged.
4. If any parts are missing, broken, damaged, or worn, stop using this item until repairs are made replacement parts are installed.
5. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aw dynamic loading! The sudden load movement may briefly create an excess load, causing product failure
6. Try not to be too heavy to avoid the weight in one place, causing the table to overturn.

WARNING: Do not climb onto the machine to play, avoid flipping

HARDWARE IDENTIFIER (To Scale)

H1 - 3.5 mm x 18 mm Phillips Round Head Screw (24 pcs)

H2 - 3.5 mm x 28 mm Phillips Round Head Screw (28 pcs)

H3 - 3.5 mm x 12 mm Phillips Round Head Screw (98 pcs)

H4 - 6 mm x 25 mm Allen Head Bolt (16 pcs)

H5 - 6.5 mm x 18 mm Flat Washer (16 pcs)

H6 - M6 Lock Washer (16 pcs)

H7 - 3.5 mm x 14 mm Phillips Round Head Screw (12 pcs)

T1 - M6 Allen Wrench (1 pc)

PARTS IDENTIFIER

(Not to Scale)

11-1/2" 18-1/4"

P1 - Front Leg Apron (1 pc)

P2 - Left Front Leg (assembles with P17) (1 pc)

P3 - Right Front Leg (assembles with P18) (1 pc)

P4 - Ball Stop Bottom Board (1 pc)

23-1/2" 26-1/4"

P5 - Target Board with Scoring Sensors (1 pc)

P6- Top Rail Plastic Corner Cap (2 pcs)

58" 17-34"

P7 - Right Back Cabinet Leg (1 pc)

58" -7.3/4"

P8 - Left Back Cabinet Leg (1 pc)

23-1/4" 16-1/2"

P9 - Backboard with Graphic (1 pc)

P10 - Top Cabinet Panel for Scorer (1 pc)

23-3/8" 34-3/8"

P11 - Upper Back Cabinet Board (1 pc)

P12 - Lower Back Cabinet Board (1 pc)

80-1/2" 7-1/2"

P13 - Left Side Apron (1 pc)

80-1/2" 7-1/2"

P14 - Right Side Apron (1 pc)

3-1/2" 78-3/8"

(With ON/OFF switch+ wiring) P15 - Left Top Rail with Control Switch and Wiring (1 pc)

3-1/2" 78-3/8"

P16 - Right Top Rail (1 pc)

Black Painting 3-1/2" 17"-3/8"

P17 - Left Leg (assembles with P2) (1 pc)

17-3/8" 3-1/2" Black Painting 18-1/4" 79-1/4"

P18 - Right Leg (assembles with P3) (1 pc)

P20 - Wooden Support Brace (packed with black plastic "L" brackets) (1 pc)

P21 - Connecting Board (2 pcs)

P22 - Goal Box Bottom Board (1 pcs)

P23 - Metal Connection Plate (16 pcs)

P24 - Middle Support Board (2 pcs)

P25 - End Support Board (1 pc)

P26 - Plastic Ball Return (1 pc)

P27 - Clear Plexiglass (1 pc)

P28 - Lower Front Cabinet Board (1 pc)

P29 - Electronic Scorer (1 pc)

P30 - Black Plastic "L" Bracket (6 pcs)

P31 - Left Plastic Trim Strip (1 pc)

P32 - Right Plastic Trim Strip (1 pc)

P33 - Plastic Connector (Playfield to Front Leg) (1 pc)

ACCESSORIES IDENTIFIER (Not to Scale)

A1 - A/C Adapter (1 pc)

A2 - Ball (4 pcs)

PARTS REQUIRED

1pc - P13 Left Side Apron

10pcs - P23 Metal Connection Plate

1pc - P14 Right Side Apron

40pcs - H3 Phillips Round head Screw

1pc - P15 Left Top Rail with Control Switch

1pc - P16 Right Top Rail

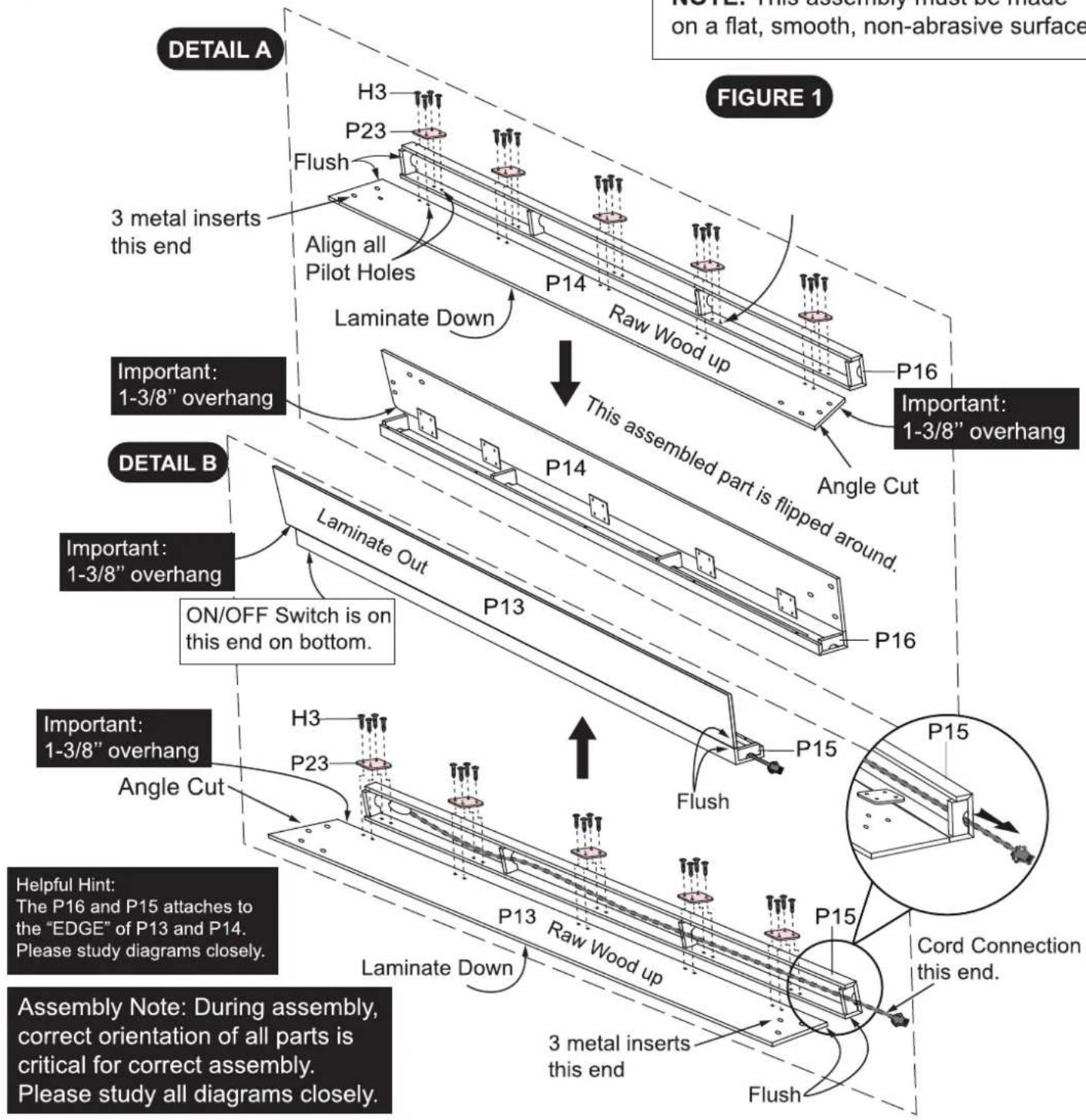

STEP 1

Attach the P14 Right Side Apron onto the P16 Right Top Rail using the P23 Metal Connection Plates and the pilot holes on the P14/P16, using the H3 Phillips Round Head Screws as shown in DETAIL A.

Attach the P13 Left Side Apron onto the P15 Left Top Rail using the P23 Metal Connection Plates and the pilot holes on P13/P15, using the H3 Phillips Round Head Screws as shown in DETAIL B.

Tighten, but DO NOT strip out H3 screws.

DETAIL A H3 P23 Flush 3 metal inserts this end Align all Pilot Holes Laminate Down P14 Raw Wood up P16 FIGURE 1 Important: 1-3/8" overhang This assembled part is flipped around. Angle Cut P14 P16 PART B Laminate Out P13 ON/OFF Switch is on this end on bottom. Important: 1-3/8" overhang Angle Cut P15 P15 Helpful Hint: The P16 and P15 attaches to the "EDGE" of P13 and P14. Please study diagrams closely. Assembly Note: During assembly, correct orientation of all parts is critical for correct assembly. Please study all diagrams closely. Laminate Down P13 Raw Wood up 3 metal inserts this end Flush Cord Connection this end.

PARTS REQUIRED

1pc - P19 Playfield with End Ramp

10pcs - H2 Phillips Round Head Screw

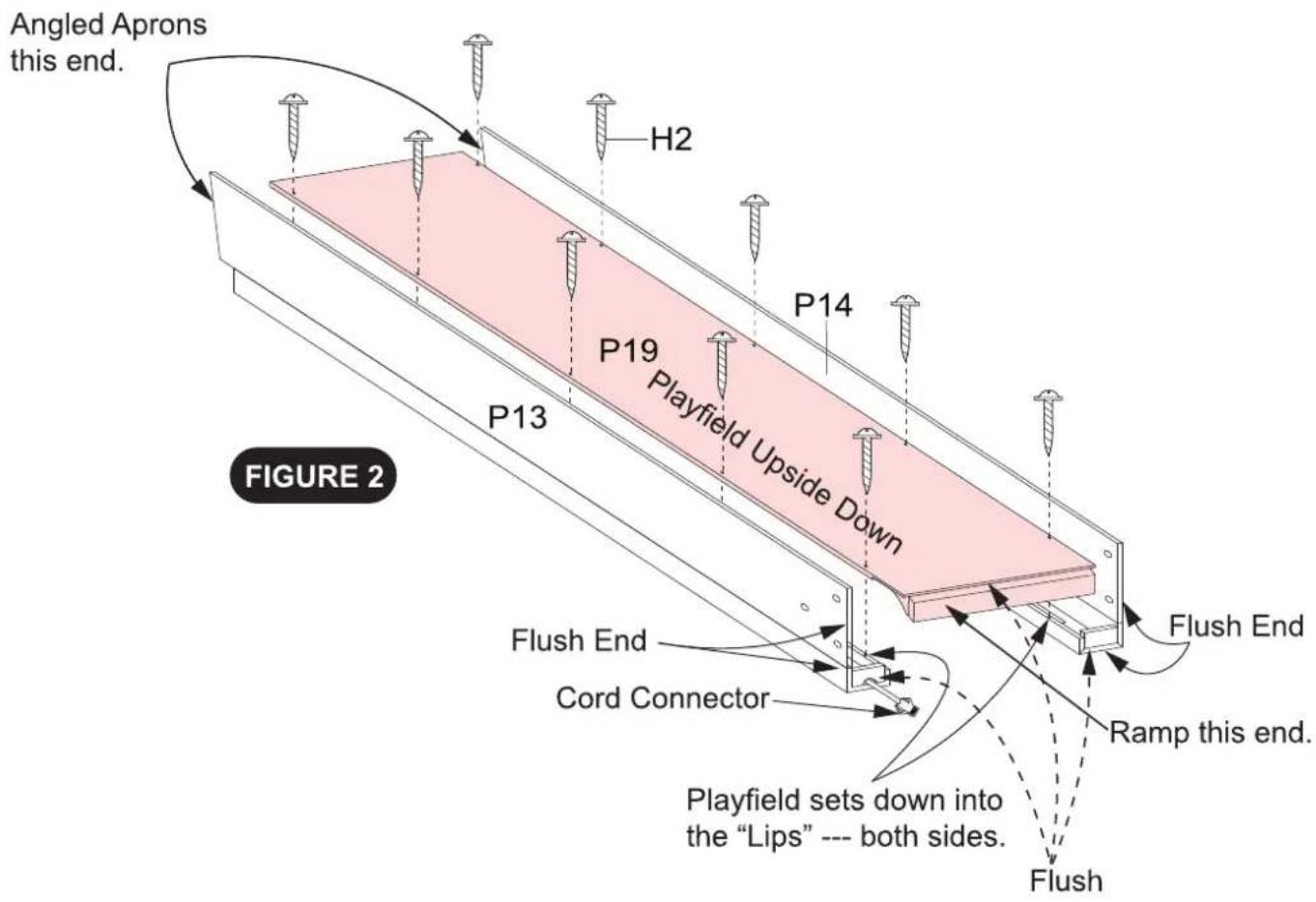

STEP 2

Attach the P19 Playfield onto the STEP 1 Assemblies using the pilot holes and the H2 Philips Round Screws as shown in FIGURE 2.

Tighten, but DO NOT strip out H2 screws.

Angled Aprons this end. H2 P14 P19 Playfield Upside Down P13 Flush End Cord Connector Flush End Flush Ramp this end. Playfield sets down into the "Lips" --- both sides. FIGURE 2

Assembly Note: During assembly, correct orientation of all parts is critical for correct assembly. Please study all diagrams closely.

PARTS REQUIRED

1pc - P1 End Apron

1pc - P2 Left Front Leg

1pc - P3 Right Front Leg

1pc - P17 Left Leg

1pc - P18 Right Leg

4pcs - H2 Phillips Round Head Screw

20pcs - H3 Phillips Round Head Screw

6pcs - P23 Metal Connection Plate

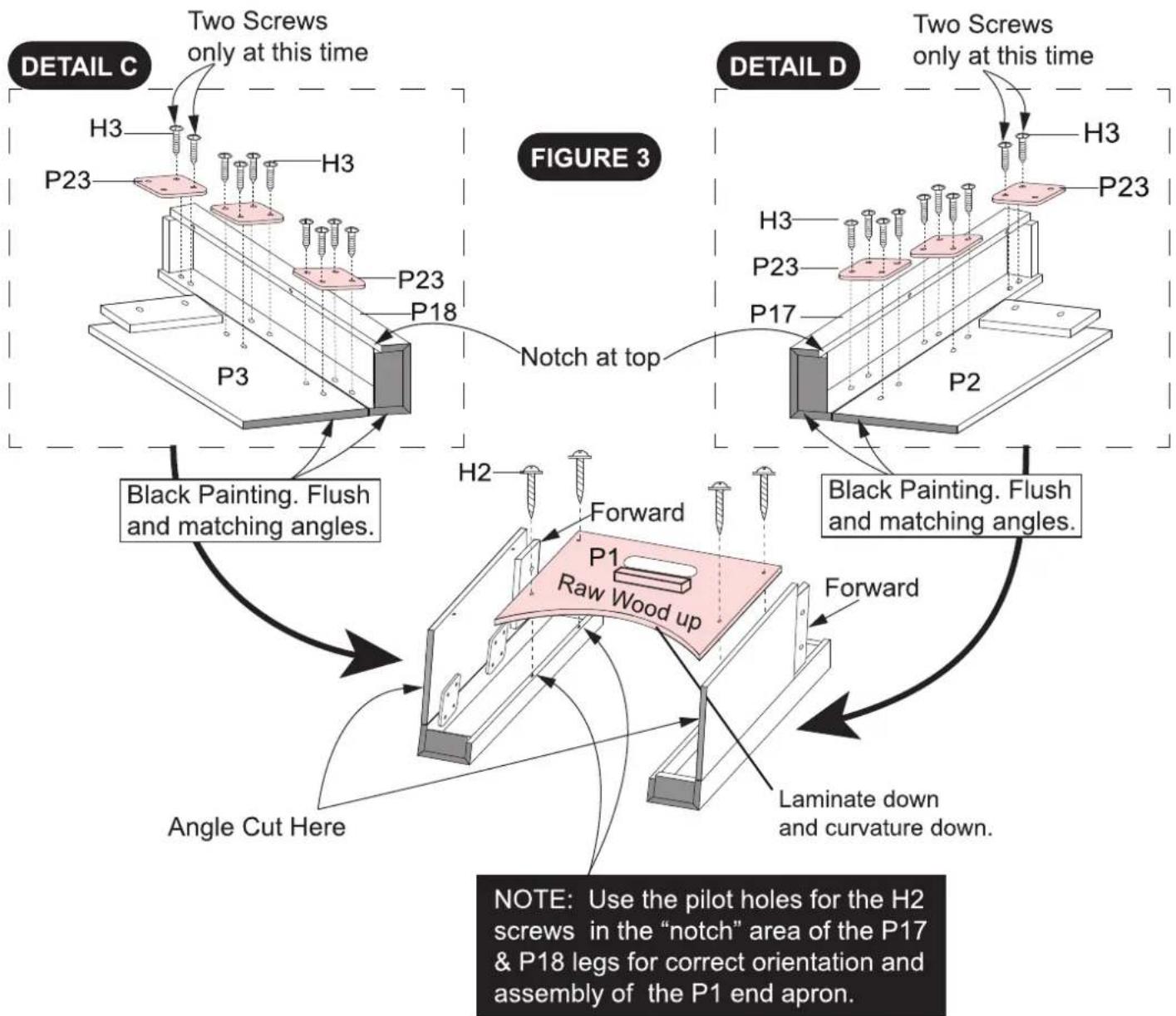

STEP 3

Attach the P3 Right Front Leg onto the P18 Right Leg using the P23 Metal Connection Plates, the pilot holes and the H3 Phillips Round Head Screws as shown in DETAIL C.

Attach the P2 Left Front Leg onto the P17 Left Leg using the P23 Metal Connection Plates, the pilot holes and the H3 Phillips Round Head Screws as shown in DETAIL D.

Attach the DETAIL C / D Assemblies onto the P1 End Apron using the pilot holes and the H2 Phillips Round Head Screws as shown in FIGURE 3.

Tighten, but DO NOT strip out H2,H3 screws.

DETAIL C Two Screws only at this time H3 P23 H3 P23 P18 P3 NOTCH at top Black Painting. Flush and matching angles. FIGURE 3 DETAIL D Two Screws only at this time H3 P23 H3 P23 P17 P2 Black Painting. Flush and matching angles. Forward P1 Raw Wood up Forward Laminate down and curvature down. Angle Cut Here NOTE: Use the pilot holes for the H2 screws in the "notch" area of the P17 & P18 legs for correct orientation and assembly of the P1 end apron.

PARTS REQUIRED

1pc - P33 Plastic Connector (Playfield to Front Leg)

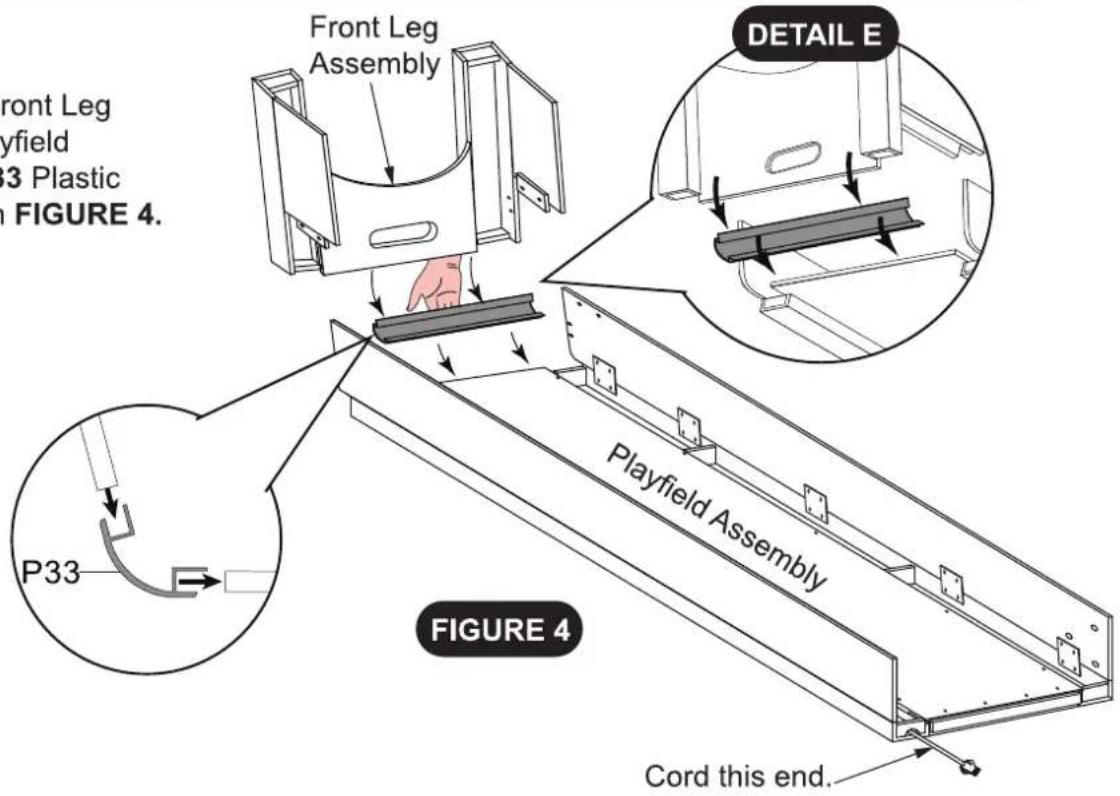

STEP 4

Connect the STEP 3 Front Leg Assembly onto the Playfield Assembly using the P33 Plastic Connector as shown in FIGURE 4.

Front Leg byfield 3 Plastic FIGURE 4. Front Leg byfield 3 Plastic P33 Playfield Assembly DETAIL E Playfield Assembly FIGURE 4 Cord this end.

PARTS REQUIRED

4pcs - H1 Phillips Round Head Screw

4pcs - H3 Phillips Round Head Screw

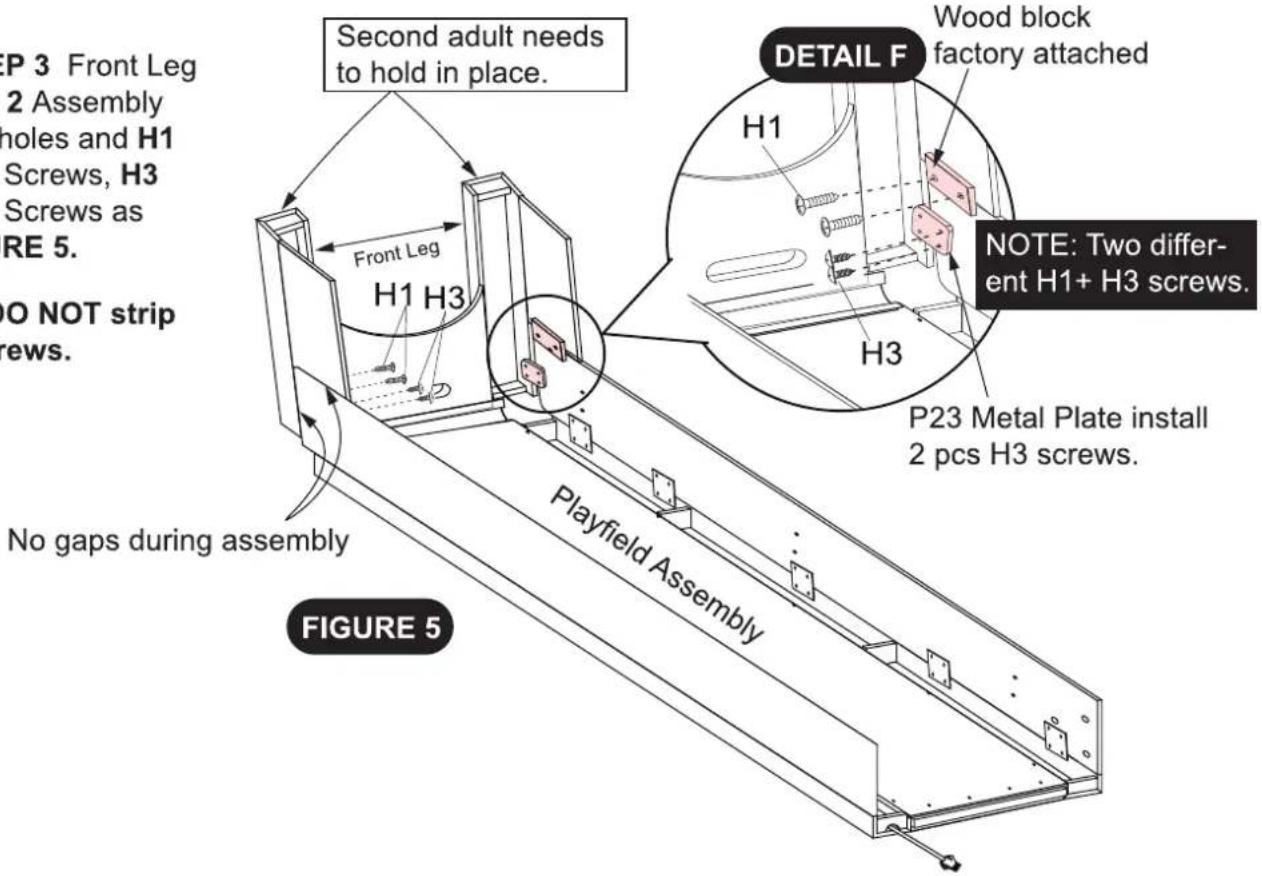

STEP 5

Attach the STEP 3 Front Leg onto the STEP 2 Assembly using the pilot holes and H1 Phillips Round Screws, H3 Phillips Round Screws as shown in FIGURE 5.

Tighten, but DO NOT strip out H1, H3 screws.

EP 3 Front Leg 2 Assembly holes and H1 Screws, H3 Screws as RE 5. NO NOT strip screws. Second adult needs to hold in place. DETAIL F Wood block factory attached H1 H3 FRONT LEG H1 H3 P23 Metal Plate install 2 pcs H3 screws. NOTE: Two differ- ent H1+ H3 screws. Playfield Assembly No gaps during assembly FIGURE 5

PARTS REQUIRED

2pcs - P24 Middle Support Board

1pc - P25 End Support Board

6pcs - P30 Black Plastic "L" Bracket

12pcs -H7 Phillips Round Head Screw

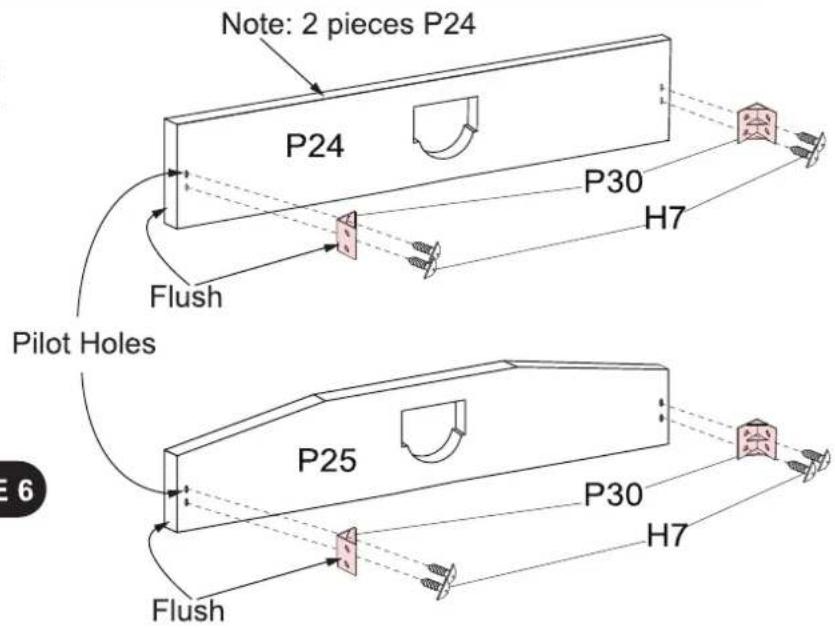

STEP 6

Attach the P30 Plastic "L" Brackets onto the P24 / P25 Support Boards using the pilot holes and the H7 Phillips Round Screws as shown in FIGURE 6.

Tighten, but DO NOT strip out H3 screws.

Note: 2 pieces P24 P24 P30 H7 Flush Pilot Holes P25 P30 H7 Flush

PARTS REQUIRED

12pcs - H3 Phillips Round Head Screw

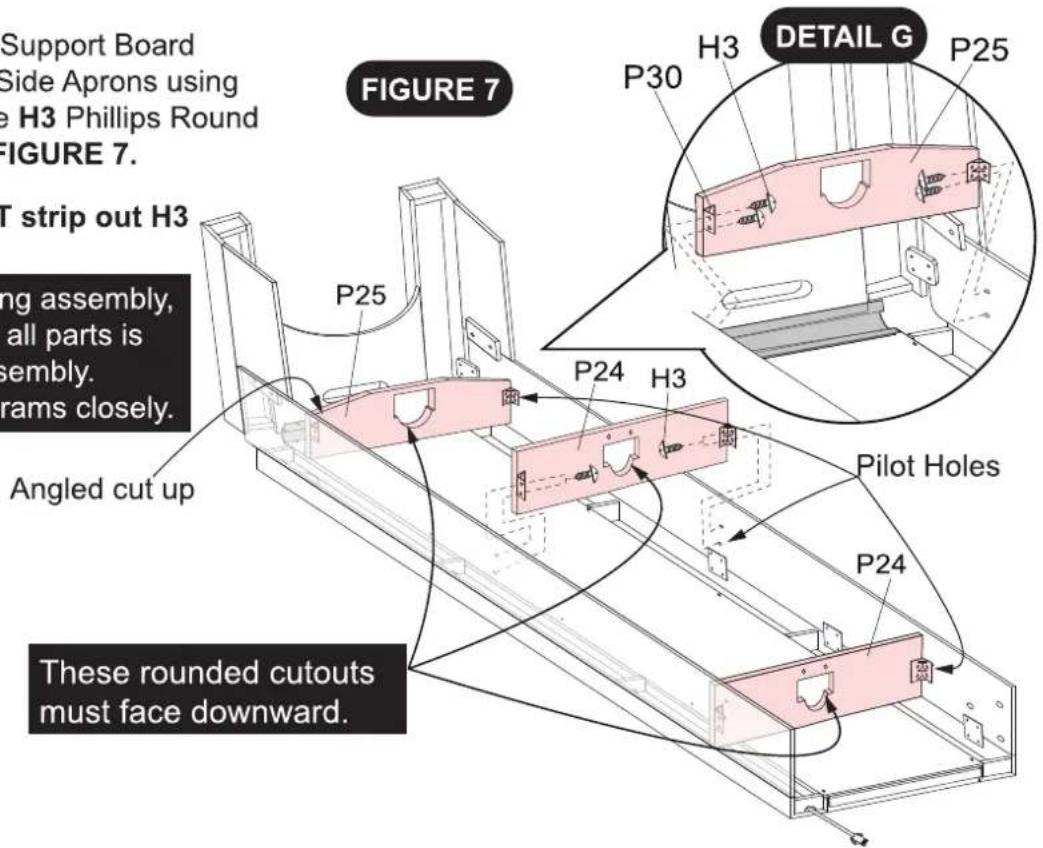

STEP 7

Attach the P24 / P25 Support Board Assemblies onto the Side Aprons using the pilot holes and the H3 Phillips Round Screws as shown in FIGURE 7.

Tighten, but DO NOT strip out H3 screws.

Assembly Note: During assembly, correct orientation of all parts is critical for correct assembly. Please study all diagrams closely.

Support Board Side Aprons using e H3 Phillips Round FIGURE 7. T strip out H3 ing assembly, all parts is sembly. rams closely. Angled cut up P25 P24 H3 P30 DETAIL G P25 P24 Pilot Holes P24 These rounded cutouts must face downward.

PARTS REQUIRED

2pcs - P21 Connecting Board

6pcs - H5 Flat Washer

6pcs - H4 Allen Head Bolt

6pcs - H6 Lock Washer

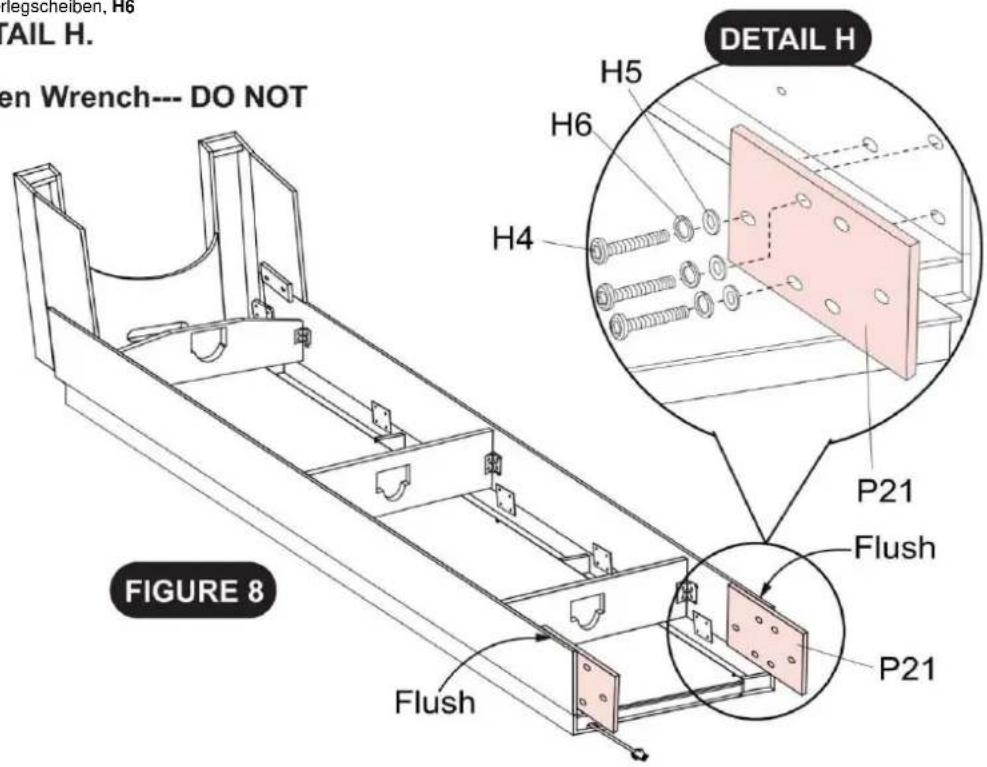

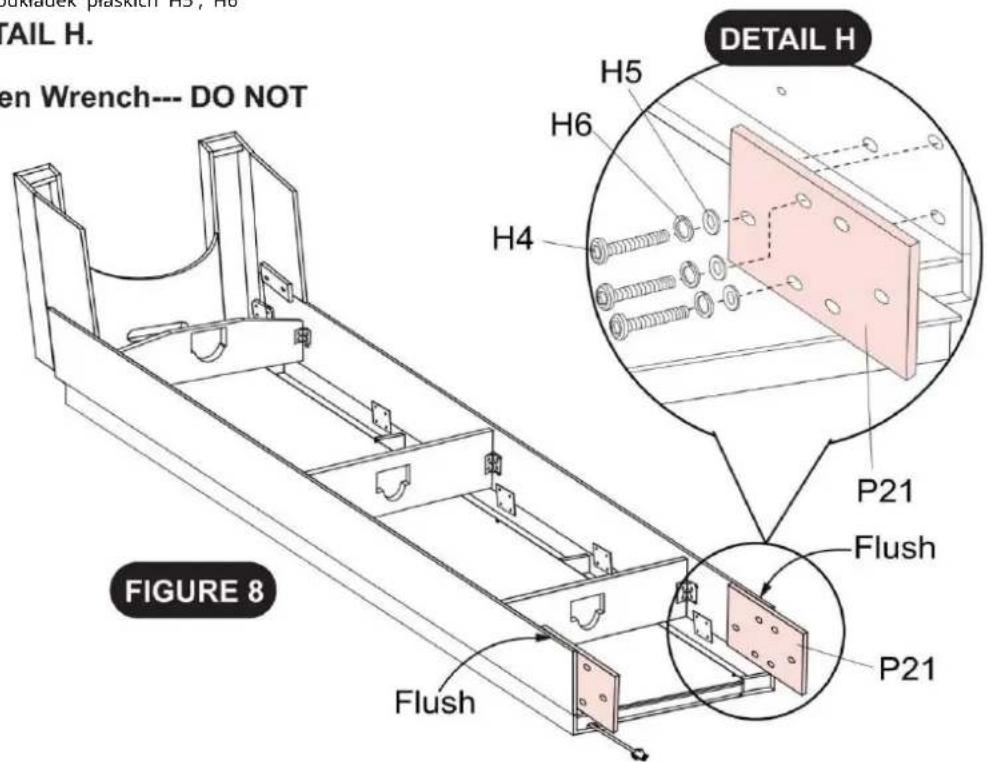

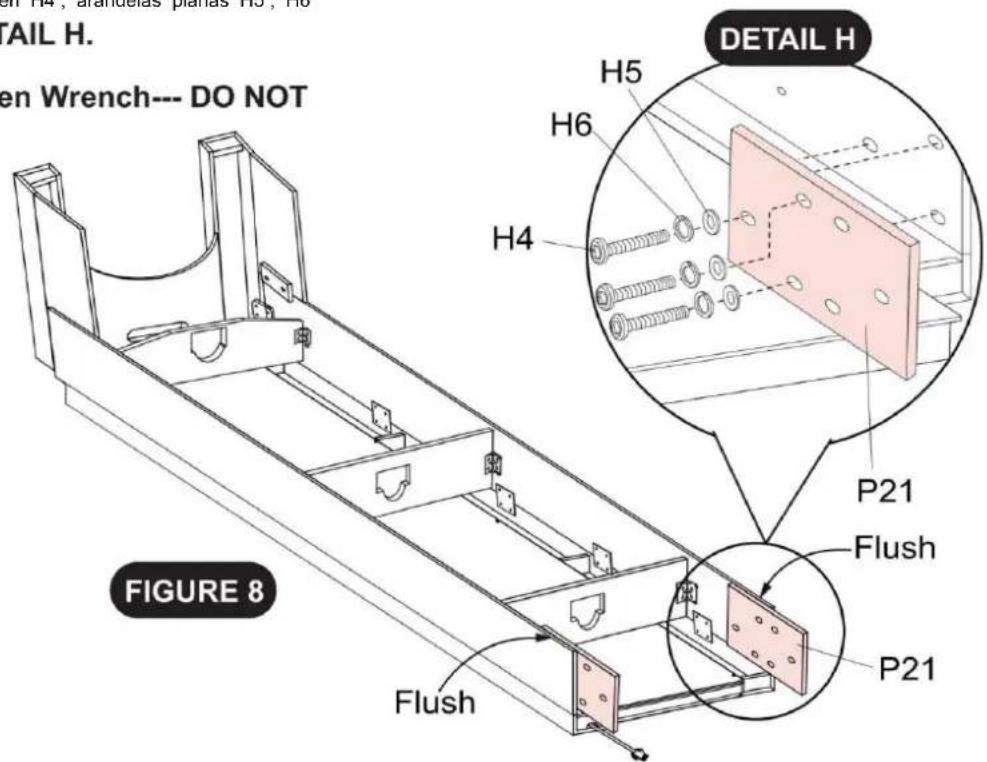

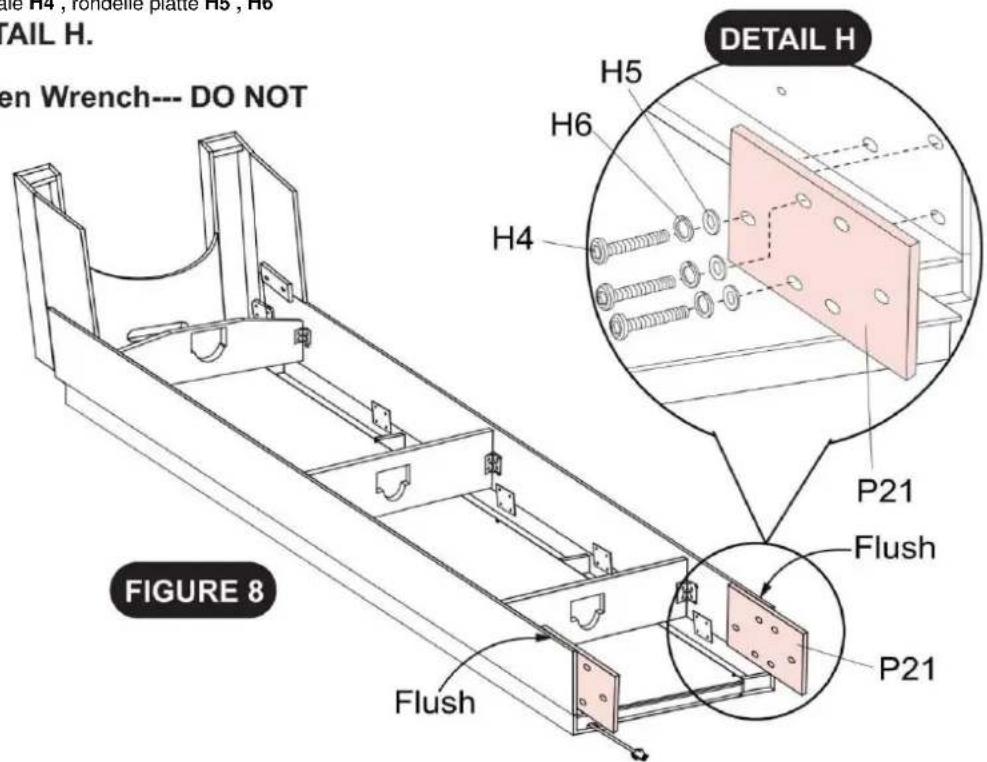

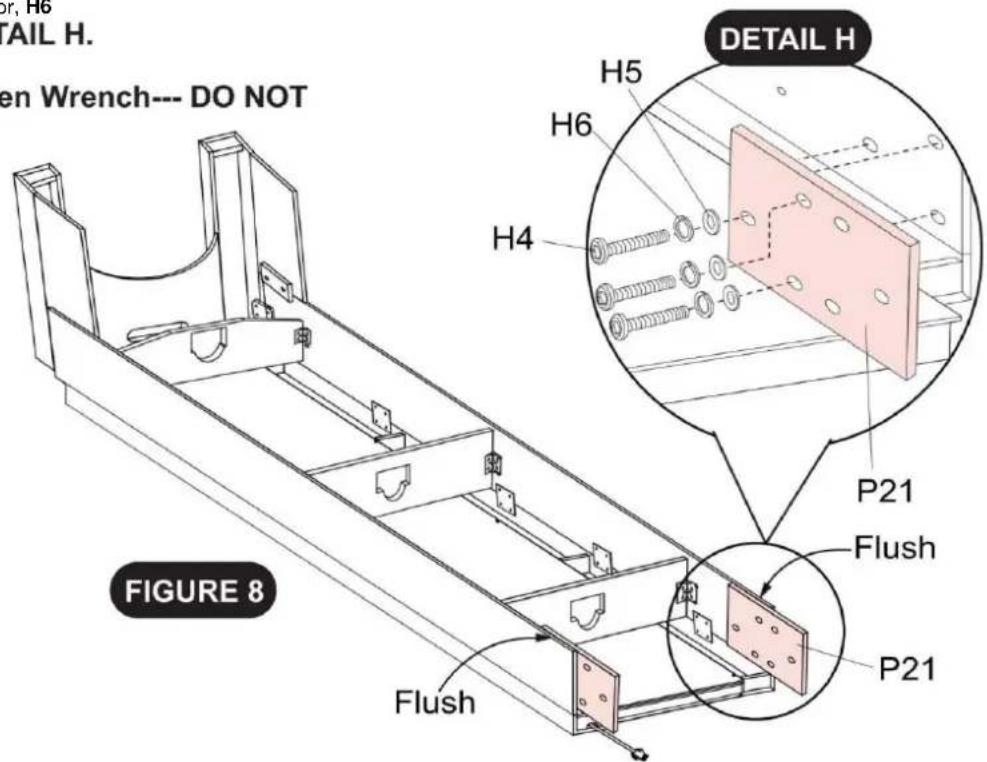

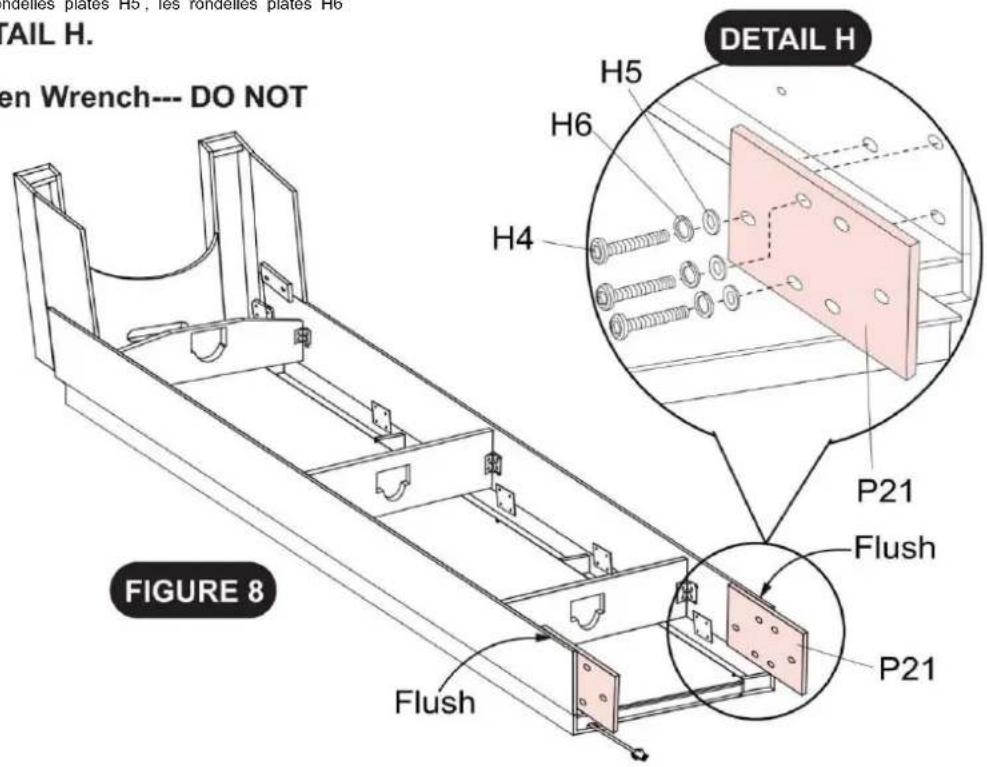

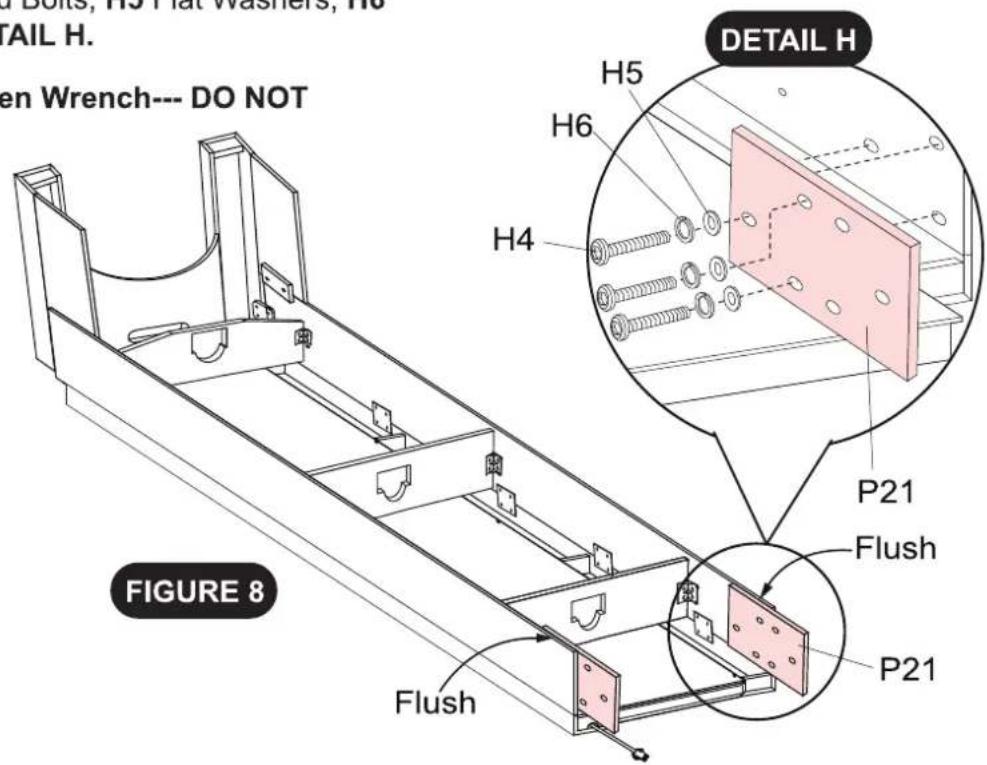

STEP 8

Attach the P21 Connecting Boards onto the inside of the Side Aprons using the H4 Allen Head Bolts, H5 Flat Washers, H6 Lock Washers as shown in DETAIL H.

Tighten H4 bolts using T1 Allen Wrench--- DO NOT overtighten.

DETAIL H. en Wrench--- DO NOT H5 H6 H4 DETAIL H P21 Flush P21 FIGURE 8

PARTS REQUIRED

1pc - P20 Wooden Support Brace

2pcs - H3 Phillips Round Head Screw

1pc - P26 Plastic Ball Return

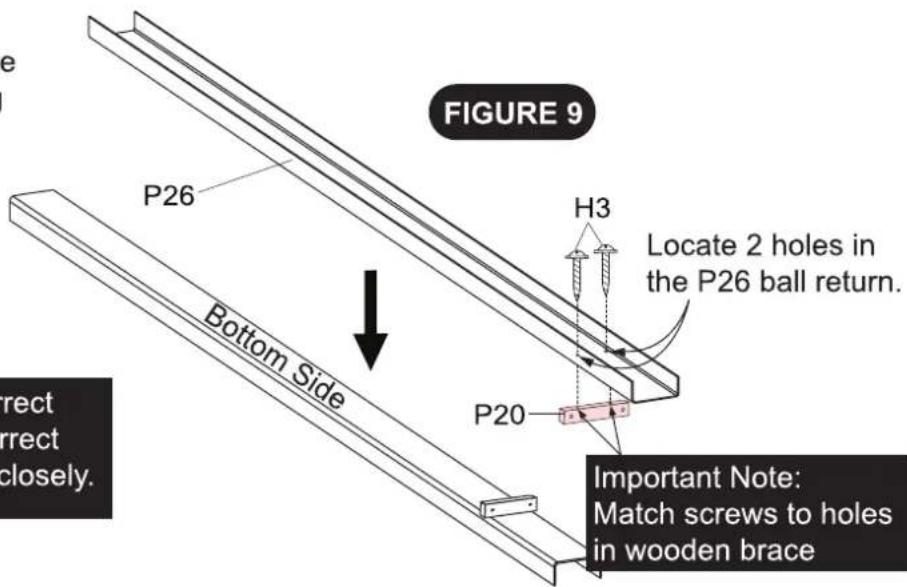

STEP 9

Attach the P20 Wooden Support Brace onto the P26 Plastic Ball Return using the H3 Philips Round Screws as shown in FIGURE 9.

Tighten, but DO NOT strip out H3 screws.

Assembly Note: During assembly, correct orientation of all parts is critical for correct assembly. Please study all diagrams closely.

FIGURE 9 P26 H3 Locate 2 holes in the P26 ball return. Bottom Side P20 Important Note: Match screws to holes in wooden brace rect rect closely.

Locate 2 holes in the P26 ball return.

PARTS REQUIRED

2pcs - H2 Phillips Round Head Screw

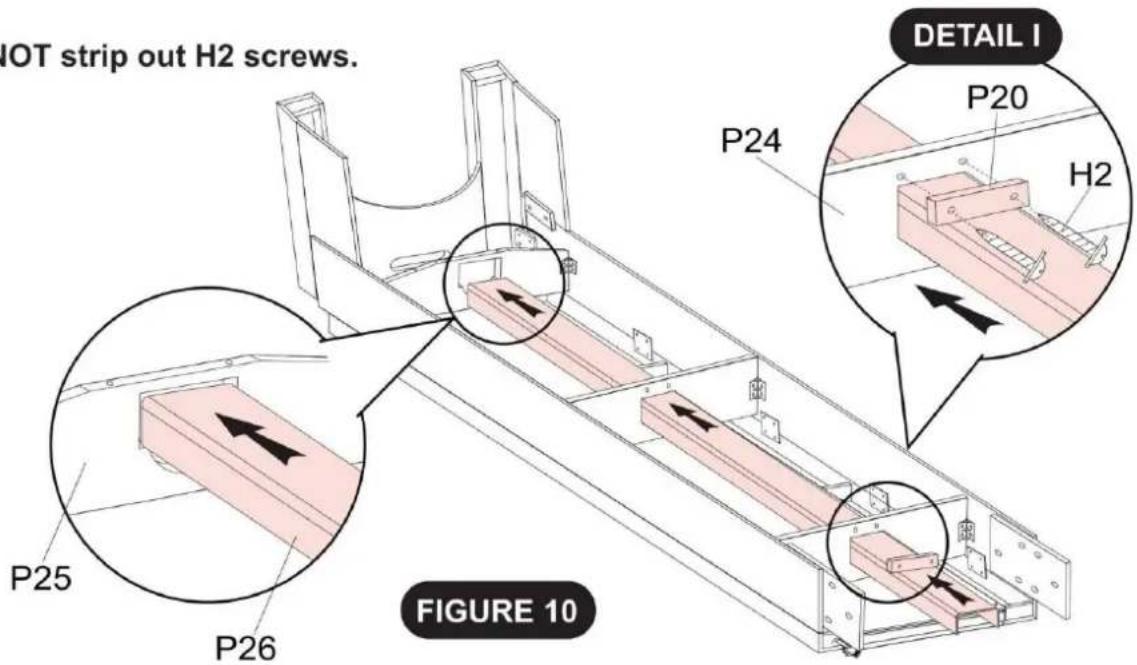

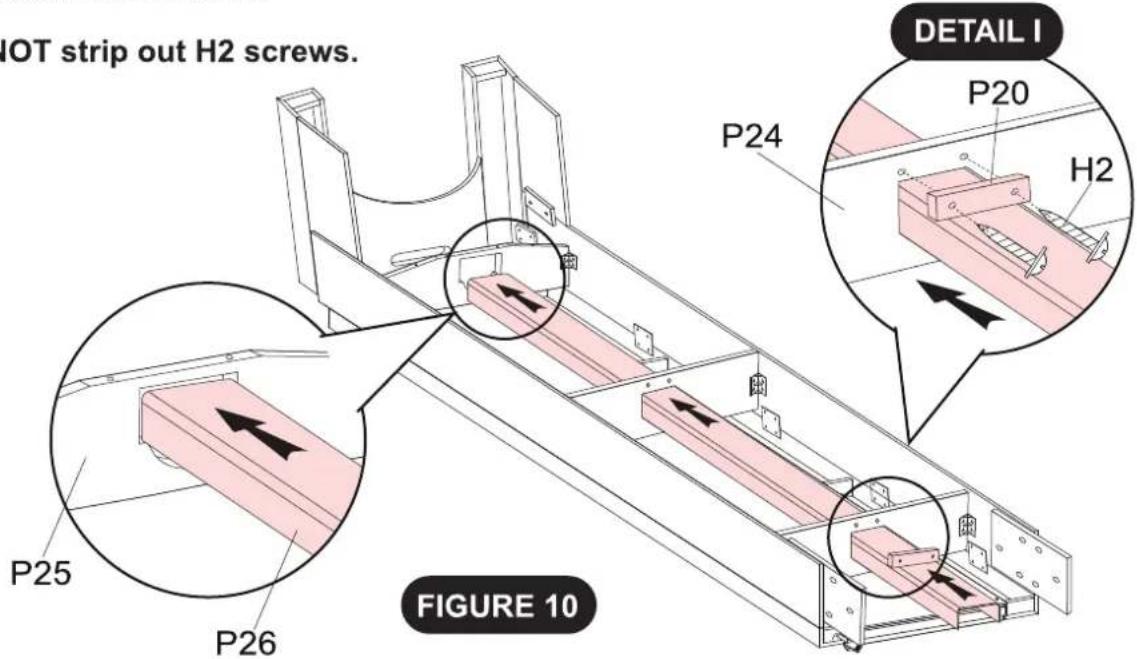

STEP 10

Install and attach the P26 Plastic Ball Return onto the P24/25 Support Boards using the H2 Philips Round Screws as shown in DETAIL I.

Tighten, but DO NOT strip out H2 screws.

NOT strip out H2 screws. P24 DETAIL I P20 H2 P25 P26 FIGURE 10

PARTS REQUIRED

1pc - P22 Goal Box Bottom Board

4pcs - H2 Phillips Round Head Screw

NOTE: NEED 2 ADULTS FOR ASSEMBLY

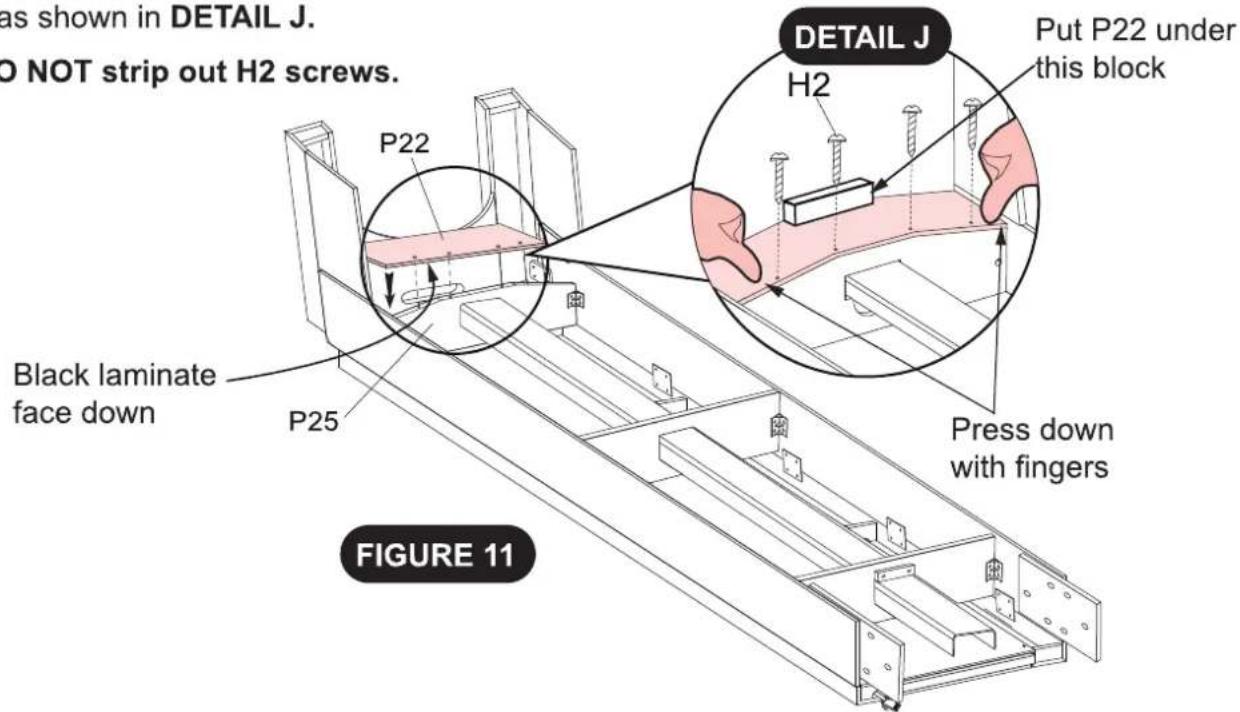

STEP 11

Attach the P22 Goal Box Bottom Board onto the P25 End Support Board using the H2 Philips Round Screws as shown in DETAIL J.

Tighten, but DO NOT strip out H2 screws.

as shown in DETAIL J. DO NOT strip out H2 screws. P22 P25 Black laminate face down DETAIL J H2 Put P22 under this block Press down with fingers FIGURE 11

PARTS REQUIRED

1pc - P7 Right Back Leg

1pc - P8 Left Back Leg

1pc - P28 Back Board - D

4pcs - H2 Phillips Round Head Screw

NOTE: NEED 2 ADULTS FOR ASSEMBLY

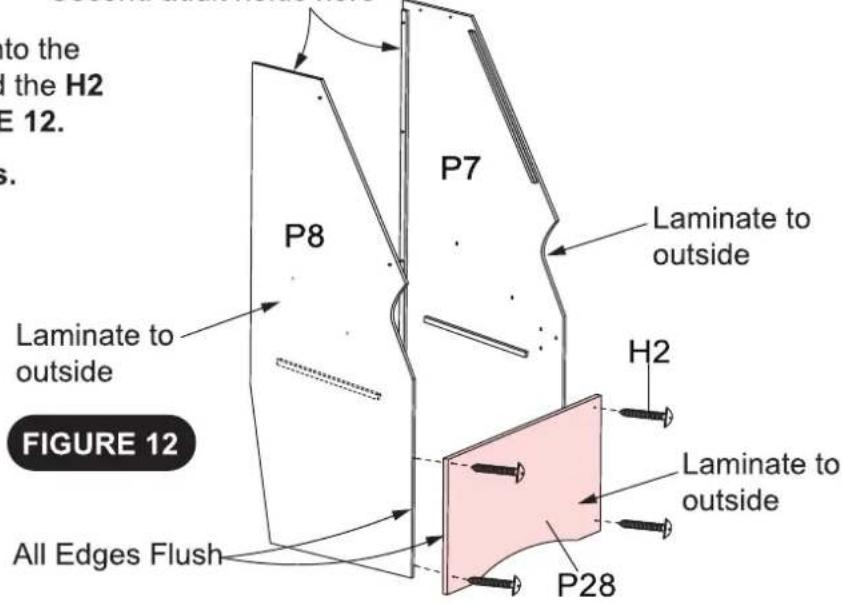

STEP 12

Attach the P28 Lower Front Cabinet Board onto the P7 / P8 Back Legs using the pilot holes and the H2 Phillips Round Screws as shown in FIGURE 12.

Tighten, but DO NOT strip out H2 screws.

Second adult holds here

to the the H2 E 12. s. P7 P8 Laminate to outside Laminate to outside H2 All Edges Flush P28 FIGURE 12

PARTS REQUIRED

6pcs - H4 Allen Head Bolt

6pcs - H5 Flat Washer

6pcs - H6 Lock Washer

NOTE: NEED 2 ADULTS FOR ASSEMBLY

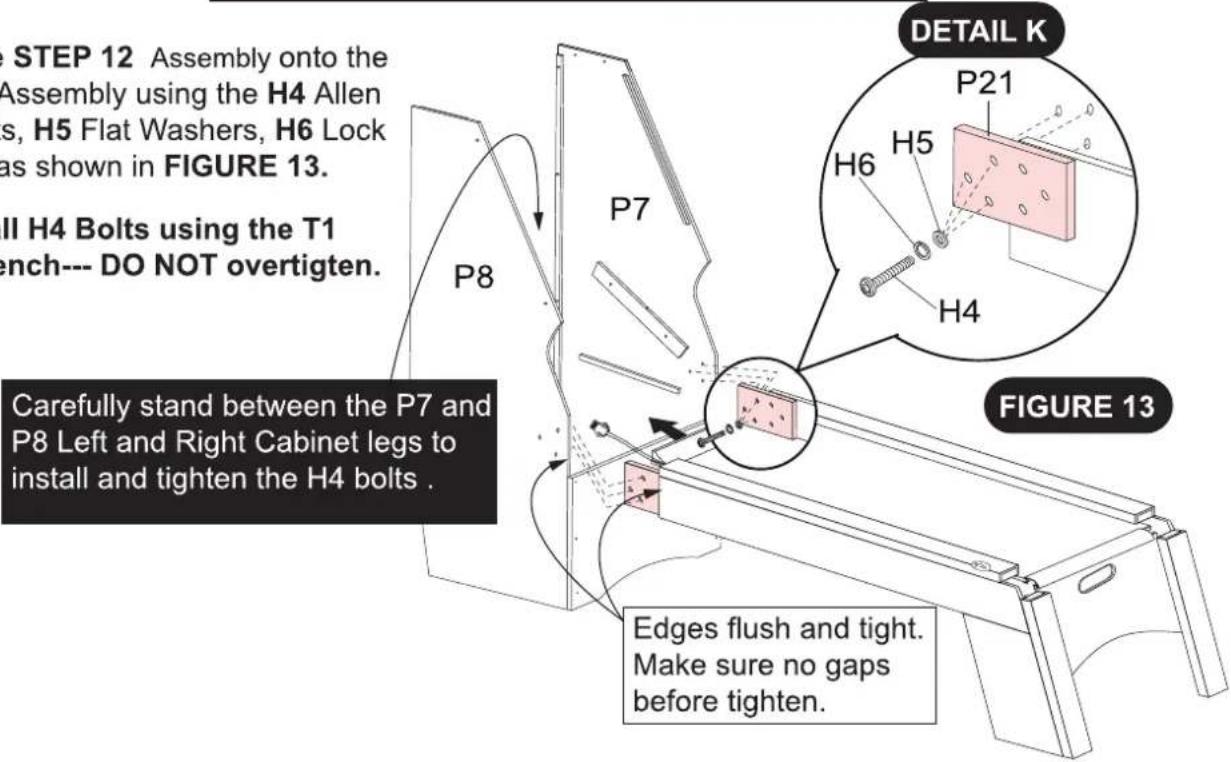

STEP 13

Attach the STEP 12 Assembly onto the STEP 11 Assembly using the H4 Allen Head Bolts, H5 Flat Washers, H6 Lock Washers as shown in FIGURE 13.

Tighten all H4 Bolts using the T1 Allen Wrench--- DO NOT overtigten.

e STEP 12 Assembly onto the Assembly using the H4 Allen s, H5 Flat Washers, H6 Lock as shown in FIGURE 13. II H4 Bolts using the T1 ench--- DO NOT overtigten. P8 P7 DETAIL K P21 H5 H6 H4 Carefully stand between the P7 and P8 Left and Right Cabinet legs to install and tighten the H4 bolts . FIGURE 13 Edges flush and tight. Make sure no gaps before tighten.

Carefully stand between the P7 and P8 Left and Right Cabinet legs to install and tighten the H4 bolts.

PARTS REQUIRED

1pc - P4 Ball Stop Bottom Board

4pcs - H1 Phillips Round Head Screw

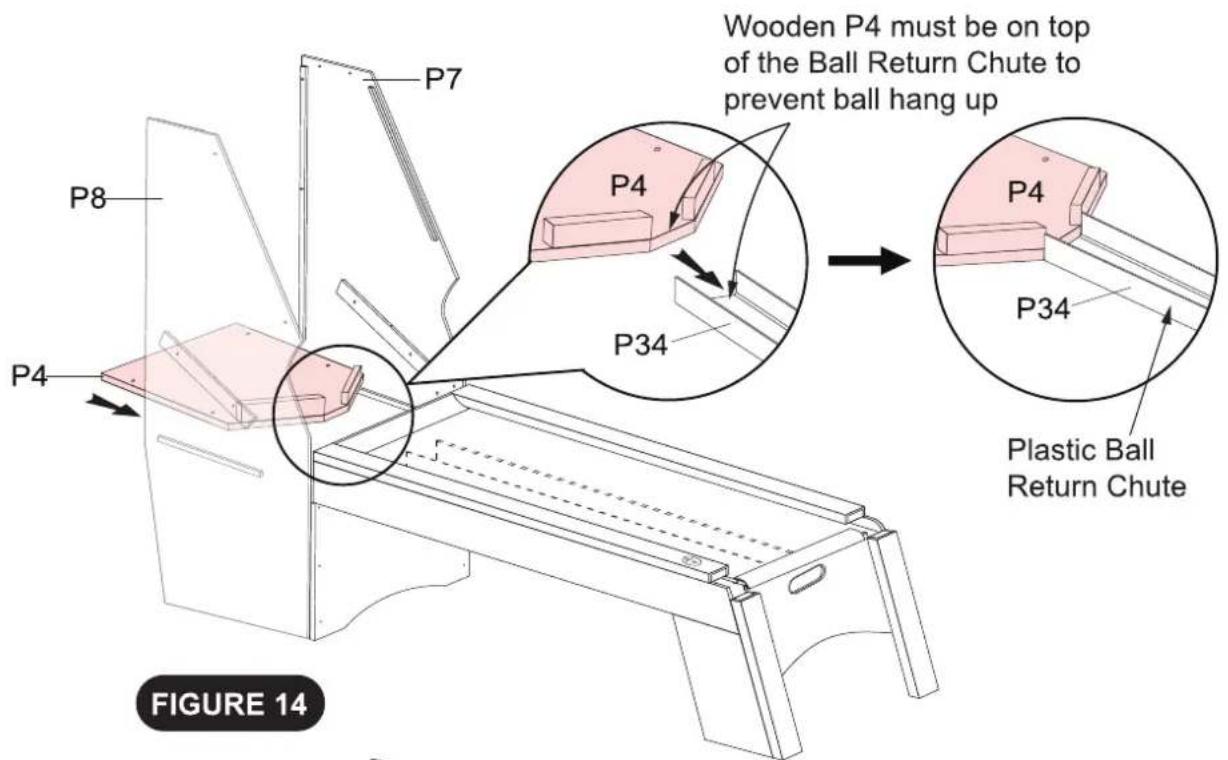

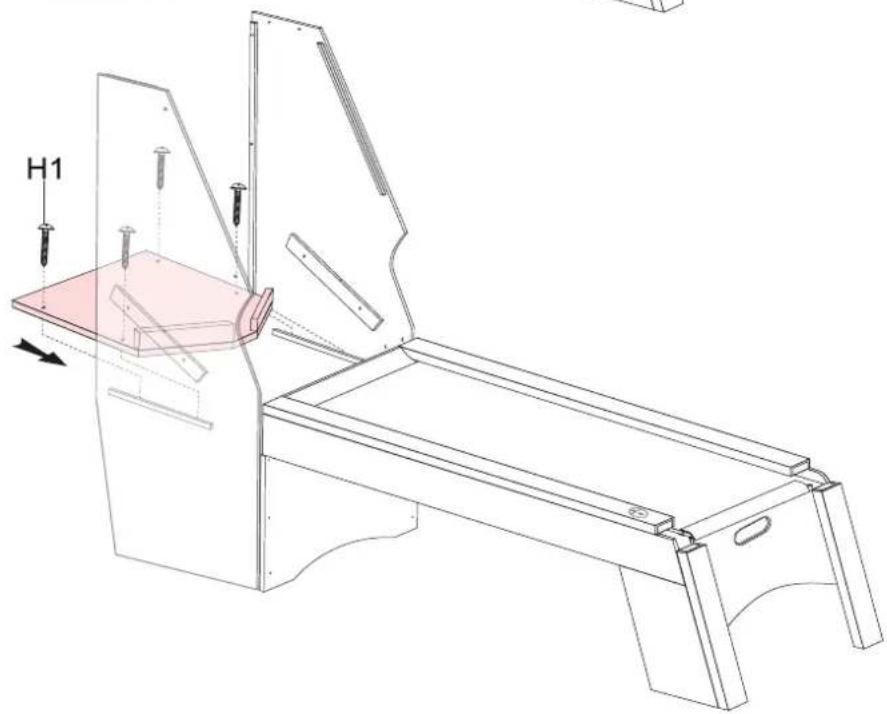

STEP 14

Attach the P4 Ball Stop Bottom Board onto the P7 / P8 Back Legs using pilot holes and the H1 Phillips Round Screws as shown in FIGURE 14.

Tighten, but DO NOT strip out H1 screws.

Wooden P4 must be on top of the Ball Return Chute to prevent ball hang up P4 P34 P4 P34 P4 P7 P8 P4 FIGURE 14

Technical line drawing of a mechanical device with labeled component H1, showing internal components and mounting brackets (no text or symbols beyond label)

PARTS REQUIRED

1pc - P5 Target Board with Scoring Sensors

2pcs - H2 Phillips Round Head Screw

NOTE: Need second adult to hold the P7+P8 inward to prevent gaps between P7, P8 and P5.

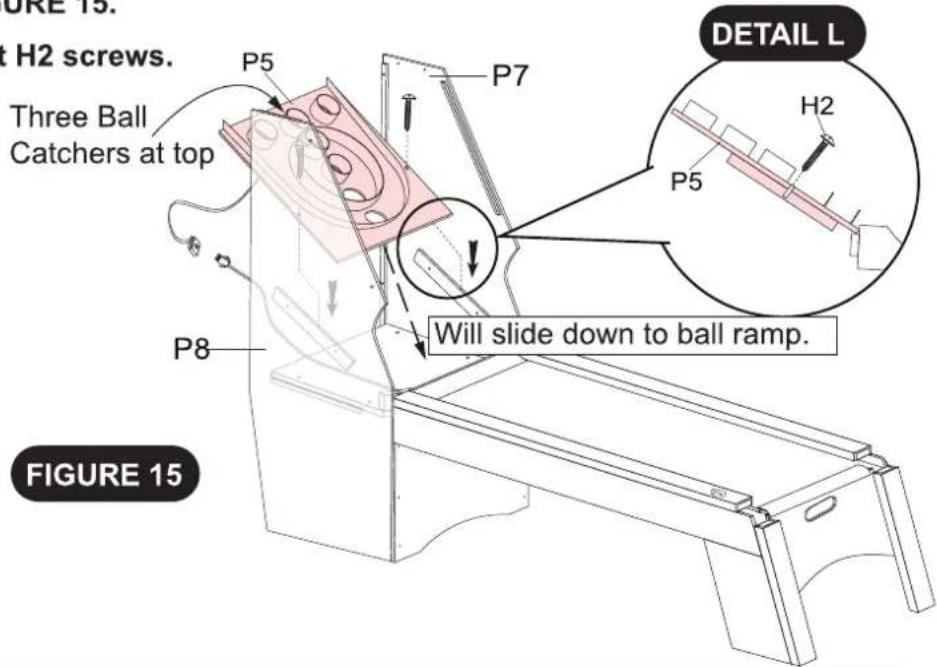

STEP 15

Attach the P5 Target Board onto the P7 / P8 Back Legs using the pilot holes and the H2 Phillips Round Screws as shown in FIGURE 15.

Tighten, but DO NOT strip out H2 screws.

Figure 15 H2 screws. Three Ball Catchers at top P5 P7 P8 DETAIL L H2 Will slide down to ball ramp. FIGURE 15

PARTS REQUIRED

1pc - P10 Top Cabinet Panel for Scorer

2pcs - H1 Phillips Round Head Screw

1pc - P29 Electronic Scorer

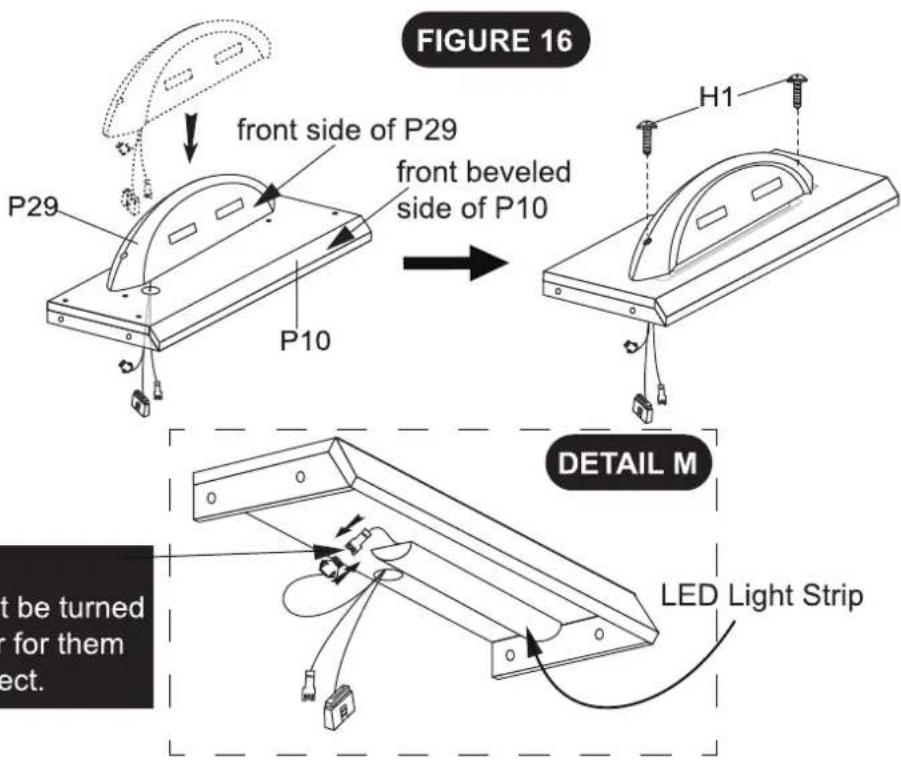

STEP 16

Place the wires of the P29 Electronic Scorer through the hole in the P10 Top Cabinet Panel.

Attach the P29 Electronic Scorer onto the P10 Top Cabinet Panel using pilot holes and the H1 Phillips Round Screws as shown in FIGURE 16.

Tighten, but DO NOT strip out H1 screws.

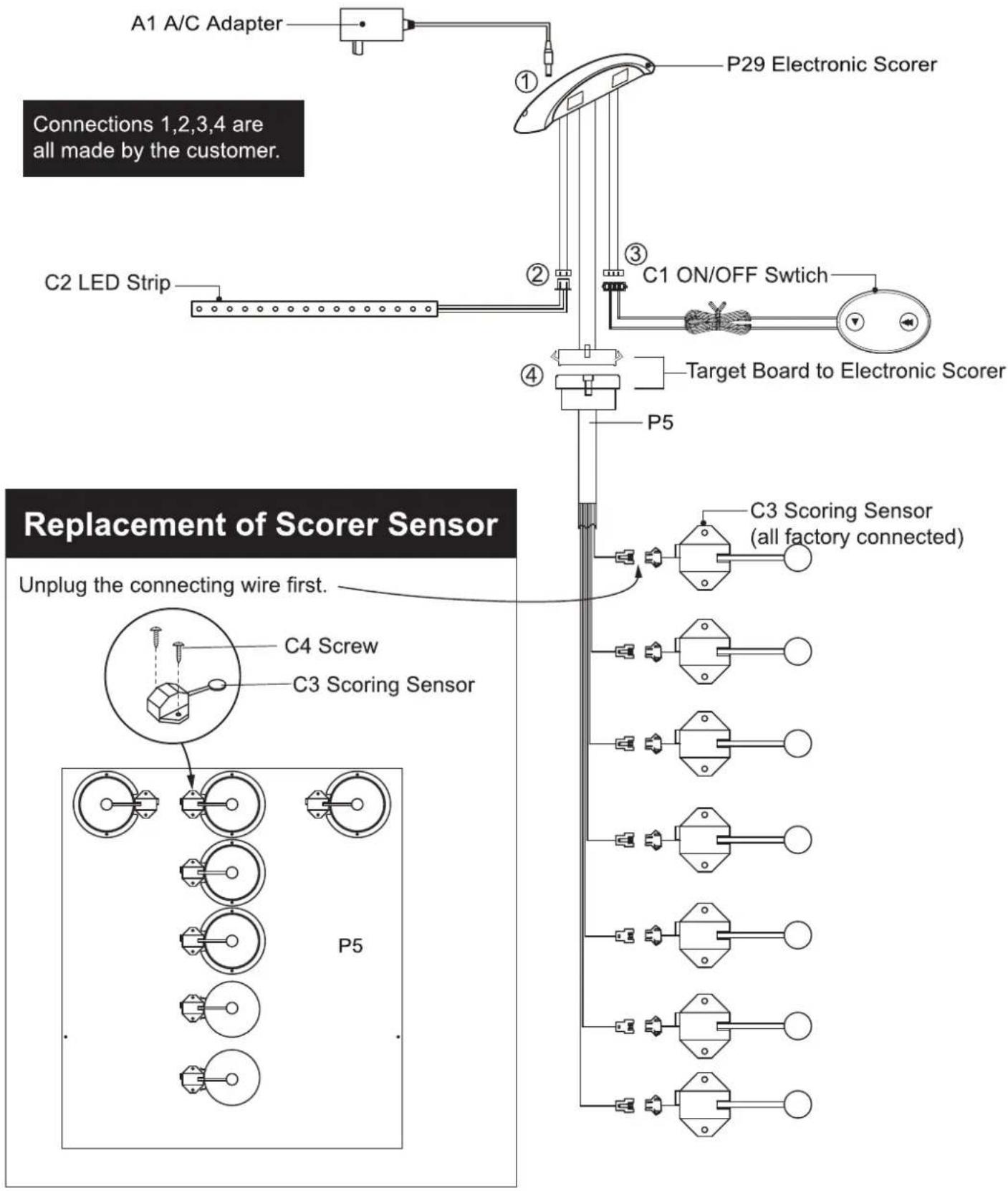

Connect Male to female plugs as shown in DETAIL M.

FIGURE 16 front side of P29 front beveled side of P10 P29 P10 H1 DETAIL M not be turned for them ect. LED Light Strip

PARTS REQUIRED

1pc - P9 Backboard with Graphic

4pcs - H4 Allen Head Bolt

4pcs - H1 Phillips Round Head Screw

4pcs - H5 Flat Washer

4pcs - H6 Lock Washer

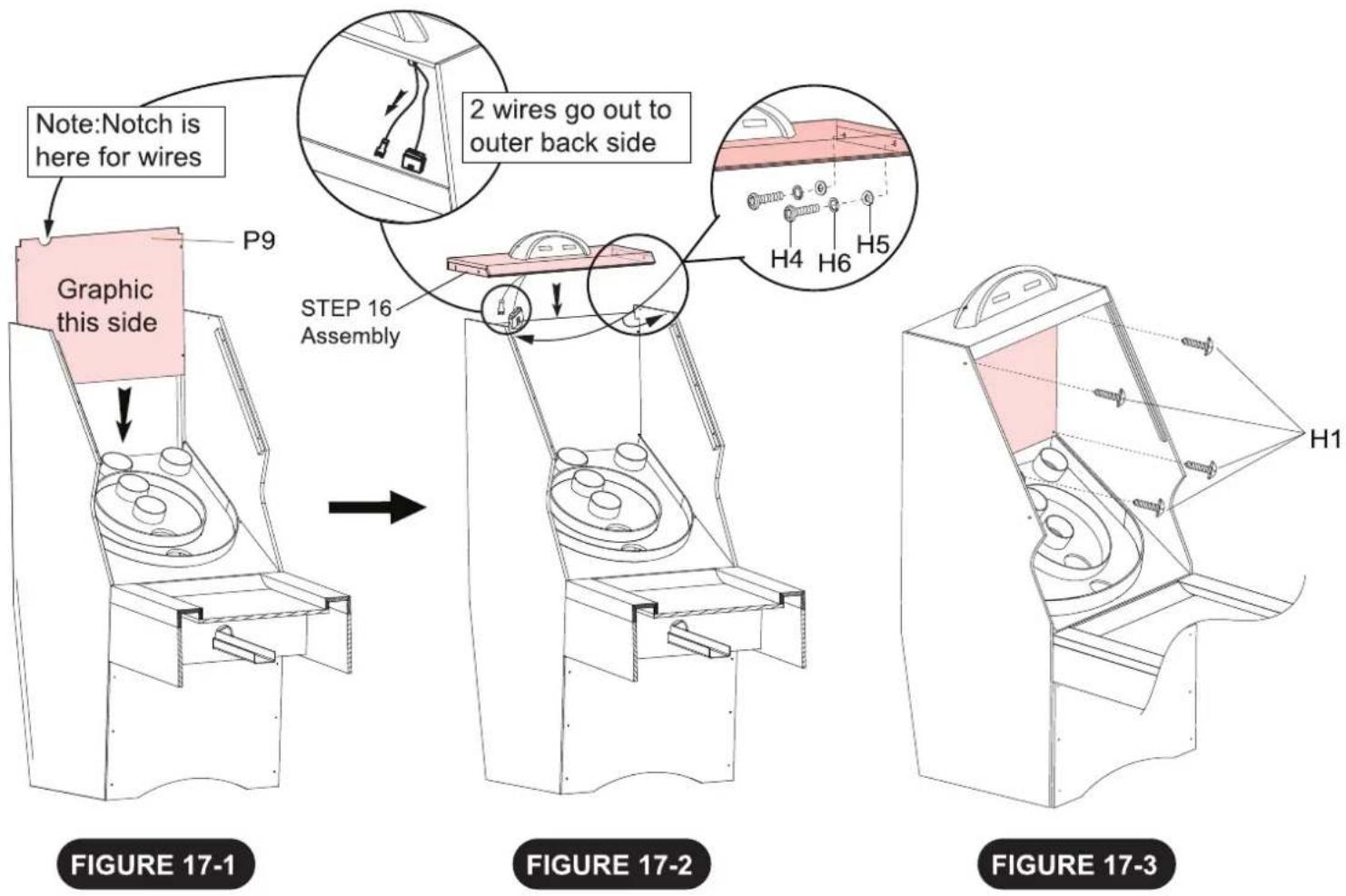

STEP 17

Place the P9 Backboard with Graphic onto the P7 / P8 Back Legs as shown in FIGURE 17-1.

Attach the STEP 16 Assembly onto the P7 / P8 Back Legs using the H4 Allen Head Bolts, H5 Flat Washers, H6 Lock Washers as shown in FIGURE 17-2.

Tighten the H4 Bolts using the T1 Allen Wrench--- DO NOT overtigten.

Attach the P9 Backboard with Graphic onto the P7 / P8 Back Legs using the pilot holes and the H1 Phillips Round Screws as shown in FIGURE 17-3.

Tighten, but DO NOT strip out H1 screws.

Note:Notch is here for wires Graphic this side P9 STEP 16 Assembly 2 wires go out to outer back side H4 H6 H5 FIGURE 17-1 FIGURE 17-2 FIGURE 17-3

PARTS REQUIRED

1pc - P27 Clear Plexiglass

6pcs - H3 Phillips Round Head Screw

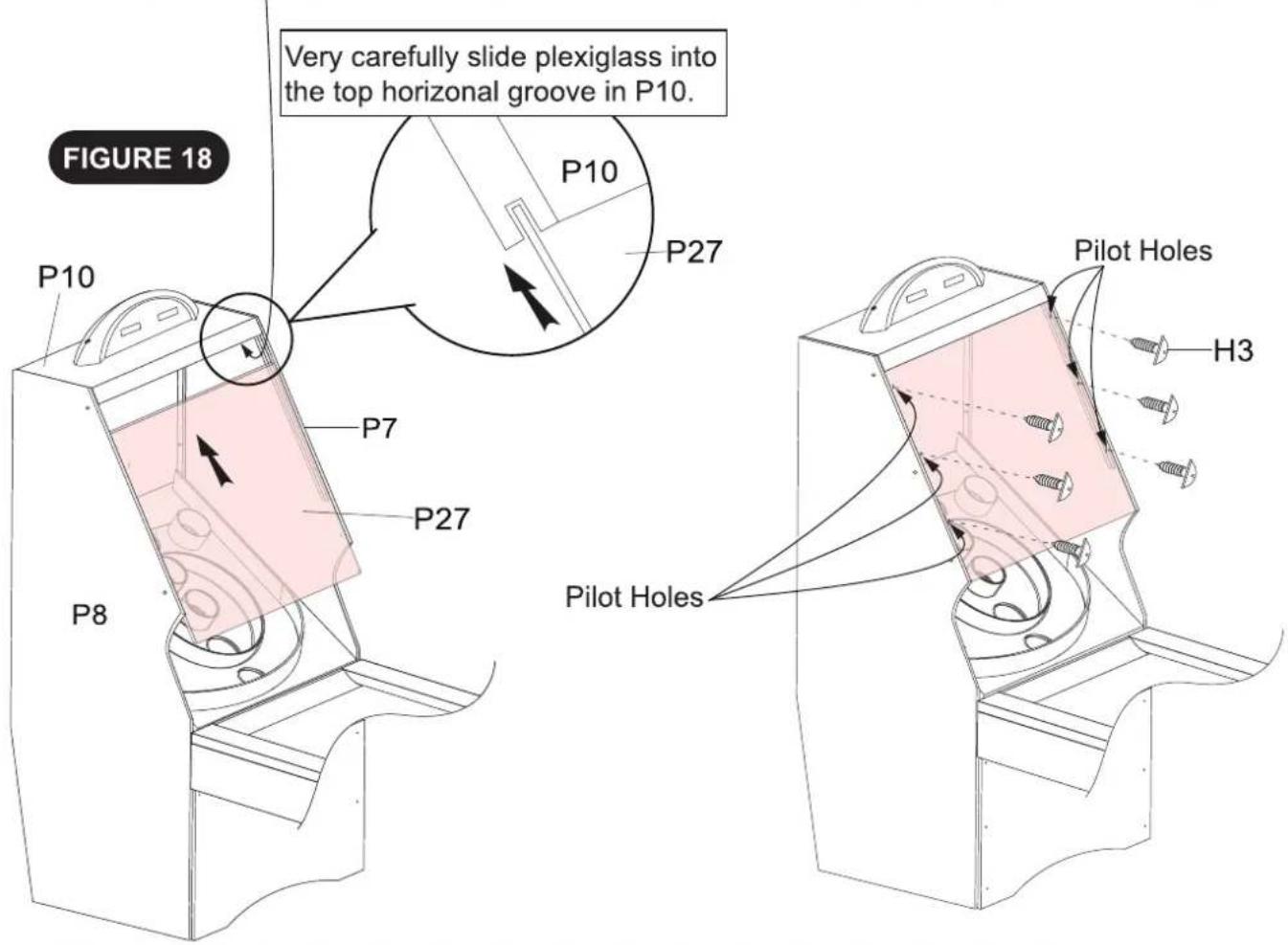

STEP 18

Install the P27 Clear Plexiglass onto the P7 / P8 Back Legs and attach onto the P10 Top Cabinet Panel using pilot holes and the H3 Phillips Round Screws as shown in FIGURE 18.

Tighten, but DO NOT overtighten H3 Screws as this could crack the plexiglass.

NOTE:

The groove for the top of the P27 plexiglass is in the lower front side of the P10 top cabinet panel. If the plexiglass will not easily slip into this groove, it will be necessary to loosen the 4 pcs H4 bolts that hold the P10 top cabinet panel and carefully tap or push it forward thus moving the groove forward just enough to allow the P27 plexiglass to slip into the groove.

FIGURE 18 P10 P10 P27 Very carefully slide plexiglass into the top horizontal groove in P10. P7 P27 P8 Pilot Holes H3 Pilot Holes

NOTE:

Carefully remove protective covering from the plexiglass before installation, avoid finger prints on the plexiglass by wearing cotton gloves.

PARTS REQUIRED

1pc - P12 Lower Back Cabinet Board

4pcs - H1 Phillips Round Head Screw

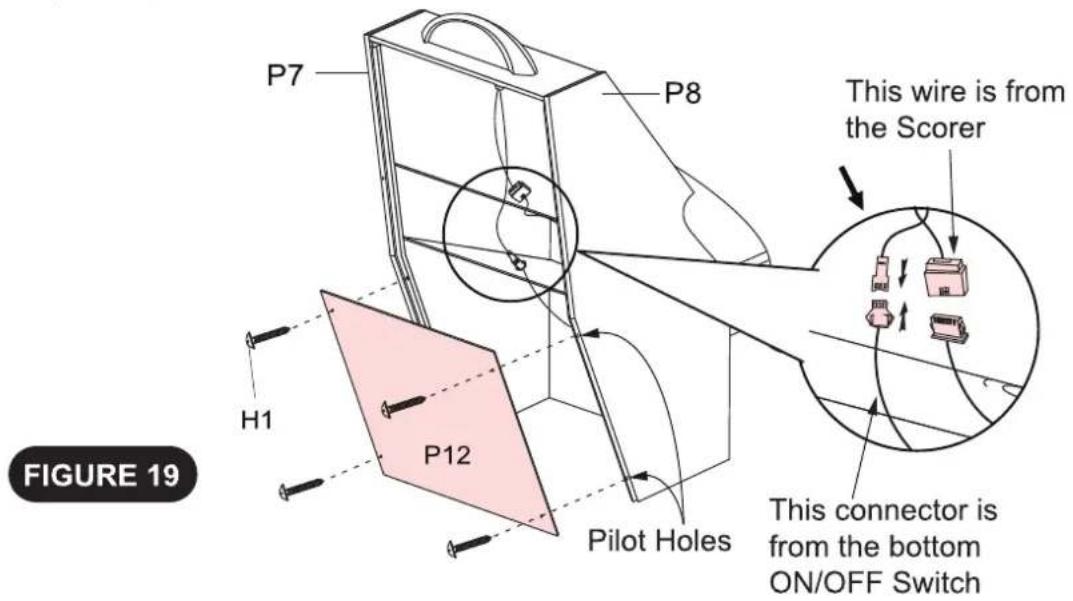

STEP 19

Attach the P12 Lower Back Cabinet Board onto the P7 / P8 Back Legs using pilot holes and the H1 Phillips Round Screws as shown in FIGURE 19.

NOTE: All male/ female connectors must be turned correctly in order to plug into each other.

Tighten, but DO NOT strip out H1 Screws.

P7 P8 This wire is from the Scorer H1 P12 Pilot Holes This connector is from the bottom ON/OFF Switch FIGURE 19

PARTS REQUIRED

1pc - P11 Upper Back Cabinet Board

6pcs - H1 Phillips Round Head Screw

1pc - A1 A/C Adapter

2pcs - H2 Phillips Round Head Screw

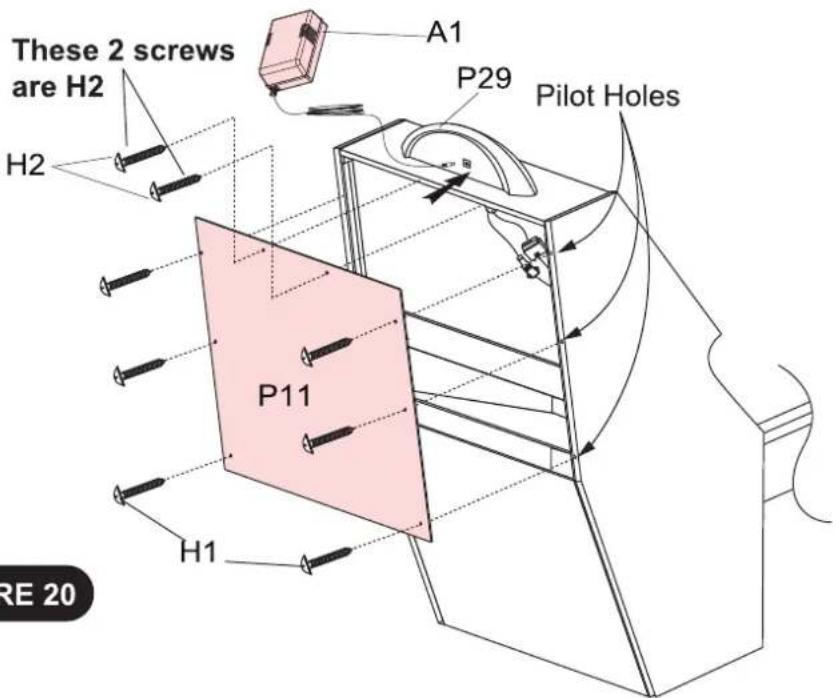

STEP 20

Attach the P11 Upper Back Cabinet Board onto the Back Leg Cabinet using pilot holes and the H1 and H2 Phillips Round Screws as shown in FIGURE 20.

Tighten, but DO NOT strip out H1, H3 Screws.

Plug A1 A/C Adapter into back side of P29 Electronic Scorer

Do not allow A/C Adapter cord to be a trip hazard.

These 2 screws are H2 H2 A1 P29 Pilot Holes P11 H1 RE 20

FIGURE 20

PARTS REQUIRED

1pc - P31 Left Plastic Trim Strip

14pcs - H3 Phillips Round Head Screw

1pc - P32 Right Plastic Trim Strip

2pcs - P35 Top Rail Plastic Corner Cap

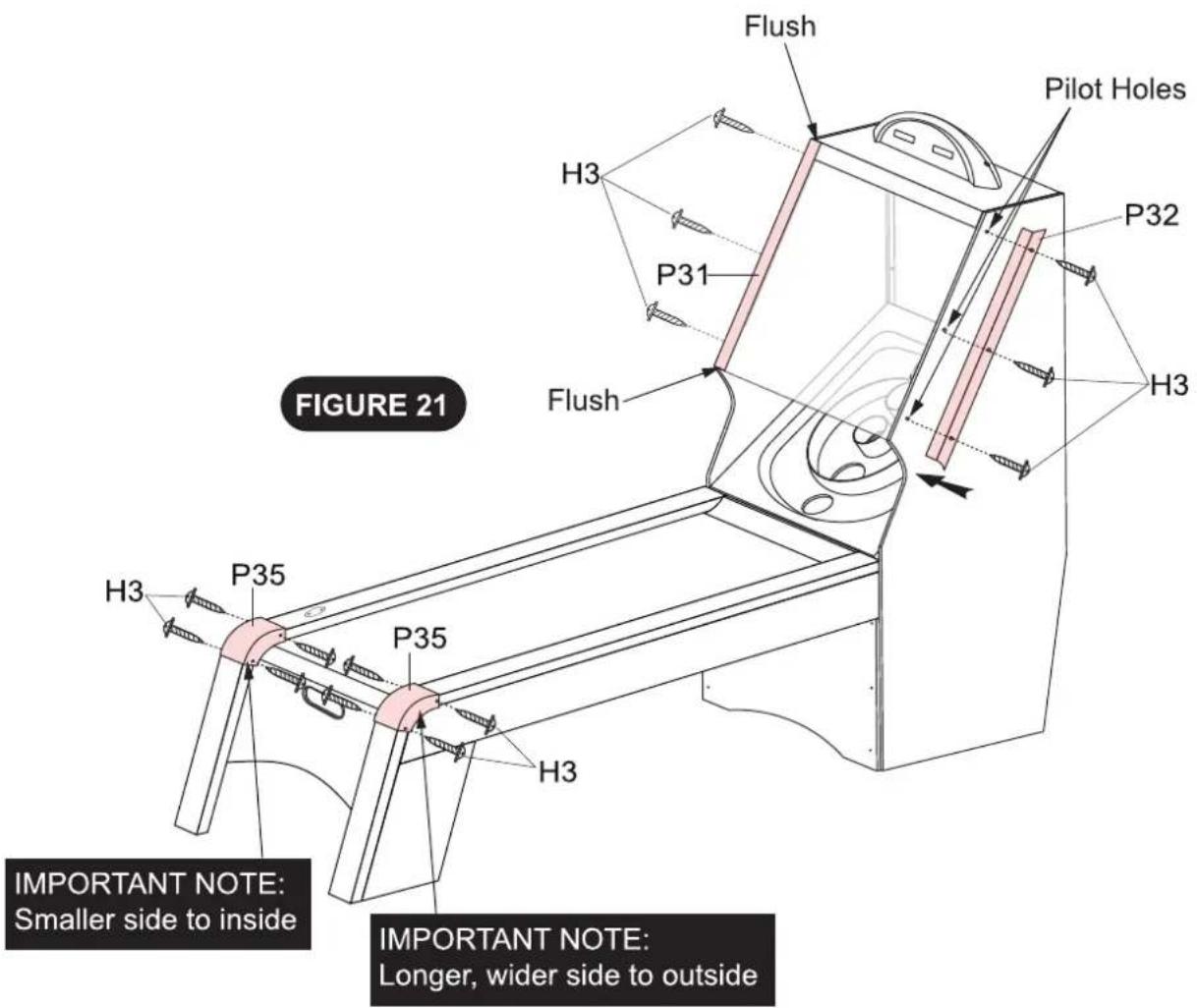

STEP 21

Attach the P31 / 32 Plastic Trim Strips onto the Cabinet using pilot holes and the H3 Phillips Round Screws as shown in FIGURE 21.

Attach the P35 Top Rail Plastic Corner Caps onto the Front Legs using pilot holes and the H3 Phillips Round Screws as shown in FIGURE 21.

Tighten, but DO NOT strip out H3 Screws.

Flush H3 P31 Pilot Holes H3 Flush H3 P35 P35 H3 IMPORTANT NOTE: Smaller side to inside IMPORTANT NOTE: Longer, wider side to outside FIGURE 21

ELECTRONIC CONNECTIONS

NOTE: All male/ female connectors must be turned correctly in order to plug into each other.

A1 A/C Adapter P29 Electronic Scorer Connections 1,2,3,4 are all made by the customer. C2 LED Strip C1 ON/OFF Switch Target Board to Electronic Scorer P5 Replacement of Scorer Sensor Unplug the connecting wire first. C3 Scoring Sensor C4 Screw C3 Scoring Sensor P5

Congratulations! You have now assembled your game table. Please note the Care and Use instructions below to ensure many years of trouble-free use of your game table.

ELBATRUOYFOESUDN

1. Use spray furniture polish to clean all exterior surfaces of your game table and on the playfield (but not the plexiglass which requires an acrylic cleaner/polish).
2. Use only a suitable UK AC household outlet, and ensure the cord is not a trip hazard.
3. This product is intended for INDOOR use only.
4. DO NOT sit, climb or lean on the table.
5. DO NOT drag the table when moving it. This will damage the legs.
6. DO NOT set drinks on the table.

PRODUCT PARTS LIST FOR MODEL

188805

Key #	Part #	Description	Qty.
H1	188805HLH1	3.5 mm x 18 mm Phillips Round Head Screw 24
H2	188805HLH2	3.5 mm x 28 mm Phillips Round Head Screw	28
H3	188805HLH3	3.5 mm x 12 mm Phillips Round Head Screw	98
H4	188805HLH4	6 mm x 25 mm Allen Head Bolt	16
H5	188805HLH5	6.5 mm x 18 mm Flat Washer	16
H6	188805HLH6	M6 Lock Washer	16
H7	188805HLH7		123.5 mm x 14 mm
T1	188805HLT1	M5 Allen Wrench	1
P1	188805HLP1	Front Leg Apron	1
P2	188805HLP2	Left Front Leg	1
P3	188805HLP3	Right Front Leg	1
P4	188805HLP4	Ball Stop Bottom Board	1
P5	188805HLP5	Target Board with Scoring Sensors	1
P6	188805HLP6	Top Rail Plastic Corner Cap	2
P7	188805HLP7	Right Back Cabinet Leg	1
P8	188805HLP8	Left Back Cabinet Leg	1
P9	188805HLP9	Backboard with Graphic	1
P10	188805HLP10	Top Cabinet Panel for Scorer	1
P11	188805HLP11	Upper Back Cabinet Board	1
P12	188805HLP12	Lower Back Cabinet Board	1
P13	188805HLP13	Left Side Apron	1
P14	188805HLP14	Right Side Apron	1
P15	188805HLP15	Left Top Rail with Control Switch and Wiring	1
P16	188805HLP16	Right Top Rail	1
P17	188805HLP17	Left Leg (assembled with P2)	1
P18	188805HLP18	Right Leg (assembled with P3)	1
P19	188805HLP19	Playfield with End Ramp	1
P20	188805HLP20	Wooden Support Brace (packed with P30)	1
P21	188805HLP21	Connecting Board	2
P22	188805HLP22	Goal Box Bottom Board	1
P23	188805HLP23	Metal Connection Plate	16
P24	188805HLP24	Middle Support Board	2
P25	188805HLP25	End Support Board	1
P26	188805HLP26	Plastic Ball Return	2
P27	188805HLP27	Clear Plexiglass	1
P28	188805HLP28	Lower Front Cabinet Board	1
P29	188805HLP29	Electronic Scorer	1

Key # Part #	Description	Qty.
P30 188805HLP30	Black Plastic “L” Bracket 6
P31 188805HLP31	Left Plastic Trim Strip	1
P32 188805HLP32	Right Plastic Trim Strip	1
P33 188805HLP33	Plastic Connector (Playfield to Front Leg)	1
A1 188805HLA1	A/C Adapter	1
A2 188805HLA2	Ball	4
C1 188805HLC1	ON / OFF Switch	1
C2 188805HLC2	Led Strip	2
C3 188805HLC3	Scoring Sensor	7
C4 188805HLC4	3.5mm x 12mm Phillips Round Head Screw	14
K1 188805HLK1	Hardware Kit	1
M1 188805-HLM1	Instruction Manual	1

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

Machine Translated by Google

11-1/2" 18-1/4"

23-1/2" 26-1/4"

58" 17-34"

58" 17-3/4"

23-1/4" 16-1/2"

23-1/2" 8"-1/2"

80-1/2" 7-1/2"

80-1/2" 7-1/2"

3-1/2" 78-3/8"

17-3/8" 3-1/2" Black Painting 18-1/4" 79-1/4"

Machine Translated by Google

Machine Translated by Google

PIÈCES REQUISES

Angled Aprons this end. H2 P14 P19 Playfield Upside Down P13 Flush End Cord Connector Flush End Playfield sets down into the "Lips" --- both sides. Flush End Ramp this end. Flush FIGURE 2

m = 311

图 1

1

1

[NO TEXT]

m = 311

[NO TEXT]

m = 311

m - 1 0 ;

图

m = 311

)

1

1

1

m = 311

m = 311

[NO TEXT]

m = 311

m = 311

m = 311

m = 311

广力云

[Non-Text]

PIÈCES REQUISES

Lock Washers as shown in DETAIL H.

Tighten H4 bolts using T1 Allen Wrench--- DO NOT overtighten.

DETAIL H. en Wrench--- DO NOT DETAIL H H5 H6 H4 P21 Flush P21 FIGURE 8

PIÈCES REQUISES

Tighten, but DO NOT strip out H2 screws.

NOT strip out H2 screws. P24 DETAIL 1 P20 H2 P25 P26 FIGURE 10

PIÈCES REQUISES

Note:Notch is here for wires Graphic this side P9 STEP 16 Assembly 2 wires go out to outer back side H4 H6 H5 FIGURE 17-1 FIGURE 17-2 FIGURE 17-3

PIÈCES REQUISES 6

1pc - Plexiglas transparent P27

P7 P8 This wire is from the Scorer H1 P12 Pilot Holes This connector is from the bottom Interrupteur marche/arrêt FIGURE 19

PIÈCES REQUISES

Flush H3 P31 P32 H3 Flush Pilot Holes H3 P35 H3 P35 H3 FIGURE 21 IMPORTANT NOTE: Smaller side to inside IMPORTANT NOTE: Longer, wider side to outside

CONNEXIONS ÉLECTRONIQUES

Machine Translated by Google

T1 -M6 Inbusschlüssel

(1 Stk.)

TEILEKENNZEICHNUNG

11-1/2" 18-1/4"

23-1/2" 26-1/4"

58" 17-34"

P7 – Rechter Verteidiger Schrankbein (1 Stk.)

58" 17-3/4"

P8 - Linksverteidiger Schrankbein (1 Stk.)

23-1/4" 16-1/2"

80-1/2" 7-1/2"

P13 - Left Side Apron (1 Stück)

80-1/2" 7-1/2"

3-1/2" 78-3/8"

17-3/8" 3-1/2" Black Painting 18-1/4" 79-1/4"

Angled Aprons this end. H2 P14 P19 Playfield Upside Down P13 Flush End Cord Connector Flush End Playfield sets down into the "Lips" --- both sides. Flush End Ramp this end. Flush FIGURE 2

Lock Washers as shown in DETAIL H.

Tighten H4 bolts using T1 Allen Wrench--- DO NOT overtighten.

Riegscheiben, H6 TAIL H. en Wrench--- DO NOT DETAIL H H5 H6 H4 P21 Flush P21 FIGURE 8

BENÖTIGTE TEILE

Tighten, but DO NOT strip out H2 screws.

NOT strip out H2 screws. P24 DETAIL I P20 H2 P25 P26 FIGURE 10

BENÖTIGTE TEILE

Flush H3 P31 P32 H3 Flush Pilot Holes H3 P35 H3 P35 H3 FIGURE 21 IMPORTANT NOTE: Smaller side to inside IMPORTANT NOTE: Longer, wider side to outside

Scanned text of contract clauses or legal document sections

Machine Translated by Google

11-1/2" 18-1/4"

P1 - Grembiule per la gamba
anteriore (1 pz)

P2 - Gamba anteriore sinistra (si monta con P17) (1 pz)

P3 - Gamba anteriore destra (si monta con P18) (1 pz)

23-1/2" 26-1/4"

58" 17-3/4

P7 - Terzino destro Gamba per mobile (1 pz)

58" 17-3/4"

23-1/4" 16-1/2"

80-1/2" 7-1/2"

P13 - Left Side Apron (1 pz)

80-1/2" 7-1/2"

P14 - Grembiule lato destro (1 pz.)

3-1/2" 78-3/8"

17-3/8" 3-1/2" Black Painting 18-1/4" 79-1/4"

P18 - Gamba destra (si assembla con P3) (1 pz)

Angled Aprons this end. H2 P14 P19 Playfield Upside Down P13 Flush End Cord Connector Flush End Playfield sets down into the "Lips" --- both sides. Flush End Ramp this end. Flush FIGURE 2

m = 311

The image is too blurry to recognize any text content.

1

1

m = 311

m = 311

m = 311

m = 311

m = 311

图 2-1

[Non-Text]

[NO TEXT]

1

m = 311

m = 311

m = 311

m = 311

[NO TEXT]

m = 311

m = 311

m = 311

m = 311

m = 311

[Non-Text]

PARTI RICHIESTE

Lock Washers as shown in DETAIL H.

Tighten H4 bolts using T1 Allen Wrench--- DO NOT overtighten.

DETAIL H. en Wrench--- DO NOT FIGURE 8 Flush H5 H6 H4 DETAIL H P21 Flush P21

PARTI RICHIESTE

Tighten, but DO NOT strip out H2 screws.

NOT strip out H2 screws. P24 DETAIL I P20 H2 P25 P26 FIGURE 10

PARTI RICHIESTE

Note:Notch is here for wires 2 wires go out to outer back side P9 STEP 16 Assembly H4 H6 H5 FIGURA 17-1 FIGU FIGURA 17-3

PARTI RICHIESTE 6

1 pz - P27 Plexiglass trasparente

pezzi - Vite a testa tonda Phillips H3

PASSO 18

P7 P8 This wire is from the Scorer H1 P12 Pilot Holes This connector is from the bottom Interruttore ON/OFF FIGURA 19

PARTI RICHIESTE

Flush H3 P31 P32 H3 Flush Pilot Holes H3 P35 H3 H3 P35 H3 IMPORTANT NOTE: Smaller side to inside IMPORTANT NOTE: Longer, wider side to outside FIGURE 21

CONNESSIONI ELETTRONICHE

Machine Translated by Google

11-1/2" 18-1/4"

23-1/2" 26-1/4"

58" 17-34"

58" 17-3/4"

23-1/4" 16-1/2"

80-1/2" 7-1/2"

P13 - Left Side Apron
(1 pieza)

80-1/2" 7-1/2"

3-1/2" 78-3/8"

Machine Translated by Google

Angled Aprons this end. H2 P14 P19 Playfield Upside Down P13 Flush End Cord Connector Flush End Playfield sets down into the "Lips" --- both sides. Flush End Ramp this end. Flush FIGURE 2

Lock Washers as shown in DETAIL H.

Tighten H4 bolts using T1 Allen Wrench--- DO NOT overtighten.

DETAIL H. EN Wrench--- DO NOT H5 H6 H4 DETAIL H P21 Flush P21 FIGURE 8

PIEZAS REQUERIDAS

Tighten, but DO NOT strip out H2 screws.

NOT strip out H2 screws. P24 DETAIL I P20 H2 P25 P26 FIGURE 10

PIEZAS REQUERIDAS

Pure geometric diagram of a rectangular plate with holes and dashed lines, no text or symbols present

H4
FIGURA 13

Note:Notch is here for wires Graphic this side P9 STEP 16 Assembly 2 wires go out to outer back side H4 H6 H5 FIGURA 17-1 FIGURA 17-2 FIGURA 17-3

PIEZAS REQUERIDAS 6

P7 P8 This wire is from the Scorer H1 P12 Pilot Holes This connector is from the bottom Interruptor de encendido y apsgado FIGURA 19

PIEZAS REQUERIDAS

Flush H3 P31 P32 H3 Flush Pilot Holes H3 P35 H3 P35 H3 FIGURE 21 IMPORTANT NOTE: Smaller side to inside IMPORTANT NOTE: Longer, wider side to outside

Scanned text of contract clauses or legal document sections

Machine Translated by Google

11-1/2" 18-1/4"

23-1/2" 26-1/4"

58" 17-34"

58" 17-3/4"

23-1/4" 16-1/2"

23-1/2" 8"-1/2"

80-1/2" 7-1/2"

P13 - Left Side Apron
(1 szt.)

80-1/2" 7-1/2"

3-1/2" 78-3/8"

3-1/2" 78-3/8"

Machine Translated by Google

CZEŚCI POTRZEBNE

Angled Aprons this end. H2 P14 P19 Playfield Upside Down P13 Flush End Cord Connector Flush End Playfield sets down into the "Lips" --- both sides. Flush End Ramp this end. Flush FIGURE 2

Lock Washers as shown in DETAIL H.

Tighten H4 bolts using T1 Allen Wrench--- DO NOT overtighten.

DETAIL H. en Wrench--- DO NOT FIGURE 8 Flush H5 H6 H4 DETAIL H P21 Flush P21

CZEŚCI POTRZEBNE

Tighten, but DO NOT strip out H2 screws.

NOT strip out H2 screws. P24 DETAIL I P20 H2 P25 P26 FIGURE 10

CZEŚCI POTRZEBNE

Note:Notch is here for wires Graphic this side P9 STEP 16 Assembly 2 wires go out to outer back side H4 H6 H5 RYCINA 17-1 RYCINA 17-2 RYCINA 17-3

P7 P8 This wire is from the Scorer H1 P12 Pilot Holes This connector is from the bottom Przełącznik WŁ./WYŁ. RYCINA 19

RYCINA 19

CZEŚCI POTRZEBNE

Flush H3 P31 P32 H3 Flush H3 P35 H3 P35 H3 Pilot Holes Flush FIGURE 21 IMPORTANT NOTE: Smaller side to inside IMPORTANT NOTE: Longer, wider side to outside

Scanned text of contract clauses or legal document with visible title and signature

TIPS

Machine Translated by Google

11-1/2" 18-1/4"

P1 - Voorpootschort (1 st)

23-1/2" 26-1/4"

58" 17-34"

P7 - Rechtsback Kastpoot (1 st)

58" 17-3/4"

P8 - Linksback Kastpoot (1 st)

23-1/4" 16-1/2"

80-1/2" 7-1/2"

P13 - Left Side Apron (1 stuk)

80-1/2" 7-1/2"

3-1/2" 78-3/8"

(Met AAN/UIT schakelaar + bedrading)

17-3/8" 3-1/2" Black Painting 18-1/4" 79-1/4"

P29 - Electronic Scorer (1 stuk)

1st - P13 1st - Linkerkant schort

Angled Aprons this end. H2 P14 P19 Playfield Upside Down P13 Flush End Cord Connector Flush End Playfield sets down into the "Lips" --- both sides. Flush End Ramp this end. Flush FIGURE 2

Lock Washers as shown in DETAIL H.

Tighten H4 bolts using T1 Allen Wrench--- DO NOT overtighten.

DETAIL H. en Wrench--- DO NOT FIGURE 8 Flush H5 H6 H4 DETAIL H P21 Flush P21

VEREISTE ONDERDELEN

1 st - P20 Houten steunbeugel 1 st - P26

Tighten, but DO NOT strip out H2 screws. DETAIL I P20 H2 P24 P25 P26 FIGURE 10

VEREISTE ONDERDELEN

1st - ÿ P8 Linkerachterbeen

1st-

P28 Achterbord - D

Note:Notch is here for wires 2 wires go out to outer back side P9 Graphic this side STEP 16 Assembly H4 H6 H5 FIGUUR 17-1 FIGUUR FIGUUR 17-3

BENODIGDE

1st - P27 Helder Plexiglas

P7 P8 This wire is from the Scorer H1 P12 Pilot Holes This connector is from the bottom AAN/UIT-schakelaar FIGUUR 19

VEREISTE ONDERDELEN

1 st - P11 Bovenste achterkastbord 1 st - A1

Flush H3 P31 P32 H3 Flush H3 P35 H3 P35 H3 Pilot Holes Flush FIGURE 21 IMPORTANT NOTE: Smaller side to inside IMPORTANT NOTE: Longer, wider side to outside

ELEKTRONISCHE VERBINDINGEN

Machine Translated by Google

11-1/2" 18-1/4"

23-1/2" 26-1/4"

58" 17-34"

P7 - Högerback Skåpsben (1 st)

58" 17-3/4"

23-1/4" 16-1/2"

P9 - Backboard med grafik (1 PC)

23-1/2" 8"-1/2"

P10 - Överskåp

23-3/8" 34-3/8"

80-1/2" 7-1/2"

P13 - Left Side Apron (1 st)

80-1/2" 7-1/2"

3-1/2" 78-3/8"

17-3/8" 3-1/2" 18-1/4" 79-1/4" Black Painting

P25 - End Support Board (1 st)

P26 - Plastic Ball Return (1 st)

P27 - Klart plexiglas (1 pc)

P28 - Nedre Fram Skåp styrelse (1 st)

P29 - Electronic Scorer (1 PC)

A1 - A/C Adapter (1 st)

A2 - Bolla (4 st)

DELAR KRÄVS

Angled Aprons this end. H2 P14 P19 Playfield Upside Down P13 Flush End Cord Connector Flush End Flush End Ramp this end. Playfield sets down into the "Lips" --- both sides. Flush

12st -H3 Phillips Round Head Skruv

STEG 7

Lock Washers as shown in DETAIL H.

Tighten H4 bolts using T1 Allen Wrench--- DO NOT overtighten.

DETAIL H. en Wrench--- DO NOT FIGURE 8 Flush H5 H6 H4 DETAIL H P21 Flush P21

DELAR KRÄVS

Tighten, but DO NOT strip out H2 screws. P24 DETAIL I P20 H2 P25 P26 FIGURE 10

DELAR KRÄVS

1st - P22 Goal Box Bottenbräda

1st - P7 Höger bakre ben

1st - y P8 Vänster bakben

1st-

P28 Baksida - D

Phillips Round Head Screw

STEG 14

Note:Notch is here for wires Graphic this side P9 STEP 16 Assembly 2 wires go out to outer back side H4 H6 H5 FIGUR 17-1 FIGUR 17-2 FIGUR 17-3

DELAR KRÄVS 6st - H3

1st - P27 Klart plexiglas

Phillips Round Head Screw

STEG 18

P7 P8 This wire is from the Scorer H1 P12 Pilot Holes This connector is from the bottom ON/OFF-brytare FIGUR 19

DELAR KRÄVS

1st - P11 Upper Back Cabinet Board 1st - A1 A/C Adapter

1st- P31 vänster plastlister 1st - P32

Phillips Round Head Screw

STEG 21

Flush H3 P31 P32 H3 Flush Pilot Holes H3 P35 H3 H3 P35 H3 IMPORTANT NOTE: Smaller side to inside IMPORTANT NOTE: Longer, wider side to outside FIGURE 21

ELEKTRONISKA ANSLUTNINGAR

Scanned text of contract clauses or legal document sections
