USER MANUAL M7B Vevor

Affordable. Reliable. Home Improvement.

CHICKEN COOP DOOR OPENER

USER MANUAL

MODEL: M7B

MODEL: M7B

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

1. To reduce risk of electric shock, do not disassemble this product.
2. Use the AC/DC Power Adapter and cable provided with the unit. Use of other cables can result in shock, fire or cause damage to unit.
3. If the supply cord (AC/DC Power Adapter) is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Ensure the unit is connected to the power source properly.
5. Do not use the unit if power cord is damaged or if the plug soc contact is loose. Only use the AC/DC Power Adapter with a 100-AC power source.
6. Run power supply to a protected area or build power supply hous order to protect the power plug in from weather. (Run cord throu hole in chickencoop and plug in on the interior of the coop)
7. This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities lack of experience and knowledge if they have been given superv or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

SAVE THIS MANUAL

PARTS LIST

Item No.	Reference Image	Name	Qty
1		Chicken Coop Door Opener	1
2		Type-C Cable	1
3		Dry Cell Battery Box	1
4	OR	Power Adapter (US plug or EU plug)	1
A	M4*20	Mounting Screws	8
B		Phillips Screwdriver	1
C	VEVOR Affordable, Reatable, Home Improvement CHICKEN COOP DOOR OPENER USER MANUAL MOTOR, OR	User Manual	1

PRECAUTIONS:

1. Before using this product for the first time, please read the instruct carefully.
2. This product is not suitable for children under 6 years old to open necessary, parental supervision is required.
3. Do not disassemble this product without permission. Disassembled products are not covered under warranty.

USAGE SUGGESTIONS

1. The factory default is off, please turn on the power before use (p hold the mode button for 5 seconds).
2. Please clean up any foreign objects or obstacles around the chicken coop door regularly to avoid abnormalities during operation.
3. When installing, please make sure the product is perpendicular to ground and tighten the screws. Tilted installation or untightened screws affect the normal operation of the product.
4. If you intend not to use it for a long time, please turn it off and properly.
5. Chicken coop door jamming treatment:
   1) Manually push the door panel of the coop upward, remove the dc panel and clear the jammed foreign matter.
   2) After cleaning, insert the door panel again from above and long p the up button or down button for 1 seconds for manual test.
   3) After ensuring that the manual mode operates normally, recalibrate opening and closing time.

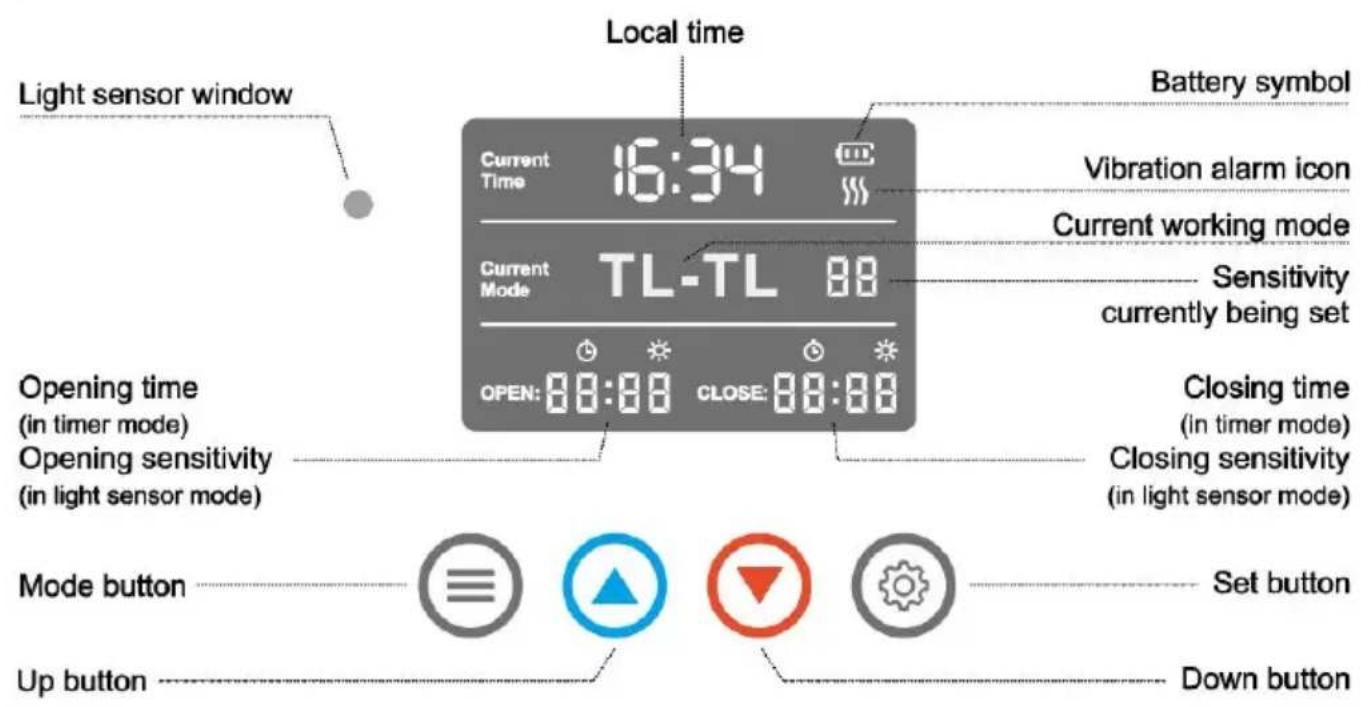

OPERATION PANEL INTRODUCTION:

INTRODUCTION TO USE

1. Installation

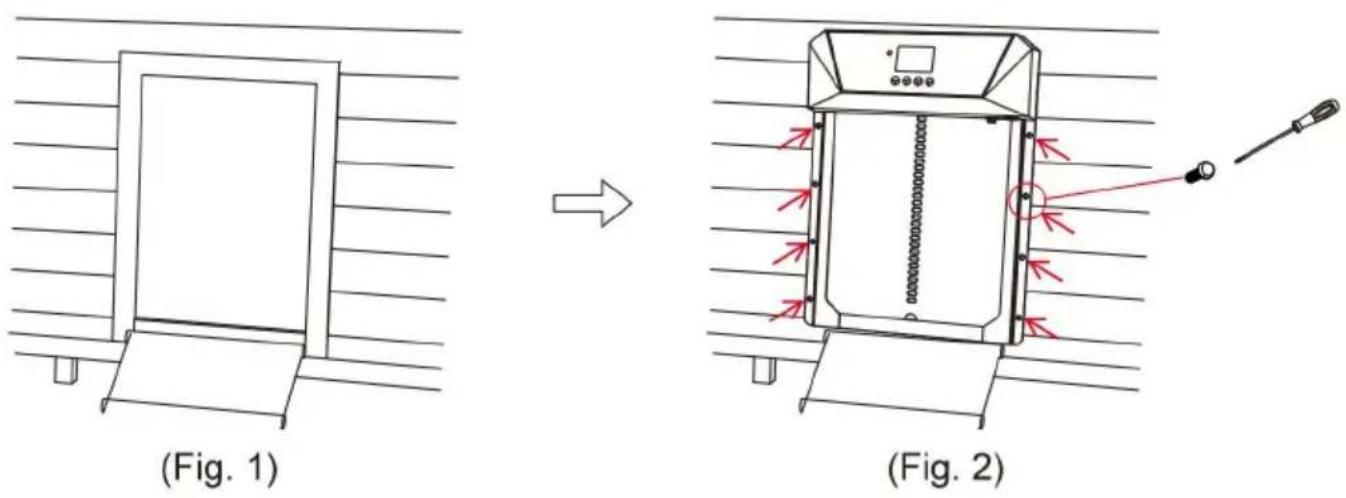

According to the size of the product, select the location to be installed in the chicken house, draw the corresponding board structure diagram at location, and cut the excess wood according to the structure diagram (Fig.1). Align the product and fix it with the matching screws (Fig.2).

2. Installation of battery

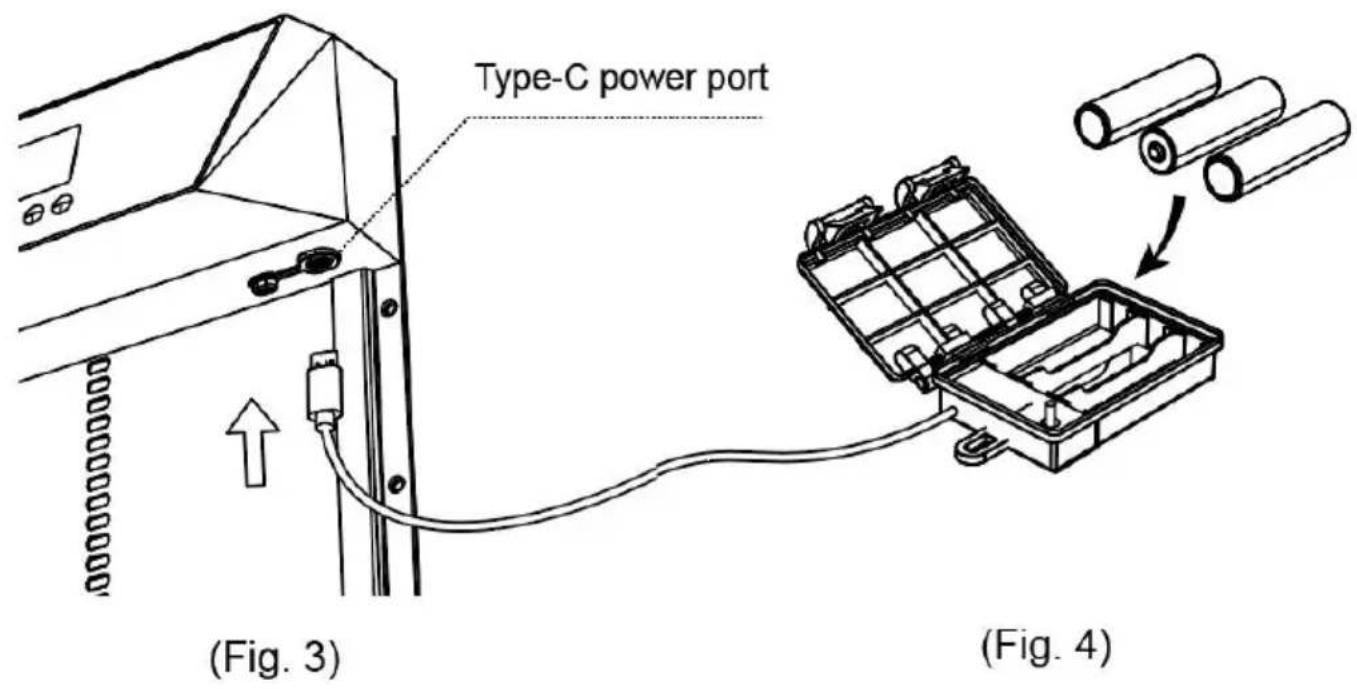

Insert the USB plug of the battery box into the power port of the p (Fig.3), after installing three AA batteries correctly, fasten the cover of battery box.

When the power is low, the battery icon in the upper right corner of coop door display shows an empty

At this time, please replace the battery in time, so as not to affect normal use of the chicken coop door.

Attention:

When the product is not in use, please cover the power port and box.

3. Power on/off

Power On: Press and hold the mode button for 5 seconds.
Power off: Press and hold the mode button for 5 seconds.

4. Setting the automatic working mode

Short press the mode button to switch the following 4 automatic modes.

(On the screen, T stands for Timer Mode, L stands for Light Sensor Mode.)

Icon display	Corresponding working mode
TL-TL	OPEN: Timer mode √CLOSE: Timer mode
TL-TL	OPEN: Light sensor mode √CLOSE: Light sensor mode

5. Light sensitivity and time setting

1) After setting the working mode:

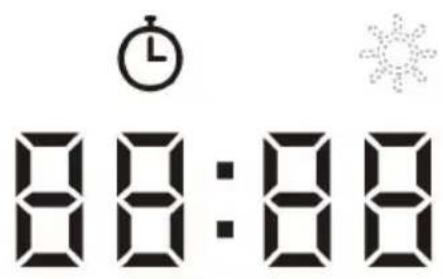

If it is timer mode, the corresponding time digit group lights up (Fig. and the time of this product is displayed in 24-hour system.

If it is light sensor mode, the corresponding sensitivity digit group light (Fig. 5-2), this product has 20 sensitivity levels.

(Fig. 5-1)

(Fig. 5-2)

2) Press the "SET" button briefly, the first group of digits on the screen blinks, then press it again, the next group of digit blinks. Whi digit is blinking, press the "UP" button or "DOWN" button to increase or decrease the corresponding digit to set the time or sensit

3) After adjusting all the digits for 5 seconds, the product will automatically enter the normal working state. If you want to continue to adjust, you need to press the "SET" button briefly again to switch to the group of digits needed to be adjusted.

Attention:

If no button is touched within 10 seconds after the setting is complete, screen light will be dimmed and only the numbers will be displayed. Minutes, the number display will also disappear and the machine will then power saving mode.

6. Manual mode

1) Manually open the door: press and hold the "UP" button for 1 seconds.

2) Manually close the door: press and hold the "DOWN" button for 1 seconds.

7. Vibration alarm

1) Turn on alarm: Long press the "SET" button for 3 seconds to turn on, and the vibration alarm icon will light up. In this state, when the is hit by external force, it will emit "BIBI" alarm sound.
2) Turn off alarm: Long press the "SET" button again for 3 seconds to turn off, the vibration alarm icon dims down.

PERFORMANCE INTRODUCTION

1. Three modes

Timer auto mode /light sensor auto mode /manual mode.

2. Anti-pinch function

1) (1) During the descent of the door panel, if there are chickens or obstacles just below the door, the door will automatically stop descend and rise for a short distance and remain stationary for 10 seconds, i to avoid pinching or killing the chickens or other animals.
2) After 10 seconds, if the chickens or other animals have left or the obstacle has been removed, the coop door will close normally. If the obstacle is still present; the coop door will repeat the previous steps times and then stay in the stuck position.

3) After that, it will be automatically detected again every two hours above steps will be repeated until the timed door opening time.

3. Sturdy and durable

The chicken coop door panel and frame are made of aluminum alloy

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This unit generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment to an outlet on a circuit different from that which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

PRODUCT PARAMETER

Model	M7B
Main Color	Black
Material	ABS & Aluminum Alloy
Power Supply	DC1.5V (with Three removable AA batteries (AA batteries need to be purchased by the DC5V 1.0A 5W (with Adapter)
Product Size/mm	405*330*85

• Products such as specifications, appearance, and design are subject to modification without prior notice.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
