USER MANUAL KH-CW05-G Vevor

Affordable. Reliable. Home Improvement.

DOG WHELPING BOX

MODEL: KH-CW05-G

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

DOG WHELPING BOX

MODEL: KH-CW05-G

Line drawing of a rectangular metal fence structure with vertical supports and horizontal beams (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so may result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly may create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of safely supporting the Dog Whelping Box.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or near this item.
3. Do not exceed specified weight capacities.
4. Use only on a flat, level, hard, and smooth surface that can safely support a fully loaded Dog Whelping Box.
5. Use as intended only.
6. Inspect before every use; do not use if parts are loose or damaged.

SAVE THIS MANUAL

PARTS LIST

Number	Item	Quantity	Diagram
1	Short baffle	12
2	Long baffle	6
3	Stand column	8
4	Vertical baluster	36
5	Upper horizontal rail	3
6	Lower horizontal rail	3
7	Round tube	4
8	Column foot pad	8
9	Column cover	8
10	Support seat	4
11	Round pipe elbow	4
12	M4 –L 16mm	4
13	Mat	2
14	Phillips screwdriver	1
15	Pet medication aid	1
16	Pet bottle set	1
17	Pet feeding syringe	1
18	tape measure	1
19	Specification	1
20	Storage bag	2

STRUCTURE DIAGRAM AND COMPONENTS

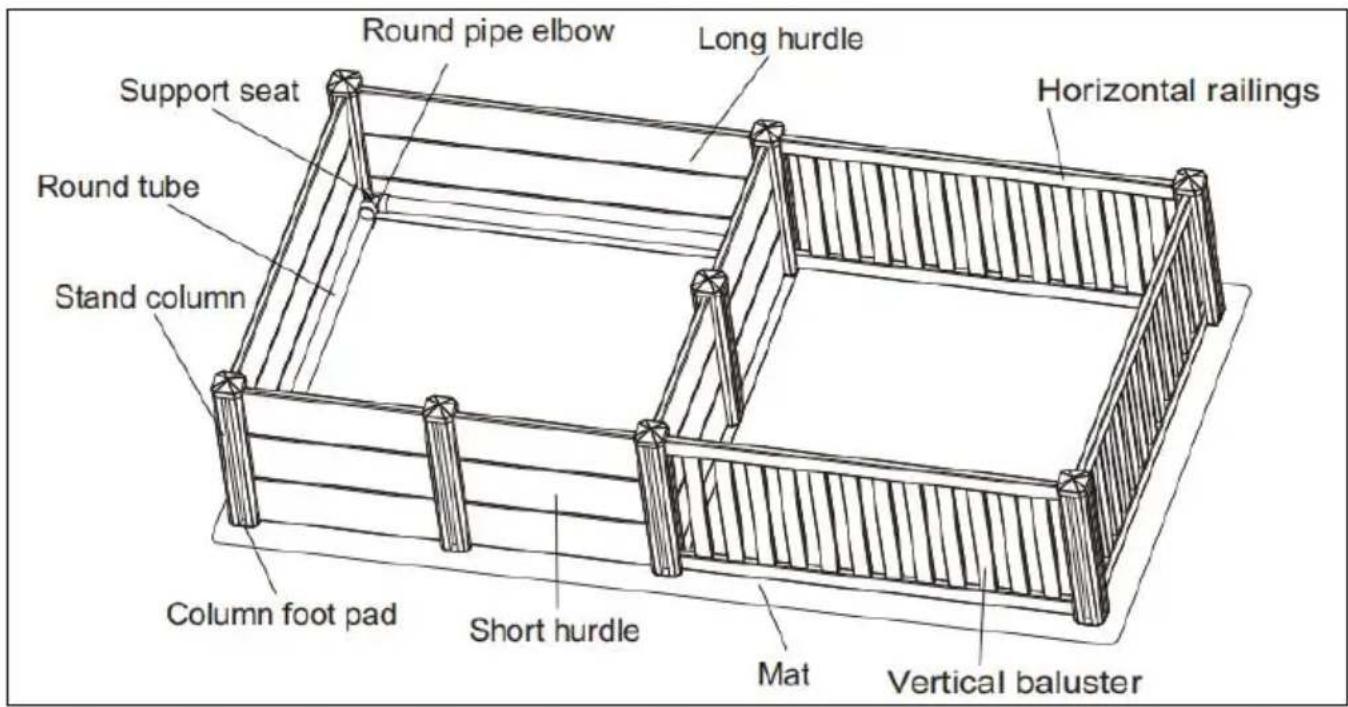

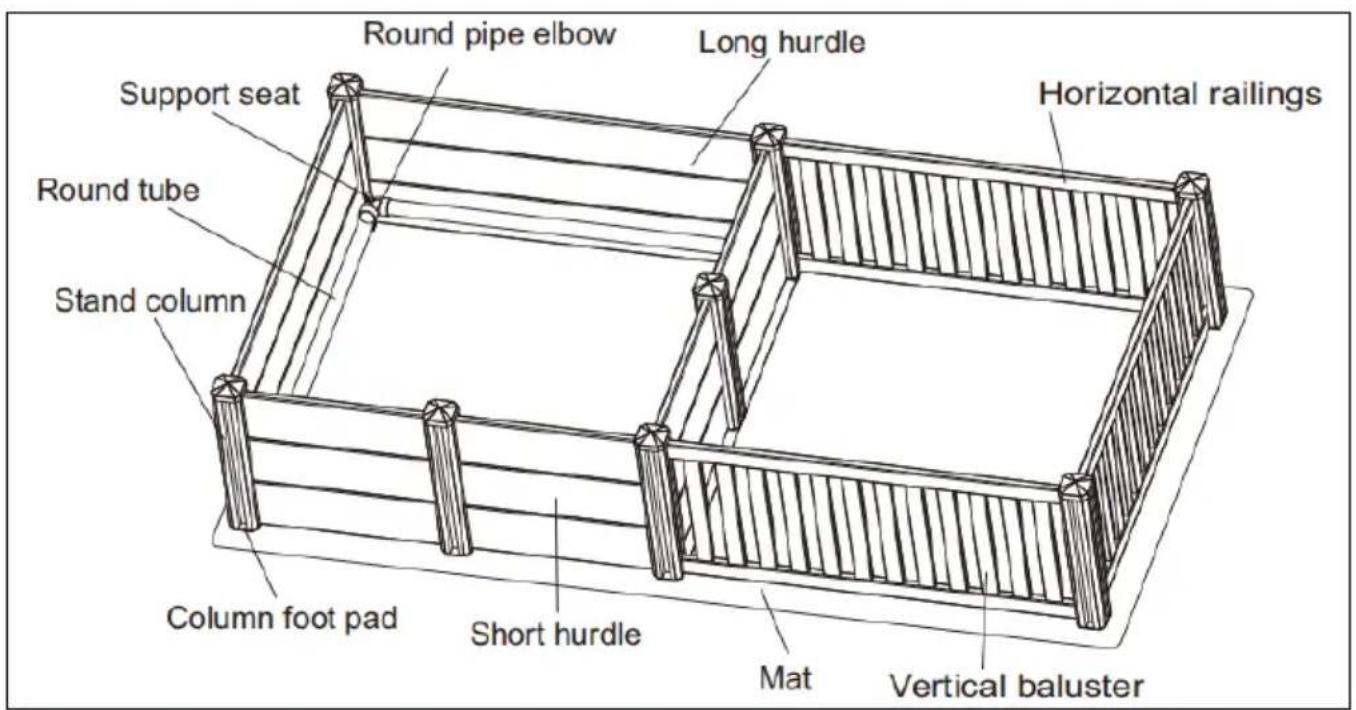

Round pipe elbow Long hurdle Horizontal railings Support seat Round tube Stand column Column foot pad Short hurdle Mat Vertical baluster

INSTALLATION AND INSTRUCTION

STEP1: Installation of posts and internal security fence tubes.

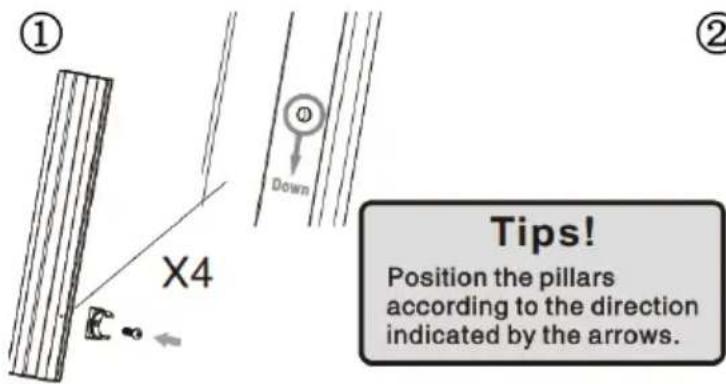

① X4 Down ② Tips! Position the pillars according to the direction indicated by the arrows.

Fix the pipe support seat on the column according to the position of the reserved hole of the column.

Diagram showing a mechanical or structural assembly with labeled components and directional arrow, likely illustrating a process or assembly.

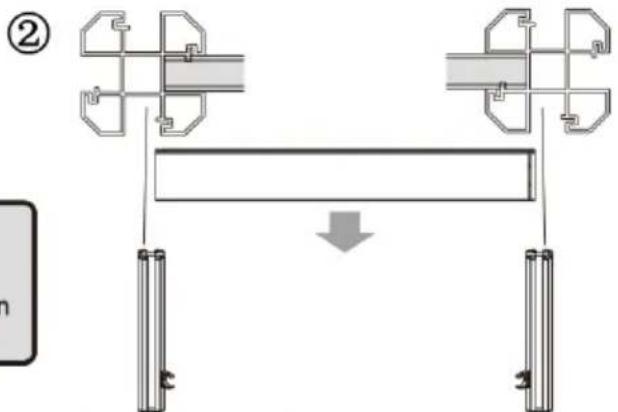

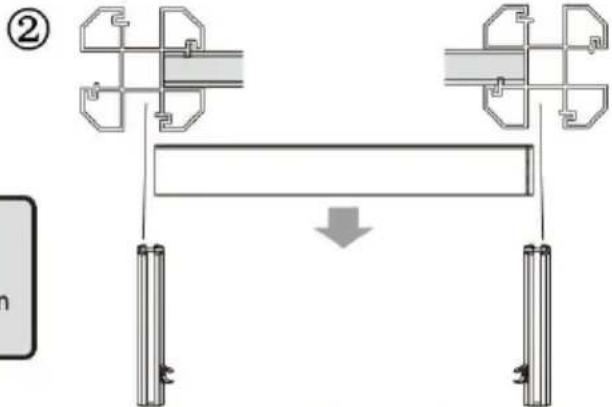

Pay attention to the position of the card slot and insert the baffle into the post
    note right of A: ③
    note right of B: <-->

The two mats are stacked together to make the length needed for the fence.

Pure geometric diagram of a square frame with directional arrows, no text or symbols present

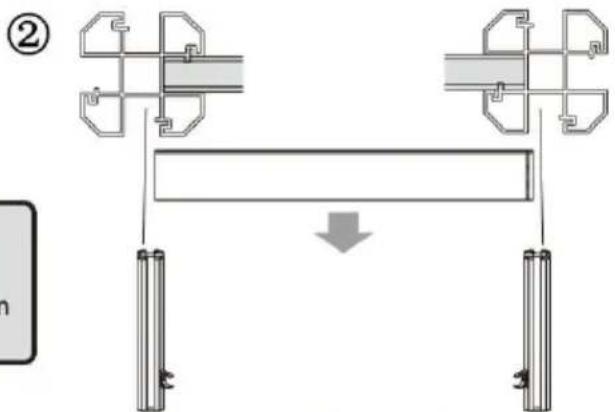

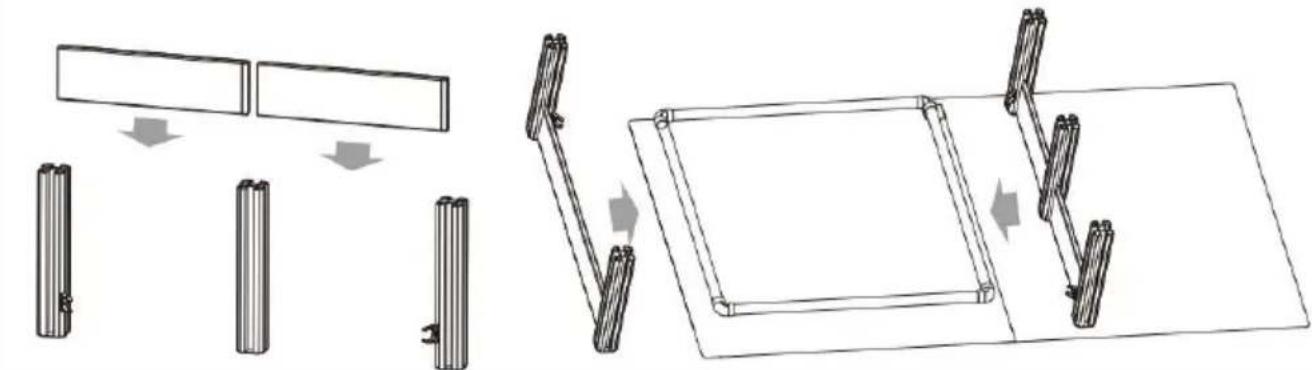

STEP2: Insert the enclosure plate corresponding to the notches into the uprights, then fit the safety fence tubes into the tube clamp fasteners on the four corner uprights.


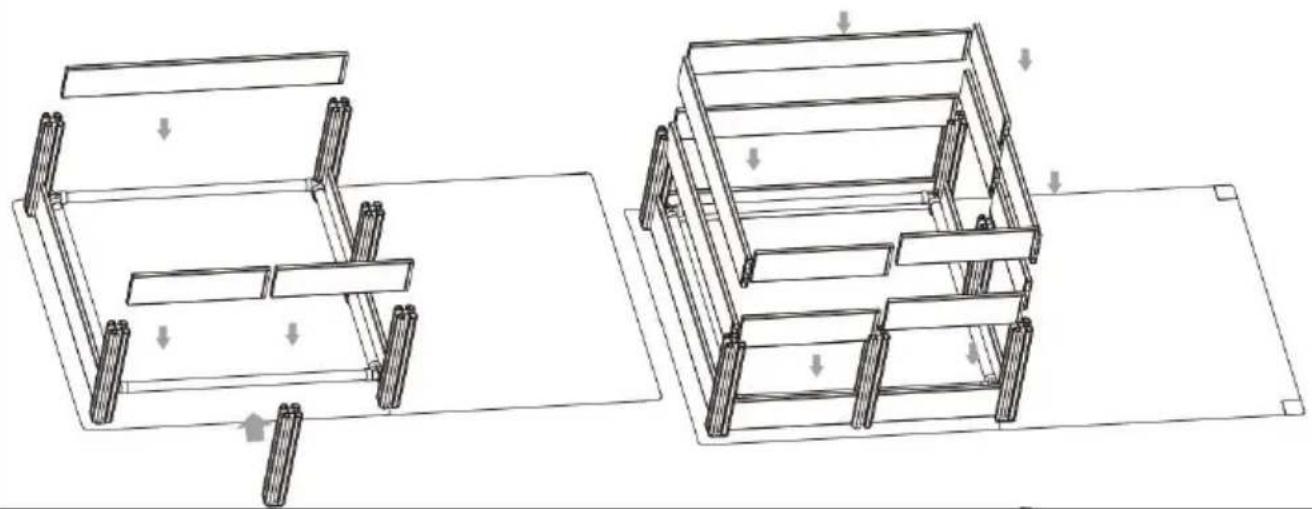

STEP3: Place the center door uprights, then insert the enclosure plate corresponding to the notches into the uprights, the remaining hoardings are installed in this manner.

Technical line drawing of two mechanical frame assemblies with supporting legs and structural supports (no text or symbols)

STEP4: Next install the other side of the fence by placing the two corner posts, inserting the 3 long slats into the posts, and then inserting the short slats into the grill.

Line drawing of two wooden crates with vertical supports and a spring-like structure, showing structural changes (no text or symbols)

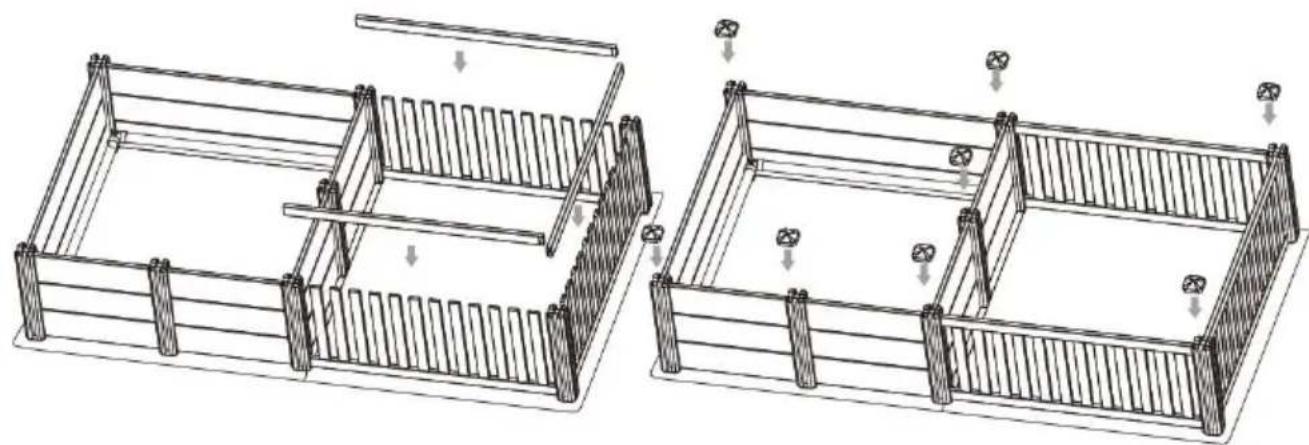

STEP5: Finally, install the long slats at the top of the grille and the top cover of the columns.

Technical line drawing of two identical wooden crates with side supports and mounting holes, showing structural details without any text or symbols.

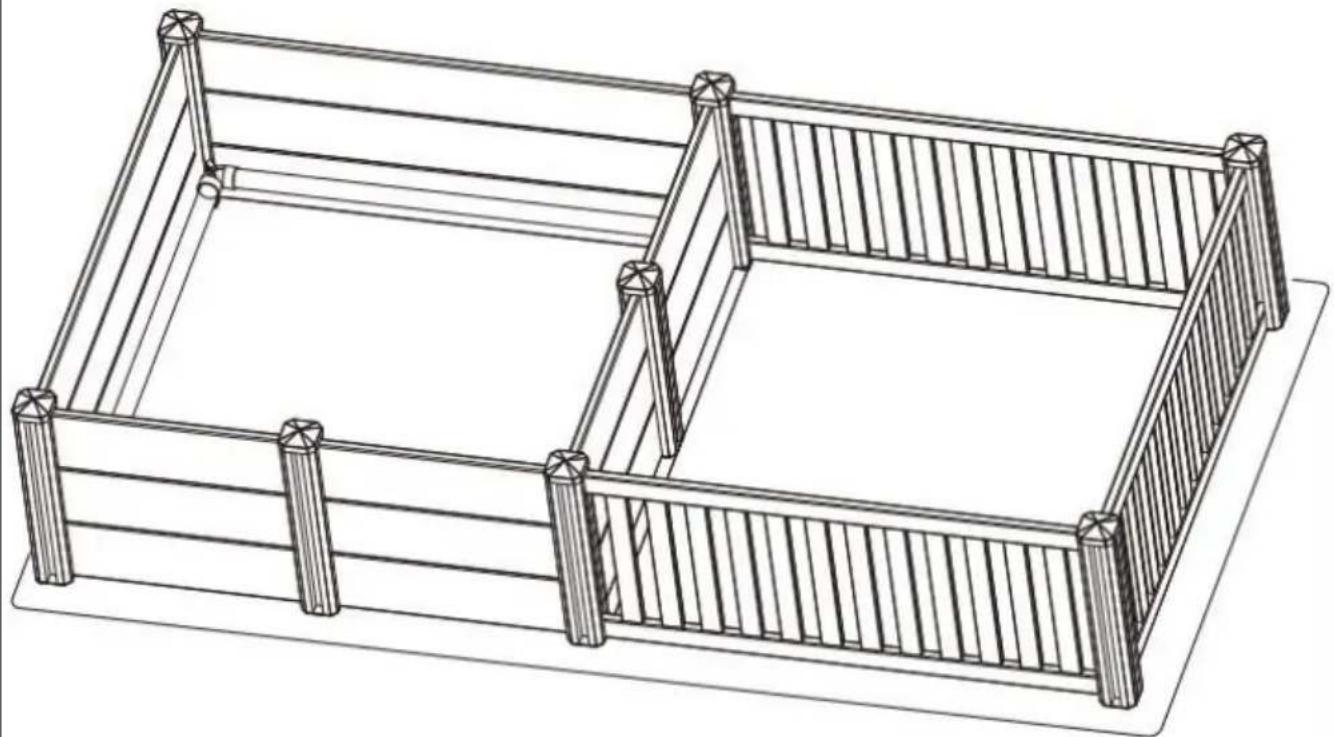

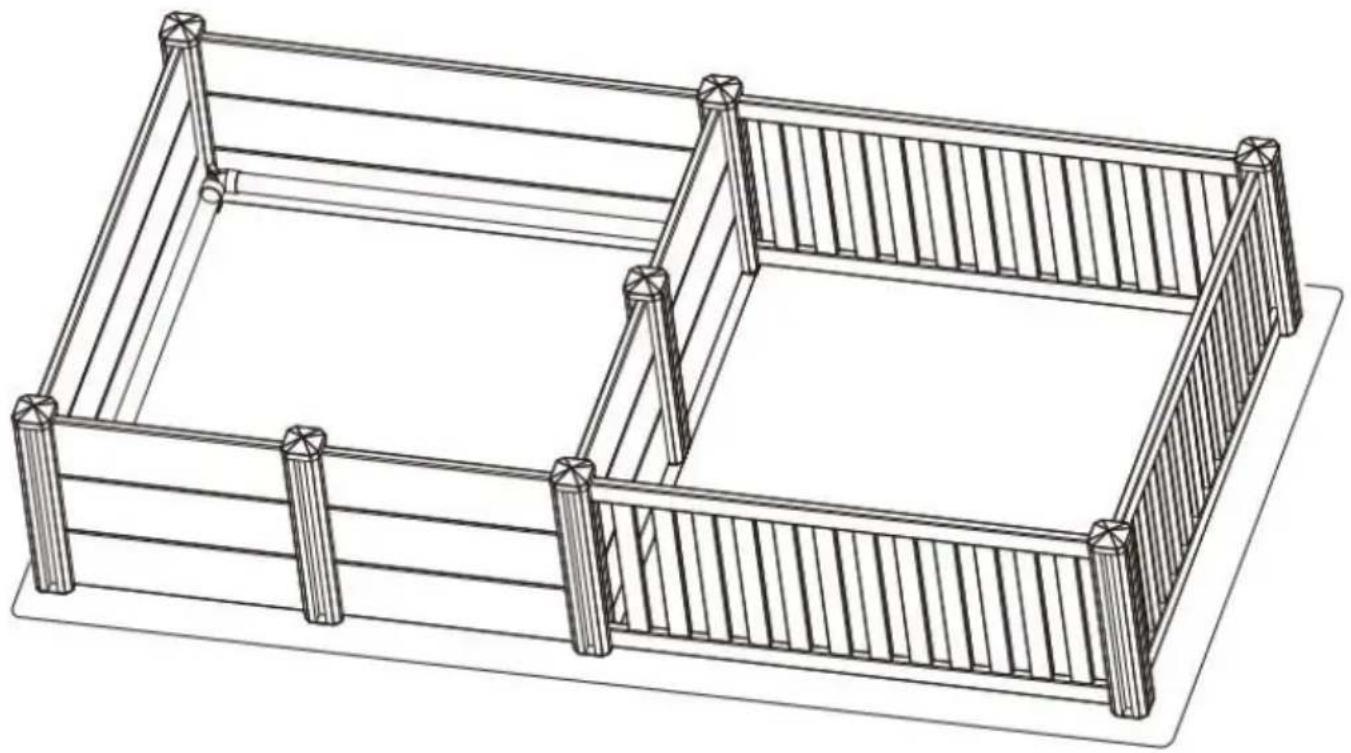

Assembly complete

Line drawing of a rectangular metal fence structure with supports and railings (no text or symbols)

PRODUCT DESCRIPTION

Model	KH-CW05-G
Color	Milky White
Material	PVC
Applicable dog types	XL Extra Large Dog
Product size	2370*1230*460mm
Packing size	1160*500*295mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP
