Product Type	Wall Mount for Wooden Post
Brand	Vevor
Model	BB-6in-2
Material	Steel
Base Dimensions (A x B)	150 x 145 mm (5.9 x 5.7 inches)
Cavity Dimensions (C x D)	150 x 141 mm (5.9 x 5.55 inches)
Number of Kits	2 pieces
Kit Contents (per base)	Post Base (E) x1, Square Plate (F) x1, Fixing Bracket (G) x1, Self-tapping Screw (H) x2, Serrated Expansion Sleeve (I) x2, Washer (J) x2, Heavy Hex Nut (K) x4, Self-tapping Screw (L) x8
Tools Provided	Wrench (M) x1
Intended Use	Fixing wooden posts on concrete or wood floors for gazebos, fences, mailboxes, porch rails, deck supports
Main Function	Protects the post from moisture and prevents rot by separating the wood from the ground
Installation	Requires drilling (drill bit Φ29/64", depth 65 mm) and expansion anchors
Tools Required Not Included	Phillips screwdriver, drill, drill bit
Recommended Number of People	2 people for assembly
Safety	Wear safety glasses and work gloves during assembly
Maintenance and Cleaning	Clean with a damp cloth and mild detergent; avoid abrasive products
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (Australia)	SIHAO PTY LTD, 1 ROKEVA STREET, ASTWOOD NSW 2122
Importer (USA)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Frequently Asked Questions - BB-6in-2 Vevor

What is the maximum size of wooden post that can be used with the BB-6in-2 mount?

The cavity measures 150 x 141 mm (5.9 x 5.55 inches). It is recommended that the square section of the wood be 0.1 inch (2.5 mm) smaller than the cavity, i.e., approximately 148 x 139 mm.

On what type of floor can this mount be installed?

The mount can be installed on concrete or wood floors. It uses serrated expansion sleeves for a secure fixation.

What tools are needed for installation?

You will need a drill with a 29/64 inch (11.5 mm) drill bit, a Phillips screwdriver, a wrench (provided), and optionally a power tool. Wear safety glasses and gloves.

Does the kit contain everything needed to fix two posts?

Yes, the BB-6in-2 model includes two complete sets: two post bases, two square plates, two fixing brackets, 4 self-tapping screws H, 4 expansion sleeves, 4 washers, 8 heavy hex nuts K, and 16 self-tapping screws L, as well as a wrench.

What is the recommended drilling depth for the anchors?

The recommended drilling depth is 65 mm with a drill bit diameter of 29/64 inch (approx. 11.5 mm).

Does the mount really prevent wood rot?

Yes, the mount is designed to separate the wooden post from ground water, effectively preventing rot due to moisture. It is ideal for outdoor applications.

Can I install this mount alone?

It is recommended to have two people for assembly to facilitate handling and positioning of parts.

What is the maximum load supported?

The exact load capacity is not specified in the manual. It is advisable to adhere to the intended use for fence posts, gazebos, etc., without exceeding reasonable limits.

How to maintain the Vevor BB-6in-2 wall mount?

Clean regularly with a damp cloth and mild detergent. Avoid abrasive or corrosive products. Periodically check the tightness of screws.

Where can I find the warranty or technical support?

Visit the website www.vevor.com/support to obtain the electronic warranty certificate and technical support.

USER MANUAL BB-6in-2 Vevor

Affordable. Reliable. Home Improvement.

SEMI ENVELOPMENT POST BASE

MODEL:BB-6in-2/BB-8in-2

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Semi Envelopment Pos

Base

MODEL:BB-6in-2/BB-8in-2

Black metal bracket with scalloped edges and two circular holes, no text or symbols visible

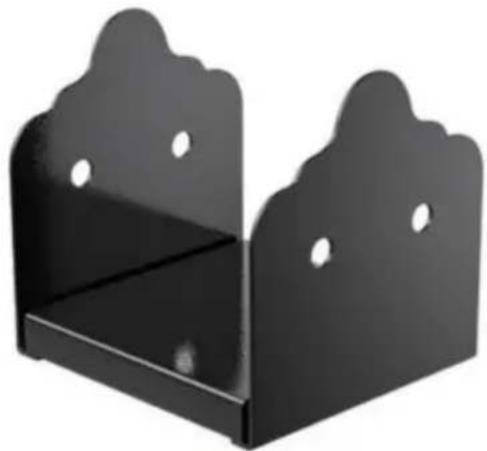

BB-6IN-2

Black metal bracket with scalloped edges and perforated holes (no text or symbols)

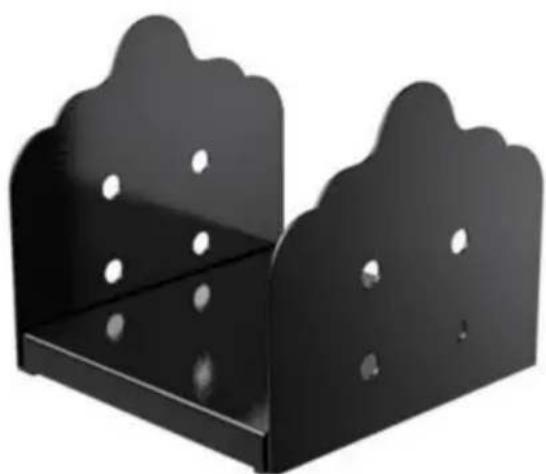

BB-8IN-2

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Safety Instructions

Read and understand this entire manual before assembling, installing, operating, or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

ALL AROUND USE

The product can be used in the existing concrete and wood floors, separating the wooden column from the ground water, effectively prevent the wooden column from water rot; corrosion is suitable for the need the wooden column, such as pavilion, pavilion, fence, pavilion, mailbox porch railing, deck bracket, etc

1. Do not allow children to climb on the unit. 2. Keep children and away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.

2. Please wear safety goggles and work gloves properly during assem

3. Do not try to assemble the product when feeling tired or when un influence of alcohol, drugs or medication.

4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.

5. Separate and count all parts and hardware.

6. Prepare the following tool: Philips Head Screwdriver.

7. If using power tools, please be careful to slow down and stop when needed.

8. Two people are required for assembly.

9. Follow the intended uses only.

PARAMETER LIST

Product Model	BB-6in-2	BB-8in-2
Number of kits	2pcs	2pcs

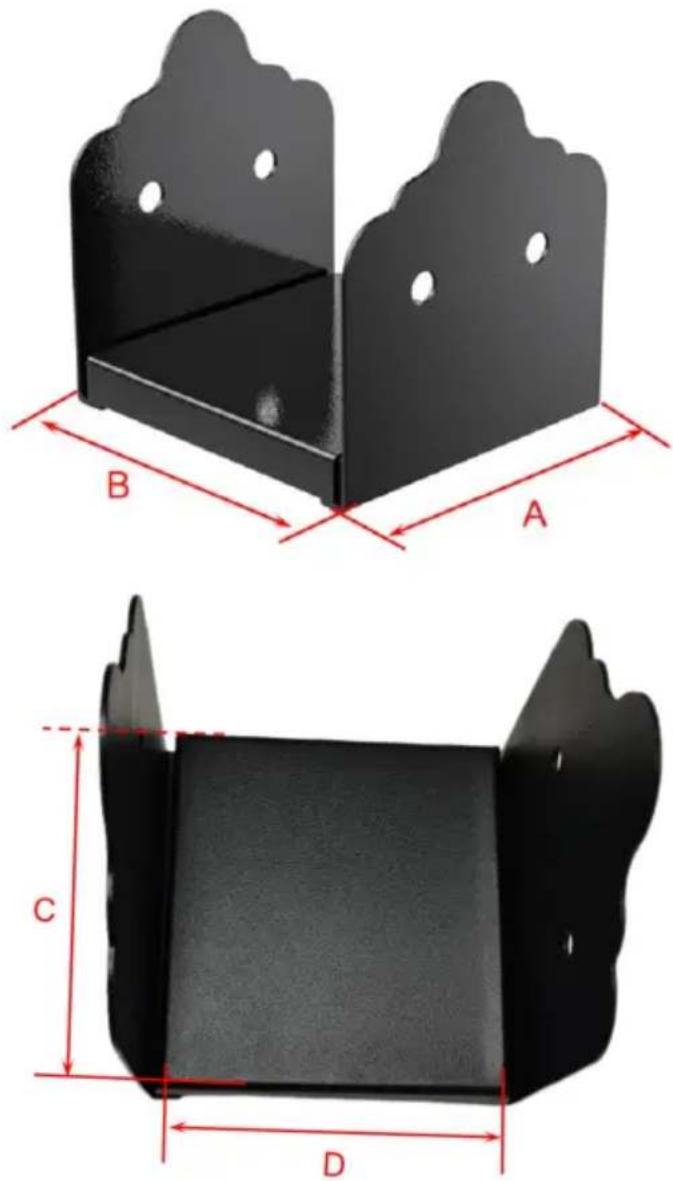

Base size (A*B)	5.9×5.7inch (150×145mm)	7.9×7.64inch (200×194mm)
Product cavity size (C*D)	5.9×5.55inch (150×141mm)	7.9×7.5inch (200×190mm)

PARTS LIST

Product Model	BB-6in-2	BB-8in-2
E:Post Base	2pcs
F:Square gasket	2pcs
G:Support bracket	2pcs
H:Self-tapping Screw	4pcs
I:Serrated Expansion Sleeve	4pcs
J::washer	4pcs
K:Heavy Hex Nut	8pcs	16pcs
L:Self-tapping Screw	8pcs	16pcs
M:wrench	1pc

Our products are constantly updated, the pictures may be different from shape of the actual items, please refer to the actual items.

Count the parts when receiving samples.

Wrench M is used to turn the screws

INSTALLATION GUIDE

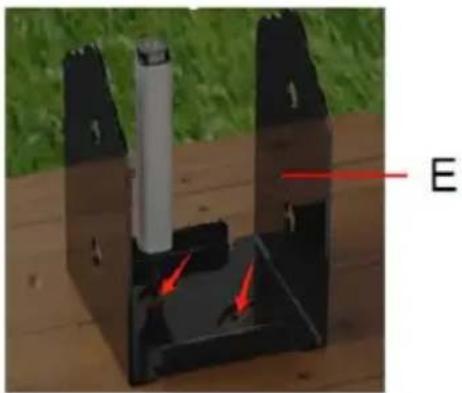

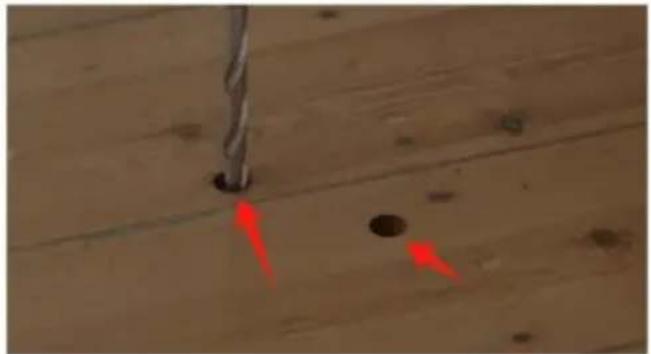

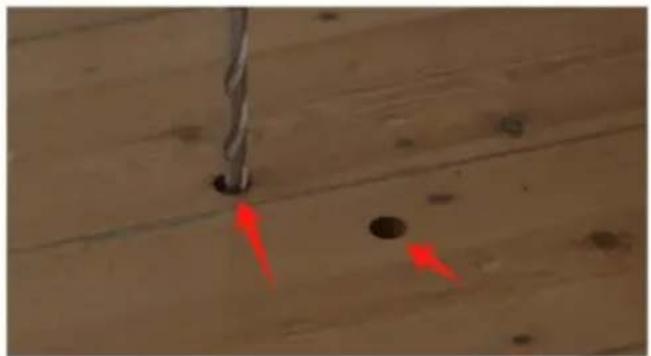

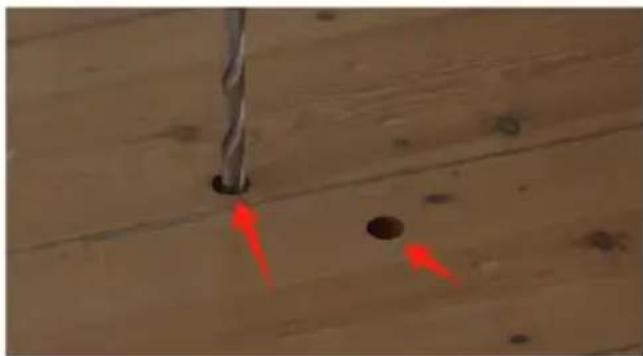

1. Mark 2 points on the ground through 2 holes at the Post Base E of the base; Drilling in the marking position using a 29 / 64" Drill Bit; T depth of the hole was 65 ~mm .

3D diagram of a mechanical component with red arrows indicating force or movement, no visible text or symbols

Close-up of a metal screw with a hole and two red arrows pointing to a circular feature on a textured surface (no text or symbols)

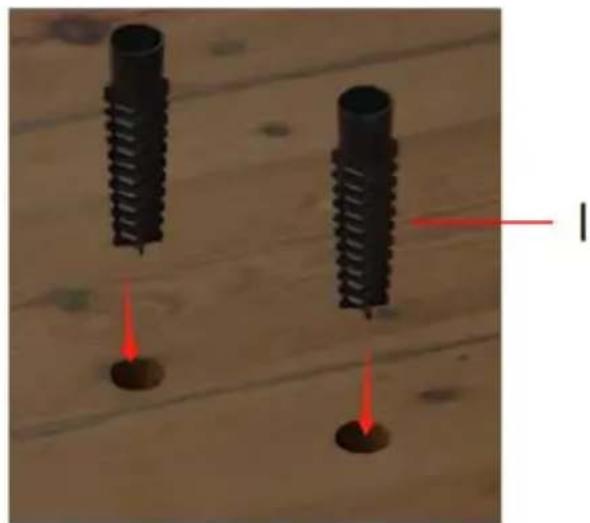

1. Install the 2 Serrated Expansion Sleeve I into the finished holes.

Two black cylindrical objects with red laser lines on a wooden surface, no text or symbols visible

1. Align the post base E-base face to the serrated expansion sleeve I; 3.1. Place square gasket f inside the post base E, the through hole c square gasket f alignment serrated expansion sleeve I; 3.2. Pass self-tapping screw H through the washer J and lock it to set expansion sleeve I.

Two views of a black metal bracket component before and after modification, showing structural change (no text or symbols)

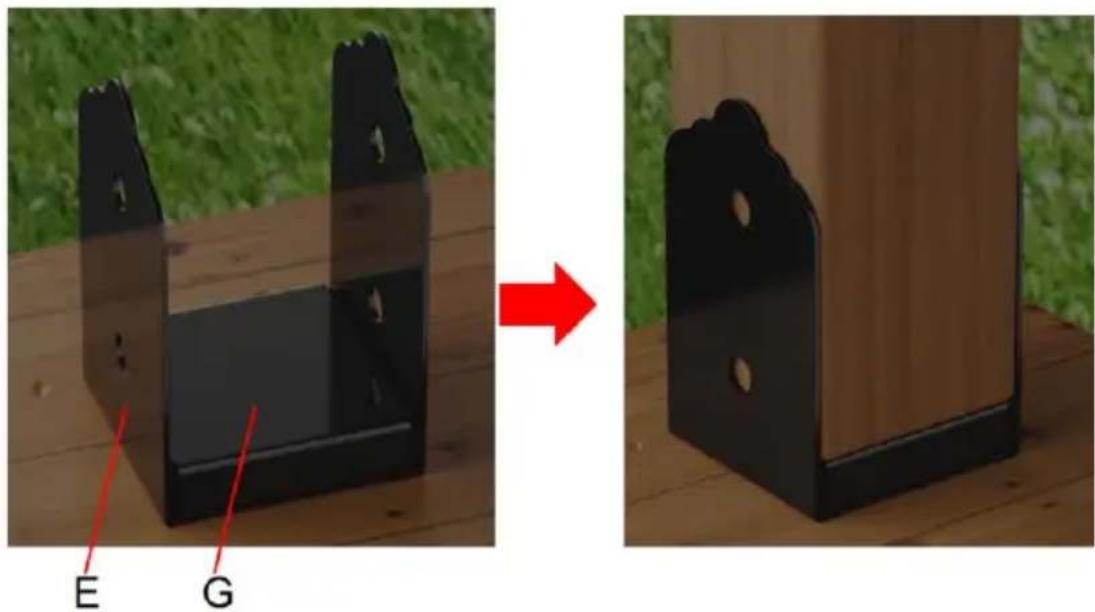

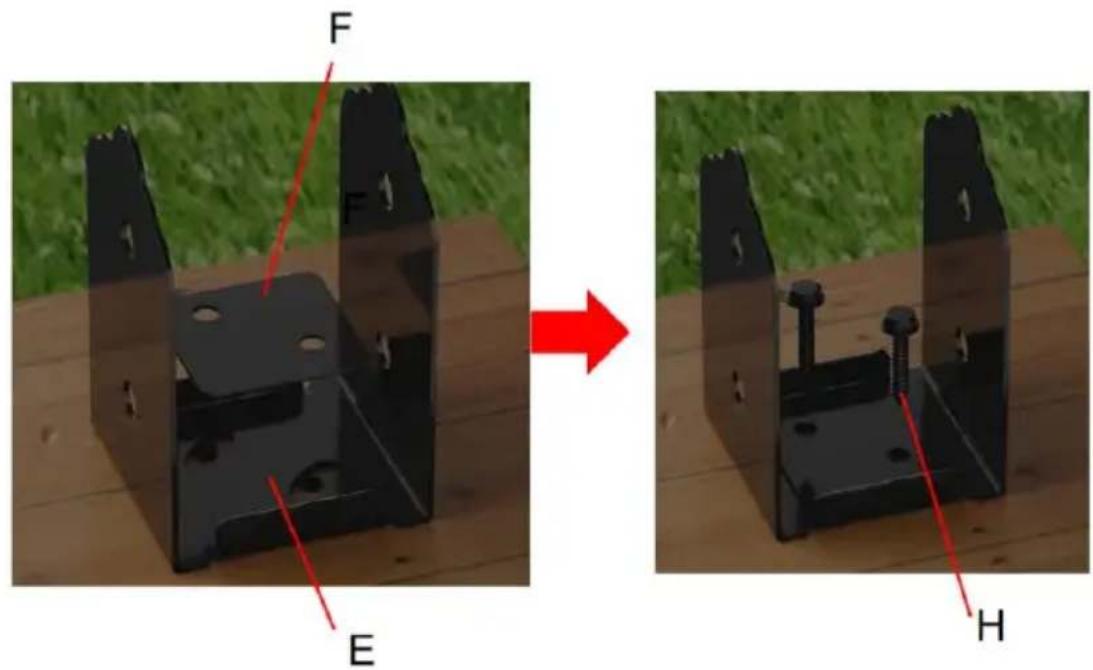

1. Place Support bracket G in post base E and cover the inner parts; wood into the cavity of post base E;

It is recommended that the wood square section is 0.1inch smaller th

cavity size.

Two views of a black metal bracket component on a wooden surface, showing structural change from left to right (no text or symbols)

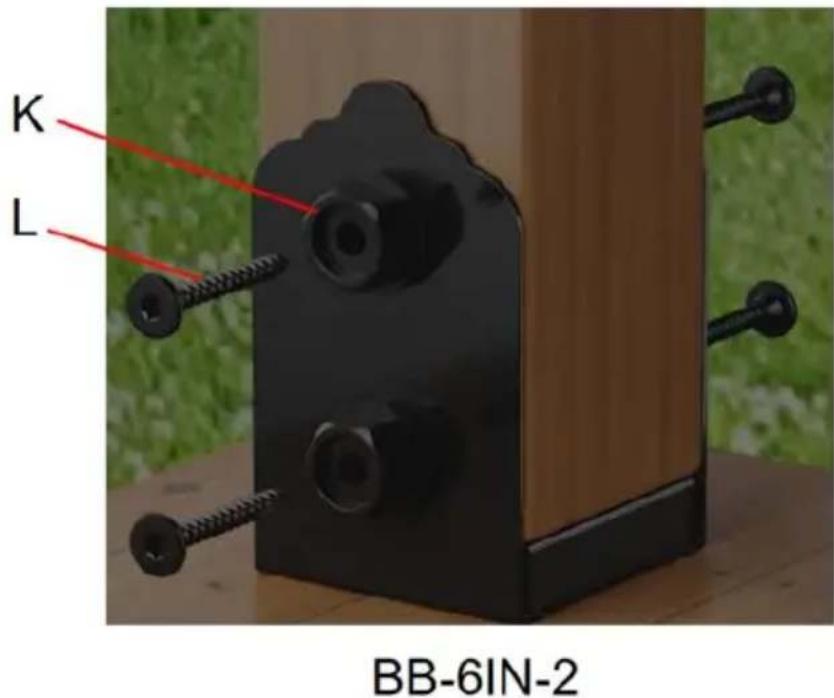

1. Lock the wooden side with two heavy hex nut K and self-tapping screw L in the post base E.

Note that 4 heavy hex nut K and self-tapping screw L are required on both sides of model BB-8in-2;
