LZ-1000KG - Wall mount Vevor - Free user manual and instructions

Product Type	Wall Mount
Brand	Vevor
Model	LZ-1000KG
Maximum Load	1 000 kg
Material	Steel
Tube Diameter	48 ± 0.3 mm
Tube Length	545 ± 3 mm
Number of Fixing Points	8 expansion bolts (not included)
Maintenance	Clean with a dry cloth, check bolts, apply rust inhibitor
Safety	Do not overload; check wall strength before installation
Usage	Accessory for electric hoist, not for lifting people
General Information	Made in China; technical support via www.vevor.com/support

Frequently Asked Questions - LZ-1000KG Vevor

What is the maximum load of this wall mount?

The maximum load is 1000 kg. Do not exceed this limit.

Are expansion bolts included?

No, expansion bolts are not included. You must purchase them separately. Use 8 bolts suitable for your wall.

How to install the wall mount?

Fix the wall mount to the wall using 8 expansion bolts. Refer to the mounting hole parameters (illustrated in the manual). Make sure the wall can support the load.

What maintenance is required?

After use, clean the arm with a dry cloth. Regularly check that the bolts are tight and apply rust inhibitor to prolong service life.

Is the wall mount suitable for all walls?

No, the wall must meet the load requirements. Check your wall's strength before installation. Do not install on a weak wall.

Can I use this mount with an electric hoist?

Yes, it is an accessory for electric hoist. However, it is forbidden to lift people with the hoist or this mount.

What is the material of the wall mount?

The mount is made of robust steel, with a reinforced triangular structure for optimal stability.

How can I get technical support?

You can contact technical support via www.vevor.com/support. The electronic warranty certificate is also available.

Are spare parts available?

Spare parts are not listed in the manual. Contact the manufacturer for any parts requests.

Is the wall mount easy to clean?

Yes, just use a dry cloth to remove dust and impurities. Avoid abrasive products.

USER MANUAL LZ-1000KG Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

WALL MOUNT

Model: LZ-1000KG

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered by us. We kindly remind you to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

Model: LZ-1000KG

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

1. WARNING!

Please carefully review this information before using the product to ensure your safety.

1. The Fix rod can be fixed directly on the wall. Due to the stability of the triangle bracket and the thickened steel plate, it is stable for efficient operation.
2. The maximum load capacity is 1000kg. DO NOT overload!

Warning: The wall shall meet the load requirements!

1. Do not use the tool if it is damaged to prevent serious damage from tool failure.

(1) Check the overall condition of the product before each use. Are the threads damaged? Are the welds broken? Are there gaps in the parts? (2) Exercise caution when troubleshooting and resolve all issues before use.

1. Procedures not specified in this manual must be performed by qualified personnel.
2. This is an accessory of the electric hoist. It is prohibited to carry people on the electric hoist or on this support arm.

Read and follow the instructions for safe operations. Keep this manual for reference.

2. Product Parameter

1. Name: Wall Mount 2. Model: LZ-1000KG 3. Max. Load: 1000kg 4. Material: Steel 5. Tube Parameter: Φ48±0.3mm, L=545±3mm

3. Parts List

No.	Picture	Name	Qty
1		Wall Mount	1
2		User Manual	1

4. Installation

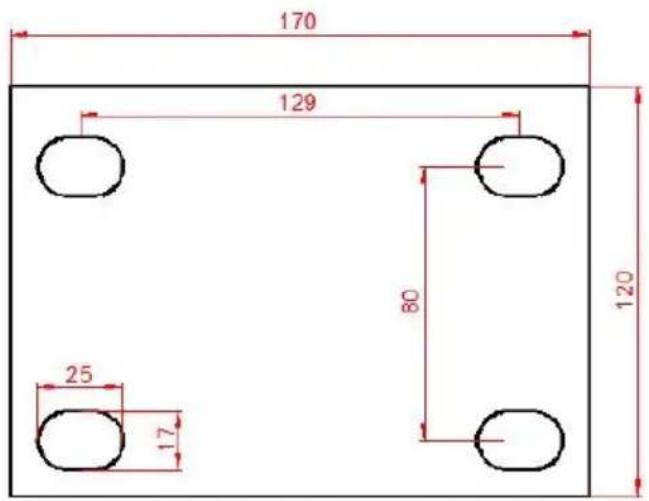

Parameters of mounting holes (mm)

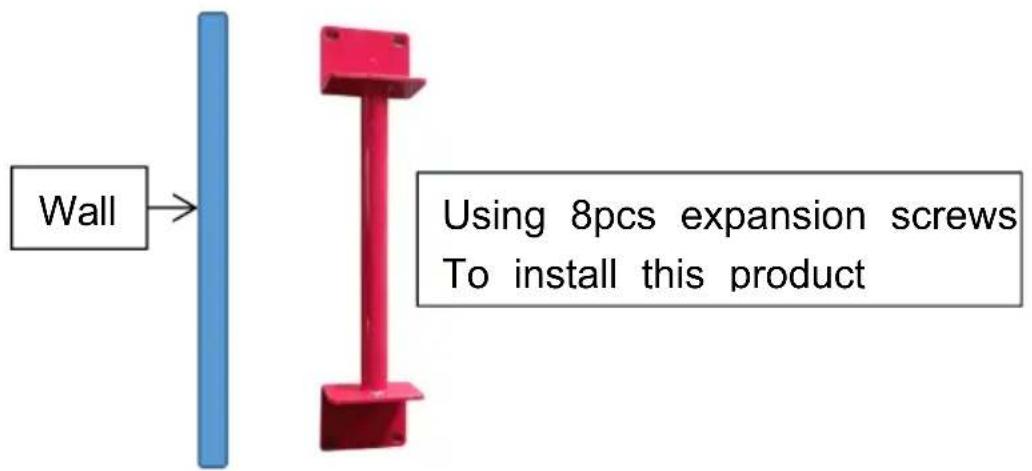

Install the wall mount onto the wall and secure it with the appropriate expansion screws. Use the right tools to ensure the support arm is firmly tightened. Please note that expansion screws are not included in the package and need to be purchased by the customer separately.

Warning: The wall shall meet the load requirements!

5. Maintenance

1. After use, clean the arm with a dry cloth to remove dust and impurities.
2. Check the screws and connections to ensure that they are tight.
3. Regularly apply rust inhibitor to extend its life.
