DPA65 - Power tool accessory Vevor - Free user manual and instructions

Product Type	Drill Press Mortising Attachment Kit
Brand	Vevor
Model	DPA65
Compatible Drill Press Collar Sizes	52.5mm, 55mm, 60mm, 65mm
Included Chisel Sizes	1/4", 5/8", 3/8", 1/2" (4 sizes)
Recommended Speed Range	650 - 1800 RPM
Material	Steel and cast iron construction
Weight	Approximately 2.5 kg
Dimensions (Carry Case)	Approximately 32 x 22 x 12 cm
Package Contents	Chisel holder, hold down bracket, 4 bushings, hold down rod, 4 chisel & bit sets, fence, rod holding casting, 2 curved guide rods, 4mm hex wrench, 4 large wing nuts, 2 hex bolts with washers & wing nuts, carry case
Application	Cutting square holes for mortise and tenon joints in woodworking
Installation Requirement	Mount on drill press table with plywood base; attach chisel holder to quill
Maintenance	Sharpen chisels and drill bits before use; clear chips frequently
Safety Features	Warning: unplug before adjustments; read drill press manual
Certifications	FCC Part 15, WEEE compliant, California Prop 65 warning
Warranty & Support	E-warranty certificate; technical support at www.vevor.com/support
Country of Origin	China

Frequently Asked Questions - DPA65 Vevor

What drill press collar sizes are compatible with the Vevor DPA65 mortising attachment?

The DPA65 fits drill presses with collar sizes of 52.5mm, 55mm, 60mm, or 65mm. Use the included bushings to adjust.

How do I install the chisel holder on my drill press?

Mount the chisel holder onto or just above the drill press quill base, with the fastening bolt facing away from the column. Insert the appropriate bushing if needed, then tighten the nut and bolt.

Do I need to sharpen the chisels and bits before first use?

Yes, the chisels and bits are factory ground but may not be sharp enough. Sharpen them before use to avoid friction and heat buildup.

What is the recommended drill press speed for mortising?

Use speeds between 650 and 1800 RPM. Lower speeds are best for hardwoods to prevent overheating.

How do I square the chisel to the fence?

After mounting, adjust the fence position so the chisel aligns with your mortise marks. Use a square to ensure the chisel is parallel to the fence.

How do I set the depth of cut for the mortise?

Place the workpiece on the table, adjust the table so the chisel is about 1/2 inch above the work, then set the drill press depth stop to the desired mortise depth.

Can I use this kit on any drill press?

The kit is designed for most drill presses with a collar size in the range 52.5-65mm. Ensure your drill press has a keyed chuck and a table with slots for bolting the fence.

How do I prevent the chisel from clogging during use?

Raise the chisel frequently to clear chips. Also, make overlapping cuts rather than plunging straight down to reduce chip buildup.

What should I do if the chisel and bit become dull?

Sharpen them using appropriate woodworking techniques. Dull tools cause friction and poor results. Consult woodworking references for proper sharpening methods.

How do I dispose of the product at end of life?

Do not dispose of electric tools with household waste. Follow local regulations for electronic waste. In the EU, use separate collection for recycling in accordance with Directive 2012/19/EC.

USER MANUAL DPA65 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MORTISING ATTACHMENT KIT INSTRUCTIONS

MODEL:DPA65

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:DPA65

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electrical and electronic devices

INTRODUCTION

●The Mortising Attachment converts your Drill Press in to an accurate mortising machine. It is ideal for drilling square holes for mortise & tenon joints are commonly used in furniture, cabinets, sash, pattern shops and woodworking plants.
●The Mortising Attachment Kit can be installed on most any drill press a collar size of: 52.5mm, 55mm, 60mm, or 65mm.
●The name of the kit inventory.

A. Chisel Holder Assembly *1

B. Hold Down Bracke *1

C. Bushings *4

D. Hold Down Rod *1

E. Chisels & Drill Bits (1/4, 5/8, 3/8, 1/2) *4

F. Fence *1

G. Rod Holding Casting *1

H. Curved Guide Rods *1

I. Hex Wrench 4mm *1

J. Large Wing Nuts *4

K. 5/16-18 x 4 Hex Bolts *2

Washers *4 Wing Nuts *2

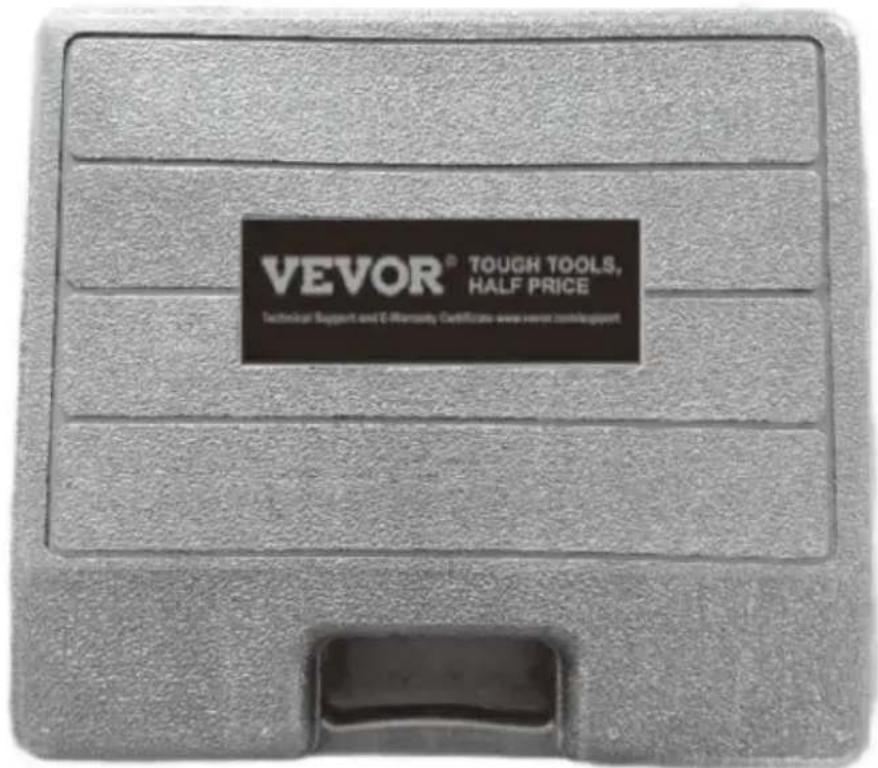

L. Carry Case with *1

M. Instructions (not shown) *1

WARNING

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.

INSTALLATION INSTRUCTIONS

●MOUNTING ON THE DRILL PRESS TABLE.

We recommend installing a 1/2, plywood panel on the drill press tab. It can be held in place by inserting it under the mortising fence. Drill holes in the plywood to match the slots in the table. The plywood will prevent damage to the the mortising chisel and drill bit if it should strike the metal drill press table by accident. It is also a simple way increase the size of the drill press table to hold your projects.

●MOUNTING THE CHISEL HOLDER.

1. Mount the Chisel Holder (A) onto, or just above the base of the Press quill, with the holder's fastening bolt facing outward, away from the drill press column. For a proper fit, a Bushing (C) may be rec to be inserted within the chisel holder's top collar.

2. Once installed, tighten the nut and bolt on the chisel holder to keep attachment from slipping.

●Install mortise and tenon chisels and drill bits.

1. Four sizes of Hollow Chisel Mortising Chisels and Bits (E) are inc with the kit - 1/4", 5/8", 3/8" and 1/2". Use only the correct combi the chisels with their corresponding bit. These tools are supplied factory ground, and MUST be sharpened before use. If eith one is dull, there will be excessive friction with heat build-up, which will make the drilling operation difficult and damage the tools. Cons woodworking books or magazine articles on the proper techniques to putting sharp edges on these items.

2. No bushings are required to install the drill bit shanks into the ch holder's collar, as they both have the same diameter. The shank of chisel will be held by the drill press keyed chuck, just as a normal would be held.

●INSTALLING THE BIT AND CHISEL.

1. Insert the drill bit through the chisel and into the drill press' keye chuck. Hand tighten the chuck only.
2. Insert the chisel into the chisel holder, and secure it in place with wing nut. NOTE: Clamp the chisel so that its shoulder is about 1/32" below the bottom of the holder.
3. Push the drill bit up into the drill chuck as far as it will go, and place with the chuck key. The end of the drill bit should be up a end of the square chisel.
4. Loosen the wing nut securing the chisel and move the chisel up with take up the 1/32" space previously left in Step 2. Tighten the chisel place. This method assures that there is proper clearance between cutting lips of the drill bit and the points of the chisel.

When in use, the square chisel will cut into the wood, forcing th material inwards. The drill bit then cuts out the center of the hole directs the chisel cut material up out of the hole in a single motio

The Hex Bolts (K) supplied with the Kit are long enough to go the hold down bracket, fence, plywood and drill press table. Insert hex bolt through the slots in each. Use washers under the hex he and under the wing nut to distribute the holding pressure.

1. Insert the Hold Down Rod (D) into the center hole of the Rod H Casting (G), and secure it in place with the Hex Screw. A 4mm H Wrench (I) is supplied for this.
2. Slide the Hold Down Bracket (B) down onto the hold down rod. T down can be adjusted up and down on the rod as needed to app pressure down onto your work that is being drilled. This bracket wi your project held down when the mortising chisel & bit are released

pulled out of the hole that they were drilling.

●INSTALL THE CURVED GUIDE ROD.

1. Insert the two Curved Guide Rods (H) into the horizontal holes that on either side of the rod holding casting, and secure them in posti the supplied wing nuts.

2. The guide rods should be positioned on the front face of your wood that they put pressure against the wood and push your project against the fence.

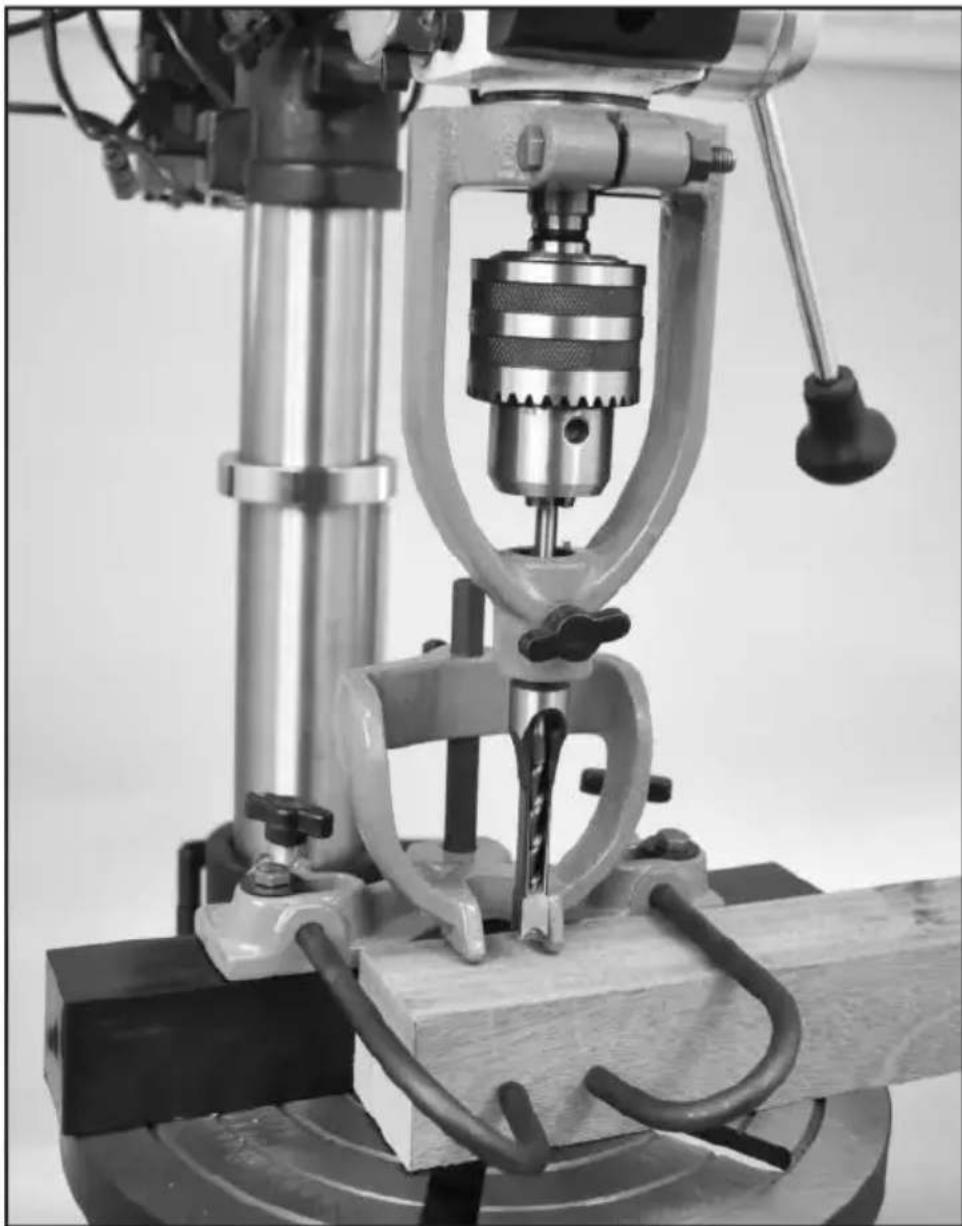

Close-up of a mechanical drill press with a central workpiece and wooden base (no visible text or symbols)

Schematic diagram of the finished assembly

- SET UP.

1. Place your work piece on the drill press table and adjust the tabl so that the mortising chisel & bit are about 1/2" above the work.
2. Determine the depth of the mortise that you want to cut, and set press depth stop to this distance.
3. Set the fence distance so that the chisel & bit are in the location want for drilling the mortise.

Mark your work piece with the exact location of the mortise(s) th need to be drilled.

Secure your work in place against the fence with the guide rods, also with the hold down bracket.

Move the fence in or out until the chisel aligns perfectly with the mortise lines that are marked on your work.

Secure the fence in position with the two hex bolts that run thro casting, fence and drill press table.

●Operation.

1. Best drill press speeds are between 650 to 1800 RPM.
2. Use lower speeds on hardwoods.
3. Make sure the chisel is square/parallel to the fence.
4. Test drill on scrap stock of the same woods of your project to s mortising positions, and drill press speed.
5. First cut the outside, ends of the mortise, then make overlapping between the two to finish the mortise.
6. Raise the chisel often to clear chips and prevent clogging.

WARNING

KNOW YOUR POWER TOOL. Read your

Drill Press' manual to learn the tool's operation, applications, capabilities and its specific potential safety hazards.

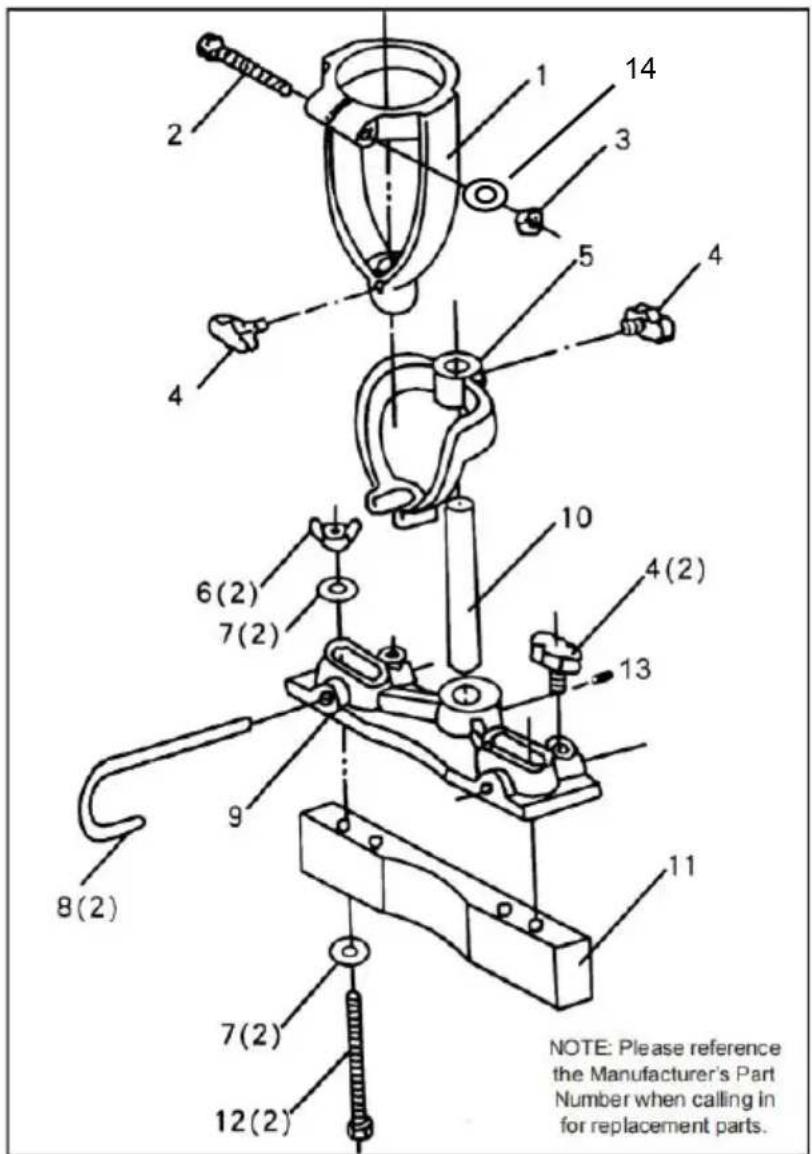

●Exploded view of the product part.

●PARTS LIST.

KEY NO	DESCRIPTION	KEY NO	DESCRIPTION
1	Chisel Holder	2	5/16-18 x 2-1/2” Bolt
3	5/16-18 Hex Nut	4	Wing Nut with Treaded S
5	Hold Down Bracke	6	5/16-18 Wing Nut
7	Washer	8	Curved Guide Rods
9	Rod Holding Casting	10	Hold Down Steel Rod
11	Fence	12	5/16-18 x 4” Bolt
13	Hex Screw	14	Washer
15	Chisels & Drill Bits (1/4, 5/8, 3/8, 1/2) *4 (not shown)

CALFORNIA PROPOSITION 65 WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Note: Specifications, photos, drawings, and information in this book manual represents the current model at the time the manual was written. Changes and improvements may be made at any time without obligat Modification of previously delivered units by VEVOR.

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Please dispose of packaging for the product in a responsible manner. It is suitable for recycling. Help to protect the environment, take the packaging to the local amenity tip and place into the appropriate recycling bin.

Simple line drawing of a trash bin with crossed x- and y-axes, no text or symbols present.

Only for EU countries

Do not dispose of electric tools together with household waste material! In observance of European Directive 2002/96/EC on waste electrical and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4
