This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

1. Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assem
3. Do not try to assemble the product when feeling tired or when ur influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop wr needed.
8. Two people are required for assembly.
9. Follow the intended uses only.
10. Use on stable surfaces only.
11. Regularly inspect for signs of wear, damage, or loose parts.

SAVE THESE INSTRUCTIONS

PART LIST

When unpacking this product, check to make sure the parts listed be are included and carefully inspect for any damage that may have occurred during transit. If any part is missing or damaged, do not attempt to assemble or use the product.

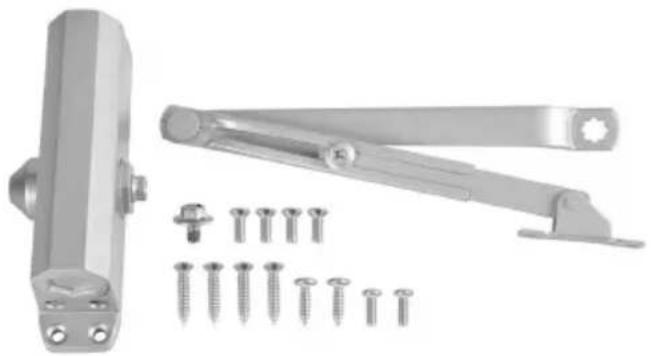

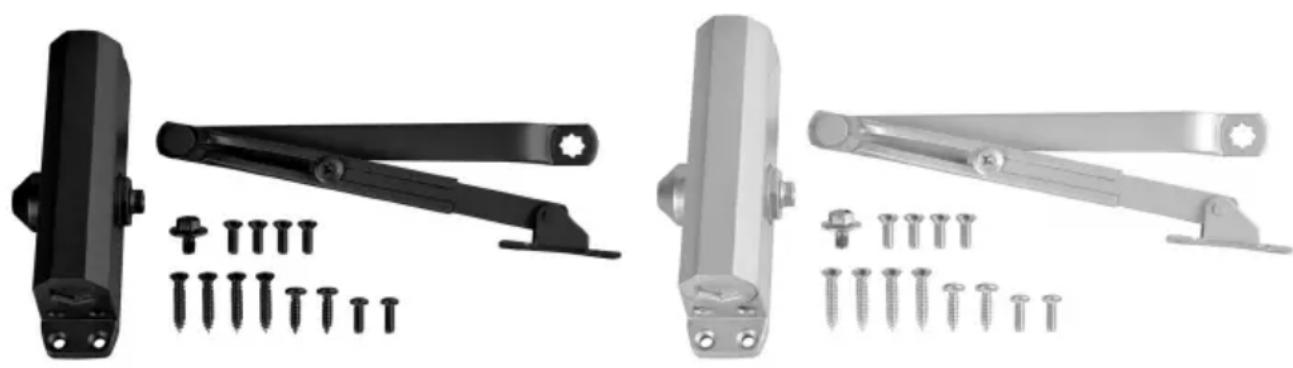

Product catalog image showing various mechanical components including pliers, bolts, and a hinge (no text or labels visible)

NO	PICTURE	PART NAME	QTY
A		Door closer body	1
B		HO Arm	1
C		Rocker Arm Bolt M6×10	1
D		Wooden Doors Screw ST5.5×30	4
E		Wooden Doors Screw ST5.5×20	2
F		Metal Doors Screw M5×15	2
G		Metal Doors Screw M5×15	4
H		Pinion Cap	1

PRODUCT PAREMETERS

Model	D300S
Material	Aluminum
Color	Silvery or Black
Door Max Load To Use	150 lbs

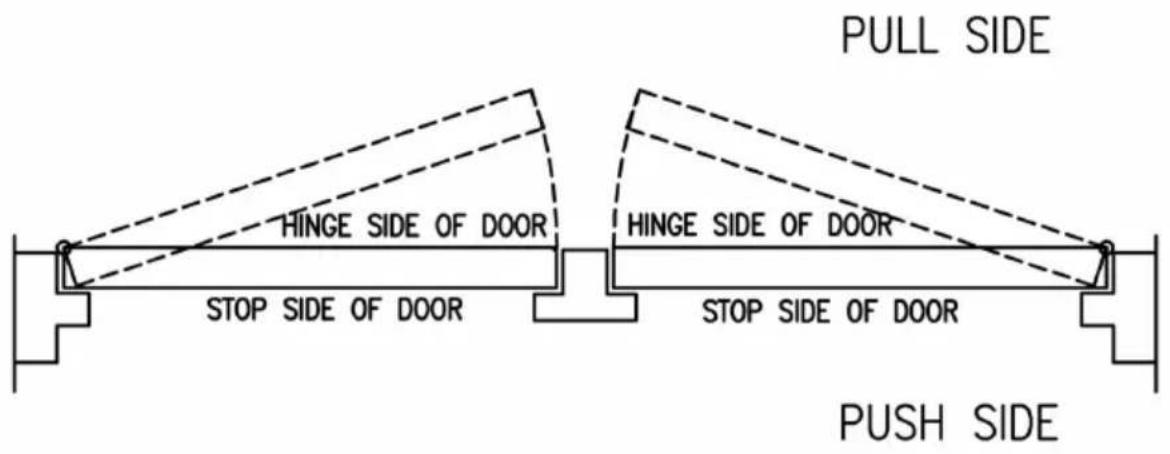

1. Chart to determine hand of door.

PULL SIDE HINGE SIDE OF DOOR HINGE SIDE OF DOOR STOP SIDE OF DOOR STOP SIDE OF DOOR HINGE SIDE OF DOOR STOP SIDE OF DOOR PUSH SIDE

THIS IS A LEFT HAND DOOR
THIS IS A RIGHT HAND DOOR

1. Final adjustment and regulating procedures.

REGULATING DOOR SPEED AND LATCHING SPEED

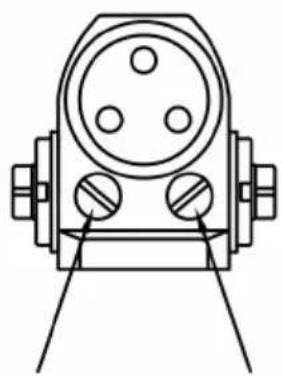

TURN SPEED REGULATING VALVE CLOCK- WISE TO SLOW DOWN -OR COUNTER CLOCKWISE TO SPEED UP DOOR MOVE- MENT

Technical line drawing of a mechanical component with mounting holes and shafts (no text or symbols)

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

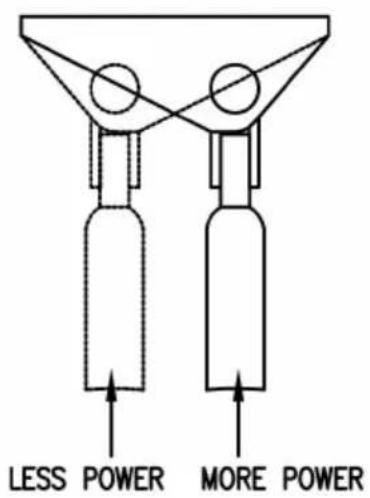

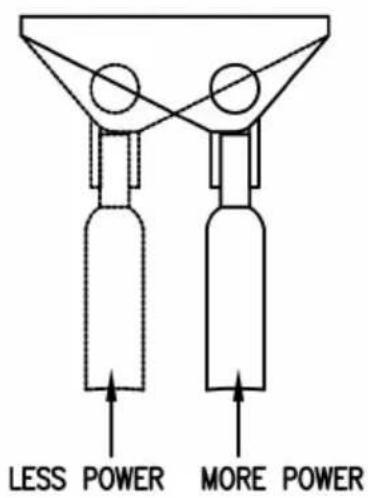

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

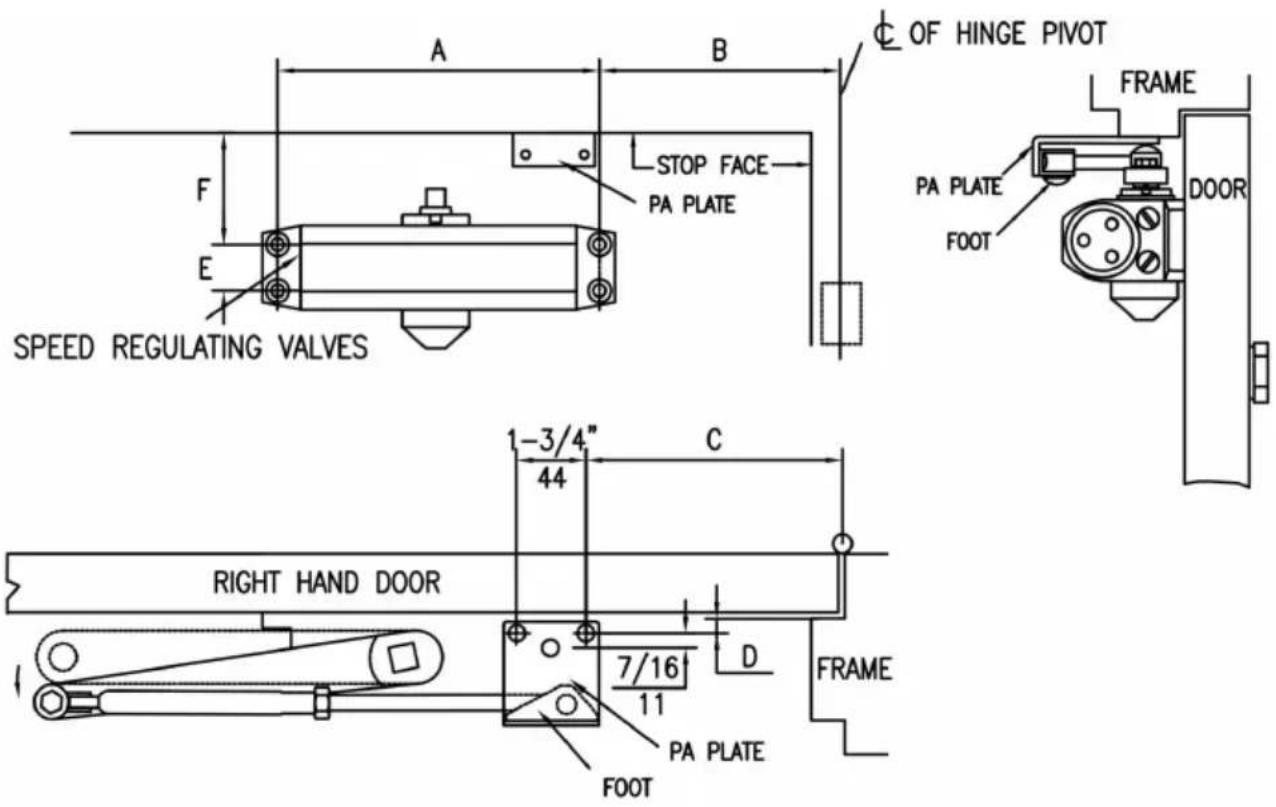

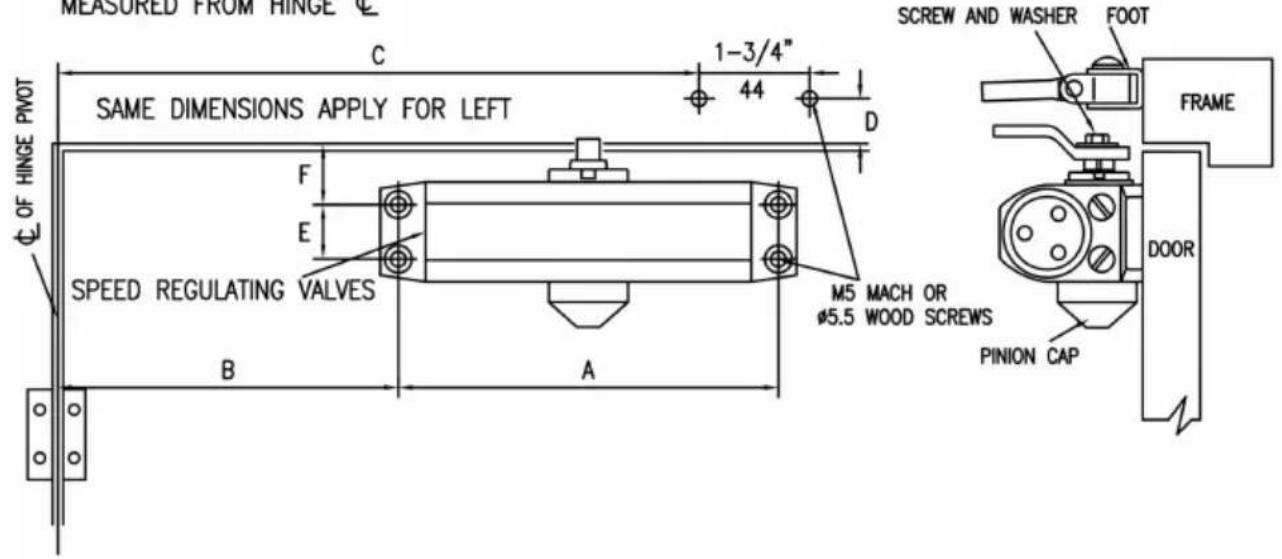

3. Standard installation: pull side right installation.

RIGHT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

MEASURED FROM HINGE C 1-3/4" 44 D SAME DIMENSIONS APPLY FOR LEFT FRAME F E SPEED REGULATING VALVES B A M5 MACH OR Ø5.5 WOOD SCREWS PINION CAP DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	130°

Installation Instructions

1. Select degree of door .Use dimensions shown in chart and ill above to mark location of attaching screws on door and frame holes.
2. Assemble main arm to closer.
3. Attach closer to door with speed regulating valves toward hing
4. Attach the foot of the forearm to frame.
5. Adjust length of forearm to position forearm at right angle to when connected to main arm at elbow use washer and screw secure pivot connection. Tighten lock nut on forearm.

6. Snap pinion cap over spindle at bottom of closer.

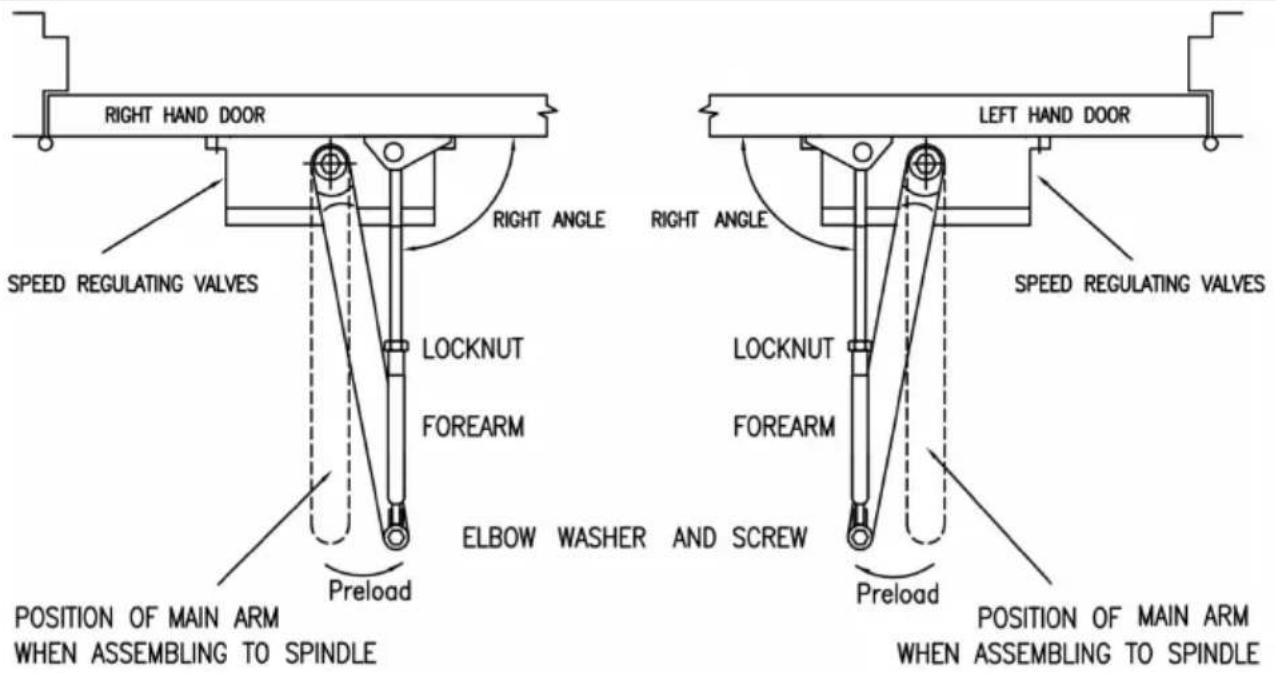

7. Standard installation position of arms and index setting


RIGHT HAND DOOR SPEED REGULATING VALVES RIGHT ANGLE LOCKNUT FOREARM ELBOW WASHER AND SCREW Preload POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE LEFT HAND DOOR RIGHT ANGLE LOCKNUT FOREARM Preload POSITION OF MAIN ARM WHEN ASSEMBLING TO SPINDLE

CLOSING SPEED CONTROL

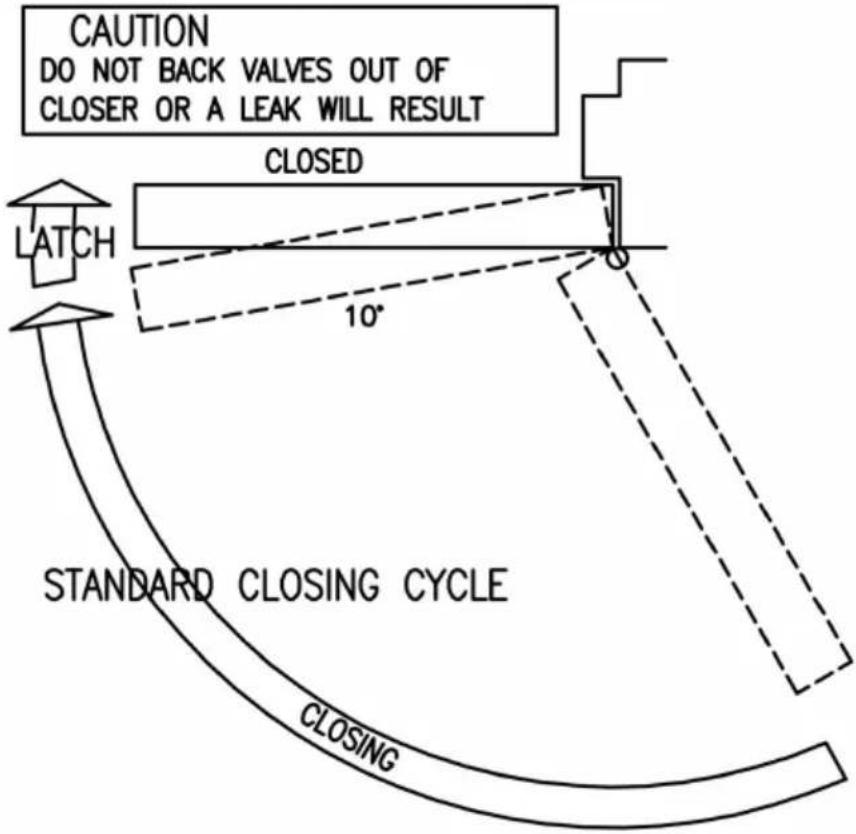

CAUTION DO NOT BACK VALVES OUT OF CLOSER OR A LEAK WILL RESULT CLOSED LATCH 10° STANDARD CLOSING CYCLE CLOSING

Attention:

Adjust closing speed time to between 46 seconds from 90°use of the door handicapped.Elderly or small children m require longer closing time.

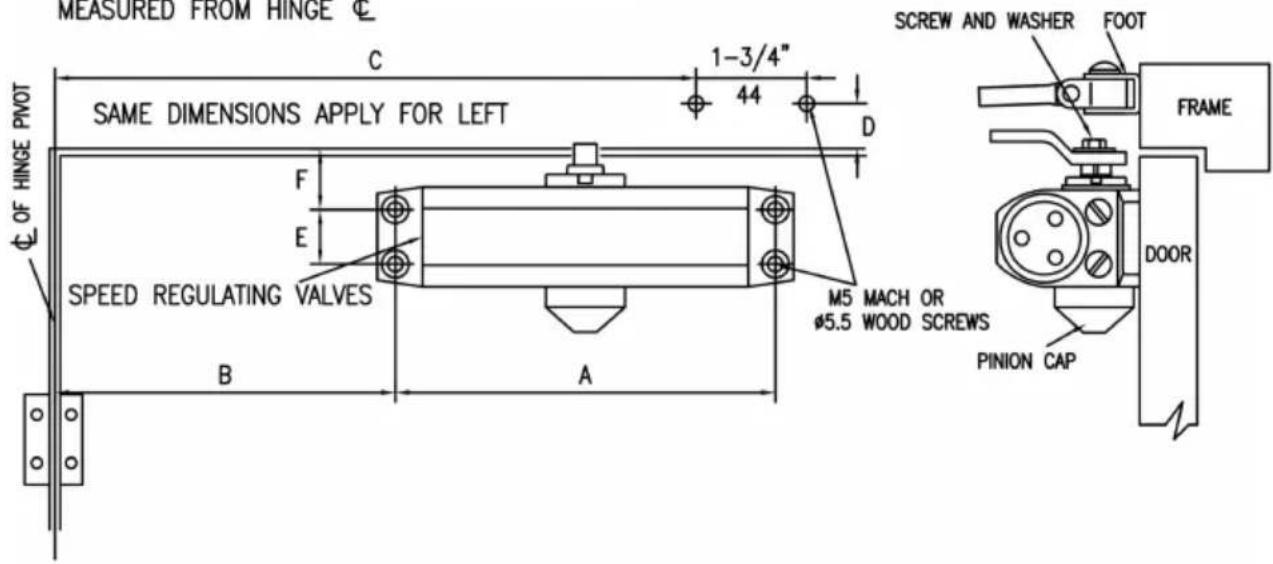

5. Other installation: push side right installation

LEFT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

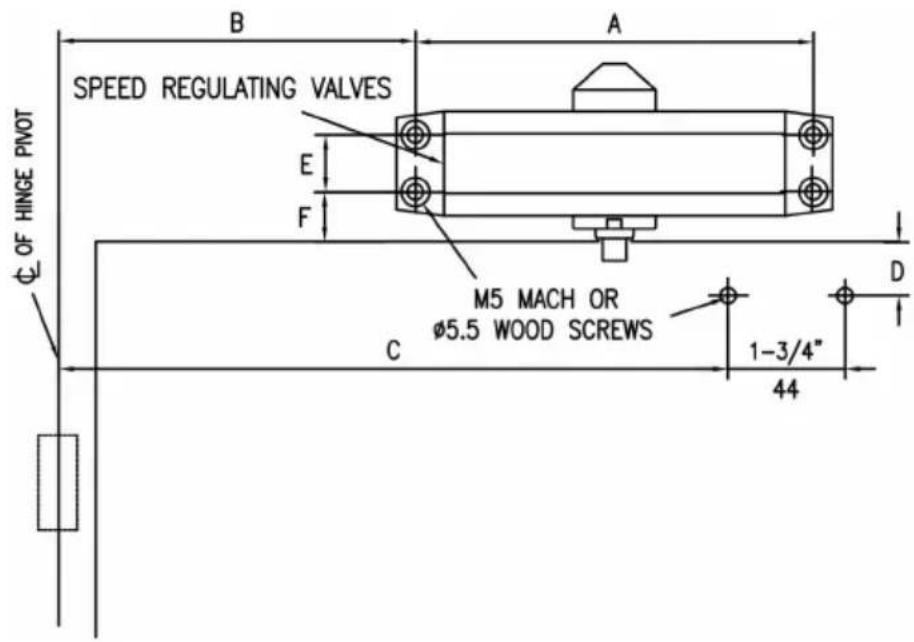

B A SPEED REGULATING VALVES E F C M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4" 44 Ø OF HINGE PIVOT D

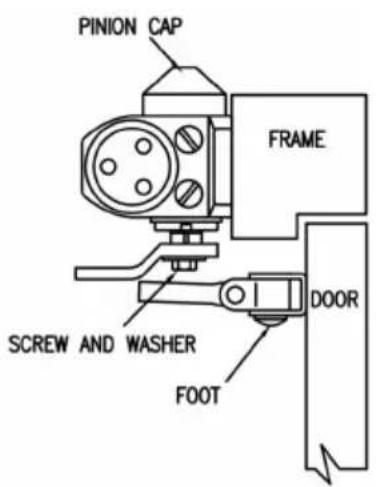

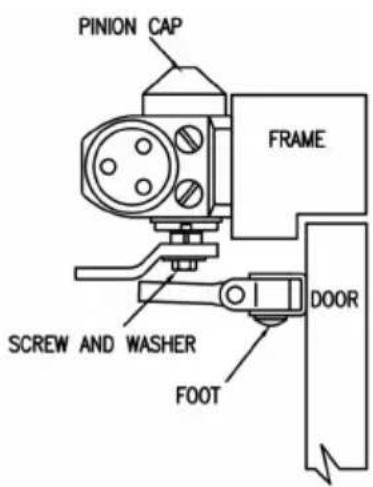

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

Installation Instructions

1. Select degree of door .Use dimensions shown in chart and ill above to mark location of attaching screws on door and frame holes.
2. Assemble main arm to closer.
3. Attach closer to frame with speed regulating valves toward hin
4. Attach the foot of the forearm to frame.
5. Adjust length of forearm to position forearm at right angle to when connected to main arm at elbow use washer and screw secure pivot connection .Tighten lock nut on forearm.
6. Snap pinion cap over spindle at bottom of closer.

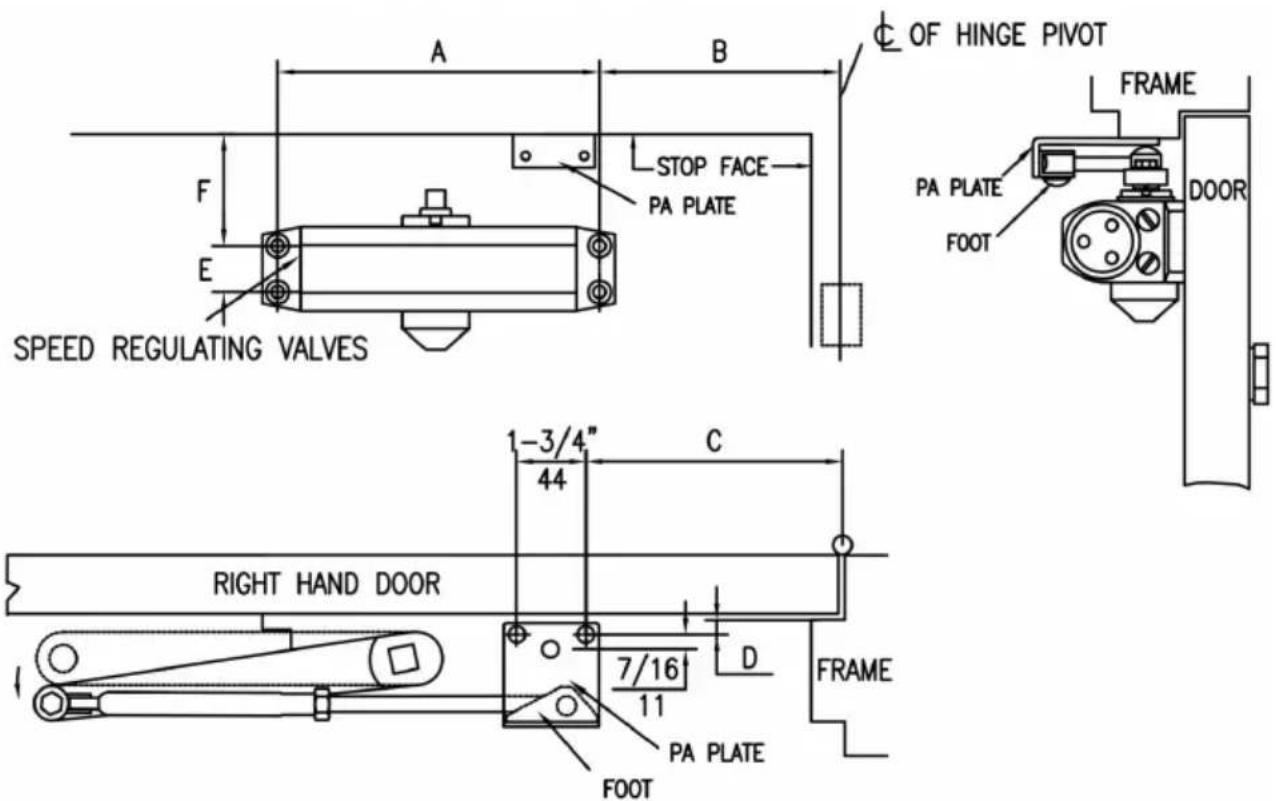

6. Other installation: push side parallel installation

RIGHT HAND DOOR ILLUSTRATED

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6" (153)	2-3/8" (60)	2-13/16" (72)	5/16" (8)	3/4" (19)	2-3/8" (60.5)	180°

Installation Instructions

Select degree of door. Use dimensions shown in chart and illus above to mark location of attaching screws on door and frame holes.

Assemble main arm to closer.

Attach closer to frame with speed regulating valves toward hinge Attach the foot of the forearm to door.

Adjust length of forearm to position forearm at right angle to fr connected to main arm at elbow use washer and screw provide secure pivot connection. Tighten lock nut on forearm.

Snap pinion cap over spindle at bottom of closer.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS:SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA91730

Pooledas Group Ltd

UK

REP

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODÈLE : D300S

Metallic mechanical latch or guard system with two articulated arms and a central hub (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERTISSEMENT:

Black mechanical clamp tool with multiple screws and a bracket, shown alongside (no text or symbols visible)

Metal mechanical assembly with screws and bolts, no visible text or symbols

Technical line drawing of a mechanical component with three circular holes and mounting brackets (no text or symbols)

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

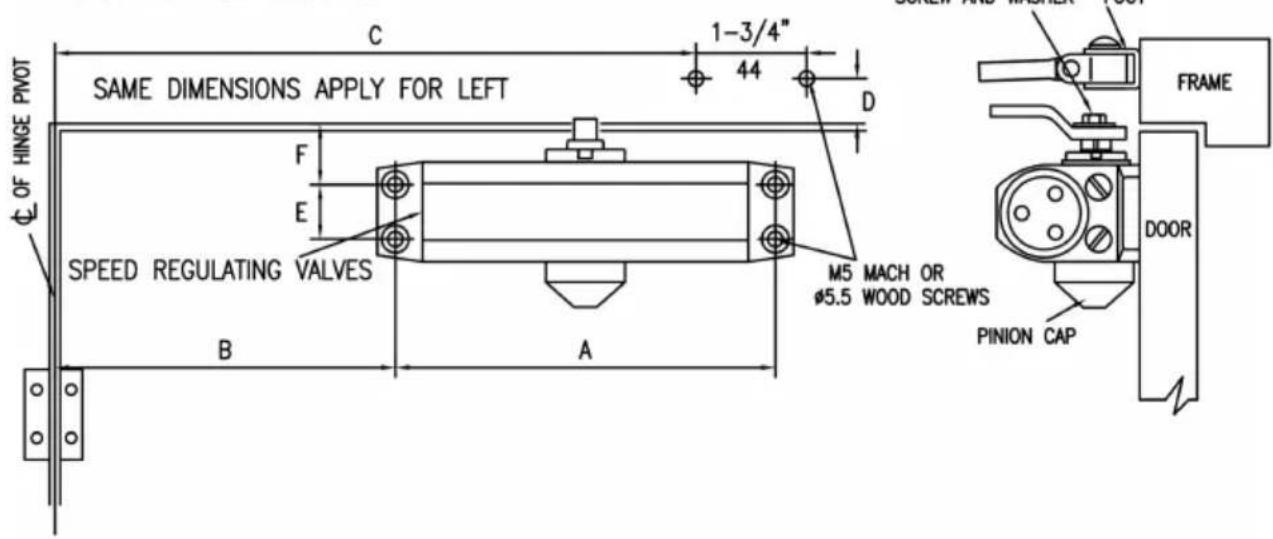

MEASURED FROM HINGE ¢

SAME DIMENSIONS APPLY FOR LEFT 1-3/4" 44 D FRAME DOOR PINION CAP SPEED REGULATING VALVES M5 MACH OR Ø5.5 WOOD SCREWS A B C F E D Φ OF HINGE PIVOT

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	130°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4" 44 Ø OF HINGE PIVOT D

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-3/8"(60)	2-13/16"(72)	5/16"(8)	3/4"(19)	2-3/8"(60.5)	180°

Instructions d' installation \_

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODELL : D300S

Metallic mechanical latch or bracket with adjustable arm and mounting base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNUNG:

Black mechanical clamp tool with multiple screws and a bracket, shown alongside (no text or symbols visible)

Metallic mechanical bracket with screws and bolts, shown alongside a separate view of the same hardware (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

SAME DIMENSIONS APPLY FOR LEFT 1-3/4" 44 D FRAME DOOR PINION CAP SPEED REGULATING VALVES M5 MACH OR Ø5.5 WOOD SCREWS A B C F E D Φ OF HINGE PIVOT

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	130°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4" 44 Ø OF HINGE PIVOT D

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-3/8"(60)	2-13/16"(72)	5/16"(8)	3/4"(19)	2-3/8"(60.5)	180°

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODELLO : D300S

Metallic mechanical latch or bracket with adjustable arm and mounting base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVVERTIMENTO:

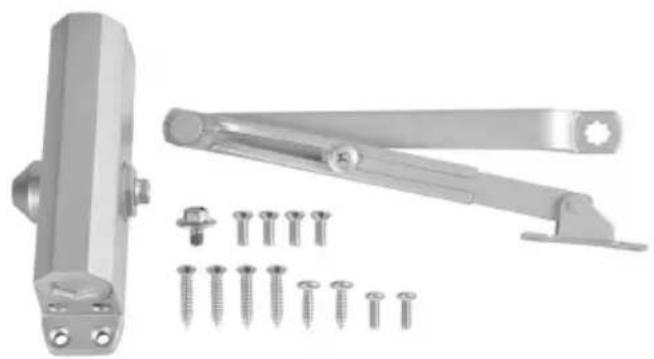

Black mechanical clamp bracket with multiple screw fasteners (no text or symbols visible)

Technical illustration of a mechanical clamp assembly with screws and bolts (no text or symbols)

Technical line drawing of a mechanical component with three circular holes and mounting brackets (no text or symbols)

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

SAME DIMENSIONS APPLY FOR LEFT 1-3/4" 44 D FRAME DOOR PINION CAP SPEED REGULATING VALVES M5 MACH OR Ø5.5 WOOD SCREWS A B C F E D Φ OF HINGE PIVOT

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	130°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4" 44 Ø OF HINGE PIVOT D

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-3/8"(60)	2-13/16"(72)	5/16"(8)	3/4"(19)	2-3/8"(60.5)	180°

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DOOR CLOSER

MODELO : D300S

Metallic mechanical latch or bracket with adjustable arm and mounting base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA:

Black mechanical clamp bracket with multiple screw fasteners (no text or symbols visible)

Metal mechanical bracket with screws and bolts, no visible text or symbols

Technical line drawing of a mechanical component with three circular holes and mounting brackets (no text or symbols)

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

SAME DIMENSIONS APPLY FOR LEFT 1-3/4" 44 D FRAME DOOR PINION CAP SPEED REGULATING VALVES M5 MACH OR Ø5.5 WOOD SCREWS A B C F E D Φ OF HINGE PIVOT

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	130°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4" 44 Ø OF HINGE PIVOT D

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-3/8"(60)	2-13/16"(72)	5/16"(8)	3/4"(19)	2-3/8"(60.5)	180°

Lugar, Rancho Cucamonga, CA91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

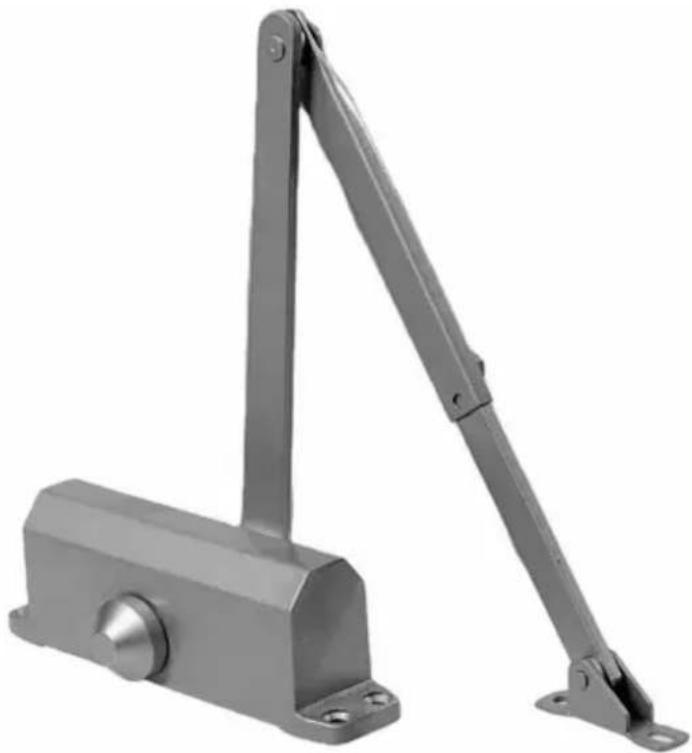

DOOR CLOSER

MODELU : D300S

Metallic mechanical latch or bracket with adjustable arm and mounting base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

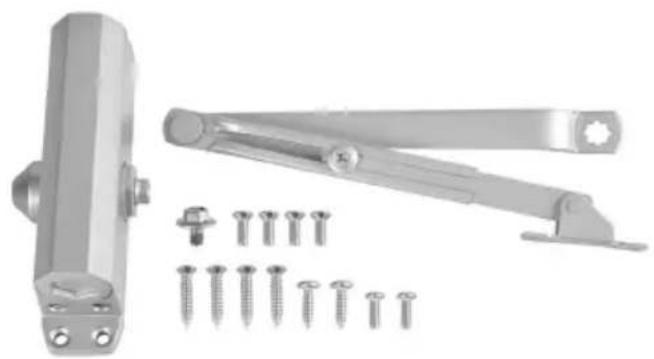

OSTRZEŻENIE:

Black mechanical clamp tool with multiple screws and a bracket, shown alongside (no text or symbols visible)

Technical illustration of a mechanical locking bracket with screws and bolts (no text or symbols)

Technical line drawing of a mechanical component with three circular holes and mounting brackets (no text or symbols)

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

SAME DIMENSIONS APPLY FOR LEFT 1-3/4" 44 D FRAME DOOR PINION CAP SPEED REGULATING VALVES M5 MACH OR Ø5.5 WOOD SCREWS A B C F E D Φ OF HINGE PIVOT

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	130°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

SPEED REGULATING VALVES E F M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4" 44 Ø OF HINGE PIVOT A B C D

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-3/8"(60)	2-13/16"(72)	5/16"(8)	3/4"(19)	2-3/8"(60.5)	180°

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

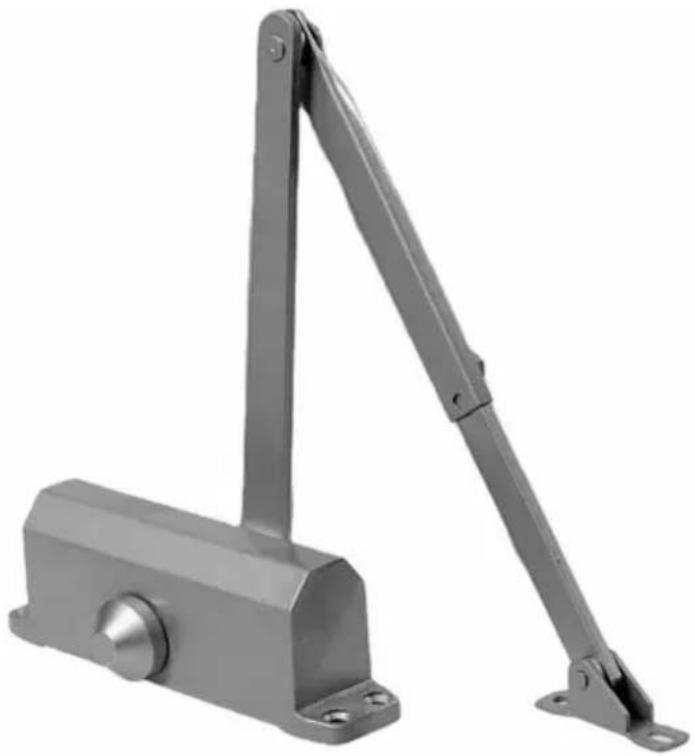

DOOR CLOSER

MODEL : D300S

Metallic mechanical latch or guard system with two articulated arms and a central hub (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING:

Black mechanical clamp and screw assembly with multiple screws (no text or symbols visible)

Metallic mechanical assembly with screws and bolts, no visible text or symbols

NEE	AFBEELDING	DEELNAAM	AANTAL
A		Deurdranger lichaam	1
B		HO-arm	1
C		Tuimelaarbout M6×10	1
D		Houten Deuren Schroef ST5,5×30	4
E		Houten Deuren Schroef ST5,5×20	2
F		Metalen deuren Schroef M5×15	2
G		Metalen deuren Schroef M5×15	4
H		Rondsel kap	1

PRODUCT PAREMETERS

Technical line drawing of a mechanical component with no visible text or symbols

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE ¢

SAME DIMENSIONS APPLY FOR LEFT 1-3/4" 44 D FRAME DOOR PINION CAP SPEED REGULATING VALVES M5 MACH OR Ø5.5 WOOD SCREWS A B C F E D Φ OF HINGE PIVOT

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	130°

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4" 44 Ø OF HINGE PIVOT D

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-3/8"(60)	2-13/16"(72)	5/16"(8)	3/4"(19)	2-3/8"(60.5)	180°

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

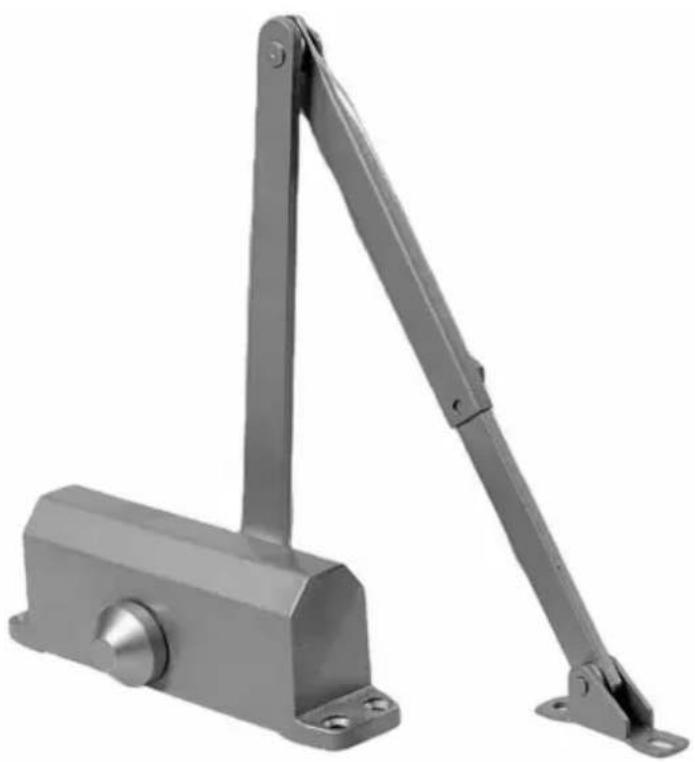

DOOR CLOSER

MODELL : D300S

Metallic mechanical latch or bracket with adjustable arm and mounting base (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

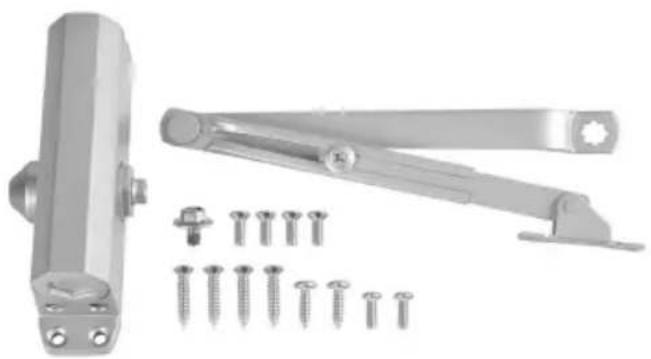

WARNING:

Black mechanical clamp tool with multiple screws and a bracket, shown alongside (no text or symbols visible)

Metallic mechanical assembly with screws and bolts, no visible text or symbols

Technical line drawing of a mechanical component with three circular holes and mounting brackets (no text or symbols)

THIS VAVLE CONTROLS LATCHING SPEED
THIS VAVLE CONTROLS DOOR SWEEP SPEED

ADJUSTING FOOT FOR CLOSING POWER

LESS POWER MORE POWER

HINGE EDGE OF DOOR

SAME DIMENSIONS APPLY TO LEFT HAND DOOR MEASURED FROM HINGE ¢

MEASURED FROM HINGE Ø C 1-3/4" 44 D SAME DIMENSIONS APPLY FOR LEFT SPEED REGULATING VALVES F E B A M5 MACH OR Ø5.5 WOOD SCREWS PINION CAP SCREW AND WASHER FOOT FRAME DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	4-3/8"(112)	7-9/16"(192)	1"(26)	3/4"(19)	21/32"(16.5)	130°

installations instruktioner

SAME DIMENSIONS APPLY TO RIGHT HAND DOOR

B A SPEED REGULATING VALVES E F C M5 MACH OR Ø5.5 WOOD SCREWS 1-3/4" 44 Ø OF HINGE PIVOT D

PINION CAP FRAME SCREW AND WASHER FOOT DOOR

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-5/8"(67)	5-7/8"(149)	1"(26)	3/4"(19)	21/32"(16.5)	150°

installations instruktioner

SAME DIMENSIONS APPLY TO LEFT HAND DOOR

MEASURED FROM HINGE

A	B	C	D	E	F	ANGLE OF OPEN DOOR
6"(153)	2-3/8"(60)	2-13/16"(72)	5/16"(8)	3/4"(19)	2-3/8"(60.5)	180°

Installations instruktioner

Unit 5 Albert Edward House,

The Pavilions Preston, United Kingdom

[e-mail]

01772418127

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

www.vevor.com/support

Tillverkad i Kina
