USER MANUAL FLO700 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SEWAGE PUMP

INSTALLATION INSTRUCTIONS

MODEL:FLO700

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents a estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

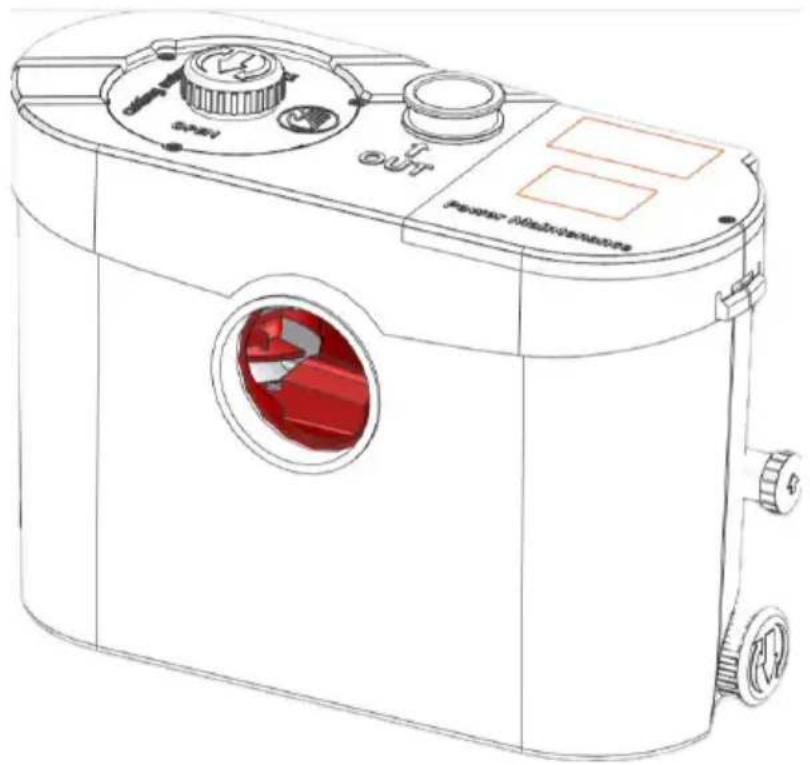

SEWAGE PUMP

MODEL:FLO700

Line drawing of a portable water heater with control panel and red vent (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Kindly Reminder

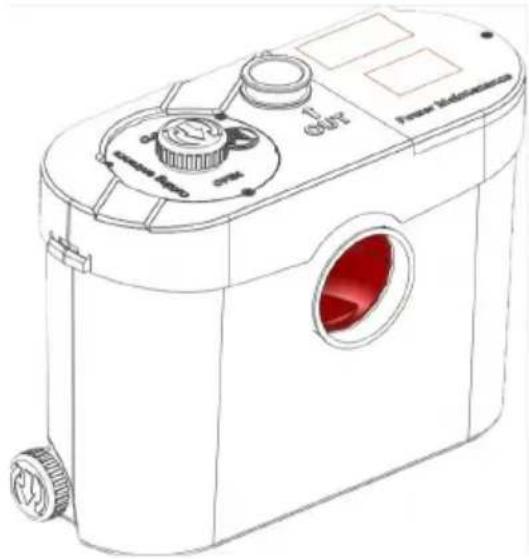

TESTWATER

TheFLO700 has been developed with the utmost care, and it is tested in the factory. Therefore, it is possible that the test water remains in the appliance.

Line drawing of a portable washing machine with control panel and vent (no text or symbols)

GENERAL DESCRIPTION

The equipment should be avoided for commercial use; the FLO700 is exclusively reserved for indoor use. The macerator pump system of the appliance is integrated in a special way, which is only suitable for to with a horizontal outlet(P-trap toilet). The macerating pump starts automatically when a certain water level is reached. For the proper operation of the grinder, it is necessary important to follow the install and maintenance instructions in this manual.

When properly installed and maintained according to the instructions 1, this user manual, the appliance is very powerful, safe, and reliable.

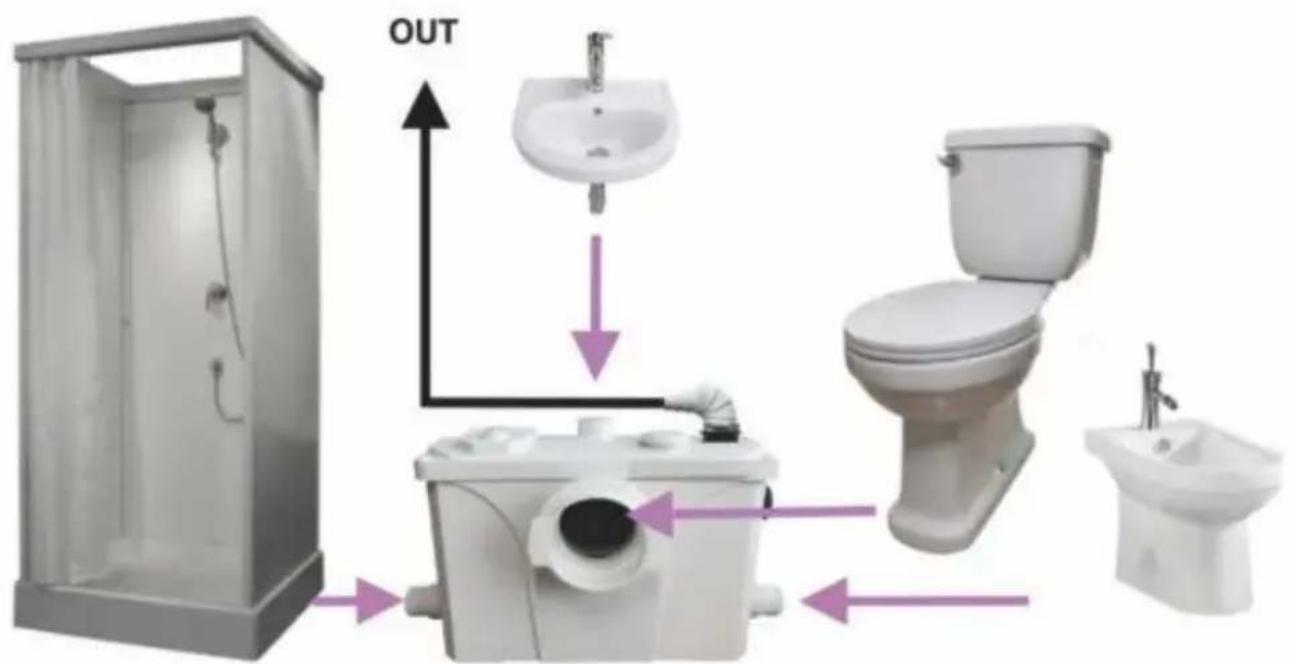

FLO700 is specially used to connect with:

WC
- Shower cabin
- Wash basin

• Washing machine
• Bidet
• Urinal

SPECIFICATIONS

Input Power Rating:	700W	Max Vertical Lift: 10M
Input Voltage:	220-240V,50HZ	Max Temperature: 90°C
Flow Rated:	160L/MIN	Noise Level: 45 dBA
Max Horizontal Lift:	100M	Degree of Protection: IPX4

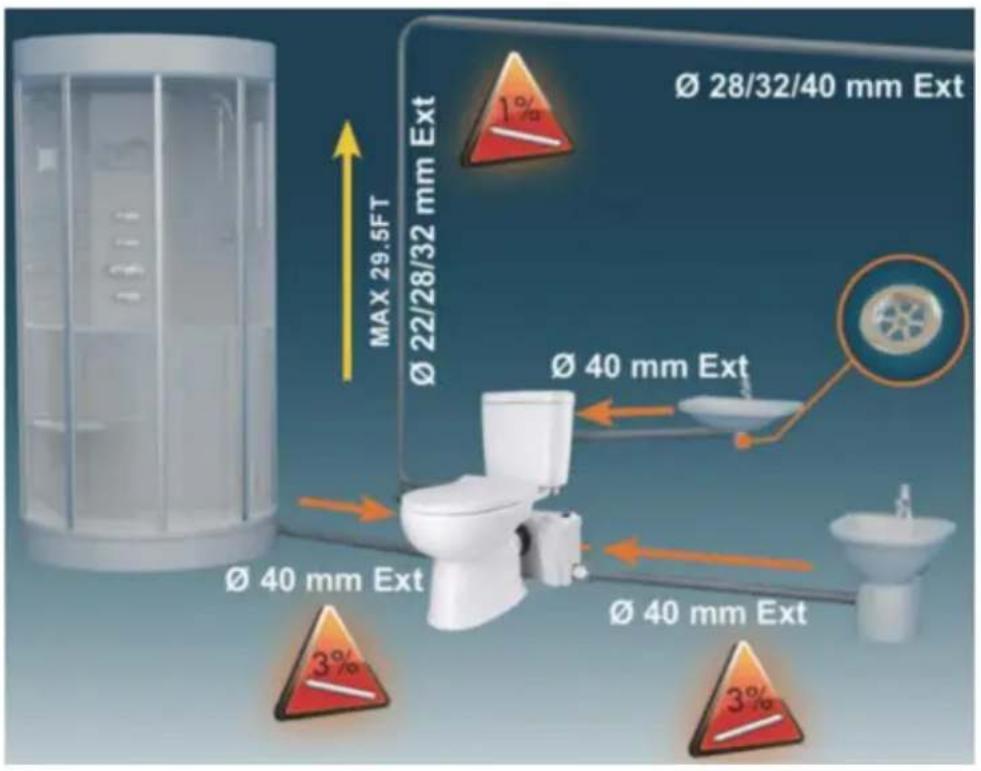

INSTALLATION (DIAGRAM)

MAX 29.5FT Ø 22/28/32 mm Ext Ø 40 mm Ext Ø 40 mm Ext Ø 40 mm Ext Ø 28/32/40 mm Ext 1% Ø 40 mm Ext 3% Ø 40 mm Ext 3%

ACCESSORY LIST

A-B	C X4	D	E X3
	32-50mm
F	G	H	J
	90-110mm	110-120mm
K	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
F	Activated Carbon	1
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

INSTALLATION INSTRUCTIONS

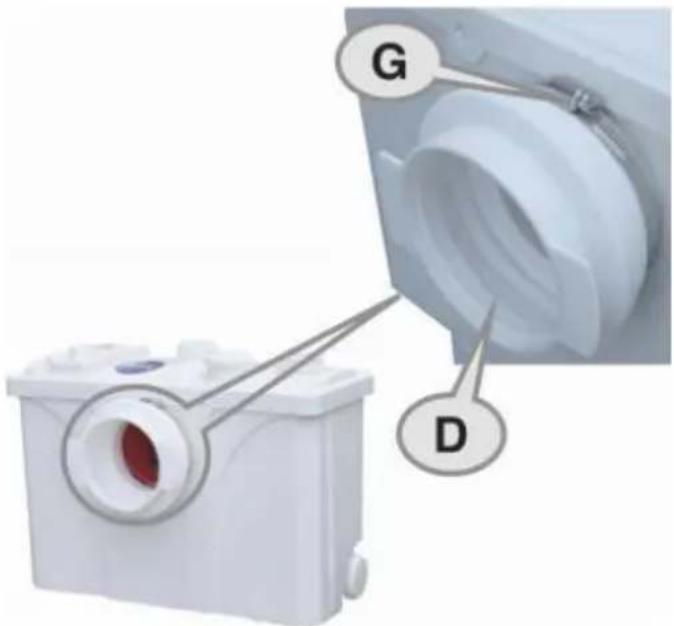

(5-1), Install the rubber sleeve (D) onto the sewage pump and lock in 90-110mm hose clamp(G). Be careful not to install the rubber backw

G D

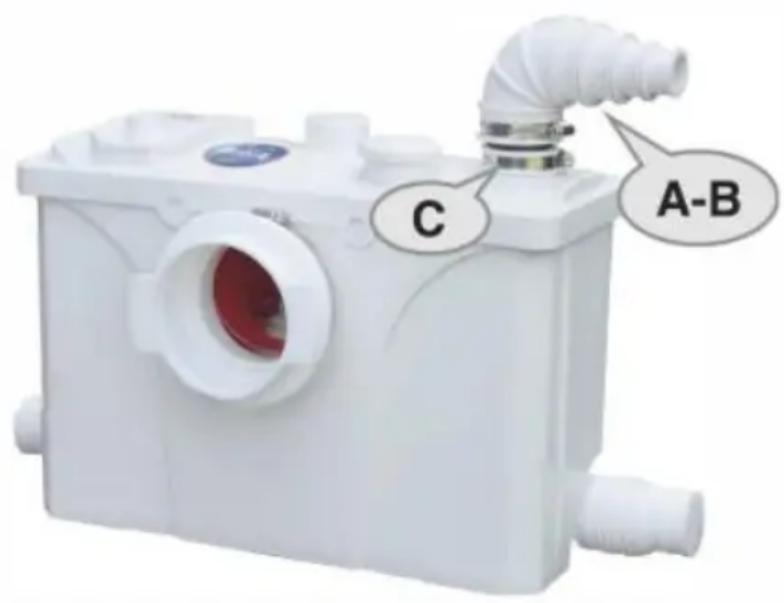

(5-2), The customer can select accessory A-B and check that the host clamp of the accessory is locked before installation. Then the customer chooses the size of the drain pipe, which is available in I" (28mm),

(32mm), or 40mm (l- l/4") sizes. The dimensions are marked on the accessories, and the customer is free to choose. In this installation example, we choose the 1-1/4"(32mm) drain pipe size. Then use a k cut the extra.

Note: The smaller the pipe diameter, the higher the lift.

C A-B

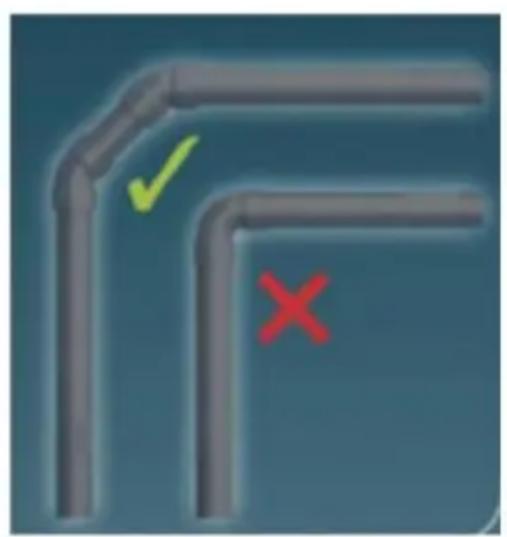

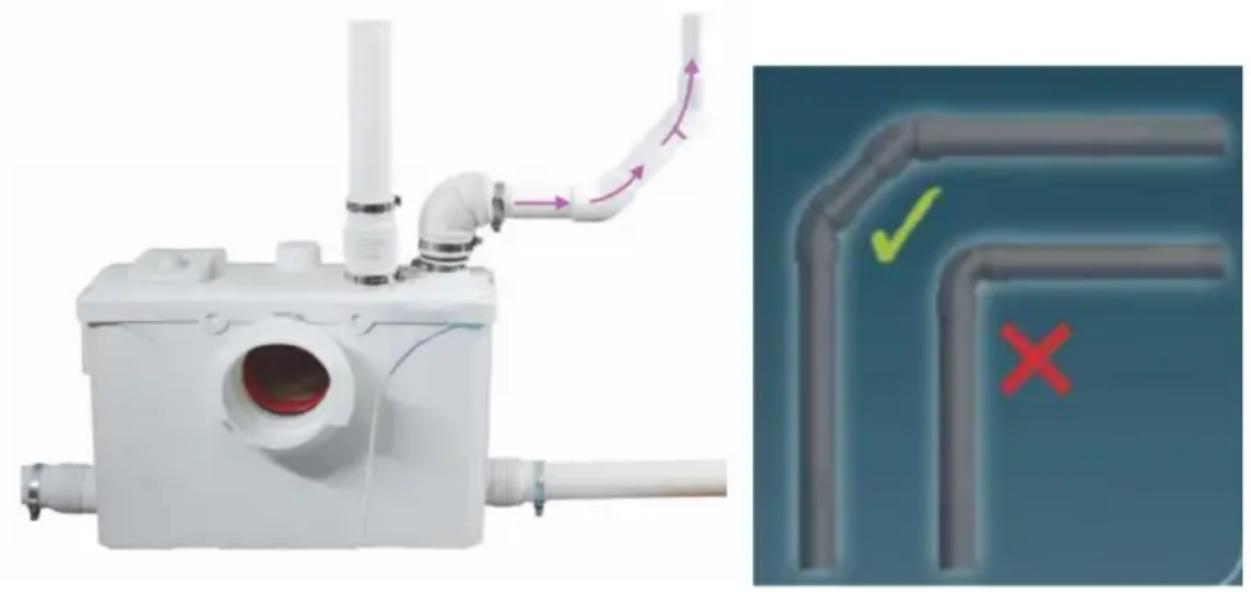

(5-3), In addition, at the corner of the PVC water pipe, be sure to large elbow composed of two 45-degree elbows, not a right-angle elbow otherwise, it will affect the vertical lifting height.

Diagram showing a white plastic water heater connected to a pipe with directional arrows, alongside a close-up of a blue 3D pipe structure with checkmark and cross symbols (no text or labels)

Ball Valve

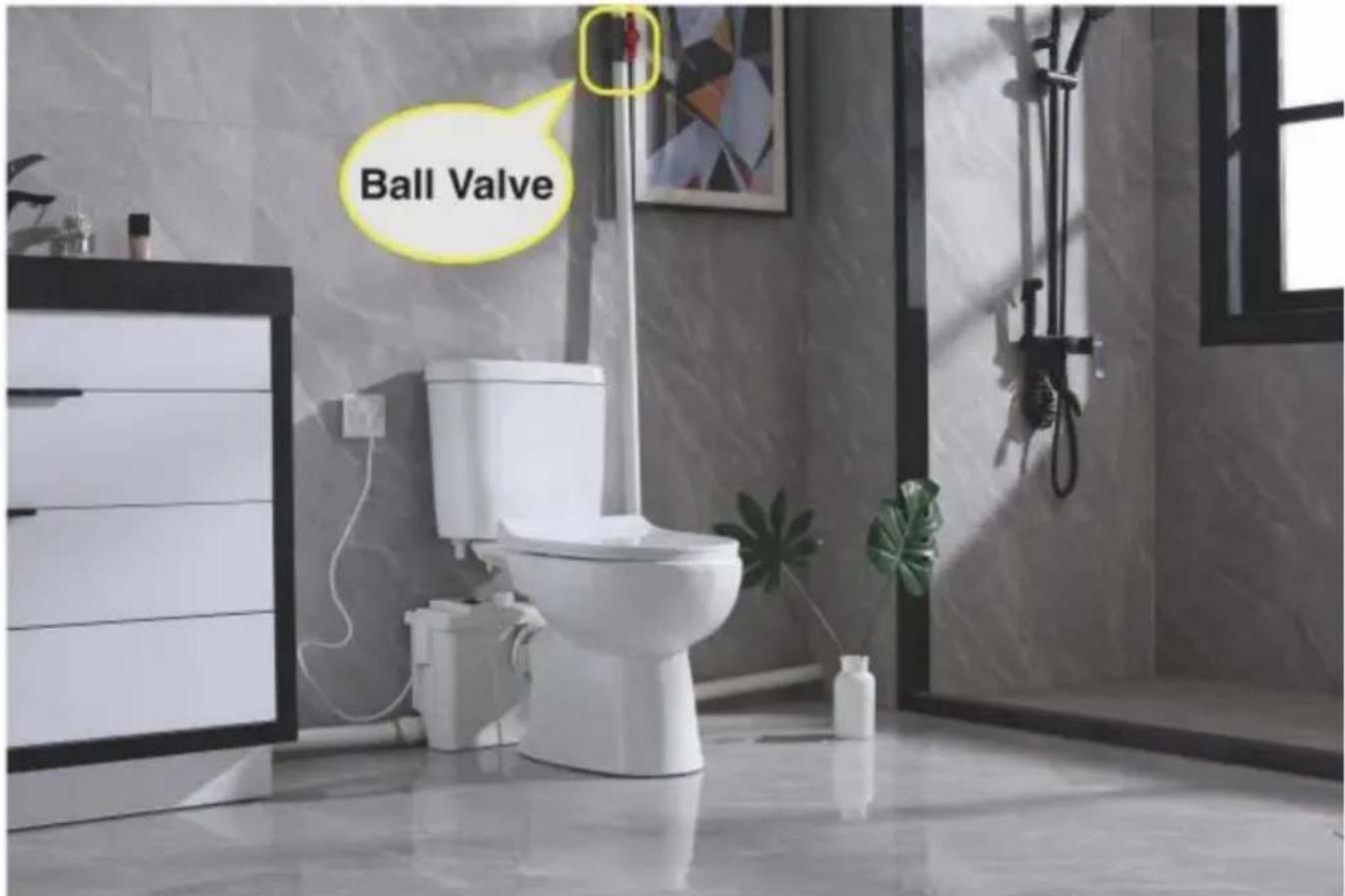

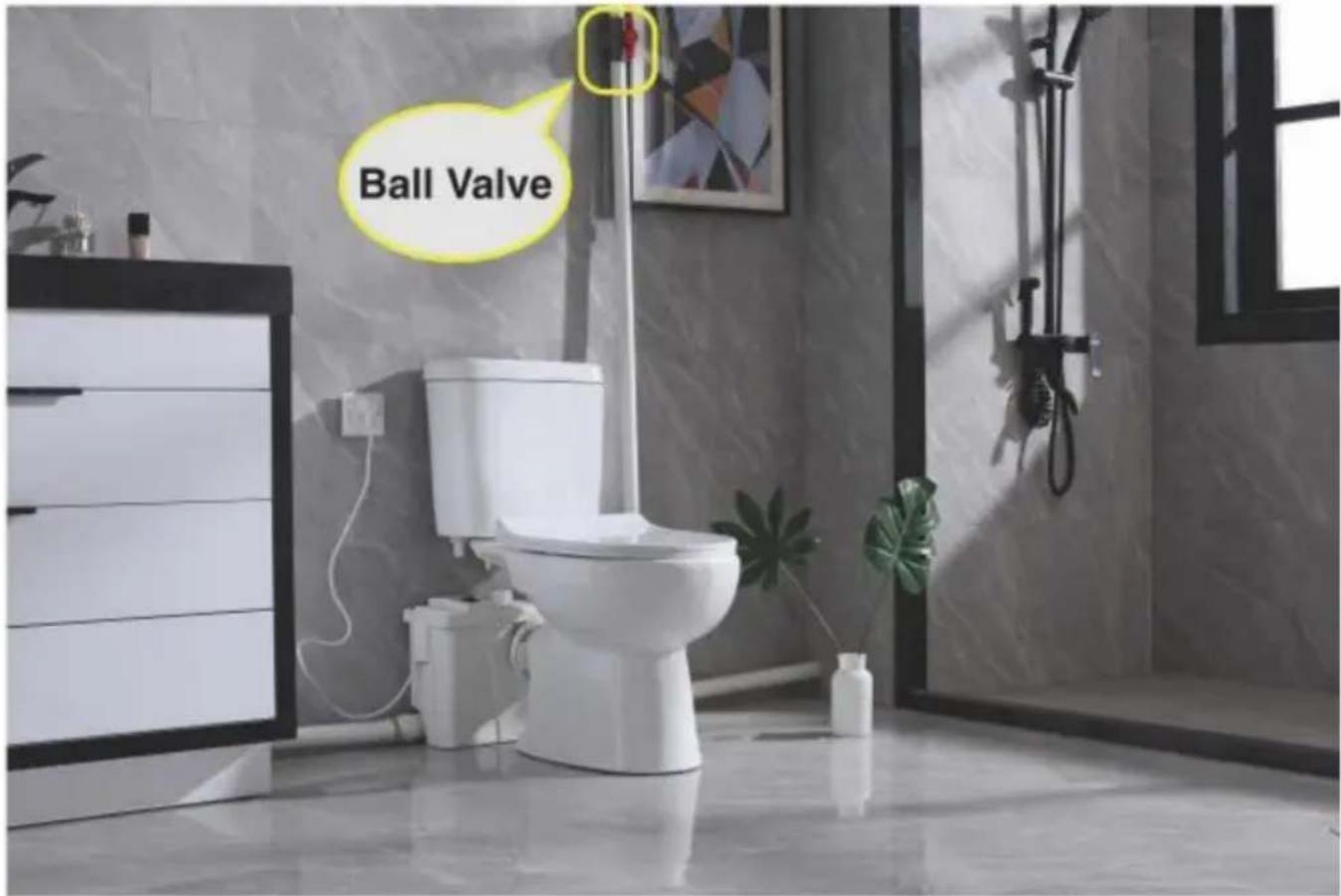

(5-4), Please install a ball valve (not provided) near the water outlet prevent sewage leakage when the pump is disassembled.

(5-5), When connecting to the main pipe, the drain pipe must flow in above the main pipe to prevent back-flow. As shown below:

1 Ball valve

8/13

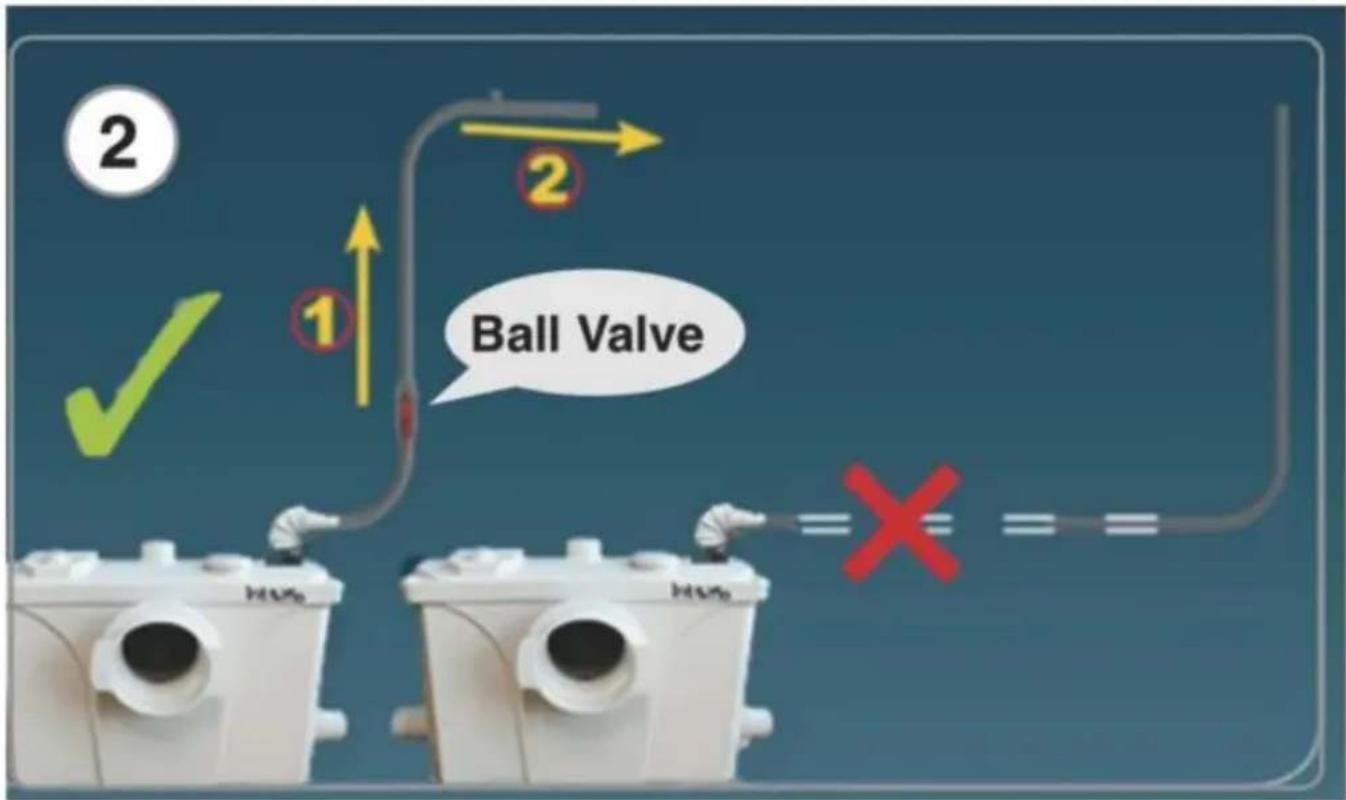

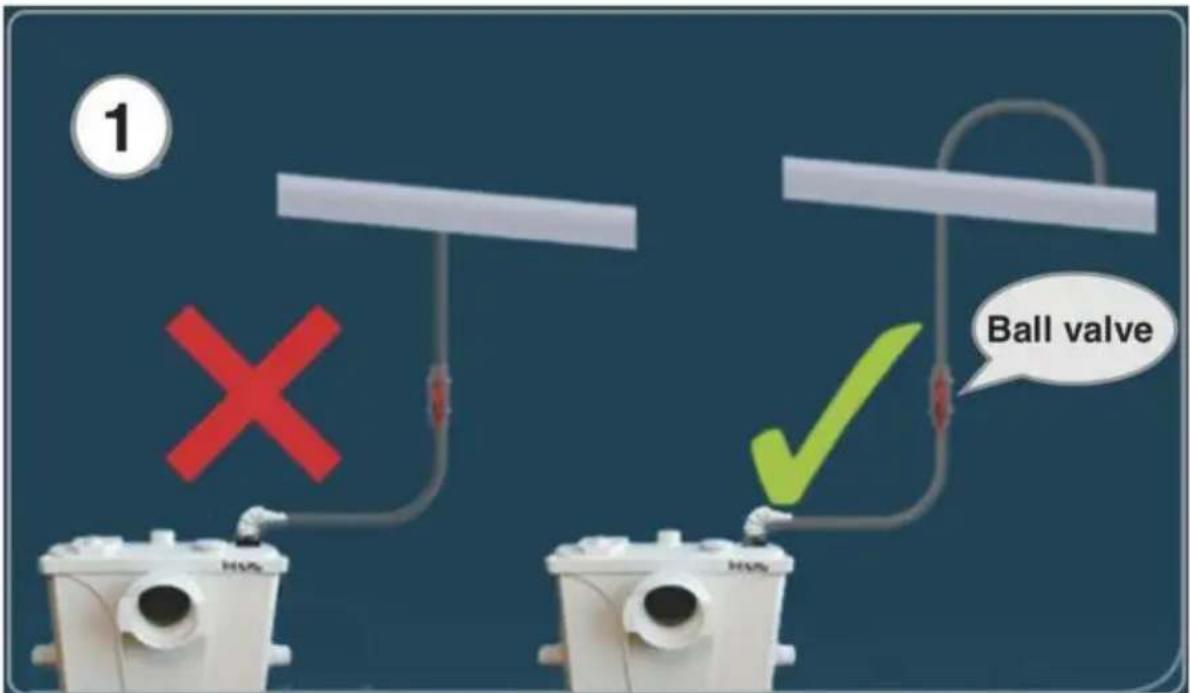

(5-6), For best performance, please drain upward first and then drain drain pipe to the main pipe at a 2% - 3% incline: otherwise, the sewage flow back.

INSTALLATION OF CONNECTING PIPE IN THE SHOWER ROOM

(6-1), Install the plastic hose fitting (E) and lock it with the hose cla There are two inlet holes on the left and right sides of the sewage They are used to connect the shower room and the sink. If the wat not used, it can be plugged in with accessory K.

E C

(6-2), When installing the shower room, first, you can install a woode or iron shower base or build a cement platform. For wastewater from shower and bath, ensure that the slope of the siphon is at least 3% (inches per 40 inches) so that the wastewater flows through the natur gravity to the unit position. If other sanitary units are connected to the disposal line along the disposal circuit, install check valves in the appropriate waste pipes to prevent backflow.

Note: Please make sure that the shower room chassis is raised to a minimum height of 6 inches (15 cm). It also depends on the distance between the shower room and the pump.

>15 cm 3%

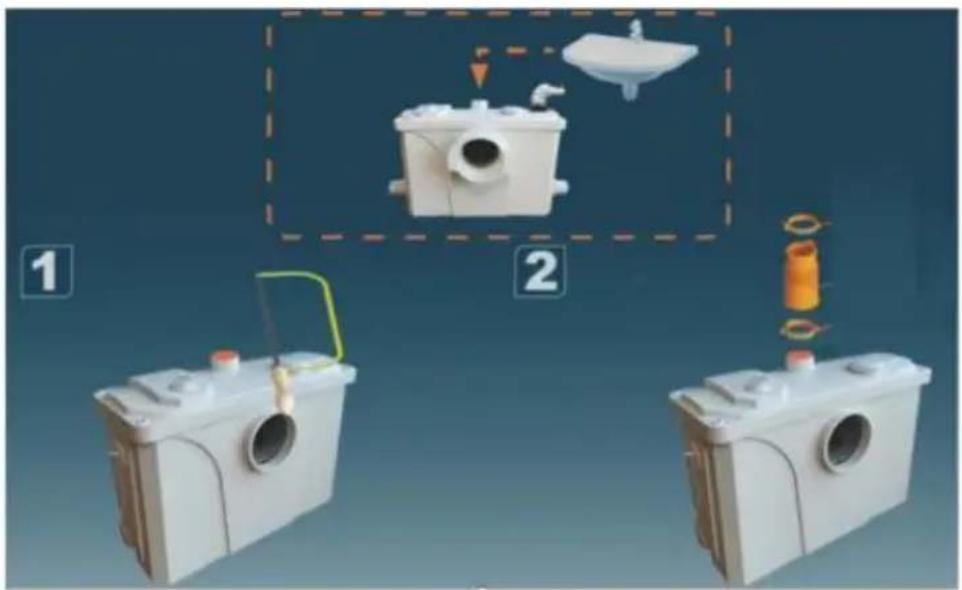

(6-3). If you need to connect more equipment and use the top water please open it with a saw and connect it with a hose.

Three-step diagram showing a mechanical device with labeled parts, no text or symbols present

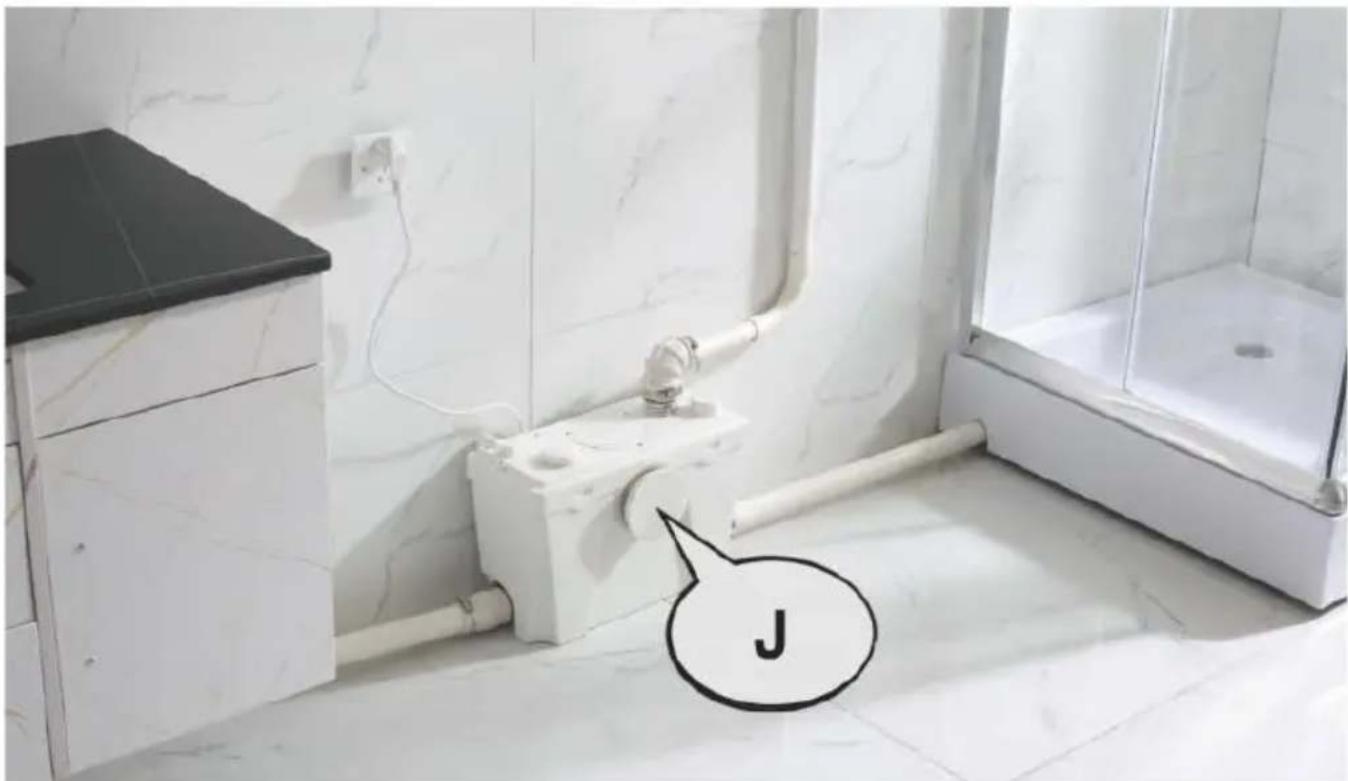

(6-4), If the toilet is not connected, you can use the lid (J) to block toilet water inlet and then use the clamp (G) to fix the toilet. Then connect the sink, shower room, and washing machine.

J

DOUBLE DEODORANT FUNCTION

One is activated carbon to deodorize, p bag of activated carbon into the vent, i then cover it tightly.

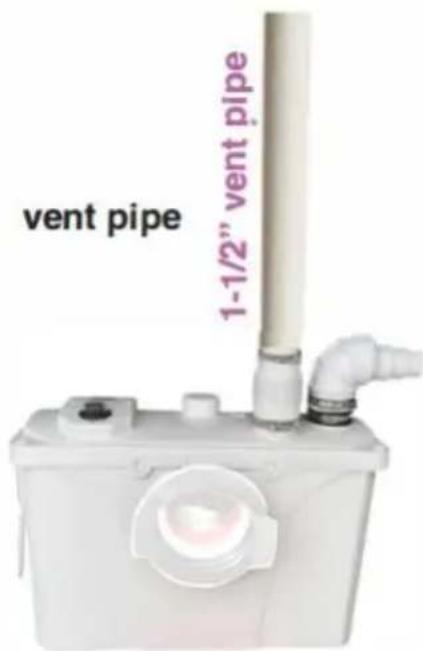

And the other is deodorization with vent ducts. See the picture on the right. The of the vent pipe is 1 -1 /2" (40mm). It is also possible to not install ventilati ducts, which will save a lot of trouble But activated carbon must be replaced a year.

vent pipe 1-1/2" vent pipe

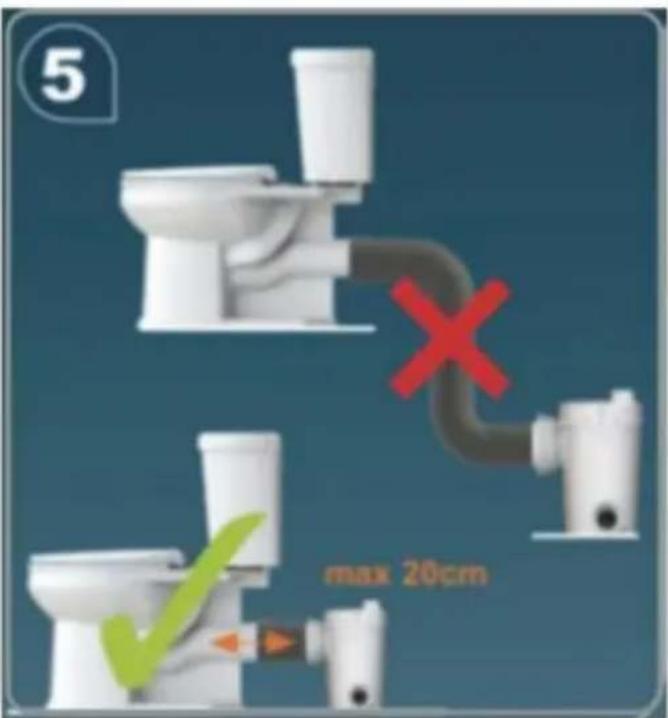

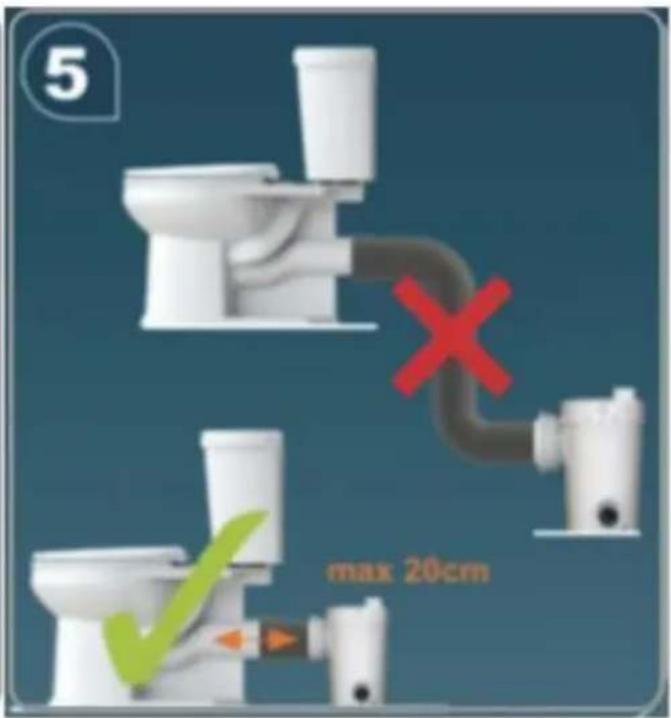

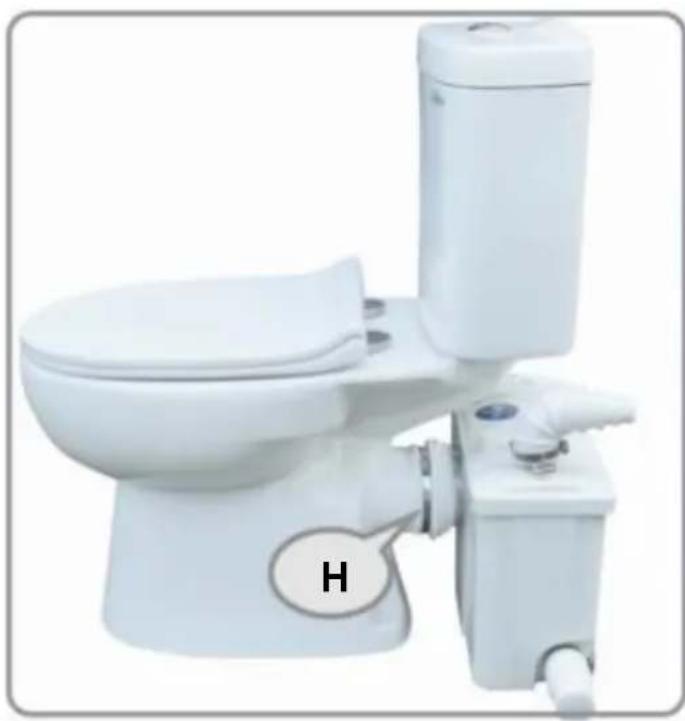

8-1, Finally connect the toilet and lock it with a 110-120mm hose (H). The installation Position of the macerating pump should be parallel to the toilet.

White toilet with a side-mounted drain unit and labeled 'H' on the toilet (no text or symbols on the toilet itself)

5 max 20cm

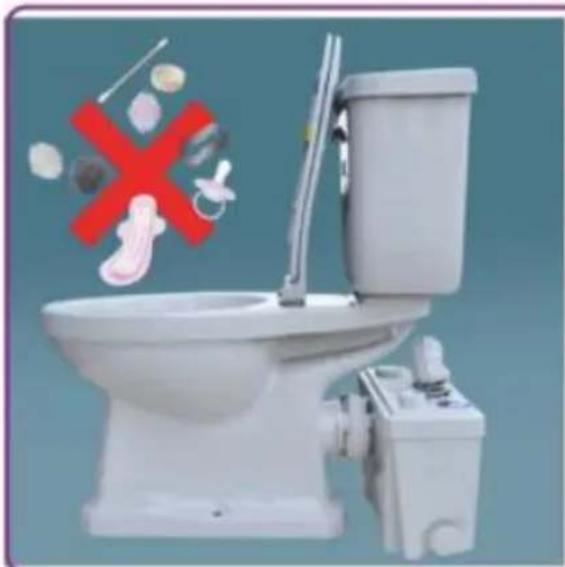

8-2, Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter, or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating and shall void your warranty.

Illustration of a toilet with a showerhead and a red X symbol, no text or symbols present

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

WARNINGS

(1) Electrical installation:

■The connection shall be carried out by a qualified technician and the for electrical installations (NEN I010) shall be met.
■If the power cord of the appliance is damaged, it shall be replaced manufacturer or supplier of the appliance. This will avoid creating dangers.
■ The connection of your appliance is Class I.

Connect the appliance to a socket with a protective conductor connec

(2) Thermal protection:

■This appliance is equipped with thermal protection, which switches of power supply of the appliance after overheating for safety reasons.
When the device returns to normal temperature, it will start automatic
■Power on the electrical connection only when the appliance is fully installed.
■ In case of prolonged absence (e.g., vacation), the water supply to appliance shall be closed.
■ Do not expose the appliance to temperatures below 0^ C or above

(3) If the indications are not followed, it could cause personal security

(4) Wrong Use

Use only for human excrement+soluble toilet paper. Equipment damage due to Improper use is not covered by the warranty. Some examples damage caused by improper use include grinding cotton wool, tampons sanitary napkins, panty liners, food, condoms, towels hair and rinsing liquids and solvents or oils.

TROUBLE SHOOTINGS

Some malfunctions of the grinder are not practically serious. You can correct it by yourself. To diagnose and find a solution to the Trouble to the diagram below. For other malfunctions, contact the supplier or qualified professional.

MALFUNCTIONS POSSIBLE CAUSES SOLUTIONS
The appliance occasionally starts to work	The connected pipelines are leaking	Check the installation in front of the appliance
	The check valve is leaking Clean or replace the check valve
The motor is running properly but the water runs slowly away.	The aerator in the lid is blocked	Clean the aerator
The engine is running properly but non-stop or runs for a long time	The height or length of the drain is too large,or too many bends are used(power failure)	Check the installation
	The pump is blocked Turn off	the power, disassemble the pump and unblock
The motor is not switched	on The power supply is not switched on	Switch the on power supply (repeat)
	The plug is defective	Repair the plug
	The trouble with the motor or sensor	Remove the lid,flush clean,and dry the sensor up(hair dryer)
The motor rattles with a noise motor	There's a strange object	Remove the lid,clean it and remove the object
The motor is buzzing and does not rotate	The condensator is broken or trouble with the motor	hat in contact with a qualified specialist or the supplier
	There's a strange object in the Remove the lid,clean it and motor	Remove the lid,clean it and remove the object

Importer: WAITCHX

Address: 2 Holywell Lane, London, England, EC2A 3ET

Manufacturer: Ningbo YUNSUN Electromechanical Co., Ltd

Address : Building 3 No.7 Hongshen Road Hongtang Industrial Zone A Jiangbei District 315033 Zhejiang P.R. China

REPU

EUREP UK LTD

REPUK UNIT 2264, 100 OCK STREET, ABINGDON

OXFORDSHIRE ENGLAND OX14 5DH

REPE

EUREP GmbH

Unterlettenweg 1a, 85051

Ingolstadt, Germany
