BOAT LIVEWELL AERATOR PUMP

MODEL: NMBP1-G1600-01A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL: NMBP1-G1600-01A

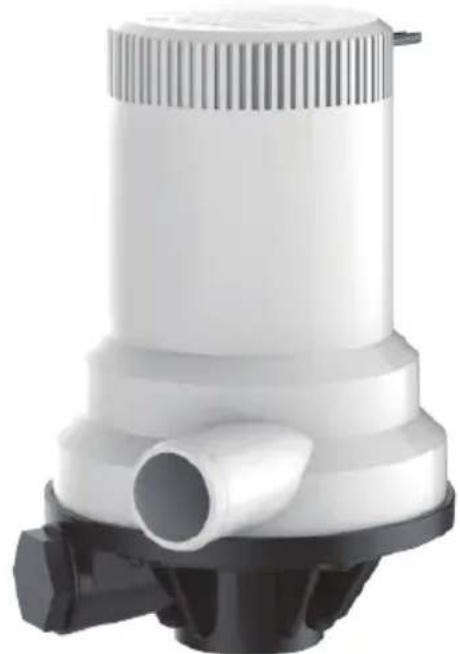

White and black industrial water purifier with inlet and outlet ports (no text or symbols visible)

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Designed to meet the stringent requirements of fishing competitions. This model is equipped with dual-port base for optional connection to a flush pump. Exclusive moisture tight seals, 1600 GPH of pumping powe, dual port capability, long-life motor, stainless steel shaft, quiet running design, 1" NPT female intake. Built for the serious fisherman.

FEATURES

● Dual port base design for easy customer selection
● Anti-airlock feature, heavy-duty long-life motor
- Can be easily installed into any valve fitting with 1" NPT male thread

● 1600 GPH (6054 LPH) dual port
● Silent and vibration-free operation
● Easy to install and remove for cleaning

INSTALLATION INSTRUCTIONS

Important: Read before attempting Installation

The Newmao Dual Port 1600 GPH Livewell / Baitwell Pump has been designed for pumping water in a marine environment. The pump is not to be used for pumping any other liquids other than water/ seawater. Pumping other liquids can result in personal damage/injury and/or property damage.

SECURITY

• The Livewell / Baitwell pumps are designed to simply install into any valve fitting with 1" NPT Male threads
• The pump may not be used for other liquids than water/seawater
• Always install the pump according to the wiring instructions
• Always use the fuse required per pump label
• The wire connections must be sealed with a marine sealant
• Insulation or cable sheathings must be placed above the highest water level
• Do not run dry for extended periods

INSTALLATION

Please follow the installation instructions carefully to ensure maximum efficiency in your Livewell / Baitwell pump operation.

1. Pump should be installed below the water line to ensure a flooded suction to the pump.
2. Install a 1" seacock below the waterline in your boat.
   Warning: Failure to install a seacock may subject your vessel to flooding.
3. Install a thru hull pickup with a filter grate to reduce or eliminate debris from entering the seacock and ultimately your Livewell / Baitwell pump.
4. Install your seacock and Livewell / Baitwell pump using pipe tape sealant such as Teflon tape on all threaded connections.
5. Attach Teflon tape or pipe tape sealant to a 1" NPT nipple that will screw on to your Livewell / Baitwell pump on one side and the other side to your 1" seacock.

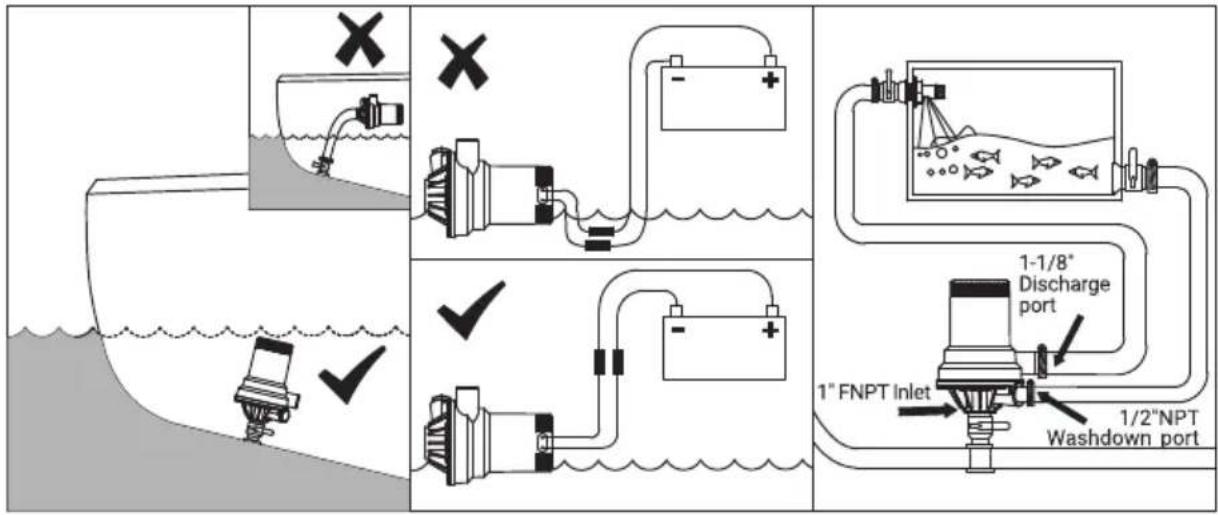

INSTALLATION PRECAUTIONS DIAGRAM

1-1/8" Discharge port 1" FNPT Inlet 1/2"NPT Washdown port

PUMP OPERATION

1. Open your seacock to let in water and allow the pump to be flooded.
2. Make sure that when water has entered the pump that there are NO Leaks coming from the intake or discharge of the pump. It is critical to check and make sure there is no water leaking from any part of the pump during installation and operation of the pump.
3. Turn your Livewell / Baitwell pump "On"
4. Your tank should fill up until water comes out of the overflow pipe
5. The pump will continuously exchange water as long as it is on.
6. Turn off pump when you are done fishing and are ready to drain your tank.
7. Close the seacock when pump/system is not being used. Never leave your boat for extended periods of time without closing the seacock.

OPTIONAL WASHDOWN PORT

Your Livewell/Baitwell pump also has a port to be used for attaching a washdown pump. Remove the 12 NPT plug from Livewell/Baitwell pump side port and attach your washdown pump. Make sure to use sealant. Make sure that seacock is open before turning on your washdown pump to ensure supply of water to washdown pump. Close seacock valve after you are done with using your washdown pump.

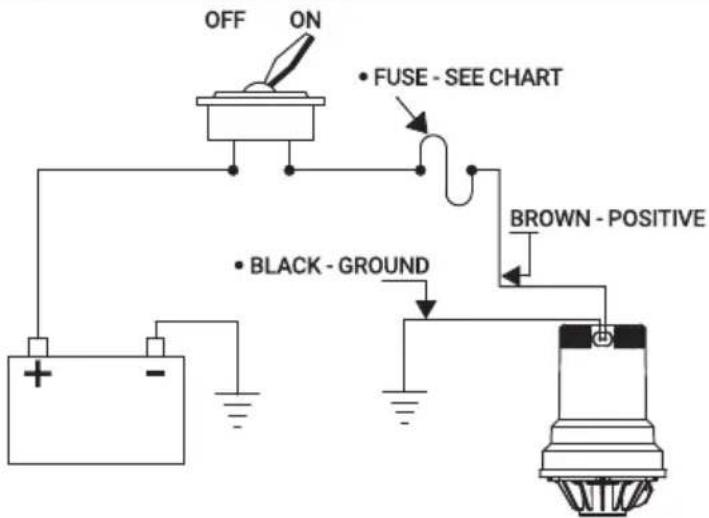

WIRING DIAGRAM

OFF ON • FUSE - SEE CHART • BLACK - GROUND BROWN - POSITIVE

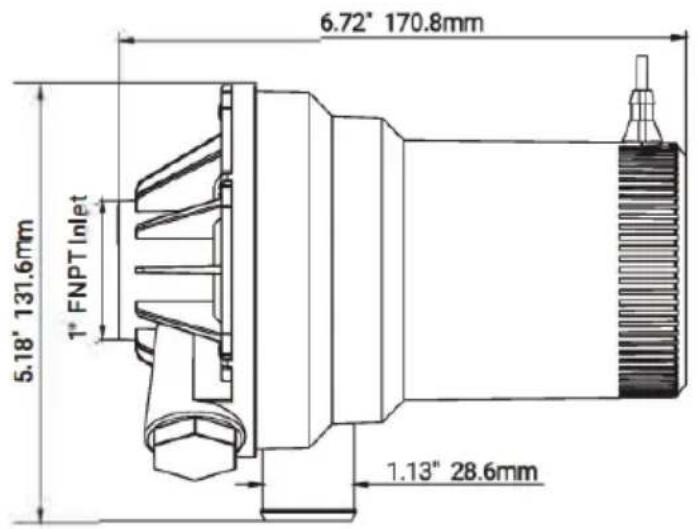

INSTALLATION DIAGRAM

6.72° 170.8mm 5.18' 131.6mm 1" FNPT Inlet 1.13" 28.6mm

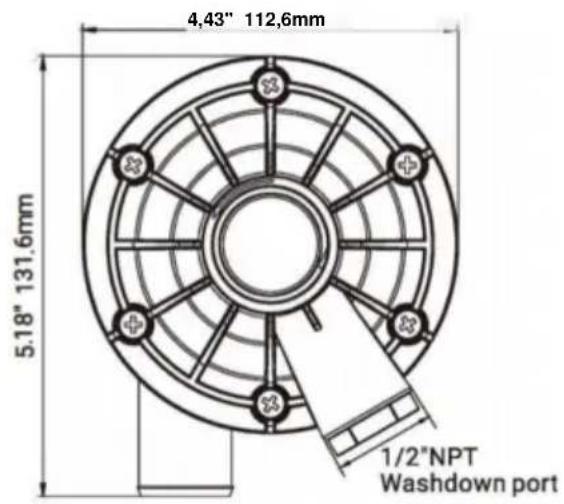

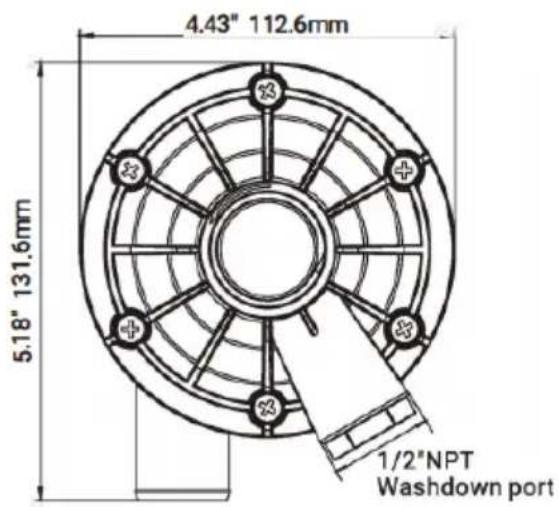

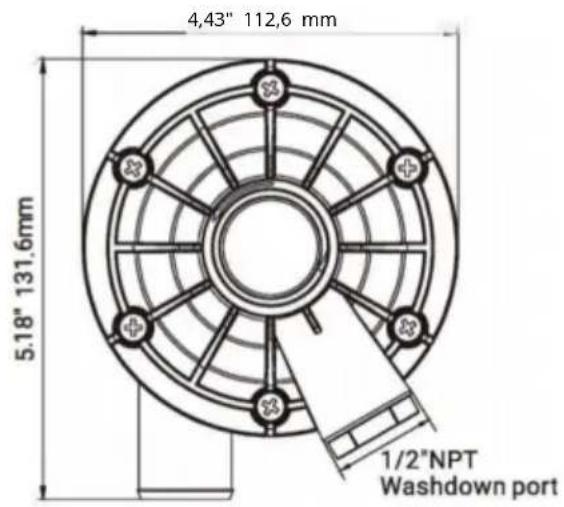

4.43" 112.6mm 5.18" 131.6mm 1/2"NPT Washdown port

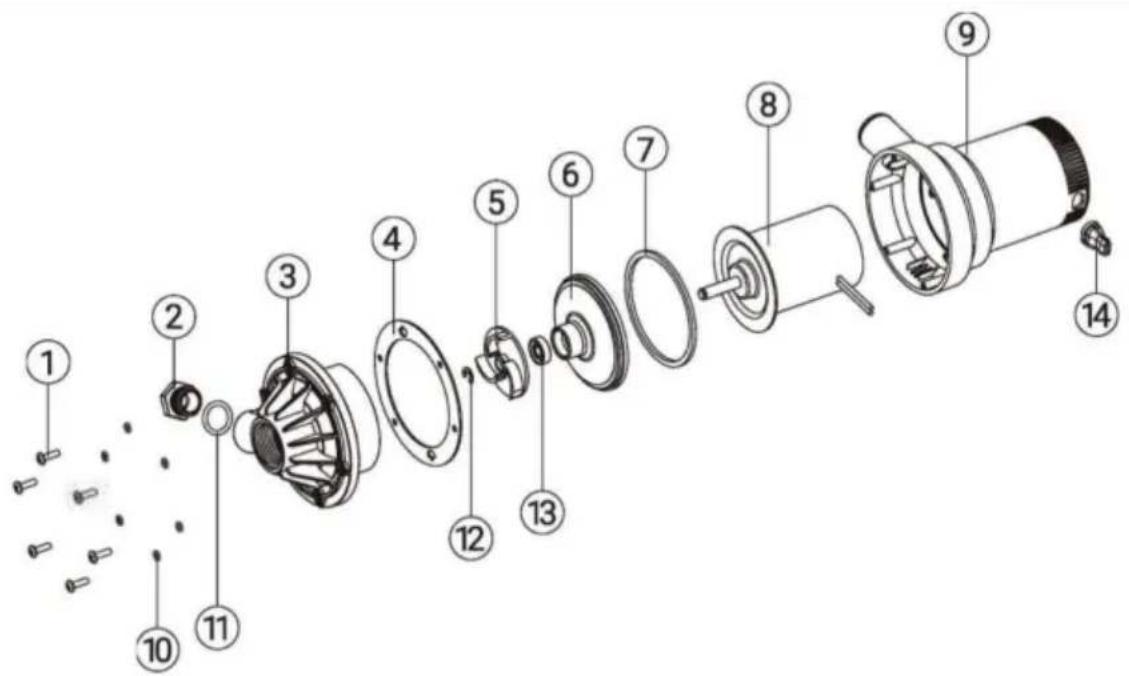

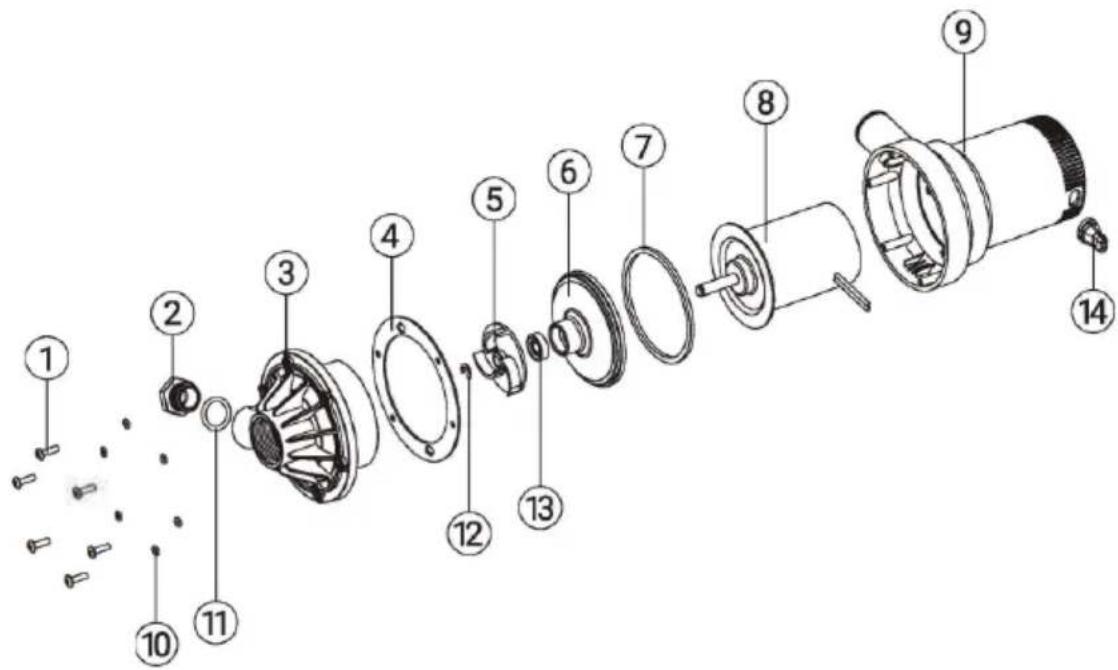

REPAIR KITS

Exploded view diagram of a mechanical assembly with numbered parts for identification

Key	Description	Key	Description
1	Self-tapping Screws	8	Motor
2	Plug	9	Shell
3	Pump Cover	10	O-ring
4	Flat Gasket	11	Sealing Ring
5	Impeller	12	Snap Ring
6	Oil Seal Seat	13	Oil Seal
7	Flat Washer	14	Sealing of Wire

Model NMBP1-G1600-01A
Input DC12V 12A Max
Power 108W
H.max 4.8m
Q.max 1600GPH
Waterproofing grade IPX7

Problem Solution
Cannot start	Check whether the power supply is normal and whether the cable is properly connected
	Check whether the impeller is stuck
No water or low flow	Clean the water intake
	Check pump body for trapped gas
	Check whether the impeller is reversed
	Check whether the positive and negative terminals of the cable are connected in reverse
	Clean up foreign matter in pump
	Check that the pump is completely submerged
Loud noise Clean up foreign matter in pump
The motor in the pump is rotating, but the water output is small and weak	Check the above reasons, still can not be solved, that is, the motor life has arrivedFCC Information:CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) This product may cause harmful interference.2) This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.· Increase the distance between the product and receiver.: Connect the product to an outlet on a circuit different from that to which the receiver is connected.· Consult the dealer or an experienced radio/TV technician for assistance.
	Correct DisposalThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.
