FLO900 - Water pump Vevor - Free user manual and instructions

USER MANUAL FLO900 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MACERATOR PUMP

USER MANUAL

MODEL: FLO900

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MACERATOR PUMP

MODEL:FLO900

Line drawing of a portable radio device with control knobs and a central rotary knob (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Kindly Reminder

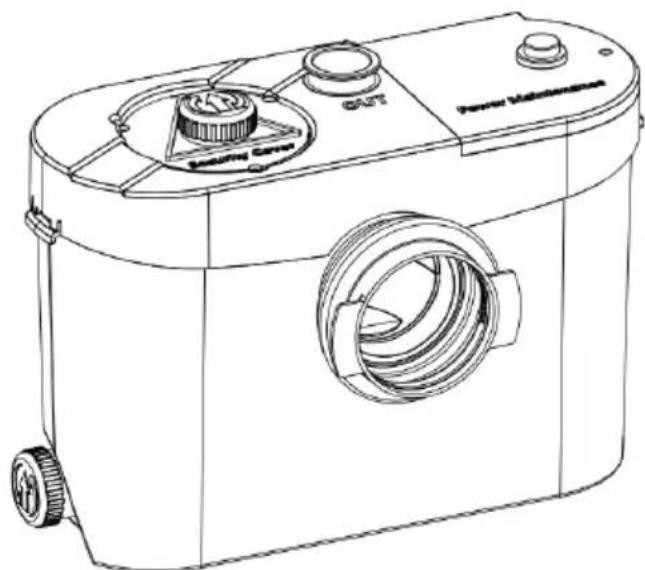

TESTWATER

The FL0900 has been developed with the utmost care, and it is tested in the factory. Therefore, it is possible that the test water remains in the appliance.

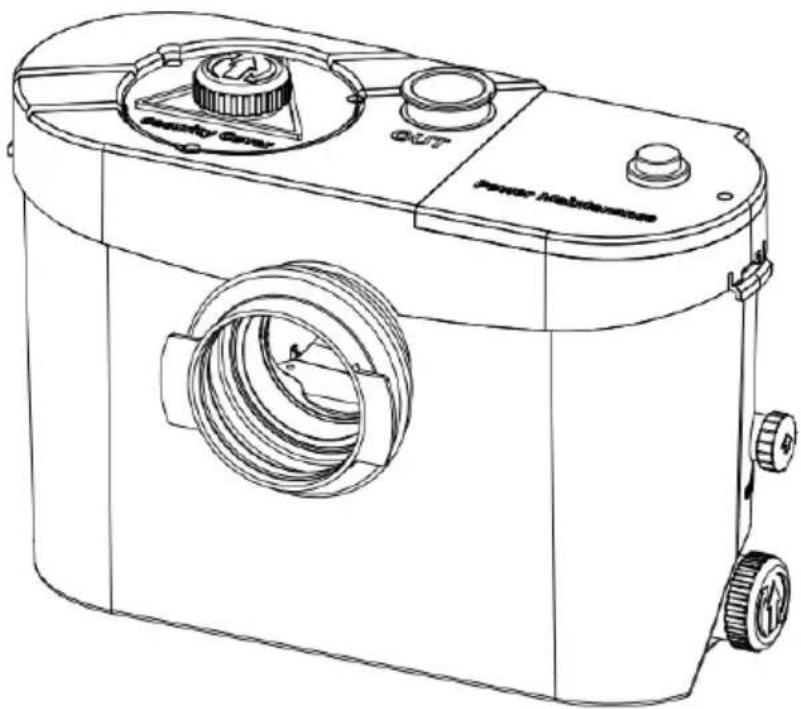

Line drawing of a portable water heater with control panel and side wheels (no text or symbols)

GENERAL DESCRIPTION

The equipment should be avoided for commercial use; the FL0900 is exclusively reserved for indoor use. The macerator pump system of the appliance is integrated in a special way, which is only suitable for toilets with a horizontal outlet(P-trap toilet). The macerating pump starts automatically when a certain water level is reached. For the proper operation of the grinder, it is necessary important to follow the installation and maintenance instructions in this manual.

When properly installed and maintained according to the instructions 1n this user manual, the appliance is very powerful, safe, and reliable.

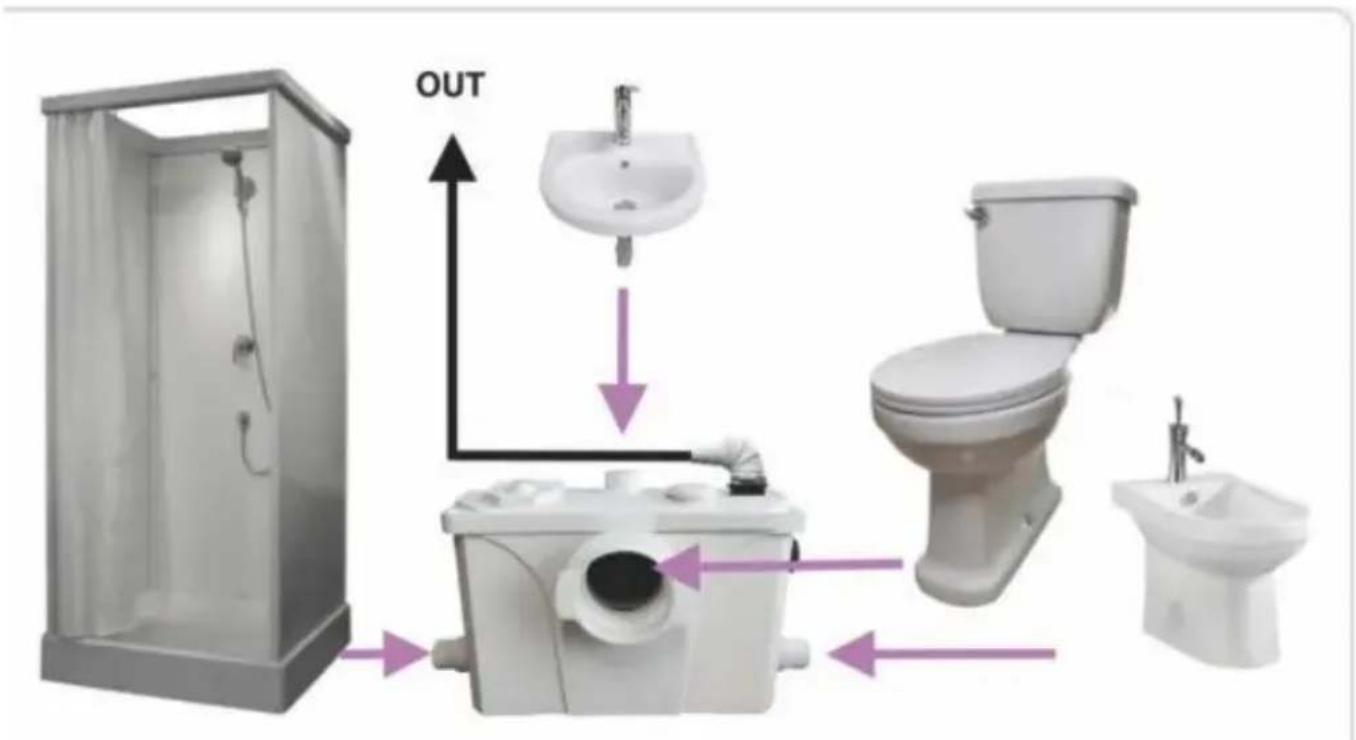

FLO900 is specially used to connect with:

WC
- Shower cabin
- Wash basin

• Washing machine
• Bidet
• Urinal

SPECIFICATIONS

Model	Input	Max Power	Max Flow	Max Lift	Water Inlet	Water Outlet
FLO900 (US)	AC110-120V 60Hz	1.2 HP	48GPM	40ft	WC+3	1
FLO900 (EU)	AC220-240V 50Hz	900W	180 LPM	12m	WC+3	1

WARNING: Only installations conforming to the above specifications are acceptable.

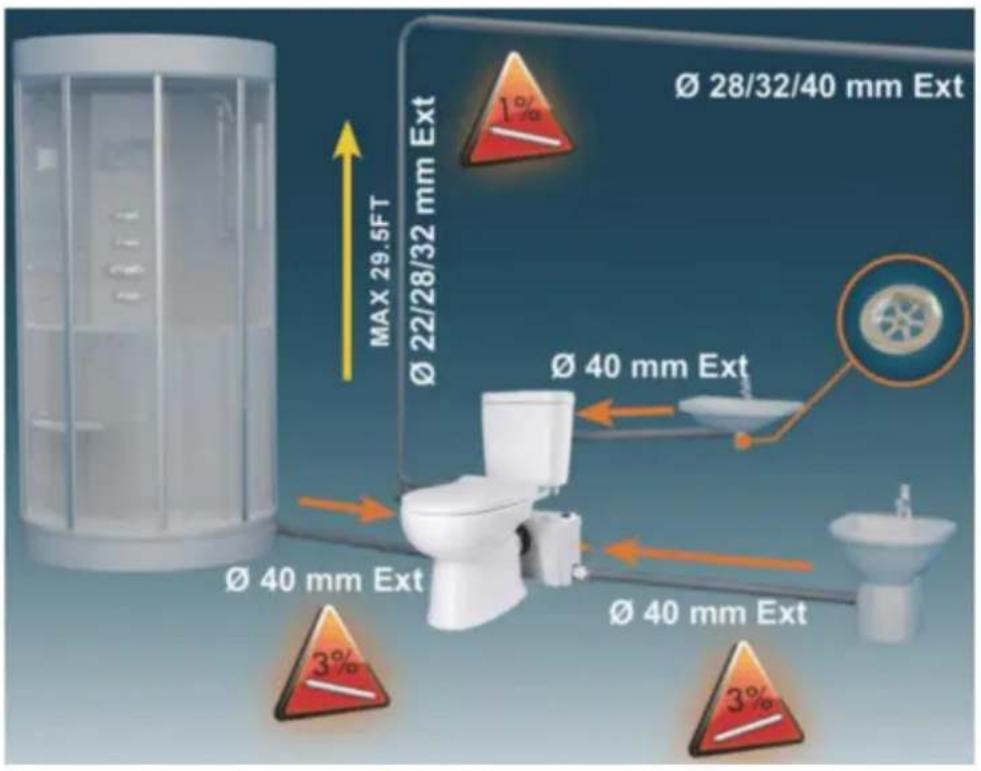

INSTALLATION (DIAGRAM)

MAX 29.5FT Ø 22/28/32 mm Ext Ø 40 mm Ext Ø 40 mm Ext Ø 40 mm Ext Ø 28/32/40 mm Ext 1% Ø 40 mm Ext 3% Ø 40 mm Ext 3%

ACCESSORY LIST

	C X4	D	X3[3GHz]
	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

INSTALLATION INSTRUCTIONS

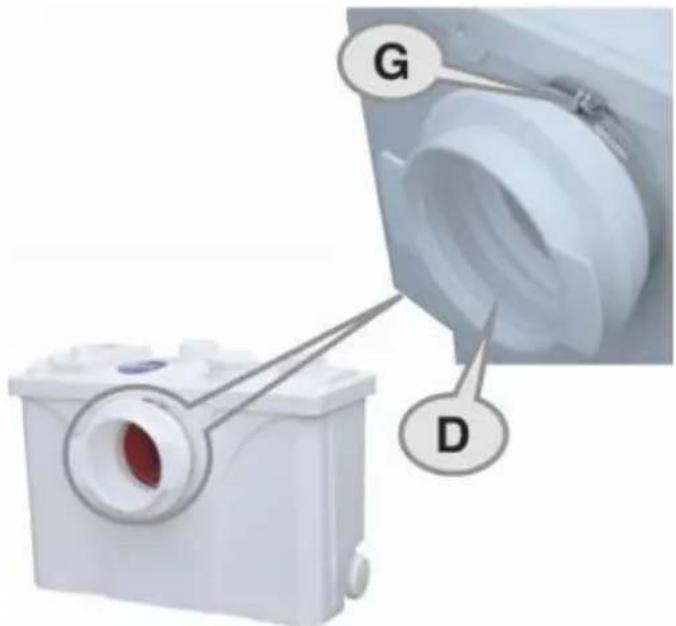

(5-1), Install the rubber sleeve (D) onto the sewage pump and lock it with 90-110mm hose clamp(G). Be careful not to install the rubber backwards:

G D

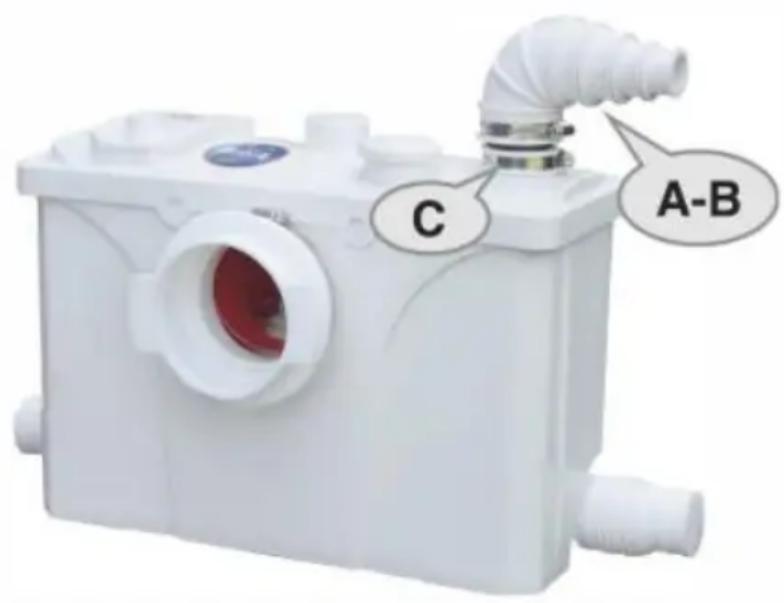

(5-2), The customer can select accessory A-B and check that the hose clamp of the accessory is locked before installation. Then the customer chooses the size of the drain pipe, which is available in I" (28mm), 1- 1.

(32mm), or 40mm (I- I/4") sizes. The dimensions are marked on the accessories, and the customer is free to choose. In this installation example, we choose the 1-1/4"(32mm) drain pipe size. Then use a knife cut the extra.

Note: The smaller the pipe diameter, the higher the lift.

C A-B

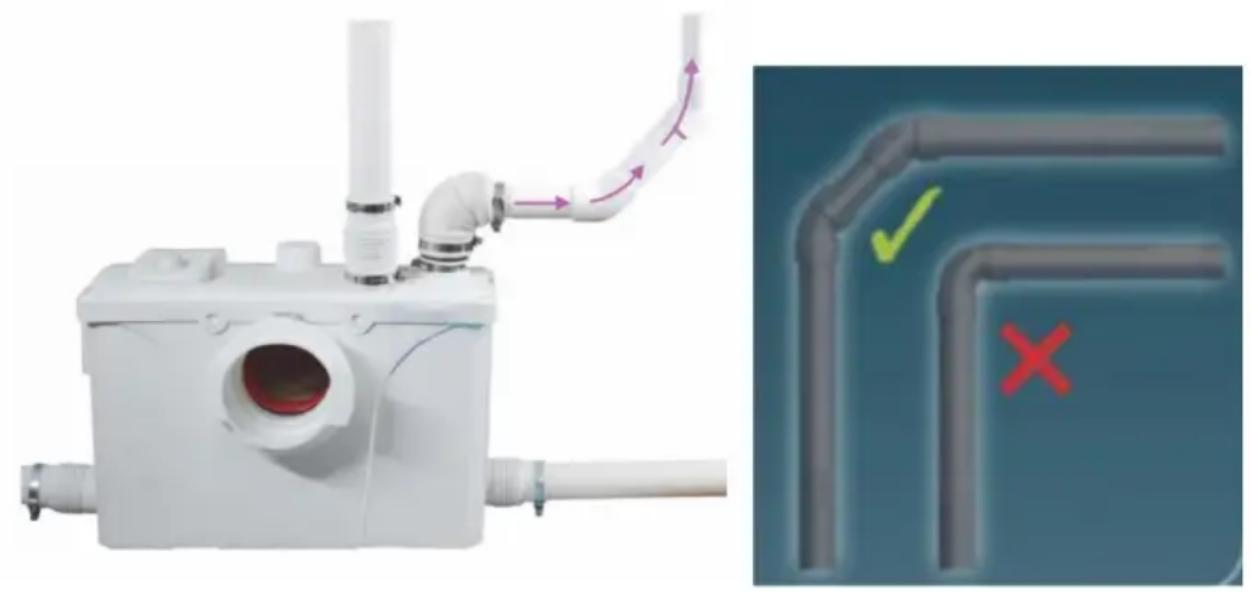

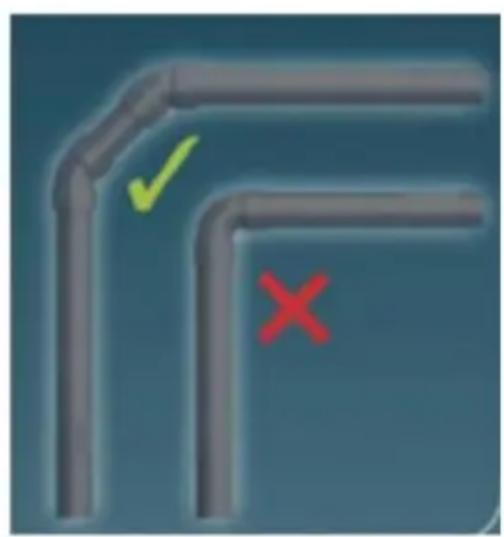

(5-3), In addition, at the corner of the PVC water pipe, be sure to use a large elbow composed of two 45-degree elbows, not a right-angle elbow; otherwise, it will affect the vertical lifting height.

Diagram showing a white plastic pump connected to a pipe with directional arrows indicating flow, alongside a close-up of a blue 3D pipe with checkmark and cross symbols (no text or labels)

Ball Valve

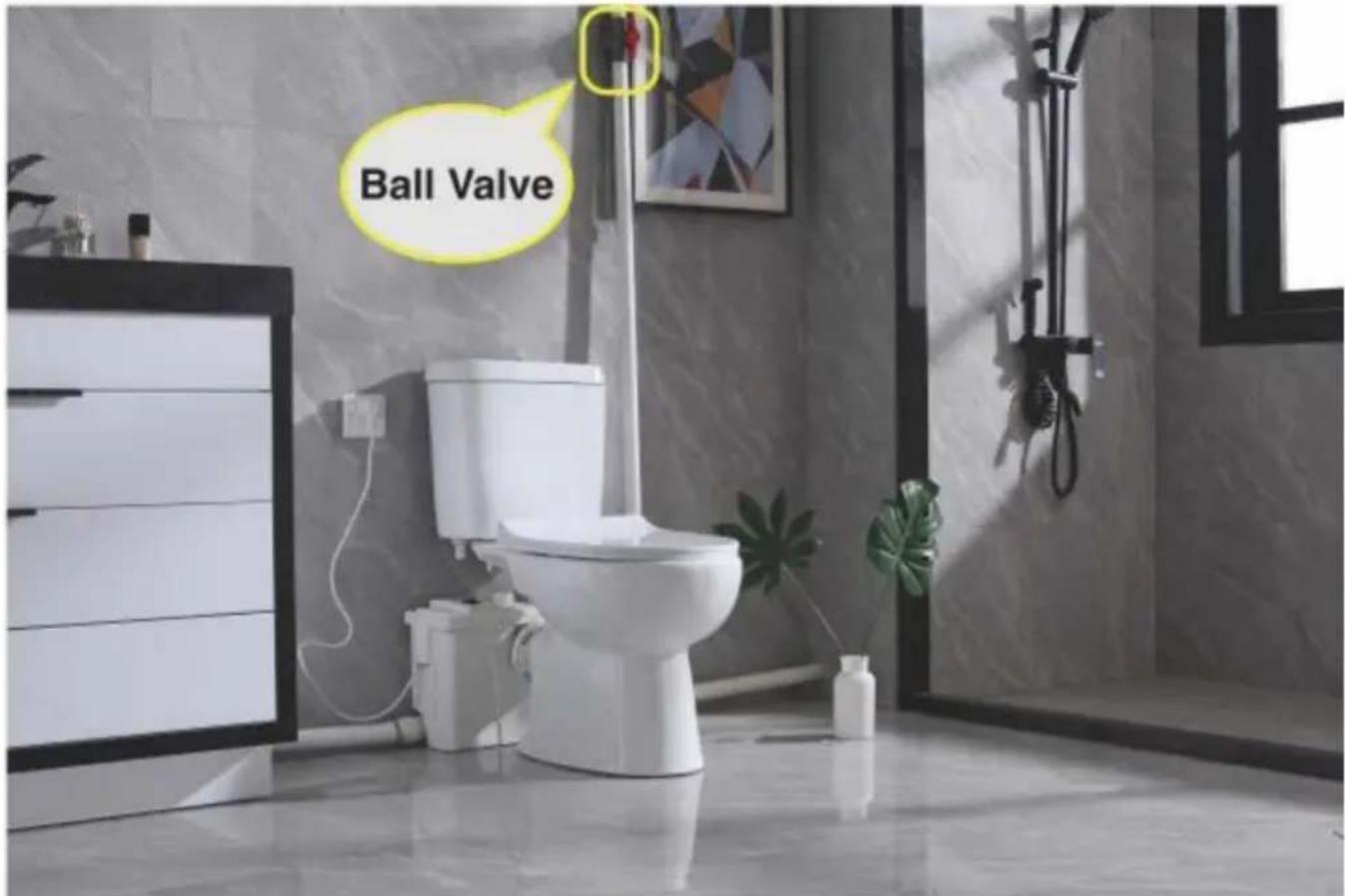

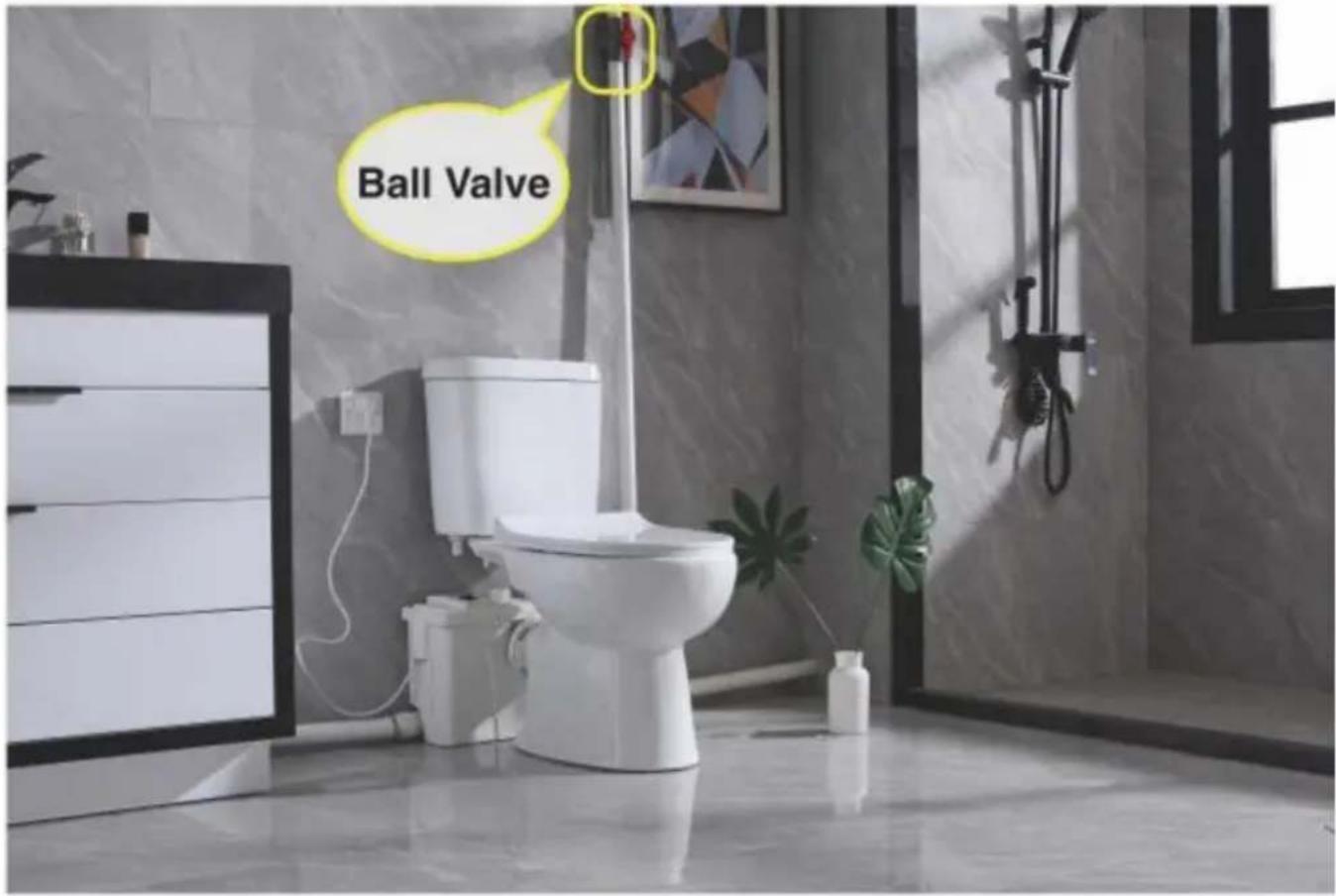

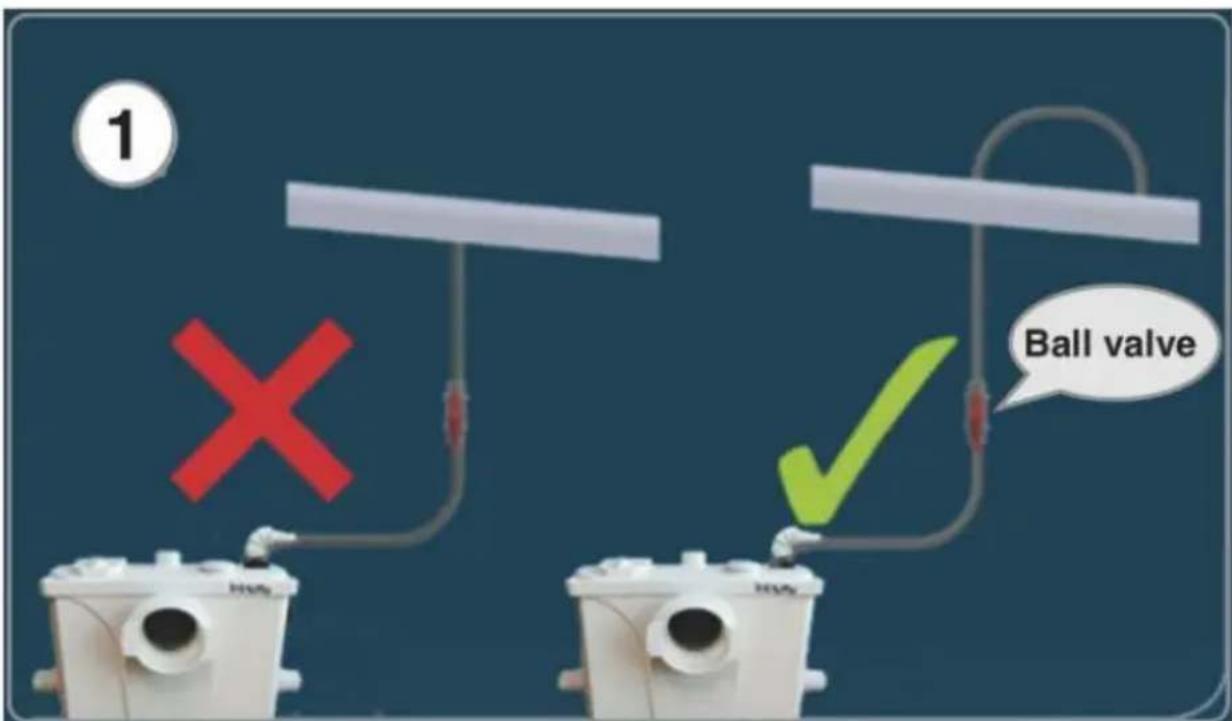

(5-4), Please install a ball valve (not provided) near the water outlet to prevent sewage leakage when the pump is disassembled.

(5-5),When connecting to the main pipe, the drain pipe must flow in from above the main pipe to prevent back-flow. As shown below:

1 Ball valve

8/13

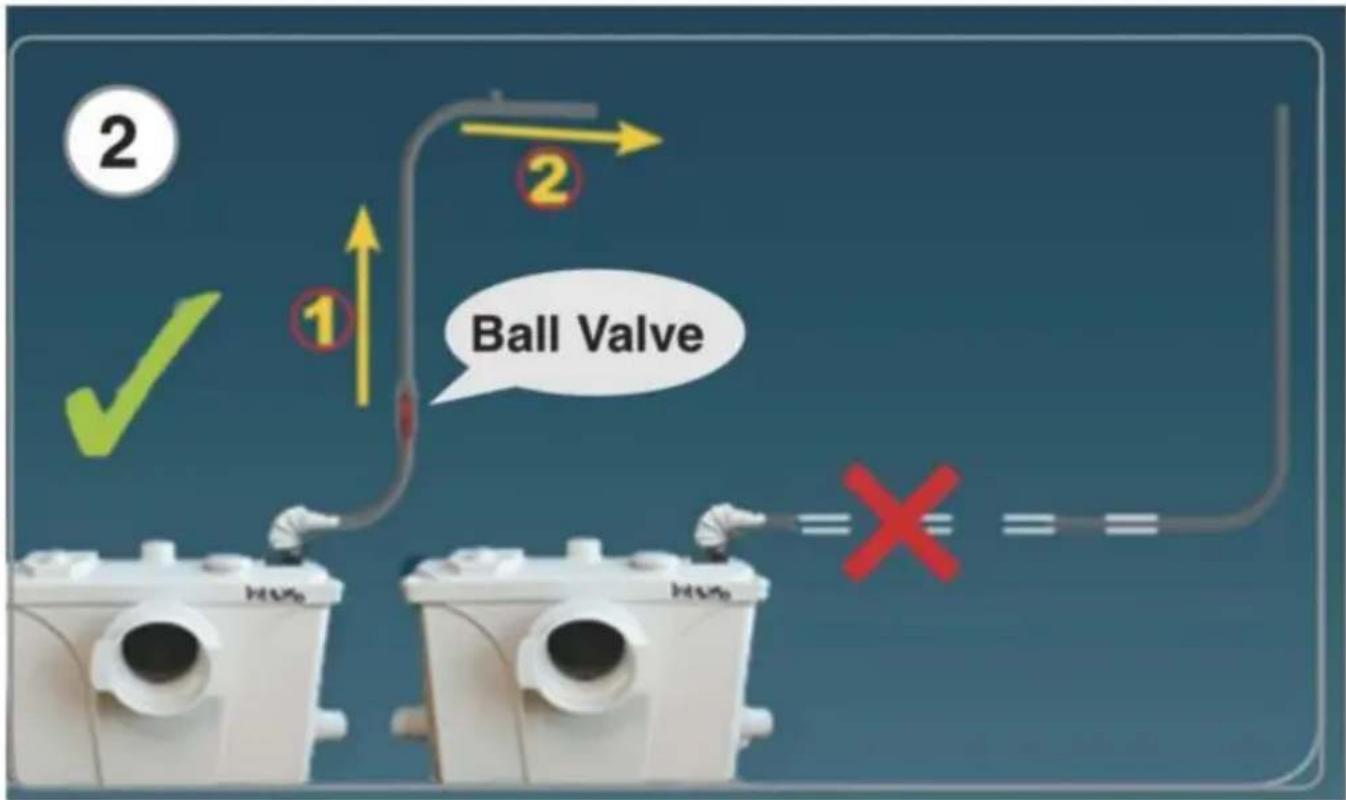

(5-6), For best performance, please drain upward first and then drain the drain pipe to the main pipe at a 2% - 3% incline: otherwise, the sewage v flow back.

INSTALLATION OF CONNECTING PIPE IN THE SHOWER ROOM

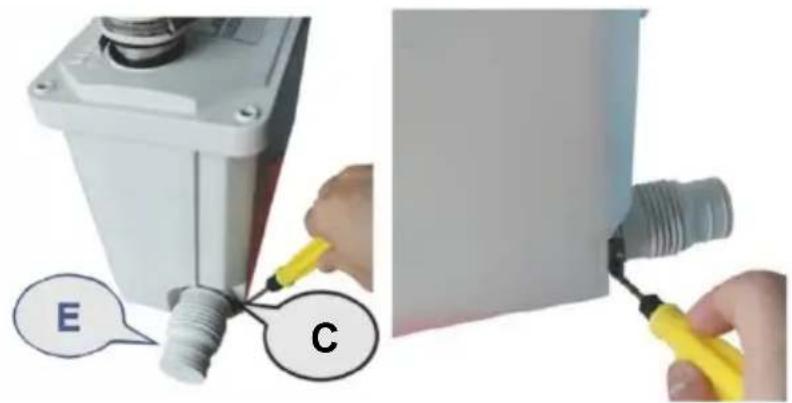

(6-1), Install the plastic hose fitting (E) and lock it with the hose clamp (There are two inlet holes on the left and right sides of the sewage pum. They are used to connect the shower room and the sink. If the water in not used, it can be plugged in with accessory K.

E C

(6-2), When installing the shower room, first, you can install a wooden or iron shower base or build a cement platform. For wastewater from the shower and bath, ensure that the slope of the siphon is at least 3% (0.4 inches per 40 inches) so that the wastewater flows through the natural gravity to the unit position. If other sanitary units are connected to the disposal line along the disposal circuit, install check valves in the appropriate waste pipes to prevent backflow.

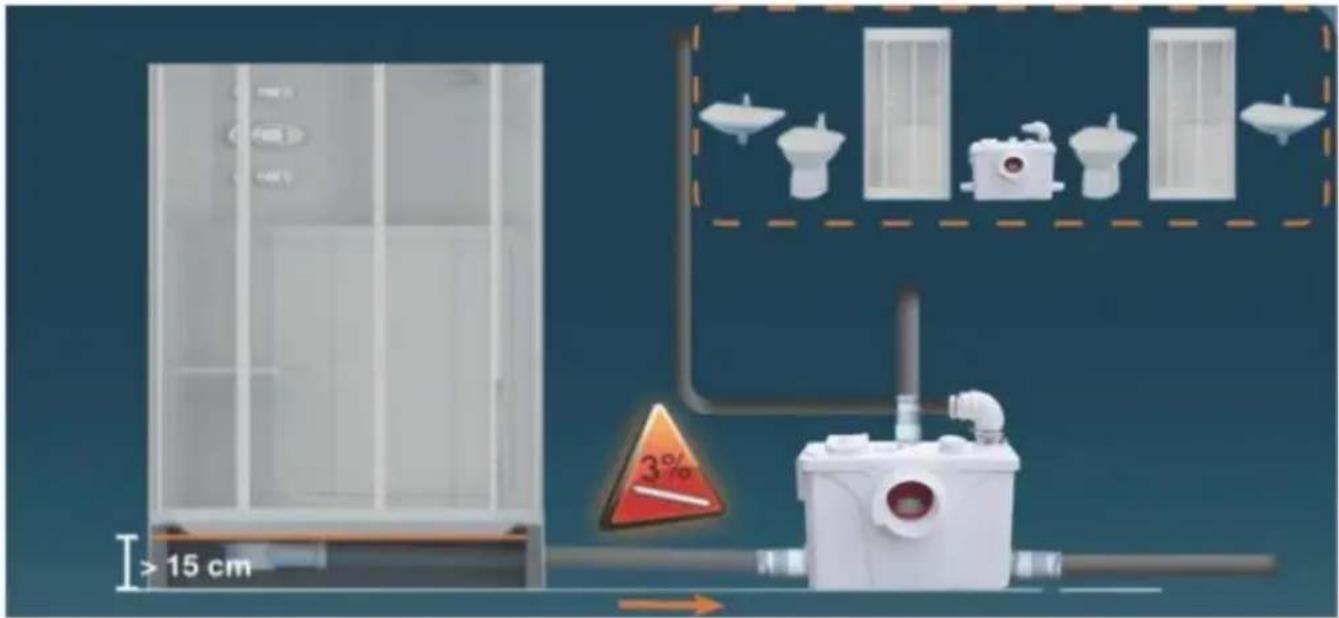

Note: Please make sure that the shower room chassis is raised to a minimum height of 6 inches (15 cm). It also depends on the distance between the shower room and the pump.

>15 cm 3%

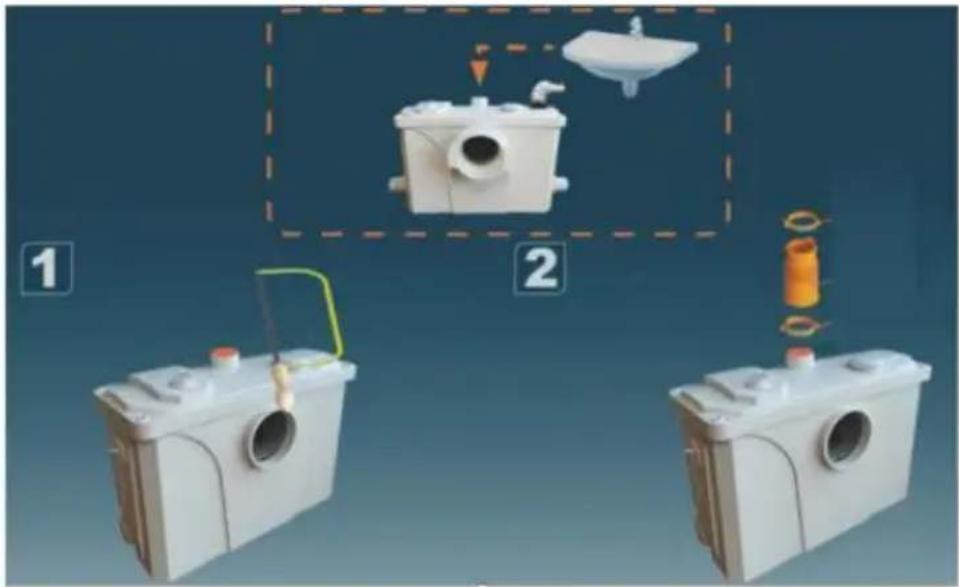

(6-3). If you need to connect more equipment and use the top water inlet, please open it with a saw and connect it with a hose.

Three 3D-rendered industrial equipment components with no visible text or symbols, labeled 1, 2, or 3 (no readable text or symbols)

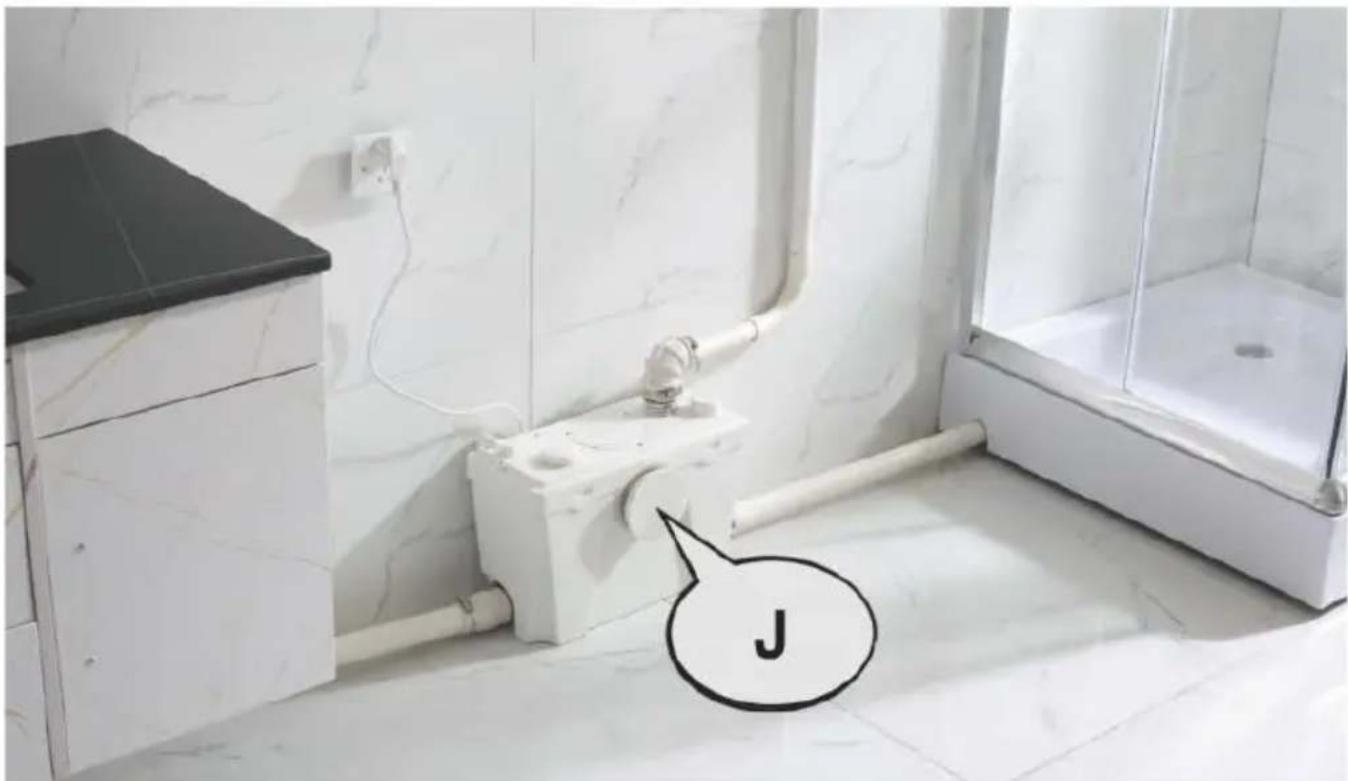

(6-4), If the toilet is not connected, you can use the lid (J) to block the toilet water inlet and then use the clamp (G) to fix the toilet. Then only connect the sink, shower room, and washing machine.

J

DOUBLE DEODORANT FUNCTION

One is activated carbon to deodorize, put bag of activated carbon into the vent, and then cover it tightly.

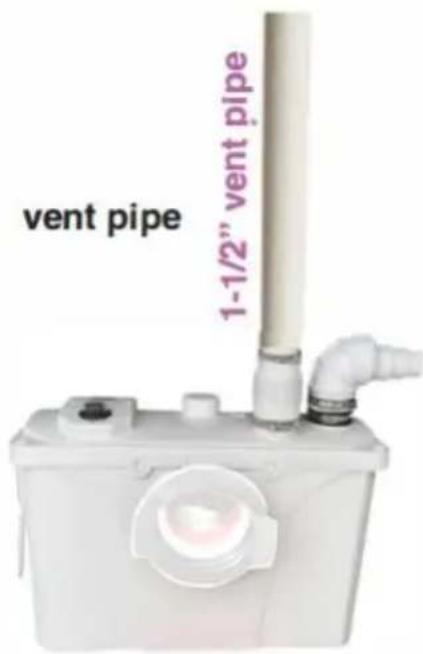

And the other is deodorization with ventiladucts. See the picture on the right. The s of the vent pipe is 1 -1 /2" (40mm).

It is also possible to not install ventilation ducts, which will save a lot of trouble and. But activated carbon must be replaced on a year.

vent pipe 1-1/2" vent pipe

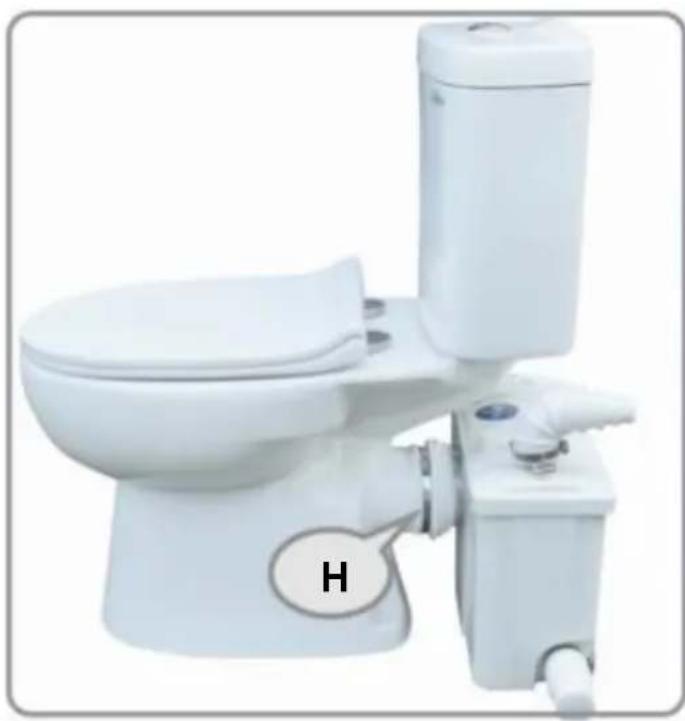

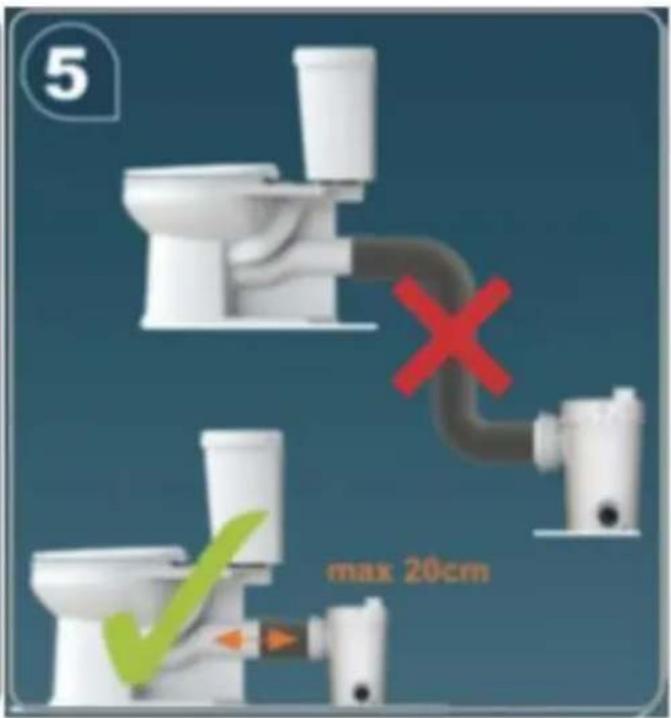

8-1, Finally connect the toilet and lock it with a 110-120mm hose clamp (H). The installation Position of the macerating pump should be parallel to the toilet.

White toilet with a side-mounted drain unit and labeled 'H' on the toilet (no text or symbols on the toilet itself)

5 max 20cm

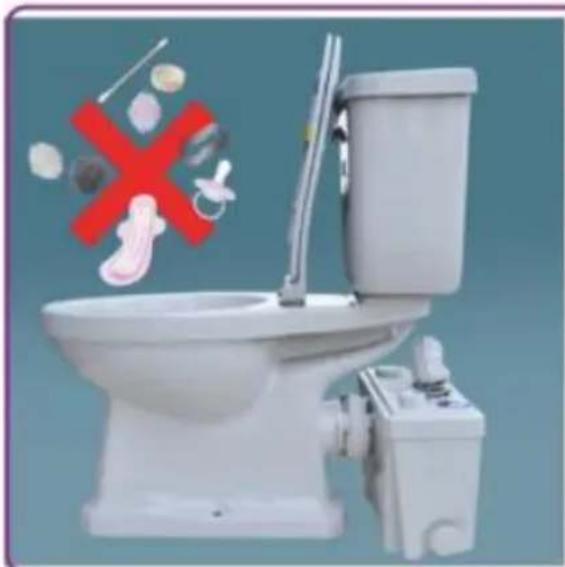

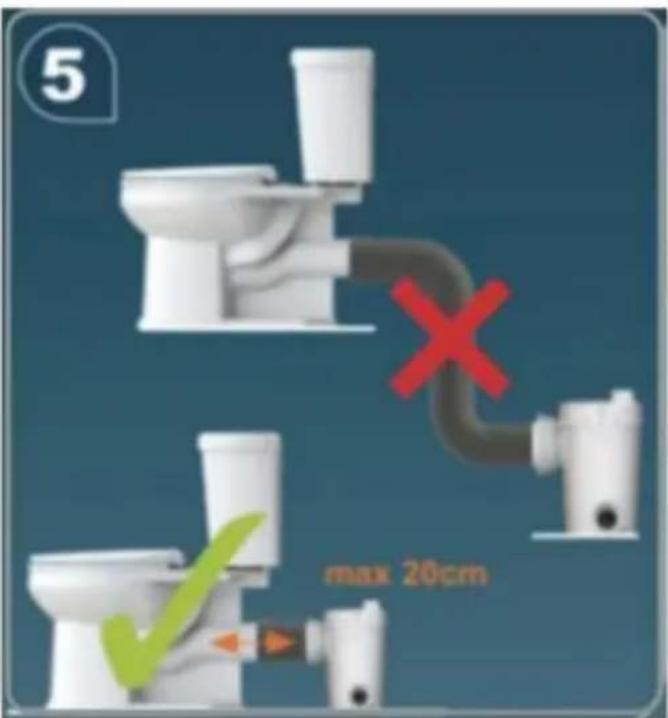

8-2, Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter, or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit.

Illustration of a toilet with a showerhead and a red X symbol overlay (no text or symbols on the toilet itself)

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

WARNINGS

(1) Electrical installation:

■The connection shall be carried out by a qualified technician and the ru for electrical installations (NEN I010) shall be met.
■If the power cord of the appliance is damaged, it shall be replaced by manufacturer or supplier of the appliance. This will avoid creating dangers.
■ The connection of your appliance is Class I.

Connect the appliance to a socket with a protective conductor connection

(2) Thermal protection:

■This appliance is equipped with thermal protection, which switches off the power supply of the appliance after overheating for safety reasons.
When the device returns to normal temperature, it will start automatically.
■Power on the electrical connection only when the appliance is fully installed.
■ In case of prolonged absence (e.g., vacation), the water supply to the appliance shall be closed.
■ Do not expose the appliance to temperatures below 0^ C or above 50^ C

(3) If the indications are not followed, it could cause personal security ris

(4) Wrong Use

Use only for human excrement+soluble toilet paper. Equipment damage due to Improper use is not covered by the warranty. Some examples of damage caused by improper use include grinding cotton wool, tampons, sanitary napkins, panty liners, food, condoms, towels hair and rinsing liquids and solvents or oils.

TROUBLE SHOOTINGS

Some malfunctions of the grinder are not practically serious. You can correct it by yourself. To diagnose and find a solution to the Trouble, ref to the diagram below. For other malfunctions, contact the supplier or a qualified professional.

MALFUNCTIONS POSSIBLE CAUSES SOLUTIONS
The appliance occasionally starts to work	The connected pipelines are leaking	Check the installation in front of the appliance
	The check valve is leaking Clean or replace the check valve
The motor is running properly, but the water runs slowly away.	The aerator in the lid is blocked	Clean the aerator
The engine is running properly but non-stop or runs for a long time	The height or length of the drain is too large,or too many bends are used(power failure)	Check the installation
	The pump is blocked Turn off	the power, disassemble the pump and unblock
The motor is not switched on	The power supply is not switched on	Switch the on power supply (repeat)
	The plug is defective Repair the plug
	The trouble with the motor or sensor	Remove the lid,flush clean,and dry the sensor up(hair dryer)
The motor rattles with a noise	There's a strange object in motor	Remove the lid,clean it and remove the object
The motor is buzzing and does not rotate	The condensator is broken or has trouble with the motor	Set in contact with a qualified specialist or the supplier
	There's a strange object in the Remove the lid,clean it and motor	Remove the lid,clean it and remove the object
[IMAGE]	FCC Information:CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) This product may cause harmful interference.2)This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.· Increase the distance between the product and receiver.: Connect the product to an outlet on a circuit different from that to which the receiver is connected.· Consult the dealer or an experienced radio/TV technician for assistance.
	Correct DisposalThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable radio device with control buttons and a circular vent (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Line drawing of a portable washing machine with control panel and side wheels (no text or symbols)

DESCRIPTION GÉNÉRALE

	C X4	D	≡ X3
	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

INSTRUCTIONS D'INSTALLATION

Diagram of a white industrial pump with pipe fittings and a close-up of its internal structure showing a checkmark and red X mark (no text or symbols present)

Ball Valve

1 Ball valve

8/13

>15 cm 3%

Diagram showing two 3D models of a water pump system with labeled components and directional arrows

White toilet with a side-mounted sink and labeled 'H' (no text or symbols on the toilet itself)

5 max 20cm

Illustration of a toilet with a showerhead and a red X symbol overlay (no text or symbols on the toilet itself)

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

AVERTISSEMENTS

Line drawing of a portable radio device with control knobs and a central rotary knob (no text or symbols)

Line drawing of a portable washing machine with control panel and side wheels (no text or symbols)

	C X4	D	≡ X3
	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

White industrial water pump unit with pipe fittings and a central vent (no text or symbols visible)

Diagram of two gray pipe extensions with checkmark and cross symbols, no text or labels present

Ball Valve

1 Ball valve

8/13

>15 cm 3%

Diagram showing two 3D models of a water pump system with labeled components and directional arrows

White toilet with a side-mounted sink and labeled 'H' (no text or symbols on the toilet itself)

5 max 20cm

Illustration of a toilet with a showerhead and a red X symbol overlay (no text or symbols on the toilet itself)

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

WARNHINWEISE

(1) Elektrische Installation:

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable radio device with control knobs and a central rotary knob (no text or symbols)

elettronica www.vevor.com/support

Line drawing of a portable washing machine with control panel and side wheels (no text or symbols)

	C X4	D	X3
	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

Diagram showing a white plastic pump connected to a pipe with a red arrow indicating flow direction, alongside a close-up of a blue panel with checkmark and cross symbols (no text or labels)

Ball Valve

1 Ball valve

8/13

>15 cm 3%

Diagram showing two 3D models of a water pump with labeled components and directional arrows, including a tank and valve.

White toilet with a side-mounted sink and labeled 'H' (no text or symbols on the toilet itself)

5 max 20cm

Illustration of a toilet with a showerhead and a red X symbol overlay (no text or symbols on the toilet itself)

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

AVVERTENZE

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable radio device with control knobs and a central rotary knob (no text or symbols)

Line drawing of a portable kitchen appliance with control panel and wheels (no text or symbols)

DESCRIPCION GENERAL

	C X4	D	X3
	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

Diagram of a white industrial pump with pipe fittings and a close-up of its internal structure showing a checkmark and red X mark (no text or symbols present)

Ball Valve

1 Ball valve

8/13

>15 cm 3%

Diagram showing two 3D models of a water pump system with labeled components and directional arrows

White toilet with a side-mounted drain unit and a speech bubble saying 'yo' (no text or symbols on the toilet itself)

5 max 20cm

Illustration of a toilet with a showerhead and a red X symbol overlay (no text or symbols on the toilet itself)

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

ADVERTENCIAS

Line drawing of a portable radio device with control buttons and ventilation slots (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Line drawing of a portable washing machine with control panel and side wheels (no text or symbols)

OGÓ LNY OPIS

	C X4	D	X3
	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

INSTRUKCJA INSTALACJI

White industrial water pump unit with pipe fittings and a central vent (no text or symbols visible)

Diagram of two gray pipe extensions with checkmark and cross symbols, no text or labels present

Ball Valve

1 Ball valve

8/13

>15 cm 3%

Diagram showing two 3D models of a water pump system with labeled components and directional arrows

White toilet with a side-mounted sink and labeled 'H' (no text or symbols on the toilet itself)

5 max 20cm

Illustration of a toilet with a showerhead and a red X symbol overlay (no text or symbols on the toilet itself)

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

OSTRZEŻENIA

Line drawing of a portable radio device with control knobs and a central rotary knob (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Line drawing of a portable washing machine with control panel and side wheels (no text or symbols)

ALGEMENE BESCHRIJVING

	C X4	D	X3
	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

INSTALLATIE-INSTRUCTIES

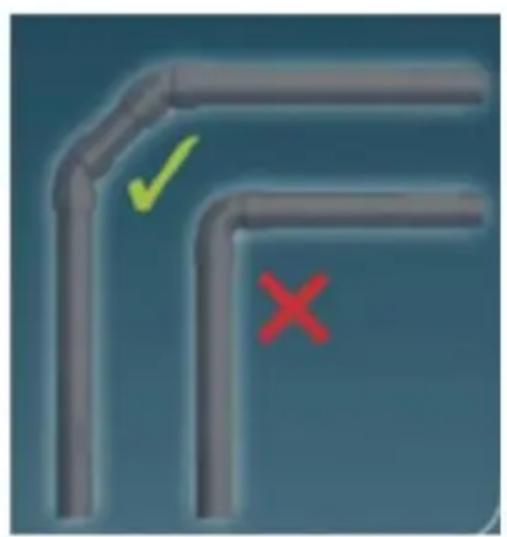

Diagram showing a white plastic pump connected to a pipe with a red arrow indicating flow direction, alongside a close-up of a blue panel with checkmark and cross symbols (no text or labels)

Ball Valve

1 Ball valve

8/13

>15 cm 3%

Diagram showing two 3D models of a water pump with labeled components and directional arrows, including a tank and valve.

White toilet with a side-mounted sink and labeled 'H' (no text or symbols on the toilet itself)

5 max 20cm

Illustration of a toilet with a showerhead and a red X symbol overlay (no text or symbols on the toilet itself)

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

WAARSCHUWINGEN

(1) Elektrische installatie:

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a portable radio device with control buttons and ventilation slots (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Line drawing of a portable washing machine with control panel and side wheels (no text or symbols)

ALLMÄN BESKRIVNING

INSTALLATION (DIAGRAM)

MAX 29.5FT Ø 22/28/32 mm Ext Ø 40 mm Ext Ø 40 mm Ext Ø 40 mm Ext Ø 28/32/40 mm Ext 1% Ø 40 mm Ext 3% Ø 40 mm Ext 3%

TILLBEHÖRSLISTA

	C X4	D	X3
	The accessory “K” is mounted on the pump

S/N	Name	Number
A-B	Check valve with plastic elbow	1
C	Hose Clamp (32-50mm)	4
D	Rubber ring to connected the Intelflo toilet and Intelflo pump	1
E	Plastic hose	3
G	Hose Clamp (90-110mm)	1
H	Hose Clamp (110-120mm)	1
J	Lid	1
K	Plug(It Mounted On The Pump)	2

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

INSTALLATIONSINSTRUKTIONER

Diagram showing a white plastic pump connected to a pipe with a red arrow indicating flow direction, alongside a close-up of a blue panel with checkmark and cross symbols (no text or labels)

Ball Valve

1 Ball valve

8/13

>15 cm 3%

Diagram showing two 3D models of a water pump system with labeled components and directional arrows

White toilet with a side-mounted sink and labeled 'H' (no text or symbols on the toilet itself)

5 max 20cm

Illustration of a toilet with a showerhead and a red X symbol overlay (no text or symbols on the toilet itself)

CAUTION!

Do not discharge any acids, alkaloids, solvents painting, paint strippers, food waste, plastic bags, metal such as nails, hairpins, wood building materials, kitty litter or anything that could halt or damage or corrode the unit. Disregarding the above might damage the macerating unit and shall void your warranty.

WARNINGAR

(1) Elektrisk installation:

www.vevor.com/support
