USER MANUAL CYXSL12600 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Transom Launching Wheel

MODEL: CYXSL12600

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Transom Launching Wheel

MODEL: CYXSL12600

Two black mechanical legs with textured tires, shown from top and bottom angles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PAREMETERS

Model	CYXSL12600
Tire Diameter	12.6"/32 cm
Max Load Capacity	600lbs/272kg
Wheel Arms Material	Aluminum Alloy
Tire Material	Rubber

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operatir or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING:

1. Avoid children using sand anchor guides. and this product is not a toy. [allow children to play with.
2. Keep away from sharp points, blades and other items.

INSTALL PRECAUTIONS

1. Install only according to these instructions. Improper Install can create haze
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during ins
3. Keep install area clean and well lit.
4. Keep bystanders out of the area during install.
5. Do not install when tired or when under the influence of alcohol, drugs or medication.
6. Product capabilities apply to properly and completely installed product only.

SAVE THESE INSTRUCTIONS

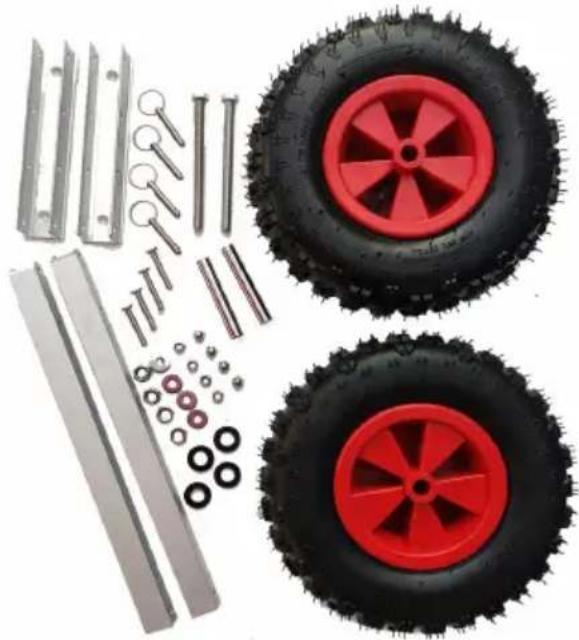

PACKING LIST

Assorted small mechanical components including red and black wheel tires, metal brackets, and bolts (no text or symbols visible)

Tools preparedness: Ruler, Pencil, Electric portable drill Drill bit (Φ 8.5mm), sealing gum stay wrench (13#) and Adjustable wrench (2 pcs, or Parallel-jaw vice Cross screwdriver, rags, Lubricating oil or Lithium-base grease, etc.

No	Picture	Part Number	Qty	No	Picture	Part Number	Qty
A		Wheel	2	B		Pin Key	4
C		Pedestal	2	D		Bracket	2
E		Nylon Washer M16	4	F		Big Washer M8	4
G		Screw M12*150	2	H		Shaft Sleeve	2
I		Nut M8	4	J		Lock Nut M8	4
K		Nut M12	2	L		Lock Nut M12	2
M		Screw M8*50	4

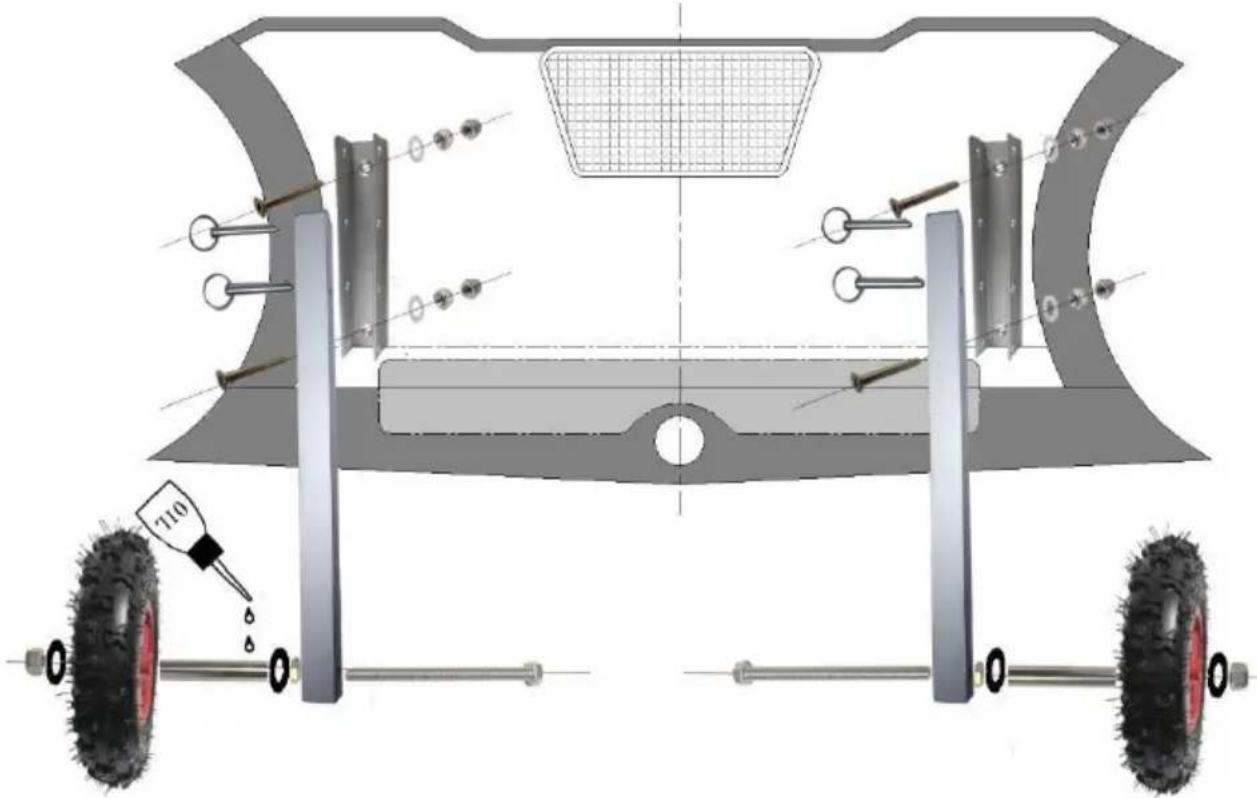

INSTRUCTIONS FOR USE

Technical diagram of a vehicle chassis with wheels, sensors, and structural components (no text or symbols)

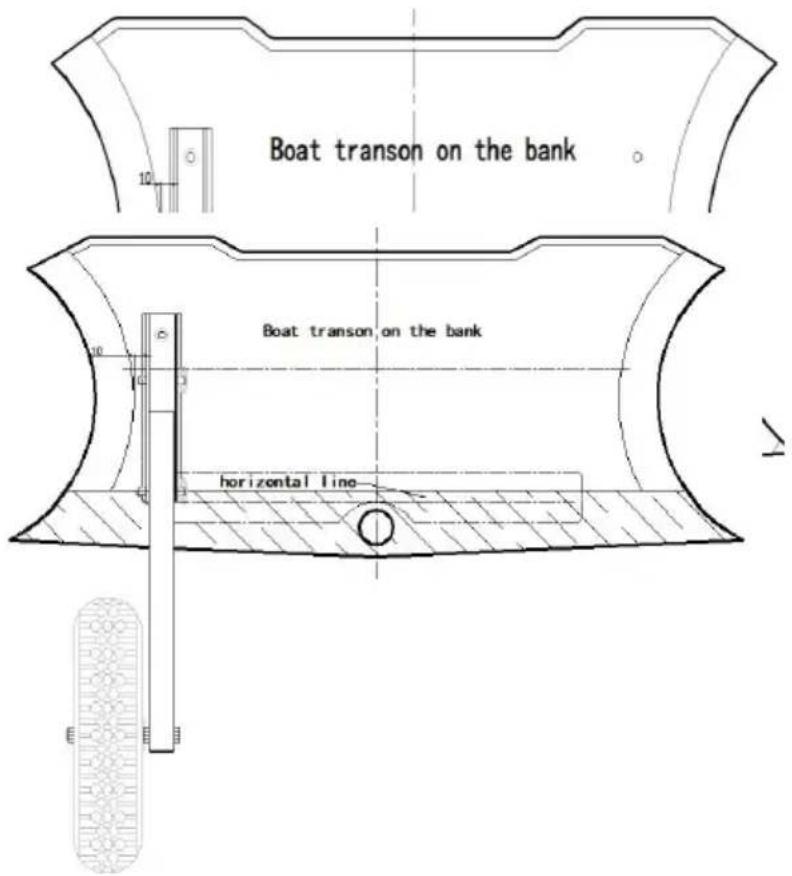

Step 1: Elevating the boat transom, Put the transom launching wheel A close transom, adjust the distance (up, down, left and right) and make sure to a suitable location for installation. Drawing a horizontal line to ensure the ball of the two transom launching wheels after installation, the dimensions in the are only for reference.

Step 2: Put the pedestal C close to the horizontal line(had been drawn at s)

Adjust the distance for pedestal and right), Mark location of each hole with a marker or mark lo of each hole by drawing way with compasses and ruler, th vertical drilling holes with ele portable drill, drill bit diameter about 8.5mm, drilling speed should be slow to prevent damage the transom.

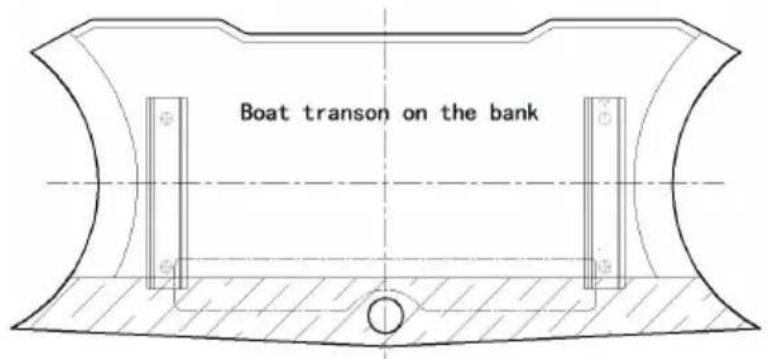

Step 3: Installing the pedestal on the transom tighten with

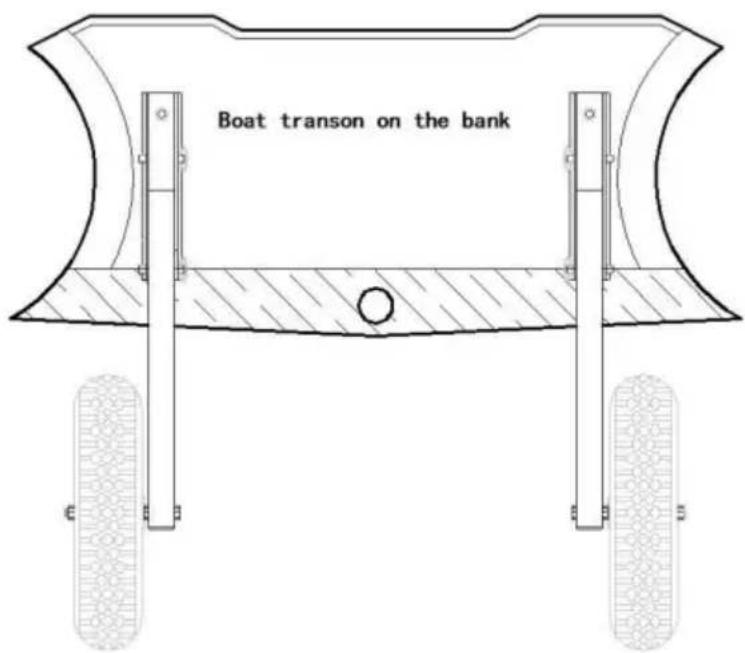

Boat transon on the bank Boat transon on the bank horizontal line

screw M and washer F and nut I and nut J.

Note:1. Preventing water enter the transom, should use the sealing gum on the screws and holes;

1. when fixing the pedestal, the stainless steel gaskets are placed inner side transom.

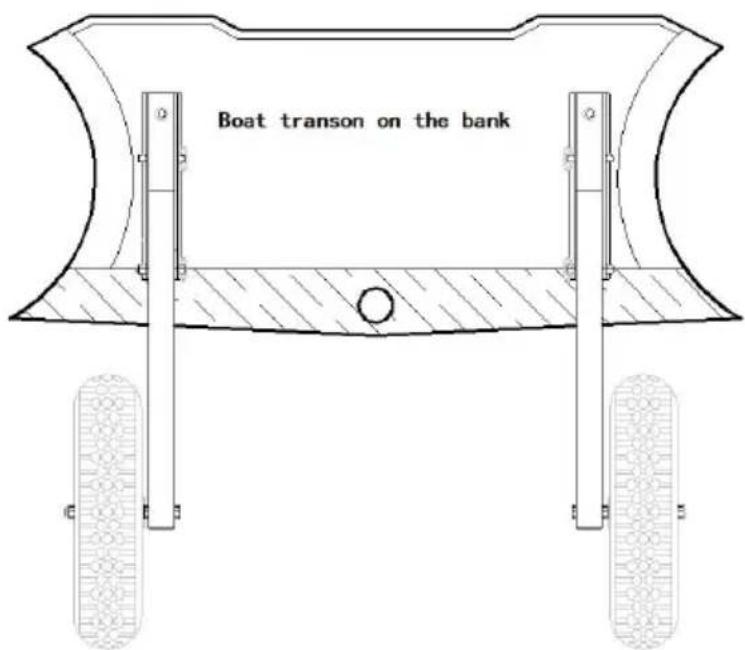

Step 4: Installing brackets D an wheels A on the completed plac pedestals C with pin key B, Tu bracket D and the wheel up and down to check the wheel is fitti well or not. In order to insure wheels turn flexibly, please put Lithium-base grease or Lubricati oil inside of the bearing hole t use them.

Notes for Model C Transom launching wheel installation and operation:

1. The brackets of the transom launching wheel are made of aluminium alloy square tubes (Specification: 30**30*3mm ), the

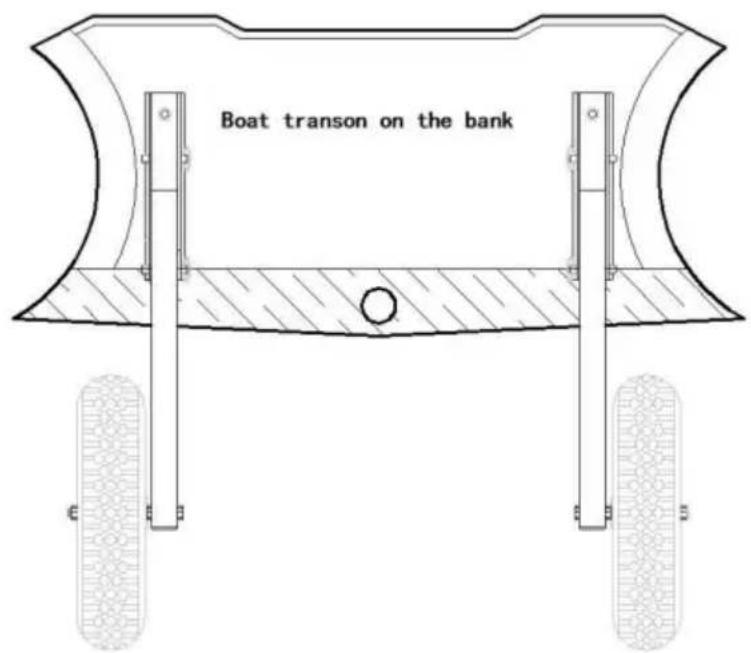

Boat transon on the bank

Boat transon on the bank

pedestals are made of aluminium alloy plate (thickness:3-4mm), the screws an so on, are all using 304 L stainless steel material, the 304 L stainless steel need to regular maintenance,Rinsing them with fresh water after using and ap anti-rust Lubricating oil ,etc.

1. This product is suitable for inflatable boat that the length is less than 4m screws provided along with are suitable for the thickness of the transom is 3 and less than 36mm.

2. The wheel is Inflatable wheel, it's not for highway use, without bearing, it's suitable for short distance use by manual dragging. Please don't use car, motorcycle or bateery car to drag fast, prevent the wheels to be damaged.

3. Please add lubricating oil or Lithium-base grease into bearing hole and be sleeve regularly.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
