Product Type	Launching wheel for transom
Brand	Vevor
Model	CYXSL12500
Tire Diameter	12.6 inches (32 cm)
Maximum Load Capacity	500 lb (227 kg)
Wheel Arm Material	Aluminum alloy
Tire Material	Rubber
Square Tube Dimensions	30 × 30 × 3 mm
Base Plate Thickness	3-4 mm
Screw Material	304 L stainless steel
Number of Wheels	2
Tire Type	Inflatable
Recommended Use	Manual short-distance towing
Boat Compatibility	Inflatable boats with length < 4 m
Compatible Transom Thickness	≤ 36 mm
Installation	Requires drilling 8.5 mm holes, use of sealing compound
Required Tools	Ruler, pencil, drill, 13# wrench, adjustable wrench, Phillips screwdriver, rags, grease
Maintenance	Rinse with fresh water after use, apply anti-rust oil, grease bearings
Safety	Wear safety glasses and gloves, keep children away, do not use if tired
Package Contents	2 wheels, 2 pedestals, 2 brackets, 4 cotter pins, screws, washers, nuts, axle sleeves
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - CYXSL12500 Vevor

How to install the launching wheel on the transom?

Draw a horizontal line to balance both wheels. Place the pedestal near the line, mark and drill 8.5 mm vertical holes. Secure the pedestal with M8 screws, washers, and nuts. Apply sealing compound to the screws and holes. Then install the brackets and wheels using the cotter pin. Check that the wheels rotate freely after adding grease.

What type of tire is used? Is it inflatable?

The tire is rubber and it is inflatable. It is not intended for highway use.

What is the maximum load capacity?

The maximum load capacity is 500 lb (227 kg).

What tools are needed for installation?

You will need a ruler, a pencil, an electric drill, a 13# wrench, an adjustable wrench (or parallel jaw pliers), a Phillips screwdriver, rags, and lubricating or lithium-based grease.

How to maintain the launching wheel?

After each use, rinse it with fresh water to remove salt. Regularly apply anti-rust oil to stainless steel parts. Grease the bearings with lithium-based grease or lubricating oil.

Is this wheel compatible with all boats?

This product is suitable for inflatable boats with a length less than 4 meters and a transom thickness of 36 mm maximum.

Can I use this wheel to tow the boat with a car?

No, the wheel is designed only for manual short-distance towing. Do not use it with a car, motorcycle, or electric vehicle to avoid damaging the wheels.

What to do if the wheel does not rotate freely?

Check that the bracket is properly installed and the wheel is not too tight. Apply lithium-based grease or lubricating oil inside the bearing hole and on the axle.

Are there safety precautions to follow?

Wear ANSI-approved safety glasses and work gloves during installation. Keep the area clean and well lit. Do not install if tired or under influence. Keep children away as this is not a toy.

What parts are included in the package?

The package contains: 2 wheels, 4 cotter pins, 2 pedestals, 2 brackets, 4 M16 nylon washers, 4 M8 large washers, 2 M12×150 screws, 2 axle sleeves, 4 M8 nuts, 4 M8 lock nuts, 2 M12 nuts, 2 M12 lock nuts, 4 M8×50 screws.

USER MANUAL CYXSL12500 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Transom Launching Wheel

MODEL: CYXSL12500

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Transom Launching Wheel

MODEL: CYXSL12500

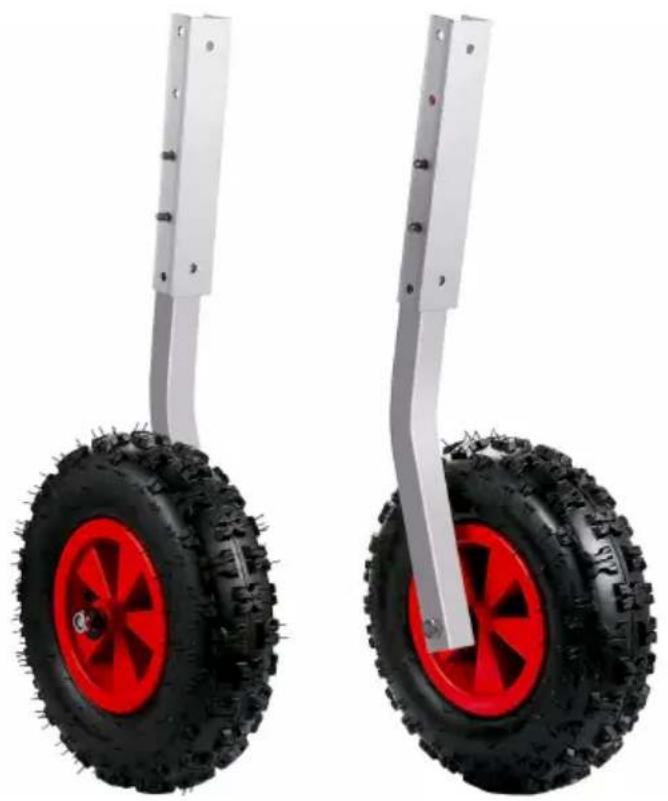

Two identical red and black wheeled vehicle wheels mounted on metal supports, shown from different angles (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PAREMETERS

Model	CYXSL12500
Tire Diameter	12.6"/32 cm
Max Load Capacity	500 lbs/227kg
Wheel Arms Material	Aluminum Alloy
Tire Material	Rubber

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING:

1. Avoid children using sand anchor guides. and this product is not a toy. [allow children to play with.
2. Keep away from sharp points, blades and other items.

INSTALL PRECAUTIONS

1. Install only according to these instructions. Improper Install can create haze
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during ins
3. Keep install area clean and well lit.
4. Keep bystanders out of the area during install.
5. Do not install when tired or when under the influence of alcohol, drugs or medication.
6. Product capabilities apply to properly and completely installed product only.

SAVE THESE INSTRUCTIONS

PACKING LIST

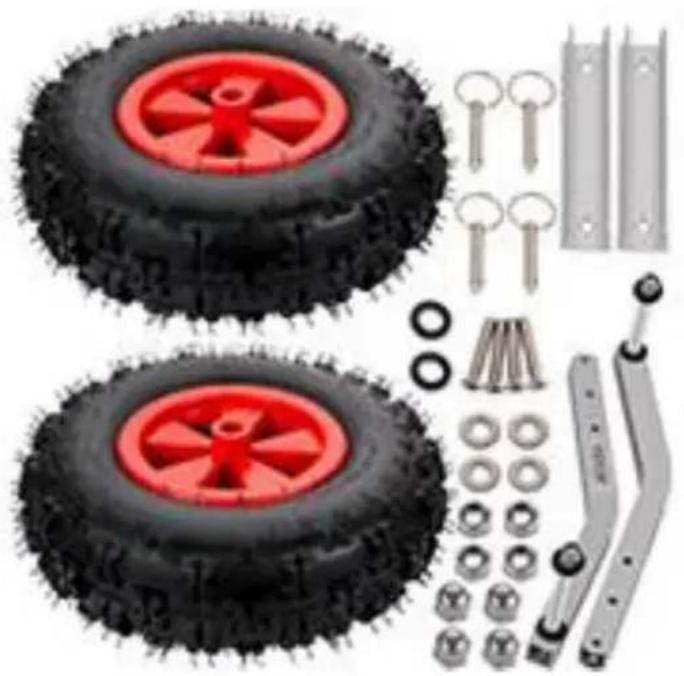

Two red and black tire components with attached metal parts and mechanical parts (no text or symbols visible)

Tools preparedness: Ruler, Pencil, Electric portable drill Drill bit (Φ 8.5mm), sealing gum stay wrench (13#) and Adjustable wrench (2 pcs, or Parallel-jaw vice Cross screwdriver, rags, Lubricating oil or Lithium-base grease, etc.

No	Picture	Part Number	Qty	No	Picture	Part Number	Qty
A		Wheel	2	B		Pin Key	4
C		Pedestal	2	D		Bracket	2
E		Nylon Washer M16	4	F		Big Washer M8	4
G		Screw M12*150	2	H		Axle Sleeve	2
I		Nut M8	4	J		Lock Nut M8	4
K		Nut M12	2	L		Lock Nut M12	2
M		Screw M8*50	4

INSTRUCTIONS FOR USE

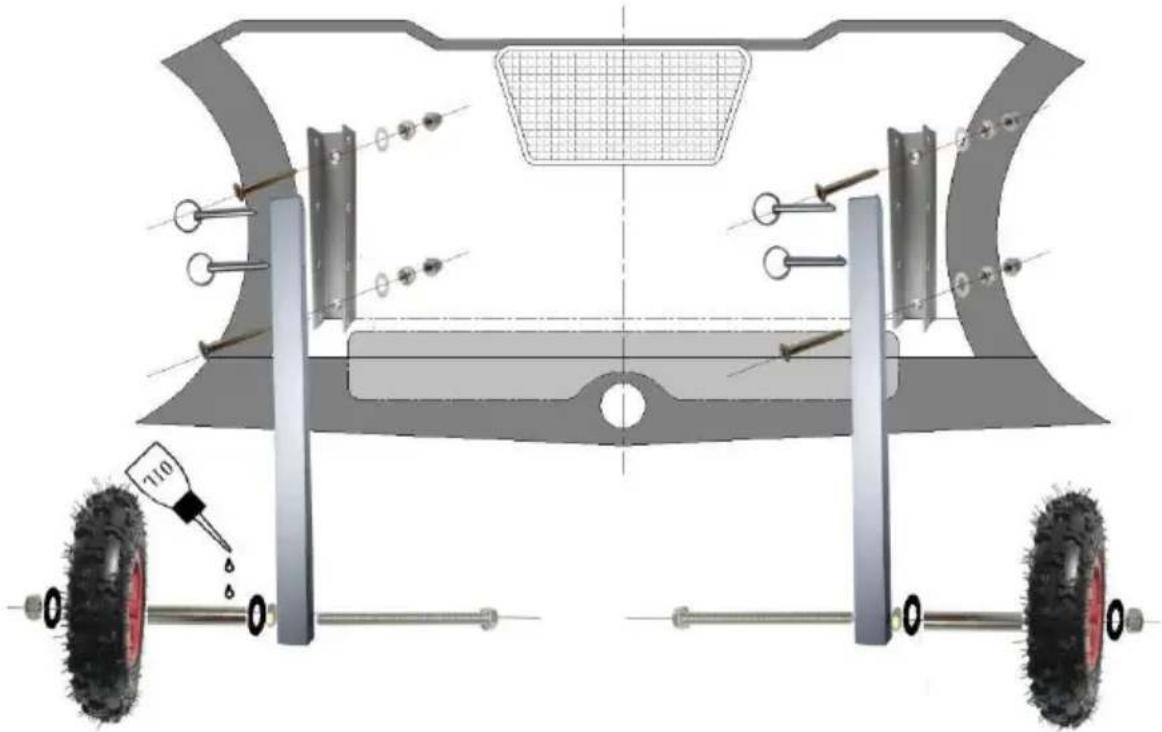

Technical diagram of a vehicle chassis with wheels, sensors, and structural components (no text or symbols)

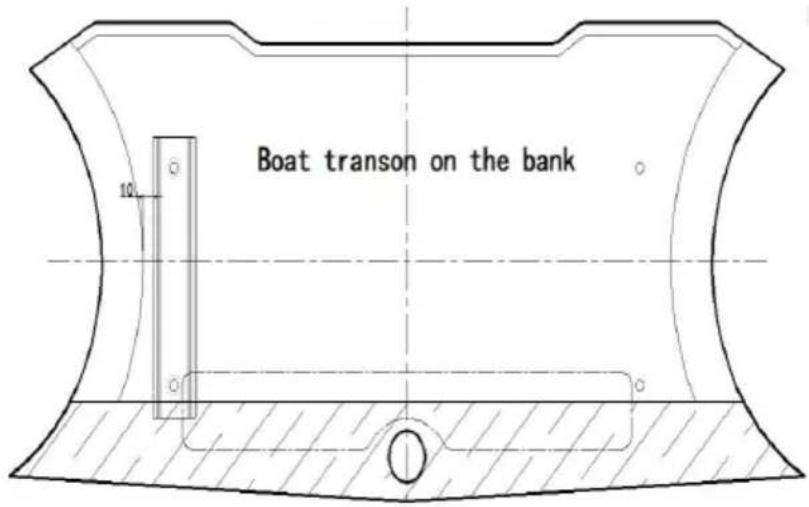

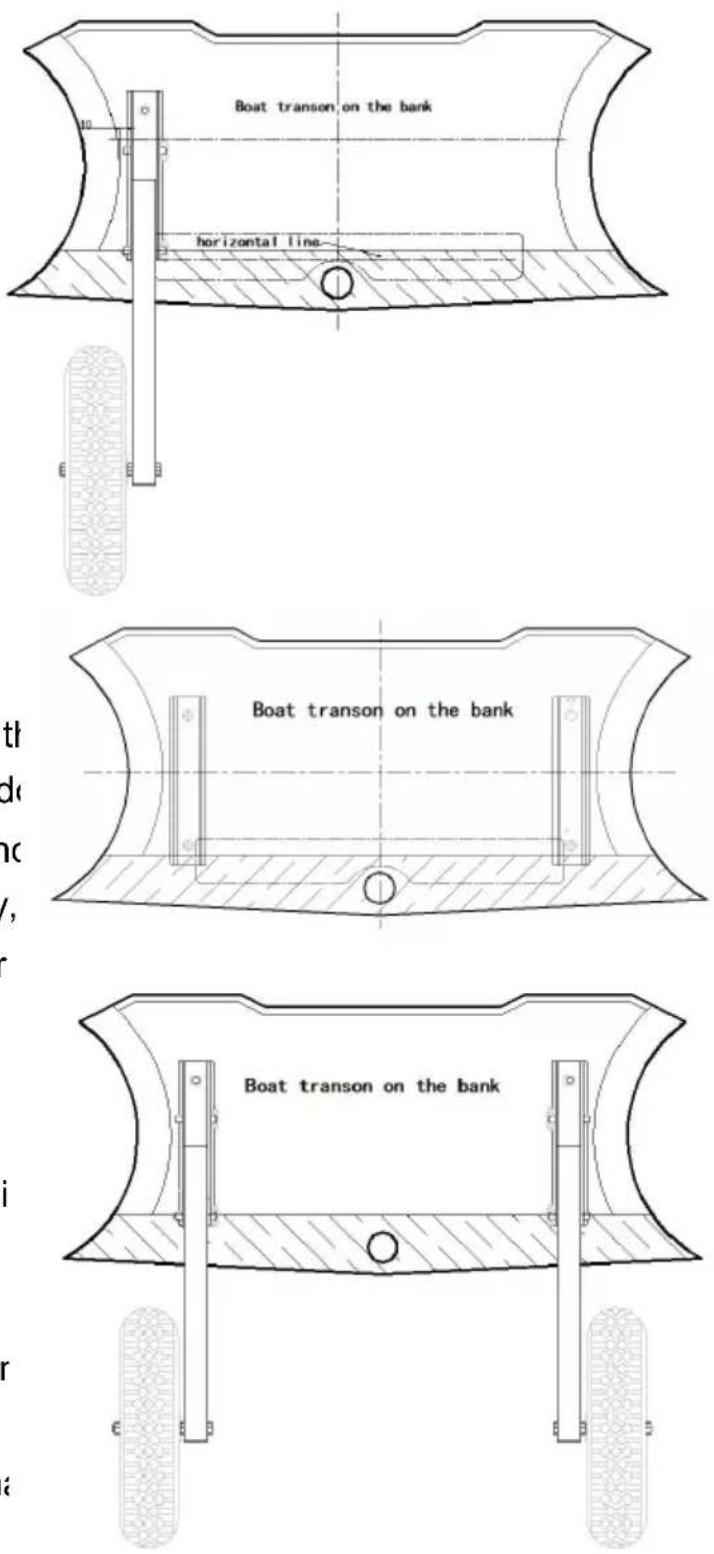

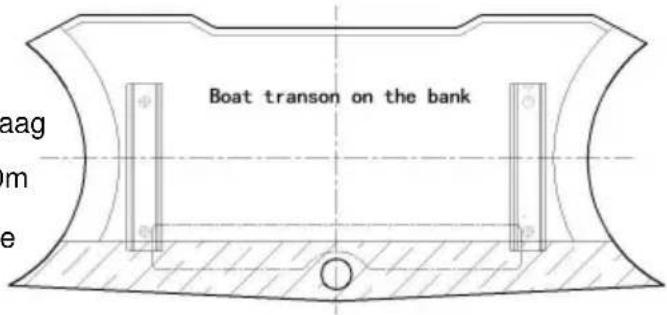

Step 1: Elevating the boat transom, Put the transom launching wheel A close transom, adjust the distance (up, down, left and right) and make sure to a suitable location for installation, Drawing a horizontal line to ensure the bal of the two transom launching wheels after installation, the dimensions in the are only for reference.

Step 2: Put the pedestal C close to the horizontal line (been drawn at step 1) Adjust distance for pedestal(left and right), Mark location of each hole with a marker or mark location of each hole by draw way with compasses and ruler, then vertical drilling hole with electric portable drill, dri bit diameter is about 8.5mm, drilling speed should be slow to prevent damag transom.

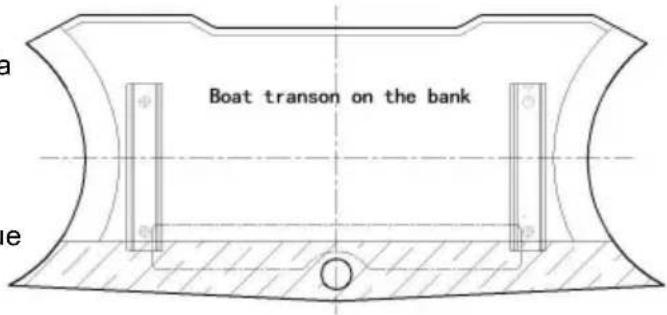

Step 3: Installing the pedestal (the transom tighten with screw I and washer F and nut I and n Note:1. Preventing water enter th transom, should use the sealing gum on both screws and holes; 2. when fixing the pedestal, the stainless steel gaskets are place inner side of the transom.

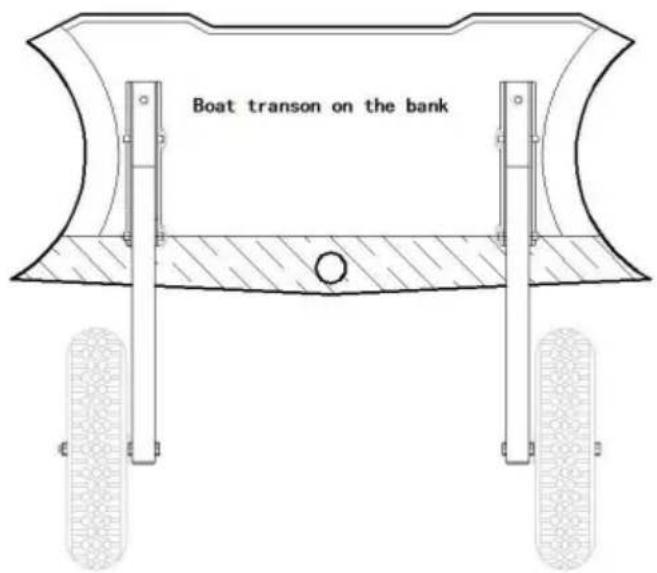

Step 4: Installing brackets D an wheels A on the completed placing pedestals C with pin key B, Turn the bracket D and the wheel up and do check the wheel is fitting well or no order to insure the wheels turn flexibly, please put Lithium-base grease or Lubricating oil inside of the bearing before use them.

Notes for Model C Transom launchi wheel installation and operation:

1. The brackets of the transom launching wheel are made of alumir alloy square tubes (Specification: 30**30*3mm ), the pedestals are made of aluminium alloy plate

(thickness:3-4mm), the screws and so on, are all using 304 L stainless steel material, the 304 L stainless steel material need to regular maintenance, Rinsin them with fresh water after using and apply anti-rust Lubricating oil ,etc.

1. This product is suitable for inflatable boat that the length is less than 4m, the screws provided along with are suitable for the thickness of the transom is 36mm and less than 36mm.

2. The wheel is Inflatable wheel, it's not for highway use, without bearing, it's suitable for short distance use by manual dragging. Please don't use car, motorcycle or bateery car to drag fast, prevent the wheels to be damaged.

3. Please add lubricating oil or Lithium-base grease into bearing hole and be sleeve regularly.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
