CYXSL15300 - Launch wheel Vevor - Free user manual and instructions

Product type	Launch wheel for transom
Model	CYXSL15300
Brand	Vevor
Tire diameter	15.1 inches (38.5 cm)
Maximum load capacity	300 lb (136 kg)
Wheel arm material	Aluminum alloy
Tire material	Rubber
Boat compatibility	Inflatable boats with length less than 4.5 m
Suitable transom thickness	Up to 36 mm
Recommended inflation pressure	25 PSI
Intended use	Manual pulling on short distances, not for highway or motor vehicle
Fittings material	304L stainless steel
Installation tools required	Electric drill, Ø6.5 mm bit, adjustable wrench, screwdriver, sealing putty
Package contents	2 wheels, 2 pedestals, 2 brackets, 2 long axles, 2 short axles, screws, washers, nuts, cotter pins
Maintenance	Rinse with fresh water after use, lubricate regularly with oil or lithium grease
Safety precautions	Wear ANSI safety glasses and gloves, clean and well-lit area, do not use under influence
Support and warranty	www.vevor.com/support

Frequently Asked Questions - CYXSL15300 Vevor

How to install the Vevor CYXSL15300 launch wheel?

Installation requires drilling vertical Ø6.5 mm holes in the transom after marking a horizontal line for alignment. Attach the pedestals with the provided screws and washers, applying sealing putty on the screws. Then mount the brackets and wheels. See the manual for detailed steps.

What is the maximum weight this wheel can support?

The maximum load capacity is 300 lb (136 kg), provided the product is properly and completely installed.

Is this wheel compatible with all boats?

It is designed for inflatable boats less than 4.5 m long and for transom thickness up to 36 mm.

What is the recommended tire inflation pressure?

The recommended pressure is 25 PSI. Do not overinflate and avoid rapid inflation.

Can this wheel be used with a motor vehicle?

No, it is intended for manual pulling on short distances. Do not use with a car, motorcycle, or battery-powered vehicle to avoid damaging the wheels.

How to maintain the launch wheel?

After use, rinse with fresh water. Regularly apply anti-rust lubricating oil or lithium grease to the bearings and axles to ensure smooth rotation.

What tools are needed for installation?

You will need an electric drill with a 6.5 mm bit, a ruler, a pencil, an adjustable wrench, a Phillips screwdriver, sealing putty, and cloths.

Are the fittings made of stainless steel?

Yes, all screws, nuts, and washers are made of 304L stainless steel to resist corrosion.

What are the important safety precautions?

Wear ANSI safety glasses and sturdy work gloves during installation. Keep the area clean and well-lit, and do not work under the influence of alcohol or medication. Keep children away.

Where to find help or warranty?

Technical support and electronic warranty certificate are available at www.vevor.com/support.

USER MANUAL CYXSL15300 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

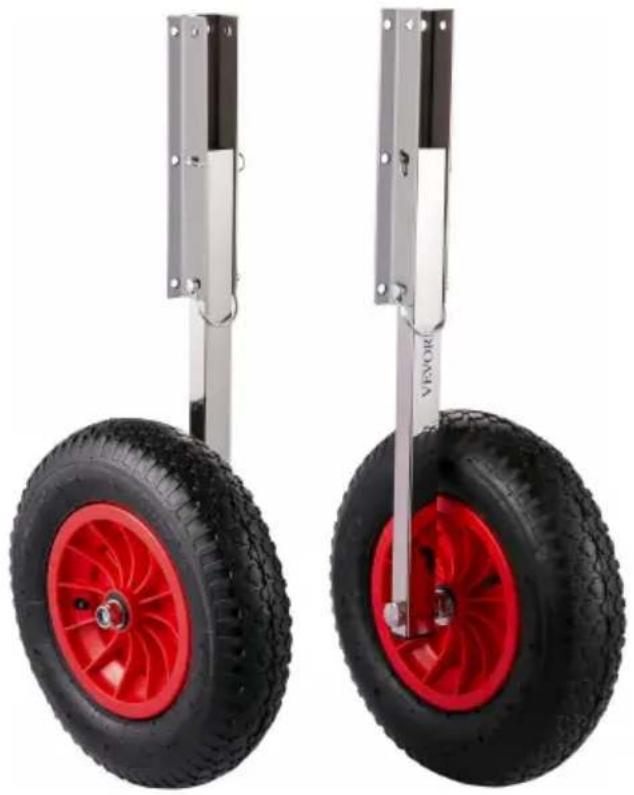

Transom Launching Wheel

MODEL: CYXSL15300

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only reflect an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us whether you are actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

Transom Launching Wheel

MODEL: CYXSL15300

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

PRODUCT PARAMETERS

Model	CYXSL15300
Tire Diameter	15.1"/38.5 cm
Max Load Capacity	300 lbs/136 kg
Wheel Arms Material	Aluminum Alloy
Tire Material	Rubber

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operation or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

WARNING:

1. Avoid letting children use the sand anchor guides. This product is not a toy. Do not allow children to play with it.
2. Keep away from sharp points, blades, and other items.

INSTALL PRECAUTIONS

1. Install only according to these instructions. Improper installation can create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during installation.
3. Keep the installation area clean and well lit.
4. Keep bystanders out of the area during installation. 5. Do not install when tired or when under the influence of alcohol, drugs, or medication. 6. Product capabilities apply only to properly and completely installed product.

SAVE THESE INSTRUCTIONS

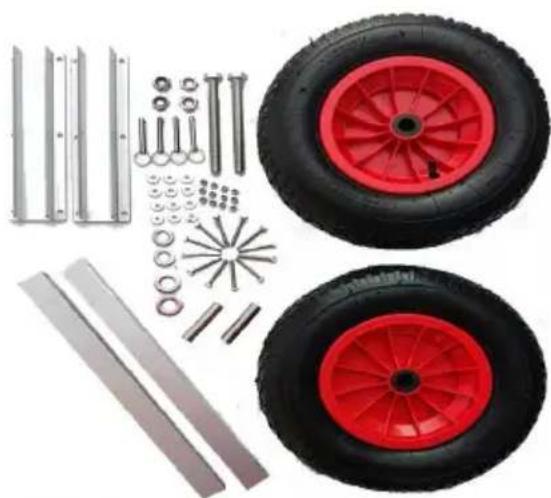

PACKING LIST

Tools preparedness: Ruler, Pencil, Electric portable drill, Drill bit (Φ 6.5mm), sealing gum, stay wrench (13#), and Adjustable wrench (2 pcs, or Parallel-jaw vice), Cross screwdriver, rags, Lubricating oil or Lithium-base grease, etc.

No	Picture	Part Number	Qty	No	Picture	Part Number	Qty
A		Wheel	2	B		Pin Key	4
C		Pedestal	2	D		Bracket	2
E		Stainless Steel Washer M20	4	F		Big Washer M6	12
G		Screw M16*160	2	H		Large Shaft Sleeve	2
I		Small Shaft Sleeve	2	J		Lock Nut M6	12
K		Nut M16	2	L		Lock Nut M16	2
M		Screw M6*50	12

INSTRUCTIONS FOR USE

Transom launching wheel installation and operation:

1. Model E1 Transom launching wheels are made of aluminum alloy steel square tubes (Specification: 38*25mm). The pedestals are made of aluminum alloy steel plate (thickness: 3-4mm). Warm water containing lubricant or neutral cleaning agent shall be used for aluminum alloy maintenance; acidic or alkaline cleaning agents are not allowed. The screws and other fasteners are all made of 304L stainless steel material. The stainless steel material needs regular maintenance: rinse them with fresh water after use and apply anti-rust lubricating oil, etc.
2. This product is suitable for inflatable boats with a length of less than 4.5 meters. The screws provided are suitable for transoms with a thickness of 3 to 36 mm.
3. The wheel is a pneumatic wheel, not intended for highway use, and without bearings. It is suitable for short-distance use by manual dragging. Please do not use a car, motorcycle, or battery-powered car to drag it quickly, to prevent damage to the wheels.
4. Please add lubricating oil or lithium-based grease into the bearing hole and bushing regularly.
5. The recommended inflation pressure for the inflation wheel is 25 P.S.I. Do not inflate too quickly.

Transom launching wheel installation and operation instructions:

Tools needed: Ruler, Pencil, Electric portable drill, Drill bit (Φ6.5mm),

Sealing gum, Socket wrench (E1:10#) and Adjustable wrench (2 pcs, or Parallel-jaw pliers), rags, Lubricating oil or Lithium-based grease, etc.

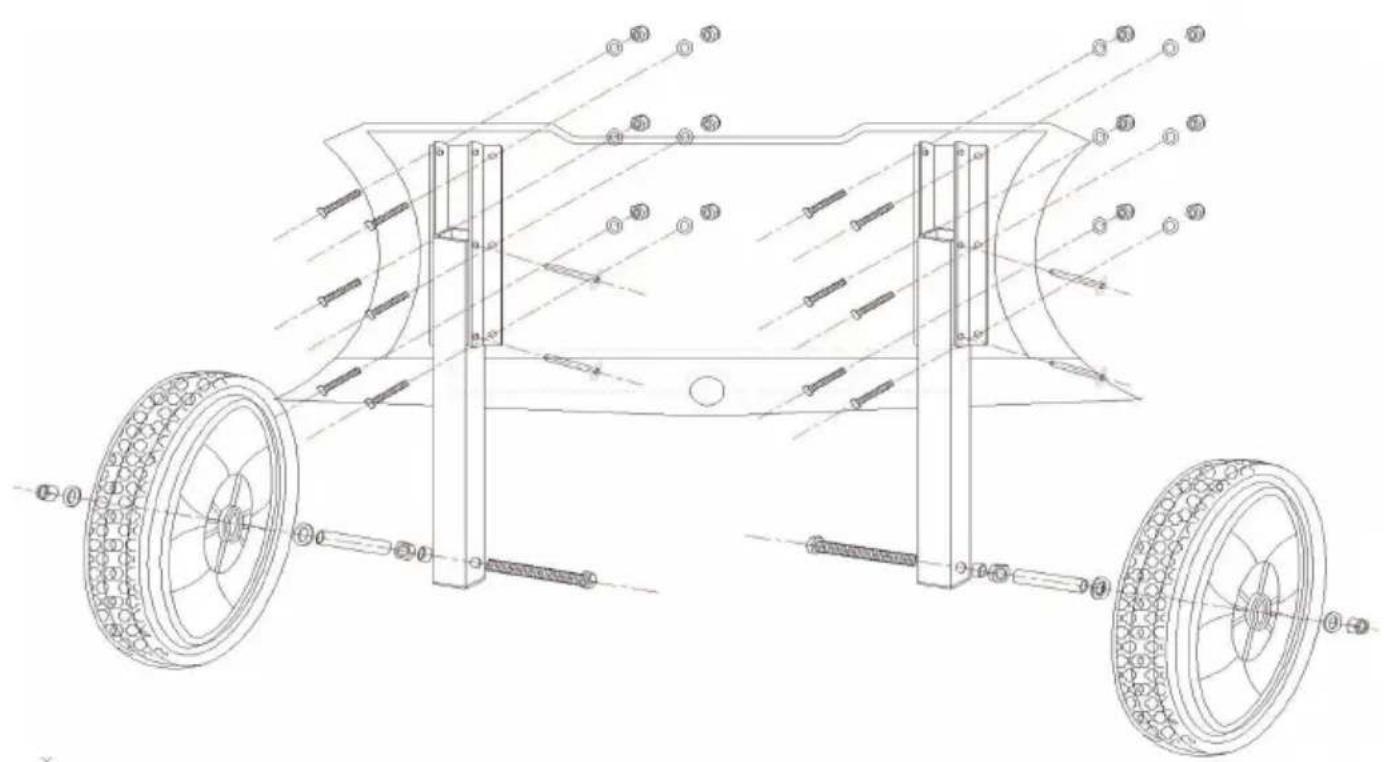

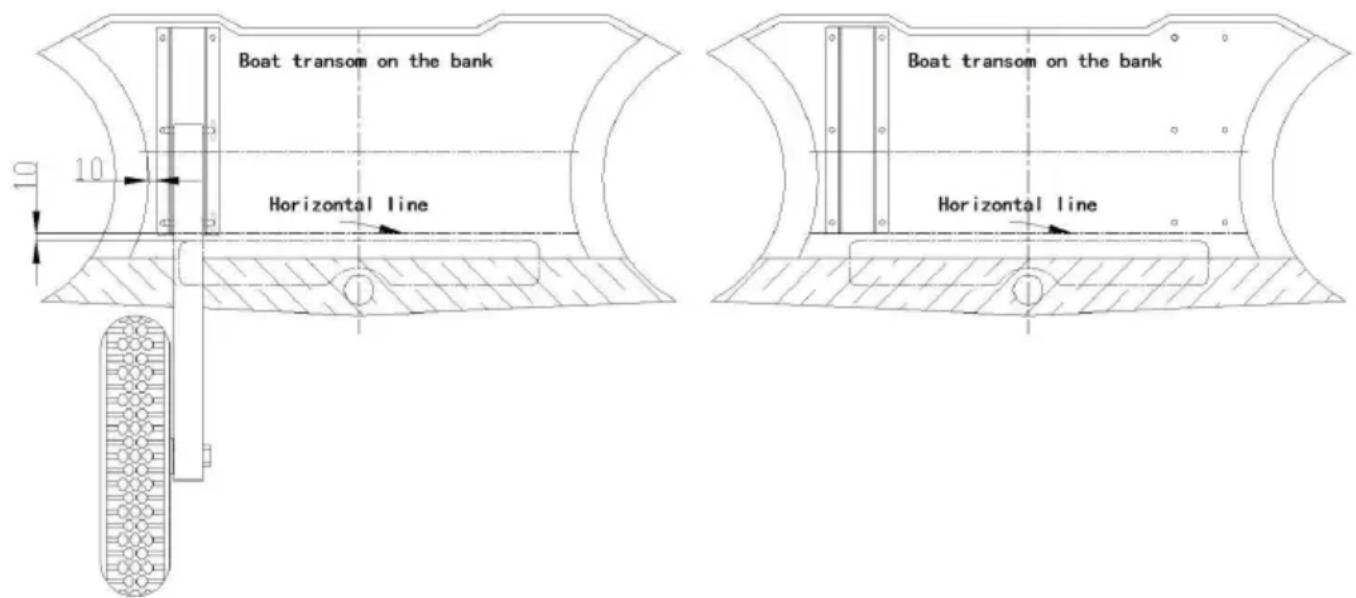

Step 1: Elevate the boat transom. Place the transom launching wheel close to the transom, adjust the distance (up, down, left, and right) and make sure to find a suitable location for installation. Draw a horizontal line to ensure the balance of the two transom launching wheels after installation. The dimensions in the diagram are for reference only.

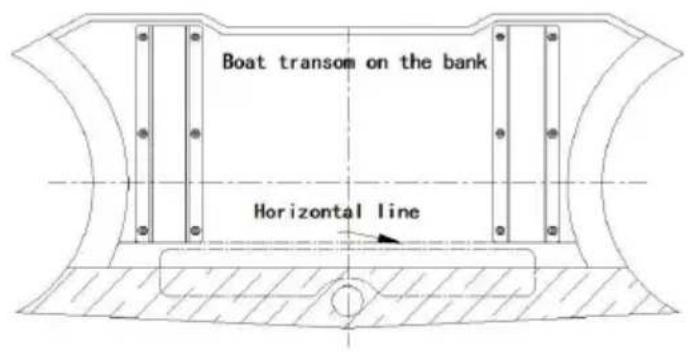

Step 2: Place the pedestal close to the horizontal line (drawn in Step 1). Adjust the distance for the pedestal (left and right). Mark the location of each hole with a marker or by drawing with compasses, then drill vertical holes with an electric portable drill. The drill bit diameter is about 6.5 mm. Drilling speed should be slow to prevent damage to the transom.

Step 3: Install the pedestal on the transom and tighten with screws.

Note: 1. To prevent water from entering the transom, use sealing gum on screws and holes; 2. When fixing the pedestal, place the stainless steel gaskets on the inner side of the transom.

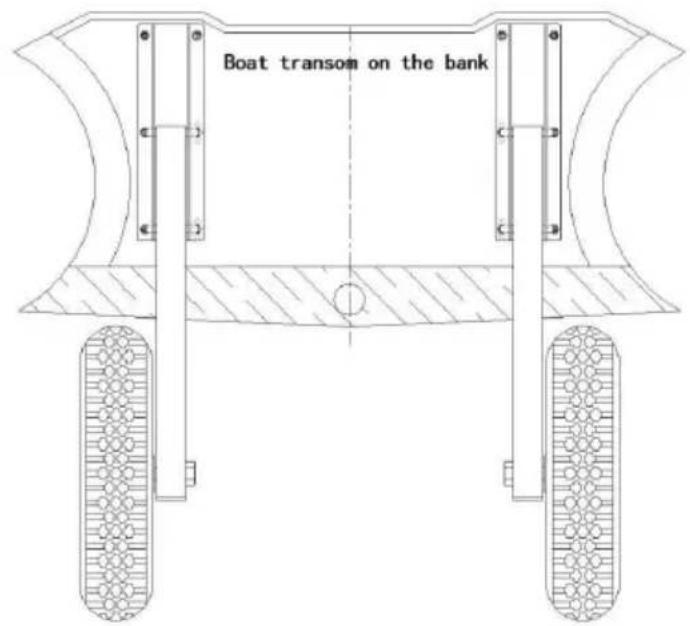

Step 4: Install brackets and wheels on the completed pedestals with keys. Turn the bracket and the wheel up and down to check if the wheel is fine. To ensure the wheels turn flexibly, put lithium-based grease or lubricating oil inside the bearing hole before use.

Manufacturer: Shanghai Xinmu Industrial Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia.

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
