Welding Helmet

Model:BY601E

VEVOR

Affordable. Reliable. Home Improvement.

WELDING HELMET

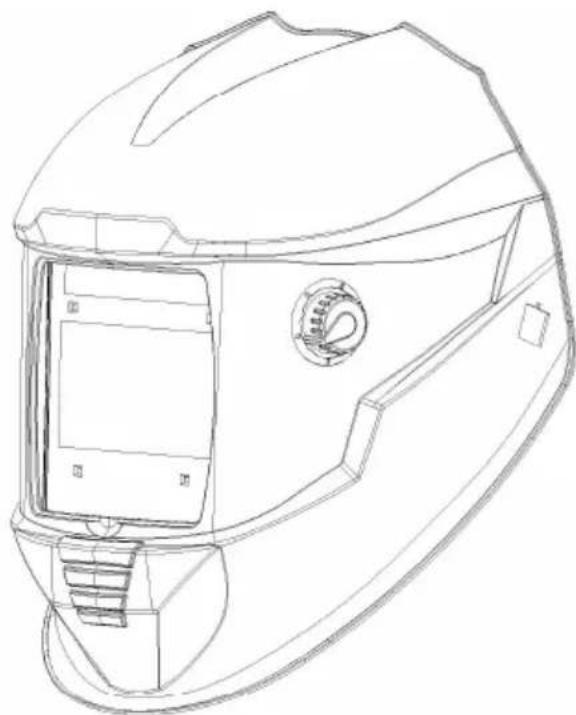

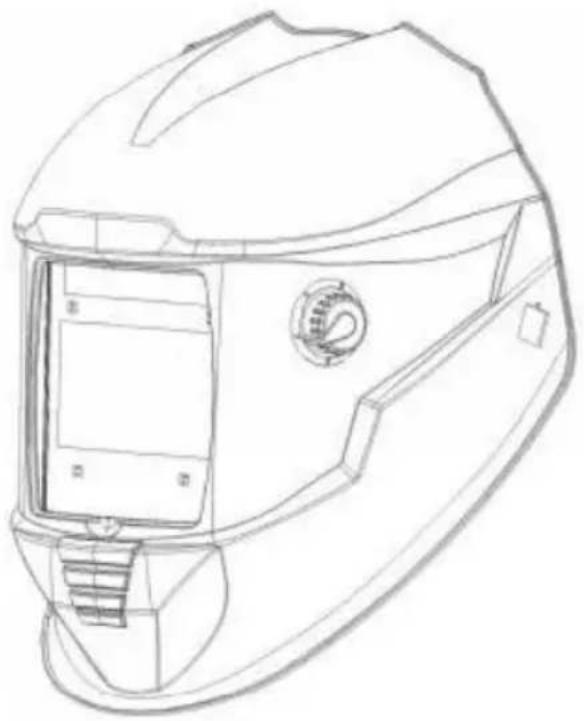

Line drawing of a helmet with front panel and side door (no text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instru manual carefully.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in injury.

WELDING HELMET SAFETY PRECAUTIONS READ BEFORE USING

Protect yourself and others from injury — read, follow, and save these important safety precautions and operating instructions.

Symbol Usage

DANGER! - Indicates a hazardous situation which, if not avoided, will result in death or serious injury. The possible hazards are shown in the adjoining symbols or explained in the text.

Indicates a hazardous situation which, if not avoided, could result in d or serious injury. The possible hazards are shown in the adjoining syr or explained in the text.

NOTICE - Indicates statements not related to personal injury.

Indicates special instructions.

Four black-and-white pictograms: warning sign, falling figure, leaf with leaves, and hand holding city skyline (no text or symbols)

This group of symbols means Warning!

Watch Out! ELECTRIC SHOCK, MOVING PARTS, and HOT PARTS hazards.

Consult symbols and related instructions below for necessary actions to avoid hazards.

Arc Welding Hazards

Only qualified persons should install, operate, maintain, and repair the unit.

ARC RAYS can burn eyes and skin.

Arc rays from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin. Sparks fly off from the weld.

• Wear a welding helmet fitted with a proper shade of filter to protect your and eyes when welding or watching (see ANSI Z49.1 and Z87.1 listed in Safety Standards). Refer to Shade and sensitivity charts
• Wear approved safety glasses with side shields under your helmet.
• Use protective screens or barriers to protect others from flash, glare, and sparks; warn others not to watch the arc.
• Wear body protection made from durable, flame-resistant material (leather, heavy cotton,wool). Body protection includes oil-free clothing such as leath gloves, heavy shirt, cuffless trousers, high shoes, and a cap.
• Before welding, adjust the auto-darkening lens sensitivity setting to meet the application.
• Stop welding immediately if the auto-darkening lens does not darken when the arc is struck. See the Owner's Manual for more information.

Symbol of a megaphone crossed out by a circular arrow, representing noise or hazard (no text present)

WELDING HELMETS do not provide unlimited eye, ear, and face protection.

Arc rays from the welding process produce intense visible and invisible (ultraviolet and infrared) rays that can burn eyes and skin. Sparks fly off from the weld.

• Use impact resistant safety spectacles or goggles and ear protection at all times when using this welding helmet.
• Do not use this helmet while working with or around explosives or corrosive liquids.
• Do not weld in the overhead position while using this helmet.
• Inspect the auto-lens frequently. Immediately replace any scratched, cracked, or pitted cover lenses or auto-lenses.

• NOISE can damage hearing.
• Noise from some processes or equipment can damage hearing.
• Wear approved ear protection if noise level is high.

READ INSTRUCTIONS.

Read and follow all labels and the Owner's Manual carefully before stalling, operating, or servicing unit. Read the safety information at beginning of the manual and in each section.

- Use only genuine replacement parts from the manufacturer.

- Perform maintenance and service according to the Owner's Manuals, industr standards, and national, state, and local codes.

FUMES AND GASES can be hazardous.

Welding produces fumes and gases. Breathing these fumes and gases can be hazardous to your health.

• Keep your head out of the fumes. Do not breathe the fumes.
• If inside, ventilate the area and/or use local forced ventilation at the arc to remove welding fumes and gases. The recommended way to determine adequate ventilation is to sample for the composition and quantity of fumes and gases to which personnel are exposed.
• If ventilation is poor, wear an approved air-supplied respirator.
• Read and understand the Safety Data Sheets (SDSs) and the manufacturer instructions for adhesives, coatings, cleaners, consumables, coolants, degreasers, fluxes, and metals.
• Work in a confined space only if it is well ventilated, or while wearing an air-supplied respirator. Always have a trained watch person nearby. Welding fumes and gases can displace air and lower the oxygen level causing injury or death. Be sure the breathing air is safe.
• Do not weld in locations near degreasing, cleaning, or spraying operations. The heat and rays of the arc can react with vapors to form highly toxic irritating gases.
• Do not weld on coated metals, such as galvanized, lead, or cadmium plate steel, unless the coating is removed from the weld area, the area is well ventilated, and while wearing an air-supplied respirator. The coatings and any metals containing these elements can give off toxic fumes if welded.

Proposition 65 Warnings

Welding or cutting equipment produces fumes or gases which contain chemicals known to the State of California to cause birth defects and, some cases, cancer. (California Health & Safety Code Section 25249.5

seq.)

SPECIFICATIONS

Optical Class	1/1/1/2
LCD viewing Area	100 x 60 mm (3.94 x 2.36in.)
Cartridge size	114 x 133mm (4.50 x 5.25in.)
UV/IR protection	UV/IR protection
Arc senso	4
variable welding shades	WELD ModelDarkened State:NO.9-13/LightState:NO.4 CUT ModelDarkened State:NO.5-9/LightState:NO.4 Grind ModelLightState:NO.4
shade Control	variable adjust by external knob
sensitivity Control	variable adjust by external knob
power supply	solar cells with battery assist
Low Battery warning	Red Light
Battery	CR203 Lithium (2 Required)
Power On/Off	Fully automatic
Light to Dark switching Time	1/25,000sec.
Dark to Light switching Time	0.1sec.-1.0 sec.
TIG Rating	DC≥ 5 amps; AC≥ 5 amps
Operating Temperature	23 °F ~ 131 °F (-5 °C ~ 55 °C)
storage Temperature	-4 °F~ 158 F (-20 °C ~ 70°C)

OPERATINGINSTRUCTIONS

Helmet Controls

Warning symbols and icons including warning, hazard, anti-smoking, helmet, and smokestack

1 2 3 4 6 7 8 BY601E 16321 BY W4/5-9/9-13 V2 CE ANSI Z87.1 CAS Z94.3 SENSITIVE DELAY WELD CUT 5

9 10 11

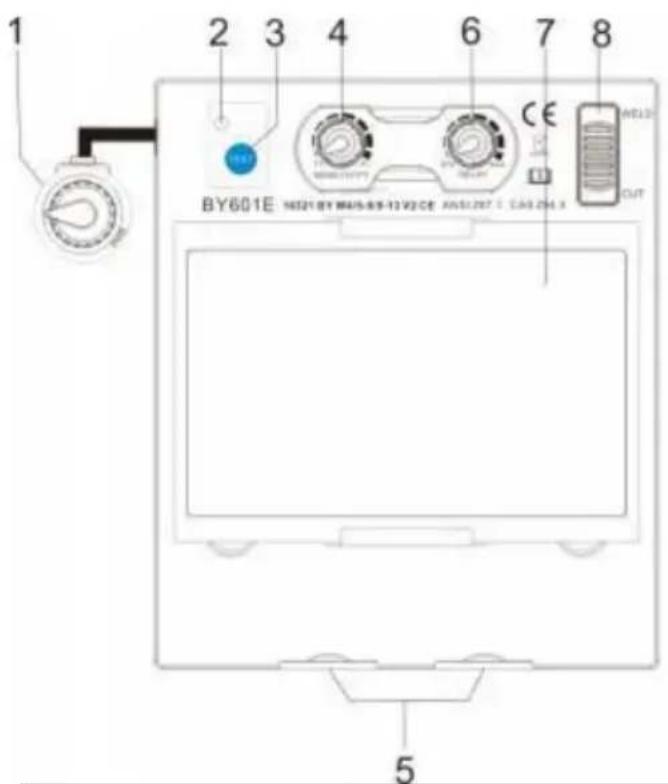

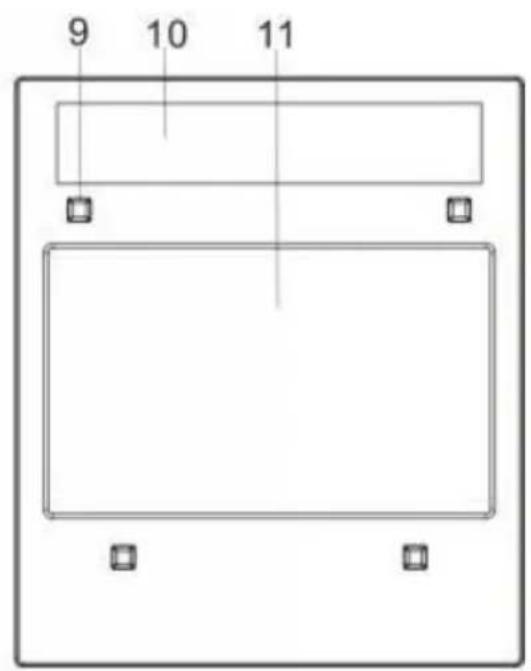

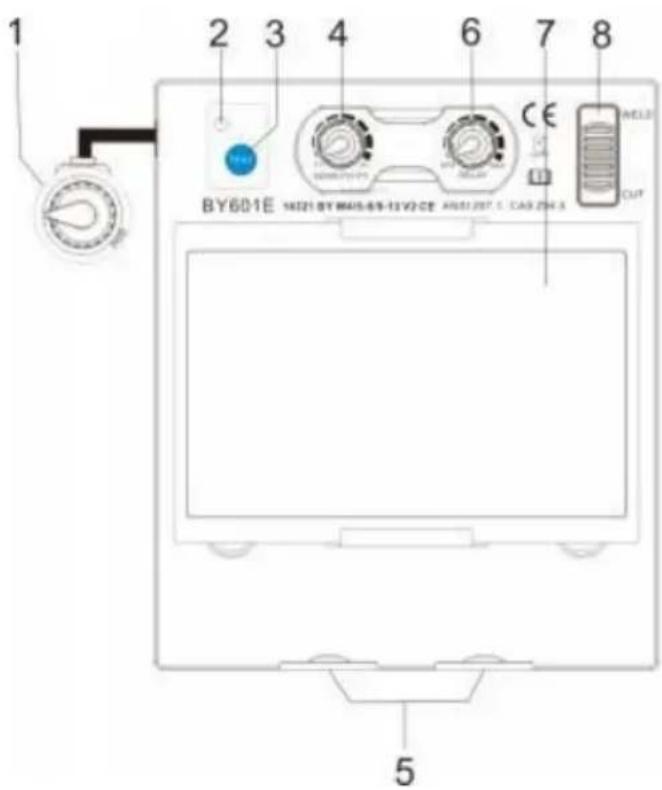

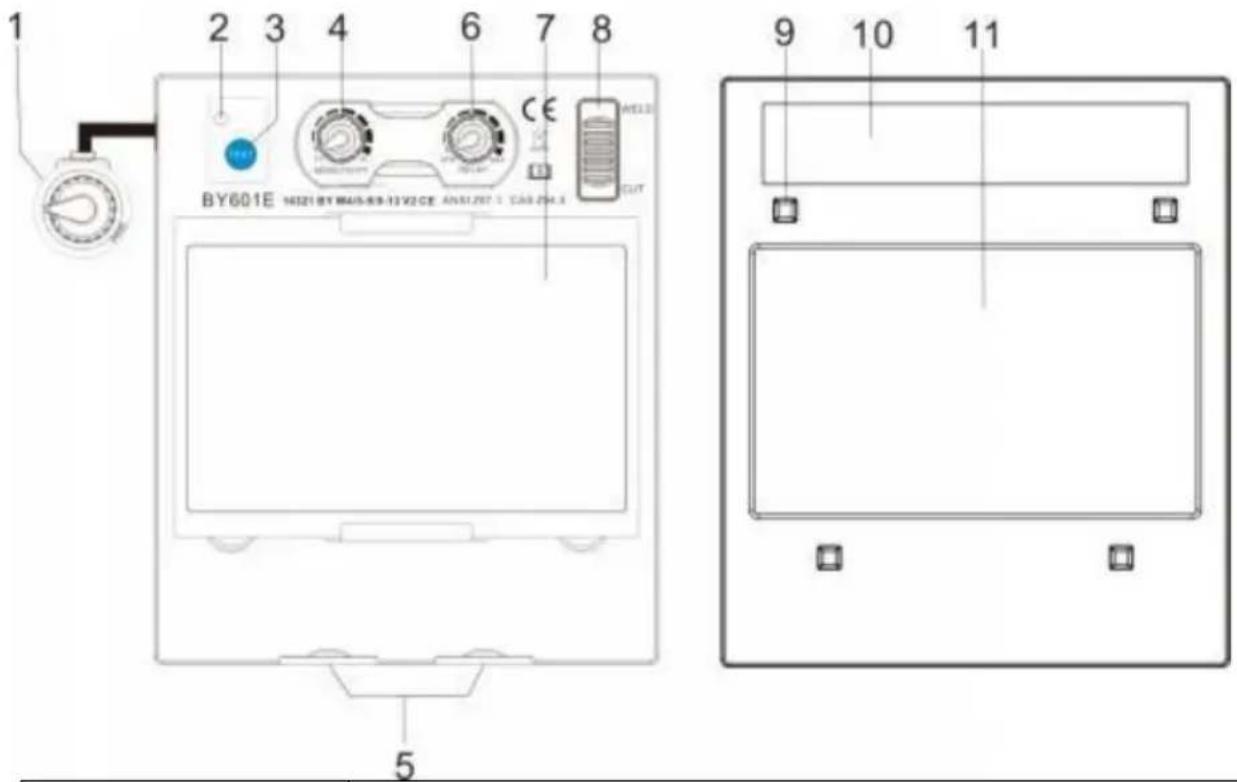

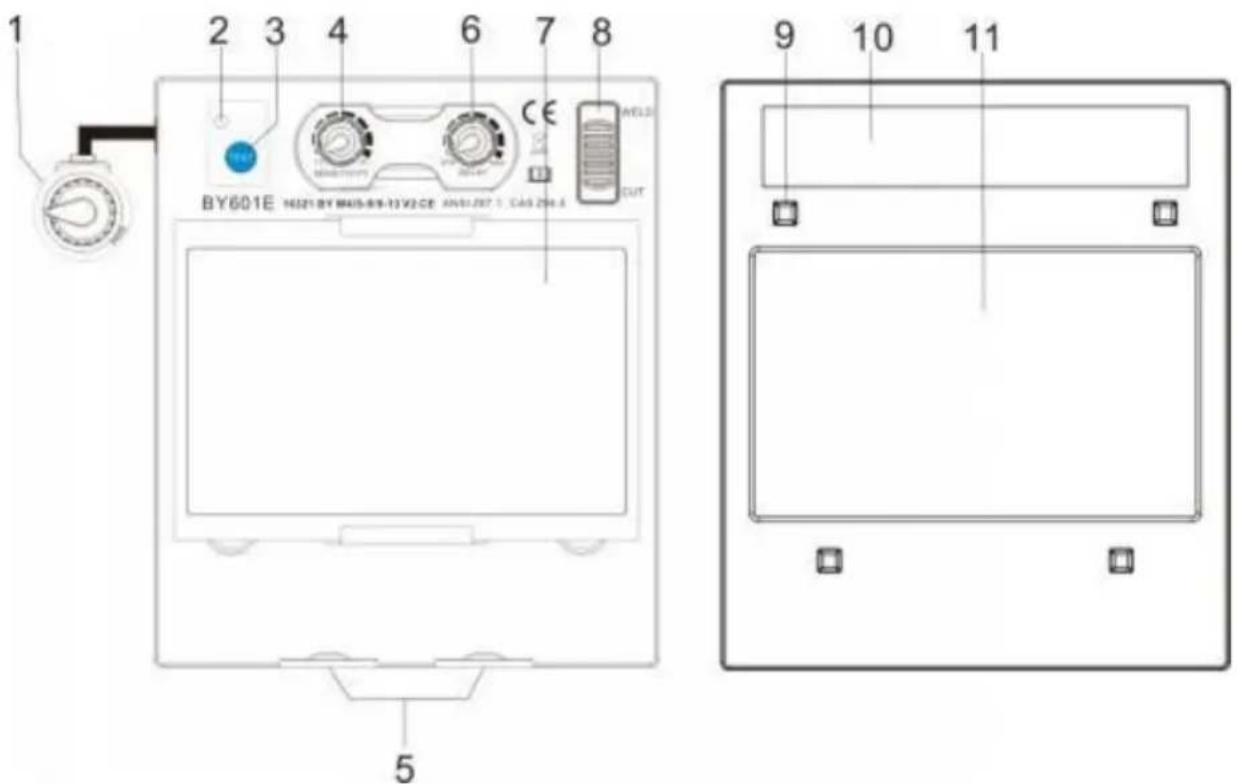

NO.	DESCRIPTLON
1	Shade control knob
2	Low voltage indicator
3	Self-test button
4	Sensitivity control knob
5	Lithium battery
6	Delay time control knob
7	LCD
8	CUT-Weld
9	Arc censor
10	Solar cell
11	UV/IR filter

OPERATING INSTRUCTIONS

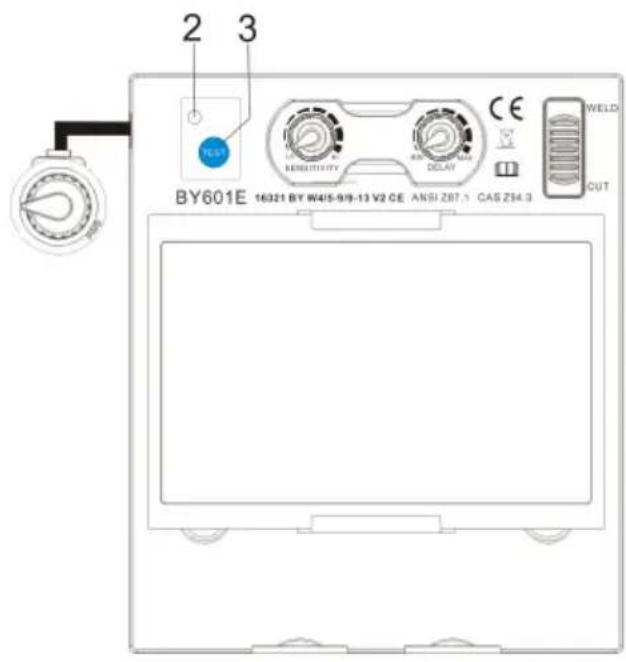

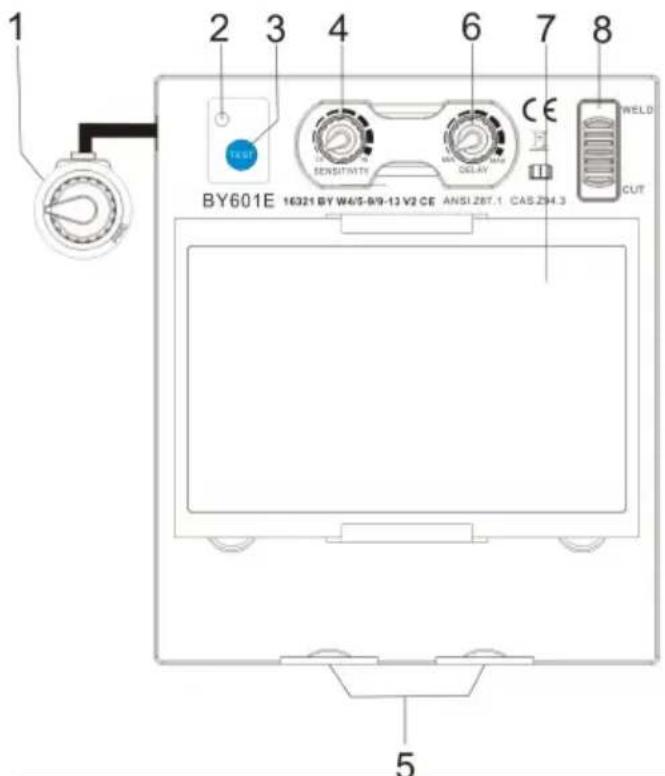

Reset Button And Low Battery Indicator

2 3 BY601E 16321 BY W415-9/9-13 V2 CE ANSI Z87.5 CAS Z34.3 WELD CUT

1. Reset Button Press Reset button to check if the lens is working properly. When the Reset button is pressed, the lens should darken and re turn to the clear state. Do not use the helmet if I lens does not function as described.

2. Low Battery Indicator The low batter indicator lights when2-3 days of battery life remain.If battery power is low, replace with CR2030 lithium batteries

Lens Delay Control

BY601E 16321 BY W4/5-9/9-13 V2 CE ANSI Z87.1 CAS Z94.3 WELD CUT 6

1 Lens Delay Control

The lens delay control is used to adjust the time for the lens to switch to the clear st after welding.

The delay is particularly useful in eliminating bright after-rays pres-net in higher amperage applications where the molten puddle remains bright momentarily after welding. Lens delay adjusts from min (0.10second) to max(1.0second).

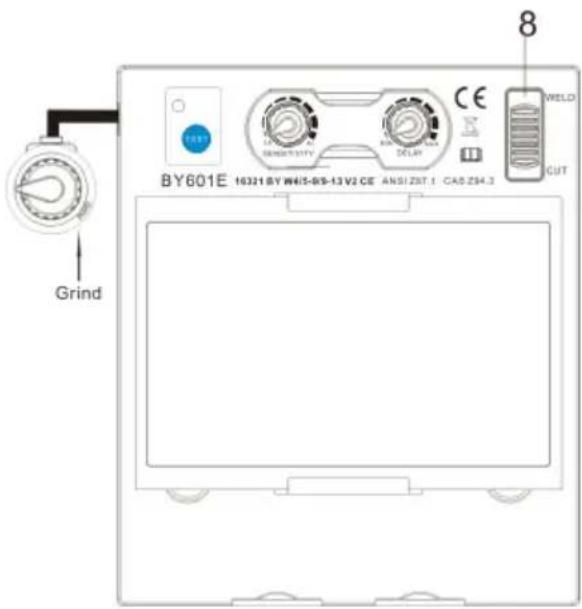

Mode Control

BY601E 14321 BY W415-B8-13 V2 CE ANSI ZBT.1 CA5 ZBT.3 Grind WELD CUT BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY6O731V BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY6G731V BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601A BY601B BY601C BY601D BY601E BY601F BY601G BY601H BY601I BY601J BY601K BY601L BY601M BY601N BY601O BY601P BY601Q BY601R BY601S BY601T BY601U BY601V BY601W BY601X BY601Y BY601Z BY601A BY601B BY601C BY601D BY601E BY601F BY601G BY601H BY601I BY601J BY601K BY601L BY601M BY601N BY601O BY601P BY6G731V BY601B BY601C BY601D BY601E BY6G731W BY601C BY601D BY601I BY601J BY601K BY601L BY601M BY6G731N BY601B BY601C BY601D BY6G731Y

1 Weld Mode

Used for most welding applications. In this mode the lens

turns on when it optically senses a welding arc. Adjust shade, sensitivity, and delay settings as needed.

2 Cut Mode

Used for cutting applications. In this mode the lens turns on when it optically senses a cutting arc. Adjust shade, sensitivity, and delay settings as needed.

3 Grind Mode

Used for metal grinding applications. In this mode the lens is fixed at shade. No lens adjustments are possible.

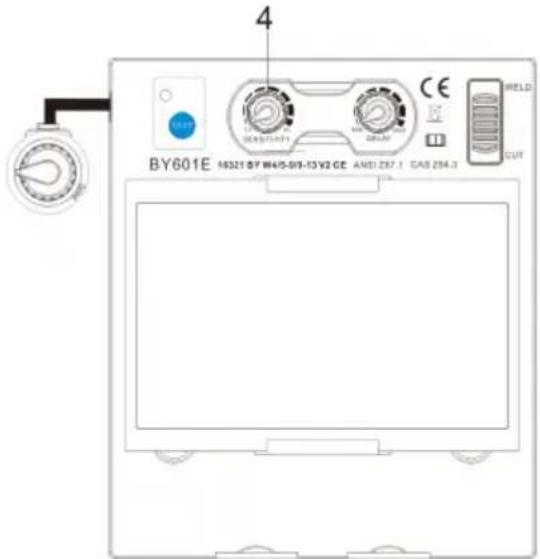

Sensitivity Control

BY601E 16321 ST W415-019-13 V2 GE AM31 Z87.1 CA8 Z54.3 CE WELD CUT

Press button “SENSITIVITY” it is selected according to welding process and environmental light, the defaulted sensitivity is medium.

1. Select minimum : Suitable for high amperage welding or welding in bright environmental light (For example, there is disturbing light from other welder vicinity)

2. Select maximum: Suitable for low amperage welding, using in pool light conditions (For

example. Pipe welding where part of the arc is obscured from view) and wh welding arc becomes stable (For example. TIG welding).

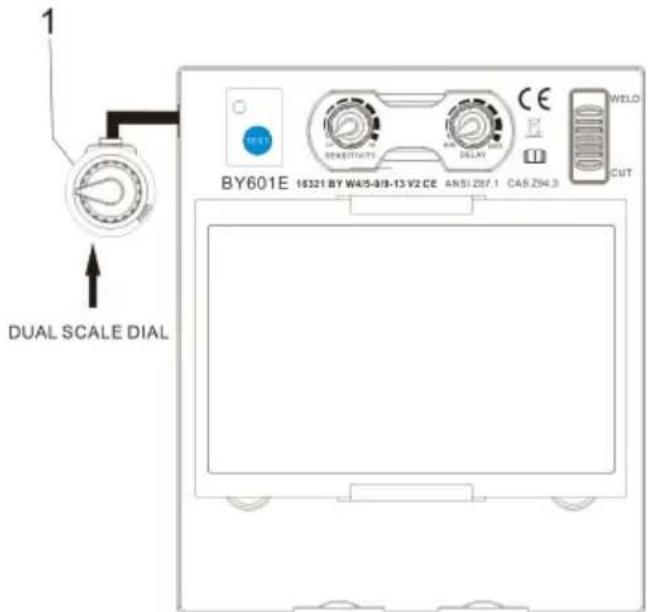

Variable Shade Control

1 DUAL SCALE DIAL BY601E 16321 BY W45-819-13 V2 CE AN51 Z87.1 CAS Z94.3 WELD CUT

1 Variable Shade Control

Use the control to adjust the lens shade in the darkened state. Use the table below to select proper shade control setting based on your welding process.

The shade ranges for each mode are as follows: Weld - No. 9 - No. 13 Cut - No. 5 - No. 9

Process	Electrode Size in. (mm)	Arc Current in Amperes	Minimum Protective Shade No.	Suggested Shade No. (Comfort)*
Shielded Metal Arc Welding (SMAW)	Less than 3/32 (2.4) 3/32-5/32 (2.4-4.0) 5/32-1/ (4.0-6.4) More than 1/4 (6.4)	Less than 6 60-160 160-250 250-550	7 8 10 11	-- 10 12 14
Gas Metal Arc Welding (GMAW)		Less than 6 60-160 160-250 250-500	7 10 10 10	-- 11 12 14
Flux Cored Arc Welding (FCAW)
Gas Tungsten A Welding (TIG)		Less than 5 50-150 150-500	8 8 10	10 12 14
Air Carbon Arc Cutting (CAC-A)	Light Heavy	Less than 50 500-1000	10 11	12 14
Plasma Arc Cutting (PAC)		Less than 2	4	4
		20-40	5	5
		40-60	6	6
		60-80	8	8
		80-300	8	9
		300-400	9	12
		400-800	10	14
Plasma Arc Welding (PAW)		Less than 2	6
		20-100	8	6-8 10 12
		100-400	10	14
		400-800	11

Reference: ANSI Z49.1:2005

* Start with a shade that is too dark to see the weld zone. Then, go to a shade which gives a sufficient view of the weld zone without going below the minimum.

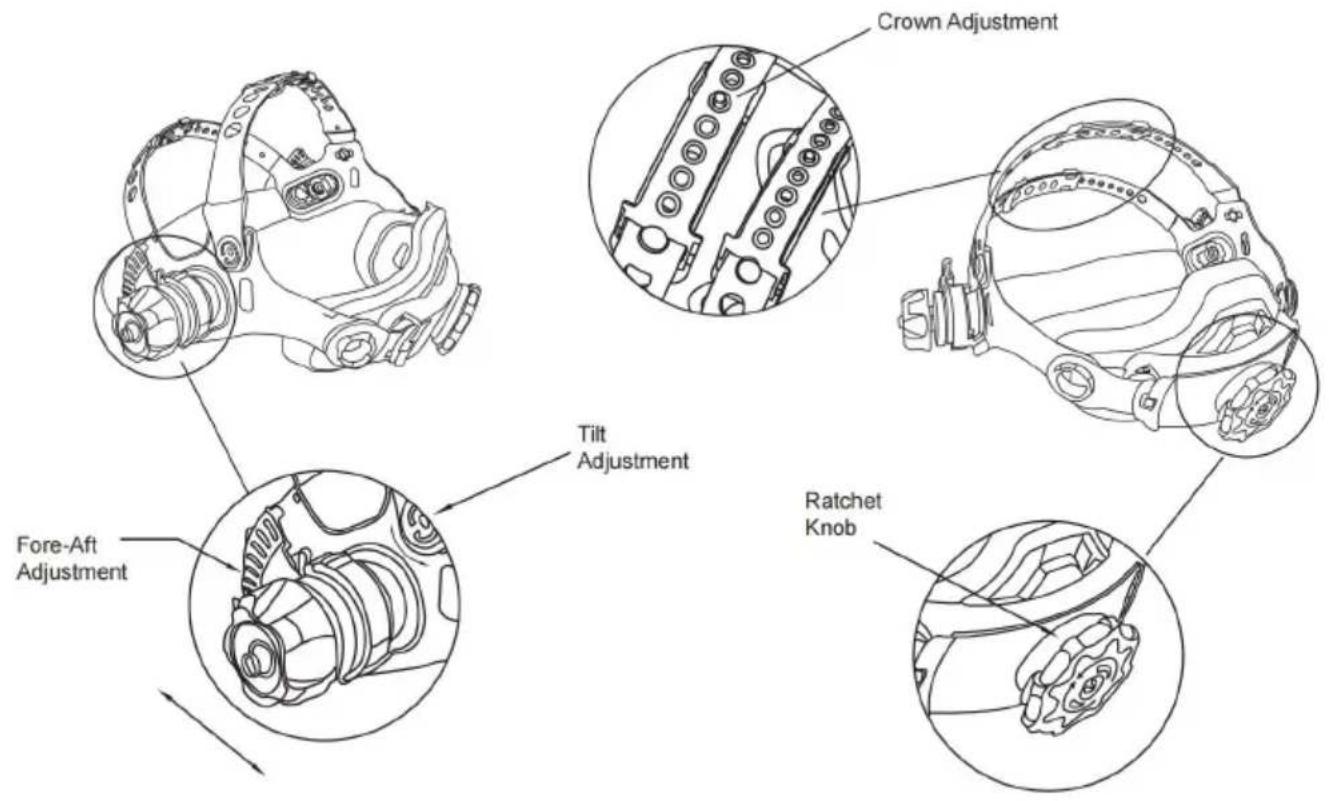

ADJUSTING HEADGEAR

Crown Adjustment Tilt Adjustment Fore-Aft Adjustment Ratchet Knob

HEAD SIZE ADJUSTMENT: HEADGEAR TIGHTNESS is adjusted by turning the Ratchet Knob to the right or left to adjust for the desired head size. This knob is located at the back of the helmet.

ADJUSTMENT is made by adjusting the comfort then placing the strap under guide and snapping the pins into the holes to lock securely in place.

TILT: Tilt adjustment is located on the right side of the helmet. Loosen the headgear tension knob and push the top end of the adjustment lever outward the lever's Stop Tab clears the notches. Then rotate the lever forward or ba the desired tilt position. The Stop will automatically engage again when releas locking the helmet into position.

FORE / AFT ADJUSTMENT: Adjusts the distance between the user's face and lens. To adjust, slide and hold the spring loaded caps upward while moving headgear into one of four slotted locations. Once the desired distance has been achieved let go of the cap and it will return to its resting position once there is secured in one of the four slots.

NOTE: Make sure both sides are equally positioned for proper orientation.

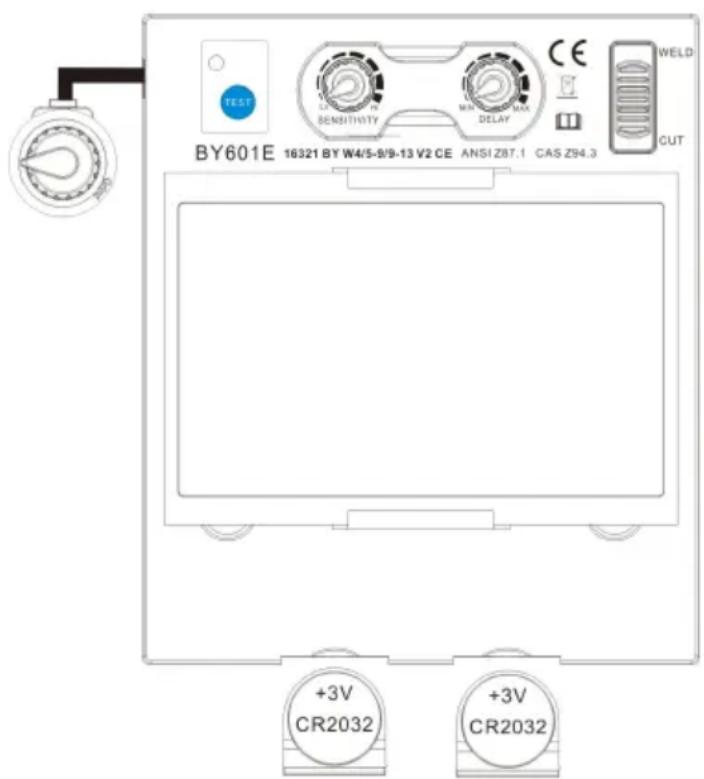

REPLACING THE BATTERY

TEST BY601E 16321 BY W4/5-9/9-13 V2 CE ANSI Z87.1 CAS Z94.3 WELD SENSITIVITY MINI MAX DELAY CUT +3V CR2032 +3V CR2032

This ADF is powered by a replaceable battery and solar power. The battery is located at the bottom corner of the ADF cartridge. Replace the battery when the LOW BATTERY lightslit. Replace with CR2032 lithium type batteries (2 required) or equivalent Be sure Positive (+) side of the batter faces up (toward inside of helmet).

CARTRLDGE AND LENS REPLACEMENT

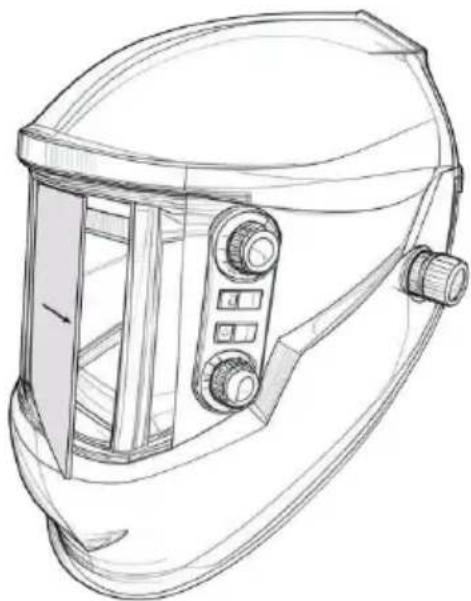

Line drawing of a welding helmet with visible internal components and mounting brackets (no text or symbols)

Warning: Never use the auto-darkening lens without the inside and outside lens covers properly installed. welding spatter will damage the auto-darkening lens and void the warranty

Front clear cover Lens:

remove the outside cover lens by prying from groove and reinstall a new one.

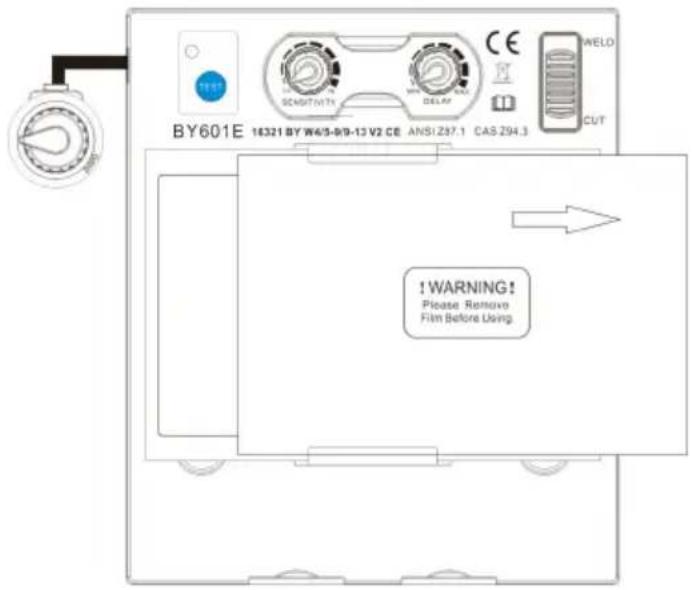

Replacing inside clear Lens

BY601E 14321 BY W4/5-8/9-13 V2 CE ANSI Z37.1 CAS Z94.3 WELD CUT !WARNING! Please Remove Film Before Using

Warning: There is a cable connecting the battery and the lens. please be careful not to break it.

Inside Lens Cover

Remove the inside lens cover by prying cover from groove in gasket and reinstall a new one.

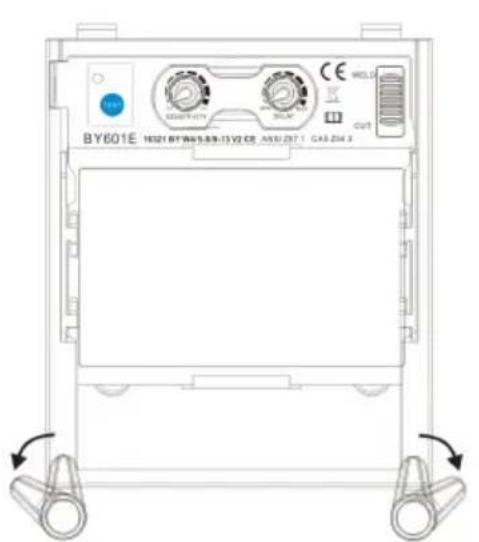

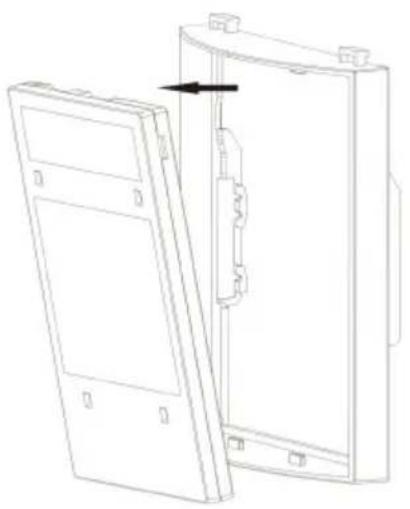

CARTRLDGE AND LENS REPLACEMENT change the Shade cartridge

BY601E H321 BY601B-89-15 VZ CE A432 ZBT 1 GAS ZM 3

Figure1

Technical line drawing of a device casing with an arrow indicating a component or assembly (no text or symbols present)

Figure2

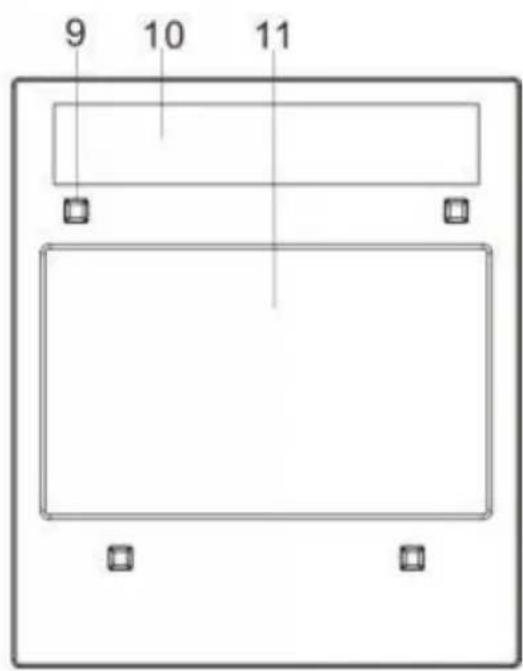

Front view of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

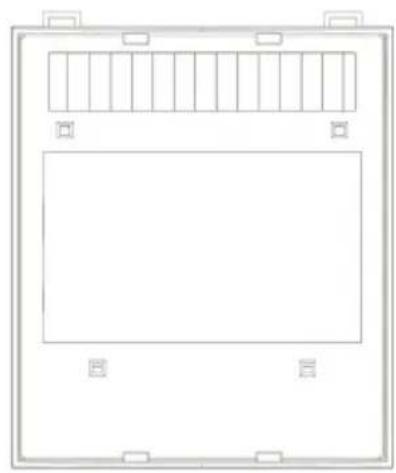

Figure3

Remove ADF holder assembly from helmet shell. see figure 1 and figure 2 for removal. Flex bottom end of the ADF holder to allow for ADF cartridge to be removed from frame. install new ADF cartridge into frame per figure 3 below sure that the ADF cartridge is inserted in ADF holder correctly as shown. include ADF holder assembly into helmet shell.

Installing an Aftermarket Magnifying Lens

BY601E MOUT BY WES-801-120CE AED:201.1 SAX:204.2

Figure4

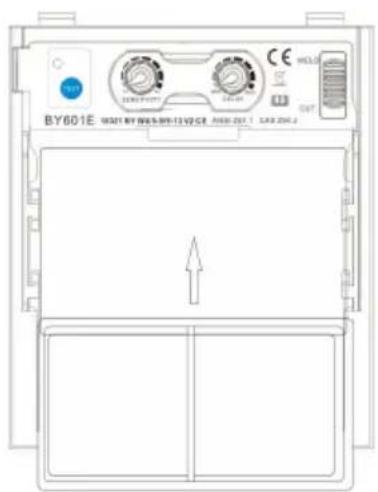

simply slide the magnifying lens into the short rail located on the sides of ADF holder per Figure 4. shade cartridge must be removed from ADF holder to install magnifying lens.

COMMON PROBLEMS AND REMINDING

PROBLEM	POSSIBLE CAUSE	SOLUTION
Difficult to see through filter.	Front cover lens dirty.	Clean or replace front cove lens.
	Cartridge dirty.	Clean the Auto-Darkening cartridge with soapy water solution and soft cloth.
Filter does not darken when arc is struck.	sensitivity is set too low	Adjust sensitivity to required level.
	Front cover lens dirty.	Clean or replace front cove lens.
	Front cover lens is damaged.	Check for cracked or pitted front cover lens and replac as required.
	sensors are blocked or solar panel is blocke	Make sure you are not blocking the sensors or sol panels with your arm or other obstacle while welding. Adjust your position so that the sensors can see the weld
	Grind Mode selected.	Make sure proper shade is selected.
	Is the switch on 5-9/9-stuck in the middle.	Turn the switch to the cor position.
Filter remains dark after completing a weld.	sensitivity set too high.	Adjust sensitivity to required level.
	Delay time set too high	Adjust delay time to require level.
	Low Battery.	Replacing battery.
Filter does not darken when TEST button is pushed.	Low battery.	Replacing battery.
the LED will not turn on after pressing button.	Plug-in jack from filter not completely inserted	Remove plug-in jack port a re-insert it into the port.

WARNING ! Operator must stop using the auto – darkening filter welding hel immediately if the above-mentioned problems cannot be corrected. Contact the dealer.

REPLACEMENT PARTS

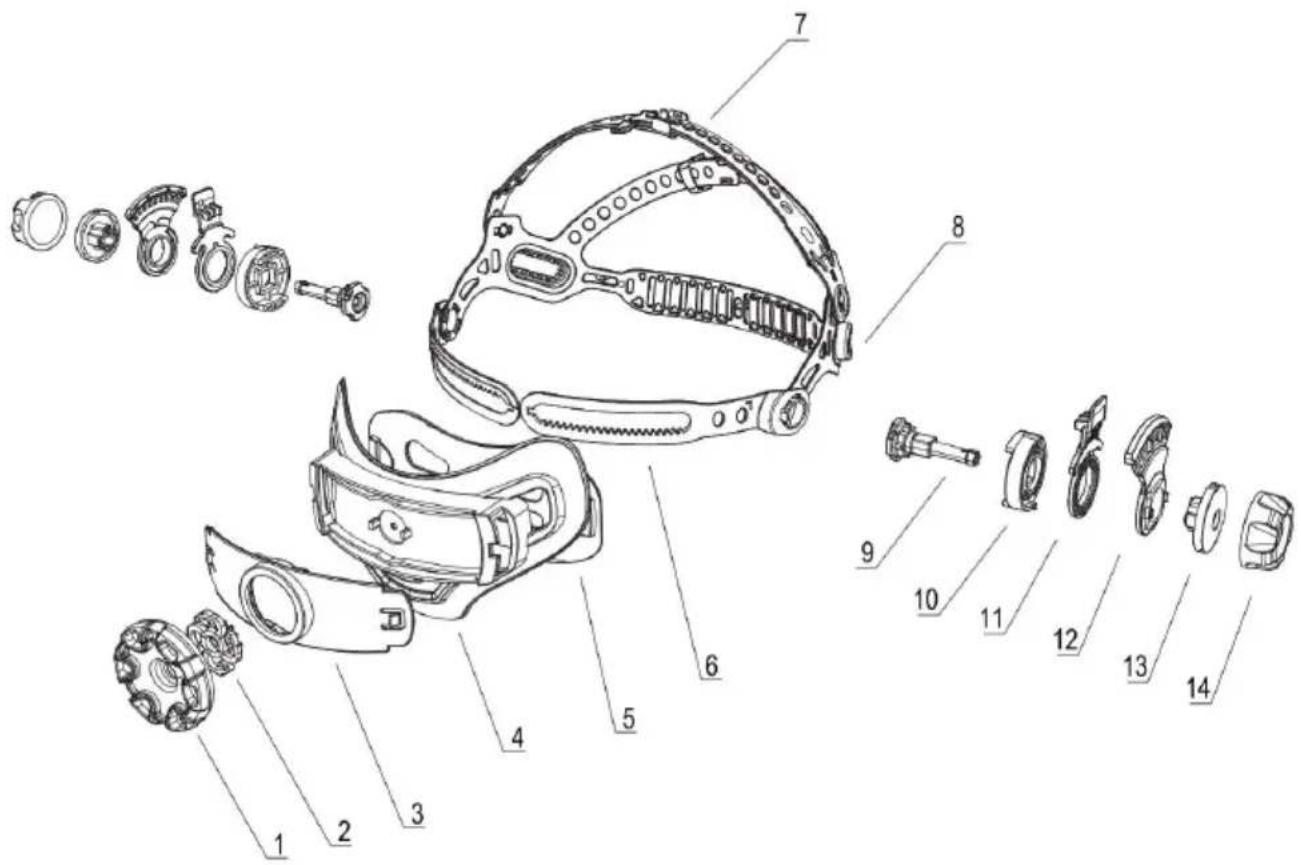

Exploded view diagram of a helmet assembly with numbered parts for identification

NO.	DESCRIPTLON	NO.	DESCRIPTLON
1	Hand wheel gear	8	Fastener
2	Pinion	9	Retainer
3	Back cover1	10	Position-hold button-1
4	Back cover2	11	Position-hold plate
5	Gear bar	12	Position-hold button-2
6	Scallops1	13	Nut
7	Scallops2	14

REPLACEMENT PARTS

Exploded view diagram of a smart air purifier with numbered parts and an inset showing internal components like a device housing and fan assembly.

NO.	PART NO.	DESCRIPTLON	QTY
1	BY-010003	Front Cover Lens	1
2	BY-010001	ADF	1
3	BY-010005	Inside Cover Lens	1
4	BY-010018	Cartridge Holder	1
5	BY-010019	Cartridge Holder Knob	2
6	BY-010002	Helmet Shell	1
7	BY-010025	Variable Shade Control	1
8	BY-010014	Headgear	1

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories mar with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical electronic devices.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Casque de soudage

Modèle : BY601E

Line drawing of a helmet with front panel and side door (no text or symbols)

Four black-and-white pictograms: warning sign, falling figure, bird, and hand (no text or symbols)

Symbol of a megaphone crossed out by lines, enclosed in a circle (no text or numbers present)

Warning symbols and icons including exclamation, mask, no-smoking, head with thermometer, and smokestack

1 2 3 4 6 7 8 BY601E H021 BY M415-R9-13 V2 CE ANS1287 E CA5 256.3 CE OUT 5

9 10 11

Crown Adjustment Tilt Adjustment Fore-Aft Adjustment Ratchet Knob

Line drawing of a welding helmet with protective cover and control panel (no text or symbols)

BY601E 10221 BY W45-8/8-13 V2-CE ANSI 207.1 C45.25A-9 HELD CUT !WARNING! Please Remove Flow Before Using

Line drawing of a device casing with an arrow indicating a component or assembly (no text or symbols present)

Figure2

Front view of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Figure3

Exploded view diagram of a helmet assembly with numbered parts for identification

Exploded view diagram of a smart air purifier with numbered parts and exploded view

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Schweißhelm

Modell: BY601E

Line drawing of a helmet with front and side panels, no text or symbols present

Four black-and-white pictograms: warning sign, falling figure, bird, and hand (no text or symbols)

Symbol of a megaphone crossed out by lines, enclosed in a circle (no text or numbers present)

Warning symbols and icons including exclamation, mask, no-smoking, head with thermometer, and smokestack

1 2 3 4 6 7 8 BY601E H021 BY M415-R9-13 V2 CE ANS1287 E CA5 254.5 CE OUT 5

9 10 11

Crown Adjustment Tilt Adjustment Fore-Aft Adjustment Ratchet Knob

Line drawing of a welding helmet with protective cover and control panel (no text or symbols)

BY601E H0321 BY W475-B9-12 V2 CE AXRD 267.1 CA5-Z64.3 1WARNING! Please Remove Plan Before Using

eine neue an.

BY601E NON-BY601E-0045202E 0045201 (OFF:30.1)

Figure1

Line drawing of a device casing with an arrow indicating a component or assembly (no text or symbols present)

Figure2

Front view of a rectangular electronic device with a grid-patterned top panel and mounting holes (no text or symbols)

Figure3

Exploded view diagram of a helmet assembly with numbered parts for identification

Exploded view diagram of a smartwatch with labeled parts including front, back, and interior views

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Casco da saldatura

Modello: BY601E

Line drawing of a helmet with front panel and side door (no text or symbols)

Four black-and-white pictograms: warning sign, falling figure, hand holding leaf, and hand reaching up city skyline (no text or symbols)

Symbol of a megaphone crossed out by a lightning bolt, enclosed in a circle (no text or numbers present)

Warning symbols and icons including exclamation, hazard, no smoking, head with fever, and pollution cloud

1 2 3 4 6 7 8 BY601E NID21 BY MAIS-65-T1V2-CE ANSL207.1.CAS ZIN 3 CE HEL2 CUT 5

9 10 11

BY601E GRIND 8 HRLS CUT 12000000000000000000000000000000000000000000000000000000000000000000000000 Grind

Crown Adjustment Tilt Adjustment Fore-Aft Adjustment Ratchet Knob

BY601E H02Y BY W45-B9-13 V2 CE AMU (207.1 245.254.3) HELO CLUT !WARNING! Please, Remove From Before Using.

Front view of a medical or laboratory device with control knobs and a central display (no visible text or symbols)

Figure1

Line drawing of a device with an open lid and internal components, showing no text or symbols.

Figure2

Front view of a rectangular electronic device with internal compartments and mounting points (no text or symbols)

Figure3

Exploded view diagram of a helmet assembly with numbered parts for identification

Exploded view diagram of a smartwatch with labeled parts including front panel, display case, and camera module

NO.	PARTE N. 0 .	DESCRIZIONE	QUANTITÀ
1	BY-010003	Lente di copertura frontale	1
2	BY-010001	ADF	1
3	BY-010005	Lente di copertura interna	1
4	BY-010018	Portacartuccia	1
5	BY-010019	Manopola del porta cartuccia	2
6	BY-010002	Calotta del casco	1
7	BY-01002 5	Controllo variabile dell'ombra	1
8	BY-010014	Copricapo	1

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Casco de soldadura

Modelo: BY601E

Line drawing of a helmet with front and side panels, no text or symbols present

Four black-and-white pictograms: warning sign, falling figure, leaf with leaves, and hand holding city skyline (no text or symbols)

Symbol of a megaphone crossed out by a diagonal line, enclosed in a circle (no text or numbers present)

Warning symbols and icons including warning, hazard, noise, head, and smoke

1 2 3 4 6 7 8 BY/601E HJ21 BY M405-B9-13 V2.CE ANX1.287.1: CAS 294.8 CE HY12 CUT 9 10 11 5

Crown Adjustment Tilt Adjustment Fore-Aft Adjustment Ratchet Knob

Line drawing of a welding helmet with visible structural components (no text or symbols)

BY601E H0321 BY W4/S-B9-13 V2-CE AXID 207.1 CAG 254.3 WARNING! Please Remove Fire Before Using

Front view of a medical or laboratory device with control knobs and a central display (no visible text or symbols)

Figure1

Line drawing of a door panel and its rear panel with an arrow indicating direction (no text or symbols)

Figure2

Front view of a rectangular electronic device with internal grid and mounting holes (no text or symbols)

Figure3

Exploded view diagram of a helmet assembly with numbered parts for identification

Exploded view diagram of a smartwatch with labeled parts including case, display, and accessories

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Kask spawalniczy

Model: BY601E

Line drawing of a helmet with front and side panels, no text or symbols present

Four black-and-white pictograms: warning sign, falling figure, bird, and hand (no text or symbols)

Symbol of a megaphone crossed out by a lightning bolt, enclosed in a circle (no text or numbers present)

Warning symbols and icons including exclamation, helmet, no-smoking, head with fever, and smokestack

1 2 3 4 6 7 8 BY601E H021 BY M415-R9-13 V2 CE ANS1287 E CAD 254.5 CE OUT 5

9 10 11

BY601E GRIND BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6

1 Tryb spawania

Crown Adjustment Tilt Adjustment Fore-Aft Adjustment Ratchet Knob

Line drawing of a welding helmet with protective cover and control panel (no text or symbols)

Line drawing of a door panel with an arrow indicating direction, no text or symbols present

Figure2

Front view of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Figure3

BYD16 HAT-CHINESE CE 2000 1000 ↑

Figure4

Exploded view diagram of a helmet assembly with numbered parts for identification

Exploded view diagram of a smartwatch with labeled parts including front panel, display case, and accessories

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Lashelm

Model: BY601E

Line drawing of a helmet with front and side views (no text or symbols)

Four black-and-white pictograms: warning sign, falling figure, leaf with leaves, and hand holding a city skyline (no text or symbols)

Symbol of a megaphone crossed out by a circular arrow, representing noise or hazard (no text present)

1 DUAL SCALE DIAL BY601E HSD2187 M45-09-13 V2 CE A451287 3 GAB FNA E CE HOLD CLT

1 Variabele schaduwregeling

Crown Adjustment Tilt Adjustment Fore-Aft Adjustment Ratchet Knob

HOOFDMAAT AANPASSEN: U kunt de STRAKHEID VAN DE

Line drawing of a hooded safety helmet with visible components and control panel (no text or symbols)

VERVANGING VAN CARTRLDGE EN LENS

Line drawing of a medical or laboratory device with control knobs and a central display (no readable text or symbols)

Figure1

Line drawing of a door panel with an arrow indicating direction, no text or symbols present

Figure2

Front view of a rectangular electronic device with internal components and mounting points (no text or symbols)

Figure3

Exploded view diagram of a helmet assembly with numbered parts for identification

Exploded view diagram of a smartwatch with labeled parts including front, back, and interior views

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Svetshjälm

Modell: BY601E

Line drawing of a helmet with front and side panels, no text or symbols present

Four black-and-white icons representing warning, protection, environmental protection, and city skyline (no text or symbols)

Symbol of a megaphone crossed out by lines, enclosed in a circle (no text or numbers present)

Warning symbols and icons including exclamation, helmet, no-smoking, head with fever, and smokestack

1 2 3 4 6 7 8 BY601E H521 BY M45-89-13 V2 CE AN51.297 1 CA9.294.5 CE H513 CUT 9 10 11 5

BY601E 1930T BY W45-89-13 V2CE ARL 2017 CAS 25HL3 ARL25013 OUT

BY601E 14321 BY M415-BY-13 V2 CE ANG1287.1 CAG296.3 6 WELD CUT

BY601E: HISTORY MAX. BY-350CE, ANB2013, CAT DCK3 8 Grind BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY601E BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6 BY6

1 Svetsläge

Crown Adjustment Tilt Adjustment Fore-Aft Adjustment Ratchet Knob

JUSTERING AV HUVUDSTORLEK: HUVUDBEDÄNGETS ÅTDRAGNING

Line drawing of a welding helmet with protective cover and control panel (no text or symbols)

BY601E 10321 BY W45-B8-13 V2.0E AM0/207.1 CAS-254.3 1WARNING! Please Remove Fire Before Using

Front view of a medical or laboratory device with control knobs and a door, showing no visible text or symbols.

Figure1

Line drawing of a device with an open lid and internal panel, showing a right-hand grip (no text or symbols)

Figure2

Front view of a rectangular electronic device with internal grid and mounting holes (no text or symbols)

Figure3

BYB01E NETRINHINDING MINTUO CE VOLT DUT

Figure4

VANLIGA PROBLEM OCH PÅMINNELSER

Exploded view diagram of a helmet assembly with numbered parts for identification

Exploded view diagram of a smart air purifier with labeled parts including battery pack, display panel, and motor assembly.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
