USER MANUAL 504BS Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

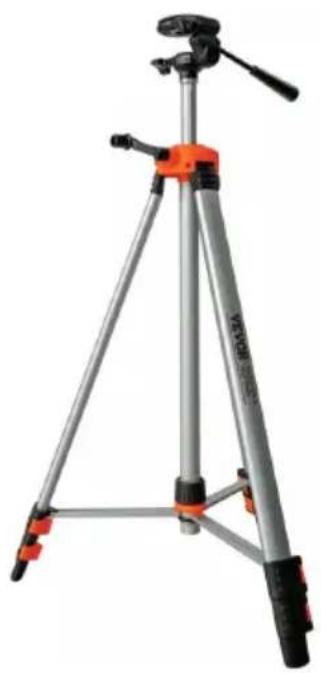

LASER LEVEL TRIPOD
MODEL:504BS
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:504BS
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
- The Laser Level Tripod should be mounted on a stable surface. Do overload.
- The installation should be done by an adult, and children should not it without supervision.
- Regularly check the stability and safety of the hanger, and stop us immediately if there is any damage or suspected problem.
- Please read and understand this manual carefully before using the Laser Level Tripod.
Tip Over Hazard
- A child or adult can tip the Laser Level Tripod and be killed or injured.
- Serious injury may occur to children and adults if not secured before installation.
- Children should not play with or around the Laser Level Tripod at time.
PARAMETER LIST
| Model | 504BS |
| Installation surface height adjustment range(inch) | 27.36-38.18 |
| Install thread | 1 / 4 " -20 sc |
| Maximum load bearing(lbs) | 12 |
INSTRUCTIONS
Thank you very much for choosing this Laser Level Tripod. Please all of the instructions before using it. The information will help you ack the best possible results.
If there is any difference between the color of this product and the in the instruction manual, please refer to the physical object

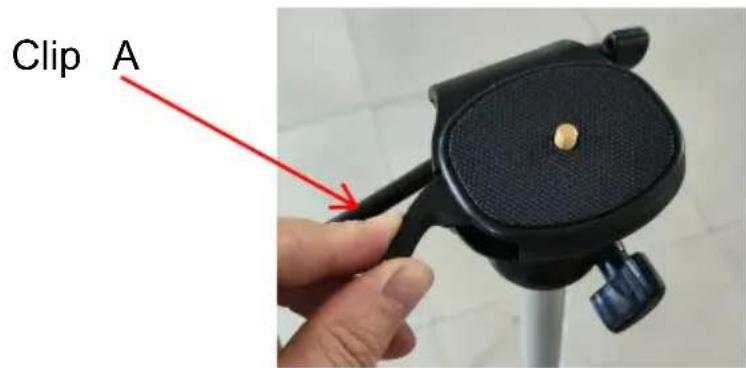

1.Open the clip A to remove the mounting table.(Fig.1)


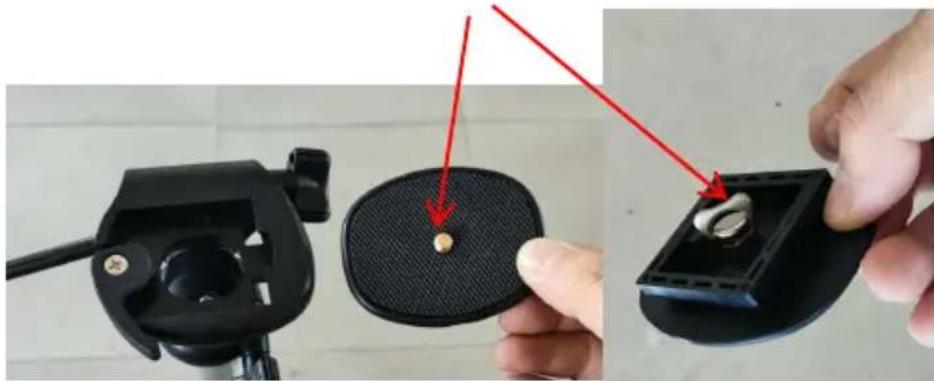

- The instrument is mounted on the mounting table through a 1
screw.(Fig.2-3)
1 / 4 " screw


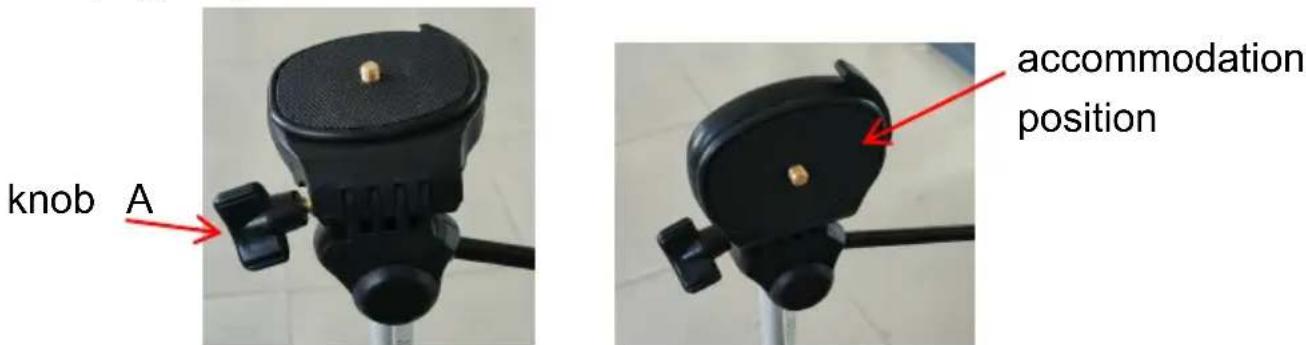

- After twisting the knob A clockwise, the mounting table can flip position.(Fig.4-5)
NOTE: Knob A must be tightened after adjusting the position of the mounting table.

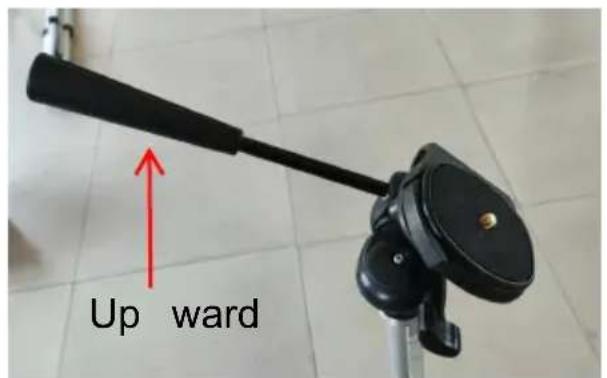

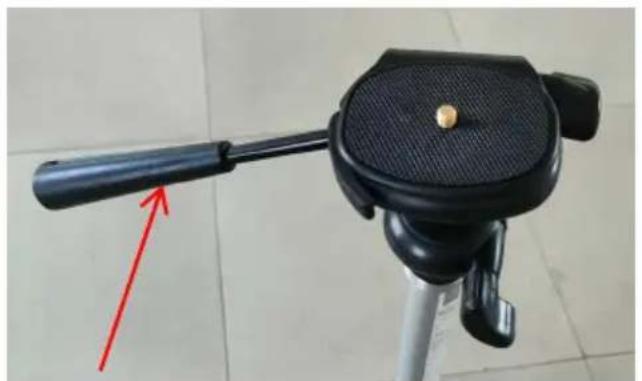

5.Push the handle A up to adjust the angle of the mounting table.(Fig6-7)


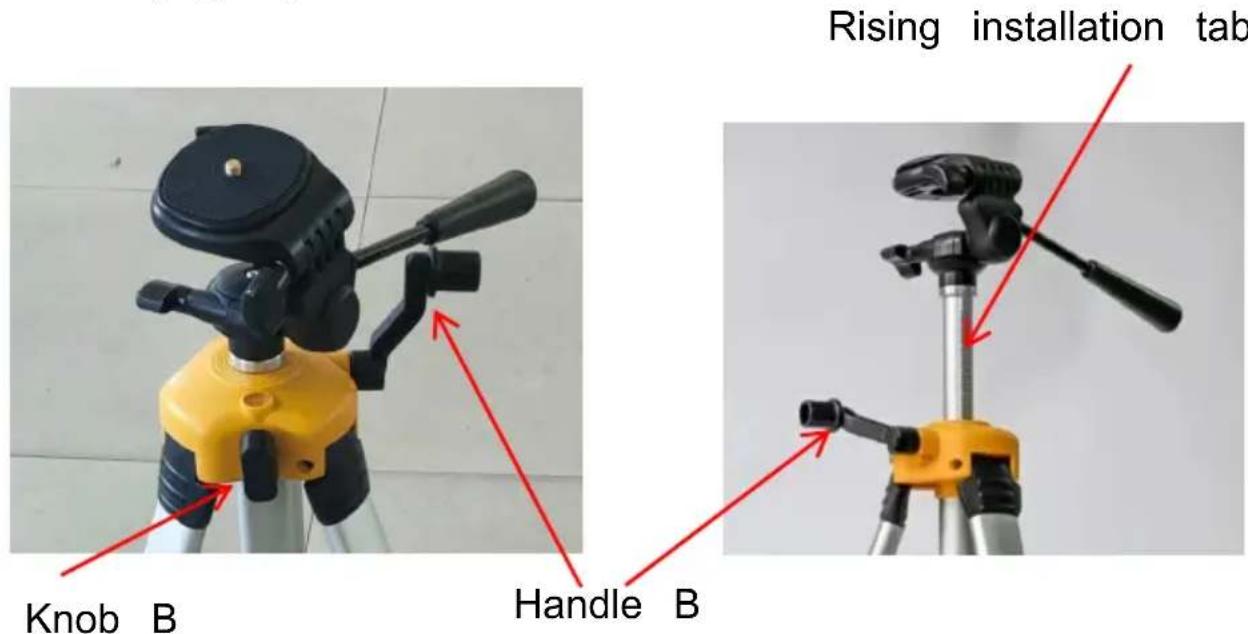

- Turn knob B first and then turn handle B clockwise to raise the height of the mounting table with a maximum rise of about 10.9 inches.(Fig8-9)
NOTE: Knob B must be tightened after adjusting the position of the mounting table.

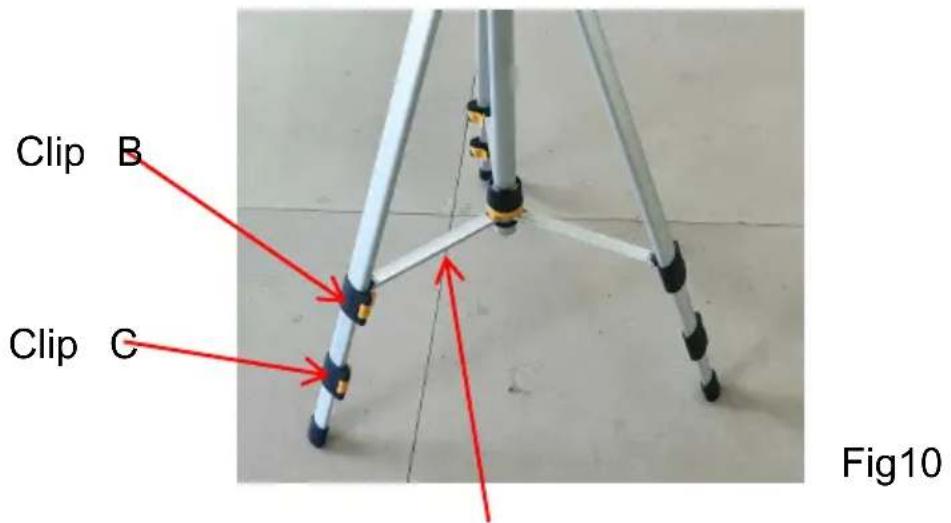

- After opening the clips B and C, The tripod can extend the
length.(Fig10)


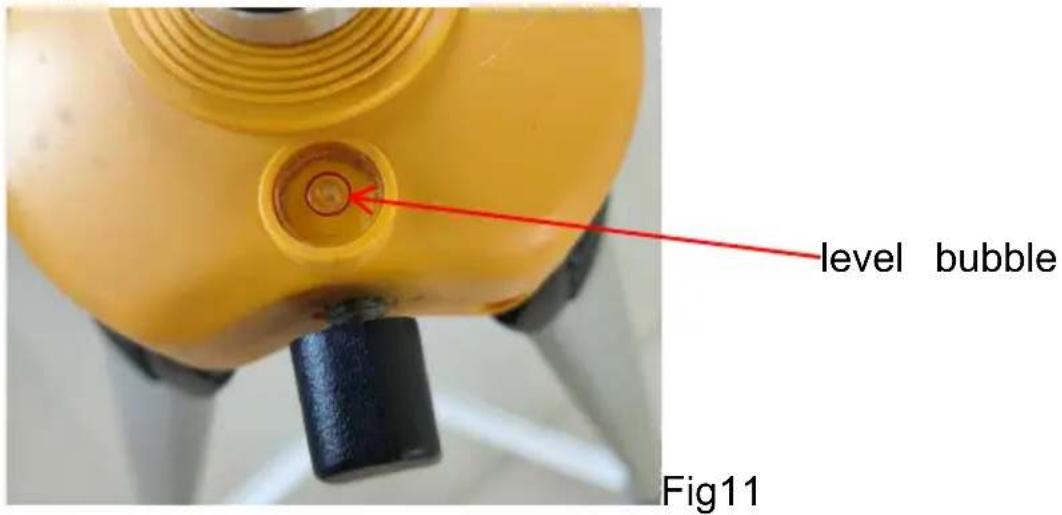

- When the level bubble is not in the middle, Please adjust the of the tripod leg to correct.(Fig11)
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>
| EC | REP |
Technical Support and E-Warranty Certificate www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Figure 3


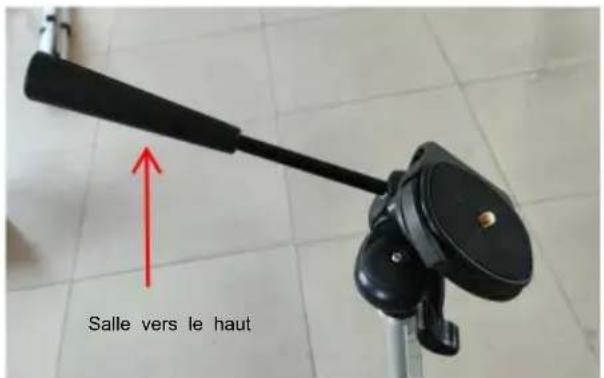

Close-up of a black tripod-mounted camera with a gold knob and red arrow pointing to the handle (no text or symbols visible)Poignée A Fig6

YH CONSULTING LIMITÉE. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
| REPRÉSENTANT CE |
E-CrossStu GmbH
Mainzer Landstr.69,
Close-up of a black tripod-mounted camera with a gold knob and red arrow pointing to the handle (no text or symbols visible)Griff A Abb. 6
YH CONSULTING LIMITED. C/O YH Consulting Limited Büro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122
Australia
Rancho Cucamonga, CA 91730
| REP. DEL | REGNO UNITO |
YH CONSULENZA LIMITATA. C/O YH Consulting Limited
Office 147, Centurion House, London Road, Staines-
upon-Thames, Surrey, TW18 4AX
| REP.CE |
E-CrossStu GmbH
Mainzer Landstr.69,
Close-up of hands holding a black camera mount with a circular base and a metallic ring, showing red arrows indicating adjustment (no text or symbols visible)Figura 2
Fig. 3
Close-up of a tripod-mounted camera with black adjustable knobs and red measurement lines (no text or symbols)Fig9
YH CONSULTING LIMITADO. C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
| REPRESENTANTE DE LA CE |
E-CrossStu GmbH
Mainzer Landstr.69,


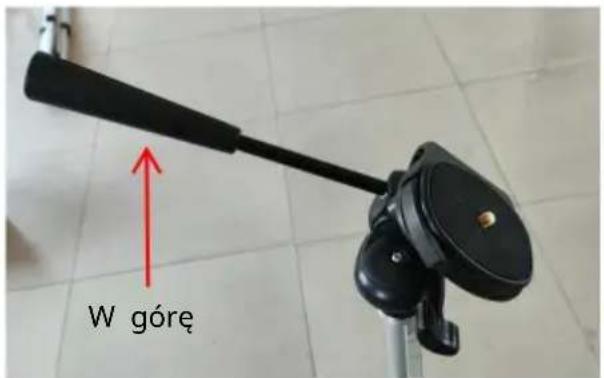

Close-up of a black tripod-mounted camera with a gold knob and red arrow pointing to the handle (no text or symbols visible)Uchwyt A Ryc.6
