USER MANUAL ZPJ-25A-8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CONCRETE SCREED

MODEL:ZPJ-25A-6、ZPJ-25A-8、ZPJ-25A-11 ZPJ-25A-6/8/11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

MODEL:MODEL:ZPJ-25A-6、ZPJ-25A-8、ZPJ-25A-11

ZPJ-25A-6/8/11

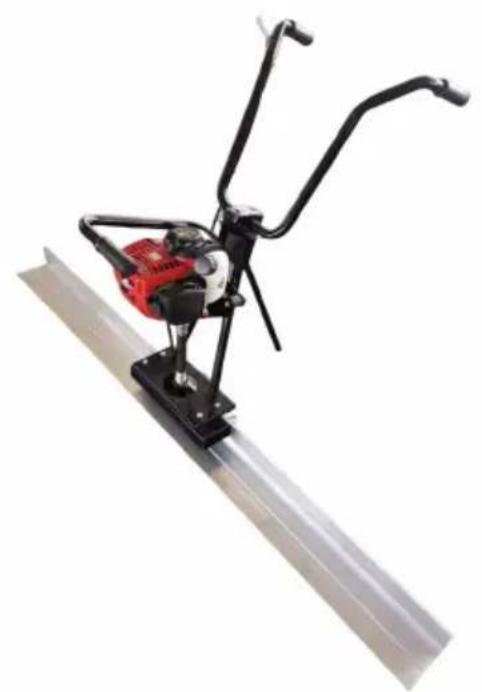

Mechanical tool with red and black components mounted on a metal beam (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

Intended Use

This screed uses vibration through a screed board to embed aggregate and reduce air voids in concrete, making the slabs stronger. It can be used with a variety of board lengths, including 6ft, 8ft, 10ft, 12ft, and 14ft, on floors, roads, pavement, or parking lots. Replacement boards and boards in other lengths are sold separately — see the technical specifications page for part numbers.

Power Source. The screed is powered by a gasoline engine.

Supplies Required. Normal operation will require you to supply:

• Gasoline
• Engine oil
  • Personal Protection Equipment

See “Specifications” section of this manual or the Engine Manual for more details.

Technical Specifications

Screed Head

Model	ZPJ-25A
Engine	140FA
Drive system	Flexible Shaft
Weight	18kg
Type	4-stroke,overheard camshaft,1 cylinder
Displacement	37.7cc

- The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise common sense

and caution when using this tool. Always be aware of the environment a ensure that the tool is used in a safe and responsible manner.

• DO NOT allow persons to assemble or operate this product until they have read this manual and have developed a thorough understanding of how the product works.
• Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger industrial equipment. There are certain applications for which this equipment was designed. It will do the job better and more safely at the capacity for which it was intended. DO NOT use this equipment for a purpose for which it was not intended.
• Industrial or commercial applications must follow OSHA requirements.

WARNING

- Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. Some example of these chemicals are:

-lead from lead-based paints,

-crystalline silica from bricks and cement and other masonry products, and -arsenic and chromium from chemically treated lumber.

Your risk from these exposures varies, depending on how often you do the type of work. To reduce your exposure to these chemicals, work in a well-ventilated area, and work with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

- Handling the power cord on corded products may expose you to lead, chemical known to the State of California to cause cancer and birth defe or other reproductive harm. Wash hands after handling.

WARNING

WORK AREA SAFETY

- Inspect the work area before each use. Keep the work area clean, dry free of clutter, and well-lit. Cluttered, wet, or dark work areas can result injury.

• Do not use the Screed where there is a risk of causing a fire or an explosion; e.g., in the presence of flammable liquids, gases, or dust.
• Do not allow the tool to come into contact with an electrical source. TI tool is not insulated, and contact will cause electrical shock.
• Keep children and bystanders away from the work area while operating the Screed. Do not allow children to handle the Screed.

- Be aware of all power lines, electrical circuits, water pipes, and mechanical hazards in your work area. Some of these hazards may hidden from your view and may cause personal injury and/or proper damage if contacted.

WARNING

PERSONAL SAFETY

• Stay alert, watch what you are doing, and use common sense when operating the Screed. Do not use the Screed while you are tired or under the influence of drugs, alcohol, or medication.
• Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose cloth jewelry, or long hair can be caught in moving parts.
• Use ANSI Z87.1-approved safety goggles or safety glasses with side shields, or when needed, a face shield. Use a dust mask in dusty work conditions. Also use non-skid safety shoes, hard hats, gloves, dust collection systems, and hearing protection when appropriate. This applies to all persons in the work area.
• Do not overreach. Keep proper footing and balance at all times.
• Remove adjusting keys or wrenches before starting the Screed. A wrench or key that is left attached to a rotating part of the Screed may cause personal injury.
• No smoking, matches, or open flames around machine. Fuel is flammable.
• Do not touch hot surfaces.

- Engine exhaust contains carbon monoxide. This is a poison you can not see or smell. NEVER use.

SCREED USE AND CARE

• Do not force the Screed to perform an operation other than its intended use. Screeds do a better and safer job when used in the manner for which they are designed. Plan your work, and use the correct Screed for the job.
• Check for damaged parts before each use. Carefully check that the Screed will operate properly and perform its intended function. Replace damaged or worn parts immediately. Never operate the Screed with a damaged part.
• Store the Screed when it is not in use. Store it in a dry, secure place the reach of children. Inspect the Screed for good working condition prior storage and before re-use.
• Use only accessories that are recommended by the manufacturer for us with the Screed. Accessories that may be suitable for one Screed may create a risk of injury when used with another Screed.
• Keep guards in place and in working order.
• Keep the Screed board clean.
• Do not leave the Screed running unattended.
• Shut off the fuel valve when the engine is not in use.
• Only use the recommended fuel to avoid damaging the equipment.
• Oil does not come with the machine. Add oil to the engine before the use.
• Check oil levels before operating the machine.
• DO NOT refuel the engine while it is still hot. Fuel is flammable.
• DO NOT service the engine while it is still hot.

Specific Operation Warnings

To avoid fatal accident

• Stop the engine before refueling and be careful not to spill fuel during refueling. Spilled fuel may ignite causing afire.
• Do not refuel the engine near flammable objects to avoid fire.

- Do not run the engine in enclosed areas to prevent carbon monoxide poisoning.

To protect the operator

- When fatigue from operation, the operator must stop the machine and take break.

- Hearing protection is required as this machine creates a noise emission while 1 m (3 feet) away from the equipment.

To avoid injury or damage

- The plate compactors are only operated by authorized persons who:

• are at least 18 years of age.

- are physically and mentally able to operate the screed.

- are properly trained in the operation and the maintenance of the screed by the owner or its authorized representative.

- are assessed to be able to carry out their duties reliably.

- People who are drinking alcoholic beverages and/or taking drugs are not allowed to operate the plate compactor.

- People are not allowed to enter into the danger zone of the screed.

- The operator has to monitor the danger zone all the time. It is not allowed to operate if there is a person in the danger zone.

- The operator has to give warning signs in case of an emergency situation

- The screed can only be operated when adequate stability is granted.

- The operator has to control the running speed of the screed all the tin during its operation so that the screed can be stopped at any time.

- The operator must turn off the screed completely as described in this manual before leaving the operating position. Also, the screed must be secured against unauthorized use.

- The engine has to be turned off and secured against re-starting by pull out the sparking plug socket during the maintenance and servicing.

- The operator has to control the screed as regards functions and obvious defects before use.

• Discovered defects must be reported to supervising personnel and to th

operator. Do not leave the defects which may cause serious injury of the operator.

• Do not operate the screed when a defect endangers the safety of the operator until the defect is rectified.
• The screed has to be checked by an expert on a regular basis (at least once a year). And it must be checked by an expert before the initial use and after the essential modification.
• During the operation, the operator has to monitor other objects within a radius of 20m in case of lighting.

• The screed generates mechanical heat so do not touch the body of engine, muffler or other parts during the operation, which may cause heat burn. Please wait until it cools down to touch.

• The operator must be fully equipped with safety equipment includ crash helmet, safety gloves, safety shoes, safety glasses and mask before operating the screed.

• Do not transport the screed with fuel in its fuel tank by the motor
• Do not lift the screed by a person when putting on and off from Always use a proper lifting crane to move. Lifting by person may of personal injury due to its heavy weight.
• Make sure to securely fasten the screed for transportation. Impro fastening as holding the handle of the screed during the transporta may cause an injury.
• Note: Refer to the engine's instruction manual if there is a problem question about it before or during its operation.

Assembly Instructions

Screed Assembly

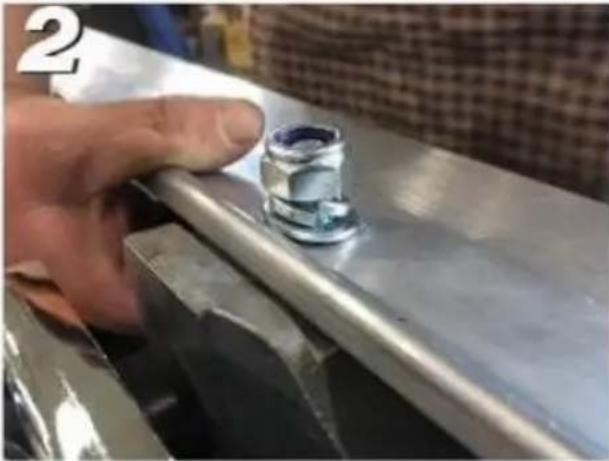

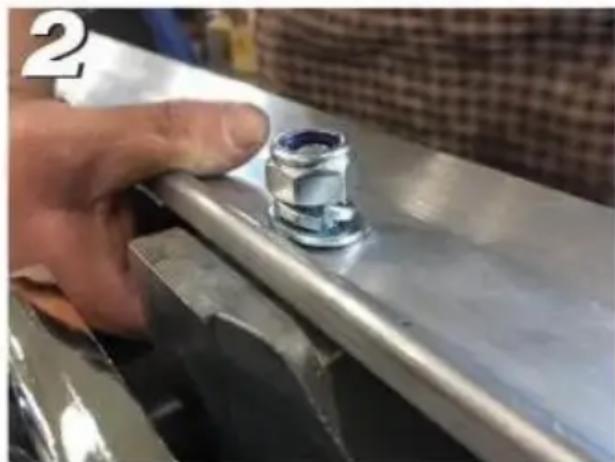

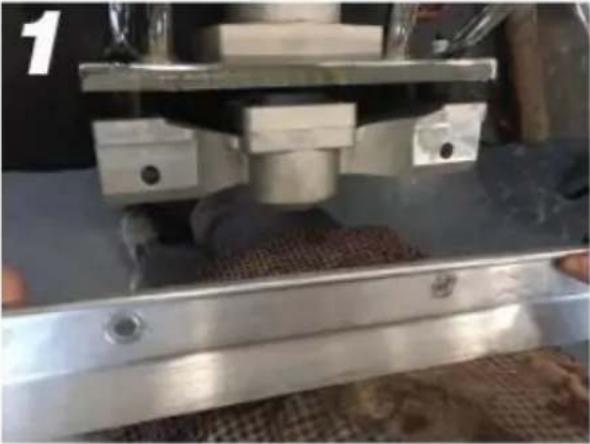

Line up blade with assembly.	Attach washers, locking screws, and bolts.

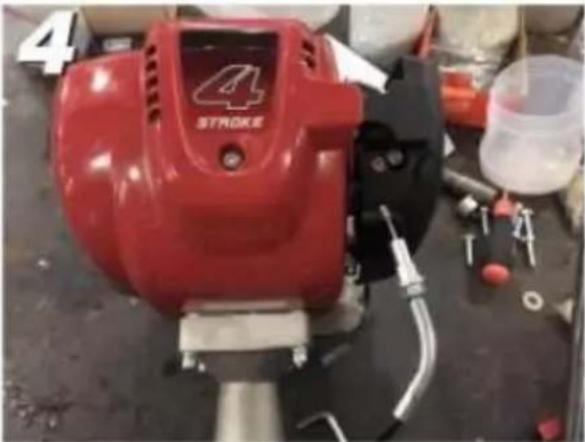

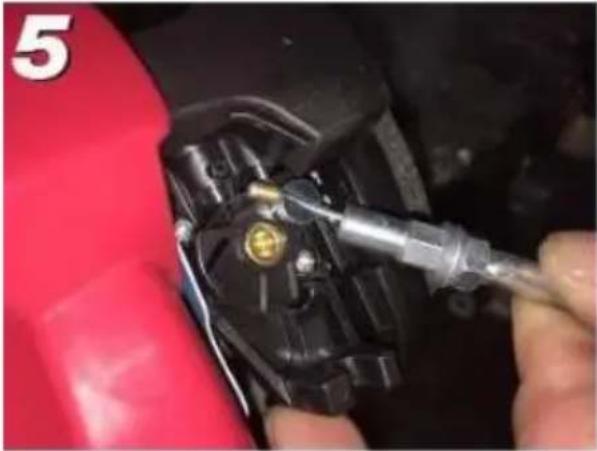

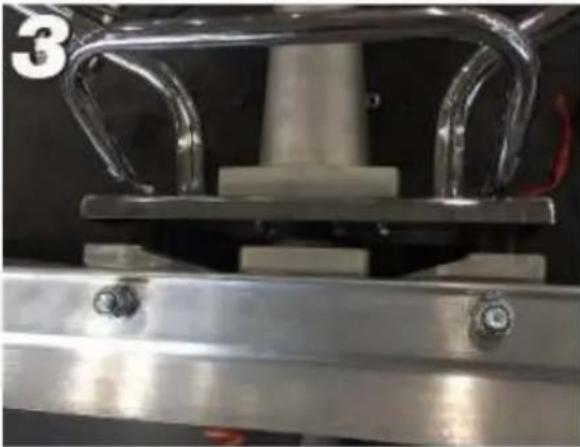

Repeat Step 2 for the second ho	Connect accelerator cable to engine.

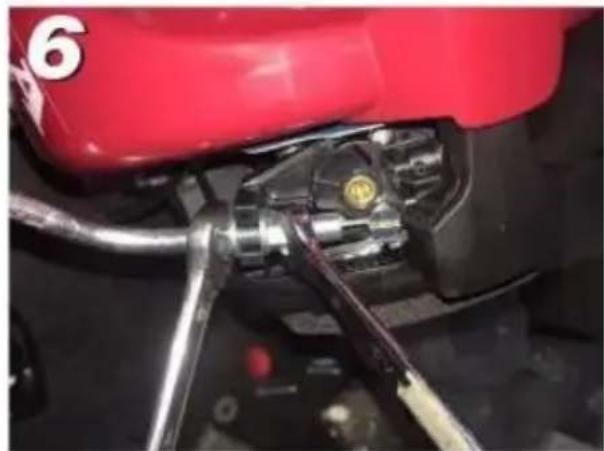

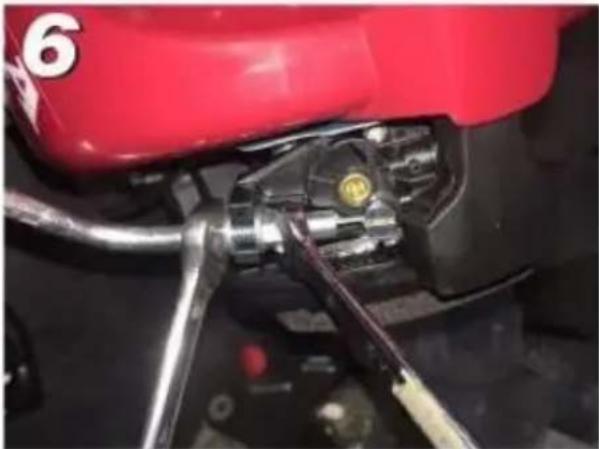

Locate accelerator screw found o engine and place cable through t gap.	Tighten and make sure that whe you pull accelerator handle, the cable engages engine.

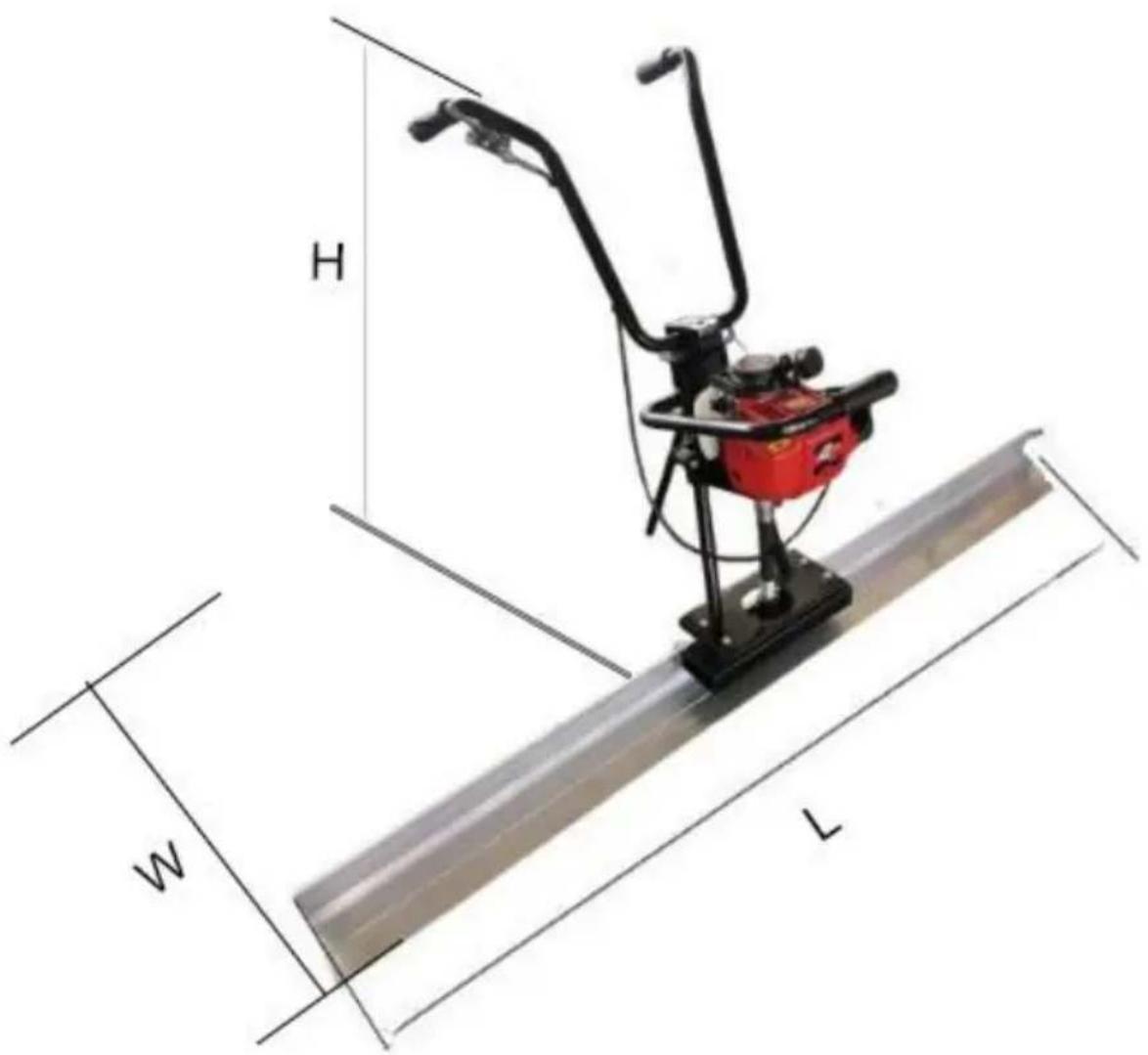

Dimension

H W L

Model	L(mm)	W(mm)	H(mm)
ZPJ-25A-6	1830	670	730-1060
ZPJ-25A-8	2445	670	730-1060
ZPJ-25A-11	3370	670	730-1060
ZPJ-25A-6/8/11	3370	670	730-1060

Before Each Use

Preparation for operation

1) Check all bolts, nuts, and bolts and tighten any that are loose.

2) Get the desired length of screed board.

Recommended Fuel

1) The screed engine requires regular unleaded gasoline. Use only fresh, clean fuel. Fuel containing water or dirt will damage the fuel system. Consult engine owner's manual for complete fuel specifications.

Before starting Engine

1) Read and understand the safety and operating instructions manual for the engine.
2) Check:

• Oil level in engine.
• Fuel level.
• Condition of air cleaner.
• Tightness of external fasteners.
• Condition of fuel lines.
• Wear of spark plug.

Operating Instructions

WARNING

Read and understand both the screed user's manual (this manuals the engine manual before starting or operating the screed to avoid incorrect operation that may result in damage or injury.

Starting the Engine

1. Perform all the Before Each Use steps.

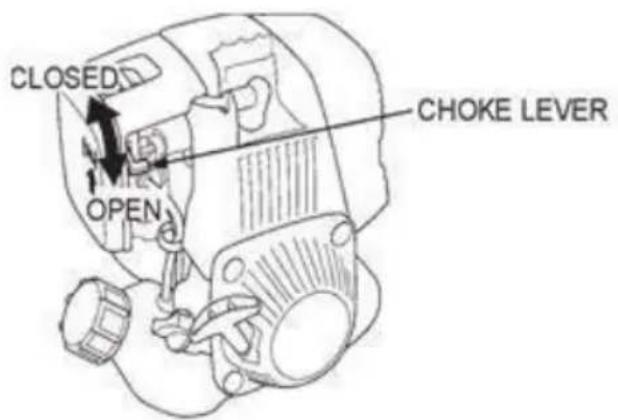

2. To start a cold engine, move the choke lever to the CLOSED position. restarting a warm engine leave the choke lever in the OPEN position.

CLOSED OPEN CHOKE LEVER

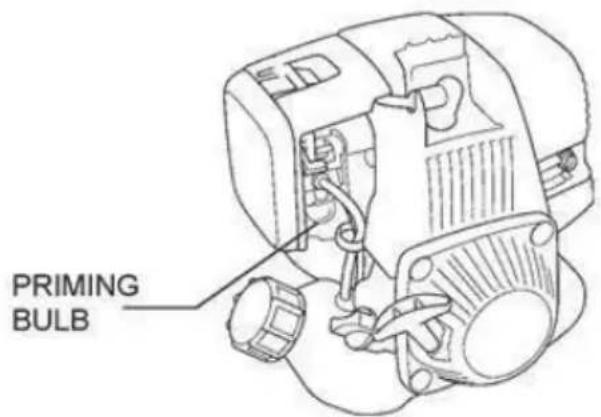

1. Press the priming bulb repeatedly until fuel can be seen inside the clear plastic bulb.

PRIMING BULB

1. Move the throttle lever slightly in the direction of the arrow.

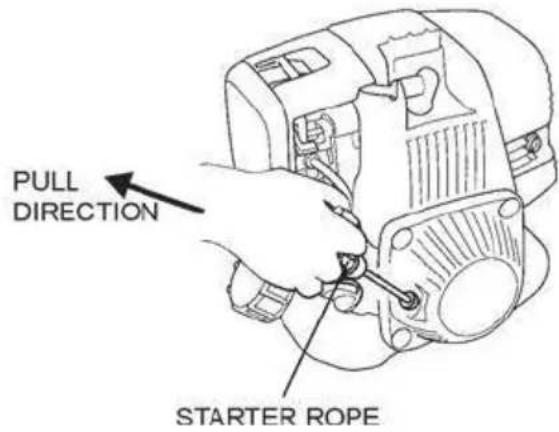

2. Pull the starter rope (Figure 03) lightly until you feel resistance, then put briskly in the direction of the arrow. Return the starter rope gently.

PULL DIRECTION STARTER ROPE

1. Once the engine has started, open the choke and allow engine to idle 3 to 5 minutes to warm-up.

Operation

Read and understand both the engine and compactor user's manual before starting or operating the compactor to avoid incorrect operation that may result in damage or injury.

Note: When ever high speed operation is NOT required, slow the e by moving the throttle lever to a low position to save fuel and ext life of the equipment.

1. Once the engine has started and warmed up, open the throttle fully in direction of the arrow to operate the screed.
2. Slowly move the screed backwards watching for smooth concrete in front of the screed.

Stopping the Engine

In an emergency situation, turn off the engine switch immediately. In normal conditions, do not stop the engine when the screed is at high sp or the engine temperature will rise suddenly, possibly causing engine part to jam or the oil to deteriorate.

Note: To stop the engine in an emergency, simply press the Eme Stop Switch on the handle.

To stop the engine normally:

1. Reduce the engine speed by moving throttle completely in the opposite direction of the arrow and let the engine idle for 2 - 3 minutes before to it off.
2. Press the emergency stop switch on the handle.

Please see the instruction manual of engine for further detailed information.

After Each Use

Clean up

Clean the screed and screed board. Clean the screed and screed board

with water to remove all concrete but take care that the engine does not wet. The screed board can be thinly coated with diesel fuel to help prevent rust and more easily remove concrete.

Clean the engine cylinder cooling fins. A broom or old brush are good to remove concrete before it becomes solid.

Refer to the engine manual for more information about the engine.

Storage

In case of storing the screed and board for a long period of time (for m than 30 days):

1) Clean the screed as described above.
2) Remove the board from the screed as described in this manual.
3) Drain the fuel tank and run the engine briefly until the fuel in the fuel the carburetor is completely consumed
4) Change the engine oil and follow procedures described in engine manu for engine storage.
5) Clean or replace the engine air filter.
6) Store the Screed and board separately in a clean, dry area.
7) Cover the screed and board completely with dry cloth.

Maintenance

Check that the compactor engine is turned off and cooled before attempting any maintenance, cleaning, or inspection. Performing maintenance on an operating compactor can cause injury.

Maintain the Screed by adopting a program of conscientious repair and maintenance in accordance with the following recommended procedures: Also refer to the engine manufacturer's instruction manual for additional information about engine maintenance. The following chart is based on a normal operation schedule.

Maintenance Interval	Maintenance Point
Daily before operating	Check the fuel level.Check the engine oil level.Inspect the fuel lines.Inspect the air filter and replace it if needed.Check and tighten the external hardware
After the first 20 operating hours or 3 months	Change the engine oil.
After the first 50 operating hours or every 6 months	Clean the air cleaner element.Change the engine oil.Check and clean the spark plug.
After the first 100 operating hours or every year	Clean the fuel strainer.
After the first 200 operating hours or every 2 years	Check and adjust the valve clearance.Clean the cylinder head.Replace the spark plug.

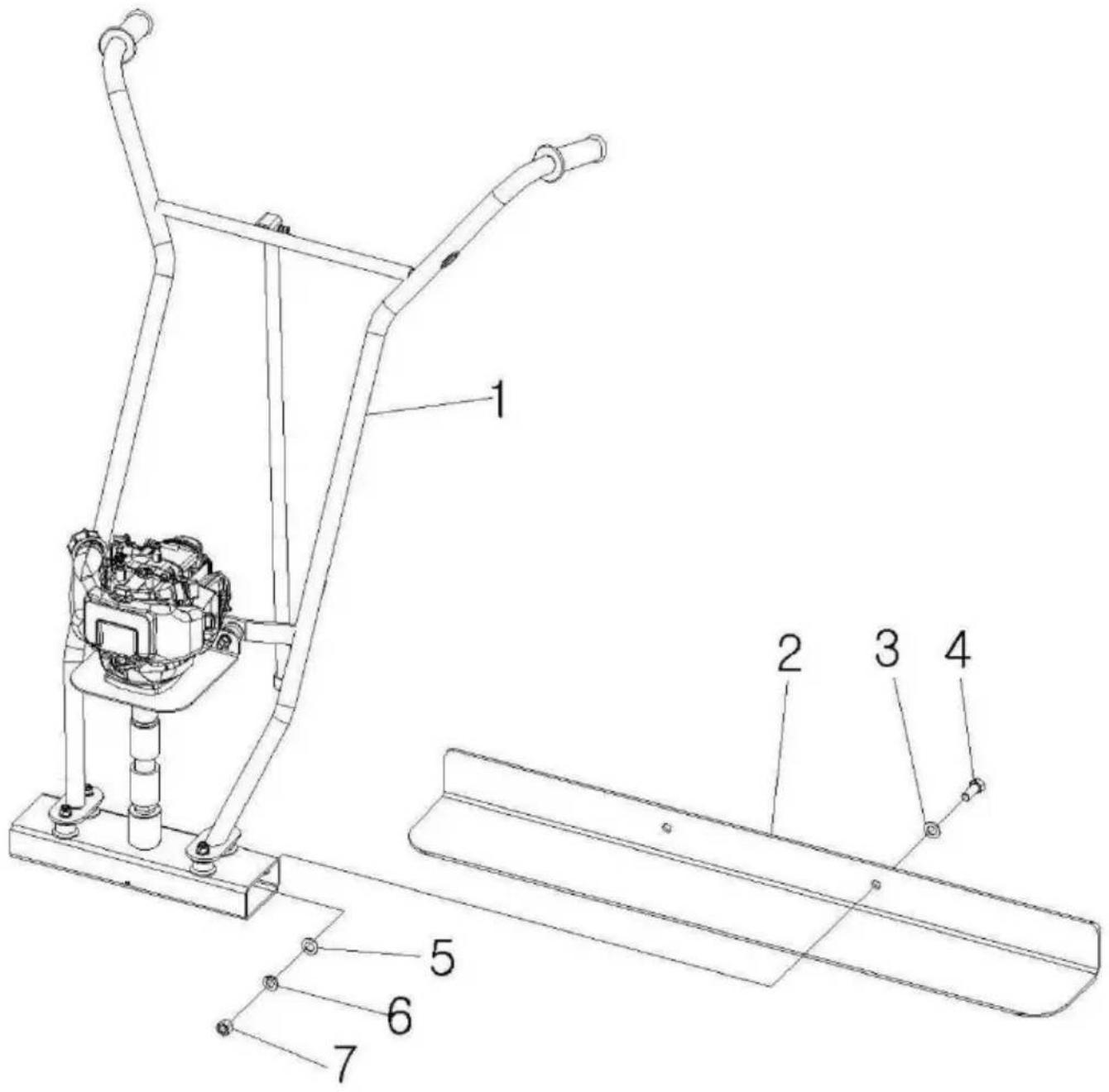

No.	Descriptions	Size or Dimension	Qty
			Fit model
			ZPJ-25A-6	ZPJ-25A-8	ZPJ-25A-11	ZPJ-25A-6/8/11
1	Concrete Screed Head		1	1	1	1
2	Screed Board 6 ft	6ft	1	/	/	1
	Screed Board 8 ft	8ft	/	1	/	1
	Screed Board 11	11ft	/	/	1	1
3	Plain Washer	M12	2	2	2	2
4	Bolt	M12x40	2	2	2	2
5	Plain Washer	M12	2	2	2	2
6	Spring Washer	M12	2	2	2	2
7	Cap Nut	M12	2	2	2	2

Technical diagram of a mechanical device with numbered components for identification

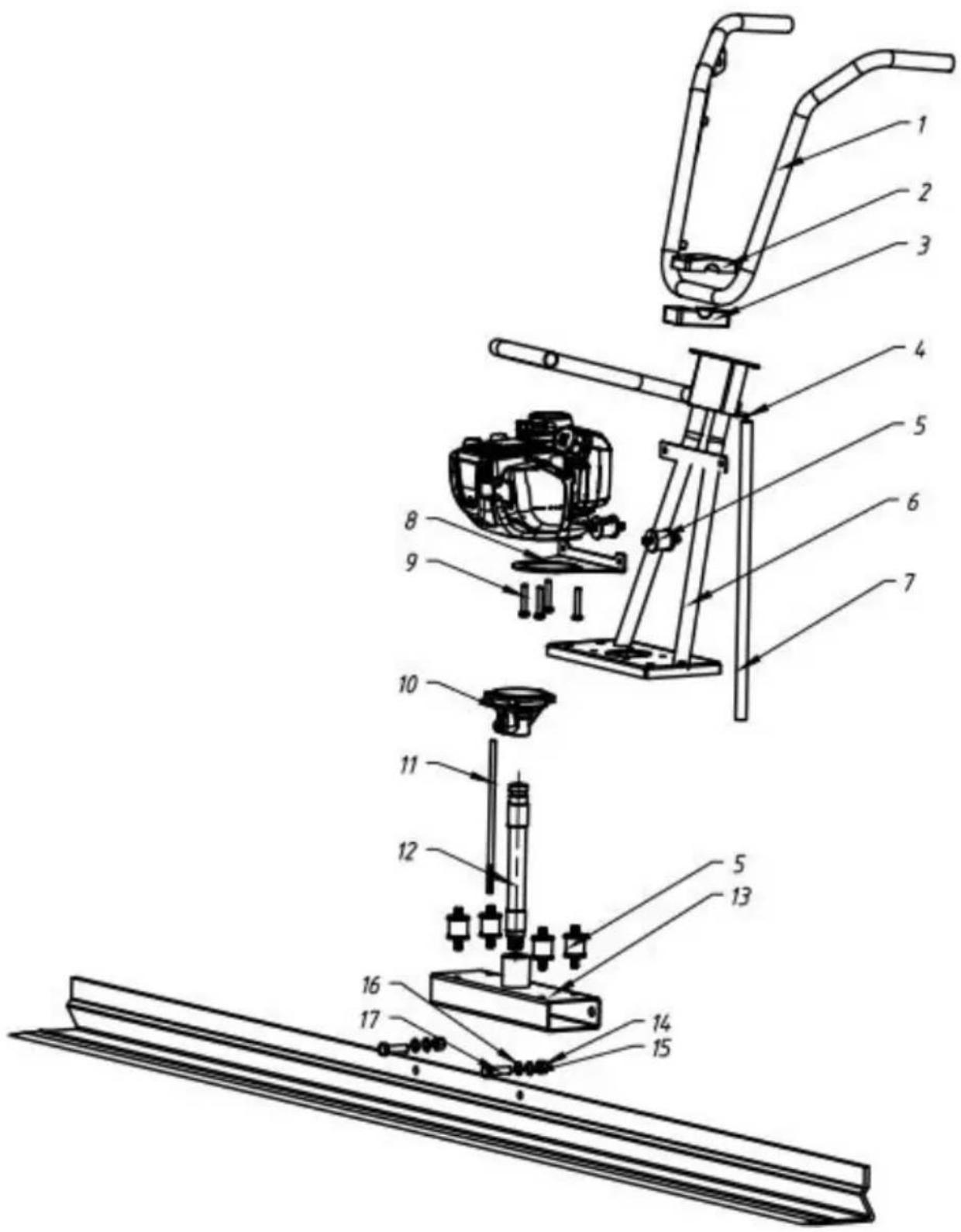

Explosion Diagram

Technical diagram of a mechanical assembly with numbered components for identification

No.	Descriptions	Qty	Size or Dimension
1	Handle Welding Assembly	1	ZPJ-25A.2
2	Clamping block	1	ZPJ-25.9
3	Clamping block	1	ZPJ-25.10
4	Pin shaft	1	GB/T882-B6*35
5	Handle Support Rubber	6	TVSA-T.18
6	Handle Welding Assembly	1	ZPJ-25A.1
7	Handle Support Pipe	1	ZPJ-25.12
8	Engine Plate	1	ZPJ-25A.3
9	Bolt	4	GB/T70.1-M6*30-10.9
10	Clutch Housing Assembly	1	TVSA-T.15
11	Wire	1	TVSA-T.16
12	Rubber hose	1	TVSA-T.17
13	Vibratory Housing Assembly	1	TVSA-T.14
14	Nut	2	GB/T6170-M12
15	Plain Washer	2	GB/T97.1-φ12
16	Spring Washer	2	GB/T93-φ12
17	Bolt	2	GB/T5783-M12*40

Parts list

No.	Name	Picture	Qty
1	Hex key(S=4)		1
2	Hex key(S=6)		1
3	Socket wrench
4	Dual-purpose wrench(S=18)		2
5	hex head screws kit (M12*40)		2
6	Manual		1
7	Emission declaration		1

Troubleshooting

Please check the list below before addressing the problems to servicing personnel including local dealer. And if the problem continues after the troubleshooting as described below, call your local dealer for future assistance.

Failure	Possible Cause	Remedial Measure
Vibrates insufficient and as a result the concrete floor can’t be leveled and smoothed in the proper way.	The centrifugal force is too low.	Increase engine speed.
	There are excessive amounts of concrete along the leading edge of the board.	Remove the excessive concrete from the board.
	The chosen width of the board is too large	Work with a smaller board.
Concrete looks “WAVY” as the screed board passes over it	Operator moving too slowly	Walk backwards at a faster pace.
	Too much vibration for the type of concrete	Reduce engine speed and walk backwards at a faster pace.
Leaving HIGH or LOW spots during wet screeding.	Concrete too high or low on one side?	Have workers shape the concrete close as possible to grade. Maintain about 1 inch of concrete across the front of the board at times.
Board digs into wet concrete.	Is board positioned correctly?	Each end of the board must ride on the same surface. Either each end of the board ride on forms or concrete (wet screed) not both

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC REP SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany

Tel: [phone] [e-mail]

UK REP: Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilions Preston, United Kingdom

Tel: [phone] [e-mail]

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE : ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

MODÈLE : MODÈLE : ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

Red and black manual pusher machine mounted on a metal rack (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GARANTIES IMPORTANTES

Close-up of a mechanical testing machine with a meshed material and metal components (no visible text or symbols)

Hand adjusting a small metallic component on a metal shelf (no visible text or symbols)

Close-up of a mechanical testing setup with metallic components and tubing (no visible text or symbols)

Red STROKE electric motor on a workbench with tools and components (no visible text or symbols)

Close-up of a red automotive component being adjusted with a tool, no visible text or symbols

Close-up of a red car wheel with visible mechanical components and a numbered number 6 (no text or symbols on the main subject)

PRIMING BULB

Technical diagram of a mechanical device with numbered components for identification

Diagramme éclaté

Technical diagram of a mechanical assembly with numbered components for identification

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

MODELL: MODELL: ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

Red and black manual pusher machine mounted on a metal rack (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Close-up of a mechanical testing machine with a meshed component and control panel (no visible text or symbols)

Close-up of a hand adjusting a small metallic component on a metal surface (no visible text or symbols)

PRIMING BULB

Technical diagram of a mechanical device with numbered components for identification

Explosionsdiagramm

Technical diagram of a mechanical assembly with numbered components for identification

UK REP: Pooledas Group Ltd

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELLO: ZPJ-25A-6、ZPJ-25A-8、ZPJ-25A-11 ZPJ-25A-6/8/11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

MODELLO:MODELLO: ZPJ-25A-6、ZPJ-25A-8、ZPJ-25A-11 ZPJ-25A-6/8/11

Red and black manual pusher machine mounted on a metal rack (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

TUTELA IMPORTANTE

Close-up of a mechanical testing machine with a textured surface and control panel (no visible text or symbols)

Close-up of a hand adjusting a small metallic mechanical component on a metal surface (no visible text or symbols)

PRIMING BULB

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical assembly with numbered components for identification

Importato in AUS: SIHAO PTY LTD.1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANTE CE: SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germania

Tel: [phone] [e-mail]

REP. DEL REGNO UNITO: Pooledas Group Ltd

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELO: ZPJ-25A-6、ZPJ-25A-8、ZPJ-25A-11 ZPJ-25A-6/8/11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

MODELO: MODELO: ZPJ-25A-6、ZPJ-25A-8、ZPJ-25A-11 ZPJ-25A-6/8/11

Red and black manual pusher machine mounted on a metal rack (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Close-up of a mechanical testing machine with a textured surface and control panel (no visible text or symbols)

Close-up of a hand adjusting a small metallic component on a metal surface (no visible text or symbols)

PRIMING BULB

Technical diagram of a mechanical device with numbered components for identification

Technical diagram of a mechanical assembly with numbered components for identification

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELE: ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

MODEL:MODEL: ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

Red and black manual pusher machine mounted on a metal rack (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAŻNI OCHRONIARZE

BEZPIECZEŃSTWO W MIEJSCU PRACY

PRIMING BULB

Technical diagram of a mechanical device with numbered components for identification

Schemat eksplozji

Technical diagram of a mechanical assembly with numbered components for identification

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

BETONNEN DEKVLOER

MODEL: ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

MODEL: MODEL: ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

Red and black manual pusher machine mounted on a metal rack (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

BELANGRIJKE VEILIGHEIDSMAATREGELEN

PRIMING BULB

Technical diagram of a mechanical device with numbered components for identification

Explosiediagram

Technical diagram of a mechanical assembly with numbered components for identification

Nee.	Beschrijvingen	Aantal	Grootte of afmetin
1	Handvat lasmontage	1	ZPJ-25A.2
2	Klemblok	1	ZPJ-25.9
3	Klemblok	1	ZPJ-25.10
4	Pin-as	1	GB/T882-B6*35
5	Handvatsteunrubber	6	TVSA-T.18
6	Handvat lasmontage	1	ZPJ-25A.1
7	Handvatsteunpijp	1	ZPJ-25.12
8	Motorplaat	1	ZPJ-25A.3
9	Bout	4	GB/T70.1-M6*30-10.9
10	Montage koppelingshuis	1	TVSA-T.15
11	Draad	1	TVSA-T.16
12	Tuinslang	1	TVSA-T.17
13	Trilhuisconstructie	1	TVSA-T.14
14	Noot	2	GB/T6170-M12
15	Gewone wasmachine	2	GB/T97.1-φ12
16	Veerring	2	GB/T93-φ12
17	Bout	2	GB/T5783-M12*40

Onderdelen lijst

Anaheim Place, Rancho Cucamonga, CA 91730

EG-REP: SHUNSHUN GmbH.

Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Duitsland

Tel: [phone] [e-mail]

VK REP: Pooledas Group Ltd

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODELL: ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repressor estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if you actually saving half in comparison with the top major brands.

MODELL: MODELL: ZPJ-25A-6, ZPJ-25A-8, ZPJ-25A-11 ZPJ-25A-6/8/11

Red and black manual pusher machine mounted on a metal rack (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

VIKTIGA SÄKERHETSÅTGÄRDER

Close-up of a mechanical testing machine with a meshed material and metal components (no visible text or symbols)

Hand pressing a small metallic component on a metal surface (no text or symbols visible)

Close-up of a mechanical assembly with metallic components and a white cylindrical component (no visible text or symbols)

Red STROKE electric motor on a workbench with tools and components nearby (no visible text or symbols)

Close-up of a red motorcycle brake caliper being adjusted with a tool (no visible text or symbols)

Close-up of a red motorcycle's wheel and engine components, no visible text or symbols

PRIMING BULB

Technical diagram of a mechanical device with numbered components for identification

Explosionsdiagram

Technical diagram of a mechanical assembly with numbered components for identification

Nej.	Beskrivningar	Antal	Storlek eller dimension
1	Handtagssvetsenhet	1	ZPJ-25A.2
2	Klämblock	1	ZPJ-25,9
3	Klämblock	1	ZPJ-25.10
4	Stiftaxel	1	GB/T882-B6*35
5	Handtagsstödgummi	6	TVSA-T.18
6	Handtagssvetsenhet	1	ZPJ-25A.1
7	Handtagsstödrör	1	ZPJ-25.12
8	Motorplatta	1	ZPJ-25A.3
9	Bult	4	GB/T70.1-M6*30-10.9
10	Kopplingshusenhet	1	TVSA-T.15
11	Tråd	1	TVSA-T.16
12	Gummislang	1	TVSA-T.17
13	Vibrerande husmontage	1	TVSA-T.14
14	Nöt	2	GB/T6170-M12
15	Vanlig bricka	2	GB/T97.1-φ12
16	Fjäderbricka	2	GB/T93-φ12
17	Bult	2	GB/T5783-M12*40

Lista över delar

UK REP: Pooledas Group Ltd

Enhet 5 Albert Edward House, The Pavilions Preston, Storbritannien

Tel: [phone] [e-mail]

Tillverkad i Kina

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
