USER MANUAL CM03 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CROSS LINE LASER

MODEL:CM03/04

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

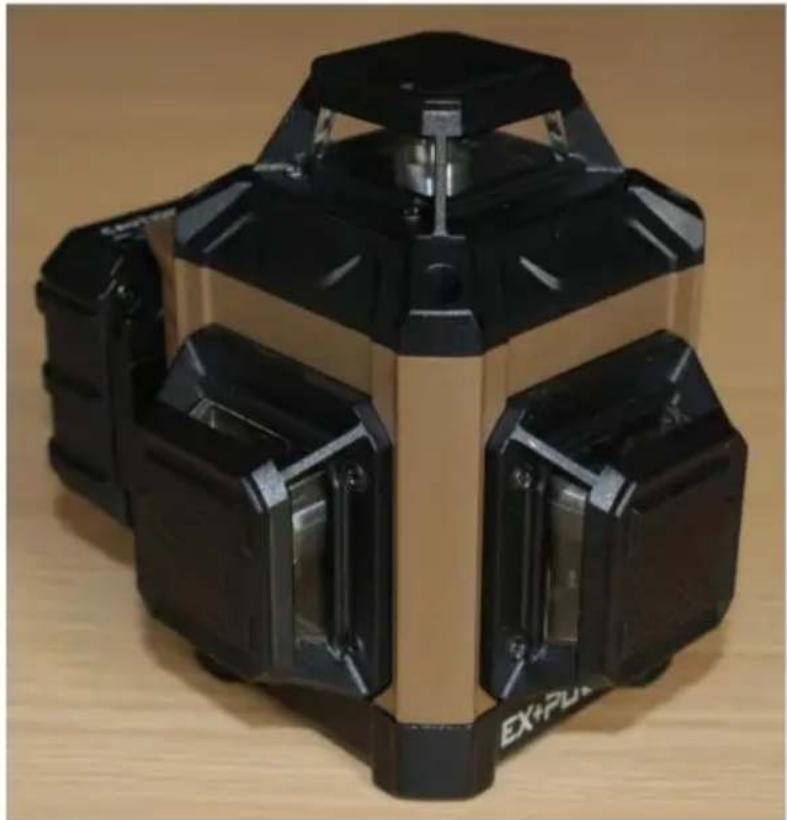

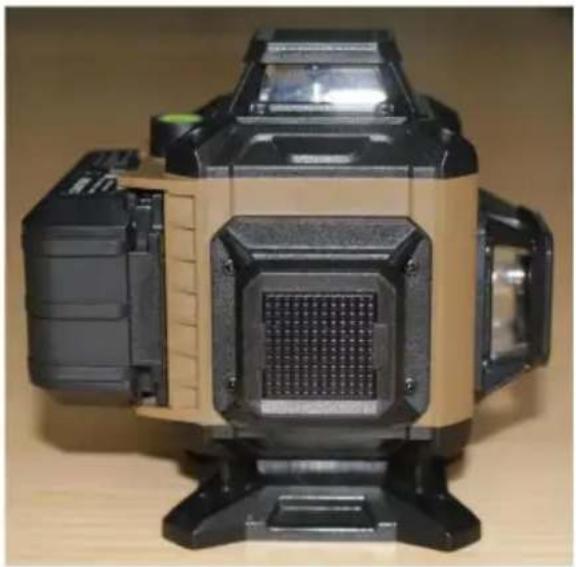

CROSS LINE LASER

MODEL:CM03/04

Exterior view of a black and beige 3D-printed mechanical device with hexagonal top structure (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

[e-mail]

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, users must read instr manual carefully.
	Warning- Be sure to wear eye protectors when using this
	This symbol, placed before a safety comment, indicates a precaution, warning, or danger. Ignoring this warning may le accident. To reduce the risk of injury, fire, or electrocu , please follow the recommendation below.
	FCC statement:This device complies with Part 15 of the FCC Rules. Op subject to the following two conditions:(1)This device may n harmful interference, and (2)this device must accept any inte received, including interference that may cause undesired op

Contents

• Safety
  • Product Overview
  • Operation Modes & LED Indications
• Applications
• User Guide, Maintenance and Care
• Specifications
• Warranty

Safety

WARNING:

- Read the Safety Instructions and User Manual thoroughly before using this product. All users must fully understand and adhere to these instructions.

CAUTION:

- While the product operates, avoid exposing your eyes to the emitting laser Exposure to a laser beam for an extended time may be hazardous to your

CAUTION:

- Glasses may be supplied in some of the laser tool kits. However, these are certified safety glasses. These glasses are ONLY used to enhance the beam's visibility in brighter environments or at greater distances from a laser source.

WARNING:

- The following label/print samples are placed on the product to inform of the class for your convenience and safety.

CAUTION LASER RADIATION-DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS CLASS 2 LASER PRODUCT Max Output≤1 mW @630-670nm

• Do not stare directly into the beam or view with optical instruments, or se laser at eye level.
• Do not disassemble the laser tool. There are no user-serviceable parts inside
• Do not modify the laser in any way. Modifying the tool may result in hazard, Laser Radiation Exposure.
• Do not operate the laser around children or allow children to operate the Serious eye injury may result.

An exposure to the beam of a Class 2 laser is considered safe for a maxi 0.25 seconds. Eyelid reflexes will normally provide adequate protection.

Function

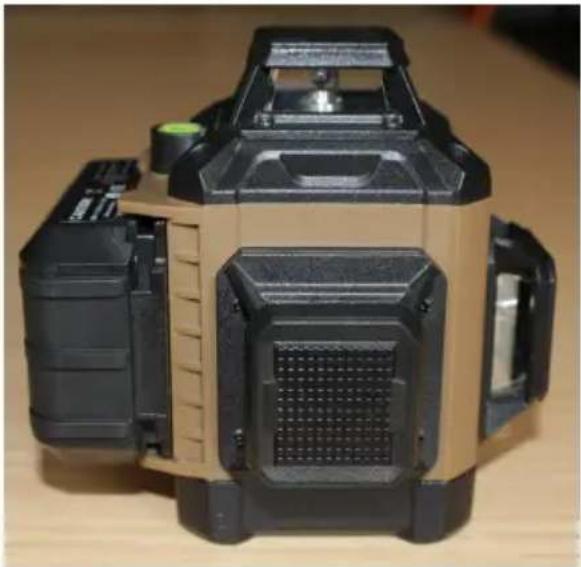

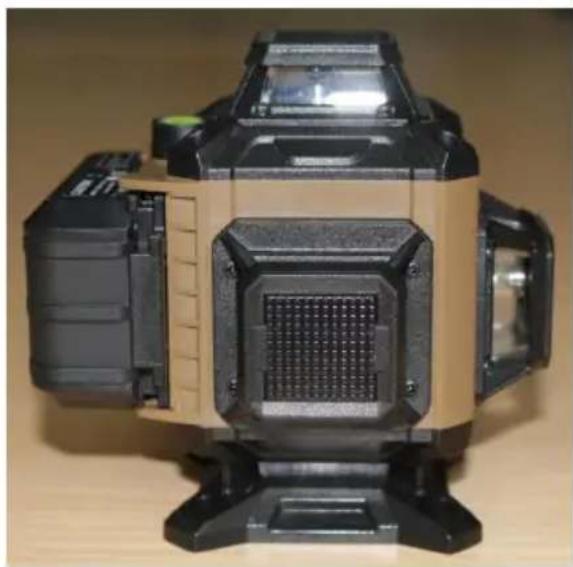

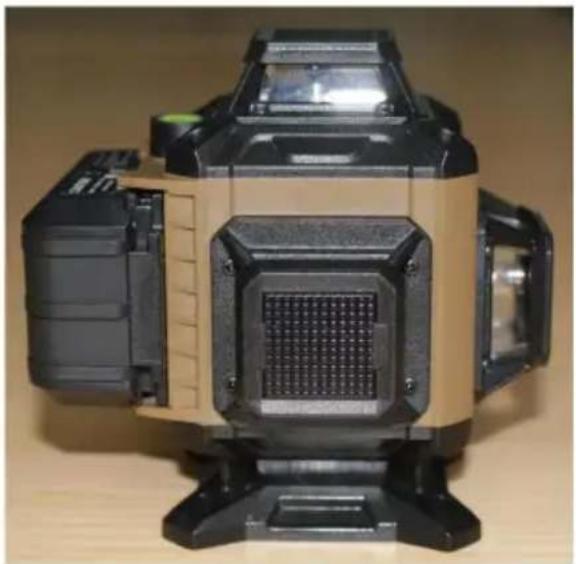

CM03 can emit three 360° laser lines, one horizontal and two vertical.

CM04 can emit four 360° laser lines, two horizontal and two vertical.

Exterior view of a beige and black electronic device with visible ports and mounting brackets (no text or symbols)

Close-up of a black and beige electronic device with visible internal components and mounting feet (no text or symbols)

CM03 CM04

Self-leveling Mode

Slide the lock switch to the unlocked position and horizontal lines turned on. short press H can turn ON/OFF the horizontal laser line, and a quick press turn ON/OFF the vertical laser line. (The horizontal and vertical laser lines can work singly and simultaneously.)

When the laser level is in Self-leveling mode, it can work within 3^ ± 1^ . If the level is out of working range, the unit will flash rapidly and laser tool will be alarm.

Pulse Mode

A short press “M” on the keypad to activate the Pulse Mode. The beams with dim and it can work with the laser receiver in this mode.

Manual Mode

Long press “M” to turn on/off manual mode. The laser level doesn’t flash or beep if it’s out of the leveling range. In this mode, the customer can have the

Brightness Adjustment Mode

Hold the "H" button and all the beams turn dimmer until the lines can't be Hold the "V" button and all the beams turn more bright until brightest. This operation can work both in the self-leveling mode and the manual mode.

User Guide, Maintenance and Care

• The laser tool is sealed and calibrated at the plant for specified accuracy.
• It's recommended to carry out an accuracy check before its first use and checks during future use especially for precise layouts.
• When not in use please power OFF the tool and place the pendulum lock its locked position.
• In Manual Mode, self leveling is OFF. The accuracy of the beam is not be level.
• Do not short any battery terminals, charge alkaline batteries, or dispose of batteries in a fire.
• Do not mix old and new batteries. Instead, replace all of them simultaneous with new batteries of the same brand and type.
• Keep batteries out of reach of children.
• Remove batteries if the tool will not be used for several months.
• Do not store the laser tool in direct sunlight or expose it to high temperature. The housing and some internal parts are made of plastics and may deform temperatures.
• Exterior plastic parts may be cleaned with a damp cloth. Although these pa are solvent resistant, NEVER use solvents. Use a soft, dry cloth to remove moisture from the tool before storage.
• Store the tool in its case when not in use. If storing for an extended tim batteries before storage to prevent possible damage.
• Do not dispose of this product with household waste.
  • Always dispose of batteries per local code.
• Please recycle in line with local provisions for the collection and disposal of electrical and electronic waste under the WEEE Directive.

Specifications

Laser Wavelength	520±10nm
Laser Class	Class 2
Line Accuracy	±3mm/10m
Working Range	30m
Working Range (With Laser Detecto)	50m
Leveling Range	3°±1°
Leveling Time	3s
Li-Ion Battery	3.7V 5200mAh
Charger Output	5V1A
Working Time	8h(3CM) / 6h(4CM)
Working Temperature	-10°C~40°C
Storage Temperature	-20°C~60°C

NOTE:

- The customer is responsible for the correct use and care of the tool. Moreover, the customer is completely responsible for periodically checking the accuracy of the laser, and therefore for the calibration of the tool.

Made In China
