AE960D - Soldering station Vevor - Free user manual and instructions

Brand	Vevor
Model	AE960D
Type	Soldering Station
Total Power	75 W
Output Voltage	25 VAC
Temperature Range	50 to 500 °C (122 to 932 °F)
Temperature Stability	±2 °C (±4 °F) at 200 °C (400 °F)
Tip-to-Ground Impedance	< 2 Ω
Tip-to-Ground Voltage	< 2 mV
Heating Element	PTC Ceramic Heating Element
Display	Digital LED
Temperature Adjustment	Rotary Knob
Standby Mode	Yes (displays "SLP")
Calibration	Via calibration hole
Compatible Tips	T900M Series
Package Contents	Main unit, handle, stand, 5 tips, tweezers, desoldering pump, brass wool, sponge, 10g solder wire, manual
Power Supply	220-240 V AC (estimated)
Maintenance	Regularly clean the tip with brass wool and apply fresh solder
Safety	Do not touch the hot tip, use away from combustibles, turn off power after use
Certification	FCC Part 15, WEEE Directive 2012/19/EU
Warranty and Support	www.vevor.com/support

Frequently Asked Questions - AE960D Vevor

How to adjust the temperature on the Vevor AE960D station?

Use the rotary knob on the front panel. The temperature can be adjusted from 50 to 500 °C. The LED display shows the current temperature.

What to do if the temperature does not stabilize?

Check that the tip is tightly screwed. Clean the tip with brass wool. If the problem persists, calibration may be necessary via the calibration hole.

How to clean the soldering iron tip?

Set the temperature to 250 °C. Once stabilized, clean the tip with brass wool. If oxide is present, apply fresh solder and repeat until clean.

Which tips are compatible with the AE960D?

The T900M series tips are compatible. Contact Vevor for more information.

How to activate standby mode?

Standby mode activates automatically after a period of inactivity. The display shows 'SLP'. Press any key to deactivate.

How to calibrate the temperature?

Use an external thermometer. Insert it into the calibration hole and adjust the temperature via the knob. Refer to the manual for the exact procedure.

What safety precautions should I take?

Do not touch the hot tip. Use the station away from combustible materials. Turn off power after use. Wait for cooling before changing the tip.

What to do if the LED display is abnormal?

Turn off the station, unplug it and plug it back in after a few minutes. If the problem persists, contact Vevor support.

How to replace the heating element?

Unplug the station. Open the handle (as per instructions). Replace the PTC ceramic element. Caution: delicate operation, contact support if necessary.

Where to find spare parts?

Spare parts are available on the Vevor website or by contacting their technical support via www.vevor.com/support.

USER MANUAL AE960D Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

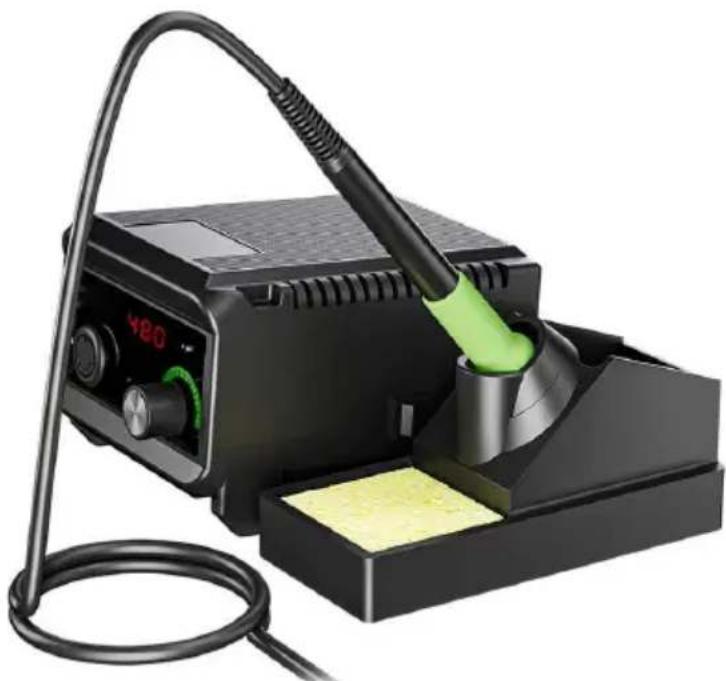

DIY SOLDERING STATION

MODEL: AE960D

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DIY SOLDERING STATION

MODEL: AE960D

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

SPECIFICATIONS

Model No.	AE960D
Total Power	75W
Output voltage	25VAC
Temperature range	50-500°C(122-932°F)
Temperature stability	±2°C(±4°F) {} 200°C(400°F)}
Tip to ground impedance	<2Ω
Tip to ground voltage	<2mV
Heating element	PTC ceramic heater

PACKING LIST

Main Unit 1, Handle 1, Iron Stand 1

Solder Tips 5, Tweezer 1, Desoldering Pump*1

Brass Wool with box 1, Sponge 1

10g Soldering Wire (Lead Free) 1, User Manual 1

SAFETY AND PRECAUTIONS

The precautions in this manual are divided into the following [warning] and [attention].

Warning: misuse may cause death or serious injury to the user.

Note: misuse may cause injury to users or substantial damage to objects.

For your own safety, please strictly abide by the following precautions.

WARNING

When power is on, the temperature of the soldering iron tip might be 50 ~ 500 °C (122 ~ 932°F).

Misuse may cause burns and fire, please strictly observe the following precautions:

• Do not touch the soldering iron tip or the metal part around it while it is hot.
• Do not use it around combustibles.
• Potential high temperature risk should be warned.
• Turn OFF the power when not in use.
• Before replacing parts or tip, turn off the power and wait until the iron cools down.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• If the power cord is damaged, please ask the manufacturer or its service agent or similar qualified personnel to repair it, so as to avoid personal injury or product damage.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

USING METHOD (AE960D)

1. Operation and display instructions

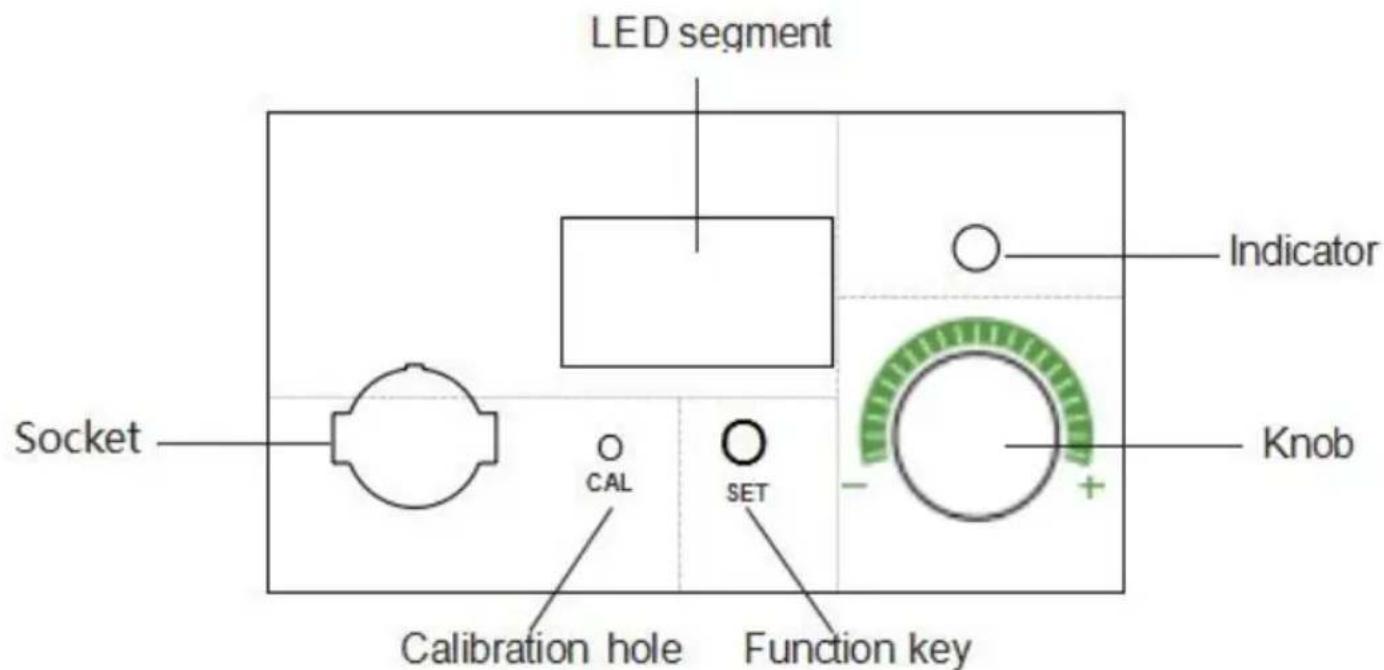

Panel display:

LED segment: digital display

Indicator: indicates the status of heater (light on/off means power on/off)

Function key: function operation (Press no more than 1s means short press, press over 1s means long press)

Knob: to adjust temperature

Calibration hole: to calibrate the temperature

2. Turn on the power switch

Turn on the power switch. The LED will light up and display "888" for 1 second followed by the temperature unit "--C" or "--F" for 1 second. If the standby function is enabled, it will then display "SLP" for 1 second. It will then display set temperature for 1.5 seconds, followed by the current actual temperature. Once the temperature stabilizes, the heating element's power indicator LED will start flashing.

MAINTENANCE

In order to make this product durable, please maintain it regularly. The lifespan of this product depends on the used temperature, quality of solder wire and solder paste, frequency of use etc. Please repair and maintain it according to specific conditions.

Warning: Please pay close attention when the soldering station is in temperature, turn off the power and unplug the power cord after use.

Soldering iron tip maintenance

1. Set the temperature to 250°C (480°F).
2. After the temperature is stable, clean the soldering iron tip with a brass wool and check its condition.
3. If black oxide is attached to it, please apply new solder (including flux) at it repeatedly with a brass wool until it's clean, then apply some new solder.
4. If the soldering iron tip has been deformed, perforated or worn out, please replace it with a new one.

T900M SERIES SOLDERING TIPS (AE960D)

(More soldering tips information please contact us)

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause

harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

CORRECT DISPOSAL This product is subject to the provision of european 2012/19/EU. The symbol showing a wheelie bin crosse through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal d waste, but must be taken to a collection point for re electrical and electronic devices.
