USER MANUAL 1A-SS715 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SAUSAGE STUFFER

MODEL:1A-SS715

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

SAUSAGE STUFFER

MODEL:1A-SS715

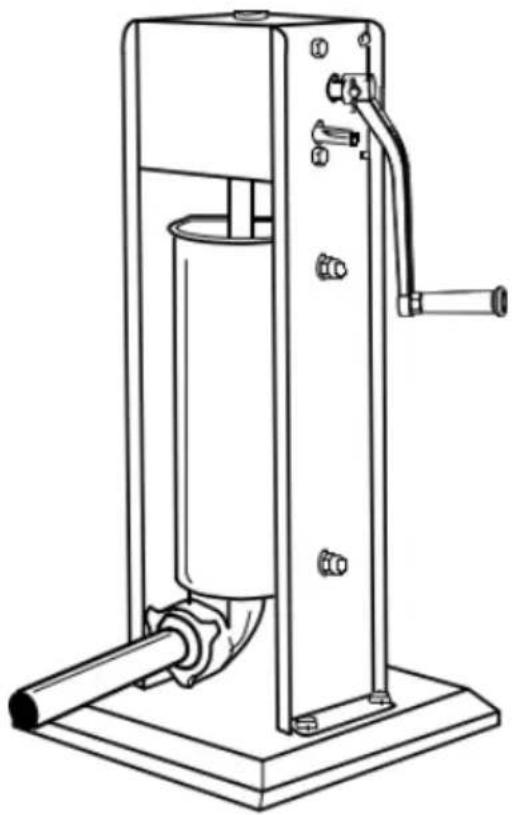

Technical line drawing of a vertical industrial press device with cylindrical tank and pipe (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING: Before operating this device, please read this instruction manual completely and keep it handy for future reference. Always follow basic safety precautions when using these devices. These include:

1. Do not allow children younger than 14 years old to use the machine. This product may only be used or maintained by children 14 years of age or old individuals with reduced physical, sensory, or mental capacities, or unskilled individuals with adequate adult supervision. Children must not play with the device.
2. For optimal operation and service life of the device, please follow the instructions.
3. Food acids will corrode the metal. Always clean this food preparation equipr immediately after every use. To maintain the appearance and increase the se life, clean it daily.
4. The use of accessories or modifications not provided by the manufacturer in cause hazards. This product must only be used for its intended purpose and manner indicated in the instructions. All other types of use shall be considered inappropriate and hazardous. The manufacturer shall not be responsible for any improper or incorrect use and installation damage.

General Safety Regulations

WARNING: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could occur. It must be understood by the operator that common sen caution are factors that cannot be built into this product, but must be supplied by the operator.

Please use this machine according to these cautions. The user should understand all rules. Please carefully read them before you operate the machine. This machine may cause harm to the health of the operator

user removes or changes equipment in the machine.

We are not responsible for any injuries resulting from improper operat this machine. Please operate according to “Operation Method” instructic and follow the proper operation procedures while using. Take care wh assembling and operating, in order to avoid scratching skin. Please re the instruction manual.

1. CHECK FOR DAMAGED PARTS. Before using the stuffer, check that parts are operating properly and perform the intended functions. Check binding of moving parts, mounting and any other conditions that may the operation.
2. The Manufacturer declines any responsibility in the case of improper of the stuffer. Improper use of the stuffer will VOID the warranty.
3. Repair must be done by an authorized dealer. Use only factory origin parts and accessories. Modification of the stuffer will VOID the warrant
4. Be sure the stuffer is stable during use.
5. NEVER operate the stuffer with the gear housing cover open or rer WEAR EYE PROTECTION! Everyday eye glasses are not safety glass Safety glasses conform to ANSI Z87.1 requirement. Note: Approved sa glasses have Z87 printed or stamped on them.
6. Do not use outdoors.

SAVE THESE INSTRUCTIONS

PLUNGER ASSEMBLY

1. Slide the Plunger Seal onto the Plunger (figure 1).
2. Assemble the Pressure Release Valve Kit onto the Plunger. From top of the Plunger, place the Washer onto the Valve Hole, then the Screw through the Washer and into the Valve Hole. From the underside of the Plunger, place the Spring onto the end of the S then place the Valve Cap onto the end of the Screw and twist t
3. Screw the Plunger Bolt onto the Plunger Shaft (figure 2).
4. Place the assembled Plunger onto the end of the Plunger Shaft (13).

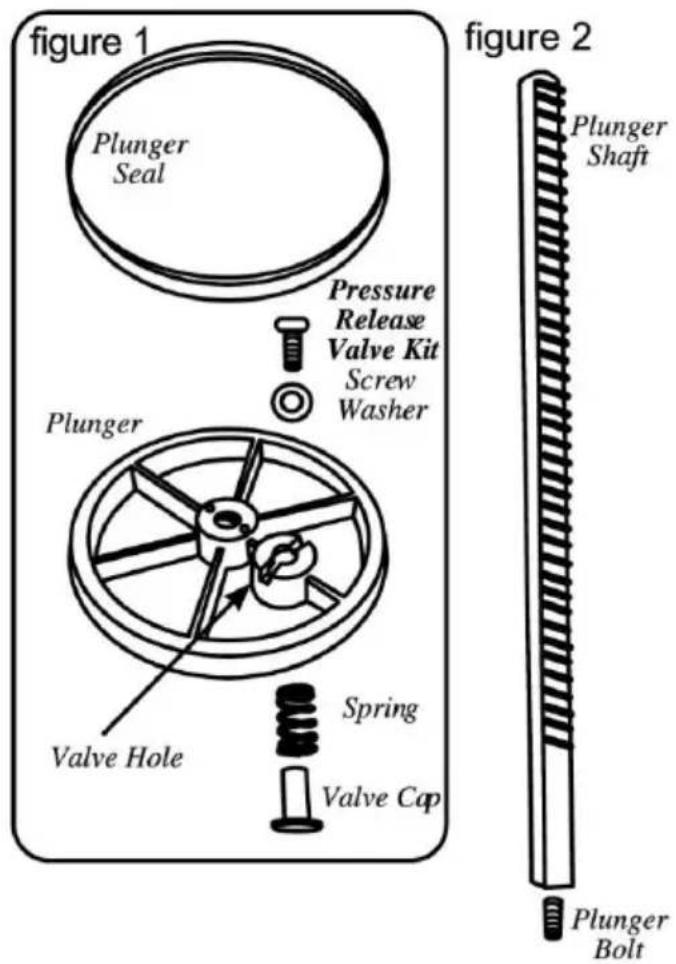

figure 1 Plunger Seal Pressure Release Valve Kit Screw Washer Plunger Spring Valve Hole Valve Cap figure 2 Plunger Shaft Plunger Bolt

STUFFER ASSEMBLY

1. Attached and fixed the Handle by sliding it onto either the F the Slow Gear (figure 4).
2. Crank the Handle to bring the Plunger to the top of the St...continued on next page

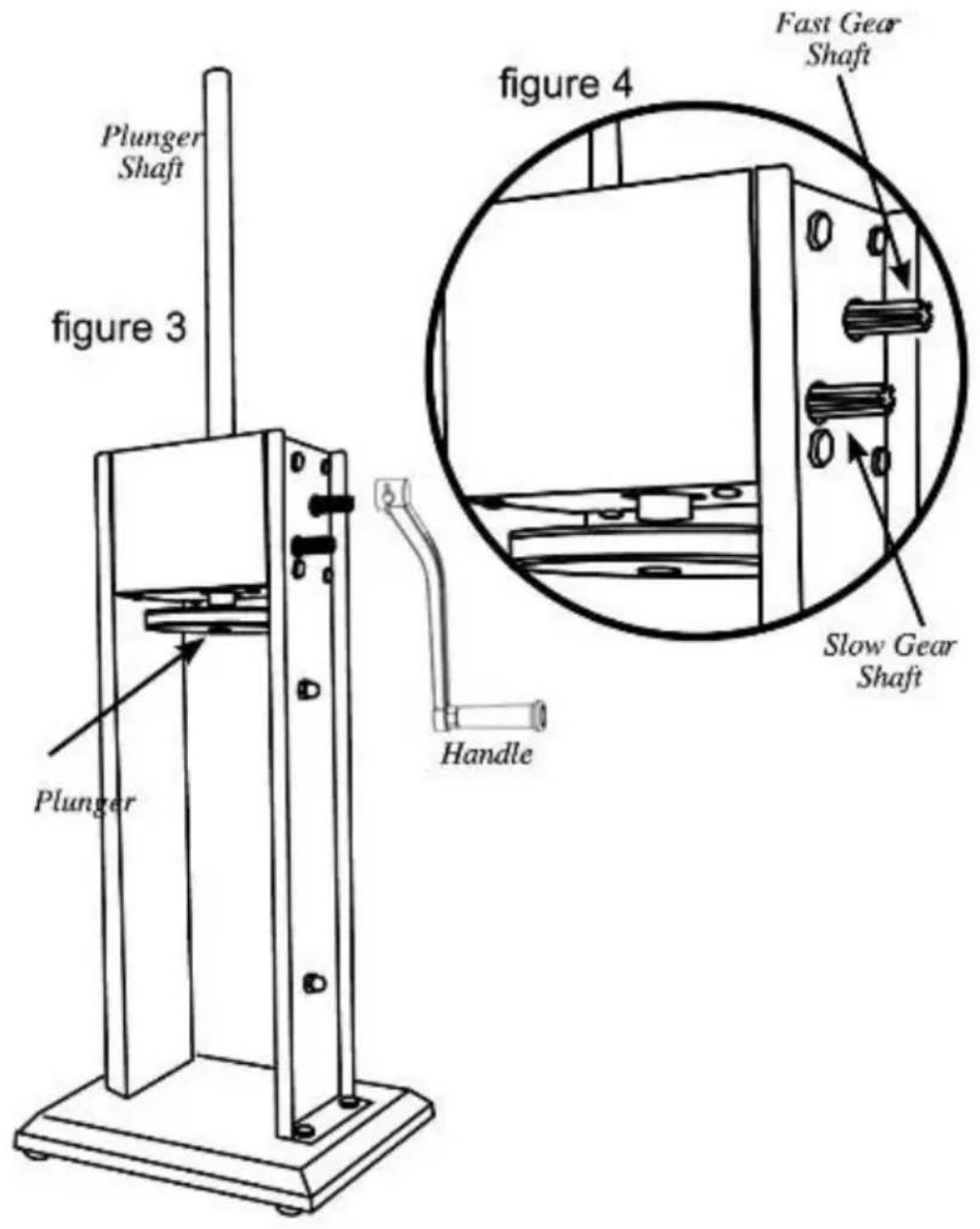

Plunger Shaft figure 3 Plunger Figure 4 Fast Gear Shaft Slow Gear Shaft Handle

STUFFER ASSEMBLY continued

1. Rest Canister's Bottom Brackets onto the Canister Mounts inside tr Housing of the Stuffer. Pivot the Canister fully into the Stuffer Housin snapping the Top Brackets into the Canister Mounts (figure 5).

2. Insert the Stuffing Funnel of choice through the Front Ring Nut. S the Front Ring Nut and Stuffing Funnel onto the mouth of the Canis snug. DO NOT OVERTIGHTEN the Front Ring Nut, as it may damage Funnel. (figure 6)

3. Thoroughly coat the inside of the Canister with a food-grade lubr prior to use. (figure 7)

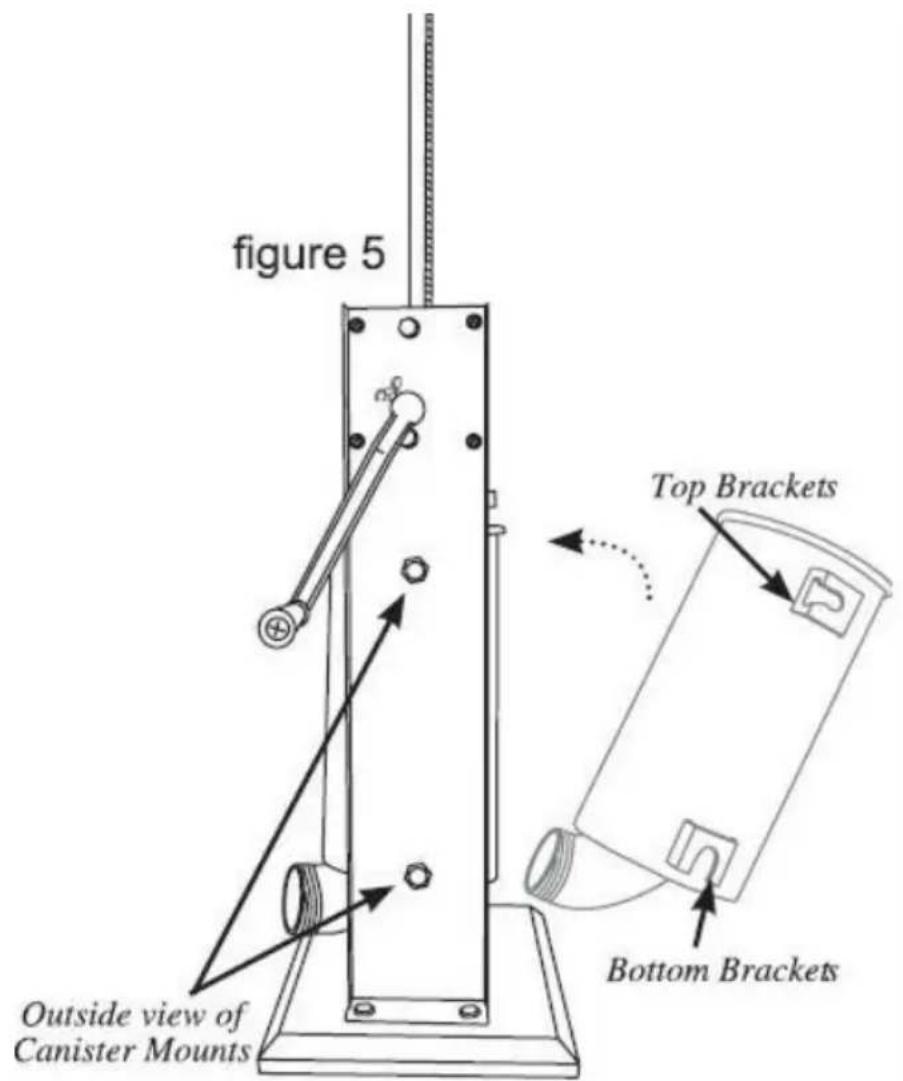

figure 5 Outside view of Canister Mounts Top Brackets Bottom Brackets

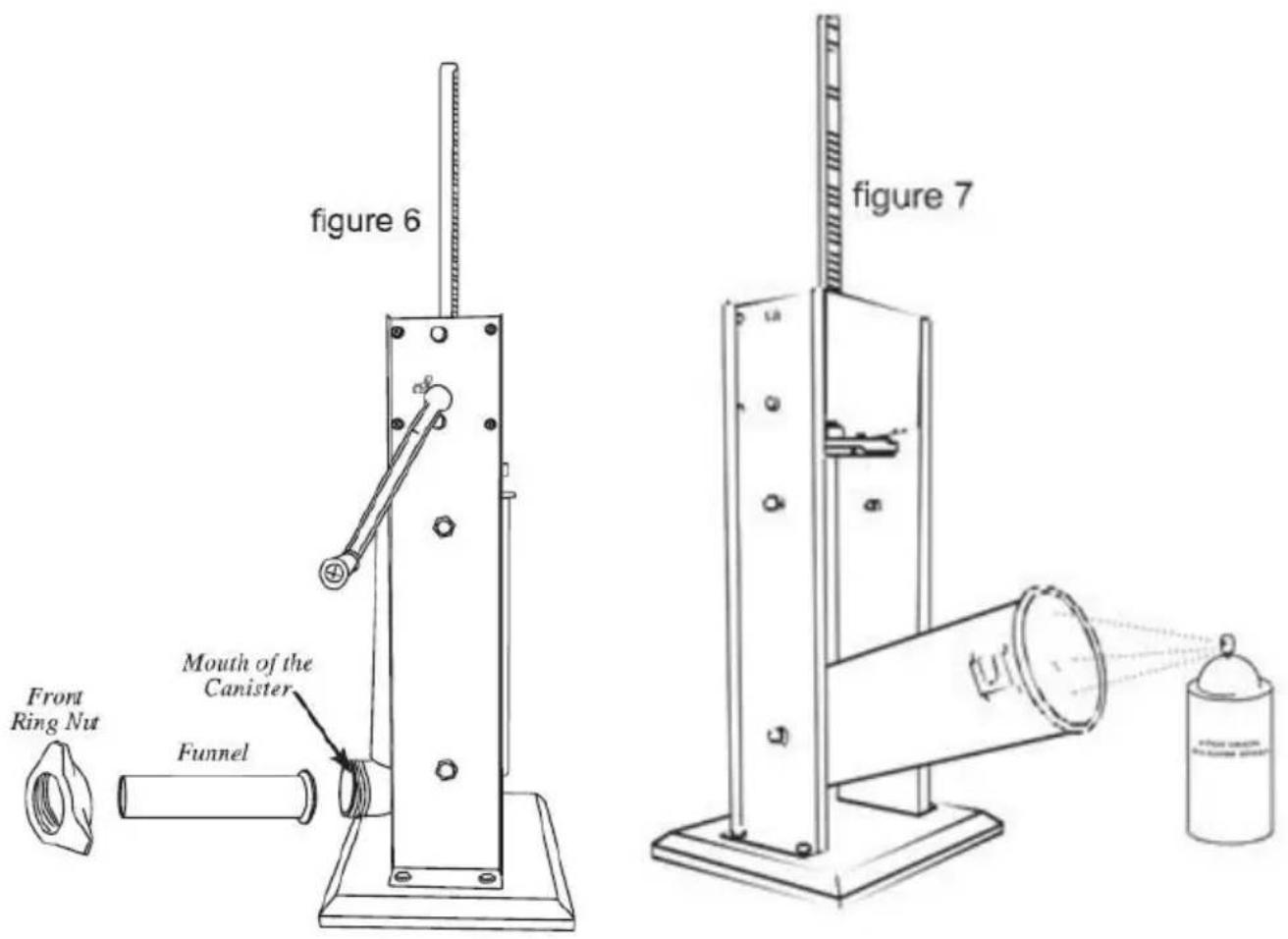

front Ring Nut Mouth of the Canister Funnel figure 6 figure 7

Disassembly and Cleaning

NOTE: BE SURE TO CLEAN ALL PARTS IMMEDIATELY AFTER USE

1. Remove the Stuffing Funnel by unscrewing the Front Ring Nut, an pulling the Funnel out.

2. Tum the Handle until the Plunger comes up and out of the Canis

3. Pivot the Canister outward, then pull the Canister up to remove the Canister from the Stuffer Housing.

4. Unscrew the Plunger from the Plunger Shaft.

5. Disassemble the pressure release valve from the plunger.

6. Remove the plunger seal from the plunger.

7. Wash all parts that have come in contact with meat in hot soapy

8. Rinse and thoroughly dry all parts immediately.

9. Sterilize as needed.
10. Fully lubricate the Shaft, Canister, Pressure-Release Valve components and the Front Ring Nut with a food-grade lubricant before after each use.

Stuffing Instructions

CAUTION! When the plunger is pulled out of the Canister, RELEASE HANDLE SLOWLY! Pressure or gravity could cause the Handle to spin back slightly and cause injury.

NOTE: Apply a food-grade lubricant to the inside of the Canister before filling with the meat mixture.

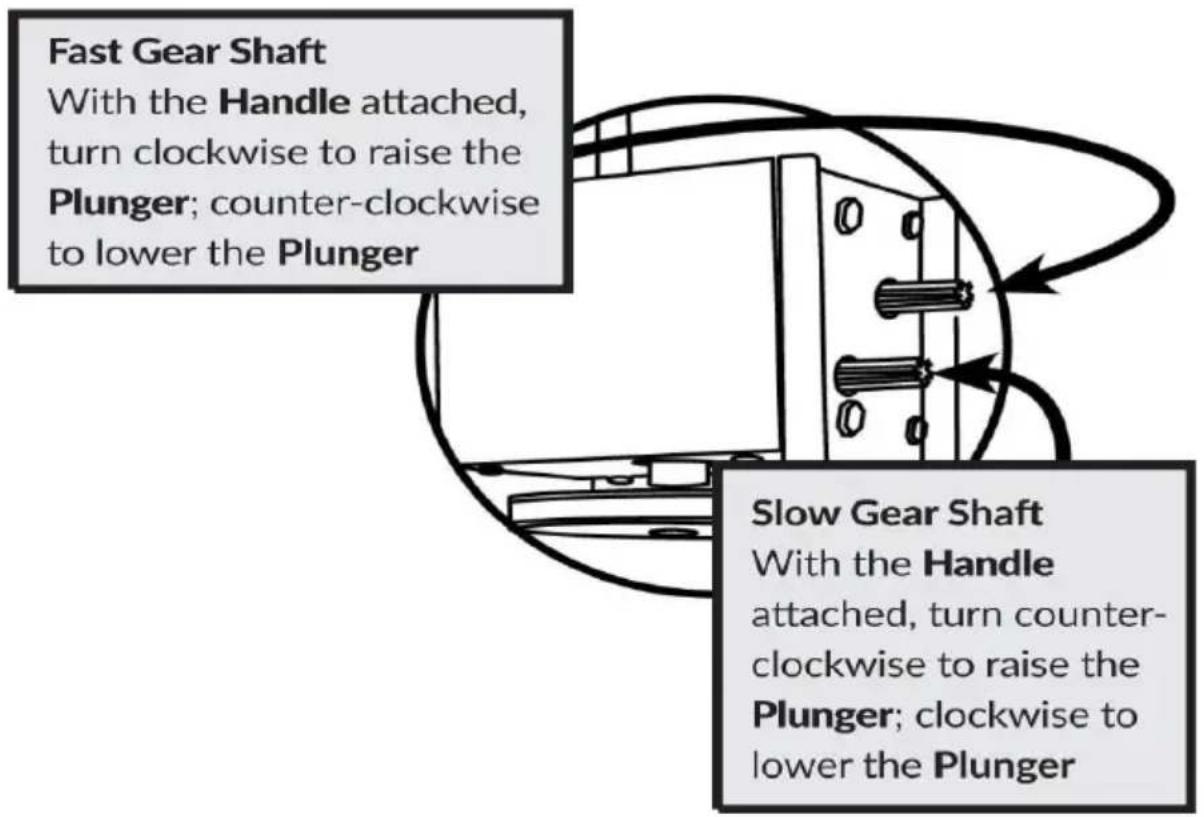

Fast Gear Shaft With the Handle attached, turn clockwise to raise the Plunger; counter-clockwise to lower the Plunger Slow Gear Shaft With the Handle attached, turn counter- clockwise to raise the Plunger; clockwise to lower the Plunger

1. Tilt out the Canister
2. Fill the Canister with the meat and seasoning mixture (figure 8).
3. Press the mixture down into the Cani firmly to release any trapped air.
4. Pivot the Canister back into the uprig position and snap the Top Brackets onto Canister Mounts.
5. Turn the Handle until the Plunger can contact with the meat and the mixture is to extrude out the end of the Stuffing F.
6. Slip a casing on the end of the Stuffing Funnel until the entire casing has slid o Funnel.
7. Tie, twist or hog ring the end of the seal it.

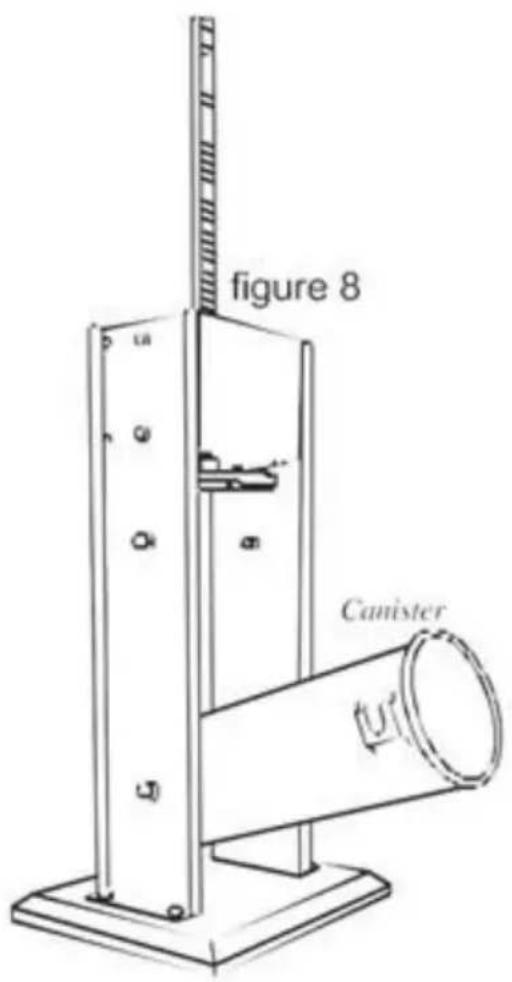

figure 8 Canister

1. Turn the Handle to extrude the mixture into the casing.

2. For best results, apply pressure around the casing, close to the e the Stuffing Funnel. This will hold the casing tight and will cause the mixture to pack firmly into the casing.

3. When the end of the casing has been reached, tie, twist or hog end of the casing to seal the contents inside.

STUFFING TIPS:

The following are suggestions to help reduce the resistance when stuffing the 13 mm Stuffing Funnel.

A. Add up to 1½ cups (400mL) of water per every 2.3 kg of season B. Add ¼ cup (60ml) of vegetable or olive oil per every 2.3 kg of s for better flow.

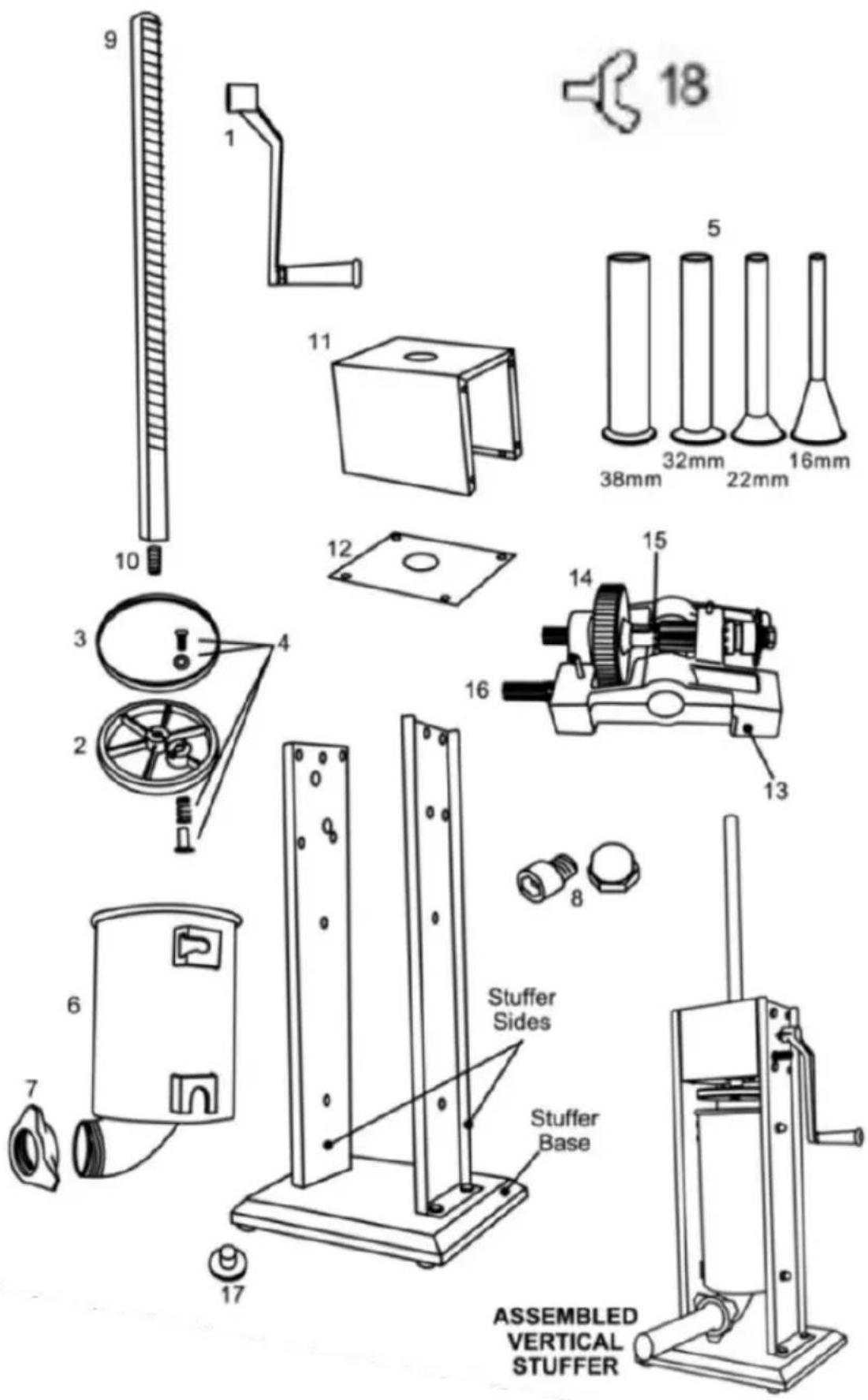

Exploded Diagram and Parts List

Part #	Description
1	Handle
2	Plunger
3	Plunger Seal
4	Pressure Release Valve (4 Piece Set)
5	Stainless Steel Funnel Set (4 Funnels)
6	Stainless Steel Canister
7	Front Ring Nut
8	Canister Mounting Hardware Kit (4 Sets)
9	Plunger Shaft
10	Plunger Bolt
11	Gear Housing Cover with Hardware Kit
12	Gear Housing Cover Bottom Plate with Hardware
13	Gear Housing with Hardware Kit
14	Main Driving Gear
15	Slow Speed Control Gear
16	Fast Speed Control Gear
17	Rubber Foot (4 Piece Set)
18	Butterfly Screw

18 5 38mm 32mm 22mm 16mm 11 12 14 15 16 13 8 Stuffer Sides Stuffer Base 17 ASSEMBLED VERTICAL STUFFER

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

SAUSAGE STUFFER

MODEL: 1A-SS715

Technical line drawing of a vertical industrial press device with cylindrical tank and pipe (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

General Safety Regulations

Assembly and Installation

MONTAŻ TŁOKA

figure 1 Plunger Seal Pressure Release Valve Kit Screw Washer Plunger Spring Valve Hole Valve Cap figure 2 Plunger Shaft Plunger Bolt

NADUJNIK MONTAŽ

figure 5 Outside view of Canister Mounts Top Brackets Bottom Brackets

front Ring Nut Mouth of the Canister Funnel figure 6 figure 7

Fast Gear Shaft With the Handle attached, turn clockwise to raise the Plunger; counter-clockwise to lower the Plunger Slow Gear Shaft With the Handle attached, turn counter- clockwise to raise the Plunger; clockwise to lower the Plunger

figure 8 Canister

The following are suggestions to help reduce the resistance when stuff in the 13 mm Stuffing Funnel.

A. Add up to 1 12 cups (400mL) of water per every 2.3 kg of season B. Add 1 14 cup (60ml) of vegetable or olive oil per every 2.3 kg of season for better flow.

Exploded Diagram and Parts List

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

SAUSAGE STUFFER

MODELL: 1A-SS715

Technical line drawing of a vertical industrial machine with a cylindrical component and side-mounted pipes (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

General Safety Regulations

Assembly and Installation

KOLBENBAUGRUPPE

figure 1 Plunger Seal Pressure Release Valve Kit Screw Washer Plunger Spring Valve Hole Valve Cap figure 2 Plunger Shaft Plunger Bolt

STUFFER MONTAGE

figure 5 Outside view of Canister Mounts Top Brackets Bottom Brackets

front Ring Nut Mouth of the Canister Funnel figure 6 figure 7

Fast Gear Shaft With the Handle attached, turn clockwise to raise the Plunger; counter-clockwise to lower the Plunger Slow Gear Shaft With the Handle attached, turn counter- clockwise to raise the Plunger; clockwise to lower the Plunger

figure 8 Canister

austreten kann

The following are suggestions to help reduce the resistance when stuffir the 13 mm Stuffing Funnel.

A. Add up to 1 12 cups (400mL) of water per every 2.3 kg of season B. Add 1 14 cup (60ml) of vegetable or olive oil per every 2.3 kg of season for better flow.

Exploded Diagram and Parts List

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

SAUSAGE STUFFER

MODÈLE : 1A-SS715

Technical line drawing of a vertical industrial press device with cylindrical housing and pipe fittings (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

General Safety Regulations

Assembly and Installation

ASSEMBLAGE DU PISTON

figure 1 Plunger Seal Pressure Release Valve Kit Screw Washer Plunger Spring Valve Hole Valve Cap figure 2 Plunger Shaft Plunger Bolt

STUFFER ASSEMBLÉE

figure 5 Outside view of Canister Mounts Top Brackets Bottom Brackets

front Ring Nut Mouth of the Canister Funnel figure 6 figure 7

Fast Gear Shaft With the Handle attached, turn clockwise to raise the Plunger; counter-clockwise to lower the Plunger Slow Gear Shaft With the Handle attached, turn counter- clockwise to raise the Plunger; clockwise to lower the Plunger

figure 8 Canister

The following are suggestions to help reduce the resistance when stuff in the 13 mm Stuffing Funnel.

A. Add up to 1 12 cups (400mL) of water per every 2.3 kg of season B. Add 1 14 cup (60ml) of vegetable or olive oil per every 2.3 kg of season for better flow.

Exploded Diagram and Parts List

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

SAUSAGE STUFFER

MODEL: 1A-SS715

Technical line drawing of a vertical industrial press device with cylindrical tank and pipe (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

General Safety Regulations

Assembly and Installation

PLUNJERMONTAGE

figure 1 Plunger Seal Pressure Release Valve Kit Screw Washer Plunger Spring Valve Hole Valve Cap figure 2 Plunger Shaft Plunger Bolt

VULLER MONTAGE

figure 5 Outside view of Canister Mounts Top Brackets Bottom Brackets

Figure 6 Figure 7 Front Ring Nut Mouth of the Canister Funnel

Demontage en reiniging

OPMERKING: ZORG ERVOOR DAT U ALLE ONDERDELEN ONMIDDELLIJK NA GEBRUIK REINIGT.

Fast Gear Shaft With the Handle attached, turn clockwise to raise the Plunger; counter-clockwise to lower the Plunger Slow Gear Shaft With the Handle attached, turn counter- clockwise to raise the Plunger; clockwise to lower the Plunger

figure 8 Canister

The following are suggestions to help reduce the resistance when stuffing the 13 mm Stuffing Funnel.

A. Add up to 1 12 cups (400mL) of water per every 2.3 kg of season
B. Add 14 cup (60ml) of vegetable or olive oil per every 2.3 kg of for better flow.

Exploded Diagram and Parts List

18 5 32mm 22mm 16mm 38mm 12 14 15 16 8 Stuffer Sides Stuffer Base 17 ASSEMBLED VERTICAL STUFFER

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

SAUSAGE STUFFER

MODELL: 1A-SS715

Technical line drawing of a vertical industrial press device with cylindrical tank and pipe (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

General Safety Regulations

figure 1 Plunger Seal Pressure Release Valve Kit Screw Washer Plunger Valve Hole Spring Valve Cap figure 2 Plunger Shaft Plunger Bolt

STUPPER HOPSÄTTNING

figure 5 Outside view of Canister Mounts Top Brackets Bottom Brackets

front Ring Nut Mouth of the Canister Funnel figure 6 figure 7

Fast Gear Shaft With the Handle attached, turn clockwise to raise the Plunger; counter-clockwise to lower the Plunger Slow Gear Shaft With the Handle attached, turn counter- clockwise to raise the Plunger; clockwise to lower the Plunger

figure 8 Canister

STUFFING TIPS:

The following are suggestions to help reduce the resistance when stuffing the 13 mm Stuffing Funnel.

A. Add up to 1½ cups (400mL) of water per every 2.3 kg of season B. Add ¼ cup (60ml) of vegetable or olive oil per every 2.3 kg of s for better flow.

Exploded Diagram and Parts List

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

SAUSAGE STUFFER

MODELO: 1A-SS715

Technical line drawing of a vertical industrial machine with a cylindrical component and side-mounted pipes (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

General Safety Regulations

Assembly and Installation

CONJUNTO DEL ÉMBOLO

figure 1 Plunger Seal Pressure Release Valve Kit Screw Washer Plunger Spring Valve Hole Valve Cap figure 2 Plunger Shaft Plunger Bolt

EMBUTIDOR ASAMBLEA

figure 5 Outside view of Canister Mounts Top Brackets Bottom Brackets

front Ring Nut Mouth of the Canister Funnel figure 6 figure 7

Fast Gear Shaft With the Handle attached, turn clockwise to raise the Plunger; counter-clockwise to lower the Plunger Slow Gear Shaft With the Handle attached, turn counter- clockwise to raise the Plunger; clockwise to lower the Plunger

figure 8 Canister

The following are suggestions to help reduce the resistance when stuffing the 13 mm Stuffing Funnel.

A. Add up to 1 12 cups (400mL) of water per every 2.3 kg of season B. Add 1 14 cup (60ml) of vegetable or olive oil per every 2.3 kg of season for better flow.

Exploded Diagram and Parts List

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

SAUSAGE STUFFER

MODELLO: 1A-SS715

Technical line drawing of a vertical industrial machine with a cylindrical component and side-mounted pipes (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

General Safety Regulations

Assembly and Installation

GRUPPO PISTONE

figure 1 Plunger Seal Pressure Release Valve Kit Screw Washer Plunger Spring Valve Hole Valve Cap figure 2 Plunger Shaft Plunger Bolt

STUFFER ASSEMBLEA

ASSEMBLEA STUFFER continua

figure 5 Outside view of Canister Mounts Top Brackets Bottom Brackets

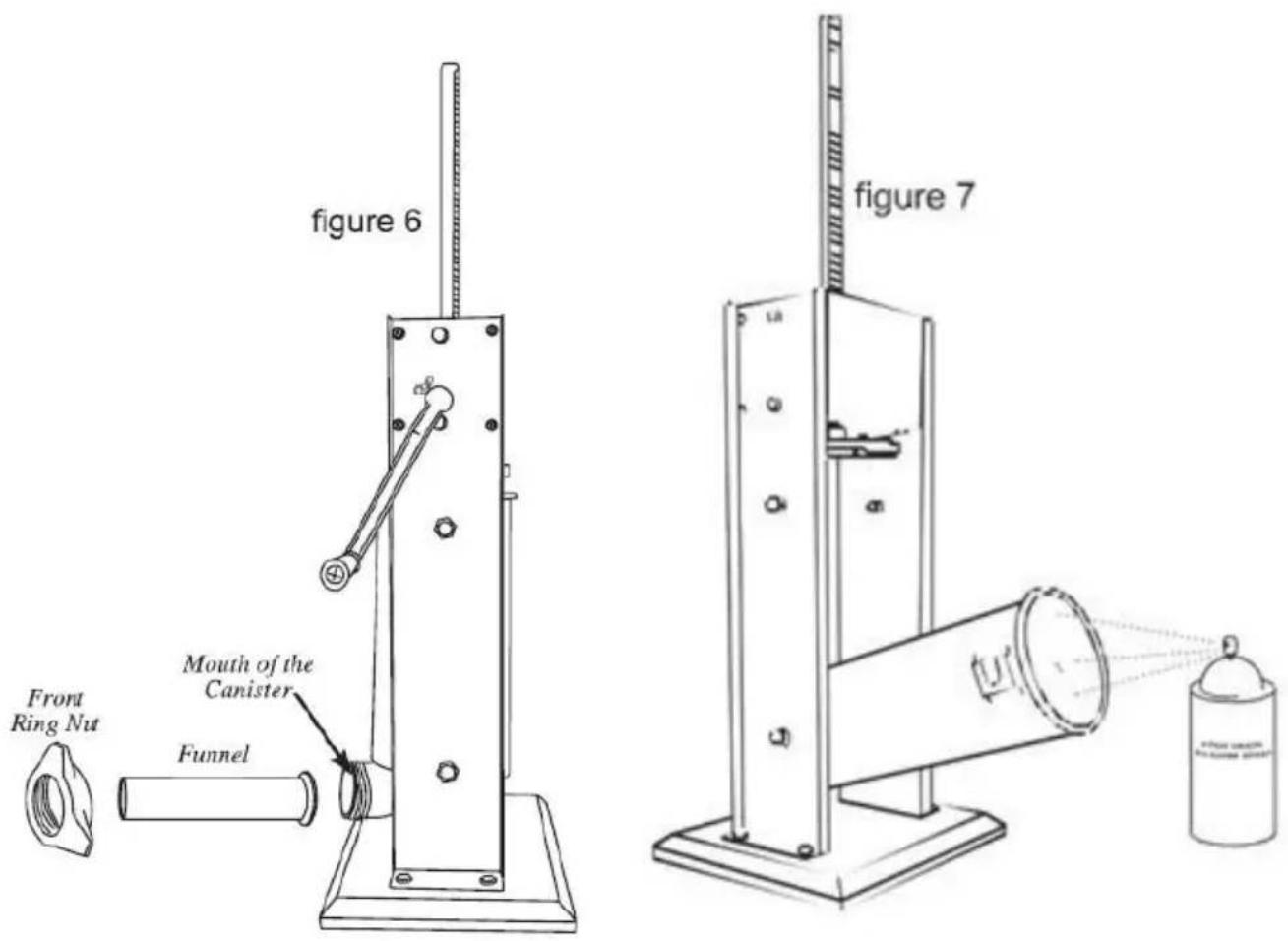

front Ring Nut Mouth of the Canister Funnel figure 6 figure 7

Fast Gear Shaft With the Handle attached, turn clockwise to raise the Plunger; counter-clockwise to lower the Plunger Slow Gear Shaft With the Handle attached, turn counter- clockwise to raise the Plunger; clockwise to lower the Plunger

figure 8 Canister

The following are suggestions to help reduce the resistance when stuffir the 13 mm Stuffing Funnel.

A. Add up to 1 12 cups (400mL) of water per every 2.3 kg of season
B. Add 14 cup (60ml) of vegetable or olive oil per every 2.3 kg of for better flow.

Exploded Diagram and Parts List

18 5 32mm 22mm 16mm 38mm 12 14 15 16 8 Stuffer Sides Stuffer Base 17 ASSEMBLED VERTICAL STUFFER

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
