USER MANUAL 1205-117 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
D.C. MOTOR CONTROLLER USER'S GUIDE
MODEL:1205-117
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.
MODEL:1205-117


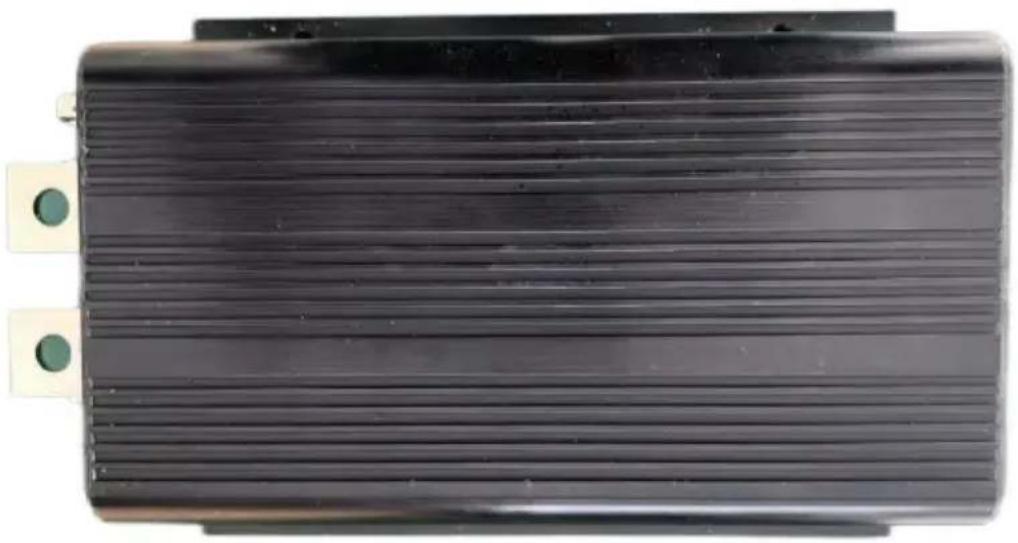

Close-up of a black rectangular electronic component with two metallic pins and a green circular end (no visible text or symbols)(The picture is for reference only, please refer to the actual obje
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
 | Warning-To reduce the risk of injury, user must read in manual carefully. |
 | This device complies with Part 15 of the FCC Rules. (1) This device is subject to the following two conditions: (1) This device cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation. |
 | This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices |
INSTRUCTIONS
●This product is designed to fit the 1205-117 Curtis Controller 36V
● Replacement for EZGO Club Car Curtis Golf Carts Motor Control
- It's easy to install and directly to replace the old one. Saving you and money by replacing it yourself.
● High-power MOSFETs drive, high-frequency, efficient, quiet working mode.
- Stepless speed regulation and reverse connection braking function.
● Perfect temperature protection and compensation function to achieve thermal protection and stable output.
● Undervoltage reduction, deep undervoltage off function, when the battery voltage is too low.
●The overvoltage protection function turns off the output.
Unpacking Inspection
Open the package case, check the items shown on Table 1 carefully check any missing or damaged part.
Table 1. Unpacking Inspection
| Item | Description | Qty |
| 1 | D.C.Motor Controller | 1 |
| 2 | User's Guide | 1 |
Model & Parameter
● Model: 1205-117
● Voltage: 36V
● Current: 500A

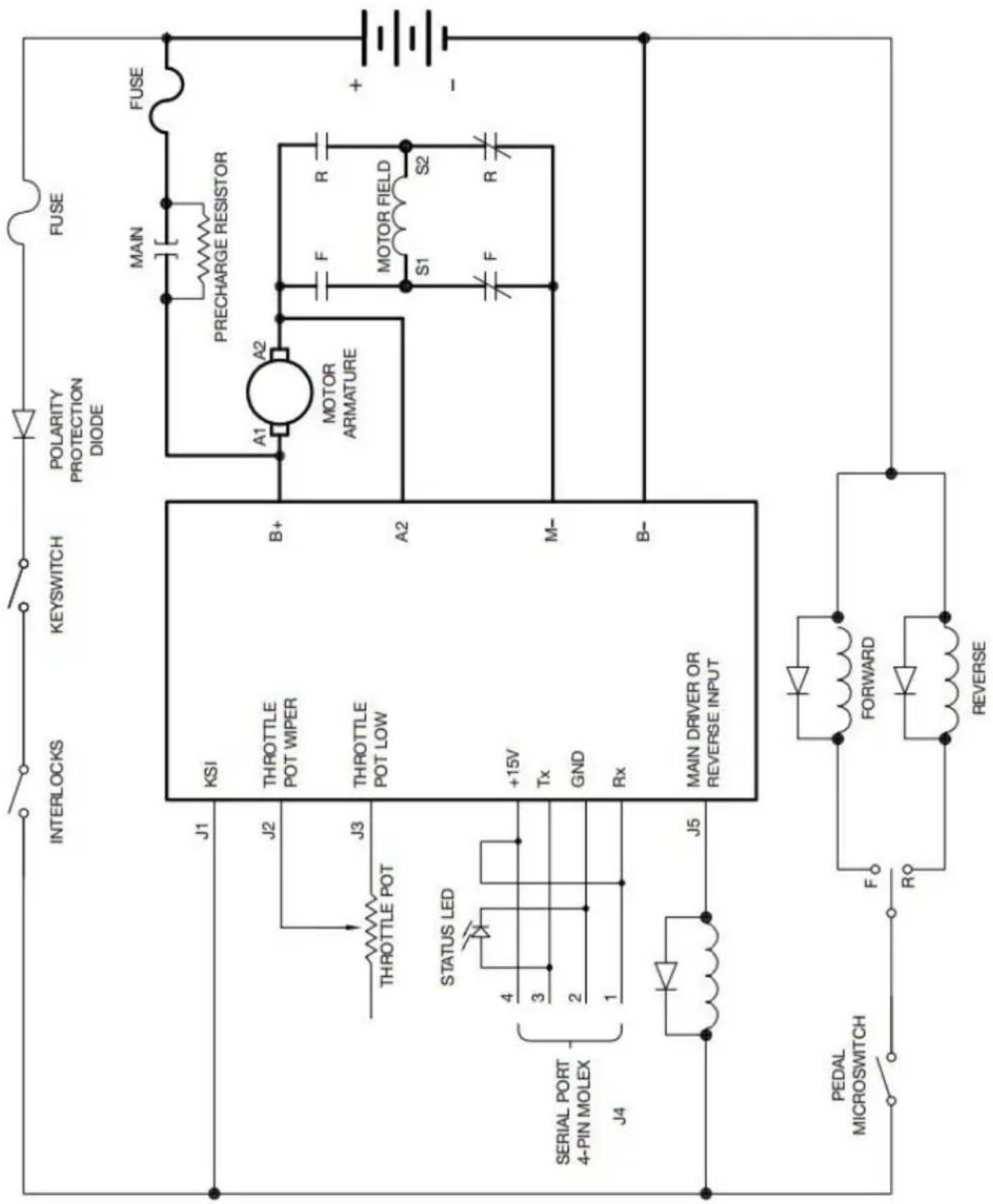

Wiring Diagram
Matters Need Attention
- Ensure that the controller is securely fixed and not easily subject vibration or impact.
- It's danger of high voltage in controller case please do not disassemble it unauthorized.
● The losses caused by not operating according to the instruction manual operation, manufacturer does not bear any responsibility.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730
