1206-4301 - Electric motor controller Vevor - Free user manual and instructions

Product Type	DC Motor Controller
Brand	Vevor
Model	1206-4301
Rated Voltage	36 V
Rated Current	350 A
Compatibility	EZ-GO TXT, Medalist, ITS series 1994-2019 (series motor)
Main Functions	Continuous speed regulation, reverse braking, thermal protection, undervoltage, overvoltage
Dimensions (L x W x H)	Approx. 200 x 150 x 80 mm
Weight	Approx. 1.5 kg
Power Supply	36 V DC Battery
Maintenance	Check fastening, avoid vibrations and impacts
Safety	Read manual before use, risk of high voltage, do not disassemble
Warranty	Technical support and electronic warranty certificate at www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi
Compliance	FCC Part 15, WEEE directive 2012/19/EC

Frequently Asked Questions - 1206-4301 Vevor

How to install this controller on my EZ-GO TXT cart?

Disconnect the battery. Remove the old controller by disconnecting the terminals. Connect the wires according to the pinout diagram (pins 1-2 for potentiometer, 3 for speed, 4 for key switch, 5 empty). Securely fasten the new controller. Reconnect the battery and test.

What type of motor is compatible with this controller?

This controller is compatible with series motors with 3 blades and 5 pins, used on EZ-GO TXT, Medalist, and ITS series 1994-2019 models. It does not work with separately excited (Sep Ex) or shunt wound motors.

What is the overvoltage protection?

The controller is equipped with an overvoltage protection function that disables the output if the voltage exceeds a safe threshold. This protects the controller and motor from damage.

Can I use this controller with a separately excited motor?

No, this controller is designed only for series motors. Using it with a separately excited motor may damage the controller and motor.

How to perform braking?

Braking is achieved by reverse connection: when you release the accelerator, the controller reverses the current direction to slow down the motor. This function is automatic.

Where can I get the complete manual?

The complete manual in French is available for free download on notice-facile.com. You can also request it translated into other languages by providing your email address on the site.

What is the warranty of this controller?

Vevor offers an electronic warranty. Register your product on www.vevor.com/support to activate the warranty and get technical support.

How do I know if my cart is compatible?

Check that your cart is an EZ-GO TXT, Medalist, or ITS series model manufactured between 1994 and 2019, with a series motor (3 blades, 5 pins). The controller directly replaces the Curtis 1206-4301 model.

What to do in case of malfunction?

First, check the connections and battery voltage. If the problem persists, contact technical support via www.vevor.com/support for assistance. Do not attempt to repair it yourself due to high voltage risks.

Is this controller waterproof?

No, this controller is not designed to be waterproof. It must be installed in a dry and protected place away from moisture and water splashes. Exposure to water may damage the device.

USER MANUAL 1206-4301 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

D.C. MOTOR CONTROLLER USER'S GUIDE

MODEL: 1206-4301

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. (1) This device is subject to the following two conditions: (1) This device cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices

INSTRUCTIONS

● This product is designed to fit the 1206-4301 Curtis Controller 36V - Compatible with E-Z-GO EZGO TXT, Series ITS 1994-2019; Compatible with Medalist & TXT models only with Series Motor (3 Blades and 5 1994-2019; Not a Separately Excited (Sep Ex) motor controller and will not work with shunt wound electric motors.

- It's easy to install and directly replace the old one. Saving you time and money by replacing it yourself.

● High-power MOSFETs drive, high-frequency, efficient, quiet working mode. - Stepless speed regulation and reverse connection braking function. ● Perfect temperature protection and compensation function to achieve thermal protection and stable output. ● Undervoltage reduction, deep undervoltage off function, when the battery voltage is too low. ● The overvoltage protection function turns off the output.

Unpacking Inspection

Open the package case, check the items shown in Table 1 carefully, and check for any missing or damaged parts.

Table 1. Unpacking Inspection

Item	Description	Qty
1	D.C.Motor Controller	1
2	User's Guide	1

Model & Parameter

●Model: 1206-4301 ●Voltage: 36V ●Current: 350A

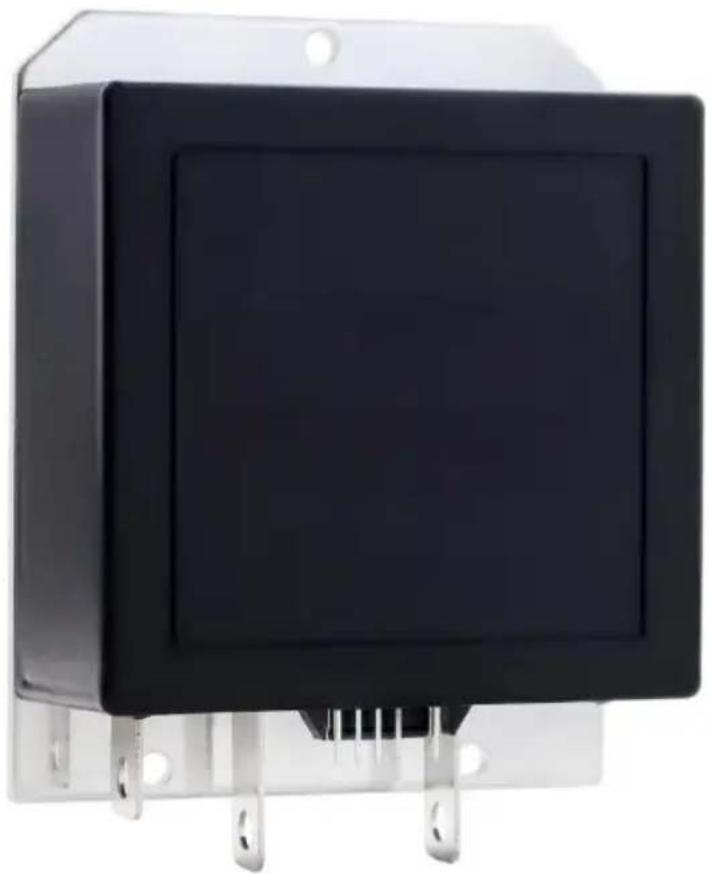

Pin Chart

Port definition

5 small pins are arranged from left to right: pins 1-2: potentiometer; pin 3: high and low speed; pin 4: key switch; pin 5: blank (no wiring).

Matters Need Attention

• Ensure that the controller is securely fixed and not easily subject to vibration or impact.
• There is danger of high voltage in the controller case. Please do not disassemble it without authorization. The manufacturer does not bear any responsibility for losses caused by not operating according to the instruction manual.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730
