Product Type	DC Motor Controller
Brand	Vevor
Model	1206HB-5201
Rated Voltage	48 V
Rated Current	250 A
Power Technology	MOSFET
Compatibility	Curtis 1206HB-5201, EZGO TXT 48V 250A
Regenerative Braking	Yes, down to zero speed
Regenerative Overdrive (Regen)	Yes, limits speed on descents
Speed Sensor	Hall effect, on motor or drive system
Traction Switches	Allow freewheeling
Mounting	Solid mounting, avoid vibrations and shocks
Package Contents	1 controller, 1 user guide
Wiring Diagram	Included in the user guide
Protection	Internal high voltage, do not disassemble
FCC Compliance	Part 15 of FCC Rules
WEEE Directive	2012/19/EU
Manufacturer	Shanghai Muxin Muye Youxian Gongsi
EU Importer	E-CrossStu GmbH, Frankfurt am Main
US Importer	Sanven Technology Ltd., Rancho Cucamonga, CA
Australia Importer	SIHAO PTY LTD, Eastwood NSW
Technical Support	www.vevor.com/support
Electronic Warranty	Warranty certificate available on Vevor website

Frequently Asked Questions - 1206HB-5201 Vevor

What is the operating voltage of the 1206HB-5201 controller?

The controller operates at a rated voltage of 48 V.

Which types of motors is this controller compatible with?

It is compatible with DC motors, including the Curtis 1206HB-5201 and EZGO TXT 48V 250A models.

How to install the controller on an EZGO TXT golf cart?

Installation is a direct replacement of the original controller. Make sure to mount the controller securely to avoid vibrations, then follow the wiring diagram provided in the user guide.

Does the controller support regenerative braking?

Yes, it offers regenerative braking down to zero speed, as well as regenerative overdrive (regen) that limits speed on descents.

What to do if the controller does not work after installation?

First check the connections and wiring diagram. Make sure the battery is fully charged. If the problem persists, contact technical support at www.vevor.com/support.

Is the controller waterproof?

The manual does not mention any waterproofing. It is recommended to install the controller in a dry place away from liquids.

How to clean the controller?

Disconnect power before cleaning. Use a dry, soft cloth to remove dust. Do not use chemicals or water.

Can I use this controller with a 36V battery?

No, the controller is designed for a rated voltage of 48 V. Using it with 36 V could cause incorrect operation or damage.

Where to find the wiring diagram?

The wiring diagram is included in the user guide provided with the product. You can also download it from the Vevor website.

How to contact Vevor technical support?

You can contact technical support via the website www.vevor.com/support where you will also find the electronic warranty certificate.

USER MANUAL 1206HB-5201 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

D.C. MOTOR CONTROLLER USER'S GUIDE

MODEL:1206HB-5201

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read in manual carefully.
	This device complies with Part 15 of the FCC Rules. (1) This device cause harmful interference, and (2) this device must accept interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products are such may not be discarded with normal domestic waste must be taken to a collection point for recycling electric electronic devices

INSTRUCTIONS

●This product is designed to fit the 1206HB-5201 Curtis Controller 48250A. ●1206HB-5201 for EZGO for Curtis txt 48V 250A dc Motor Controller. - It's easy to install and directly to replace the old one. Saving you time and money by replacing it yourself. ● Power MOSFET technology provides reliable, silent, efficient and cost-effective operation.

●Half-bridge armatures and full-bridge fields provide regenerative braking down to zero speed. ●Overdrive braking (regeneration) limits speed when traveling downhill. ●The system uses a Hall effect speed sensor on the motor or drive to control the vehicle. Traction switches allow the vehicle to roll freely ● After releasing the pedal and stopping the vehicle, turn off the main contactor at regular intervals.

Unpacking Inspection

Open the package case, check the items shown in Table 1 carefully, and check for any missing or damaged parts.

Table 1. Unpacking Inspection

Item	Description	Qty
1	D.C.Motor Controller	1
2	User's Guide	1

Model & Parameter

● Model: 1206HB-5201 ● Voltage: 48V ● Current: 250A

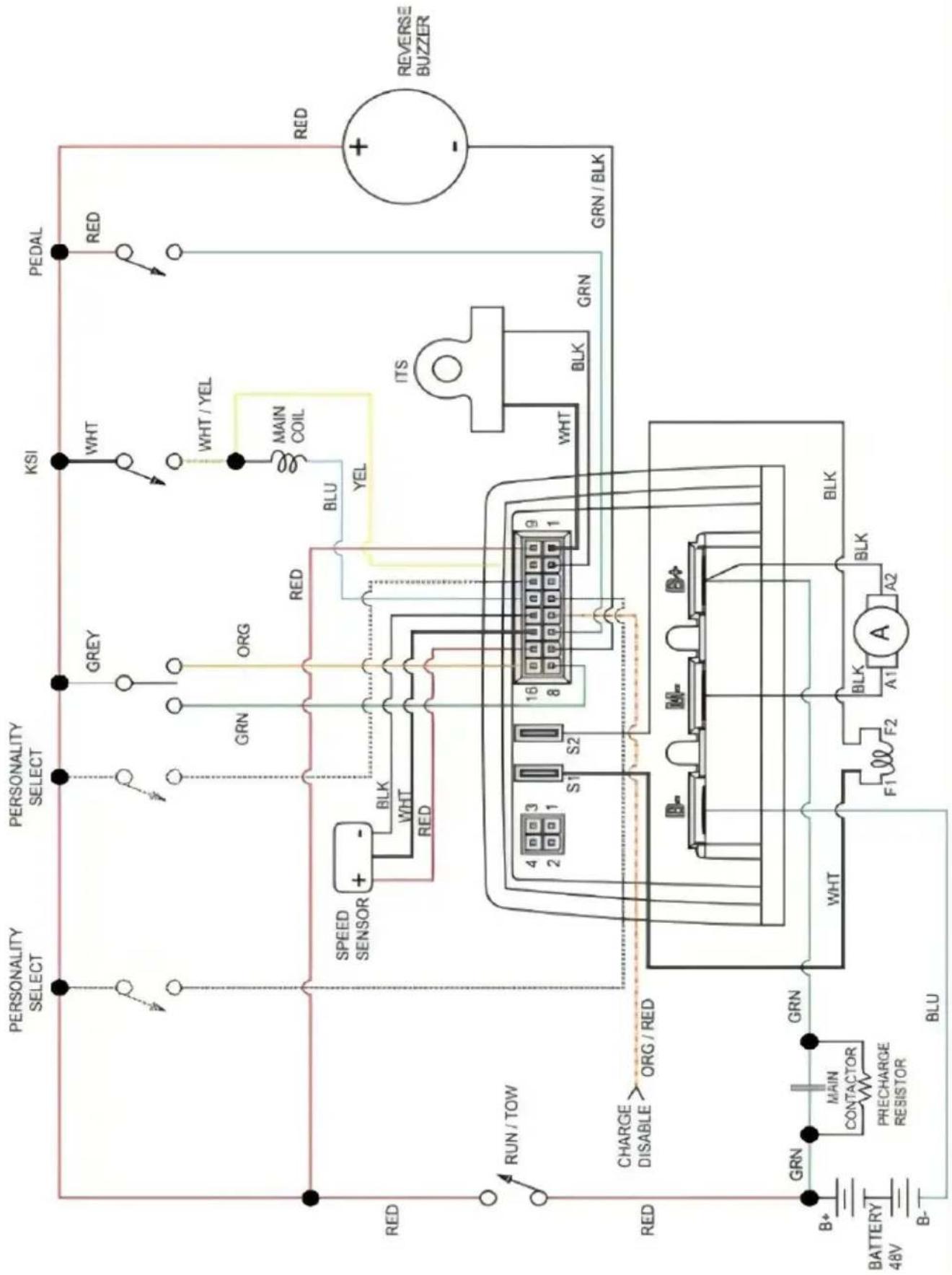

Wiring Diagram

Matters Need Attention

• Ensure that the controller is securely fixed and not easily subject to vibration or impact.
• It's dangerous due to high voltage in the controller case; please do not disassemble it without authorization. ● The manufacturer does not bear any responsibility for losses caused by not operating according to the instruction manual.
