215ATX - Desktop Computer Vevor - Free user manual and instructions

Product Type	Computer Case (PC Case)
Brand	Vevor
Model	215ATX
Form Factor	Mid-Tower
Motherboard Compatibility	ATX, Micro-ATX, Mini-ITX
Dimensions (W x H x D)	210 x 460 x 420 mm
Weight	5.5 kg
Material	SECC Steel, tempered glass side panel
Hard Drive Bays	2 x 3.5-inch (HDD), 2 x 2.5-inch (SSD)
External Drive Bays	1 x 5.25-inch (optional)
Fan Mounts	Front: 3 x 120mm, Rear: 1 x 120mm, Top: 2 x 120mm
Liquid Cooling Support	Front: 240mm or 360mm, Top: 240mm
Power Supply	Not included (compatible with standard ATX, max length 200mm)

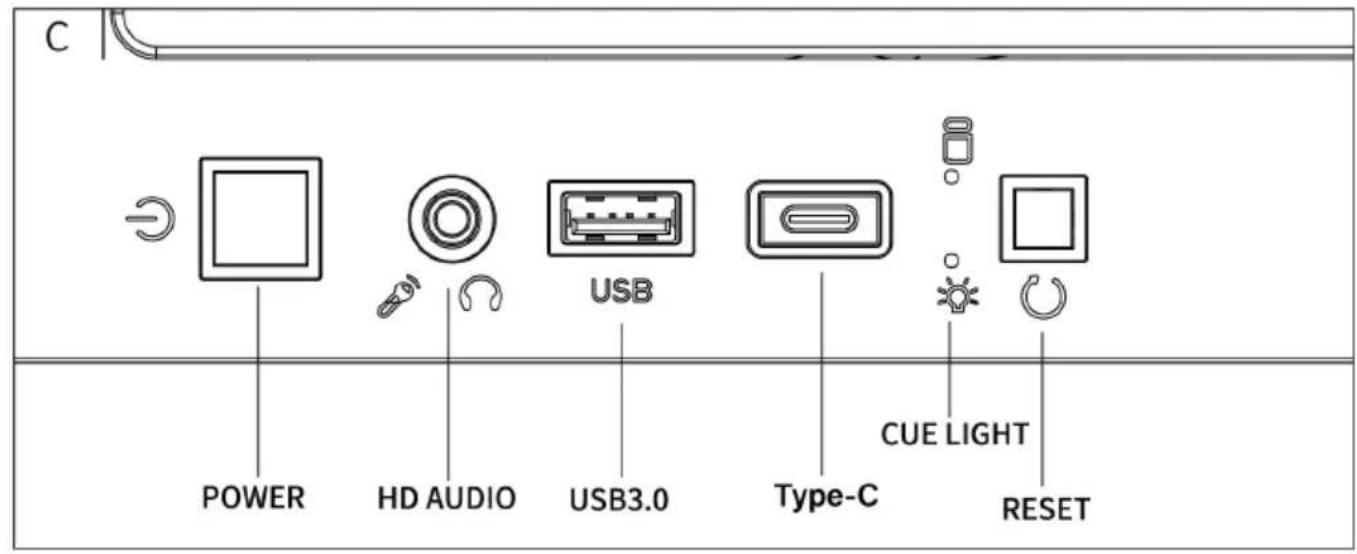

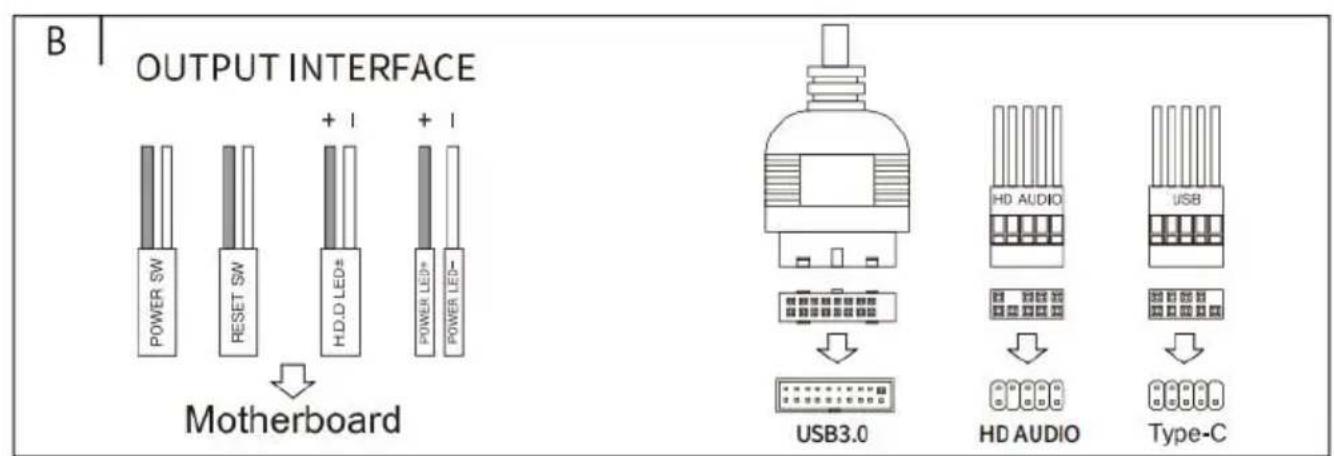

Front Panel Connectors	USB 3.0 x 2, USB Type-C x 1, HD Audio, Power/Reset buttons, LED
Number of Expansion Slots	7 PCI slots (reusable)
CPU Clearance	165mm (air cooler)
GPU Clearance	330mm

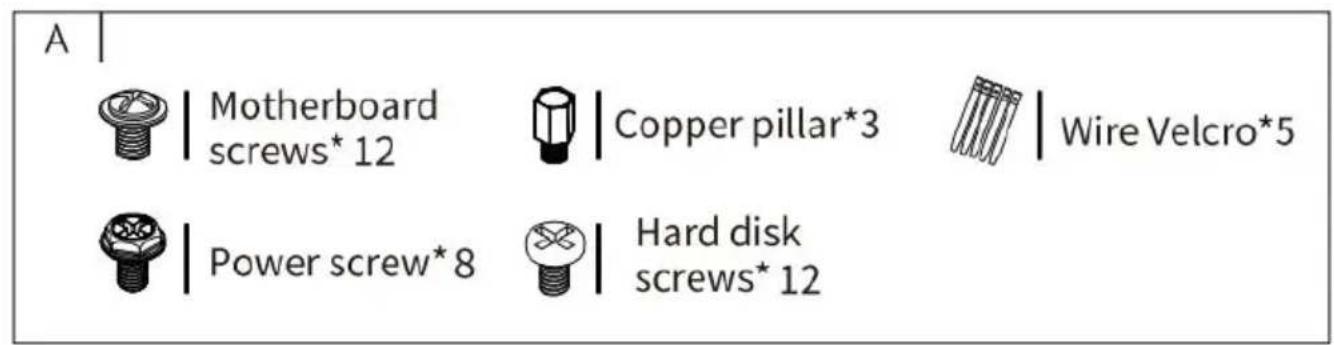

Package Contents	Screws (motherboard, PSU, hard drive), cable ties, standoffs, manual
Maintenance and Cleaning	Regular dusting with a soft cloth. Avoid solvents. Clean air filters.
Safety	Tempered glass panel is fragile. Avoid impacts. Follow assembly instructions.
Spare Parts and Repairability	Standard screws available. Panels and filters replaceable. Manufacturer: Shanghaiuxinmuyeyouxiangonsi.
General Information	Made in China. Imported by Vevor. Compliant with WEEE directive 2012/19/EC.

Frequently Asked Questions - 215ATX Vevor

Which motherboards are compatible with the Vevor 215ATX case?

The case supports ATX, Micro-ATX, and Mini-ITX formats. Make sure the mounting holes match the standard layout.

What type of power supply is required?

A standard ATX power supply is required. Its maximum length should not exceed 200mm for easy installation.

How many fans can I install?

You can install up to 6 x 120mm fans: 3 in the front, 2 on top, and 1 at the rear. Mounting points for liquid cooling radiators are also provided.

Is the tempered glass panel durable?

Tempered glass is strong but can shatter upon strong impact. Handle it with care during disassembly and cleaning.

How to clean the dust filters?

Filters are easy to remove. Wash them with lukewarm soapy water, dry completely before reinstalling. Do not use abrasive cleaners.

What is the maximum length of the graphics card?

The case accepts graphics cards up to 330mm in length without clearance issues.

Can I install a tall CPU cooler?

Yes, the maximum allowed height for the CPU cooler is 165mm.

Does the case come with fans?

No, no fans are included. They must be purchased separately. The case is designed for 120mm fans.

How to install an SSD or HDD?

3.5-inch HDDs mount in the lower bracket. 2.5-inch SSDs can be mounted on the motherboard tray or in dedicated slots. Use the included screws.

Where can I find the detailed user manual?

The manual is available for free download in PDF format on notice-facile.com or directly from the manufacturer Vevor.

USER MANUAL 215ATX Vevor

Affordable. Reliable. Home Improvement.

COMPUTER CASE USER MANUAL

MODEL:215ATX

Technical Support and E-Warranty Certificate www.vevor.com/support

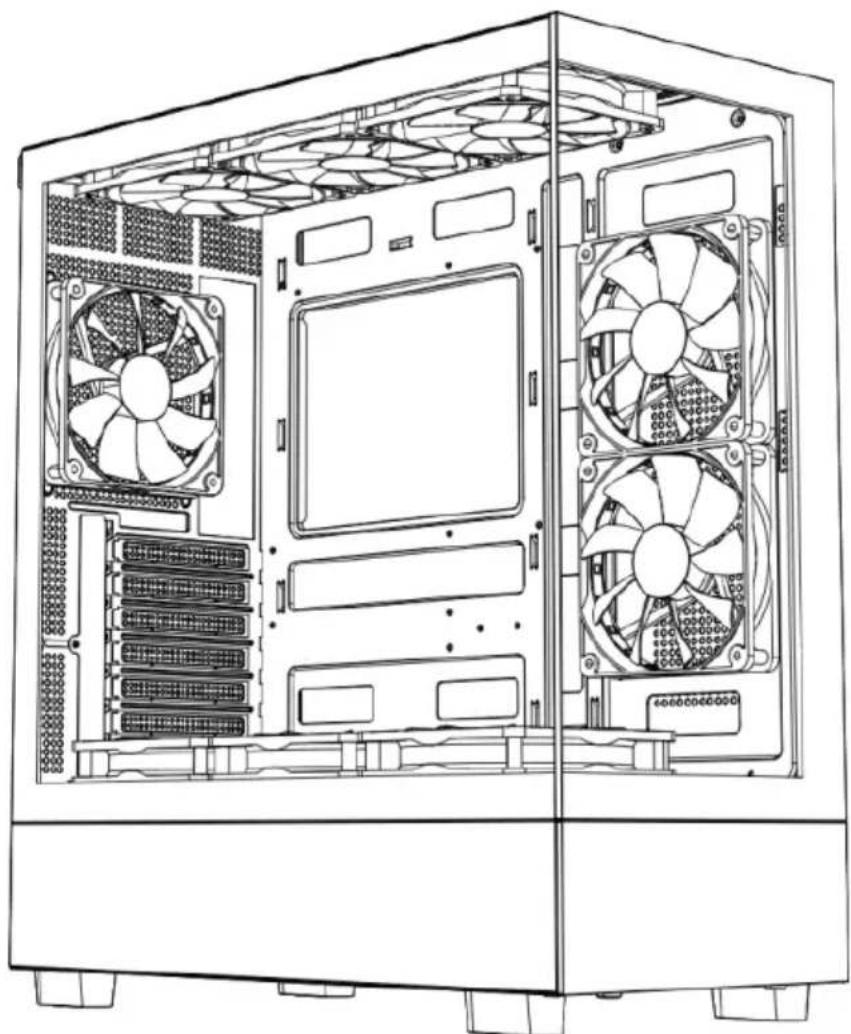

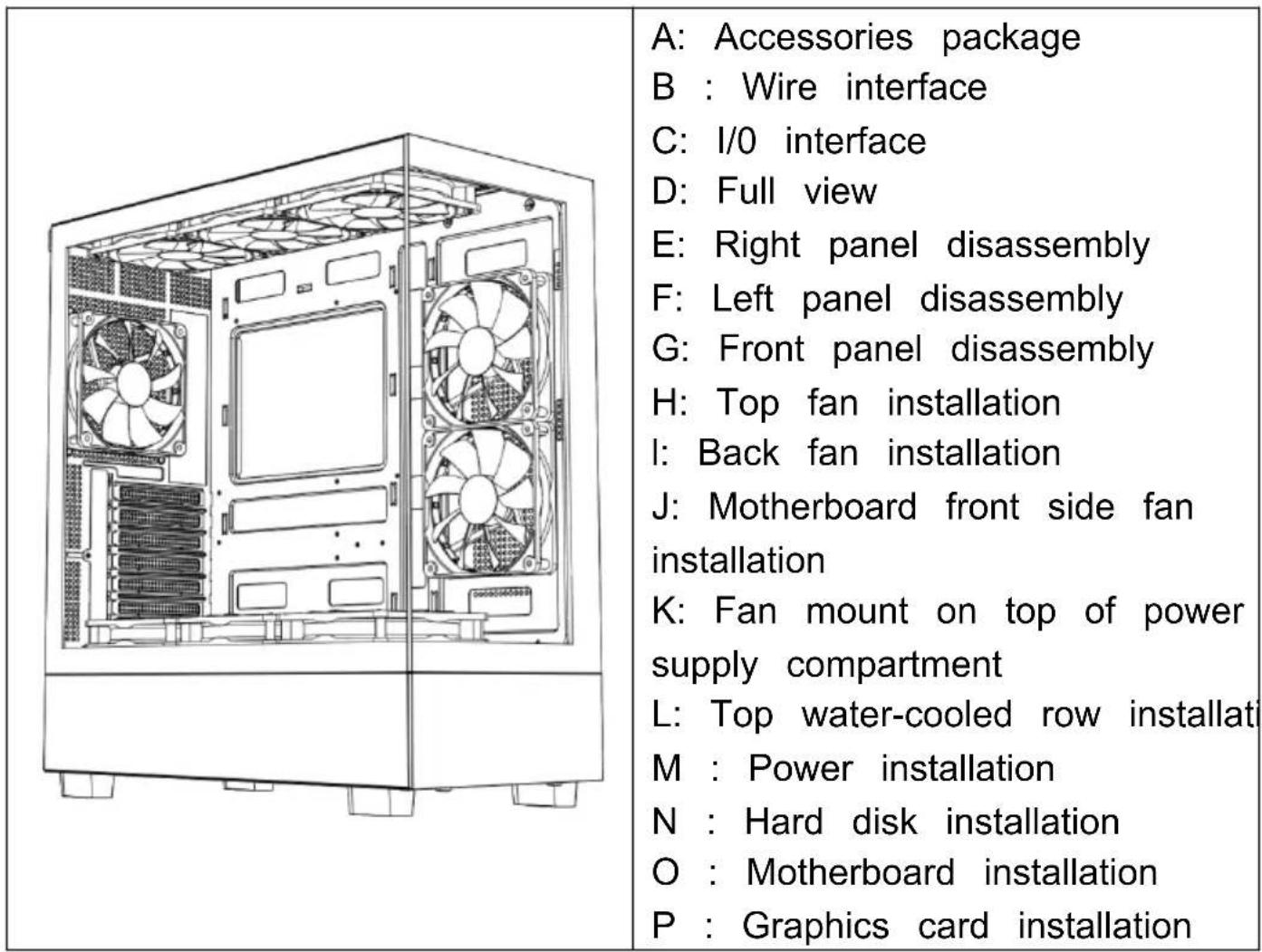

MODEL:215ATX

(The picture is for reference only, please refer to the actual obje

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pi and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to a collection point for recycling electric electronic devices

D

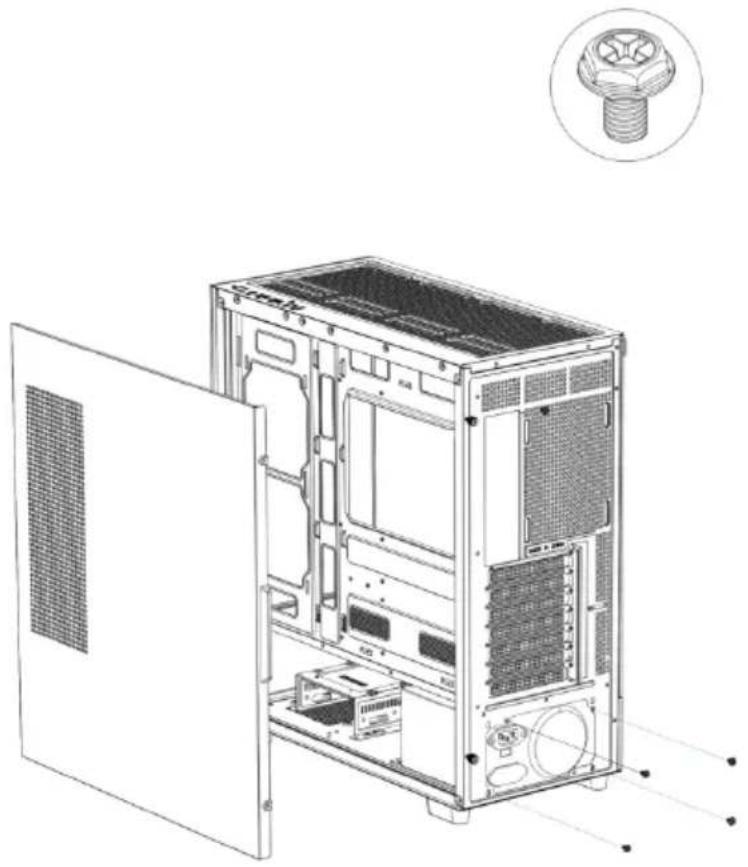

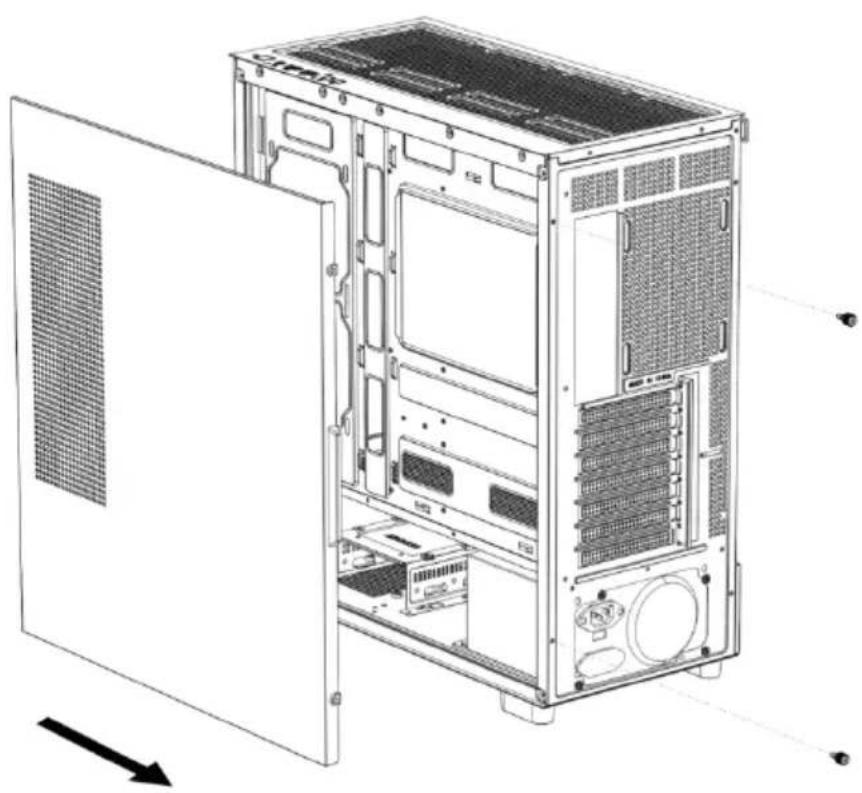

Open the right side panel

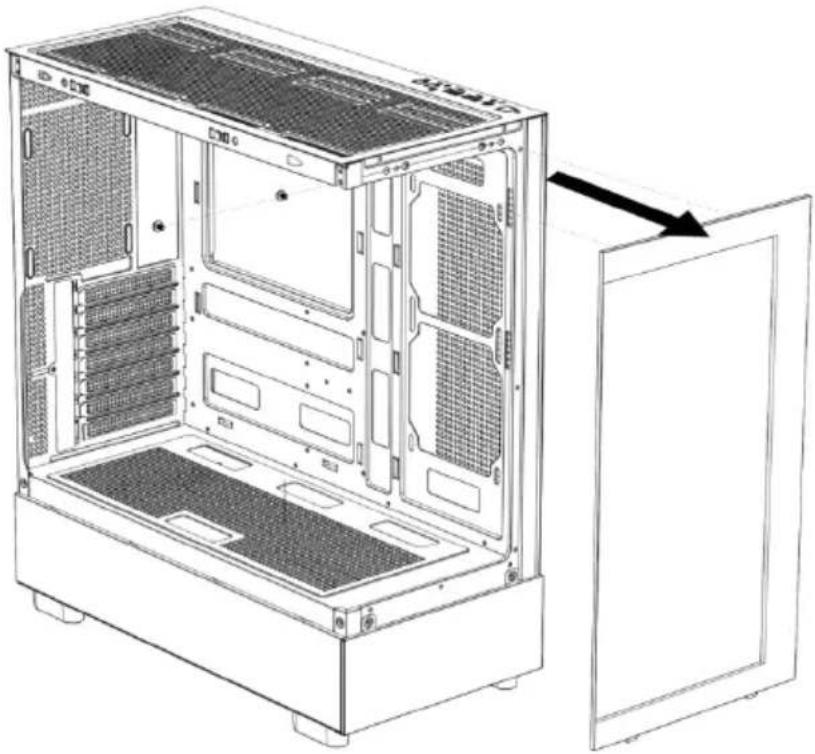

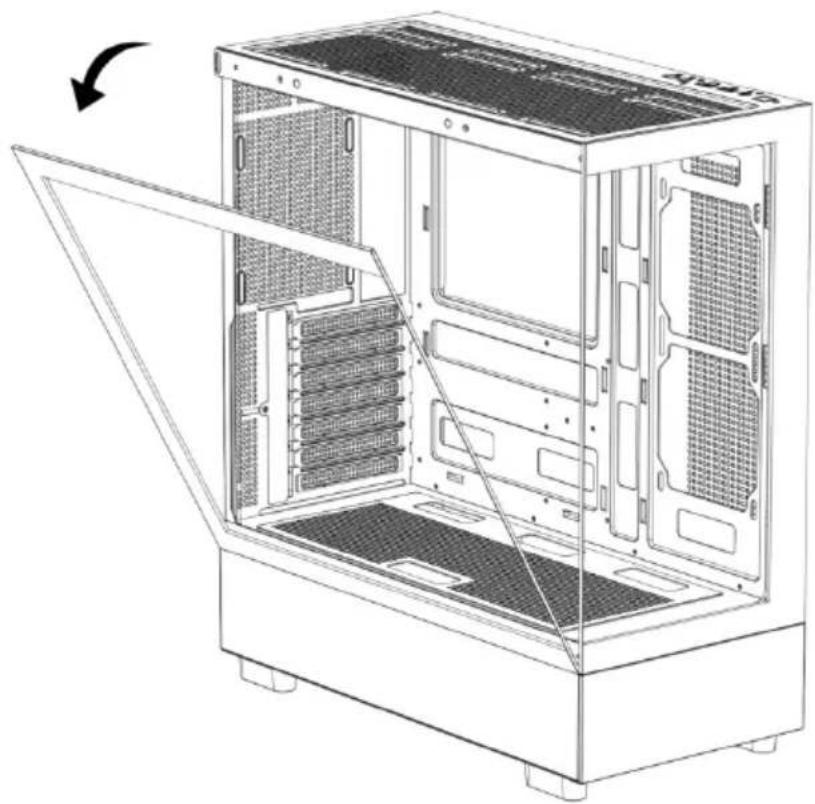

Open the left glass panel

Open the front panel

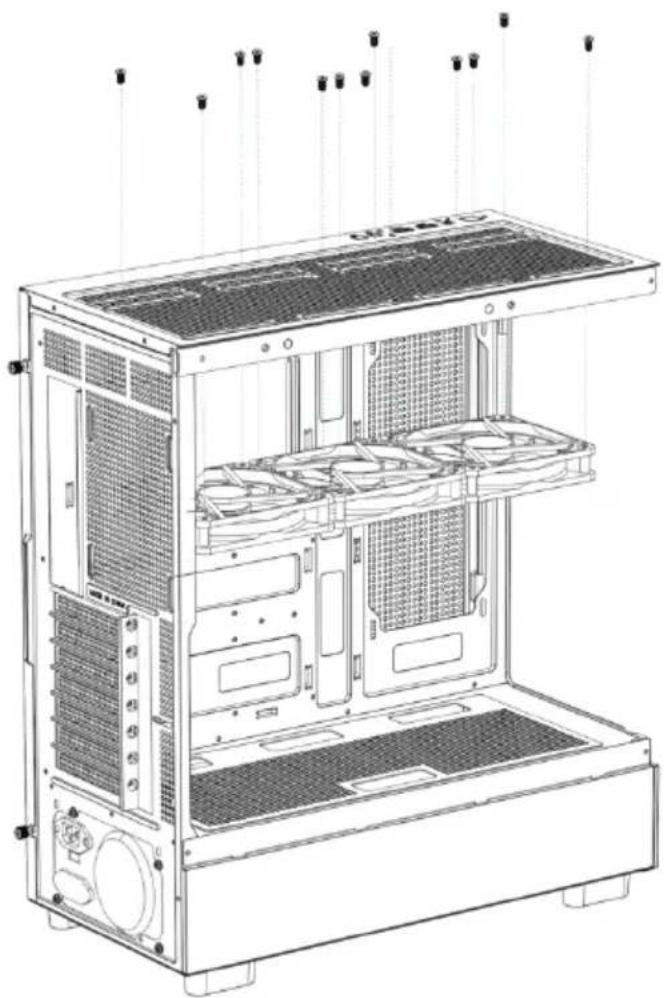

Installing the top fan

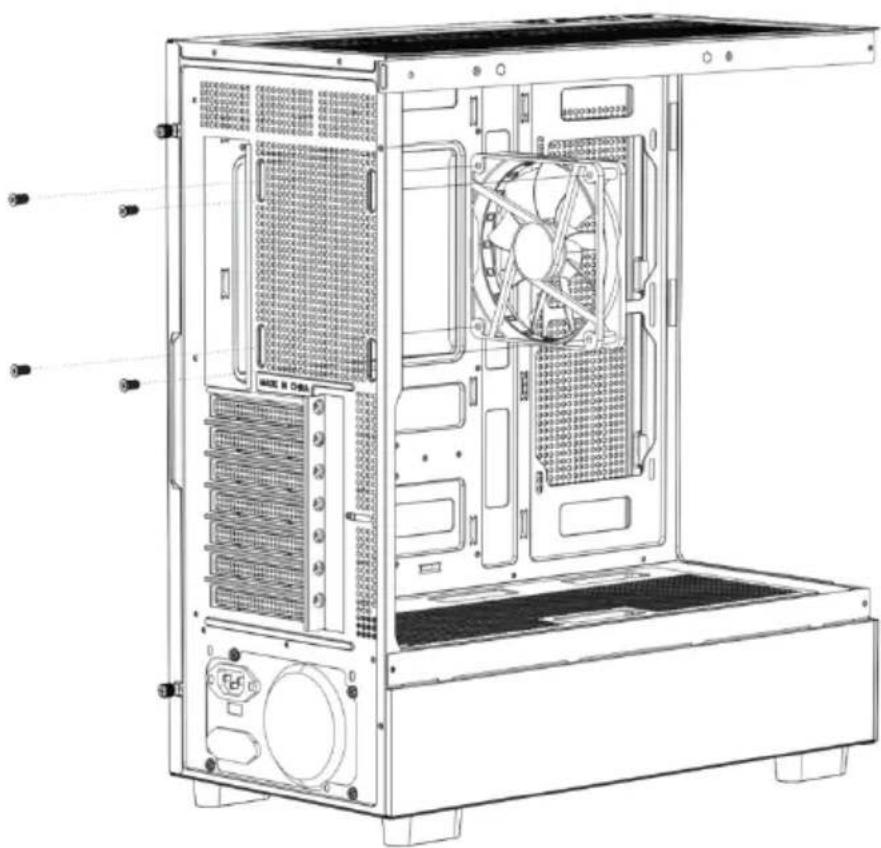

Installing the back fan

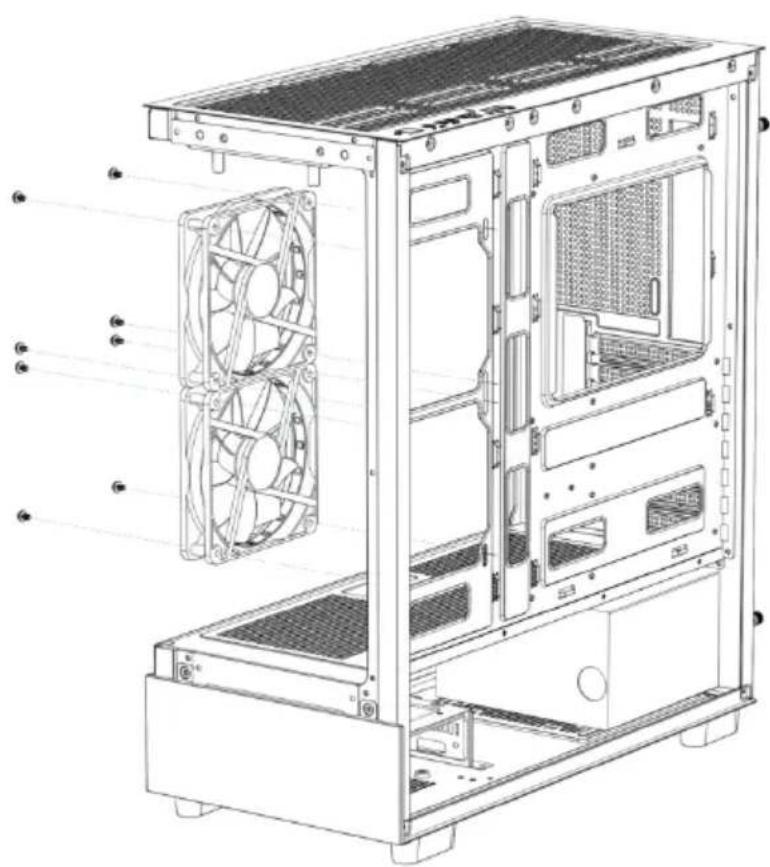

Installing the motherboard front side fan

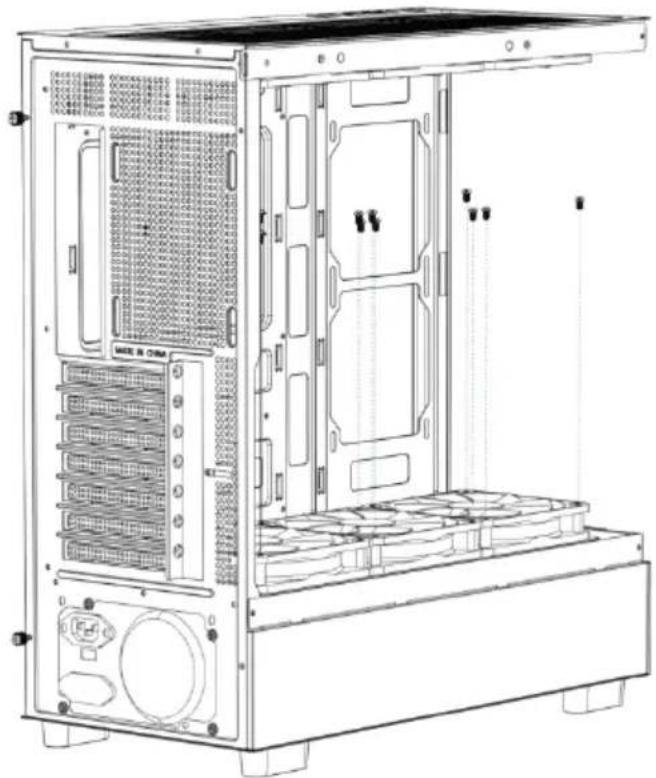

Installing the top fan of the power supply compartment

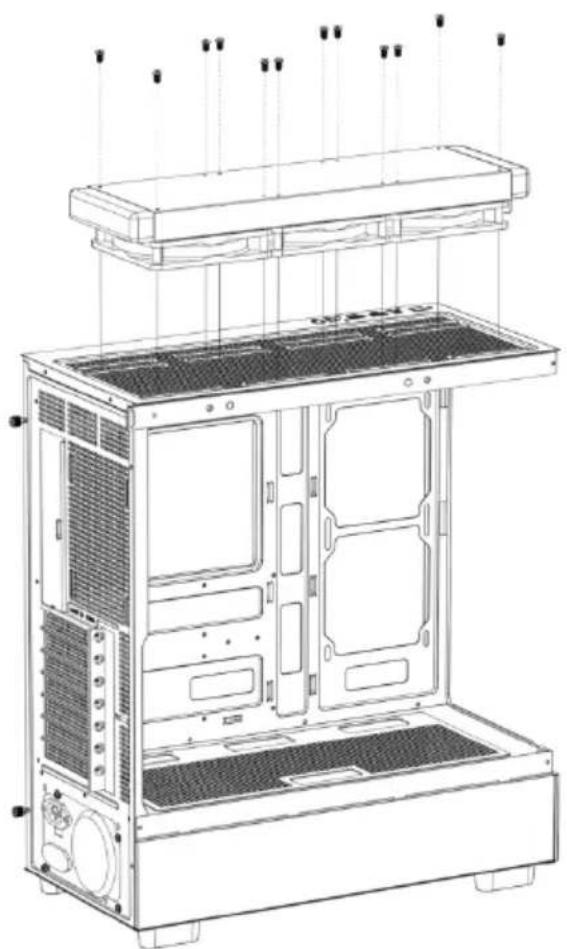

If necessary, install a water-cooling drain on the top of the c

Installing power supply

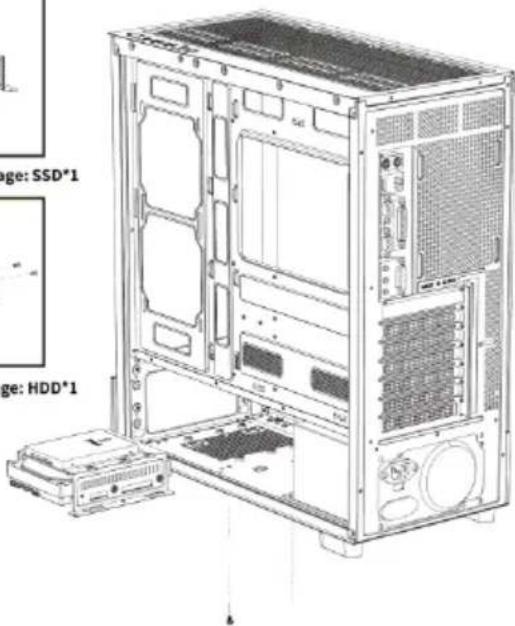

Top of Hard Disk Drive Cage: SSD*1

Inside Hard Disk Drive Cage: HDD*1
Installing SSD and HDD hard drives

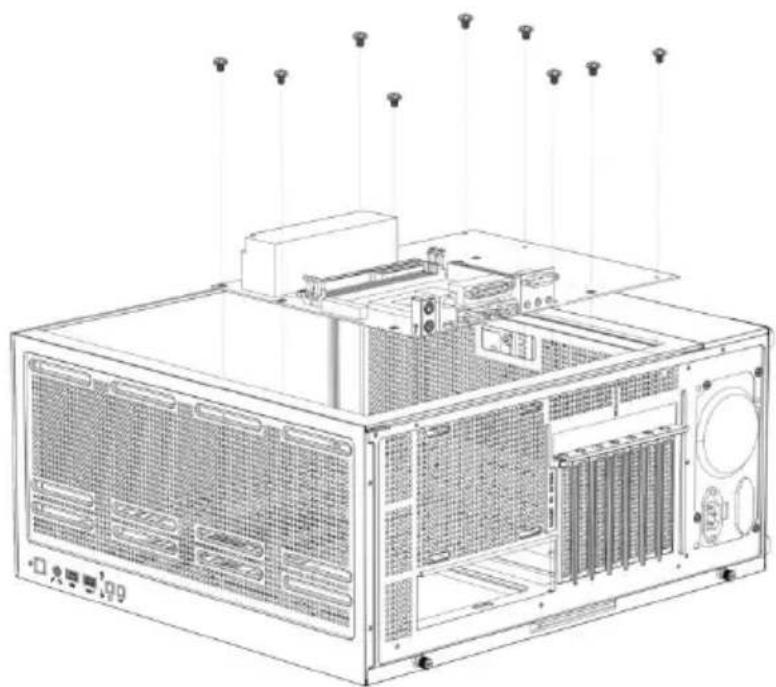

Installing the motherboard

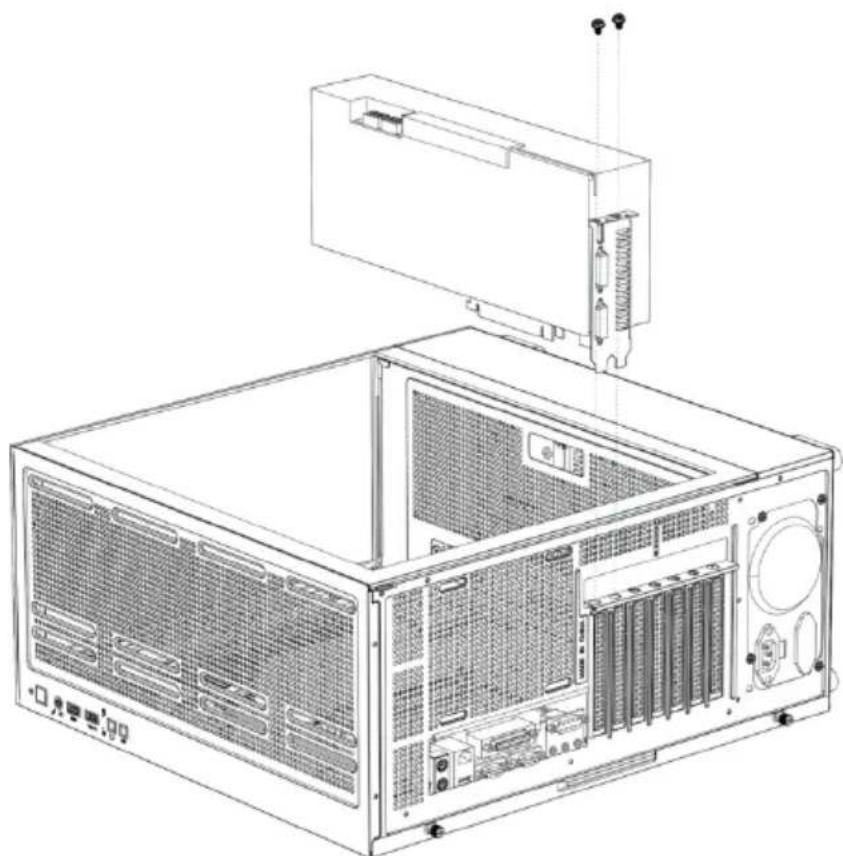

Installing a Graphics Card
