230-14 - Desktop Computer Vevor - Free user manual and instructions

Product type	Mid Tower PC Case (Desktop)
Brand	Vevor
Model	230-14
Dimensions (W x H x D)	210 x 460 x 420 mm
Weight	5.5 kg
Material	SECC steel, tempered glass side panel
Motherboard form factor	ATX, Micro-ATX, Mini-ITX
Expansion slots	7
Internal drive bays	2 x 3.5" (HDD), 2 x 2.5" (SSD)
Power supply included	No (standard ATX compatible, not included)
Power supply location	Bottom, rear mount
Pre-installed fans	None (fan mounting positions)
Front fan positions	3 x 120 mm
Rear fan positions	1 x 120 mm
Top fan positions	2 x 120 mm
Front panel ports	1 x USB 3.0, 2 x USB 2.0, HD Audio (mic/headphone)
Buttons and indicators	Power, Reset, HDD LED, Power LED
Dust filters	Front and bottom (removable)
Warranty	Manufacturer warranty (see www.vevor.com/support)
Maintenance	Clean filters regularly; use a soft, dry cloth for the glass
General information	Compliant with WEEE directive (2012/19/EC); recycle at collection point

Frequently Asked Questions - 230-14 Vevor

What is the maximum compatible motherboard size?

The Vevor 230-14 case supports ATX, Micro-ATX, and Mini-ITX motherboards. The motherboard is mounted on the tray using the provided standoffs.

Is the power supply included with the case?

No, the power supply is not included. You need to purchase a standard ATX power supply (not included). The case has a bottom-mounted position with a dust filter.

How many fans can be installed?

You can install up to 6 120mm fans: 3 in the front, 1 in the rear, and 2 on the top. No fans are pre-installed.

What types of hard drives can I install?

The case has two 3.5-inch HDD cages and two 2.5-inch SSD mounting positions. Mounting screws are included.

How do I clean the tempered glass panel?

Use a soft, dry or slightly damp cloth to wipe the glass. Avoid abrasive cleaners that could scratch the surface.

Where can I find the detailed user manual?

The complete manual is available for free download at notice-facile.com. You can also check the Vevor website for additional guides.

What ports are available on the front panel?

The front panel features one USB 3.0 port, two USB 2.0 ports, a headphone jack and a microphone jack (HD Audio), as well as Power and Reset buttons.

Can I install water cooling?

Yes, the case supports a radiator up to 360mm in the front and 240mm on the top. Check the exact dimensions in the manual.

How do I remove the side panels?

The right panel (metal) is removed by unscrewing the thumb screws; the left panel (glass) is removed by sliding it backward after removing the screws. Refer to sections E and F of the manual.

Is this case compatible with a long graphics card?

Yes, the interior space allows installation of graphics cards up to 340mm in length, depending on the hard drive cage mounting.

USER MANUAL 230-14 Vevor

Affordable. Reliable. Home Improvement.

COMPUTER CASE

MODEL:230-14

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Computer Case

MODEL:230-14

Technical line drawing of a server rack unit with visible internal components and ventilation slots (no text or labels)

(The picture is for reference only, please refer to the actual obje

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

This product is subject to the provision of European Di 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pr and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic wa must be taken to a collection point for recycling electric electronic devices

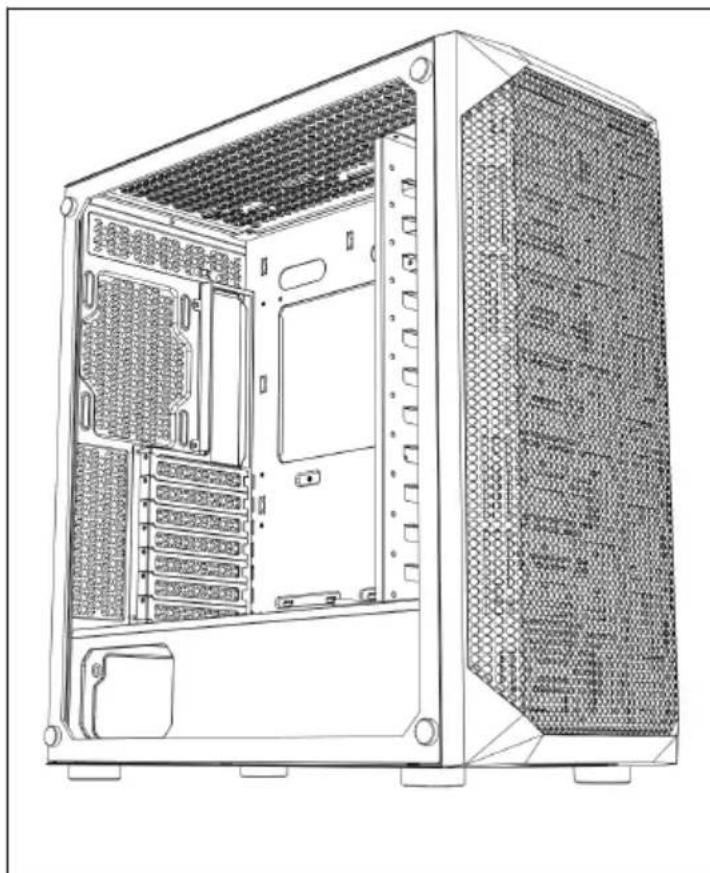

Line drawing of a desktop computer tower case showing internal partition and ventilation slots (no text or labels)

A: Accessories package

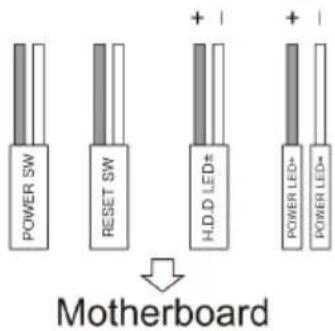

B : Wire interface

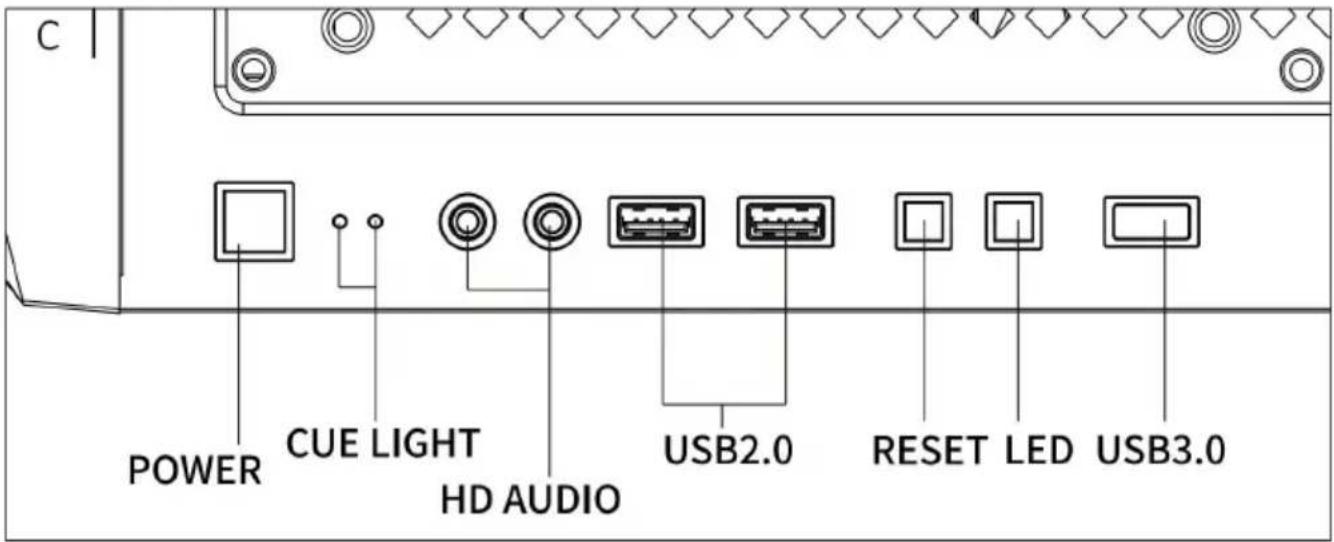

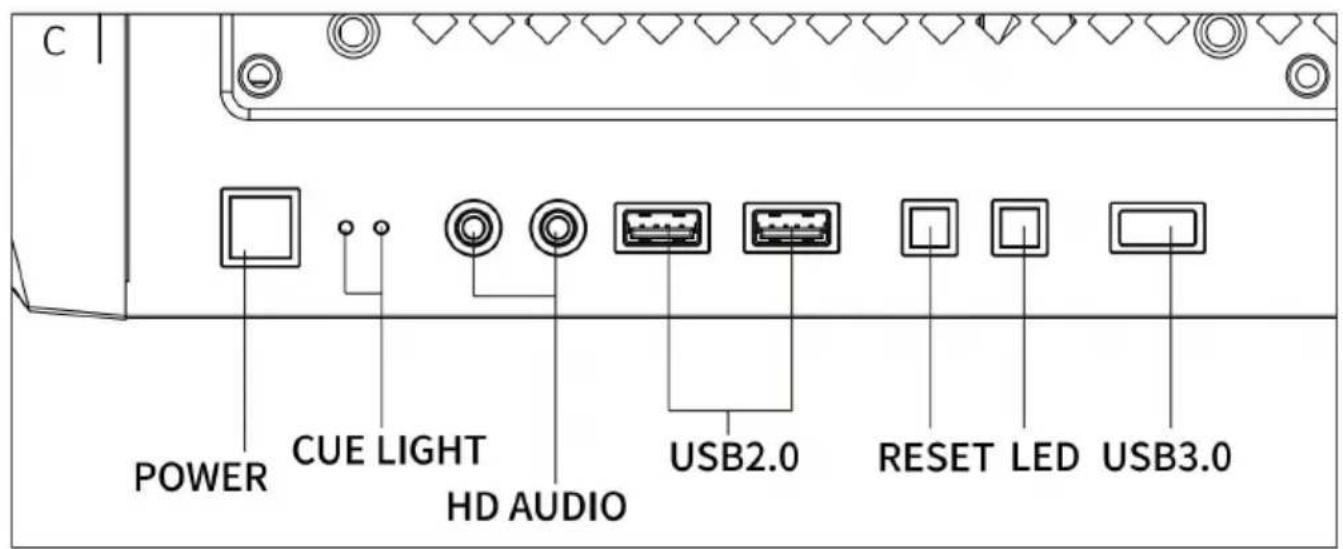

C: I/O interface

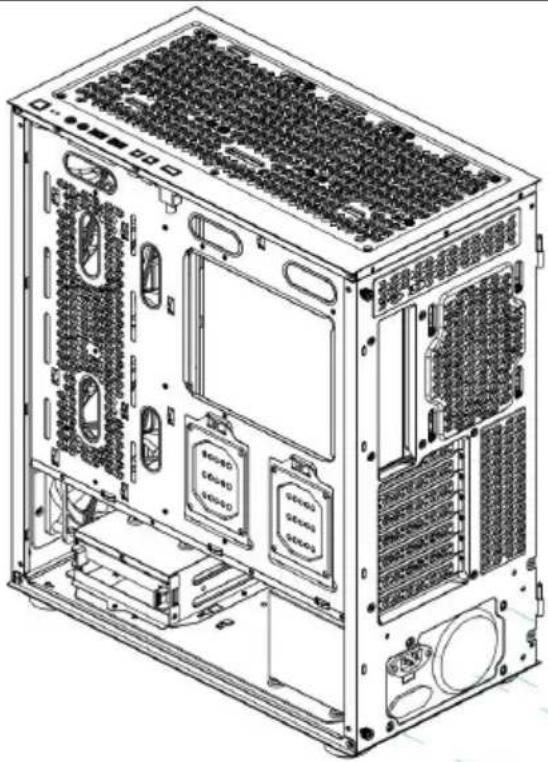

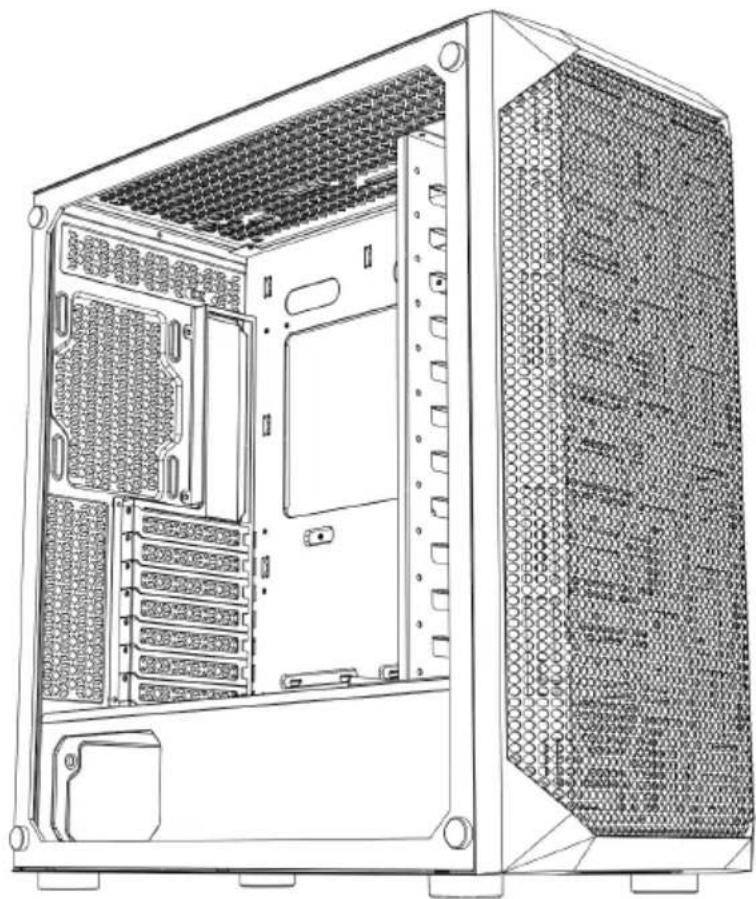

D : Full view
E: Right panel disassembly
F: Left/front panel disassembly
G : Dismantling of hard drive r

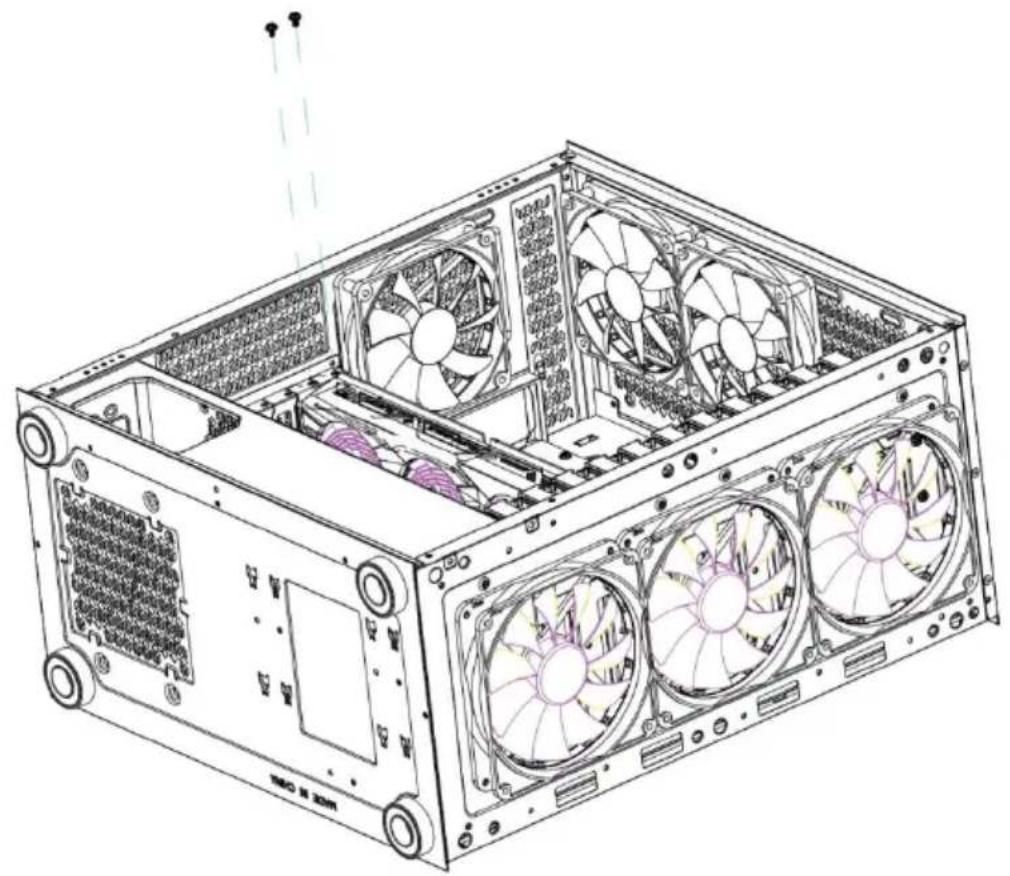

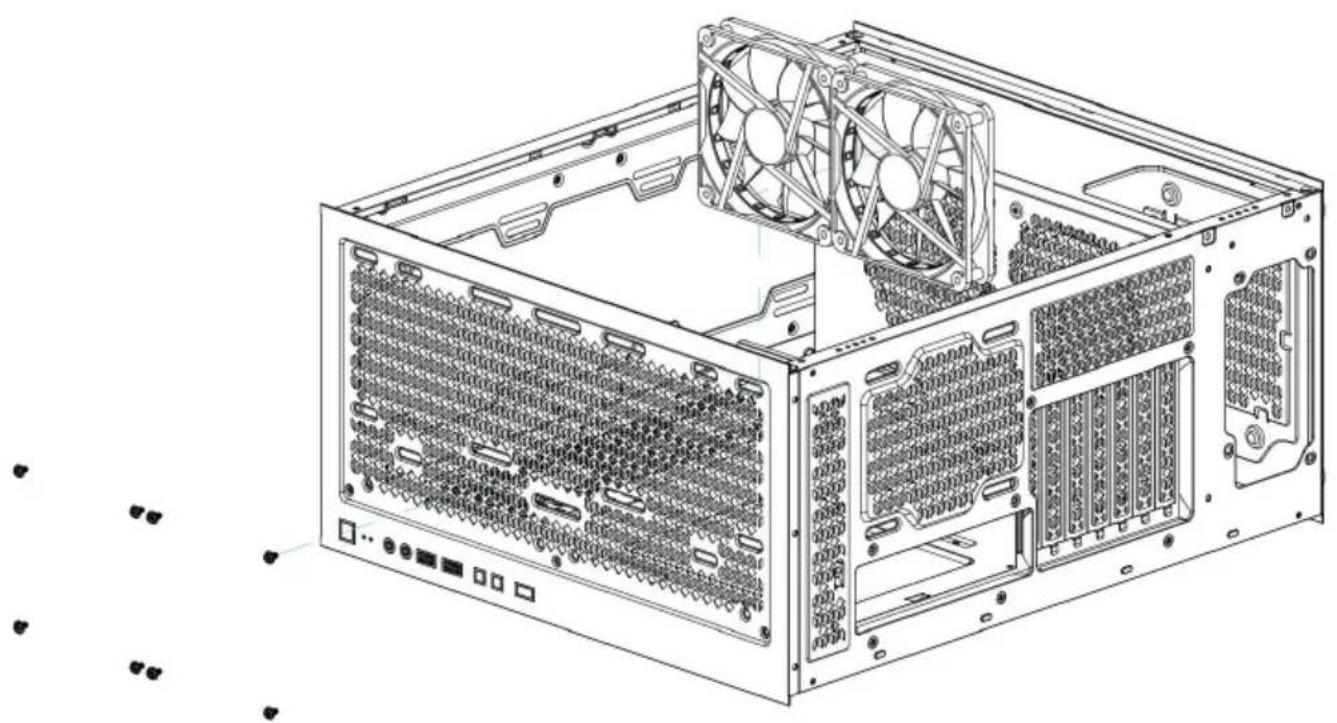

H : Top fan installation

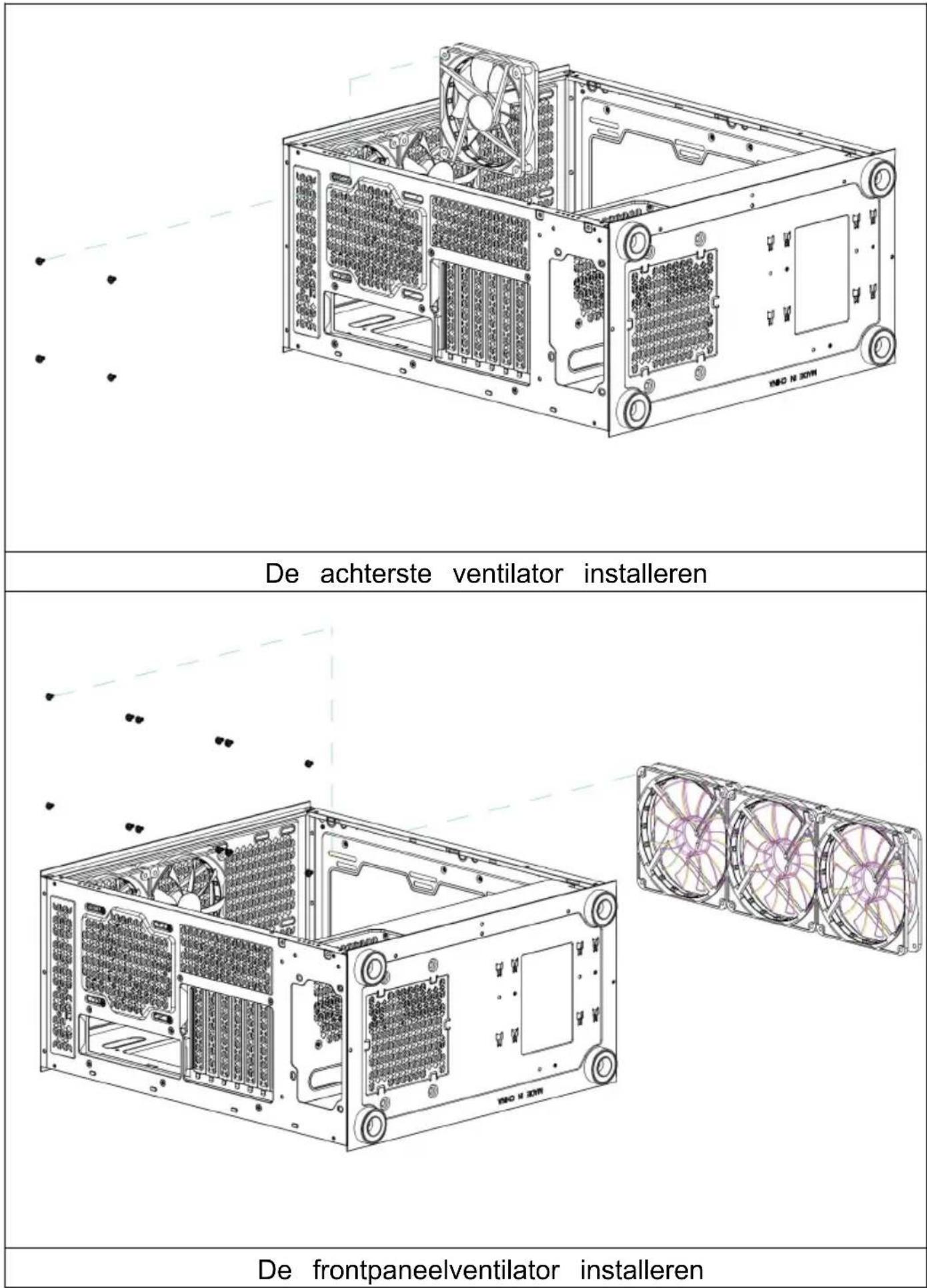

l: Back fan installation
J: Front panel fan installation
K: Power installation
L: Hard disk installation
M : Installation of hard drive ra
N : Motherboard installation
O : Graphics card installation

A

Motherboard screws*20

Hard disk screws*60

Wire Velcro*5

Power screw*8

B

OUTPUT INTERFACE

D

FRONT PANEL

Technical line drawing of a computer rack with two internal components and mounting brackets (no text or symbols)

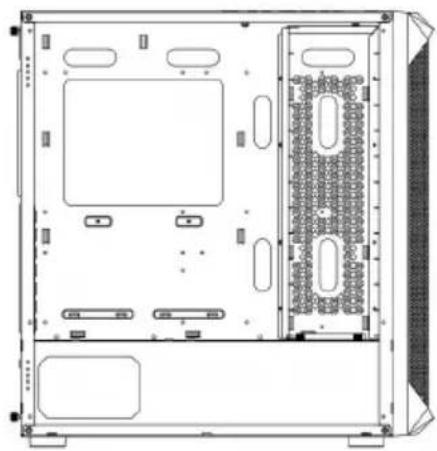

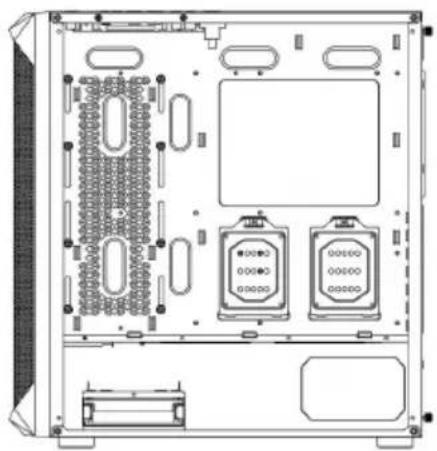

RIGHT SIDE

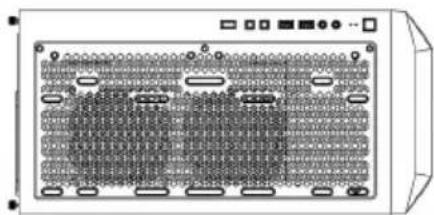

Front view of a computer monitor with multiple ports and status LEDs (no visible text or symbols)

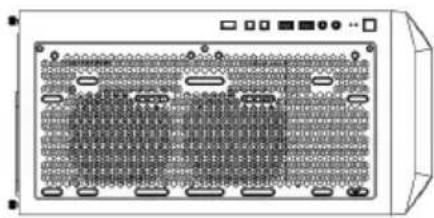

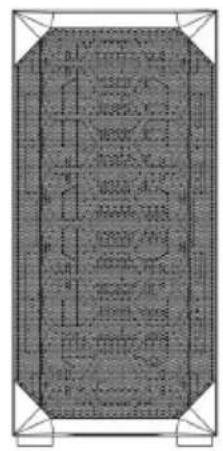

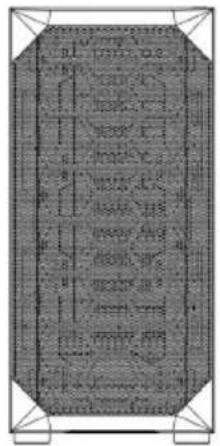

TOP

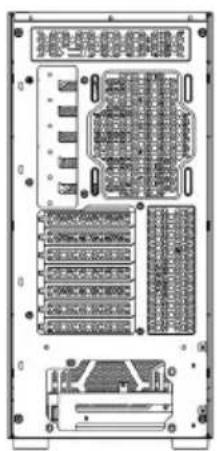

Back view of an electronic device casing with internal circuitry and mounting holes (no visible text or symbols)

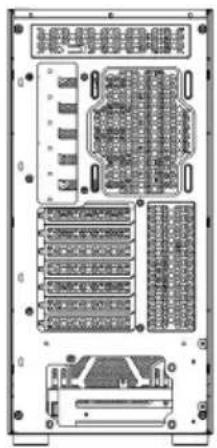

BACK

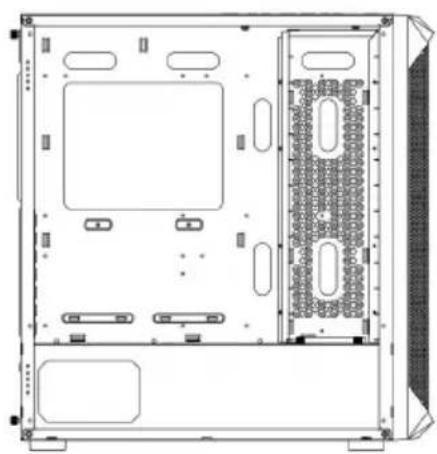

Technical line drawing of a computer rack cabinet showing front, rear, and internal components (no text or labels)

LEFT SIDE

Technical line drawing of a rectangular electronic component with mounting holes and internal circuitry (no text or symbols)

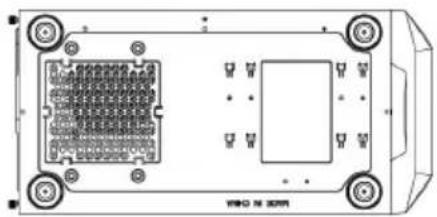

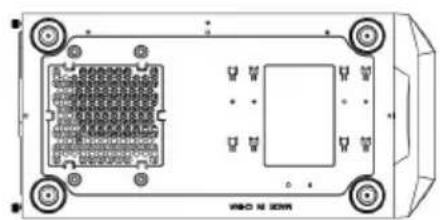

BOTTOM

Technical line drawing of a computer tower case with visible internal components and ventilation slots (no text or labels)

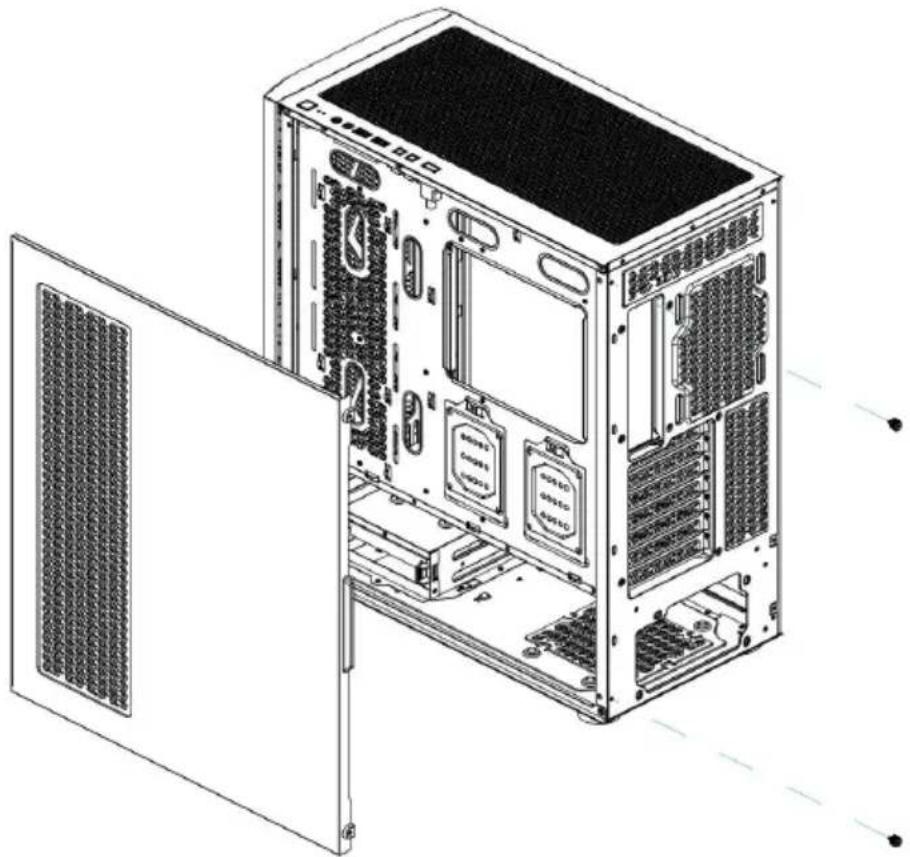

Open the Right iron plate

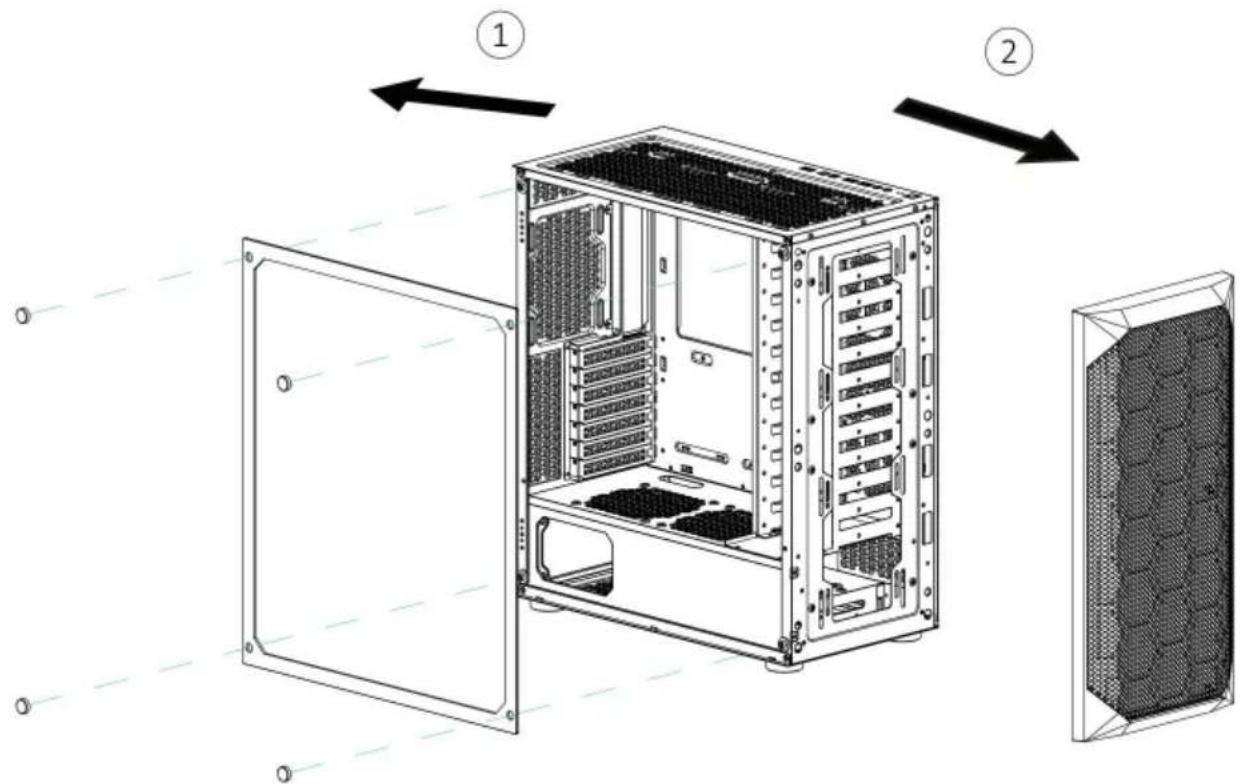

Open the left glass plate, remove the front plate

Technical line drawing of a server rack cabinet showing internal components and ventilation ducts (no text or labels)

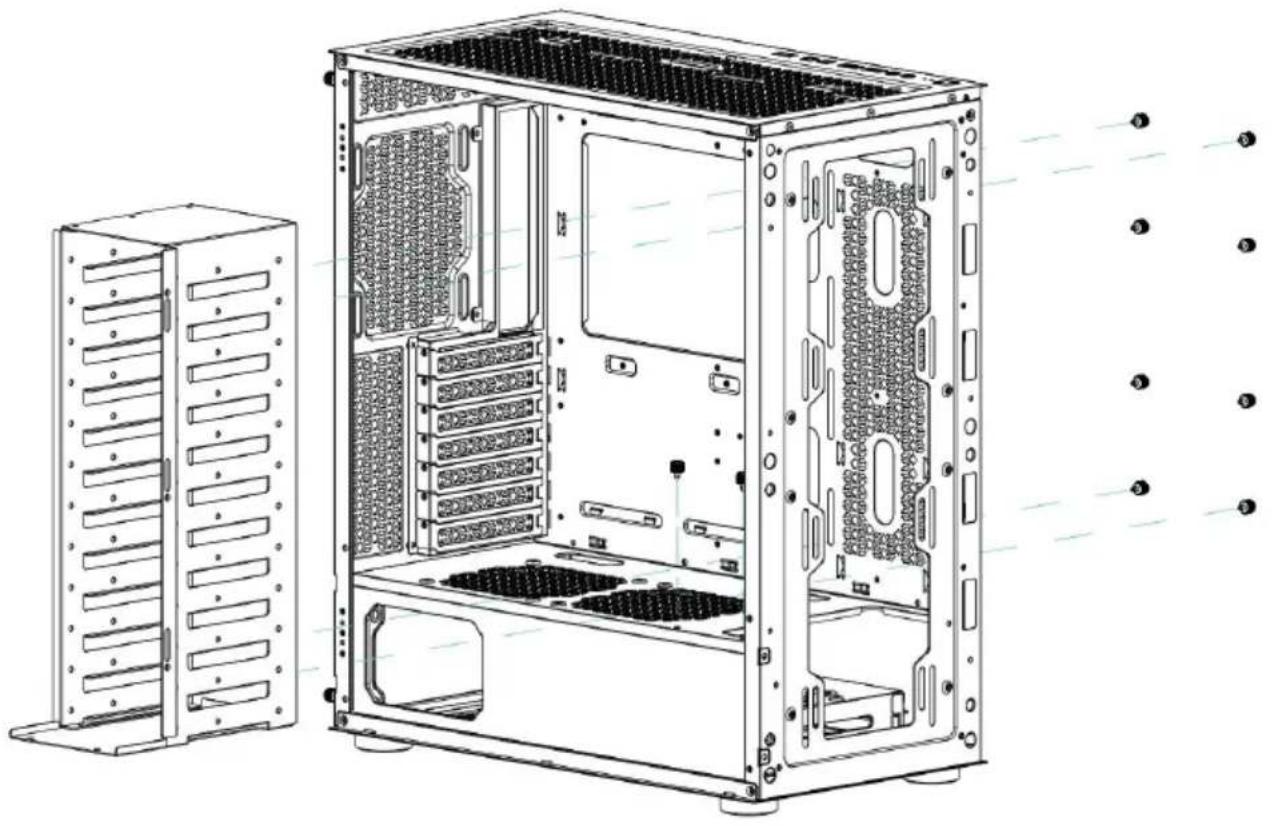

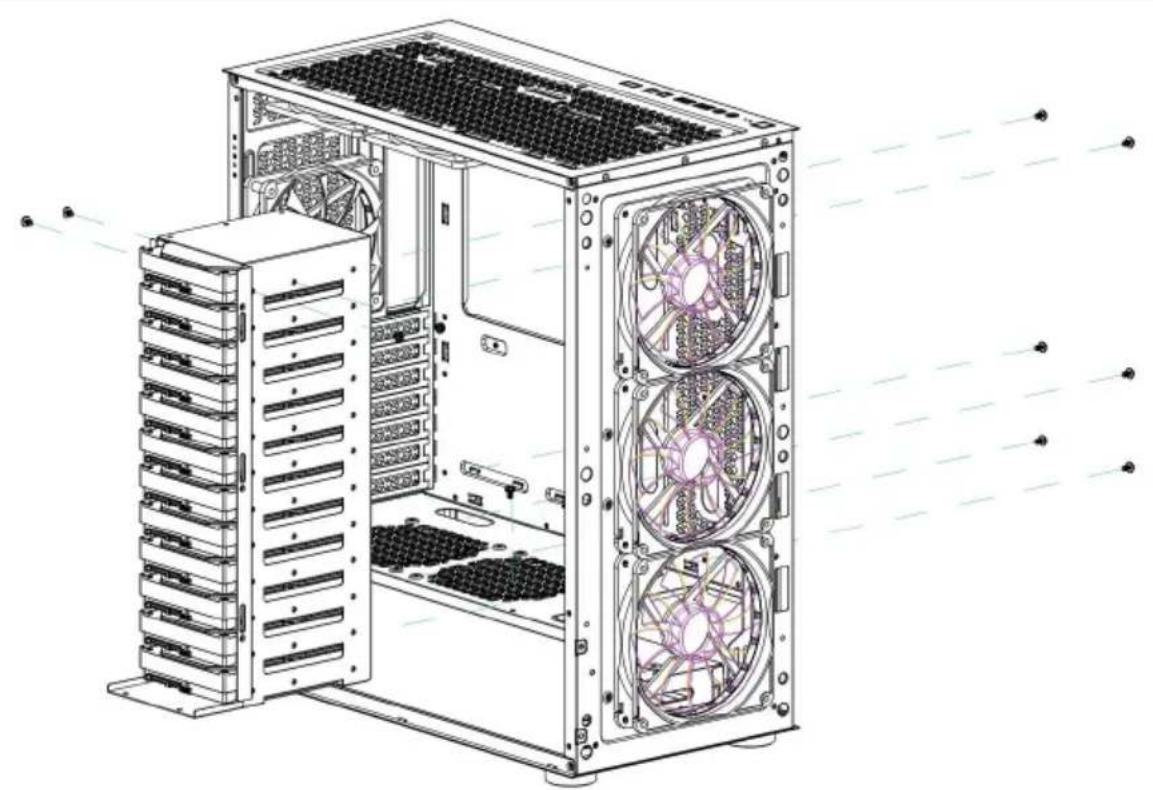

Dismantling the hard drive rack

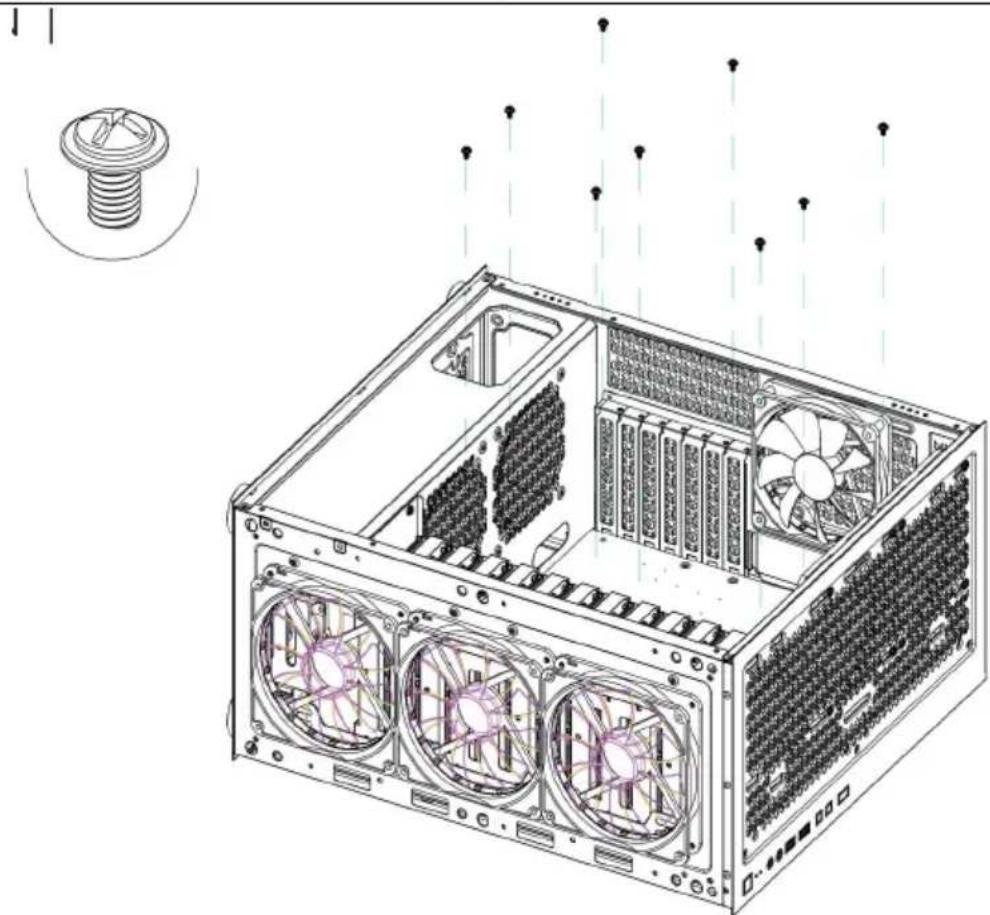

Technical line drawing of a computer tower case with visible fan and drive components (no text or labels)

Technical line drawing of a computer tower case with visible internal components and mounting holes (no text or labels)

Installing power supply

Technical line drawing of a desktop computer tower case with internal components and external casing (no text or symbols)

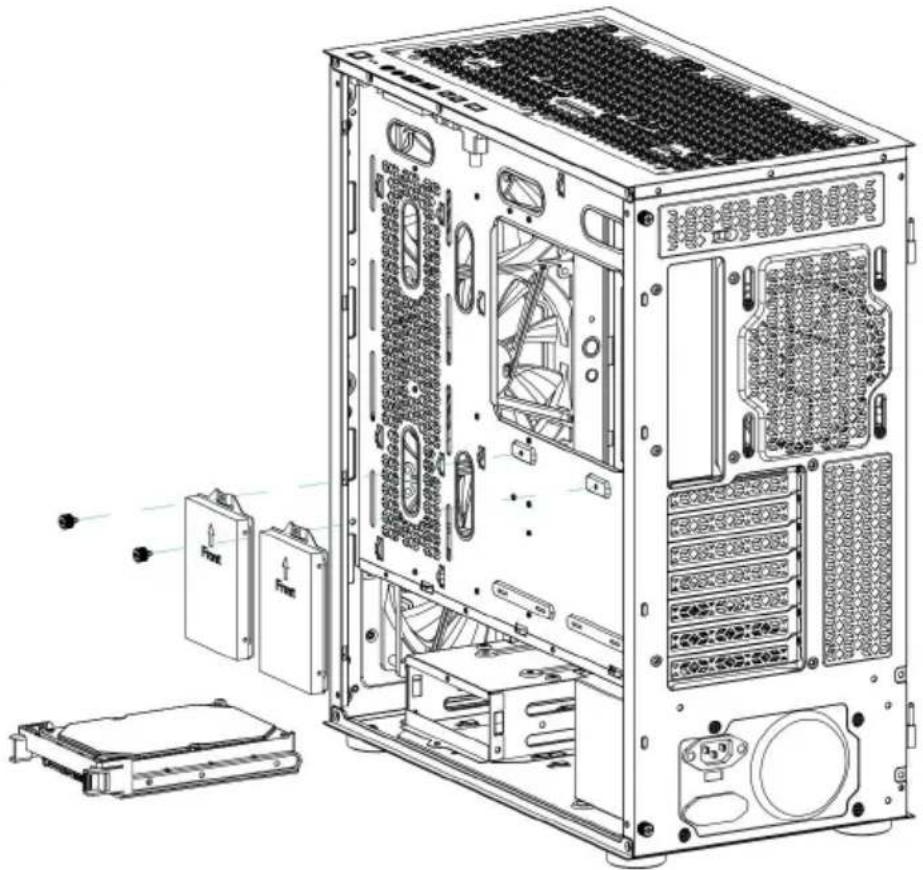

Installing SSD and HDD hard drives

Technical line drawing of a server rack with visible fan and ventilation ducts (no text or symbols)

Installing hard drives

Technical line drawing of a computer tower case with visible fan and drive components, no text or symbols present

Installing the motherboard

Technical line drawing of a computer tower case with multiple fans and drive bays (no text or symbols)

Installing a graphics Card

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730
