20185-AC - Door handle Vevor - Free user manual and instructions

Brand	Vevor
Model	20185-AC
Product Type	Button Door Handle with Locking
Material	Metal alloy
Finish	Satin nickel
Color	Satin nickel
Rose diameter	54 mm
Compatible door thickness	35 mm to 44 mm (1-3/8" to 1-3/4")
Backset	60 mm or 70 mm (2-3/8" or 2-3/4")
Distance between fixing holes	195 mm to 224 mm (7-11/16" to 8-13/16")
Number of keys provided	3
Latch type	Adjustable spring latch (60 or 70 mm)
Features	Key locking, interior lock button
Installation	Drilling holes Φ54 mm and Φ25 mm, base cutout 58x26x3 mm
Maintenance	Clean with a dry cloth; lubricate the cylinder with graphite powder if necessary
Safety	Contains small parts – keep out of reach of children (choking hazard)
Included accessories	Front handle, latch (2 sizes), cylinder, deadbolt rose, strike plate (2), back button, strike box, screws (8), pin, keys (3), washer, user manual
Repairability	Spare parts available on request via www.vevor.com/support
Warranty	Electronic warranty via Vevor website
Weight	Approximately 0.5 kg (estimate)

Frequently Asked Questions - 20185-AC Vevor

How to install the Vevor 20185-AC door handle?

Follow the steps in the manual: mark the door using the template, drill holes of Φ54 mm and Φ25 mm, then cut out a base of 58x26x3 mm. Install the latch by adjusting the backset (60 or 70 mm). Mount the front handle, then the interior button by tightening the screws. Finally, install the strike plates on the door frame.

What door thickness is suitable?

The handle is designed for doors with thickness between 35 mm and 44 mm (1-3/8" to 1-3/4").

How to adjust the latch to 60 or 70 mm?

To adjust the latch, push the cam completely to the right for a backset of 70 mm, or to the left for 60 mm. Make sure to always leave two teeth of the cam facing forward during adjustment.

What to do if the key doesn't turn or the cylinder is stiff?

Do not use oil. Add graphite powder (pencil powder) into the keyhole to lubricate the mechanism. If the problem persists, contact Vevor technical support.

How to clean the handle without damaging it?

Use a dry, soft cloth. Do not use chemical products like liquid detergent, as they would destroy the protective film and cause discoloration.

Can I install this handle on a metal door?

Yes, provided the thickness is within the compatible range (35-44 mm) and you can drill the necessary holes. For metal doors, use suitable drill bits.

Are screws provided?

Yes, the kit includes 8 screws as well as a pin, washer, and all necessary components for installation.

How to disassemble the handle once installed?

First remove the interior button by unscrewing the bottom screw. You can then access the pin and remove the front handle. For the latch, unscrew the strike plate and latch screws.

What is the warranty for this product?

Vevor offers an electronic warranty. Visit www.vevor.com/support to register your product and get assistance.

Where can I find spare parts?

Contact Vevor customer service via www.vevor.com/support. Spare parts such as cylinders, latches, or strike plates can be ordered separately.

USER MANUAL 20185-AC Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

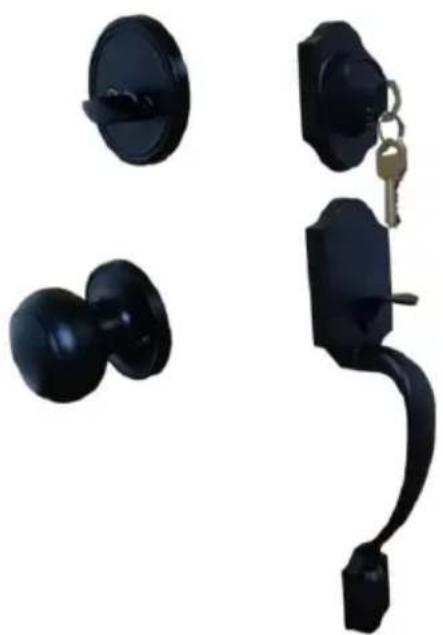

KNOB HANDLESETS

MODEL: 19985-SN / 20185-AC / 20185-10B

We continue to be committed to provide you tools with competitive p "Save Half", "Half Price" or any other similar expressions used by us represents an estimate of savings you might benefit from buying certain us compared to the major top brands and does not necessarily mean to categories of tools offered by us. You are kindly reminded to verify care you are placing an order with us if you are actually saving half in com the top major brands.

MODEL: 19985-SN / 20185-AC / 20185-10B

Black metal door handle and keychain components (no text or symbols visible)

NOTE: The shown is for illustration purposes only. Please refer to color you purchased.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields befc assembly and commencing power tool operation. Always keep hands, face, hair, loose clothing, and body at a safe distance from spindles cutting tools. Always keep a firm grip on tool handles when in opera Always disconnect from the power source before adjusting power tools

MODEL AND PARAMETERS

Model	19985-SN	20185-AC	20185-10B
Color	Satin Nickel	Antique Copper	Matte Black
Applicable Door Thickness	1-3/8"~1-3/4"
Latch Length	2-3/8" and 2-3/4"
Pitch-row(Door Handle)	7-11/16"-8-13/16"

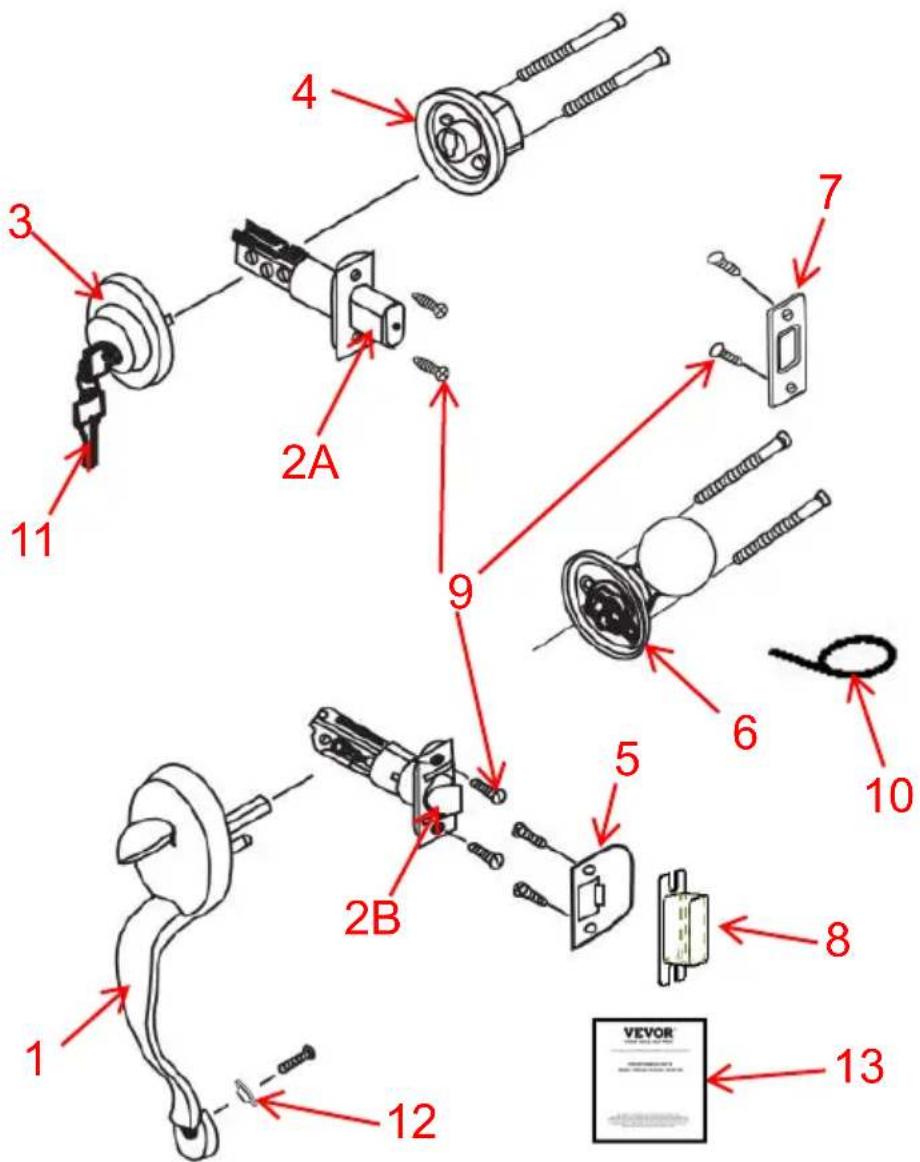

No.	Name and Qty	No.	Name and Qty
1	Front Handle x 1	2A	Latch A x 1
2B	Lower Latch x 1	3	Cylinder x 1
4	Deadbolt Rose x 1	5	Strike Plate x 1
6	Back Knob x 1	7	Strike Plate x 1
8	Strike Box x 1	9	Screws x 8
10	Pin x 1	11	Door Key x 3
12	Washer x 1	13	User Manual x 1

INSTALLATION

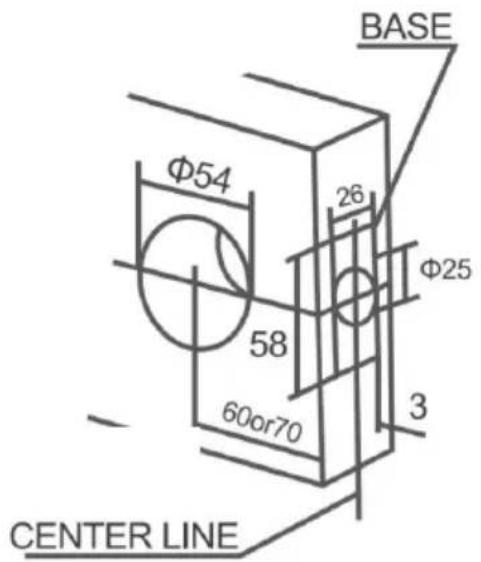

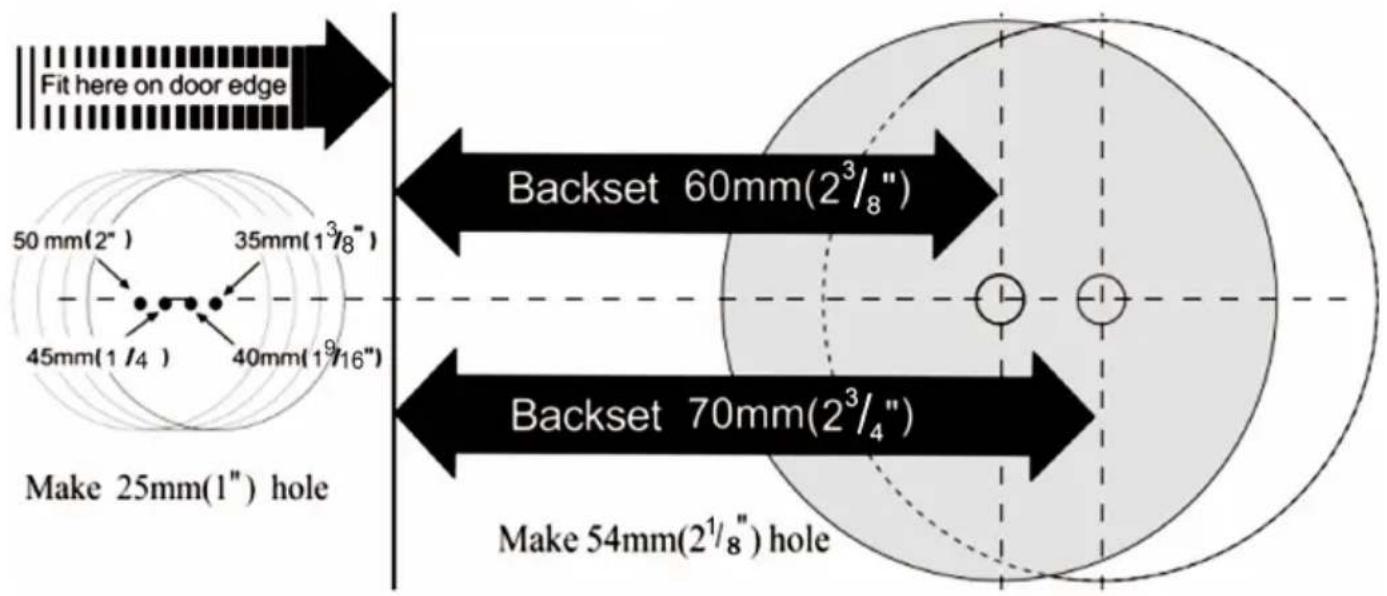

1. MARK DOOR & BORE HOLES(Please refer to the attached opening diagram.)

A: Fold the template over the edge of the door and mark the site (670 mm of holes.
B: Bore the 54mm and 25mm holes through the door.
C: Cut out a 58x26x3mm base.

2. INSTALL THE LATCH

According to the site of lock holes, adjust the latch for 60mm or 70mm

Pure technical line drawing of a mechanical assembly with no text or symbols

NOTE: The cam is pushed fully to the right for 70mm backset.(During adjustment, keep two teeth of the cam to forward always.)

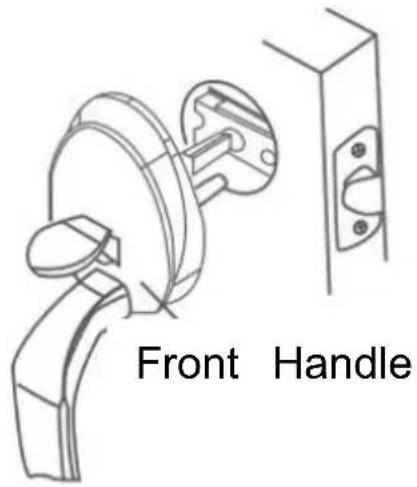

3. INSTALL EXTERIOR HANDLE MECHANISM

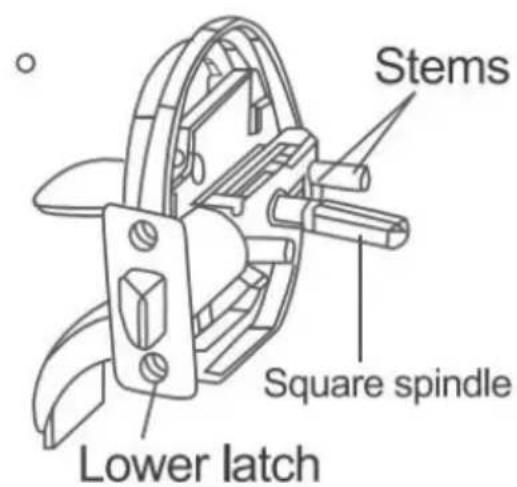

Place the front handle with stems and square spindle into the latch; shown. Press tightly against the door face.

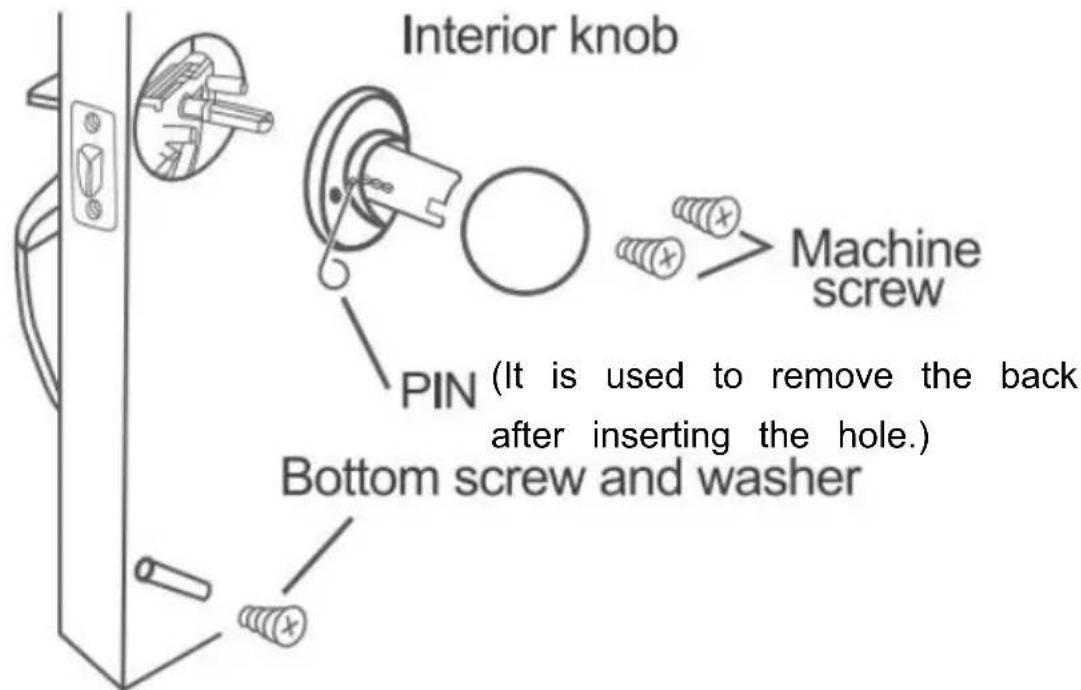

4. INSTALL THE INTERIOR KNOBS

After the front handle is in position, install the interior knob and tight screws. Insert screw through washer and into bottom hole tighten firm

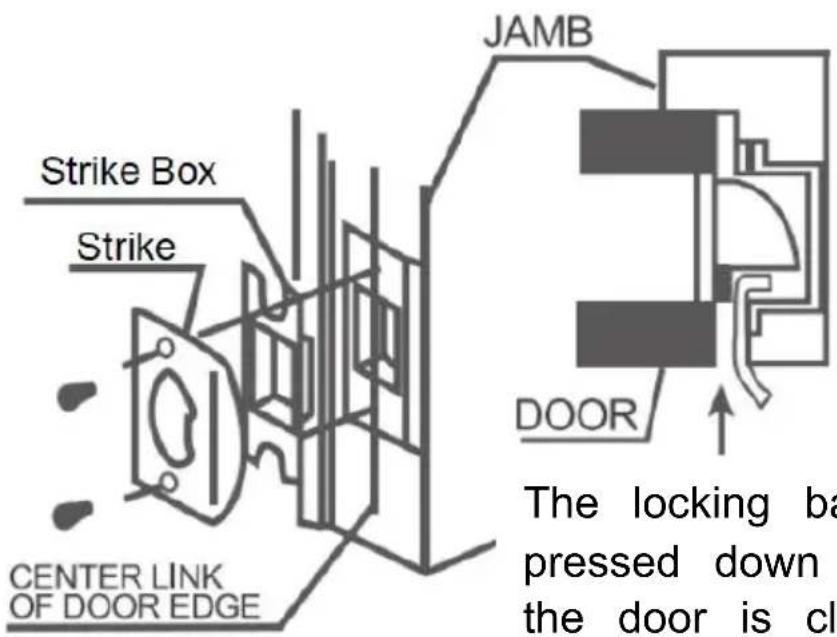

5. INSTALL THE STRIKES

The locking bar is pressed down when the door is closed.

MAINTENANCE

1. Do not strike with force to avoid damage to the latch and door frame.
2. If there is dirt, use a dry cloth to remove, do not scrub with chemicals dishwashing liquid. Otherwise, it will destroy the protective film of exposed pa and cause fading.
3. Periodically (half a year or once a year) or when the key is not smooth inserted and removed, graphite powder (pencil powder) can be added in the keyhole to lubricate.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support
