19985-SN - Door handle Vevor - Free user manual and instructions

Brand	Vevor
Model	19985-SN
Product Type	Door knob handle
Color	Satin nickel
Material	Metal (steel, alloy)
Applicable Door Thickness	1-3/8" to 1-3/4" (35 mm to 44 mm)
Latch Length (Backset)	2-3/8" (60 mm) or 2-3/4" (70 mm), adjustable
Handle Center Distance (Screw Hole Spacing)	7-11/16" to 8-13/16" (195 mm to 224 mm)
Drilling Hole Diameter	54 mm (main hole) and 25 mm (latch hole)
Cutout Base Dimensions	58 x 26 x 3 mm
Main Functions	Key locking, interior turn button, exterior handle
Box Contents	Front handle, latch A and B, cylinder, deadbolt rose, strike plates, back button, screws, spindle, keys (x3), washer, manual
Care and Cleaning	Clean with a dry cloth; do not use chemical detergents. Lubricate with graphite powder if necessary
Safety	Contains small parts, choking hazard. Keep out of reach of children
General Information	Installation requires drilling; follow safety instructions. Warranty and support via www.vevor.com/support

Frequently Asked Questions - 19985-SN Vevor

What door thicknesses are compatible with the Vevor 19985-SN handle?

The handle is designed for doors with thickness between 1-3/8" and 1-3/4" (approximately 35 mm to 44 mm).

How do I adjust the latch backset?

The latch can be set to 60 mm (2-3/8") or 70 mm (2-3/4"). To switch to 70 mm, push the cam fully to the right while keeping two teeth forward.

What tools are needed for installation?

You will need a drill, a 54 mm drill bit for the main hole, a 25 mm drill bit for the latch, and a wood chisel to cut the base (58x26x3 mm).

How to install the exterior handle?

Place the front handle with the spindles and square rod into the latch, then press firmly against the door face. Then attach the interior button and tighten the screws.

What should I do if the key does not insert or turn easily?

Add graphite powder (pencil powder) into the keyhole to lubricate. Avoid liquid lubricants that can gum up the mechanism.

How to clean the handle without damaging it?

Use a dry cloth to remove dirt. Do not use chemical detergents or dish soap, as they will destroy the protective film and cause discoloration.

What safety precautions should be taken?

The product contains small parts that pose a choking hazard. Keep them out of reach of children. During installation, wear safety glasses and keep hands away from cutting tools.

Does the handle come with keys?

Yes, the kit includes 3 keys for the cylinder lock.

Can I install this handle on a metal door?

The instructions do not specify door material, but drilling is required. For a metal door, ensure you have suitable drill bits and follow the indicated drilling dimensions.

Where to find technical support or warranty?

Technical support and the electronic warranty certificate are available at www.vevor.com/support.

USER MANUAL 19985-SN Vevor

KNOB HANDLE SETS

MODEL: 19985-SN / 20185-AC / 20185-10B

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us represent an estimate of savings you might benefit from buying certain tools from us compared to the major top brands, and do not necessarily mean that all categories of tools offered by us are at half price. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison to the top major brands.

MODEL: 19985-SN / 20185-AC / 20185-10B

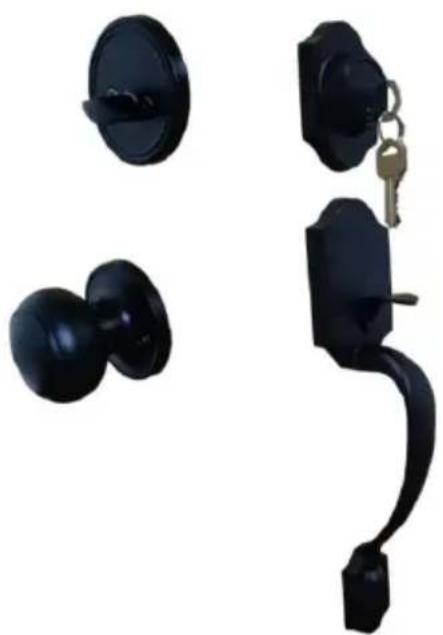

NOTE: The image shown is for illustration purposes only. Please refer to the actual color of the product you purchased.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand, and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields before assembly and commencing power tool operation. Always keep hands, face, hair, loose clothing, and body at a safe distance from spindles and cutting tools. Always keep a firm grip on tool handles when in operation. Always disconnect from the power source before adjusting power tools.

MODEL AND PARAMETERS

Model	19985-SN	20185-AC	20185-10B
Color	Satin Nickel	Antique Copper	Matte Black
Applicable Door Thickness	1-3/8"~1-3/4"
Latch Length	2-3/8" and 2-3/4"
Pitch-row(Door Handle)	7-11/16"-8-13/16"

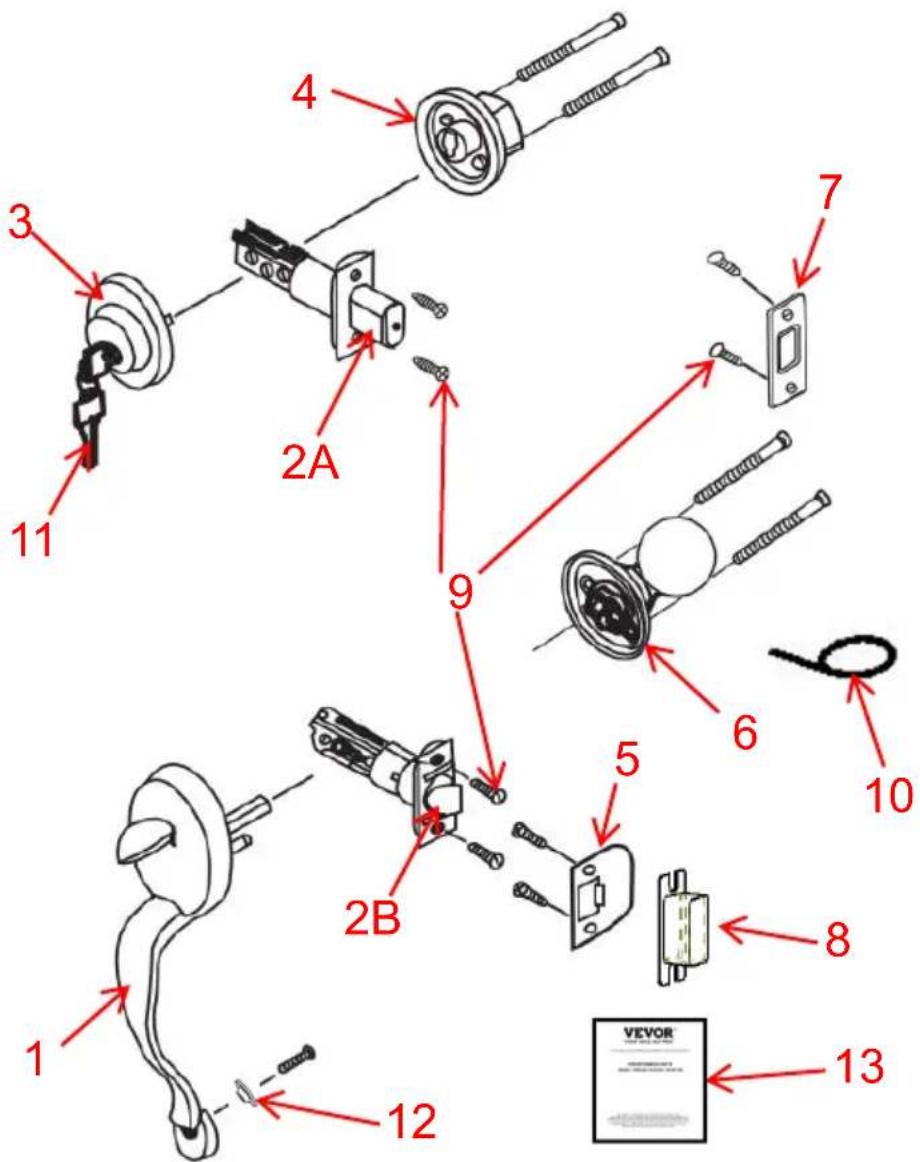

No.	Name and Qty	No.	Name and Qty
1	Front Handle x 1	2A	Latch A x 1
2B	Lower Latch x 1	3	Cylinder x 1
4	Deadbolt Rose x 1	5	Strike Plate x 1
6	Back Knob x 1	7	Strike Plate x 1
8	Strike Box x 1	9	Screws x 8
10	Pin x 1	11	Door Key x 3
12	Washer x 1	13	User Manual x 1

INSTALLATION

1. MARK DOOR & BORE HOLES (Please refer to the attached opening diagram.)

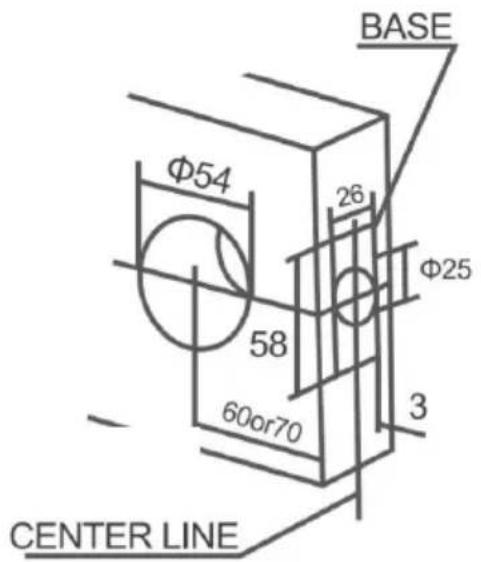

A: Fold the template over the edge of the door and mark the site (670 mm of holes). B: Bore the Φ54mm and Φ25mm holes through the door. C: Cut out a 58x26x3mm base.

2. INSTALL THE LATCH

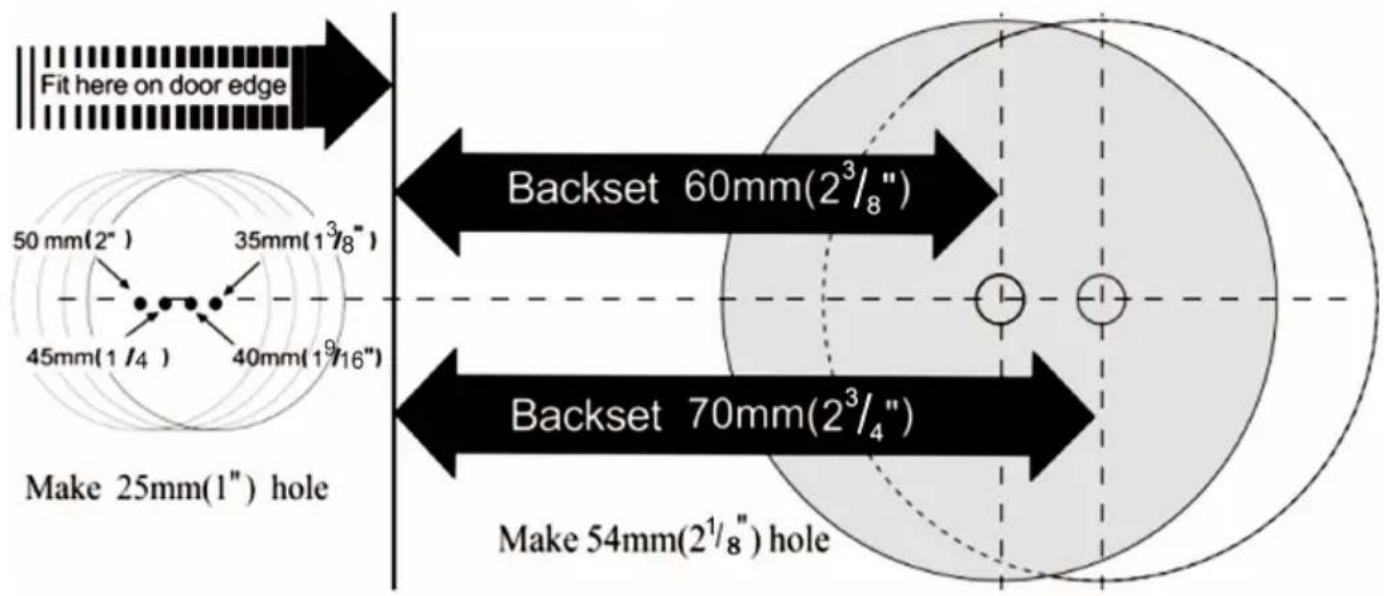

According to the site of lock holes, adjust the latch for 60mm or 70mm backset.

NOTE: The cam is pushed fully to the right for 70mm backset. (During adjustment, keep two teeth of the cam forward always.)

3. INSTALL EXTERIOR HANDLE MECHANISM

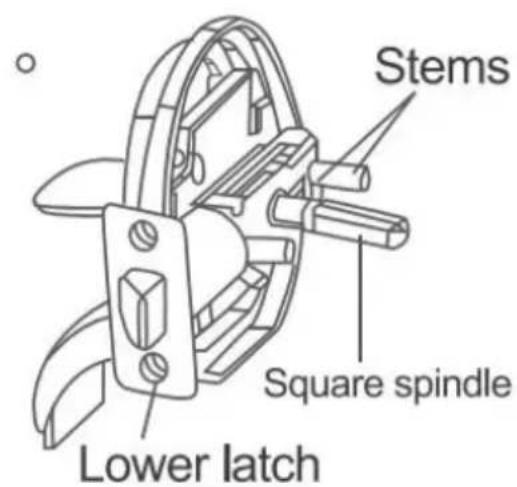

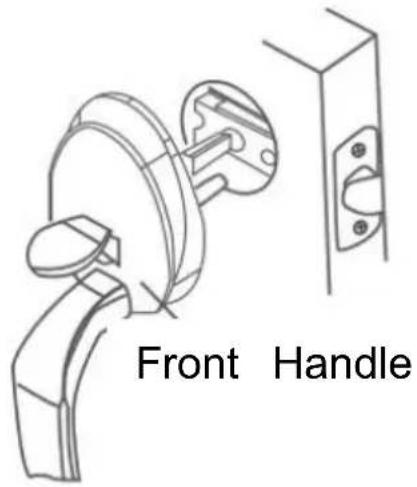

Place the front handle with stems and square spindle into the latch, as shown. Press tightly against the door face.

4. INSTALL THE INTERIOR KNOBS

After the front handle is in position, install the interior knob and tighten screws. Insert screw through washer and into bottom hole, tighten firmly.

5. INSTALL THE STRIKES

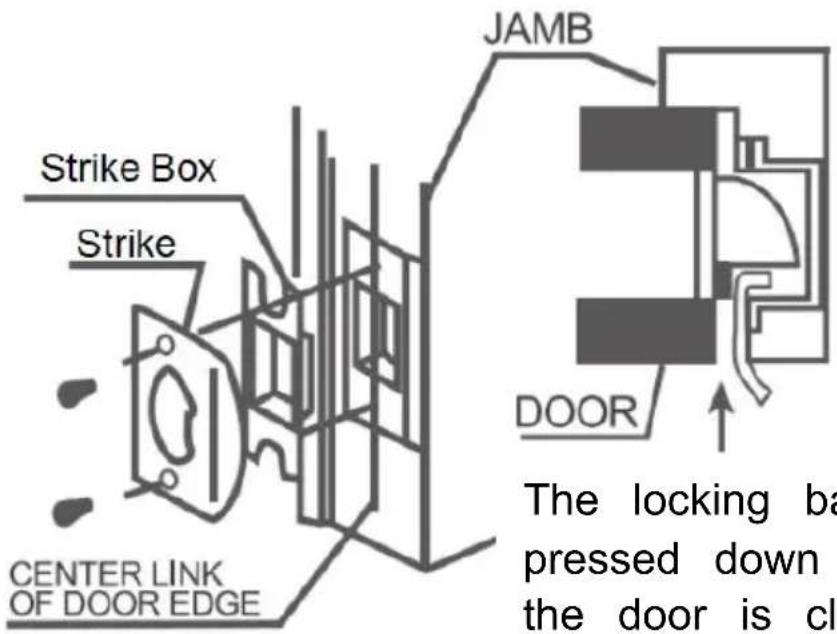

The locking bar is pressed down when the door is closed.

MAINTENANCE

1. Do not strike with force to avoid damage to the latch and door frame.
2. If there is dirt, use a dry cloth to remove. Do not scrub with chemicals or dishwashing liquid. Otherwise, it will destroy the protective film of exposed parts and cause fading.
3. Periodically (half a year or once a year) or when the key is not smooth to insert and remove, graphite powder (pencil powder) can be added in the keyhole to lubricate.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

EC REP: E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 Rokeva Street, Eastwood NSW 2122, Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
