20185-10B - Door handle Vevor - Free user manual and instructions

Product Type	Door Handle with Lock
Model	20185-10B
Brand	Vevor
Color	Matte Black
Material	Metal with matte black finish
Compatible Door Thickness	35 mm to 44 mm (1-3/8" to 1-3/4")
Latch Length	60 mm (2-3/8") and 70 mm (2-3/4")
Backset	195 mm to 224 mm (7-11/16" to 8-13/16")
Weight	Approximately 1.2 kg
Power	None (mechanical)
Main Functions	Key locking, interior and exterior handles
Safety	Small parts (choking hazard); wear protective goggles during installation
Maintenance and Cleaning	Clean with a dry cloth; do not use chemicals; lubricate with graphite powder
Spare Parts and Repairability	Spare keys (3 provided), screws, latch, strike plate, etc. Complete kit available
General Information	Electronic warranty, online technical support at www.vevor.com/support

Frequently Asked Questions - 20185-10B Vevor

How to install the Vevor 20185-10B door handle?

Follow the steps in the manual: mark the door, drill holes of 54 mm and 25 mm, install the latch adjusting to 60 or 70 mm, then secure the front handle and interior knob. Tighten the screws and install the strike plates. Wear protective goggles.

What is the compatible door thickness?

This handle is designed for doors with thickness between 1-3/8" and 1-3/4", approximately 35 mm to 44 mm.

How to adjust the latch for a 60 mm or 70 mm door?

Adjust the latch by pushing the cam completely to the right for a 70 mm backset. Always keep two teeth of the cam forward during adjustment.

What to do if the key does not turn easily?

Add graphite powder (pencil powder) into the keyhole to lubricate. Avoid liquid lubricants. Perform this operation every six months or once a year.

How to clean and maintain the handle?

Use a dry cloth to remove dirt. Do not rub with chemicals like dish soap, as this would destroy the protective film and cause discoloration.

What are the safety risks?

This product contains small parts that may pose a choking hazard if ingested. Keep them out of reach of children. During installation, wear safety goggles and keep hands at a distance.

How many keys are provided?

The kit includes 3 door keys, along with all screws and accessories needed for installation.

Can I use this handle on interior and exterior doors?

The handle is suitable for interior and exterior doors, provided the thickness is within the specified range. For exterior use, ensure the finish is weather-resistant (the 20185-10B model is matte black, ideal for interior use).

How to contact customer service?

For technical assistance or warranty questions, visit www.vevor.com/support. There you will find a contact form and the electronic warranty certificate.

Is the handle delivered with all necessary accessories?

Yes, the package contains: front handle, back knob, latches (2 sizes), cylinder, deadbolt rose, strike plates (2), strike box, screws (8), spindle, keys (3), washer, and user manual.

USER MANUAL 20185-10B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

KNOB HANDLESETS

MODEL: 19985-SN / 20185-AC / 20185-10B

We continue to be committed to provide you tools with competitive price "Save Half", "Half Price" or any other similar expressions used by us represents an estimate of savings you might benefit from buying certain us compared to the major top brands and does not necessarily mean to categories of tools offered by us. You are kindly reminded to verify care you are placing an order with us if you are actually saving half in comparison the top major brands.

MODEL: 19985-SN / 20185-AC / 20185-10B

NOTE: The shown is for illustration purposes only. Please refer to color you purchased.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. This product contains small parts. If swallowed, it will pose a choking hazard. Keep these small parts away from children!
2. Read, understand and follow your power tool manufacturer's instructions for safety. Always wear safety glasses or eye shields before assembly and commencing power tool operation. Always keep hands, face, hair, loose clothing, and body at a safe distance from spindles cutting tools. Always keep a firm grip on tool handles when in opera. Always disconnect from the power source before adjusting power tools

MODEL AND PARAMETERS

Model	19985-SN	20185-AC	20185-10B
Color	Satin Nickel	Antique Copper	Matte Black
Applicable Door Thickness	1-3/8"~1-3/4"
Latch Length	2-3/8" and 2-3/4"
Pitch-row(Door Handle)	7-11/16"-8-13/16"

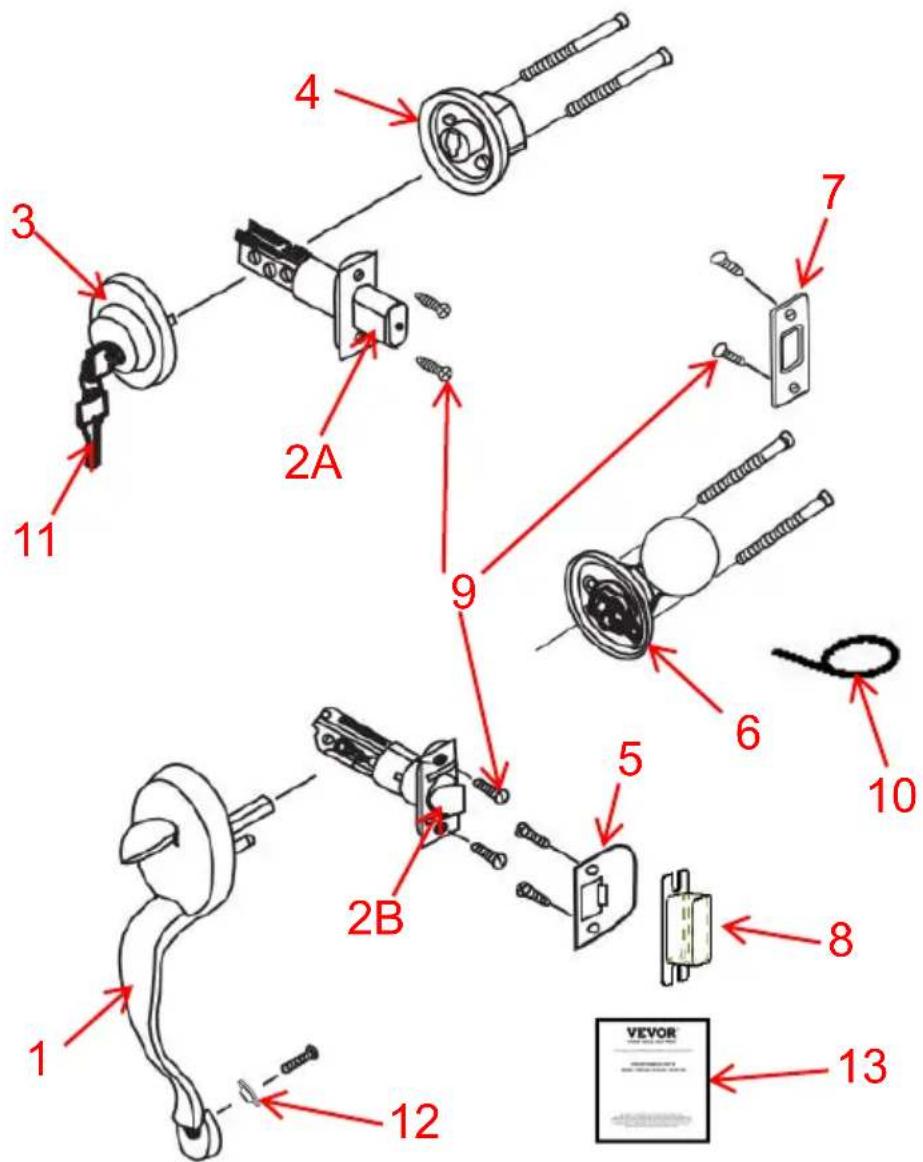

No.	Name and Qty	No.	Name and Qty
1	Front Handle x 1	2A	Latch A x 1
2B	Lower Latch x 1	3	Cylinder x 1
4	Deadbolt Rose x 1	5	Strike Plate x 1
6	Back Knob x 1	7	Strike Plate x 1
8	Strike Box x 1	9	Screws x 8
10	Pin x 1	11	Door Key x 3
12	Washer x 1	13	User Manual x 1

INSTALLATION

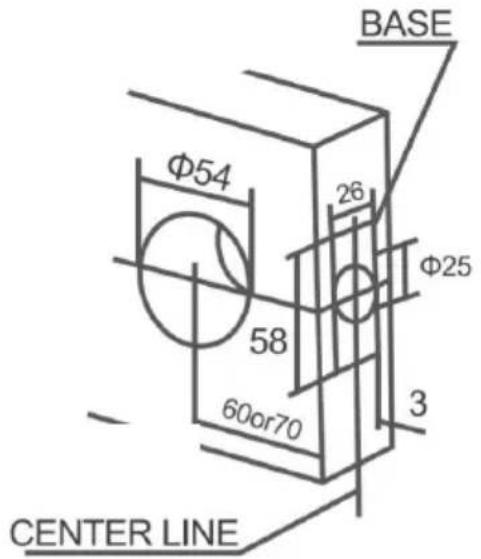

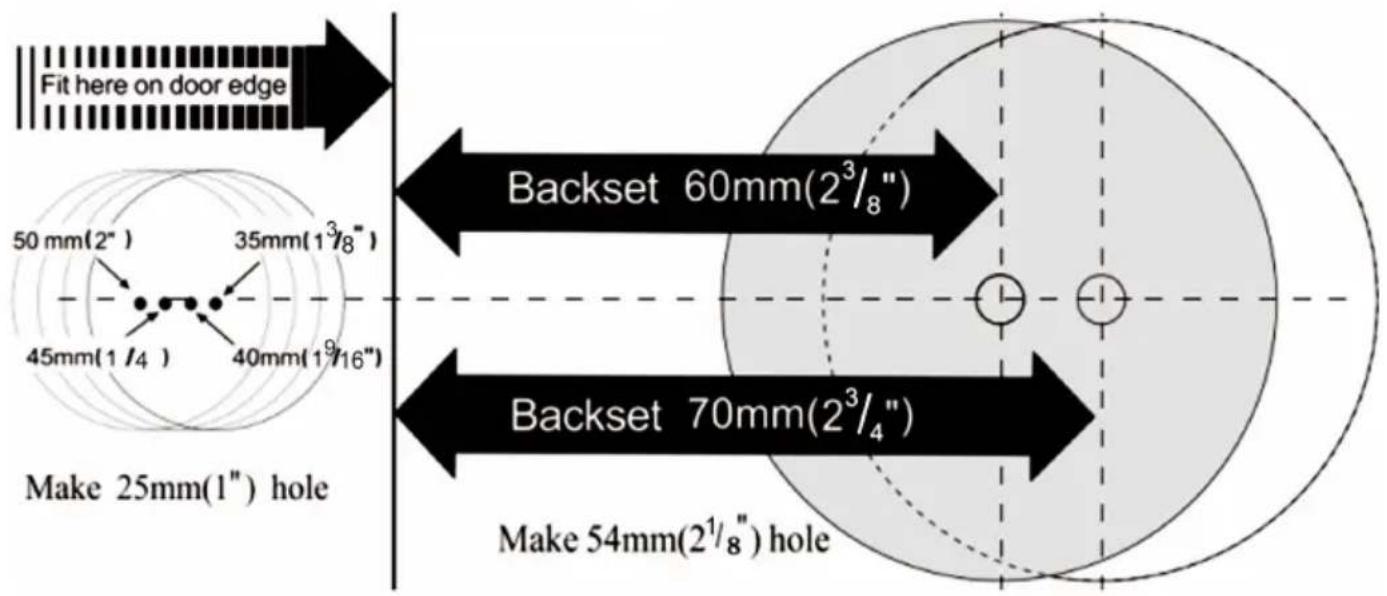

1. MARK DOOR & BORE HOLES(Please refer to the attached opening diagram.)

A: Fold the template over the edge of the door and mark the site 670 mm of holes.
B: Bore the 54mm and 25mm holes through the door.
C: Cut out a 58x26x3mm base.

1. INSTALL THE LATCH

According to the site of lock holes, adjust the latch for 60mm or 70

NOTE: The cam is pushed fully to the right for 70mm backdrop.(During adjustment, keep two teeth of the cam to forward always.)

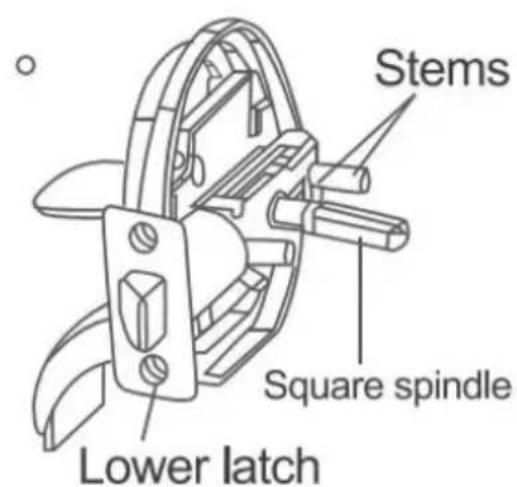

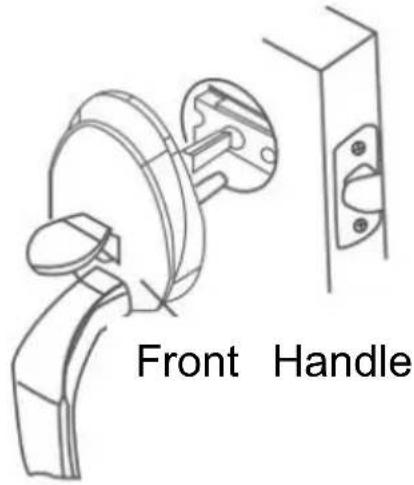

3. INSTALL EXTERIOR HANDLE MECHANISM

Place the front handle with stems and square spindle into the latch as shown. Press tightly against the door face.

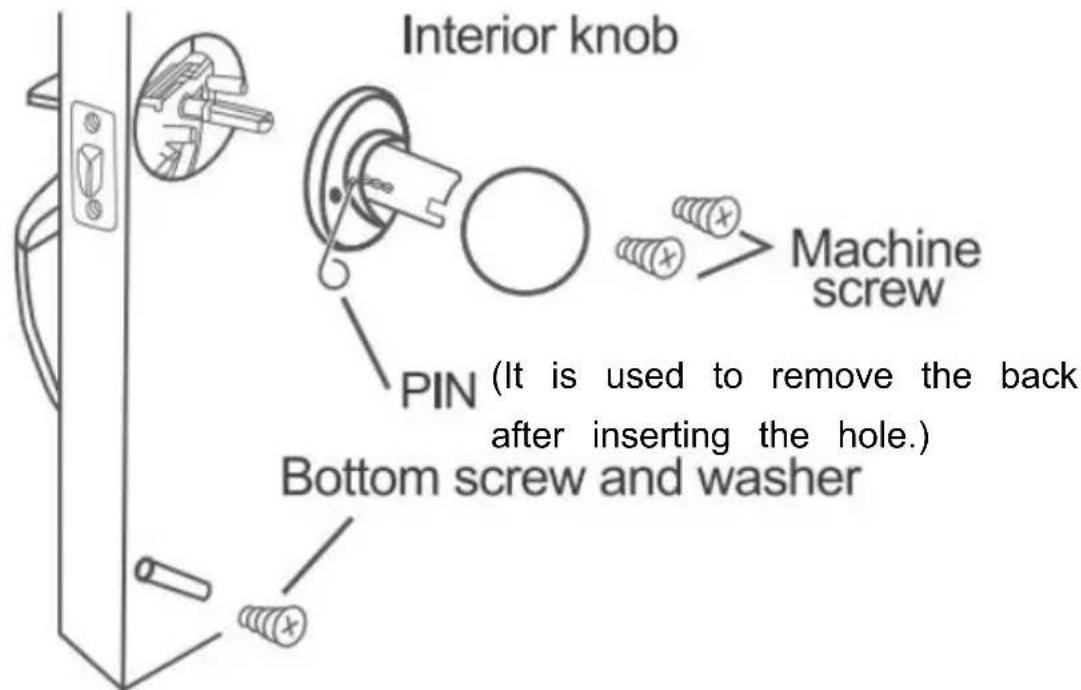

4. INSTALL THE INTERIOR KNOBS

After the front handle is in position, install the interior knob and tight screws. Insert screw through washer and into bottom hole tighten firm

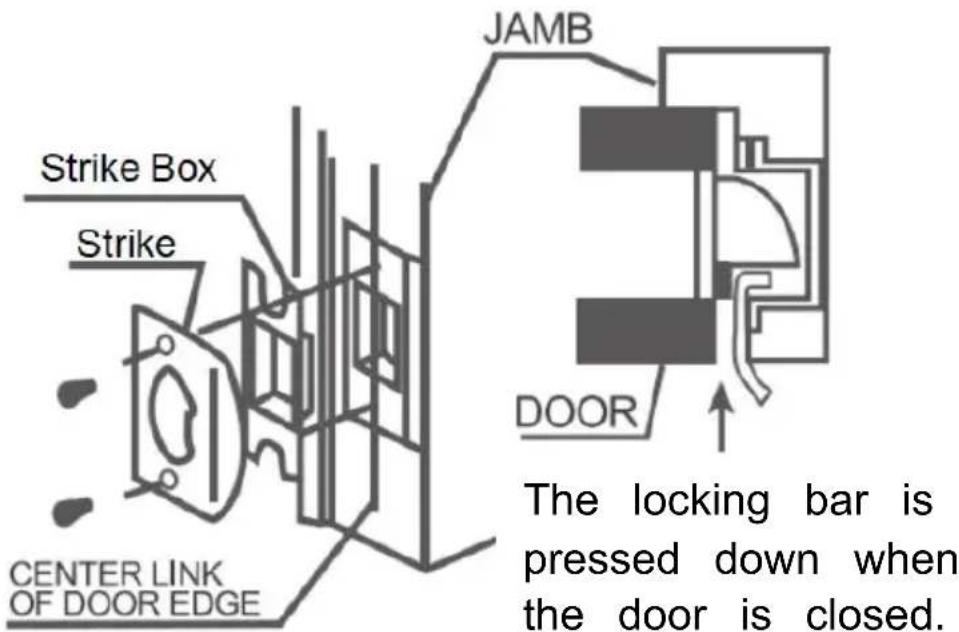

5. INSTALL THE STRIKES

MAINTENANCE

1. Do not strike with force to avoid damage to the latch and door frame.
2. If there is dirt, use a dry cloth to remove, do not scrub with chemicals, dishwashing liquid. Otherwise, it will destroy the protective film of exposed parts and cause fading.
3. Periodically (half a year or once a year) or when the key is not smoothly inserted and removed, graphite powder (pencil powder) can be added in the keyhole to lubricate.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

EC REP: E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK REP: YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Roac Staines-upon-Thames, Surrey, TW18 4AX

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
