TENSIOMÈTRE POIGNET – NOTICE D'UTILISATION

Illustration of a computer mouse with a rolled paper and a rolled document on top (no text or symbols)

This device is intended for adult use only. This device is intended for no-invasive measuring and monitoring of arterial blood pressure. It is not intended for use on extremities other than the wrist or for functions other than obtaining a blood pressure measurement. Do not confuse self-monitoring with self-diagnosis. This unit allows you to monitor your blood pressure. Do not begin or end medical treatment without asking a physician for treatment advice. If you are taking medication, consult your physician to determine the most appropriate time to measure your blood pressure. Never change a prescribed medication without consulting your Physician. When the device was used to measure patients who have common arrhythmias such as atrial or ventricular premature beats or arterial fibrillation, the best result may occur with deviation. Please consult your physician about the result. If the cuff pressure exceeds 40 kPa (300 mmHg), the unit will automatically deflate. Should the cuff not deflate when pressures exceeds 40 kPa (300 mmHg), detach the cuff from the arm and press the START/STOP button to stop inflation. The equipment is not AP/APG equipment and not suitable for use in the presence of a flammable anesthetic mixture with air of with oxygen or nitrous oxide. The operator shall not touch output of batteries /adapter and the patient simultaneously. To avoid measurement errors, please avoid the condition of strong electromagnetic field radiated interference signal or electrical fast transient/burst signal. The user must check that the equipment functions safely and see that it is in proper working condition before being used. This device is contraindicated for any female who may be suspected of, or is pregnant. This unit is not suitable for continuous monitoring during medical emergencies or operations. Otherwise, the patient's wrist and fingers will become anaesthetic, swollen and even purple due to a lack of blood. Please use the device under the environment which was provided in the user manual. Otherwise, the performance and lifetime of the device will be impacted and reduced. During use, the patient will be in contact with the cuff. The materials of the cuff have been tested and found to comply with requirements of ISO 10993-5:2009 and ISO 10993-10:2010. It will not cause any potential sensitization or irritation reaction. Please use ACCESSORIES and detachable partes specified/ authorised by MANUFACTURE. Otherwise, it may cause damage to the unit or danger to the user/patients. The device doesn't need to be calibrated within the two years of reliable service. Please dispose of ACCESSORIES, detachable parts, and the ME EQUIPMENT according to the local guidelines. If you have any problems with this device, such as setting up, maintaining or using, please contact the after-sales service. Don't open or repair the device by yourself.

EN

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

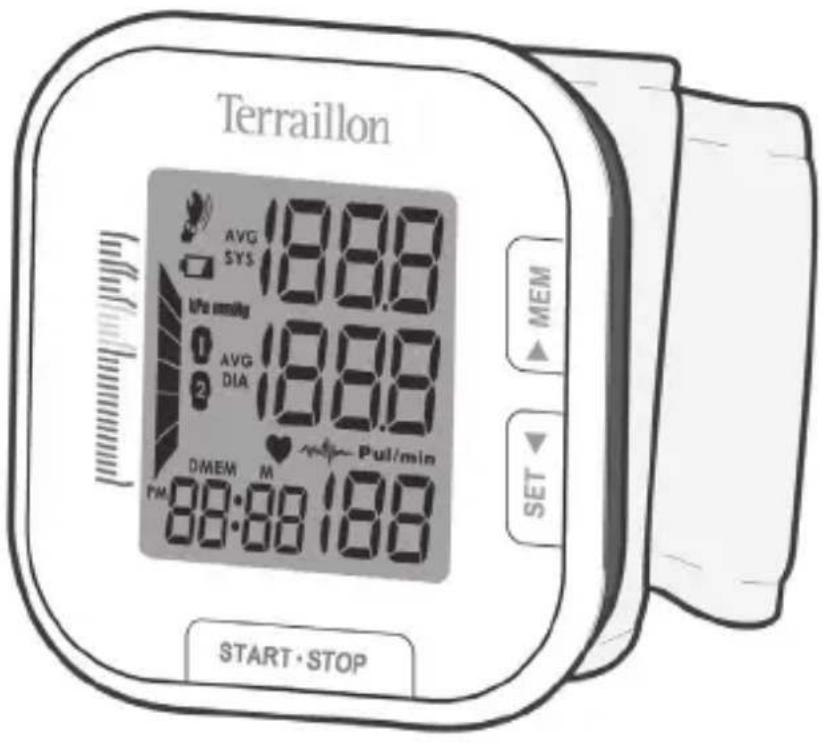

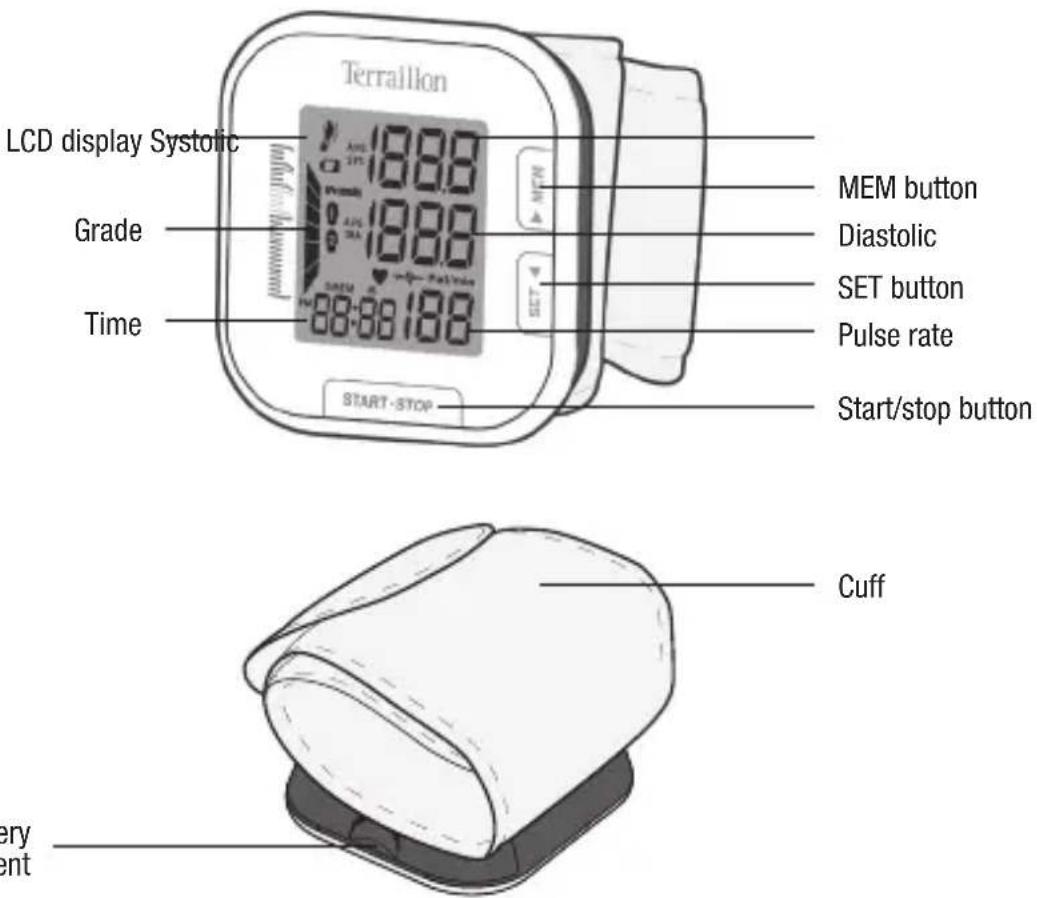

MONITOR COMPONENTS

LCD display Systolic Grade Time Terraillon MEM button Diastolic SET button Pulse rate Start/stop button Cuff very ent

Terraillon.

EN

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

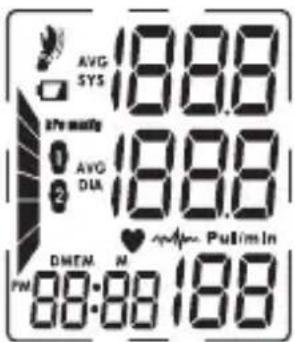

LCD display signal

AVG SYS 18.00 DIA AVG DIA 18.00 PM 88:00 PM AVG S 2nd Monet 18.00 PM AVG S 2nd Monet 18.00 PM AVG S 2nd Monet 18.00 PM AVG S 2nd Monet 18.00 PM

SYMBOL DESCRIPTION EXPLANATION
SYS	Systolic blood pressure High pressure result
DIA	Diastolic blood pressure Low pressure result
Pul/min	Pulse per minute Heatbeats per minute, BPM
[06aw]	Shocking reminding	Shocking will result in inaccurate
8888	Memory Display the serial number of the measurement
kPa	kPa Measurement Unit of the blood pressure
mmHg	mmHg Measurement Unit of the blood pressure
	Low battery Batteries are low and need to be replaced
	Irregular heartbeat Irregular heartbeat detection
|	Grade The grade of the blood pressure
	Current Time Day/Month/Year, Hour/Minute
	Heartbeat Heartbeat detection during the measurement
AVG	The average value The average value of the latest three records
	User 1 Start measurement for User 1
	User 2 Start measurement for User 2

EN

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

BEFORE YOU START

Installing and Replacing the Batteries

• 2×AAA batteries (Not Included)
• Open the battery cover
  • Install the batteries by matching the correct polarity, as shown
• Replace the cover

Illustration of a rolled-up medical device with a slide and a separate device (no text or symbols visible)

Replace the batteries whenever the below happen

- The lo+D shows

- The display dims

• The display does not light up

CAUTION

Remove batteries if the device is not likely to be used for some time. The old batteries are harmful to the environment; do not dispose with other daily trash. Remove the old batteries from the device and follow your local recycling guidelines. Do not dispose of batteries in fire. Batteries may explode or leak.

Setting Date, Time and Measurement Unit

It is important to set the clock before using your blood pressure monitor, so that a time stamp can be assigned to each record that is stored in the memory.

1. When the monitor is off, hold pressing "SET" button for 3 seconds to enter the mode for year setting. Or when the monitor is off, press "SET" button shortly, it will display the time. Then hold pressing "SET" button to enter the mode for year setting. Note: "MEM" button allows you to change the data, "SET" button allows you to confirm the data.
2. Press "MEM" button to change the [DAY].
3. When you get the right day, press "SET" button to set down and turn to next step.
4. Repeat steps 2 and 3 to set the [MONTH] and [YEAR].
5. Then the monitor diverts to time setting. Select the time format. Repeat steps 2 and 3 to confirm the time format, between 12h and 24h.
6. Repeat steps 2 and 3 to set the [HOUR] and [MINUTE].
7. Repeat steps 2 and 3 to set the [UNIT].
8. After the unit is set, the LCD will display all the settings you have done and then it will turn off.

EN

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

MEASUREMENT

Tie the Cuff

1. Remove all accessories (watch, bracelet, etc) from your wrist. If your physician has diagnosed you with poor circulation in your wrist, use the other one.
2. Roll or push up your sleeve to expose the skin.
3. Apply the cuff to your wrist with your palm facing up.
4. Position the edge of the cuff about 1-1.5cm
5. Fasten the wrist cuff around your wrist, leaving no extra room between the cuff and your skin. If the cuff is too loose, the measurement will not be accurate.

• Rest for 5 minutes before measuring.
- Wait at least 3 minutes between measurements. This allows your blood circulation to recover.
- For a meaningful comparison, try to measure under similar conditions.

ician ne.

Start the Measurement

1. Before you start measurement, select the desired user-ID first. Hold MEM button until the user-ID blinks. Then, press MEM button to change the user ID between 1 and 2. Press SET button to confirm your selection. Then the LCD will turn off.
2. When the monitor is off, press the "START/STOP button to turn on the monitor, and it will finish the whole measurement. And save the measurement data.

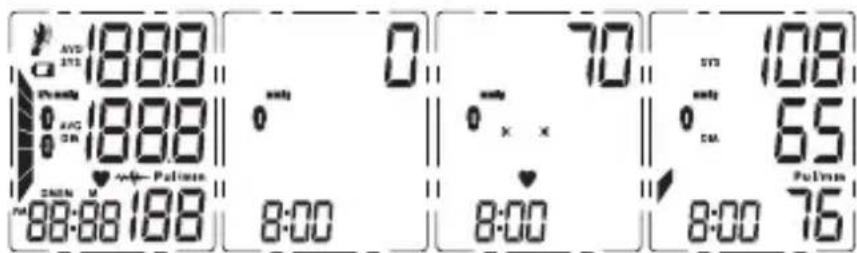

(1) LCD display
(2) Adjust to zero
(3) Inflating and measuring
(4) Display and save the measurement result

AVD 1888 0 70 108 1888 0 x x 65 8:00 8:00 8:00 75

Terraillon.

EN

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

1. Press "START/STOP" button to power off, otherwise it will turn off within 1 minute.
   Tips: Maximum 60 records per user.

DATA MANAGEMENT

Recall the Records

1. When the monitor is off, please press "MEM" button, it will display the latest record first when the records are less than three groups. When there are more than three groups, it will display the average value of the latest three records first.
2. Press "MEM" button or "SET" button to get the record you want.

The date and time of the record will be shown alternately.

The current No. is No 1

The corresponding date is January 2nd

The corresponding time is P.M. 10:08

1. If you want to look over another user's data, switch the User button to select the desired user. Then you can look over its historical records.

Delete the Records

If you did not get the correct measurement, you can delete all results for the selected user by following steps below.

1. Hold pressing "MEM" button for 3 seconds when the monitor is in the memory recall mode, the flash display "dEL ALL" will show.
2. Press "SET" button to confirm deleting and the monitor will turn off.
3. If you don't want to delete the records, press "START/STOP" button to escape.

EN

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

INFORMATION FOR USER

Tips for Measurement

Measurements may be inaccurate if taken in the following circumstances:

• Within 1 hour after dinner or drinking
- Immediate measurement after tea, coffee, smoking
- Within 20 minutes after taking a bath
- When talking or moving your fingers
• In a very cold environment
- When you want to discharge urine

Maintenance

In order to get the best performance, please follow the instructions below:

• Put in a dry place and avoid the sunshine
• Avoid touching water, clean it with a dry cloth in case
• Avoid intense shaking and collisions
• Avoid dusty and unstable temperature environment
  • Using wet cloths to remove dirt
• Do not attempt to clean the reusable cuff with water and never immerse the cuff in water

ABOUT BLOOD PRESSURE

What are systolic pressure and diastolic pressure?

When ventricles contract and pump blood out of the heart, the blood pressure reaches its maximum value in the cycle, which is called systolic pressure. When the ventricles relax, the blood pressure reaches its minimum value in the cycle, which is called diastolic pressure.

EN

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

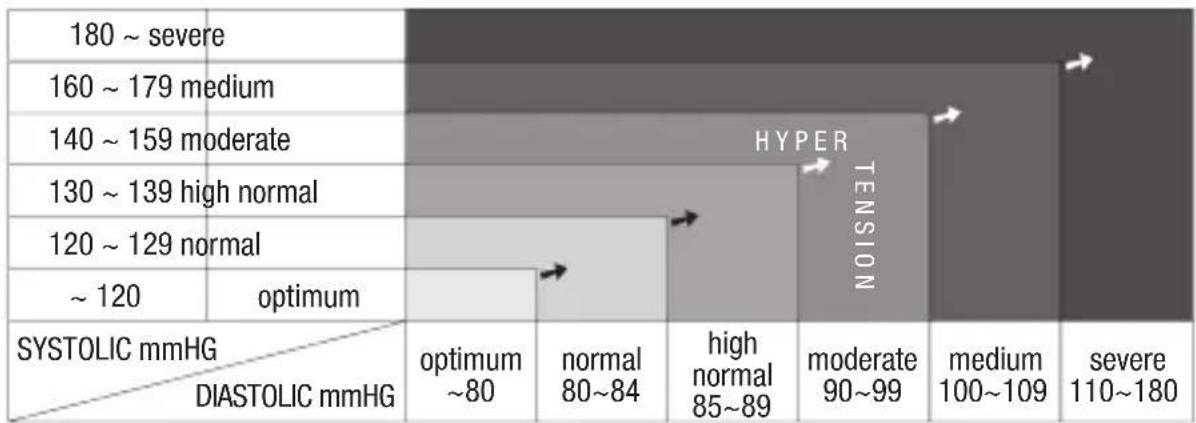

What is the standard blood pressure classification?

The blood pressure classification published by World Health Organization (WHO) and International Society of Hypertension (ISH) in 1999 is as follows:

CAUTION

Only a physician can tell your normal BP range. Please contact a physician if your measuring result falls out of the range. Please note that only a physician can tell whether your blood pressure value has reached a dangerous point.

Irregular Heartbeat Detector

An irregular heartbeat is detected when a heartbeat rhythm varies while the unit is measuring the systolic and diastolic blood pressure. During each measurement, this equipment records the heartbeat intervals and works out the standard deviation. If the calculated value is larger than or equal to 15, the irregular heartbeat symbol appears on the symbol when the measurement results are displayed. CAUTION

The appearance of the IHB icon indicates that a pulse irregularity consistent with an irregular heart-beat was detected during measurement. Usually this is NOT a cause for concern. However, if the symbol appears often, we recommend you seek medical advice. Please note that the device does not replace a cardiac examination, but serves to detect pulse irregularities at an early stage.

EN

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

Why does my blood pressure fluctuate throughout the day?

1. Individual blood pressure varies multiple times everyday. It is also affected by the way you tie your cuff and your measurement position, so please take the measurement under the same conditions.
2. If the person takes medicine, the pressure will vary more.
3. Wait at least 3 minutes for another measurement.

Why do I get a different blood pressure at home compared to the hospital?

The blood pressure is different even throughout the day due to weather, emotion, exercise etc. Also, there is the “white coat” effect, which means blood pressure usually increases in clinical settings.

What you need to pay attention to when you measure your blood pressure at home:

• If the cuff is tied properly on the upper arm.
• If the cuff is too tight or too loose.
• If you feel anxious.
• Taking 2-3 deep breaths before beginning will be better for measuring.
• Advice: Relax yourself for 4-5 minutes until you calm down.

Is the result the same if measuring on the right wrist?

It is ok for both wrists, but there will be some different results for different people. We suggest you measure the same wrist every time.

BLOOD PRESSURE MONITOR – INSTRUCTION MANUAL

PROBLEM SYMPTOM CHECK THIS REMEDY

No power	Display will not light up	Batteries are exhausted Replace with new batteriesBatteries are inserted incorrectly Insert the batteries correctly
Lowbatteries	Display is dim or show	Batteries are low Replace with new batteries
Errormessage	E 1 shows The cuff is not secure Refasten the cuff and then measure again
	E 2 shows The cuff is very tight		Readjust the cuff ,not too loose or too tightand then measure again
	E 3 shows The pressure of the cuff is excessThe monitor detected motion,		Relax for a moment and then measure again
	E10 ou E11 shows	talking or the pluse is too poor whilemeasuring	Relax for a moment and then measure again
	E20 shows	The measurement process does notdetect the pulse signal	Loosen the clothing on the wristand then measure again
	E21 shows	The treatment of the measurementfailed	Relax for a momentand then measure again
	EExx,showson the display	A calibration error occurred (XX canbe some numeric characters,such as01, 02 and so on)	Retake the measurement. If the problempersists, contact the retailer or ourcustomer service department for furtherassistance. Refer to the warranty for contactinformation and return instructions

This product is guaranteed for 2 years against material and manufacturing defects. During this period, such defects will be repaired free of charge (proof of purchase must be presented if the scale is under warranty). This warranty does not cover damage resulting from accidents, improper use or negligence. If you have a complaint please contact the store where you purchased the product first.

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist.

Check with your local authority or retailer for recycling advice.
