CONTINUOUS SEALING MACHINE USER MANUAL

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

CONTINUOUS SEALING

MACHINE

MODEL: 900MWP/900MWS/900MWSJ/900MLP/900MLS

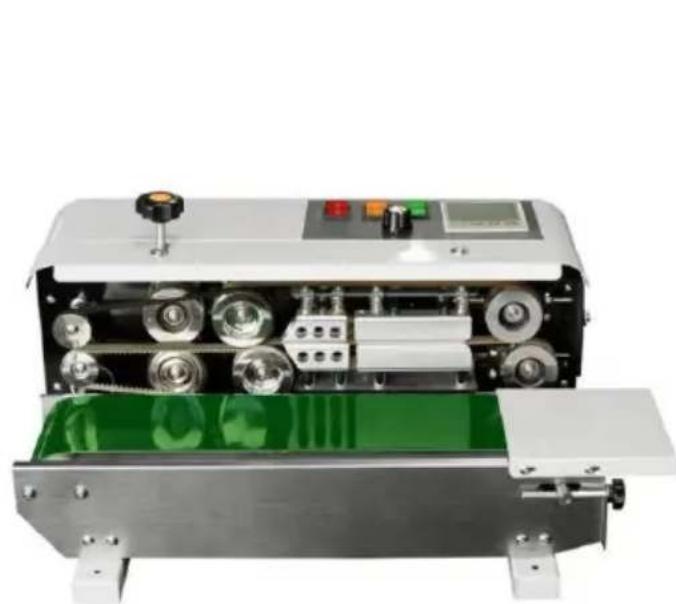

Industrial machine with green liquid container and control panel (no visible text or symbols)

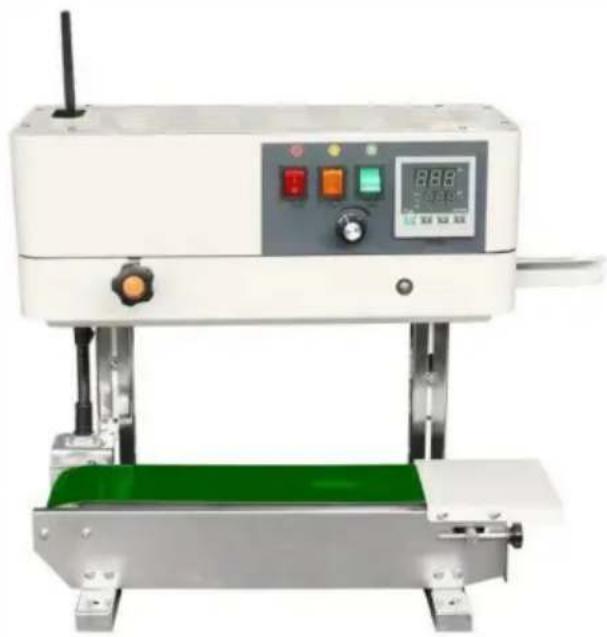

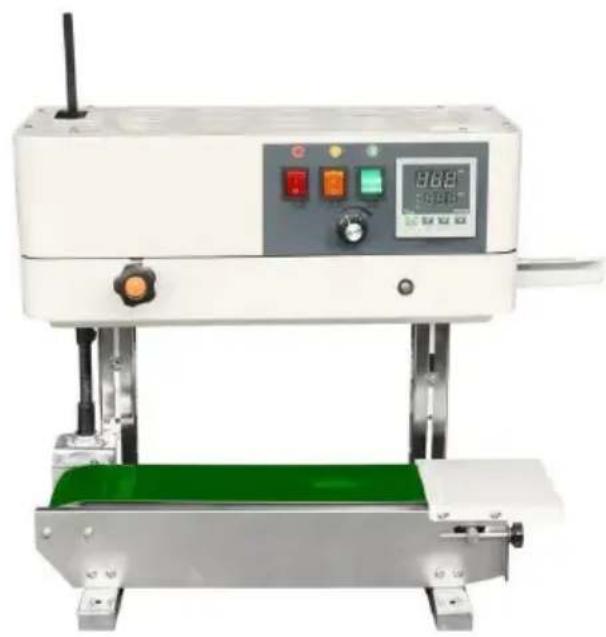

Industrial machine with green conveyor belt and control panel (no visible text or symbols)

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

GENERAL SAFETY RULES

Please read the entire operating instructions before using the products for the time; They contain important information about the correct operation.

The guarantee/warranty will be void if damage is incurred resulting from non-compliance with the operating instructions. Liability for any and all consequential damage is excluded!

We do not assume any liability for damage to property or personal injury ca improper use or the failure to observe the safety instructions! In such cases guarantee/warranty will be void

The unauthorized conversion, modification of disassembly of the products is inadmissible because of safety and approval reasons (CE).

The product is not a toy and must be kept out of the reach of children. Particular care must therefore be exercised if children are present.

The product must not get damp or wet, it is only intended for use in dry, in locations (not bathrooms or similarly damp areas). There is a risk of a fatal ele shock.

Do not expose the product or its accessories to damp or extremely high or temperatures.

Do not leave packing materials unattended. They may become dangerous playir

material for children.

Dropping, falling, pressure or tensile forces could destroy or at least limit the function of the product.

Never position the device in the vicinity of combustible or easily inflammable materials.

Always make sure that the rotary table on which the object is placed is located at the center of the housing!

This machine is suitable for plastic film sealing, bag making, can be used in food, medicine, chemical industry, daily use, seed and other industries.

Because the machine adopts electronic constant temperature control and infinite speed regulation transmission mechanism, can seal a varied different materials of plastic bags, because of the small size of the r widely used, sealing length is not limited, so it can be used with a packaging lines. It will be the best sealing equipment for factory and bulk product packaging.

Due to the simple electrical control of the machine, reasonable and refined mechanical transmission, the structural performance is very stable, the failure rate is very low, and the service life is longer. It can work continuously for a long time to meet the needs of mass production. The sealing package of the machine, the product has a beautiful appearance, clean, dustproof, moisture-proof, damage proof, easy to handle and store. Greatly reduce product loss, and packaging cost advantage.

If you have reason to assume that safe operation is no longer possible, disco the device immediately and secure it against inadvertent operation.

It can be assumed that safe operation is no longer possible if:

• the device shows visible signs of damage,
• the device no longer functions,
• after a longer period of storage under unfavourable conditions,
• following heavy stress during transportation.

SAVE THESE INSTRUCTIONS

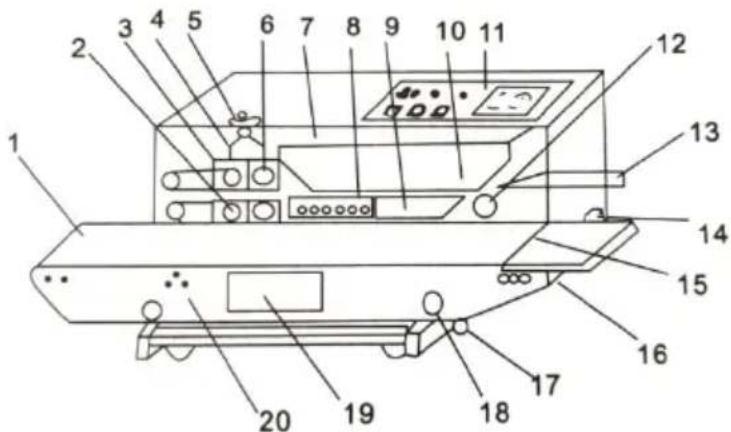

Technical diagram of a device with numbered components for identification

1	Conveyer belt	11	Control box
2	Rubber wheel	12	Driven wheel
3	Pattern roller (inker wheel)	13	Guide place of sealing width regulation
4	Inker wheel seat	14	Power socket and safeguard
5	Pressure regulating wheel	15	Fixed working table
6	Driving wheel	16	Regulation screw of conveye belt's elasticity
7	Safety guard	17	Regulation knob of conveye station's in-out
8	Cooling block	18	Regulation knob of conveyor station's height
9	Heating block	19	Nameplate
10	Sealing braid	20	Conveyer station Fig.

Assembly drawing of the horizontal and vertical dual type machine in vert

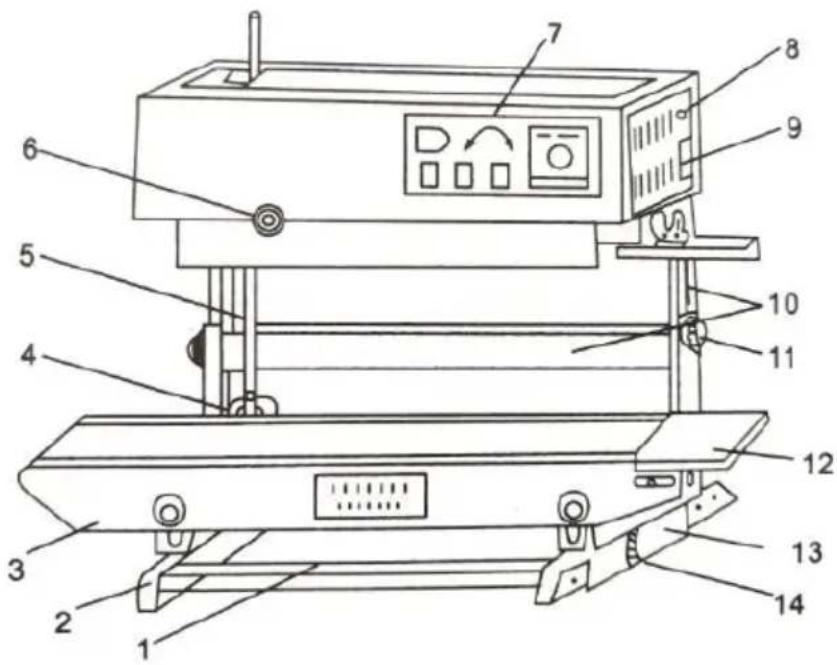

Technical diagram of a mechanical device with numbered components for identification

1	Horizontal beam (vertical type)	8	Insurance tube
2	Rubber wheel	9	Power supply socket
3	Conveyer station	10	Support (horizontal type)
4	Umbrella gear seat	11	Height regulation knob
5	Vertical long axis	12	Fixed working table
6	Pressure regulating knob	13	Conveyer station's support
7	Control box	14	Fixing knob of conveyor static

OPERATING INSTRUCTIONS

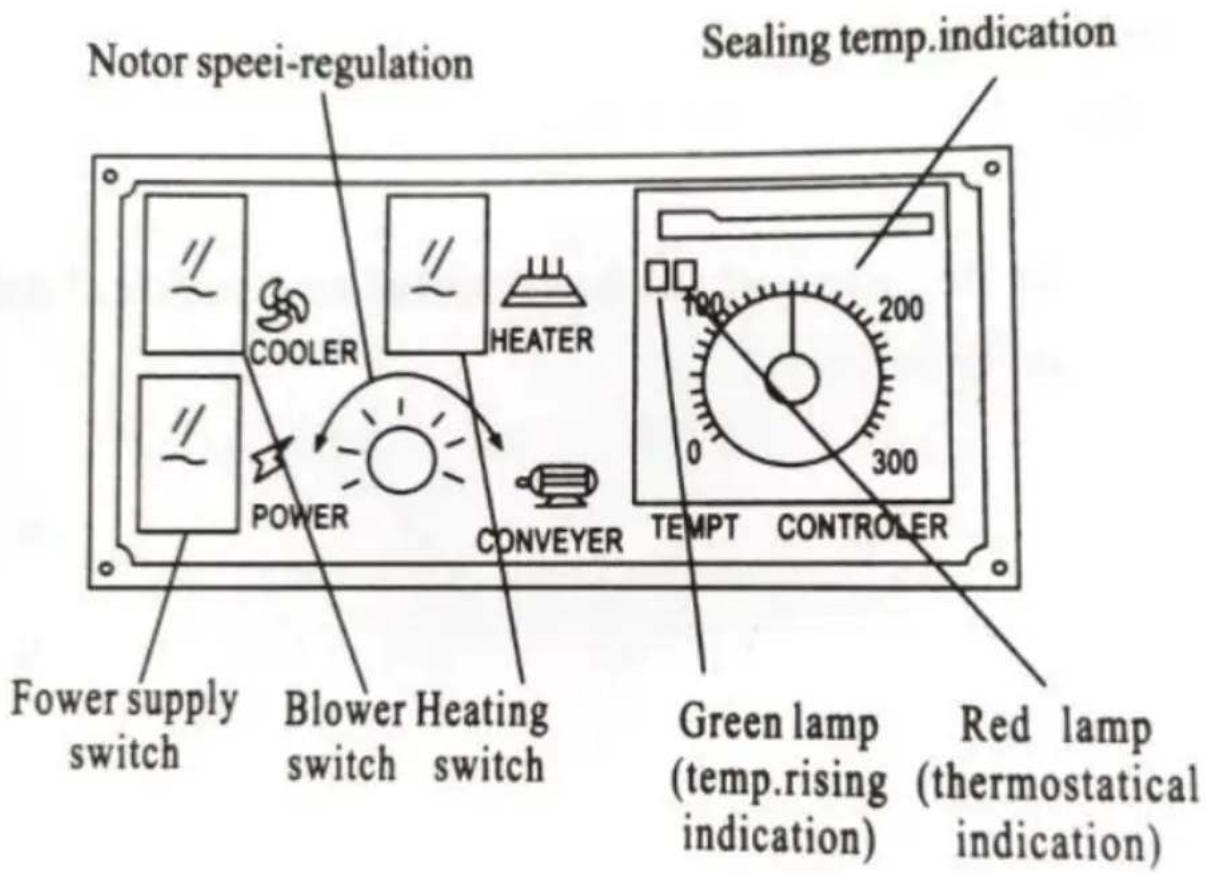

Names of the control box

Notor speei-regulation Sealing temp.indication COOLER HEATER POWER CONVEYER TEMPT CONTROLLER Fower supply switch Blower Heating switch Green lamp (temp.rising indication) Red lamp (thermostatical indication) 100 200 300

Preparation prior to starting the machine:

1. The machine is equipped with a shell-grounded triplex socket, which should be well grounded to make sure of safe production.
2. The Electro-thermal component should be preheated at low temperature for a few minutes before normal operation because it may be wet in use or after long intervals.

of the

1. Adjust the height and the front-and-back position conveyer station to fit the necessary level of the sealing bag's exteric

2. Adjust the position of the guide place of sealing width regulation according to its requirements.

3. Adjust the spaces between the upper and lower heaters and the up and lower coolers (i.e. the spaces between the resealing braids) accord to the necessary thickness of sealing material.

Operation:

1. Turn on the power, the indicator lights then all wheels begin their synchronistical running.
2. Adjust the knob of pattern roller to have it (or inker wheel) rotate regulated to suitable pressure.
3. Turn on the heating switch, the green lamp of the electronic temp control meter lights, adjust the meter to necessary temperature accordi to the nature and the thickness of the packing bag's material. In ger the numerals below can be used for above adjustment at a room temperature of 20 C:

a). Polyethylene:150--160°C
b).Polypropylene:170--180°C
c). Polyolefine compound: 180--190°C

The flexibility of temperature adjustment can be increased along With adjustable speed.

The red lamp lights after heating for a while indicating the required temperature is enough, then a trial adjusted upon the sealing result to an ideal sealing quality, and after that, continuous sealing can be processed.

1. Determine if the blower needs turning on for cooling according to thickness of the sealing material.(It should be turned on for common polyethylene etc. single layer plastic films).

2. The sealing part of the bag should be aligned flatly laid. Push the regulation place for the sealing sides in and at the moment, when there is gripped by the sealing braids and self-moving forwards, neither pus or stopping nor putting-in or pulling-out wit force can be done; otherwise uneven sealingor faults may result.

WAY TO CHANGE THE HORIZONTAL TYPE INTO THE VERTICAL ONE

(1). Install two tripods and two horizontal beams with M4 screws, the concave of the tripod faces inward while that of the beam faces downward.

(2). Loose the regulation knob of conveyor station's in-out and pull t station out, then take out the knob and the square fixing screws to the station.

(3).Mount the station onto the vertical tripod and tighten the fixing k

(4). Take out the horizontal short axis and install the horizontal long and the umbrella gear seat.

(5). Put the long axis into the axial hole on the machine and the horizontal support into the vertical support, install and tighten the heig regulation knob.

(6). Vertically place the sealing machine for vertical sealing.8. WAY TO MAINTAIN AND REPAIR

(1). Way to maintain

a).Push the driven wheel toward B and take out the sealing braid. b).Change with a new braid and install the upper and lower lead bel c).Place the driven wheel and the heater and the cooler in their orig positions.

d). Turn on the power to make the pulley rotate and the braid drive move, then start a trial. The edge-deviation, if any, on the sealing braid be adjusted through the screw on the driven wheel.

e). Install the safety guard, then continuous operation can be done at heating. g). In order to prolong the duration of the sealing braid, pricing stopping the machine, return the rotating disk of temperature adjustment zero place and turn on the blower, at that moment, the temperature point begins to slowly fall down but sealing braid is still running. It cannot done to turn off the blower, the master power switch etc. until the temperature becomes under 100C in minutes.(2). Turbo case:

As an overall sealed turbo and worm unit, the turbo case has the feed of low noise, large power etc., oiled with 50g 20#oilonly once month a cleaned and maintained only once a year calculated per 8 hours a general when in use. Cares should be taken to keep clean inside of case when maintaining to avoid appearing noise.

COMMON FAULTS AND SOLUTIONS

Problem	Reason	Solution
Sealing belt is off-tracking	Driving wheel shaft is not parallel to driven wheel sh	Adjust two adjusting screws on driven wheel holder until sealing is sealed at the right p
Sealing belt is easy to break	1. Too much tension on sealing belt2. Sealing belt is off trac3. Crease on sealing belt4. adhesive film or other attached to sealing belt surface5. Sealing belt is easy to burn	1. Adjust the vertical adjusting screw on drive wheel holder, so as to make sealing belt loose.2. (see the point above)3. No crease on sealing belt.4. Clean its surface in time5. clearance between two heating blocks is t small or temperature is too high
Embossing is not clear	1. Embossing wheel is wo out2. Pressing spring on embossing wheel is not tightened to enough degree	1. Replace embossing wheel2. Adjust the embossing wheel's tightening spring
There is resistance when the sealing belt conveys	The clearance between heating blocks or cooling blocks is too small, the friction is too much.	Adjust the clearance between sealing belts properly, which should be about thickness of packing bag in one layer, so that not only ensures the strong sealing and clear printing not make the two ends of sealing part extends too long.
There is a block folding phenomenon when the packing bag is conveyed to pressing wheel or embossing wheel	Too much pressure cause by pressing wheel or embossing wheel	1. Adjust the pressing wheel or embossing w to proper pressure, so as to make the cle between two sealing belts be about thickness packing bag in one layer so that not only the strong sealing and clear printing, but no make the two ends of sealing part extend long.2. Adjust limiting screw after adjusting clearance。
Conveying belt is off-tracking	The driving roller shaft is parallel to driven roller sh	Adjust two adjusting screws for driven roller (rear shaft) on conveyor.
Conveyer belt and sealing belt don't move synchronously	Too little tension on conveyor belt.	1. tighten the chain of driving roller shaft(fn shaft) and middle shaft properly.2. Tighten the conveyor belt properly

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a point for recycling electrical and electronic devices

MODEL AND PARAMETERS

Model	900MWP/900MWS/900MWSJ	900MLP/900MLS
Voltage	230V/50Hz, 110V/60Hz	230V/50Hz, 110V/60Hz
Sealing speed	0~16m/min	0~16m/min
Sealing width	6~12mm	6~12mm
Temperature control range	0~300(°C)(Stepless adjustable)	0~300(°C)(Stepless adjustable)
Distance from seal center to conveyor	10~40(mm)	150~270(mm)
Dimension (LXWXH)	555*345*265mm	555*330*565mm

900 Sealing Machine Bag Test Parameter Reference
Name	Type	Material	Thickness	Test Temp	Result
Tea bag	Double-sided	Tissue Paper+PE	0.26mm	200°C	Sealable
Aluminium Foil bag	Double-sided	PE+Aluminium Coated	0.18mm	190°C	Sealable
Zipper bag	Double-sided	PE+PET+Aluminium Coated	0.16mm	170°C	Sealable
Zipper bag	Double-sided	PE+PET+Aluminium Coated	0.2mm	185°C	Sealable
Aluminium Foil bag	Double-sided	PE+Aluminium Coated	0.14mm	175°C	Sealable
Zipper Aluminium Foil bag	Double-sided	PE+Aluminium Coated	0.14mm	175°C	Sealable
Handmade bag	Double-sided	OPP+CPP+Tissue Paper	0.24mm	190°C	Sealable
Tea bag	Middle double-sided and four sides of side	Pure Aluminium	0.2mm	200°C	Sealable
Tea bag	Middle double-sided and four sides of side	Kraft Paper+Pure Aluminium	0.24mm	220°C	Sealable
Zipper Kraft Paper bag	Double-sided	BOPP+CPP+Kraft Paper	0.28mm	200°C	Sealable
Handmade bag	Double-sided	OPP+CPP	0.1mm	150°C	Sealable
Zipper Aluminium Foil bag	Middle double-sided and four sides of side	Pure Aluminium	0.28mm	220°C	Sealable
Coffee Stick Aluminum Foil bag	Double-sided	Pure Aluminium	0.18mm	220°C	Sealable
Aluminum Foil bag	Double-sided	Pure Aluminium	0.24mm	210°C	Sealable
Food Aluminum Foil bag	Double-sided	PET+Pure Aluminium	0.2mm	225°C	Sealable
Candy Handmade bag	Double-sided	OPP+CPP	0.1mm	150°C	Sealable
Candy Handmade bag	Double-sided	OPP+CPP	0.08mm	140°C	Sealable
Candy Handmade bag	Double-sided	PE+Aluminium Coated	0.1mm	150°C	Sealable
Mooncake Handmade bag	Double-sided	OPP+CPP	0.09mm	150°C	Sealable
Mooncake Handmade bag	Double-sided	OPP+CPP	0.08mm	150°C	Sealable
Handmade bag	Double-sided	OPP+CPP	0.09mm	150°C	Sealable
Egg-yolk Puff Handmade bag	Double-sided	OPP+CPP	0.09mm	150°C	Sealable
Aluminum Foil bag	Double-sided	PE+Aluminium Foil	0.16mm	170°C	Sealable
Tea bag	Middle double-sided and four sides of side	PE+Aluminium Foil	0.15mm	170°C	Sealable
Tea bag	Middle double-sided and four sides of side	PE+Aluminium Foil	0.12mm	170°C	Sealable
Candy Handmade bag	Middle double-sided and four sides of side	OPP+CPP	0.12mm	170°C	Sealable
Colored Aluminum Foil bag	Double-sided	PE+Aluminium Foil	0.16mm	180°C	Sealable
Smooth Vacuum bag	Double-sided	PE+PET	0.16mm	180°C	Sealable
Zipper Aluminium Foil bag	Middle double-sided and four sides of side	Pure Aluminium	0.3mm	230°C	Sealable
Zipper Aluminium Foil bag	Middle double-sided and four sides of side	Pure Aluminium	0.33mm	230°C	Sealable
Electrostatic bag	Double-sided	CPP	0.14mm	180°C	Sealable
Food Aluminum Foil bag	Double-sided	PET+Pure Aluminium	0.22mm	225°C	Sealable
Vacuum Aluminum Foil bag	Double-sided	PET+Pure Aluminium	0.18mm	200°C	Sealable
Bread bag	Middle double-sided and four sides of side	CPP	0.13mm	200°C	Sealable
Bread bag	Middle double-sided and four sides of side	CPP	0.14mm	200°C	Sealable
Tea bag	Middledouble-sided and four sides of side	Pure Aluminium	0.2mm	200°C	Sealable
Tea bag	Middle double-sided and four sides of side	Pure Aluminium	0.19mm	200°C	Sealable
Vacuum Yin-Yang Aluminum Foil bag	Double-sided	PET+Aluminizing	0.2mm	200°C	Sealable
Grain Vacuum bag	Double-sided	PE+PET	0.26mm	170°C	Sealable
Flat bag	Double-sided	CPE	0.9mm		Unsealable
Zipper bag	Double-sided	PVC	0.24mm		Unsealable
Flat bag	Double-sided	PE+OPP	0.04mm		Unsealable
Flat bag	Double-sided	OPP	0.08mm		Unsealable
Flat bag	Double-sided	PP	0.05mm		Unsealable
Flat bag	Double-sided	PE+OPP	0.09mm		Unsealable
Note: Due to the actual bag material thickness is not consistent, only for reference debugg function, can be adjusted on the basis of reference.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Two industrial printing machines with control panels and green contents, shown from different angles (no visible text or symbols)

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Notor speei-regulation Sealing temp.indication COOLER HEATER POWER CONVEYER TEMPT CONTROLLER Fower supply switch Blower Heating switch Green lamp (temp.rising indication) Red lamp (thermostatical indication)

Machine Translated by Google

www.vevor.com/support

Two industrial printing machines with control panels and green slats, shown from different angles (no visible text or symbols)

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Notor speei-regulation Sealing temp.indication COOLER HEATER POWER CONVEYER TEMPT CONTROLLER Fower supply switch Blower Heating switch Green lamp (temp.rising indication) Red lamp (thermostatical indication)

Machine Translated by Google

elettronica www.vevor.com/support

MACCHINA PER SIGILLATURA CONTINUA MANUALE D'USO

Industrial machine with green liquid and control panel (no visible text or symbols)

Industrial machine with digital display and control panel (no visible text or symbols)

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Notor speei-regulation Sealing temp.indication COOLER HEATER POWER CONVEYER TEMPT CONTROLLER Fower supply switch Blower Heating switch Green lamp (temp.rising indication) Red lamp (thermostatical indication)

Machine Translated by Google

Two industrial printing machines with control panels and green contents, shown from different angles (no visible text or symbols)

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Machine Translated by Google

Industrial machine with green liquid and control panel (no visible text or symbols)

Industrial machine with digital display and control panel (no visible text or symbols)

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Notor speei-regulation Sealing temp.indication COOLER HEATER POWER CONVEYER TEMPT CONTROLLER Fower supply switch Blower Heating switch Green lamp (temp.rising indication) Red lamp (thermostatical indication)

Machine Translated by Google

Two industrial printing machines with control panels and green slats, shown from different angles (no visible text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Notor speei-regulation Sealing temp.indication COOLER HEATER POWER CONVEYER TEMPT CONTROLLER Fower supply switch Blower Heating switch Green lamp (temp.rising indication) Red lamp (thermostatical indication)

Machine Translated by Google

www.vevor.com/support

KONTINUERLIG FÖRSEGNINGSMASKIN ANVÄNDARMANUAL

Industrial machine with green liquid and control panel (no visible text or symbols)

Industrial machine with digital display and control panel (no visible text or symbols)

Technical diagram of a device with numbered components for identification

Technical diagram of a mechanical device with numbered components for identification

Notor speei-regulation Sealing temp.indication COOLER HEATER POWER CONVEYER TEMPT CONTROLLER Fower supply switch Blower Heating switch Green lamp (temp.rising indication) Red lamp (thermostatical indication)

Machine Translated by Google
