USER MANUAL XMZ-TB20 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DIESEL HEATER

We continue to be committed to provide you tools with competitive price, "Save Half", "Half Price" or any other similar expressions used by us only report estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools. You are kindly reminded to verify carefully when you are placing an order that are actually saving half in comparison with the top major brands.

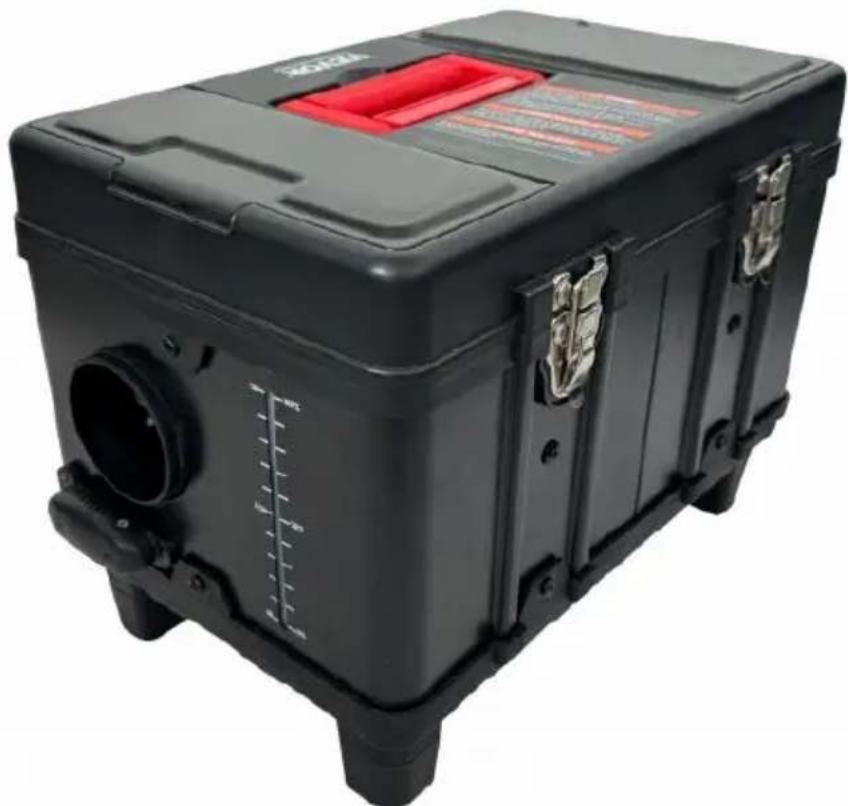

MODEL:XMZ-TB20

Black industrial optical device with red lid and scale markings (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must rea instructions manual carefully.
	This symbol, placed before a safety comment, indicates a kind of precaution, warning, or danger. Ignoring this warn may lead to an accident. To reduce the risk of injury, fi electrocution, please always follow the recommendations shown below.
	CORRECT DISPOSAL: This product is subject to the pro of European Directive 2012/ 19/EC. The symbol showing wheelie bin crossed through indicates that the product rec separate refuse collection in the European Union. This ap the product and all accessories marked with this symbol. Products marked as such may not be discarded with nor domestic waste, but must be taken to a collection point recycling electrical and electronic devices.
	Warning: Toxic material. Take care to avoid coming into with toxic material.
	Warning: Flammable material. Take care to avoid causing by igniting flammable material.

SAFETY INSTRUCTION

WARNING:

Read all safety warnings, instructions, illustrations, and specifications provided with this diesel heater. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

1. The following measures shall not be adopted

2. Change the important component of the diesel heater.

3. Make use of spare parts from other manufacturers without permission.

- Disobey the instruction and guide during installation or operation.

1. Only allow using original attachments and spare parts during installation and maintenance.

2. The heaters shall not be used in places where they may form flammable or dust, for example:

3. Fuel depot

4. Carbon storehouse
5. Timber storehouse
6. Granary and similar sites
7. Diesel/petrol station

And keep away from fuel tanks, compression tanks, fire extinguishers, clothes, other flammable objects.

1. Do not use cigarette lighter for startup.
2. Do not use the heater in closed and/or unventilated places.

3. The heaters shall be turned off when filling fuel.

4. Do not cut off the electric power in operation.

5. If the fuel leaks or discharges from the fuel system of heaters, please cc VEVOR for repair.

6. Place the exhaust outlet outside to prevent any penetration of exhaust fun

7. In the process of work, it is forbidden to cut off the electric power direct stop the heater from working.

8. Seal all gaps between the mounting plate and the car body.

9. The machine will stop heating after over-temperature protection. Please do not power off. After the machine is naturally cooled and turned off, it can be restarted.

10. After turning off the machine, please do not immediately disconnect the p supply. It takes 3-5 minutes for the machine to stop working completely.

11. After starting the machine for 3-5 minutes, it will work normally and heat. Please wait patiently.

12. When the heater is just started, the current is relatively high, so an ada with a voltage of 12-24V and a current of 12A or greater is required for the supply.

13. This appliance can be used by children aged from 8 years and above a persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

17. WARNING: Flammable material

During installation/use, service, and disposal of the appliance, please pay attention that there should be no flammable substances around exhaust pipe. The temperature of the exhaust pipe is very high wh is working. Take care to avoid causing a fire by igniting flammable material.

Please strictly follow the following methods to correctly install insulation sleeve the exhaust pipe and reduce surface temperature:

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a mechanical component with a wooden handle inserted, showing internal wiring and a green cable (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted into the floor (no visible text or symbols)

18. WARNING: Toxic material

1. During installation/use, service, and disposal of the appliance, please insta

the appliance with space for ventilation to prevent carbon monoxide poisoning. Place the exhaust outlet outdoors to prevent exhaust gas from seeping in.

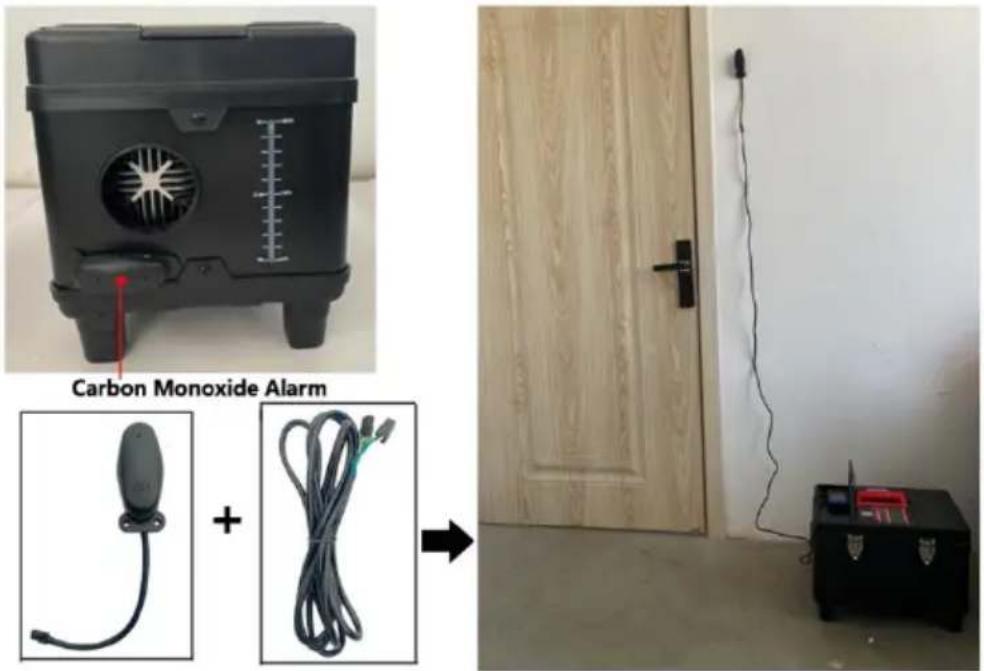

① To prevent the risk of carbon monoxide poisoning caused by improper installation, the product is equipped with a carbon monoxide alarm. When the carbon monoxide content in the enclosed space reaches 300ppm, the LCD sw will prompt CO to exceed the limit. When the content reaches 500ppm, an a will be triggered and the machine will be shut down. The leakage point need checked and repaired immediately before starting up for use.

② The carbon monoxide alarm device is equipped with a 2m extension cable which can install the probe in any position. It is not recommended to install far away from the diesel heater or too close.

Carbon Monoxide Alarm +

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product are not expressly approved by the party. Responsibility for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for B digital device pursuant to Part 15 of the FCC Rules. These limits are des provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which a receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

PRODUCT FUNCTION

1. The diesel heater (hereinafter referred to as the heater) is independent of original engine system. It makes use of a 12-24V direct current to drive. The two kinds of control modes for the heater: Automatic control mode and Manual control mode. The heater adopts light diesel, which corresponds to the environmental temperature as fuel, and it can be started and operated normally a temperature of above 40N. The inhaled fresh air is heated to hot air through heat exchanger by the energy that comes from burning fuel, then blown to water is needed. This type of heater has the advantage of compact structure, lightweight high thermal efficiency, economy of electricity and fuel, and easy installation.

2. The heater gets rid of damage to the car caused by the sudden drop in temperature, improves the temperature inside the car, and preheats the engine coolant to avoid engine wear at low temperature. Conducive to car interior the car start, and car glass defrost fog.

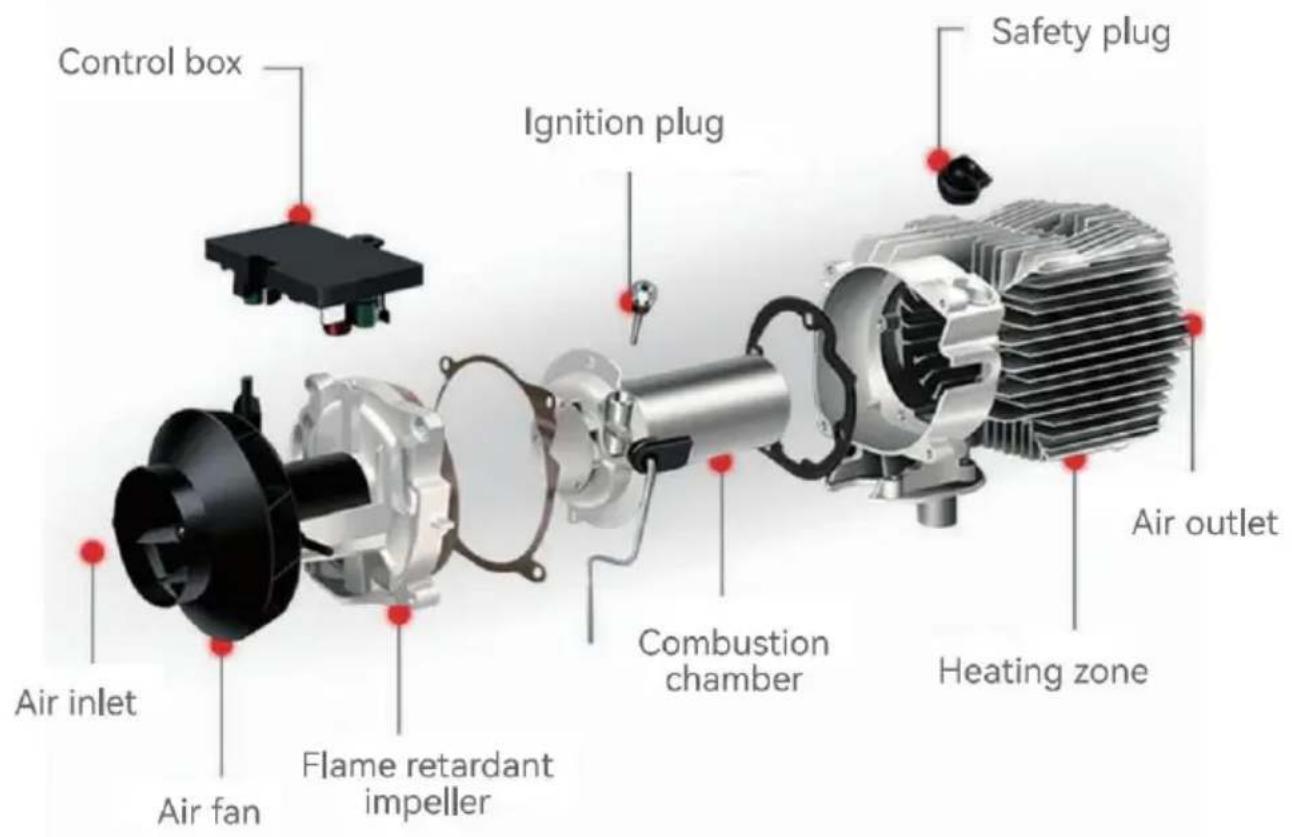

INTERNAL STRUCTURE

Control box Ignition plug Safety plug Air outlet Air inlet Air fan Flame retardant impeller Combustion chamber Heating zone

INSTALLATION POSITION

Truck 1 2 3 4

1. On the co-driver's legroom.
2. On the back wall of the cab.
3. Driver's seat backrest.
4. Within the tool box.

RV 1 2 3 4 5

1. In front of the passenger seat.
2. Between the driver seat and passenger s
3. 3&4 under the container.
4. In the trunk.

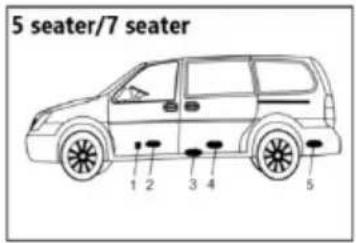

5 seater/7 seater 1 2 3 4 5

The heater is mainly installed in the passenger room or baggage room of the vehicle. If it be installed, fix the heater under the underside of the vehicle, but be ware of splashing.

excavator 1 2 3

1. Inside the driver's seat.
2. On the back wall of the ca
3. Inside the protection box.

Exterior view of a modern garage with a door and open door (no signage or text visible)

1. Installed in the garage against the
2. There should be no foreign objects blocking the front and rear air vents.
3. No flammable materials around the exhaust pipe

Interior view of a room with white shelving units and a central storage cabinet (no visible text or symbols)

1. Installed against the wall of the warehouses
2. There should be no foreign objects block the front and rear air vents.
3. No flammable materials around the exhaust

The installation of the machine requires professional personnel to install it.

MODEL

Model	XMZ-TB20
Appearance
Power ZWH	8KW
Heating medium	Air
Fuel	Diesel
Ratings	DC12-24V/40W
Adapter	100-120V~, 50-60Hz, 12V/12A For US users100-240V~, 50-60Hz, 12V/12A For European users

PACKING LIST

Model		XMZ-TB20
Main engine		1
Exhaust pipe		1
Blowpipe		1
Remote control		1
Silencer with 1 fixing piece and 2 sc		1
Blowpipe clamp		2
Clamp		4
Pipe clip		2
Screw for the lock catch		4
Adapter		1
Extension line		1
Power cord		1
Carbon monoxide module		1
Silencer retaining screw		1
Rotary tuyere		1
Protective sleeve		1
User Manual		1

Refer to the installation diagram below and carefully read the precautions when installing or using:

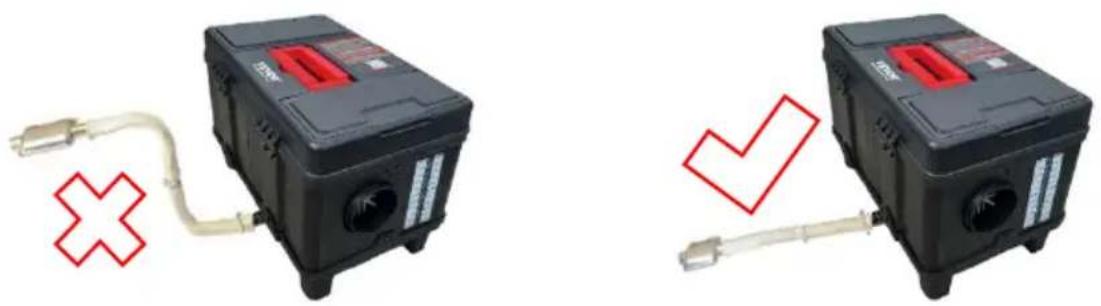

1. No Side Installation:

※ Side installation of the diesel heater will result in oil leaks inside the ma after a period of use, producing a large amount of smoke and carbon mono poisoning. During installation, leave a space of 10cm around the heater to er good ventilation.

※ If installing the heater inside a building: ① With the heater placed indoors: Make holes in the wall for the exhaust pipe to be placed outdoors. Pay attention to insulating the exhaust pipe as it can become very hot and could cause a fire. With the heater placed outdoors: It's necessary to extend the exhaust pipe to the exhaust from being sucked into the building from the back fan position of

heater, which can lead to carbon monoxide poisoning.

Two black electrical equipment units with red labels and connecting wires, one marked with a red X and the other with a red checkmark (no text or symbols on devices)

Incorrect Installation Direction Correct Installation Direction

2. Precautions for the power supply:

※ The power supply for the diesel heater must meet the following requirement: Voltage: 12-24V; Current: ≥12A, either from a direct power source or a battery. When powered by a battery, do not charge the battery while using the heater insufficient current can cause malfunction. Ensure a firm and secure connection to the battery. Using clamps for fixation can result in poor contact.

※ When extending the power cable for the diesel heater, the wire diameter be >2 ~mm^2 . Using a thin wire can lead to insufficient current, causing the heat to work. After connecting, use insulating tape to protect the connection and prevent electrical leakage, which might lead to fires.

※Do not disconnect the power when the diesel heater is operating at high temperatures. This can cause backfire due to high temperatures. Repeatedly doing so can cause permanent damage. Solutions:

- If power is cut and you immediately turn on the heater: Wait until the intake of the heater has completely dissipated before turning it on for normal operation. - If the heater is turned on a long time after a power cut: Incomplete combination inside may produce a large amount of smoke. Wait for the smoke to clear, heater will automatically start and operate normally.

It is recommended to use high-grade diesel fuel when refueling the diesel heater. Other types of fuels, such as kerosene, vegetable gasoline, waste oil, etc., cannot be used. Otherwise, the heater has an unpleasant odor and malfunction during operation.

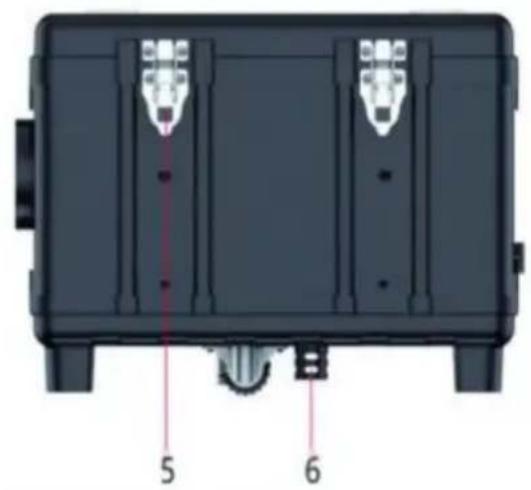

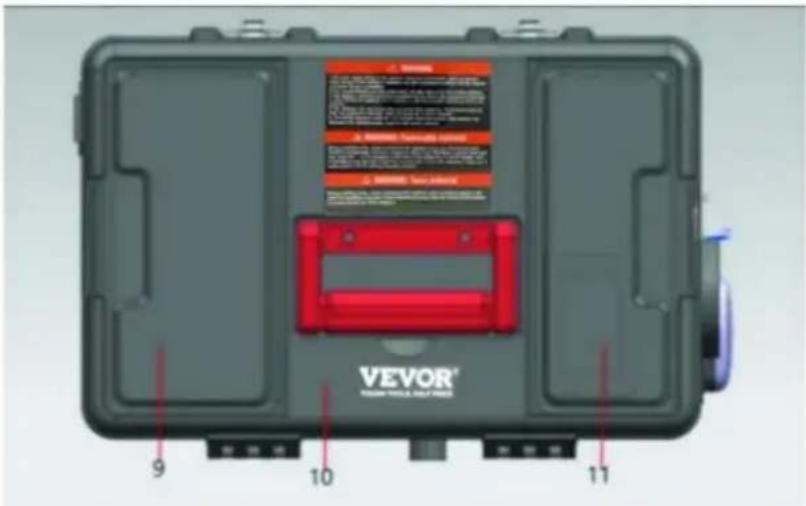

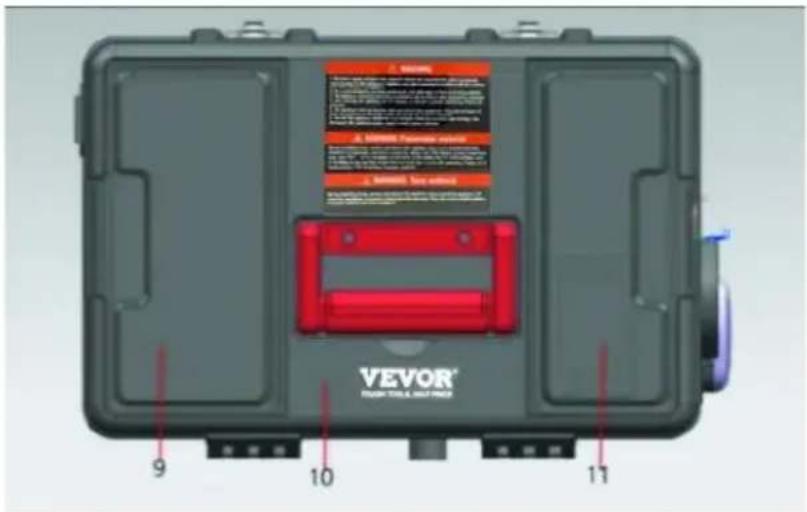

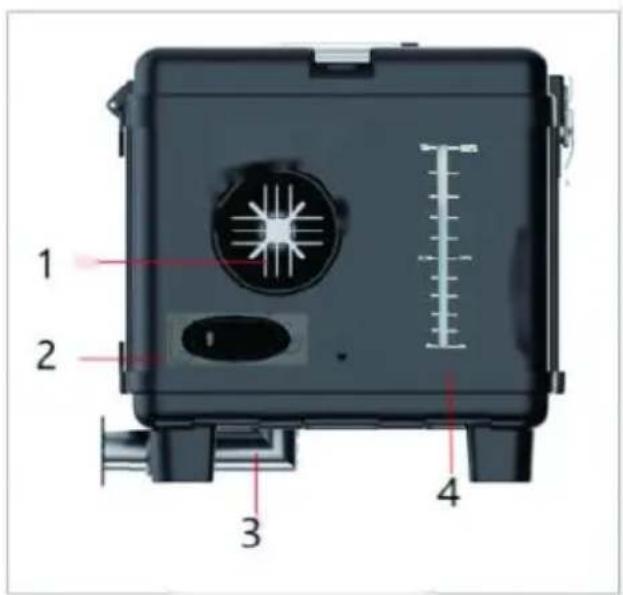

PRODUCT INFORMATION

1 2 3 4

5 6

7 8

VEVOR® 9 10 11

1	Hot air outlet	2	Carbon monoxide module
3	Exhaust pipe	4	Fuel tank engraving
5	Metal buckle	6	Air inlet
7	Power input interface	8	Air filter
9	Adapter	10	Machine upper cover
11	Switch remote control placement box

XMZ-TB20

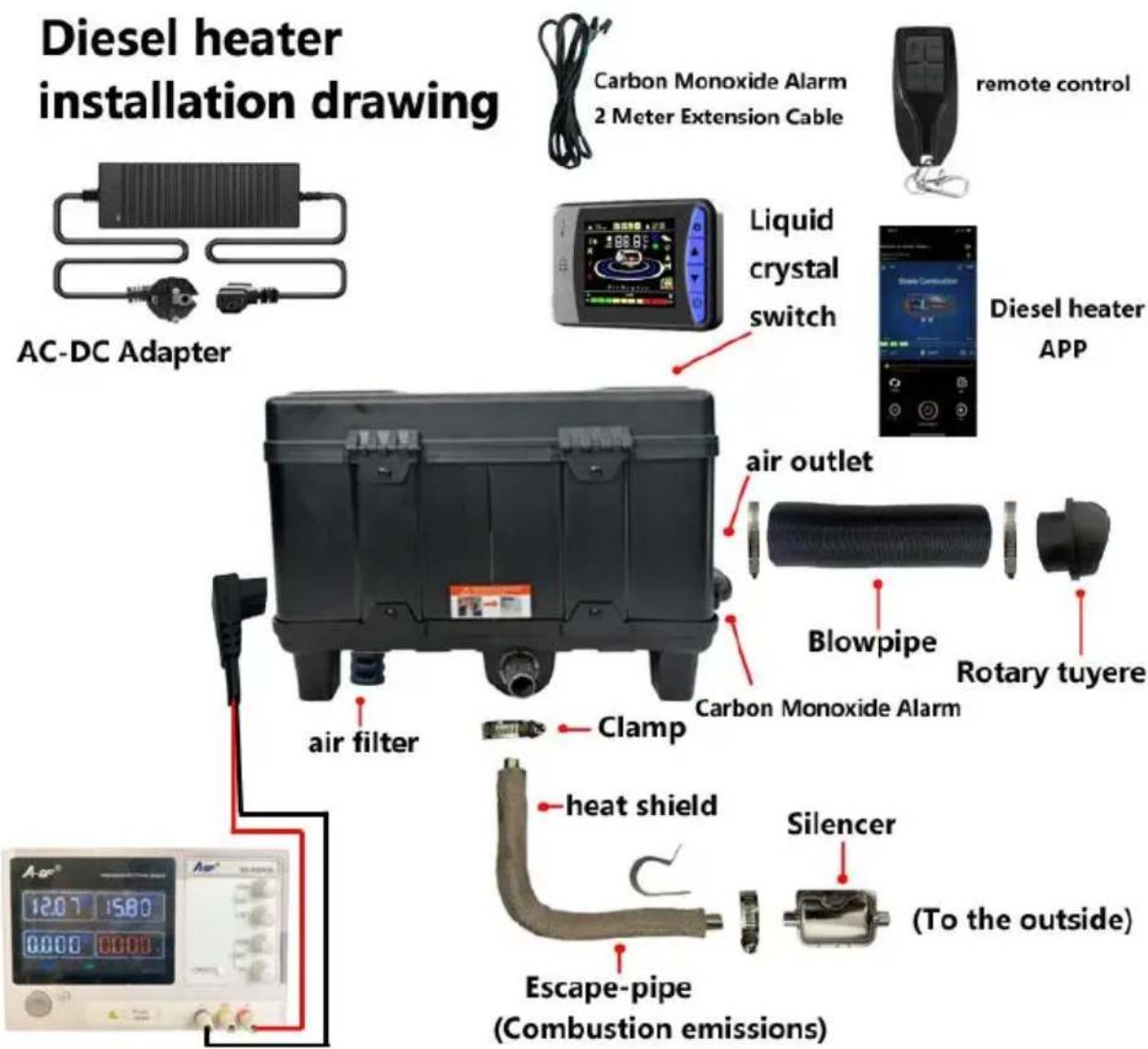

Diesel heater installation drawing Carbon Monoxide Alarm 2 Meter Extension Cable remote control AC-DC Adapter Liquid crystal switch Diesel heater APP air outlet Blowpipe Rotary tuyere Carbon Monoxide Alarm air filter Clamp heat shield Silencer (To the outside) Escape-pipe (Combustion emissions)

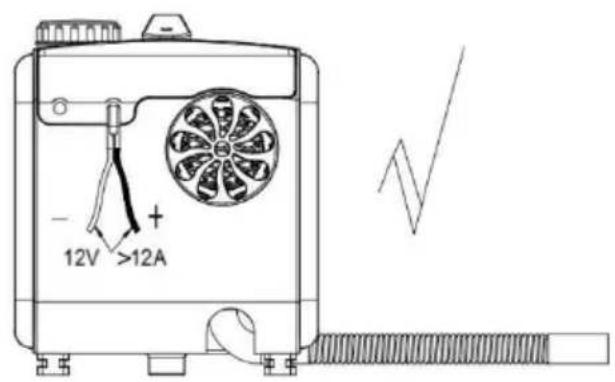

When the heater is just started, the current is relatively high, so a adapter with a voltage of 12-24V and a current of 12A or greater required for the power supply.

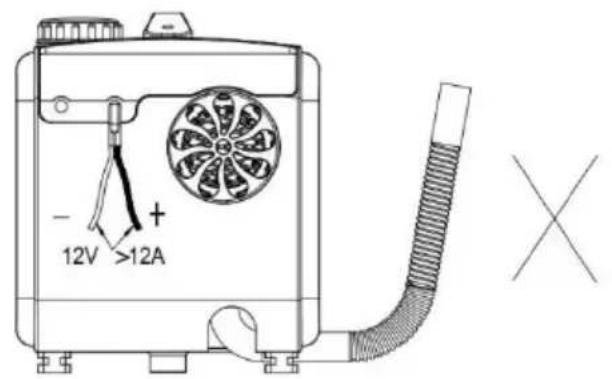

Warning:

1. The air inlet shall not be blocked, and keep the inlet open and clear.

2. Keep the exhaust pipe clear. The exhaust pipe outlet shall be kept away anything flammable to avoid heating and igniting the flammable goods and loa cargo on the ground.

3. To ensure optimal combustion, please remember that the smoke exhaust p cannot be placed upward but must be placed horizontally or downward.

- 12V >12A

- 12V >12A

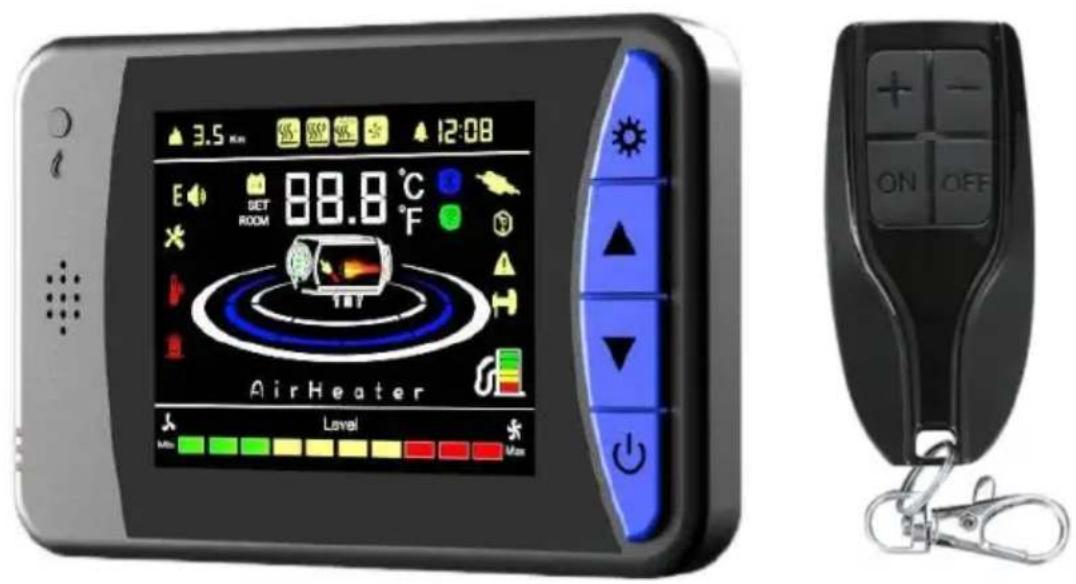

REMOTE CONTROL OPERATION INSTRUCTIONS

After starting the machine for 3-5 minutes, it will work normally and heat up. Please wait patiently.

High-end one with Bluetooth function:

3.5 Min 12:08 E SET ROOM 88.8 °C F AirHeater Level Max ON OFF

Switch panel Key Description

On/Off key;

【▲】【▼】: Gear/Temperature/Item adjustment key;

【☀】: Mode switching/Setup key;

working mode

① In gear mode, the setting gear can be adjusted within the range of 1 to gears.
② In the temperature control mode, the set temperature can be adjusted with range of 8\~36°C(46-97°F). The gear position of the control switch varies with the temperature in the cab. When the temperature rises or decreases, the control switch will automatically adjust the operating gear position, which quickly reach the set temperature and allows the heater to operate more intelligently and economically.
③ When a fault occurs during operation, the control switch display window v flash to display the fault code for a more accurate and intuitive finding of th

Configuration Table - Model: A2105BB
NO.	Function	Parameter	NO.	Function	Parameter
1	Display method	Color screen digital display	8	Timer switch	Yes
2	Operation method	Four key button	9	Manual mode	1-10 gears
3	Wireless remote control	30m	10	Automatic mode	8-36°C(46-97°F)
4	Voice Announcements	English/German/Russian	11	Pump oil mode	Yes
5	Language switching	Yes	12	temperature compensation	Yes
6	Remote Bluetooth	30m	13	Temperature switching	Yes
7	Time display	Yes	14	Constant temperature heating	8-36°C(46-97°F)

Operating instructions:

- On/Off: Press【○】 to start the machine in the off state;【○】ressto shut down the machine when it is turned on.

• Mode switching: Press the [ * ] button to switch between the current gear/temperature control mode/constant temperature heating.
• Gear adjustment: press【▲】to run gear/temperature+1, up to 10 gear/36℃, press【▼】to run gear/temperature - 1, down to 1 gear/8℃.
• Basic setting: In the power-on state, long press for 3s to enter the time setting. The settings item will be displayed in the upper left corner, and the item will display the specific data under the settings item:

F0	current time
F1	Self start time
F2	Running time [after self start]
F3	Self start switch settings
F4	Language switching [Chinese (C), English (E), Russian (R), voice
F6	Fuel tank volume [5-50L (switching units to 5L) (default 5L)] [Dis represents not monitoring fuel tank conditions]
F7	Oil pump type [16/22/28/32UL (default to 22UL)]
F8	Constant temperature heating (in temperature control mode, when cab temperature reaches the set temperature, it will automatically down after a delay of 30 seconds; when the cab temperature is lower than the set temperature, it will automatically start up after of 30 seconds)
F9	Temperature switching: °F(°C)
FA	Screen brightness
FB	Fill the fuel tank: In basic setting mode, pre[spth Adjustment Key] /【Down Adjustment Key】to adjust to Fb; Long press the setting (hear a prompt sound), release the button to fill the fuel tank;
FC	CO value detection (this function is used with CO sensors)
FD	Running time switch

Press the [▲]/[▼] keys to make changes, and then press the [★] key again to confirm the current data modification

Press the []/[] keys to adjust the settings. After all adjustments are successful,

press the [ * ] key to save the basic settings; Press the power button to return the running interface

- Engineering mode: Press and [nʌl] [▼] for 3s in the startup state to enter engineering mode, The current project is displayed in the upper right corner, the interface displays the specific data under the project. Press the [▼] keys to adjust the project and view the data:

En00	Heater motherboard version number [scrolling display]
En01	Fault code [see table below for details]
En02	Shell temperature
En03	Power supply voltage
En04	Heater running gear
En05	Cab temperature
En06	Altitude
En08	Remote control matching
En09	Bluetooth matching

- Remote control quick matching:

When the machine is turned on, press and hold for 3s ; Enter the En08 interface, and the screen displays "P-1". At this time, press any key on the control to successfully match and return to the running interface; Clear the la remote control matching data: During the power on self-test, press and hold [button]. The interface displays "CLr" to start clearing. When the interface displays "SUC", the clearing is successful.

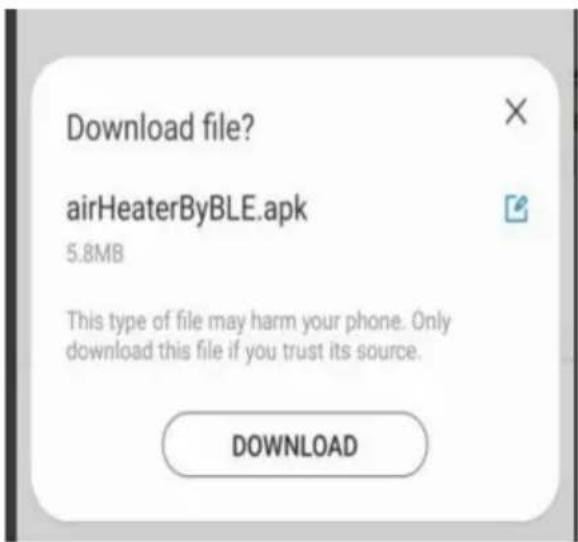

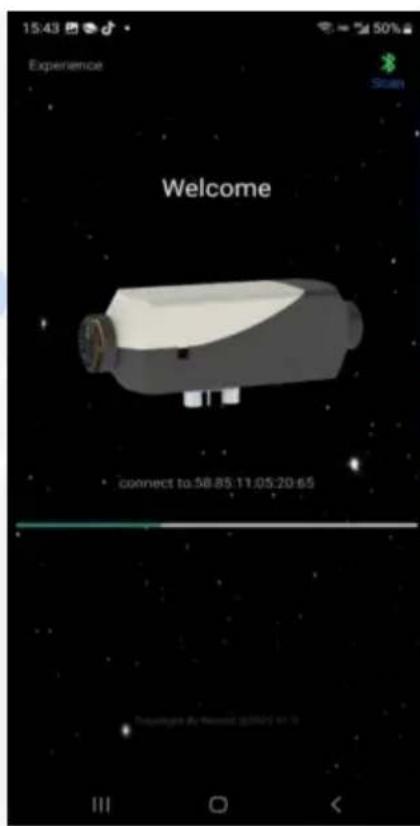

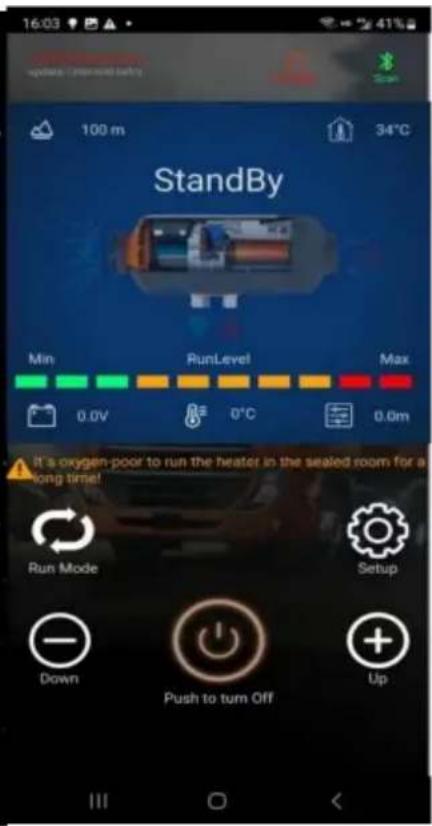

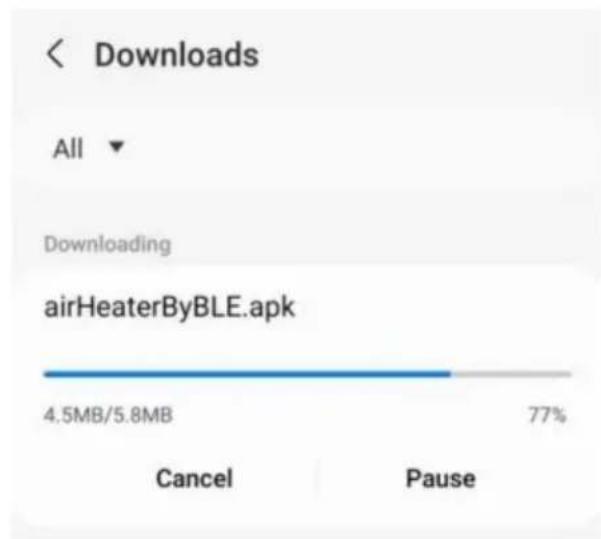

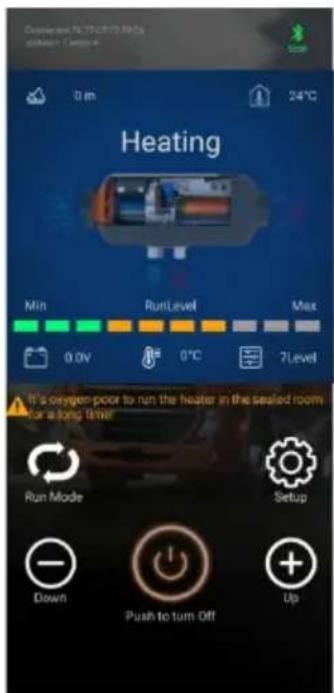

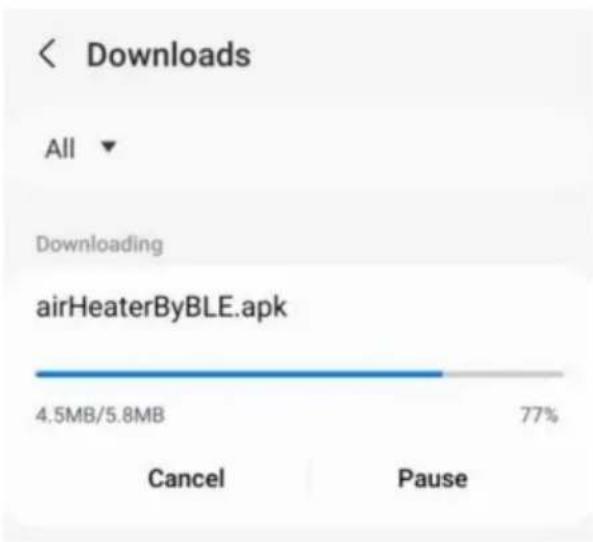

- Bluetooth matching (optional):

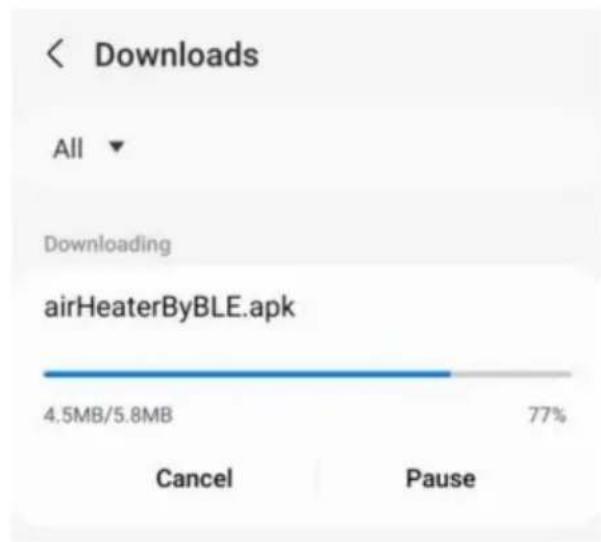

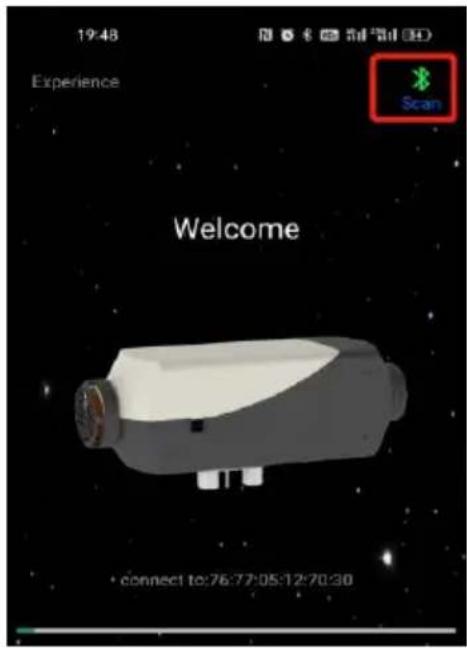

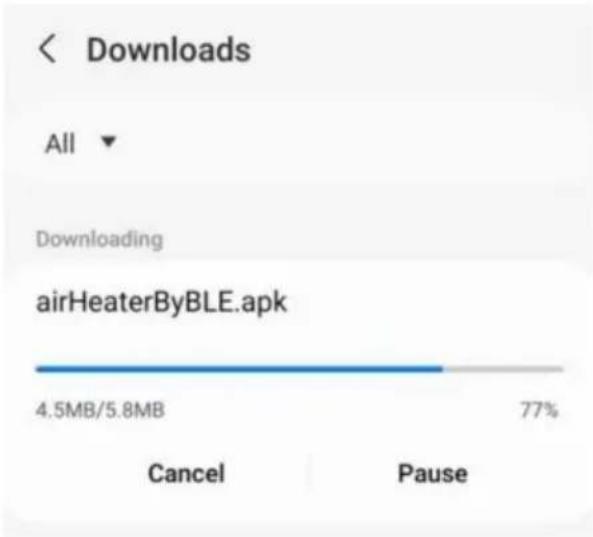

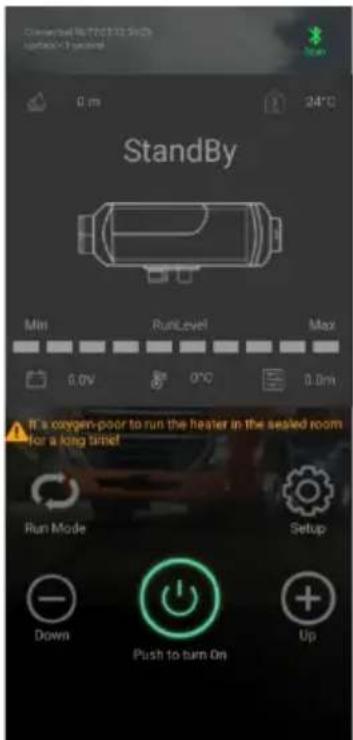

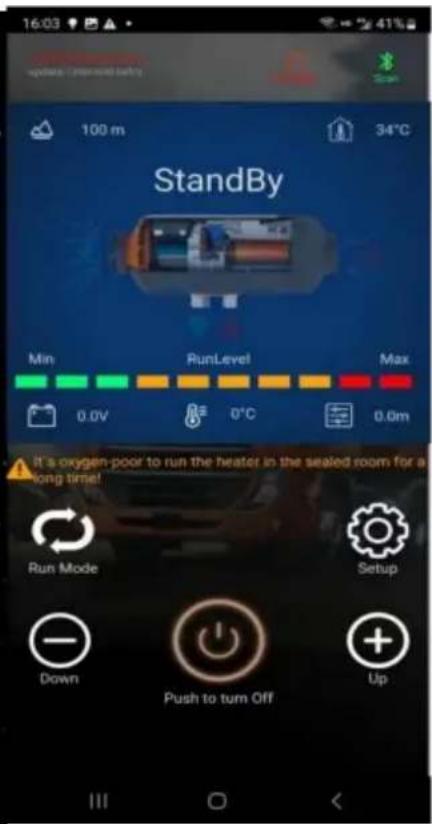

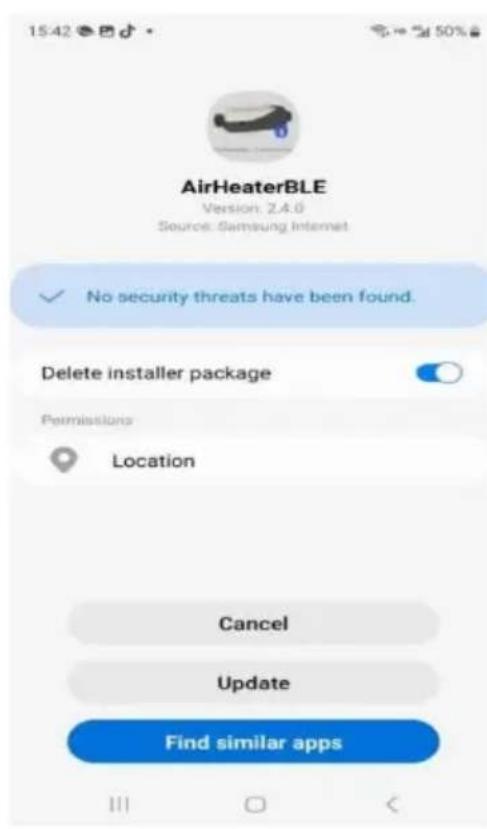

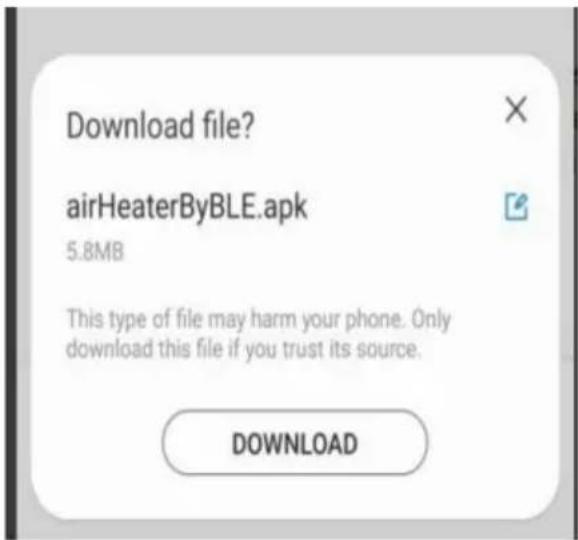

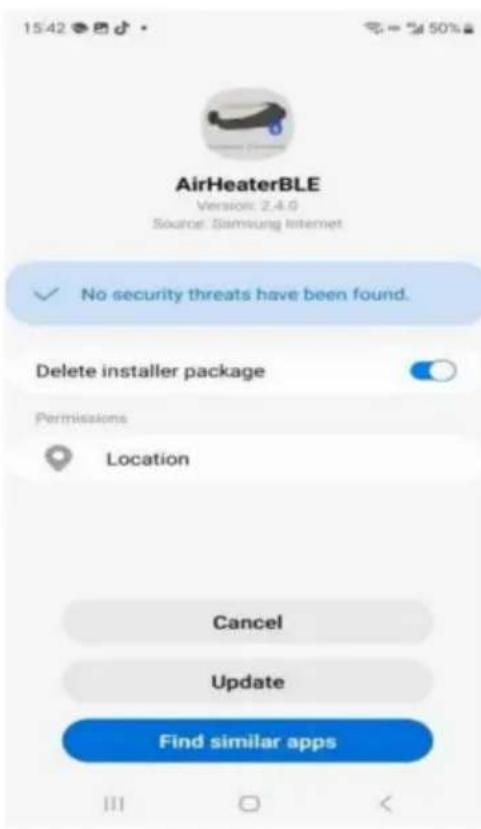

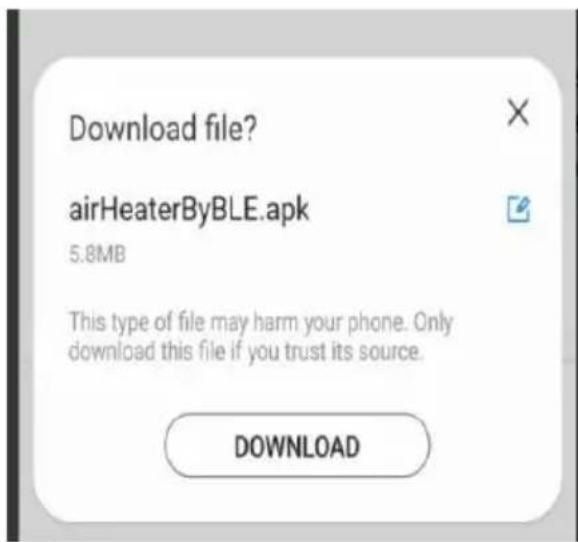

Open the mobile app, click to search for Bluetooth name, adjust the switch to enter engineering mode En09, and the interface will display "BLe". The Bluetooth name will displayed on the upper right side of the screen. Click on the corresponding Bluetooth and password to automatically connect successfully; (The APP will automatically return the running interface after successful connection);

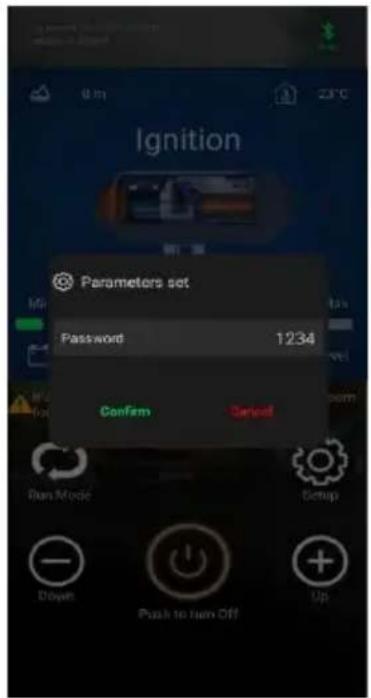

Note: When the passwords are inconsistent: Open the mobile app, click on the search Bluetooth name, and click on the corresponding Bluetooth name; Prompt for inconsistent password/no response after loading (depending on the phone system); At this point, the

switch enters engineering mode En09; The interface displays "B L e", and the Bluetooth name is displayed on the upper right side of the screen. Press and hold the setting for 3 seconds; When the Bluetooth name flashes and changes to the Bluetooth pass wait for the password to change to match the APP password; Display (SUC) success connection;

• Language switching: Press and hold 【▼】 for 3s while turning on the machine to switch, and cycle through the sequence of "English", "German", "Russian", and "voice off".
• Oil pumping mode: Under the first power-on and power-off state, press and hold 【▼】 for 5s, and the display area starts to count down for 300s to start pumping oil. After the countdown is completed, the pump automatically ends to press 【◎】 to end pumping oil and shut down;
• View CO detection values: Long press the on/off button while turning on the device.

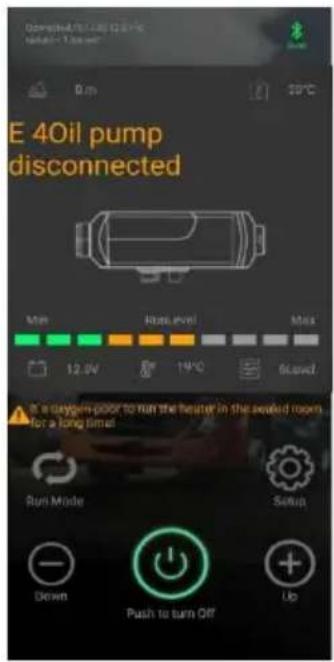

• Fault display: When the heater fails, the display area flashes a fault code, and the fault type is shown in the table below:

code	Fault Message	Handling Method
E-01	Abnormal voltage	Check that the heater supply voltage type matches the actual vehicle voltage.Check that the supply voltage is not high than 32V or lower than 9V.Check that the main harness connector is loosely connected.The current of the power supply equipment should be ≥slant 12A for normal operation;When the heater is not used for battery power supply, charging the battery will cause to not work due to low battery current;Do not use the car cigarette lighter for supply, as the current is low and cannot with The connection between the battery and the wire cannot be fixed with fixtures, as poorcontact can also cause malfunction;
E-03	Ignition plug abnormality	1. Check whether the ignition plug is incorrect connected.2. The ignition plug is faulty; replace the igni plug.3. Main board is faulty; replace the main boa
E-04	Oil pump abnormality	1. Check whether the oil pump plug is loos connected falsely.2. Check the main wiring harness for disconnection.3. Oil pump is faulty; replace the oil pump.
E-05	High temperature protection	1. Incorrect or faulty furnace temperature setype; replace the sensor.2. Main board is faulty; replace the main b3. Check if the air outlet and exhaust pipes bent or too long, which affects the ventilatio prevents heat from dissipating.
E-06	Fan abnormality	1. Check whether the fan impeller of the ca jammed.2. Check whether the fan plug is loose and connected.3. The fan is faulty; replace the fan.4. Check whether the wind wheel induction magnet is missing or has the wrong polarity5. Check whether the main board wind spe sensor is normal.6. The main board is faulty; replace the ma board.
E-08	Flame out due to lack of oil	Checking the fuel tank for lack of oil.
E-09	Overheat protection sensor	1. Detect whether the outlet air temperature sensor connector is loose and connected fall2. The air outlet sensor is faulty, replace the board.3. The main board is faulty; replace the ma board.
E-10	Secondary startup failed	1. Check whether the oil pump works.2. Check whether the interfaces of the oil are hanging wax and blocked.
The exhaust pipe turns red	Abnormal combustion chamber or oil pump	Immediate shutdown is required, and the aluminum body should be disassembled to check if the internal combustion chamber is sealed or replaced;
Abnormal noise	Exhaust blockage	It should be immediately shut down and che for blockages in the exhaust pipe, muffler, a exhaust outlet. If there are blockages, clean them and resume normal operation;
Oil leakage	Internal oil leakage of the machine	1. The heater cannot be installed on the si and the oxygen hole on one side of the ig plug will allow oil to flow out along the ho correct installation method is to have the intake/exhaust ports facing downwards;2. Poor oil quality causes blockage of the ignition plug atomization network in the combustion chamber, which does not ignite flows out along the exhaust pipe. The igniti plug atomization network should be replaced and high-grade diesel should be replaced;
Emitting black smoke	Insufficient oxygen intake&carbonbuildup in the combustion chamber	1. Check if there is any blockage in the in pipe causing insufficient oxygen intake;2. The small space of the air inlet positionto air intake obstruction;3. Disassemble the internal combustion chamber of the machine to check for carbon deposits, and replace the combustion chamber in a timely manner;
Emitting blue smoke	Poor oil quality	Diesel heaters can only use high-grade dies and negative temperature diesel should be u in winter;
Emitting white smoke	Ignition failure	1. Check if the internal pump oil volume of machine is too high, causing the ignition plus fail to ignite. The oil pipe should be removed restarted 2-3 times before returning to normal and then the oil pipe should be inserted;2. Use a hair dryer to blow into the intake for a period of time until it works properly;
Diesel flavor	Diesel assisted combustion	1. Confirm that the fuel tank is filled with as other fuels may cause odor;2. Open the machine casing to check for a leakage inside;
Plastic odor	Whether to use external accessories	1. Extension or modification requires the purchase of high-temperature resistant accessories, otherwise the high heat of the heater will cause an unpleasant and pungen odor;2. The extension tube should not be bent long, as it will cause heat to be unable to discharged and high internal temperature will produce a plastic odor;3. The installation of perforated exhaust pipe does not require protection. Normally, exhaust gas is discharged through the exhaust pipes is a wooden floor, large holes need to beand iron plates need to be used for protectThe heat of the exhaust pipe can reach up 400 degrees and adhesive substances canno be applied on the surface, otherwise it will unpleasant odor and even carbon monoxide production. High temperature resistant materia need to be purchased for sealing

CO CONTROLLER OPERATION INSTRUCTIONS

Black oval-shaped electronic device with two labeled ports (① and ②) and a base, no visible text or symbols on the device itself.

Model: YAH-A2429

①Indicator light
②On/Off key

Operating instructions

1. Start detection: Press the on/off button to start the detection;
2. Stop detection: Press the on/off button to stop detection;
3. Re detection: When the gas concentration reaches the detection threshold the controller, the indicator light starts to flash; At this time, press the on/off and the indicator light will change from flashing to constantly on;

Product specifications/parameters

1. To prevent the risk of carbon monoxide poisoning caused by improper installation, the product is equipped with a carbon monoxide alarm. When the carbon monoxide content in the enclosed space reaches 300ppm, the LCD sw will prompt CO to exceed the limit. When the content reaches 500ppm, an a will be triggered and the machine will be shut down. The leakage point need checked and repaired immediately before starting up for use.

2. The carbon monoxide alarm device is equipped with a 2m extension cable which can install the probe in any position. It is not recommended to install far away from the diesel heater or too close.

Configuration Table - Model: YAH-A2429
NO.	Function	Parameter	NO.	Function	Parameter
1	detection range	0-500ppm	7	life expectancy	3 years
2	Detecting overload	2000ppm	8	operation temperature	-20~50°C
3	repeatability	±2%	9	Supply Voltage	5.2V±0.2V
4	Response time (t90)	≤60 s	10	consumption	<6.0mA
5	Long-term Drift	<2%/month	11	Extension line	2m
6	recovery time	≤60 s	/	/	/

Emergency response methods for controller alarms

1. When the CO concentration within the detection range of the controller exceeds the limit, the switch will display a fault/the controller indicator light with flash, and the switch will automatically turn off the heater to avoid a continuous increase in CO concentration; Ventilation should be done immediately (if the environment is narrow and conditions permit, open the ventilation openings to create an open environment as much as possible. When the environment is or ventilation is inconvenient, it is recommended to increase ventilation equipment to accelerate air circulation and discharge CO gas), and personnel in the environment should evacuate immediately from the environment where the current CO concentration exceeds the standard;

2. If the installation and usage environment is correct, it is recommended that personnel return to the working area and restart to check the CO concentrati see if it meets the standards.

3. During the use of this product, it is important to maintain long-term air circulation and regularly check the concentration of carbon monoxide (internatio standard 50mg/m^3 ≈ 40PPM ) to ensure personal safety. If symptoms of carbon monoxide poisoning occur (such as dizziness, headache, nausea, etc.), one

should immediately stay away from the source of pollution, breathe fresh air, seek medical assistance.

1. This product uses electrochemical sensors, which are easily affected by local temperature and humidity interference, resulting in slight impact on detection accuracy. Therefore, to ensure your safety, please use this product objectively reasonably. Its service life is affected by the environment, and the accuracy of sensor is regularly tested. If the error is too large, please replace the sensor
2. Even if a carbon monoxide alarm is installed, the room must be properly ventilated to prevent excessive CO emissions during sleep from not being dealt with in a timely manner.

Precautions and usage specifications

1. Please do not open the product casing at will; Prevent external forces fro damaging the sensor;
2. Products should avoid contact with organic solvents (including silicone rubber and other adhesives), coatings, chemicals, fuel oils, and high concentration ga
3. The product should not be completely encapsulated with resin materials during use and storage, nor should it be immersed in an anaerobic environment for time, otherwise it will damage the performance of the sensor; Affects the detection accuracy of the product;
4. This product cannot be used for a long time in environments containing corrosive gases;
5. During installation and use, it is necessary to avoid vertical air intake from front;
6. The product air inlet must not be blocked or contaminated;
7. This product needs to be installed firmly and not subjected to excessive vibration;
8. Do not use if the shell is damaged or deformed;

9. Prohibit long-term storage and use of this product in high concentration all gases;

10. Please replace the controller with a new one in a timely manner when it is expected service life;

BLUETOOTH OPERATION

Search and download the corresponding APP name "airHeaterBle" in the IOS Android APP store, then please follow the below steps to connect and control heater with a mobile phone.

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "airHeaterBle

QR code image containing encoded data, no visible human-readable text

Android APP

QR code image containing encoded data, no visible human-readable text

Scan the QR-Code by browser to download the Airheater app from GooglePlay or Search the “Airheaterble” in the google play app to install Airheater app.

1. Query the Bluetooth name: After turning on the machine, press 【💡】 【M】

for 3s at the same time, the screen displays the Bluetooth name in 4-digit characters (0-F).

68 45

1. Connect to the mobile phone via Bluetooth: Click on the Bluetooth sym the upper right corner, find the corresponding local Bluetooth number: BYD+M address of the Bluetooth device+4 digits from the controller (Refer to the pict above), then click on the Bluetooth number to connect.

19:48 Experience Scan Welcome • connect to:76:77:05:12:70:30

BYD-767705126B45 D4C7ED61-E28F-AOC4-2A0E-E5C3023FC18D BYD-767705127024 33633C60-41A6-5B78-6C2A-E89FDE938B08 BYD-767705123708 1F85935A-D35D-03F2-BD30-920F18133D5E

1. Click the button to go to the settings screen, you can set the password a click "Confirm" to save the settings. If the password is modified, the switch r to modify the password according to the above Bluetooth matching operation method.

Ignition Parameters set Password 1234 Confirm Cancel Run Mode Setup - Downs Push to turn Off Up

1. Long press the ⏻ to turn on/turn off the heater.

StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long brief! Run Mode Setup Down Push to turn On Up

1. Click "mode" button to switch the gear mode or temperature control mode. Click "up +" /"down -" button to increase + or decrease- the level (level 1-10)/temperature(8°C\~36°C).

Oxygenated No. 17-04/13 96p inclusion / Service 0 m 24°C Heating Min RunLevel Max 0.0V 0°C 7Level It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

1. Fault display: When the heater fails, it will display the fault code E-xx, set table mentioned earlier for the type of fault.

E 40Oil pump disconnected Min Max level Miss 12.0V 14°C 6.0m/ It is oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

Samsung mobile phone installation and us APP

1. Open the Samsung phone camera and the QR code below to pop up a download. Click on download and install.

QR code image containing encoded data, no visible human-readable text

Download file? airHeaterByBLE.apk 5.8MB This type of file may harm your phone. Only download this file if you trust its source. DOWNLOAD

< Downloads All Downloading airHeaterByBLE.apk 4.5MB/5.8MB 77% Cancel Pause

1. After installation is completed and Bluetooth is connected, opening the app can operate normally.

15:42 @ j AirHeaterBLE Version: 2.4.0 Source: Samsung Internet ✓ No security threats have been found. Delete installer package Permissions Location Cancel Update Find similar apps

16:03 41% sptle Tisend Bats 100 m 34°C StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

For some Samsung phones that cannot operate the APP normally after downloading and installing, long pressing and holding the [button on the APP conflicts with the screen recognition function Samsung phones. The solutions are as follows:

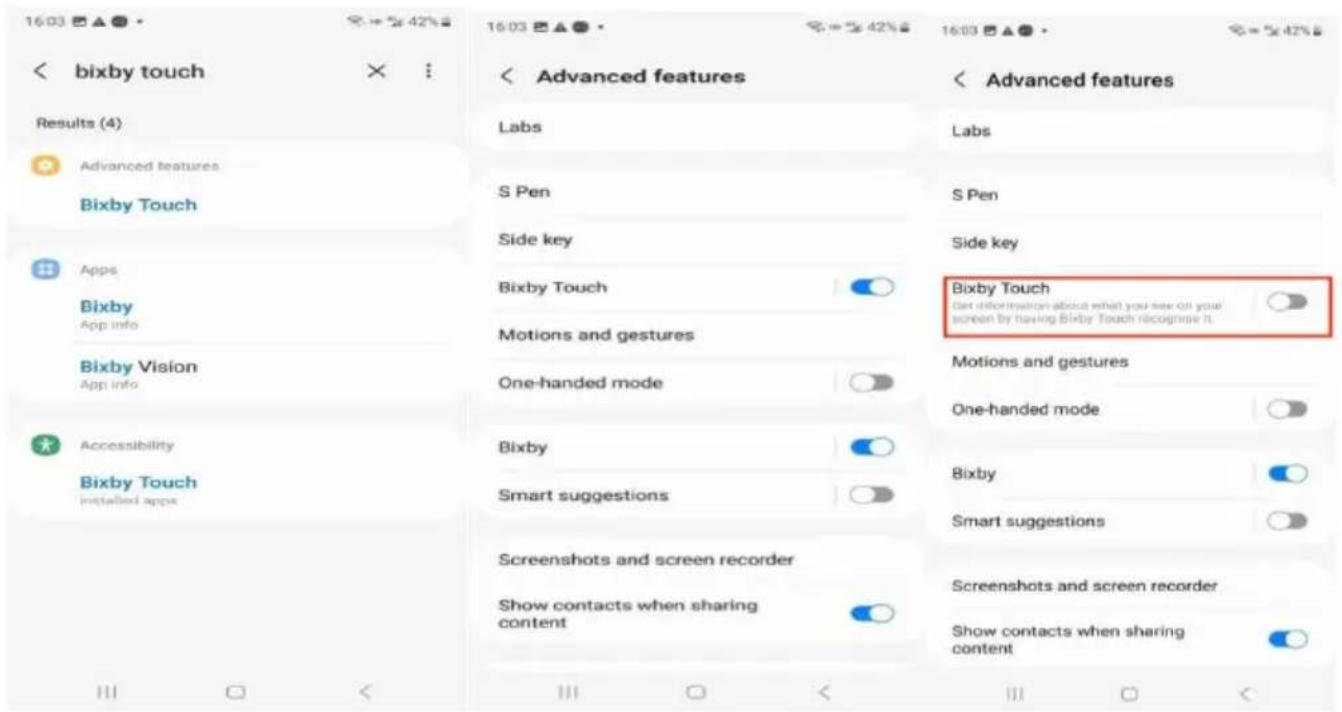

1. Open the settings function of your phone to search for Bixby Touch.

Settings Samsung account Profile - Applicable features Connections WJ20 - Bluetooth - Sound Messages Connected devices & Share - Samsung Disk Modes and Routines Modules - Routines Sounds and vibration Sound chords - Ringbone Notifications Status Only - Sound chords

1. Click on the Bixby Touch screen recognition function and clos to return to the app for normal use.

< bixby touch Results (4) Advanced features Bixby Touch Apps Bixby App info Bixby Vision App info Accessibility Bixby Touch installed apps 16:03 Advanced features Labs S Pen Side key Bixby Touch Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content 16:03 Advanced features Labs S Pen Side key Bixby Touch Get information about what you see on your screen by having Bixby Touch recognize it. Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centre House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic optical device with red cover and metal clamps, no visible text or symbols

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

5 seater/7 seater 1 2 3 4 5

Exterior view of a modern garage with a door and side-mounted windows (no signage or text visible)

Interior view of a room with white shelving units and a small sink (no visible text or symbols)

Black industrial electrical device with red control panel and white connector, marked with a red 'X' symbol (no text or labels visible)

Black industrial device with red lid and connected cable, no visible text or symbols

Diesel heater installation drawing Carbon Monoxide Alarm 2 Meter Extension Cable remote control AC-DC Adapter Liquid crystal switch Diesel heater APP air outlet Blowpipe Rotary tuyere Carbon Monoxide Alarm air filter Clamp heat shield Silencer (To the outside) Escape-pipe (Combustion emissions)

3.5 km 12:08 E SET ROOM 88.8 °C F AirHeater Level Max ON OFF

Diagram of a device with labeled parts, showing two numbered components and directional arrows.

Model: YAH-A2429

Kontrolka świetlna

QR code image containing encoded data, no visible human-readable text

Aplikacja iOS

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Ignition Parameters set Password 1234 Confirm Cancel Run Mode Setup - Down Push to turn OFF + Up

StandBy Min Run level Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn On Up

Heating Min RunLevel Max 0.0V 0°C 7Level It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

E 40il pump disconnected Min Run level Max 12.5V 19°C 6Level It is oxygen-poor to turn the heater in the sealed room, for a long timer Run Mode Setup Down Push to turn Off Up

QR code image containing encoded data, no visible human-readable text

Download file? airHeaterByBLE.apk 5.8MB This type of file may harm your phone. Only download this file if you trust its source. DOWNLOAD

15:42 AirHeaterBLE Version: 2.4.0 Source: Samsung Internet ✓ No security threats have been found. Delete installer package Permissions Location Cancel Update Find similar apps

15:43 Experience Welcome connect to:58.85 11:05:20:65 Copyright By Record (©2021) 01.19

16:03 100 m StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

Settings Samsung account Profile - App and Security Connections 04.16% - Windows - 32.16% Manager Connected devices 5.87% - Samsung Self Modes and Routines Modes - Routines Sounds and vibration Sound mode - Wireless Notifications Sonickey 1: All and Good

< bixby touch Results (4) Advanced features Bixby Touch Apps Bixby App info Bixby Vision App info Accessibility Bixby Touch Installed apps 16:03 ▲ ▲ ▼ × = 2 42% 16:03 ▲ ▲ ▼ × = 2 42% 16:03 ▲ ▲ ▼ × = 2 42% < Advanced features Labs S Pen Side key Bixby Touch Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content < Advanced features Labs S Pen Side key Bixby Touch Get information about what you see on your screen by having likely Touch recognize it. Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content < Advanced features

Producent: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Szanghaj 200000 CN.

Importowane do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP WIEL KIEJ BRYTANII

YH CONSULTING LIMITED.

C/O YH Consulting Limited Biuro 147, Centurion

Dom, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

Przedsławiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic camera case with red lid and metal clamps, no visible text or symbols on body

www.vevor.com/support

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a wooden bolt inserted into a black electrical outlet (no visible text or symbols)

Close-up of a car's side panel with a textured cylindrical object inserted into the floor (no visible text or symbols)

5 seater/7 seater 1 2 3 4 5

Exterior view of a modern garage with a door and side-mounted windows (no signage or text visible)

Interior view of a room with white shelving units and a small sink (no visible text or symbols)

Black industrial electrical device with red control panel and white cable, marked with a red 'X' symbol (no text or labels visible)

Black electronic device with red lid and connected cable, no visible text or symbols

PRODUKTINFORMATIONEN

1 2 3 4

5 6

7 8

VEVOR® 9 10 11

Diesel heater installation drawing Carbon Monoxide Alarm 2 Meter Extension Cable remote control AC-DC Adapter Liquid crystal switch Diesel heater APP air outlet Blowpipe Rotary tuyere Carbon Monoxide Alarm air filter Clamp heat shield Silencer (To the outside) Escape-pipe (Combustion emissions)

3.5 km 12:08 E SET ROOM 88.8 °C F AirHeater Level Min Max ON OFF

Diagram of a device with labeled components, showing two numbered parts and directional arrows.

Modell: YAH-A2429

ÿKontrollleuchte

ÿEin/Aus-Taste

Bedienungsanleitung

QR code image containing encoded data, no visible human-readable text

IOS-App

QR code image containing encoded data, no visible human-readable text

Android APP

QR code image containing encoded data, no visible human-readable text

Ignition Parameters set Password 1234 Confirm Cancel Run Mode Setup - Down Push to turn OFF + Up

StandBy Min Run Level Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn On Up

Heating Min Run Level Max 0.0V 0°C 7Level It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

E 4Oil pump disconnected Min Run level Max 12.5V 19°C 6Level It is oxygen-poor to turn the heater in the sealed room for a long timer Run Mode Set up Down Push to turn Off Up

QR code image with embedded text 'einen' in the center

Download file? airHeaterByBLE.apk 5.8MB This type of file may harm your phone. Only download this file if you trust its source. DOWNLOAD

< Downloads All ▼ Downloading airHeaterByBLE.apk 4.5MB/5.8MB 77% Cancel Pause

15:42 AirHeaterBLE Version: 2.4.0 Source: Samsung Internet ✓ No security threats have been found. Delete installer package Permissions Location Cancel Update Find similar apps

15:43 Experience Welcome connect to:58.85 11:05:20:65 Copyright By Record @5847 01:19

16:03 100 m StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

Settings Samsung account Profile - App and Security Connections 04.16% - Windows - 32.16% Manager Connected devices 5.87% - Samsung Self Modes and Routines Modes - Routines Sounds and vibration Sound mode - Wireless Notifications Sonickey 1: All and Good

< bixby touch Results (4) Advanced features Bixby Touch Apps Bixby App info Bixby Vision App info Accessibility Bixby Touch Installed apps 16:03 20:00 16:03 20:00 16:03 20:00 16:03 20:00 Advanced features Labs S Pen Side key Bixby Touch Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content Advanced features Labs S Pen Side key Bixby Touch Get information about what you see on your screen by having bixby Touch recognize it. Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

Haus, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

Machine Translated by Google

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic optical device with red cover and measurement markings (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

5 seater/7 seater 1 2 3 4 5

Exterior view of a modern garage with a door and side-mounted windows (no signage or text visible)

Interior view of a room with white shelving units and a small sink (no visible text or symbols)

Black industrial electrical device with red control panel and white cable, marked with a red 'X' symbol (no text or labels visible)

Black electronic device with red lid and connected cable, no visible text or symbols

INFORMATIONS SUR LE PRODUIT

1 2 3 4

5 6

7 8

VEVOR® 9 10 11

Diesel heater installation drawing Carbon Monoxide Alarm 2 Meter Extension Cable remote control AC-DC Adapter Liquid crystal switch Diesel heater APP air outlet Blowpipe Rotary tuyere Carbon Monoxide Alarm air filter Clamp heat shield Silencer (To the outside) Escape-pipe (Combustion emissions)

3.5 km 12:08 E SET ROOM 88.8 °C F AirHeater Level Min Max ON OFF

Diagram of a device with labeled components, showing two numbered parts and directional arrows.

Modèle : YAH-A2429

Voyant lumineux

Touche marche/arrêt

Mode d'emploi

QR code image containing encoded data, no visible human-readable text

Application iOS

QR code image containing encoded data, no visible human-readable text

Application Android

QR code image containing encoded data, no visible human-readable text

Ignition Parameters set Password 1234 Confirm Cancel Run Mode Setup - Down Push to turn OFF + Up

StandBy Min Run Level Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn On Up

Heating Min Run Level Max 0.0V 0°C 7Level It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

E 40il pump disconnected Min Run level Max 12.5V 19°C 6Level It is oxygen-poor to turn the heater in the sealed room. for a long timer Run Mode Setup Down Push to turn Off Up

QR code image with a small 'n' watermark in the bottom-left corner

Download file? airHeaterByBLE.apk 5.8MB This type of file may harm your phone. Only download this file if you trust its source. DOWNLOAD

< Downloads All ▼ Downloading airHeaterByBLE.apk 4.5MB/5.8MB 77% Cancel Pause

15:42 AirHeaterBLE Version: 2.4.0 Source: Samsung Internet ✓ No security threats have been found. Delete installer package Permissions Location Cancel Update Find similar apps

15:43 Experience Welcome connect to:58.85 11:05:20:65 Copyright By Record (©2021) 01.19

16:03 100 m StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

Settings Samsung account Profile - App and Security Connections 04.16% - Windows - 32.16% Manager Connected devices 5.87% - Samsung Self Modes and Routines Modes - Routines Sounds and vibration Sound mode - Wireless Notifications Sonickey 1: All and Good

< bixby touch Results (4) Advanced features Bixby Touch Apps Bixby App info Bixby Vision App info Accessibility Bixby Touch Installed apps 16:03 20:00 16:03 20:00 16:03 20:00 16:03 20:00 Advanced features Labs S Pen Side key Bixby Touch Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content Advanced features Labs S Pen Side key Bixby Touch Get information about what you see on your screen by having likely Touch recognize it. Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australie

A/S YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

69, rue Mainzer Landstr.,

Black plastic optical device with red cover and metal clamps, no visible text or symbols

HULP NODIG? NEEM CONTACT MET ONS OP!

ÿ Diesel/benzinestation

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

18. WAARSCHUWING: Giftig materiaal

5 seater/7 seater 1 2 3 4 5

Exterior view of a modern garage with a door and side-mounted windows (no signage or text visible)

Interior view of a room with white shelving units and a small sink (no visible text or symbols)

Black industrial electrical device with red control panel and white cable, marked with a red 'X' symbol (no text or labels visible)

Black electronic device with red lid and connected cable, no visible text or symbols

Diesel heater installation drawing Carbon Monoxide Alarm 2 Meter Extension Cable remote control AC-DC Adapter Liquid crystal switch Diesel heater APP air outlet Blowpipe Rotary tuyere Carbon Monoxide Alarm air filter Clamp heat shield Silencer (To the outside) Escape-pipe (Combustion emissions)

3.5 km 12:08 E SET ROOM 88.8 °C F AirHeater Level Min Max ON OFF

Diagram of a device with labeled components and directional arrows indicating parts ① and ②

Model: YAH-A2429

ÿIndicatorlampje

ÿAan/uit-toets

Gebruiksaanwijzing

QR code image containing encoded data, no visible human-readable text

IOS-app

QR code image containing encoded data, no visible human-readable text

Android-APP

APP Store-zoekopdracht "airHeaterBle"

QR code image containing encoded data, no visible human-readable text

Ignition Parameters set Password 1234 Confirm Cancel Run Mode Setup Down Push to turn OFF Up

StandBy Min Run Level Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn On Up

Heating Min Run Level Max 0.0V 0°C 7Level It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

E 4Oil pump disconnected Min Run level Max 12.5V 19°C 6Level It is oxygen-poor to turn the heater in the sealed room for a long timer Run Mode Set up Down Push to turn Off Up

QR code image with embedded text 'openen' in the center

Download file? airHeaterByBLE.apk 5.8MB This type of file may harm your phone. Only download this file if you trust its source. DOWNLOAD

< Downloads All Downloading airHeaterByBLE.apk 4.5MB/5.8MB 77% Cancel Pause

1. Nadat de installatie is voltooid en Bluetooth is verbonden, kunt u de app normaal openen.

15:42 AirHeaterBLE Version: 2.4.0 Source: Samsung Internet ✓ No security threats have been found. Delete installer package Permissions Location Cancel Update Find similar apps

15:43 Experience Welcome connect to:58.85 11:05:20:65 Copyright By Record (©2021) 01.19

16:03 100 m StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

Settings Samsung account Profile - App and Software Connections 04.16% - (Microsoft - Google Manager) Connected devices 3.87% - (Samsung Lab) Modes and Routines Movies - Routines Sounds and vibration Sound media - Wireless Notifications Sinaia Day 1: All and Kiosks

< bixby touch Results (4) Advanced features Bixby Touch Apps Bixby App info Bixby Vision App info Accessibility Bixby Touch Installed apps 16:03 16:03 Advanced features Labs S Pen Side key Bixby Touch Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content Advanced features Labs S Pen Side key Bixby Touch Get information about what you see on your screen by having bixby Touch recognize it. Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content

Fabrikant: Shanghaimuxinmuyeyouxiangongsi

Adres: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

C/O YH Consulting Limited Kantoor 147, Centurion Huis, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC-REP

Black plastic camera case with red lid and metal clamps, no visible text or symbols on body

BEHÖVER HJÄLP? KONTAKTA OSS!

www.vevor.com/support

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a wooden stick holding a white bulb inside a black electrical outlet (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted into the floor (no visible text or symbols)

18. WARNING: Giftigt material

5 seater/7 seater 1 2 3 4 5

Exterior view of a modern garage with a door and side-mounted windows (no signage or text visible)

Interior view of a room with white shelving units and a small sink (no visible text or symbols)

Black industrial electrical device with red control panel and white connector, marked with a red 'X' symbol (no text or labels visible)

Black industrial device with red lid and connected cable, no visible text or symbols

Diesel heater installation drawing Carbon Monoxide Alarm 2 Meter Extension Cable remote control AC-DC Adapter Liquid crystal switch Diesel heater APP air outlet Blowpipe Rotary tuyere Carbon Monoxide Alarm air filter Clamp heat shield Silencer (To the outside) Escape-pipe (Combustion emissions)

3.5 km 12:08 E SET ROOM 88.8 °C F AirHeater Level Min Max ON OFF

Diagram of a device with labeled components and directional arrows indicating parts ① and ②

Modell: YAH-A2429

ÿIndikeringslampa

ÿPå/av-knapp

Bruksanvisning

QR code image containing encoded data, no visible human-readable text

IOS-appen APP Store sök "airHeaterBle"

QR code image containing encoded data, no visible human-readable text

Android APP

QR code image containing encoded data, no visible human-readable text

Ignition Parameters set Password 1234 Confirm Cancel Run Mode Setup Down Push to turn OFF Up

StandBy Min Run Level Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn On Up

Heating Min Run Level Max 0.0V 0°C 7Level It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

E 4Oil pump disconnected Min Run level Max 12.5V 19°C 6Level It is oxygen-poor to turn the heater in the sealed room for a long timer Run Mode Set up Down Push to turn Off Up

QR code image containing encoded data, no visible human-readable text

Download file? airHeaterByBLE.apk 5.8MB This type of file may harm your phone. Only download this file if you trust its source. DOWNLOAD

< Downloads All ▼ Downloading airHeaterByBLE.apk 4.5MB/5.8MB 77% Cancel Pause

15:42 AirHeaterBLE Version: 2.4.0 Source: Samsung Internet ✓ No security threats have been found. Delete installer package Permissions Location Cancel Update Find similar apps

15:43 Experience Welcome connect to:58.85 11:05:20:65 Copyright By: Macrom (2021) 91.10

16:03 100 m StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

Settings Samsung account Profile - App and Security Connections 04.16% - Windows - 32.16% Manager Connected devices 5.87% - Samsung Self Modes and Routines Modes - Routines Sounds and vibration Sound mode - Wireless Notifications Sonickey 1: All and Good

< bixby touch Results (4) Advanced features Bixby Touch Apps Bixby App info Bixby Vision App info Accessibility Bixby Touch Installed apps 16:03 20:00 16:03 20:00 16:03 20:00 16:03 20:00 Advanced features Labs S Pen Side key Bixby Touch Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content Advanced features Labs S Pen Side key Bixby Touch Get information about what you see on your screen by having likely Touch recognize it. Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content

Tillverkare: Shanghaimuxinmuyeyouxiangongsi

Adress: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200 000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic optical device with red cover and metal clamps, no visible text or symbols on body

www.vevor.com/support

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

5 seater/7 seater 1 2 3 4 5

Exterior view of a modern garage with a door and side-mounted windows (no signage or text visible)

Interior view of a room with white shelving units and a small sink (no visible text or symbols)

Black industrial device with red control panel and white hose, marked with a red 'X' symbol (no text or labels visible)

Black electronic device with red lid and connector, accompanied by a red checkmark (no text or symbols visible)

Diesel heater installation drawing Carbon Monoxide Alarm 2 Meter Extension Cable remote control AC-DC Adapter Liquid crystal switch Diesel heater APP air outlet Blowpipe Rotary tuyere Carbon Monoxide Alarm air filter Clamp heat shield Silencer (To the outside) Escape-pipe (Combustion emissions)

Diagram of a device with labeled components and directional arrows indicating parts ① and ②

Modelo: YAH-A2429

Luz indicadora

QR code image containing encoded data, no visible human-readable text

Aplicación para iOS

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

Ignition Parameters set Password 1234 Confirm Cancel Run Mode Setup Down Push to turn OFF Up

StandBy Min Run Level Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn On Up

Heating Min Run Level Max 0.0V 0°C 7Level It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

E 400L pump disconnected Min Run level Max 12.5V 19°C 6Level It is oxygen-poor to run the heater in the sealed room. for a long timer Run Mode Setup Down Push to turn Off Up

QR code image with a small 'p' watermark in the bottom-left corner

Download file? airHeaterByBLE.apk 5.8MB This type of file may harm your phone. Only download this file if you trust its source. DOWNLOAD

< Downloads All ▼ Downloading airHeaterByBLE.apk 4.5MB/5.8MB 77% Cancel Pause

15:42 AirHeaterBLE Version: 2.4.0 Source: Samsung Internet ✓ No security threats have been found. Delete installer package Permissions Location Cancel Update Find similar apps

15:43 Experience Welcome connect to:58.85 11:05:20:65 Copyright By Record (©2021) 01.19

16:03 100 m StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

Settings Samsung account Profile - App and Security Connections 04.16% - Windows - 32.16% Manager Connected devices 5.87% - Samsung Self Modes and Routines Modes - Routines Sounds and vibration Sound mode - Wireless Notifications Sonickey 1: All and Good

< bixby touch Results (4) Advanced features Bixby Touch Apps Bixby App info Bixby Vision App info Accessibility Bixby Touch Installed apps 16:03 ▲ ▲ ▼ × = 2 42% 16:03 ▲ ▲ ▼ × = 2 42% 16:03 ▲ ▲ ▼ × = 2 42% < Advanced features Labs S Pen Side key Bixby Touch Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content < Advanced features Labs S Pen Side key Bixby Touch Get information about what you see on your screen by having likely Touch recognize it. Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content < Advanced features

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 MN.

Importado a Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DEL REINO UNIDO

YH CONSULTING LIMITADA.

C/O YH Consulting Limited Oficina 147, Centurion

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRESENTANTE CE

E-CrossStu GmbH

Calle Mainz Landstr.69,

Black plastic camera case with red lid and metal clamps, no visible text or symbols on body

www.vevor.com/support

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a wooden stick holding a white bulb inside a black electrical outlet (no text or symbols visible)

Close-up of a car's side panel with a wooden bolt inserted, showing surface texture and no visible text or symbols.

5 seater/7 seater 1 2 3 4 5

Exterior view of a modern garage with a door and side-mounted windows (no signage or text visible)

Interior view of a room with white shelving units and a small sink (no visible text or symbols)

Black industrial electrical device with red control panel and white cable, marked with a red 'X' symbol (no text or labels visible)

Black electronic device with red lid and connected cable, no visible text or symbols

Diesel heater installation drawing Carbon Monoxide Alarm 2 Meter Extension Cable remote control AC-DC Adapter Liquid crystal switch Diesel heater APP air outlet Blowpipe Rotary tuyere Carbon Monoxide Alarm air filter Clamp heat shield Silencer (To the outside) Escape-pipe (Combustion emissions)

3.5 km 12:08 E SET ROOM 88.8 °C F AirHeater Level Min Max ON OFF

QR code image containing encoded data, no visible human-readable text

Applicazione iOS

Ricerca APP Store "airHeaterBle"

QR code image containing encoded data, no visible human-readable text

APP Android

QR code image containing encoded data, no visible human-readable text

Ignition Parameters set Password 1234 Confirm Cancel Run Mode Setup Down Push to turn OFF Up

StandBy Min Run Level Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn On Up

Heating Min Run Level Max 0.0V 0°C 7Level It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

E 4Oil pump disconnected Min Run level Max 12.5V 19°C 6Level It is oxygen-poor to turn the heater in the sealed room for a long timer Run Mode Set up Down Push to turn Off Up

msone wnload

Download file? airHeaterByBLE.apk 5.8MB This type of file may harm your phone. Only download this file if you trust its source. DOWNLOAD

< Downloads All ▼ Downloading airHeaterByBLE.apk 4.5MB/5.8MB 77% Cancel Pause

15:42 AirHeaterBLE Version: 2.4.0 Source: Samsung Internet ✓ No security threats have been found. Delete installer package Permissions Location Cancel Update Find similar apps

15:43 Experience Welcome connect to:58.85 11:05:20:65 Copyright By Record (©2021) 01.19

16:03 100 m StandBy Min RunLevel Max 0.0V 0°C 0.0m It's oxygen-poor to run the heater in the sealed room for a long time! Run Mode Setup Down Push to turn Off Up

Settings Samsung account Profile - App and Software Connections 04.16% - (Microsoft - Google Manager) Connected devices 3.87% - (Samsung Lab) Modes and Routines Movies - Routines Sounds and vibration Sound media - Wireless Notifications Sinaia Day 1: All and Kiosks

< bixby touch Results (4) Advanced features Bixby Touch Apps Bixby App info Bixby Vision App info Accessibility Bixby Touch Installed apps 16:03 16:03 Advanced features Labs S Pen Side key Bixby Touch Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content Advanced features Labs S Pen Side key Bixby Touch Get information about what you see on your screen by having bixby Touch recognize it. Motions and gestures One-handed mode Bixby Smart suggestions Screenshots and screen recorder Show contacts when sharing content

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

CONSULENZA YH LIMITATA.

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames,
