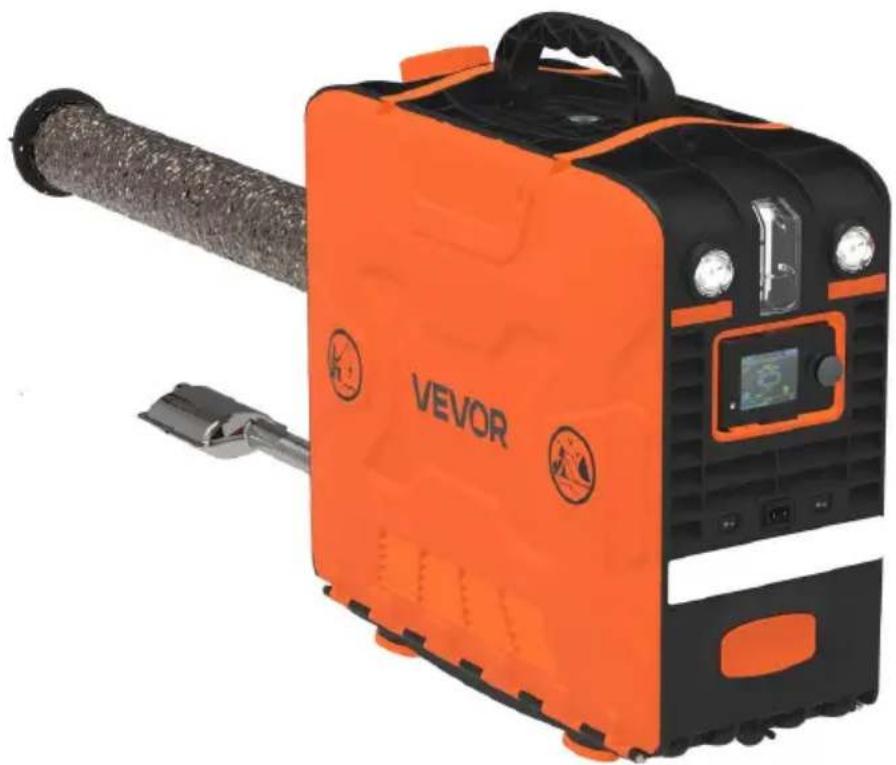

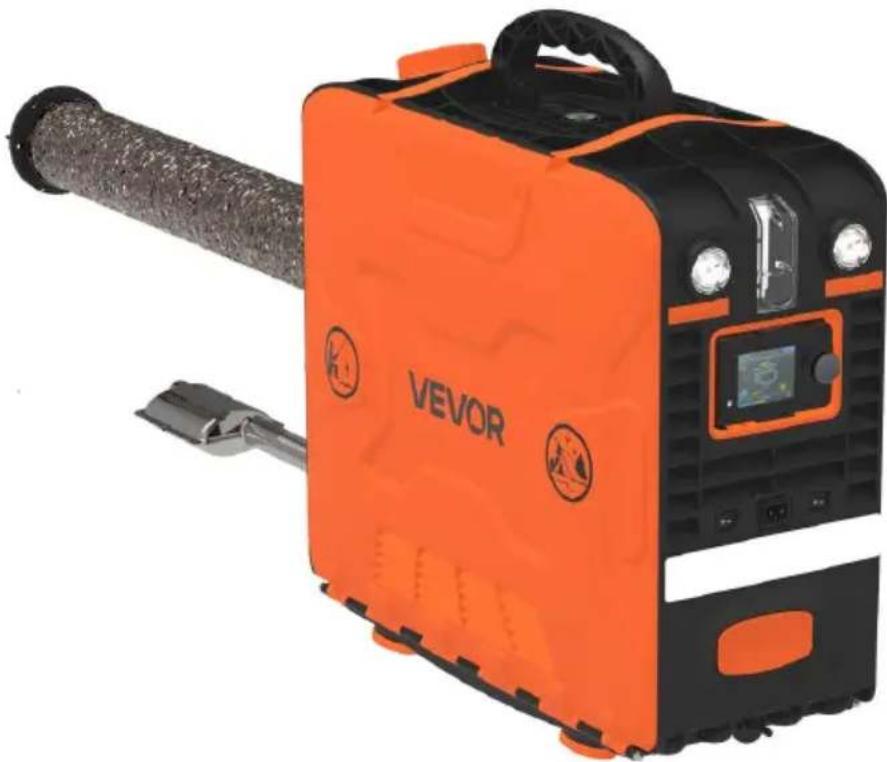

DIESEL HEATER

MODEL: S590136 S1/ S590136 S2/

S590136 S3

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL HEATER

MODEL: S590136 S1/S590136 S2/S590136 S3

Orange VEVOR portable electric shaver with black body and digital display (no visible text or symbols)

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must read instructions manual carefully.
	This symbol, placed before a safety comment, indicates a of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk of injury, fire, or electrocution, please always follow the recommendations shown below.
	CORRECT DISPOSAL:This product is subject to the provisional European Directive 2012/ 19/EC. The symbol showing a wh bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Produ marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.
	Warning: Toxic material. Take care to avoid coming into with toxic material.
	Warning: Flammable material. Take care to avoid causing by igniting flammable material.

Responsibility requirements:

·Vevor is not responsible for any issues arising from non-compliance with these instructions and the precautions included in these instructions. Similarly, the company shall not be held responsible for any issues arising from repairs conducted without professional maintenance or the use of original spare parts/accessories. This type of maintenance will result in the invalidation of the heater's type approval and its ECE type approval certifi

SAFETY INSTRUCTION

WARNING:

Read all safety warnings, instructions, illustrations, and specifications provided with this diesel heater. Failure to follow all instructions listed below may result in electric shock, fire, and /or serious injury.

1. The following measures shall not be adopted

2. Change the important component of the diesel heater.
   ●Make use of spare parts from other manufacturers without permission.

3. Disobey the instruction and guide during installation or operation.

4. Only allow using original attachments and spare parts during installation and maintenance.

5. The heaters shall not be used in places where they may form flammable or dust, for example:

6. Fuel depot
   •Carbon storehouse

7. Timber storehouse
   ● Granary and similar sites
   ●Diesel/petrol station

And keep away from fuel tanks, compression tanks, fire extinguishers, clothes, other flammable objects.

1. Do not use cigarette lighter for startup.
2. Do not use the heater in closed and/or unventilated places.
3. The heaters shall be turned off when filling fuel.
4. Do not cut off the electric power during operation.
5. If the fuel leaks or discharges from the fuel system of heaters, please cc VEVOR for repair.
6. Place the exhaust outlet outside to prevent any penetration of exhaust fun
7. In the process of work, it is forbidden to cut off the electric power direct stop the heater from working.
8. Seal all gaps between the mounting plate and the car body.
9. The machine will stop heating after over-temperature protection. Please do not power off. After the machine is naturally cooled and turned off, it can be restarted.

10. After turning off the machine, please do not immediately disconnect the p supply. It takes 3-5 minutes for the machine to stop working completely.

11. After starting the machine for 3-5 minutes, it will work normally and heat. Please wait patiently.

12. When the heater is just started, the current is relatively high, so an ada with a voltage of 12V and a current of 15A or greater is required for the p supply.

13. This appliance can be used by children aged 8 years and above and p with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children s not play with the appliance. Cleaning and user maintenance shall not be done children without supervision.

17. WARNING: Flammable material

During installation/use, service, and disposal of the appliance, please pay attention that there should be no flammable substances around the exhaust pipe. The temperature of the exhaust pipe is very high when it is working. Take care to avoid causing a fire by igniting flammable material.

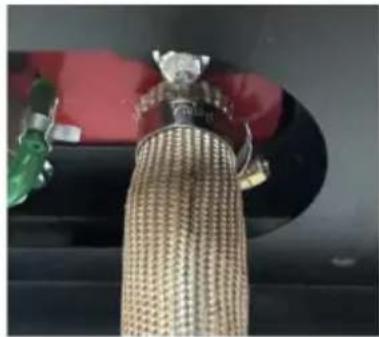

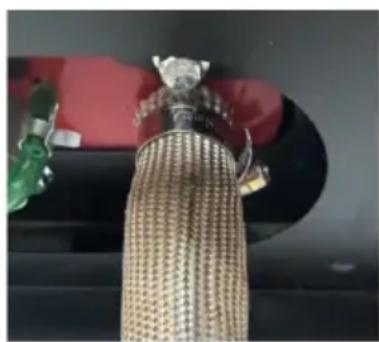

Please strictly follow the following methods to correctly install insulation sleeve on the exhaust pipe and reduce surface temperature:

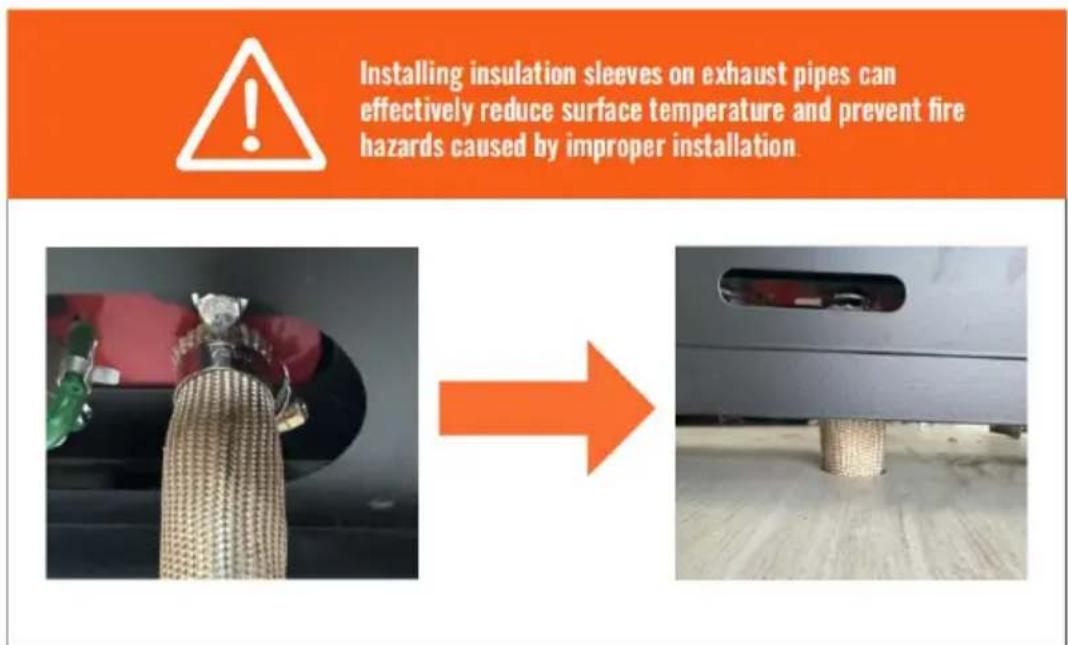

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

18. WARNING: Toxic material

During installation/use, service, and disposal of the appliance, pleas install the appliance with space for ventilation to prevent carbon monoxide poisoning. Place the exhaust outlet outdoors to prevent exhaust gas from seeping in.

1. The fuel tank supplying fuel to the device shall meet the following requirements:

a) If there is a leak, the fuel should be discharged to the ground and must come into contact with the hot parts of the vehicle or load
b) The fuel tank containing gasoline should be equipped with an effective flar arrester at the fuel filling port, or a sealing device should be used to complete seal the opening

1. Space that cannot be used for heating and transporting dangerous goods.

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product are not expressly approved by the party. Responsibility for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and the receiver.
• Connect the product to an outlet on a circuit different from that to which receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

INSTRUCTION STEPS

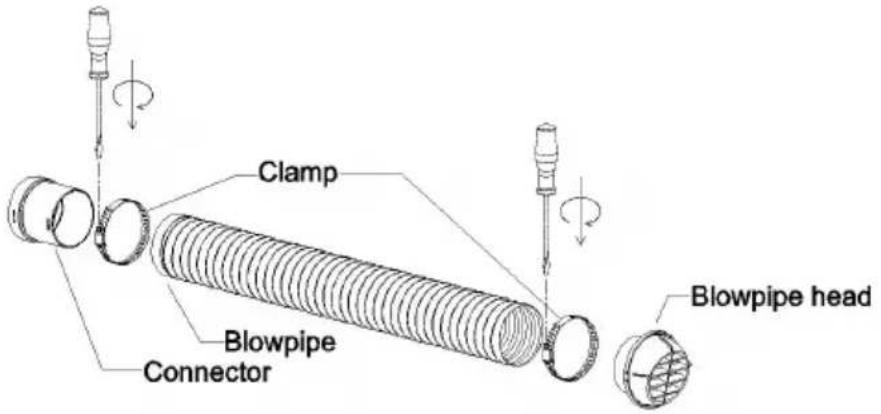

STEP1: Assemble the Blowpipe as shown in the drawing below.

Clamp Blowpipe Connector Blowpipe head

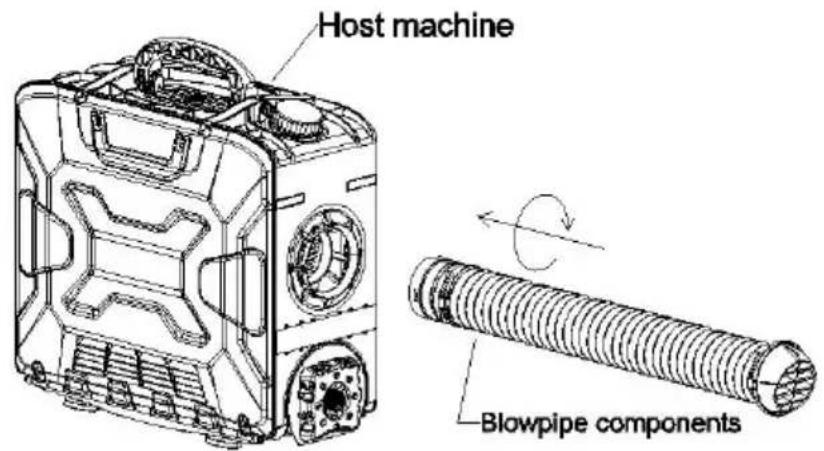

STEP2: Screw the Blowpipe into the Host machine.

Host machine Blowpipe components

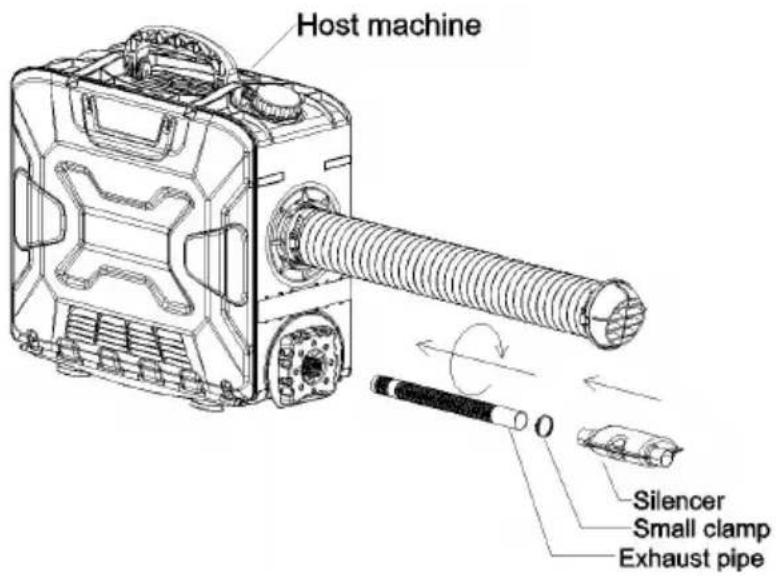

STEP3: Screw the Exhaust pipe into the Host machine, then put the Sile into the Exhaust pipe and lock it with a Small clamp.

Host machine O Silencer Small clamp Exhaust pipe

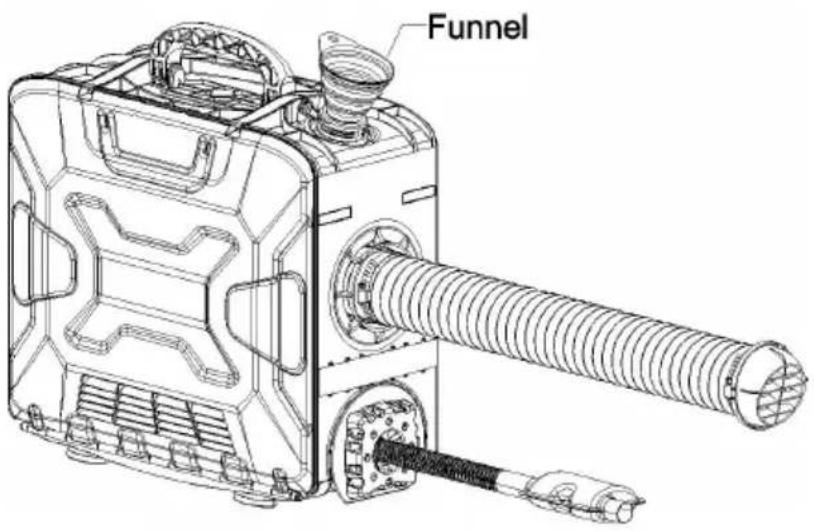

STEP4: Use a Funnel to add diesel to the fuel tank and close the lid.

Funnel

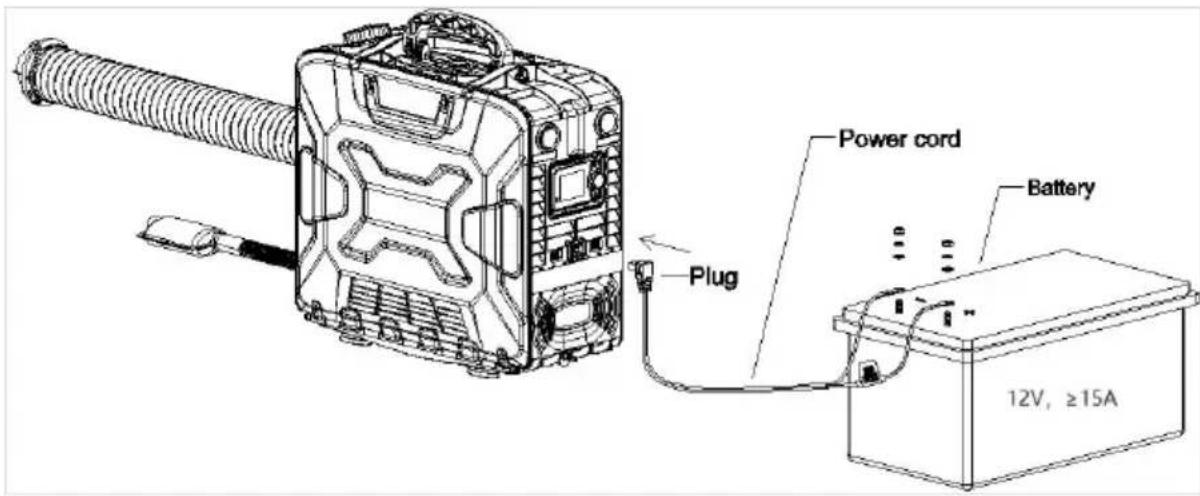

STEP5: Connect the Power cord and insert the Plug into the Host machine.

Plug Power cord Battery 12V, ≥15A

INSTALLATION POSITION

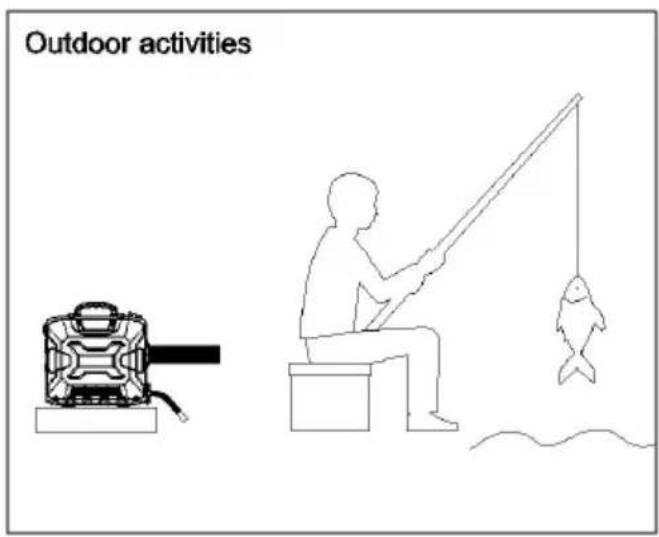

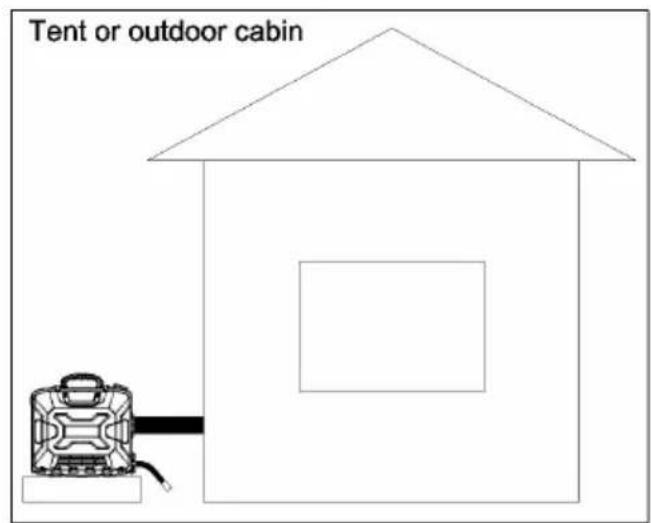

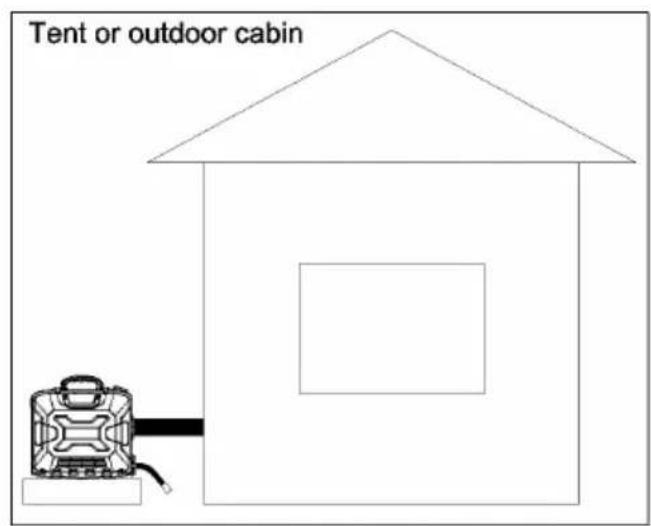

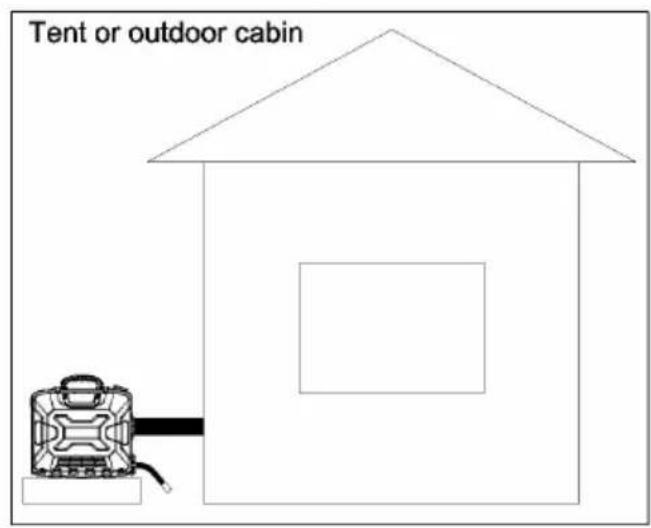

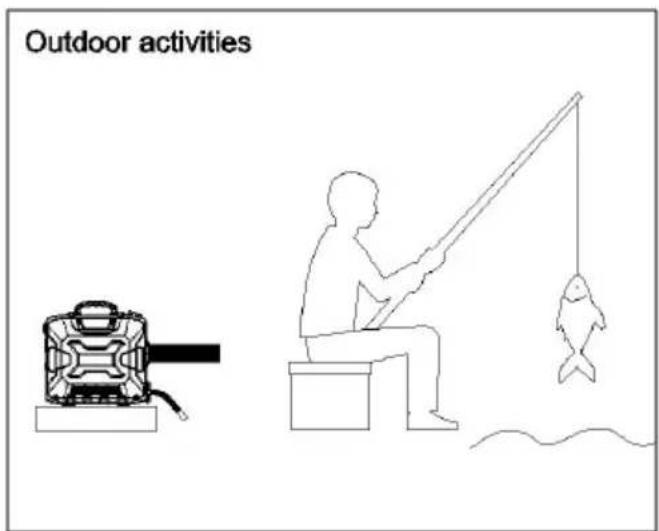

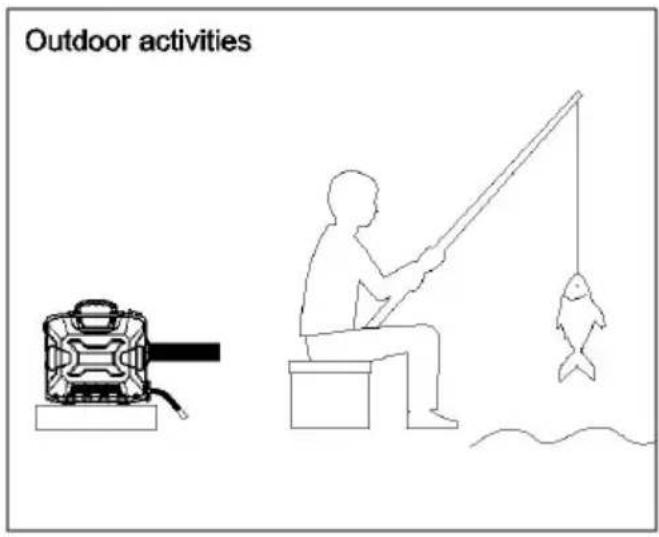

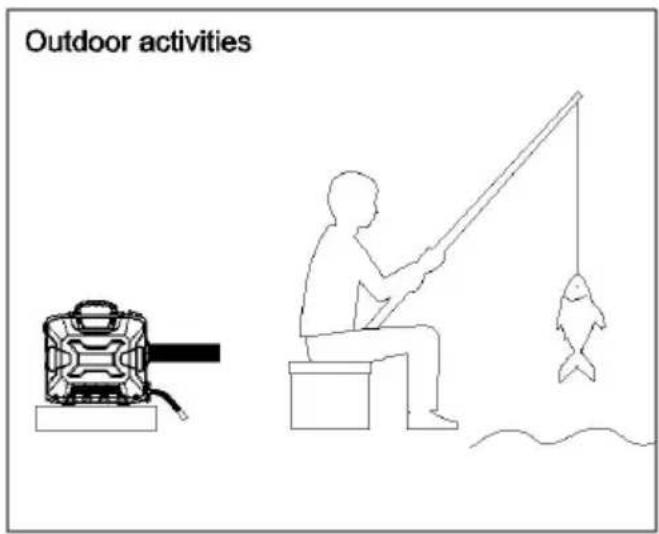

Outdoor activities

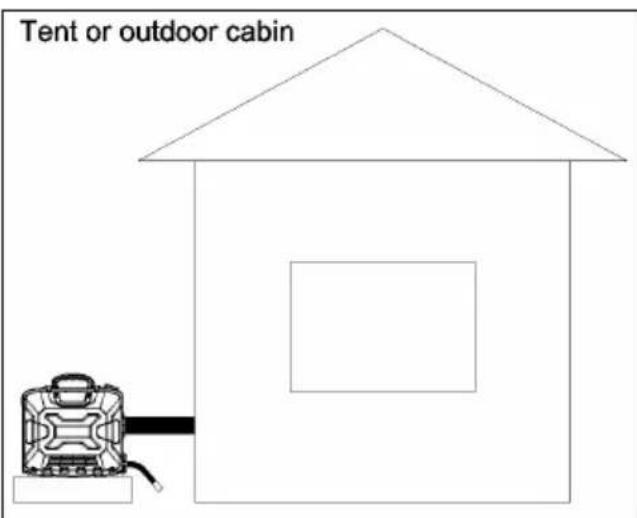

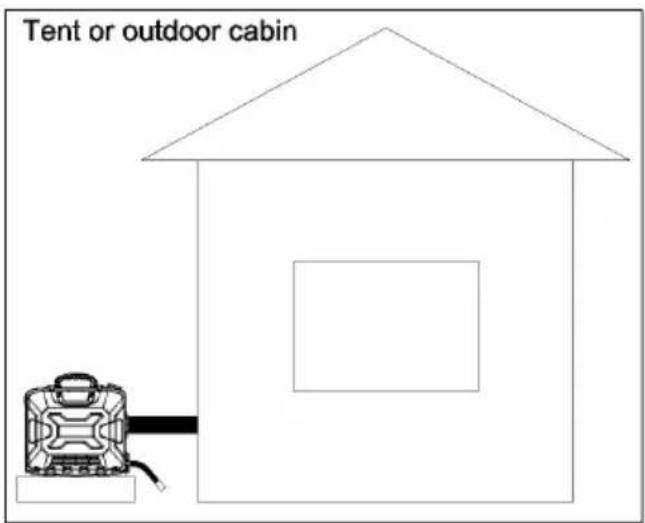

Tent or outdoor cabin

The installation of the machine requires professional personnel.

It is recommended to use high-grade diesel fuel when refueling the diesel heater. Other types of fuels, such kerosene, vegetable oil, gasoline, waste oil, etc., canno be used. Otherwise, the heater may have an unpleasant odo and malfunction during operation.

MODEL

Product Model	S590136 S1/S590136 S2/S590136 S3
Appearance
Heating medium	Air

Fuel	Diesel
Ratings	DC12V/40W
Adapter	100-240V~, 50-60Hz, 12V/15A

PACKING LIST

Model	Pictures	Qty.
Host machine		1
Liquid crystal switch		1
Exhaust pipe		1
Protective sleeve		1
Blowpipe		1
Blowpipe head		1
Blowpipe connector		1
Remote control		1
Silencer		1
Blowpipe clamp		2
Small blowpipe clamp		1
Gloves		1
Power cord		1
Funnel		1
User Manual		1
MufflerAccessories		1

Notes when installing or using

Refer to the installation diagram below and carefully read the precautions when installing or using:

1. Precautions for the installation:

※ If installing the heater inside a building:

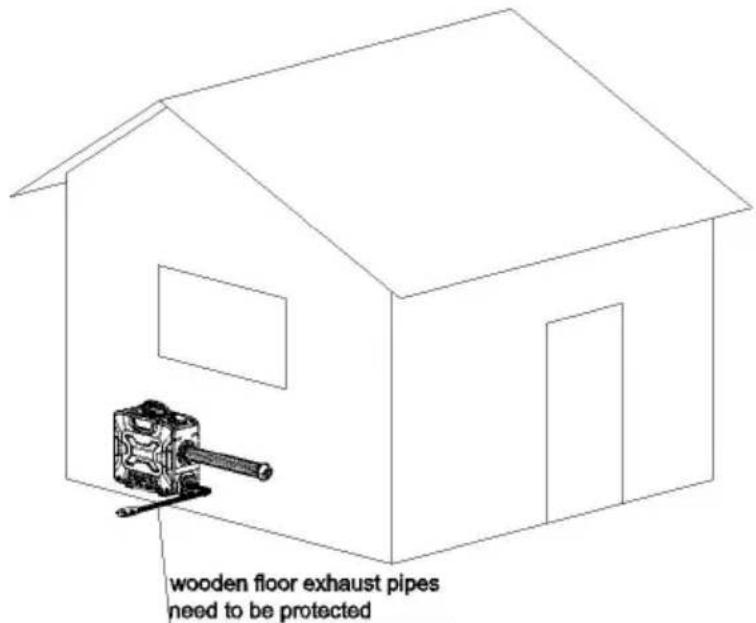

① With the heater placed indoors: Make holes in the wall for the exhaust to be placed outdoors. Pay attention to insulating the exhaust pipe as it become very hot and could cause a fire.

wooden floor exhaust pipes need to be protected

Indoor installation

② With the heater placed outdoors: It's necessary to extend the exhaust to avoid the exhaust from being sucked into the building from the back position of the heater, which can lead to carbon monoxide poisoning.

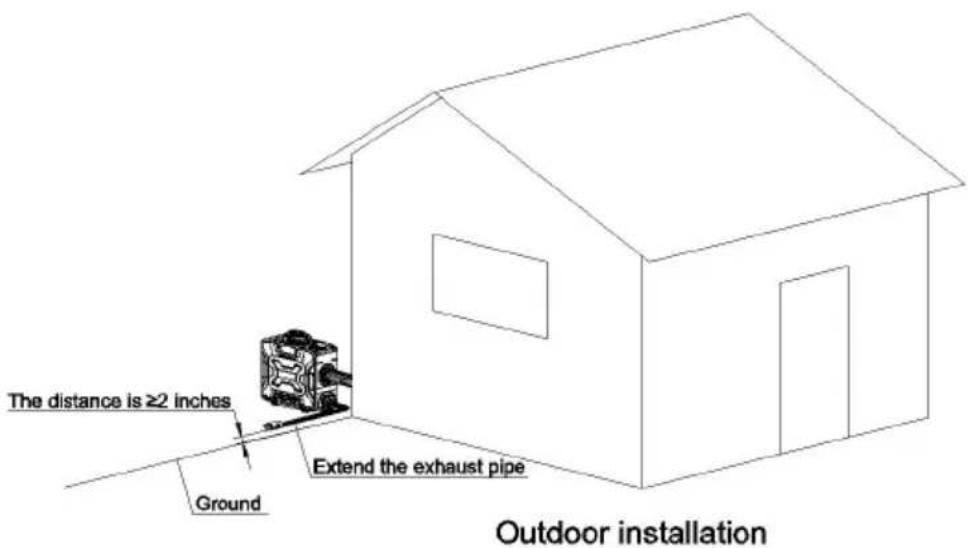

The distance is ≥2 inches Ground Extend the exhaust pipe Outdoor installation

※ Installation position and precautions

①Reserve a 4-inch gap between the air inlet for unobstructed air intake
② Keep the bottom exhaust pipe at a distance of 2 inches from the ground and prevent fires if the exhaust pipe temperature is high;

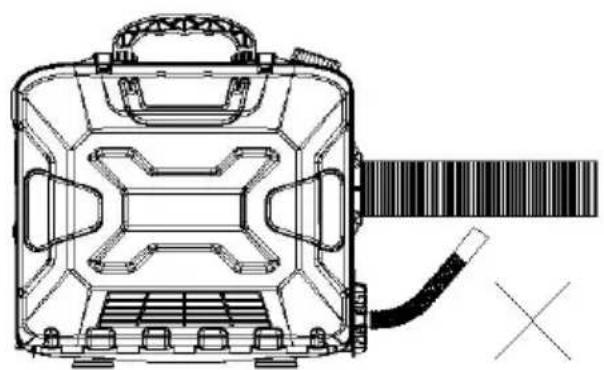

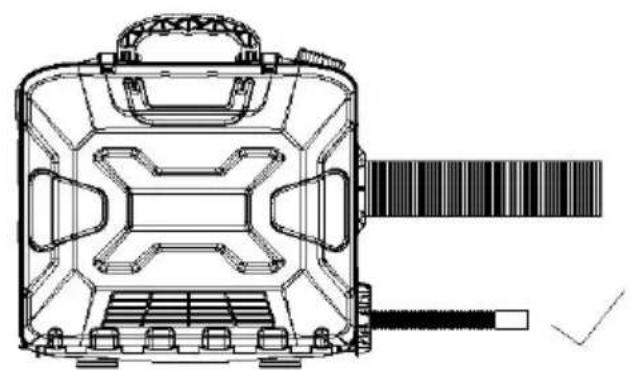

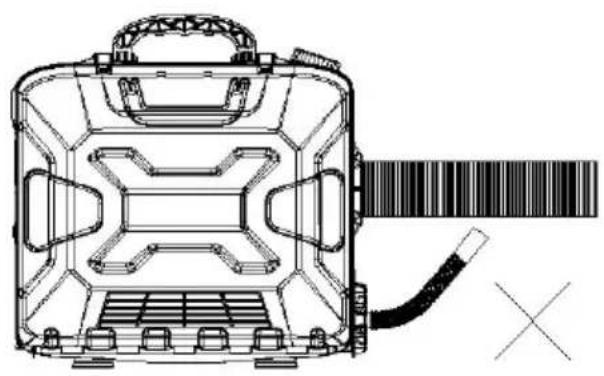

③ Do not bend the exhaust pipe excessively, as it may cause uneven exhaust flow;
④ The air outlet duct is not easily too long and multiple bends can call to be unable to be discharged, resulting in a high temperature fault;
⑤ When refueling the fuel tank, do not flow onto the casing, as it will along the inside of the machine to the exhaust pipe position, causing sm Fill the oil level close to the fuel tank port;
⑥Do not block the intake pipe, which will cause insufficient oxygen and heater will not work;

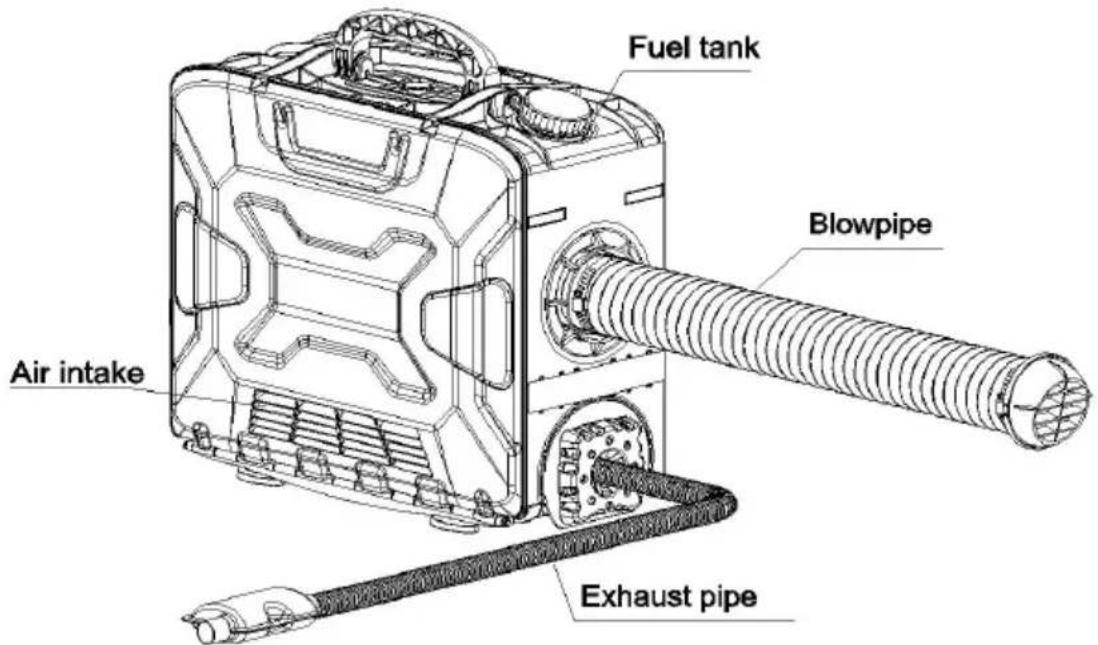

Fuel tank Blowpipe Air intake Exhaust pipe

Installation location precautions - schematic diagram

2. Precautions for the power supply:

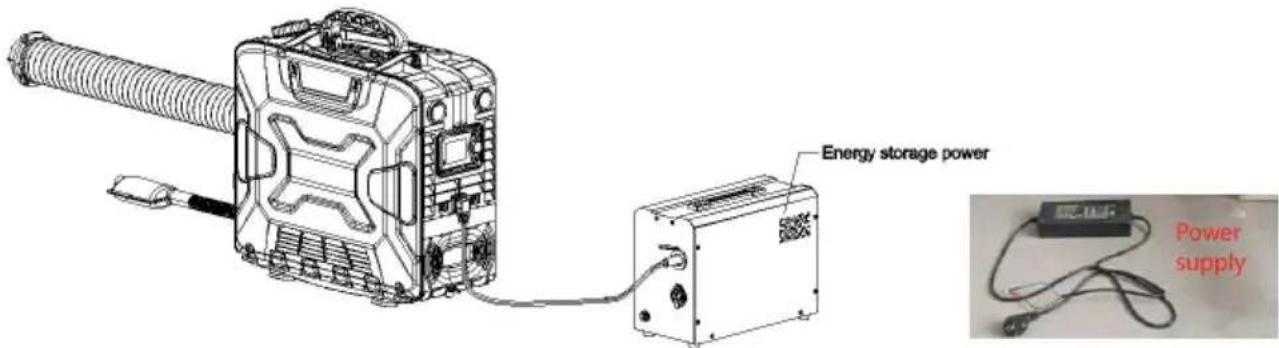

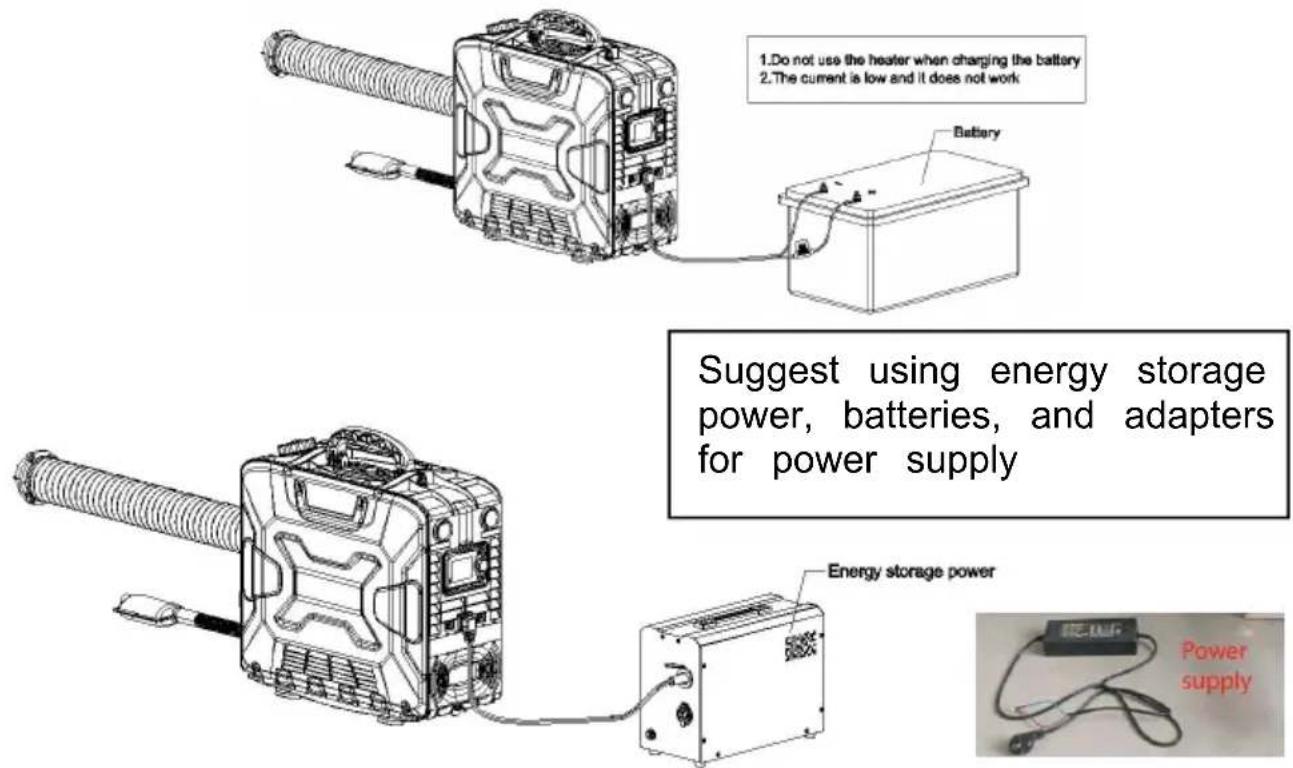

※ The power supply for the diesel heater must meet the following requirement: Voltage: 12V; Current: ≥15A, either from a direct power source or a battery. powered by a battery, do not charge the battery while using the heater as insufficient current can cause malfunction. Ensure a firm and secure connection to the battery. Using clamps for fixation can result in poor contact.

1.Do not use the heater when charging the battery 2.The current is low and it does not work Battery Suggest using energy storage power, batteries, and adapters for power supply Energy storage power Power supply

※When extending the power cable for the diesel heater, the wire diameter s be >2mm². Using a thin wire can lead to insufficient current, causing the heating to work. After connecting, use insulating tape to protect the connection and prevent electrical leakage, which might lead to fires.

Close-up of two black and red electrical wires against a light background (no text or symbols visible)

※Do not disconnect the power when the diesel heater is operating at high temperatures. This can cause backfire due to high temperatures. Repeatedly doing so can cause permanent damage. Solutions:

- If power is cut and you immediately turn on the heater: Wait until the intense heat of the heater has completely dissipated before turning it on for normal operation.

- If the heater is turned on a long time after a power cut: Incomplete comb inside may produce a large amount of smoke. Wait for the smoke to clear, the heater will automatically start and operate normally.

※ Oil circuit fault, such as E4/E8/E10 fault code, indicates that there no oil heater or heat in the machine. The following steps need to be followed for troubleshooting:

①Is there a shortage of oil in the fuel tank;
② Whether the oil filter is blocked;
④ Is the oil pump not working;

③ Is there any bending of the oil pipe that cannot accommodate oil

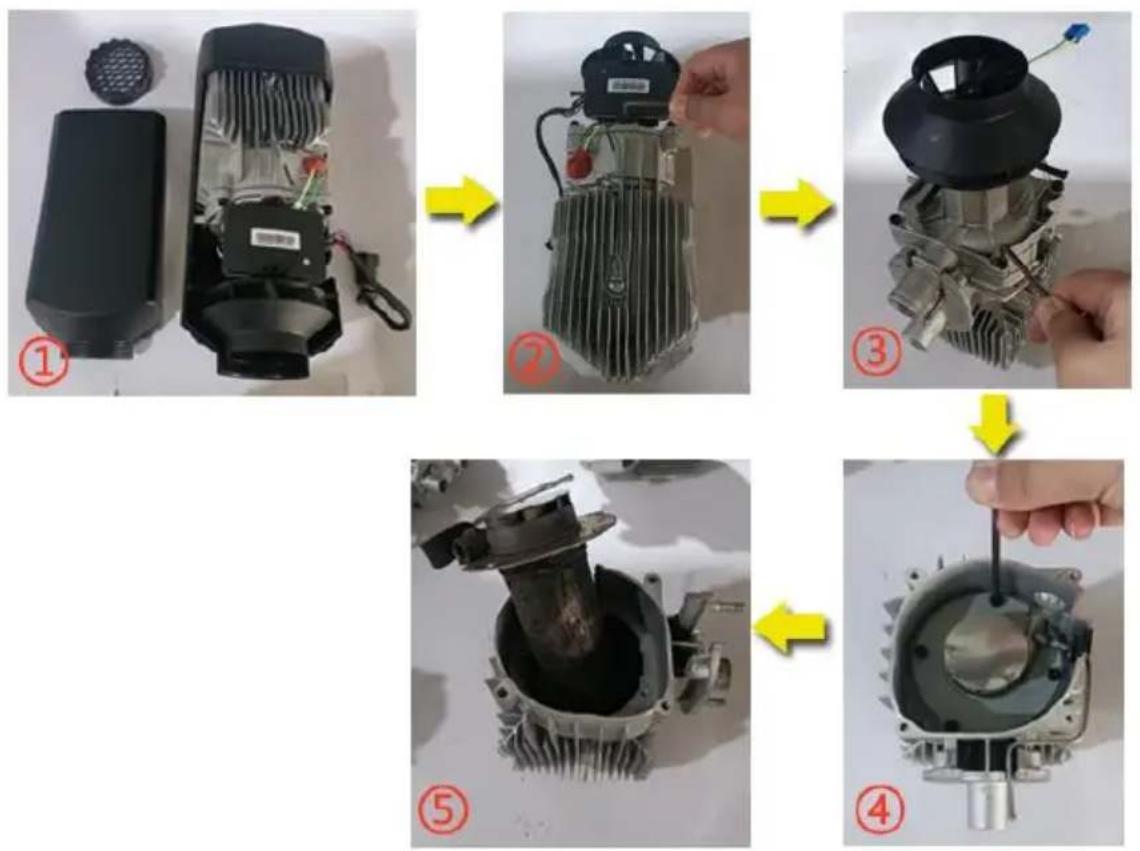

※ Maintenance: If black smoke is found during the operation of the heater for a period of time or the second year of use, it indicates that there is carbon accumulation in the combustion chamber that needs be cleaned in a timely manner. The operation method is as follows:

①Remove the outer shell;
②Remove the motherboard bolts with an Allen wrench;
③ Remove the four bolts of the fan assembly with an Allen wrench;
④Remove the four bolts of the combustion chamber with an Allen wrench
⑤ Remove the combustion chamber and replace it with a new recovery heater;

Schematic diagram of combustion chamber replacement

Cautions for Diesel Heater Power Supply:

※ Diesel heater power supply requirements: Voltage: 12V; Current: ≥ 20A Use either a power source or a battery. (Avoid charging the battery which supplying power to the heater, as low current may lead to malfunctions. Ensure a secure battery connection without using clamps to prevent poor contact. Using the car's cigarette lighter as a power source is not recommended due to insufficient current.)

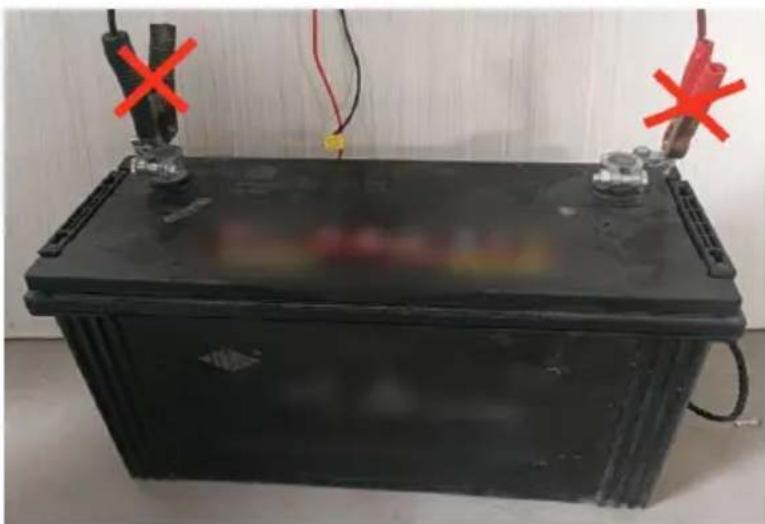

Black rectangular battery with red X marks on top and side, placed indoors near wires (no visible text or symbols)

Fixing the battery clamp can easily cause poor contact

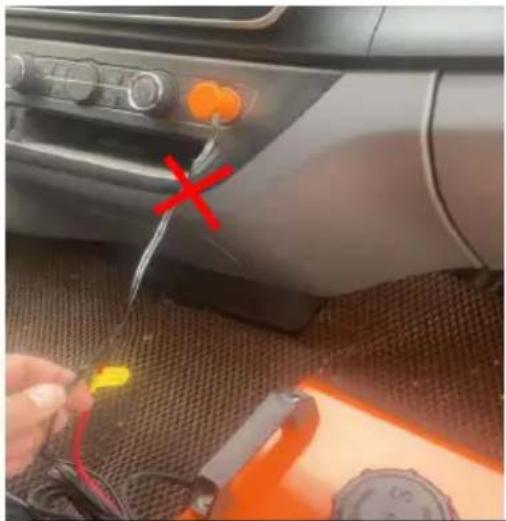

Close-up of a car interior with orange buttons and a red X mark, showing hands holding wires and tools (no readable text or symbols)

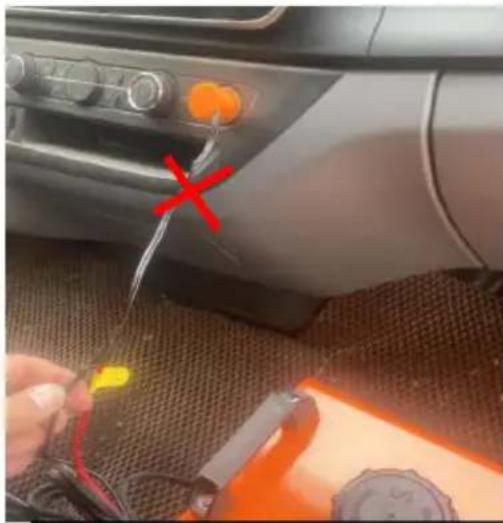

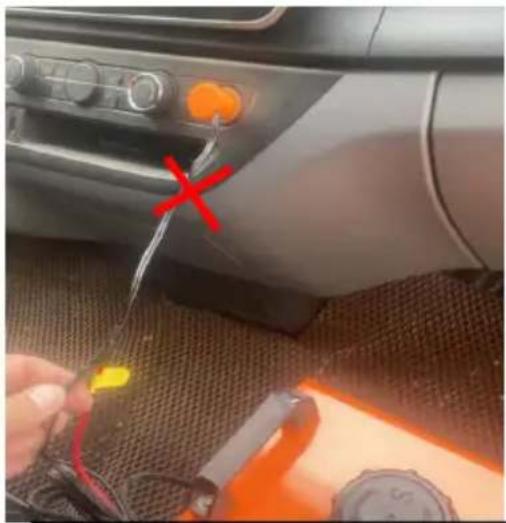

Cigarette lighter current low does not work

PRODUCT INFORMATION

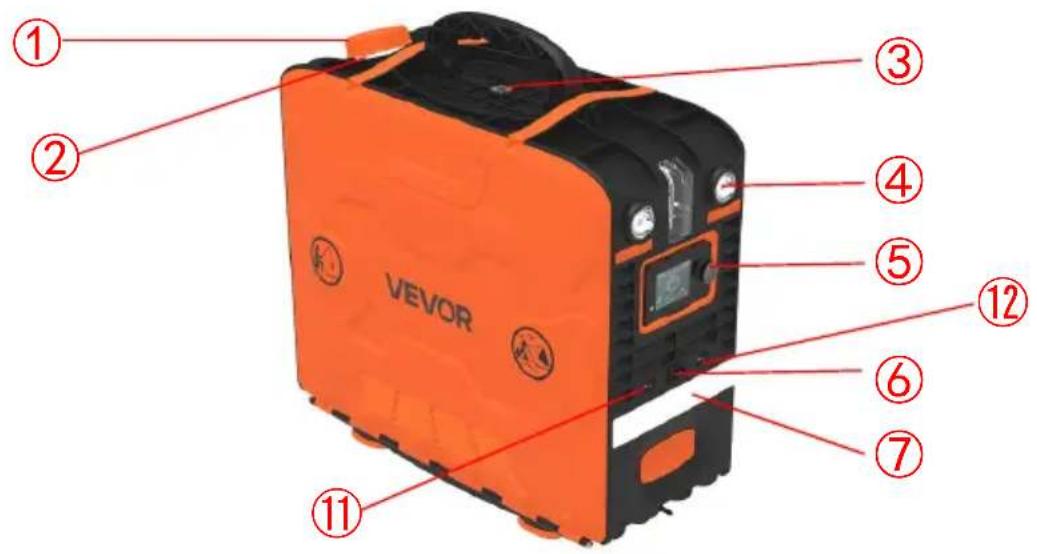

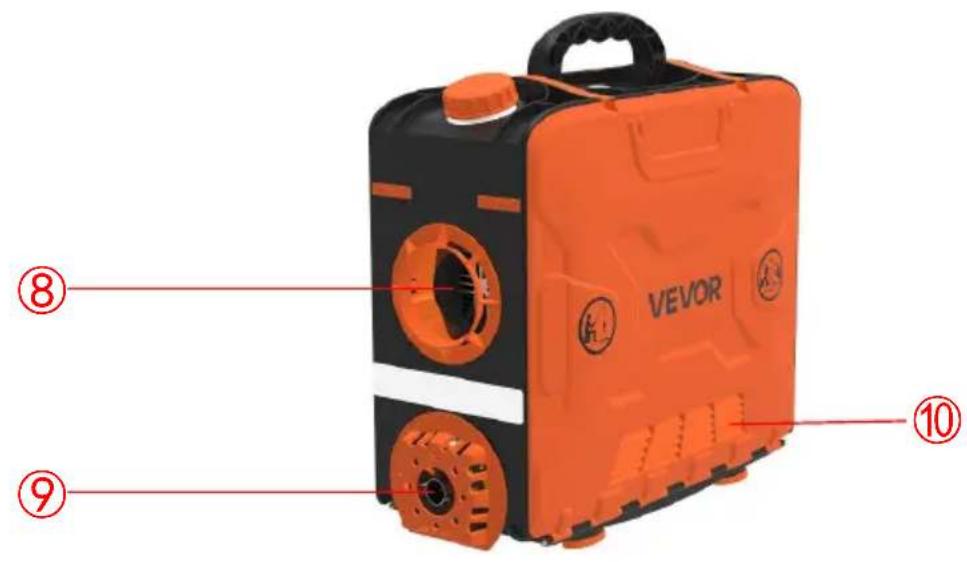

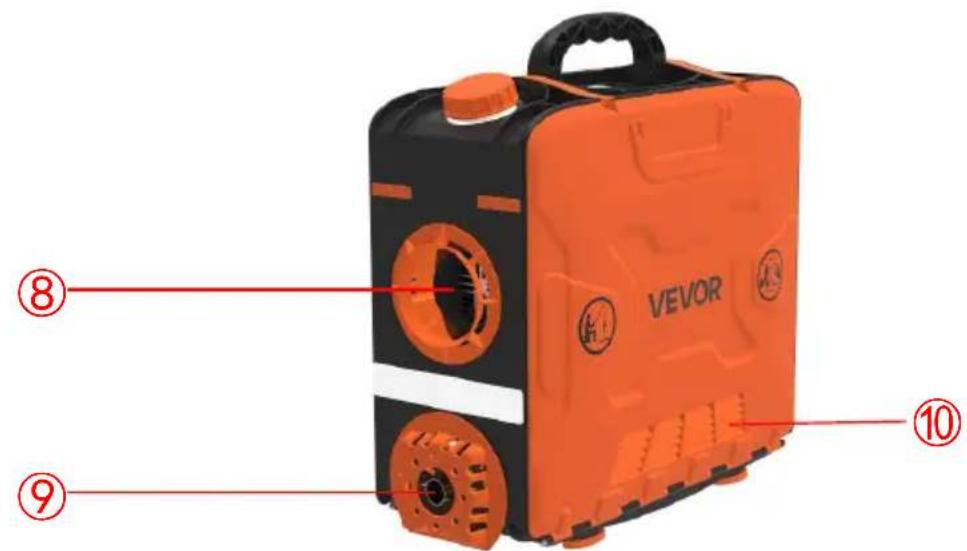

1	Fuel tank lid	2	Fuel tank
3	Compass	4	High beam lamp
5	Liquid crystal shutter	6	Power supply port
7	Low beam lamp	8	Outlet
9	Exhaust port	10	Air inlet
11	On/Off switch for High beam lamp	12	On/Off switch for Low beam lamp

INSTALLATION DIAGRAM

When the heater is just started, the current is relatively high, so adapter with a voltage of 12V and a current of 15A or greater required for the power supply.

Diesel heater installation drawing Model:

S590136 S1/S590136 S2/S590136 S3

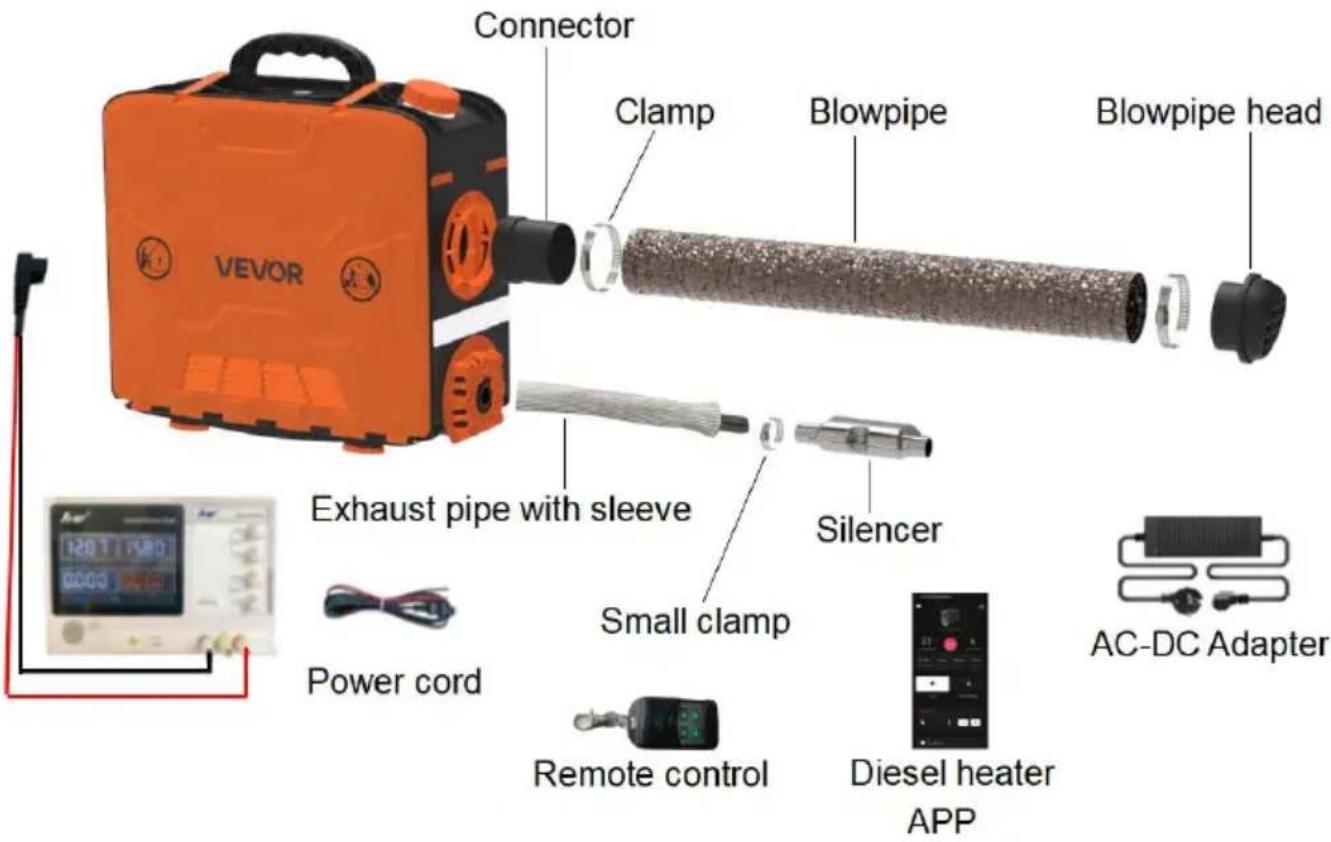

VEVOR Connector Clamp Blowpipe Blowpipe head Exhaust pipe with sleeve Silencer Small clamp Power cord Remote control Diesel heater APP AC-DC Adapter

QR code image containing encoded data, no visible human-readable text

For specific installation, please scan the QR code to view the installation video

Warning:

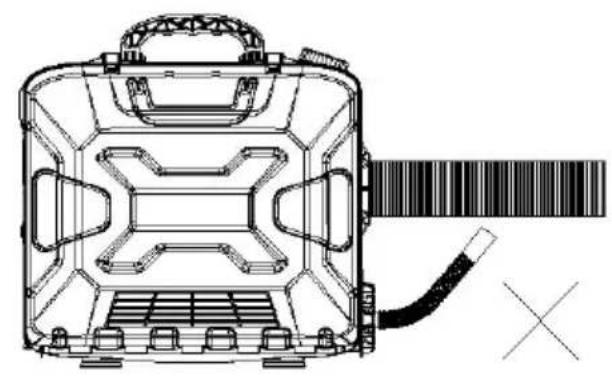

1. The air inlet shall not be blocked, and keep the inlet open and clear.
2. Keep the exhaust pipe clear. The exhaust pipe outlet shall be kept away if anything flammable, and avoid heating and igniting the flammable goods and loading cargo on the ground.
3. To ensure optimal combustion, please remember that the smoke exhaust p cannot be placed upward, but must be placed horizontally or downward.

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a barcode strip (no text or symbols)

Panel operation instructions

Please refer to the instructio below for the LCD screen sh usage. To sync, scan the code on the right to watch ideo.

Function	Parameter	Operation method	Specific operational steps
Power on	/	Connect the power cord, then short press the [Power] button.	1. Connect the power cord.In the power-off state, short press [Power] button to start the machine the screen displays the temperature and dynamic running state, and staheating.
Power off	/	Short press the [Power] button.	In the power-on state, short press [Power] button to display "OFF" to shut down the machine. During the shutdown process, the button cannot be operated, and the machine will completely shut down after the fan stops working.Note: It is forbidden to forcefully off the power during the shutdown process, otherwise the internal heat will not be completely dissipated. A second startup will produce a large amount of smoke, and incomplete heat dissipation can easily damage the internal wind turbine of the machine. At this time, it is necessary to wait for the internal to completely burn before returning to normal.
Mode switching	/	Short press the [Knob].	Short press the [Knob] to switch to current gear: temperature control mode or gear mode.
Gear adjustment	Gear 1 to 10	Rotate the [Knob].	Turn the knob clockwise to increase the operating position/temperature by 1, up to 10 positions /36°C. Turn the knob counterclockwise to increase the operating position/temperature by 1, down to 1 position /8°C
Basic setup	/	After turning on the machine, long press the [Settings] for 3 secondsto enter the basic Settings interface. Press the [Knob] to make modifications, and press the [knob] again to confirm the current data modification. Rotate the [knob] to adjust the Settings. After all adjustments are successful, hold down [Settings] for 3 seconds to save all basic Settings.	F0: Current time.F1: Self-start time.F2: Running time [after self-start].F3: Self-start switch setting.F4: Language switching [Chinese (0 English (E), Russian (R), -(Silent)]. F5: Temperature compensation. F6: Fuel tank volume [5-50L(Switch unit: 5L)(Default: 5L)] [Display - indicates that the fuel tank condition not monitored]. F7: Oil pump Type [16/22/28/32UL(default is 22UL)]. F8: Constant temperature heating (the temperature control mode, when the cab temperature reaches the s temperature, it will automatically sh down after a delay of 30 seconds. When the temperature in the cab 2°C lower than the set temperature the machine will automatically start after a delay of 30 seconds. F9: Temperature Switching (°F/°C). FA: KM/ Kft switch; Fb: Screen brightness (0-100) FC: Bluetooth Mesh Network Setting (YAH-A2422). For specific functions, please refer to the detailed description.
Enginee ring mode	/	When the device is turned on, hold down both "Settings" and "Power" for 3 seconds simultaneously, and then rotate the "knob" to view the adjustment items.	En00: Heater main Board version number [Scrolling Display]. En01: Fault code. En02: Shell temperature. En03: Power Supply voltage.En04: Heater operation position.En05: Cab temperature.En06: Altitude.En08: Remote control matching.En11: Factory data reset
Remote control matching	/	In the engineering mode, enter the En08 interface and hold down the [knob] for 3 seconds to start matching.	When the screen shows "P-1", pre the [plus] key on the remote contr When the screen shows "P-2", it indicates that the [Plus] key match successfully. Then press the [minus key. When the screen shows "P-3" press the [M] key. When the screen shows "P-4", press the [ ] key. At this point, the matching is complete and the project mode will be automatically exited to return to the running interface.*To clear the last remote control matching data: Press [Power] for 7 seconds during the power-on self-check. When the interface shows "CLr", the clearing begins. When the interface shows "SUC", the clearing successful.
Remote control function	/	Short press button.	The specific screen display and definition of the remote control key are as follows:[+] Key: Adjust the plus button, an the corresponding screen display is "P-1".[-] Key: Adjust the minus button, a the corresponding screen display is "P-2".[M] Key: Mode switching button, corresponding to "P-3" displayed on the screen.[ ↓Key: Power on/off button, corresponding to the screen display "P-4".
Manual oil pump	/	When the power is connected for the first time and the device is turned off, long press the [Pump Oil] key at the lower left corner.	When the screen flashes and show p - ', it returns to the initial interface and starts pumping oil. When the countdown ends, it will automatically exit or press the [Power] key to exit the oil pumping and shut down the machine.
Fill the fuel tank	/		After turning on the machine, press and hold the [Pump Oil] key for 7 seconds to fill the fuel tank display icon on the interface.

BLUETOOTH OPERATION

• For iPhones: Search for and download the corresponding APP name "booyood" in the IOS APP Store or scan the QR code to download corresponding APP, and then follow the steps below to connect and control the heater with your phone.
• Android phone: Scan the QR code with a browser to download the corresponding APP, and then follow the steps below to connect and control the heater with your phone.

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "booyood"

QR code with embedded logo in center, likely linking to a website or digital content

Android APP

QR code image containing encoded data, no visible human-readable text

Scan the QR-Code with your browser to download the Airheater app from GooglePlay Search the "booyood" in the GooglePlay app to install the Airheater app.

1. Query the Bluetooth name: After turning on the machine, press the [Settings] and [Knob] for 3 seconds simultaneously. The screen will display 'bLE', and a 6-character name (0-F) will be shown on the upper side of screen.

26 AirHeater 26 IE BLE SNF

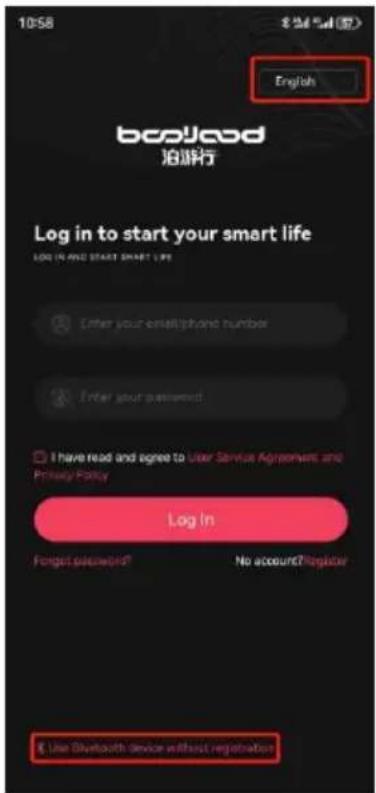

1. Log in to the APP: On the login interface, select the language in the upper right corner and the Bluetooth login method in the lower left corner

10:58 $24.54 (€) English beepead 泊游行 Log in to start your smart life Log in and start smart life Enter your email/phone number Enter your password I have read and agree to User Service Agreement and Privacy Policy Log In Forgot password? No account? register Use Bluetooth device without registration

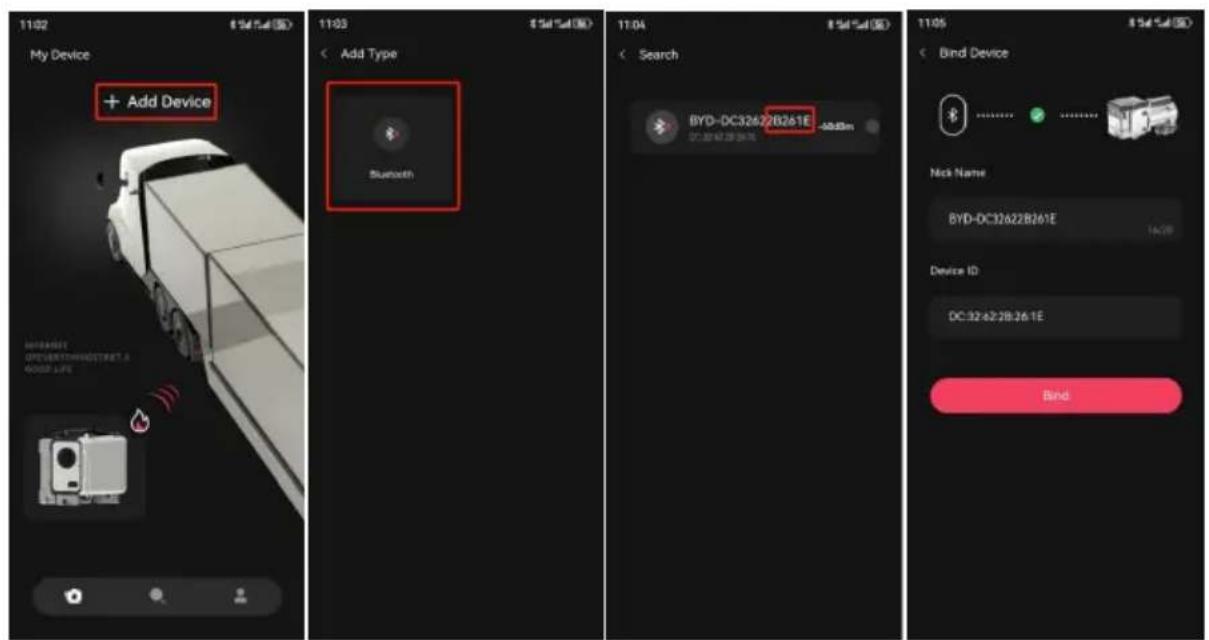

1. Connect to the mobile phone via Bluetooth: Click "+Add Device", the click the Bluetooth icon, find the corresponding local Bluetooth number: BY MAC address of the Bluetooth device + the 4-digit number on the contro (refer to the figure below), and click the Bluetooth number to connect.

11:02 $54.54(8) My Device + Add Device 11:03 $54.54(8) < Add Type Bluetooth 11:04 $54.54(8) < Search BYD-DC32622B261E -48.83m 11:05 $54.54(8) Bind Device Nck Name BYD-DC32622B261E 14:28 Device ID DC32622B261E Bind

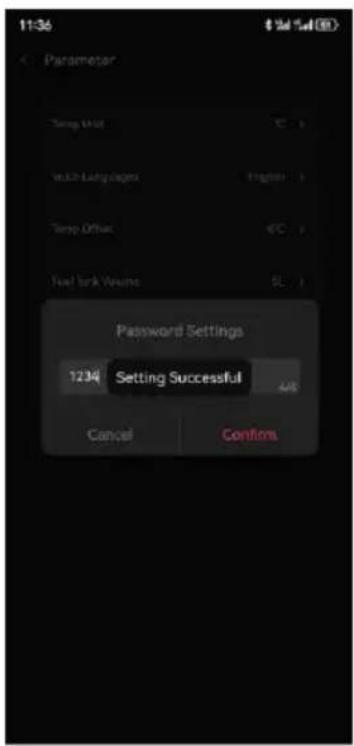

1. Click the button to go to the settings screen, you can set the password and click "Confirm" to save the settings. If the password is modified, the switch needs to modify the password according to the above Bluetooth matching operation method.

11:36 Parameter Temp Unit with Languages Temp Offset Fuel Sink Values Password Settings 1234 Setting Successful Cancel Confins

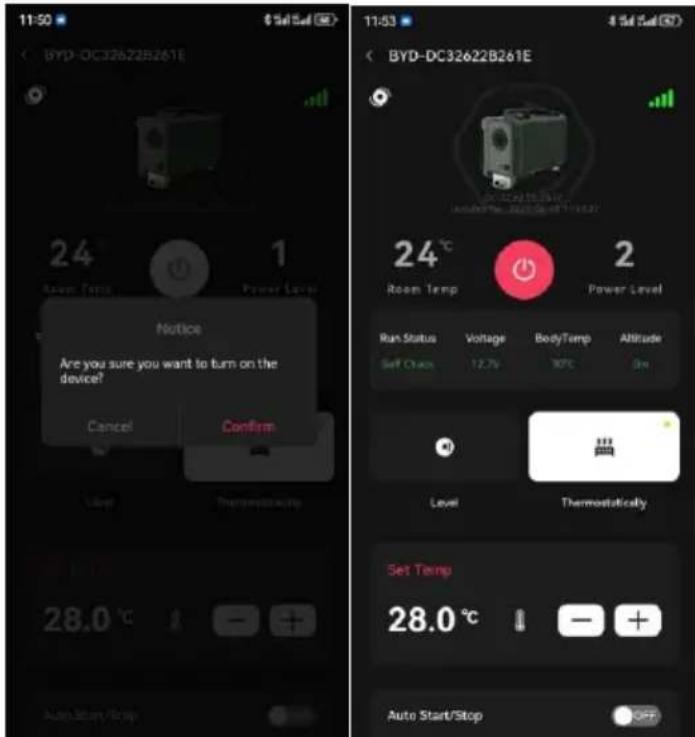

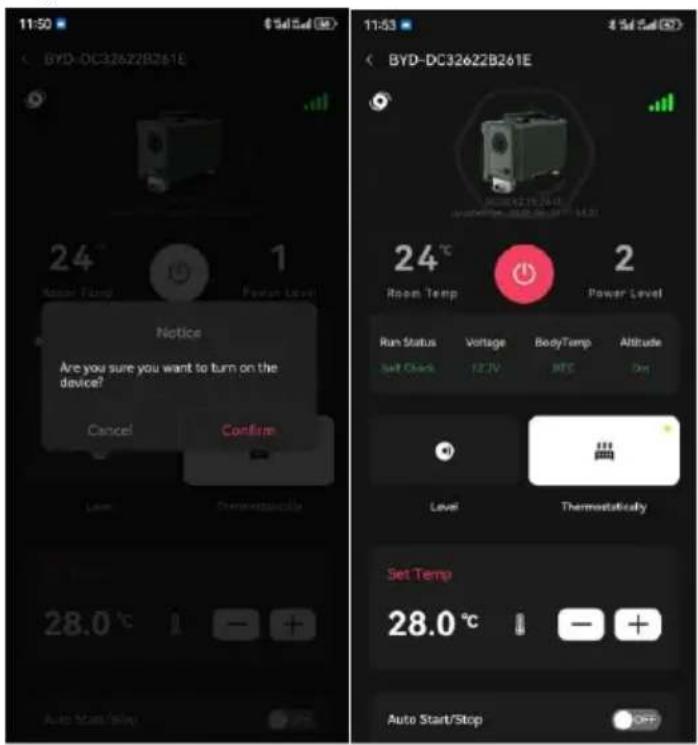

1. Tap to select or long press the【】to turn on/turn off the heater.

BYD-DC32622B261E 24 °C Room Temp 1 Power Level Notice Are you sure you want to turn on the device? Cancel Confirm Stop Thermostically 28.0 °C Auto Start/Stop BYD-DC32622B261E 24 °C Room Temp 2 Power Level Run Status Voltage BodyTemp Attitude Self Change 12.7V 30°C 5m Level Thermostically Set Temp 28.0 °C Auto Start/Stop

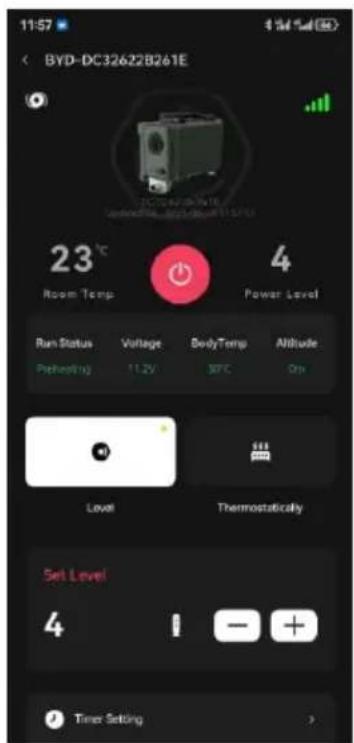

1. Click "Level" or "Thermostatically" button to switch the gear mode or temperature control mode, then Click "up +" /"down -" button to increase decrease- the level (level 1-10)/temperature(8°C\~36°C).

11:57 BYD-DC32622B261E 23°C Room Temp 4 Power Level Run Status Voltage BodyTemp Altitude Pre-holding 11.2V 30°C On Level Thermostatically Set Level 4 Timer Setting

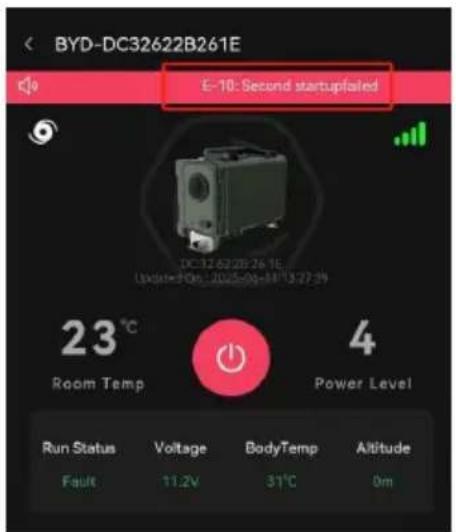

1. Fault display: When the heater fails, it will display the fault code E-xx the table mentioned earlier for the type of fault.

BYD-DC32622B261E E-10: Second startupfailed DC-12-02-25 26 1E Update: 10pm - 2015-09-08 13:27:29 23°C Room Temp Power Level Run Status Voltage BodyTemp Altitude Fault 11.2V 31°C 0m

Fault table

Fault alarm

Show the following figure, corresponding to the failure symbol flicker, and corresponding to the failure device icon flicker, display data as fault code, its meaning please refer to the fault table.

*Spark plug, oil pump, fan, sensor, power supply and other symbols, flicker indicates that the corresponding device failure.

Fault table

Scan the QR code to view the troubleshooting method

Fault code	Cause of failure	solutions
E-01	Voltage anomaly	1. Check whether the type of power supply voltage for the heater is consi with the actual vehicle voltage;2. Check whether the power supply voltage is higher than 18V or lower 9V.3. Check whether there is any loose d loose connection at the main line bur joint and the positive and negative terminals of the power supply.
E-03	Ignition plug failure	1. Check whether the ignition plug is loosely connected.2. The ignition plug is faulty. Replace the ignition plug.
E-04	Abnormality of the oil pump	1. Check whether the plug of the oil pump is loose or loosely connected.2. Check whether there is any open circuit in the main line bundle;The oil pump is faulty. Replace the pump.
E-05	High-temperature protection	When the temperature exceeds the hi temperature protection point, check whether the distance between the two ends of the air inlet and outlet of the heater and the obstacles is greater th 10 centimeters.
E-06	The intake air temperature sensor is faulty	1. Check whether the fan impeller is stuck.2. Check whether the plug of the fa loose or loosely connected.3. After starting up, the fan speed is abnormal. Check whether the wind wh induction magnet is missing or has incorrect polarity.Check whether the wind speed senso the mainboard is normal.
E-08	Start-up failure (ignition failure once)	1. Check whether the oil pump is working.2. Check whether each connection po of the oil circuit and the atomization are waxed or blocked.Check whether the air inlet of the h is blocked.
E-09	The furnace temperature sensor is abnormal	1. Check whether the connection of t furnace temperature sensor is loose o loose.The model of the furnace temperature sensor is incorrect or faulty. Replace sensor.
E-10	Start-up failure (secondary ignitionfailure)	1. Check whether the oil pump is working.2. Check whether each connection po of the oil circuit and the atomization are waxed or blocked.Check whether the air inlet of the h is blocked.
Installation Guide	The surface temperature of the exhaust pipe is around 752 °F, an attention should be paid to protection against flammable materials during installation	1. Please note that there are no flammable substances around the exhaust pipe and muffler hot air outlet and insulation materials should be use for protection. It is forbidden to drill and install machines on wooden floors The surface temperature of the exhau pipe is around 752 °F.2. Prohibit the use of non high temperature resistant adhesives to avoid odor poisoning, and be careful to avoid causing fires by igniting flammable materials.3. Installation position: 1 Reserve a inch gap at the air inlet for smooth intake; 2 Keep the bottom exhaust at a distance of 2 inches from the g and prevent fires when the exhaust p temperature is high Do not bend the exhaust pipe excessively, as it may cause poor exhaust flow; 4 The exh duct is not easily too long and multi bends can cause heat to be unable discharged, resulting in a high temperature fault When refueling the f tank, do not let it flow onto the outer shell, as it will flow along the inside machine to the exhaust pipe position, causing smoke. Fill the fuel tank to alevel close to the fuel tank opening not block the intake pipe as it may insufficient oxygen and the heater to malfunction.
Accessories modification	Prohibit the use of non high temperature resistant materials and rubber seals that may cause odor and poisoning hazards	1. Extension of exhaust duct modification: It is recommended to purchase pipes made of the same material or high-temperature resistant material, with a length controlled within meters and no large angle bending to avoid overheating.2. Exhaust pipe modification and extension: It is recommended to purchase pipes made of the same material or high temperature resistant stainless steel material, with a length controlled within 2 meters and no lar angle bending. The pipes must be discharged downwards to the outside and cannot be bent upwards multiple times to affect exhaust heat dissipation (the working temperature of the exhaust pipe reaches around 752 °F, and the installation position is prohibited from drilling holes in the wooden floor. No high temperature resistant rubber seals are also prohibited, which may cause odor and poisoning hazards).
Emitting white smoke	Abnormal power outage/excessive manual pump oil volume	1. Manually pump oil, if there is too oil inside the machine, it will not ign and emit white smoke. The correct w to pump oil to the inlet position and If the pump oil volume is too high, pipe should be unplugged and restart2-3 times to restore normal operation before inserting the oil pipe; Or use dryer to blow towards the intake pipe a period of time until it works proper. 2. Abnormal power outage during operation: During normal operation, press the 'power on/off button' to dis'OFF' for shutdown. During the shutdo process, the button cannot be operate Wait for the fan to stop working before completely shutting down, and then disconnect the power supply. During t shutdown process, it is forbidden to forcefully cut off the power, otherwise internal heat will not be completely dissipated and a large amount of sm will be generated during the second startup. At this time, it is necessary wait for the internal to completely but before returning to normal. 3. Refer to E-01 fault code troubleshooting.
Smoking	Insufficient oxygen intake or carbon deposition in the combustion chamber	1. Does the altitude exceed the calibration parameters? Insufficient oxygen intake can cause ignition failure and black smoke emission. 2. Check if there is any blockage in intake pipe causing insufficient oxygen intake. 3. The small space at the air inlet leads to air intake obstruction. 4. Refer to the E-01 fault code check low point of the power supply voltage/current has insufficient heat from the ignition plug, resulting in ignitionfailure and black smoke emission.5. Disassemble the internal combustion chamber of the machine to check for carbon deposits and replace the combustion chamber in a timely manr
Smoke blue	Poor oil quality	Only high-grade diesel can be used, the use of mixed diesel, other types and non brand new oil products is prohibited. In winter, negative temperature diesel should be met;
Machine oil leakage	Oil tank/pipe damage, side installation (Side installation prohibited)	1. Check the appearance of the fuel tank/oil pipe and whether the fuel tar nozzle is damaged or cracked, which may cause oil leakage.2. When filling the fuel tank with die be careful not to pour it onto the m casing, otherwise it will flow into the interior and smoke due to high intern heat during operation.3. The heater cannot be installed on side. The oxygen hole oil on the ign plug side will flow out through the h and the correct installation method is have the intake/exhaust port facing downwards;4. Poor oil quality leads to blockage the ignition plug atomization network i the combustion chamber, causing ignit to flow out through the exhaust pipe. ignition plug atomization network and high-grade diesel should be replaced.
There is no oil or heat inside themachine	The oil pipe is be	Check if there are any bent positions the oil pipe that prevent air from supplying oil.
Oil flowing through the exhaust pipe	Excessive pump oil volume/blocked atomization network/abnormal voltage	1. Manually pumping oil, if there is t much oil inside the machine, it will r ignite and emit white smoke. If the combustion chamber is filled with excessive pumping oil, it will flow out from the exhaust pipe; The correct w pump oil to the inlet position and sto the pump oil volume is too high, the pipe should be unplugged and restart 2-3 times to restore normal operation before inserting the oil pipe; Or use dryer to blow towards the intake pipe a period of time until it works proper 2. The ignition plug atomization net is blocked. After removing the ignition pl take out the internal atomization net check for any blockage. It should be cleaned or replaced immediately. 3. Referring to the fault code inspect of E-01, the ignition failed due to insufficient heat from the low point sp plug of the power supply voltage/curre The fuel pump continued to operate, diesel flowed out through the exhaust pipe.
Oil flowing inside the intake pipe	Incorrect installation direction/excessive manual pump oil volume	1. Manually pumping oil, if there is t much oil inside the machine, it will r ignite and emit white smoke. If the combustion chamber is filled with excessive pumping oil, it will flow out from the intake pipe; The correct way pump oil to the inlet position and sto the pump oil volume is too high, thepipe should be unplugged and restart 2-3 times to restore normal operation before inserting the oil pipe; Or use dryer to blow towards the intake pipe a period of time until it works proper. 2. The heater cannot be installed on side. The oxygen hole oil on the ign plug side will flow out through the h and the correct installation method is have the intake/exhaust port facing downwards.
The exhaust pipe temperature is too high and turns red	Combustion chamber malfunction	Immediately shut down, dismantle the aluminum body to check if the internal combustion chamber is sealed or repl the combustion chamber.
abnormal sound	Poor exhaust flow	Foreign matter blockage in the exhaust pipe affects the exhaust. It should be immediately shut down, and the exhaust pipe, muffler, and exhaust port should checked for blockage. If there is any blockage, it should be cleaned and restored to normal operation.
Diesel odor	Oil leakage/fuel error	1. Only high-grade diesel can be used and the use of mixed diesel, other t of oil, and non brand new oil product prohibited. In winter, negative temperature diesel should be met, as other fuels may cause odors. 2. Disassemble the machine casing to check for any oil leaks inside and re the parts promptly.
Plastic smell	Use external accessories	1. Extension or modification requires purchase of high-temperature resistant accessories. If the heater has high heat may produce unpleasant and punge odors.2. Extend the pipe fittings without bending or being too long, as this cause heat to be unable to dissipate result in high internal temperature and plastic odor.3. The working temperature of the exhaust pipe reaches around 752 °F. prohibited to drill holes in the wooden floor or use non high temperature resistant rubber seals for installation, which may cause odor and poisoning hazards.
Maintenance	Smoking/insufficient heat	If black smoke or insufficient heat is found during the operation of the heat for a period of time, it indicates that is carbon deposition inside the combustion chamber and it needs to cleaned or replaced in a timely manr
Fuse burnt out	Short circuit power-off inspection	1. Remove the fuse and check for damage. If damaged, replace the fuse2. Measure whether the positive and negative poles are short circuited. If it is a short circuit, replace the motherb if it is damaged.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

CHAUFFAGE DIESEL

MODÈLE : S590136 S1/S590136 S2/ S590136 S3

VEVOR

Affordable. Reliable. Home Improvement.

DIESEL HEATER

Orange Vevor portable electric vehicle with attached cylindrical sensor and digital display (no visible text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a gold-colored diamond pendant with a red gemstone, displayed against a black background (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

US Clamp Blowpipe Connector Blowpipe head

Host machine

Host machine Silencer Small clamp Exhaust pipe

Plug Power cord Battery 12V, ≥15A

INSTALLATION POSITION

Outdoor activities

Tent or outdoor cabin

wooden floor exhaust pipes need to be protected

Indoor installation

The distance is ≥2 inches Ground Extend the exhaust pipe Outdoor installation

Fuel tank Blowpipe Air intake Exhaust pipe

1.Do not use the heater when charging the battery 2.The current is low and it does not work Battery Suggest using energy storage power, batteries, and adapters for power supply Energy storage power Power supply

Close-up of two black and red electrical wires against a white textured background (no text or symbols visible)

Black rectangular battery with red X marks on top and side, placed indoors (no visible text or symbols)

Fixing the battery clamp can easily cause poor contact

Close-up of a car's side panel with a tool and red X mark, no visible text or symbols

Cigarette lighter current low does not work

PRODUCT INFORMATION

VEVOR Connector Clamp Blowpipe Blowpipe head Exhaust pipe with sleeve Silencer Small clamp Power cord Remote control Diesel heater APP AC-DC Adapter

QR code image containing encoded data, no visible human-readable text

For specific installation, please scan the QR code to view the installation video

Avertissement :

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Panel operation instructions

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "booyood"

QR code with embedded logo in center, likely linking to a website or digital content

Android APP

QR code image containing encoded data, no visible human-readable text

10:58 $ 24% (图) English beayood 泊游行 Log in to start your smart life Log in and start smart life Enter your email phone number Enter your password I have read and agree to User Service Agreement and Privacy Policy Log In Forget password! No account? Regular User Bluetooth device without registration

11:36 Parameter Temp Unit With Languages Temp Other Fuel Sink Volume Password Settings 1234 Setting Successful Cancel Confirm

BYD-DC32622B261E 24 °C Power Level Notice Are you sure you want to turn on the device? Cancel Confirm BYD-DC32622B261E 24 °C Room Temp 2 Power Level Run Status Voltage BodyTemp Altitude Self Change 12.7V WTC 0% Level Thermostically Set Temp 28.0 °C Auto Start/Stop OFF

11:57 BYD-DC32622B261E 23 °C Room Temp 4 Power Level Run Status Voltage BodyTemp Altitude Preheating 1.2V 30°C 0m Level Thermostatically Set Level 4 Timer Setting

BYD-DC32622B261E E-10: Second startupfailed 23 °C Room Temp Power Level Run Status Voltage BodyTemp Altitude Fault 11.2V 31°C 0m

Fault table

Alarme de défaut

1 ROKEVA STREET, EASTWOOD, NSW 2122, Australie

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESELHEIZUNG

MODELL: S590136 S1/ S590136 S2/

S590136 S3

MODELL: S590136 S1/S590136 S2/S590136 S3

Orange Vevor portable electric vehicle with attached cylindrical sensor and digital display (no visible text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a gold-colored pendant with diamond-shaped neck and textured body, displayed against black background (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

54. WARNUNG: Giftiges Material

Clamp Blowpipe Connector Blowpipe head

Host machine Blowpipe components

Host machine O Silencer Small clamp Exhaust pipe

Plug Power cord Battery 12V, ≥15A

INSTALLATION POSITION

Tent or outdoor cabin

Outdoor activities

wooden floor exhaust pipes need to be protected

Indoor installation

The distance is ≥2 inches Ground Extend the exhaust pipe Outdoor installation

Fuel tank Blowpipe Air intake Exhaust pipe

1.Do not use the heater when charging the battery 2.The current is low and it does not work Battery Suggest using energy storage power, batteries, and adapters for power supply Energy storage power Power supply

Close-up of two black and red electrical wires against a light textured background (no text or symbols visible)

Black battery with red X marks on top and side, placed indoors (no visible text or symbols)

Fixing the battery clamp can easily cause poor contact

Close-up of a car interior with a red X mark and orange electrical plug, no visible text or symbols

Cigarette lighter current low does not work

PRODUCT INFORMATION

VEVOR Connector Clamp Blowpipe Blowpipe head Exhaust pipe with sleeve Silencer Small clamp Power cord Remote control Diesel heater APP AC-DC Adapter

QR code image containing encoded data, no visible human-readable text

For specific installation, please scan the QR code to view the installation video

Warnung :

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a barcode strip (no text or symbols)

Panel operation instructions

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "booyood"

QR code with embedded logo in center, likely linking to a website or digital content

Android APP

QR code image containing encoded data, no visible human-readable text

10:58 $ 2nd Feb (E) English beayood 泊游行 Log in to start your smart life LOG IN AND START SMART LIFE Enter your email/phone number Enter your password I have read and agree to User Service Agreement and Privacy Policy Log In Forgot password? No account? regulate Use Bluetooth device without registration

11:36 Parameter Temp Unit Lock Languages Temp Offer Fuel Link Volume Password Settings 1234 Setting Successful Cancel Confirm

BYD-DC32622B261E 24 Radar Temp 1 Power Level Notice Are you sure you want to turn on the device? Cancel Confirm Auto Start/Stop 28.0 °C - + Auto Start/Stop BYD-DC32622B261E 24 °C Room Temp 2 Power Level Run Status Voltage BodyTemp Attitude Self Charge 12.2V MFC lm Level Thermostatically Set Temp 28.0 °C - + Auto Start/Stop OFF

11:57 BYD-DC32622B261E 23°C Room Temp 4 Power Level Run Status Voltage BodyTemp Altitude Preknoting 11.2V 30°C On Level Thermostatically Set Level 4 Timer Setting

BYD-DC32622B261E E-10: Second startupfailed 23°C Room Temp Power Level Run Status Voltage BodyTemp Altitude Fault 11.2V 31°C 0m

Fault table

Fehleralarm

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

RISCALDATORE DIESEL

MODELLO: S590136 S1/ S590136 S2/

S590136 S3

MODELLO: S590136 S1/S590136 S2/S590136 S3

Orange Vevor air purifier device with black body and digital display, no visible text or symbols on the device itself.

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a gold textured pendant with a diamond-shaped crown and green accents, displayed against a dark background (no visible text or symbols)

Close-up of a car's side panel with a textured cylindrical object inserted into the floor (no visible text or symbols)

Clamp Blowpipe Connector Blowpipe head

Host machine

Host machine O Silencer Small clamp Exhaust pipe

Plug Power cord Battery 12V, ≥15A

INSTALLATION POSITION

Outdoor activities

Tent or outdoor cabin

wooden floor exhaust pipes need to be protected

Indoor installation

The distance is ≥2 inches Ground Extend the exhaust pipe Outdoor installation

Fuel tank Blowpipe Air intake Exhaust pipe

1.Do not use the heater when charging the battery 2.The current is low and it does not work Battery Suggest using energy storage power, batteries, and adapters for power supply Energy storage power Power supply

Close-up of two black and red electrical wires against a light textured background (no text or symbols visible)

Black rectangular battery with red X-shaped warning symbols on its top and side, placed indoors (no text or labels visible)

Fixing the battery clamp can easily cause poor contact

Close-up of a car's side panel with a red X mark and orange trigger, showing wiring and a glowing orange light (no text or symbols visible)

Cigarette lighter current low does not work

PRODUCT INFORMATION

Modello : S590136 S1/S590136 S2/S590136 S3

VEVOR ① ② ③ ④ ⑤ ⑥ ⑦ ⑪

VEVOR ⑧ ⑨ ⑩

VEVOR Connector Clamp Blowpipe Blowpipe head Exhaust pipe with sleeve Silencer Small clamp Power cord Remote control Diesel heater APP AC-DC Adapter

QR code image containing encoded data, no visible human-readable text

For specific installation, please scan the QR code to view the installation video

Avvertimento :

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a barcode strip (no text or symbols)

Panel operation instructions

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "booyood"

QR code with embedded logo in center, likely linking to a website or digital content

Android APP

QR code image containing encoded data, no visible human-readable text

10:58 $ 24% (图) English beayood 泊游行 Log in to start your smart life Log in and start smart life Enter your email phone number Enter your password I have read and agree to User Service Agreement and Privacy Policy Log In Forget password! No account? Regular User Bluetooth device without registration

11:36 Parameter Swap Unit Write Languages Swap Offset Fuel Link Volume Password Settings 1234 Setting Successful Cancel Confirm

BYD-DC32622B261E 11:50 $ Sel Sel (E) BYD-DC32622B261E Notice Are you sure you want to turn on the device? Cancel Confirm 1 24 °C Room Temp Power Level 24 °C Room Temp Power Level Run Status Voltage BodyTemp Attitude Self Charge 12.7V J9°C On Level Thermostically Set Temp 28.0 °C Auto Start/Stop OFF

11:57 BYD-DC32622B261E 23°C Room Temp 4 Power Level Run Status Voltage BodyTemp Altitude Preknoting 11.2V 30°C On Level Thermostatically Set Level 4 Timer Setting

BYD-DC32622B261E E-10: Second startupfailed 23°C Room Temp Power Level Run Status Voltage BodyTemp Altitude Fault 11.2V 31°C 0m

Fault table

Allarme guasto

Importato in AUS: SIHAO PTY LTD.

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

CALENTADOR DIÉSEL

MODELO: S590136 S1/ S590136 S2/

S590136 S3

MODELO: S590136 S1/S590136 S2/S590136 S3

Orange Vevor portable electric vehicle with attached cylindrical sensor and digital display (no visible text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a luxury earring with diamond-shaped accessories and a red velvet background (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted into the floor (no visible text or symbols)

90. ADVERTENCIA: Material tóxico

Clamp Blowpipe Connector Blowpipe head

Host machine Blowpipe components

Host machine Silencer Small clamp Exhaust pipe

Plug Power cord Battery 12V, ≥15A

INSTALLATION POSITION

Outdoor activities

Tent or outdoor cabin

wooden floor exhaust pipes need to be protected

Indoor installation

The distance is ≥2 inches Ground Extend the exhaust pipe Outdoor installation

Fuel tank Blowpipe Air intake Exhaust pipe

1.Do not use the heater when charging the battery 2.The current is low and it does not work Battery

Suggest using energy storage power, batteries, and adapters for power supply

Energy storage power Power supply

Close-up of two black and red electrical wires with connectors, no visible text or symbols

Black battery with red X marks on top, placed indoors (no visible text or symbols)

Fixing the battery clamp can easily cause poor contact

Close-up of a car interior with a hand holding a tool near a vehicle's head, showing orange buttons and a red X mark (no text or symbols visible)

Cigarette lighter current low does not work

PRODUCT INFORMATION

Modelo : S590136 S1/S590136 S2/S590136 S3

VEVOR ① ② ③ ④ ⑤ ⑥ ⑦ ⑪ ⑫

VEVOR ⑧ ⑨ ⑩

VEVOR Connector Clamp Blowpipe Blowpipe head Exhaust pipe with sleeve Silencer Power cord Small clamp Remote control Diesel heater APP AC-DC Adapter

QR code image containing encoded data, no visible text or symbols beyond the matrix pattern

For specific installation, please scan the QR code to view the installation video

Advertencia :

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Technical line drawing of a mechanical device with internal components and a cable (no text or symbols)

Panel operation instructions

QR code image containing encoded data, no visible human-readable text

Digital device interface displaying a smart control panel with Chinese text and function icons

Close-up of a black remote control with green keys and a keychain (no visible text or symbols)

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "booyood"

QR code with embedded logo in center, likely linking to a website or digital content

Android APP

QR code image containing encoded data, no visible human-readable text

10:58 English bceyeed 泊游行 Log in to start your smart life LOG IN AND START SMART LIFE Enter your email/phone number Enter your password I have read and agree to User Service Agreement and Privacy Policy Log In Fenget password? No account? Register Use Bluetooth device without registration

11:36 Parameter Temp Unit With Languages Temp Offset Fuel Sink Volume Password Settings 1234 Setting Successful Cancel Confirm

BYD-DC32622B261E 24°C Room Temp 1 Power Level Notice Are you sure you want to turn on the device? Cancel Confirm Level Thermostically 28.0 °C - + Auto Start/Stop BYD-DC32622B261E 24°C Room Temp 2 Power Level Run Status Voltage BodyTemp Altitude Self Check 12.0V RTC On Level Thermostically Set Temp 28.0 °C - + Auto Start/Stop OFF

11:57 BYD-DC32622B261E 23°C Room Temp 4 Power Level Run Status Voltage BodyTemp Altitude Pre-holding 11.2V 30°C On Level Thermostatically Set Level 4 Timer Setting

BYD-DC32622B261E E-10: Second startupfailed DC-12 62.2B 24 1E Update: 10p - 2005-09-81 13:27:39 23 °C Room Temp Power Level Run Status Voltage BodyTemp Altitude Fault 11.2V 31°C 0m

Fault table

Alarma de falla

1 ROKEVA STREET, EASTWOOD, NSW 2122, Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

GRZEJNIK NAPEDOWY

MODEL: S590136 S1/ S590136 S2/

S590136 S3

MODEL: S590136 S1/S590136 S2/S590136 S3

Orange Vevor portable electric vehicle with attached cylindrical sensor and digital display (no visible text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a gold-colored pendant with diamond-shaped neck and textured body, displayed against black background (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

Clamp Blowpipe Connector Blowpipe head

Host machine

Host machine Silencer Small clamp Exhaust pipe

Plug Power cord Battery 12V, ≥15A

INSTALLATION POSITION

Outdoor activities

Tent or outdoor cabin

wooden floor exhaust pipes need to be protected

Indoor installation

The distance is ≥2 inches Ground Extend the exhaust pipe Outdoor installation

Fuel tank Blowpipe Air intake Exhaust pipe

1.Do not use the heater when charging the battery 2.The current is low and it does not work Battery Suggest using energy storage power, batteries, and adapters for power supply Energy storage power Power supply

Close-up of two black and red electrical connectors against a textured white background (no text or symbols visible)

Black rectangular battery with red X marks on top and side, placed indoors (no visible text or symbols)

Fixing the battery clamp can easily cause poor contact

Close-up of a car's side panel with a red X mark and orange trigger, showing wiring and a glowing orange light (no text or symbols visible)

Cigarette lighter current low does not work

PRODUCT INFORMATION

Modelu : S590136 S1/S590136 S2/S590136 S3

VEVOR ① ② ③ ④ ⑤ ⑥ ⑦ ⑪

VEVOR ⑧ ⑨ ⑩

VEVOR Connector Clamp Blowpipe Blowpipe head Exhaust pipe with sleeve Silencer Small clamp Power cord Remote control Diesel heater APP AC-DC Adapter

QR code image containing encoded data, no visible human-readable text

For specific installation, please scan the QR code to view the installation video

Ostrzeżenie :

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a barcode strip (no text or symbols)

Panel operation instructions

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "booyood"

QR code with embedded logo in center, likely linking to a website or digital content

Android APP

QR code image containing encoded data, no visible human-readable text

10:58 $24 Call (E) English bcpJood 泊游行 Log in to start your smart life LOG IN AND START SMART LIFE Enter your email/phone numbers Enter your password I have read and agree to User Service Agreement and Privacy Policy Log In Forget password? No account? Register Use Bluetooth device without registering

11:36 Parameter Temp Unit with Languages English Temp Offset 400 Fuel Link Volume BL Password Settings 1234 Setting Successful 44 Cancel Confirm

BYD-DC32622B261E 24°C Room Temp 1 Power Level Notice Are you sure you want to turn on the device? Cancel Confirm Level Recontinuously 28.0 °C - + Auto Start/Stop BYD-DC32622B261E 24°C Room Temp 2 Power Level Run Status Voltage BodyTemp Altitude Self Clock 12.7V 30°C On Level Thermostatically Set Temp 28.0 °C - + Auto Start/Stop OFF

11:57 BYD-DC32622B261E 23℃ Room Temp 4 Power Level Run Status Voltage BodyTemp Altitude Preheating 11.2V 30°C On Level Thermostatically Set Level 4 Timer Setting

BYD-DC32622B261E E-10: Second startupfailed DC32622B 26.1F UpstartDate: 2023-06-18 13:27:09 23°C Room Temp Power Level Run Status Voltage BodyTemp Altitude Fault 11.2V 31°C 0m

Fault table

Alarm usterki

1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importowane do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESELVERWARMING

MODEL: S590136 S1/ S590136 S2/

S590136 S3

MODEL: S590136 S1/S590136 S2/S590136 S3

Orange Vevor air purifier device with black body and digital display, no visible text or symbols on the device itself.

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

Close-up of a gold-colored pendant with diamond-shaped neck and textured body, displayed against black background (no text or symbols visible)

Close-up of a car's side panel with a textured cylindrical object inserted, placed on a wooden floor (no visible text or symbols)

126. WAARSCHUWING: Giftig materiaal

Clamp Blowpipe Connector Blowpipe head

Host machine

Host machine Silencer Small clamp Exhaust pipe

Plug Power cord Battery 12V, ≥15A

INSTALLATION POSITION

Outdoor activities

Tent or outdoor cabin

wooden floor exhaust pipes need to be protected

Indoor installation

The distance is ≥2 inches Ground Extend the exhaust pipe Outdoor installation

Fuel tank Blowpipe Air intake Exhaust pipe

1.Do not use the heater when charging the battery 2.The current is low and it does not work Battery

Suggest using energy storage power, batteries, and adapters for power supply

Energy storage power Power supply

Close-up of two black and red electrical connectors against a white background (no text or symbols visible)

Black rectangular battery with two red X-shaped connectors on top, placed indoors against a wooden wall (no visible text or symbols)

Fixing the battery clamp can easily cause poor contact

Close-up of a car interior with a tool near the entrance and a red X mark, no visible text or symbols

Cigarette lighter current low does not work

PRODUCT INFORMATION

Model : S590136 S1/S590136 S2/S590136 S3

VEVOR ① ② ③ ④ ⑤ ⑥ ⑦ ⑪ ⑫

VEVOR ⑧ ⑨ ⑩

VEVOR Connector Clamp Blowpipe Blowpipe head Exhaust pipe with sleeve Silencer Small clamp Power cord Remote control Diesel heater APP AC-DC Adapter

QR code image containing encoded data, no visible human-readable text

For specific installation, please scan the QR code to view the installation video

Waarschuwing :

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Technical line drawing of a mechanical device with internal compartments and a barcode strip (no text or symbols)

Panel operation instructions

QR code image containing encoded data, no visible human-readable text

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "booyood"

QR code with embedded logo in center, likely linking to a website or digital content

Android APP

QR code image containing encoded data, no visible human-readable text

10:58 $ 2nd Feb (E) English beayood 泊游行 Log in to start your smart life LOG IN AND START SMART LIFE Enter your email/phone number Enter your password I have read and agree to User Service Agreement and Privacy Policy Log In Forgot password? No account? regulate Use Bluetooth device without registration

11:36 C Parameter Temp Unit Quick Languages Temp Offset Fuel Link Volume Password Settings 1234 Setting Successful Cancel Confirm

1. houd 【】 lang ingedrukt ⏻om in/uit te schakelen de verwarming .

BYD-DC32622B261E 24° Noise Swing 1 Power Level Notice Are you sure you want to turn on the device? Cancel Confirm Auto Start/Stop 28.0 °C - + - Auto Start/Stop BYD-DC32622B261E 24°C Room Temp 2 Power Level Run Status Voltage BodyTemp Altitude Self Check FEJV RTC On Level Thermostatically Set Temp 28.0 °C - + - Auto Start/Stop

11:57 BYD-DC32622B261E 23°C Room Temp 4 Power Level Run Status Voltage BodyTemp Altitude Pre-holding 11.2V 30°C On Level Thermostatically Set Level 4 Timer Setting

BYD-DC32622B261E E-10: Second startupfailed DC-12-02-25 26 1E Update: 10pm - 2015-09-08 13:27:29 23°C Room Temp Power Level Run Status Voltage BodyTemp Altitude Fault 11.2V 31°C 0m

Fault table

Storingsalarm

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

DIESELVÄRMARE

MODELL: S590136 S1/ S590136 S2/

S590136 S3

VEVOR

DIESEL HEATER

Affordable. Reliable. Home Improvement.

MODELL: S590136 S1/S590136 S2/S590136 S3

Orange Vevor portable electric vehicle with attached cylindrical sensor and digital display (no visible text or symbols)

Installing insulation sleeves on exhaust pipes can effectively reduce surface temperature and prevent fire hazards caused by improper installation.

144. WARNING: Giftigt material

Clamp Blowpipe Connector Blowpipe head

Host machine Blowpipe components

Host machine Silencer Small clamp Exhaust pipe

Plug Power cord Battery 12V, ≥15A

INSTALLATION POSITION

Outdoor activities

Tent or outdoor cabin

wooden floor exhaust pipes need to be protected

Indoor installation

The distance is ≥2 inches Ground Extend the exhaust pipe Outdoor installation

Fuel tank Blowpipe Air intake Exhaust pipe

1.Do not use the heater when charging the battery 2.The current is low and it does not work Battery Suggest using energy storage power, batteries, and adapters for power supply Energy storage power Power supply

Close-up of two black and red electrical connectors against a textured white background (no text or symbols visible)

Black rectangular battery with red X-shaped warning symbols on its top and side, placed indoors against a light wall (no text or labels visible)

Fixing the battery clamp can easily cause poor contact

Close-up of a car's side panel with a red X mark and orange trigger, showing wiring and a glowing orange light (no text or symbols visible)

Cigarette lighter current low does not work

PRODUCT INFORMATION

VEVOR Connector Clamp Blowpipe Blowpipe head Exhaust pipe with sleeve Silencer Small clamp Power cord Remote control Diesel heater APP AC-DC Adapter

QR code image containing encoded data, no visible human-readable text

For specific installation, please scan the QR code to view the installation video

Varning :

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Technical line drawing of a mechanical device with internal components and a barcode bar (no text or symbols)

Panel operation instructions

QR code image containing encoded data, no visible human-readable text

IOS App APP Store search "booyood"

QR code with embedded logo in center, likely linking to a website or digital content

Android APP

QR code image containing encoded data, no visible human-readable text

10:58 24M (图) English beayood 泊游行 Log in to start your smart life Log in and start smart life Enter your email phone number Enter your password I have read and agree to User Service Agreement and Privacy Policy Log In Forget password! No account? Regular User Bluetooth device without registration

11:36 Parameter Temp Unit with Languages Temp Offset Fuel Sink Views Password Settings 1234 Setting Successful Cancel Confins

BYD-DC32622B261E 24° Allow Temp 1 Power Level Notice Are you sure you want to turn on the device? Cancel Confirm Auto Start/Stop 11:50 $ 5d Sal (E) BYD-DC32622B261E 24°C Room Temp 2 Power Level Run Status Voltage BodyTemp Attitude Self Change 12.2V 30°C 5m Level Thermostically Set Temp 28.0°C Auto Start/Stop OFF

11:57 BYD-DC32622B261E 23°C Room Temp 4 Power Level Run Status Voltage BodyTemp Altitude Pre-holding 11.2V 30°C On Level Thermostatically Set Level 4 Timer Setting

BYD-DC32622B261E E-10: Second startupfailed DC-12-02-25 26 1E Update: 10pm - 2015-09-08 13:27:29 23°C Room Temp Power Level Run Status Voltage BodyTemp Altitude Fault 11.2V 31°C 0m

Fault table

Fellarm

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines upon-Thames, Surrey, TW18 4AX

EC

REP
