USER MANUAL Z88-F-A Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Pilates Reformer

MODEL:Z88-F-A/Z88-X-A

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Pilates Reformer

MODEL: Z88-F-A/Z88-X-A

Technical illustration of a mechanical testing machine with conveyor belt and control panel (no text or symbols)

Note: The product picture is for reference, the actual details shall prevail

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

• Do not use it if you are pregnant
• Please install strictly according to the instructions
• To ensure user safety, please check whether all screws and other connecting parts on the device are intact before each use
• Incorrect or excessive intensity exercise is not good for health. It is recommended to consult a doctor before exercising
• It is best to wear sportswear and sports shoes when exercising
• If you feel dizziness, vomiting or other adverse symptoms during exercise, you should stop training immediately.
  ● Note that all screws and nuts must be tightened before exercising
• Please do not exercise half an hour before /after meals or 1 hour before sleep
• Please make exercise plans.
  ● The user's weight cannot exceed 400lbs
• Excessive use by unskilled persons is prohibited.
• Please be careful not to pinch your fingers when unfolding or folding the product
• Please do a simple stretch before using the product.

TIPS: Some parts cannot be represented on the decomposition diagram, please take the details accordingly

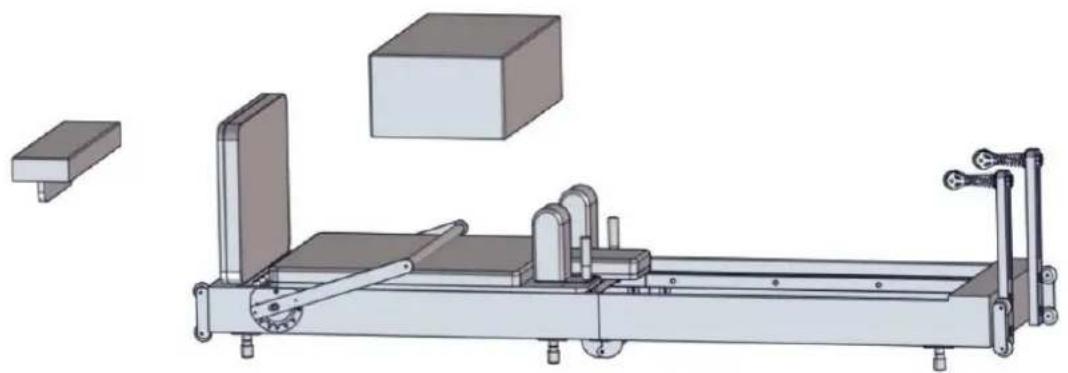

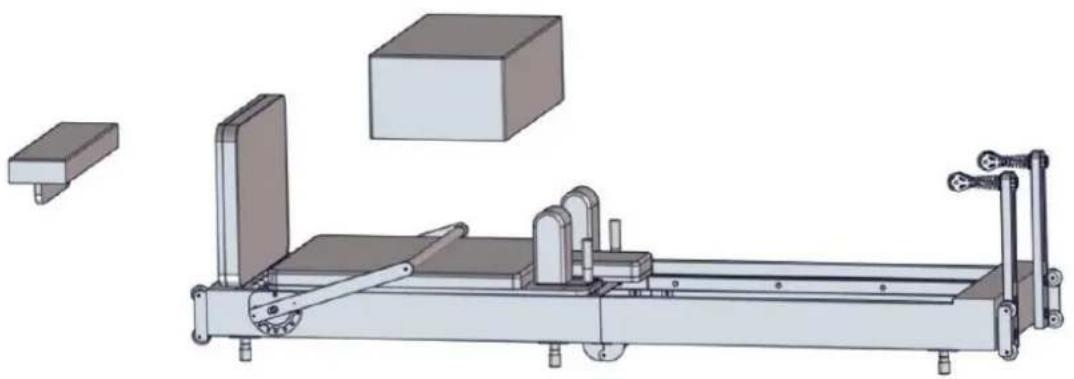

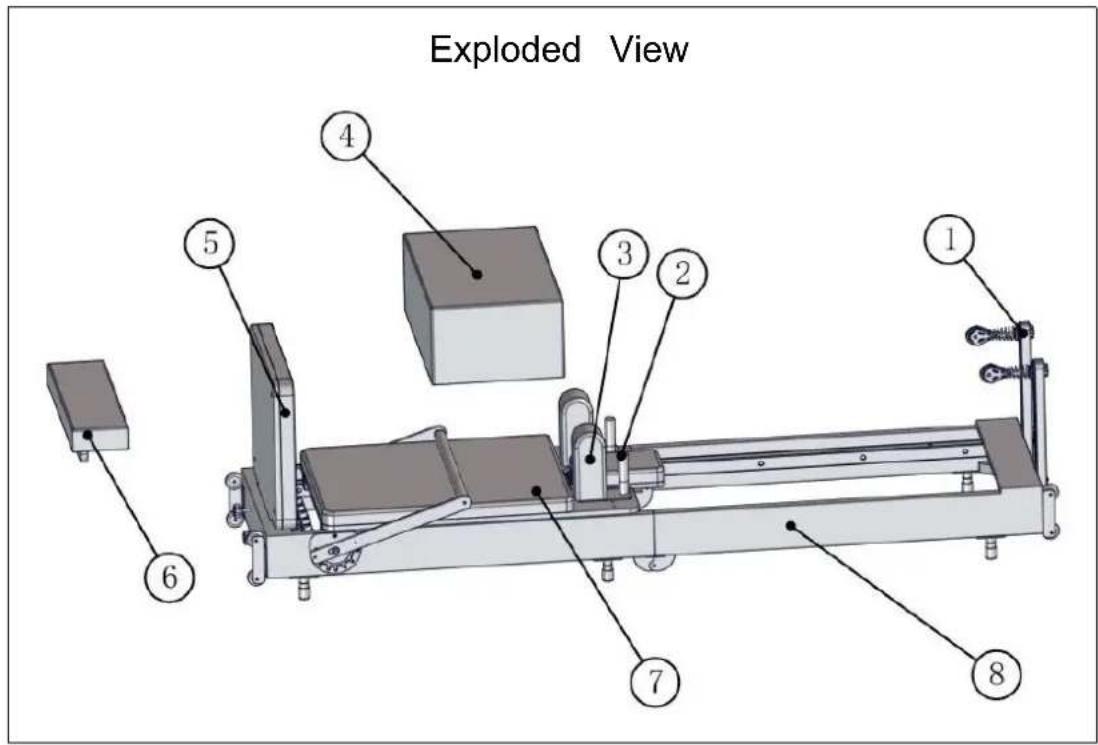

Exploded View ① ② ③ ④ ⑤ ⑥ ⑦ ⑧

BOM ID	describe	quantity
1	Wooden pole	2
2	Shoulder pillow bakelite armrest	2
3	Shoulder pillow	2
4	Square Box	1
5	springboard	1
6	Pedals	1
7	skateboard	1
8	bedstead	1
9	8X50 stainless steel screws	4
10	Stainless steel large gasket	4
11	Double layer drawstring	2
12	8X20 stainless steel screws	2
13	Tension rope	2
14	Hook strap	1
15	13-16 wrench	1
16	M5 hexagonal wrench	1
17	Limit pin	2
18	Bandage	1
19	Rope pulley	2
20	M8 spring washer	2
21	M8 stainless steel flat washer	2

① Wooden pole X2

②Shoulder pillow bakelite armrest X2

③Shoulder pillow x2 (under the shoulder pillow 21sM8 stainless steel flat washer + 20 M8 spring washer 42 8X20 stainless steel screw) See step (5) for details

Diagram showing a device with a cylindrical component and its magnified view of its internal structure (no text or symbols)

Simple 3D illustration of a rectangular box with two side handles (no text or symbols)

Simple 3D illustration of a rectangular object with a rounded top and a small protrusion on the bottom (no text or symbols)

3D rendered image of a metallic rectangular object with a protruding rod (no text or symbols)

⑥ Foot pedal x1

④ Square box X1
⑤ Springboard x1

3D rendering of a gray electronic device casing with mounting feet and internal components (no text or symbols visible)

⑦ Skateboard X1

3D rendering of a rectangular metal frame structure with supports and mounting holes (no text or symbols)

⑧ Bed frame X1

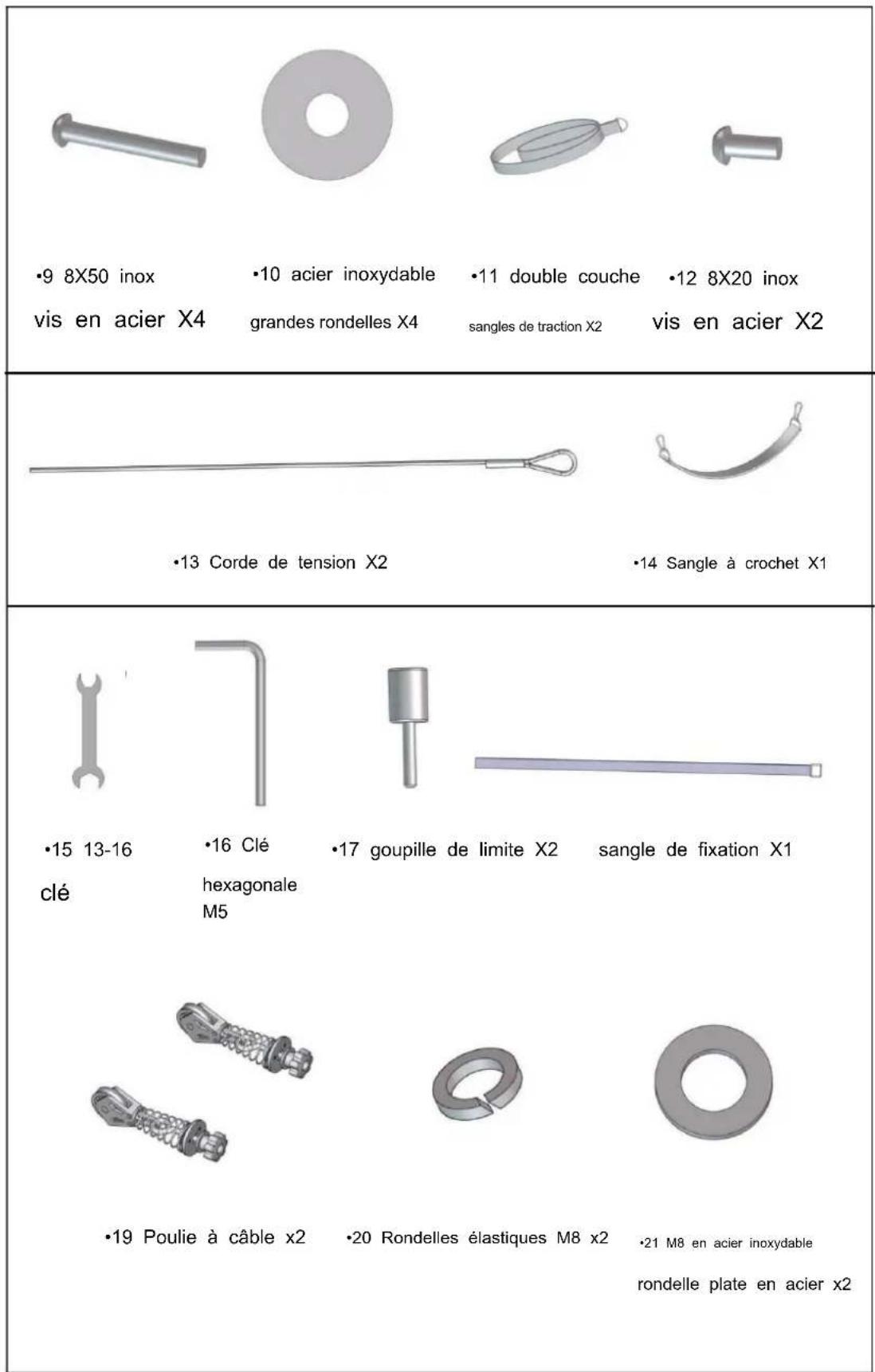

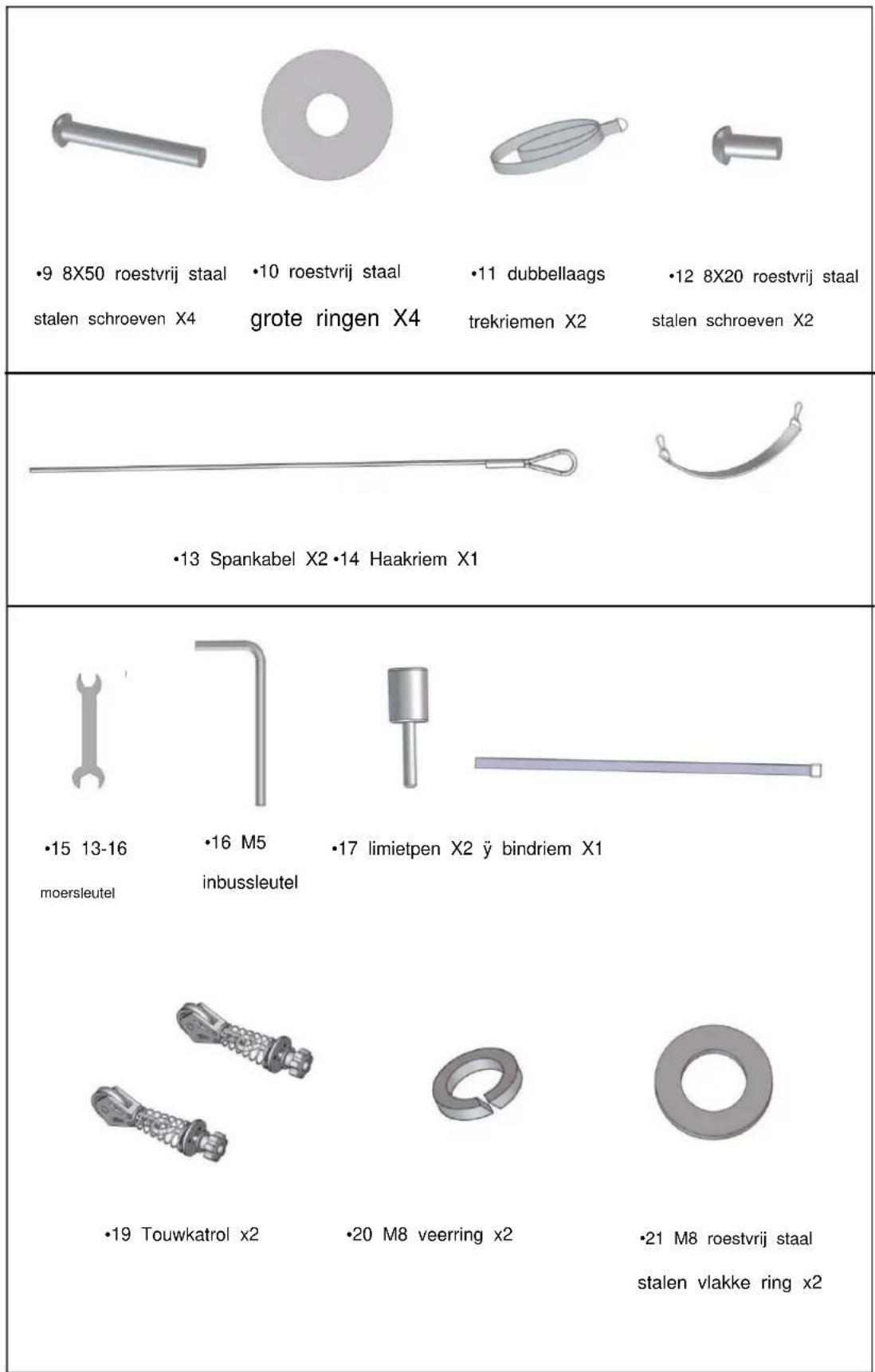

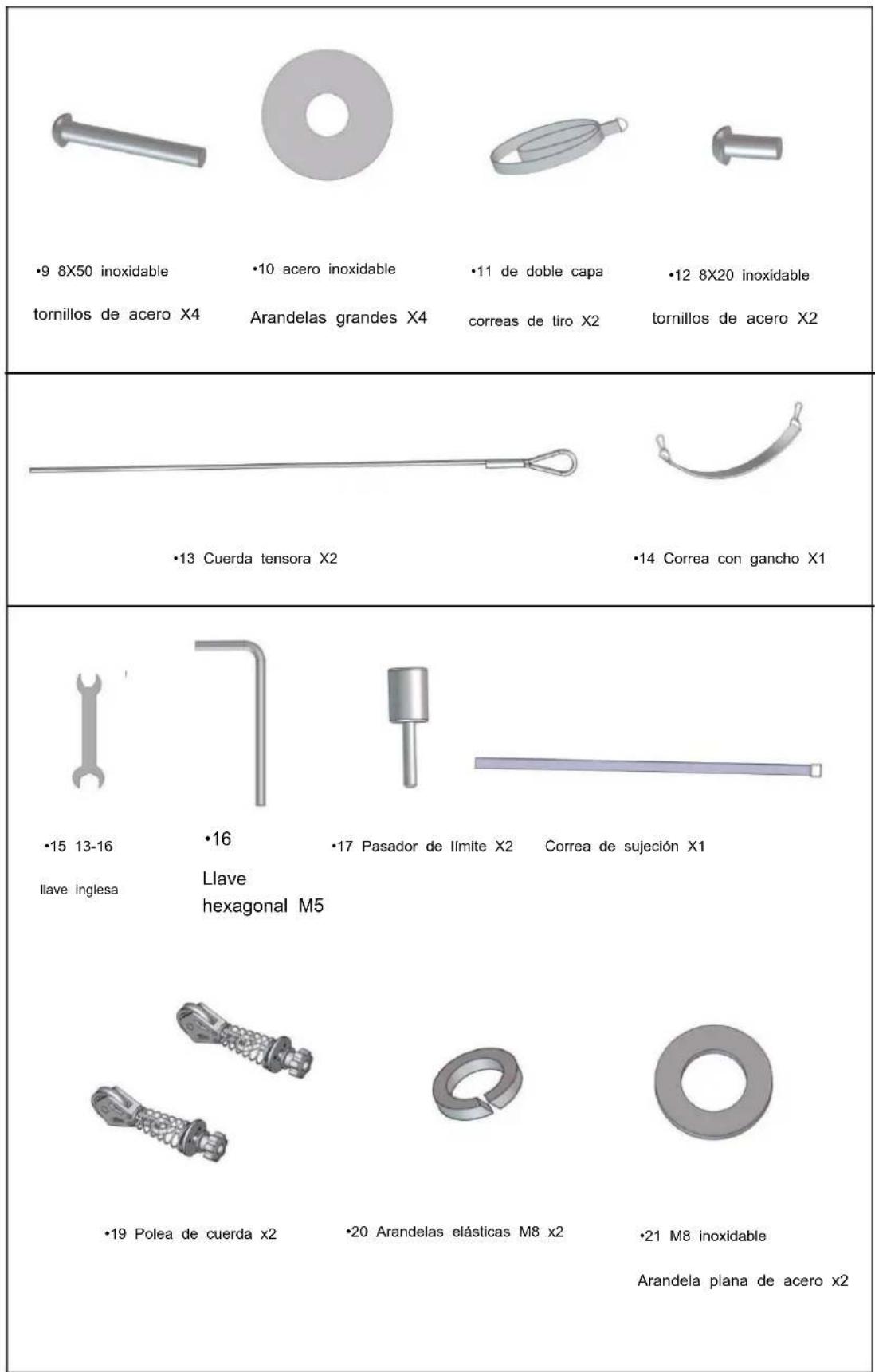

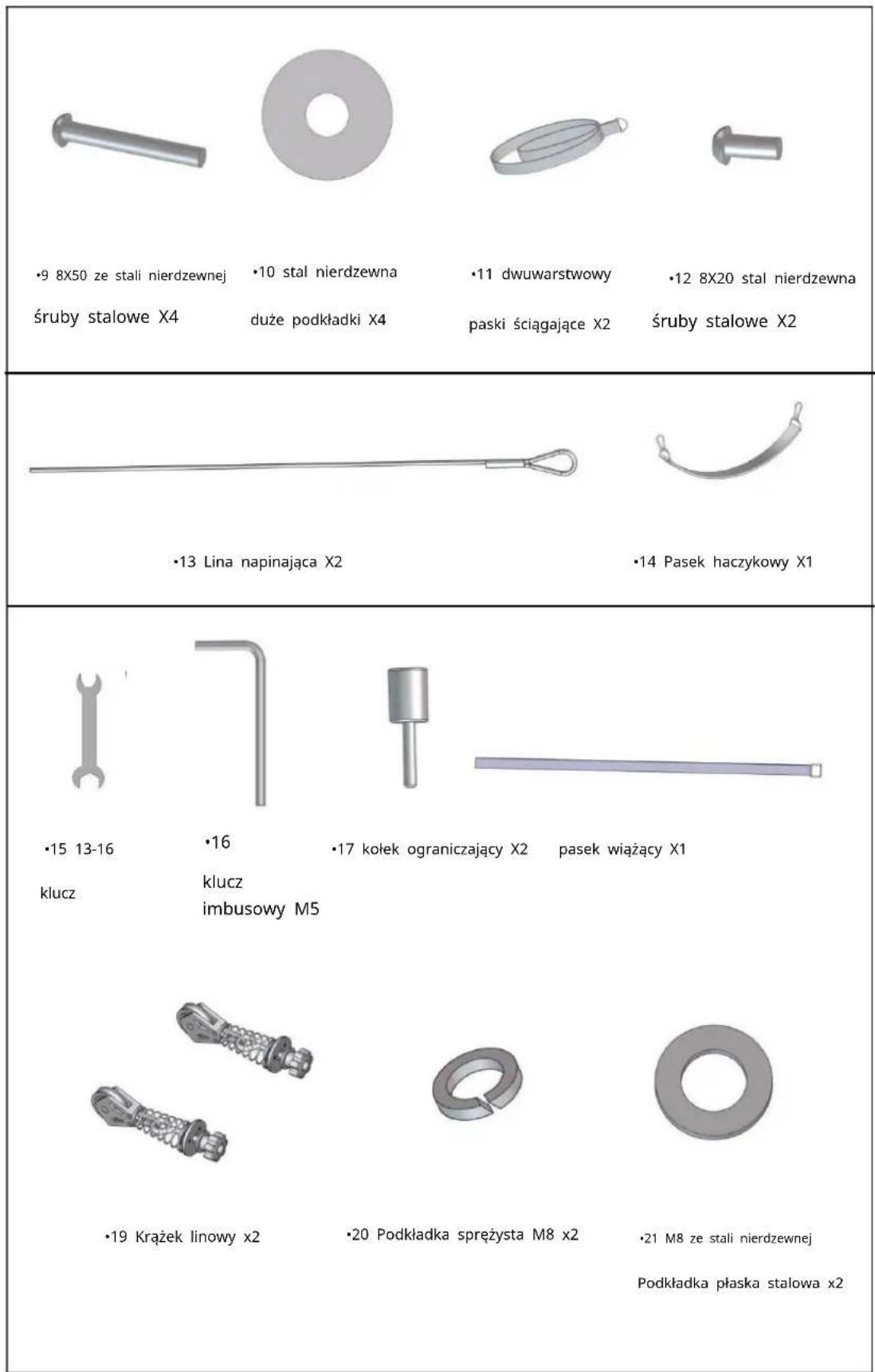

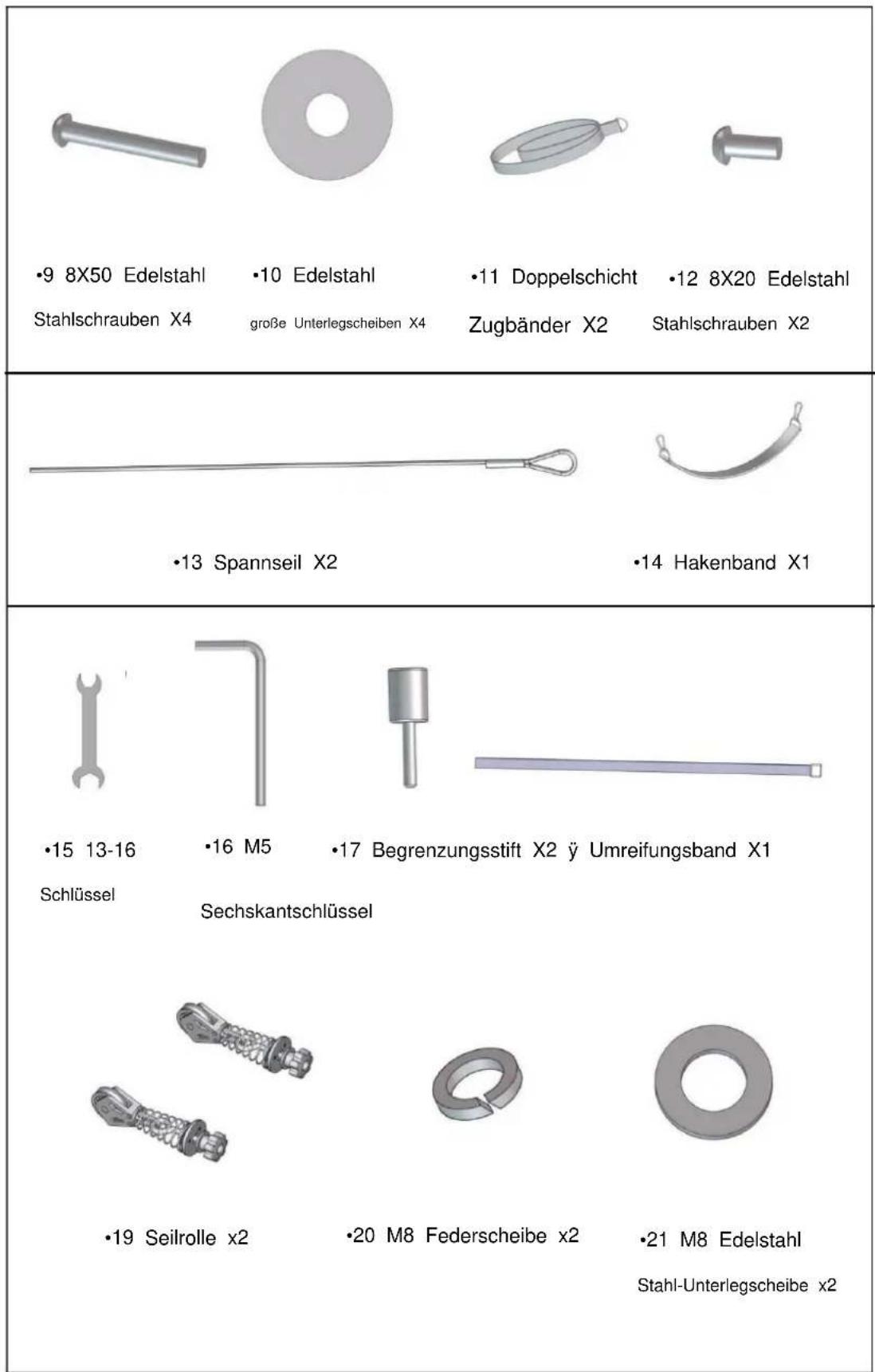

9 8X50 stainless 10 stainless steel 11 double-layer 12 8X20 stainlesssteel screws X4 large washers X4 pull straps X2 steel screws X2

13 Tension rope X2 14 Hook strap X1

15 13-16 16 M5 17 limit pin X2 18 binding strap X1wrench hexagonal wrench 19 Rope pulley x2 20 M8 spring washer x2 21 M8 stainlesssteel flat washer x2

Installation Steps

Step (1)

As shown in the picture: When you receive the goods, the bed is in a folded flat position. You need to stand the bed upright first, then remove straps, and stand on one side of the bed, grab the middle hinge axis with your hand, separate the bed frame, and unfold it flat.

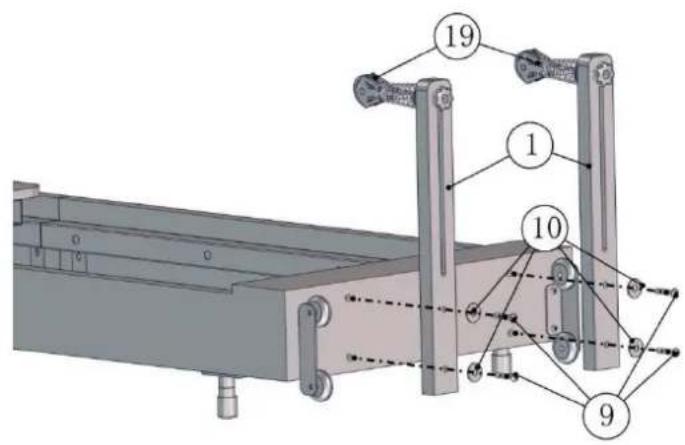

Step (2)

Technical diagram of a mechanical assembly with numbered components, likely a valve or clamp mechanism.

Prepare accessories:①wooden poles x2⑨8X50 stainless steel screws x4,

⑩ stainless steel large washers ⑭ rope pulleys x2

First, ① align the hole on the wooden pole with the hole reserved on the bed frame,

put a⑨ large stainless steel gasket① on the 8X50 stainless steel screw , and then

align it⑩ with the hole on the wooden pole, ⑧dighten it with the 8X50

stainless steel screw. (Note: Do not tighten the 8X50 stainless steel screw first,

screw all 4⑨8X50 stainless steel screws into the hole, and then tighten them to

prevent the holes from being misaligned.)

Step (3)

Technical diagram showing mechanical assembly with labeled components and motion arrows

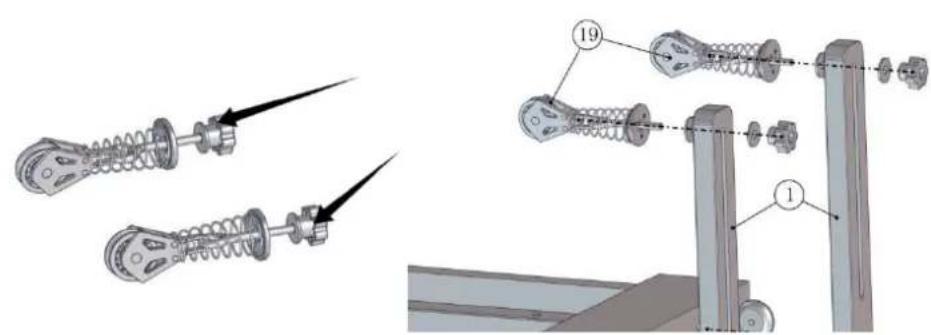

Prepare accessories:⑲ rope pulley X2

First ⑲ unscrew the knob nut on the rope pulley, then take down a large stainless steel gasket, and then insert it into the long groove in the middle of the wooden pole, and then install the removed large stainless steel gasket and knob nut.

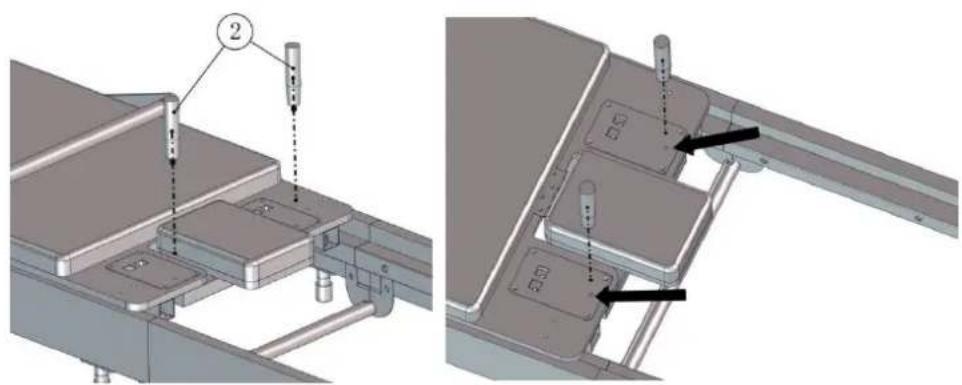

Step (4)

Technical diagram showing two views of a mechanical assembly with labeled components (no text or symbols present)

Prepare accessories:②shoulder pillow bakelite armrest x2

There are two round holes on the stainless steel plate of the shoulder rest. Just align them with the holes inside and screw them in.

Step (5)

Technical diagram showing two mechanical assembly setups with numbered components and alignment indicators

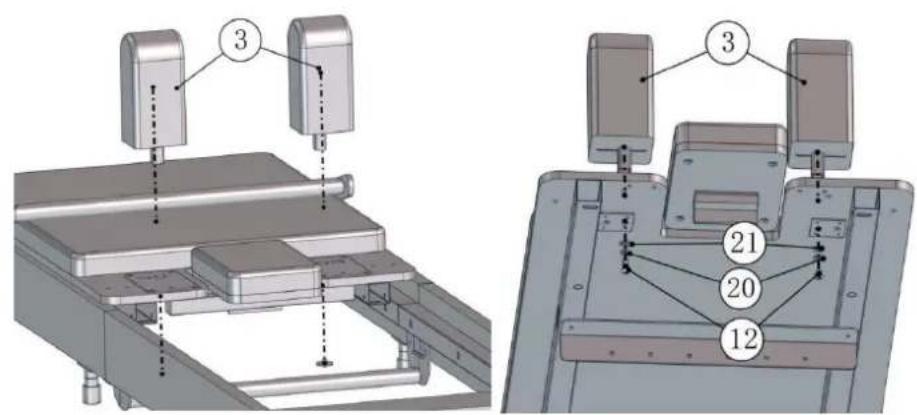

Prepare accessories:③ shoulder pillow X2,⑫ 8X20 stainless steel screws X2,

⑳ M8 spring washers X21 M8 stainless steel flat washers X2

Align ③ the shoulder pillow with the square hole on the stainless steel plate of the shoulder pillow on the skateboard, and insert it from top to bottom. There is a reserved hole on the shoulder pillow. ①8X20 stainless steel screws to align ③ the reserved holes on the shoulder pillow under the shoulder pillow block to fasten it. (Under the shoulder pillow ②e M8 stainless steel flat washer ②0- M8 spring washers +⑫ 8X20 stainless steel screws)

Step (6)

Technical diagram of a mechanical assembly with labeled components 5 and 6, showing structural parts and motion indicators.

3D mechanical assembly diagram showing a bracket with mounting holes and a black arrow indicating a component (no text or symbols present)

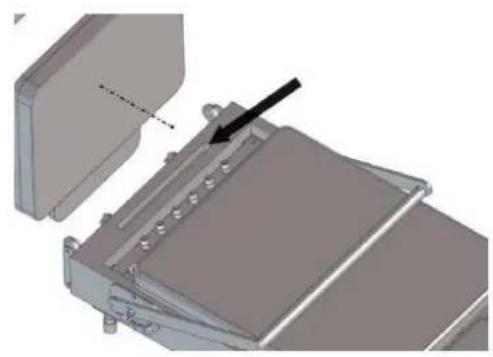

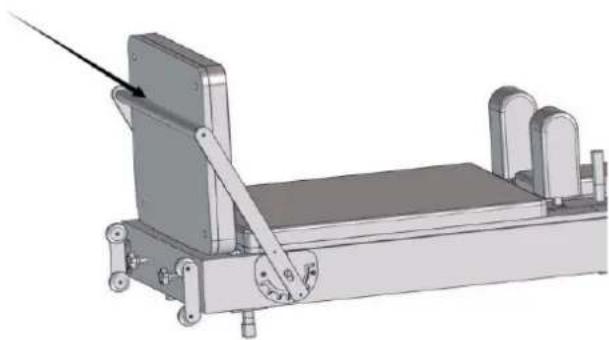

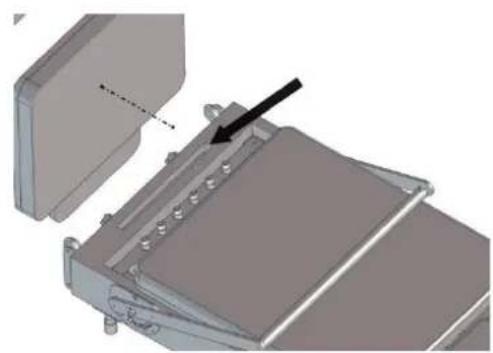

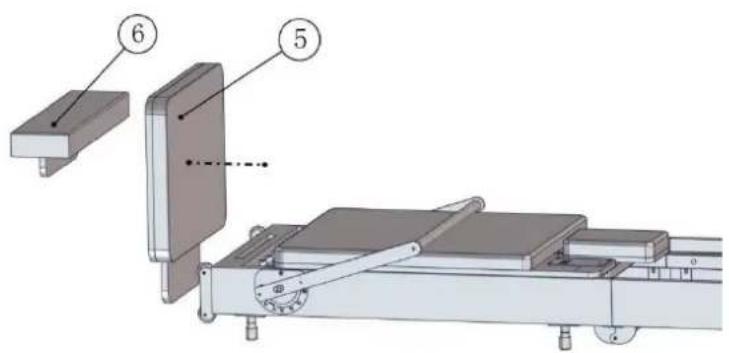

Prepare accessories:⑤ springboard x1,⑥ pedal x1

There is a long slot on one side of the bed fram⑥ and footrest and

⑤ springboard are inserted into the long slot as needed.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

(Note: When the springboard is in use, the stop bar should be adjusted to the rear of the springboard to serve as a support.)

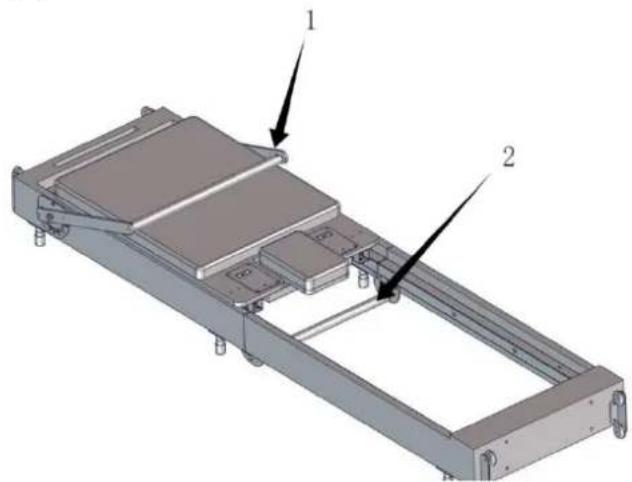

Step (7)

Technical diagram of a mechanical assembly with numbered components, likely a device or machine component.

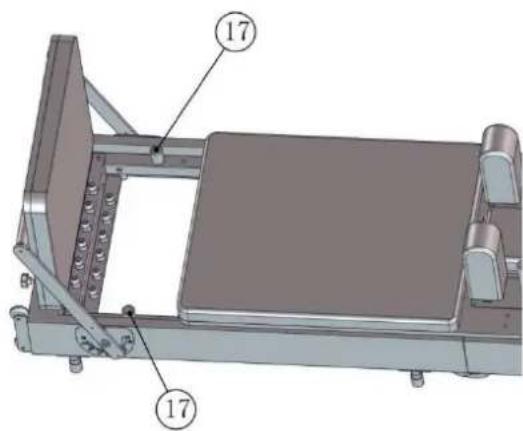

Prepare accessories:⑰ limit pins X2

When using the core be①⑦ the limit pin must be inserted into the slide rail before it can be used.

(foldable for storage)

3D mechanical assembly diagram showing two labeled components (1 and 2) with no visible text or symbols

Prepare accessories:⑱ strap x1

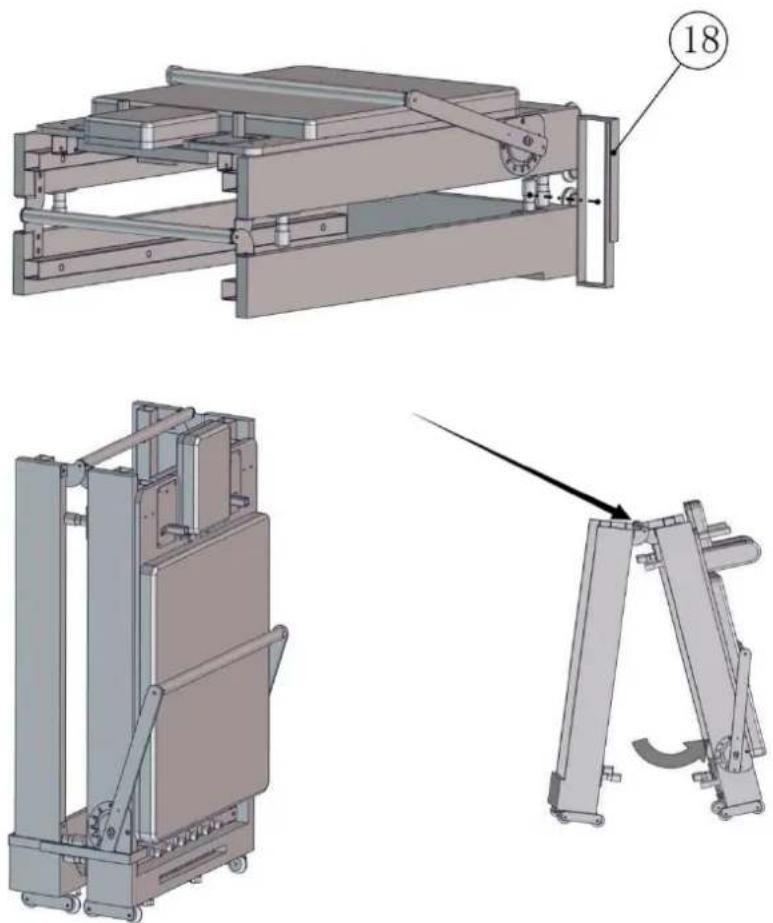

After using the core bed, when you want to fold it up and store it, you need to adjust the armrest (1 as shown in the figure) to a position close to the sliding bed.

3D technical illustration of a mechanical lifting device with no visible text or symbols

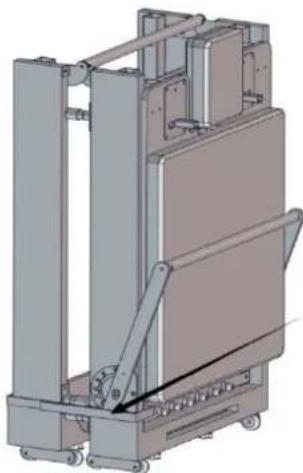

A person stands on one side of the bed, grabs the middle hinge axis with his hand (2 as shown in the figure), and lifts it up until the bed is upright, then straps straps around the bed and tightens it.

3D technical illustration of a mechanical lifting device with vertical and horizontal components (no text or symbols)

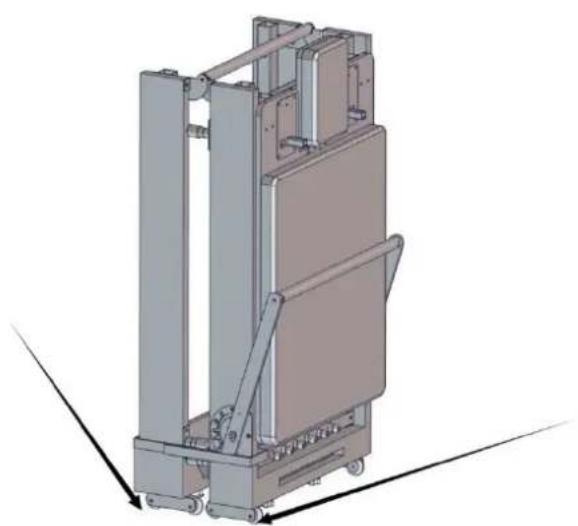

⑱ After the straps are wrapped tightly around the bed, there are movable wheels under the bed, which can be used to push the bed to move

Technical illustration of a mechanical assembly with rollers, gears, and a box (no text or symbols)
