USER MANUAL SMS-002 Vevor

Affordable. Reliable. Home Improvement.

WIRE STRIPPING MACHINE

MODEL: SMS-002

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

WIRE STRIPPING MACHINE

MODEL:SMS-002

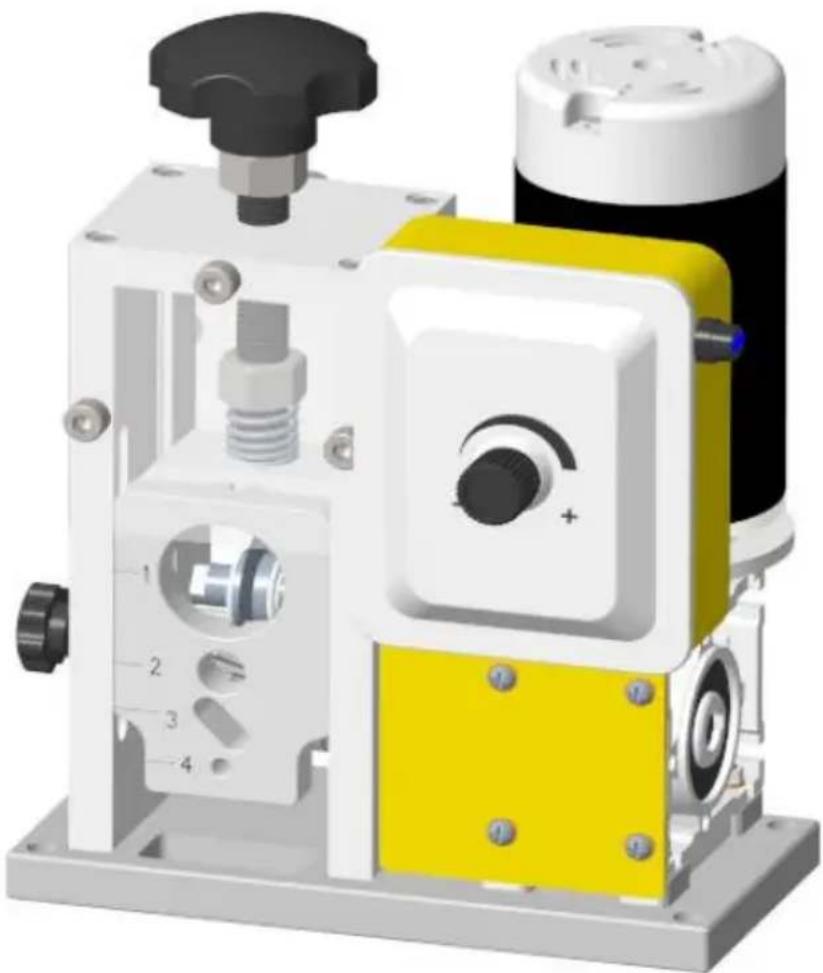

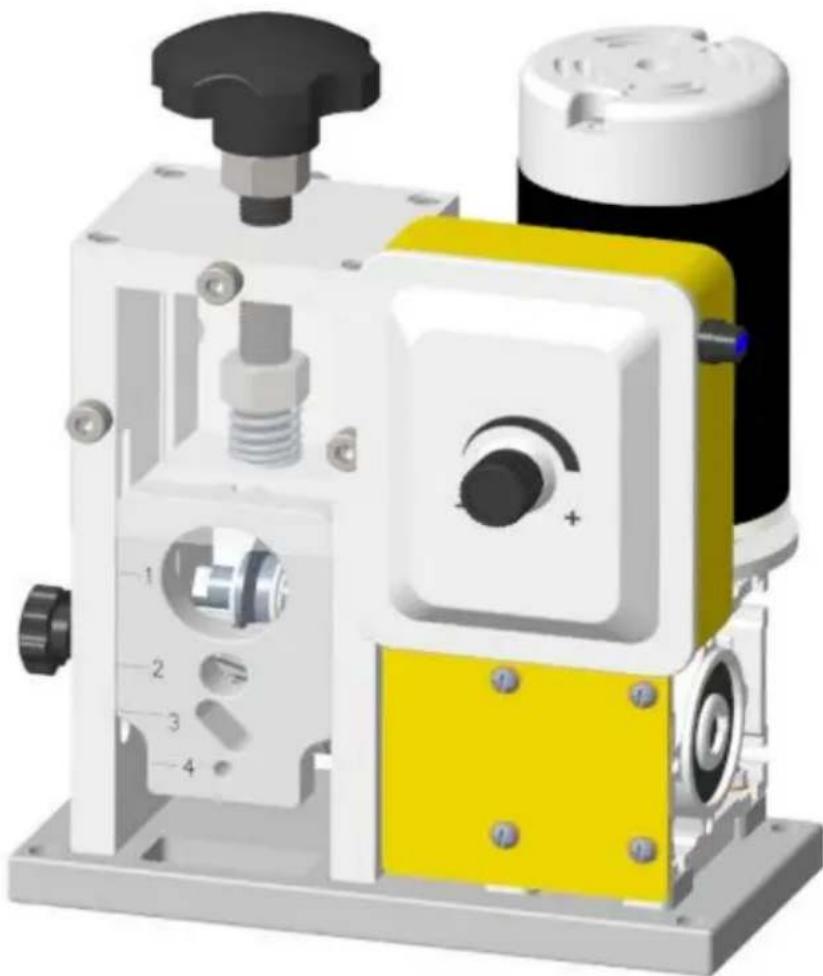

Vevor SMS-002 - MODEL:SMS-002 - 1

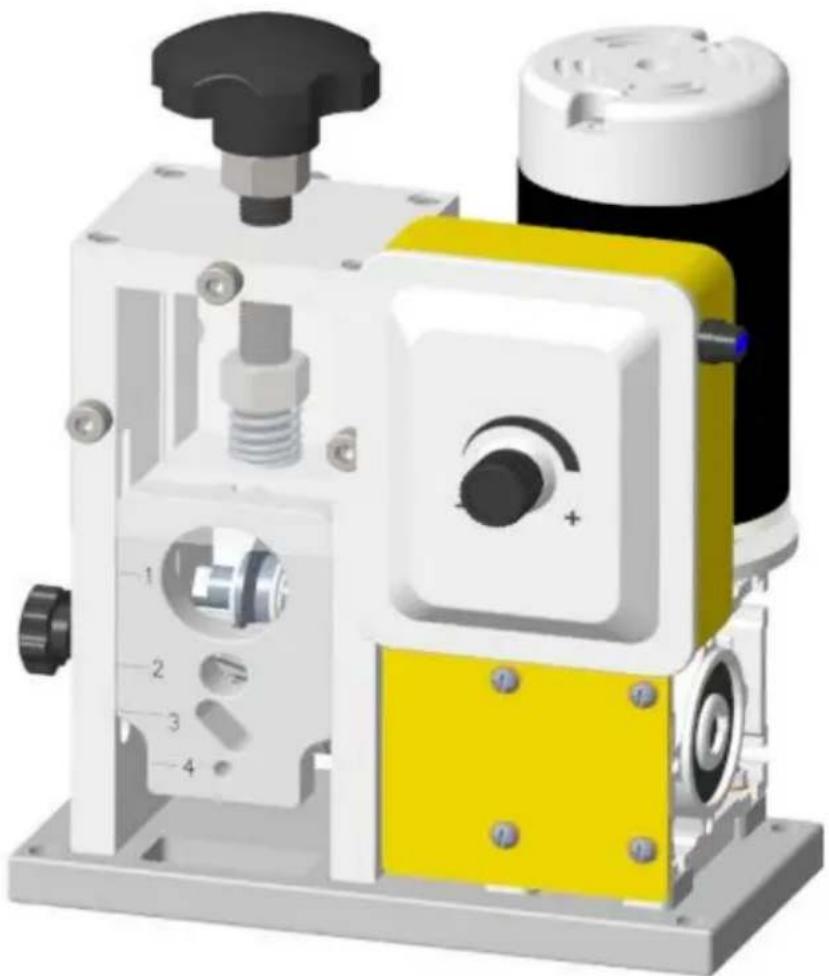

natural_image 3D mechanical assembly diagram showing internal components with numbered parts (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

INSTRUCTIONS

1、Product introduction

This product is a kind of electric small cable recovery stripping machine, the machine adopts aluminum body, the motor is aluminum shell DC carbon brush motor, the machine structure is light, delicate, beautiful, easy to carry, easy to operate. Suitable for families, small repair shops, electronics enthusiasts, etc., the machine is used to quickly and efficiently strip the outer skin of wires and cables, and recycle bare copper wires or aluminum wires and plastic of the outer skin.

2、Product features:

  1. Compact size, easy to operate.
  2. Adopt stepless speed regulation electric design, improve work efficiency.
  3. Adjustable stripping blade, adapt to different specifications of cal
  4. The body is equipped with adjustment scale, which is more convenient to adjust to different specifications of cables.

3、Safety precautions:

  1. Please read the instructions carefully before use to ensure correct operation.
  2. Do not touch the blade or the cable being stripped with your h while the machine is working.
  3. Please ensure that the cables are placed correctly to avoid dam to the machine due to improper operation.
  4. Check the wires and plugs of the machine regularly to ensure that there is no wear or damage.
  5. Please use and store the unit out of reach of children.

4、Specifications

NameModelDimensions (mm) (L*W*H)Weight (kg)Power (kW)Stripping range (diameter/mm)
Aluminum alloy electric stripping machineSMS-002236×166×29590.40 1.5~ 40 (Wires and cables shall not be covered with metal armor of silicone sheath.)

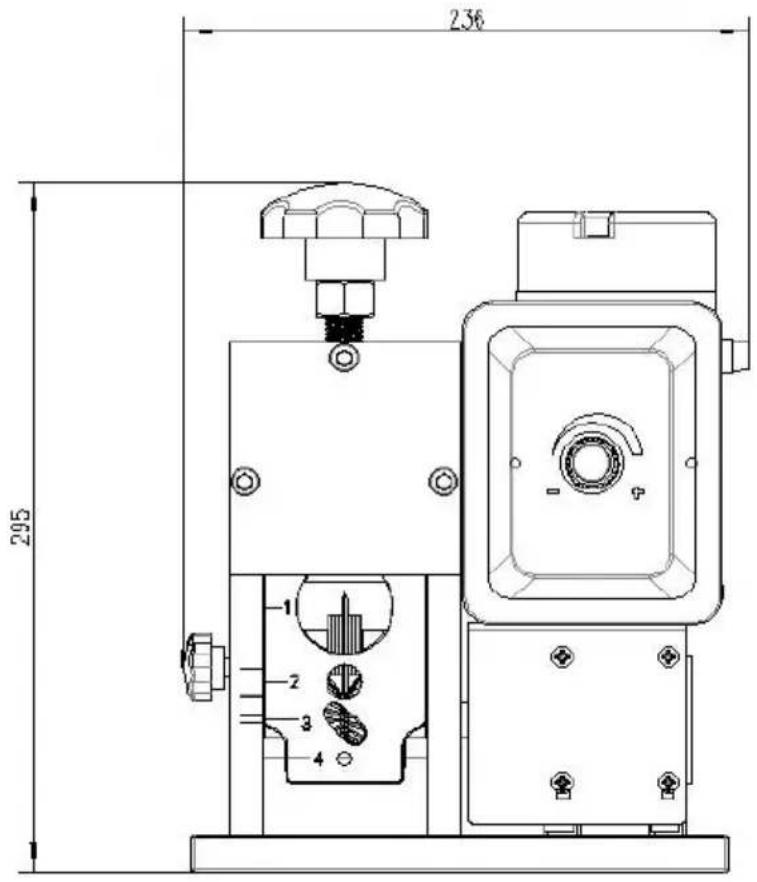

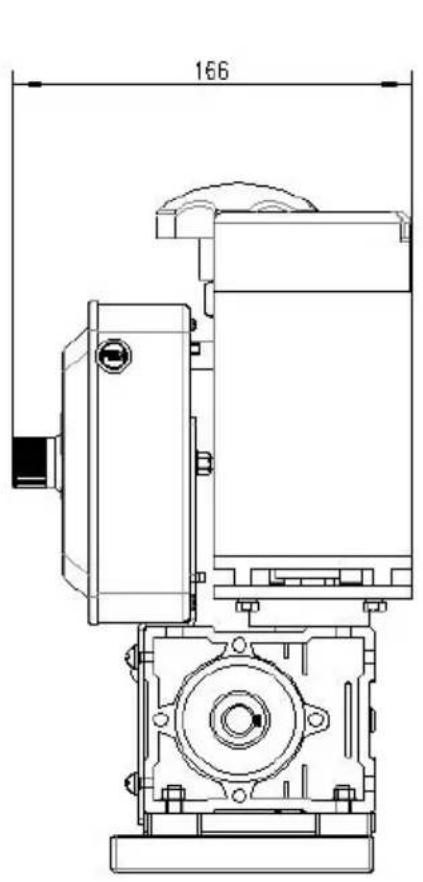

1.Appearance

166

236 295 1 2 3 4

2.Main components

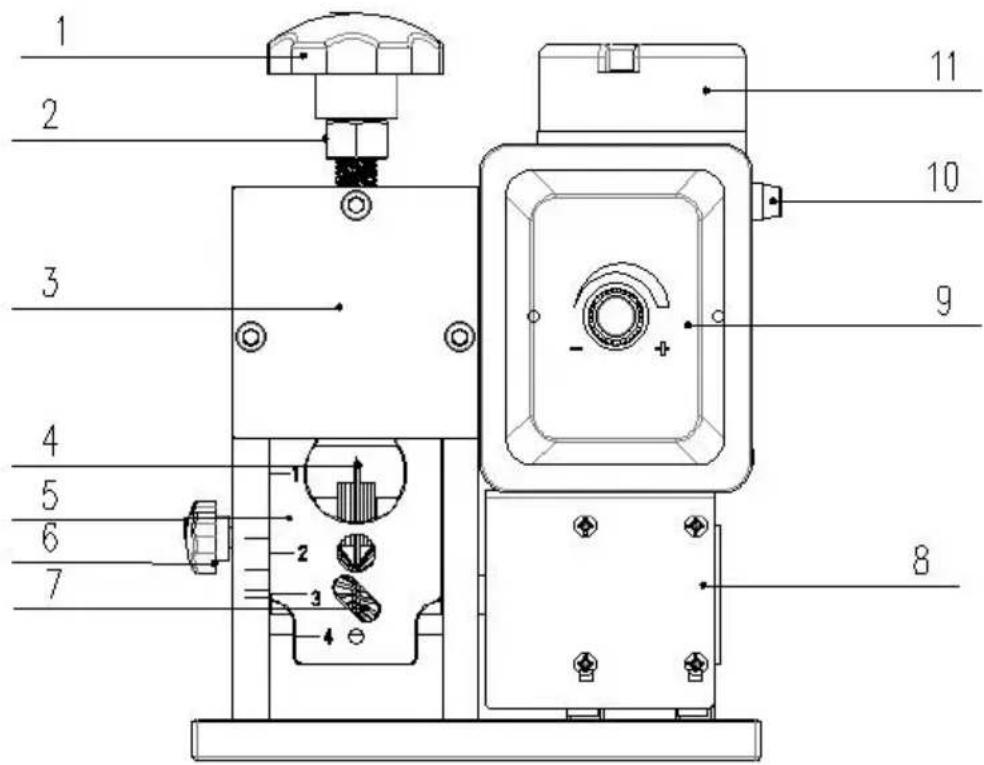

1 2 3 4 5 6 7 11 10 9 8 2 3 4

1: M16 Plastic Handle Adjusting Screw 7: Helical Gear
2: M16 Screw Lock Nut 8: Reducer
3: Panel 9: Switch Speed Control Panel
4: Blade 10: Current Fuse
5: Input Board 11: Dc Carbon Brush Motor
6: Locking Screw of Feeding Plate

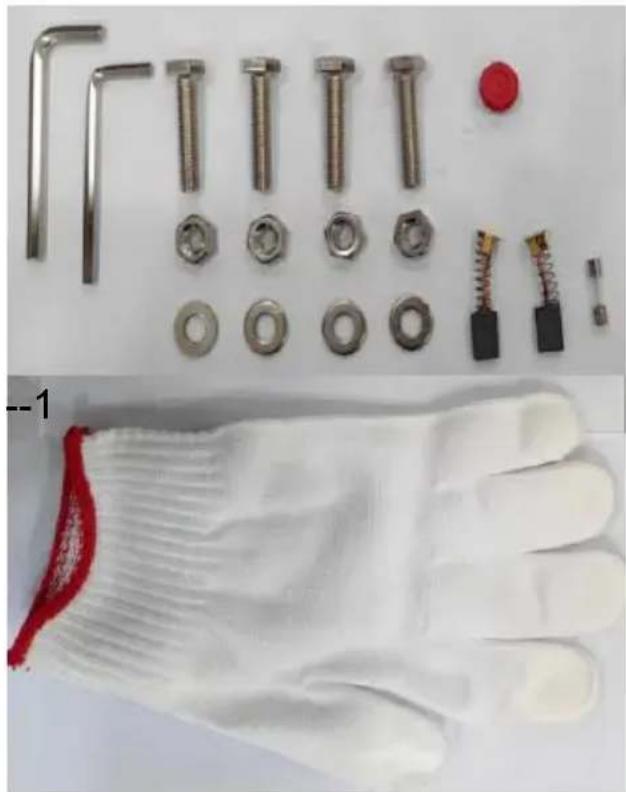

3.SMS-002 accessories

Kit Details:

4#Hexagon Wrench--- 1

5#Hexagon Wrench--- 1

6#Hexagon Wrench--- 1

M8 x 35 Hexagon Bolt-- 4

Plastic Exhaust Nut for Reducer

M8 Nut -- 4

D8 Plain Washer -- 4

Carbon Brush -- 2

Gloves--1

Fuse--1

Vevor SMS-002 - 3.SMS-002 accessories - 1

natural_image Collection of mechanical parts including bolts, nuts, bolts, and a gloved hand with red strap (no text or symbols visible)

4.SMS-002 Instruction

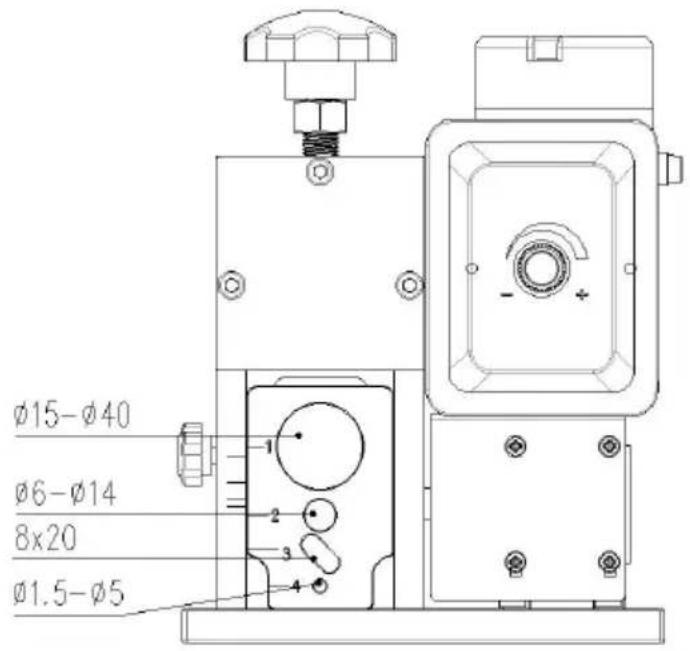

(1) Select the corresponding wire entry hole according to the diameter of the wire (as shown in the figure below)

Ø15-Ø40 Ø6-Ø14 8x20 Ø1.5-Ø5

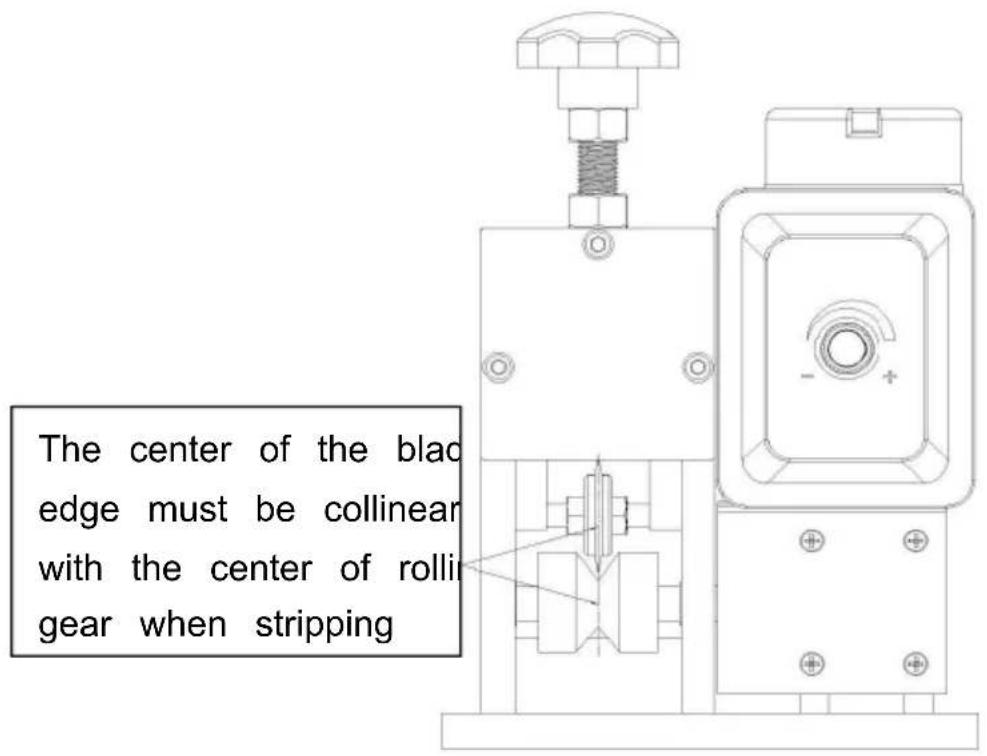

(2): The center of the blade edge must be collinear with the center of the V-groove (the groove formed between two rolling gear) when stripping. shown below)

The center of the blac edge must be collinear with the center of rolli gear when stripping

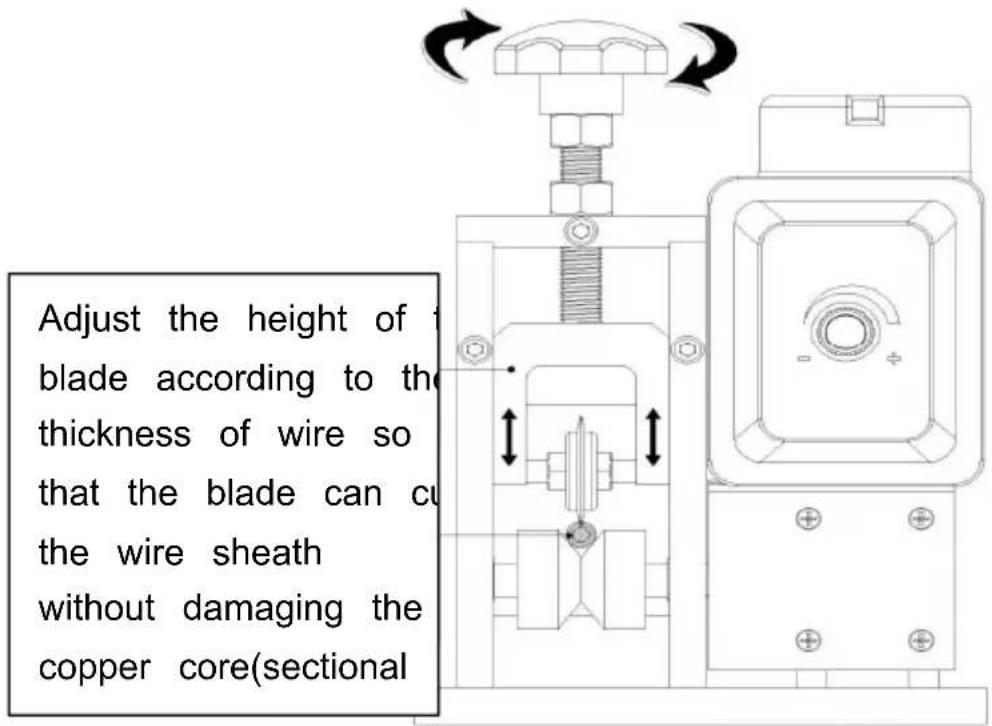

(3)Adjust the height of the blade so that the blade can cut the wire without damaging the copper core (as shown in the figure below).

Adjust the height of blade according to the thickness of wire so that the blade can cut the wire sheath without damaging the copper core(sectional

Vevor SMS-002 - 4.SMS-002 Instruction - 4

natural_image Technical line drawing of a mechanical device with no visible text or symbols

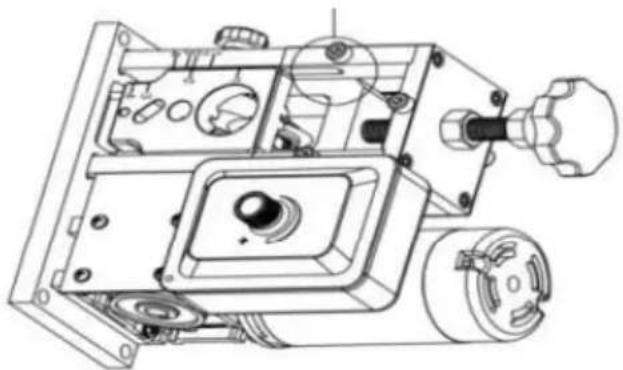

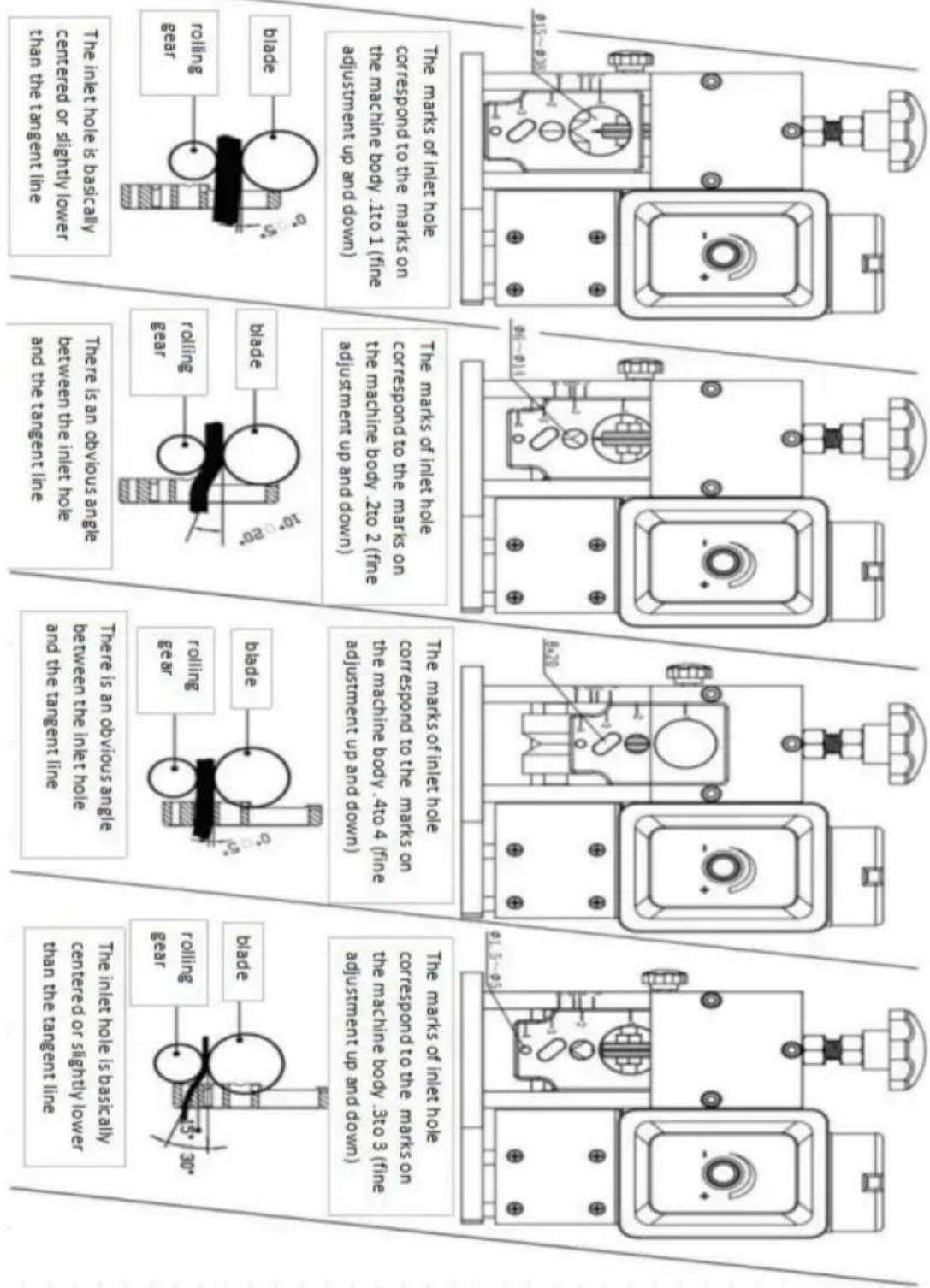

The marks of inlet hole correspond to the marks on the machine body .1to 1 (fine adjustment up and down) The marks of inlet hole correspond to the marks on the machine body .2to 2 (fine adjustment up and down) The marks of inlet hole correspond to the marks on the machine body .4to 4 (fine adjustment up and down) The marks of inlet hole correspond to the marks on the machine body .3to 3 (fine adjustment up and down) The inlet hole is basically centered or slightly lower than the tangent line There is an obvious angle between the inlet hole and the tangent line There is an obvious angle between the inlet hole and the tangent line The inlet hole is basically centered or slightly lower than the tangent line

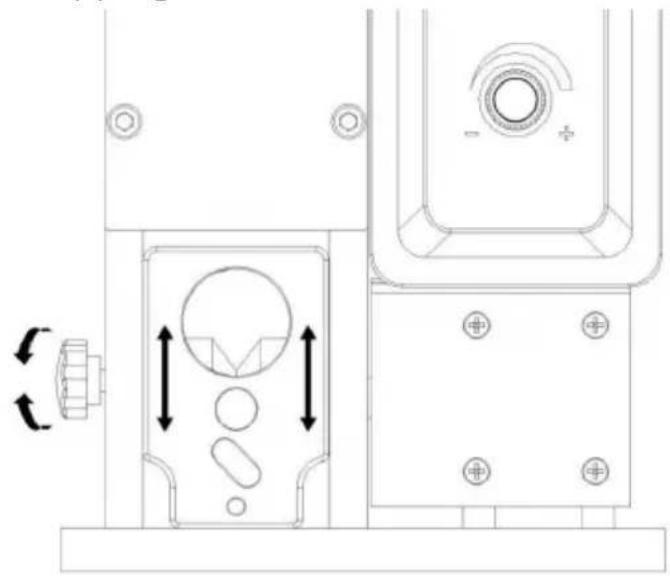

(4): When stripping the wire, adjust the height of the wire entry plate according to the thickness of the wire (thick wire and hard wire gene need to put the wire entry hole to a high profile, while soft wire and should put the wire entry hole down), so that the wire is not easy to eccentric when stripping the wire.

Vevor SMS-002 - 4.SMS-002 Instruction - 6

natural_image Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)

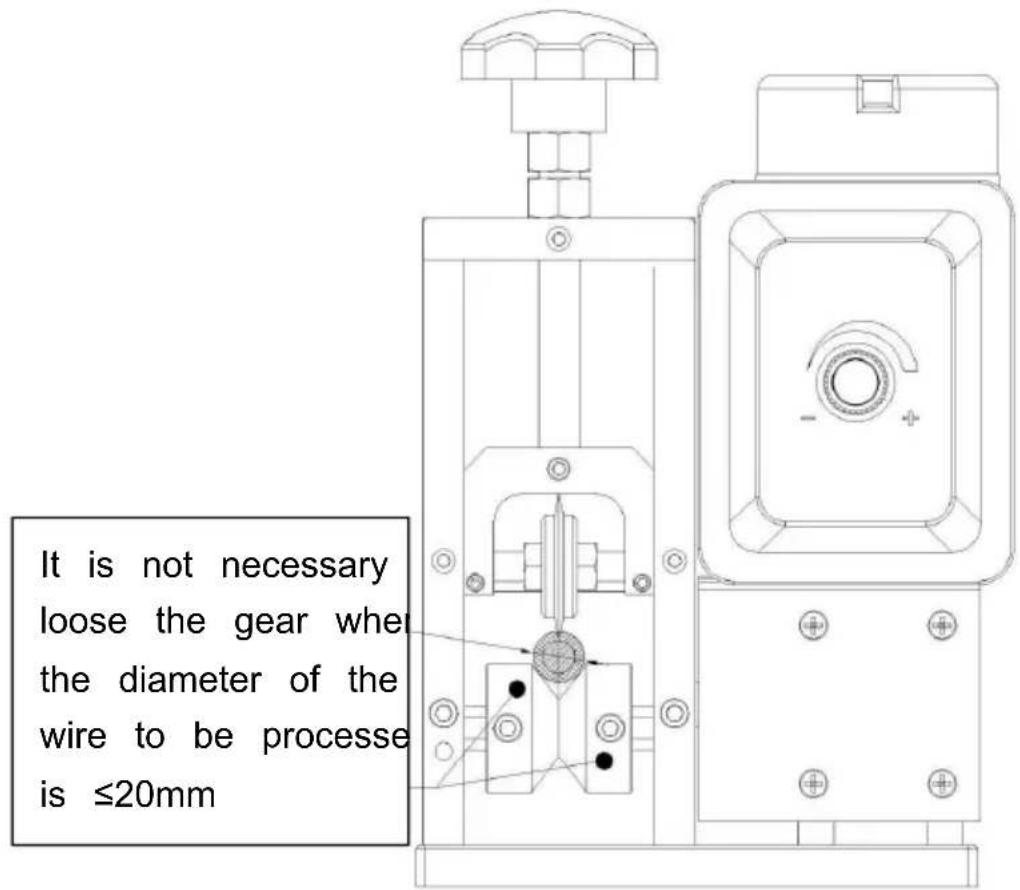

(5): When the diameter of the wire to be processed is ≤ 20mm

It is not necessary loose the gear when the diameter of the wire to be processe is ≤20mm

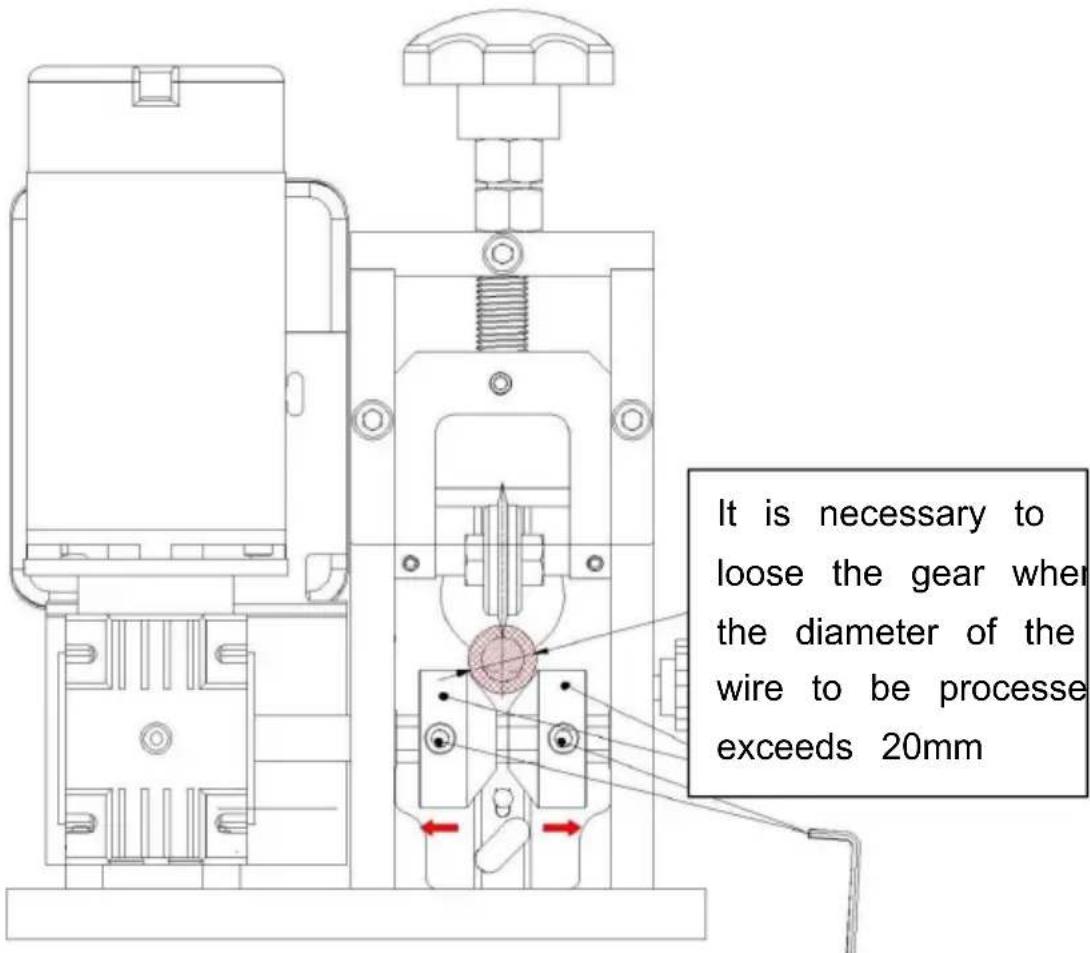

(6)When the wire diameter exceeds 20mm

It is necessary to loose the gear when the diameter of the wire to be processe exceeds 20mm

5、 Attention

1 Safe operation

When operating the mini cable recycling manual stripping machine, be sure to wear appropriate protective equipment, such as gloves and goggles, to protect yourself. Avoid direct contact with blades to prevent scratches or cuts.

2 Scope of application

This stripping machine is only suitable for stripping cable sheath, not suitable for stripping other materials. Do not use it to peel rubber, plastic, or other non-cable materials.

3 Cleaning and maintenance

Note: Be sure to cut off the power supply during cleaning and maintenance!

After use, please clean the stripping machine in time to remove residual cable skin and debris. Store the stripping machine in a dry, ventilated place to avoid rust or damage to the blades.

4 Compliance with regulations

Strictly follow the operating procedures in this manual to avoid equipment damage or personal injury caused by illegal operation.

6、Troubleshooting

If the stripping machine fails to strip the wire during the stripping process, there may be several reasons:

(i) The diameter of the stripped wire is too small (the diameter of the wire to be treated shall not be less than 1.5mm including the outer skin)
(ii) The center of the blade and the center of the V-groove formed by the two rolling gear are not on a line
(iii) If the blade edge is not sharp, replace it with a new blade.

Do not put your hand into the machine when it is running (be sure to stop the machine first, press the stop button and then check and debug and troubleshoot the machine). Do not touch the cutting edge directly with your hand to avoid cutting the handle.

(iii)If the motor cannot start normally, first cut off the power supply, and then turn out the fuse as shown in the figure below to check whether the fuse is normal. If burned, please replace the fuse with the same specifications.
(iiiii) Abnormal operation of equipment, may be internal parts of the equipment damaged or loose. Please check the connection of each part of the equipment, if loose or damaged, please repair or replace in time.

Vevor SMS-002 - 6、Troubleshooting - 1

natural_image 3D mechanical assembly diagram showing internal components with no visible text or symbols

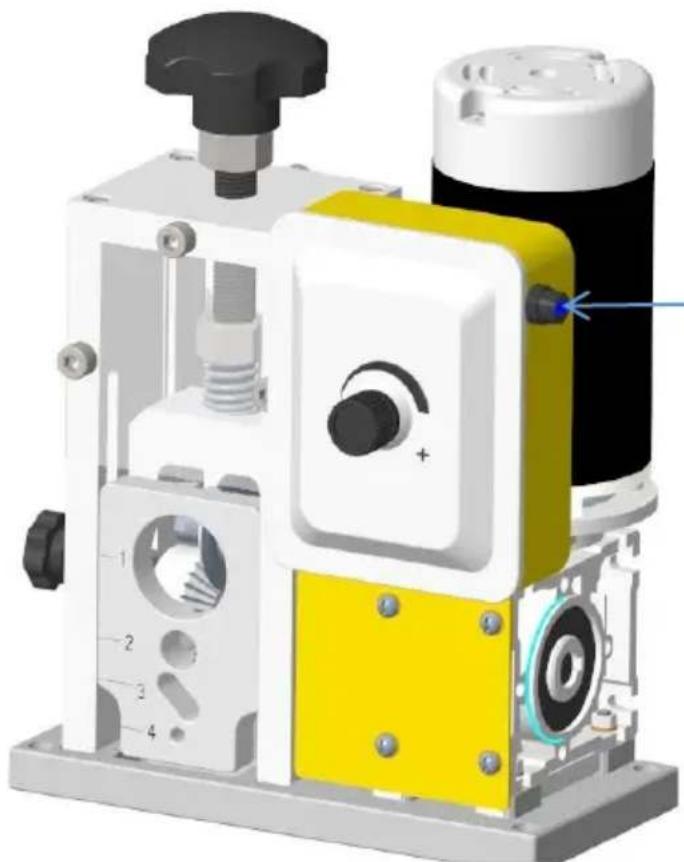

unscrewing current fuse

7、Contact information:

For technical support or service, please contact our Customer Service Department.

Please keep this manual properly in case of emergency.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

ECREP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UKREP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

Vevor SMS-002 - 7、Contact information: - 1

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

DÉNUDAGE DE FILS

MACHINE

MODÈLE : SMS-002

Vevor SMS-002 - Affordable. Reliable. Home Improvement. - 1

natural_image 3D mechanical assembly diagram showing internal components with numbered parts (no text or symbols)
natural_image Collection of metal fasteners and bolts on a white surface, including bolts, nuts, washers, and a red circular component (no text or symbols visible)

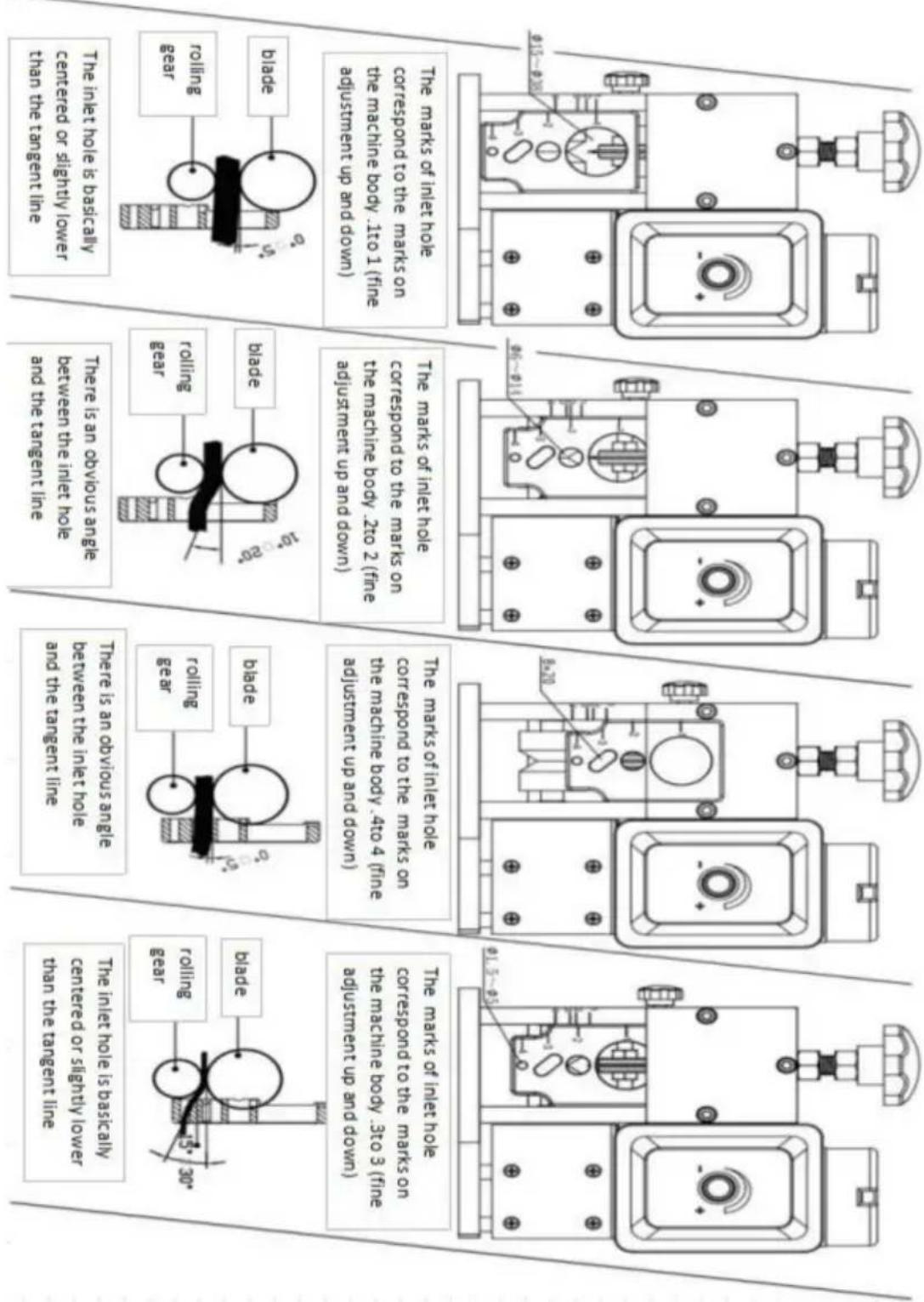

4.Instructions SMS-002 :

natural_image Technical line drawing of a mechanical assembly with gears and housing (no text or symbols)

The marks of inlet hole correspond to the marks on the machine body .1to 1 (fine adjustment up and down) The inlet hole is basically centered or slightly lower than the tangent line The markers of inlet hole correspond to the marks on the machine body .2to 2 (fine adjustment up and down) The marks of inlet hole correspond to the marks on the machine body .4to 4 (fine adjustment up and down) There is an obvious angle between the inlet hole and the tangent line There is an obvious angle between the inlet hole and the tangent line The markers of inlet hole correspond to the marks on the machine body .3to 3 (fine adjustment up and down) The inlet hole is basically centered or slightly lower than the tangent line

natural_image Technical line drawing of a mechanical assembly with mounting holes and internal components (no text or symbols)
natural_image 3D mechanical assembly diagram showing internal components with numbered parts (no text or symbols)

dévisser le
