USER MANUAL Y-001-2L Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WIRE STRIPPING MACHINE USER MANUAL

MODEL: Y-001-2L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: Y-001-2L

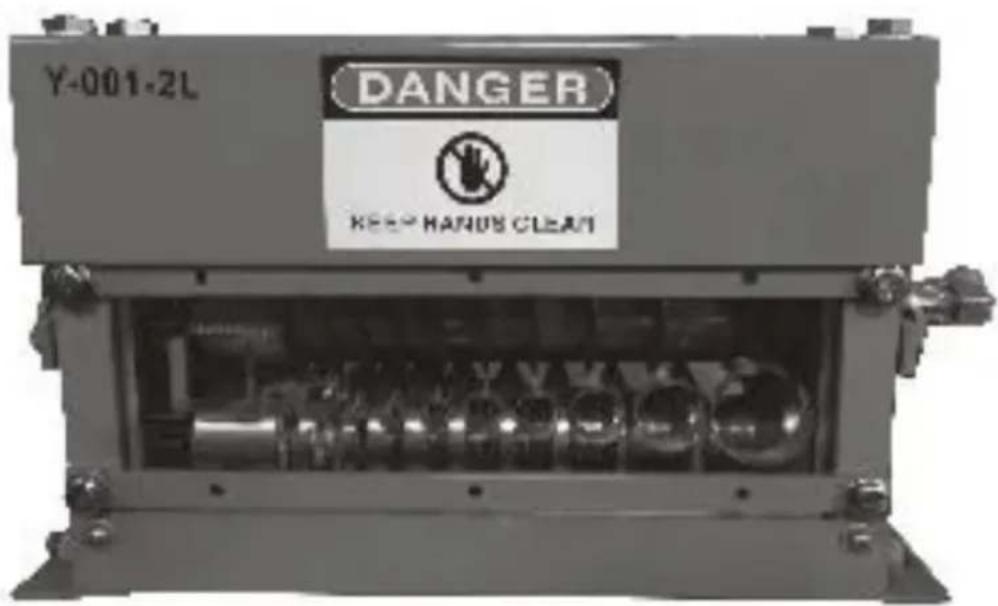

Y-001-2L DANGER KEEP HANDS CLEAN

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read in manual carefully.

INSTRUCTIONS

Wire Stripping range: 1.5mm\~40mm

This machine is easy to operate and convenient to carry, can process core copper wire, twin cores copper wire.

Measurement:L47cm×W21cm×H29cm

Weight: 22.2kg

Please note that there will be a little bit errors in actual use

1. Comparing the cables/wires'diameters with the feeding holes on the machine, feeding the cables/wires one piece at one time. Before feeding cables/wires, please cut off the head of the cables/wires, to avoid gaps caused to the blades.

2. On the output side, if the cuts on the cables/wires are too deep, please check below points:

① Please adjust the handles on the input side, screw down or loose (M12 handles)
② Check whether the cables/wires on the right position as you feed them.
③ Make sure the blades are sharp, if not, polish them with the oil sto

1. On the output side, if see the plastic(PVC) has been stripped, but the copper wires can not be disgorged, please check below 4 points:

① polish The axis of the upside with the oil stone
②Check whether the springs are loose, if yes, screw down to make the tighten
③The diameter of the cables/wires are too small, please adjust the space between the two axises to 0.3-0.6mm.

④If the cables/wires you want to strip are hot, also can not get the wires stripped out.

1. If the cables/wires were blocked in the axes, please check below points:

① If the springs on the press wheels are too tight, loose them.
② There are too much oil on the cables/wires, please wipe it.

1. If see the blades tilted :

①Check whether the center adjuster was loosed.
②centering adjustment and adjust the screws of two sides of it.

Make sure the cables/wires'diameter are similar with the feeding holes, large cables/wires in large feeding holes, small cables/wires in sr feeding holes, flat cables/wires in flat feeding holes.

This product comes with the following items: manual, gloves, hand wheel, hexagon screw and adjusting handle
