USER MANUAL TWW115 Vevor

Affordable. Reliable. Home Improvement.

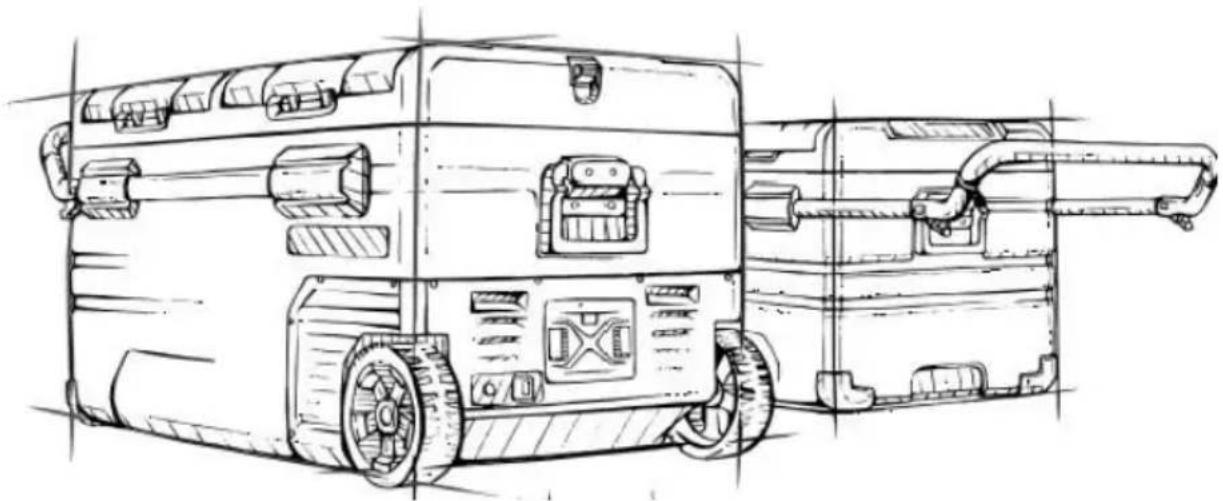

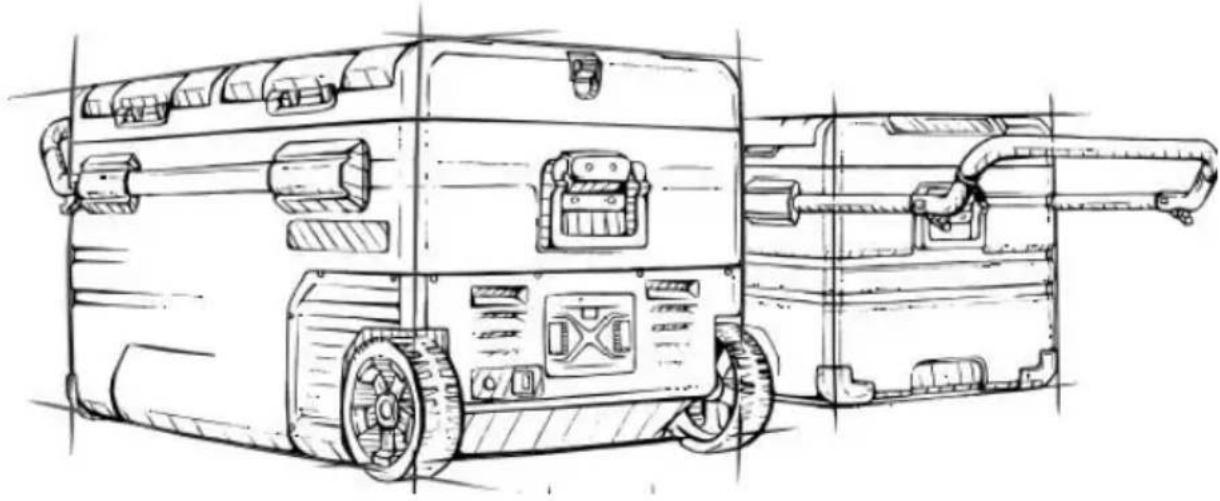

CAR REFRIGERATOR

USER MANUAL

MODEL: TWW95 TWW115

SMART CONTROL- FRIDGEAPP INSTRUCTIONS

First Step: Turn on the Bluetooth on your smart device; start the AP click "Search" to find nearby fridges.

Second Step: Click fridge icon for Bluetooth pairing (the APP will prom you to pair the fridge by pressing the set button on the fridge's panel when connecting the fridge for the first time). After pairing, the will switch to the main interface allowing you to control the fridge.

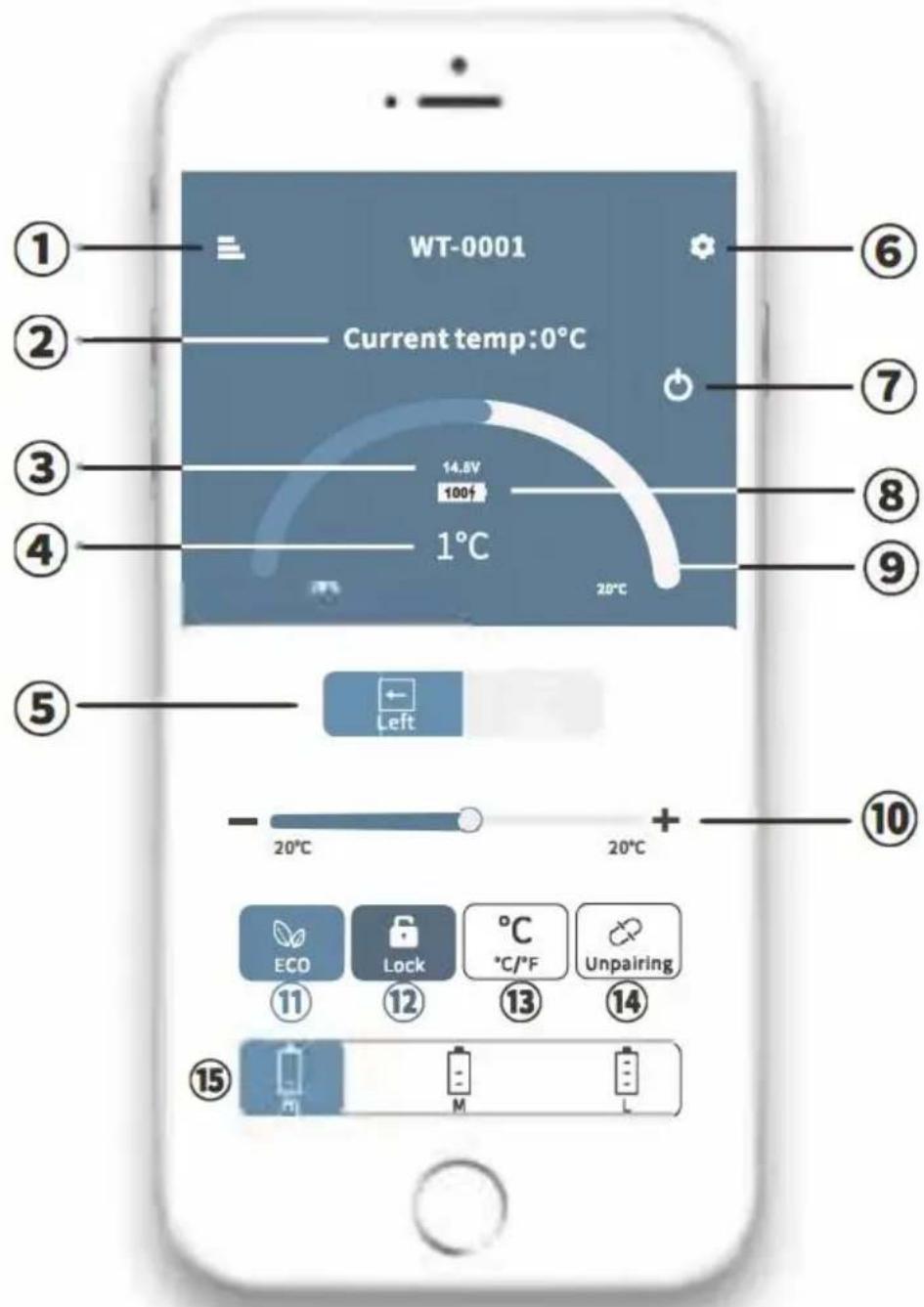

①MENU ②Current temperature ③Current voltage ④Target temperature ⑤Switch Left/Right compartment ⑥SET ⑦ON/OFF

⑧Current battery ⑨⑩Temperature control ⑪ECO(Energy-saving) / MAX(Fast-cooling) ⑫Lock / Unlock ⑬Celsius / Fahrenheit ⑭Un pairing the device and return to set ⑮Battery protection mode: High / Medium /Low

Note:

*Click the lock icon on the APP to lock/unlock the control panel on the fridge, if locked, the fridge can only be controlled by the APP.

Downloading the "CAR FRIDGE FREEZER" Application

IOS

Android

Scan the QR code on the left or search for the "CAR FREEZER" APP in the APP Store (for Apple devices) or Goo (for Android devices).

MODEL:TWW95 TWW115

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.
This product is subject to the provision of European 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate recollection in the European Union. This applies to the
	and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec electronic devices

Attentions

Before using the refrigerator, please read this manual carefully and keep it properly

1.Before using the refrigerator, clean it inside and outside with a dam cloth.
2.Do not fill the refrigerator with corrosive liquids. Do not directly pou liquids into the refrigerator.
3. When the refrigerator is not used for a long time, please disconnect power supply and keep it dry.
4. Regularly clean the inner chamber to prevent odor and bacteria and ensure food safety.
5.Shut down the refrigerator and battery before pulling by the trolley (battery).

Connect the Power Supply

1. Find the DC power cord in the kit. Connect DC plug to the power the car refrigerator.
   2.Well place the refrigerators in the car (back-up, seats...).
   3.Lay out power cords per your car's interior space. Insert the cigarette lighter plug (one side of the power cord) into the car cigarette lighter

Adapter Connect the car cigarette lighter

DC12/24V

Connect the car refrigerator

1. The refrigerator can be connected to more than one energy source.
   2.The refrigerator can connect directly to the DC12V/24V power supply
   3.If the refrigerator is used an AC100-240V power supply, an AC ada should be adopted.

Car Refrigerator Operation

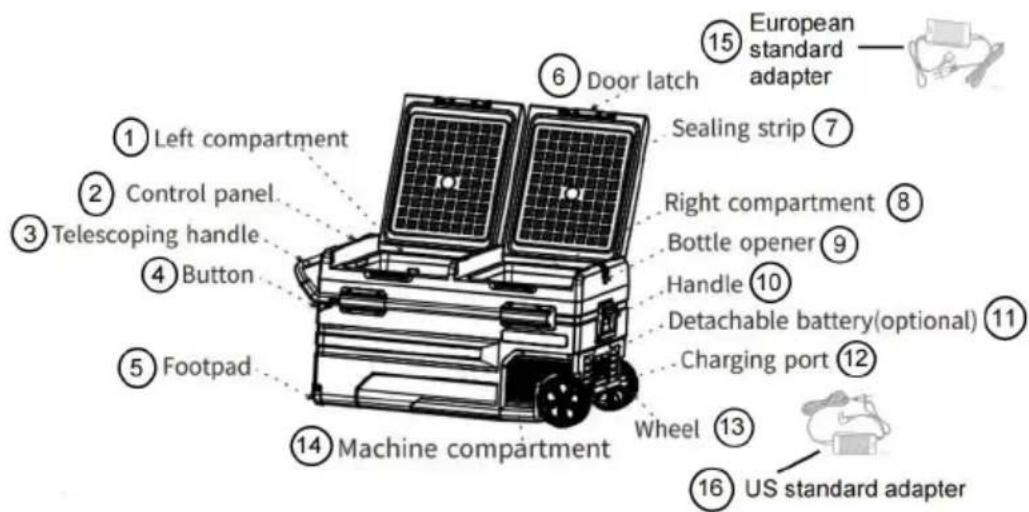

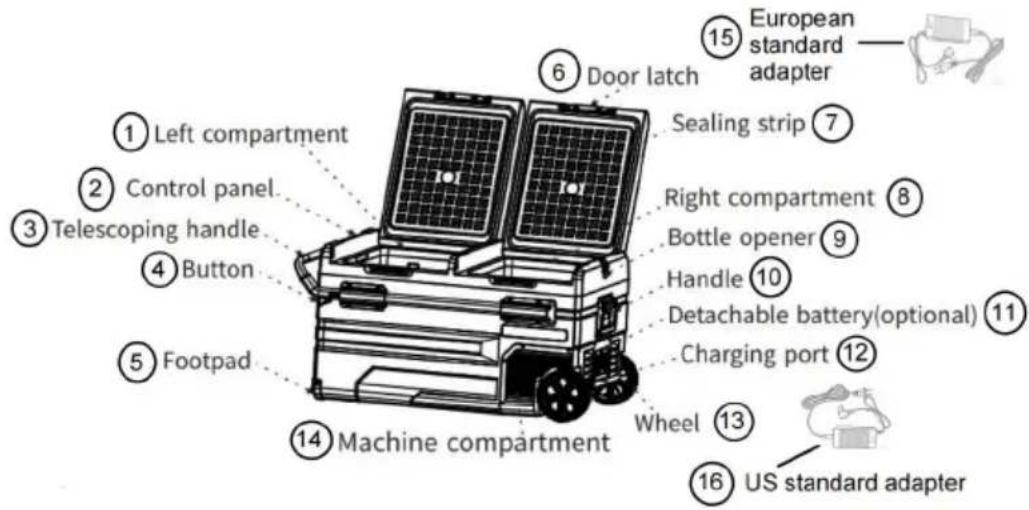

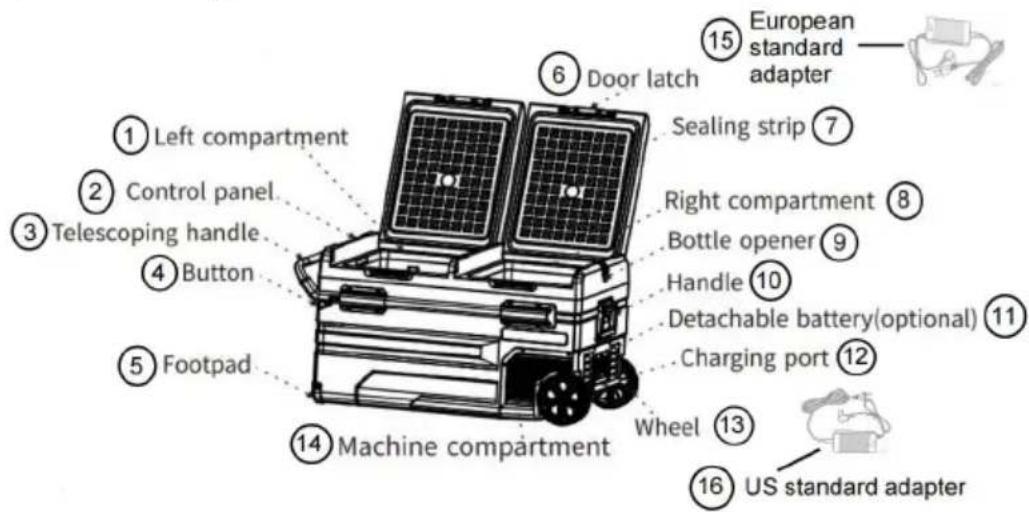

Component Diagram

Reverse door opening direction

The door opening direction can be changed according to actual needs, please follow the instructions below:

Door Disassembly:

Open the door at a 90°angle	Take off the door from one side	Take off the door from the other side

Door Installation:

Reverse the door opening direction

Align the door shaf with the hole on o side and insert it

Fix the door on the other side, installation finished

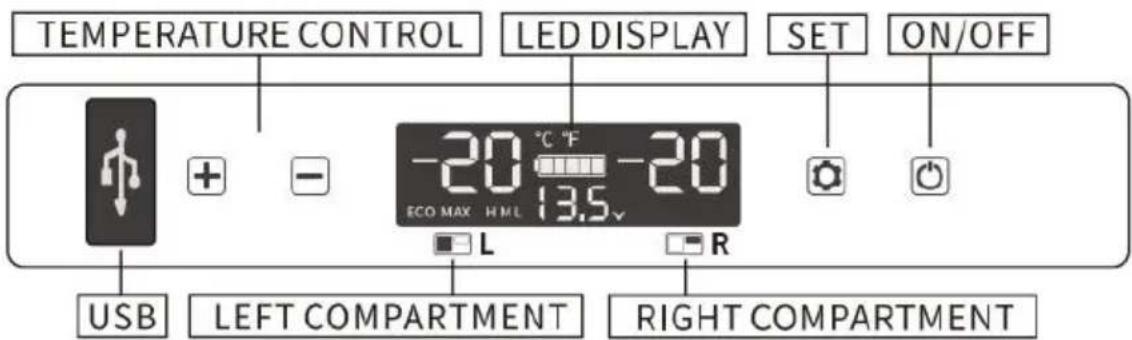

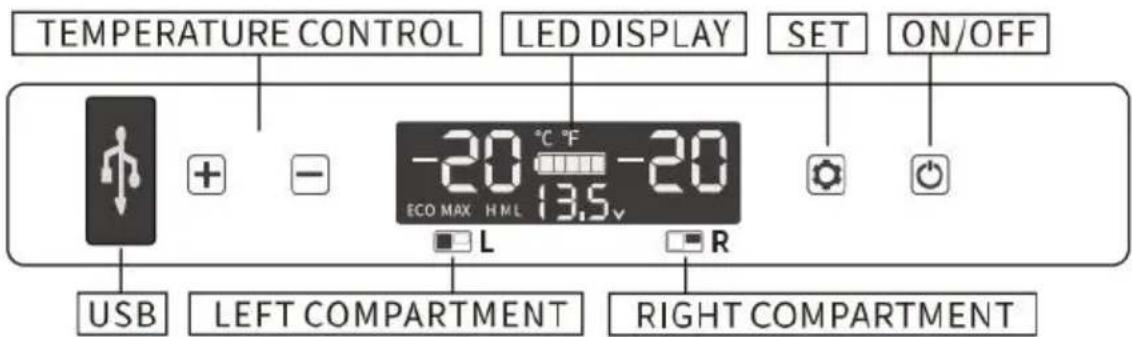

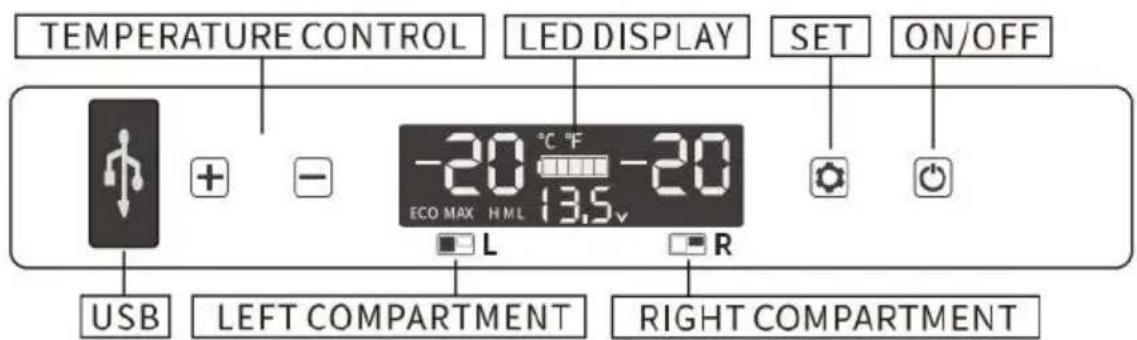

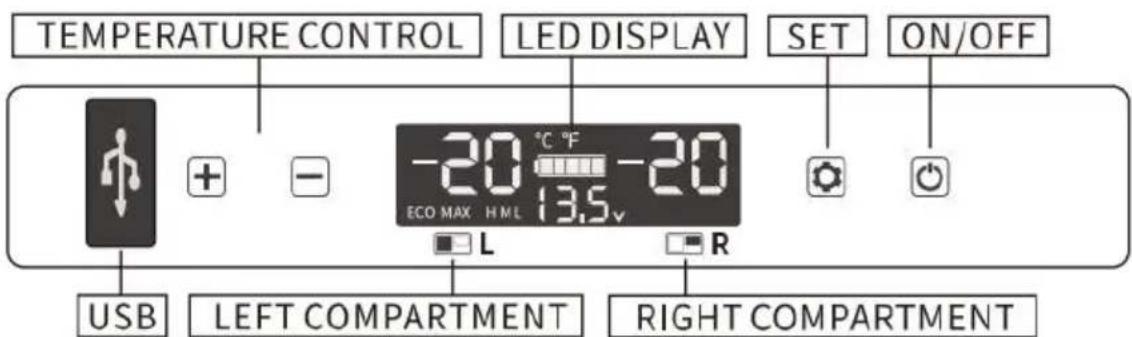

Function and operation

*Note: the right compartment is on the side where the compressor ·Power Supply: connect to DC 12V/24V or AC 100-240V power (using

dedicated adapter).

• Display Screen Initialization: when the fridge is powered on, the buzz will make a long beep, and the display will be on for two seconds then the standby mode.

• Power ON/OFF: press to switch ON/OFF. long press for three seconds to switch OFF.

• Temperature Setting(only for NLD series):under the running state,long press and at the same time for three seconds to switch ON/OFF

the left compartment, long press and at the same time for three seconds to switch ON/OFF the right compartment, two compartments cannot be switched OFF at the same time.

When both left and right compartments are set in running state, press +or to enter left compartment temperature setting, press to

increase temperature,press to decrease temperature,and press to switch left/right compartment.The setting will be saved after stop opera for 3 seconds.Note:the temperature displayed is the current temperature the compartments,it'll take a while to reach the set temperature.Temperature setting range:-20~20°C(-4~68°F).

• Cooling Mode: under the running state,press to switch MAX(fast cooling mode)and Eco(energy saving mode).(*Factory setting is MAX.)

·Battery Protection Mode: under the running state, long press for three seconds until the left screen flashes, then press again to switch High(H), Medium(M) and Low(L) ("Factory setting is Medium).

Voltage Reference:

INPUT

DC 12V

DC 24V

MODE	CUT OUT	CUT IN	CUT OUT	CUT IN
L	8.5V	10.9V	21.3V	22.7V
M	10.1V	11.4V	22.3V	23.7V
H	11.1V	12.4V	24.3V	25.7V

*the voltage is theoretical value, there may be a deviation in different sceneries.

*H should be set when the product is connected to car power, and M should be set when it is connected to a portable battery or other bar battery.

• Temperature Unit Setting: switch OFF the fridge,long press for three seconds until E1 displays,then switch to E5 by pressing again. then press or to select Celsius or Fahrenheit.

• Reset: switch OFF the fridge,long press for three seconds until display E1 ,under E1 mode,long press at the same time for three seconds to reset it.

• Rechargeable Battery (Optional): there is a battery case for detachable battery. If you want to charge the battery, connect the refrigerator to I power supply, and put the battery into the battery case, the display will the charging status. It is suggested to switch off the refrigerator if yc charge the battery quickly, as the power supply will mainly power the compressor when the refrigerator is running, which will cause the batter tocharge slowly.

Recommended temperature for common food:

Drinks	Fruits	Vegetable	Delicatessen	Wine	Ice cream	Meat
5℃/41 F	5~8℃/41 ~46℉	3~10℃/37~ 50℉	4℃/39℉	10℃ /50℉	-10℃/14 ℉	-18℃/0 ℉

Note: It is suggested to switch off the refrigerator when charging the battery (the power supply may mainly power the compressor when the refrigerator is running).

When connect to a solar panel, please place the refrigerator in a cool to dissipate heat. The charging input power should be higher than the working power of the refrigerator (about 40-45W), or switch off the refrigerator, otherwise the battery will run out.

It is suggested to use 100W solar panel.

MAX Solar Input Voltage:50V; MAX Solar Input Current:10A.

Note: the output of the solar panel is unstable, so it cannot power the refrigerator directly. When using a solar panel, the battery should be put the refrigerator.

• Discharging time (for reference only): In the low battery protection mode, the battery can last about 4 hours after being fully charged. With the temperature of the refrigerator is set

between 2 8^ (ambient temperature 25^ ), it can last 12 hours after the internal temperature stabilizes. Remove or switch off the battery to prepare self-discharge when not in use.

Things to note

Cleaning:

• Switch off and unplug the device first to avoid electric shock.

• Use wet cloth to clean the device and dry it.

• Do not soak the fridge in water and do not wash it directly.

·Do not use abrasive cleaning agents during cleaning as these can

damage the device.

Storage:

If the device will not be in use for a long time, please follow the ins

• Switch off and unplug the device.

Take out all the items stored in the device.

·Wipe off excess water with a soft rag.

• Put the fridge in a cool and dry place.

• Leave the lid slightly open to prevent odors from forming.

Recommended storage environment:

ambient temperature:25°C, ambient humidity:≤75%.

Defrosting:

Humidity can form frost in the interior of the cooling device or on the evaporator. This reduces the cooling capacity. Defrost the device in goodtime to avoid this.
- Switch off and unplug the device first to avoid electric shock.
Take out all the items stored in the device.
- Keep the lid open.
Wipe off the defrosted water.

Never use hard or pointed tools to remove ice or to loosen ob

which have frozen in place.

Troubleshooting methods

Advice: If abnormal situations cannot be resolved through a simple face analysis, please get in touch with professional customer service for assistance.

Issues	Cause/Suggestions
Refrigerator does not work	·Check if the switch is on. ·Check if the plug and socket are connect ·Check if the fuse has been burnt. Check if the power supply is malfunctioned ·Switch on/off the fridge frequently may cau
	start delay of the compressor
Refrigeratorcompartmentsare too warm	·The door is opened frequently.A large amount of warm or hot food was recently·The refrigerator has been disconnected for long time
Food is frozen	·The temperature was set too low
There is"water flow"noise from inside therefrigerator	·It's a normal phenomenon,caused by the firefrigerant.
There are water droaround the refrigeratedcasing or door gap	·It's a normal phenomenon,the moisture willcondense to water when it touches a coldsurface of the refrigerator.
The compressor isslightly noisy whenstarting	It's a normal phenomenon,the noise will bereducedafter the compressor works stably
Code F1displayed	·Possible cause:low voltage to fridge.Adjust the battery protection from High toMedium or from Medium to Low
Code F2 displayed	·Possible cause:condenser fan is overloadedDisconnect power to fridge for 5 minutes&re-start.If the code shows again,contact manufacereservice
Code F3 displayed	·Possible cause:the compressor starts toofrequentlyDisconnect power to fridge for 5 minutes&re-startIf the code shows again,contact manufacereservice
Code F4 displayed	·Possible cause:compressor not kicking in Disconnect power to fridge for 5 minutes &re-start. If the code shows again,contact manufacture service
Code F5 displayed	·Possible cause:overheating of the compress &electronics Disconnect power to fridge for minutes &re-start. If the code shows again,contact manufacture service
Code F6 displayed	·Possible cause:no parameter can be detect by the controller Disconnect power to fridge minutes &re-start If the code shows again,contact manufacture service
Code F7 or F8 displayed	·Possible cause:temperature sensor is faulty Contact manufacturer for service

*For models with FSAK-002 detachable battery, if code F1 displayed, unplug or turn off the battery, or connect to DC12/24V/AC100-240V (using the adapter) power supply to power the compressor and battery in time to avoid long-term micro-cu draining the battery.

Packing List

No.	Item	Qty	Remark
1	Refrigerator	1 set
2	Cigarette wire	1 set
3	Power adapter	1 set
4	Manual	1 pcs
5	Wheel	2 pcs

Use Suggestions

1. If equipped with a backup battery, you can maintain any temperature set under any circumstances without worries.
2. When placing ice cream, please adjust the temperature to the lowest must be powered on for a long time.
3. Prevent the health problems of drinking bottled water caused by high temperatures.
4. Frozen food, rare seafood, and vehicle-mounted refrigerators let frozen fresh food accompany the journey.
5. Healthcare products, insulin, and imported drugs need to be refrigerated and the precise temperature control of onboard refrigerators will escort health along the way.
6. The tea leaves are effectively kept fresh in the car refrigerator, and can drink fresh and delicious tea anytime during the self-driving tour.
7. The best storage temperature of red wine is 10^ - 18^ (50 - 64.4 F). The precise temperature control of the car refrigerator can effectively ensure the storage temperature of red wine.
8. The storage time of high-grade fruit in the car at high summer temperatures will be at least 2 hours. The storage time is shorter even the air conditioner is turned on. Using a car refrigerator can effectively preserve high-grade fruit.
9. The coating of high-grade sunglasses will fall off under the high temperature in summer. The car refrigerator is an ideal place to place 10. High-grade cosmetics quickly deteriorate under high temperatures in the car. Carry cosmetics with the car; the car refrigerator will be you choice.

Safety Precautions

WARNING!

Do not operate the appliance if it is visibly damaged.

• Do not block the gaps of the fridge with things like pin, wire, etc.

• Do not expose the appliance to rain or soak it in water.

• Do not place the appliance near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.)

• Do not store any explosive substances like spray cans with a flamm propellant.

• Ensure the supply cord is dry and not trapped or damaged. Do not multiple portable socket-outlets or portable power supplies at the rear the appliance.

• Check the voltage specification on the type plate corresponds to that the energy supply. The appliance is only to be used with the power unit provided with the appliance.

• Do not use electrical appliances inside the food storage compartments, the appliance, unless they are of the type recommended by the manufacturer.

• Once unpacked and before turning on, the appliance must be placed at level surface for more than 6 hours.

• Make sure that the appliance stays horizontally when it is running. The angle must be less than 5^ for longtime running and be less than 45^ for short time running.

• Keep the ventilation openings in the unit casing or in the built-in str free of obstacles.

• Keep the applianceable on the ground or in the car;Do not drain up down.

• When positioning the appliance, ensure the supply cord is not trapped damaged.

• Do not locate multiple portable socket-outlets or portable power suppli at the rear of the appliance.

·Risk of child entrapment. Before you throw away your old refrigerator freezer: *Take off the doors.

*Leave the shelves in place so that children may not easily climb ins.
·Do not use mechanical devices or other means to accelerate the defrosting process,other than those recommended by the manufacturer.

:RisK of fire/flammable materials.

CAUTION!

• Repairs may only be carried out by qualified personnel. Incorrect repairs may cause danger. The lamp and supply cord must be replaced by the manufacturer or qualified persons.

• The installation of DC power in the boat must be handled by qualified electricians.

• Children shall not play with the appliance. Cleaning and user mainte shall not be made by children without supervision.

• The appliance can be used by children aged from 8 years and above persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they've been given supervision or instruct concerning use of the device in a safe way and understand the hazards

NOTICE!

• Disconnect the power supply before each cleaning and maintenance a. after every use.

• Do not use sharp tools to defrost;Do not damage the refrigerant circ

• Risk of child entrapment. Before you throw away your old refrigerator

• freezer:take off the doors:leave the shelves in place so that children I not easily climb inside.

• Check if the cooling capacity of the appliance is suitable for storing food or medicine. Food may only be stored in its original packaging or suitable containers.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

• The appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;

• Camping, Farm houses and by clients in hotels, motels and other residential environments;

-Bed and breakfast type environments;

-Catering and similar non-retail applications.

• To avoid contamination of drink, please respect the following instruction

• Opening the door for long periods can cause a significant increase of temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with drink and accessible drainage systems.

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food:

• Store raw meat and fish in suitable containers in the refrigerator, so this is not in contact with or drip onto other food.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould develop within the appliance.

Please according to local regulations regarding disposal of the applian for its flammable refrigerant and blowing gas.

WARNING: This appliance contains flammable foaming agent cyclopentane:

1) Please avoid contact fire when you transport and use it.
2) Please ask a professional for servicing when the machine breaks or
3) Please send it to your local appointed disposal station when you it.

WARNING: During use, service, and disposal of the appliance,

please pay attention to a symbol similar to the left side, which is lost in the rear of the appliance (rear panel or compressor) and with yellow or orange color. It's a risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressors. Please be far away from source during use, service, and disposal.

VEVOR

Affordable. Reliable. Home Improvement.

RéFRIGÉRATEUR DE VOITURE

MANUEL D'UTILISATION

Affordable. Reliable. Home Improvement.

Car Refrigerator

MODELE : TWW95 TWW115

Connect the Power Supply

Car Refrigerator Operation

Function and operation

Troubleshooting methods

Affordable. Reliable. Home Improvement.

AUTOKÜHLSCHRANK

BENUTZERHANDBUCH

MODELL: TWW95 TWW115

Connect the Power Supply

Car Refrigerator Operation

Komponentendiagramm

Function and operation

Troubleshooting methods

Affordable. Reliable. Home Improvement.

FRIGORIFERO PER AUTO

MANUALE D'USO

MODELLO: TWW95 TWW115

ISTRUZIONI SMART CONTROL-FRIDGEAPP

Affordable. Reliable. Home Improvement.

Car Refrigerator

MODELLO: TWW95 TWW115

Connect the Power Supply

Car Refrigerator Operation

Function and operation

Troubleshooting methods

Affordable. Reliable. Home Improvement.

REFRIGERADOR DE COCHE

MANUAL DEL USUARIO

MODELO: TWW95 TWW115

	Advertencia: Para reducir el riesgo de lesiones, el usdebe leer atentamente el manual de instrucciones.
	Este producto está sujeto a la Directiva Europea 2012El síbolo de un conteditor de basura tachado indicaproducto requirela recogida selectiva de residuos eUnión Europea. Estó aplical producto y a todosaccosorios marcados con este síbolo. Los productomarcados con este síbolo noSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOseoSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEQEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEO SEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEO leo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOlea SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOlecno SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOlefso SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOleo SEOlear

Attention

Connect the Power Supply

Car Refrigerator Operation

Function and operation

Troubleshooting methods

Packing List
Use Suggestions

Affordable. Reliable. Home Improvement.

LODÓWKA SAMOCHODOWA

INSTRUKCJA OBSŁUGI

MODEL: TWW95 TWW115

INTELIGENTNE STEROWANIE - INSTRUKCJA

OBSŁUGI APLIKACJI LODÓWKI

Affordable. Reliable. Home Improvement.

Car Refrigerator

Connect the Power Supply

Car Refrigerator Operation

Diagramkomponentów

Function and operation

Troubleshooting methods

Affordable. Reliable. Home Improvement.

AUTOKOELKAST

GEBRUIKERSHANDLEIDING

MODEL: TWW95 TWW115

SMART CONTROL - FRIDGEAPP-INSTRUCTIONS

Affordable. Reliable. Home Improvement.

Car Refrigerator

MODEL: TWW95 TWW115

Connect the Power Supply

Car Refrigerator Operation

Componentdiagram

Function and operation

Troubleshooting methods

Affordable. Reliable. Home Improvement.

BILKYLSKÄP

ANVÄNDARMANUAL

MODELL: TWW95 TWW115

SMART KONTROLL - INSTRUKTIONER FÖR

KYLSKÄPSAPPEN

Ladda ner appen "BILKYL OCH FRYS"

iOS

Android

Skanna QR-koden till vänster eller sök after appen "CAR FREEZER" i APP Store (for Apple-eheter) aller Google Store Android-eheter).

VEVOR

Affordable. Reliable. Home Improvement.

Car Refrigerator

MODELL: TWW95 TWW115

< Bilden ar endast for referens >

Connect the Power Supply

Car Refrigerator Operation

Koponentdiagram

Function and operation

Troubleshooting methods

·:Risk for brand/brandfarlicht material.

FÖRSIKTIGHET!
