Product Type	Portable fuel tank with transfer pump
Brand and Model	Vevor TKA400-E
Tank Material	Impact-resistant polyethylene, UV stabilized
Color	Red and gray
Power Supply	12 V DC (battery)
Motor Power	140 W
Pump Flow Rate	40 L/min
Continuous Duty Cycle	30 minutes
Internal Bypass	Up to 3 minutes in bypass mode
Delivery Hose	4 m x 3/4" (19 mm) for diesel
Fill Nozzle	With automatic shut-off and swivel
Suction Filter	Foot strainer
Power Cord	4 m with alligator clips (red +, black -)
Internal Fuse	25 A
Motor Speed	2600 rpm
Compatible Fuel	Diesel only
Kit Contents	Tank, pump, nozzle, hose, filter, level gauge, metal lock
Safety	Automatic nozzle shut-off, motor protection bypass, 25 A fuse
Maintenance	Clean the strainer and nozzle filter regularly
Reparability	Wear parts: vanes, fuse; pump head can be disassembled
Storage	In a well-ventilated area, away from heat sources
Transport	Must be securely fastened; do not lift when full
Compliance	European Directive 2012/19/EC (WEEE), FCC Part 15 Class B

Frequently Asked Questions - TKA400-E Vevor

How do I prime the pump for the first time?

Remove the tank cap, point the nozzle into the tank, turn on the pump and press the trigger to purge air. After a few seconds, diesel should start flowing. You can then use the unit normally.

How do I connect the unit to a 12 V battery?

Attach the red alligator clip (positive wires) to the positive terminal (+) of the battery and the black clip to the negative terminal (-). If the pump runs backwards, simply reverse the clips. Use a cable of sufficient gauge (25 A minimum) if extending the cable.

What types of fuel can I use with this tank?

This tank is designed exclusively for transporting and pumping diesel (gas oil). Never use gasoline or other flammable liquids, as this would pose a fire or explosion risk.

What is the maximum continuous operating time?

The pump can operate continuously for up to 30 minutes. In bypass mode (nozzle closed), do not exceed 2 to 3 minutes to avoid motor overheating.

What should I do if the pump does not start?

First check the battery connections (clips well attached). Then inspect the 25 A fuse located under the plastic cap on the pump; replace it if blown. If the problem persists, disassemble the pump head to check for rust or blockage.

How to maintain the filter and strainer?

Clean the suction strainer (at the end of the hose) and the coarse filter at the nozzle inlet regularly. For the latter, remove the swivel and clean it. Reduced flow or a screeching noise indicates dirty filters.

Why is the pump making a grinding noise?

This is usually due to dirt or debris stuck in the impeller. Disassemble the pump cover, remove particles and clean the vanes carefully. Do not overtighten screws when reassembling.

How do I store the unit safely?

Store the tank in a well-ventilated area, away from any heat or ignition sources. Do not leave it in a garage attached to a dwelling. Clean up any spills immediately and dispose of waste according to regulations.

Can I use this tank to transport gasoline?

No, absolutely not. This tank is designed and certified only for diesel. Using it with gasoline or other fuels is dangerous and may cause serious injury or death.

Where can I find spare parts and technical support?

Spare parts (vanes, fuse, nozzle, etc.) are available from Vevor. For technical assistance, visit www.vevor.com/support and have your electronic warranty certificate ready.

USER MANUAL TKA400-E Vevor

Affordable. Reliable. Home Improvement.

PORTABLE DIESEL TANK

MODEL: TKA400-E

Technical Support and E-Warranty Certificate

www.vevor.com/support

MODEL: TKA400-E

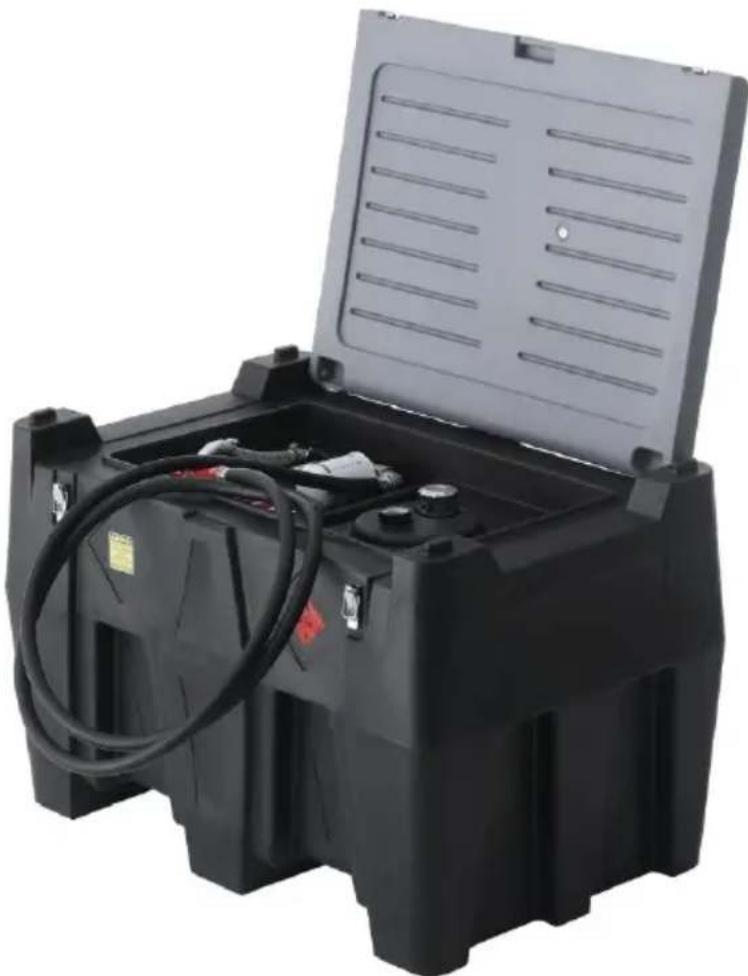

Photo for reference

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING: Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

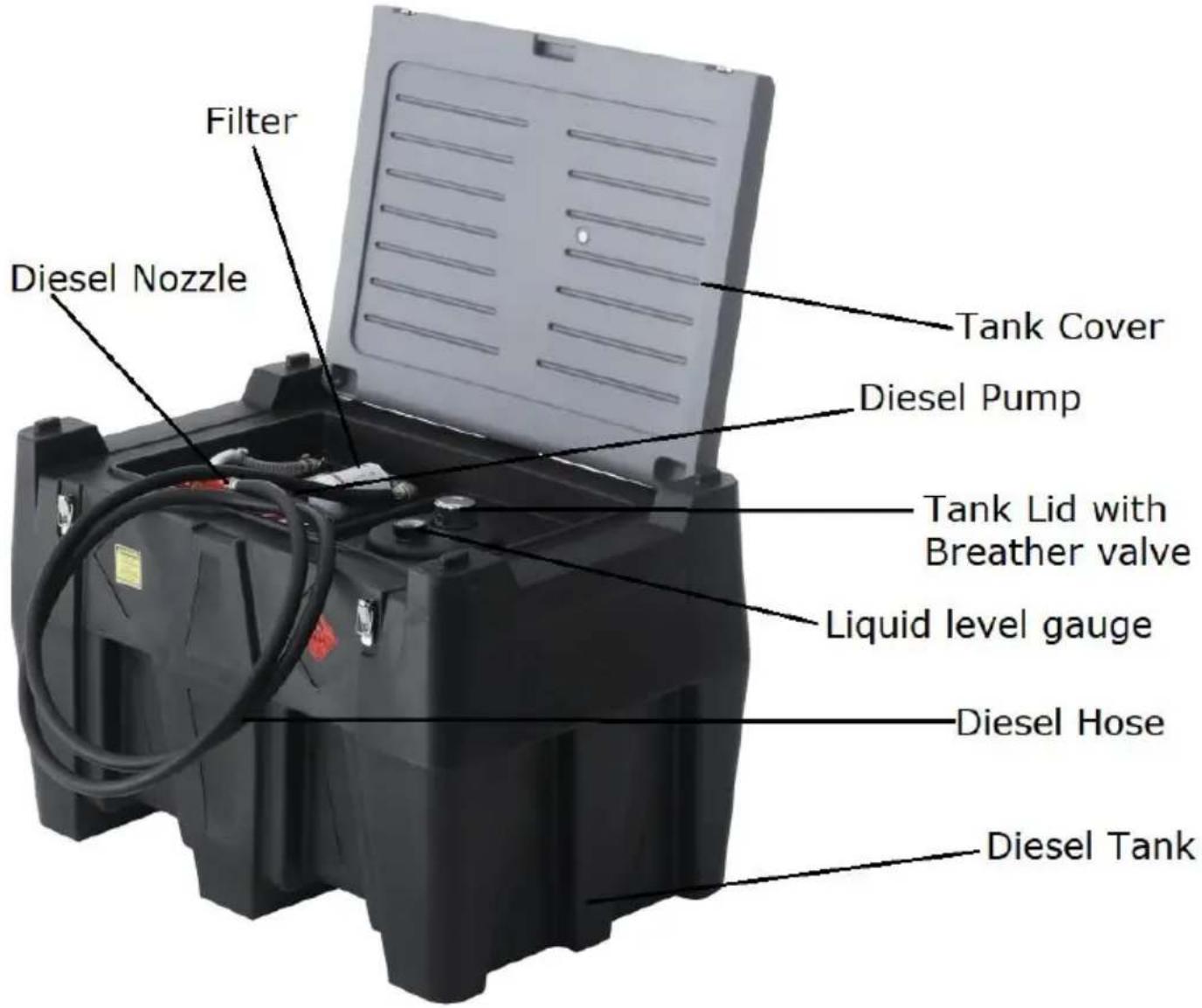

Part List

Photo for reference

GENERAL:

All transfer units come standard with an auto shut-off gun and all pumps feature duty cycle for 30 minutes of continuous dispensing. All pumps also contain an internal bypass that allows for the pump to operate for up to a maximum of the minutes when the filling nozzle shuts off without damaging the pump or motor.

SPECIFICATIONS;

TANKS:

Made from impact resistant polyethylene, UV stabilized, coloured grey and fitted with lid and breather.

GUN: Trigger filling nozzle with automatic shut-off and hose swivel.

DELIVERY HOSE: 4m x 3/4 inch Diesel Delivery hose supplied.

FILTRATION: Suction foot screen filter

PUMPS:

Power Output	Volts	Open Flow	Motor Duty Cycle	Internal Bypass	Power Cord	Motor Speed	Internal Fuse
140W	12V DC	40L/min	30 minute	Yes	4m with alligato clips	2600RPM	25 AMI

Safety Instructions (cont.)

The location and wording of the safety decal fitted to your diesel tank is shown below. It is important that all operators read and follow the information on all safety decals before operating the unit. Failure to comply with these warnings could result in serious injury or death.

WARNING: This product contains a chemical known to the State of California to cause cancer. This product contains a chemical known to the State of California to cause birth defects or other reproductive harm. For more information go to: www.PESWarnings.ca.gov

IMPORTANT OPERATIONAL NOTE - The internal bypass fitted in all diesel pump models is designed to protect the pump and motor from damage when the trigger is shut off for a time not to exceed 2-3 minutes.

This is enough time for the operator to switch off the pump or recommence pumping. When the nozzle is off and the pump is running, the pump pressure increases and the electric motor load increases using more power (amps), which in turn generates more heat within both the pump and motor, risking increased wear or possibly, if the pump is not switched off.

Safety Instructions

Before attempting to operate or install the diesel unit, carefully read and take note of the following safety warnings.

Failure to comply with these warnings may result in serious injury.

Warning! This diesel unit is designed and manufactured solely to carry and pump diesel fuel. Under no circumstances may it be used for any other purposes.

Warning! Prior to installing or using the Diesel unit, all operators must have read and fully understand the contents of this instruction manual as well as all other manuals supplied, and the safety decal fitted to the Diesel unit.

Warning! Never allow an inadequately trained person to install or operate the Diesel unit.

Warning! Ensure the capacity of the vehicle is suitable for the loaded mass of the diesel unit. Refer to the vehicle operator's manual for safe working loads, correct secure points and relevant safety instructions.

Warning! Avoid diesel contact with skin and eyes and avoid breathing vapours or mists. Refer to the Material Data Safety sheet from your Diesel supplier for recommended safety precautions and any required protective equipment for use when handling. Ensure that all operators and associated personnel are familiar with the legal regulations and codes of practice that apply to the safe use, storage and disposal of diesel.

Warning! This diesel unit should be securely restrained or tied down when being transported in a vehicle.

Warning! This Diesel unit should not be lifted when partially or completely full unless supported by an appropriate frame or pallet.

Warning! This unit should never be left unattended while dispensing or being filled.

Warning! Before attempting to fill the tank at a service station, consult the operator for the correct procedure.

Warning! Do not store the diesel unit within or next to a dwelling or garage attached to a dwelling.

Warning! Always store the diesel unit in well ventilated open areas.

Warning! Storage of the diesel unit must not be in the proximity of any heating or ignition sources.

Warning! No combustible waste material or residues shall be permitted to remain in or around areas in which diesel is stored or decanted.

Warning! Any spillage shall be cleaned up immediately and the materials used in the clean-up shall be disposed of safely and in accordance with any legal regulations and codes of practice that apply to the safe use, storage and disposal of Diesel.

Warning! Ensure that the electrical lead(s) are always in good condition and that no wire is exposed through the plastic coating. Do not allow the lead to become tightly knotted, crushed or pinched.

WARNING

When operating the diesel unit, carefully read and take note of the following safety warnings.

There may be residual oil in the tank that cannot be pumped out.

Failure to comply with these warnings may result in serious injury.

Warning! When operating the diesel unit, do not use fuel gasoline; it is only for diesel.

Warning! When operating, the diesel unit needs to be connected to a 12V battery.

Operation and Installation

PREPARING THE TRANSFER UNIT FOR OPERATION:

For transport purposes, some transfer units will be supplied with the delivery hose and automatic shut-off gun disconnected from the pump. Before attempting to pump any diesel, ensure that the delivery hose is securely fitted to the pump's end and that the automatic shut-off gun (with swivel) is fitted to the other end of the delivery hose.

CONNECTING TO A POWER SUPPLY:

All the diesel transfer units are fitted with DC electric motors that are supplied with alligator clips that can be connected directly to a 12-volt DC battery. Connect the red alligator clip to the positive terminal and the black alligator clip to the negative terminal. If the pump runs backwards, simply swap the clips on the battery. If you intend to extend the cable or add a plug, make sure it is of sufficient capacity (25 amps).

FILLING THE DIESEL UNIT:

Ensure that the tank is supported on an even base that is capable of taking the weight. No special equipment is required to fill the tank; however, when the lid has been removed from the tank, take care not to introduce contaminants into the tank via the filler neck, and ensure that the lid is kept free of contaminating particles while filling.

TRANSFERRING DIESEL:

The pump will need to prime itself upon first use. Turn the pump on and depress the trigger to allow air to bleed from the hoses. After a short time, the pump will be primed and delivery will commence. We recommend for this first priming that the nozzle is removed from the tank and directed back into the tank while pumping to avoid spillage or loss of diesel. With this done, the unit is now ready to operate. To dispense, the pump must be turned on and the nozzle's trigger depressed. The nozzle features an automatic shut-off which operates when fluid contacts the outer nozzle. Once the auto shut-off operates, turn off the pump within 2 or 3 minutes to not allow the motor to run for longer than its specified duty cycle.

Maintenance

The pumps have been designed and built to require minimal maintenance. However, it is still important that you always remove the pump from the power source before any inspection.

The vanes in the head of the pump will wear over time and require replacement. To extend the life of the vanes, ensure that the filters are kept clean and the tank is free of contaminants. If a reduced flow rate is noticeable, or a screeching sound is heard from the pump, dirt or debris may have entered the pump and requires immediate cleaning before parts are permanently damaged. Periodically check the suction foot filter to ensure that it is clean and free of debris. This should be done if there is a noticeable decrease in diesel flow rate. There is also a coarse screen mesh at the end of the auto shut-off gun, and it can be checked by removing the gun from the hose.

Troubleshooting

TROUBLE SHOOTING GUIDE
Problem	Solution
Pump does not operate	·Ensure battery wires are connected to battery properly.Red C·Check fuse(25A)under plastic pump switch cover is intact.
To Test &Repair if Pump not operate	·Remove pump end cover,connect power to White &Black wire·If the motor still does not operate,remove 3 x head cover b for rust or obstruction,do not over tighten the screws when replacing the cover as this will jam the rotor against th also prevent the electric motor from turning and blowing the fuse.
Pump Wiring Overheating	·This can happen when pump is operated in bypass mode fo than 3 minutes or if low voltage/amps.Ensure that pump is not left running for longer than 3 minutes without d Transfer Gun trigger.The wiring loom has been extended using wire of insufficient wire is required and a matching connector
Pump makes a squealing/scratching sound while running	·This can be caused by dirt or debris entering the pump and becoming caught in the working parts.Remove the end cover pump by first unscrewing the three Socket Head screws and lifting off the cover.Clean the impeller vanes ensuring you any dirt particles caught between the ends of the vanes and the impeller housing.Do not over-tighten head screws whereassembling.
Pump stalls when Transfe Gun trigger is released, a pump is running	·The non-return valve in the outlet of the pump may be jam shut.Remove the outlet hose from the pump.Operate the white plastic valve is in the outlet port of the pump mar pushing it in and out),to ensure it moves freely.
To Test &Repair if the P s running but low or nil from nozzle	·Remove gun from hose &re-test,Run the hose into the tank while checking·If flow improves,check hole in the end of the nozzle for blo·Replace gun as required
Pump runs but does not pump	·Check red alligator clip fitted to positive terminal,black to neg the wrong way around the pump runsBackwardsCheck that the suction hose and foot filter are immersed in suction hose may be bent up out of the diesel.·If pump is brand new or has not been used in a long peri unscrew automatic gun from hose and put hose in filler neck to prime pump

Matching kit

Diesel tank * 1

Filter * 1

Refueling gun * 1

Diesel hose * 1

Liquid level gauge * 1

Diesel pump * 1

Metal lock * 1

Instruction manual * 1

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked

with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices.

FCC Information:

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, it may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assistance.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Shuangcheng Road 803 Nong 11 Hao 1602A-1609 Shi, Baoshan District, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD NSW 2122 Australia
