USER MANUAL X40K Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CAR REFRIGERATOR

USER MANUAL

MODEL: X40K X50K

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

Car Refrigerator

MODEL:X40K X50K

Line drawing of a multi-wheeled vehicle chassis with visible battery, wheels, and ventilation slots (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must re instructions manual carefully.
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electr electronic devices

Attentions

Before using the refrigerator, please read this manual carefully and keep it properly

1. Before using the refrigerator, clean it inside and outside with a dam cloth.
2. Do not fill the refrigerator with corrosive liquids. Do not directly pour liquids into the refrigerator.
3. When the refrigerator is not used for a long time, please disconnect power supply and keep it dry.
4. Regularly clean the inner chamber to prevent odor and bacteria and ensure food safety.
   5.Shut down the refrigerator and battery before pulling by the trolley (battery).

Connect the Power Supply

1. Find the DC power cord in the kit. Connect DC plug to the power the car refrigerator.

2. Well place the refrigerators in the car (back-up, seats...).

3. Lay out power cords per your car's interior space. Insert the cigarette lighter plug (one side of the power cord) into the car cigarette lighter

Electric power adapter connected to a wall-mounted socket, showing wiring and a black arrow indicating transformation (no text or symbols visible)

Close-up of a black automotive cable with red connector, showing a magnified close-up of the switch (no text or symbols visible)

Adapter Connect the car cigarette lighter

DC 12/24V

Connect the car refrigerator

1. The refrigerator can be connected to more than one energy source.
2. The refrigerator can connect directly to the DC12V/24V power supply
3. If the refrigerator is used an AC100-240V power supply, an AC ada should be adopted.

Car Refrigerator Operation

Car battery protection voltage reference:

Built-in ECO electronic control module can automatically monitor car battery voltage. The refrigerator will be automatically cut off when the power is excessively consumed, protecting the battery consumption from being too low to affect auto-ignition.

Battery Voltage	Factory default voltage protection value H
	H (high) level	M (medium) level	L (low) level
DC12V	DC11.3V OFF DC12.5V ON	DC10.1V OFF DC11.4V ON	DC9.6V OFF DC10.9V ON
DC24V	DC24.6V OFFDC26.0V ON	DC22.3V OFFDC23.7V ON	DC21.3V OFFDC22.7V ON

Note: When the power supply is connected and the refrigerator is turned on, disconnecting or starting refers to disconnecting or starting the compressor.

Component Diagram

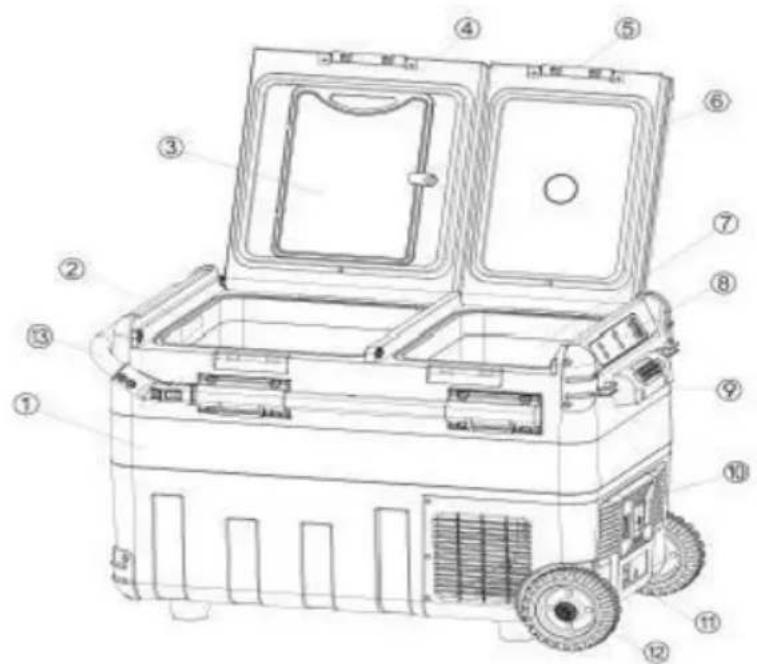

Parts schematic

①Box
②Lamp
③Vegetable board
④Box cover
⑤Clasping hand
⑥Sealing strip
⑦Storage room
⑧Control panel
⑨Handle
⑩Battery (optional)
⑪Power socket
⑫wheel
⑬lever

Technical diagram of a portable electronic device with numbered components for identification

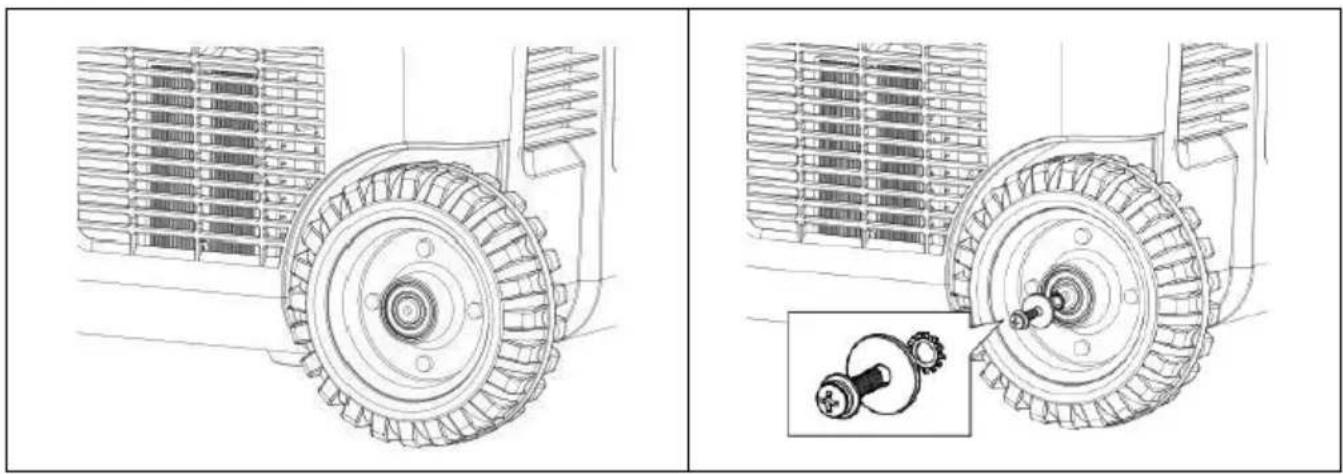

Installs the roller

Technical line drawings of two mechanical components with gear and shaft assembly (no text or symbols)

Insert the roller into the roller

Use screwdriver to tighten in picture order

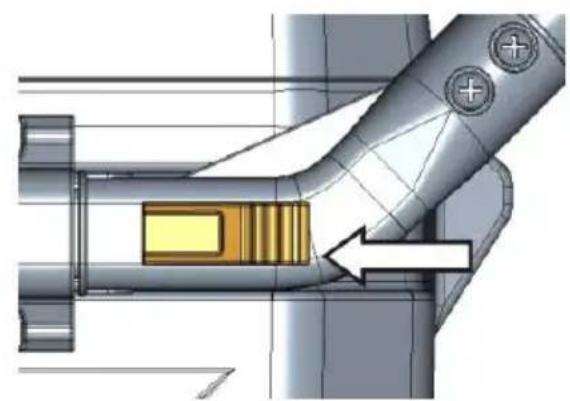

Instructions for rod

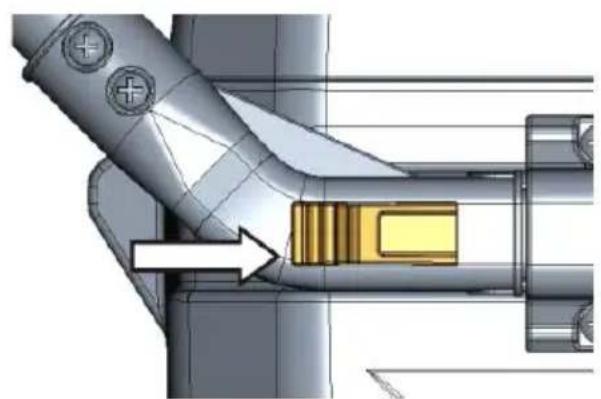

If the pull rod cannot be pulled out when it is in the locked state, the unlock button to remove the locking state, and the pull rod can pulled out, as shown in the figure:

Mechanical pipe joint diagram showing pipe connection and component placement (no text or symbols)

Technical diagram of a mechanical joint or pipe assembly with no visible text or symbols

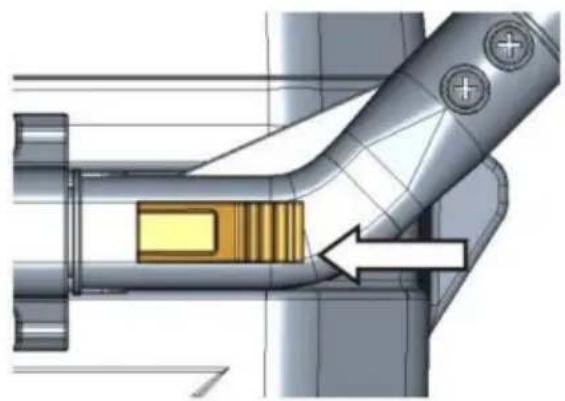

Push the left / right buttons in the arrow to unlock.

Optional Operation Method

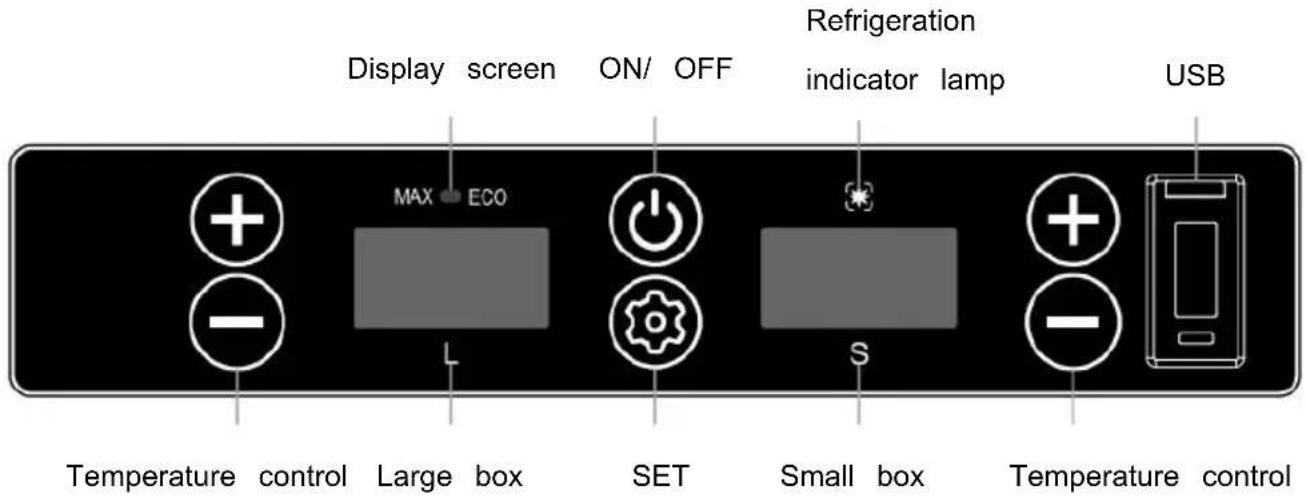

Display screen ON/ OFF Refrigeration indicator lamp USB MAX ECO SET S Temperature control Large box SET Small box Temperature control

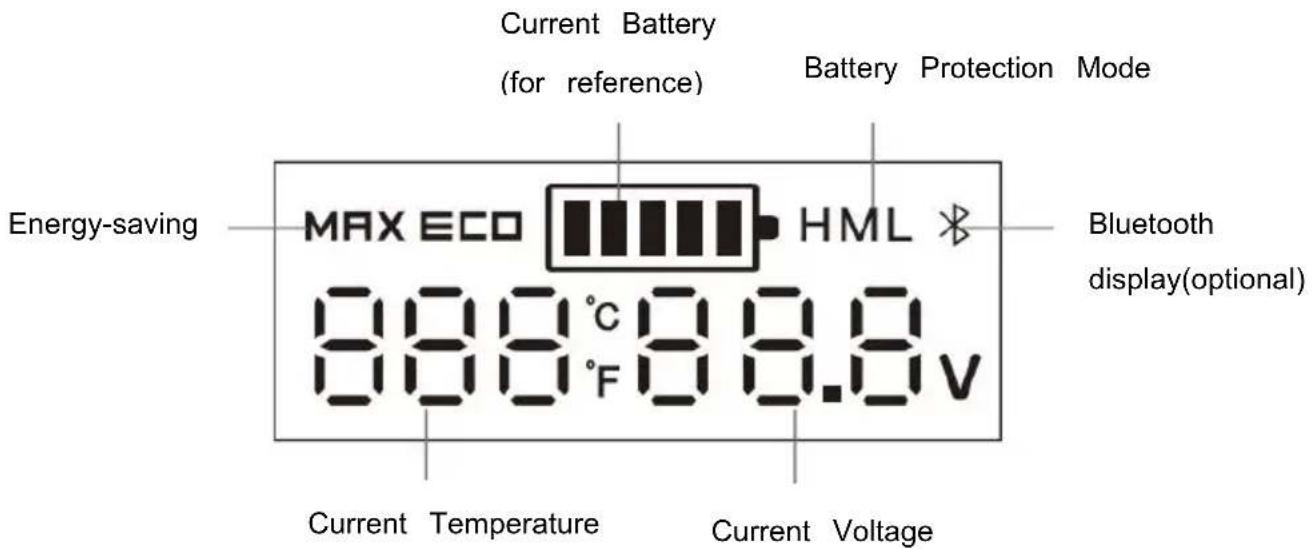

Current Battery (for reference) Battery Protection Mode Energy-saving MAX ECO HML Bluetooth display(optional) 88.8 °C 88.8 v Current Temperature Current Voltage

·Power Supply: connect to DC 12V/24V or AC 100-240V power (using dedicated adapter).

- Display Screen Initialization: After powering on, the digital display is fully on for one second, and then displayed normally. The default is memory function. In standby state, the temperature of the display " " bright.

·Power ON/OFF: press to switch ON/OFF.

·Temperature Setting: under the running state, press ▲ to increase temperature, and press ▼ to decrease temperature; keep pressing ▲ or ▼ to adjusting the temperature quickly. The setting will be saved automatically after stopping operating for three seconds.

Temperature setting range:-20\~20°C(-4\~68°F)

·Temperature Unit Setting: under the running state, long press ▲▼ at the same time for three seconds to switch Celsius or Fahrenheit.

·Cooling Mode: under the running state, press to switch MAX(fast cooling) and ECO(Energy saving Mode).(*Factory setting is MAX.)

- Battery Protection Mode: under the running state, long press or three seconds until screen flashes, then press again to select protection mode

H1、N2、L3,after no key action is detected, set the corresponding ge flicker for 5 seconds, exit the setting, and save.

- Power-off Memory Function: There is a power-off memory function for car refrigerators. When the power is lost, the working state (On/Off st working mode, etc.) before power-off can be automatically recovered a next startup; no need to set it again. ECO: Energy-saving cooling MAX Powerful cooling.

Simple Fault Analysis

Advice: If abnormal situations cannot be resolved through a simple fat analysis, please get in touch with professional customer service for assistance.

Car Refrigerator Does Not Work

1. Check if the power is connected correctly. (check If the plug is loo or positive and negative poles are reversed).
2. Check if the power switch on the operation panel is turned on.
3. Check if the cooling ventilation is normal.
4. Check if the fuse is blown.

Poor Cooling Performance

1. Check if the lid is closed correctly.
2. Check if the door seal is damaged or deformed.
3. Check if there is poor ventilation around the fridges.
4. Check if the temperature is set correctly.

△Definition of Error Codes on the Display

Error Code	Error Type
E1	Low Input Voltage
E2	Fan Fault
E3	Compressor start failed
E4	Low Rotational Speed of Compressor
E5	Controller module temperature too high
E6	Open or Short Circuit of NTC

Abnormal Noise

1. The car refrigerator is not placed smoothly.
2. Touch a wall or other object.
   3.There are parts loose or falling off inside.

Condensation on Refrigerator Surface

When the ambient air humidity exceeds 75%, slight condensation will occur on the box surface, which is normal.

Failures and Solutions

△E1: Low Input Voltage

Failure 1: Insert the refrigerator power cord into the cigarette lighter by the car starts. Solution 1: Wait a while to connect the car after it's Failure 2: The input voltage of the adapter is too low.

Solution 2: Adjust the battery protection level to middle-voltage or low-voltage. If it doesn't work, please replace a new adapter.

△E2: Fan Fault

Please replace a new fan when you identify there is a fan malfunction

△E3: Input Voltage Fault Due to Compressor Frequently Start

When the refrigerator is used in the car, and E3 appears, Please sh down for 5 minutes and restart it.

If it doesn't work, that can be identified to be EI fault; please solve according to the solution of EI.

When the refrigerator is connecting with the adapter and E3 appearing

① Please adjust the battery protection level to the middle or low level
② If it doesn't work, please replace a new adapter.

△E4: Low Rotational Speed of Compressor

Please adjust the input voltage and repower it.

△E5: Overheating of Controller Chip

Please power off for 5 minutes and check if the lousy ventilation aro compressor causes the overheating.

Packing List

No.	Item	Qty	Remark
1	Refrigerator	1 set
2	Cigarette wire	1 set
3	Power adapter	1 set
4	Manual	1 pcs
5	Roller	2 pcs
6	Screwdriver	1 pcs

Use Suggestions

1. If equipped with a backup battery, you can maintain any temperature set under any circumstances without worries.
2. When placing ice cream, please adjust the temperature to the lower must be powered on for a long time.
3. Prevent the health problems of drinking bottled water caused by high temperatures.

4. Frozen food, rare seafood, and vehicle-mounted refrigerators let frozen fresh food accompany the journey.

5. Healthcare products, insulin, and imported drugs need to be refrigerate and the precise temperature control of onboard refrigerators will escort health along the way.

6. The tea leaves are effectively kept fresh in the car refrigerator, ar can drink fresh and delicious tea anytime during the self-driving tour.
7. The best storage temperature of red wine is 10 ^ - 18 ^ (50 - 64.4 ^ ).

The precise temperature control of the car refrigerator can effectively ensure the storage temperature of red wine.

1. The storage time of high-grade fruit in the car at high summer temperatures will be at least 2 hours. The storage time is shorter ev the air conditioner is turned on. Using a car refrigerator can effectively preserve high-grade fruit.

2. The coating of high-grade sunglasses will fall off under the high temperature in summer. The car refrigerator is an ideal place to place 10. High-grade cosmetics quickly deteriorate under high temperatures in the car. Carry cosmetics with the car; the car refrigerator will be you choice.

Safety Precautions

(1) Ensure that the power voltage connected to the onboard refrigeration correct at any time

(The parameters are labeled with the approved voltage parameters of onboard refrigerator).

(2) Do not pour liquid directly into the car refrigerator.

(3) Modifying the refrigerator without permission is forbidden to avoid danger.

(4) This appliance is not intended for use by persons (including children with reduced physical, sensory, or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

(5) Children should be supervised to avoid playing with the appliance.

(6) This appliance can be used by children aged from 8 years and and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi
(7) To avoid a hazard due to the instability of the appliance, it must under the instructions.
(8) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: This appliance contains flammable foaming agent

cyclopentane:

1) Please avoid contact fire when you transport and use it.
2) Please ask a professional for servicing when the machine breaks do
3) Please send it to your local appointed disposal station when you it.

WARNING: During use, service, and disposal of the appliance please pay attention to a symbol similar to the left side, which is lo the rear of the appliance (rear panel or compressor) and with yellow orange color. It's a risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressors. Please be far away fir source during use, service, and disposal.

FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

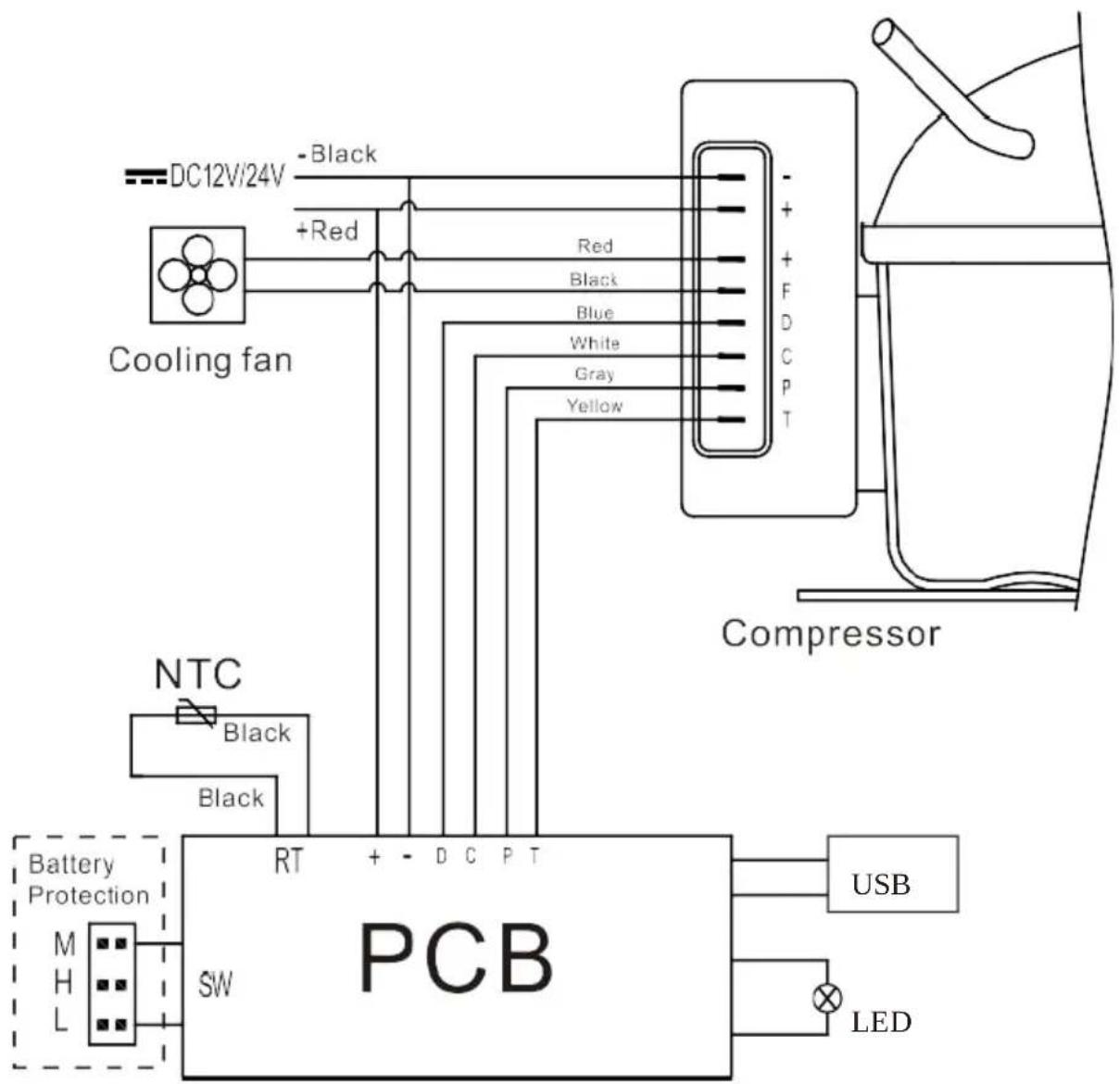


VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a multi-story industrial machine with visible internal components and wheels (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Electric charger connected to a wall-mounted power socket, showing wiring and circuit lines (no text or symbols visible)

Adaptateur

Close-up of a black cable with red connectors and an arrow pointing to a close-up of a car's key (no text or symbols visible)

Mechanical pipe joint diagram showing a highlighted section with a yellow box and arrow (no text or symbols)

Technical diagram of a mechanical joint or pipe assembly with no visible text or symbols

Line drawing of a multi-story industrial machine with visible internal components and wheels (no text or symbols)

Electric charger connected to a wall-mounted power socket, showing wiring and circuit connection (no text or symbols visible)

Adapter

Close-up of a black cable with red connectors and a magnified inset showing a close-up of a key (no text or symbols visible)

Mechanical pipe joint diagram showing a highlighted section with a yellow box and arrow (no text or symbols)

Technical diagram of a mechanical joint or pipe assembly with no visible text or symbols

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a multi-story industrial machine with visible internal components and wheels (no text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Electric charger connected to a wall-mounted power socket, showing wiring and circuit lines (no text or symbols visible)

Adattatore

Close-up of a black cable with red connectors and a magnified inset showing a close-up of a key (no text or symbols visible)

Technical line drawings of two mechanical components with gear and shaft assembly (no text or symbols)

Mechanical pipe joint diagram showing a highlighted section with a yellow box and arrow (no text or symbols)

Technical diagram of a mechanical joint or pipe assembly with no visible text or symbols

elettronica https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a multi-wheeled electric bus with visible battery, wheels, and control panel (no text or symbols)

Electric charger connected to a wall-mounted power socket, showing wiring and circuit lines (no text or symbols visible)

Adaptador

Close-up of a black cable with red connectors and a magnified inset showing a close-up of a key (no text or symbols visible)

Mechanical pipe joint diagram showing a highlighted section with a yellow inset (no text or symbols)

Technical diagram of a mechanical joint or pipe assembly with no visible text or symbols

Line drawing of a multi-story industrial machine with visible internal components and wheels (no text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Electric charger connected to a wall-mounted power socket, showing wiring and circuit lines (no text or symbols visible)

Adapter

Close-up of a black cable with red connectors and a magnified inset showing a close-up of a key (no text or symbols visible)

Mechanical pipe joint diagram showing a highlighted section with a yellow box and arrow (no text or symbols)

Technical diagram of a mechanical joint or pipe assembly with no visible text or symbols

E2: Awaria wentylatora

https://www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

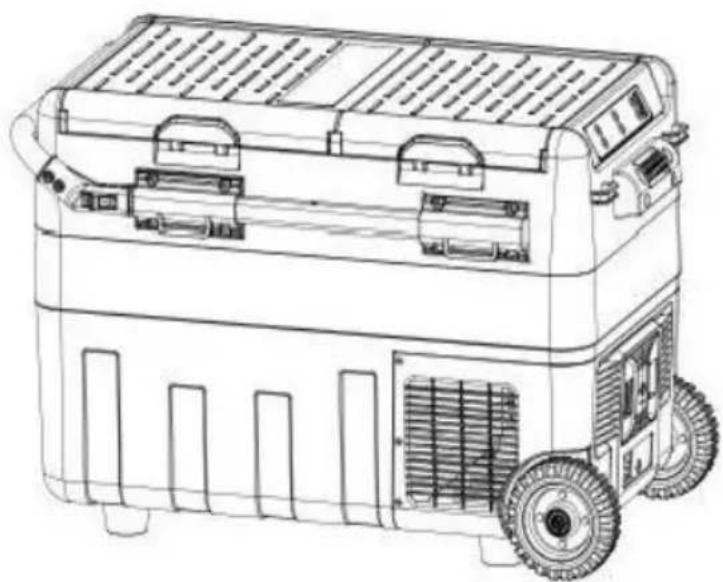

AUTO KOELKAST

HANDLEIDING

MODEL: X40K X50K

Line drawing of a multi-wheeled electric bus with visible battery, wheels, and control panel (no text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Electric charger connected to a wall-mounted power socket, showing wiring and circuit lines (no text or symbols visible)

Adapter

Close-up of a black cable with red connectors and a magnified inset showing a close-up of a key (no text or symbols visible)

Mechanical pipe joint diagram showing a highlighted section with a yellow box and arrow (no text or symbols)

Technical diagram of a mechanical joint or pipe assembly with no visible text or symbols

Line drawing of a multi-wheeled electric bus with visible battery, wheels, and control panel (no text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Electric charger connected to a wall-mounted power socket, showing wiring and circuit lines (no text or symbols visible)

Adapter

Close-up of a black cable with red connectors and an orange plug, next to a close-up of a black mouse on a keyboard (no text or symbols visible)

Anslut bilens cigarettändare

DC 12/24V

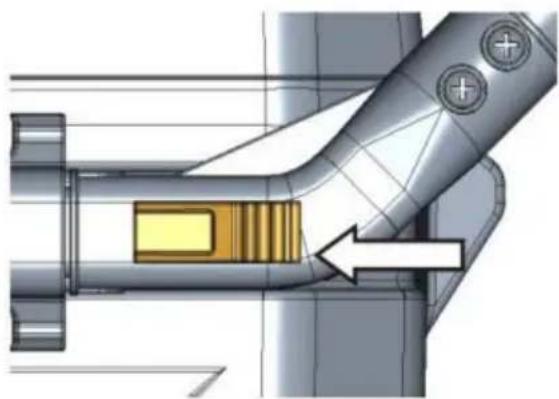

Anslut bilkylskåpet

Mechanical pipe joint diagram showing a highlighted section with a yellow box and arrow (no text or symbols)

Technical diagram of a pipe joint with a highlighted section and directional arrow (no text or symbols)

www.vevor.com/support
