USER MANUAL TT-300 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC CONVEYOR TOASTER

MODEL:TT-150 TT-300 TT-450

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC CONVEYOR TOASTER

MODEL:TT-150 TT-300 TT-450

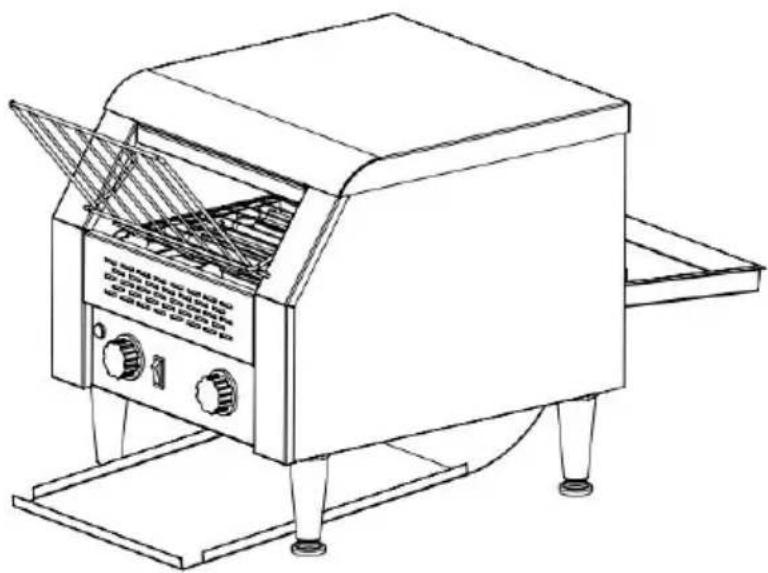

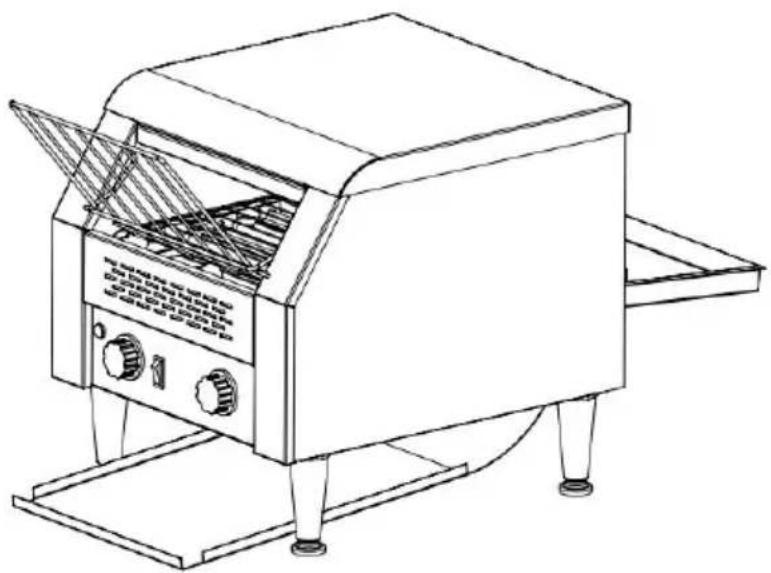

Line drawing of a portable toaster with cooling unit and side legs (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Specification of the toaster for different models:

Model	Region	Capacity (slices/per hour)	Size (mm)	Voltage, Frequency (V, Hz)	Power (w)
TT-150	USA	150-180	735*285*435	120, 60	1300
	EU	150-180	735*285*435	220-240, 50/60	1300
TT-300	USA	300-350	735*365*435	120, 60	1770
	EU	300-350	735*365*435	220-240, 50/60	2200
TT-450	USA	450-500	735*465*415	120, 60	1770
	EU	450-500	735*465*435	220-240, 50/60	2600

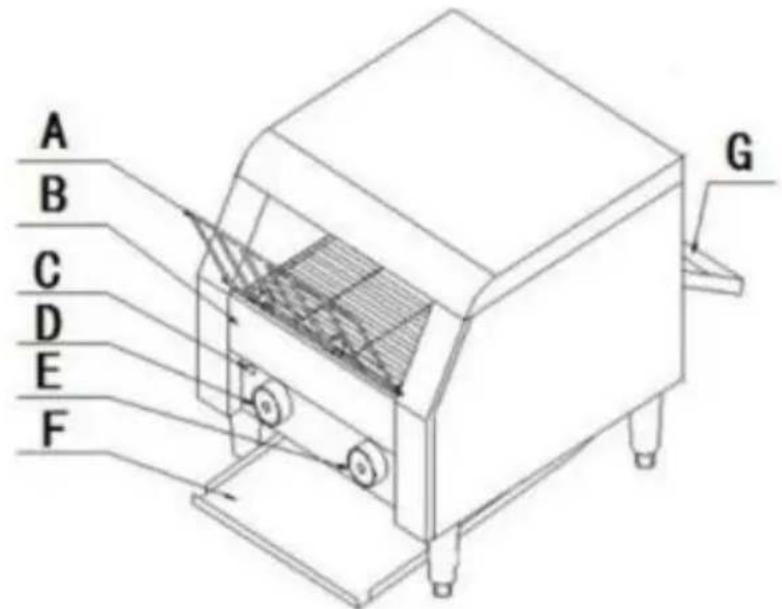

A B C D E F G

Name of the Components:

A. Inputting netPut bread on the net
B. Trash trayFor putting trash during producing
C. Power light(green): Machine is working well When power is on.
D. Speed buttonAdjusting speed of chain network
E. Gear button: For adjusting temperature of the bread.
F. Front side bread tray food sliding to front side after baking
G. Back side bread tray food sliding to back side after baking

IMPORTANT SAFEGUARDS:

When using the electrical appliance, basie satety precautions should airways be followed inouding the tolowing. Read at instructions.

1. Please read the relevant instructions carefully before using the proc

2. This appliance can be used by children aged 8 years and above persons with reduced physical, sensory, or mental capabilities or lack experience and knowledge if they have been given supervision or instruction concerning using the appliance safely and understand the hazards. Children shall not play with the appliance. Cleaning and child shall not make user maintenance unless they are older than 8 and supervised.

3. Keep the appliance and cord out of reach of children less than 8

4. If the supply cord is damaged, it must be replaced by the manufacture of its service agent, or similarly qualified persons to avoid a hazard.

5. CAUTION: Hot surfaces. Do not touch hot surfaces. Use handles of knobs, Do not let the cord hang over the edge of a table or hot surface.

6. To protect against electric shock, do not immerse the cord, plugs, housing in water or other liquid.

7. Please don't share the same power and other high-power appliances prevent overloading and cause other hazards.

8. Never touch the plate or around while the products is working or close because they are very hot, it could result in burn.

9. If you have a child near the machine, please take extra care to product, don't let children alone and place the product in baby hand reach.

10. Don't allow the product to be used in unattended.

11. Please don't contact the power line with sharp objects and hot sur avoiding damaging the power line.

12. Always check the power line and plug if damaged, please stop once there are signs of damage, then looking for professional worker repair or replacement.

13. Don't damage, excessively bend, stretch, twist the power line and heavy objects on the power line or nip the power line.

14. After using it, the thermostat knob should be turned to the "O" p and then pull the plug from the socket, to avoid the occurrence of I or insulation aging shock.

15. The product should be installed in a dry, clean, well-ventilated lock and placed in level position.

16. In order to ensure safety, the product must be grounded, and in leakage switch, ensure personal safety, otherwise shall not be used.

17. Please pull off the plug and until the product is completely coole before moving, check or clean up.

18. Don't insert or unplug the plug with wet hand, avoiding the risk electric shock.

19. If a longer extension cable is used:

1) The marked electrical rating of the power cord group or extension should be at least as large as the electrical rating of the appliance;
2) The power cord shall be arranged so that it will not hang on the desktop to prevent children from unintentionally pulling or tripping.

1. If the appliance is grounded, the extension wire shall be ground 3-core.

a) A short power-supply cord should be used to reduce the risk rest from becoming entangled in or tripping overa longercord.

b) Longer extension cords are available and may be used if care is exercised in their use.

c) If a longer extension cord is used:

1) The marked electrical rating of the cord set or extension cord should at least as grest as theelectrical rating of the appliance; and

2) The cord should be arranged so that it will no drape over the cord or table top where it can be pulled on by children or tripped over unintentionally.

If the appliance is of the grounded type, the extension cord should be grounding-type 3-wire cord.

SAVE THESE INSTRUCTIONS

Note for the first time use:

1. Pls check if power of the machine comply with your local power or before using the machine.
2. Power light turns on after connecting the power, Press D to "3"ge Chain network will work faster if color is lighter).

Pls turn the button to “bread” on right side of the machine, then heat will come from both upper and lower heating tubes, it will heat up grain. Inside temperature of the toaster will reach 284^ C in 12 minutes where bread has been put inside, then temperature will be constant at 284^ C.

1. Machine should be pre-heat from 10-12 minutes, then bake 1-2 slide bread for testing and check if color of the bread is OK or not, if light, and you want darker coler, pls adjust D more than "3" gear(not Chain network will work slower if color of the break is darker). After adjusting speed of the chain network, pls put the bread to chain network bread will be moved inside of the machine when chain network is much easier.

2. Bread will slide to Front side bread tray from firepot.

3. There is back side bread tray on back of the toaster, pls put the the back tray down, the bread will slide to back side bread tray, pls hook of the back tray up after getting the bread.
4. Pls adjust the gear to "BUNS" position, then only upper heating to work when baking steamed bread, pls adjust gear to "STBY" position with you only need warm up function.
5. PIs turn the button to "OFF" position and pull off plug.
6. PIs do not use the machine to heat up food with sugar or food become liquid after heating, or it will damage the toaster.
7. If cable of toaster is broken, ONLY professional engineers can change with specialized cable, pls be noted.

Care and Cleaning

1. Unplug the power cable and ensure that the product is cooled completely, then cleaning and collection.
2. Cleaning cooking surface with a soft cloth or sponge dampened in detergent.

3. Please don't use wire brush, stiff brush or other corrosive liquids it, avoiding damage the surface coating.

4. Never clean the product by sprinkling water and immersed in water

Special Declaration

1. All the contents of this information have been checked carefully, if is any misunderstanding because of printing and content, our company reserve the right of final explanations.
2. If there is a technical improvement, we will compiled new specific into the Instructions, without prior notice. If the appearance of the pro color changes, please make the object as the standard.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken acollection point for recycling electrical and electronic devices.

Address : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
