TT-450 - Toaster Vevor - Free user manual and instructions

Product Type	Professional Conveyor Toaster
Brand	Vevor
Model	TT-450
Capacity	450 to 500 slices per hour
Dimensions (L × D × H)	735 × 465 × 415 mm (120V version) or 735 × 465 × 435 mm (220-240V version)
Voltage and Frequency	120 V ~ 60 Hz (US version) / 220-240 V ~ 50/60 Hz (International version)
Power	1770 W (120 V) / 2600 W (220-240 V)
Main Material	Stainless steel (cooking surface and housing)
Main Components	Net input, waste tray, green power indicator, speed knob (D), gear knob (E), front bread tray, rear bread tray with hook
Settings	Conveyor speed (3 levels) and temperature (positions: OFF, STBY, BUNS, continuous adjustment for bread)
Special Features	Preheating (10-12 min), BUNS mode (top heating only), automatic conveyor
Safety	Mandatory grounding, hot surfaces indicated, leakage circuit breaker, use of suitable extension cord
Cleaning	Unplug, wait for complete cooling, clean surfaces with a soft cloth and mild detergent - never immerse or use metal brush
Warranty and Support	Technical support and electronic warranty certificate available at www.vevor.com/support
Country of Origin	Imported from China (Shanghai) by Sanven Technology Ltd. (USA) and Pooledas Group Ltd. (UK)

Frequently Asked Questions - TT-450 Vevor

How to use the TT-450 toaster for the first time?

Before first use, check that the local voltage matches the appliance. Plug it in, the green light turns on. Set speed to "3" and turn the gear knob to the bread position (heat). Preheat for 10 to 12 minutes until the temperature reaches 284°C. Then place 2 slices of bread on the conveyor to test the color. Adjust speed if necessary.

What are the essential safety precautions?

Do not touch hot surfaces, use handles. Never immerse the appliance in water. Always unplug after use and before cleaning. Ensure the appliance is grounded and use a residual current device. Keep out of reach of children under 8 years old.

How to clean the toaster?

Unplug the appliance and let it cool completely. Clean the cooking surface with a soft cloth or sponge soaked in mild detergent. Never use a metal brush, abrasive or corrosive product. Do not immerse the appliance in water.

What is the capacity of the TT-450?

The TT-450 can toast between 450 and 500 slices of bread per hour, making it suitable for professional or high-capacity use.

Can the toaster be used with an extension cord?

Yes, but the extension cord must have a power rating at least equal to that of the appliance (1770 W or 2600 W depending on the version). It must be arranged so that it does not hang and must be of a grounded type if the appliance is grounded.

What if the power cord is damaged?

Do not use the appliance anymore. The cord must be replaced only by the manufacturer, its after-sales service or a qualified person, with a specialized cord, to avoid any danger.

Can I toast sweet foods with this toaster?

No, it is not recommended to reheat foods containing sugar, as they can become liquid and damage the appliance. Use it only for bread or unsweetened pastries.

How to adjust the toasting color?

Use the speed knob (D): a slower speed (position "1") gives a darker color, a faster speed (position "3") gives a lighter color. You can also adjust temperature with the gear knob (E).

What does the green light mean?

The green power indicator lights up when the appliance is plugged in and powered on. It indicates that the machine is ready to use.

Where to find spare parts for the TT-450?

Spare parts are not listed in the manual. Please contact Vevor customer service via www.vevor.com/support for information on spare parts or repair.

USER MANUAL TT-450 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC CONVEYOR TOASTER

MODEL: TT-150 TT-300 TT-450

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean that all categories of tools offered are covered. We kindly remind you to verify carefully when placing an order with us to ensure you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC CONVEYOR TOASTER

MODEL: TT-150 TT-300 TT-450

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Specification of the toaster for different models:

Model	Region	Capacity (slices/per hour)	Size (mm)	Voltage, Frequency (V, Hz)	Power (w)
TT-150	USA	150-180	735*285*435	120, 60	1300
	EU	150-180	735*285*435	220-240, 50/60	1300
TT-300	USA	300-350	735*365*435	120, 60	1770
	EU	300-350	735*365*435	220-240, 50/60	2200
TT-450	USA	450-500	735*465*415	120, 60	1770
	EU	450-500	735*465*435	220-240, 50/60	2600

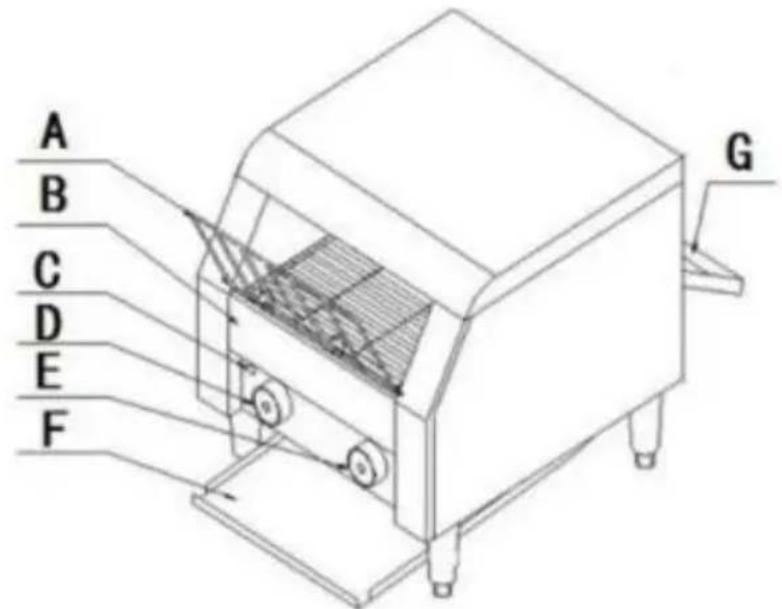

Name of the Components:

A. Inputting net: Put bread on the net. B. Trash tray: For putting trash during producing. C. Power light (green): Machine is working well when power is on. D. Speed button: Adjusting speed of chain network. E. Gear button: For adjusting temperature of the bread. F. Front side bread tray: Food sliding to front side after baking. G. Back side bread tray: Food sliding to back side after baking.

IMPORTANT SAFEGUARDS:

When using the electrical appliance, basic safety precautions should always be followed, including the following. Read all instructions.

1. Please read the relevant instructions carefully before using the product.
2. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
3. Keep the appliance and its cord out of reach of children less than 8 years old.
4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
5. CAUTION: Hot surfaces. Do not touch hot surfaces. Use handles or knobs. Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
6. To protect against electric shock, do not immerse the cord, plugs, or housing in water or other liquid.
7. Please do not share the same power outlet with other high-power appliances to prevent overloading and other hazards.
8. Never touch the plate or the area around it while the product is working or immediately after use, as they are very hot and could cause burns.
9. If there is a child near the machine, take extra care. Do not leave children unattended, and place the product out of reach of children.
10. Do not allow the product to be used unattended.
11. Do not let the power cord come into contact with sharp objects or hot surfaces to avoid damaging the cord.
12. Always check the power cord and plug for damage. If you notice any signs of damage, stop using the product immediately and have it repaired or replaced by a qualified professional.
13. Do not damage, excessively bend, stretch, or twist the power cord. Do not place heavy objects on it or pinch it.
14. After use, turn the thermostat knob to the "O" position and then unplug the product from the socket to avoid electric shock or insulation aging.
15. The product should be installed in a dry, clean, well-ventilated location and placed on a level surface.
16. To ensure safety, the product must be grounded, and a leakage switch must be used to ensure personal safety; otherwise, it should not be used.
17. Please unplug the product and wait until it is completely cool before moving, checking, or cleaning it.
18. Do not insert or unplug the plug with wet hands, to avoid the risk of electric shock.
19. If a longer extension cable is used:

1) The marked electrical rating of the power cord set or extension should be at least as large as the electrical rating of the appliance; 2) The power cord should be arranged so that it does not hang over the desktop to prevent children from unintentionally pulling or tripping over it.

1. If the appliance is grounded, the extension cord should be a grounded 3-core cord.

a) A short power-supply cord should be used to reduce the risk of becoming entangled in or tripping over a longer cord.

b) Longer extension cords are available and may be used if care is exercised in their use.

c) If a longer extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance; and

2) The cord should be arranged so that it will not drape over the counter or table top where it can be pulled on by children or tripped over unintentionally.

If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord.

SAVE THESE INSTRUCTIONS

Note for the first time use:

1. Please check if the power of the machine complies with your local power supply before using the machine.
2. The power light turns on after connecting the power. Press D to "3" gear. The chain network will work faster if the color is lighter.

Please turn the button to "bread" on the right side of the machine, then heat will come from both upper and lower heating tubes, and it will heat up the grain. The inside temperature of the toaster will reach 284°C in 12 minutes when bread has been put inside, then the temperature will be constant at 284°C.

1. The machine should be preheated for 10-12 minutes, then bake 1-2 slices of bread for testing and check if the color of the bread is OK or not. If it is light and you want a darker color, please adjust D to more than "3" gear (the chain network will work slower if the color of the bread is darker). After adjusting the speed of the chain network, please put the bread on the chain network. The bread will be moved inside the machine when the chain network is much easier.
2. Bread will slide to the front side bread tray from the firepot.
3. There is a back side bread tray on the back of the toaster. Please put the back tray down, the bread will slide to the back side bread tray. Please hook the back tray up after getting the bread.
4. Please adjust the gear to "BUNS" position, then only the upper heating will work when baking steamed bread. Please adjust the gear to "STBY" position when you only need the warm-up function.
5. Please turn the button to "OFF" position and pull off the plug.
6. Please do not use the machine to heat up food with sugar or food that becomes liquid after heating, or it will damage the toaster.
7. If the cable of the toaster is broken, only professional engineers can replace it with a specialized cable. Please be noted.

Care and Cleaning

1. Unplug the power cable and ensure that the product is completely cooled before cleaning and storage.
2. Clean the cooking surface with a soft cloth or sponge dampened with detergent.
3. Please do not use wire brushes, stiff brushes, or corrosive liquids, to avoid damaging the surface coating.
4. Never clean the product by sprinkling water on it or immersing it in water.

Special Declaration

1. All the contents of this information have been checked carefully. If there is any misunderstanding due to printing or content, our company reserves the right of final explanation.
2. If there is a technical improvement, we will compile new specifics into the instructions without prior notice. If the appearance or color of the product changes, please take the actual object as the standard.

CORRECT DISPOSAL

This product is subject to the provisions of European Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste but must be taken to a collection point for recycling electrical and electronic devices.

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
