USER MANUAL LY-SJ6211 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROOFTOP TENT

MODEL: LY-SJ6211

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ROOFTOP TENT

LY-SJ6211

Line drawing of a car with a roof-mounted structure and ladder, no text or symbols present

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

INTRODUCTION

WARNING:

PLEASE READ AND UNDERSTAND ALL DETAILS BEFORE ASSEMBLY AN USE OF THE ROOFTOP TENT.

WARNING!

■ If you have any back, knee or any other health complications, do not atte to mount the roof tent on your vehicle.
■ Your vehicle must have a roof rack or cross bars installed in order to meet the roof tent.
■ The cross bars must have a dynamic weight load of at least 600 lbs (27 and must be at least 30" (76cm) apart.
■ It is easiest to mount the roof tent from the side of your vehicle, not from front or the back.

Save the instructions.

PRODUCT PAREMETERS

Model	LED Lights	Occupant Capacity	Vehicle Service Type	Vehicle Load Capacity
LY-SJ6211	DC5V, 3W	2 adults & 1 children	Minivan, Suv, Cal Pickup Truck	>600 lbs

PART LIST

When unpacking this product, ensure the parts listed below are includ and carefully inspect for any damage that may have occurred during Do not attempt to assemble or use the product if any part is missin damaged.

No	Part Name	Qty	Picture
1	Tent	1
2	Slider	8
3	Iron Sheet	4
4	Track Plug	4
5	Internal Hexagonal Wrench	1
6	13 # External Hexagon Ratchet Wrench	1
7	Anti Loosening Nut M8	8
8	External Hexagonal Screw M8 * 55	8
9	Steel Bar Pole	2
10	Accessory Bag	1
11	Reinforcement Bag	1
12	Telescopic Ladder	1
13	Luggage Pole	2
14	Luggage Pole Connection Bracket	4
15	Internal Hexagonal Screw	8
16	Square Nut M8	8
17	Pan Head Screw M5 25	8
18	Anti Loosening Nut M5	8
19	Rod Cover	4

INSTALLATION METHODS

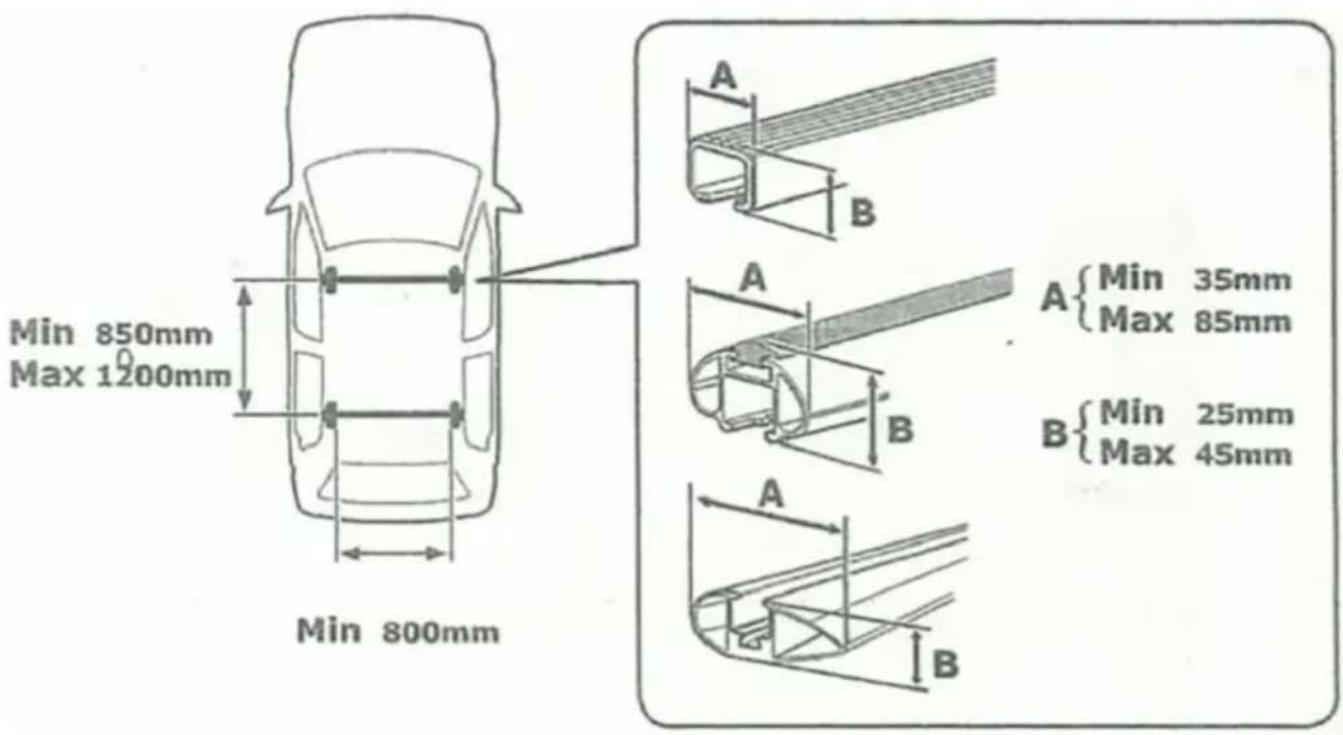

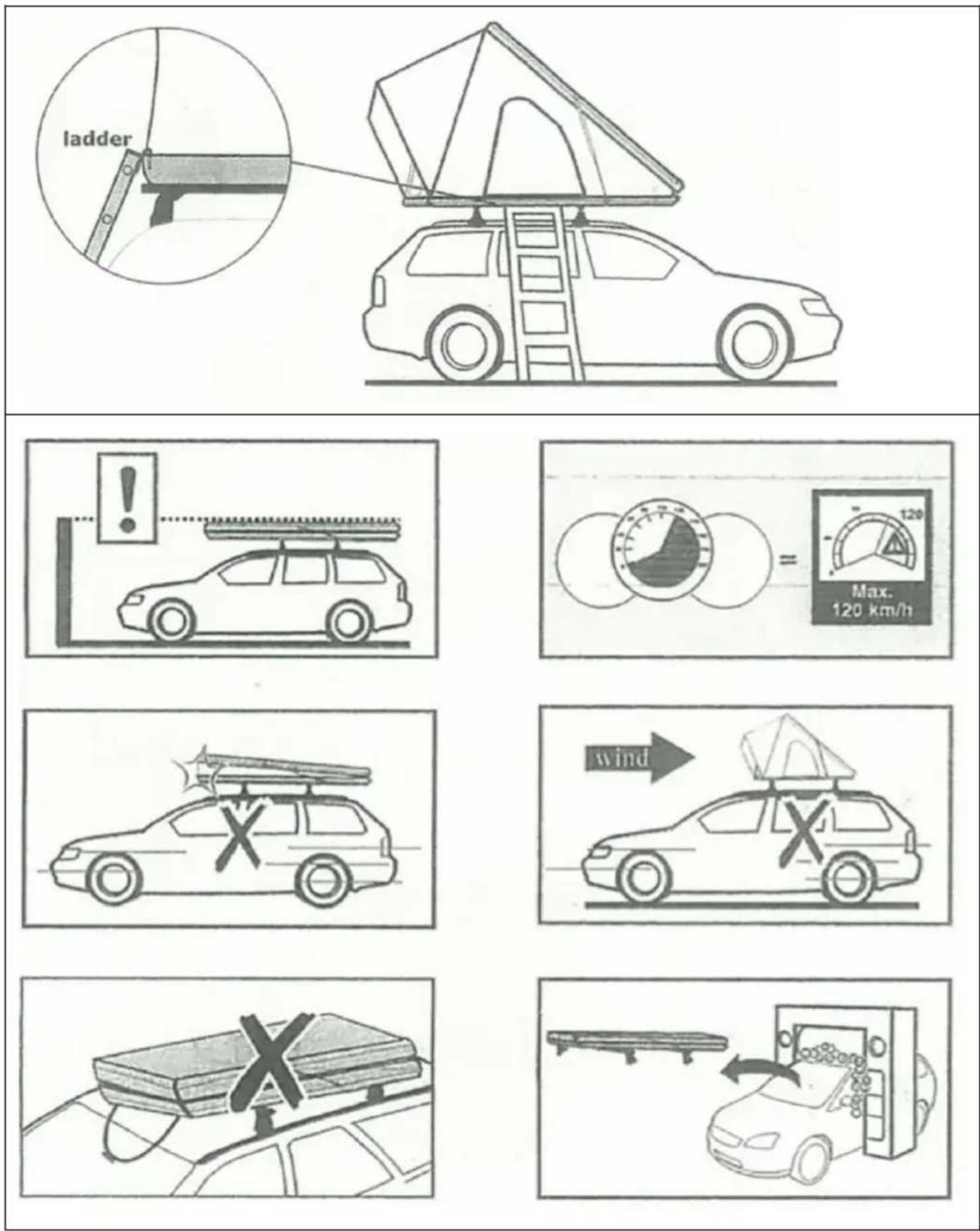

Min 850mm Max 1200mm Min 800mm A B A B A{Min 35mm Max 85mm} B{Min 25mm Max 45mm}

Step 1:

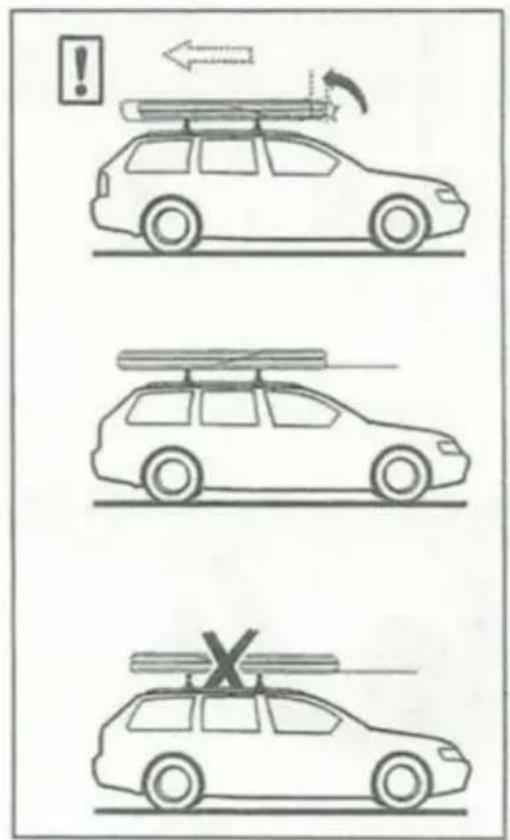

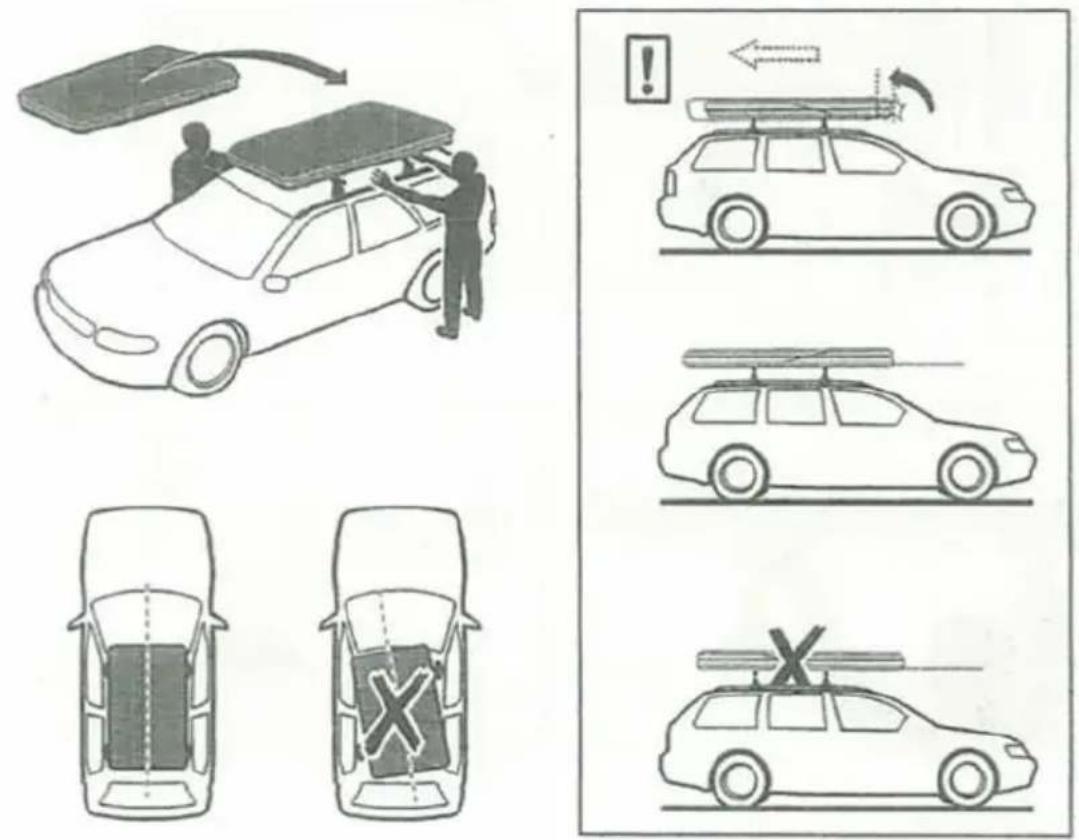

1. Have two people stand at the front of the roof tent, and two the back.
2. Grab the panel on the bottom of the roof tent and lift up to
3. Lift the roof tent up to your shoulders, and then above your
4. Gently slide the roof tent onto your cross bars.
5. Make sure the roof tent is centered.

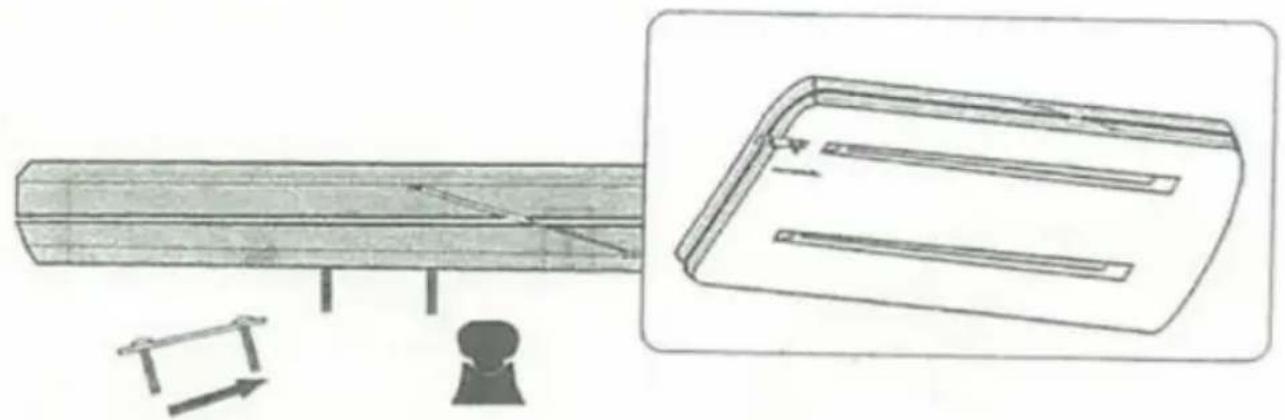

Step 2:

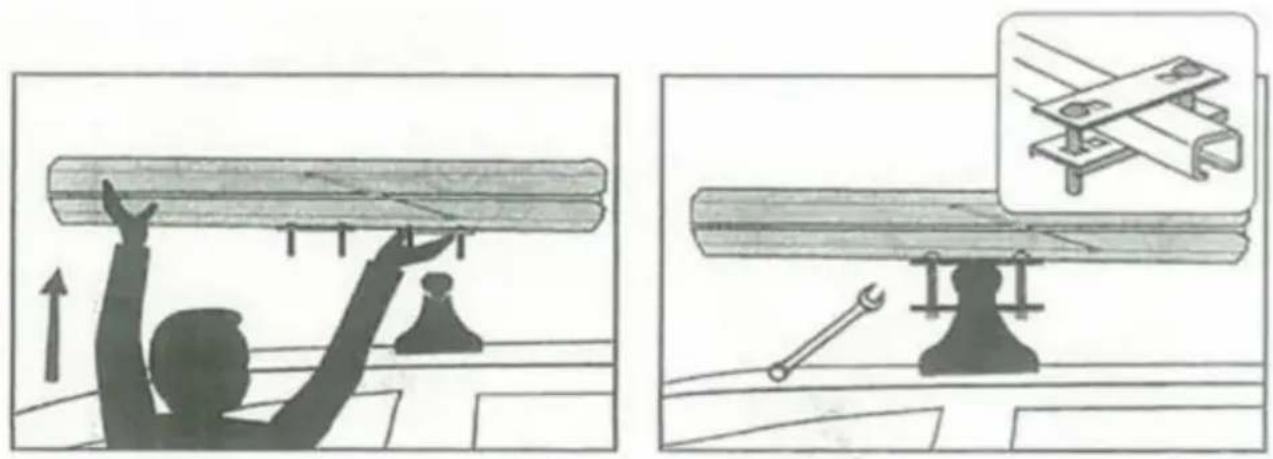

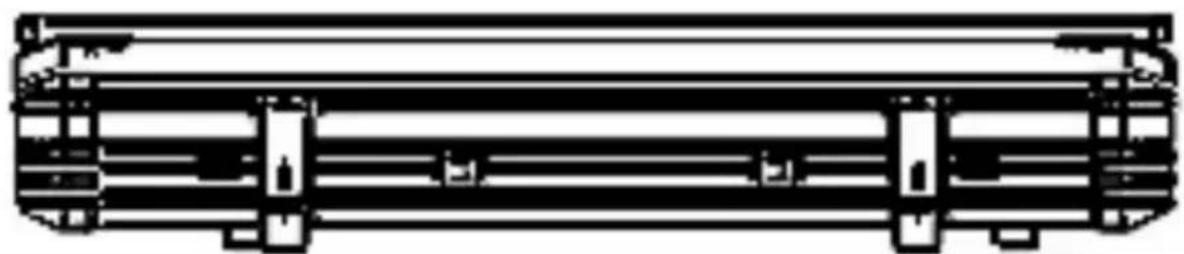

Technical line drawing of a mechanical component with an inset view showing internal structure (no text or symbols)

Step 3:.

Illustration showing a person lifting a wooden beam with a magnified inset of a mechanical setup (no text or symbols)

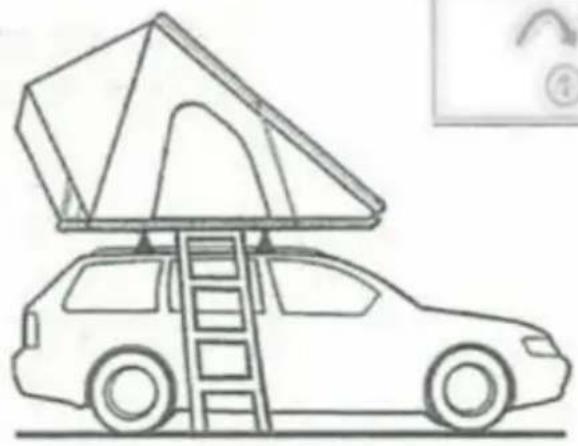

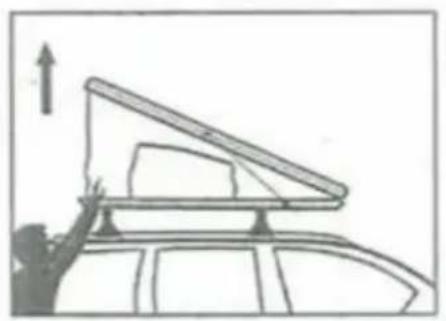

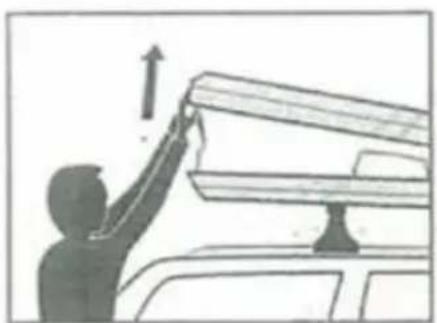

Step 4: Open the tent.

Silhouette of a person cleaning a car window with an upward arrow (no text or symbols)

Diagram of a person using a lift to lift a car roof, with an upward arrow indicating direction (no text or symbols)

Line drawing of a car with a roof-mounted roof and ladder, no text or symbols present

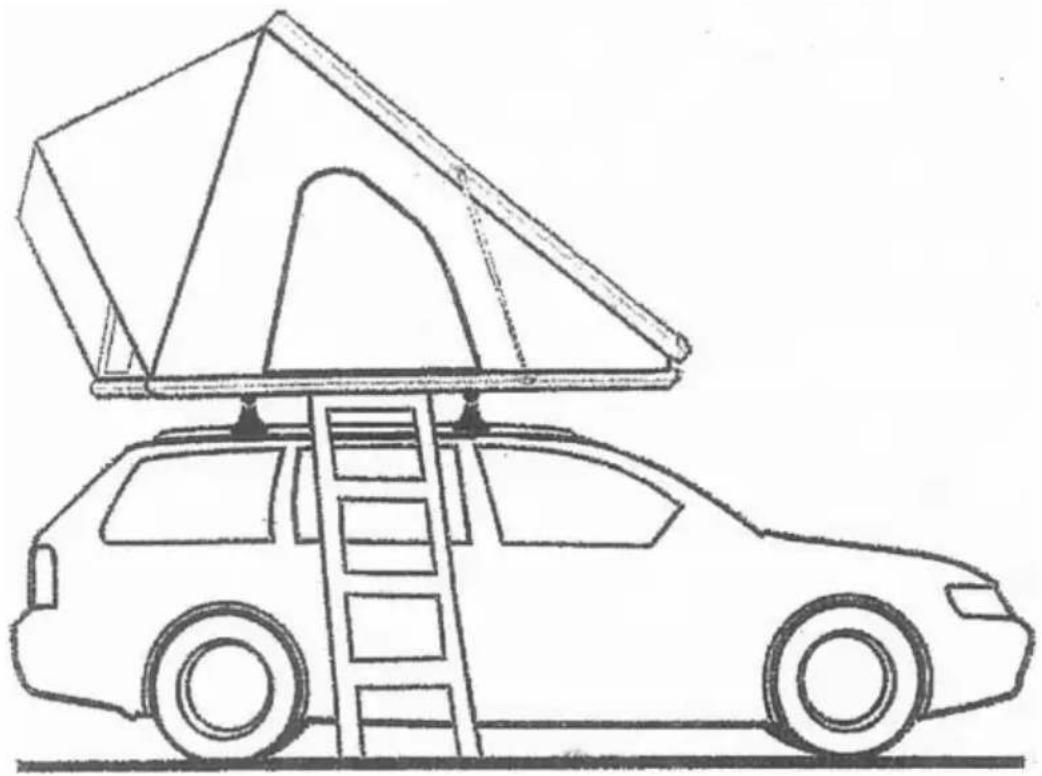

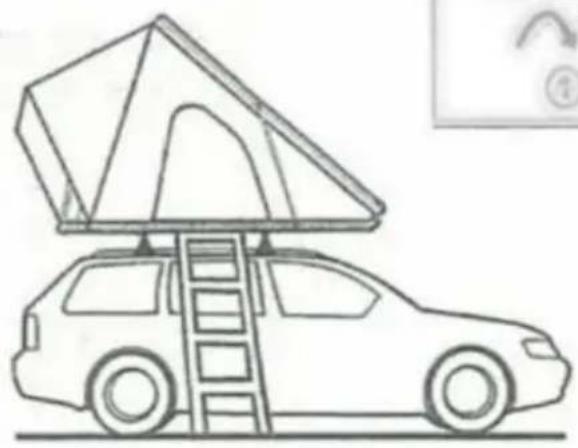

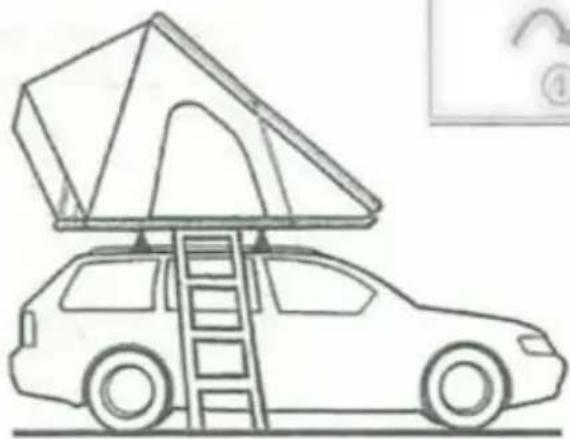

OPEN THE TENT

Diagram showing a mechanical or fluid system with labeled components and directional arrows, likely illustrating a process or motion sequence.

Step 5:

Close the tent.

Diagram of a person using a lift to lift a roof-mounted structure, with an arrow indicating downward motion (no text or symbols present)

Technical diagram showing a mechanical assembly with labeled parts and directional arrows

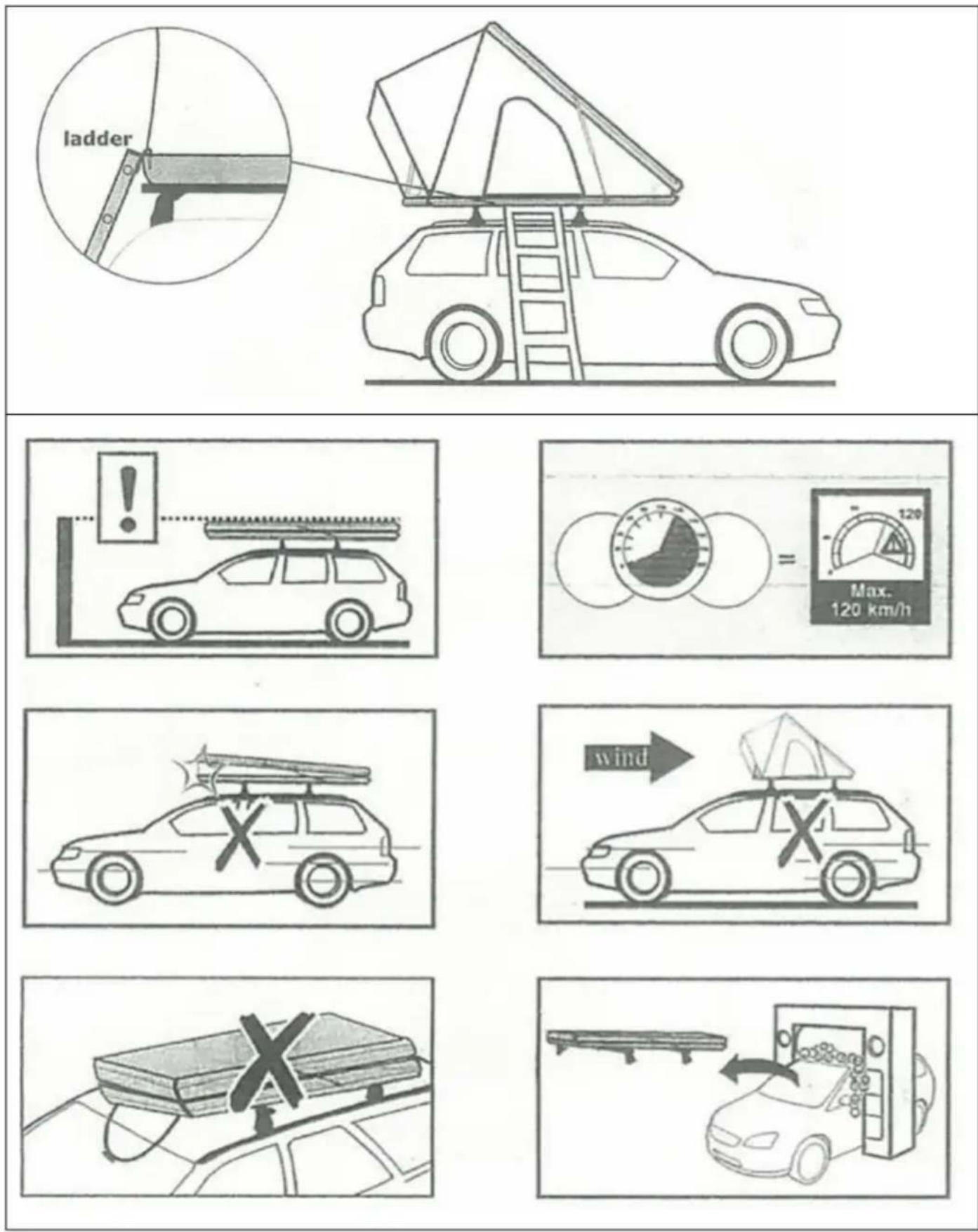

Diagram of a car roof structure with an arrow indicating downward motion (no text or symbols)

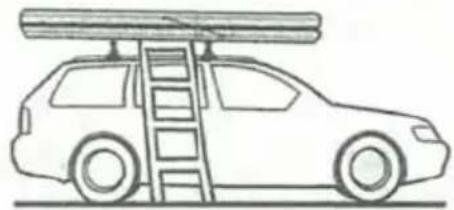

Line drawing of a car with a ladder and roof-mounted roof (no text or symbols)

CLOSE THE TENT

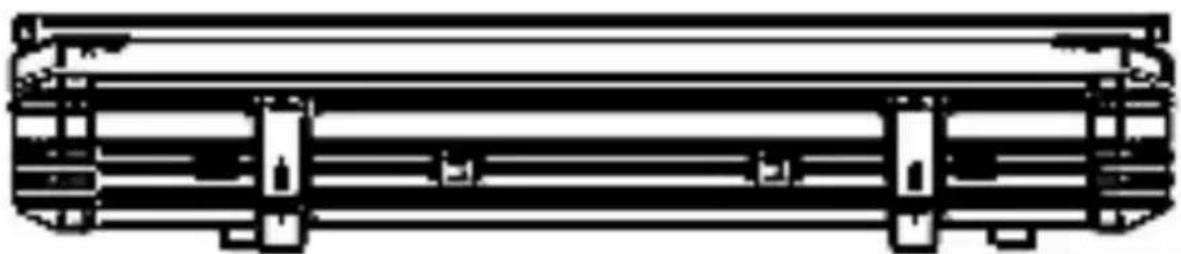

Step 6: The luggage pole is installed on the tent. Luggage pole assembly

1. Pan head screw M5 * 25 asse and fixed with connecting bracket.
2. Install rod plugs at both ends rod.
3. Install two square nuts on one side of the side the long direction of the tent cover.
   4 .Install M8 * 15 hex screws into the luggage po connecting bracket and fix them with square nuts.

Pure structural diagram of a beam with supports and load, no text or symbols present

Simple line drawing of a horizontal beam with supports at both ends (no text or symbols)

Simple horizontal line with two rectangular endpoints and directional arrows (no text or symbols)

Simple line drawing of a roof structure with diagonal lines (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Telescopic Ladder

Before using:

1. Please ensure that you are fit enough to use the ladder, Be certain to conditions or medication, alcohol or drug abuse are prepared to make the are used in unsafe condition.
2. When transporting ladders on roof bars or in a truck, please ensure that suitably placed to prevent damage.
3. Inspect the ladder after delivery and before first using to confirm con operation of all parts.
4. Visually check the ladder is damaged or not and be sure it is safe start of each working day when the ladder is not to be used.
5. For professional users, regular periodic inspection is required.
6. Ensure the ladder is suitable for the task.
7. Do not use a damaged ladder.
8. Remove any contamination from the ladder.such as wet paint,mud,oil d
9. Before using a ladder at work, a rick assessment should be carried respecting the legislation in the country of use.

Positioning and erecting the ladder:

1. Inclination angle should not exceed 75 degree.
2. Ladder shall be on an even, level and unmovable base.
3. Leaning ladder should lean against a flat non-fragile surface and shou secured before using, e.g tied or use of suitable stability device.
4. When positioning the ladder, please take into account the risk if collision ladder e.g. From pedestrians, vehicles or doors (no fire exists) and windows possible in the work area.
5. Identify any electrical risks in the work area, such as overhead lines of exposed electrical equipment.
6. Ladder shall be stood on its feet, not the rungs or steps.
7. Ladders shall not be positioned on slippery surface(such as ice shiny significantly contaminated solid surface) unless additional effective measures taken to prevent the ladder slipping or ensuring contaminated surfaces are sufficiently clean.

Using the ladder:

1. Do not exceed the maximum total load.
2. Do not overreach, users should keep their buckle(navel) inside the stile both feet on the same step/rung throughout the task.
3. Do not step off a leaning ladder at a higher level without additional such as tying off or use of a suitable stability device.
4. Do not use standing ladders of access to another level.
5. Do not stand on the top three steps/rungs of a leaning ladder.
6. Ladders should only be used for light work of short duration.
7. Do not use the ladder outside in adverse weather conditions, such as wind.
8. Take precautions against children playing on the ladder.
9. Face the ladder when ascending and descending.
10. Keep a secure grip on the ladder when ascending and descending.
11. Do not use the ladder as a bridge.
12. Wear suitable footwear when climbing a ladder.
13. Avoid excessive side loading e.g drilling brick and concrete.
14. Do not spend long time on a ladder without regular breaks ( tireles

Open the ladder:

Automatic locking:each rung of your ladder has 2 locking pins are blocke automatically inserted into the slots of the uprights in place when the last extended.

The two black buttons in both side:

Unlocked position: There is a gap between the buttons and the Spar Locked position: The buttons are located directly on to leg.

Unlocked

Locked

Complete the ladder extension :

The ladder should be on a firm and level ground, move one foot on the The top-rung off and check if the buttons are locked. Repeat the process of next lower rung, until the arms are completely extended.

Partial extension of the ladder:

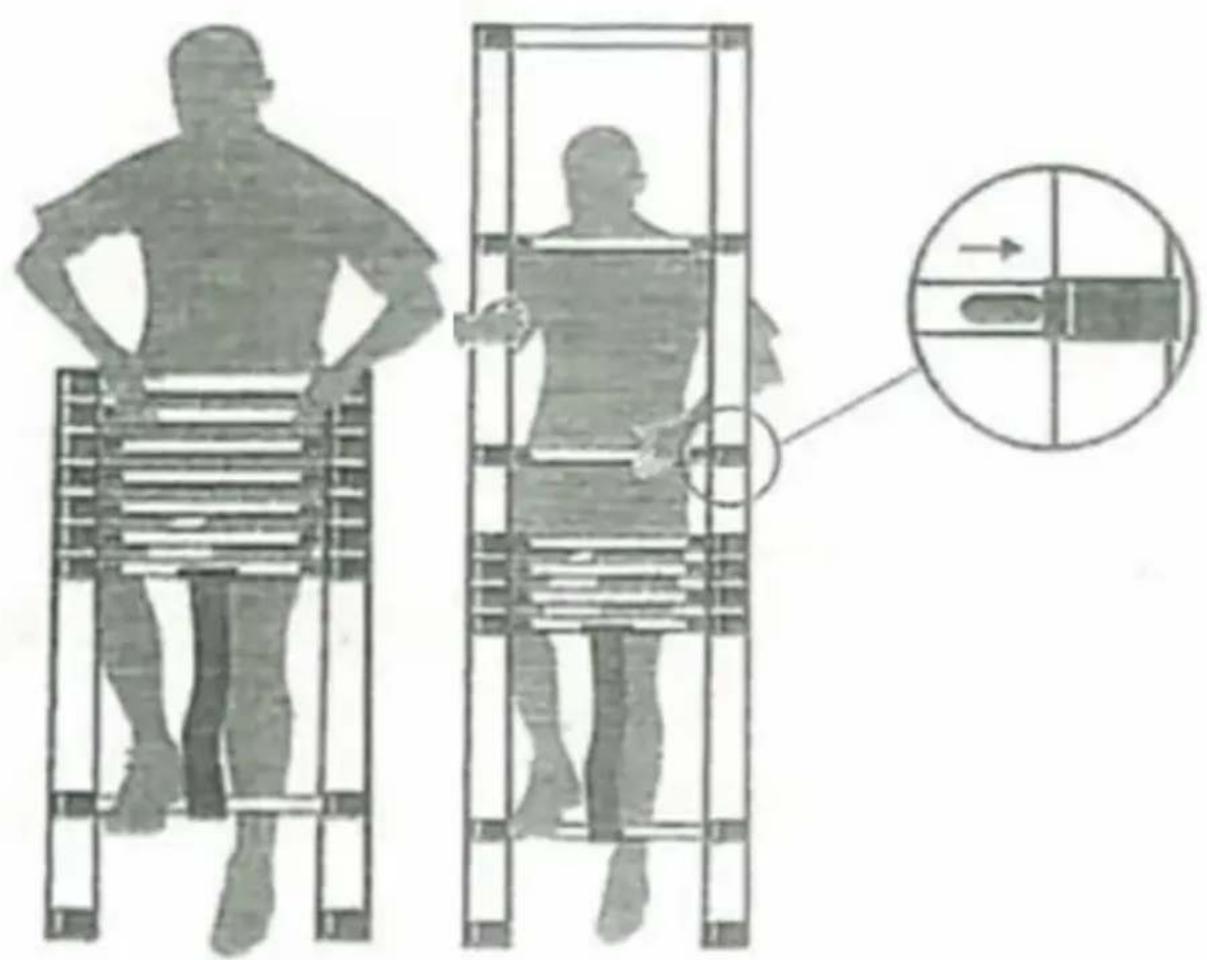

Place ladder on a firm and flat ground, move one foot on the lowest run. The lowest rung off and check if the buttons are locked. Repeat the pn the next higher rung. until the arms are completely extended.

Diagram illustrating a physical exercise or exercise setup with two individuals using a bench, showing movement and alignment of the apparatus.

Caution:

Always check that all buttons are on the exact position "Locked" before the lad.

Installed the roof bar on top of shell:

1. Roof bar x l pairs, steel panel x 4, screw x 8, bolt x 8.
2. Use bolt and screw fixed the steel panel connect the roof bar.

3. Max capacity weight is 70.00 kgs.

4. Make sure that it is firmly installed when you start driving.

Diagram of a triangular lamp with an inset showing a hand holding a small object, no text or symbols present.

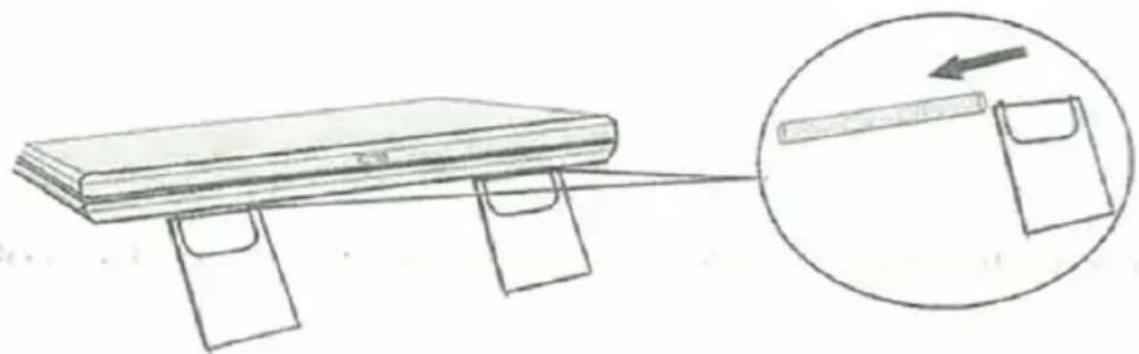

Using the shoes bag in both side.

The rubber strips at the top of the shoes bag through the aluminum ra

1. The rubber strip must be straight.
2. The groove of aluminum rail must be aligned with the rubber strip on the shoelace.

Simple line drawing of a table with a magnified inset showing a rectangular object and a directional arrow (no text or symbols)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW : Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Cent

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a car with a roof-mounted structure and ladder, no text or symbols present

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

Illustration of two people installing a roof-mounted solar panel on a car (no text or symbols)

Top-down line drawing of a car viewed from the side, showing front, rear, and side views (no text or symbols)

Top-down line drawing of a car with a cross symbol on the side panel (no text or labels)

Diagram illustrating three scenarios of a car with roof-mounted sensors, showing directional arrows and warning symbols.

Étape 2:

Technical line drawing of a mechanical component with an inset close-up showing internal features (no text or symbols)

Étape 3:.

Illustration showing a person lifting a wooden beam with a wrench, and a close-up of a mechanical setup with a tool and bracket (no text or symbols)

Illustration of a person cleaning a car window with an upward arrow (no text or symbols)

Diagram of a car with an upward arrow indicating motion or force, showing a roof structure and window (no text or symbols)

Line drawing of a car with a roof-mounted roof structure and ladder, no text or symbols present

OPEN THE TENT

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Étape 5 :

Fermez la tente.

Diagram of a car roof structure with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, including numbered annotations ①, ②, and ③.

Diagram of a car roof-mounted system with a person standing and a downward arrow indicating force or motion (no text or symbols)

Line drawing of a car with a ladder and roof-mounted platform (no text or symbols)

CLOSE THE TENT

Simple line drawing of a horizontal beam with supports at both ends (no text or symbols)

Pure structural diagram of a beam with supports and load arrows (no text or symbols)

Simple line drawing of a roof structure with diagonal lines and support brackets (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Diagram illustrating a physical exercise or exercise setup with two individuals using horizontal bar grids, showing movement and alignment of the object.

Prudence:

Diagram of a mechanical device with an inset showing a hand holding a tool, no text or symbols present.

Diagram showing a table with a lid and two chairs, connected to a magnified view of a rectangular object (no text or symbols present)

Fabricant : Shanghaimuxinmuyeyouxiangongsi

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200 000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETASTWOOD NSW 2122 Australie

C/O YH Consulting Limited Bureau 147, Centurion

Maison, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Line drawing of a car with a roof-mounted structure and ladder, no text or symbols present

INSTALLATIONSMETHODEN

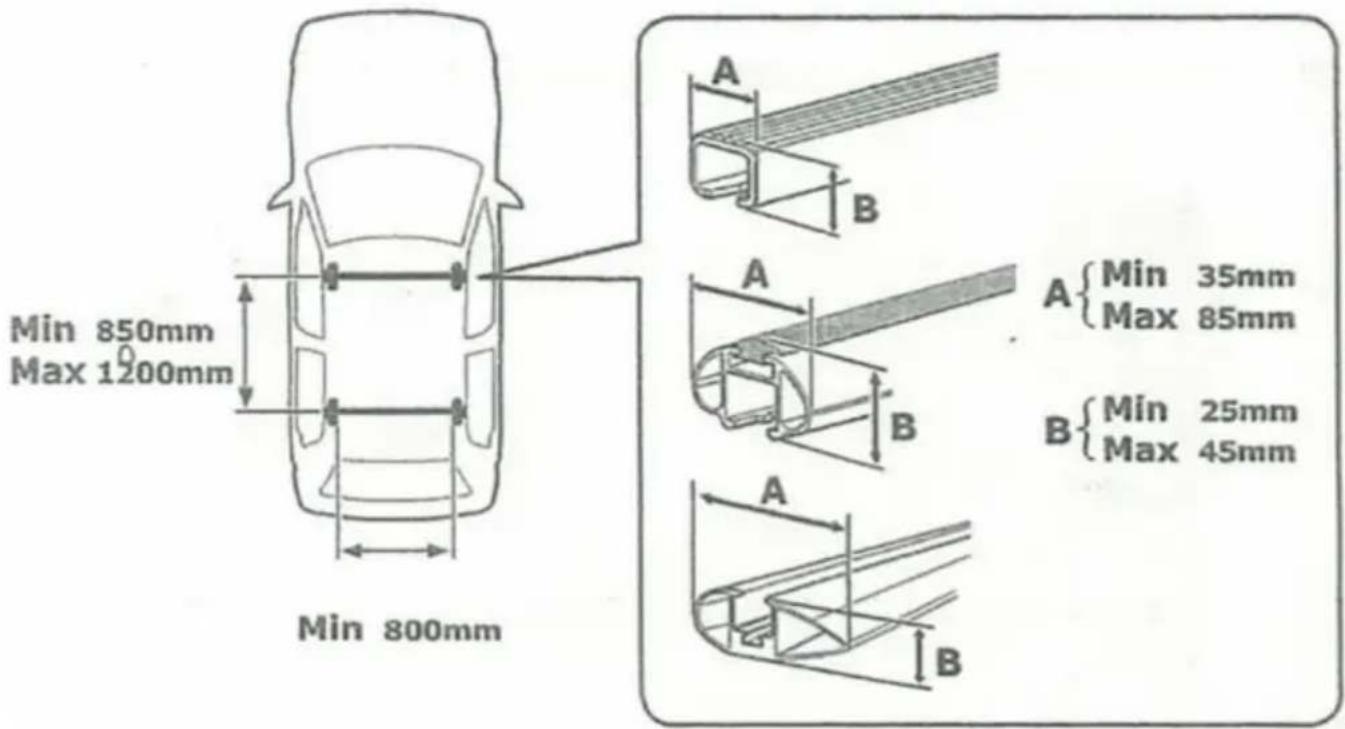

Min 850mm Max 1200mm Min 800mm A B A B A{Min 35mm Max 85mm} B{Min 25mm Max 45mm}

Schritt 1:

Illustration of a car with two people handling roof-mounted vehicles, one moving toward a rectangular box (no text or symbols)

Top-down line drawing of a car viewed from the side, showing front, rear, and side views (no text or symbols)

Top-down line drawing of a car with a cross symbol on the windshield (no text or labels)

Diagram illustrating three scenarios of a car with roof-mounted sensors, showing directional arrows and warning symbols.

Schritt 2:

Technical line drawing of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Schritt 3:.

Illustration showing a person lifting a wooden beam with a wrench, and a close-up of a mechanical setup with a tool and bracket (no text or symbols)

Illustration of a person cleaning a car window with an upward arrow (no text or symbols)

Diagram of a car with an upward arrow indicating motion or force, showing a roof structure and window (no text or symbols)

Line drawing of a car with a roof-mounted roof structure and ladder, no text or symbols present

OPEN THE TENT

Diagram showing a mechanical or fluid system with labeled components and directional arrows indicating flow or movement.

Schritt 5:

Schließe das Zelt.

Diagram of a car roof structure with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, including symbols ①, ②, and ③.

Diagram of a car roof-mounted system with a person standing and a downward arrow indicating force or motion (no text or symbols)

Line drawing of a car with a ladder and roof-mounted platform (no text or symbols)

CLOSE THE TENT

Simple line drawing of a horizontal beam with supports at both ends (no text or symbols)

Simple line drawing of a roof structure with diagonal lines and a central panel (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure structural diagram of a beam with supports and load arrows (no text or symbols)

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Teleskopleiter

Vor Gebrauch:

Diagram illustrating a physical exercise or exercise setup with two individuals using horizontal bar grids, showing movement and alignment of the object.

Vorsicht:

Diagram of a mechanical device with an inset showing a hand holding a tool, no text or symbols present.

Diagram showing a table with supports and a magnified view of a device with an arrow indicating motion (no text or symbols)

Hersteller: Shanghaimuxinmuyeyouxiangongsi

Adresse: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Büro 147, Centurion

Haus, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a car with a roof-mounted structure and ladder, no text or symbols present

HO BISOGNO DI AIUTO? CONTATTACI!

Illustration of a car with two people handling roof-mounted vehicles, one moving toward a rectangular box (no text or symbols)

Top-down line drawing of a car viewed from the side, showing front, rear, and side views (no text or symbols)

Top-down line drawing of a car with a cross symbol on the windshield (no text or labels)

Diagram illustrating three scenarios of a car with roof-mounted sensors, showing directional arrows and warning symbols.

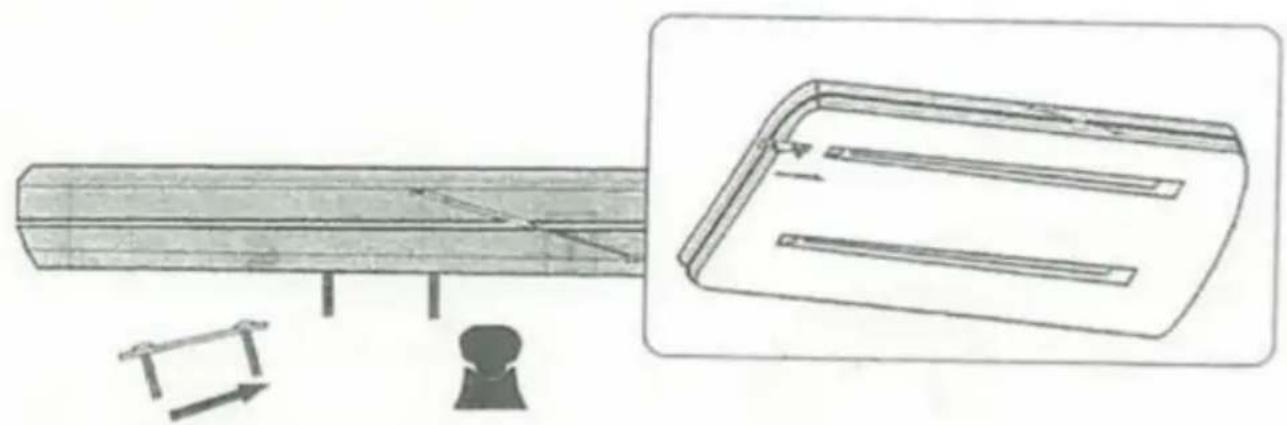

Passo 2:

Technical line drawing of a mechanical component with an inset close-up showing internal features (no text or symbols)

Passaggio 3:.

Illustration showing a person lifting a wooden beam with a wrench, and a close-up of a mechanical setup with a tool and bracket (no text or symbols)

Illustration of a person cleaning a car window with an upward arrow (no text or symbols)

Diagram of a car with an upward arrow indicating motion or force, showing a roof structure and window (no text or symbols)

Line drawing of a car with a roof-mounted roof and ladder, no text or symbols present

OPEN THE TENT

Diagram showing a mechanical or fluid system with numbered components and directional arrows indicating flow or movement.

Passaggio 5:

Chiudi la tenda.

Diagram of a car roof structure with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, including symbols ①, ②, and ③.

Diagram of a car roof-mounted system with a person standing and a downward arrow indicating force or motion (no text or symbols)

Line drawing of a car with a ladder and roof-mounted platform (no text or symbols)

CLOSE THE TENT

Simple line drawing of a horizontal beam with supports at both ends (no text or symbols)

Simple line drawing of a roof structure with diagonal lines and a central panel (no text or symbols)

Pure structural diagram of a beam with supports and load arrows (no text or symbols)

Pure technical line drawing of a mechanical assembly without any text, numbers, or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Scala Telescopica

Prima di usare:

Illustration of two human figures in a vertical bar apparatus, one standing and one seated, with an inset showing a close-up of the interior (no text or symbols)

Attenzione:

Diagram of a mechanical device with an inset showing a hand holding a tool, no text or symbols present.

Diagram showing a table with supports and a magnified view of a rectangular object with an arrow indicating direction (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Magonza Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of a car with a roof-mounted structure and ladder, no text or symbols present

Illustration of two people installing a roof-mounted solar panel on a car (no text or symbols)

Top-down line drawing of a car viewed from the side, showing front, rear, and side views (no text or symbols)

Top-down line drawing of a car with a cross symbol on the side panel (no text or labels)

Diagram illustrating three scenarios of a car with roof-mounted sensors, showing directional arrows and warning symbols.

Paso 2:

Technical line drawing of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Paso 3:.

Illustration showing a person lifting a wooden beam with a wrench, and a close-up of a mechanical setup with a tool and bracket (no text or symbols)

Illustration of a person cleaning a car window with an upward arrow (no text or symbols)

Diagram of a car with an upward arrow indicating motion or force, showing a roof structure and window (no text or symbols)

Line drawing of a car with a roof-mounted roof and ladder, no text or symbols present

OPEN THE TENT

Diagram showing a mechanical or fluid system with numbered components and directional arrows indicating flow or movement.

Paso 5:

Cierra la tienda.

Diagram of a car roof structure with an arrow indicating downward motion (no text or symbols)

Diagram showing a mechanical or fluid system with labeled components and directional arrows, including numbered annotations ①, ②, and ③.

Diagram of a car roof-mounted system with a person standing and a downward arrow indicating force or motion (no text or symbols)

Line drawing of a car with a ladder and roof-mounted platform (no text or symbols)

CLOSE THE TENT

Simple line drawing of a horizontal beam with supports at both ends (no text or symbols)

Simple line drawing of a roof structure with diagonal lines and a small inset detail (no text or symbols)

Pure structural beam diagram without any text, numbers, or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure technical line drawing of a mechanical component without any text, numbers, or symbols

Escalera Telescópica

Antes de usar:

Diagram illustrating a physical exercise or exercise setup with two individuals using horizontal bar grids, showing movement and alignment of the object.

Precaución:

Diagram showing a device with a magnified inset of its tip, no text or symbols present

Diagram showing a table with a lid and two chairs, connected to a magnified view of a rectangular object (no text or symbols present)

Fabricante: Shanghaimuxinmuyeyouxiangongsi

Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200.000 CN.

Importado a AUS: SIHAO PTY LTD. 1 ROKEVA STREET ASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DEL REINO UNIDO

YH CONSULTING LIMITADO.

C/O YH Consulting Limited Oficina 147, Centurión

Casa, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Line drawing of a car with a roof-mounted structure and ladder, no text or symbols present

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!
