USER MANUAL SPP150E Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SELF PRIMING SWIMMING POOL PUMPS OPERATION MANUAL

MODEL: SPP150E / SPP250E

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SELF PRIMING SWIMMING POOL PUMPS

MODEL: SPP150E / SPP250E

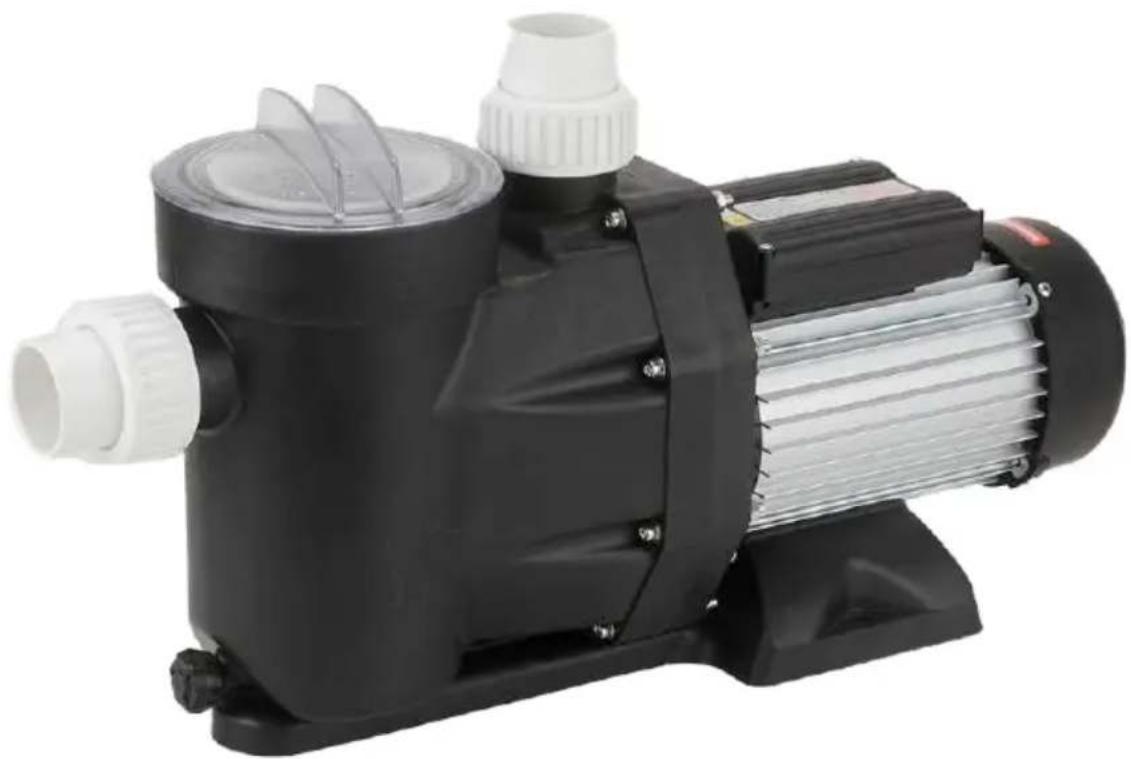

Black and white industrial pump with cooling fan and side port (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

MATTERS NEED ATTENTION

1. The installation must be according to the normal power indicated on the I
2. The amperage must not at any time exceed the value indicated on the la
3. It is recommended that you consult a state-registered electrician.
4. Place the pump in a dry area with good ventilation.
5. The ambient temperature must not exceed 40^ C.
6. The pumps are only suitable for counter-clockwise rotation when viewing from the pump end. Three phase motors can rotate in either direction. Interchange any of the cables on a three-phase motor will reverse the rotation. Momentarily start, or bump the motor without water in the tank, to check the rotation of the pump shaft.
7. Before disconnecting electrical connections, shut off electricity at its source. Newer work on pump without making certain the power is OFF.
8. This appliance is not intended for use by persons, including children with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concern in use of the appliance by a responsible for their safety.
9. Children should be supervised to ensure that they do not play with the appliance.

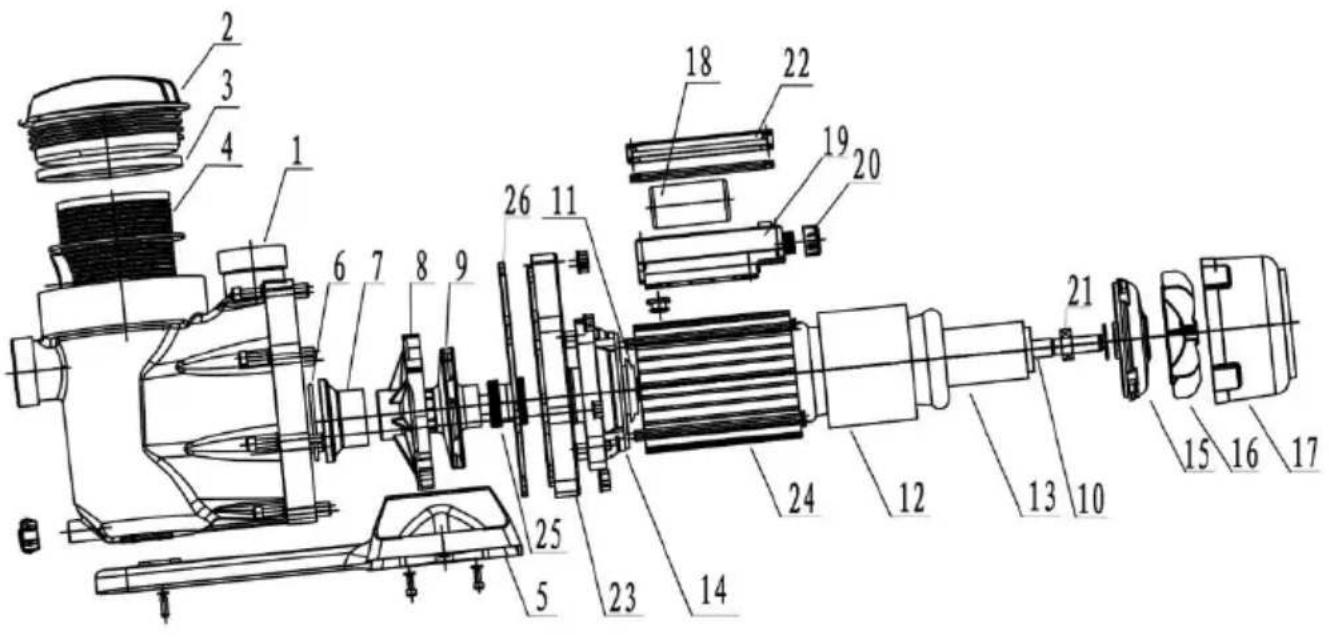

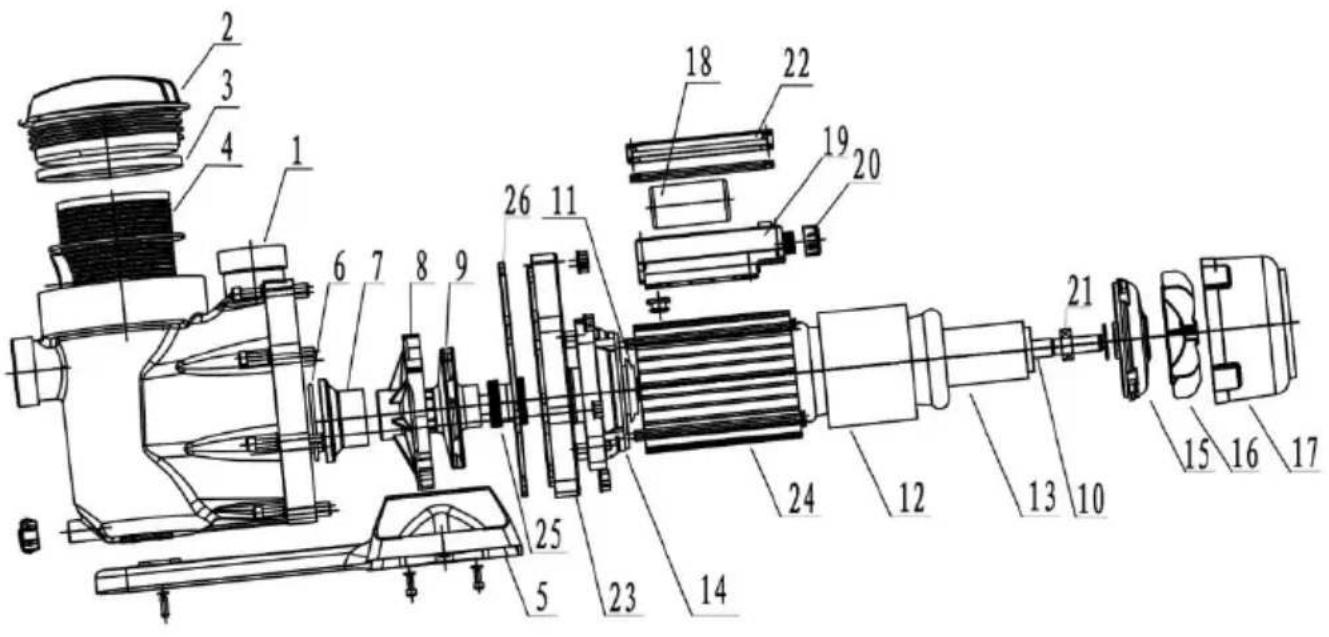

Technical diagram of a mechanical assembly with numbered components for identification

NO.	Name	NO.	Name
1	Pump body	14	Before cover
2	Transparent cover	15	Back cover
3	O size circle	16	Fan blade
4	Filter basket	17	Fan cover
5	Basement	18	Capacitor
6	O size circle	19	Terminal box
7	Diffuser drive pipe	20	Thread cap
8	Big diffuser	21	Bearing
9	Impeller	22	Cover of terminal box
10	Shaft	23	Bracket cover
11	Circle	24	Motor shell
12	Stator module	25	Mechanical Seal
13	Rotator module	26	O Size circle

SPECIFICATION PARAMETER

Model	SPP150E	SPP250E
Input	AC220-240V 50/60Hz
Max power	750W	1500W
Q max	19200L/H	33600L/H
H max	16m	16m
Max Suction	2.5m	3m
Max grain	3mm
Operating temperature	0-40°C (Liquid)
Hose joint	50mm (2")
Inlet/outlet caliber	G 2 1/4 (External thread)

CHECKING POINTS BEFORE INSTALLATION

• Install the pump just over the well as possible as you can.
- But when the pump must be installed away from the well because circumstances, the maximum distance of the pipe from the well to the pump is limited according to the suction lift.

GUIDE FOR INSTALLATION

• Electrical supply: Single-phase 220 - 240VAC, 50Hz. Three-phase 380 - 400VAC, 50Hz.
• The pump must be installed in a place where there is easy access the terminal box.
• The pump has to be mounted on a fixed and firm base by mean bolts.
• Class1 appliances must be permanently connected to fixed wiring.
• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or similarly qualified person in order to avoid

hazard.

• The square dimension of the cable must not be reduced. The cables must be of a minimum type H07RN-F fully connected to earth.
• Ensure that the cable gland is fully tightened.
  ● The pump must be protected by a fuse.
• A suitable ground fault circuit interrupter with a rated residual operation current not exceeding 30mA and with at least a 3 mm break dis on earth terminal must be installed in order to separate the pump the mains.
• Connect external earth screw on the motor to external equipment.
• If the pump is installed in a protected region surrounding it, the latter must be constructed in accordance with VDE0100 clause 49D.

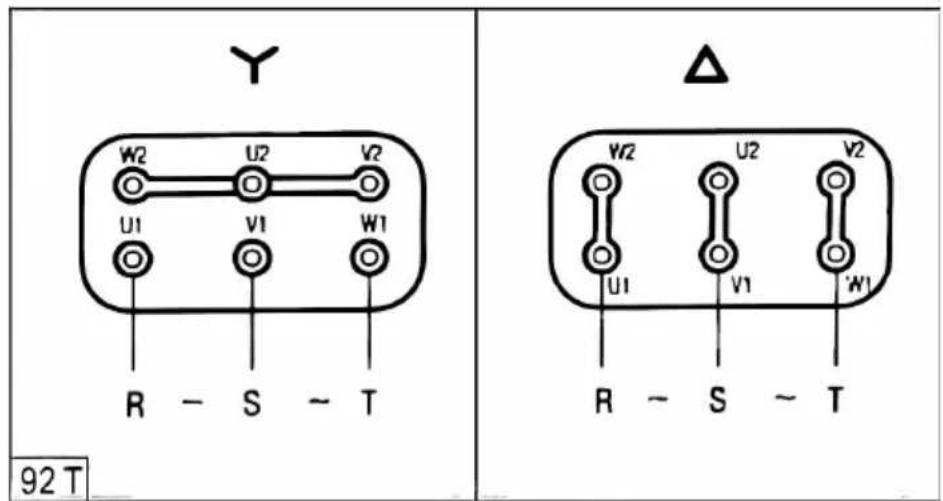

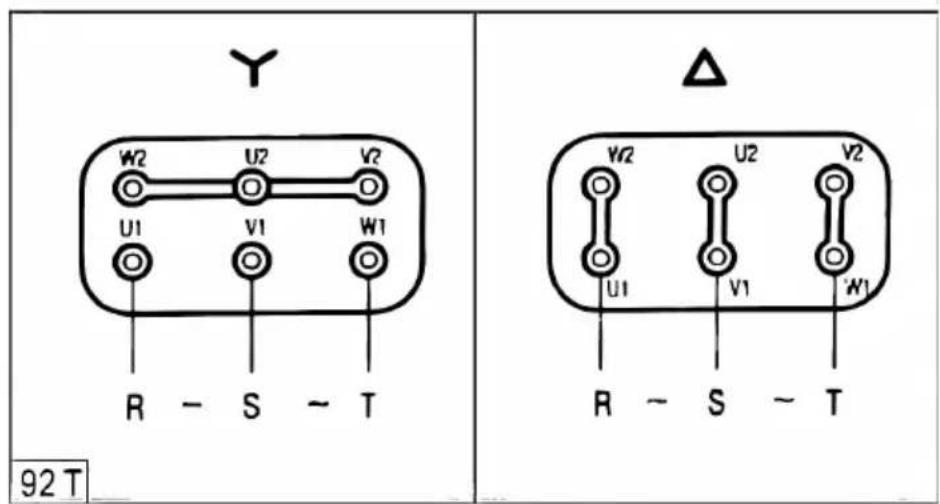

Connection diagram for three phase motors

Y U2 V2 W2 U1 V1 W1 R - S - T 92 T U2 V2 W2 U1 V1 W1 R - S - T

Y W2 U2 V2 U1 V1 W1 R - S - T 92 T Δ W2 U2 V2 U1 V1 W1 R - S - T

Locate the pump as close as possible to the pool. Provide the necessary space around and below the pump for further inspection and servicing the unit.

The pump suction line should not be smaller than the pressure line. A piping must be airtight

The threads on the pump must be sealed with Teflon Tape or Silicon the pump unions are screwed on. Tighten the pump unions only as m is required to ensure a tight connection. Excessive torque is un-necessary and may cause damage to the pump.

The weight of the piping should be supported independently and not carried by the pump. The pump motor must be wired for the proper v and rotation, in accordance with the wiring diagram. Voltage, phases, amper draw, and cycles are given on the pump nameplate.

Fill the pump tank with water before starting. This may be done through tank lid. The LIQUIDUS pumps prime themselves providing the pump ta is filled with water. Should you lose this liquid from the tank accident by draining purposely, it will be necessary to refill it before starting.

High suction lifts, or long suction lines, require additional time and reduce the performance of the pump. Should you have difficulty, refer to the "Troubleshooting Guide".

The water being pumped cools and lubricates the seal. Running the pu dry will damage the seal. Always keep liquid in the pump tank. No further lubrication of the pump end is necessary.

After the pump tank has been filled with water, and the motor started, a few moments for the pump to start delivering water. Be sure that a suctions and discharge valves are open when pump is running. Operati the pump with a closed valve in the system can cause pump damage flow does not start within ten minutes, stop the motor and determine cause (See “Troubleshooting Guide”).

The strainer basket built into the pump tank should be inspected and cleaned at regular intervals. These strainer baskets are easy to clean. Remove the tank lid to expose the strainer basket. Remove the basket and clean. Inspect the lid o-ring, if damaged, replace. Replace the strainer basket and re-install the lid. Tightening by hand only.

If your pool is deactivated until next season, care must be taken to p the pump part from damage. Drain completely by removing the drain p provided at bottom of pump tank. Do not replace the plug, but store it strainer basket for the winter. An alternative is to remove the pump ar store it indoors in a warm dry location.

If the pump is used with sea water it is necessary to flush it with water. We also recommend that the seals are changed before next sea. It is also possible to leave the pump wet end and piping intact and remove and store the motor and impeller assembly. In this case remove motor to tank screws. Protect the remaining pump parts that are attach the system, from a build-up of liquid from rain and snow.

When activating the pump again, reverse the above procedure. Replace the body O-ring between the tank and the back plate if damaged. Install a plug. Check the pump shaft for free movement. Prime the pump as abc and check the rotation of pump shaft.

Troubleshooting Guide

TROUBLESHOOTING GUIDE
SYMPTOMS	PROBABLE CAUSES	RECOMMENDED ACTION
1.Pump will not prime	1a.Suction air leak	Be sure water in pool is high enough to flow through skimmerMake sure lid o-ring is clean a properly positionedHand tighten tank lid down snu Tighten all pipes and unions on suction of pumpRemove and replace pump seal
	1b.No water in pump	Make sure pump tank is full of water
	1c.Closed valves or blocked lines	Open all valves in systemClean skimmer and pump strain basketOpen Pump and check for clog
2.Motor does not turn	2a.No power to motor	Check that all power switches a onBe sure fuse or circuit breaker properly setTimer properly set?Check timer for proper operationCheck motor wiring at terminals
	2b.Pump jammed	With power off turn shaft-it shou spin freely .If not electrician sho disassemble and repair
3.Low flow	3a.Dirty filter	Back wash filter when filter pressure is “high”
	3b.Dirty skimmer basket	Clean skimmer and pump strain baskets
	3c.Suction air leak	(See problem 1)
	3d.Closed valves or blocked lines	(See problem 1)
4.Motor runs hot	These motors will run “hot” to the touch.However this is normal, they are designed that way.Termal overload protector will function to turn them off if there is overload or hightemperature problem. Excessive heat can be caused by: 4a.Low or incorrect voltage.	Wiring to be corrected by licens electrician.
	4b.Installed in direct sun	Shield motor from sun'rays
	4c.Poor ventilation	Do not cover or enclose motor
5.Noisy operation of motor	5a.Bad bearings	Ask an electrician to replace bearings in motor
6.Noisy operation of pump	6a.Air leak in suction line.Bubbles in water returning to pool at inlet	Repair leakCheck suction pipeIs lid o-ring clean?
	6b.Restricted suction line due to blockage or undersize pipe.Indicated by high vacuum reading pump suction.	Have serviceman remove blockage or increase suction pipe size.Make sure strainer basket is cleAre all suction valves fully open
	6c.Foreign matter(gravel,metal etc)in pump impeller	Ask electrician to disassemble pump and remove foreign matte from impeller
	6d.Cavitation	Improve suction conditions(reduce suction lift,reduce number of fittings,increase pipe size)Increase discharge pressure and reduce flow by throttling discharge valve
7.Motor overload protection "kick out"	7a.Motor is improperly connected	Ask electrician to check wiring diagram on motor
	7b.Low voltage due to undersized wire or low incoming voltage	Ask electrician to check with vo meterIncrease size of supply wireReport low supply voltage to po companyVoltage of motor must be within of motor nameplate voltage
8.Pump is leaking	8a.Seals are worn out	The seal is a wear part that n be changed occasionally.The sea must especially be changed more often if the pump is used with water,and not flushed with clean water when drained
NOTE:ALL ELECTRICAL WORK MUST BE DONE BY A LICENSED ELECTR

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

MODÈLE: SPP150E / SPP250E

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODÈLE : SPP150E / SPP250E

Black and white industrial pump with cooling fan and side port (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

APPEARANCE AND NAME OF PARTS

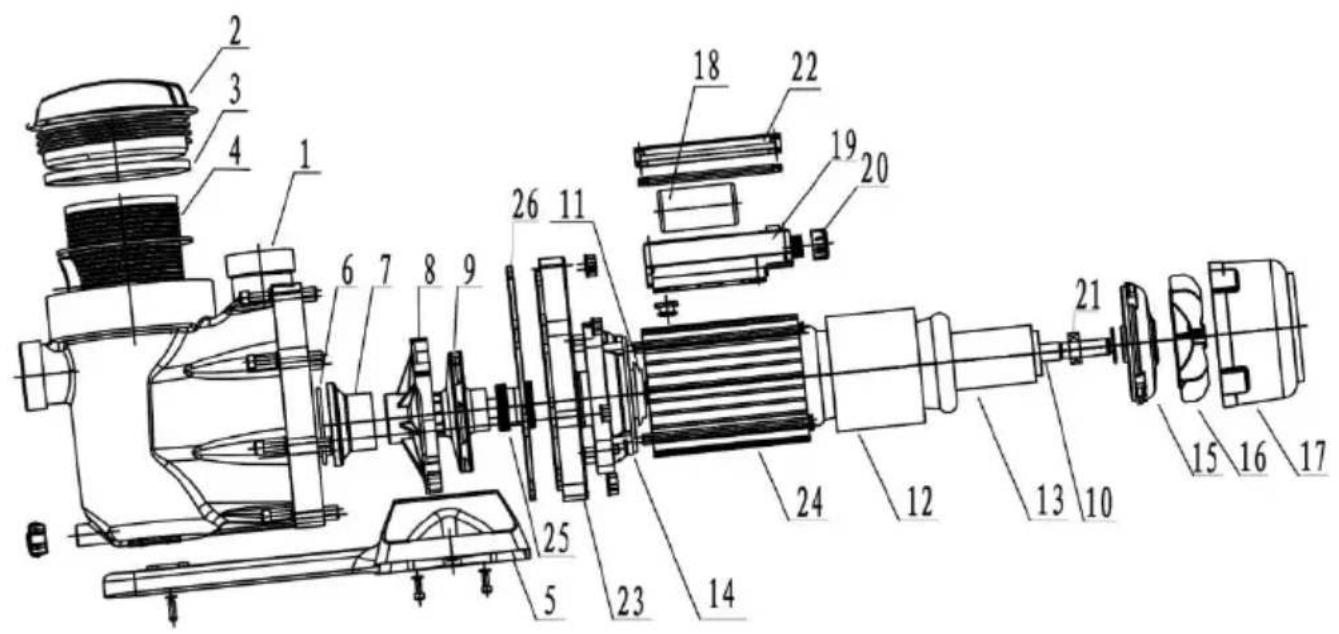

Technical diagram of a mechanical assembly with numbered components for identification

care and maintenance

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SELF PRIMING SWIMMING POOL PUMPS

MODELL: SPP150E / SPP250E

Black and white industrial pump with cooling fan and side port (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

APPEARANCE AND NAME OF PARTS

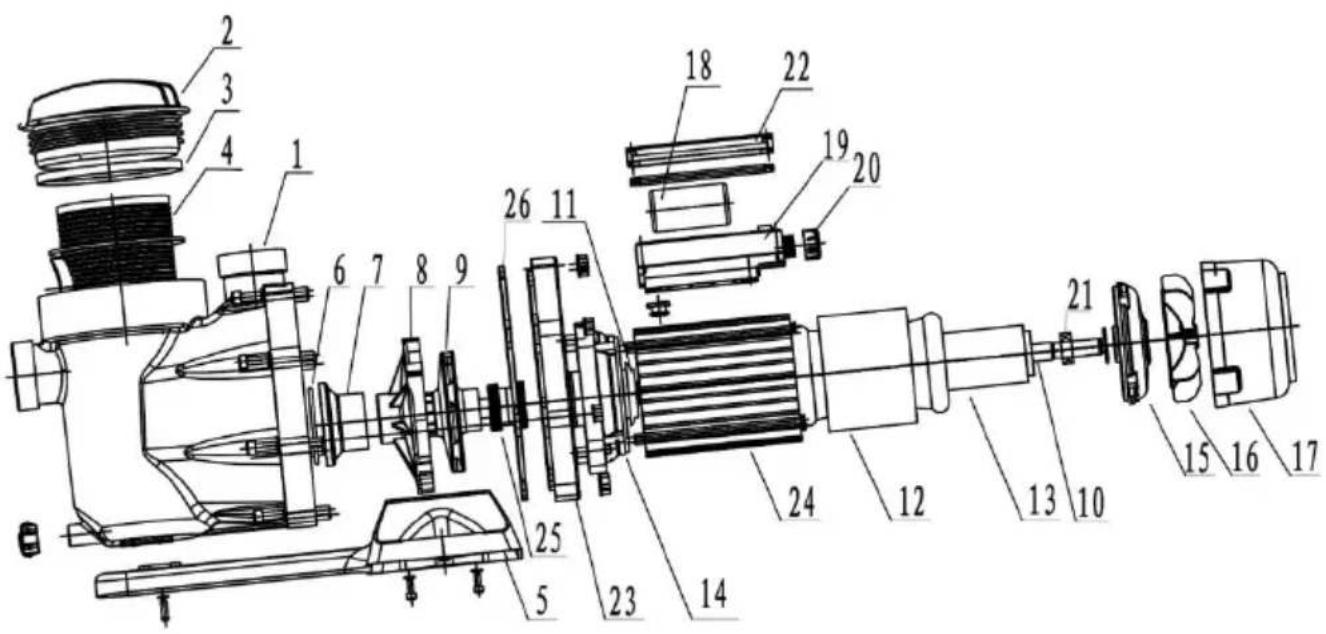

Technical diagram of a mechanical assembly with numbered components for identification

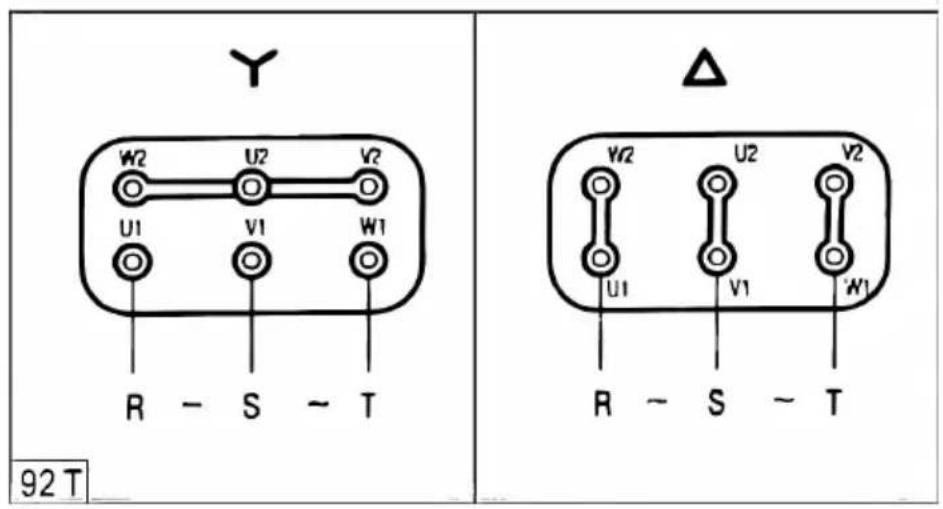

Y U2 V2 W2 U1 V1 W1 R - S - T 92 T U2 V2 W2 U1 V1 W1 R - S - T

Y W2 U2 V2 U1 V1 W1 R - S - T 92 T Δ W2 U2 V2 U1 V1 W1 R - S - T

care and maintenance

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SELF PRIMING SWIMMING POOL PUMPS

MODELLO: SPP150E / SPP250E

Black and white industrial pump with cooling fan and side port (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

APPEARANCE AND NAME OF PARTS

Technical diagram of a mechanical assembly with numbered components for identification

care and maintenance

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd, Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SELF PRIMING SWIMMING POOL PUMPS

MODELO: SPP150E / SPP250E

Black and white industrial pump with cooling fan and side port (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

APPEARANCE AND NAME OF PARTS

Technical diagram of a mechanical assembly with numbered components for identification

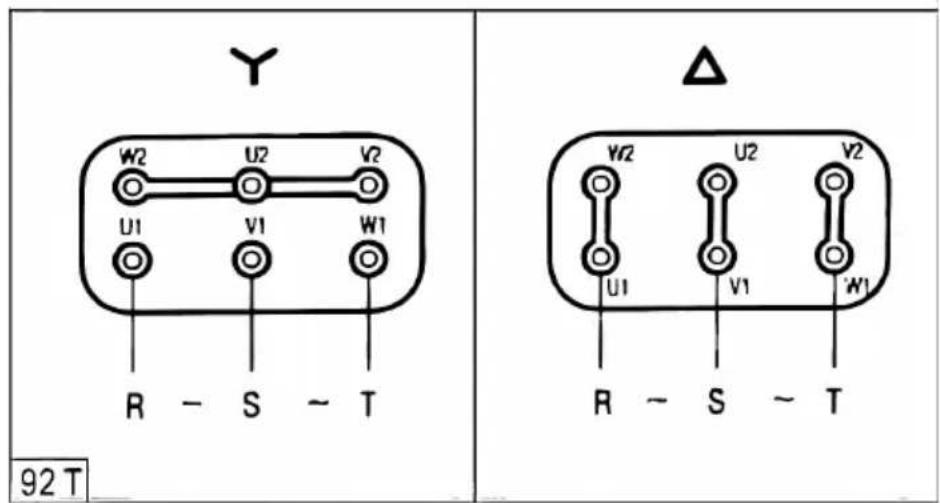

Y U2 V2 W2 U1 V1 W1 R - S - T 92 T U2 V2 W2 U1 V1 W1 R - S - T
