USER MANUAL Aqua 8000 Complete PHILIPS

Exterior view of a Philips vacuum cleaner against a dark blue background (no text or symbols visible)

Simple line drawing of an open book with a grid pattern on the left and a closed page on the right (no text or symbols)

100% A B C D E 1 2 3 4 5 6 7 8 XC8057 9 10 11 12 13 14 20 1 22 24 XC8157 XC8157 15 16 17 18 19

-1

1_

-1

1

English 6

Čeština 41

Dansk 75

Deutsch 110

Eesti 146

Español 180

Français 216

Hrvatski 251

Italiano 286

Latviešu 322

Lietuviškai 357

Magyar 392

Nederlands 427

Norsk 463

Polski 498

Português 534

Română 569

Shqip 604

Slovenščina 639

Slovensky 673

Srpski 708

Suomi 742

Svenska 777

Türkçe 812

Ελληνικά 847

Български 883

Македонски 919

Русский 955

Українська 991

Қазақша 1026

Contents

Introduction 6

General description 6

Before first use 7

Installing the wall mount 7

Storing the accessories on the wall mount 8

Preparing for use 9

Using the appliance 10

Assembling the appliance 10

Vacuuming soft and hard floors 10

Vacuuming while mopping hard floors 11

Versatile usage and accessories 14

Customizations and additional information 17

After use – Maintenance 20

Frequent maintenance after each cleaning cycle 20

Periodic maintenance intermittently 22

Replacement 32

User interface signals and their meaning 33

Troubleshooting 35

Dry cleaning 35

Wet cleaning 39

Introduction

Thank you for buying this product! To fully benefit from the support that we offer, register your product at www.philips.com/mycordlessvacuum-8000s.

General description

1 Digital display

a Ring indicator of battery level

b Percentage of battery level

c Selected power level

d 'Floor Type Recognition feature activated' icon

e Filter cleaning reminder icon

2 Menu/Confirm button

3 + Button

4 - Button

5 On/off button

6 Handheld

7 Dust bucket

8 Battery

9 Replacement filter

10 Easy empty button

11 Dust bucket release button

12 Adapter
13 Screws
14 Wallmount
15 Tube
16 TriActive Smart LED nozzle
17 Vacuum and Mop Nozzle
18 Aqua tank
19 Microfiber mopping pad
20 PetPro Nozzle
21 Combination tool
22 Soft brush (XC8157 only)
23 Upholstery nozzle (XC8157 only)
24 Crevice tool

Before first use

Installing the wall mount

Diagram of a mechanical device with labeled components and directional arrows indicating flow or movement.

1 Invert the wall mount and unlatch the gray lever. Insert the charging port, ensuring the metal part is visible and pointing upright on the front side of the wall mount.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

2 Neatly arrange the cable by tucking it into the designated groove.

Diagram of a mechanical device with internal components and airflow indicators (no text or symbols)

3 Close the gray lever. Make sure the gray lever is locked in place with a "CLICK" sound.

8 English

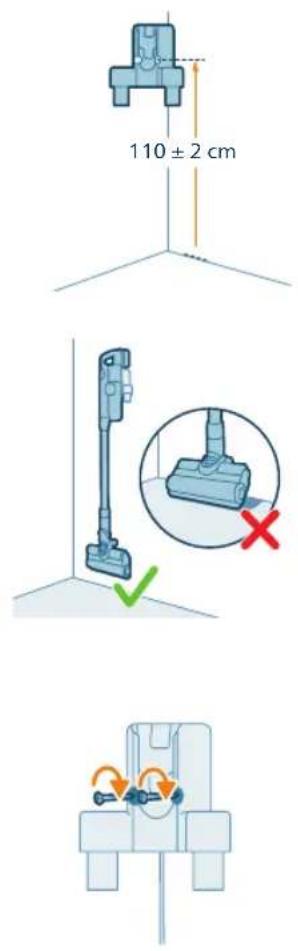

4 Securely affix the wall mount to your preferred position on the wall, ensuring that the mounting screw holes are approximately 110 cm from the floor.

Caution: Be careful when you drill holes in the wall to fasten the wall mount, to avoid the risk of electric shock.

i Note: Verify that the placement of the wall mount allows the entire appliance to hang on the wall without the nozzle coming into contact with the floor.

5 Once you have determined the optimal position and height for storing and charging your appliance, firmly tighten the screws to secure the wall mount in place.

Storing the accessories on the wall mount

Diagram showing a medical or laboratory setup with a magnified view of a device and a checkmark indicating selection.

All accessories can be stored on the wallmount with exception of combining PetPro Nozzle & Upholstery tool.

Diagram illustrating a mechanical or electrical component with warning symbols and cross marks, including an orange warning triangle and red X.

i Note: Be cautious that the PetPro Nozzle and the Upholstery tool could not be stored on the wall mount together.

Preparing for use

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

The appliance is equipped with a Li-Ion battery. Charging from empty to full takes about 6 hours.

1 Attach the battery pack to the main body of the appliance, ensuring a secure connection that's confirmed with a "CLICK" sound.

MAX 40°C MIN 5°C

2 Charge your appliance by placing it onto the assembled wall mount.

⚠ Warning: Store and charge the appliance at a temperature above 5 °C and below 40 °C.

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

i Note: You can also place the handheld on a level and stable surface, and directly connect the charging cable to the appliance.

6 hr 100°

3 The appliance is designed to reach a complete charge within 6 hours. You can monitor the charging progress on the screen. When the appliance is fully charged, the value 100% lights up on the screen. After a few minutes, the display will switch off.

Using the appliance

Assembling the appliance

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

1 Attach the handheld to the tube. Confirm the attachment with a "CLICK" sound.

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

2 Attach the tube to the nozzle. Confirm the attachment with a "CLICK" sound.

Vacuuming soft and hard floors

100° ON OFF ①

1 Press the on/off button to switch on the appliance.

i Note: To switch off the appliance, press the on/off button again.

Diagram illustrating electric field lines around a positively charged conductor with labeled poles and field symbols

2 Use the + and - buttons to toggle through three different power settings.

T - turbo mode

N - normal mode

E - eco mode

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

3 You can clean on hard or soft floors with the vacuum cleaner.

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

i With Floor Type Recognition enabled, the appliance recognizes the floor type and automatically optimizes its performance within the power settings you have selected. To disable this feature, check how to customize settings below.

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and an orange warning symbol.

Warning: Do not vacuum up water or other liquids.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Caution: Do not look directly into the illuminated LEDs or point the LEDs at someone's eyes. The LED light is very bright.

Vacuuming while mopping hard floors

Caution: Only use the aqua tank on hard floors with a water-resistant top coat (such as linoleum, enameled tiles and varnished parquet) and stone floors (such as marble). If your floor has not been treated to make it water-resistant, check with the manufacturer if you can use water to clean it. Do not use the aqua tank on hard floors of which the water-resistant top coat is damaged.

i Note: Do not use the aqua tank to clean carpets.

12 English

Illustration of a pipette dispensing liquid into a green plastic sheet, with a faucet in the background (no text or symbols)

i Note: Do not move the appliance with aqua tank assembled sideways, as this leaves water traces. Only move forwards and backwards.

1 Pre-wet the microfiber mopping pad with water before use.

Illustration of a green plastic electronic component with a paper sheet underneath, showing a downward arrow and a magnified inset of a folder (no text or symbols)

2 Secure the microfiber mopping pad underneath the aqua tank. Align the velcro straps under the aqua tank and behind the cloth.

MAX 50 °C

3 Fill the tank with water, ensuring the water temperature does not exceed 50^ C.

10 ml

4 (Optional) If you wish to add a liquid floor cleaner into the aqua tank, opt for a low-foaming or non-foaming variety that can be diluted. We recommend the XV1792 Philips Floor Cleaner. Add only a few drops of the liquid cleaner to the water.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

5 Close the aqua tank properly.

3D illustration of a mechanical component with a highlighted section (no text or symbols)

6 Attach the prepared aqua tank to the aqua nozzle and you're set to begin. Make sure the direction of the aqua tank is correct.

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

7 Press the on/off button to switch on the appliance. You can effectively clean hard floors with the attached aqua module on the nozzle.

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

i Note: The aqua module is not suitable for soft floors like carpet.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

i Note: Do not use the aqua nozzle without the aqua tank in place for cleaning.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating the incorrect condition.

Caution: The aqua module should not be used to pick up water puddles.

Tips and other important information

• It is not necessary to vacuum the floor before mopping, as the Vacuum & Mop set-up actively wet-cleans your hard floor to capture all kinds of dirt, including liquids and stains. On carpets and rugs, use the Vacuum only set-up.
• The appliance can leave a small puddle of water on the floor if you do not move the appliance while switching it off. You can reduce the size of the puddle by moving the appliance while switching it off. If needed, you can remove the last drops with a cloth.

Usage restrictions

• The Vacuum & Mop set-up is suitable for vacuuming and mopping all types of hard floors, except uncoated wooden floors.
• The Vacuum & Mop set-up is intended for regular cleaning of hard floors. Always follow the cleaning instructions for your hard floor when you use this appliance.
• If you want to add a liquid floor cleaner other than XV1792 Philips Floor Cleaner to the water in the clean aqua tank, make sure that you use a low-foaming or non-foaming liquid floor cleaner that can be diluted in water like XV1792 Philips Floor Cleaner.
• As the clean aqua tank has a capacity of 370 ml, you only have to add a few drops (max 10ml) of liquid floor cleaner to the water.
• If you use the Vacuum & Mop set-up on linoleum floors, only do so on linoleum floors that are properly affixed to prevent linoleum from being drawn into the nozzle.
• If you move/lift the appliance over a carpet or rug when it is switched off, wastewater droplets may end up on your carpet or rug.
• Do not push the appliance over the floor grilles of convector heaters. As the appliance cannot pick up water that comes out of the nozzle when you move it over the grille, water ends up at the bottom of the convector pit.
• While cleaning, do not lift the nozzle from the floor or move the nozzle sideways, and do not make strong turns, as this leaves water traces. Only move forwards and backwards.

i Note: The operating time depends on the power level used during cleaning.

Versatile usage and accessories

Warning: When using any accessory, do not vacuum up water or other liquids.
Caution: Do not look directly into the illuminated LEDs or point the LEDs at someone's eyes. The LED light is very bright.

Illustration of a mechanical device with a handle and base, showing fluid flow or material movement (no text or symbols)

Using the handheld

You can use the handheld directly without any cleaning tool to vacuum up dusts.

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Using the nozzle

1 Attach the nozzle directly to the handheld.

Diagram illustrating a hand holding a spray bottle, with warning symbols and a water droplet symbol indicating pollution or damage.

2 This combination is for cleaning dynamic surface height, such as stair case.

Diagram illustrating bed cleaning techniques with labeled icons and text annotations

Using the PetPro Nozzle

The PetPro Nozzle effectively removes pet hair and small messes like crumbs, and is ideal for soft surfaces such as beds and couches.

Illustration of a vacuum cleaner emitting exhaust flames from a bottle (no text or symbols)

To attach the PetPro Nozzle, insert the tube of the handheld into the PetPro Nozzle. Adjust the power setting to match your cleaning needs.

English

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Using the crevice tool

Crevice tool can be used for cleaning tight, narrow spaces like between couch cushions, along baseboards, or in car interiors.

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

To attach the crevice tool, insert the tube or handheld into the crevice tool.

Illustration of a robotic arm holding a wire, with close-up views of the spiderweb and handle (no text or symbols)

Using the combination tool

The combination tool has a soft brush to clean spiderwebs or delicate surfaces like curtains and a narrow nozzle for tight or hard-to-reach spots like window frames.

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

To attach the combination tool, insert the tube or handheld into the combination tool.

Illustration of a laptop with a pen inserted into it, no text or symbols present

Using the soft brush

Soft brush gently cleans fragile or delicate surfaces like lampshades, blinds, and screens. It's included in model XC8157 only.

To attach the soft brush, insert the tube or handheld into the soft brush.

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Using the upholstery tool

Upholstery tool cleans soft fabric furniture like sofas, cushions, and chairs. It's included in model XC8157 only.

Illustration of a blue industrial vacuum cleaner emitting exhaust flames, with no text or symbols present.

To attach the upholstery tool, insert the tube or handheld into the upholstery tool.

Customizations and additional information

100° ≡ ≡

The appliance is equipped with various options to customize and monitor in the menu.

1 To access the menu settings, press the menu button.
2 Toggle through the options using the + and - buttons. These options include adjusting illumination, enabling or disabling Floor Type Recognition, accessing additional information about your appliance, and returning to the previous screen.
3 Once your desired option is highlighted, confirm your choice by pressing the menu button again.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

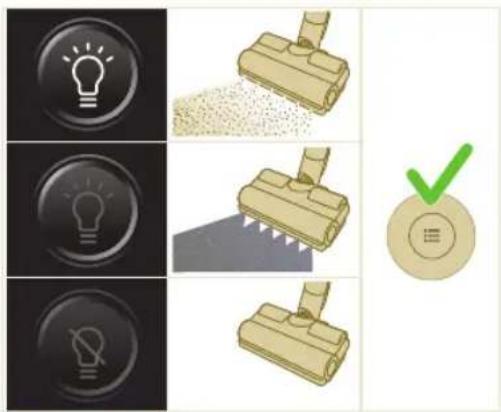

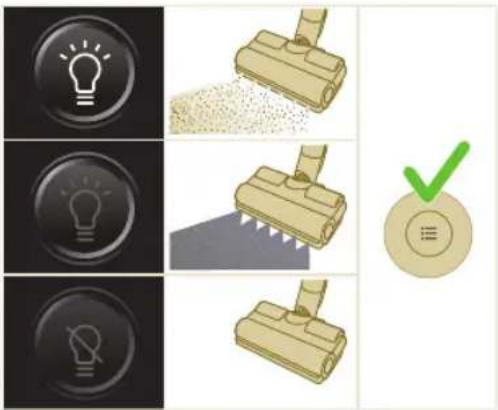

Modify the illumination brightness

Press the menu button and toggle to the illumination feature. Confirm by pressing the menu button again.

To modify the illumination brightness, toggle through the available levels and confirm by pressing the menu button.

Diagram showing four icons representing different types of cleaning tools: lightbulb, light bulb, no tool, and brush.

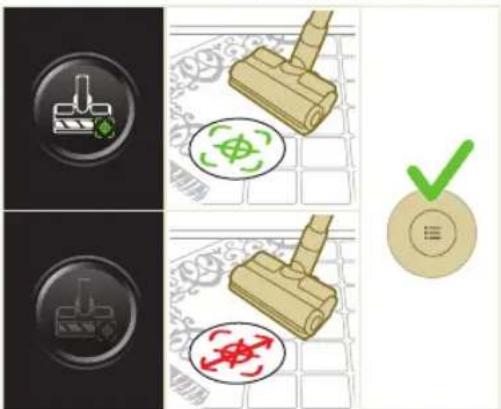

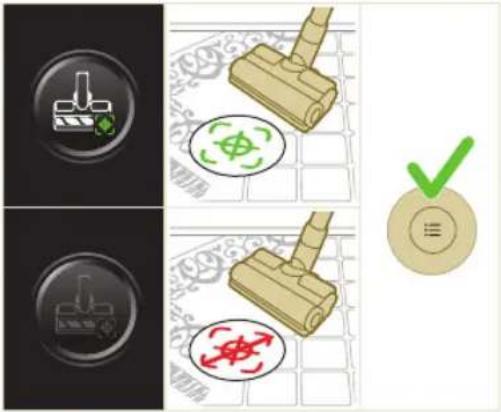

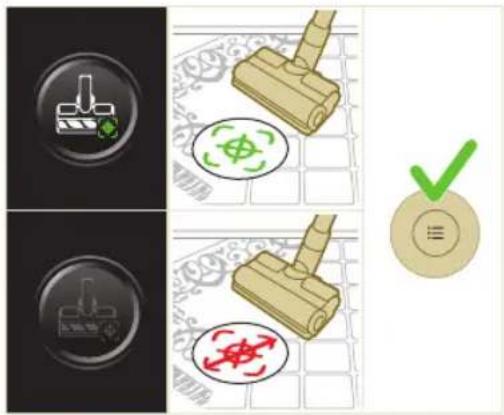

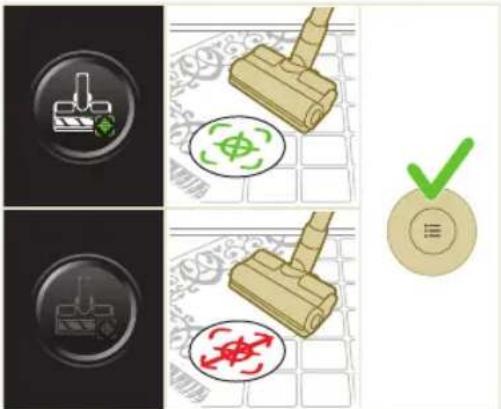

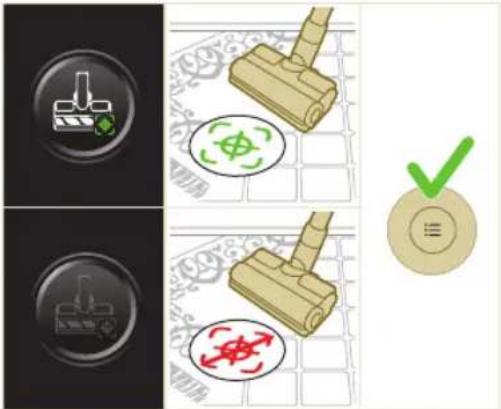

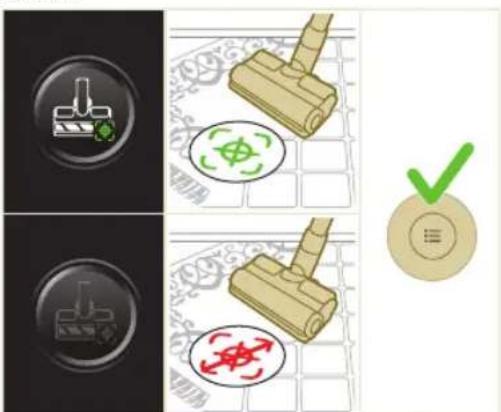

Floor Type Recognition

Press the menu button and toggle to the Floor Type Recognition feature. Confirm by pressing the menu button again.

In the Floor Type Recognition screen, toggle this function and confirm your decision by pressing the menu button. When successfully enabled, a green icon will appear at the upper left corner of the display after you go back to the main screen.

Circular icon with a white downward arrow and green checkmark, no text or symbols present.

Diagram showing four panels: a close-up of a computer mouse with a green checkmark and a grid, followed by a hand holding a brush, a red circular icon with 'X' symbols, and a green checkmark on a coin.

i Note: Floor Type Recognition can only be enabled or disabled when the motorized nozzle is attached to the handheld. As a result, when no motorized nozzle in combination with the main brush is attached to the main appliance, there will be one item less in your menu. Attach the motorized nozzle to see this Floor Type Recognition item in your menu.
i Note: When you first receive your appliance, Floor Type Recognition is enabled.
i Note:The Floor Type Recognition function becomes active when the nozzle identifies different cleaning surfaces while in motion.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

i Floor Type Recognition does not work in combination with the Delicate Floor Brush (included in model XC7067).

Additional information

Press the menu button and toggle to the "additional information" option. Confirm by pressing the menu button again.

In the "additional information" screen, you can check the filter health, battery health, total usage time, model of your appliance, and access of a QR code for additional online information.

01234 12:34 PHILIPS XCB106 XCB107 www.philips.com/ mycorlessvacuum-8000s

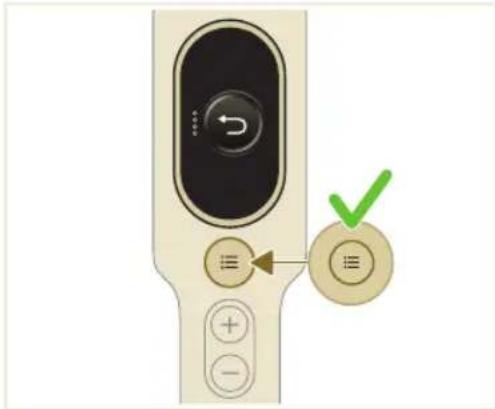

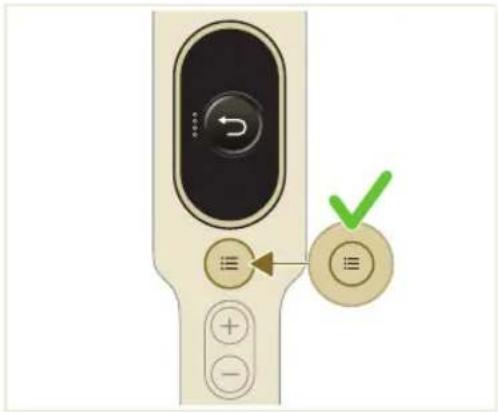

Return

To exit the menu and return to the previous screen, select the "Return" option.

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

After use – Maintenance

Frequent maintenance after each cleaning cycle

Dust management system maintenance

MAX

Empty the dust bucket after each use or when the dust is reaching the MAX level indicator.

OFF ①

1 Switch off the appliance.

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

2 Remove the handheld include the dust bucket from the tube.

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

3 Hold the dust bucket above a trash bin and press the Easy Empty Button (1) to empty the bucket (2).

Aqua tank maintenance

Clean the aqua tank after each use.

3D diagram of a mechanical component with an arrow indicating direction, no text or symbols present

1 Remove the microfiber mopping pad.

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

2 Rinse the mopping pad under the tap and wash it by hand or in a washing machine.

Simple line drawing of a sink with a mounted device (no text or symbols)

3 Pour out any remaining water in the aqua tank.

MAX 50 °C

4 Fill the aqua tank with water.

Illustration of a hand presser with a green lever and directional arrows indicating motion (no text or symbols)

5 Close the aqua tank properly and shake the aqua tank to remove detergent residuals.

22 English

Simple line drawing of a car seat mounted on a platform with a drain (no text or symbols)

6 Empty the aqua tank and leave it open to dry.

Diagram illustrating a safety or cleaning procedure with labeled components and warning symbols

7 Make sure to not lose the tank cap during storage. Hang the microfiber mopping pad dry.

Periodic maintenance intermittently

Cleaning the filter

Close-up of a beige remote control device with a circular dial and indicator lights (no readable text or symbols)

Clean the filter at least once every month or when you see the notification for filter cleaning (i8).

Diagram of a device control panel with labeled buttons and an open button, showing a printer icon and directional arrow.

1 Turn off appliance.

Diagram showing a device with labeled parts A and B, illustrating a physical setup or inspection process.

2 While the dirty filter (A) is still in the appliance, make sure to have your replacement filter (B) ready on the side.

Diagram showing a device with labeled parts and an inset view of a device with directional arrows indicating rotation or movement.

3 Remove the bucket by pressing the bucket release button.

Diagram illustrating a device operation with labeled steps and directional arrows indicating motion or interaction.

4 Rotate the filter (A) counter-clockwise to remove it from the dust bucket.

A

5 Remove the foam filter (A) from the plastic filter case.

B XV168

6 Unpack the replacement filter (B).

24 English

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating process flow

7 Install the clean filter (B) in the dust bucket. Rotate the filter clock-wise to fix it in place.

Diagram of a device with labeled parts and directional arrows indicating motion or flow, showing components like '1' and '2'.

8 Place the dust bucket back onto the handheld First align the filter side of the bucket before hinging it in place.

ON 1

9 Turn on the appliance.

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

10 Vacuum the polluted filter case and foam filter (A).

A

11 Reassemble the clean foam filter (A) in the clean filter case.

Illustration of a magnifying glass inspecting a drawer with arrows indicating process (no text or symbols)

i Note: The filter (A) is now cleaned thoroughly and can be stored for future use when the current filter (B) needs to be cleaned.

Diagram of a device control panel with labeled buttons and an inset image showing a device component.

Cleaning the bucket and cyclone

1 Turn off appliance.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

2 Remove the bucket by pressing the bucket release button.

3 Hold onto the black grip. Remove the cyclone from the dust bucket by lifting it out from the bucket.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

4 Tap the cyclone against a bin to remove remaining dust & dirt.

26

English

Illustration of a faucet spraying water into a shared storage tank (no text or symbols)

5 For thorough maintenance, clean the dust bucket and cyclone under a running tap or in warm soapy water.

Illustration of a hand cleaning a device with a magnified view of the lid (no text or symbols)

6 Wipe the cleaned dust bucket and cyclone dry.

Caution: Make sure all parts are completely dry before you reassemble them.

Note: all parts cannot be cleaned in the dishwasher.

7 Reassemble the cyclone in the dust bucket.

Diagram of a device with labeled parts and directional arrows indicating motion or flow

8 Place back the assembled bucket. First align the filter side of the bucket before hinging it in place.

Note: After maintenance, always make sure the filter is assembled in the appliance before using it.

OFF I

PrecisionPower Smart Nozzle maintenance

1 Always switch off the appliance before cleaning the nozzle brush roll.

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

2 To access the brush roll, locate the button on the side of the nozzle. Press it and rotate to open.

Illustration of a mechanical device with a lever and handle, showing a yellow component being inserted (no text or symbols)

3 Gently remove the brush roll and the side cap of the nozzle.

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

4 Carefully detach any tangled hair from the brush roll. Support the removal of pollution with a pair of scissors.

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

5 When reassembling, ensure proper alignment of the brush roll.

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

6 Lock the nozzle brush roll by securing it until you hear a "CLICK" sound.

Illustration of a mechanical component with rotational arrows (no text or symbols)

PetPro Nozzle maintenance

1 Turn the brush over to access the cleaning area.

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

2 Slide the side button to release the brush from its position.

Illustration of a hand connecting wires to a rolled-up cable with an arrow indicating direction (no text or symbols)

3 Use your hands or a pair of scissors to remove any pollution from the brush.

Diagram showing a device with labeled parts and directional arrows indicating motion or force, including numbered annotations 1 and 2.

4 When reassembling the brush, start by placing one side in position before attaching the other side. When the brush is properly assembled, you will hear a "CLICK" sound.

Illustration of a hand inserting a component into a device, with an inset showing a close-up of the component (no text or symbols present)

Delicate Floor brush maintenance\_MLU 8000

1 To access the brush, locate the button on the side of the nozzle. Press it and rotate to open. Gently remove the brush and the side cap of the nozzle.

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

2 Pull the brush out of the side cover with force.

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols)

3 Carefully detach any tangled hair from the brush roll. Support the removal of pollution with a pair of scissors.

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

4 Insert the brush back to the side cover with force, please make sure the brush is firmly installed. When reassembling, ensure proper alignment of the brush.

Illustration of a hand using a device to press or install a component, with no visible text or symbols.

5 Lock the brush by securing it until you hear a "CLICK" sound.

Illustration of a hand pressing down on a mechanical component with a green arrow indicating motion (no text or symbols)

Vacuum and Mop nozzle maintenance

1 Open the two top covers to gain access to the airflow passage of the nozzle.

30

English

Illustration of a hand using a tool to lift a green object, with an upward arrow indicating motion (no text or symbols)

2 Remove any visible pollution from the area.

Technical illustration of a mechanical component with a green arrow indicating direction (no text or symbols)

3 Once cleaning is complete, securely close the covers.

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

4 For maintenance, flip over the nozzle to access the underside.

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

5 Remove any pollution around the shutter for optimal performance.

Illustration of a plastic bottle pouring liquid into a glass beaker next to a water tap (no text or symbols)

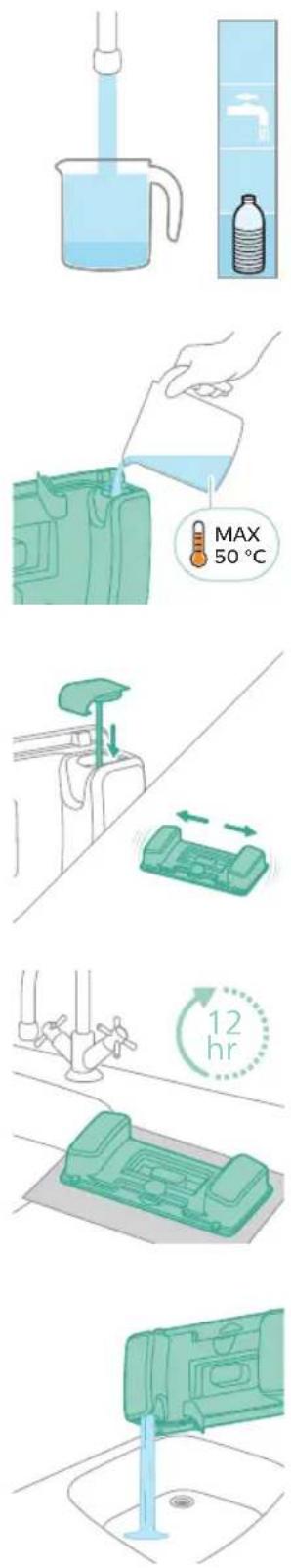

Aqua tank maintenance

Descale the aqua tank once every month to avoid limescale build-up.

1 Add some descaling liquid to a measuring cup.

2 Add the correct amount of water in the measuring cup.
3 Add the mixed liquid in the aqua tank.
4 Close the Aqua tank properly before shaking the tank for the descaling liquid to spread evenly.
5 Leave the aqua tank (without the microfiber mopping pad) upright over 12 hours. Water is expected to slowly come out from the bottom of the aqua tank. We recommend to place the aqua tank inside the sink or over a cloth.
6 Rinse and remove any remaining liquid inside the aqua tank.

32 English

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Water strip maintenance

1 Remove the water strip from the bottom of the aqua tank for a thorough cleaning.

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

2 Rinse the water strip under the tap.

3D diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

3 Attach the water strip back to the aqua tank after cleaning.

Replacement

To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country.

Replacement parts and type numbers:

Replacement filter XV1681/01

XV1681/01

Brush roll CP0667/01

Simple line drawing of a box with a golden object inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Microfiber mopping pad XV1700/01

Isometric illustration of a rectangular block with a green internal component and a small white square on top (no text or symbols)

XV1700/01

Water strip CP0381/01

CP0381/01

i Note: Replace the filter and the microfiber mopping pad every 6 months to ensure maximum performance.

User interface signals and their meaning

Signal Meaning of signal

E1 Malfu

opliance.

Remove the battery, wait 10 seconds, and then put the battery back. If this does not work, please take the appliance to a Philips service center or contact the Consumer Care Center.

E2 The a

rated below the functioning temperature.

Move the appliance to a warmer room. Do not store, charge or use the appliance at a temperature below 5 °C or above 40 °C.

34 English

Signal Meaning of signal

E3 The a		ated above the functioning temperature.Move the appliance to a cooler room. Do not store, charge or use the appliance at a temperature below 5 °C or above 40 °C.
E5 The b		ed.Take the appliance to a Philips service center or contact the Consumer Care Center.
E9 The n		d above the functioning temperature.Switch off the appliance and wait 15 minutes. Touch the upper housing of the nozzle to feel if it is still warm. If the nozzle is still warm, wait longer for the nozzle to cool down. Once the nozzle has cooled down, try switching the appliance back on.
i4 The no		Make sure the appliance is switched off. Clean the nozzle according to the user manual and check the tube by removing the tube from the main appliance.Remove the object in the nozzle or tube and restart the appliance.
i5 Foreign		t in the airflow passage.Make sure the appliance is switched off. Clean the nozzle according to the user manual and check the tube by removing the tube from the main appliance.Remove the object in the nozzle, tube, or handheld and restart the appliance.
i6 The ad		hoved.Remove the adapter before operating the appliance.
i7 A wro		ed.Only use the original adapter to charge the appliance.
i8 The fil		Clean the filter. Follow the instructions on the screen or in the users manual.You can buy new filters in the online Philips shop atwww.philips.com/supportor at your Philips dealer.If you keep getting an i8 information code after cleaning the filter, check the troubleshooting table below.

Signal Meaning of signal

i10 The

operly inserted.

Remove the battery, and then put the battery back. If this does not work, please take the appliance to a Philips service center or contact the Consumer Care Center.

The battery level is low and needs to be charged. Charge the appliance or the battery via the suggested charging method.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Dry cleaning

Problem Possible cause Solution

The appliance does not respond when the on/off button is pushed.	The display shows the battery empty icon.	To charge the battery, connect the appliance to the charging station or attach the handheld vacuum cleaner directly to the power plug of the adapter.
The charging station is not stable on the wall.	The screws holding the charging station are loose.	Tighten the screws.
	The screws are not the right size.	Mount the charging station with the supplied screws.
	The charging station is not attached to a stable wall.	Check that the wall on which the charging station will be mounted is stable.
The appliance suddenly stops working.	When the appliance has an internal malfunction, the buttons will not respond and the screen will remain blank.	Connect the appliance to the charging station or attach the handheld vacuum cleaner directly to the adapter. Check the display. If an error code appears, you can find its meaning in the user manual.
	(code: E2, E3) The appliance is not working at a suitable temperature.	Make sure the appliance is used at a temperature of 5-40 °C.

Problem Possible cause Solution

	(code: i4, i5) The brush roll is stuck or objects are stuck in the air flow channel.	Make sure the appliance is switched off. Clean the nozzle according to the user manual and check the tube by removing the tube from the main appliance. Remove the object in the nozzle or tube and restart the appliance.
	(code: E9) The motorized nozzle is overheated.	Switch off the appliance and wait 15 minutes. Touch the upper housing of the nozzle to feel if it is still warm. If the nozzle is still warm, wait longer for the nozzle to cool down. Once the nozzle has cooled down, try switching the appliance back on.
The appliance has a lower suction power than usual.	The filter and the cyclone are dirty.	Empty the dust bucket. Clean the filter and the cyclone. Make sure the filter is washed at least once a month, when using the appliance regularly. Make sure hair and dirt stuck in the cyclone are removed.
	The dust container is not attached properly to the appliance.	Make sure the dust container is attached properly.
Dust escapes from the appliance.	The filter is dirty. Clean the filter. See also the user manual.
	The filter is not present in the appliance.	Make sure that the filter is in the appliance and assembled correctly.
	Something is blocking the cyclone.	Check the cyclone for stuck objects and remove any object blocking the cyclone. Also ensure all hair and dirt stuck in the cyclone are removed.
	The dust container is not properly attached to the appliance.	Empty the dust container and attach the dust container correctly to the appliance.
	The appliance is rotated or flipped when the power is off.	Keep the appliance upright when the power is off.
The appliance does not move smoothly across the floor when cleaning a carpet.	The floor type recognition function is not on.	Switch on the floor type recognition function in the digital menu.
	The selected suction power has been too high.	Decrease the suction power. See also the user manual.
The brush does not turn anymore.	The brush is clogged with hair or dirt.	Clean the brush by hand or with a pair of scissors.
	(code i4) The brush may stop turning when it encounters too much resistance from a high-pile carpet.	Switch off the appliance and then switch it back on again.

Problem Possible cause Solution

	The roller brush has not been assembled properly into the nozzle after cleaning.	Follow the instructions in the cleaning chapter of the user manual to slide the roller brush into the nozzle properly. Secure the roller brush inside the nozzle by snapping the locking lever in place.
	(code: E9) The motorized nozzle is overheated.	Switch off the appliance and wait 15 minutes. Touch the upper housing of the nozzle to feel if it is still warm. If the nozzle is still warm, wait longer for the nozzle to cool down. Once the nozzle has cooled down, try switching the appliance back on.
The LEDs in the nozzle do not come on.	The nozzle has not been attached to the tube or appliance properly.	Attach the nozzle to the appliance or handheld properly.
	The lighting feature is disabled.	Enable this feature in the menu. Adjust the brightness of nozzle LEDs in the menu.
The LEDs in the handheld do not come on.	The lighting feature is disabled.	Enable this feature in the menu. Adjust the brightness of handheld LEDs in the menu.
The light in the accessory does not come on.	The accessory is attached to the tube.	Remove the tube and attach the accessory directly to the handheld.
	The accessory is not attached to the appliance properly.	Attach the accessory to the appliance properly.
The lighting in my nozzle, handheld, and accessories is not bright enough.	The brightness is dimmed.	Adjust the brightness of lighting in the menu.
The appliance is not charging.	The power plug is not connected properly to the appliance or the adapter is not inserted into the wall socket properly.	Make sure that the power plug is connected properly to the appliance and that the adapter is inserted into the wall socket properly.
	The power plug is not placed properly in the charging station.	Make sure the plug is fixed properly in the charging station. Check if the plug is angled and the charging station is holding the plug in place.
	(code i7) An adapter other than the supplied adapter is being used.	Make sure that you use the adapter supplied.
	(code i10) The battery is not properly installed.	Make sure that the battery is pushed all the way in the slot and properly installed.
	(code E5) The battery malfunctions.	The battery has failed. Replace the battery.

Problem Possible cause Solution

		If you have checked the above and the appliance still does not charge, take it to a Philips service center or contact the Consumer Care Center.
The appliance is charging very slow.	An external adapter or an adapter from other appliances is used.	Charge the appliance with the supplied adapter.
The battery is charged and attached, but the appliance cannot be switched on.	The appliance is still connected to the adapter.	Remove the appliance from the adapter before restarting it.
	(code: E1) Something is wrong with the appliance.	Remove the battery, wait 10 seconds, and then put the battery back. If this does not work, please take the appliance to a Philips service center or contact the Consumer Care Center.
The display shows the filter icon (code: i8).	The filter is dirty. Clean the filter.	Follow the instructions on the screen or in the users manual.
		If you keep getting an i8 information code after cleaning the filter, you can consider the following solutions:- If you have a spare clean filter, you can replace the old filter with the new one. Then, use the handheld to carefully clean the old foam filter and the filter case.- Alternatively, if you have access to another vacuum cleaner or a mini vacuum, you can use it to easily clean both the foam filter and the filter case.Note: Always ensure that a filter is present in the appliance before switching it on.
	The filter is old. You can buy new filters in the online Philipsshop at www.philips.com/support or at your Philips dealer.
		If you have checked the above and the appliance still shows the error, take it to a Philips service center or contact the Consumer Care Center.
The mini Turbo brush does not function properly.	The roller brush is blocked. Remove hairs from the brush with a pair of scissors. Follow the instructions in the user manual.
	The roller brush is blocked by fabric or surfaces during cleaning.	Keep the mini Turbo brush aligned with the surface and do not push the Turbo brush into soft surfaces.

Problem Possible cause Solution

	The roller brush is not properly inserted into the mini Turbo brush.	Make sure that roller brush and the mini Turbo brush are properly connected and that there is no gap between the parts. Follow the instructions in the manual.
The suction power does not feel stable.	Nothing is wrong. This is the feature of "Floor Type Recognition" being triggered. Your appliance is detecting the floor type and cleaning with an optimized performance for that floor.	No action needed. If you prefer to clean with a consistent power of your choice, disable this smart feature in the menu of your appliance.
The Floor Type Recognition is not reacting logically.	The brush is clogged with hair or dirt.	Clean the brush with a pair of scissors or by hand. See the instructions in the user manual.
The appliance delivers static shocks.	The appliance builds up static electricity. The lower the air humidity, the more state electricity is build up.	Discharge the appliance by frequently holding the tube against other metal objects in the room (for example the legs of a table or chair, etc.). Or raise the air humidity level in the room.
	The dust and dirt that is vacuumed up is static.	Empty the dust container and clean the filter according to the instructions in the user manual.

Wet cleaning

Problem Possible cause Solution

The water flow from the aqua tank is reduced.	The wetting strip is blocked by dirt.	Remove the wetting strip and clean it. Place the clean wetting strip back.
	The microfiber mopping pad is not placed correctly and blocks the wetting strip as a result.	Make sure that you place the mopping pad correctly. Check the user manual for proper placement.
	The aqua tank is empty or nearly empty.	Refill the aqua tank.
	A microfiber mopping pad is used that is not supplied by Philips.	Only use an original Philips microfiber mopping pad. The mopping pads can be bought in the online Philips shop at www.philips.com/support or at your Philips dealer.
	Lime scale has build up in the wetting strip.	Buy a new wetting strip in the online Philips shop at www.philips.com/support or at your Philips dealer.

Problem Possible cause Solution

The appliance has a lower suction power than usual.	The air channels on the Vacuum & Wipe nozzle are blocked.	Open the lids of the air channels on both sides of the tube on the Vacuum and Mop nozzle. Clean the channels. Close the lids and turn the nozzle upside down. Clean the air channels from the bottom.
Too much water flows out of the aqua tank at a too high speed.	The aqua tank cap is not attached properly.	Check the cap and make sure it is fully and properly closed.
	The strip is not placed properly in the bottom of the aqua tank.	Check the strip and make sure that it is fitted properly in the bottom plate of the aqua tank.
The floor dries with stripes. Too much liquid cleaner has been added to the water.		Use only a few drops of liquid cleaner or use a cleaner that foams less.
	The microfiber mopping pad is not placed correctly.	Make sure that the mopping pad is placed correctly. Check the user manual for proper placement.
	An incorrect mopping pad is used.	Only use Philips XV1700/01 microfiber mopping pad for the 8000 series. The mopping pads can be bought in the online Philips shop at www.philips.com/support or at your Philips dealer.

Obsah

Úvod 41

Všeobecný popis 41

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical or electrical component with directional arrows and a magnified inset showing internal flow paths (no text or symbols)

Diagram of a mechanical or fluidic device with internal components and airflow indicators (no text or symbols)

110 ± 2 cm

Diagram of a medical device with a plus button and a checkmark (no text or symbols present)

Diagram illustrating safety warning and collision with labeled components and symbols

Illustration of a car interior with a device and a magnified inset showing the interior lighting effect (no text or symbols)

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor, with arrows indicating motion (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol on a grid background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with two washers in the background (no text or symbols)

Illustration of a green mechanical component with a paper sheet underneath, showing a downward arrow and a magnified inset of a document (no text or symbols present)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a mechanical component with a highlighted section (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating the incorrect condition.

Illustration of a mechanical device with a handle and base, showing fluid or material movement (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Používání hubice

Diagram illustrating a spray gun with warning symbols and a water droplet, showing incorrect and correct actions.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and removing a bedbell

Illustration of a vacuum cleaner emitting exhaust plume onto a base (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a soldering iron being inserted into a tip with heat emission (no text or symbols)

Illustration of a robotic arm gripping a spiderweb, showing step-by-step assembly (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating motion (no text or symbols)

Illustration of a laptop with a pen inserted into it, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue industrial vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular button with a white lightbulb icon (no text or symbols)

Diagram showing four icons representing different cleaning or cleaning methods, including lightbulb, light bulb, no tool, and brush.

Circular icon with a white mechanical component and green checkmark (no text or symbols)

Diagram illustrating two mechanical components with checkmark indicators and a checkmark symbol, likely for inspection or repair instructions.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Dodatečné informace

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Po použití – údržba

Diagram of a device control panel with labeled buttons and icons, including 'OFF' and numbered callouts.

1 Přístroj vypněte.

Illustration of a syringe emitting orange light from a tube (no text or symbols)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps 1 and 2.

Green mechanical component with a paper feeding into it, showing an upward arrow and magnified detail (no text or symbols)

Illustration of a pipette dispensing liquid onto a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical pole and a green container (no text or symbols)

Illustration of a hand presser's seat and a telephone handset, no text or symbols present

Simple line drawing of a sink with a vertical rod and a green container (no text or symbols)

Diagram showing a green device with warning sign and a magnified view of a hanging bag, likely illustrating safety or inspection.

Close-up of a beige electronic device control panel with a circular dial and indicator buttons (no readable text or symbols)

Diagram showing a device labeled A and B with an arrow pointing to a circular component, alongside a separate device with a magnified view.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or operation.

Diagram illustrating a device operation with labeled steps and directional arrows, including a lock icon and fan symbol.

Diagram showing a biological or chemical process with labeled components and directional arrows, likely illustrating a reaction or transformation.

Diagram illustrating a lock mechanism with labeled steps and directional arrows, likely illustrating a mechanical or fluid system process.

Diagram of a refrigerant or gasifier with labeled components and directional arrows indicating flow or movement.

Diagram showing two labeled mechanical components (A and B) with a central component, likely illustrating a procedure or assembly.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrow, likely representing a system or process.

Illustration of a hand holding a circular object with a starburst effect, placed on a drawer (no text or symbols)

Diagram of a device control panel with labeled buttons and an open button, showing a printer icon and directional arrow.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a toilet with steam rising from a sink (no text or symbols)

Illustration of a hand holding a device next to a camera lens (no text or symbols)

Diagram of a refrigerant or chemical reactor with labeled components and directional arrows indicating flow or movement.

Illustration of a hand inserting a component into a device, with an inset showing a close-up of the component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of paper or tape (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating cycle (no text or symbols)

Illustration of a hand holding a tool with a green arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to interact with a device (no text or symbols visible)

Diagram of a vacuum cleaner with green directional arrow indicating motion (no text or symbols)

Mechanical component diagram showing rotational motion with arrows (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker, next to a vertical diagram showing water flow (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle with a funnel beside it (no text or symbols)

Illustration of a mechanical device with a green lever and a separate view showing motion arrows (no text or symbols)

Simple line drawing of a mechanical component with a base and central shaft (no text or symbols)

Illustration of a hand using a tool to cut a green cylindrical object on a metal tray (no text or symbols)

Illustration of a medical procedure with a needle inserted into a green plastic band (no text or symbols)

Diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

Diagram of a mechanical component inside a transparent housing, showing internal components and directional arrows (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Smáčecí pásek CP0381/01

CP0381/01

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Mechanical diagram showing a valve mechanism with directional arrows and a magnified inset (no text or labels)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

110 ± 2 cm

Diagram illustrating correct and incorrect assembly methods for a mechanical component, with checkmark and warning symbols indicating error or failure.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a nozzle (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged conductor with labeled poles and field indicators

Illustration of a person using a vacuum cleaner on tiled floor, with no text or symbols present

Illustration of a mechanical component with a circular green symbol and a magnified inset showing a crosshair (no text or symbols present)

Safety warning illustration showing a person using a vacuum cleaner with warning symbols and a red 'X' indicating no need.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green rectangular container (no text or symbols)

Illustration of a green plastic electronic component with a paper sheet underneath, showing a downward arrow and a magnified inset of a folder (no text or symbols)

Diagram of a car seatbelt mechanism with a green arrow indicating the handle (no text or symbols present)

3D illustration of a mechanical component with a highlighted section (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it, alongside an inset image of a hand holding a device.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a mop to clean water, with an orange warning symbol and a red 'X' indicating no need.

Illustration of a mechanical device with a lever and base, showing fluid or material flow (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Brug af mundstykket

Diagram illustrating a spray gun with warning symbols and a water droplet, showing incorrect and correct actions.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and adjusting a seatbelt.

Illustration of a vacuum cleaner emitting exhaust plume onto a base (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a spiderweb manipulation step showing tool positioning and wire repair (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen inserted into it, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue industrial vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular button with a white lightbulb icon and radiating lines (no text or symbols)

Four-panel image showing icons of a light bulb, a powder brush, a light bulb with a hammer, and a clean tool with a checkmark (no text or symbols)

Circular icon with a white downward arrow and green checkmark symbol (no text or numbers)

Diagram showing four different states of a device with icons and labels, including a checkmark icon.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with directional pad, control buttons, and a green checkmark indicating action.

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

3 Hold støvbeholderen over en skraldespand, og tryk på knappen til nem tømning (1) for at tømme beholderen (2).

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a document (no text or symbols present)

1 Fjern mikrofibermoppepuden.

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

Illustration of a hand presser and a telephone handset with directional arrows (no text or symbols)

Simple line drawing of a mechanical component with a base and mounting base (no text or symbols)

Diagram illustrating a safety or cleaning procedure with a green device, warning symbol, and hanging clothes.

Close-up of a beige remote control device with a circular dial and indicator lights (no readable text or symbols)

Rens filteret mindst en gang om måneden, eller når du ser meddelelsen om filterrensning (i8).

OFF ①

1 Sluk for apparatet.

92 Dansk

Diagram showing a device with a globe and labeled parts A and B, alongside a cabinet-like structure.

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device insertion step.

Diagram illustrating a hygiene or hygiene procedure with labeled steps and directional arrows indicating movement.

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating motion or force

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Diagram showing two mechanical components labeled A and B, with component A being inserted into a circular component.

10 Støvsug det snavsede filterkabinet og skumfilter (A).

A

Illustration of a magnifying glass inspecting a drawer with arrows indicating process (no text or symbols)

Diagram of a device control panel with labeled buttons and an icon indicating OFF state

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

4 Bank cyklonen mod en skraldespand for at fjerne resterende støv og snavs.

Illustration of two water purifiers with steam rising from them, no text or symbols present

Illustration of a hand cleaning a device with a magnified view (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing a yellow component being inserted (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

5 Sørg for at justere børsterullen korrekt, när du samler den igen.

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

2 Skub sideknappen for at frigøre børsten fra dens position.

Diagram of a robotic arm with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand connecting wires to a blue cylindrical device with an orange arrow indicating motion (no text or symbols)

Diagram showing a robotic arm with labeled parts and directional arrows indicating motion or force

Illustration of a hand inserting a component into a gun, with an inset showing the gun's internal structure (no text or symbols)

98

Dansk

Mechanical assembly diagram showing a lever mechanism with an arrow indicating direction (no text or symbols present)

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to press or install a device with an orange arrow indicating motion (no text or symbols present)

Illustration of a hand holding a cylindrical object with a green arrow indicating motion or force (no text or symbols)

Line drawing of a hand using a tool to lift a cup, with an arrow indicating upward motion (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker next to a water dispenser (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser with plastic bottle beside it (no text or symbols)

Illustration of a hand presser pressing a device on a diagonal line, with no text or symbols present.

Illustration of a green medical device on a mat with hands using a faucet, showing a 12-hour rotation indicator (no text or symbols on the device itself)

Simple line drawing of a sink with a vertical rod and circular base (no text or symbols)

Illustration of a hand using a tool to cut a green cylindrical object on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

2 Skyl vandstrimlen under rindende vand.

3D diagram of a mechanical component with a green arrow pointing to a horizontal bar (no text or symbols)

Simple line drawing of a box with a golden object inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Mikrofibermoppeptide XV1700/01

Isometric illustration of a rectangular block with a green internal component and a small white square on top (no text or symbols)

XV1700/01

Vandstrimmel CP0381/01

CP0381/01

www.philips.com/mycordlessvacuum-8000s.

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Diagram of a mechanical or electrical component with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

Diagram showing a medical or laboratory setup with a magnified inset highlighting a component labeled '+' and a green checkmark indicating selection.

Diagram illustrating safety warning and defect symbols for mechanical components, including a warning icon and crosshair.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with a warning sign and a red X mark, no text or symbols present

Illustration of a pipette dispensing liquid into a green rectangular container, with two washers in the background (no text or symbols)

Illustration of a green mechanical component with a paper sheet underneath, showing a downward arrow and a magnified inset of a document (no text or symbols present)

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3D illustration of a mechanical component with a highlighted section (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a mop to clean water, with an orange warning symbol and a red 'X' indicating no need.

Illustration of a mechanical device with a handle and base, showing fluid flow or material movement (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Verwenden der Düse

Diagram illustrating a spray gun with warning symbols and a water droplet, showing incorrect and correct actions.

Diagram illustrating bed cleaning techniques with labeled icons for lifting weights and using a tool to adjust the bed.

Illustration of a vacuum cleaner emitting exhaust plume onto a base (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a robotic arm holding a wire, with close-up views of the spiderweb and handle (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen inserted into it, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue industrial vacuum cleaner emitting exhaust flames (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Diagram showing three lightbulb icons and three cleaning tools, with a green checkmark indicating a completed step.

Bodenarterkennung

Circular icon with a white lightning bolt symbol and green checkmark (no text or numbers)

Diagram showing four panels: top panel with tool icons, middle panel with circular icons and checkmark, bottom panel with red cross symbols and checkmark icon.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Close-up of a remote control device with a green checkmark and directional arrow (no text or symbols)

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

3D diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

Illustration of a mechanical device with a green lever and a separate view of a telephone handset (no text or symbols)

Diagram illustrating a kitchen sink with a water dispenser and a handbag, accompanied by a warning icon and a close-up of the handbag.

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Den Filter reinigen

Diagram showing a device with labeled parts A and B, illustrating a physical setup or inspection process.

Diagram showing a device with labeled parts and a magnified inset highlighting a component with directional arrows.

Diagram illustrating a mechanical or electrical process with labeled steps and directional arrows, including a lock icon and directional arrows.

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating motion or force

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Diagram showing two mechanical components labeled A and B, with component A being inserted into a circular base and component B inserted into a larger cylindrical part.

Illustration of a magnifying glass falling into a drawer with an arrow indicating direction (no text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a device component.

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device insertion or repair process.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water into a shared storage tank (no text or symbols)

Illustration of a hand cleaning a device with a magnified view of the lens (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing a force or motion indicator (no text or symbols present)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand tying a rope knot around a rolled-up cable (no text or symbols)

Diagram showing a device with labeled parts and arrows indicating motion or assembly, including numbered annotations 1 and 2.

Illustration of a hand inserting a component into a gun, with an inset showing the internal mechanism (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with a blue component and an orange arrow indicating motion (no text or symbols)

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the handle (no text or symbols)

Illustration of a hand using a tool to press or install a device with an orange arrow indicating motion (no text or symbols present)

Illustration of a hand using a tool to lift a green object, no text or symbols present

Illustration of a hand using a tool to lift a green object, with an upward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with green arrows indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker next to a water dispenser (no text or symbols)

Illustration of a hand using a tool to cut a green cylindrical object on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

Diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

Diagram of a mechanical component inside a transparent housing, showing a rolled part and directional arrow (no text or symbols)

CP0667/01

Mikrofaserwischtuch XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Wasserspender CP0381/01

CP0381/01

www.philips.com/mycordlessvacuum-8000s.

Üldine kirjeldus

1 Digitaalne ekraan

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical or electrical component with directional arrows indicating flow or movement (no text or symbols present)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

Diagram showing a mechanical device with a plus button and a checkmark indicating selection or confirmation.

Diagram illustrating safety warning and failure to switch a mechanical component, with symbols indicating error and rejection.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Illustration of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and an orange warning symbol.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with a faucet in the background (no text or symbols)

Illustration of a green plastic electronic component with a paper base and a magnified inset showing a document (no text or symbols)

Diagram of a car seatbelt mechanism with a green arrow indicating the handle (no text or symbols present)

3D rendered mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it, alongside an inset image of a hand holding a device.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating the incorrect condition.

Illustration of a mechanical device with a handle and base, showing fluid flow or material movement (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Otsaku kasutamine

Diagram illustrating a hand holding a spray bottle, with warning symbols and a water droplet symbol indicating pollution or damage.

Diagram illustrating a medical procedure with labeled steps and corresponding icons for handling a device or device.

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Piluotsaku kasutamine

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a robotic arm holding a wire, with close-up views of the spiderweb and handle (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen tip inserted, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Polstriotsaku kasutamine

Illustration of a blue vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Diagram showing four icons representing different types of cleaning or cleaning tools, including lightbulb, light bulb, vacuum cleaner, and cleaner.

Circular icon with a white downward arrow and green leaf symbol (no text or numbers)

Diagram showing two identical icons with a checkmark and a circular diagram, likely illustrating a process or control mechanism.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Lisateave

Circular button with a white U-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Illustration of a mechanical device emitting sparks from a tool (no text or symbols)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Green mechanical component with a paper feeding into it, showing an upward arrow and magnified detail (no text or symbols)

Veepaagi hooldus

Illustration of a pipette dispensing liquid into a green plastic sheet (no text or symbols)

Simple line drawing of a toilet with a stand and drain, no text or symbols present

Illustration of a hand presser and a telephone device on a diagonal line (no text or symbols)

Simple line drawing of a blue stand with a green panel, no text or symbols present

Diagram illustrating a safety or hazard warning with a green device and a magnified view of the device's handle.

Close-up of a beige electronic device control panel with a circular dial and indicator buttons (no readable text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a battery component.

Diagram showing a device labeled A and B with an arrow pointing to a circular component, alongside a separate view of the device's internal structure.

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating rotation or movement.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing motion paths.

Diagram showing a biological or chemical process with labeled components and directional arrows, likely illustrating a reaction or transformation.

Diagram illustrating a lock mechanism with labeled steps and directional arrows, likely illustrating a mechanical or fluid system process.

Diagram of a refrigerant or gasifier with labeled components and directional arrows indicating flow or movement.

Diagram showing two labeled mechanical components (A and B) with a central component, likely illustrating a procedure or assembly.

10 Puhastage tolmuimejaga tolmune filtrikorpus ja vahtfilter (A).

A

Illustration of a hand holding a circular object with a starburst effect, placed on a drawer (no text or symbols)

Diagram showing a device control panel with an OFF button and battery icon, indicating status or operation.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand using a tool to remove granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water onto a surface with two containers (no text or symbols)

Illustration of a hand holding a device next to a camera lens (no text or symbols)

Diagram of a refrigerant or gasifier with labeled parts and directional arrows indicating flow or movement.

Illustration of a hand inserting a component into a device, with an inset showing a close-up of the component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of paper or tape (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows indicating cycle (no text or symbols)

PetPro otsaku hooldus

Illustration of a hand using scissors to cut a cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the handle (no text or symbols)

Illustration of a hand pressing down on a device with a circular component and a glowing arrow (no text or symbols)

Illustration of a hand using a tool to lift a green object on a flat surface (no text or symbols)

Mopiga tolmuimeja otsaku hooldus

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker with a faucet symbol nearby (no text or labels)

1 Lisage mööteanumasse pisut katlakivieemaldusvedelikku.

Illustration of a beaker with liquid being inverted, connected to a water dispenser bottle (no text or symbols)

2 Lisage mööteanumasse vajalik kogus vett.

MAX 50 °C

Illustration of a mechanical device with a green lever and a separate view showing motion arrows (no text or symbols)

Simple line drawing of a mechanical component with a base and central hub (no text or symbols)

Illustration of a hand using a tool to press or install a green cylindrical component (no text or symbols visible)

Niisutusriba hooldus

Illustration of a medical procedure with a blue ribbon being inserted into a green band (no text or symbols)

2 Loputage niisutusriba kraani all.

Technical line drawing of a mechanical component with a green rod inserted into a housing (no text or symbols)

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Mikrokiust puhastuslapp XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Niisutusriba CP0381/01

CP0381/01

www.philips.com/mycordlessvacuum-8000s.

Descripción general

1 Pantalla digital

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Mechanical diagram showing a valve mechanism with directional arrows and a magnified inset (no text or labels)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

Diagram showing a mechanical device with a plus button and a checkmark indicating selection or confirmation.

Diagram illustrating safety warning and defect symbols for mechanical components, including a warning icon and crosshair.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding schematic representations.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green rectangular container, with two washers in the background (no text or symbols)

Illustration of a green mechanical component with a paper sheet underneath, showing a downward arrow and a magnified inset of a document (no text or symbols present)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D rendered mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a mop to clean water, with an orange warning symbol and a red 'X' indicating no need.

Illustration of a mechanical device with a handle and base, showing internal components and motion lines (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Uso de la boquilla

Diagram illustrating a spray gun with warning symbols and a water droplet, showing incorrect and correct actions.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and removing a bedbell

Illustration of a vacuum cleaner emitting exhaust plume onto a base (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a robotic arm holding a wire, with close-up views of the spiderweb and handle (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen tip inserted, no text or symbols present

Uso del cepillo suave

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue industrial vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular button with a white lightbulb icon and radiating lines (no text or symbols)

Diagram showing four icons representing different types of cleaning or cleaning tools, including lightbulb, light bulb, vacuum cleaner, and a green checkmark.

Circular icon with a white downward arrow and green checkmark symbol (no text or numbers)

Diagram showing four panels: top panel with icons of a tool, middle panel with circular icons and a checkmark, bottom panel with red cross symbols and a green checkmark.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

01234 12:34 PHILIPS XJ0105.XJ08157 www.philips.com/ mycorelessvacuum-8000s

Volver

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Illustration of a green mechanical component with an arrow indicating upward motion, and a magnified inset showing a document (no text or symbols present)

Illustration of a pipette dispensing liquid into a green electronic component (no text or symbols)

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

Illustration of a hand presser with a green handle and directional arrows indicating motion (no text or symbols)

Diagram illustrating a kitchen sink with a water dispenser and a handbag, showing a warning sign and safety instructions.

Close-up of a beige remote control device with a circular dial and indicator lights (no readable text or symbols)

Diagram showing a device with labeled parts A and B, illustrating a physical setup or inspection process.

Diagram showing a device with labeled parts and an inset view of a device with directional arrows indicating rotation or movement.

Diagram illustrating a device operation with labeled steps and directional arrows indicating motion or interaction.

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating process flow

Diagram of a device with labeled parts and directional arrows indicating motion or flow, showing components like '1' and '2'.

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

Illustration of a magnifying glass inspecting a drawer with arrows indicating process (no text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a battery component.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water into a trash can (no text or symbols)

Illustration of a hand cleaning a device with a magnified view of the lid (no text or symbols)

Diagram of a chemical reactor with labeled components and flow indicators

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing a force or motion indicator (no text or symbols present)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand tying a rope knot around a rolled-up cable (no text or symbols)

Diagram showing a device with labeled parts and arrows indicating motion or assembly, including numbered annotations 1 and 2.

Illustration of a hand inserting a component into a device, with an inset showing a close-up of the component (no text or symbols present)

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the handle (no text or symbols)

Illustration of a hand using a tool to press or install a device with an orange arrow indicating motion (no text or symbols present)

Illustration of a hand holding a cylindrical object with a green arrow indicating rotation or movement (no text or symbols)

Illustration of a hand using a tool to lift a green object, with an upward arrow indicating motion (no text or symbols)

Technical illustration of a mechanical component with green arrows indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker next to a water dispenser (no text or symbols)

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

Diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

Simple line drawing of a box with a golden object inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component and a small white square on top (no text or symbols)

XV1700/01

Tira humectante CP0381/01

CP0381/01

Installation du support mural 217

Installation du support mural

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Mechanical diagram showing a valve mechanism with directional arrows and a magnified inset (no text or labels)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

Diagram showing a medical or laboratory setup with a magnified view of a device and a checkmark indicating selection.

Diagram illustrating a mechanical or electrical component with warning symbols and cross marks, including an orange warning triangle and red X.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Illustration of a car hood with a blue lever and an inset showing a valve assembly (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field illustrations.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with a faucet nearby (no text or symbols)

Illustration of a green mechanical device with a paper sheet and a magnified inset showing a document (no text or symbols)

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3D rendered mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating the incorrect condition.

Illustration of a mechanical device emitting powder from a surface (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Diagram illustrating a hand holding a spray bottle, with warning symbols and a water drop symbol indicating pollution or damage.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and adjusting a seatbelt.

Illustration of a vacuum cleaner emitting exhaust flames from a bottle (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a robotic arm holding a wire, with close-up views of the spiderweb and handle (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen inserted, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Diagram showing four icons representing different types of cleaning or cleaning tools, with a green checkmark indicating a completed step.

Circular icon with a white downward arrow and a green dollar sign, no text or symbols present.

Diagram illustrating software interface states with icons for tool, process, and confirmation steps

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

230 Français

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Illustration of a green mechanical component with an arrow indicating upward motion, and a magnified inset showing a document (no text or symbols present)

1 Retirez la frange de lavage en microfibre.

Illustration of a pipette dispensing liquid onto a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

Illustration of a hand presser with a green lever and a separate telephone handset, no text or symbols present.

Simple line drawing of a car seat mounted on a platform with a drain (no text or symbols)

Diagram illustrating a safety or cleaning process with a green device, warning symbol, and hanging clothes.

Close-up of a beige remote control device with a circular dial and indicator lights (no readable text or symbols)

Nettoyage du filtre

Diagram showing a device labeled A and B with an arrow pointing to a circular object, likely illustrating a physical or mechanical setup.

Diagram showing a device with labeled parts and directional arrows, including a magnified inset of a component.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a lock icon and directional arrows.

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating process flow

Diagram of a device with labeled parts and directional arrows indicating motion or flow, showing components like '1' and '2'.

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

Diagram showing a device with a lid and a circular component, labeled with an arrow indicating direction or transformation.

Illustration of a magnifying glass falling into a drawer with an arrow indicating direction (no text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a device component.

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device insertion or repair process.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water onto a surface with two containers (no text or symbols)

Illustration of a hand cleaning a device with a magnified view of the lid (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing a force or motion indicator (no text or symbols present)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand connecting a rope to a rolled-up cable with an arrow indicating direction (no text or symbols)

Diagram showing a device with labeled parts and arrows indicating motion or assembly, including numbered annotations 1 and 2.

Illustration of a hand inserting a component into a device, with an inset showing the internal components (no text or symbols)

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the handle (no text or symbols)

Illustration of a hand using a tool to press or install a device with an orange arrow indicating motion (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a green object, with an upward arrow indicating motion (no text or symbols)

2 Retirez toute impureté visible.

Technical illustration of a mechanical component with green arrows indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass with a water droplet, next to a vertical blue water tank (no text or symbols)

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Entretien de la bandelette

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

3D diagram of a mechanical component with a green arrow pointing to a horizontal bar (no text or symbols)

Illustration of a box with a coin inside, featuring an upward arrow and identifier XV1681/01 (no text or symbols on the main diagram)

Brosse rotative CP0667/01

Simple line drawing of a box with a golden object inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Frange de lavage en microfibre XV1700/01

Isometric illustration of a rectangular block with a green internal component and a white side, no text or symbols present.

XV1700/01

Bandelette CP0381/01

CP0381/01

c Odabrana razina snage

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical or electrical component with directional arrows and a magnified inset showing internal flow (no text or symbols)

2 Pravilno postavite kabel umetanjem u žlijeb koji je tome namijenjen.

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

110 ± 2 cm

4 Sigurno pričvrstite zidni nosač na željeni položaj na zidu, pritom pazeći da se rupe za nosive vijke nalaze otprilike 110 cm iznad poda.

Diagram illustrating correct and incorrect assembly methods for a mechanical component, with checkmark and warning symbols indicating repair or disassembly.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Uređaj je opremljen litij-ionskom baterijom. Potpuno punjenje prazne baterije traje otprilike 6 sati.

1 Pričvrstite komplet baterija na glavno tijelo uređaja, pritom pazeći da je veza čvrsta, što će vam potvrditi zvuk „KLIK”.

MAX 40°C MIN 5°C

2 Napunite uređaj tako što ćete ga postaviti na sastavljeni zidni nosač.

⚠ Upozorenje: uredaj pohranite i punite pri temperaturi iznad 5 °C i ispod 40 °C.

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

2 S pomoću gumba + i – prebacujte se između tri različite postavke snage.

T – turbo način rada

N - normalni način rada

E – ekološki način rada

Illustration of a person using a vacuum cleaner on tiled floor, with directional arrows indicating motion (no text or symbols)

3 Pomoću usisavača možete čistiti tvrde ili meke podove.

Illustration of a wooden screwdriver with a green circular symbol on a grid background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green rectangular container (no text or symbols)

i Napomena: ne pomičite uređaj s montiranim spremnikom za vodu u stranu jer to ostavlja tragove vode. Pomičite samo naprijed i nazad.

Illustration of a green plastic tray with a paper holder and a magnified inset showing a printer (no text or symbols)

2 Pričvrstite jastučić za brisanje od mikrovlakana ispod spremnika za vodu. Poravnajte trake od čičak-materijala ispod spremnika za vodu s onima na stražnjoj strani krpe.

MAX 50 °C

3 Napunite spremnik vodom pritom pazeći da temperatura vode ne prelazi 50 °C.

10 ml

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D rendered mechanical component with a highlighted section showing internal features (no text or symbols)

6 Spojite pripremljeni spremnik za vodu na mlaznicu za vodu i spremni ste početi. Provjerite je li spremnik za vodu pravilno okrenut.

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it, alongside an inset image of a hand holding a device.

i Napomena: vodeni modul nije prikladan za meke podove kao što su tepisi.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a mop to clean water, with an orange warning symbol and a red 'X' indicating no need.

A Oprez: vodeni modul se ne smije upotrebljavati za brisanje vodenih lokvi.

Illustration of a mechanical device with a handle and base, showing internal components (no text or symbols)

Uporaba ručne jedinice

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Uporaba mlaznice

Diagram illustrating a spray gun with warning symbols and a water droplet, showing incorrect and correct actions.

Diagram illustrating bed cleaning techniques with icons for lifting a bed and using a tool to clean or store items

Uporaba mlaznice PetPro

Illustration of a vacuum cleaner emitting exhaust plume onto a base (no text or symbols)

Za pričvršćivanje mlaznice PetPro umetnite cijev ručne jedinice u mlaznicu PetPro. Postavku snage prilagodite tako da odgovara vašim potrebama za čišćenje.

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Uporaba nastavka za uske površine

Nastavak za proreze može poslužiti za čišćenje uskih, skučenih prostora, kao što su procjepi između jastuka na kauču, uz rubne letve ili u unutrašnjosti automobila.

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a robotic arm holding a wire, with close-up views of the spiderweb and handle (no text or symbols)

Uporaba kombiniranog nastavka

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen inserted, no text or symbols present

Uporaba meke četke

Mekana četka nježno čisti lomljive i osjetljive površine, kao što su sjenila, rolete i zasloni. Isporučuje se samo uz model XC8157.

262

Hrvatski

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Uporaba nastavka za namještaj

Illustration of a blue industrial vacuum cleaner emitting exhaust flames, with no text or symbols present.

Za pričvršćivanje nastavka za namještaj umetnite u njega cijev ili držak.

Prilagodbe i dodatne informacije

100°

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Diagram showing four lighting icons and a checkmark, likely illustrating lighting or cleaning techniques.

Prepoznavanje vrste poda

Circular icon with a white lightning bolt symbol and green checkmark (no text or numbers)

Diagram showing two identical icons with a checkmark and a circular diagram, likely illustrating a process or control mechanism.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

i Prepoznavanje vrste poda ne funkcionira u kombinaciji s četkom za osjetljive podove (isporučuje se uz model XC7067).

Dodatne informacije

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Nakon upotrebe – održavanje

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

2 Izvadite ručni uređaj zajedno s spremnikom za prašinu iz cijevi.

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

3 Držite spremnik za prašinu iznad kante za smeće i pritisnite tipku za lako pražnjenje (1) kako biste ga ispraznili (2).

Održavanje spremnika za vodu

Očistite spremnik za vodu nakon svake uporabe.

Hrvatski

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a document (no text or symbols present)

1 Uklonite jastučić za brisanje od mikrovlakana.

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

2 Isperite jastučić za brisanje pod slavinom te ga operite ručno ili u perilici rublja.

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

3 Izlijte svu vodu preostalu u spremniku za vodu.

MAX 50 °C

4 Napunite spremnik za vodu vodom.

Illustration of a hand presser and a telephone handset with directional arrows (no text or symbols)

5 Pravilno zatvorite spremnik za vodu i protresite ga kako biste uklonili ostatke sredstva za čišćenje.

Simple line drawing of a mechanical component with a base and mounting base (no text or symbols)

6 Ispraznite spremnik za vodu i ostavite ga da se osuši.

Diagram illustrating a safety or cleaning procedure with labeled components and warning symbols

Close-up of a beige remote control device with a circular dial and indicator lights (no readable text or symbols)

Filtar očistite barem jednom svakog mjeseca ili kada vidite obavijest o čišćenju filtra (i8).

OFF ①

Diagram showing a device with labeled parts A and B, illustrating a physical setup or operation.

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device insertion step.

3 Uklonite spremnik pritiskom gumba za otpuštanje spremnika.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a lock icon and directional arrows.

Diagram illustrating a lock mechanism with labeled steps 1 and 2, showing fluid flow and safety instructions.

Diagram of a device with labeled parts and directional arrows indicating motion or flow, showing components like '1' and '2'.

8 Vratite spremnik za prašinu na ručni uredaj. Prvo poravnajte stranu spremnika na kojoj se nalazi filtar, a zatim ga zakvačite na mjesto.

ON 1

9 Uključite uređaj.

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

10 Usisajte zaprljano kućište filtra i pjenasti filtar (A).

Diagram showing a device with a lid and a circular component, labeled with an arrow indicating direction or transformation.

11 Ponovno sastavite čisti pjenasti filtar (A) u čistom kućištu filtra.

270

Hrvatski

Illustration of a magnifying glass inspecting a drawer with arrows indicating process (no text or symbols)

i Napomena: filtar (A) je sada temeljito očišćen i može se pohraniti za buduću upotrebu kada bude potrebno očistiti trenutni filtar (B).

Diagram of a device control panel with labeled buttons and an inset image showing a device with a plus/minus button.

Čišćenje spremnika i ciklonske komore

1 Isključite uredaj.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

2 Uklonite spremnik pritiskom gumba za otpuštanje spremnika.

3 Držite crnu dršku. Uklonite ciklonsku komoru iz spremnika za prašinu podizanjem iz spremnika.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

4 Istresite ciklonsku komoru iznad kante za smeće da biste uklonili prašinu i prljavštinu.

Illustration of two containers with steam rising from them, no text or symbols present

Illustration of a hand cleaning a device with a magnified view of the lid (no text or symbols)

6 Brisanjem osušite očišćeni spremnik za prašinu i ciklonsku komoru.

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

2 Za pristup valjkastoj četki pronadite gumb na bočnoj strani mlaznice. Pritisnite ga i zakrenite da biste ga otvorili.

Illustration of a mechanical device with a lever and handle, showing a yellow component being inserted (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

4 Pažljivo uklonite zapetljanu kosu s valjkaste četke. Olakšajte si uklanjanje prljavštine škarama.

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

Održavanje mlaznice PetPro

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand tying a rope knot around a rolled-up cable (no text or symbols)

3 Rukom ili pomoću škara uklonite prljavštinu s četke.

Diagram showing a device with labeled parts and arrows indicating motion or assembly, including numbered annotations 1 and 2.

4 Kada ponovno postavljate četku, počnite postavljanjem jedne strane na mjesto prije nego što pričvrstite drugu stranu. Kada se četka pravilno sastavi čut ćete zvuk „KLIK”.

Illustration of a hand inserting a component into a device, with an inset showing a close-up of the component (no text or symbols present)

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

2 Snažno povucite četku iz bočnog poklopca.

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols)

3 Pažljivo uklonite zapetljanu kosu s valjkaste četke. Olakšajte si uklanjanje prljavštine škarama.

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the handle (no text or symbols)

Illustration of a hand using a tool to press or install a device with an orange arrow indicating motion (no text or symbols present)

Illustration of a hand holding a cylindrical object with a green arrow indicating rotation or movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

2 Uklonite vidljivu prljavštinu iz tog područja.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

5 Za optimalne performanse uklonite prljavštinu oko poklopca.

Illustration of a plastic bottle pouring liquid into a glass with a water droplet, next to a vertical blue water tank (no text or symbols)

Održavanje spremnika za vodu

Illustration of a beaker with liquid being inverted and a water bottle beside it (no text or symbols)

Illustration of a hand presser pressing a button on a keyboard, with an open telephone handset and directional arrows indicating motion (no text or symbols)

Simple line drawing of a mechanical component with a base and central shaft (no text or symbols)

6 Isperite spremnik za vodu i izlijte svu preostalu tekućinu.

Illustration of a hand using a tool to cut a green cylindrical object on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

3D diagram of a mechanical component with a green arrow pointing to a horizontal bar (no text or symbols)

3 Vratite traku za vlaženje natrag na spremnik za vodu nakon čišćenja.

Zamjena dijelova

Kako biste kupili dodatke ili rezervne dijelove, posjetite

www.shop.philips.com/parts-and-accessories ili se obratite distributeru tvrtke

Simple line drawing of a box with a golden object inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Jastučić za brisanje od mikrovlakana XV1700/01

Isometric illustration of a rectangular block with a green internal component and a small white square on top (no text or symbols)

XV1700/01

Traka za vlaženje CP0381/01

CP0381/01

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical or electrical component with directional arrows and a magnified inset showing internal flow (no text or symbols)

Diagram of a mechanical device with internal components and airflow indicators (no text or symbols)

110 ± 2 cm

Illustration of a vacuum cleaner with a magnified view showing the device's internal structure and a red X mark (no text or symbols present)

Mechanical assembly diagram showing a valve mechanism with rotating arrows (no text or labels)

Diagram showing a mechanical device with a plus button and a checkmark indicating selection or confirmation.

Diagram illustrating safety warning and defect symbols for mechanical components, including a warning icon and crosshair.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Illustration of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged battery with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with a warning sign and a red X mark, no text or symbols present

Illustration of a pipette dispensing liquid into a green plastic sheet, with two washers in the background (no text or symbols)

Illustration of a green mechanical component with a paper sheet underneath, showing a downward arrow and a magnified inset of a document (no text or symbols present)

Simple line drawing of a car seatbelt with a green handle and arrow indicating direction (no text or symbols)

3D model of a mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Illustration showing a person cleaning a floor with a mop and a warning symbol

Illustration of a mechanical device emitting powder from a surface (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Diagram illustrating a hand holding a spray bottle with warning symbols and a water droplet, accompanied by a magnified inset showing the same spray.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and adjusting a seatbelt.

Illustration of a vacuum cleaner emitting exhaust plume onto a base (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a robotic arm holding a wire, with close-up views of the tool (no text or symbols present)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen tip inserted, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue industrial vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular button with a white lightbulb icon and radiating lines, symbolizing an idea or illumination (no text or symbols)

Diagram showing three lightbulb icons and a cleaning tool, with a green checkmark indicating a completed step.

Circular icon with a white lightning bolt symbol and green checkmark inside, no text or numbers present.

Diagram showing two identical square panels with icons and four labeled circular diagrams, one with a checkmark and the other with a checkmark.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

300 Italiano

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Illustration of a green mechanical component with an arrow indicating upward motion, and a magnified inset showing a document (no text or symbols present)

Illustration of a pipette dispensing liquid onto a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

Illustration of a hand presser with a green lever and a separate device with bidirectional arrows (no text or symbols)

Simple line drawing of a car seat mounted on a platform, no text or symbols present

Diagram illustrating a safety or cleaning procedure with a green device, warning symbol, and hanging clothes.

Close-up of a beige remote control device with a circular dial and indicator lights (no readable text or symbols)

Pulizia del filtro

Diagram of a device control panel with labeled buttons and an open button, showing a printer icon and directional arrow.

Diagram showing a device labeled A and B with an arrow pointing to a circular object, alongside a separate view of a device with a magnified view.

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a lock icon and spray pattern.

Diagram illustrating a lock mechanism with labeled parts and directional arrows, likely illustrating a mechanical or fluid system concept.

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

Diagram showing a device with a lid and a circular component, labeled with an arrow indicating direction or transformation.

Illustration of a magnifying glass falling into a drawer with an arrow indicating direction (no text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a device component.

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device insertion or repair process.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water into a container with steam rising (no text or symbols)

Illustration of a hand cleaning a device with a magnified view (no text or symbols)

Diagram of a chemical reactor or separator with labeled components and directional arrows indicating flow or movement.

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

Illustration of hands connecting wires to a mechanical component (no text or symbols)

Diagram showing a robotic arm with labeled parts and motion arrows, likely illustrating a mechanical or robotic operation.

Illustration of a firearm component being inserted, with an inset showing the internal mechanism (no text or symbols)

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

Illustration of a hand using scissors to cut a blue bandage (no text or symbols)

Mechanical assembly diagram showing a bracket with directional arrows indicating movement, and a close-up inset of the component (no text or symbols)

Illustration of a hand pressing a button on a device with an orange arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a green object, no text or symbols present

Illustration of a hand using a tool to lift a green object, with an upward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker next to a water dispenser (no text or symbols)

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating assembly or force (no text or symbols)

3D diagram of a mechanical component inside a transparent housing, showing internal components and directional arrow (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component and a white side, no text or symbols present.

XV1700/01

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Mechanical diagram showing a valve mechanism with directional arrows and a magnified inset (no text or labels)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

110 ± 2 cm

Diagram illustrating correct and incorrect assembly methods for a mechanical component, with checkmark and warning symbols indicating repair or disassembly.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged conductor with labeled poles and magnet symbols

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and an orange warning symbol above.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green rectangular container (no text or symbols)

Illustration of a green plastic electronic component with a paper sheet underneath, showing a downward arrow and a magnified inset of a folder (no text or symbols)

2 Piestipriniet mikroškiedras mazgāšanas paliktni zem ūdens tvertnes. Salagojiet "Velcro" aizdares zem ūdens tvertnes un aiz paliktna.

MAX 50 °C

3 lepildiet tvertne üdeni, kura temperatura nedrikst pârsniegt 50 °C.

10 ml

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D model of a mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it, accompanied by an inset image of a hand holding a device.

Illustration showing a person using a cleaning tool with a magnified inset showing the handle and a red X mark indicating incorrect behavior.

i Piezime. Neizmantojiet udens uzgali tirišanai, ja nav uzstadita udens tvertne.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating no need.

Illustration of a mechanical device with a handle and base, showing fluid flow or material movement (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Uzgaļa lietošana

1 Pievienojiet uzgali tieši rokas modulim.

Diagram illustrating a spray gun with warning symbols and a water droplet, showing incorrect and correct actions.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and adjusting parts

Illustration of a vacuum cleaner emitting exhaust plume onto a base (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Lai pievienotu šauro uzgali, pievienojiet cauruli vai rokas moduli šaurajam uzgalim.

Illustration of a robotic arm holding a wire, with close-up views of the tool (no text or symbols present)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen tip inserted, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue industrial vacuum cleaner emitting exhaust flames (no text or symbols)

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Diagram showing four icons representing different cleaning or cleaning methods, including lightbulb, light bulb, no tool, and brush.

Circular icon with a white downward arrow and green checkmark, no text or symbols present.

Diagram illustrating two mechanical components with checkmark indicators and a checkmark symbol, likely for inspection or repair instructions.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Papildinformācija

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Illustration of a mechanical device emitting sparks from a tool (no text or symbols)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Green mechanical component with a paper feeding into it, showing an upward arrow and magnified detail (no text or symbols)

Üdens tvertnes apkope

Illustration of a pipette dispensing liquid onto a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical pole and a green container (no text or symbols)

3 Izlejiet no ūdens tvertnes atlikušo ūdeni.

MAX 50 °C

4 Piepildiet üdens tvertni ar üdeni.

Illustration of a hand presser's seat and a telephone handset, no text or symbols present

Simple line drawing of a sink with a vertical rod and a green container (no text or symbols)

Diagram illustrating a safety or hazard warning with a green device and a magnified view of the device's handle.

Close-up of a beige electronic device control panel with a circular dial and indicator buttons (no readable text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a battery component.

Diagram showing a device labeled A and B with an arrow pointing to a circular component, alongside a separate view of the device's internal structure.

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating rotation or movement.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a magnified inset showing a valve mechanism.

Diagram showing a biological or chemical process with labeled components and directional arrows, likely illustrating a reaction or transformation.

5 Iznemiet putu filtru (A) no plastmasas filtra korpusa.

B XV168

6 Izsainojiet rezerves filtru (B).

Diagram illustrating a lock mechanism with labeled steps and directional arrows, likely illustrating a mechanical or fluid system process.

Diagram showing a device control panel with an OFF button and battery icon, indicating status or operation.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

4 Lai noņemtu atlikušos puteklus un netīrumus, viegli piesitiet piesitiet ciklonisko nodalījumu pie atkritumu tvertnes.

Illustration of a faucet spraying water into a trash bin with visible steam and bubbles (no text or symbols)

Illustration of a hand holding a device next to a camera lens (no text or symbols)

Diagram of a refrigerant or chemical reactor with labeled components and directional arrows indicating flow or movement.

Illustration of a hand pressing down a mechanical component with an inset showing a close-up of the component (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of paper or tape (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car, showing motion and angle (no text or symbols)

Illustration of a mechanical lever with rotational arrows indicating clockwise motion (no text or symbols)

Illustration of a hand using scissors to cut a cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the pivot point (no text or symbols present)

Illustration of a hand pressing down on a device with a circular component and a glowing arrow (no text or symbols)

Illustration of a hand using a tool to lift a green object on a flat surface (no text or symbols)

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

2 Iznemiet no atveres visus redzamos netirumus.

Latviešu

Diagram of a mechanical device with a green arrow indicating a specific component (no text or symbols present)

Mechanical component diagram showing rotational motion with arrows (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid from a water bottle into a glass beaker, next to a vertical water tank with faucet (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser with a bottle beside it (no text or symbols)

Illustration of a mechanical device with a green lever and a separate view showing motion arrows (no text or symbols)

Simple line drawing of a mechanical component with a base and central shaft (no text or symbols)

Illustration of a hand using a tool to press or install a green cylindrical component (no text or symbols visible)

Üdens sloksnes apkope

Illustration of a medical procedure with a blue ribbon being inserted into a green plastic band (no text or symbols)

Diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Mikroškiedras tirišanas paliktnis XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Üdens sloksne CP0381/01

CP0381/01

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Diagram of a mechanical or electrical component with directional arrows and a magnified inset showing internal flow paths (no text or symbols)

Diagram of a mechanical or fluidic device with internal components and airflow indicators (no text or symbols)

110 ± 2 cm

Diagram illustrating correct and incorrect assembly methods for a mechanical component, with checkmark and warning symbols indicating repair or disassembly.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Illustration of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a mechanical component with a circular green symbol and a magnified inset showing a crosshair (no text or symbols present)

Illustration showing a person using a vacuum cleaner with warning symbols and a red 'X' indicating no need or failure.

Illustration of an eye with warning symbols (anxiety, no protection) and a cross mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green rectangular container (no text or symbols)

Illustration of a green plastic mechanical component with a paper base and an inset showing a printer (no text or symbols)

Diagram of a car seatbelt mechanism with a green arrow indicating the handle (no text or symbols present)

5 Tinkamai uždarykite vandens bakelj.

364 Lietuviškai

3D mechanical component diagram showing a lever assembly with a magnified inset view (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop in the floor with a hand holding a tool, accompanied by a red X mark indicating incorrect behavior.

i Pastaba. Nenaudokite vandens antgalio be jdèto vandens bako valymui.

Safety warning illustration showing a person using a mop to clean water, with an orange warning symbol and a red 'X' indicating no need.

Illustration of a mechanical device with a lever and base, showing no text or symbols

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Antgalio naudojimas

Diagram illustrating a spray gun with warning symbols and a water droplet, showing incorrect and correct actions.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and adjusting a seatbelt.

Illustration of a vacuum cleaner emitting exhaust plume onto a base (no text or symbols)

Illustration of a screwdriver and a cylindrical object (no text or symbols)

Illustration of a medical or laboratory device with an arrow indicating compression or disassembly (no text or symbols present)

Illustration of a spiderweb being held by two tools, showing step-by-step assembly (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating motion (no text or symbols)

Illustration of a laptop with a pen inserted into it, no text or symbols present

Illustration of a medical device with a magnified view of a cylindrical object (no text or symbols)

Illustration of a blue spray gun emitting exhaust flames, with no text or symbols present.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Diagram showing four icons representing different types of cleaning or cleaning tools, including lightbulb, brush, and vacuum cleaner.

Circular icon with a white lightning bolt symbol and green checkmark (no text or numbers)

Diagram showing two identical icons with a checkmark and a circular diagram, likely illustrating a process or control mechanism.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a document (no text or symbols present)

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

Illustration of a hand presser and a telephone handset with directional arrows (no text or symbols)

Simple line drawing of a mechanical component with a base and mounting base (no text or symbols)

Diagram illustrating a safety or cleaning procedure with a green device, warning symbol, and hanging clothes.

Close-up of a beige remote control device with a circular dial and indicator lights (no visible text or symbols)

Filtro valymas

Diagram of a device control panel with labeled buttons and an open button, showing a printer icon and directional arrow.

Diagram showing a device with a globe and labeled parts A and B, alongside a cabinet-like structure.

Diagram showing a device with labeled parts and an inset view of a device with directional arrows indicating rotation or movement.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a lock icon and component A.

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating process flow

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

Illustration of a magnifying glass inspecting a drawer with arrows indicating process (no text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a device with a plus/minus button.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water onto a surface with two containers (no text or symbols)

Illustration of a hand cleaning a device with a magnified view (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing a yellow component being inserted (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand tying a rope knot around a rolled-up cable (no text or symbols)

Diagram showing a device with labeled parts and directional arrows indicating motion or force, including numbered annotations 1 and 2.

Illustration of a hand inserting a component into a device, with an inset showing a close-up of the component (no text or symbols present)

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the handle (no text or symbols)

Illustration of a hand using a tool to press or install a device with an orange arrow indicating motion (no text or symbols present)

Illustration of a hand pressing down on a mechanical component with a green arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a small object, with an upward arrow indicating motion (no text or symbols present)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker next to a water dispenser (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser with plastic bottle beside it (no text or symbols)

Illustration of a hand presser pressing a device on a keyboard, with no visible text or symbols

Illustration of a green medical device with a 12-hour rotation indicator (no text or symbols on the device itself)

Simple line drawing of a sink with a vertical rod and circular base (no text or symbols)

Illustration of a hand using a green tool to press or install a rectangular object (no text or symbols visible)

Illustration of a medical procedure with a needle inserted into tissue using a green plastic stand (no text or symbols)

Diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

Simple line drawing of a box with a golden object inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Drékinimo juosta CP0381/01

CP0381/01

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Mechanical diagram showing internal components with directional arrows, no readable text or symbols

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

110 ± 2 cm

Diagram illustrating correct and incorrect assembly methods for a mechanical component, with checkmark and warning symbols indicating repair or disassembly.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a valve or actuator (no text or symbols present)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field illustrations.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

3D rendered mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating no need.

Illustration of a mechanical device with a handle and base, emitting powder from a surface (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bag (no text or symbols)

Diagram illustrating a hand holding a spray bottle with warning symbols and a water droplet, accompanied by a magnified inset showing the same spray.

Diagram illustrating bed seat replacement techniques with icons for lifting and adjusting a seatbelt.

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a soldering iron being inserted into a tip with an arrow indicating the process (no text or symbols present)

Illustration of a spiderweb being held by two hands, showing structural changes (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen inserted into it, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Circular icon with a white downward arrow and green checkmark, no text or symbols present.

Diagram showing three lightbulb icons and a checkmark on a circular badge, likely illustrating cleaning or inspection procedures.

Diagram showing two identical icons with a checkmark, one with a green checkmark and circular design, the other with a red checkmark and circular design.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

További információk

Circular button with a white up-turn arrow icon (no text or symbols)

Kilépés

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Illustration of a vacuum cleaner emitting exhaust plume onto a plug (no text or symbols)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Green mechanical component with a paper holder and an arrow indicating upward motion, no text or symbols present.

Illustration of a pipette dispensing liquid onto a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical pole and a green container (no text or symbols)

Illustration of a hand presser's seat and a telephone handset, no text or symbols present

Simple line drawing of a sink with a vertical rod and a green container (no text or symbols)

Diagram illustrating a safety or hazard warning with a green device and a magnified view of the device's handle.

Close-up of a beige electronic device control panel with a circular dial and plus button (no readable text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a battery component.

Diagram showing a device labeled A and B with an arrow pointing to a circular component, alongside a separate view of the device's internal structure.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Diagram illustrating a device operation with labeled steps and directional arrows, including a lock icon and fan symbol.

Diagram showing a biological or chemical process with labeled components and directional arrows, likely illustrating a reaction or transformation.

Diagram illustrating a lock mechanism with labeled steps and directional arrows, likely illustrating a mechanical or fluid system process.

Diagram of a refrigerant or gasifier with labeled components and directional arrows indicating flow or movement.

Diagram showing two labeled mechanical components (A and B) with a central component, likely illustrating a procedure or assembly.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrow, likely representing a system or process.

Illustration of a coin being inserted into a drawer with an arrow indicating direction (no text or symbols)

Diagram showing a device control panel with an OFF button and battery icon, indicating status or operation.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water onto a surface with a plastic bag (no text or symbols)

Illustration of a hand holding a device next to a camera lens (no text or symbols)

Diagram of a refrigerant or chemical device with labeled parts and directional arrows indicating flow or movement.

Illustration of a mechanical component with a magnified inset showing a close-up of a component (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of paper or tape (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car, showing motion and angle (no text or symbols)

Simple line drawing of a mechanical component with rotational arrows (no text or symbols)

Diagram of a robotic hand with labeled parts and directional arrows indicating motion or assembly.

Illustration of hands connecting wires to a mechanical component (no text or symbols)

Diagram showing a robotic arm with labeled parts and motion arrows, likely illustrating a mechanical or robotic operation.

Illustration of a hand inserting a device into a folder, with an inset showing the internal structure (no text or symbols)

Illustration of a mechanical component with a blue lever and orange arrow indicating force or movement (no text or symbols)

Illustration of a hand using scissors to cut a cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand pressing down on a device with a circular component and a glowing arrow (no text or symbols)

Illustration of a hand using a tool to lift a green object on a flat surface (no text or symbols)

Illustration of a hand using a tool to press or install a component, with no visible text or symbols.

Diagram of a mechanical device with a green arrow indicating a specific component (no text or symbols present)

Mechanical component diagram showing rotational motion with arrows (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker, next to a vertical diagram showing water flow (no text or symbols)

Illustration of a beaker with liquid being inverted and a water bottle connected to a side wall (no text or symbols)

Illustration of a mechanical device with a green lever and a separate view showing motion arrows (no text or symbols)

Simple line drawing of a mechanical component with a base and central shaft (no text or symbols)

Illustration of a hand using a tool to press or install a green cylindrical component (no text or symbols visible)

Illustration of a medical procedure with a needle inserted into a green plastic band (no text or symbols)

Diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

Simple line drawing of a box with a rolled document inside, showing an arrow indicating direction (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

CP0381/01 vízadagoló lapka

CP0381/01

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Mechanical diagram showing internal components with directional arrows, no readable text or symbols

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

110 ± 2 cm

Diagram of a medical or laboratory device with a plus button and a checkmark (no text or symbols present)

Diagram illustrating a mechanical assembly with warning symbols and cross marks, including an orange warning triangle and red X.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field illustrations.

Illustration of a person using a vacuum cleaner on tiled floor, with directional arrows indicating motion (no text or symbols)

Illustration of a rubber pad with a green circular symbol and a dollar sign, placed on a patterned surface (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with warning symbols (anxiety, no protection) and a cross mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green plastic sheet on a surface, with two washers in the background (no text or symbols)

Illustration of a green mechanical component with a paper sheet underneath, showing a downward arrow and a magnified inset (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D rendered mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Illustration showing a person cleaning a floor with a mop and a warning symbol

Illustration of a mechanical device with a lever and base, showing no text or symbols

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Diagram illustrating a spray gun with warning symbols and a water droplet, accompanied by a magnified inset showing defect zones.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and adjusting a seatbelt.

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a spiderweb being held by two blue gloves, showing structural changes (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen inserted into it, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue spray gun emitting exhaust flames, with no text or symbols present.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Diagram showing four icons representing different cleaning or cleaning methods, including lightbulb, light bulb, brush, and no-bar icon, alongside a green checkmark and a circular badge.

Vloertypeherkenning

Circular icon with a downward arrow and a green '电' symbol, no readable text or numbers present.

Diagram showing two identical icons with a checkmark and a green checkmark on a circular grid, likely illustrating a software or process step.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Terug

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Illustration of a green mechanical component with an arrow indicating upward motion, accompanied by a magnified inset showing a document (no text or symbols present)

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

Illustration of a hand presser and a telephone handset with directional arrows (no text or symbols)

Simple line drawing of a mechanical component with a base and mounting base (no text or symbols)

Diagram illustrating a safety or cleaning procedure with labeled components and warning symbols

Close-up of a beige remote control device with a circular dial and indicator lights (no readable text or symbols)

Diagram of a device control panel with labeled buttons and an open button, showing a printer icon and directional arrow.

Diagram showing a device with a globe and labeled parts A and B, alongside a cabinet-like structure.

Diagram showing a device with labeled parts and an inset view of a device interior with directional arrows.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a lock icon and component A.

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating process flow

Diagram of a vacuum cleaner with labeled parts and motion arrows indicating airflow or vibration

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

Illustration of a magnifying glass falling into a drawer with an arrow indicating direction (no text or symbols)

Diagram of a device control panel with labeled buttons and an icon indicating OFF state

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device insertion or repair process.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water into a trash can (no text or symbols)

Illustration of a hand cleaning a device with a magnified view of the lid (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing a yellow component being inserted (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand connecting wires to a blue cylindrical device with an orange arrow indicating motion (no text or symbols)

Diagram showing a robotic arm with labeled parts and directional arrows indicating motion or force

Illustration of a hand inserting a component into a device, with an inset showing the internal structure (no text or symbols)

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to press or install a device with an orange arrow indicating motion (no text or symbols present)

Illustration of a hand holding a cylindrical object with a green arrow indicating motion or force (no text or symbols)

Illustration of a hand using a tool to lift a cup, with an upward arrow indicating motion (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Hand operating a mechanical component with a green tool inserted (no text or symbols visible)

Illustration of a water bottle pouring liquid into a glass with a measuring cup, next to a vertical blue water tank (no text or symbols)

Illustration of a beaker with liquid being inverted and a water dispenser bottle nearby (no text or symbols)

Illustration of a hand presser pressing a button on a keyboard, with an open telephone handset and directional arrows indicating motion (no text or symbols)

Illustration of a green medical device with a 12-hour rotation indicator (no text or symbols on the device itself)

Simple line drawing of a mechanical component with a base and central shaft (no text or symbols)

Illustration of a hand using a tool to press or write on a green cylindrical object (no text or symbols visible)

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

2 Spoel de watertuit af onder de kraan.

3D diagram of a mechanical component with a green arrow pointing to a horizontal bar (no text or symbols)

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Microvezeldweilmop XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Watertuit CP0381/01

CP0381/01

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Mechanical diagram showing a valve mechanism with directional arrows and a magnified inset (no text or labels)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

110 ± 2 cm

Diagram showing a mechanical device with a plus button and a checkmark indicating selection or confirmation.

Diagram illustrating safety warning and collision with labeled components and symbols

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

2 Fest slangen på munnstykket. Det skal kommen en "KLIKK"-lyd när den går i inngrep.

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a mechanical component with a circular green symbol and a magnified inset showing a crosshair (no text or symbols present)

Illustration showing a person using a vacuum cleaner with warning symbols and a red 'X' indicating no need.

Advarsel: Ikke sug opp vann eller andre væsker.

Illustration of an eye with warning symbols (anxiety, no protection) and a cross mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green rectangular container (no text or symbols)

Illustration of a green plastic tray with a paper holder and a magnified inset showing a printer (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

5 Lukk vannbeholderen ordentlig.

470 Norsk

3D rendered mechanical component with a green outline and a magnified inset showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it, alongside an inset image of a hand holding a device.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating no need.

Illustration of a mechanical device with a lever and base, showing no text or symbols

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Bruke munnstykket

Diagram illustrating a spray gun with warning symbols and a water droplet, indicating environmental hazard or damage.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and removing a bed, showing correct and incorrect states.

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a spiderweb manipulation step showing tool positioning and wire repair (no text or symbols)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen inserted into it, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Endre styrke på belysningen

Diagram showing four icons representing different types of cleaning or cleaning tools, including lightbulb, light bulb, vacuum cleaner, and cleaner.

Circular icon with a white downward arrow and green checkmark symbol (no text or numbers)

Diagram showing two identical icons with a checkmark and a circular diagram, likely illustrating a process or control mechanism.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Tilleggsinformasjon

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

Diagram of a device control panel with labeled buttons and icons, including 'OFF' and numbered callouts.

1 Slå av apparatet.

Illustration of a syringe emitting orange light from a tube (no text or symbols)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps 1 and 2.

Green mechanical component with a paper feeding into it, showing an upward arrow and magnified detail (no text or symbols)

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

2 Skyll moppeputen under springen og vask den for hånd eller i vaskemaskin.

Simple line drawing of a toilet with a stand and drain, no text or symbols present

Diagram showing a green mechanical device with a handle and directional arrows, alongside a simplified illustration of a hand holding a device (no text or symbols present)

5 Lukk vannbeholderen godt, og rist den for å få bort eventuelle rester av vaskemiddel.

Simple line drawing of a blue stand with a green container on top, no text or symbols present

Diagram showing a green box on a table with a warning sign and a magnified view of a hanging bag, likely illustrating safety or inspection.

Close-up of a beige electronic device control panel with a circular dial and plus button (no readable text or symbols)

Rengjøre filteret

Diagram showing a device labeled A and B with an arrow pointing to a circular component, alongside a separate device with a magnified view.

Diagram illustrating a device's internal components with labeled parts and directional arrows indicating motion or assembly.

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows, including a lock icon and directional arrows.

Diagram illustrating a lock mechanism with labeled parts and directional arrows, likely illustrating a mechanical or fluid system concept.

Diagram of a refrigerant or gasifier with labeled components and directional arrows indicating flow or movement.

Diagram showing two labeled mechanical components (A and B) with a central component, likely illustrating a procedure or assembly.

Diagram illustrating a mechanical or electrical component with labeled parts and directional arrow, likely from an engineering or manufacturing context.

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water onto a surface with a plastic bag (no text or symbols)

Illustration of a hand holding a device next to a camera lens (no text or symbols)

6 Gå over den rengjorte støvbeholderen og syklonen med en tørr klut.

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand inserting a component into a device, with an inset showing the internal structure (no text or symbols)

Illustration of a mechanical device with a lever and handle, showing motion direction (no text or symbols)

Illustration of a hand using scissors to cut a piece of paper or tape (no text or symbols visible)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car, showing motion and angle (no text or symbols)

6 Fest børsterullen på munnstykket – det høres en "KLIKK"-lyd när den går i inngrep.

Illustration of a mechanical component with rotational arrows indicating cycle (no text or symbols)

Diagram of a robotic hand with labeled parts and directional arrows indicating motion or force

Illustration of hands connecting a cable to a cylindrical component with a directional arrow (no text or symbols)

Diagram showing a robotic arm with labeled parts and motion arrows, likely illustrating a mechanical or robotic operation.

Illustration of a hand inserting a component into a device, with an inset showing the internal structure (no text or symbols)

Vedlikeholde den skånsomme gulvbørsten\_MLU 8000

Diagram of a mechanical device with a blue lever and orange arrow indicating force or movement (no text or symbols)

Illustration of a hand holding a tool with a green arrow indicating rotation or movement (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

2 Fjern eventuell synlig tilsmussing i området.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a beaker with a faucet symbol nearby (no text or labels)

1 Hell litt avkalkingsmiddel i et målebeger.

Illustration of a beaker with liquid being inverted and a water dispenser with a bottle beside it (no text or symbols)

Illustration of a hand presser pressing down on a keyboard and a separate telephone handset with bidirectional arrows (no text or symbols)

Simple line drawing of a blue anchor with a green cover and circular base (no text or symbols)

Illustration of a hand using a green tool to cut a rectangular object with a green arrow indicating the process (no text or symbols present)

Illustration of a medical procedure with a blue ribbon being inserted into a green plastic band (no text or symbols)

2 Skyll vannstrimmelen under springen.

Diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

490 Norsk

Moppepute i mikrofiber XV1700/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present

XV1700/01

Vannstrimmel CP0381/01

CP0381/01

16 Ssawka TriActive Smart LED

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical or electrical component with directional arrows and a magnified inset showing internal flow paths (no text or symbols)

Diagram of a mechanical or fluidic device with internal components and airflow indicators (no text or symbols)

110 ± 2 cm

Diagram illustrating correct and incorrect assembly methods for a mechanical component, with checkmark and warning symbols indicating repair or disassembly.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Illustration of a car hood with a pipe and valve, showing a magnified inset of the valve handle (no text or symbols present)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with a faucet nearby (no text or symbols)

Illustration of a green mechanical component with a paper sheet underneath, showing a downward arrow and a magnified inset of a document (no text or symbols present)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D rendered mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it, alongside an inset image of a hand holding a device.

Illustration showing a person using a cleaning tool with a magnified inset showing the handle and a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating the incorrect condition.

Illustration of a mechanical device emitting powder from a surface (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Używanie ssawki

Diagram illustrating a hand holding a spray bottle, with warning symbols and a water drop symbol indicating environmental hazard.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and adjusting parts

Illustration of a vacuum cleaner emitting exhaust flames from a bottle (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a robotic arm holding a wire, with close-up views of the spiderweb and handle (no text or symbols)

Illustration of a hand holding a small electronic device with an arrow indicating compression or disassembly (no text or symbols present)

Illustration of a laptop with a pen inserted into it, no text or symbols present

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue vacuum cleaner emitting exhaust flames, with no text or symbols present.

Gray circular icon with a white lightbulb symbol and radiating lines, representing an idea or illumination (no text or symbols)

Diagram showing four icons representing different types of cleaning or cleaning tools, including lightbulb, brush, and vacuum cleaner, alongside a green checkmark icon.

Circular icon with a white downward arrow and green checkmark, no text or symbols present.

Diagram showing two identical icons with a checkmark and a green checkmark on a grid, likely illustrating a software or process step.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with labeled buttons and a green checkmark indicating action

512 Polski

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

3D diagram of a mechanical component with an arrow indicating direction, no text or symbols present

Illustration of a pipette dispensing liquid into a green circuit board (no text or symbols)

Simple line drawing of a sink with a mounted device (no text or symbols)

Illustration of a hand presser with a green lever and a separate telephone handset, no text or symbols present.

Diagram illustrating a kitchen sink with a water dispenser and a handbag, showing a warning sign and safety instructions.

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Czyszczenie filtru

Diagram showing a device labeled A and B with an arrow pointing to a circular object, likely illustrating a physical or mechanical setup.

Diagram showing a device with labeled parts and directional arrows, including a magnified inset of a component.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a lock icon and spray pattern.

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating process flow

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

Illustration of a magnifying glass falling into a drawer with an arrow indicating direction (no text or symbols)

Diagram of a device control panel with labeled buttons and an inset image showing a device component.

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device insertion or repair process.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water into a shared storage unit (no text or symbols)

Illustration of a hand cleaning a device with a magnified view of the lid (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing a yellow component being inserted (no text or symbols)

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical component with rotational arrows (no text or symbols)

Diagram of a robotic arm with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand connecting wires to a blue cylindrical device with an orange arrow indicating motion (no text or symbols)

Diagram showing a robotic arm with labeled parts and directional arrows indicating motion or force

Illustration of a hand inserting a device into a device component, with an inset showing the internal structure (no text or symbols)

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

Illustration of a hand using scissors to cut a blue bandage (no text or symbols)

Mechanical assembly diagram showing a bracket with directional arrows and a close-up inset of the component (no text or symbols)

Illustration of a hand pressing a button on a device with an orange arrow indicating motion (no text or symbols)

Illustration of a hand using a tool to lift a green object, no text or symbols present

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Technical illustration of a mechanical component with green arrows indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker next to a water dispenser (no text or symbols)

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

3D diagram of a mechanical component with a green rod inserted into a housing (no text or symbols)

Simple line drawing of a mechanical component inside a transparent housing, with no text or symbols present.

CP0667/01

Isometric illustration of a rectangular block with a green internal component and a small white square on top (no text or symbols)

XV1700/01

www.philips.com/mycordlessvacuum-8000s.

Descrição geral

1 Visor digital

Diagram of a mechanical device with internal components and directional arrows, no visible text or symbols

Mechanical diagram showing a valve mechanism with directional arrows and a magnified inset (no text or labels)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

Diagram showing a mechanical device with a plus button and a checkmark indicating selection or confirmation.

Diagram illustrating safety warning and defect symbols for mechanical components, including a warning icon and crosshair.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with an inset showing a lever mechanism (no text or symbols present)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a vacuum cleaner emitting powder from a nozzle (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor (no text or symbols)

3 Pode limpar pavimentos ou superfícies macias com o aspirador.

Illustration of a wooden stamping tool with a green circular symbol and a compass icon, set against a patterned background (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an orange exclamation mark.

Illustration of an eye with warning symbols (anxiety, no protection) and a red X mark, no text or labels present.

Illustration of a pipette dispensing liquid into a green plastic sheet, with a faucet nearby (no text or symbols)

Illustration of a green mechanical component with a paper sheet underneath, showing a downward arrow and a magnified inset of a document (no text or symbols present)

Simple line drawing of a mechanical component with a green arrow indicating direction (no text or symbols)

3D rendered mechanical component with a highlighted section showing internal features (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating the incorrect condition.

Illustration of a mechanical device emitting powder from a surface (no text or symbols)

Utilizar o aspirador portátil

Illustration of a vacuum cleaner emitting exhaust smoke from a bottle (no text or symbols)

Utilizar o bocal

Diagram illustrating a hand holding a spray bottle, with warning symbols and a water droplet symbol indicating pollution or damage.

Diagram illustrating bed cleaning techniques with labeled icons for lifting and adjusting parts

Utilizar o bocal PetPro

Illustration of a vacuum cleaner emitting exhaust flames from a bottle (no text or symbols)

Illustration of a screwdriver and a cylindrical component (no text or symbols)

Illustration of a syringe with an orange arrow indicating motion or force (no text or symbols)

Illustration of a robotic arm holding a wire, with close-up views of the tool (no text or symbols present)

Illustration of a hand holding a small object with an arrow indicating motion or force (no text or symbols)

Illustration of a laptop with a pen tip inserted, no text or symbols present

Utilizar a escova macia

A escova macia limpa suavemente superfícies frágeis ou delicadas, como abajures, persianas e ecrãs. Está incluída apenas no modelo XC8157.

Illustration of a medical device with a magnified inset showing a cylindrical object (no text or symbols)

Illustration of a blue industrial vacuum cleaner emitting exhaust flames (no text or symbols)

Gray circular button with a white lightbulb icon and radiating lines (no text or symbols)

Diagram showing four lighting icons and a checkmark, likely illustrating lighting or cleaning techniques.

Circular icon with a white downward arrow and green checkmark, no text or symbols present.

Diagram showing two panels of a computer mouse with icons and four labeled UI elements: a lock icon, a circular dial with a green checkmark, a brush tool, and a checkmark icon.

Gray circular button with a white lowercase 'i' in the center, no additional text or symbols.

Circular button with a white up-turn arrow icon (no text or symbols)

Diagram of a remote control device with directional pad, control buttons, and a green checkmark indicating action.

Illustration of a medical or laboratory procedure showing a syringe connected to a tube with an upward arrow indicating motion (no text or symbols present)

Diagram illustrating a robotic arm pouring granular material into a container, with labeled steps ① and ②.

Illustration of a green mechanical component with an arrow indicating upward motion, and a magnified inset showing a document (no text or symbols present)

Illustration of a pipette dispensing liquid onto a green circuit board (no text or symbols)

Simple line drawing of a sink with a vertical support and a green container (no text or symbols)

Diagram showing a green mechanical device with a handle and directional arrows, alongside a stylized telephone handset (no text or symbols)

Illustration showing a washing machine on a sink and its inspection of a garment with a warning symbol (no text or labels)

Close-up of a beige remote control with a black dial and circular button (no text or symbols visible)

Limpeza do filtro

Diagram showing a device labeled A and B with an arrow pointing to a circular object, likely illustrating a physical or mechanical setup.

Diagram showing a device with labeled parts and directional arrows, including numbered annotations ① and ②.

Diagram illustrating a mechanical or fluid system with labeled components and directional arrows, including a lock icon and spray pattern.

Diagram illustrating a lock mechanism with labeled steps 1 and 2, showing fluid flow and safety instructions.

Diagram of a device with labeled parts and directional arrows indicating motion or flow, showing components like '1' and '2'.

Diagram of two mechanical components labeled A and B, showing alignment or assembly (no text or symbols beyond labels)

Illustration of a magnifying glass inspecting a drawer with arrows indicating process (no text or symbols)

Diagram of a device control panel with labeled buttons and an icon indicating OFF state

Diagram illustrating a medical procedure with labeled steps ① and ②, showing a device insertion or repair process.

Illustration of a hand pouring granular material into a trash bin (no text or symbols)

Illustration of a faucet spraying water into a shared storage unit (no text or symbols)

Illustration of a hand cleaning a device with a magnified view of the lid (no text or symbols)

Diagram of a device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pressing down on a mechanical component with an inset showing the same component (no text or symbols present)

Illustration of a mechanical device with a lever and handle, showing a yellow component being inserted (no text or symbols)

3 Remova suavemente a escova rotativa e a tampa lateral do bocal.

Illustration of a hand using scissors to cut a piece of wood or metal (no text or symbols present)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to lift a car seatbelt, showing motion and angle (no text or symbols)

Illustration of a mechanical lever with rotational arrows indicating motion (no text or symbols)

Diagram of a robotic device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand tying a rope knot around a rolled-up cable (no text or symbols)

Diagram showing a device with labeled parts and arrows indicating motion or assembly, including numbered annotations 1 and 2.

Illustration of a hand inserting a component into a device, with an inset showing a close-up of the component (no text or symbols present)

Mechanical assembly diagram showing a blue component being inserted into a housing (no text or symbols visible)

Illustration of a hand using scissors to cut a blue cylindrical object (no text or symbols)

Mechanical assembly diagram showing a lever mechanism with an inset close-up of the component (no text or symbols)

Illustration of a hand using a tool to press or install a device with an orange arrow indicating motion (no text or symbols present)

Illustration of a hand holding a cylindrical object with a green arrow indicating motion or force (no text or symbols)

Illustration of a hand using a tool to adjust or install a component, with no visible text or symbols.

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a hand using a tool to adjust or install electronic components (no text or symbols visible)

Illustration of a plastic bottle pouring liquid into a glass beaker next to a water dispenser (no text or symbols)

Illustration of a hand using a tool to press or install a green component on a tray (no text or symbols)

Illustration of a medical procedure with a pipette inserted into a green plastic tube (no text or symbols)

Technical line drawing of a mechanical component with a green arrow indicating assembly or force (no text or symbols)

Diagram of a mechanical component inside a transparent housing, showing a cylindrical part inserted into a housing (no text or symbols)

CP0667/01

Isometric illustration of a rectangular block with a green internal component, no text or symbols present.

XV1700/01

Diagram of a mechanical device with internal components and directional arrows, no readable text or symbols present.

Diagram of a mechanical or electrical component with directional arrows and a magnified inset showing internal flow paths (no text or symbols)

Diagram of a mechanical device with airflow indicators and a magnified inset showing internal components (no text or symbols)

110 ± 2 cm

Diagram illustrating correct and incorrect assembly methods for a mechanical component, with checkmark and warning symbols indicating repair or disassembly.

Illustration of a spray gun with a magnified inset showing the impact of light (no text or symbols present)

Diagram of a mechanical device with a close-up inset showing a pipe connection (no text or symbols)

Illustration of a spray gun dispensing liquid into a tube with an arrow indicating motion (no text or symbols)

Illustration of a robotic arm cutting a component with motion lines indicating motion (no text or symbols)

100° ON OFF ①

Diagram illustrating electric field lines around a positively charged negative point, with labeled components and corresponding electric field symbols.

Illustration of a person using a vacuum cleaner on tiled floor, with no text or symbols present

Illustration of a wooden tool with a green circular symbol containing a dollar sign, placed on a patterned surface (no text or symbols present)

Safety warning illustration showing a person using a vacuum cleaner with a red 'X' indicating no need, and warning symbols including an exclamation mark.

Illustration of an eye with a warning sign and a red X mark, no text or symbols present

Illustration of a pipette dispensing liquid into a green rectangular container (no text or symbols)

Illustration of a green plastic tray with a paper holder and a magnified inset showing a printer (no text or symbols)

Diagram of a mechanical component with a green arrow indicating direction (no text or symbols)

3D mechanical component diagram showing a lever assembly with a magnified inset view (no text or symbols)

Line drawing of a person using a green vacuum cleaner on tiled floor (no text or symbols)

Illustration showing a person using a vacuum cleaner with a red X mark indicating the absence of it, alongside an inset image of a hand holding a device.

Illustration showing a green mop and hand holding a tool, with a red X mark indicating incorrect behavior.

Safety warning illustration showing a person using a cleaning brush to clean water, with an orange warning symbol and a red 'X' indicating the incorrect condition.
