USER MANUAL 9000 Series AquaTrio XW9465 PHILIPS

Exterior view of a black and blue vacuum cleaner with extended handle (no text or symbols visible)

English 4

Bahasa Indonesia 50

Bahasa Melayu 96

Čeština 143

Dansk 188

Deutsch 234

Eesti 282

Español 328

Français 375

Hrvatski 422

Italiano 468

Latviešu 515

Lietuviškai 561

Magyar 607

Nederlands 653

Norsk 700

Polski 746

Português 793

Română 840

Shqip 887

Slovenščina 933

Slovensky 978

Srpski 1024

Suomi 1070

Svenska 1115

Tiếng Việt 1161

Türkçe 1206

Ελληνικά 1252

Български 1302

Македонски 1350

Русский 1398

Українська 1447

Қазақша 1495

ภาษาไทย 1542

简体中文 1594

繁體中文 1641

한국어 1683

العربية 1727

1771 فارسی

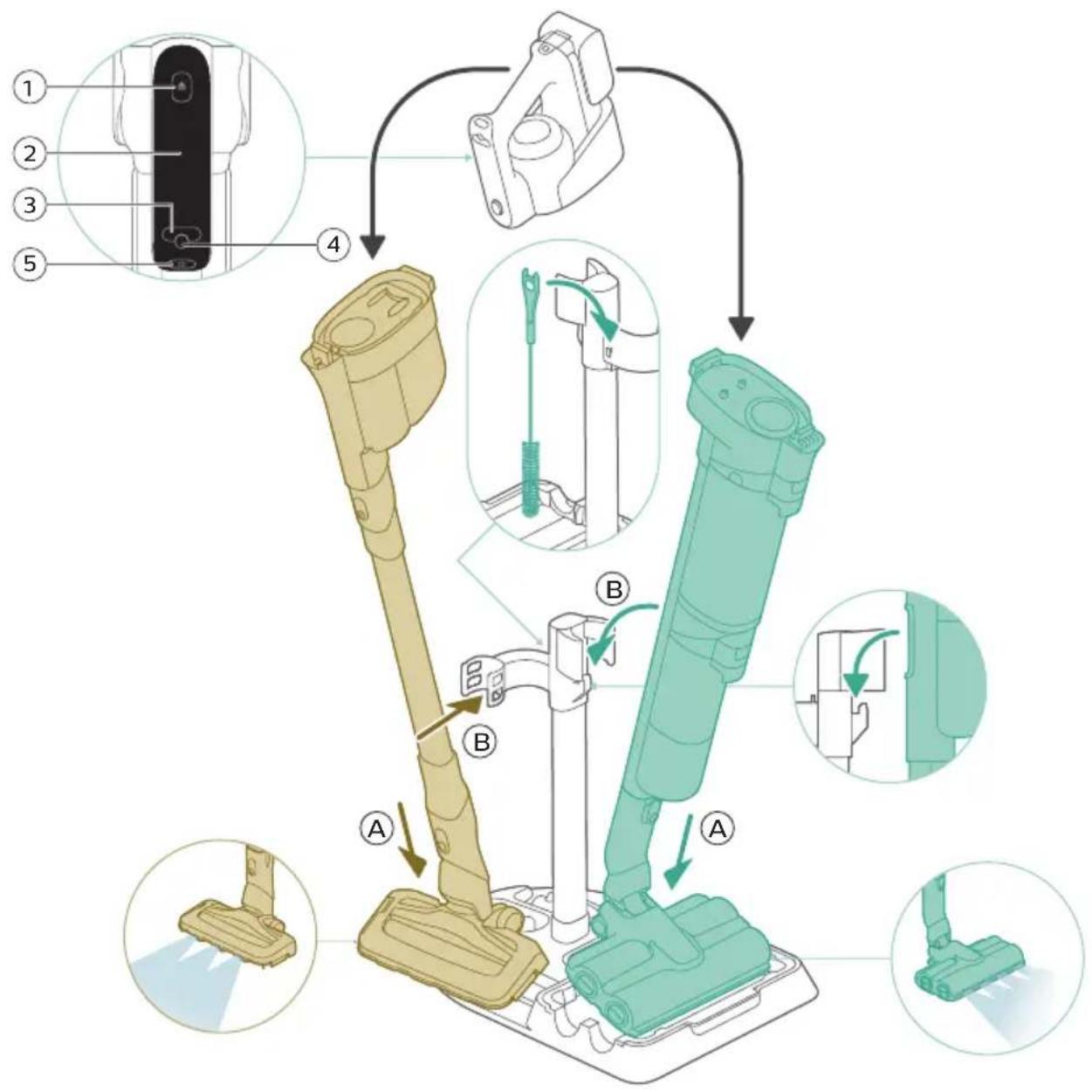

Diagram illustrating the assembly of a vacuum cleaner with labeled parts and component views

XW9645/11 ⑥ ⑦ 13-6 ①68 9 10 11 1412

Technical diagram showing exploded and assembled views of a device with numbered parts and labeled components

Contents

Introduction 4

General description 4

Before first use 5

Charging 7

Vacuuming and mopping hard floors 8

Vacuuming soft and hard floors 13

Cleaning the Vacuum & Mop set-up ____

Cleaning the Vacuum only set-up 27

Display icons and their meaning 36

Replacement 39

Troubleshooting 40

Using the Vacuum only set-up 46

Introduction

Thanks for buying this Philips product! To fully benefit from the support that Philips offers, register your product at www.philips.com/myvacuum9000s.

General description

1 Dust bucket release button

2 Display

3 Cleaning mode button

4 Middle button (AUTOCLEAN)

5 On/off button

6 Battery

7 3-in-1 handheld

8 Dust bucket

9 Tube

10 LED nozzle

11 Mini Turbo brush

12 Long crevice tool

13 Adapter

14 Power plug

15 Extra charger (XW9465/11 only)

16 After-Clean & Storage station

17 Appliance holder

18 After-Clean tray

19 Baseplate

20 Wet module

21 Dirty water tank

22 Clean water tank

23 AquaSpin nozzle

24 Microfiber brushes

25 Philips Floor Cleaner XV1792 (XW9463/11 and XW9465/11 only)

26 Cleaning brush

18

Before first use

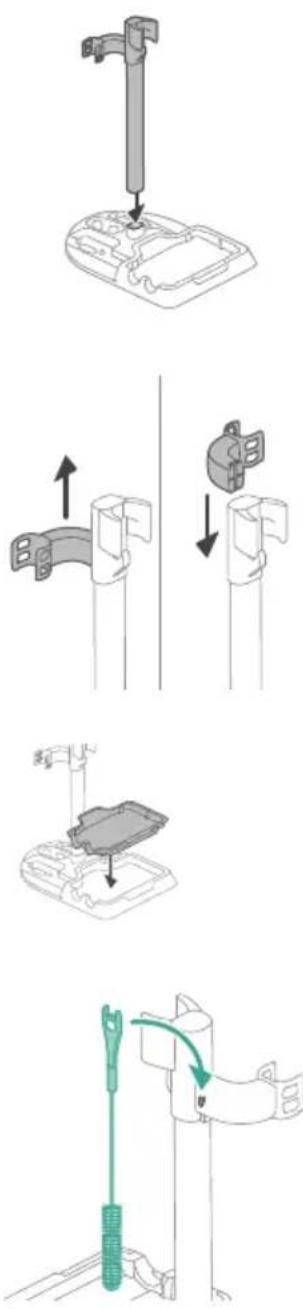

Assembling the After-Clean & Storage station

In order to use the AUTOCLEAN function or store and charge the appliance on the After-Clean & Storage station, you need to first assemble the station by clicking the appliance holder into the baseplate.

Tip: It is possible to slide the holder for Vacuum only set-up and put it back upside down if you want to place the Vacuum only set-up on the other side of the After-Clean & Storage station.

i Note: Make sure that the After-Clean tray is placed in the baseplate and that the temperature in the room where the appliance is stored, charged and cleaned is between 5 °C and 35 °C.

Tip: You can hang the cleaning brush on the hook of the appliance holder.

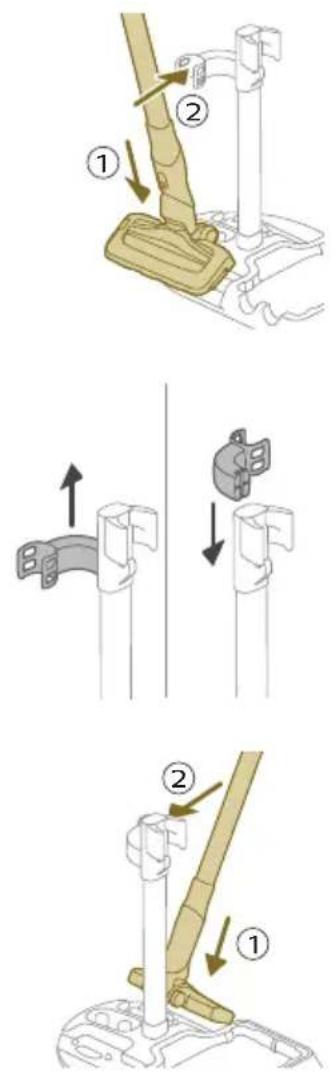

Assembling the Vacuum & Mop set-up

Illustration of a hand holding a spray gun with arrows indicating motion (no text or symbols)

1 To assemble the Vacuum & Mop set-up, insert the battery and attach the 3-in-1 handheld to the wet module ('click').

4 To store the Vacuum only set-up, place it in the After-Clean & Storage station by first placing the LED nozzle onto the long side of the baseplate and then pressing the tube into the holder.

Tip: It is possible to slide the holder for the Vacuum only set-up and put it back upside down if you want to place the Vacuum only set-up on the other side of the After-Clean & Storage station.

Charging

MAX 35 °C MIN 5 °C

The appliance is equipped with a 25 V Li-Ion battery. Charging takes 4 hours.

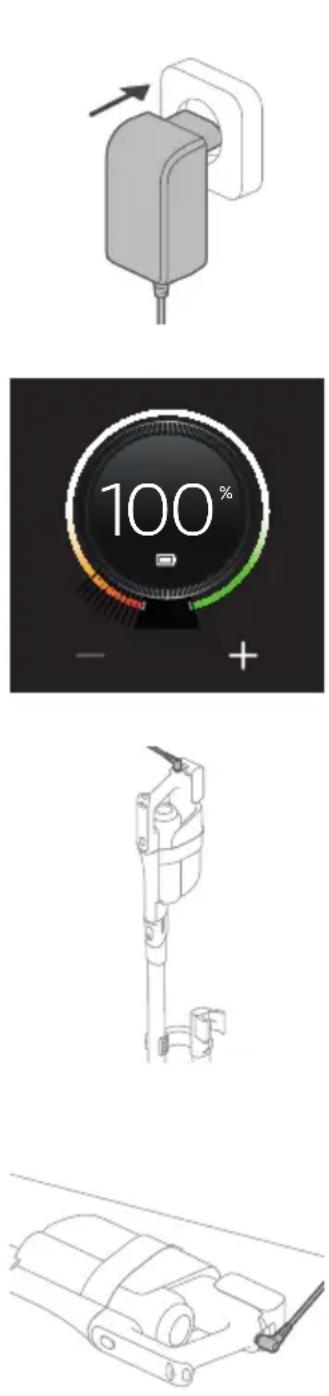

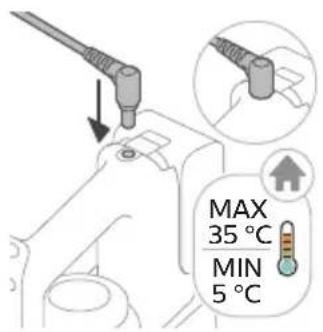

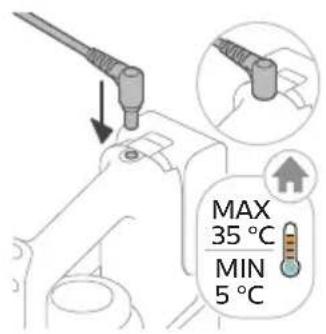

1 To charge the appliance, insert the power plug into the socket on the back of the appliance. Then insert the adapter into the wall socket.
2 A value between 0% and 90% flashes on the screen to indicate that the appliance is charging.

3 When the appliance is fully charged, the value 100% lights up on the screen. After a few minutes, the display will switch off.

Warning: Store and charge the appliance at a temperature above 5 °C and below 35 °C.

Tip: You can charge the appliance in the After-Clean & Storage station.

Tip: You can charge the appliance separately in a place that suits you best.

Vacuuming and mopping hard floors

Using the Vacuum & Mop set-up

The clean water tank and the dirty water tank are already attached to the appliance upon delivery. With the wet module attached to the AquaSpin nozzle, you can clean hard floors.

i Note: This Vacuum & Mop set-up is suitable for vacuuming and mopping at the same time. It is not necessary to vacuum the floor before mopping. The Vacuum & Mop set-up is suitable for vacuuming and mopping all types of

hard floors, except uncoated wooden floors (see 'Usage restrictions').

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

1 To assemble the Vacuum & Mop set-up, insert the battery and attach the 3-in-1 handheld to the wet module ('click').

Illustration of a medical or laboratory procedure showing a needle inserted into a device with a green arrow indicating direction (no text or symbols present)

2 Attach the wet module to the AquaSpin nozzle ('click').

Illustration of a hand holding a cylindrical device with a green arrow indicating motion (no text or symbols)

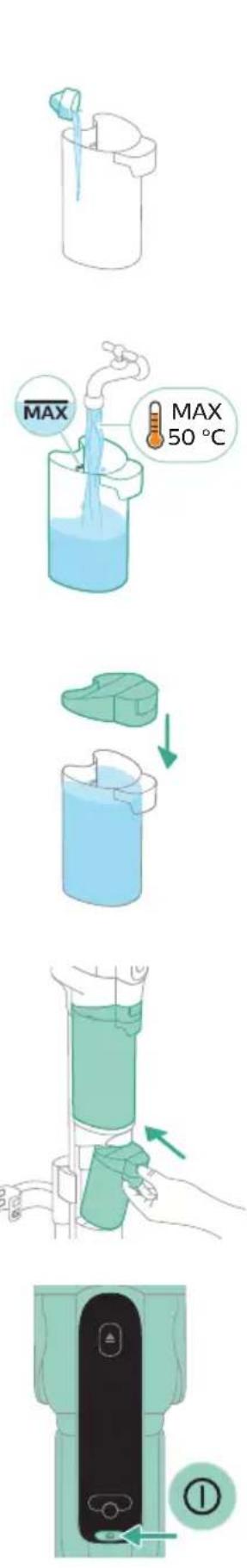

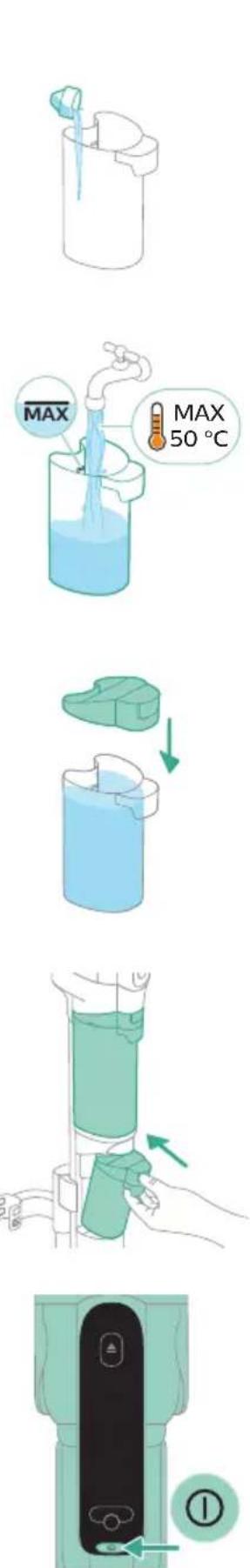

3 Push the button to unlock the clean water tank and remove the clean water tank.

4 Remove the cap from the clean water tank.

XV1792 10ml

5 Add 10 ml of the XV1792 Philips Floor Cleaner to the clean water tank.

MAX MAX 50 °C

Caution: Philips has only tested this appliance with XV1792 Philips Floor Cleaner. Other detergents may lead to excessive foaming, which reduces performance and may cause the appliance to malfunction. XV1792 Philips Floor Cleaner is available in selected markets. When using any other suitable liquid floor cleaner, add a maximum of 10 ml to the clean water tank.

6 Fill the clean water tank with cold or lukewarm tap water up to the MAX indication.

Caution: The tap water that is poured into the clean water tank must not be warmer than 50°C.

7 Place the cap back on the clean water tank.

8 Place the clean water tank back into the appliance.

9 To switch on the appliance, press the on/off button and wait until the appliance is ready for use.

100° A O C+

Safety warning illustration showing a robot with an eye and a red X mark indicating no protection

10 Use the cleaning mode button to choose between three different settings:

• Normal wet mode
• Intense wet mode
• Water absorption mode

By selecting the normal water mode, you can use the appliance for regular wet cleaning. The intense wet mode is for cleaning extra stubborn stains.

If there are wet spots on the floor after cleaning, you can select absorption mode to clean them up. We also recommend using it when lifting the appliance over a threshold, carpet or stairs (see 'Tips and other important information').

If you select water absorption mode, the appliance will stop supplying water and increase suction power for 45 seconds to absorb any water on the floor.

i Note: older models feature normal wet mode and intense wet mode, but not water absorption mode.

Caution: Do not look directly into the LEDs of the nozzle or point the LEDs at someone's eyes. The LED light is very bright.

Active protection system

• This appliance is equipped with an active protection system. This active protection system has been designed to recognize when a foreign object other than dirt or liquid is picked up from the floor.
• When the system is activated, the appliance switches off and the i3 message appears on the display (see 'Display icons and their meaning'). The active protection system can also be activated when the microfiber brushes are too wet, when you move the appliance over a carpet or a rug, or when you move it over flooring that is not properly affixed.

Tips and other important information

• It is not necessary to vacuum the floor before mopping, as the Vacuum & Mop set-up actively wet-cleans your hard floor to capture all kinds of dirt, including liquids and stains. On carpets and rugs, use the Vacuum only set-up.
• If your hard floors do not need mopping, simply use the vacuum only set-up which features LED lights and PowerCyclone 12 technology for precise and powerful dirt pick-up.
• You can move the appliance just as quickly as a vacuum cleaner. To remove difficult stains, click the cleaning mode button to activate the intense wet mode and move the appliance slowly over the stains.

• The appliance can leave a small puddle of water on the floor if you do not move the appliance while switching it off. You can reduce the size of the puddle by moving the appliance while switching it off. If needed, you can remove the last drops with a cloth.

• It is recommended to activate the water absorption mode when lifting the appliance over a threshold, carpet or stairs during cleaning. This will prevent dirty water from dripping out of the AquaSpin nozzle.

• When moving the appliance, it is recommended to stretch your arm to reduce unnecessary tension on the muscles. In this position, you have the best control over the appliance when cleaning, and it will be the most comfortable.

i Note: When you use the water absorption mode, no more water comes out of the appliance and the suction power increases. After 45 seconds, if you do not take any action, the appliance automatically switches back to normal wet mode

i Note: older models feature normal wet mode and intense wet mode, but not water absorption mode. For these models, move the appliance while switching it off to reduce the amount of water left on the floor. It is also recommended to leave the appliance on when lifting it over a threshold, carpet or stairs during cleaning. This will prevent dirty water from dripping out of the AquaSpin nozzle.

Usage restrictions

• The Vacuum & Mop set-up is suitable for vacuuming and mopping all types of hard floors, except uncoated wooden floors.
• The Vacuum & Mop set-up is intended for regular cleaning of hard floors. Always follow the cleaning instructions for your hard floor when you use this appliance.
• If you want to add a liquid floor cleaner other than XV1792 Philips Floor Cleaner to the water in the clean water tank, make sure that you use a low-foaming or non-foaming liquid floor cleaner that can be diluted in water like XV1792 Philips Floor Cleaner.
• As the clean water tank has a capacity of 400ml, you only have to add a few drops (max 10ml) of liquid floor cleaner to the water.
• If you use the Vacuum & Mop set-up on linoleum floors, only do so on linoleum floors that are properly affixed to prevent linoleum from being drawn into the AquaSpin nozzle.
• Do not use the Vacuum & Mop set-up to clean carpets.
• If you move/lift the appliance over a carpet or rug when it is switched off, wastewater droplets may end up on your carpet or rug.
• Do not push the appliance over the floor grilles of convector heaters. As the appliance cannot pick up water that comes out of the nozzle when you move it over the grille, water ends up at the bottom of the convector pit.
• While cleaning, do not lift the AquaSpin nozzle from the floor or move the AquaSpin nozzle sideways, and do not make strong turns, as this leaves water traces. Only move forwards and backwards.

i Note: The operating time depends on the power level used during cleaning.
i Note: older models only feature normal wet mode and intense wet mode
⑥, but not water absorption mode.

Vacuuming soft and hard floors

Using the Vacuum only set-up

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

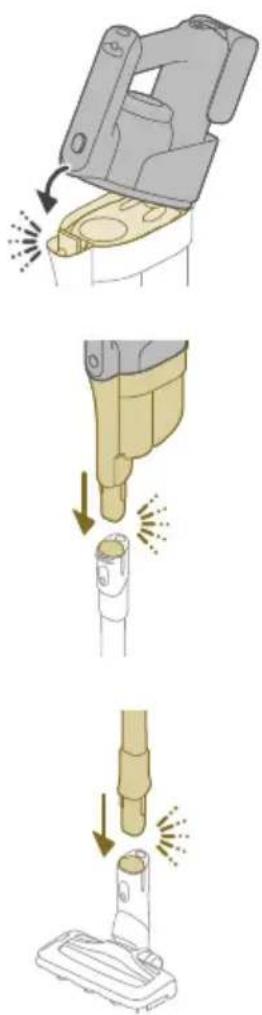

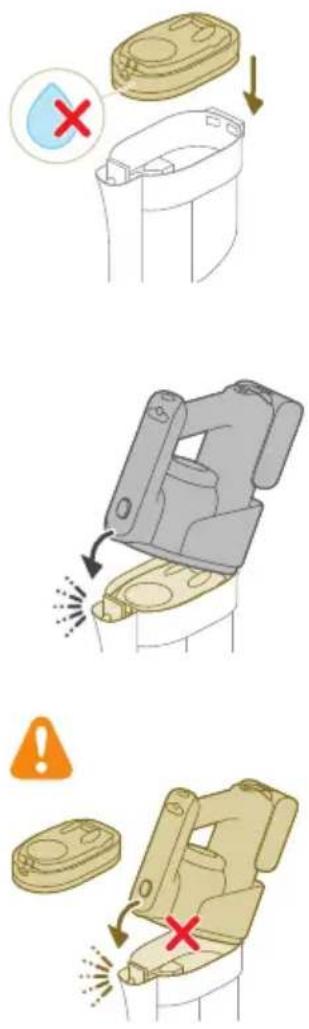

1 To vacuum soft or hard floors, attach the 3-in-1 handheld to the dust bucket ('click').

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

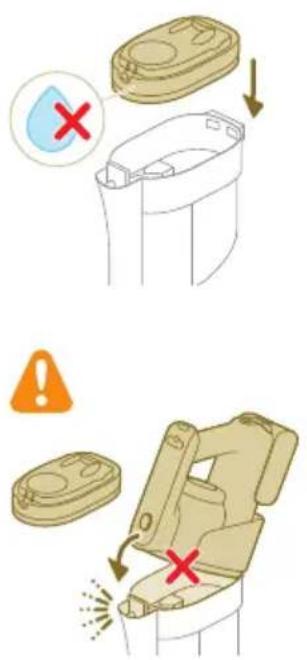

Caution: Do not attach the 3-in-1 handheld to the dust bucket without the filter case being inserted in the dust bucket.

Illustration of a mechanical device emitting exhaust smoke from a cylindrical component (no text or symbols)

2 Attach the dust bucket to the tube ('click').

Illustration of a vacuum cleaner emitting exhaust smoke, with no text or symbols present.

3 Insert the tube into the LED nozzle.

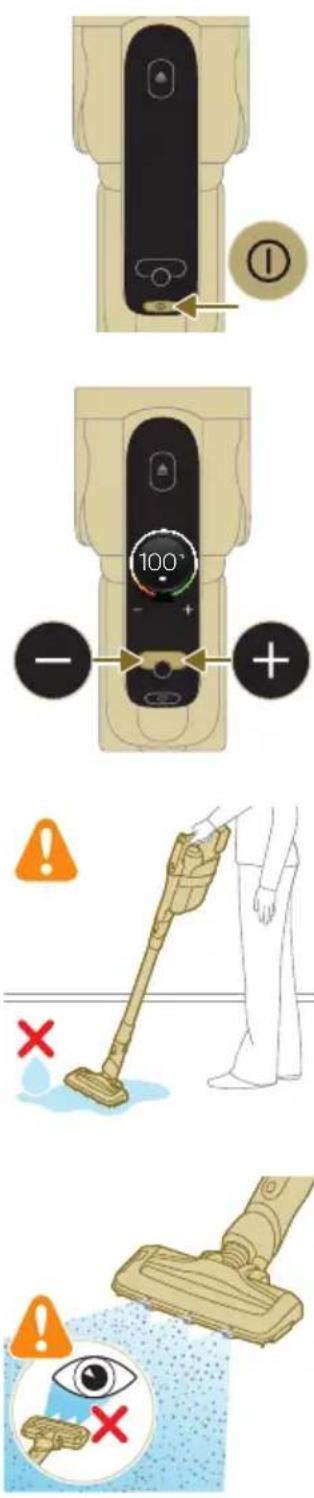

4 To switch on the appliance, press the on/off button and wait until the appliance is ready for use.

5 Use the buttons on the left and right to choose between the two different power settings.

Tip: The LEDs in the LED nozzle make it easier to see dirt on the floor. The tube and LED nozzle allow you to reach under low furniture without the need to twist the appliance.

Warning: Do not vacuum up water or other liquids.

Caution: Do not look directly into the LEDs of the LED nozzle or point the LEDs at someone's eyes. The LED light is very bright.

Using the tube

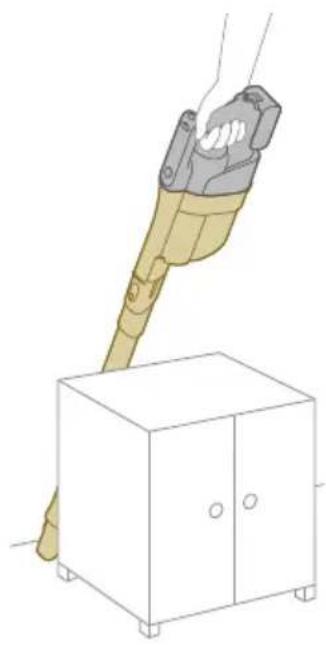

You can attach the tube to the handheld and use it without a nozzle to vacuum tight spaces between or behind pieces of furniture with the end of the tube.

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Tip: It is also possible to attach the Mini Turbo brush to the tube.

Tip: It is also possible to attach the long crevice tool to the tube.

Using the handheld

Diagram showing a hand using a tool to mark a defect or damage, with warning symbols and a red 'X' indicating no damage.

Without the nozzle and tube, you can use the handheld to clean small patches of dust and dirt, such as spilled breadcrumbs, or to vacuum staircases and shelves.

Warning: Do not vacuum up water or other liquids.

Using the LED nozzle

Illustration of a hand holding a tool above a device with a flame symbol (no text or symbols present)

You can use the LED nozzle to clean areas, such as the steps of a staircase, to vacuum up dirt in corners or on narrow ledges, or to clean small patches of dirt, such as spilled breadcrumbs.

1 To attach the LED nozzle, insert the tube or the handheld into the nozzle.

Diagram illustrating a step in a medical procedure involving a tool and a foot, labeled with arrows ① and ②.

2 To detach the LED nozzle, press the release button (1) and pull the tube or handheld out of the nozzle (2).

Warning: Do not vacuum up water or other liquids.

Using the Mini Turbo brush

1 To attach the Mini Turbo brush, insert the tube of the handheld into the Mini Turbo brush.

Illustration of a mechanical device with a circular inset showing a bed (no text or symbols)

2 You can use the Mini Turbo brush for standard cleaning, for instance of soft areas such as beds and couches. You can adjust the power setting to suit your cleaning needs.

Illustration of a hairdryer with a cat and dog nearby, showing powder and spray (no text or symbols)

3 You can use the Mini Turbo brush for extra thorough cleaning, for instance to vacuum up pet hair, or to clean small patches of dirt, such as spilled breadcrumbs. You can adjust the power setting to suit your cleaning needs.

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a procedure or step in a process.

4 To detach the Mini Turbo brush, press the release button (1) and pull the handheld out of the Mini Turbo brush (2).

Illustration of a hand holding a device with a warning symbol and a red 'X' indicating failure or absence (no text or symbols present)

Warning: Do not vacuum up water or other liquids.

Using the long crevice tool

Illustration of a hand holding a flashlight with a downward arrow and light effect (no text or symbols)

1 To attach the long crevice tool, insert the tube or handheld into the long crevice tool.

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

2 You can use the long crevice tool to clean narrow corners or hard-to-reach places. You can adjust the power setting to suit your cleaning needs.

Diagram showing a tool interacting with a connector, labeled with parts 1 and 2.

3 To detach the long crevice tool, press the release button (1) and pull the tube or handheld out of the long crevice tool (2).

Illustration of a mechanical tool with a red X mark and warning symbols (no text or labels)

Warning: Do not vacuum up water or other liquids.

Cleaning the Vacuum & Mop set-up

AUTOCLEAN after every use

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

To prevent odors and scale deposits, use the AUTOCLEAN function after every use. The AUTOCLEAN mode helps you to clean your full appliance in approximately 4 minutes.

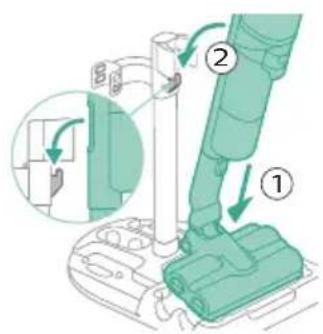

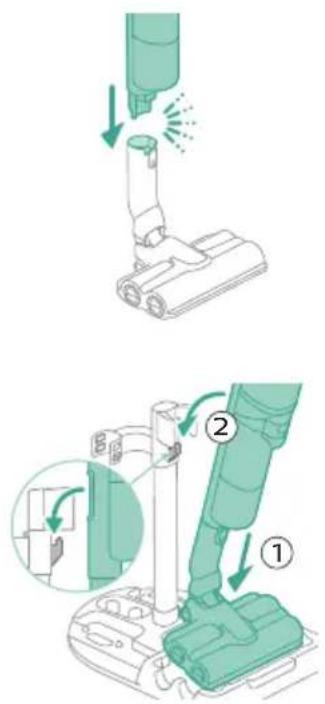

1 Place the Vacuum & Mop set-up in the After-Clean & Storage station.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and a green downward arrow indicating direction.

i Note: If the dirty water level is below the AUTOCLEAN level, it is not necessary to empty the tank before starting the AUTOCLEAN program. You can skip the following steps and move forward to step 6.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

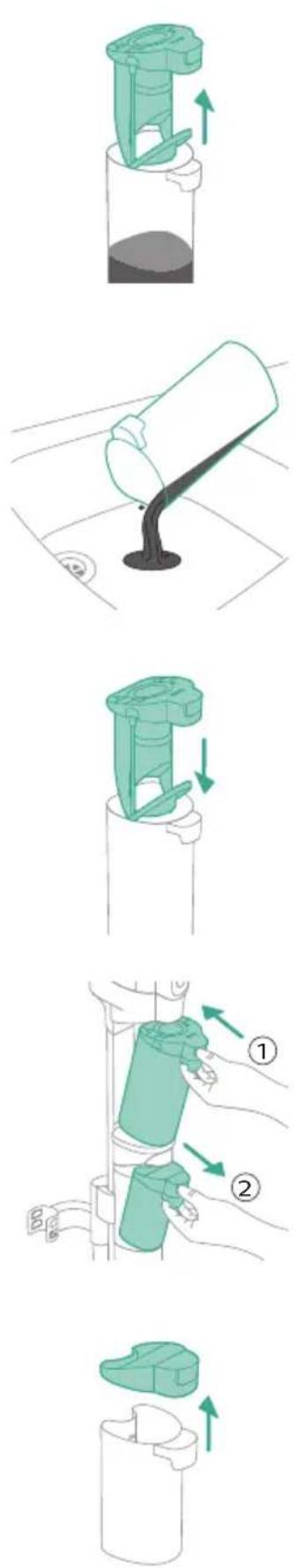

2 Push the button to unlock the dirty water tank and remove it.

3 Remove the wet filter from the dirty water tank.

4 Pour the water out of the dirty water tank into the sink.

5 Place the wet filter back on the dirty water tank.

6 Place the empty dirty water tank back into the appliance and take out the clean water tank.

7 Remove the cap from the clean water tank.

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, red X) and directional arrows, likely representing inspection or monitoring steps.

Illustration of a hand holding a cylindrical device with a green component, showing a directional arrow (no text or symbols)

MAX 35 °C MIN 5 °C

8 Pour any remaining detergent liquid from the clean water tank into the sink.

9 Fill the clean water tank with cold or lukewarm tap water at least up to the AUTOCLEAN indication.

Caution: The tap water that is poured into the clean water tank must not be warmer than 50°C.

Caution: Do not use detergent for the AUTOCLEAN as this might lead to excessive foaming.

10 Place the clean water tank back into the appliance.

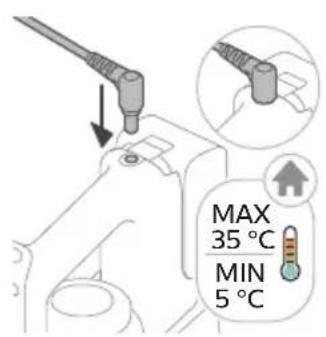

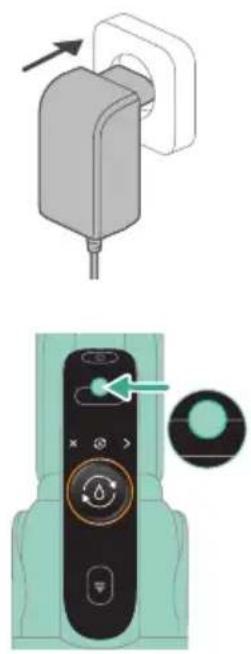

11 Charge the appliance. Insert the power plug into the socket on the back of the appliance. Then insert the adapter into the wall socket.

Illustration of a remote control device with a switch and navigation knob (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a green mechanical device with an upward arrow, partially submerged in liquid (no text or symbols)

12 To start the AUTOCLEAN cycle, press the middle button. If you see a black screen, press the on/off button first to activate the screen.

13 The appliance performs the AUTOCLEAN cycle.

i Note: The Autoclean cycle lasts approx. 4 minutes. For best results, let the appliance run through the AUTOCLEAN cycle completely. You can pause or cancel the AUTOCLEAN cycle at any time.

i Note: If you cancel the AUTOCLEAN program, the appliance will suck up the remaining water in the After-clean tray for about 10 seconds.

14 Push the button to unlock the dirty water tank and remove it.

15 Remove the wet filter from the dirty water tank.

Simple line drawing of a pouring cup into a stand, no text or symbols present

16 Pour the water out of the dirty water tank into the sink.

Illustration of a faucet pouring liquid into a container with motion lines indicating flow (no text or symbols)

17 Clean the dirty water tank under the tap.

Illustration of a faucet with a green leafy seat and water level indicator (no text or symbols)

18 Clean the wet filter under the tap.

Illustration of a mechanical device with a faucet and a green component, no text or symbols present

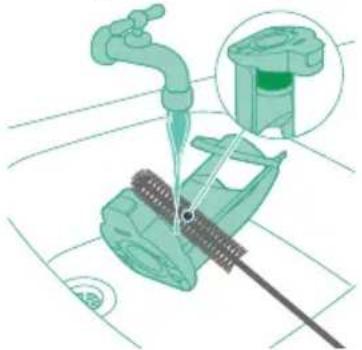

19 Clean the mesh part of the wet filter with the supplied cleaning brush.

Diagram illustrating the process of removing a trash bin into a sun, with symbols indicating removal and rejection.

20 Let the wet filter of the dirty water tank and its water flow element dry completely before putting it back on the dirty water tank.

21 Place the wet filter back on the dirty water tank.

22 Place the dirty water tank back into the appliance.

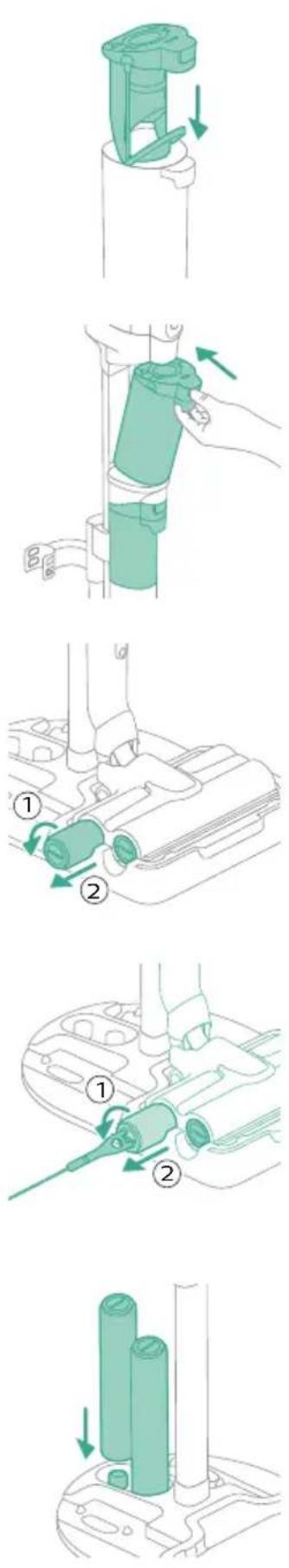

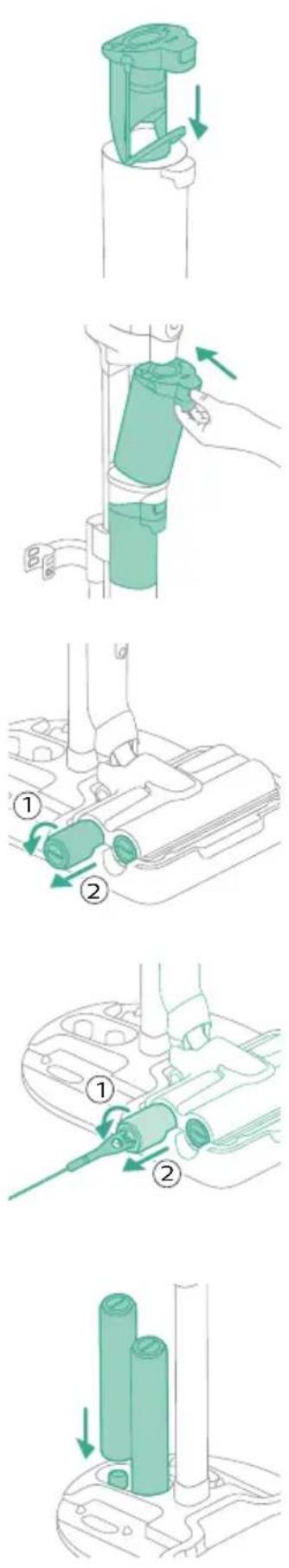

23 Turn the microfiber brushes counterclockwise (1) and remove them from the AquaSpin nozzle (2).

Tip: In case a microfiber brush is difficult to remove, you can use the cleaning brush handle to unlock the microfiber brush.

24 To allow the microfiber brushes to dry, place the open ends of the brushes on the designated holders of the After-Clean & Storage station.

i Note: Drying can take approximately 24 hours.

Cleaning the After-Clean tray

If the After-Clean tray gets dirty, you can clean it by following the steps below.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

1 Remove the After-Clean tray from the storage station.

Illustration of a hand pouring liquid into a container with a blue flame (no text or symbols)

2 Rinse the After-Clean tray under the tap and let it dry before placing it back in the Storage station.

3 Make sure to always put the After-Clean tray back in the Storage station. The After-Clean tray is essential to perform the AUTOCLEAN correctly.

Cleaning the AquaSpin nozzle

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

1 Turn the microfiber brushes counterclockwise (1) and remove them from the AquaSpin nozzle (2).

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or states.

Tip: In case a microfiber brush is difficult to remove, you can use the cleaning brush handle to unlock the microfiber brush.

Illustration of two hands holding a green object with a downward arrow indicating motion (no text or symbols)

2 You can remove entangled hair or threads from the microfiber brushes by sliding down the microfiber brushes with one hand.

Illustration of a hand holding a coiled green object, no text or symbols present

Tip: You can also use a pair of scissors to cut hairs and threads that have become entangled around the microfiber brushes.

Removing blockages from the Vacuum & Mop set-up

The Vacuum & Mop set-up may become clogged. You may notice this when more water gets on the floor than usual or when bigger dirt particles are no longer sucked up and fall back on the floor. Below you can find the instructions to remove blockages from different parts of the Vacuum & Mop set-up.

Clearing blockages from the wet module

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

If there is a blockage in the wet module, first switch off the appliance and remove the AquaSpin nozzle and the 3-in-1 handheld. Then remove the blockage by moving the cleaning brush in the suction channel of the wet module up and down.

Clearing blockages from the AquaSpin nozzle

Illustration of a vacuum cleaner with green arrows indicating force direction (no text or symbols)

If there is a blockage in the AquaSpin nozzle, it can be removed by moving the cleaning brush up and down in the suction channel of the AquaSpin nozzle.

Clearing blockages from the wetting strips of the AquaSpin nozzle

Diagram of a mechanical device with green components and directional arrows indicating movement (no text or symbols)

After long and frequent use of the appliance, the wetting strips of the AquaSpin nozzle may become clogged at some point. Follow the steps below to clear the blockage of the wetting strips of the AquaSpin nozzle.

1 Remove the wetting strip covers from the AquaSpin nozzle by moving them sideways.

Technical diagram of a mechanical assembly with green arrows indicating direction (no text or symbols)

2 Remove the wetting strips from the AquaSpin nozzle by pulling them out sideways.

Illustration of a hand cleaning a faucet with a green tool on the handle (no text or symbols)

3 Rinse the wetting strips under the tap.

!

4 Let the wetting strips dry before placing them back in the AquaSpin nozzle.

Cleaning the Vacuum only set-up

Emptying the dust bucket

MAX

Regularly empty the dust bucket and make sure that the dirt never exceeds the 'Max' indication. This prevents accelerated filter clogging.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly steps

1 Press the release button (1) to release the 3-in-1 handheld of the dust bucket and then lift the 3-in-1 handheld off the appliance (2).

Illustration of a container with liquid and an upward arrow, no text or symbols present

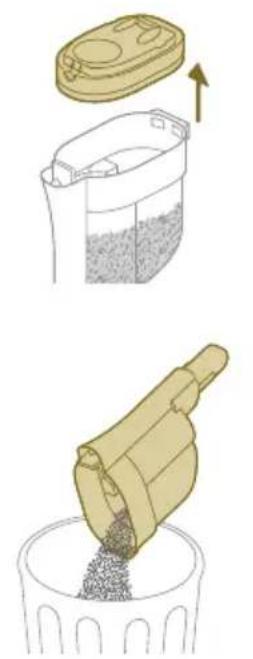

2 Pull the filter case off the dust bucket.

Illustration of a wooden tool pouring granular material into a cylindrical container (no text or symbols)

3 Empty the dust bucket into a waste bin.

4 Put the filter case back onto the dust bucket.

5 Reconnect the 3-in-1 handheld to the dust bucket. Make sure that you connect the rear part first, then connect the front part so it locks into place with a click.

Cleaning the dust bucket

Diagram showing a hand holding a tool in a container with a warning symbol indicating no text or symbols.

1 To clean the dust bucket and the cyclone, remove the filter case.

2 Empty the dust bucket into a waste bin.
3 Remove and clean the cyclone if necessary (see 'Cleaning the cyclone').

4 If you want, you can use a wet or dry cloth to clean the inside of the dust bucket.

i Note: do not let the electronic connectors get wet. If the electronic connectors do get wet, please allow them to dry before using the device again. Always use the appliance with dry electronic connectors. This prevents the appliance from malfunctioning over time.
Warning: Do not clean the dust bucket in the dishwasher.
Warning: Do not rinse the dust bucket under the tap.

5 Reattach the filter case back in when the dust bucket is dry.

6 Reconnect the 3-in-1 handheld to the dust bucket.

Caution: Do not reconnect the 3-in-1 handheld to the dust bucket without the filter case being inserted in the dust bucket.

Cleaning the cyclone

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or movement.

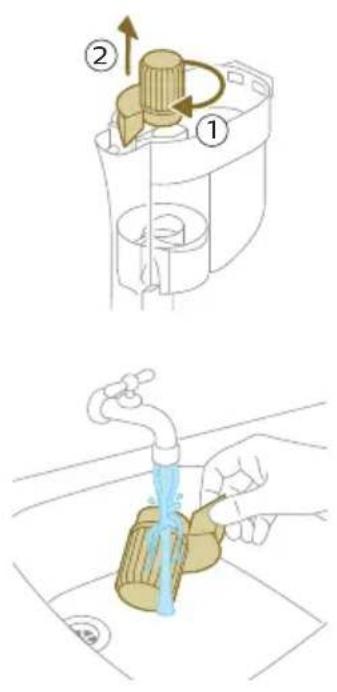

1 Turn the cyclone clockwise (1) and remove it from the dust bucket (2).
2 Remove hair and dirt that is stuck in and under the cyclone.

Illustration of a hand pouring liquid into a bottle with a faucet (no text or symbols)

3 If desired, you can rinse the cyclone under the tap.

Diagram illustrating sunlight and water droplets, showing a sun icon transforming into a droplet with water droplets and a checkmark.

i Note: Always let the cyclone dry completely before placing it back into the dust bucket.

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating motion or assembly.

4 Replace the cyclone (1) and turn it counterclockwise (2) to secure it back into the dust bucket.

Diagram showing two views of a device with green checkmarks indicating approval or rejection, alongside a magnified view of the device's internal components.

Caution: Make sure to fully tighten the cyclone when placing it back. Rotate the cyclone until the cyclone cannot rotate any further and is fully secured.

Cleaning the filter

Circular icon with a stylized white hand and exclamation mark inside a black circle (no text or symbols)

When the filter needs to be cleaned, the filter cleaning icon appears on the screen.

Illustration of a plastic container with an upward arrow indicating growth or movement (no text or symbols present)

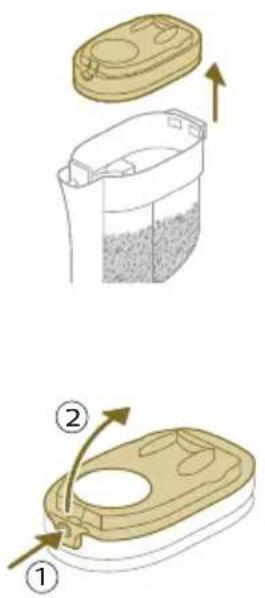

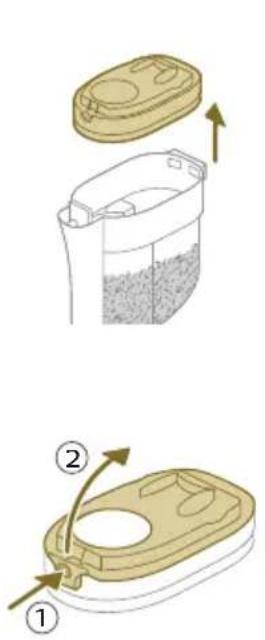

1 Pull the filter case off the dust bucket.

Diagram of a device component with numbered parts and directional arrows indicating movement or assembly.

3D diagram of a mechanical device with a switch symbol and red X mark (no text or labels)

2 Press the release button to release the lid of the filter case and remove the foam filter.

Caution: Make sure that the filter case lid does not get wet during cleaning.

Illustration of hands cleaning a trash bin with a water tap (no text or symbols)

3 Shake the foam filter over a waste bin to remove the layer of dirt on top of the foam filter. Then rinse the foam filter under a tap.

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

4 Squeeze the foam filter to remove the water.

Illustration of hands pouring liquid into a trash bin (no text or symbols)

5 Shake the filter case and lid over a waste bin to remove dust.

Illustration showing a hand using a tool to clean or repair a mechanical component, with a red 'X' symbol indicating no text.

6 Clean the filter holder with a damp cloth.

Caution: Do not clean the white material of the filter case lid with a normal vacuum cleaner or a brush. Do not clean the white material of the filter case lid with water or any cleaning agent. It will damage the material. The white material can be tapped over a bin.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

7 Let the foam filter dry and make sure that it is completely dry before you put it back into the filter case.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Caution: Make sure that the foam filter is correctly placed in the filter case.

Illustration of a hand pouring liquid into a container with a spray bottle (no text or symbols)

8 Close the filter case.

Diagram showing a container with a lid and a cross mark, alongside a separate outline of its interior (no text or symbols)

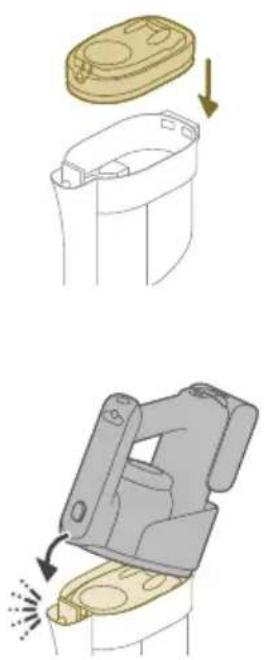

9 Put the filter case including the foam filter back into the dust bucket.

Caution: Make sure the white material of the filter case lid is facing up.

Diagram illustrating a water drop symbol and its impact on a plastic container with an arrow indicating reduction.

Caution: Make sure that the filter case including the foam filter are completely dry before you put them back into the dust bucket.

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

10 Reconnect the 3-in-1 handheld to the dust bucket.

Caution: Do not reconnect the 3-in-1 handheld to the dust bucket without the filter case being inserted in the dust bucket.

i Note: Replace the filter every 6 months to ensure maximum performance. Replacement filters are available under part number XV1791 (see 'Replacement').

Cleaning the motor inlet filter

The 3-in-1 handheld has a filter that may become blocked with dust. This can reduce the suction power over time. To clean the motor inlet filter, follow these steps:

1 Press the release button (1) to release the 3-in-1 handheld of the dust bucket and then lift the 3-in-1 handheld off the appliance (2).

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

2 Clean the inlet filter with a cloth or with the cleaning brush.

Diagram of a mechanical assembly with a central component and surrounding parts (no text or symbols)

Illustration of a mechanical device with a highlighted lever and sparklers (no text or symbols)

3 Reconnect the 3-in-1 handheld to the dust bucket. Make sure that you connect the rear part first, then connect the front part so it locks into place with a click.

Cleaning the roller brush

Diagram illustrating a mechanical or electrical component being inserted into a device, with labeled parts ① and ②.

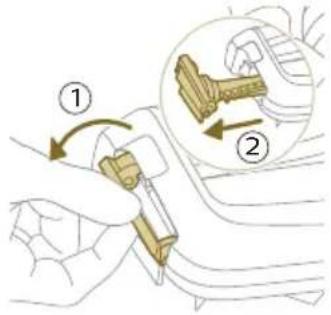

1 Pull down the locking lever on the side of the LED nozzle (1) and slide the roller brush out of the LED nozzle (2). You can remove entangled hair or threads from the roller brush by sliding down the roller brush with one hand.

Illustration of hands holding a coiled string with a magnified inset showing a green checkmark (no text or symbols)

Tip: You can also move one blade of a pair of scissors through the groove on the roller brush to cut hairs and threads that have become entangled around the roller brush.

Diagram illustrating a mechanical or electrical procedure with labeled steps ① and ②, showing hand positioning and component insertion.

2 Slide the roller brush back into the LED nozzle (1) and push up the locking lever to lock the roller brush in the LED nozzle ('click').

Cleaning the Mini Turbo brush

1 Unlock the release button on the side of the Mini Turbo brush (1) and lift the roller brush out of the Mini Turbo brush (2).

2 Remove the hairs and dirt entangled around the roller brush.

Tip: You can also move one blade of a pair of scissors through the groove on the roller brush to cut hairs and threads that have become entangled around the roller brush.

3 Press one side of the roller brush back into the Mini Turbo brush (1) and push down the other side of the roller brush to lock the roller brush in the Mini Turbo brush ('click').

Display icons and their meaning

Error code Cause Solution

E1

There is a system error. An E1 error code means that your Philips

AquaTrio 9000 series Vacuum Cleaner has a system error.

To solve this, please try one or both of the following options:

1. Remove the battery from the appliance and then reinsert the battery. Then try to restart the appliance.
2. Disconnect the 3-in-1 handheld from the appliance and press the on/off button Ⓤ on the handheld. If you still see the E1 error on your display, please contact the Consumer Care Center. If you do not see the E1 error and the appliance does still not work, there might be a communication problem with the tube or nozzle. Please contact the Consumer Care Center.

E2

The temperature is too low. Make sure the temperature in the room where the appliance is used, stored, or charged is above 5 °C.

Circular icon with a house silhouette and exclamation mark, labeled 'E3' below (no text or symbols on the icon itself)

The temperature is too high. Make sure the temperature in the room where the appliance is used, stored, or charged is below 35 °C. Do not expose the device to direct sunlight or high temperatures (near hot stoves, in microwave ovens, or on induction cookers). Batteries may explode if overheated.

Circular icon with battery symbol and question mark, labeled E5 (no text or symbols beyond label)

The battery is half inserted. Make sure that the battery is inserted correctly (see 'Assembling the Vacuum & Mop set-up').

Information code Cause Solution

	The dirty water tank is full. Empty the dirty water tank.
	The AquaSpin nozzle is not connected (properly).	Connect the AquaSpin nozzle.
	The AquaSpin nozzle is stuck. This is a safety cut-off if something is stuck in the nozzle (for instance, a power cable or a toy).	Check the brushes, bearings, motor parts, and caps for hair or other obstacles and remove them. If there are no obstacles, switching the appliance off and on might solve the problem.
	The LED nozzle is stuck. This is a safety cut-off if something is stuck in the nozzle (for instance, a power cable or a toy).	Check the roller brush and the rest of the nozzle for hair or other obstacles and remove them (see 'Cleaning the roller brush'). If there are no obstacles, switching the appliance off and on might solve the problem.

Information code Cause Solution

	The air inlet openings are blocked.	Check the air inlet openings for blockages and remove them. If this does not solve the problem, check the whole air passage for blockages and remove them. For the Vacuum only set-up, this refers to the nozzle, tube, filter, vortex finder, long crevice tool, and Mini turbo brush. For the Vacuum & Mop set-up, this refers to the nozzle, tube, and the wet filter.
	The wet filter in the dirty water tank is blocked.	Clean the mesh part of the wet filter with the supplied cleaning brush.
	Unplug for use. Unplug the appliance for use. Otherwise, it will not switch on. Only during AUTOCLEAN is it possible to have the appliance plugged in.
	The wrong charger is connected.	Only charge the appliance with the adapter supplied. Only use 34V adapter S036-1A340100HE. The corresponding adapter number can be found on the adapter.
	The battery is not inserted. Make sure that the battery is inserted (see 'Assembling the Vacuum & Mop set-up').

Icons Meaning

	AUTOCLEAN
	Reminder to clean the filter (see 'Cleaning the filter')
	Microfiber brush replacement needed
	Filter replacement needed

Replacement

To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

Replacement parts and type numbers:

• Replacement filter XV1791
• Philips Floor Cleaner XV1792
• Replacement microfiber brushes XV1793
• Lithium-Ion Battery pack 25.2V XV1797

Replace the filter and the microfiber brushes every 6 months to ensure maximum performance.

i Note: You can dispose of the old filter and the microfiber brushes with the normal household waste.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Using the Vacuum & Mop set-up

Problem Possible cause Solution

The appliance does not work when I push the on/off button.	The battery is not connected. Connect the battery to the 3-in-1 Handheld.
	The battery is empty. To charge the battery, connect the 3-in-1 Handheld with the charger (see 'Charging').
	You did not take the appliance out of the After-Clean & Storage station.	Take the Vacuum & Mop set-up out of the After-Clean & Storage station before switching on the appliance.
	You pushed the on/off button more than one time.	Wait a few seconds and push the on/off button again one more time.
	You did not connect the 3-in-1 Handheld to the appliance correctly.	Place the lower body of the appliance on the After-Clean & Storage station. Then connect the 3-in-1 Handheld to it.
	The appliance is clogged. Switch the appliance off and remove the battery or 3-in-1 handheld. Then locate and remove the cause of the blockage (see 'Removing blockages from the Vacuum & Mop set-up'). After that, restart the appliance. If you cannot identify the cause of the blockage, restart the appliance. This might already solve the problem.
	The microfiber brushes are stuck.	Take the microfiber brushes out and place them back (see 'Cleaning the AquaSpin nozzle').Tip: In case a microfiber brush is difficult to remove, you can use the cleaning brush handle to unlock the microfiber brush (see 'Cleaning the AquaSpin nozzle').

Problem Possible cause Solution

The appliance stopped working.	You accidentally touched the on/off button with your hand.	Switch on the appliance by pushing the on/off button.
	The dirty water tank may be full. In this case, there is an information icon shown on the screen (see 'Display icons and their meaning').	Empty the dirty water tank (see 'AUTOCLEAN after every use').
	The appliance is clogged. Switch the appliance off and remove the battery or 3-in-1 handheld. Then locate and remove the cause for the blockage (see 'Removing blockages from the Vacuum & Mop set-up'). After that, restart the appliance. If you do not identify the cause for the blockage, just restart the appliance. This might already solve the problem.
The floor is less wet than usual.	The wetting strips are blocked.	Remove the two microfiber brushes, fill some water into the clean water tank and switch the appliance on. Make small forward and backward movements on the same position for around 15 seconds. You should be able to see four water stripes on the floor. If this is not the case, or if one or more water stripes only consist out of a few droplets, the wetting strips are partially or fully blocked and you can rinse them under the tap (see 'Clearing blockages from the wetting strips of the AquaSpin nozzle'). If that does not help, you can try to carefully open the holes with a needle.
One side of the floor under the nozzle is less wet than the other one.	One of the two wetting strips is blocked.	Remove the two microfiber brushes, fill the clean water tank with some water, and switch the appliance on. Make small forward and backward movements on the same position for around 15 seconds. You should be able to see four water stripes on the floor. If this is not the case, or if one or more water stripes only consist out of a few droplets, the wetting strips are partially or fully blocked and you can rinse them under the tap (see 'Clearing blockages from the wetting strips of the AquaSpin nozzle'). If that does not help. you can try to carefully open the holes with a needle.
There is no water on the floor.	The clean water tank is empty.	Refill the clean water tank.
	The wetting strips are blocked.	Remove the two microfiber brushes, fill the clean water tank with some water, and switch the appliance on. Make small

Problem Possible cause Solution

		forward and backward movements on the same position for around 15 seconds. You should be able to see four water stripes on the floor. If this is not the case, or if one or more water stripes only consist out of a few droplets, the wetting strips are partially or fully blocked and you can rinse them under the tap (see 'Clearing blockages from the wetting strips of the AquaSpin nozzle'). If that does not help, you can try to carefully open the holes with a needle.
		If you have checked the above and there is still no water on the floor, take the appliance to a Philips service center or contact the Consumer Care Center.
There is more water on the floor or in the After-Clean tray than usual.	The water channel of the wet module and/or AquaSpin nozzle is polluted or blocked.	Use the cleaning brush and clean the water channel of the wet module and/or AquaSpin nozzle (see 'Removing blockages from the Vacuum & Mop set-up').
	The dirty water tank is not placed correctly.	Place the dirty water tank into the appliance properly (see 'AUTOCLEAN after every use'). It is closed correctly when you can hear a 'click' sound.
The appliance leaves water traces on the floor.	You have moved the appliance sideways.	To prevent water traces on the floor, try to make less strong turns with your AquaTrio 9000 Series and avoid moving the appliance sideways. You can activate the water absorption mode by pressing the cleaning mode button. All the remaining water on your floor will be absorbed.
	You made strong turns with the appliance.	To prevent water traces on the floor, try to make less strong turns with your AquaTrio 9000 Series and avoid moving the appliance sideways. You can activate the water absorption mode by pressing the cleaning mode button. All the remaining water on your floor will be absorbed.
	You have lifted the appliance over a threshold, carpet or stairs.	Make sure the microfiber brushes stay in contact with the floor. Make sure water absorption mode is switched on before you lift the appliance over a threshold, carpet or stairs to prevent water traces on the floor or to prevent water from splashing from the AquaSpin nozzle (see 'Usage restrictions').
	You lifted the appliance up from the floor immediately after you switched it off.	Switch on water absorption mode to absorb any remaining water. Move the appliance forwards and backwards a few

Problem Possible cause Solution

		times with water absorption mode engaged before switching it off. If you switch off the appliance and lift it up immediately afterwards, the water that was present between the brushes leaves a trace of water on the floor (see 'Usage restrictions').
	The wheels are blocked. Check the condition of the wheels. Remove the dirt that blocks the wheels.
The appliance does not clean as well as it used to.	The clean water tank is empty. Refill the clean water tank.
	The water strips are blocked. Remove the two microfiber brushes, fill the clean water tank with some water, and switch the appliance on. Make small forward and backward movements on the same position for around 15 seconds. You should be able to see four water stripes on the floor. If this is not the case, or if one or more water stripes only consist out of a few droplets, the water strips are partially or fully blocked and you can rinse them under the tap (see 'Clearing blockages from the wetting strips of the AquaSpin nozzle'). If that does not help, you can try to carefully open the holes with a needle.
	The inside of the AquaSpin nozzle is too dirty.	Run the AUTOCLEAN program before returning to cleaning. If there is dirt accumulation in the edges of the nozzle, remove it. Make sure to use the AUTOCLEAN function after each use (see 'AUTOCLEAN after every use').
	The microfiber Brushes are not present.	Place the microfiber brushes in the AquaSpin nozzle (see 'AUTOCLEAN after every use').
		If you have checked the above and the appliance still does not clean well, take it to a Philips service center or contact the Consumer Care Center.
Bigger dirt particles are not sucked up anymore and fall back on the floor.	The water channel of the wet module and/or AquaSpin nozzle is polluted or blocked.	Use the cleaning brush and clean the water channel of the wet module and/or AquaSpin nozzle (see 'Removing blockages from the Vacuum & Mop set-up').
The floor dries with stripes. You may have used too much detergent.		Make sure to use the right amount of detergent.
	The wheels are dirty. Remove the dirt from the wheels.

Problem Possible cause Solution

There is too much foam while cleaning, but also during AUTOCLEAN.	You may have used too much detergent.	Make sure to use the right amount of detergent.
	There are still detergent residues on the floor.	Clean the floor without detergent several times. Wait a moment before going over the same stain again.
It is difficult to clean stains. You may have used too little water or taken too little time to clean the stain.		Apply water and wait a moment. For example you can go with the appliance over the stain to apply water and come back to the same stain in the end of the cleaning session.
The sound of the appliance changed while cleaning.	There might be hairs or other obstacles entangled around the microfiber brushes	Remove the microfiber brushes and check for obstacles and remove them (see 'Cleaning the AquaSpin nozzle').
The display indicates that the dirty water tank is full (code: i1) and shuts down, although the dirty water tank is not full yet.	There may be foam or contamination of the dirty water tank.	Restart the appliance. If that does not solve the problem, clean the dirty water tank. If foaming is the issue, make sure you do not use more than the recommended amount of detergent.
Water drips out of the appliance after it is switched off.	The appliance leaves a puddle on the floor because you did not move it while switching it off. This is normal.	The appliance can leave a small puddle of water on the floor if you do not move the appliance while switching it off. You can reduce the size of the puddle by moving the appliance while switching it off. When you switch off the appliance, it will switch to water absorption mode for 4 seconds to clean up any water remaining in the nozzle. If needed, you can remove the last drops with a cloth.
	The appliance is dripping when carrying it over the floor (holding it in the air).	While cleaning, do not lift the AquaSpin nozzle from the floor, as this leaves water traces. Only move forwards and backwards.
	Water leaks from the clean water tank because you overfilled the clean water tank.	Do not fill the clean water tank beyond the MAX indication. If you do, water may spill from the clean water tank when you fasten the cap.
	There is a crack in one of the tanks.	If one of the tanks is damaged, take it to a Philips service center or contact the Consumer Care Center.
I cannot remove the microfiber brushes.	Hair and/or dirt is entangled in the microfiber brushes.	Use the cleaning brush handle to remove the microfiber brushes from the AquaSpin nozzle. Remove entangled hair or dirt (see 'Cleaning the AquaSpin nozzle'). If it is difficult to pull the brushes out, you can give them a push from below the AquaSpin nozzle.

Problem Possible cause Solution

I cannot move the appliance forward or backward.	One or more wheels may be blocked by a small object.	Switch off the appliance and remove the nozzle. Then check the small and the big wheels for blockage. Remove any object that could block the wheel(s). Put the appliance upright again and resume cleaning.
The appliance has a lower suction power than usual.	The water channel of the wet module and/or AquaSpin nozzle is polluted or blocked.	Use the cleaning brush and clean the water channel of the wet module and/or AquaSpin nozzle (see 'Removing blockages from the Vacuum & Mop set-up').
	The mesh in the dirty water tank was not dry enough before being used again.	Clean and dry the dirty water tank.
	Hair entanglement on the microfiber brushes.	Switch the appliance off and remove the hair from the microfiber brushes (see 'Cleaning the AquaSpin nozzle').
	The dirty water tank is not placed correctly.	Place the dirty water tank into the appliance properly (see 'AUTOCLEAN after every use'). It is closed correctly when you can hear a 'click' sound.
The microfiber brushes do not turn anymore	The microfiber brushes are clogged with hair or dirt.	Clean the microfiber brushes with a pair of scissors or by hand (see 'Cleaning the AquaSpin nozzle').
The microfiber brushes pop out.	The microfiber brushes are not locked correctly.	Place the microfiber brushes back in the right position and lock them.
The appliance is not charging.	The power plug is not connected properly to the socket or the adapter is not inserted into the wall socket properly.	Make sure that the power plug is connected properly to the socket and that the adapter is inserted into the wall socket properly.
	The battery is not in. Please insert the battery.
	The battery is not completely inserted.	Please insert the battery until you hear a click sound.
	Wrong adapter connected. Please use the original adapter.
		If you have checked the above and the appliance still does not charge, take it to a Philips service center or contact the Consumer Care Center.

Problem Possible cause Solution

When I use my vacuum cleaner I sometimes feel static electricity shocks.	Your vacuum cleaner builds up static electricity. The lower the air humidity, the more static electricity the appliance builds up.	Make sure to touch the metal pin with your hand while holding the appliance.
	You vacuumed up dust and dirt. This also causes static electricity.	Make sure to touch the metal pin with your hand while holding the appliance.

Using the Vacuum only set-up

Problem Possible cause Solution

The appliance does not work when I push the on/off button.	You did not connect the battery.	Connect the battery to the 3-in-1 Handheld.
	The battery is empty. To charge the battery, connect the 3-in-1 Handheld with the charger (see 'Charging').
	You pushed the on/off button more than one time.	Wait a few seconds and push the on/off button again one more time.
	You did not connect the 3-in-1 Handheld to the appliance correctly.	Connect the 3-in-1 handheld correctly to the dust bucket.
	The appliance is clogged. Switch the appliance off and remove the battery or powerhouse. Then locate and remove the cause for the blockage. After that, restart the appliance. If you cannot identify the cause of the blockage, restart the appliance. This might already solve the problem.
	The roller brush is stuck. Take the roller brush out and remove any hair around the brush and the motor and place it back (see 'Cleaning the roller brush').
It is not possible, to connect the 3-in-1 Handheld to the dust bucket.	The filter case is assembled upside down.	Invert the filter case. The round opening should be visible (see 'Cleaning the dust bucket').
	The filter case is not closed properly.	Make sure you hear a click when closing the filter case. If it is difficult to close, the foam filter is probably placed upside down.
The appliance stopped working.	You accidentally touched the on/off button with your hand.	Switch on the appliance by pushing the on/off button.

Problem Possible cause Solution

	The appliance is clogged. Switch the appliance off and remove the battery or powerhouse. Then locate and remove the cause for the blockage. After that, restart the appliance. If you cannot identify the cause of the blockage, restart the appliance. This might already solve the problem.
The sound of the appliance changed while cleaning.	There might be hairs or other obstacles entangled around the roller brush.	Please check for obstacles and remove them (see 'Cleaning the roller brush').
	Obstacles are blocking the cyclone.	Check the cyclone for obstacles and remove them (see 'Cleaning the cyclone').
The appliance has a lower suction power than usual.	The filter and/or the cyclone are dirty.	Empty the dust bucket. Clean the filter and the cyclone. Make sure that you remove any hair and dirt that is stuck in the cyclone. You can remove the cyclone for easy maintenance (see 'Cleaning the cyclone'). Make sure that you wash the filter at least once a month if you use the appliance regularly (see 'Cleaning the filter').
	Something is blocking the cyclone.	Check the cyclone for objects stuck in it and remove any object that is blocking the cyclone. Make sure that you remove any hair and dirt that is stuck in the cyclone (see 'Cleaning the cyclone').
	The suction channel behind the roller brush is clogged.	Remove the roller brush and check the suction channel for obstacles and remove them.
	You have not attached the filter case properly to the dust bucket or you have not attached the dust bucket properly to the appliance. In both cases, there will be a loss of suction power.	Make sure that you attach the filter case to the dust bucket and the dust bucket to the appliance properly (see 'Cleaning the dust bucket').
	The brush is clogged with hair or dirt.	Switch the appliance off and clean the roller brush with a pair of scissors or by hand (see 'Cleaning the roller brush').
Dust escapes from the appliance.	The foam filter is not present in the filter case, or the top cover is missing.	Make sure that the filter is in the appliance and assembled correctly (see 'Cleaning the filter').
Dust escapes when opening the dust bucket.	This is normal behavior due to underpressure.	If possible, open the appliance outside.
The filter cleaning icon is shown on the display and the device shuts down.	The filter may be dirty. We advise you to clean the filter. If you cleaned the filter recently, you can

Problem Possible cause Solution

		disregard this icon. To continue vacuuming, click the arrow icon.
The appliance does not move smoothly across the floor when I am cleaning a carpet.	You selected a too high suction power.	Reduce the suction power by choosing setting 1 or move more slowly over the carpet.
The roller brush does not turn anymore.	The roller brush is clogged with hair or dirt.	Clean the roller brush with a pair of scissors or by hand (see 'Cleaning the roller brush').
	The roller brush may stop turning when it encounters too much resistance from high-pile carpet.	Switch off the appliance and then switch it back on again.
	You have not assembled the roller brush into the nozzle properly after cleaning.	Follow the instructions in this user manual to slide the roller brush into the nozzle properly (see 'Cleaning the roller brush'). Secure the roller brush inside the nozzle by snapping the locking lever in place.
The LEDs in the nozzle do not turn on.	You have not attached the nozzle to the tube or appliance properly.	Attach the nozzle to the tube or appliance properly. If this does not help, please take it to a Philips service center or contact the Consumer Care Center.
The appliance is not charging.	The plug is not connected properly to the socket-outlet or the adapter is not inserted into the wall socket properly.	Make sure that the plug is connected properly to the socket-outlet and that the adapter is inserted into the wall socket properly.
	The battery is not in. Please insert the battery.
	The battery is not completely inserted.	Please insert the battery until you hear a click sound.
	Wrong adapter connected. Please use the original adapter.
		If you have checked the above and the appliance still does not charge, take it to a Philips service center or contact the Consumer Care Center.
The Mini Turbo brush does not function properly.	The roller brush is blocked. Remove hairs from the brush with a pair of scissors (see 'Cleaning the Mini Turbo brush').
	The roller brush is blocked by fabric or surfaces during cleaning.	Keep the mini Turbo brush aligned with the surface and do not push the Turbo brush into soft surfaces.
	The roller brush is not properly inserted into the nozzle.	Make sure the roller brush is properly inserted into the nozzle and that there is no gap between the parts (see 'Cleaning the Mini Turbo brush').

Problem Possible cause Solution

When I use my vacuum cleaner I sometimes feel static electricity shocks.	Your vacuum cleaner builds up static electricity. The lower the air humidity, the more static electricity the appliance builds up.	Make sure to touch the metal pin with your hand while holding the appliance.
	You vacuumed up dust and dirt. This also causes static electricity.	Make sure to touch the metal pin with your hand, while holding the appliance.
Error code 'E2' appears on the display.	The temperature is too low. Make sure the temperature in the room where the appliance is used, stored, or charged is above 5 °C.
Error code 'E3' appears on the display.	The temperature is too high. Make sure the temperature in the room where the appliance is used, stored, or charged is below 35 °C. Do not expose the device to direct sunlight or high temperatures (near hot stoves, in microwave ovens, or on induction cookers). Batteries may explode if overheated.
		If you have checked the above and the appliance still does not charge, take it to a Philips service center or contact the Consumer Care Center.

lsi

Pendahuluan 50

Keterangan umum 50

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating direction of movement (no text or symbols)

Illustration of a green tool with a curved arrow indicating motion, next to a vertical support structure (no text or symbols)

Illustration of a hand holding a spray gun with arrows indicating motion (no text or symbols)

Diagram illustrating a vacuum cleaner's step-by-step installation, showing tool positioning and component assembly.

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

Illustration of a hand washing machine with arrows indicating force or motion (no text or symbols)

Illustration of a hand holding a cylindrical object with a downward arrow, next to a rolled-up sheet (no text or symbols)

Illustration of a hand holding a cylindrical device with a green liquid level, showing a force or pressure applied (no text or symbols)

XV1792 10ml

Illustration of a green plastic container with a downward arrow indicating flow or change (no text or symbols)

Illustration of a hand holding a cylindrical device with a green arrow indicating motion (no text or symbols)

Close-up of a black door handle with a circular button labeled ①, no text or symbols present.

Safety warning illustration showing a hand holding a medical device with an eye and a red X mark indicating no protection.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and a red X mark indicating failure or hazard.

Safety warning illustration showing a hand cleaning a surface with an eye and a tool, accompanied by warning symbols.

Illustration of a hand holding a handheld device above a cabinet (no text or symbols visible)

Diagram showing a hand cleaning debris with warning symbols and a water droplet symbol, indicating inspection or damage.

Diagram showing a hand holding a tool above a device with a flame symbol, no text or labels present

Diagram illustrating a step in a medical procedure involving a finger insertion or manipulation, labeled with steps ① and ②.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bedroom (no text or symbols)

Illustration of a handheld electric shock absorber with a cat and dog nearby (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including steps 1 and 2.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a medical or laboratory procedure showing a pipette inserted into a cylindrical container with a magnified inset showing a bench (no text or symbols present)

Diagram showing a tool interacting with a small mechanical component, labeled with parts 1 and 2.

Illustration of a mechanical tool with a water droplet and warning symbols (no text or labels)

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Diagram showing two hands installing a green cylindrical component with directional arrows labeled ① and ②.

Diagram showing a green mechanical component above a white cylindrical container with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a cup pouring liquid into a container (no text or symbols)

Diagram illustrating a process with three circular indicators (green check, red X) and a downward arrow, likely indicating a step or condition.

Illustration of a hand holding a green cylindrical device with a green arrow indicating motion (no text or symbols)

Illustration of a plug with an arrow indicating direction (no text or symbols)

Illustration of a remote control device with a circular dial and scroll, showing no text or symbols

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical tube with a green handle (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a container with swirling lines indicating flow (no text or symbols)

Illustration of a faucet pouring liquid into a leafy green leaf on a tiled floor (no text or symbols)

18 Bersihkan filter basah di bawah keran.

Illustration of a mechanical device with a faucet and lever, showing a close-up inset of a green cylindrical component (no text or symbols)

Safety warning illustration showing water drop, sun, and checkmark symbols

Illustration of a mechanical device being adjusted for a cylindrical component, showing the top panel and side view with arrows indicating motion (no text or symbols present)

Diagram showing a mechanical device with labeled parts, including numbered callouts (① and ②) indicating specific components.

Diagram showing a mechanical assembly with labeled parts, including numbered callouts (① and ②) indicating different components.

Diagram showing three cylindrical components mounted on a base with a downward arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with blue liquid flowing out (no text or symbols)

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a hand operating a tool with labeled parts, including numbered callouts ① and ②.

Illustration of hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of two hands holding a coiled green object, no text or symbols present

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a robotic arm with green tool handle and green guide rails, showing mechanical assembly (no text or symbols)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green handle, placed on a sink (no text or symbols)

3 Bilas strip pembasahan di bawah keran.

Weather icon showing sun and rain symbols with a red 'X' indicating precipitation and green checkmark indicating no rainfall.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a glass cup (no text or symbols)

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram showing a water droplet and a container with a downward arrow, indicating a water drop or discharge process.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Perhatian: Jangan menyambungkan kembali alat genggam 3-in-1 ke keranjang debu tanpa memasukkan wadah filter ke dalam keranjang debu.

Membersihkan siklon

Diagram illustrating a mechanical device with labeled parts and a hand holding a tool, showing step-by-step assembly.

Diagram illustrating a mechanical or electrical device with labeled parts ① and ②, showing directional arrows and components.

Diagram showing two views of a water dispenser with checkmarks and a red X symbol indicating failure or rejection.

Circular icon with a stylized white object resembling a keyhole or plug, enclosed in a gold ring (no text or symbols)

Saat filter perlu dibersihkan, ikon pembersihan filter akan muncul di layar.

Diagram illustrating two steps of a food storage or processing device, labeled ① and ②, showing step ① with internal components and directional arrows.

3D diagram of a mechanical device with a switch symbol and red X mark (no text or labels)

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a pipe (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean a device with a valve symbol and red X mark indicating no change.

Diagram showing a device with a water droplet symbol and red X, indicating a water droplet failure.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Illustration of a hand tool interacting with a device, showing motion lines (no text or symbols)

8 Tutup wadah filter.

Diagram showing a container with a lid and a side view of its internal structure (no text or symbols)

Diagram showing a container with a lid and a cross mark, alongside its side view with arrows indicating direction (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a red X, indicating water release or discharge.

9 Masukkan kembali wadah filter termasuk filter busa ke dalam keranjang debu.

Safety warning illustration showing a toilet seat with warning symbol and red X mark indicating no hazard

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, showing step 1 and step 2.

Illustration of hands tying a rope knot with scissors, showing a checkmark (no text or symbols present)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands performing a rope knotting operation on a wooden object (no text or symbols)

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Circular icon with a house silhouette and exclamation mark, labeled 'E3' below (no text or symbols on the icon itself)

Circular icon with a battery symbol and a question mark, labeled 'E5' below (no text or symbols on the icon itself)

Illustration of a hand holding a spray gun with arrows indicating motion (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration showing a hairdryer being inserted into a device, with arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a medical or laboratory procedure showing a needle inserted into a device with a green arrow indicating direction (no text or symbols present)

Illustration of a hand holding a cylindrical device with a green arrow indicating motion (no text or symbols)

XV1792 10ml

Safety warning illustration showing a robot with an eye and a red X mark indicating failure or absence.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Illustration of a mechanical device with a downward arrow and emitting sparks, next to a cylindrical component (no text or symbols)

Illustration of a handheld device mounted on a cabinet, with no visible text or symbols.

Diagram showing a hand using a tool to mark a defect or damage, with an orange warning sign and a red 'X' indicating no damage.

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical component (no text or symbols)

Diagram illustrating a step in a medical procedure involving a tool and a foot, labeled with arrows ① and ②.

Illustration of a handheld device with a circular inset showing a bed (no text or symbols)

Illustration of a hairdryer with a cat and dog nearby, showing mechanical components and a close-up of the bed (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including step ① and step ②.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Amaran: Jangan vakum air atau cecair lain.

Illustration of a dental implant tool interacting with a seated chair (no text or symbols present)

Diagram showing a tool interacting with a wire, labeled with parts ① and ② indicating different states or functions.

3 Untuk menanggalkan alat ceruk panjang, tekan butang pelepas (1) dan tarik tiub atau alat tangan daripada alat ceruk panjang (2).

Illustration of a mechanical tool with a red X mark and warning symbols (no text or labels)

Amaran: Jangan vakum air atau cecair lain.

Pembersihan set Vakum & Mop

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly steps.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and directional arrows indicating movement or process.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a pitcher pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a chemical process with labeled steps and checkmarks indicating detection or rejection conditions.

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and control panel (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a container with motion lines indicating flow (no text or symbols)

17 Bersihkan tangki air kotor di bawah paip.

Illustration of a faucet with a green leafy seat and water level indicator (no text or symbols)

Illustration of a mechanical device with a faucet and base component, no text or symbols present

Diagram illustrating sunlight impact on a trash bin, showing water droplets and sun symbol with checkmark indicating no impact.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Illustration of hands washing a car with blue liquid from a pipe (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or flow direction.

Diagram showing a hand operating a medical device with labeled parts ① and ②, likely illustrating a procedure or procedure.

Illustration of two hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a syringe with directional arrows indicating motion (no text or labels)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical assembly with green components and directional arrows, no text or symbols present

Technical diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand holding a blue faucet with a green handle, placed on a surface (no text or symbols)

3 Bilas jalur pembersih di bawah paip.

Diagram illustrating sunlight interaction with two containers, showing water droplets and a sun symbol, with red 'X' indicating no change and green checkmark indicating completion.

Pembersihan set Vakum sahaja

Pengosongan timba habuk

MAX

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X marker.

Amaran: Jangan bilas timba habuk di bawah paip.

5 Pasang semula bekas penapis apabila timba habuk kering.

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or movement.

Illustration of a hand pouring liquid into a container with a faucet (no text or symbols)

Diagram illustrating sunlight and water droplets, showing a sun icon transforming into a droplet with water droplets and a checkmark.

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating rotation or assembly.

Diagram showing two views of a device with green checkmarks indicating approval or rejection, alongside a magnified view of the device's internal components.

Circular icon with a stylized white figure and exclamation mark inside, set against a dark background (no text or symbols)

Apabila penapis perlu dibersihkan, ikon membersihkan penapis muncul di skrin.

Illustration of a plastic container with an upward arrow indicating growth or movement (no text or symbols present)

Diagram of a device component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a device with a switch and a red X symbol indicating no change or failure.

Illustration of a hand pouring liquid into a trash bin with a water tap, no text or symbols present

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean or repair a mechanical component, with a red 'X' symbol indicating no text.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Illustration of a hand tool interacting with a device (no text or symbols present)

Illustration of a container with a lid and a green checkmark indicating a drop, alongside a smaller outline (no text or symbols)

Diagram showing a container with a lid and a handle, marked with red X and downward arrow (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a red X, indicating water release or discharge.

Awas: Pastikan bekas penapis termasuk penapis buih kering sepenuhnya sebelum anda meletakkan semula ke dalam timba habuk.

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a mechanical component with a golden circular component inserted into a housing (no text or symbols)

Illustration of a mechanical device with a highlighted lever and sparklers (no text or symbols)

Diagram illustrating a mechanical or electrical component being inserted into a device, with labeled parts ① and ②.

Illustration of hands holding a coiled string with a magnified inset showing a green checkmark (no text or symbols)

Diagram illustrating a mechanical or electrical procedure with labeled steps ① and ②, showing hand positioning and component insertion.

Circular icon with a house silhouette and thermometer symbol, labeled 'E2' below (no text or numbers on the icon itself)

Circular icon with a house silhouette and warning symbol, labeled 'E3' below (no text or numbers on the icon itself)

Circular icon with battery symbol and question mark, labeled E5 (no text or symbols beyond label)

www.philips.com/myvacuum9000s.

Všeobecný popis

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating direction of movement (no text or symbols)

Diagram of a medical or robotic device with a green tool and arrow indicating motion (no text or symbols)

Illustration of a hand holding a spray gun with arrows indicating motion (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration showing a hairdryer being inserted into a device, with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical component or assembly (no text or symbols)

100° A O +

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a toilet with warning symbol and red X mark indicating no need

Illustration of a medical or laboratory procedure showing a tool tip and a magnified view of a device with light reflections (no text or symbols)

Illustration of a vacuum cleaner emitting smoke from a cylindrical component (no text or symbols)

Diagram of a door lock mechanism with a circular button labeled ① (no text or symbols on the diagram itself)

Safety warning illustration showing a person using a vacuum cleaner with water leakage, marked by an orange warning symbol and a red 'X' indicating no damage.

Safety warning illustration showing a spray nozzle spraying liquid with an eye and a hand holding a tool, accompanied by warning symbols.

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram illustrating a hand using a tool to mark a defect or damage, with warning symbols and a red 'X' indicating failure.

Illustration of a hand using a tool to press or install a device, with no visible text or symbols.

Diagram illustrating a step in a medical procedure involving a tool and a device, labeled with arrows and numbered steps.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bed (no text or symbols)

Illustration of a hairdryer with a cat and dog nearby, showing mechanical components and a close-up of the bed (no text or symbols)

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a procedure or step in a process.

Illustration of a hand holding a device with a water droplet and a red X mark, no text or symbols present.

Illustration of a hand holding a flashlight with a downward arrow and light effect (no text or symbols)

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

Diagram showing a tool interacting with a connector, labeled with parts ① and ② indicating different components or functions.

Safety warning illustration showing a tool with water droplets and an orange warning symbol

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical or electrical component with three circular indicators (red, green, and black) indicating failure or status conditions.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and a plastic container, likely for safety or inspection.

Illustration of a hand holding a cylindrical device with a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and circular dial (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand using a tool to lift a cylindrical device (no text or symbols visible)

Illustration of a mechanical device with a green handle and upward arrow, partially submerged in liquid (no text or symbols)

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a water bottle with swirling bubbles (no text or symbols)

Illustration of a faucet releasing water into a green leafy container on a sink (no text or symbols)

Illustration of a mechanical device with a faucet and lever, showing assembly or maintenance (no text or symbols)

Diagram illustrating the process of a sun-drying system, showing two trash bins with water droplets and a checkmark indicating completion.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands washing a car with blue liquid from a pipe (no text or symbols)

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a hand operating a device with labeled parts ① and ②, likely illustrating a mechanical or electrical component.

Illustration of two hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of two hands holding a coiled green object, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating force direction (no text or symbols)

Diagram of a mechanical device with green components and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a hand using a blue faucet to clean a green object, with a small circular mark on the floor (no text or symbols)

Diagram illustrating sunlight interaction with water droplets and a checkmark, showing red X and green checkmark symbols.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pouring liquid into a bottle with a faucet (no text or symbols)

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a device with green checkmark indicators and two circular components, one marked with red X and one with green checkmark.

Circular icon with a stylized white hand and exclamation mark inside a black circle (no text or symbols)

Illustration of a plastic container with an upward arrow indicating growth or movement (no text or symbols present)

Diagram of a device component with numbered parts and directional arrows indicating flow or movement.

3D diagram of a mechanical device with a switch symbol and red X mark (no text or labels)

Illustration of hands cleaning a trash bin with a water tap (no text or symbols)

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean or repair a device, with a warning symbol indicating no error.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Diagram of a robotic arm gripping a small object, with motion lines indicating movement (no text or symbols)

Illustration of a beige plastic container with a red X mark and downward arrow, alongside a smaller outline of its side panel (no text or symbols)

Diagram illustrating a water drop mechanism with labeled components and a red X mark indicating the defect or failure.

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly steps

Illustration of a mechanical device with a golden component inserted into a housing (no text or symbols visible)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical or electrical component being inserted into a device, with labeled parts ① and ②.

Illustration of hands holding a coiled string with a magnified inset showing a green checkmark (no text or symbols)

Diagram illustrating a mechanical or electrical component being inserted into a device, labeled with parts 1 and 2.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of a hand connecting a cable to a mechanical component (no text or symbols)

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Circular icon with a stylized pen and wrench symbol, no text or numbers present

Circular icon with a white hand-painted object and circular arrow, no text or symbols present.

www.philips.com/myvacuum9000s.

Generel beskrivelse

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating direction (no text or symbols)

Illustration of a green screwdriver holding a vertical pole with a hand strap, no text or symbols present

Illustration of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

Technical diagram showing three steps of a mechanical assembly with numbered instructions for each step.

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a medical or laboratory procedure showing a needle inserted into a device with a green arrow indicating direction (no text or symbols present)

Illustration of a hand holding a cylindrical device with a green arrow indicating motion (no text or symbols)

XV1792 10ml

Safety warning illustration showing a medical device with an eye and a red X mark indicating no protection

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a toilet with warning symbol and red X mark indicating hazard

Illustration of a mechanical device with a downward arrow and emitting sparks, no text or symbols present

Illustration of a handheld device mounted on a cabinet, with no visible text or symbols.

Diagram showing a hand using a tool to mark a defect or damage, with an orange warning sign and a red 'X' indicating no damage.

Illustration of a hand holding a cylindrical object with a downward arrow and sparkles, next to a base device (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including a finger and a base, with arrows indicating movement or force.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a bed outline, no text or symbols present

Illustration of a hairdryer with a cat and dog nearby, showing no text or symbols

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a procedure or step in a process.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

Diagram showing a tool interacting with a connector, labeled with parts ① and ② indicating different components or functions.

Illustration of a mechanical tool with a water droplet and warning symbols (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly steps.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and a green downward arrow indicating direction.

Illustration of a hand pouring liquid into a vertical cylindrical container with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, red X) and a container, showing a downward arrow and a blue liquid.

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and navigation buttons (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand, no text or symbols present

Illustration of a faucet pouring liquid into a container with motion lines indicating flow (no text or symbols)

17 Skyl tanken til snavset vand under vandhanen.

Illustration of a faucet with a green leaf-shaped object inserted into a basin (no text or symbols)

Illustration of a mechanical device with a faucet and a green component, no text or symbols present

Safety warning illustration showing water discharge and sunlight impact with icons for warning, sun, and checkmark

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Illustration of hands pouring liquid into a container with blue flow lines (no text or symbols)

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or flow.

Diagram showing a hand operating a device with labeled parts ① and ②, likely illustrating a mechanical or electrical component.

Illustration of two hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a syringe with directional arrows indicating motion (no text or labels)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical device with green components and directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical assembly with green arrows indicating direction (no text or symbols)

Illustration of a hand holding a blue faucet with a green handle, placed on a surface (no text or symbols)

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly steps

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

3 Tøm støvbeholderen i skraldespanden.

Illustration of a container with liquid and an open lid, showing a 3D view (no text or symbols)

Illustration of a mechanical component pouring granular material into a cylindrical container (no text or symbols)

2 Tøm støvbeholderen i skraldespanden.

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pouring liquid into a bottle with a faucet (no text or symbols)

Diagram illustrating sunlight and water droplets, showing a sun icon transforming into a droplet with water droplets and a checkmark.

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating motion or assembly.

Diagram showing two views of a device with green checkmarks indicating approval or rejection, alongside a magnified view of the device's internal components.

Circular icon with a stylized white object and exclamation mark inside, set against a dark background (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

Diagram of a device component with labeled parts ① and ②, showing directional arrows indicating movement or flow.

Diagram of a device with a switch symbol and red prohibition sign, indicating no protection or disapproval.

Illustration of a hand pouring liquid into a trash bin while another hand swashes it, separated by a diagonal line (no text or symbols)

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

5 Ryst filterkabinettet og låget over en skraldespand for at fjerne støvet.

Illustration showing a hand using a tool to clean or repair a mechanical component, with a red 'X' symbol indicating no text.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Illustration of a hand holding a small object with arrows indicating motion or force (no text or symbols)

8 Luk filterkabinettet.

Diagram showing a container with a lid and a cross mark, alongside a downward arrow indicating process (no text or symbols)

Diagram illustrating a water drop symbol with a red X, indicating the water level, alongside a 3D container diagram.

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow component into a mechanical housing (no text or symbols)

Illustration of a mechanical device with a highlighted lever and sparklers (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, showing step 1 and step 2.

Illustration of hands holding a coiled rope with scissors, accompanied by a magnified inset showing a hand holding a small object (no text or symbols present)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and component insertion.

2 Skub rullebørsten tilbage i LED-mundstykket (1), og skub låseklemmen op for at låse rullebørsten i LED-mundstykket ("klik").

Diagram of a device with labeled parts and directional arrows indicating movement or assembly

Illustration of a hand holding a coiled cable or wire, with an arrow indicating upward motion (no text or symbols present)

Diagram showing a mechanical device with labeled parts, including numbered callouts (1 and 2) indicating different components or states.

Circular icon with a stylized pen and wrench symbol, enclosed in a golden border (no text or numbers)

Icon of a hand-painted object with a circular frame and refresh symbol (no text or numbers)

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating direction of movement (no text or symbols)

Illustration of a green tool with a curved arrow indicating motion or force, mounted on a vertical support (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration showing a hairdryer being inserted into a device, with arrows indicating motion (no text or symbols present)

Technical diagram showing three-step assembly steps of a mechanical device, labeled with numbered components and directional arrows.

XV1792 10ml

Illustration of a green plastic container with a downward arrow indicating flow or change (no text or symbols)

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Close-up of a black door handle with a circular button labeled ①, no text or symbols present.

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Safety warning illustration showing a hand cleaning a surface with an eye and a tool, accompanied by warning symbols.

Illustration of a handheld device mounted on a cabinet with no visible text or symbols

Diagram illustrating a hand using a tool to mark environmental hazard, with warning symbols and a red 'X' indicating failure.

Illustration of a hand holding a brush tip with an arrow pointing to a small object, next to a base (no text or symbols)

Diagram illustrating a step in a medical procedure involving a finger insertion or manipulation, labeled with steps ① and ②.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bedroom (no text or symbols)

Illustration of a handheld electric shock absorber with a cat and dog nearby (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including steps 1 and 2.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a medical or laboratory procedure showing a pipette inserted into a cylindrical container with a magnified inset showing a bench (no text or symbols present)

Diagram showing a tool interacting with a small mechanical component, labeled with parts 1 and 2.

Illustration of a mechanical tool with a red 'X' mark and an orange warning symbol (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical or electrical component with three circular indicators (red, green, black) and checkmarks indicating failure or status.

Illustration of a hand pouring liquid into a vertical cylindrical container with a green tube, showing a right-hand rule (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing two hands installing a green cylindrical component with directional arrows labeled ① and ②.

Diagram showing a green mechanical component above a white cylindrical container with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a cup pouring liquid into a container (no text or symbols)

Diagram illustrating a chemical reaction or filtration process with labeled steps and checkmarks indicating detection or rejection outcomes.

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Illustration of a plug with an arrow indicating direction (no text or symbols)

Illustration of a remote control device with a circular dial and scroll icon (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a container with swirling lines indicating flow (no text or symbols)

Illustration of a faucet pouring liquid into a leafy green leaf on a tiled floor (no text or symbols)

Illustration of a mechanical device with a faucet and lever, showing a close-up inset of a green cylindrical component (no text or symbols)

Safety warning illustration showing water drop, sun, and checkmark symbols with corresponding icons

Illustration of a mechanical device being adjusted for a cylindrical component, showing the top panel and side view with arrows indicating motion (no text or symbols present)

Diagram showing a mechanical device with labeled parts, including numbered callouts (① and ②) indicating specific components.

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or functions.

Diagram of a mechanical assembly with three cylindrical components and a base, showing a downward arrow (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands washing a car with blue liquid flowing from the hood (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or functions.

Illustration of two hands holding a green object with a downward arrow, no text or symbols present

Illustration of two hands holding a coiled green object, no text or symbols present

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a robotic arm with green tool handle and green guide rails, showing mechanical assembly (no text or symbols)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green handle, no text or symbols present

Weather symbol and weather indicator diagram showing sun, raindrops, and checkmark symbols

Reinigen des Trockensaugers

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a hand pouring granular material into a cylindrical container (no text or symbols)

Diagram showing a hand holding a container with a switch and a red 'X' symbol indicating no change or failure.

Diagram showing a container with a water droplet and a warning symbol, indicating a hazard or failure.

Illustration of a mechanical device with a highlighted lever and sparkles (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Diagram illustrating a mechanical device with labeled parts and a close-up of its water level being dissolved.

Diagram of a device with labeled parts showing mechanical components and directional arrows

Diagram showing a device with green checkmark indicators and two labeled circular components with red X and green V symbols.

Circular icon with a stylized white plug or connector symbol and an exclamation mark, set against a dark background (no text or symbols)

Diagram illustrating two steps of a food storage or cleaning device, labeled ① and ②, showing step ① with internal components and directional arrows.

3D diagram of a mechanical device with a switch symbol (no text or labels)

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a pipe (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand holding a valve with a red 'X' symbol, indicating no text or symbols on the valve itself.

Diagram showing a device with a water droplet symbol and red X, indicating a water droplet failure.

Diagram showing a device with a lid and two labeled checkboxes (green checkmark) indicating selection or status.

Illustration of a dental implant or dental implant device with a tool inserted, showing no text or symbols.

Diagram showing a container with a lid and a green checkmark indicating selection, alongside a separate view of the container with arrows (no text or symbols)

Diagram showing a container with a lid and a cross mark, alongside a separate view of a cylindrical container with a handle (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X marker.

Safety warning illustration showing a toilet seat with warning symbol and red X mark indicating explosion or damage

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow component into a mechanical device (no text or symbols)

Illustration of a mechanical device with a handle and base, showing motion direction (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, showing step 1 and step 2.

Illustration of hands tying a rope knot with scissors, showing a magnified view of the knot being held (no text or symbols present)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands manipulating a mechanical component with a directional arrow (no text or symbols)

Diagram of a robotic hand holding a mechanical device with labeled parts ① and ②, showing motion arrows.

www.philips.com/myvacuum9000s.

Üldine kirjeldus

1 Tolmukambri vabastusnupp
2 Ekraan
3 Puhastusrežiimi nupp
4 Keskmine nupp (AUTOCLEAN)
5 Toitenupp
6 Aku
7 Kolm-ühes käsitolmuimeja
8 Tolmukamber
9 Toru
10 LED-tuledega otsak
11 Väike turbohari
12 Pikk piluotsak
13 Adapter
14 Toitepistik
15 Lisalaadija (ainult mudelil XW9465/11)
16 Puhastamisjärgne ja hoiustamisjaam
17 Seadme hoidik
18 Puhastamisjärgne alus
19 Alusplaat
20 Märgmoodul
21 Musta vee paak
22 Puhta vee paak
23 AquaSpini otsak
24 Mikrokiudharjad
25 Põrandapesuvedelik Philips Floor Cleaner XV1792 (ainult XW9463/11 ja XW9465/11)
26 Puhastusharjake

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating direction of movement (no text or symbols)

Illustration of a green tool with a curved arrow indicating motion, next to a vertical support structure (no text or symbols)

Illustration of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

Technical diagram showing three-step assembly steps of a mechanical device, labeled with numbered components and directional arrows.

XV1792 10ml

Illustration of a green plastic container with a downward arrow indicating flow or change (no text or symbols)

7 Pange puhta vee paagile kork tagasi.

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Close-up of a black door handle with a circular button labeled ①, showing no text or symbols beyond the label.

Safety warning illustration showing a medical device with an eye and a red X mark indicating no protection

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Illustration of a mechanical device emitting exhaust smoke from a cylindrical component (no text or symbols)

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram illustrating a hand tool tip with warning symbols and a water droplet, indicating incorrect or invalid conditions.

Illustration of a hand holding a tool above a device with a flame symbol (no text or symbols present)

Diagram illustrating a step in a medical procedure involving a finger and a tool, labeled with arrows and numbered steps.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld vacuum cleaner with a bed icon below (no text or symbols)

Illustration of a hairdryer with a cat and a dog nearby, showing powder and cleaning process (no text or symbols)

Diagram showing a hand holding a small object with labeled parts, marked as ① and ②.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a hand holding a flashlight with a downward arrow and light effect (no text or symbols)

Illustration of a medical or laboratory procedure showing a tool interacting with a cylindrical object and a separate view of a bench (no text or symbols present)

Diagram showing a tool interacting with a connector, labeled with parts ① and ② indicating different states or functions.

Illustration of a mechanical tool with a red X mark and warning symbols (no text or labels)

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Diagram illustrating a mechanical assembly with checkmarks and circles indicating selection or confirmation steps

Illustration of a hand pouring liquid into a cylindrical container with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and a plastic container, likely for safety or inspection.

Illustration of a hand holding a cylindrical device with a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a handle and control panel (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a green mechanical device with an upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand, no text or symbols present

16 Valage vesi musta vee paagist kraanikaussi.

Illustration of a faucet pouring liquid into a container with water swirling around it (no text or symbols)

17 Puhastage musta vee paak kraani all.

Illustration of a faucet releasing water into a green leafy container on a sink (no text or symbols)

Illustration of a mechanical device with a faucet and a green component, no text or symbols present

Diagram illustrating a solar-powered recycling process with water drop, sun, and checkmark indicators

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Illustration of hands holding a drain with blue liquid flowing through it (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a hand operating a medical or diagnostic device with labeled parts ① and ②, likely illustrating a procedure or procedure.

Illustration of two hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical device with green components and directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical assembly with green arrows indicating direction (no text or symbols)

Illustration of a hand holding a blue faucet with a green handle, placed on a surface (no text or symbols)

3 Loputage niisutusribasid kraani all.

Diagram illustrating sunlight interaction with water droplets and a checkmark, showing red X and green ✓ symbols.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

3 Tühjendage tolmukambri sisu prügikasti.

4 Kinnitage filtrikarp tagasi tolmukambrile.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a container with granular material being poured into it, no text or symbols present

2 Tühjendage tolmukambri sisu prügikasti.

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pouring liquid into a bottle with a faucet (no text or symbols)

Diagram illustrating sunlight and water droplets, showing a sun icon transforming into a droplet with water droplets and a checkmark.

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating rotation or assembly.

Diagram showing two views of a device with green checkmarks indicating approval or rejection, alongside a magnified view of the device's internal components.

Circular icon with a stylized white object and exclamation mark inside a black ring (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

Diagram of a mechanical component with numbered parts (1, 2), no text or symbols present

Diagram showing a device with a switch symbol and red X mark indicating no change or error

Illustration of hands cleaning a trash bin with a water tap (no text or symbols)

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

4 Vee eemaldamiseks pigistage vahtplastfiltrit.

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean or repair a mechanical component, with a red 'X' symbol indicating no text.

6 Puhastage filtrihoidikut niiske lapiga.

Diagram showing a device with a water droplet and a red X symbol indicating a failure or absence.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Illustration of a hand pouring liquid into a container with a spray bottle (no text or symbols)

8 Sulgege filtrikarp.

Diagram showing a container with a lid and a cross mark, alongside a smaller container with arrows indicating movement (no text or symbols)

9 Pange filtrikarp koos vahtplastfiltriga tagasi tolmukambrisse.

Diagram illustrating a water drop symbol and its impact on a container with a red X, indicating water release or discharge.

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a mechanical component with a golden circular component inserted into a housing (no text or symbols)

Illustration of a mechanical device with a highlighted lever and sparkles (no text or symbols)

Diagram showing a hand holding a tool with two labeled parts, illustrating a mechanical or electrical process.

Illustration of hands holding a coiled rope with scissors, accompanied by a magnified inset showing a hand holding a small object (no text or symbols present)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and component insertion.

Circular icon with a house silhouette and exclamation mark, labeled 'E3' below (no text or symbols on the icon itself)

Circular icon with battery symbol and question mark, labeled E5 (no text or symbols beyond label)

Diagram of a mechanical component with a vertical rod and base, no text or symbols present

Diagram showing two mechanical components with directional arrows indicating movement or assembly (no text or symbols)

Illustration of a green screwdriver inserted into a mechanical clamp (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand holding a tool with a downward arrow, next to a rolled-up battery (no text or symbols)

Diagram showing a robotic arm with labeled parts and directional arrows indicating movement or assembly.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Illustration of a mechanical device with a downward arrow and emitting sparks, next to a cylindrical component (no text or symbols)

Technical diagram illustrating four steps of a vacuum cleaner's mounting mechanism, labeled with numbered instructions.

Illustration of a plug with a cable and a wall socket, no text or symbols present

100% - +

Technical line drawing of a mechanical component or housing assembly (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a mechanical device with a downward arrow and green laser beam (no text or symbols)

Illustration of a hand holding a green cylindrical device with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a vertical tube with a green arrow pointing to the tube (no text or symbols present)

Diagram of a door handle with a black panel and a circular button labeled ① (no text or symbols on the main object)

100° down drop flue

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

Illustration of a mechanical device with a highlighted lever and sparkles (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Safety warning illustration showing a hand cleaning a surface with an eye and a tool, accompanied by warning symbols.

Illustration of a handheld device mounted on a cabinet (no text or symbols visible)

Diagram illustrating a hand operating a tool with warning and disapproval indicators, including an orange warning sign and a red 'X' symbol.

Illustration of a hand holding a small object with a downward arrow and sparkles, next to a device (no text or symbols)

Diagram illustrating a step in a medical procedure involving a finger and a tool, labeled with arrows and numbered steps.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bedroom (no text or symbols)

Illustration of a handheld vacuum cleaner emitting exhaust from a tank, with icons for cat and dog (no text or symbols)

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a process or procedure.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a medical or laboratory procedure showing a pipette inserted into a cylindrical container with a magnified inset showing a bench (no text or symbols present)

Diagram showing a tool interacting with a small mechanical component, labeled with parts 1 and 2.

Illustration of a mechanical tool with a warning sign and a red X mark, no text or symbols present.

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical or electrical setup with labeled components and checkmarks indicating failure or completion states.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and arrow indicating upward motion (no text or symbols)

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram showing two hands installing a green cylindrical component with directional arrows labeled ① and ②.

Diagram showing a green mechanical component above a white cylindrical container with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and arrows indicating direction.

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Illustration of a plug with an arrow indicating direction (no text or symbols)

Illustration of a remote control device with a circular dial and scroll icon (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a container with swirling lines indicating flow (no text or symbols)

Illustration of a faucet pouring liquid into a leafy green leaf on a tiled floor (no text or symbols)

Illustration of a mechanical device with a faucet and lever, showing assembly or maintenance (no text or symbols)

Safety warning illustration showing water drop, sun, and checkmark symbols

Illustration of a mechanical device being adjusted for a cylindrical component, showing the top panel and side view with arrows indicating motion (no text or symbols present)

Diagram showing a mechanical device with labeled parts, including numbered callouts (① and ②) indicating specific components.

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or functions.

Diagram of three cylindrical components with a downward arrow indicating rotation or movement (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands pouring liquid into a container with blue flow lines (no text or symbols)

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a hand operating a tool with labeled parts, including numbered callouts ① and ②.

Illustration of hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of two hands holding a coiled green object, no text or symbols present

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a robotic arm with green tool handle and green guide rails, showing mechanical assembly (no text or symbols)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green handle, no text or symbols present

Weather symbol and weather indicator diagram showing sun, raindrops, and checkmark indicators

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a glass cup (no text or symbols)

Diagram showing a hand holding a device with a warning symbol indicating no hazard, accompanied by a red 'X' symbol.

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X marker.

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Circular icon with a stylized white object resembling a keyhole or plug, enclosed in a golden ring (no text or symbols)

Diagram illustrating two steps of a food storage or processing device, labeled ① and ②, showing step ① with internal components and step ② with directional arrows.

Illustration of a mechanical device with a switch symbol (no text or labels)

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a pipe (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand removing a valve into a device, with a red 'X' indicating the switch.

Diagram showing a device with a water droplet symbol and red X, indicating a water droplet failure.

Diagram showing a device with a lid and two labeled boxes, one marked with a red X and green checkmark, indicating selection or status.

Illustration of a hairpin with a lever and base, showing motion direction (no text or symbols)

Diagram showing a container with internal compartments and a red X mark indicating failure or rejection, with arrows pointing to the compartments.

Diagram illustrating a water drop symbol with a container and directional arrow, accompanied by a blue droplet icon.

Safety warning illustration showing a toilet with warning symbol and red X mark indicating explosion or damage

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating rotation or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

Illustration of a mechanical device with a handle and base, showing motion direction (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, showing step 1 and step 2.

Illustration of hands tying a rope knot with scissors, showing a magnified view of the knot being held (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing tool movement and component alignment.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands manipulating a mechanical component with a directional arrow (no text or symbols)

Diagram of a hand holding a mechanical device with labeled parts ① and ②, showing motion arrows and spray effects.

www.philips.com/myvacuum9000s.

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating direction of movement (no text or symbols)

Illustration of a green tool with a curved arrow indicating motion, mounted on a vertical support (no text or symbols)

Illustration of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration showing a hairdryer being inserted into a device, with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical component or assembly (no text or symbols)

Safety warning illustration showing a robot with an eye and a red X mark indicating no protection

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a toilet with warning symbol and red X mark indicating explosion or damage

Illustration of a mechanical device with a downward arrow and emitting sparks, next to a cylindrical component (no text or symbols)

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram illustrating a hand using a tool to mark a defect or damage, with an inset showing warning symbols and a red 'X' indicating failure.

Illustration of a hand using a tool to press or install a device, with no visible text or symbols.

Diagram illustrating a step in a medical procedure involving a tool and a device, labeled with arrows and numbered steps.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bed (no text or symbols)

Illustration of a hairdryer with a cat and a dog nearby, showing no text or symbols.

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a procedure or step in a process.

Illustration of a hand holding a device with a water droplet and a red X mark, no text or symbols present.

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

Diagram showing a tool interacting with a cable, labeled with parts ① and ② indicating different states or functions.

Illustration of a mechanical tool with a water droplet and warning symbols (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and a green downward arrow indicating direction.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and a plastic container, likely for safety or inspection.

Illustration of a hand holding a cylindrical device with a green component, showing a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and circular dial (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with an upward arrow, no text or symbols present

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a beaker with water swirling around it (no text or symbols)

Illustration of a faucet releasing water into a green leafy container on a sink (no text or symbols)

Illustration of a mechanical device with a faucet and a green component, no text or symbols present

Diagram illustrating the process of a trash bin with sunlight, showing water drop and checkmark status

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands washing a car with blue liquid from a pipe (no text or symbols)

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or flow.

Diagram showing a hand holding a device with labeled parts, including numbered callouts ① and ②.

Illustration showing two steps of a hand holding a green object, with a magnified view of the cable being twisted (no text or symbols present)

Diagram of a syringe with green arrows indicating direction (no text or labels)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical assembly with green components and directional arrows, no text or symbols present

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Line drawing of a hand holding a blue faucet with a green handle, above a surface with a circular dial (no text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a container with granular material being poured into a cylindrical container (no text or symbols)

Diagram showing a hand holding a tool in a container with a warning symbol indicating no liability or failure.

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X mark.

Diagram of a mechanical device with a highlighted component and directional arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand using a pipette to lift a cup, with no text or symbols present.

Diagram illustrating sunlight interaction with water droplets, showing red X and green checkmark

Diagram illustrating a device's rotation and component assembly with numbered parts and directional arrows

Diagram showing a device with green checkmark indicators and two labeled cross-sectional views of a container or housing.

Circular icon with a stylized white object and exclamation mark inside a black background, enclosed in a gold border (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or assembly.

3D diagram of a mechanical device with a magnified inset showing a switch symbol (no text or labels present)

Illustration of hands cleaning a trash bin with a water tap (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or movement (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand cleaning a device with a warning symbol indicating no readable text or symbols.

Diagram showing a device with a water droplet symbol and red X mark indicating failure or damage.

Diagram showing a device with checkmarks and a red X mark, indicating selection or confirmation steps.

Illustration of a spray gun dispensing liquid into a container (no text or symbols)

Diagram showing a container with a lid and a cross mark, alongside a separate view of a container with a handle (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X marker.

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of hands holding a coiled string with scissors, accompanied by a magnified inset showing a green checkmark (no text or symbols)

Diagram illustrating a mechanical or electrical component being adjusted, labeled with parts ① and ②.

Circular icon with a house silhouette and warning symbol, labeled 'E3' below (no text or numbers on the icon itself)

Circular icon with battery symbol and question mark, labeled E5 (no text or symbols beyond label)

Technical line drawing of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Kako biste upotrebljavali funkciju samočišćenja AUTOCLEAN ili pohranili i napunili uređaj na stanici za postavljanje poslije čišćenja i pohranu, prvo morate sastaviti stanicu tako da utisnete držač uređaja na osnovnu ploču.

Diagram showing two mechanical assembly steps with arrows indicating direction (no text or symbols)

Savjet: držač za položaj za usisavanje može se pogurnuti i okrenuti naopako ako usisivač želite postaviti s druge strane stanice za postavljanje poslije čišćenja i pohranu.

i Napomena: provjerite je li ladica za uporabu poslije čišćenja postavljena na osnovnu ploču i je li temperatura u prostoriji u kojoj se uređaj pohranjuje, puni i čisti između 5 °C i 35 °C.

Illustration of a green screwdriver holding a vertical pole with a hand adjusting the handle (no text or symbols)

Illustration of a mechanical device with arrows indicating motion or force direction (no text or symbols)

1 Za sastavljanje uređaja u položaj za usisavanje i brisanje umetnite bateriju i pričvrstite držak 3-u-1 na modul za mokro čišćenje („klik“).

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

2 Pričvrstite modul za mokro čišćenje na mlaznicu AquaSpin („klik“).

3 Kako biste pohranili uređaj u položaju za usisavanje i brisanje, možete ga staviti u stanicu za postavljanje poslije čišćenja i pohranu.

Sastavljanje uređaja u položaj za usisavanje

Three-step illustration of a vacuum cleaner's tip and base, showing mechanical assembly and tool path (no text or symbols)

1 Za sastavljanje uredaja u položaj samo za usisavanje pričvrstite držak 3-u-1 na spremnik za prašinu („klik“).

2 Pričvrstite spremnik za prašinu na cijev („klik“).

Technical diagram showing three-step assembly steps of a mechanical device, labeled with numbered components and directional arrows.

4 Kako biste pohranili uređaj u položaju samo za usisavanje, stavite ga u stanicu za postavljanje poslije čišćenja i pohranu tako da prvo postavite LED mlaznicu na dulju stranu osnovne ploče, a zatim utisnete cijev u držač.

Savjet: držač za položaj za usisavanje može se pogurnuti i okrenuti naopako ako usisivač želite postaviti s druge strane stanice za postavljanje poslije čišćenja i pohranu.

Punjenje

MAX 35 °C MIN 5 °C

Illustration of a hand washing machine with arrows indicating force or motion (no text or symbols)

1 Za sastavljanje uređaja u položaj za usisavanje i brisanje umetnite bateriju i pričvrstite držak 3-u-1 na modul za mokro čišćenje („klik“).

Illustration of a mechanical device with a downward arrow and spray effect (no text or symbols)

2 Pričvrstite modul za mokro čišćenje na mlaznicu AquaSpin („klik“).

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

3 Pritisnite gumb kako biste otključali i uklonili spremnik za čistu vodu.

4 Skinite čep sa spremnika čiste vode.

XV1792 10ml

5 Dodajte 10 ml sredstva za čišćenje podova Philips XV1792 u spremnik za čistu vodu.

MAX MAX 50 °C

A Oprez: tvrtka Philips ispitala je rad uređaja samo uz sredstvo za čišćenje podova Philips XV1792. Ostali deterdženti mogu uzrokovati prekomjerno pjenjenje, što oslabljuje performanse i može prouzročiti kvar uređaja. Sredstvo za čišćenje podova Philips XV1792 dostupno je na odabranim tržištima. Kada upotrebljavate neko drugo prikladno tekuće sredstvo za čišćenje podova, dodajte najviše 10 ml sredstva u spremnik za čistu vodu.

6 Napunite spremnik za čistu vodu hladnom ili mlakom vodom iz slavine do oznake MAX.

A Oprez: voda iz slavine koja se ulijeva u spremnik za čistu vodu ne smije biti toplija od 50 °C.

100° ✓ ✓ ✓ ✓

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

10 S pomoću gumba za način čišćenja birajte između tri različite postavke:

• normalni mokri način rada
• intenzivni mokri način rada
• način rada za upijanje vode

Odabirom normalnog načina rada s vodom uređaj možete upotrebljavati za redovito mokro čišćenje. Intenzivni mokri način rada predviđen je za čišćenje vrlo tvrdokornih mrlja.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

1 Za usisavanje podova od mekih ili tvrdih materijala pričvrstite držak 3-u-1 na spremnik za prašinu („klik“).

Safety warning illustration showing a toilet with warning symbol and red X mark indicating explosion or damage

Illustration of a mechanical device emitting exhaust smoke from a cylindrical component (no text or symbols)

2 Pričvrstite spremnik za prašinu na cijev („klik“).

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical component (no text or symbols)

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram showing a hand operating a tool with warning symbols and a water droplet, indicating incorrect operation or damage.

Illustration of a hand holding a flashlight emitting sparks, with a base device nearby (no text or symbols)

Diagram illustrating a step in a medical procedure involving a tool and a device, labeled with arrows and numbered steps.

2 Za odvajanje LED mlaznice pritisnite gumb za otpuštanje (1) i izvucite cijev ili držak iz mlaznice (2).

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

1 Kako biste pričvrstili četku Mini Turbo, umetnite cijev drška u četku Mini Turbo.

Illustration of a handheld device with a circular inset showing a bed (no text or symbols)

Illustration of a hairdryer with a cat and a dog nearby, showing no text or symbols.

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a procedure or step in a process.

4 Za odvajanje četke Mini Turbo pritisnite gumb za otpuštanje (1) i izvucite držak iz četke Mini Turbo (2).

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

Diagram showing a tool interacting with a cable, labeled with parts ① and ② indicating different states or functions.

3 Za odvajanje dugačkog nastavka za uske površine pritisnite gumb za otpuštanje (1) i iz njega izvucite cijev ili držak (2).

Illustration of a mechanical tool with a water droplet and warning symbols (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Kako biste spriječili neugodne mirise i naslage kamenca, nakon svake uporabe upotrijebite funkciju samočišćenja AUTOCLEAN. Način rada AUTOCLEAN pomaže vam da potpuno očistite svoj uređaj za približno 4 minute.

1 Uredaj u položaju za usisavanje i brisanje postavite u stanicu za postavljanje poslije čišćenja i pohranu.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and a green downward arrow indicating direction.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three checkmarks and a red X mark, showing steps to process liquid or container.

Illustration of a hand holding a green cylindrical object with an arrow indicating direction (no text or symbols)

MAX 35 °C MIN 5 °C

8 Izlijte sav preostali tekući deterdžent iz spremnika za čistu vodu u odvod.

9 Napunite spremnik za čistu vodu hladnom ili mlakom vodom iz slavine barem do oznake AUTOCLEAN.

A Oprez: voda iz slavine koja se ulijeva u spremnik za čistu vodu ne smije biti toplija od 50 °C.
A Oprez: nemojte upotrebljavati deterdžent za funkciju AUTOCLEAN jer bi to moglo dovesti do prekomjernog pjenjenja.

10 Vratite spremnik za čistu vodu u uređaj.

Illustration of a remote control device with a handle and control panel, showing no text or symbols.

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a green mechanical device with an upward arrow, no text or symbols present

12 Kako biste pokrenuli funkciju AUTOCLEAN, pritisnite srednji gumb 🚙Ako je zaslon crn, najprije pritisnite gumb za uključivanje/isključivanje 🚙kako biste aktivirali zaslon.

Simple line drawing of a pouring container into a stand, no text or symbols present

16 Izlijte vodu iz spremnika za prljavu vodu u odvod.

Illustration of a faucet pouring liquid into a container with motion lines indicating flow (no text or symbols)

17 Spremnik za čistu vodu operite pod mlazom vode iz slavine.

Illustration of a faucet with a green leaf-shaped container inserted into a basin (no text or symbols)

18 Mokri filtar operite pod mlazom vode iz slavine.

Illustration of a mechanical device with a faucet and a green component, no text or symbols present

19 Očistite mrežasti filtar priloženom četkicom za čišćenje.

Diagram illustrating sunlight impact on a trash bin, showing water droplets and sun symbol with X and checkmark indicators

20 Pustite da se vlažni filtar spremnika za prljavu vodu i njegov element za protok vode potpuno osuše prije nego što ih vratite na spremnik za prljavu vodu.

21 Vratite mokri filtar u spremnik za prljavu vodu.

22 Vratite spremnik za prljavu vodu u uređaj.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands holding a drain with blue liquid flowing through it (no text or symbols)

2 Isperite ladicu za uporabu poslije čišćenja pod mlazom vode iz slavine i ostavite da se osuši prije nego što je vratite u stanicu za pohranu.

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a hand operating a medical or diagnostic tool with labeled parts ① and ②

Illustration of two hands holding a green object with a downward arrow, no text or symbols present

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical component with directional arrows indicating movement or force (no text or symbols)

Ako je modul za mokro čišćenje začepljen, najprije isključite uredaj i uklonite mlaznicu AquaSpin i držak 3-u-1. Zatim uklonite začepljenje pomicanjem četke za čišćenje u usisnom kanalu modula za mokro čišćenje gore-dolje.

Čišćenje začepljenja iz mlaznice AquaSpin

Illustration of a vacuum cleaner with green directional arrows indicating motion (no text or symbols)

Ako je mlaznica AquaSpin začepljena, to se može ukloniti pomicanjem četke za čišćenje gore-dolje u usisnom kanalu mlaznice AquaSpin.

Čišćenje začepljenja s traka za vlaženje mlaznice AquaSpin

Nakon duge i česte uporabe uređaja trake za vlaženje mlaznice AquaSpin mogu se u nekom trenutku začepiti. Slijedite korake u nastavku kako biste uklonili začepljenje s traka za vlaženje mlaznice AquaSpin.

Diagram of a mechanical device with green components and directional arrows, no text or symbols present

1 Uklonite poklopce traka za vlaženje s mlaznice AquaSpin tako da ih pomaknete u stranu.

Diagram of a mechanical device with green arrows indicating movement or force direction (no text or symbols)

2 Uklonite trake za vlaženje s mlaznice AquaSpin tako da ih povučete na stranu.

Illustration of a hand using a tool to clean or wash a blue water bottle (no text or symbols present)

Diagram illustrating sunlight interaction with water droplets and a checkmark, showing red X and green ✓ symbols.

Čišćenje uređaja u položaju samo za usisavanje

Pražnjenje spremnika za prašinu

MAX

Redovito praznite spremnik za prašinu i pazite da prljavština nikada ne prijeđe oznaku „Max“. Time se sprječava ubrzano začepljenje filtra.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

3 Ispraznite spremnik za prašinu u kantu za otpad.

Illustration of a container with liquid and an upward arrow, no text or symbols present

1 Za čišćenje spremnika za prašinu i ciklonske komore uklonite kućište filtra.

Illustration of a container with granular material being poured into a cylindrical container (no text or symbols)

2 Ispraznite spremnik za prašinu u kantu za otpad.

3 Ako je potrebno, uklonite i očistite ciklonsku komoru (vidi 'Čišćenje ciklonske komore').

Diagram showing a hand holding a tool in a container with a warning symbol indicating no liability or failure.

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X mark.

Diagram of a mechanical device with a highlighted component and directional arrow (no text or symbols)

6 Vratite držak 3-u-1 na spremnik za prašinu.

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

A Oprez: nemojte ponovno pričvršćivati držak 3-u-1 na spremnik za prašinu ako u njega nije umetnuto kućište filtra.

Čišćenje ciklonske komore

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

1 Okrenite ciklonsku komoru u smjeru kretanja kazaljke na satu (1) i odvojite je od spremnika za prašinu (2).
2 Uklonite dlake i prljavštinu koja se zaglavila u ciklonskoj komori i ispod nje.

Illustration of a hand pouring liquid into a container with a faucet, no text or symbols present

Safety warning symbol showing water droplets and sun with checkmark indicating failure

i Napomena: uvijek ostavite ciklonsku komoru da se u potpunosti osuši prije nego što je vratite u spremnik za prašinu.

Diagram illustrating a device's internal components with numbered labels and directional arrows indicating motion or flow.

Diagram showing a device with green checkmark indicators and two labeled cross-sectional views of a container or housing.

Circular icon with a stylized white figure inside a golden ring, no text or symbols present.

Kada filtar treba očistiti, na zaslonu se pojavljuje ikona za čišćenje filtra.

Diagram showing a device with a switch and red X symbol indicating no change or failure

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a pipe (no text or symbols)

3 Protresite pjenasti filtar iznad kante za otpad kako biste uklonili sloj prljavštine s vrha filtra od pjene. Zatim isperite filtar od pjene pod mlazom vode iz slavine.

Illustration of a hand holding a small object with curved arrows indicating rotation or movement (no text or symbols)

Illustration of hands removing a plastic bag into a trash bin (no text or symbols)

5 Protresite kućište filtra i poklopac iznad kante za otpad kako biste uklonili prašinu.

Diagram showing a hand holding a device with a wrench and a red X symbol, indicating incorrect operation or status.

6 Očistite držač filtra vlažnom krpom.

A Oprez: nemojte čistiti bijeli materijal poklopca kućišta filtra uobičajenim usisavačem ili četkom. Nemojte čistiti bijeli materijal poklopca kućišta filtra vodom ili nekim sredstvom za čišćenje. To će oštetiti materijal. Bijeli materijal može se otresti iznad kante za otpad.

Diagram showing a device with a water droplet symbol and red X mark indicating failure or absence.

Diagram showing a device with a lid and two labeled parts, marked with green checkmarks and red X.

8 Zatvorite kućište filtra.

Illustration of a hand tool interacting with a device (no text or symbols visible)

Diagram showing a container with a lid and a cross mark, alongside a separate outline of its interior (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X marker.

9 Vratite kućište filtra zajedno s filtrom od pjene natrag u spremnik za prašinu.
A Oprez: pazite da bijeli materijal poklopca kućišta filtra bude okrenut prema gore.
A Oprez: provjerite jesu li kućište filtra i filtar od pjene potpuno suhi prije nego što ih vratite u spremnik za prašinu.

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

10 Vratite držak 3-u-1 na spremnik za prašinu.

A Oprez: nemojte ponovno pričvršćivati držak 3-u-1 na spremnik za prašinu ako u njega nije umetnuto kućište filtra.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

2 Očistite filtar ulaznog otvora krpom ili četkom za čišćenje.

Illustration of a mechanical device with a highlighted lever and sparkles (no text or symbols)

3 Vratite držak 3-u-1 na spremnik za prašinu. Obavezno prvo spojite stražnji dio, a zatim prednji dio tako da sjedne na mjesto uz zvuk „klik”.

Čišćenje valjkaste četke

Diagram illustrating a mechanical or electrical component being adjusted, with labeled parts and directional arrows indicating motion.

1 Povucite prema dolje polugu za zaključavanje na bočnoj strani LED mlaznice (1) i izvucite valjkastu četku iz LED mlaznice (2). Zapetljane dlake ili niti možete ukloniti s valjkaste četke povlačenjem preko četke jednom rukom.

Illustration of hands holding a coiled string with scissors, accompanied by a magnified inset showing a green checkmark (no text or symbols)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

2 Gurnite valjkastu četku natrag u LED mlaznicu (1) i podignite polugu za zaključavanje kako biste zaključali valjkastu četku u LED mlaznicu („klik“).

Diagram of a device with labeled parts and directional arrows indicating movement or assembly

1 Otključajte gumb za otpuštanje na bočnoj strani četke Mini Turbo (1) i izvucite valjkastu četku iz četke Mini Turbo (2).

Illustration of hands manipulating a mechanical component with a spring (no text or symbols)

2 Uklonite dlake i prljavštinu zapetljane oko valjkaste četke.

Diagram showing a mechanical device with labeled parts, including numbered callouts (1 and 2) indicating different components or states.

3 Pritisnite jednu stranu valjkaste četke natrag u četku Mini Turbo (1) i gurnite prema dolje drugu stranu valjkaste četke kako biste je učvrstili u četku Mini Turbo („klik“).

Circular icon with a house silhouette and exclamation mark, labeled 'E3' below (no text or symbols on the icon itself)

Temperatura je previsoka. Pobrinite se da temperatura u prostoriji u kojoj se uređaj upotrebljava, pohranjuje ili puni bude ispod 35 °C. Uređaj nemojte izlagati izravnoj sunčevoj svjetlosti ni visokim temperaturama (npr. u blizini vrućih peći, mikrovalnih pećnica ili indukcijskih kuhala). Baterije mogu eksplodirati ako se pregriju.

Circular icon with battery symbol and question mark, labeled E5 (no text or symbols beyond label)

Baterija je napola umetnuta. Provjerite je li baterija ispravno umetnuta (pogledajte odjeljak „Sastavljanje uređaja u položaj za usisavanje i brisanje“).

Šifre informacija Uzrok Rješenje

Illustration of a cleaning or cleaning process with a faucet, bucket, and tool (no text or symbols)

Circular icon with a white plug symbol and downward arrow, labeled 'i6' at bottom (no text or symbols on the icon itself)

Icon of an electric plug with a lightning bolt and warning symbol, labeled 'i7' below (no text or symbols on the diagram itself)

Spojen je pogrešni punjač. Uređaj punite isključivo s pomoću isporučenog prilagodnika. Upotrebljavajte samo adapter S036-1A340100HE od 34 V. Odgovarajući broj adaptera može se pronaći na adapteru.

Circular icon with battery symbol and question mark, labeled 'i10' below (no readable text or symbols beyond the icon)

Baterija nije umetnuta. Provjerite je li baterija umetnuta (pogledajte odjeljak „Sastavljanje uređaja u položaj za usisavanje i brisanje“).

Ikone Značenje

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating direction (no text or symbols)

Illustration of a green tool with a curved arrow indicating motion, next to a vertical support structure (no text or symbols)

Illustration of a hand holding a spray gun with arrows indicating force or motion (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration showing a hairdryer being inserted into a device, with arrows indicating motion (no text or symbols present)

Illustration of a hand washing machine with arrows indicating force or motion (no text or symbols)

Illustration of a mechanical device with a downward arrow and spray effect (no text or symbols)

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

XV1792 10ml

100° A O +

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

Mechanical assembly diagram showing a clamping mechanism with no visible text or symbols

Safety warning illustration showing a toilet seat with a warning symbol and a red X mark indicating explosion or damage.

Illustration of a mechanical device with a downward arrow and emitting sparks, next to a cylindrical component (no text or symbols)

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram showing a hand using a tool to mark a defect or damage, with an inset highlighting the defect and water release.

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical component (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including a finger and a base, with arrows indicating movement or force.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a bed icon below (no text or symbols)

Illustration of a hairdryer with a cat and dog nearby, showing mechanical components and a close-up of the bed (no text or symbols)

Diagram showing a hand holding a small object with labeled parts, marked as ① and ②.

Illustration of a hand holding a device with a warning symbol and a red 'X' indicating failure or absence (no text or symbols present)

Illustration of a hand holding a flashlight with a downward arrow and light effect (no text or symbols)

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

Diagram showing a tool interacting with a connector, labeled with parts ① and ② indicating different components or functions.

Illustration of a mechanical tool with a water droplet and warning symbols (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and a green downward arrow indicating direction.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three checkmarks and a red X mark, showing steps to process liquid or container.

Illustration of a hand holding a green cylindrical object with an arrow indicating motion (no text or symbols)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and navigation knob (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand using a pressure regulator to lift a cylindrical component (no text or symbols visible)

Illustration of a green mechanical device with an upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand, with no text or symbols present.

Illustration of a faucet pouring liquid into a container with motion lines indicating flow (no text or symbols)

Illustration of a faucet with a green leafy seat and water level indicator (no text or symbols)

Illustration of a mechanical assembly with a pipe inserted, showing components like a valve and a green component (no text or symbols)

Safety warning illustration showing water discharge and sunlight impact with icons for warning, sun, and checkmark

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Illustration of hands holding a drain with blue liquid flowing through it (no text or symbols)

Diagram showing a hand pressing a component with two labeled parts (① and ②) indicating directional movement or assembly.

Diagram showing a hand operating a medical or diagnostic tool with labeled parts ① and ②

Illustration of two hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a syringe with green arrows indicating direction (no text or labels)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical device with green components and directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical assembly with green arrows indicating direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green clip, no text or symbols present

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

Illustration of a container with liquid and an open lid, showing a 3D view (no text or symbols)

Illustration of a wooden tool pouring granular material into a cylindrical container (no text or symbols)

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram illustrating a water drop symbol and a container with red X, indicating water release or discharge.

Diagram of a mechanical device with a highlighted component and directional arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pouring liquid into a container with a faucet, no text or symbols present

Safety warning symbol showing water droplets and sun with checkmark indicating failure

Diagram illustrating a mechanical or electrical process with labeled components and directional arrows

Diagram showing a device with green checkmark indicators and two labeled cross-sectional views of a container.

Circular icon with a stylized white object and exclamation mark inside a black background, enclosed in a gold border (no text or symbols)

Illustration of a mechanical device with a warning symbol (no text or labels present)

Illustration of hands cleaning a trash bin with a water tap (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or movement (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Diagram showing a hand holding a device with a wrench and a red X symbol, indicating incorrect operation or status.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

Diagram showing a device with a lid and two labeled parts, marked with green checkmarks and red X.

Illustration of a hand tool interacting with a device (no text or symbols visible)

Diagram showing a container with a lid and a side view of its internal structure, marked with red X and downward arrow (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X mark.

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, showing component positioning.

Illustration of hands holding a coiled rope with scissors, accompanied by a magnified inset showing a green checkmark (no text or symbols)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and component insertion.

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

2 Tad AquaSpin uzgalim pievienojiet mitro moduli (atskan klikškis).

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

Safety warning illustration showing a robot with an eye and a red X mark indicating no protection

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Illustration of a medical procedure showing a tool tip and a magnified view of a device with motion lines (no text or symbols)

2 Pievienojiet putekjsukšanas spaini caurulei (atskan klikškis).

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical component (no text or symbols)

Diagram of a door handle with a circular button labeled ①, showing no text or symbols beyond the number and an arrow pointing to the handle area.

Safety warning illustration showing a person using a vacuum cleaner with water leakage, marked by an orange warning symbol and a red 'X' indicating failure.

Safety warning illustration showing a spray nozzle spraying liquid with an eye and a tool, accompanied by warning symbols.

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram illustrating a hand operating a tool with warning symbols and a water droplet, indicating incorrect operation or damage.

Diagram showing a hand holding a tool above a device with a spray effect (no text or symbols)

Diagram illustrating a step in a medical procedure involving a finger and a tool, labeled with arrows and numbered steps.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld vacuum cleaner with a bed icon below (no text or symbols)

Illustration of a hairdryer with a cat and a dog nearby, showing powder and cleaning process (no text or symbols)

Diagram showing a mechanical device with labeled parts and directional arrows indicating process steps

Illustration of a hand holding a device with a warning symbol and a red 'X' indicating failure or absence (no text or symbols present)

Illustration of a hand holding a flashlight with a downward arrow and light effect (no text or symbols)

Illustration of a dental tool tip interacting with a cylindrical object, with a magnified inset showing a bench (no text or symbols)

Diagram showing a tool interacting with a connector, labeled with parts ① and ② indicating different components or functions.

Illustration of a mechanical tool with a red X mark and warning symbols (no text or labels)

Diagram showing a robotic arm with labeled parts and directional arrows indicating movement or assembly.

Diagram illustrating a mechanical or electrical component with three circular icons labeled with checkmarks and a red 'X' indicating failure.

Illustration of a hand holding a cylindrical device with a green handle, no text or symbols present

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and a plastic container, likely for safety or inspection.

Illustration of a hand holding a cylindrical device with a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and control panel (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a green mechanical device with an upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand (no text or symbols)

16 Izlejiet üdeni no netirā üdens tvertnes izlietnē.

Illustration of a faucet pouring liquid into a container with water swirling around it (no text or symbols)

Illustration of a faucet releasing water into a green leafy container (no text or symbols)

18 Noskalojiet mitro filtru zem krāna ūdens.

Illustration of a mechanical device with a faucet and lever, showing a close-up inset (no text or symbols)

Diagram illustrating the process of removing a trash bin into a sun, with symbols indicating removal and confirmation.

Technical line drawing of a mechanical component with an upward arrow indicating motion (no text or symbols)

Illustration of hands holding a drain with blue liquid flowing through it (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a hand operating a medical or diagnostic device with labeled parts ① and ②, likely illustrating a procedure or procedure.

Illustration of two hands holding a green object with a black tool, showing a downward arrow (no text or symbols)

Illustration of a hand holding a coiled green object, possibly a medical or mechanical component (no text or symbols)

Diagram of a syringe with directional arrows indicating motion (no text or labels)

Illustration of a vacuum cleaner with green directional arrows indicating motion (no text or symbols)

Diagram of a robotic vacuum cleaner with green sensor components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with green arrows indicating movement or force direction (no text or symbols)

Illustration of a hand holding a blue faucet with a green handle, placed on a surface (no text or symbols)

Diagram illustrating sunlight interaction with water droplets and a checkmark, showing red X and green ✓ symbols

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

2 Nonemiet filtra pârsegu nost no puteklu tvertnes.

Illustration of a hand pouring granular material into a cylindrical container (no text or symbols)

3 Iztukšojiet puteklu tvertni atkritumu spainī.

Diagram showing a container with a lid and an arrow indicating downward motion (no text or symbols)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a cylindrical container (no text or symbols)

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram illustrating a water drop symbol and its impact on a container with a red X mark, alongside a magnified view of the container's internal structure.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Circular icon with a stylized white object resembling a keyhole or plug, enclosed in a golden ring (no text or symbols)

Diagram illustrating two steps of a food storage or processing device, labeled ① and ②, showing step ① with internal components and step ② with directional arrows.

1 Nonemiet filtra pärsegu nost no puteklu tvertnes.

3D diagram of a mechanical device with a highlighted switch symbol (no text or labels)

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a pipe (no text or symbols)

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

4 Saspiediet putu filtru, lai izspiestu üdeni.

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand holding a valve with a red 'X' symbol, indicating no text or symbols in the image.

Diagram showing a device with a water droplet symbol and red X mark indicating failure or absence.

Diagram showing a device with a lid and two labeled cross-sections, one marked with red X and green checkmark.

Illustration of a hairpin with a lever and base, showing no text or symbols

8 Aizveriet filtra apvalku.

Diagram showing a container with a lid and a green checkmark indicating a drop, alongside an arrow pointing downward (no text or symbols)

Diagram showing a container with a lid and a cross mark indicating failure, alongside a separate view of the container with arrows (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a red X, indicating water release or discharge.

9 lelieciet filtra apvalku ar putu filtru atpakal puteklu tvertnē.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow component into a mechanical device (no text or symbols)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram showing a hand holding a tool with two labeled parts, illustrating a mechanical or electrical process.

Illustration of hands holding a coiled string with a magnified inset showing a hand holding a plant stem (no text or symbols)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands manipulating a mechanical component with a spring (no text or symbols)

2 Nonemiet matus un netirumus, kas ir uzkräjušies ap rulliša suku.

Diagram showing a device with labeled parts, including numbered arrows and motion indicators

Circular icon with a house silhouette and thermometer symbol, labeled 'E2' below (no text or symbols on the icon itself)

Circular icon with a house silhouette and exclamation mark, labeled 'E3' below (no text or symbols on the icon itself)

Circular icon with battery symbol and question mark, labeled E5 (no text or symbols beyond label)

Illustration of a water spray gun system with a faucet and bucket, showing mechanical components (no text or symbols)

Circular icon with a plug symbol and downward arrow, labeled 'i6' at bottom (no text or symbols on the icon itself)

Icon of an electric plug with a lightning bolt and warning symbol, labeled 'i7' below (no text or symbols on the diagram itself)

Circular icon with battery symbol and question mark, labeled 'i10' below (no readable text or symbols beyond the icon)

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating direction (no text or symbols)

Illustration of a hand holding a tool with a green tool, showing a curved arrow indicating motion (no text or symbols present)

Illustration of a hand holding a spray gun with arrows indicating motion (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

100° A O +

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Illustration of a mechanical device with a downward arrow and emitting sparks (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical component (no text or symbols)

Diagram of a door lock mechanism with a numbered button and arrow indicator (no text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with water leakage, marked by an orange warning symbol and a red 'X' indicating failure.

Safety warning illustration showing a spray nozzle spraying liquid with an eye and a red X mark indicating no need.

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram illustrating a hand using a tool to mark a defect or damage, with warning symbols and a red 'X' indicating failure.

Illustration of a hand holding a cylindrical object with a downward arrow, next to a device with a flame (no text or symbols)

Diagram illustrating a step in a medical procedure involving a tool and a device, labeled with arrows and numbered steps.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bed (no text or symbols)

Illustration of a hairdryer with a cat and dog nearby, showing mechanical components and a close-up of the bed (no text or symbols)

Diagram showing a device being inserted into a container, labeled with steps ① and ②.

Illustration of a hand holding a device with water droplets and a warning symbol (no text or labels)

Illustration of a dental implant tool interacting with a small object, showing no text or symbols.

Diagram showing a tool interacting with a wire, labeled with parts ① and ② indicating different states or functions.

Safety warning illustration showing a tool with water droplets and an orange warning symbol

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and a green downward arrow indicating direction.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and a plastic container, likely for safety or inspection.

Illustration of a hand holding a cylindrical device with a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and circular dial (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and arrow indicating upward motion (no text or symbols)

Simple line drawing of a pouring container into a stand, no text or symbols present

Illustration of a faucet pouring liquid into a beaker with water swirling around it (no text or symbols)

Illustration of a faucet releasing water into a green leafy container on a sink (no text or symbols)

Illustration of a mechanical device with a faucet and a green component, no text or symbols present

Diagram illustrating the process of a solar-powered trash bin with water droplets and sunlight, showing rejection and acceptance symbols.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands washing a car with blue liquid from a pipe (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or flow direction.

Diagram showing a hand operating a device with labeled parts ① and ②, likely illustrating a mechanical or electrical component.

Illustration of two hands holding a green object with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical device with green components and directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical assembly with green arrows indicating direction (no text or symbols)

Illustration of a hand cleaning a faucet with a green tool on the handle (no text or symbols)

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly steps

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a glass bowl (no text or symbols)

Illustration of a container with liquid and an open lid, showing a 3D view (no text or symbols)

Illustration of a wooden tool pouring granular material into a cylindrical container (no text or symbols)

Diagram showing a hand holding a tool in a container with a warning symbol indicating no text or symbols.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pouring liquid into a container with a faucet (no text or symbols)

Weather forecast diagram showing sun and rain symbols with a checkmark indicating completion

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating motion or assembly.

Diagram showing two views of a device with green checkmarks indicating approval or rejection, alongside a magnified view of the device's internal components.

Circular icon with a stylized ear and exclamation mark, no text or symbols present

Illustration of a container with liquid and an upward arrow, no text or symbols present

Diagram of a device component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a device with a switch symbol and red X mark indicating no change or error

Illustration of hands cleaning a trash bin with a water tap (no text or symbols)

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean or repair a device, with a warning symbol indicating no error.

Diagram showing a device with a water droplet and a red X mark indicating a specific component or failure.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Illustration of a hand pouring liquid into a container with a spray bottle (no text or symbols)

Illustration of a beige plastic container with a red X mark and downward arrow, alongside a smaller outline of its side panel (no text or symbols)

Technical diagram of a mechanical component with numbered callouts indicating parts of motion or assembly.

Diagram of a mechanical assembly with a golden component inserted into a housing (no text or symbols visible)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical or electrical component being inserted into a device, with labeled parts ① and ②.

Illustration of hands holding a coiled string with a magnified inset showing a green checkmark (no text or symbols)

Diagram illustrating a mechanical or electrical component being inserted into a device, labeled with parts 1 and 2.

Diagram of a device with labeled parts and directional arrows indicating movement or assembly

Illustration of a hand connecting a cable to a mechanical component (no text or symbols)

Diagram showing a robotic arm with labeled parts, including numbered callouts (1 and 2) indicating different states or functions.

Circular icon with a stylized vehicle or device symbol, no readable text or labels

Circular icon with a stylized pen and wrench symbol, no text or numbers present

Circular icon with a white hand-painted object and circular arrow, no text or symbols present.

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly steps with arrows indicating direction (no text or symbols)

Illustration of a green tool with a curved arrow indicating motion or force, mounted on a vertical support structure (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force, no text or symbols present

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

100° A O +

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Illustration of a mechanical device emitting exhaust smoke from a cylindrical component (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical component (no text or symbols)

Diagram of a door handle with a circular button labeled ①, showing no text or symbols beyond the number and an arrow pointing to the handle (no readable text or symbols)

Safety warning illustration showing a person using a vacuum cleaner with water leakage, accompanied by an orange warning symbol and a red 'X' indicating no damage.

Safety warning illustration showing a spray nozzle spraying water with an eye and a red X symbol indicating no protection.

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols visible)

Diagram illustrating a hand using a tool to mark a defect or damage, with warning symbols and a red 'X' indicating failure.

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical component (no text or symbols)

Diagram illustrating a step in a medical procedure involving a finger insertion and a foot positioning technique.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a sleeping bed (no text or symbols)

Illustration of a hairdryer with a cat and a dog nearby, showing powder and cleaning process (no text or symbols)

Diagram showing a tool being inserted into a container, labeled with steps ① and ② indicating process flow.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a dental implant tool interacting with a small object, showing no text or symbols.

Diagram showing a tool interacting with a cable, labeled with parts ① and ② indicating different states or functions.

Illustration of a mechanical device with a water droplet and warning symbols (no text or labels)

Diagram showing a mechanical assembly with labeled parts and directional arrows indicating motion or assembly steps.

Diagram illustrating a mechanical assembly with checkmarks and a red X mark indicating failure or rejection points.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and a plastic container, likely for safety or inspection.

Illustration of a hand holding a cylindrical device with a green arrow pointing to it, no text or symbols present.

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and navigation knob (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a beaker with water swirling around it (no text or symbols)

Illustration of a faucet releasing water into a green leafy container on a sink (no text or symbols)

Illustration of a mechanical device with a faucet and lever, showing assembly or cleaning process (no text or symbols)

Diagram illustrating the process of removing a trash bin into a sun, with symbols indicating removal and confirmation.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue flame (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or states.

Illustration of two hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating force direction (no text or symbols)

Diagram of a mechanical device with green components and directional arrows indicating movement (no text or symbols)

Technical diagram of a mechanical assembly with green arrows indicating direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green clip, no text or symbols present

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

Illustration of a container with liquid and an open lid, showing a 3D view (no text or symbols)

Illustration of a wooden tool pouring granular material into a cylindrical container (no text or symbols)

Diagram showing a hand holding a tool in a container with a warning symbol indicating no text or symbols.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pouring liquid into a container with a faucet (no text or symbols)

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a device with green checkmark indicators and two circular components, one marked with red X and one with green checkmark.

Circular icon with a stylized white hand and exclamation mark inside a black circle (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

Diagram of a device component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a device with a switch symbol and red X mark indicating no change or error

Illustration of hands cleaning a trash bin with a water tap (no text or symbols)

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean or repair a device, with a warning symbol indicating no error.

Diagram showing a device with a water droplet and a red X mark indicating a specific component or failure.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Illustration of a hairpin with a handle and spout, no text or symbols present

Illustration of a beige plastic container with a red X mark and downward arrow, alongside a smaller outline of its side panel (no text or symbols)

Illustration showing two steps to reduce a toilet seat, with water droplets and warning symbols indicating no need.

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram of a mechanical assembly with a golden component inserted into a housing (no text or symbols visible)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and component insertion.

Illustration of hands holding a coiled string with a magnified inset showing a green checkmark (no text or symbols)

Diagram illustrating a mechanical or electrical component being inserted into a device, labeled with parts 1 and 2.

Diagram of a device with labeled parts and directional arrows indicating movement or assembly.

Illustration of hands manipulating a mechanical component with a spring (no text or symbols)

Diagram showing a device with labeled parts, including numbered callouts (1 and 2) indicating different components or functions.

Circular icon with a house silhouette and thermometer symbol, labeled 'E2' below (no text or numbers on the icon itself)

Circular icon with a battery symbol and a question mark, labeled 'E5' below (no text or symbols on the icon itself)

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating direction of movement (no text or symbols)

Illustration of a medical or surgical tool with a green tool and arrow indicating motion (no text or symbols)

Illustration of a hand holding a device with arrows indicating motion or force (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

XV1792 10ml

Illustration of a green plastic container with a downward arrow indicating flow or process (no text or symbols)

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Close-up of a black door handle with a circular icon labeled ①, showing no text or symbols beyond the label.

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no error or absence.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Safety warning illustration showing a hand cleaning a surface with an eye and a tool, accompanied by warning symbols.

Illustration of a hand holding a handheld device above a cabinet (no text or symbols visible)

Diagram illustrating a hand operating a tool with warning symbols and a water droplet, indicating incorrect operation or damage.

Diagram showing a hand holding a tool above a device with a flame symbol, no text or labels present

Diagram illustrating a step in a medical procedure involving a finger insertion or manipulation, labeled with steps ① and ②.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bedroom (no text or symbols)

Illustration of a handheld vacuum cleaner emitting exhaust from a tank, with icons for cat and dog (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including steps 1 and 2.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a medical or laboratory procedure showing a tool interacting with a bottle and a bench, with no visible text or symbols.

Diagram showing a tool interacting with a small mechanical component, labeled with parts 1 and 2.

Illustration of a mechanical tool with a red 'X' mark and an orange warning symbol (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical device with three circular indicators (red, green, black) and checkmarks indicating failure or completion.

Illustration of a hand pouring liquid into a vertical pipe with a green container, showing a right-hand arrow (no text or symbols)

Illustration of a mechanical device with a green arrow indicating upward motion (no text or symbols)

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a mechanical device with a green handle and arrow indicating downward motion (no text or symbols)

Diagram showing two hands installing a green cylindrical component with directional arrows labeled ① and ②, likely illustrating a mechanical or electrical assembly.

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

Diagram illustrating a process with three circular indicators (green check, green check, red X) and a downward arrow, likely indicating a step or condition.

Illustration of a remote control device with a switch and control panel (no text or symbols)

Illustration of a hand pouring liquid into a vertical cylindrical container with a green handle, showing a right-hand rule (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a beaker with swirling lines indicating flow (no text or symbols)

Illustration of a faucet pouring liquid into a leafy green leaf on a tiled floor (no text or symbols)

Illustration of a mechanical device with a faucet and lever, showing assembly or maintenance (no text or symbols)

Diagram illustrating sunlight impact on a trash bin, showing water droplets and sun symbol with checkmark indicating no change.

Illustration of a mechanical device with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a green cylindrical object with a blue belt, attached to a vertical pipe (no text or symbols)

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram showing mechanical assembly with numbered parts and directional arrows indicating motion or movement

Diagram showing three cylindrical components mounted on a base with a downward arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands pouring liquid into a container with blue flow lines (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a mechanical device with labeled parts, including numbered callouts (① and ②) indicating different components or functions.

Illustration of two hands holding a green object with a downward arrow, no text or symbols present

Illustration of two hands holding a coiled green object, no text or symbols present

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a robotic arm with green tool handle and green guide rails, showing motion direction (no text or symbols)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green handle, no text or symbols present

Diagram illustrating sunlight interaction with water droplets and a checkmark, showing red X and green ✓ symbols.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a mechanical component pouring granular material into a cylindrical container (no text or symbols)

Diagram showing a hand holding a container with a warning symbol indicating no hazard, alongside a red 'X' symbol.

Diagram showing a container with a water droplet and a warning symbol, indicating a hazard or failure.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Circular icon with a stylized white object resembling a keyhole or plug, enclosed in a golden ring (no text or symbols)

Diagram illustrating two steps of a food storage or processing device, labeled ① and ②, showing step ① with internal components and step ② with directional arrows.

3D diagram of a mechanical device with a switch symbol and red X mark, no text or labels present

Illustration of a hand pouring liquid into a trash bin with a water tap, no text or symbols present

Illustration of a hand holding a small object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Diagram showing a hand cleaning a device with a wrench and a red 'X' symbol, indicating no text or symbols.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

Diagram showing a device with a lid and two labeled boxes, one marked with a red X and green checkmark, indicating selection or status.

Illustration of a hairpin with a lever and base, showing no text or symbols

8 Sluit de filterbehuizing.

Diagram showing a container with a lid and a green checkmark indicating a drop, alongside an arrow pointing downward (no text or symbols)

Diagram showing a container with a lid and a cross mark, alongside a separate outline of its interior (no text or symbols)

Diagram showing a container with a lid and a drop labeled with red X, indicating a warning or rejection symbol.

Safety warning illustration showing a toilet seat with an orange warning symbol and a red X mark indicating explosion or damage.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow component into a mechanical device (no text or symbols)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical assembly step with labeled parts and directional arrows indicating motion or movement.

Illustration of hands tying a rope knot with scissors, showing a checkmark (no text or symbols present)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands manipulating a mechanical component with a directional arrow (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Circular icon with a house silhouette and thermometer symbol, labeled 'E2' below (no text or numbers on the icon itself)

Circular icon with a battery symbol and a question mark, labeled 'E5' below (no text or symbols on the icon itself)

www.philips.com/myvacuum9000s.

Diagram of a mechanical device with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical joint configurations with arrows indicating movement (no text or symbols)

Illustration of a hand holding a tool with a green arrow indicating motion (no text or symbols)

Illustration of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration showing a hairdryer being inserted into a device, with arrows indicating motion (no text or symbols present)

Technical diagram showing three-step assembly steps of a mechanical device, labeled with numbered components and directional arrows.

Safety warning illustration showing a robot with an eye and a red X mark indicating no protection

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a toilet with warning symbol and red X mark indicating no need

Illustration of a mechanical device emitting exhaust smoke from a cylindrical component (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical tube (no text or symbols)

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Tips: Det er også mulig å feste mini turbobørsten til slangen.

Diagram illustrating a hand operating a tool with warning symbols and a water droplet, indicating incorrect operation or damage.

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical component (no text or symbols)

Diagram illustrating a step in a medical procedure involving a tool and a foot, labeled with arrows ① and ②.

Illustration of a handheld device with a circular inset showing a bed (no text or symbols)

Illustration of a hairdryer with a cat and dog nearby, showing no text or symbols

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a procedure or step in a process.

Illustration of a hand holding a device with a warning symbol and a red 'X' indicating failure or absence (no text or symbols present)

Advarsel: Ikke sug opp vann eller andre væsker.

Illustration of a hand holding a flashlight with a downward arrow and light effect (no text or symbols)

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

Diagram showing a tool interacting with a connector, labeled with parts ① and ② indicating different components or functions.

Illustration of a mechanical tool with a red X mark and warning symbols (no text or labels)

Advarsel: Ikke sug opp vann eller andre væsker.

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly steps.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and a green downward arrow indicating direction.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, red X) and arrows indicating direction of action or completion.

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

MAX 35 °C MIN 5 °C

8 Hell ut resterende flytende vaskemiddel fra rentvannsbeholderen i vasken.

Illustration of a remote control device with a handle and control panel (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

12 For å starte AUTOCLEAN-syklusen trykker du på knappen i midten. Hvis du ser en svart skjerm, trykker du på av/på-knappen först for å aktivere skjermen.

Simple line drawing of a pouring container into a stand, no text or symbols present

16 Hell vannet ut av spillvannsbeholderen i vasken.

Illustration of a faucet pouring liquid into a container with motion lines indicating flow (no text or symbols)

Illustration of a faucet with a green leaf inside, showing water level and a small circular symbol (no text or labels)

Illustration of a mechanical device with a faucet and lever, showing a close-up inset (no text or symbols)

Diagram illustrating the process of a solar-powered trash bin with water droplets and sunlight, showing rejection and acceptance conditions.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands washing a car with blue liquid from a pipe (no text or symbols)

Diagram showing a mechanical device with numbered components and directional arrows indicating motion or flow.

Diagram showing a hand operating a device with labeled parts ① and ②, likely illustrating a mechanical or electrical component.

Illustration of two hands holding a green object with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical device with green components and directional arrows indicating movement (no text or symbols)

Diagram of a mechanical device with green arrows indicating movement or force direction (no text or symbols)

Illustration of a hand using a blue faucet to clean a green object on a surface (no text or symbols)

3 Skyll fuktstripene under springen.

Diagram illustrating sunlight interaction with water droplets and a checkmark, showing red X and green ✓ symbols.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

3 Tøm støvbeholderen i søppelkassen.

Illustration of a container with a lid and an upward arrow, showing internal structure (no text or symbols)

Illustration of a wooden tool pouring granular material into a cylindrical container (no text or symbols)

2 Tøm støvbeholderen i søppelkassen.

Diagram showing a hand holding a tool in a container with a warning symbol indicating no text or symbols.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand pouring liquid from a water bottle into a container (no text or symbols)

Diagram illustrating sunlight and water droplets, showing a sun icon transforming into a droplet with water droplets and a checkmark.

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating rotation or assembly.

Diagram showing two views of a device with green checkmarks indicating approval or rejection, alongside a magnified view of the device's internal components.

Circular icon with a stylized white figure and exclamation mark inside, set against a dark background (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

Diagram of a device component with numbered parts and directional arrows indicating movement or flow.

3D diagram of a mechanical device with a switch symbol and red X mark (no text or labels)

Illustration of hands cleaning a trash bin with a water tap (no text or symbols)

3 Rist skumfilteret over søppelkassen for å fjerne smusslaget på toppen av skumfilteret. Skyll deretter skumfilteret under springen.

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean or repair a mechanical component, with a red 'X' symbol indicating no text.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Illustration of a hand holding a tool above a mechanical component with no visible text or symbols

8 Lukk filterhylsen.

Diagram showing a container with a lid and a cross mark, alongside a downward arrow indicating process (no text or symbols)

9 Sett filterhylsen, inkludert skumfilteret, tilbake i støvbeholderen.

Diagram illustrating a water drop symbol and its impact on a plastic container with an arrow indicating reduction.

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow component into a mechanical device (no text or symbols)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical or electrical component being inserted into a device, with labeled parts ① and ②.

Illustration of hands holding a coiled string with a magnified inset showing a green checkmark (no text or symbols)

Diagram illustrating a mechanical or electrical component being inserted into a device, labeled with parts ① and ②.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands manipulating a mechanical component with a spring (no text or symbols)

Diagram showing a device with labeled parts, including numbered callouts (① and ②) indicating different components or functions.

Diagram of a mechanical component with a vertical rod and base, no text or symbols present

Diagram showing two mechanical components with arrows indicating motion, no text or symbols present

Illustration of a green screwdriver holding a vertical pole with a curved arrow indicating motion (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a medical or laboratory procedure showing a needle inserted into a device with a magnified view of the needle (no text or symbols present)

Diagram showing a robotic arm with labeled parts and directional arrows indicating movement or assembly.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Illustration of a mechanical device with a downward arrow and emitting sparks, next to a cylindrical component (no text or symbols)

Technical diagram illustrating four steps of a hair vacuum cleaner installation, labeled with numbered instructions.

Illustration of a plug with a cable and a socket, no text or symbols present

100%

Line drawing of a mechanical component with no visible text or symbols

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical device (no text or symbols)

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a vertical cylindrical device with a green arrow pointing to the handle (no text or symbols present)

Diagram of a door handle with a black panel and a circular button labeled ① (no text or symbols on the main object)

100° A O +

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

Mechanical component diagram showing a lever mechanism with motion arrow (no text or symbols)

Safety warning illustration showing a toilet seat with an orange warning symbol and a red X mark indicating no need.

Safety warning illustration showing a hand cleaning a surface with an eye and a tool, accompanied by warning symbols.

Illustration of a handheld device mounted on a cabinet (no text or symbols visible)

Diagram showing a hand using a tool to mark a defect or damage, with an inset highlighting the water level and warning symbols.

Illustration of a hand holding a tool with a magnified view of a device (no text or symbols)

Diagram illustrating a step in a medical procedure involving a finger insertion or manipulation, labeled with steps ① and ②.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bedroom (no text or symbols)

Illustration of a handheld vacuum cleaner emitting exhaust from a tank, with icons for cat and dog (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including steps 1 and 2.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a medical or laboratory procedure showing a pipette inserted into a cylindrical container with a magnified inset showing a bench (no text or symbols present)

Diagram showing a tool interacting with a small mechanical component, labeled with parts 1 and 2.

Illustration of a mechanical tool with a red 'X' mark and an orange warning symbol (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a test tube with force application and three circular indicators showing different conditions: no force, check, and check-in.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and arrow indicating upward motion (no text or symbols)

Simple line drawing of a pouring container into a stand, with no text or symbols present.

Diagram of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram showing two hands installing a green cylindrical component with directional arrows labeled ① and ②.

Diagram showing a green mechanical component above a white cylindrical container with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

Diagram illustrating a process with checkmarks and a red X mark, showing steps to process a container with liquid and a bag of contents.

Illustration of a hand holding a green cylindrical device with a green arrow pointing to it (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and control panel (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green container (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a container with swirling lines indicating flow (no text or symbols)

Illustration of a faucet pouring liquid into a leafy green leaf on a tiled floor (no text or symbols)

Illustration of a mechanical device with a faucet and lever, showing assembly or maintenance (no text or symbols)

Safety warning illustration showing water drop, sun, and checkmark symbols

Illustration of a mechanical device being adjusted for a cylindrical component, showing the top panel and side view with arrows indicating motion (no text or symbols present)

Diagram showing a mechanical device with labeled parts, including numbered callouts (① and ②) indicating specific components.

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or functions.

Diagram of a mechanical component with three cylindrical parts and a downward arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands pouring liquid into a container with blue flow lines (no text or symbols)

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a hand operating a tool with labeled parts, including numbered callouts ① and ②.

Illustration of hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical assembly with green components and directional arrows, no text or symbols present

Technical illustration of a mechanical assembly with green arrows indicating motion direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green handle, no text or symbols present

Weather symbol and weather icons showing sun, raindrops, and checkmark indicators

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a glass cup (no text or symbols)

Diagram showing a hand holding a container with a switch and a red 'X' symbol indicating no change or failure.

Diagram showing a container with a lid and a red X mark indicating a defect or failure, alongside a magnified view of the container's interior.

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a toilet with an orange warning sign and a red X mark indicating explosion or damage.

Circular icon with a stylized white object resembling a keyhole or plug, enclosed in a golden ring (no text or symbols)

Diagram illustrating two steps of a food storage or cleaning device, labeled ① and ②, showing step ① with internal components and directional arrows.

3D diagram of a mechanical device with a switch symbol (no text or labels)

Illustration of a hand pouring liquid into a trash bin with a water tap nearby (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean a device with a valve symbol and red X mark indicating no change.

Diagram showing a device with a water droplet and a warning symbol indicating no need for cleaning or repair.

Diagram showing a device with a lid and a crosshair indicating failure, alongside a panel with checkmarks.

Illustration of a hand tool interacting with a device, showing motion lines (no text or symbols)

Illustration of a container with a lid and a checkmark indicating selection, alongside an arrow showing downward motion (no text or symbols)

Illustration of a beige plastic container with a red X mark and downward arrow, alongside a wireframe view of its interior (no text or symbols)

Diagram showing a container with a water droplet and a drop, indicating a warning or failure condition.

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Technical diagram of a mechanical component with numbered parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, showing step 1 and step 2.

Illustration of hands tying a rope knot with scissors, showing a magnified view of the knot being held (no text or symbols present)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands connecting a mechanical component with a spring (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Icon of a house with a thermometer and warning sign, labeled E2 (no text or symbols beyond the icon itself)

Circular icon with battery symbol and question mark, labeled E5 (no text or symbols beyond label)

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical components with directional arrows indicating movement or assembly (no text or symbols)

Illustration of a green tool with a curved arrow indicating motion, next to a vertical support structure (no text or symbols)

Illustration of a hand holding a spray gun with arrows indicating motion (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

2 Encaixe o módulo húmido no bocal AquaSpin (ouve-se um estalido).

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

100° a b c

Safety warning illustration showing a robot with an eye and a red X mark indicating no protection

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Illustration of a medical or laboratory procedure showing a tool tip and a magnified view of a device (no text or symbols present)

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram illustrating a hand operating a tool with warning symbols and a water droplet, indicating incorrect operation or damage.

Illustration of a hand using a tool to press down a cylindrical object, with no text or symbols present.

Diagram showing a hand holding a tool with labeled parts, including a finger and a base, with arrows indicating movement or force.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

1 Para encaixar a miniescova turbo, insira o tubo do aspirador portátil na miniescova turbo.

Illustration of a handheld device with a circular inset showing a bed (no text or symbols)

Illustration of a hairdryer with a cat and dog nearby, showing no text or symbols

Diagram showing a device being inserted into a container, labeled with steps ① and ②.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

Diagram showing a tool interacting with a wire, labeled with parts ① and ② indicating different states or functions.

Safety warning illustration showing a tool with water droplets and an orange warning symbol

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly steps.

Diagram illustrating a mechanical or electrical component with three circular indicators (✓, +, -) indicating inspection or status.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with checkmarks and a red X mark, showing steps to process liquid or container with directional arrows.

Illustration of a hand holding a cylindrical device with a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a switch and navigation knob (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand holding a cylindrical device with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, partially submerged in liquid (no text or symbols)

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a beaker with water swirling around it (no text or symbols)

Illustration of a faucet releasing water into a green leafy container on a sink (no text or symbols)

Illustration of a mechanical device with a faucet and a green component, no text or symbols present

Diagram illustrating the process of a solar-powered trash bin with water droplets and sunlight, showing rejection and acceptance conditions.

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue flame (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or states.

Illustration of two hands holding a green object with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a syringe with directional arrows indicating motion (no text or labels)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a mechanical assembly with green components and directional arrows, no text or symbols present

Technical diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green tool inserted (no text or symbols)

Diagram illustrating sunlight interaction with two containers, showing water droplets and a sun symbol, with red 'X' indicating no change and green checkmark indicating completion.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a container with granular material being poured into a cylindrical container (no text or symbols)

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red 'X' indicating the water level.

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

Illustration of a hand using a pipette to lift a cup (no text or symbols present)

Safety warning illustration showing a warning symbol with an orange exclamation mark, a sun icon, and a checkmark indicating failure.

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a toilet with green checkmark indicators and two side-view views of the toilet's internal components.

Circular icon with a stylized white symbol inside a black ring, featuring a plus sign and exclamation mark (no text or numbers)

Diagram showing a device with a switch and a red X symbol indicating no change or error

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a pipe (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Diagram showing a hand cleaning a device with a warning symbol indicating no text or symbols.

Diagram showing a device with a water droplet and a red X mark indicating a defect or failure.

Diagram showing a device with checkmarks and a red X mark indicating failure or rejection, alongside a separate diagram of two rectangular objects.

Illustration of a hand tool interacting with a device (no text or symbols visible)

Diagram showing a container with a lid and a side view of its internal structure, marked with red X and downward arrow (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a red X mark, accompanied by a downward arrow.

Safety warning illustration showing a device with a warning symbol and a red X mark indicating explosion or damage.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

2 Limpe o filtro de entrada com um pano ou a escova de limpeza.

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, likely illustrating a process or assembly.

Illustration of hands tying a rope knot with scissors, showing a checkmark (no text or symbols present)

Diagram illustrating a mechanical or electrical component being inserted into a motor, with labeled parts ① and ②.

www.philips.com/myvacuum9000s.

Descriere generală

Diagram of a mechanical device with arrows indicating motion or force, no text or symbols present

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration showing a hairdryer being inserted into a device, with arrows indicating motion (no text or symbols)

Technical diagram showing three-step assembly steps of a mechanical device, labeled with numbered components and directional arrows.

Illustration of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Illustration of a hand holding a cylindrical object with a downward arrow, next to a rolled-up sheet (no text or symbols)

Illustration of a hand holding a green cylindrical device with a downward arrow indicating motion (no text or symbols)

XV1792 10ml

Illustration of a green plastic container with a downward arrow indicating flow or change (no text or symbols)

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Close-up of a black door handle with a circular button labeled ①, no text or symbols present.

Safety warning illustration showing a hand holding a device with an eye and a red X mark indicating no protection.

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and a red X mark indicating failure or hazard.

Illustration of a robotic vacuum cleaner performing a manual press operation (no text or symbols present)

Close-up of a black door handle with a circular button labeled ①, showing no text or symbols beyond the number and an arrow pointing to the handle area.

Safety warning illustration showing a person using a vacuum cleaner with water droplets and a red 'X' symbol indicating no need.

Safety warning illustration showing a hand cleaning a surface with an eye and a tool, accompanied by warning symbols.

Illustration of a handheld device mounted on a cabinet (no text or symbols visible)

Diagram showing a hand using a tool to mark a defect or damage, with an orange warning sign and a red 'X' indicating failure.

Illustration of a hand holding a tool above a vacuum cleaner (no text or symbols)

Diagram illustrating a step in a procedure involving a finger pressing down on a cylindrical object, labeled with steps ① and ②.

Illustration of a medical or laboratory procedure showing a tool tip falling into a small component with motion lines indicating force (no text or symbols present)

Illustration of a handheld device with a circular inset showing a bedroom (no text or symbols)

Illustration of a handheld electric shock absorber with a cat and dog nearby (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including steps 1 and 2.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a medical or laboratory procedure showing a needle inserted into a cylindrical container with a magnified inset showing a bench (no text or symbols present)

Diagram showing a tool interacting with a small mechanical component, labeled with parts 1 and 2.

Illustration of a mechanical tool with a water droplet and warning symbols (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical or electrical component with three circular icons labeled with checkmarks and a red X, indicating status or inspection points.

Illustration of a hand pouring liquid into a vertical cylindrical container with a green valve, showing a right-hand rule (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand, no text or symbols present

Illustration of a mechanical component with a downward arrow indicating motion (no text or symbols)

Diagram showing two hands installing a green cylindrical component with directional arrows labeled ① and ②.

Diagram showing a green mechanical component above a white cylindrical container with an upward arrow indicating motion (no text or symbols)

Simple line drawing of a cup pouring liquid into a container (no text or symbols)

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and arrows indicating direction.

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Illustration of a plug with an arrow indicating direction (no text or symbols)

Illustration of a remote control device with a circular dial and scroll icon (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical tube with a green handle (no text or symbols)

Illustration of a mechanical device with an upward arrow indicating motion or force (no text or symbols)

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a container with swirling lines indicating flow (no text or symbols)

Illustration of a faucet pouring liquid into a leafy green leaf on a tiled floor (no text or symbols)

Illustration of a mechanical device with a faucet and lever, showing assembly or maintenance (no text or symbols)

Safety warning illustration showing water drop, sun, and checkmark symbols

Illustration of a mechanical device being adjusted for a cylindrical component, showing the top panel and side view with arrows indicating motion (no text or symbols present)

Diagram showing a mechanical device with numbered parts and directional arrows indicating motion or assembly.

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or functions.

Diagram showing three cylindrical components mounted on a base with a downward arrow indicating rotation (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands using a faucet to lift a blue liquid in a container (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a hand operating a tool with labeled parts, including numbered callouts ① and ②.

Illustration of hands holding a green object with a green arrow indicating direction (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a robotic arm with green tool handle and green guide rails, showing motion direction (no text or symbols)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a hand washing a blue faucet with a green handle, placed on a sink (no text or symbols)

Diagram illustrating sunlight interaction with water droplets and a sun, showing red X and green checkmark indicators

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a glass cup (no text or symbols)

Diagram showing a hand holding a container with a warning symbol indicating no chemical hazard, accompanied by a red 'X' symbol.

Diagram showing a container with a lid and a water droplet symbol, indicating a warning or inspection condition.

Illustration of a mechanical device with a highlighted lever and motion arrow (no text or symbols)

Safety warning illustration showing a toilet seat with warning symbol and red X mark indicating explosion or damage

Diagram illustrating a mechanical device with labeled parts and a water tap, showing step-by-step assembly.

Safety warning symbol showing a sun icon with water droplets and a checkmark, indicating improved safety.

Diagram of a device with labeled parts showing a rotating knob and a base with heat source

Diagram showing two views of a water dispenser with checkmarks and a red X symbol indicating failure or rejection.

Circular icon with a stylized white symbol inside a black ring, featuring a plus and exclamation mark (no text or numbers)

Diagram illustrating two steps of a food storage or processing device, labeled ① and ②, showing step ① with internal components and directional arrows.

Diagram of a device with a warning symbol indicating no protection or disapproval

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a pipe (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Illustration showing a hand using a tool to clean a car with a water level symbol and red X mark indicating no damage.

Diagram showing a device with a water droplet symbol and red X, indicating a water droplet failure.

Diagram showing a device with a lid and two labeled parts, marked with red 'X' and green checkmarks.

Illustration of a hand tool interacting with a device, showing spray application (no text or symbols)

Diagram showing a container with a lid and a cross mark indicating failure, alongside a schematic of its internal structure (no text or symbols)

Diagram illustrating a water drop symbol and its impact on a container with a downward arrow, accompanied by a red X marker.

Safety warning illustration showing a toilet seat with an orange warning symbol and a red X mark indicating explosion or damage.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

Illustration of a mechanical device with a lever and base, showing motion direction (no text or symbols)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

Illustration of hands tying a rope knot with scissors, showing a magnified view of the knot being held (no text or symbols present)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands manipulating a mechanical component with a directional arrow (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

Icon of a house with a thermometer and warning triangle, labeled E2 (no text or symbols beyond label)

Circular icon with battery symbol and question mark, labeled E5 (no text or symbols beyond label)

Circular icon with a plug and lightning bolt symbol, labeled 'i7' below (no text or symbols on the diagram itself)

Circular icon with a document and question mark, labeled 'i10' below (no text or symbols on the icon itself)

Circular icon with a water droplet and three arrows, no text or symbols present.

AUTOCLEAN

Circular icon with a stylized white object and exclamation mark inside, set against a dark background (no text or symbols)

Circular icon with a stylized mechanical device and refresh symbol (no text or numbers)

Icon of a white foot covering a grid pattern inside a circular frame, with a circular border (no text or symbols)

www.philips.com/myvacuum9000s.

Diagram of a mechanical assembly with a vertical rod inserted into a base (no text or symbols)

Diagram showing two mechanical joint configurations with arrows indicating movement (no text or symbols)

Illustration of a hand holding a tool with a green arrow indicating motion (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

Three-step illustration of a vacuum cleaner's tip and base, showing mechanical assembly and tool path (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

XV1792 10ml

Illustration of a green plastic container with a downward arrow indicating flow or change (no text or symbols)

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

Close-up of a black door handle with a circular button labeled ①, pointing to a small button (no text or symbols on the door itself)

Safety warning illustration showing a medical device with an eye and a red X mark indicating no protection

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Safety warning illustration showing a hand cleaning a surface with an eye and a tool, accompanied by warning symbols.

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols visible)

Diagram showing a hand holding a tool with warning symbols and a water droplet, indicating an accident or hazard.

Illustration of a hand holding a tool above a device with a flame symbol (no text or symbols present)

Diagram illustrating a step in a medical procedure involving a finger and a tool, labeled with steps ① and ②.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a handheld device with a circular inset showing a bedroom (no text or symbols)

Illustration of a handheld vacuum cleaner emitting exhaust from a tank, with icons for cat and dog (no text or symbols)

Diagram showing a hand holding a tool with labeled parts, including steps 1 and 2.

Illustration of a mechanical device with water droplets and warning symbols (no text or labels)

Illustration of a medical or laboratory procedure showing a pipette inserted into a cylindrical container with a magnified inset showing a bench (no text or symbols present)

Diagram showing a tool interacting with a small mechanical component, labeled with parts 1 and 2.

Illustration of a mechanical tool with a water droplet and warning symbols (no text or labels)

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly or operation.

Diagram illustrating a mechanical or electrical setup with three labeled states: negative, positive, and negative check indicators.

Illustration of a hand pouring liquid into a vertical cylindrical container with a green handle, showing a right-hand rule (no text or symbols)

Illustration of a mechanical component with an upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand, no text or symbols present

Diagram of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Diagram showing two hands installing a green cylindrical component with directional arrows labeled ① and ②, likely illustrating a mechanical or electrical assembly.

Simple line drawing of a bucket pouring liquid into a container (no text or symbols)

Diagram illustrating a chemical process with labeled steps and checkmarks indicating detection or rejection conditions.

Illustration of a hand holding a vertical cylindrical device with a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a plug with an arrow indicating direction (no text or symbols)

Close-up of a remote control device with a circular dial and scroll icon, no visible text or symbols

Illustration of a hand pouring liquid into a vertical cylindrical container with a green handle, showing a right-hand rule (no text or symbols)

Illustration of a mechanical device with a green handle and arrow indicating upward motion (no text or symbols)

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

Illustration of a faucet pouring liquid into a beaker with swirling lines indicating flow (no text or symbols)

Illustration of a faucet dispensing water into a green leafy container on a tiled floor (no text or symbols)

Illustration of a mechanical device with a faucet and lever, showing a close-up inset (no text or symbols)

Safety warning illustration showing water drop, sun, and checkmark symbols

Illustration of a mechanical device being adjusted for a cylindrical component, showing the top panel and side view with arrows indicating motion (no text or symbols present)

Diagram showing a mechanical device with labeled parts, including numbered callouts (① and ②) indicating specific components.

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or states.

Diagram of a mechanical assembly with two cylindrical components and a vertical shaft, showing a downward arrow (no text or symbols)

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands washing a car with blue liquid flowing from the hood (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

Diagram showing a hand operating a device with labeled parts, including numbered callouts ① and ②.

Illustration of two hands holding a green object with a downward arrow, no text or symbols present

Illustration of two hands holding a coiled green object, no text or symbols present

Diagram of a mechanical device with directional arrows indicating movement or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Diagram of a robotic arm with green tool pins and a magnified inset showing a green mechanical component (no text or symbols)

Diagram of a mechanical device with green arrows indicating motion or force direction (no text or symbols)

Illustration of a hand holding a blue faucet with a green tool inserted, placed on a surface (no text or symbols)

Diagram illustrating sunlight interaction with water droplets and a checkmark, showing red X and green ✓ symbols.

Diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

Illustration of a wooden tool pouring granular material into a glass cup (no text or symbols)

Diagram showing a hand holding a container with a switch and a red 'X' symbol indicating no change or failure.

Diagram showing a container with a lid and a drop labeled 'X' indicating a warning or failure, alongside a hand pointing to it.

Mechanical component diagram showing a lever mechanism with motion arrows (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating explosion or damage

Circular icon with a stylized white object resembling a keyhole or connector, enclosed in a gold ring (no text or symbols)

Diagram illustrating two steps of a food storage or processing process, labeled ① and ②, showing step ① with a container and step ② with a lid.

Illustration of a mechanical device with a switch symbol (no text or labels)

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a pipe (no text or symbols)

Illustration of a hand holding a small object with curved arrows indicating rotation or motion (no text or symbols)

Illustration of hands pouring liquid into a trash bin (no text or symbols)

Diagram showing a hand cleaning a device with a wrench and a red 'X' symbol, indicating no text or symbols.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

Diagram showing a device with a lid and checkmark indicators, alongside two labeled boxes with red 'X' and green '√' symbols.

Illustration of a dental implant or dental implant device with a tool inserted, showing no text or symbols.

8 Mbyllni kasën e filtrit.

Diagram showing a container with a lid and a cross mark indicating failure, alongside a magnified view of the container's interior.

Diagram illustrating a water drop symbol with a container and directional arrow, accompanied by a magnified view of the container.

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Technical diagram of a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow component into a mechanical device (no text or symbols)

Illustration of a mechanical device with a handle and base, showing motion direction (no text or symbols)

Diagram illustrating a mechanical device with labeled parts and directional arrows, showing step 1 and step 2.

Illustration of hands tying a rope knot with scissors, showing a magnified view of the knot being held (no text or symbols present)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and tool path.

Diagram of a device with labeled parts and directional arrows indicating movement or force

Illustration of hands connecting a mechanical component with a spring (no text or symbols)

Diagram of a mechanical device with numbered components and directional arrows indicating motion or assembly.

www.philips.com/myvacuum9000s.

Splošni opis

Diagram of a mechanical device with a vertical rod inserted into a base (no text or symbols)

Če želite uporabiti funkcijo AUTOCLEAN ali shraniti in polniti aparat na postaji za po čiščenju in za shranjevanje, morate najprej sestaviti postajo, to pa storite tako, da nosilec aparata priključite v podstavek.

Diagram showing two mechanical joint configurations with arrows indicating movement (no text or symbols)

Illustration of a hand holding a tool with a green arrow indicating motion (no text or symbols)

Diagram of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

2 Mokri modul namestite na nastavek AquaSpin (zasliši se klik).

3 Nastavek za sesanje in mokro čiščenje shranite tako, da ga postavite na postajo za po čiščenju in za shranjevanje.

Sestavljanje sklopa samo za sesanje

Three-step illustration showing a hairdryer being inserted into a device, with arrows indicating motion (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Safety warning illustration showing a robot with an eye and a red X mark indicating no protection

Illustration of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Illustration of a mechanical device with a downward arrow and emitting sparks, next to a cylindrical component (no text or symbols)

Illustration of a vacuum cleaner emitting exhaust smoke from a cylindrical tube (no text or symbols)

3 Cev vstavite v nastavek LED.

Diagram of a door handle with a circular button labeled ①, showing no text or symbols beyond the number and an arrow pointing to the handle area.

4 Pritisnite gumb za vklop/izklop, da vklopite aparat, in počakajte, da se aparat pripravi na uporabo.

100° - +

5 Z gumbom na levi m desni izsrajte med dvema nastavitvama moči.

Safety warning illustration showing a person using a handheld vacuum cleaner with water leakage, accompanied by an orange warning symbol and a red 'X' indicating no damage.

Safety warning illustration showing a spray nozzle above an eye with warning symbols and a red X mark indicating no protection.

Illustration of a handheld device mounted on a cabinet (no text or symbols visible)

Diagram illustrating a hand operating a tool with warning symbols and a water droplet, indicating incorrect operation or damage.

Illustration of a hand holding a tool above a device with a flame symbol (no text or symbols present)

Diagram illustrating a step in a medical procedure involving a tool and a foot, labeled with arrows ① and ②.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

Illustration of a mechanical device with a bed icon, no text or symbols present

Illustration of a hairdryer with a cat and dog nearby, showing mechanical components and a close-up of the bed (no text or symbols)

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a process or procedure.

Illustration of a hand holding a device with water droplets and warning symbols (no text or labels)

Illustration of a dental implant tool interacting with a cylindrical device (no text or symbols present)

Diagram showing a tool interacting with a wire, labeled with parts ① and ② indicating different states or functions.

Safety warning illustration showing a tool with water droplets and an orange warning symbol

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly steps.

Funkcijo AUTOCLEAN uporabite po vsaki uporabi, da preprečite nabiranje vodnega kamna in neprijetnega vonja. Način AUTOCLEAN pomaga očistiti celoten aparat v približno 4 minutah.

1 Nastavek za sesanje in mokro čiščenje postavite na postajo za po čiščenju in za shranjevanje.

Diagram illustrating a mechanical or electrical component with three circular indicators (red, green, and black) indicating failure or status conditions.

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

2 Pritisnite gumb, da odklenete zbiralnik za umazano vodo in ga odstranite.

3 Mokri filter odstranite iz zbiralnika za umazano vodo.

4 Vodo iz zbiralnika za umazano vodo izlijte v korito.

5 Mokri filter namestite nazaj na zbiralnik za umazano vodo.

6 Prazen zbiralnik za umazano vodo namestite nazaj v aparat in vzemite ven zbiralnik za čisto vodo.

7 Odstranite pokrovček z zbiralnika za čisto vodo.

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and a plastic container, likely for safety or inspection.

Illustration of a hand holding a cylindrical device with a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

8 Morebitno preostalo tekočino z detergentom izlijte iz zbiralnika za čisto vodo v pomivalno korito.

9 Zbiralnik za čisto vodo napolnite s hladno ali mlačno vodo iz pipe vsaj do oznake AUTOCLEAN.

A Opozorilo: Temperatura vode iz pipe, ki jo natakate v zbiralnik za čisto vodo, ne sme preseči 50 °C.
A Opozorilo: Za program AUTOCLEAN ne uporabite detergenta, saj bi se voda lahko preveč penila.

10 Zbiralnik za čisto vodo nato vstavite nazaj v aparat.

Illustration of a remote control device with a handle and control panel (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand holding a bottle with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, partially submerged in dark liquid (no text or symbols)

Simple line drawing of a cup pouring liquid into a stand (no text or symbols)

16 Vodo iz zbiralnika za umazano vodo izlijte v korito.

Illustration of a faucet pouring liquid into a beaker with water swirling around it (no text or symbols)

17 Zbiralnik za umazano vodo očistite pod tekočo vodo.

Illustration of a faucet releasing water into a green leafy container on a sink (no text or symbols)

18 Mokri filter očistite pod tekočo vodo.

Illustration of a mechanical device with a faucet and a green component, no text or symbols present

Diagram illustrating the process of a trash bin with sunlight, showing water drop and checkmark status

20 Mokri filter zbiralnika za umazano vodo in njegov element za pretok vode naj se popolnoma posušita, preden filter namestite nazaj na zbiralnik za umazano vodo.

21 Mokri filter namestite nazaj na zbiralnik za umazano vodo.

22 Zbiralnik za umazano vodo nato vstavite nazaj v aparat.

23 Ščetki iz mikrovlaken obrnite v nasprotni smeri urnega kazalca (1) in ju odstranite iz nastavka AquaSpin (2).

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand pouring liquid into a container with a blue flame (no text or symbols)

Diagram showing a mechanical component with numbered parts and green arrows indicating motion or force direction.

1 Ščetki iz mikrovlaken obrnite v nasprotni smeri urnega kazalca (1) in ju odstranite iz nastavka AquaSpin (2).

Diagram showing a hand holding a tool with two labeled parts (① and ②) indicating different components or states.

Illustration of two hands holding a green object with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating motion direction (no text or symbols)

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a container with liquid and an upward arrow, no text or symbols present

2 Izvlecite ohišje filtra s komore za prah.

Illustration of a wooden tool pouring granular material into a container (no text or symbols)

3 Komoro za prah izpraznite v smetnjak.

Illustration of a container with a lid and a downward arrow indicating compression or disassembly (no text or symbols)

Diagram of a mechanical device with a highlighted component and directional arrow (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

1 Ko želite očistiti komoro za prah in ciklonski element, odstranite ohišje filtra.

Illustration of a mechanical component pouring granular material into a cylindrical container (no text or symbols)

2 Komoro za prah izpraznite v smetnjak.

Diagram showing a hand holding a container with a warning symbol indicating no liability or failure.

Diagram of a mechanical device with labeled parts and directional arrows indicating motion or flow

1 Ciklonski element obrnite v smeri urnega kazalca (1) in ga odstranite iz komore za prah (2).
2 Odstranite lase in umazanijo, zataknjeno v ciklonskem elementu in pod njim.

Illustration of a hand pouring liquid into a container with a faucet (no text or symbols)

Weather forecast diagram showing solar and rain symbols with a red 'X' indicating no rain and a green checkmark for confirmation.

i Opomba: Ciklonski element naj se vedno povsem posuši, preden ga namestite nazaj v komoro za prah.

Diagram illustrating a device's internal components with numbered parts and directional arrows indicating motion or assembly.

4 Spet namestite ciklonski element (1) in ga obrnite v nasprotni smeri urnega kazalca (2), da se pritrdi na komoro za prah.

Diagram showing two views of a device with green checkmarks indicating approval or rejection, alongside a magnified view of the device's internal components.

A Opozorilo: Ciklonski element do konca zategnite. Ciklonski element obračajte, dokler gre; šele takrat je popolnoma privit.

Čiščenje filtra

Circular icon with a stylized white hand and exclamation mark inside a black circle (no text or symbols)

Illustration of a container with liquid and an upward arrow, no text or symbols present

1 Izvlecite ohišje filtra s komore za prah.

Diagram of a device component with numbered parts and directional arrows indicating flow or movement.

Diagram showing a device with a switch symbol and a red X mark indicating a specific component or error.

Illustration of a hand pouring liquid into a trash bin while another hand swashes down a faucet (no text or symbols)

3 Penasti filter stresite nad smetnjakom, da s površine odstranite plast prahu. Penasti filter nato operite pod tekočo vodo.

Illustration of a hand holding a rectangular object with curved arrows indicating rotation or motion (no text or symbols)

4 Penasti filter stisnite, da iztisnete vodo.

Illustration of hands pouring liquid into a trash bin (no text or symbols)

5 Ohišje filtra in pokrov stresite nad smetnjakom, da odstranite prah.

Illustration showing a hand using a tool to clean or repair a device, with a warning symbol indicating no error.

6 Nosilec filtra očistite z vlažno krpo.

A Opozorilo: Belega materiala na pokrovu ohišja filtra ne čistite z običajnim sesalnikom ali krtačo. Belega materiala na pokrovu ohišja filtra ne čistite z vodo ali čistilnim sredstvom. S tem boste poškodovali material. Beli material potapkajte nad smetnjakom.

Diagram showing a device with a water droplet and a red X mark indicating a failure or absence.

7 Penasti filter se mora popolnoma posušiti, preden ga spet namestite v ohišje filtra.

Diagram showing a device with a lid and two labeled boxes, one marked with red X and green checkmark, indicating selection or status.

Illustration of a hand pouring liquid into a container with a spray bottle (no text or symbols)

8 Zaprite ohišje filtra.

Diagram showing a container with a lid and a cross mark, alongside a separate outline of its interior (no text or symbols)

9 Ohišje filtra s penastim filtrom vstavite nazaj v komoro za prah.

A Opozorilo: Prepričajte se, da je beli material na pokrovu ohišja filtra obrnjen navzgor.

A Opozorilo: Ohišje filtra in penasti filter morata biti popolnoma suha, preden ju spet namestite v komoro za prah.

Technical diagram showing a mechanical component with labeled parts and directional arrows indicating motion or assembly.

Illustration of a hand inserting a yellow coin into a mechanical device (no text or symbols)

Diagram of a mechanical device with a highlighted component and motion arrow (no text or symbols)

Diagram illustrating a mechanical assembly or tool operation with labeled steps ① and ②, showing hand positioning and component insertion.

Illustration of hands tying a rope knot with a checkmark indicating selection (no text or symbols present)

Diagram illustrating a mechanical assembly process with labeled steps ① and ②, showing tool positioning and component insertion.

2 Krtačni valj nato potisnite nazaj v nastavek LED (1) in potisnite zaklepni vzdov navzgor, da zaklenete krtačni valj v nastavek LED (zasliši se klik).

Diagram of a device with labeled parts and directional arrows indicating movement or assembly

Illustration of a hand connecting a cable to a mechanical component with a directional arrow (no text or symbols)

2 Odstranite lase in umazanijo, ki so se navili na krtačni valj.

Diagram showing a mechanical device with labeled parts and directional arrows indicating motion or assembly.

Icon of an electric plug with a lightning bolt and warning symbol, labeled 'i7' below (no text or symbols on the diagram itself)

Circular icon with a document and question mark, labeled 'i10' below (no text or symbols on the icon itself)

Circular icon with a water droplet and three curved arrows, no text or symbols present.

AUTOCLEAN

Circular icon with a stylized white object and exclamation mark inside, no text or symbols present.

Circular icon with a stylized pen and wrench symbol, no text or numbers present

Circular icon with a white hand-painted object and circular arrow, no text or symbols present.

Diagram of a mechanical assembly with a vertical rod inserted into a housing (no text or symbols)

Diagram showing two mechanical assembly states with arrows indicating direction of movement (no text or symbols)

Illustration of a green tool with a curved arrow indicating motion or force (no text or symbols)

Illustration of a hand holding a spray gun with arrows indicating motion (no text or symbols)

1 Ak chcete zostavit zostavu vysávača a mopu, zasuňte batériu a upevnite ručný vysávač 3 v 1 k modulu na mokré vysávanie („zacvaknutie“).

Technical diagram showing a vacuum cleaner's step-by-step assembly with labeled steps ① and ②

2 Upevnite modul na mokré vysávanie k hubici AquaSpin („zacvaknutie“).

Three-step illustration of a vacuum cleaner's tip, showing step-by-step assembly from opening to mounting (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand washing machine with arrows indicating force or motion (no text or symbols)

1 Ak chcete zostavit zostavu vysávača a mopu, zasuňte batériu a upevnite ručný vysávač 3 v 1 k modulu na mokré vysávanie („zacvaknutie“).

Illustration of a mechanical device with a downward arrow and spray effect (no text or symbols)

2 Upevnite modul na mokré vysávanie k hubici AquaSpin („zacvaknutie“).

Illustration of a hand holding a green cylindrical device with an arrow indicating motion (no text or symbols)

XV1792 10ml

Safety warning illustration showing a medical device with an eye and a red X mark indicating no protection

Mechanical component diagram showing a lever mechanism with motion indicator (no text or symbols)

Safety warning illustration showing a device with warning symbol and red X mark indicating failure or hazard

Illustration of a medical or laboratory procedure showing a tool tip and a device with motion lines (no text or symbols)

Illustration of a hand holding a handheld device above a white cabinet (no text or symbols)

Diagram illustrating a hand operating a tool with warning symbols and a water droplet, indicating incorrect operation or damage.

Illustration of a hand using a tool to press or install a device, with no visible text or symbols.

Diagram illustrating a step in a medical procedure involving a finger insertion and a tool, labeled with arrows and numbered steps.

Illustration of a mechanical device with a downward arrow and sparkles, no text or symbols present

1 Ak chcete malú turbokefu nasadit, zasuňte trubicu ručného vysávača do malej turbokefy.

Illustration of a handheld device with a bed icon below (no text or symbols)

Illustration of a hairdryer with a cat and dog nearby, showing mechanical components and a close-up of the bed (no text or symbols)

Diagram showing a hand holding a small object with two labeled steps (① and ②) indicating a procedure or step in a process.

4 Ak chcete malú turbokefu zložit, stlačte tlačidlo na uvol'nenie (1) a vytiahnite ručný vysávač z malej turbokefy (2).

Illustration of a hand holding a device with a warning symbol and a red 'X' indicating failure or absence (no text or symbols present)

Varovanie: Nevysávajte vodu ani iné kvapaliny.

Illustration of a hand holding a flashlight with a downward arrow and light effect (no text or symbols)

Illustration of a dental implant tool interacting with a cylindrical component, with a close-up inset showing a chair (no text or symbols)

Diagram showing a tool interacting with a connector, labeled with parts 1 and 2 indicating different states or functions.

Illustration of a mechanical tool with a red X mark and warning symbols (no text or labels)

Varovanie: Nevysávajte vodu ani iné kvapaliny.

Diagram showing a vacuum cleaner's internal structure with labeled parts and directional arrows indicating assembly steps.

Diagram illustrating a mechanical or electrical setup with three circular indicators (✓, +, -) and a green downward arrow indicating direction.

Illustration of a hand pouring liquid into a vertical cylindrical container with a green arrow indicating direction (no text or symbols)

Simple line drawing of a bucket pouring liquid into a basin (no text or symbols)

MAX 50 °C

Diagram illustrating a process with three circular indicators (green check, green check, red X) pointing to a container with liquid and a plastic container, likely for safety or inspection.

Illustration of a hand holding a cylindrical device with a green arrow pointing to the handle (no text or symbols present)

MAX 35 °C MIN 5 °C

Illustration of a remote control device with a handle and control panel (no text or symbols)

AUTOCLEAN 4 min

Illustration of a hand pouring liquid into a vertical pipe with a green arrow indicating direction (no text or symbols)

Illustration of a mechanical device with a green handle and upward arrow, no text or symbols present

Simple line drawing of a pouring container into a stand, no text or symbols present

Illustration of a faucet pouring liquid into a container with motion lines indicating flow (no text or symbols)

Illustration of a faucet with a green leaf-shaped object inserted into a basin (no text or symbols)

18 Mokrý filter vyčistite pod tečúcou vodou.

Illustration of a mechanical assembly with a pipe inserted, showing components like a valve and a green component (no text or symbols)

19 Vyčistite filter s mikrosietkou dodanou čistiacou kefkou.

Diagram illustrating sunlight impact on a trash bin, showing water droplets and sun symbol with X and checkmark indicators

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of hands pouring liquid into a container with blue flow lines (no text or symbols)

2 Opláchnite podnos pod tečúcou vodou a nechajte ho uschnút. Až potom ho vložte spät do odkladacej stanice.

Diagram showing a mechanical component with numbered parts and directional arrows indicating motion or flow.

Diagram showing a hand operating a device with labeled parts ① and ②, likely illustrating a mechanical or electrical component.

Illustration of two hands holding a green object with a downward arrow indicating motion (no text or symbols)

Illustration of a hand holding a coiled green object, no text or symbols present

Diagram of a mechanical component with directional arrows indicating motion or force (no text or symbols)

Illustration of a vacuum cleaner with green arrows indicating force direction (no text or symbols)

Ak je hubica AquaSpin upchatá, možno ju odblokovat pohybom čistiacej kefky hore-dolu v sacom kanáli hubice AquaSpin.
