Multigroom QG3347 - Beard trimmer PHILIPS - Free user manual and instructions

Product type	Multi-use beard trimmer
Brand	Philips
Model	Multigroom QG3347
Power source	Built-in rechargeable battery, mains power adapter (100-240 V)
Charging time	Approximately 10 hours
Runtime	60 minutes (cordless)
Cordless use	Yes
Water cleaning	Yes, heads and combs are washable with warm water
Blades	Stainless steel blades
Included accessories	Beard and stubble comb (1-18 mm), beard comb (1-12 mm), hair comb (3-20 mm), body comb (3-12 mm), eyebrow/detail comb, precision foil shaver, rotary nose trimmer, precision trimmer, wide trimmer, cleaning brush, case
Cutting length settings	From 1 to 20 mm depending on comb (1 mm increments)
Main functions	Beard trimming, stubble, hair, body, eyebrows, sideburns, nose/ears, precision shaving, edging
Care and cleaning	Clean after each use: rinse under warm water, air dry. Do not use abrasive products. Oil blades if necessary.
Safety	Keep the power adapter dry. Do not use in bath or shower. Unplug before cleaning. Do not open the appliance to replace the battery.
Spare parts and repairability	Accessories and spare parts available at shop.philips.com or at retailers. The battery can only be removed by a professional at end of life.
Warranty	International warranty, excluding normal blade wear
Weight	Approx. 250 g (with accessories)
Dimensions (L x W x H)	Approx. 18 x 5 x 6 cm (main body)

Frequently Asked Questions - Multigroom QG3347 PHILIPS

How long does it take to charge the Philips Multigroom QG3347?

Full charge takes about 10 hours. For first use, charge the appliance completely before using.

Can I use the trimmer in the shower or bath?

No, the appliance should not be used in the bath or shower. The power adapter must remain dry. However, heads and combs can be rinsed under warm water after unplugging the appliance.

How to clean the QG3347 beard trimmer?

Turn off and unplug the appliance. Remove accessories and rinse them under warm water. Use the cleaning brush to remove hairs. Let dry completely before reassembling.

Can the trimmer be used cordless?

Yes, the appliance operates cordlessly only. After charging, you can use it unplugged for about 60 minutes.

How to adjust the cutting length on the beard comb?

Press the cutting length selector on the comb and slide it up or down to choose the desired length, from 1 to 18 mm in 1 mm increments.

Can I use the appliance to trim nose and ear hair?

Yes, the appliance comes with a rotary nose trimmer. Insert it gently (no more than 0.5 cm) and make slow movements. Clean after each use.

What to do if the battery no longer holds a charge?

The rechargeable battery is built-in and can only be replaced by a professional. At end of life, take the appliance to an approved collection point or a Philips service center for safe removal.

Are the blades replaceable?

Yes, the cutting heads and blades are wear parts. You can buy spare parts on shop.philips.com or from your retailer. It is recommended to replace blades every 2 years or if they become dull.

Can I use the appliance for cutting hair?

Yes, the wide trimmer with the hair comb (3-20 mm) allows cutting hair to the desired length. Use without comb for a close cut (0.5 mm).

How to maintain the precision foil shaver?

Remove the top part of the shaver, shake off hairs and rinse under warm water. Dry thoroughly. The foil is very delicate, handle with care. Replace it if damaged.

USER MANUAL Multigroom QG3347 PHILIPS

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Full size trimmer
2 Attachment connector
3 Handle
4 On/off slide
5 Detail trimmer
6 Detail foil shaver
7 Nose trimmer rotary
8 Eyebrow and detail comb
9 Beard and stubble comb (1-18mm)
10 Body comb (3-12mm)
11 Beard comb (1-12mm)
12 Hair comb (3-20mm)
13 Supply unit
14 Small plug
15 Comb
16 Cleaning brush
17 Pouch

The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

• Keep the supply unit dry.

Warning

• To charge the battery, only use the detachable supply unit (A00390) provided with the appliance.

• The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

English

• Always unplug the appliance before you clean it under the tap.
• Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.
• Do not open the appliance to replace the rechargeable battery.

Caution

• Never immerse the charging stand in water and do not rinse it under the tap.
• Never immerse the appliance in water. Do not use the appliance in the bath or shower.
• Never use water hotter than 60^ C to rinse the appliance.
• Only use this appliance for its intended purpose as shown in the user manual.

• For hygienic reasons, the appliance should only be used by one person.

• Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This appliance can be safely cleaned under the tap.
• The supply unit is suitable for mains voltages ranging from 100 to 240 volts.
• The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

Charge the appliance before you use it for the first time and when the battery is almost empty.

Charging takes approx. 10 hours.

A fully charged appliance, has an operating time of up to 60 minutes (QG3352, QG3347, QG3344,

QG3342, QG3340, QG3339, QG3337, QG3335,

QG3332, QG3330, QG3329, QG3327, QG3322,

QG3320) or 45 minutes (QG3338, QG3334, QG3321, QG3341, QG410).

Charging with the supply unit

Note: This appliance can only be used without cord.

1 Make sure the appliance is switched off.
2 Put the small plug in the appliance and put the supply unit in the wall socket.
3 After charging, remove the supply unit from the wall socket and pull the small plug out of the appliance.

Using the appliance

The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your appliance.

Always check the appliance and all accessories before use. Do not use the appliance or any accessory if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Trimming tips

• If you are trimming for the first time, be careful. Do not move the appliance too fast. Make smooth and gentle movements
• Since all hairs do not grow in the same direction, you may want to try different trimming positions (i.e. upwards, downwards, or across). Practice is best for optimum results.
• Always make smooth and gentle movements and be sure the surface of the comb always stays in contact with your skin.

Note: This appliance can only be used without cord.

Switching the appliance on and off

1 To switch on the appliance, slide the on/off button up.
2 To switch off the appliance, slide the on/off button down.

Detaching and attaching combs

1 To detach a comb from a cutting element, press the length setting selector, grab the sides and pull it upwards off the cutting element.

2 To attach any type of comb on a cutting element, slide it into the guiding grooves on both sides of the handle.

Detaching and attaching cutting elements

1 To detach a cutting element, turn it anticlockwise and pull it upwards off the handle.

2 To attach a cutting element, place it on the handle and turn it clockwise.

12 English

Precision attachments for use on face

• Make controlled movements against the hair growth and move it over the part that needs trimming.

Nose trimming

You can use the nose trimmer attachment to trim your nose hair and ear hair.

• Make sure your nostrils are clean. Make sure your outer ear channels are clean and free from wax.

• Do not insert the tip more than 0.5cm and make controlled movements.

Nosetrimmer rotary

Trimming nose hair:

1 Gently move the tip in and out your nose while turning it round to remove unwanted hairs.
2 Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Trimming ear hair:

1 Slowly move the tip round the ear to remove hairs that stick out beyond the rim of the ear.
2 Gently move the tip in and out the outer ear channel to remove unwanted hairs.
3 Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Detail trimmer

You can use the detail trimmer without comb to create fine lines and contours around your facial style, close to the skin (to a length of 0.5mm

1 Hold the detail trimmer perpendicular to the skin and move it upwards or downwards with gentle pressure.

2 Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Eyebrow and detail comb

You can use the 21mm detail trimmer with the detail comb attached for tidying up your eyebrows or trimming your sideburns.

1 Slide the detail comb onto the detail trimmer.
2 Comb your eyebrows in the direction of hair growth.
3 Move the comb over the eyebrow from the outer tip of the eyebrow towards the base of the nose (against the direction of hair growth).
4 Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Detail foil shaver

You can use the detail foil shaver to shave unwanted hairs on your cheeks and chin with precision.

1 Gently press the detail foil shaver onto the skin and shave along contoured edges to remove any hairs.
2 Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Attachments for use on beard

• We advise you to start at the highest setting to familiarize yourself with the appliance.
• Make controlled movements against the hair growth and move it over the part that needs trimming.

Full size trimmer

You can use the full size trimmer without comb to trim hair close to the skin or to get clean lines around your beard, neck and sideburns (to a length of 0.5mm).

1 To trim hair close to the skin, place the flat side of the trimming head against your skin and make strokes in the desired direction.
2 For contouring, hold the trimming head perpendicular to the skin and move the trimming head upwards or downwards with gentle pressure.
3 Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Beard and stubble comb (1-18mm)

You can use the beard and stubble comb attached to the full size trimmer to evenly trim your beard, stubble and moustache. You can choose any setting between 1 and 18mm in steps of 1mm.

1 Attach the beard and stubble comb onto the appliance.
2 Press the length selector and then slide it up or down to select the desired hair length setting.
3 To trim most effectively, move the appliance against the hair growth direction. Make sure that the surface of the comb always stays in contact with the skin.
4 Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Beard comb (1-12mm)

You can use the beard comb attached to the full size trimmer to evenly trim your beard and moustache. You can choose any setting between 1 and 12mm in steps of 1mm .

1 Attach the beard and stubble comb onto the appliance.
2 Select the desired hair length setting.
3 To trim most effectively, move the appliance against the hair growth direction.

Note: Make sure that the surface of the comb always stays in contact with the skin.

4 Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Attachments for use on head

Hair clipping with comb:

1 Comb the hair in the growth direction.
2 Slowly move the trimmer against the hair growth direction. Press lightly.
3 Since hair grows in different directions, you need to move the appliance in different directions as well (upward, downward or across).
- Always make sure that the flat part of the comb is in full contact with the scalp to obtain an even result.
- When you trim for the first time, start at the highest length setting (20mm) to familiarise yourself with the appliance.

Hair clipping without comb:

Be careful when you trim without comb because the cutting unit removes every hair it touches.

1 Before you start to contour the hairline around the ears, with any comb attachment, comb the hair ends over the ears
2 Tilt the appliance in such a way that only one edge of the trimmer touches the hair.
3 Only cut the hair ends. The hairline should be close to the ear.
4 To contour the neckline and sideburns, turn the appliance and make downward strokes.
5 Move the appliance slowly and smoothly. Follow the natural hairline.

Full size trimmer

You can use the full size trimmer without comb to clip hair very close to the skin (to a length of 0.5mm ) or to create contours around your ears or neck.

Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Hair comb (3-20mm)

You can use the hair comb attached to the full size trimmer for an even haircut. You can choose any setting between 3 and 20mm in steps of 1mm .

Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Attachments for use on body

Body trimming with comb

• It is recommended to trim your body hair when it is dry because wet hair tends to stick to the body.

• Take your time when you first start to trim sensitive areas. You have to acquire practice with the appliance. Your skin also needs some time to adjust to the procedure.

• When you trim sensitive areas, we advise you not to use the trimmer without the trimming comb.
• When too many hairs have accumulated on the appliance, blow out before use, for best trimming results.

Body trimming (3-12mm)

You can use the body comb attached to the full size trimmer, to trim hairs below the neckline. You can choose any setting between 3 and 12mm in steps of 1mm .

Switch off and clean the appliance after each use (see 'Cleaning and maintenance').

Cleaning and maintenance

Regular cleaning guarantees better grooming results.

Never clean, remove or replace a shaving or cutting unit while the appliance is switched on.

Always check if the water is too hot, to prevent burning your hands.

Never dry cutting units or shaving foils with a towel or tissue, as this may cause damage.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Cleaning and storage

Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Always switch off the appliance and disconnect it from the wall socket before cleaning.

Never dry the trimmer teeth with a towel or tissue, as this may damage the trimmer teeth.

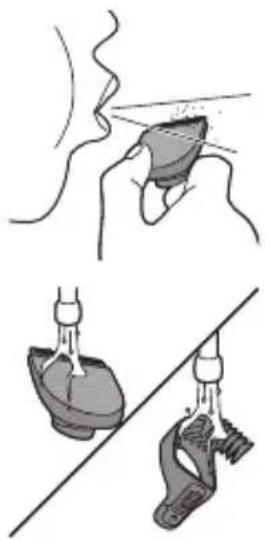

1 Remove any comb or attachment from the appliance.
2 Blow and/or shake out any hair that has accumulated in the attachments and/or combs.
3 Clean the attachments, the combs and the appliance under lukewarm water after every use.
4 Carefully shake off excess water and let all parts air dry completely.
5 Store the appliance and its attachments in the storage pouch to prevent damage.

Cleaning shaving foils

The shaving foil is very delicate. Handle it carefully. Replace the shaving foil if it is damaged.

Detail foil shaver

1 Pull the top part of the detail-foil shaver off the bottom part.

2 Blow and/or shake out any hair that has accumulated inside the detail-foil shaver.
3 Clean the top part of the detail-foil shaver under a lukewarm tap.
4 Carefully shake off excess water and let air dry completely.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

Recycling

• This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

• This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.

• Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the product. Before you remove the battery, make sure that the product is disconnected from the wall socket and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the product and when you dispose of the rechargeable battery.

1 Make sure the appliance is disconnected from the mains.
2 Remove the attachment
3 Remove the on/off button of the appliance with a flathead screwdriver.
4 Remove the front panel of the appliance with a flathead screwdriver.
5 To pull out the inner body, apply a tilting force in the indicated hole with a flathead screwdriver. Pull upward on the top cover.

6 Separate the inner body and the tube.

7 Remove the on/off contact.

8 Unhook and remove the rest of the cover to expose the rechargeable battery.
9 Cut the wires to separate the rechargeable battery from the appliance.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Warranty restrictions

Cutting units are not covered by the terms of the international warranty because they are subject to wear.

Introduktion

Lading tar ca. 10 timer.

Limpar as láminas de corte

Encomendar acessórios

75% recycled paper

75% papier recyclé
