Product Type	Beard Trimmer
Model	Philips OneBlade QP2620
Dimensions (H x W x D)	5.1 x 2.4 x 1.8 in (13 x 6 x 4.5 cm)
Weight	3.2 oz (90 g)
Power Source	Rechargeable battery
Battery Type	Lithium-ion
Charging Time	8 hours
Runtime	45 minutes
Waterproof	Yes (IPX7)
Blade Type	Dual-sided stainless steel
Comb Settings	1-5 mm adjustable
Usage	Trim, edge, and shave
Cleaning	Rinse under running water
Accessories Included	Comb, charging cable, protective cap
Safety Features	Rounded tips, no-slip grip
Warranty	2 years (subject to conditions)
Replacement Blade	Available (model QP210)
Material	Plastic body, metal blade
Color	Black/gray

Frequently Asked Questions - OneBlade QP2620 PHILIPS

How do I charge the Philips OneBlade QP2620?

Connect the provided cable to the trimmer and a standard USB port. Charging takes about 8 hours for a full battery. The LED indicator will glow while charging and turn off when fully charged.

Is the OneBlade QP2620 waterproof?

Yes, it has an IPX7 rating, meaning it can be rinsed under running water for easy cleaning. However, do not immerse it in water for extended periods.

Can I use it for both trimming and shaving?

Absolutely. The OneBlade is designed for trimming, edging, and shaving. The dual-sided blade allows you to move in any direction for a close, comfortable shave.

How do I adjust the cutting length?

Slide the adjustable comb along the blade to select a length from 1 to 5 mm. For a closer shave, use the trimmer without the comb.

How often should I replace the blade?

Philips recommends replacing the blade every 4 months or when you notice a decrease in performance. Replacement blade model is QP210.

Can I use the trimmer while charging?

No, the OneBlade QP2620 is not designed for corded use. It must be fully charged before operation.

How do I clean the trimmer?

Remove the comb and rinse the blade area under warm running water. For stubborn hair, use the included brush. Ensure the device is turned off and dry before storing.

What is the battery runtime?

A full charge provides up to 45 minutes of cordless use. Charging time is approximately 8 hours.

Are replacement parts available?

Yes, you can purchase replacement blades (model QP210) and charging cables. Contact Philips support or visit their website for more info.

Does the OneBlade QP2620 come with a warranty?

The trimmer comes with a 2-year warranty against manufacturing defects. Keep your proof of purchase for service claims.

USER MANUAL OneBlade QP2620 PHILIPS

PHILIPS OneBlade digital brush with power button (no text or symbols on body)

Illustration of an open book with a grid and arrow indicating text or transformation (no readable text or symbols)

English 6

Bahasa Indonesia 25

Bahasa Melayu 46

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

General description (Fig. 1)

1 Protection cap
2 Face blade
3 Blade release slide
4 On/off button
5 Battery status indicator (QP2630 only)
6 Small plug
7 Battery charge indicator (QP2620 only)
8 Supply unit (QP2630: adapter type HQ850. QP2620: adapter type A00390.)
9 Replacement blade (specific types only)
10 Click-on stubble comb 5mm
11 Click-on stubble comb 3mm
12 Click-on stubble comb 2mm (QP2630 only)
13 Click- on stubble comb 1mm
14 Body blade
15 Sensitive skin guard
16 Body comb 3mm

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

- Keep the supply unit dry.

Warning

- To charge the battery, only use the detachable supply unit provided with the appliance. For the type number of the original supply unit, please see 'General description' in the manual.

- The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Always unplug the appliance before you clean it under the tap.

- Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

- Do not open the appliance to replace the rechargeable battery.

Caution

Prohibition sign of a faucet without any text or symbols

• Never immerse the charging stand in water and do not rinse it under the tap.
• Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.
• Only use this appliance for its intended purpose as shown in the user manual.
• For hygienic reasons, the appliance should only be used by one person.
• Never use water hotter than 60^ C to rinse the appliance.
• Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

• This appliance is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the appliance can therefore only be used without cord.
• The supply unit is suitable for mains voltages ranging from 100 to 240 volts.
• The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

Charging

Charge the appliance before first use and when the display indicates that the battery is almost empty.

QP2630: Charging takes approx. 4 hours.

QP2620: Charging takes approx. 8 hours.

A fully charged appliance has an operating time of up to 60 minutes (QP2630) or 45 minutes (QP2620).

Note: This appliance can only be used without cord.

Battery status indicator QP2630:

Diagram of a mechanical joint or connector with a highlighted circular feature (no text or symbols)

When the battery status indicator flashes orange, the battery is almost empty.

Pure mechanical diagram showing a lever and pivot point with no text or symbols

When the appliance is charging, the battery status indicator light flashes green.

Pure mechanical diagram showing a lever and pivot point without any text or symbols

When the battery is fully charged, the battery status indicator lights up green continuously.

Approx. 30 minutes after the battery is fully charged or when you disconnect the appliance from the wall socket, the light of the battery status indicator switches off automatically.

Battery status indicator QP2620:

The battery status is indicated by the performance of the appliance. When the appliance starts working more slowly, the battery is almost empty and needs to be charged for optimal performance.

Charging with the supply unit

Simple line drawing of a plug and plug connecting a cable to a cylindrical device (no text or symbols)

1 Insert the small plug into the appliance and put the supply unit in the wall socket.

QP2620 only: The battery charge indicator on the adapter lights up continuously, when the appliance is connected to the wall socket.

2 After charging, remove the supply unit from the wall socket and pull the small plug out of the appliance.

Using the appliance

Your appliance comes with 2 blades. Use one blade for your face only and the other blade for your body.

The face blade and the stubble combs are for use on facial hair. It is not intended for shaving, edging or trimming hairs on lower body parts or scalp hair.

The body blade and body comb are for use on body parts below the neck.

The body blade with the skin guard attached are for use on sensitive body areas.

Note: This appliance can only be used without cord.

- Use the appliance with the face blade to trim, edge or shave facial hair (beard, moustache and sideburns). Shave for a smooth result, trim with the stubble comb to obtain a certain length and edge to create perfect edges and sharp lines.

- Use the appliance with the body blade to trim and/or shave your body hair. Shave your chest without the skin guard or body comb for a smooth result, shave your sensitive areas (e.g. groin, armpits) with the skin guard, use the body comb to trim your body.

- Take your time when you first start to use the appliance. You have to acquire practice with the appliance.

Switching the appliance on and off

Simple line drawing of a curved pipe with a black arrow pointing to a circular symbol (no text or labels)

1 To switch on the appliance, press the on/off button once.

2 To switch off the appliance, press the on/off button once.

Face

Shaving

Warning: Before you use the appliance, always check the blade for damage or wear. If the blade is damaged or worn, do not use the appliance, as injury may occur. Replace a damaged blade before you use the appliance (see chapter ‘Replacement’).

Shaving tips and tricks

- Make sure that the blade is in full contact with the skin by placing it flat on the skin.

- For the best result, move the appliance against the grain.

- Make long strokes while pressing lightly.

- You can use the appliance dry or wet with gel or foam. You can even use the appliance in the shower.

- Shaving a clean beard and face gives the best results.

12 English

Shaving

1 Switch on the appliance.
2 Place the blade on the skin and move the appliance up or against the grain in long strokes while you press it lightly.

Note: Make sure you hold the surface of the blade flat against your skin.

3 Switch off and clean the appliance after every use (see 'Cleaning and maintenance').

Edging

You can also use both edges of the blade to create sharp lines and perfect edges. Hold the appliance in such a way that the blade is perpendicular to the skin and one of its edges touches the skin. This allows more precise detailing of sideburns and the area around the mouth and nose.

1 To create sharp edges and lines, you can use either edge of the blade.
2 Switch on the appliance.

3 Place the edge of the blade perpendicular onto the skin.

Illustration of a person's face with a beard and a small object near the mouth (no text or symbols)

- Make straight strokes while applying gentle pressure.

4 Switch off and clean the appliance after every use (see 'Cleaning and maintenance').

Trimming

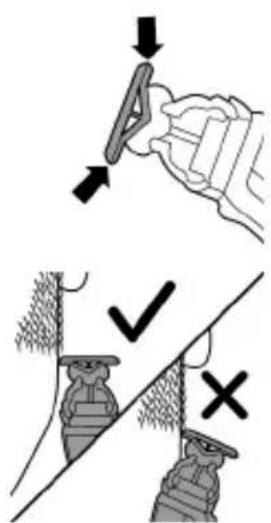

Trimming tips

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

• Always make sure that the tips of the click-on stubble comb point in the direction in which you move the appliance.
• Make sure that the flat part of the comb is always in full contact with the skin to obtain an even trimming result.
• Since hair grows in different directions, you need to move the appliance in different directions as well (upward, downward or across).
• Trimming is easier when the skin and hair are dry.

Trimming combs

The click-on stubble combs allow you to trim hair to different lengths.

• QP2630 come with 4 click-on stubble combs: 5mm, 3mm, 2mm and 1mm.
• QP2620 comes with 3 click-on stubble combs: 5mm, 3mm and 1mm.

Start with the 5mm comb to acquire practice with this appliance.

The indication on each comb corresponds to the hair length in millimeters.

Trimming with comb

English

Diagram of a handheld device with a black arrow pointing to its component (no text or symbols visible)

Illustration of a person applying a toothbrush to their face, showing the brush tip and mouth area (no text or symbols)

Illustration of a hand holding a small object with a shaded interior, possibly a container or tool (no text or symbols visible)

Body

1 Place the comb onto the blade, with the teeth of the comb pointing upwards. Note: Always trim in the direction of the teeth of the comb. This will give you the best results.
2 Switch on the appliance.
3 Place the comb onto the skin and move the appliance in the direction of the teeth of the comb.
Note: For the best result, move it against the grain.
4 Switch off and clean the appliance after every use (see 'Cleaning and maintenance').
5 To remove the comb, hold it on both sides and pull it off the blade.

• For hygienic reasons, only use the body blade for trimming and shaving your body.
• For body trimming and shaving, make sure hair is clean and dry as wet hair tends to stick to the body and, when shaving sensitive areas, always use the skin guard.
• Since all hairs do not grow in the same direction, you may want to try different trimming positions (i.e. upwards, downwards, or across). Practice is best for optimum results.
• For the best result, move the appliance against the grain.
• Make long strokes while pressing lightly.
• Use the appliance dry or wet with gel or foam, even in the shower.

- Shaving a clean body gives the best results.

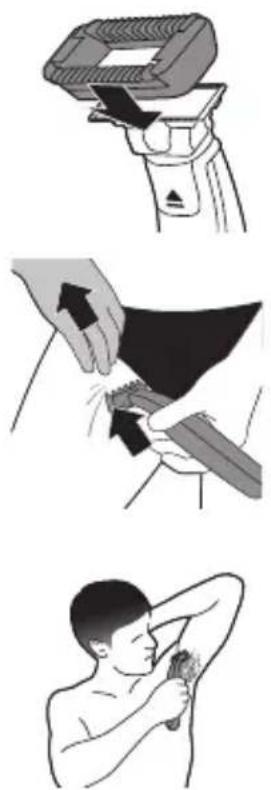

Shaving with skin guard

For optimal performance, use the skin guard only on sensitive areas (for example the scrotum and armpits).

1 Hold the skin guard on both sides and press onto the blade.
2 Switch the appliance on.

3 Place the skin guard onto the skin and stretch the skin with your free hand. Move the appliance upwards slowly, against the grain.

• When using the appliance on your armpits, raise your arm and put your hand on the back of your head to stretch the skin.
• Regularly remove cut hair from the guard. If a lot of hair has accumulated in the guard, remove it from the appliance and blow and/or shake out the hairs.

4 Switch off and clean the appliance after each use.
5 To remove the skin guard, put one finger under the edge of the guard and press on the blade with your thumb.

Shaving without skin guard

The body blade without the skin guard allows you to shave hair on your body below the neckline (for example the chest) with a smooth result.

Illustration of a person performing a medical or therapeutic procedure on another person's neck (no text or symbols present)

1 To remove the skin guard, put one finger under the edge of the guard and press with your thumb on the blade.

2 Switch the appliance on.

3 Place the blade on the skin and move the appliance against the grain in long strokes while pressing lightly. Stretch the skin with your free hand.

Note: Make sure you hold the surface of the blade flat against your skin.

- When you use the appliance on your armpits, raise your arm and put your hand on the back of your head to stretch the skin.

4 Switch off and clean the appliance after every use.

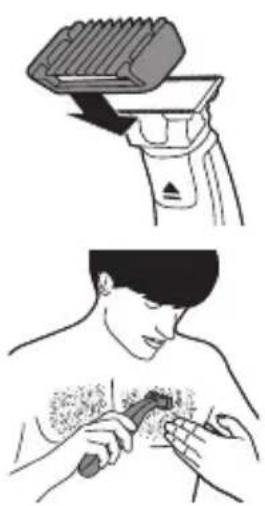

Trimming with body comb

The 3mm (1.8in.) body comb allows you to trim hair on your body below the neckline (for example chest, armpits, scrotum).

Illustration showing a hair styling technique: top panel shows a brush cutting a brush, bottom panel shows a person using a tool on their chest (no text or symbols)

1 Hold the body comb on both sides and press onto the blade.

2 Switch the appliance on.

3 Place the comb onto the skin and stretch the skin with your free hand. Move the appliance upwards slowly, against the grain.

- When you use the appliance on your armpits, raise your arm and put your hand on the back of your head to stretch the skin.

Illustration of a hand holding a small object with a shaded area, alongside a magnified view of a mechanical component (no text or symbols)

- Regularly remove cut hair from the guard. If a lot of hair has accumulated in the guard, remove it from the appliance and blow and/or shake out the hairs.

4 Switch off and clean the appliance after each use.
5 To remove the comb, hold it on both sides and pull it off the blade.

Cleaning and maintenance

Clean the appliance after every use.

Caution: Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Caution: Do not tap the appliance against a surface to remove water from it, as this may cause damage. Replace the blade if it is damaged.

Illustration of a hand holding a tool with a cross mark and curved handle (no text or symbols)

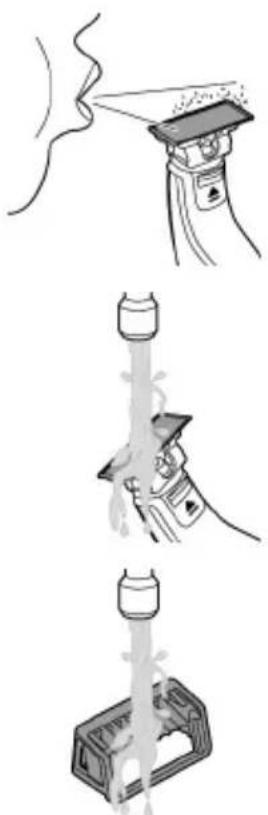

Cleaning the appliance

1 Remove the comb from the blade. Always turn the appliance off before putting on or taking off combs.

Illustration of a hand holding a small container with liquid, no text or symbols present

English

2 If a lot of hairs have accumulated on the comb, first blow them off.

3 If a lot of hairs have accumulated on the appliance, first blow them off.

4 Switch on the appliance and rinse the blade with lukewarm water.

Caution: Do not dry the blade with a towel or a tissue as this may cause damage.

5 Rinse the combs with lukewarm water.

6 Carefully shake off excess water and let all parts air dry completely.

Note: The blade is fragile. Handle it carefully. Replace the blade if it is damaged.

Storage

Always attach the protection cap on the blade to protect the blade from damage during travelling or storage.

We advise you to let the appliance and its attachments dry before you store them for the next use.

Simple line drawing of a person's head with a curved object above their head, showing a black arrow indicating direction (no text or symbols)

1 Place the protection cap onto the edge of the blade.

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

2 Close the protection cap. - Attach the body comb on the body blade to protect the blade from damage.

Replacement

Usage indicator

Illustration of a hairdryer with a magnified inset showing the brush tip (no text or symbols)

For optimal cutting and gliding performance, we advise you to replace the blade every 4 months, when it no longer provides the shaving or trimming results you expect.

The blade is equipped with a usage indicator. A green bar will gradually appear on the blade as you use it. When it is highly visible, it is recommended to replace your blade for the best OneBlade experience. Always replace the blade with original Philips blade.

Depending on your usage behavior, the exact lifetime of the blade could be longer or shorter. Similar to a manual blade, the blade becomes blunt over time, which results in increased hair pulling and reduced cutting performance.

Replacing the blade

1 Switch off the appliance.

2 Push the blade release slide upwards carefully, and hold the blade on both sides to remove the blade. This will prevent the blade from flying off the handle.
3 Hold the new blade on its sides and press it onto the handle ('click').

Note: When you hear a click, the new blade is placed correctly and ready for use.

Ordering accessories

To buy accessories or spare parts, visit www.philips.com/parts-and-accessories or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country (see the international warranty leaflet for contact details).

The following parts are available:

• Model QP210 Philips Replacement Blade, 1-Pack
• Model QP220 Philips Replacement Blade, 2-Pack
• Model QP610 Philips Body replacement pack
• Model QP620 Philips Face and Body replacement pack.

Recycling

- Do not throw away the product with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the product.

Before you remove the battery, make sure that the product is disconnected from the wall socket and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the product and when you dispose of the rechargeable battery.

Illustration of hands holding a small object with a black arrow indicating motion (no text or symbols)

1 Disconnect the appliance from the mains and let the appliance run until the motor stops.

2 Remove the blade from the appliance.

3 Remove the bottom of the appliance by bending it downwards and pull it off.

4 Take out the battery compartment by separating the bottom part from the top part.

5 Separate the battery section from the bottom part.

6 Lift the battery out of the inner body with the screwdriver. The battery is connected with double-sided tape.

Warning: Be careful, the battery strips are very sharp.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Guarantee restrictions

The blade is not covered by the terms of the international guarantee because it is subject to wear.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Possible cause Solution

The appliance does not charge when it is connected to the mains.	The appliance has to be switched off when you charge it.	Switch off the appliance.
I cannot switch on the appliance when it is connected to the mains.	You cannot use the appliance when it is charging. You can only use the appliance without cord.	Disconnect the appliance from the mains before use.

Problem Possible cause Solution

The appliance does not work anymore.	The rechargeable battery is empty.	Charge the appliance (see chapter ‘Charging’).QP2630, QP2530: During charging, the battery charge indicator flashes.QP2630, QP2520: During charging, the charge indicator on the adapter lights up. If the battery charge indicator does not flash or light up, check whether there is a power failure or if the wall socket is live. If there is no power failure and the wall socket is live but the battery charge indicator still does not flash or light up, take the appliance to your dealer or a Philips service center.
	The blade is blocked by dirt.	Switch on the appliance and rinse the blade under the tap with warm water.
		Hold the blade in a cup with warm water (60°C and no hotter) for approx.30 seconds.
The appliance doesn’t cut hairs anymore.	The blade is placed on the handle incorrectly.	Push the blade onto the appliance until you hear a click.
	The blade is damaged or worn.	Replace the blade with a new one. See chapter ‘Replacement’.
The appliance makes a strange noise.	The blade is damaged or worn.	Replace the blade with a new one. See chapter ‘Replacement’.

Problem Possible cause Solution

	The blade is placed onto the handle incorrectly.	Remove and reattach the blade. Push it onto the appliance until you hear a click.
	The blade is blocked by dirt.	Remove the blade and clean it thoroughly.
The appliance doesn’t function optimally anymore.	The blade is blocked by dirt.	Remove the blade and clean it thoroughly.
	The blade is subject to wear and therefore its performance decreases over time.	Replace the blade with a new one. See chapter ‘Replacement’.
	The blade is a delicate part of the appliance and can easily be damaged. If the blade is damaged, it may not function optimally anymore.	Replace the blade with a new one. See chapter ‘Replacement’.

Pendahuluan

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

Prohibition sign of a faucet without any text or symbols

Diagram of a mechanical joint or bracket with a highlighted circular feature (no text or symbols)

Ketika indikator status baterai berkedip oranye, berarti baterai hampir habis.

Pure mechanical diagram showing a lever and gear assembly without any text or symbols

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a plug and plug connecting a cable to a vertical tube (no text or symbols)

Illustration of a person using a handheld device to apply facial care (no text or symbols present)

Simple line drawing of a curved pipe with a black arrow pointing to a circular symbol (no text or labels)

Illustration of a person applying a toothbrush to their face (no text or symbols)

32 Bahasa Indonesia

Diagram showing two cable clips with a diagonal line and checkmark annotations (no text or symbols)

Illustration of a handheld device with a lever and handle (no text or symbols)

Bahasa Indonesia

Illustration of a person applying a toothbrush to their face, showing the brush tip and facial area (no text or symbols)

Illustration of a hand using a tool to lift a component (no text or symbols visible)

Diagram of a hairbrush with a mesh head and handle, showing no text or symbols

Illustration of a person receiving a medical or therapeutic procedure on a patient's chest (no text or symbols present)

Illustration of a hand holding a small object with a shaded area, alongside a magnified view of the object's tip (no text or symbols)

Illustration of a hand holding a small object with a cross mark above, no text or symbols present

Illustration of a hand holding a small object with a dark handle, possibly a tool or device (no text or symbols visible)

Membersihkan alat

Illustration of a hand holding a small object with radiating lines, possibly a device or tool, emitting powder (no text or symbols present)

Simple line drawing of a spray gun spraying water onto a surface, with no text or symbols present.

Illustration of a hand holding a syringe with liquid, no text or symbols present

Illustration of a laboratory apparatus with a pipette and tubing (no text or symbols)

Simple line drawing of a person's head with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Diagram of a hairdryer with a magnified inset showing the brush tip (no text or symbols present)

1 Matikan alat.

Illustration of hands using a tool to apply material to a small object (no text or symbols present)

Illustration of hands holding a small object with a black arrow indicating motion (no text or symbols)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

- Pastikan unit bekalan sentiasa kering.

Amaran

Prohibition sign showing a faucet with a diagonal line and 'no' symbol (no text)

Diagram of a mechanical component with a highlighted circular feature (no text or symbols)

Apabila penunjuk status bateri berkelip jingga, bateri hampir kosong.

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a plug and plug connecting a cable to a cylindrical device (no text or symbols)

Simple line drawing of a curved pipe with a black arrow pointing to a circular button (no text or symbols)

Muka

Illustration of a person's face with a beard and a small object near the mouth (no text or symbols)

- Buat strok lurus sambil memberikan sedikit tekanan.

Diagram showing two cable clips with a diagonal line and checkmark indicators (no text or symbols)

Diagram of a handheld device with a connector or connector inserted, showing no text or symbols.

Illustration of a person applying a toothbrush to their face (no text or symbols)

Illustration of a hand holding a small object with a shaded interior, possibly a tool or device (no text or symbols visible)

Badan

Illustration of a hand holding a small object with a shaded area, alongside a magnified view of a mechanical component (no text or symbols)

Illustration of a hand holding a tool with a cross mark and curved handle (no text or symbols)

Illustration of a hand holding a small object with a dark handle, possibly a tool or device (no text or symbols visible)

Membersihkan alat

Illustration of a hand holding a small object with radiating lines, possibly a device or tool, emitting powder or spray (no text or symbols present)

Simple line drawing of a spray gun spraying water onto a surface, with no text or symbols present.

Illustration of a hand holding a small object with liquid, possibly a container or tool, against a plain background (no text or symbols)

Illustration of a laboratory apparatus with a pipette and tubing (no text or symbols)

Illustration of a person's arm holding a chair with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

Diagram of a spray gun with a magnified inset showing the lens (no text or symbols present)

1 Matikan perkakas.

Illustration of hands using a tool to interact with a device (no text or symbols present)

Illustration of hands holding a small object with a black arrow indicating motion (no text or symbols)

Prohibition sign of a faucet without any text or symbols

Prohibition sign of a faucet without any text or symbols

Diagram of a mechanical component with an inset showing a circular feature (no text or symbols)

Pure mechanical diagram showing a lever and gear mechanism without any text or symbols

Pure mechanical component diagram without any text, numbers, or symbols

Simple line drawing of a plug and plug connecting a cable to a cylindrical device (no text or symbols)

Simple line drawing of a curved pipe with a black arrow pointing to a circular button (no text or symbols)

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Corpo

Two-step illustration showing a hairdryer being cleaned with a cloth, no text or symbols present

Illustration of a person brushing their arm with a brush (no text or symbols)

Illustration showing a hair styling tool and a person applying a product to their chest (no text or symbols present)

Illustration of a hand holding a small container with a lid, alongside a magnified view of the lid (no text or symbols)

Illustration of a hand holding a small object with a cross mark above, no text or symbols present

Illustration of a hand holding a small object with a dark arrow pointing downward (no text or symbols)

Limpeza do aparelho

Illustration of a hand holding a handheld device with spray particles (no text or symbols)

Simple line drawing of a spray gun spraying water onto a surface (no text or symbols)

Illustration of a hand holding a glass with liquid, no text or symbols present

Illustration of a laboratory apparatus with a pipette and tubing (no text or symbols)

Illustration of a person's arm holding a bag with a black arrow indicating compression (no text or symbols)

Simple line drawing of a camera with a curved arrow indicating rotation (no text or symbols)

Diagram of a hairdryer with a magnified inset showing the brush tip (no text or symbols)

Illustration of hands using a tool to apply material to a piece of paper or paper (no text or symbols present)

Illustration of hands holding a small object with a black arrow indicating motion (no text or symbols)

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

No sign depicting a faucet with a diagonal line, crossed out by a diagonal line (no text or symbols)

Diagram of a mechanical component with a highlighted circular detail (no text or symbols)

Pure mechanical diagram showing a lever and gear assembly without any text or symbols

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a plug and plug connecting a cable to a cylindrical device (no text or symbols)

Illustration of a person using a medical or cosmetic tool to address face area, with no visible text or symbols

Simple line drawing of a curved pipe with a black arrow pointing to a circular symbol (no text or labels)

Bật và tắt thiết bị

Illustration of a hand holding a mechanical clip with directional arrows indicating force or movement (no text or symbols)

Illustration of a person applying a toothbrush to their face (no text or symbols)

Diagram showing two mechanical fasteners with a diagonal line and checkmark indicators (no text or symbols)

Illustration of a person performing a medical or therapeutic procedure on another person's neck (no text or symbols present)

Diagram of a hairbrush with a lever mechanism, showing no text or symbols

Illustration of a person receiving chest compressions with a tool (no text or symbols)

Illustration of a hand holding a small object with a shaded area, alongside a close-up of a tool or device (no text or symbols visible)

Illustration of a hand holding a tool with a cross mark and curved handle (no text or symbols)

Lau chùi thiết bị

Illustration of a hand holding a small object with a shaded interior (no text or symbols)

Illustration of a hand holding a handheld device with spray lines (no text or symbols)

Simple line drawing of a spray gun spraying water onto a surface (no text or symbols)

Illustration of a hand holding a spray bottle with liquid, emitting vapor (no text or symbols)

Illustration of a laboratory apparatus with a pipette and tubing (no text or symbols)

Simple line drawing of a person's head with a curved object above their head, no text or symbols present.

Simple line drawing of a mechanical component with a curved arrow indicating rotation (no text or symbols)

2 Đóng nắp bảo vệ.

Illustration of a hairdryer with a magnified inset showing the brush tip (no text or symbols)

Illustration of hands using a tool to apply material to a small object, with no visible text or symbols.

Illustration of hands holding a small object with a black arrow indicating compression or dislocation (no text or symbols)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

Prohibition sign showing a faucet with a diagonal line and raindrops (no text)

Diagram of a mechanical component with an inset showing a star-shaped feature (no text or symbols)

Pure mechanical diagram showing a lever and pivot point with no text or symbols

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a plug and cable with arrows indicating connection (no text or symbols)

Simple line drawing of a curved pipe with a power button symbol (no text or labels)

ใบหน้า

Illustration of a person performing a medical or therapeutic procedure on another person's neck (no text or symbols present)

Diagram of a hairbrush with a brush applying material to a surface (no text or symbols)

Illustration of a person receiving chest compressions with a tool (no text or symbols)

Illustration of a hand holding a shaded object next to a magnified view of a tool or device (no text or symbols visible)

Illustration of a hand holding a tool with a cross mark and curved handle (no text or symbols)

Illustration of a hand holding a small object with a shaded area, possibly part of a device or tool (no text or symbols visible)

Illustration of a hand holding a handheld device with sound waves, no text or symbols present

Three-step illustration showing a spray gun, a hand holding a spray bottle, and a spray can with liquid (no text or symbols)

Simple line drawing of a person's head with a curved object above their head, showing a black arrow indicating direction (no text or symbols)

Simple line drawing of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

Illustration of a hairdryer with a magnified inset showing the blade and crown (no text or symbols)

Illustration of hands using a tool to adjust or install a component, with no visible text or symbols

Illustration of hands holding a tool with a magnified view of the tip (no text or symbols)

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no restrictions or leakage.

- 保持电源部件干燥。

警告

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no fire or water discharge (no text present)

Diagram of a mechanical component with a highlighted circular feature and arrow, no text or symbols present

Pure mechanical diagram showing a lever and pivot point with no text or symbols

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a plug and cable with arrows indicating connection (no text or symbols)

Illustration of a person applying facial care to the lower face using a handheld tool (no text or symbols present)

Simple line drawing of a curved pipe with a black arrow pointing to a circular symbol (no text or labels)

启动或关闭产品

注意: 确保将刀片表面平放在皮肤上。

Diagram showing two mechanical fasteners with a diagonal line and checkmark indicators (no text or symbols)

修型

Diagram of a handheld device with a black arrow pointing to its component (no text or symbols present)

Illustration of a person applying makeup to their face with a brush (no text or symbols)

1 梳齿朝上，将修剪梳放在刀片上。

Illustration of a hand holding a small object with a handle, possibly a tool or device (no text or symbols visible)

1 握住皮肤网罩的两侧，按压在刀片上。

2 启动本产品。

Illustration of a person receiving a medical or therapeutic procedure with a tool on another person's chest (no text or symbols present)

Diagram of a hairbrush with a handle and lever mechanism (no text or symbols)

Illustration of a person applying a toothbrush to their chest area (no text or symbols)

Illustration of a hand holding a small object with a shaded area, alongside a magnified view of the object's tip (no text or symbols)

清洁和保养

Illustration of a hand holding a tool with a cross mark and curved handle (no text or symbols)

Illustration of a hand using a tool to lift a component (no text or symbols visible)

Illustration of a hand holding a device with spray effect (no text or symbols)

清洁本产品

Simple line drawing of a spray gun spraying water onto a surface (no text or symbols)

Illustration of a hand holding a glass with liquid, no text or symbols present

4 然后启动本产品，用温水冲洗刀片。

Illustration of a laboratory apparatus with a pipette and tubing (no text or symbols)

Illustration of a person performing a neck exercise with a black arrow indicating direction (no text or symbols)

Simple line drawing of a camera with an arrow indicating rotation (no text or symbols)

2 关闭保护盖。

Diagram of a spray gun with an inset showing a magnified view of the gun handle (no text or symbols present)

Illustration of hands using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of hands holding a small object with a black arrow indicating motion (no text or symbols)

4 使底部与顶部分离，从而取出电池盒。

5 从底部取出电池部分。

Prohibition sign of a faucet without any text or symbols

- 電源供應裝置請保持乾燥。

警示

Prohibition sign showing a faucet without raindrops, enclosed in a circle (no text)

電磁波 (EMF)

Diagram of a mechanical joint or connector with an inset showing a star-shaped feature (no text or symbols)

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a plug and plug connecting a cable to a cylindrical device (no text or symbols)

Simple line drawing of a curved pipe with a black arrow pointing to a circular symbol (no text or labels)

開啟及關閉本產品

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

Diagram of a mechanical device with a handle and internal components, no visible text or symbols

1 將梳具裝到刀片上，梳齒朝上。

Illustration of a person applying a toothbrush to their face (no text or symbols)

Illustration of a hand holding a container with a handle, no text or symbols present

Illustration of a person receiving medical or therapeutic care from a tool on another person (no text or symbols visible)

Diagram of a hairbrush with a brush applying material to a surface (no text or symbols)

Illustration of a person receiving chest compressions with a tool (no text or symbols)

Illustration of a hand holding a small object above a magnified view of a mechanical component (no text or symbols)

清潔與維護

Illustration of a hand holding a small object with a cross mark above, no text or symbols present

Illustration of a hand using a tool to adjust or install a component (no text or symbols visible)

Illustration of a hand holding a small object with spray, emitting light from a nozzle (no text or symbols)

清潔產品

Three-step illustration showing a spray gun, a spray bottle, and a container with liquid (no text or symbols)

Illustration of a person's arm holding a tray with a black arrow indicating downward motion (no text or symbols)

Simple line drawing of a camera with a curved arrow indicating rotation (no text or symbols)

2 蓋上保護蓋。

Illustration of a hairdryer with a magnified inset showing the brush tip (no text or symbols)

1 關閉產品電源。

Illustration of hands using a tool to interact with a small object, no text or symbols present

Illustration of hands holding a small object with a curved arrow indicating motion (no text or symbols)

4 將底部從頂部拆下，即可取出電池盒。

5 拆下底部的電池部分。

Prohibition sign showing a faucet crossed out by a diagonal line, indicating no prohibition or disinfection (no text present)

Prohibition sign of a faucet without any text or symbols

Diagram of a mechanical joint or connector with an inset showing a star-shaped feature (no text or symbols)

Pure mechanical diagram showing a lever and gear mechanism without any text or symbols

Pure mechanical diagram showing a lever and pivot point without any text or symbols

Simple line drawing of a plug and plug connecting a cable to a cylindrical device (no text or symbols)

Illustration of a person using a medical or cosmetic tool to address face with a cross mark (no text or symbols)

Simple line drawing of a curved pipe with a black arrow pointing to a circular symbol (no text or labels)

얼굴

제품 전원 켜기/끄기

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

다듬기

다듬기 팀

Diagram of a handheld device with a lever and handle, no visible text or symbols

Illustration of a person applying a toothbrush to their face (no text or symbols)

Illustration of a hand holding a small object with a dark handle, possibly a tool or device (no text or symbols visible)

몸

Diagram of a handheld device with a handle and control knob (no text or symbols)

Illustration of hands performing a medical or surgical procedure on a dark object, with arrows indicating direction (no text or symbols present)

Illustration of a person brushing their lower back (no text or symbols)

Illustration showing a hairdryer and a person's chest with a brush (no text or symbols)

Illustration of a hand holding a small object with a shaded area, alongside a magnified view of a mechanical component (no text or symbols)

청소 및 유지관리

Illustration of a hand holding a small object with a cross mark above, no text or symbols present

Illustration of a hand holding a small object with a dark arrow pointing downward (no text or symbols)

제품 청소

Illustration of a hand holding a small object with spray, emitting light (no text or symbols)

Simple line drawing of a spray gun spraying water onto a surface (no text or symbols)

Illustration of a hand holding a syringe with liquid, no text or symbols present

Illustration of a laboratory pipette dispensing liquid into a container (no text or symbols visible)

Illustration of a person lifting a chair with a downward arrow indicating motion (no text or symbols)

Simple line drawing of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

2 보호용 캡을 단으십시오.

Diagram of a hairdryer with a magnified inset showing the head and jaw (no text or symbols)

Illustration of hands holding a tool with a magnifying glass effect (no text or symbols)

Illustration of hands performing a mechanical press or clamping operation with a black arrow indicating motion (no text or symbols present)

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

ويد بالطاقة جافة.

تحذیر

Prohibition sign of a faucet without any text or symbols

Simple line drawing of a plug inserted into a cable with an attached device (no text or symbols)

استخدام الجهاز

Illustration of a person applying facial care to the lower face using a tool (no text or symbols present)

Simple line drawing of a curved pipe with a power button and arrow indicating direction (no text or symbols)

الوجه

الحلقة

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

العربية

Diagram of a hairbrush with a lever mechanism, showing blade and handle (no text or symbols)

Illustration of a person receiving chest compressions with a tool (no text or symbols)

Illustration of a hand holding a small object with a shaded area, alongside a close-up of a tool or device (no text or symbols visible)

التنظيف والصيانة

Illustration of a hand holding a tool with a cross mark and curved handle (no text or symbols)

Illustration of a hand holding a container with liquid, no text or symbols present

تنظيف الجهاز

Illustration of a hand holding a handheld device with a dropper emitting particles (no text or symbols)

1. فقم يازالتها أولاً.

Simple line drawing of a spray gun spraying water onto a surface (no text or symbols)

Two-step diagram showing a hand holding a cylindrical object above a container, with another container partially visible below (no text or symbols)

Illustration of a person performing a shoulder press or lift press operation with a black arrow indicating downward motion (no text or symbols)

Simple line drawing of a camera with a curved arrow indicating rotation (no text or symbols)

الاستبideal

Diagram of a spray gun with a magnified inset showing the internal components (no text or symbols)

، تشغيل الجهاز. 1

شفرة من جانبيها2

Illustration of hands using a tool to interact with a small object, no text or symbols present

ي اتجاه المقبض 3

(صوت " tightقة").

Illustration of a hand holding a small object with a curved arrow indicating motion (no text or symbols)

ي Coordف المحرك.

شفرة من الجهاز.

دُسفل ثم سحبه.

السفي عن العلوي 4.

من الجزء السفلي.5

Uzbek المفك. تكون 6

لا يقصو الجهاز بالشحنالرغم من توصيله ب就成了الTYAIR.
لا يقصو الجهاز بالشحنالرغم من توصيله ب就成了الTYAIR.
لا أستطيع نشغيل الجهازالرغم من توصيله ب就成了الTYAIR.
لا أستطيع نشغيل الجهازالرغم من توصيله ب就成了الTYAIR.
لم ي Equipment الجهاز إعمال.
البطارية القابلة لعادةالشحن فارغة.
م ي Equipment الجهاز إعمال.
البطارية القابلة لعادةالشحن فارغة.
الب Scarية القابلة لعادةالشحن فارغة.
الب Scarية القابلة لعادةالشحن فارغة.
الب Scarية القابلة لعادةالشحن فارغة.
الب Scarية القابلة لعادةالشحن فارغة.
الب Scarية القابلة لعادة(الشحن) في الاماء المئروضأنتاء الشحن، ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2630) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2530) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2620) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2520) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2520) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2520) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2520) : أنتاء الشحن, ي Commod مۇشر:
الب Scarية القابلة لعادةالشحن فارغة.
الب Scarية القابلة لعادةالشحن فارغة.
الب Scarية القابلة لعادة(الشحن) في الاماء المئروضأنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2530) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2520) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2520) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2520) : أنتاء الشحن, ي Commod مۇشر:
الب Scarية القابلة لعادة(الشحن) في الاماء المئروضأنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2530) : أنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2520) : أنتاء الشحن, ي Commod مۇشر:
الب Scarية القابلة لعادة(الشحن) في الاماء المئروضأنتاء الشحن, ي Commod مۇشرأنتاء الشحن ( raising عصل(QP2530) :'a non la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon de la yon d'اللالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالaaالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالaالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالاالaaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaالaaalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalulalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalallalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalaunlalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalaladlaunlalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalulalululalululalululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululullulululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululuulululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululurulululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululuhulululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululumulululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululululuslulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlulluhlllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll lllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllll llllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllrrllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllrlllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllllggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggtgggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggcggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggccgggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggauggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaaggaagGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGCAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGACAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGATAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGTAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGATTAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGAAGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTGCCTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGATTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGITTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGGTTGG

Prohibition sign showing a faucet without a shower, enclosed in a circle (no text or symbols)

هشدار

No sign depicting a faucet with a showerhead, enclosed in a circle (no text or symbols)

احتياط

Simple line drawing of a plug and plug connecting a cable to a cylindrical device (no text or symbols)

استفاده از دستگاه

Illustration of a person applying facial care to the lower face using a tool (no text or symbols present)

رای پیرایش، خط-

Simple line drawing of a curved pipe with a black arrow pointing to a circular button (no text or symbols)

فارس

Illustration of a person applying a toothbrush to their face (no text or symbols)

Diagram showing two mechanical components with checkmark and cross symbols, no readable text or labels

فارس

Diagram of a mechanical device with a handle and lever mechanism (no text or symbols)

Illustration of a person applying a toothpaste to their face, showing the brush and upward arrow (no text or symbols)

حرکت دلهید.

Illustration of a hand using a tool to lift a small object (no text or symbols visible)

Diagram of a handheld device with a handle and control panel (no text or symbols)

Illustration of hands performing a task with a tool, no text or symbols present

Illustration of a person brushing their chest with a brush (no text or symbols)

Illustration of a person using a tool to apply or examine something on their chest (no text or symbols present)

Illustration showing a hairdryer and a person applying a toothed product (no text or symbols)

Illustration of a hand holding a small object with a shaded area, alongside a magnified view of a tool or device (no text or symbols visible)

Illustration of a hand holding a tool with a cross mark above, no text or symbols present

Illustration of a hand holding a small object with a dark arrow pointing downward (no text or symbols)

تميز کردن دستگاه

يا برداشتن شانه 1

Illustration of a hand holding a small object with spray, no text or symbols present

Simple line drawing of a spray gun spraying liquid onto a surface (no text or symbols)

Illustration of a hand holding a bottle with liquid, no text or symbols present

آب ولرم بشوييد.

Illustration of a laboratory apparatus with a pipette and tubing (no text or symbols)

آب ولرم بشوييد.5.

انه خشک شوند.

Simple line drawing of a hand holding a tray with an arrow indicating downward motion (no text or symbols)

محافظ را بندید. 2.

تا از آسیب دیدن-

Simple line drawing of a camera with a curved arrow indicating rotation (no text or symbols)

تیفه جلوگیری شود.

تعويض

Diagram of a spray gun with a magnified inset showing the lens (no text or symbols present)

Illustration of hands using a tool to tighten or adjust a component (no text or symbols present)

Illustration of hands holding a small object with a curved arrow indicating motion (no text or symbols)
