OneBlade QP2527 - Beard trimmer PHILIPS - Free user manual and instructions

Product Type	Beard Trimmer
Model	OneBlade QP2527
Brand	Philips
Dimensions	Approximately 20 x 5 x 4 cm
Weight	Approximately 200 g
Power Source	Rechargeable battery (Ni-MH)
Charging Time	8 hours for full charge
Usage Time	Up to 45 minutes
Blade Type	Dual-sided stainless steel blade
Cutting Length Settings	1-5 mm (with adjustable comb)
Functions	Trimming, edging, and shaving
Water Resistance	Waterproof (IPX7) - washable under tap
Maintenance	Rinse blade under running water; oil periodically
Safety Features	Rounded blade tips for skin protection
Included Accessories	Adjustable comb, protective cap, charging cable
Spare Parts	Replacement blade QP210/01
Warranty	2 years (subject to conditions)

Frequently Asked Questions - OneBlade QP2527 PHILIPS

How long does the battery last on a full charge?

A full charge takes 8 hours and provides up to 45 minutes of cordless use.

Can I use the OneBlade QP2527 in the shower?

Yes, it is waterproof (IPX7) and can be used in the shower; rinse it under running water for easy cleaning.

How do I adjust the cutting length?

Attach the adjustable comb and slide the mechanism to select a length between 1 mm and 5 mm.

How often should I replace the blade?

For optimal performance, replace the blade approximately every 4 months or when it feels dull.

Can I trim my beard with this device without the comb?

Yes, the dual-sided blade allows precise edging and shaving without the comb for a closer trim.

Is the blade suitable for sensitive skin?

Yes, the blade has rounded tips to minimize irritation, making it suitable for sensitive skin.

How do I clean the OneBlade?

Remove the blade, rinse it under running water, and let it dry. Do not use abrasive cleaners.

Can I use it while charging?

No, the device must be unplugged during use. Charge it fully before use.

What spare parts are available?

The main spare part is the replacement blade, model QP210/01, available separately.

How do I know when the battery is low?

The LED indicator will flash or the device will slow down, indicating it needs charging.

USER MANUAL OneBlade QP2527 PHILIPS

Black Philips One-Box electric shaver with power button (no visible text or symbols)

4/2002918311/2/2019

75% 循环再造纸

保留备用

75% = 100%

English

Introduction

Congratulations on your purchase and welcome to Philips' of fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

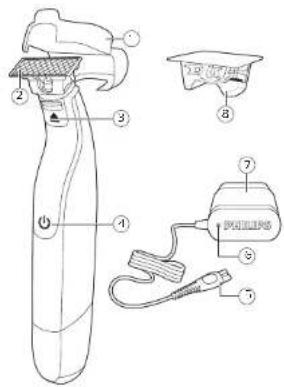

General description (Fig. 1)

1 Protection cap
7 Blade
3 Blade release side
4 Dr/ctr button
5 Small plug
6. delivery charge indicator
7 Supply unit
8 Extra place (QP2527 on y)

Important safety information

Read this important information carefully before you use the appliance and its accessories one save it for future reference. The accessories supplied may vary for different products.

Danger

Keep the supply unit dry (Fig. 2).

Warning

• a charge the battery, only use the detachable supply unit (A00390) provided with the appliance.
• he supply unit contains a transformer. Do not cut off the supply unit to replace it with another power, as this causes a hazardous situation
• Its experience can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities for a lack of experience; and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and interpretation on the hazards involved. Children should play with the appliance. Clearing and using main tones to smell nor be made by children without supervision.
• Always, nplug the appliance before you clean it under the tap.
• Always check the appliance before you use it. Do no use the appliance is I'll be damaged, as this may cause injury. Always replace a damaged part with one of the original type.
• Do not open the appliance to replace the re-charged battery. This appliance contains batteries that are non-rep. accessible

Caution

• Never increase the charging stand in water and do not insert under the cap (Fig. 2).
• Do not use the support on or near wall jackets that confirm an electric air freshener to prevent repairable damage to the support. Only use this appliance for its intended purpose as shown in the use manual
• For hygiene reasons, the appliance should only be used by one person.
• Never use water heater than 60°C to rinse the appliance. Never use compressed air, scouring pocs, abrasive cleaning agents or aggressive liquids such as petrol or ice, one to clean the appliance.

Electromagnetic fields (EMF)

This Philos appliance complies with all applicable standards and regulations regarding exposure to electro magnetic fields.

General

This appliance is waterproof (Fig. 3). It is suitable for use in the bath or sower and for clearing under the top. For safety reasons, the appliance can therefore only be used without cord.
- the supply unit's suitable or mains voltage ranging from 100 to 240 volts. The supply unit transforms 100, 240 volts to a sale on voltage less than 24 volts.

Charging

Note: This appliance can only be used without cord (Fig. 4).

Charge the appliance be one you use it for the first time and when the appliance starts working more slowly.

Charging normally takes approx. 8 hours

A fully charged appliance has an operating time of up to 45 minutes.

Battery charge indicator

The battery status is indicated by the performance of the appliance. When the appliance starts working more slowly, the battery is almost empty and needs to be charged for optimal performance.

Charging with the supply unit

1 insert the small plug into the appliance and out the supply unit in the wall socket (Fig. 5).

- The battery charge inductor on the supply unit lights up continuously, when the appliance is connected to the wall socket

2 After charging remove the supply unit, from the wall socket and pull the small plug out of the appliance.

Using the appliance

You can use the appliance to trim, edge or saw, facial hair (board, moustache and sloburns). Shave or a snord! you'll find to obtain a terminal length and edge to create perfect bedges and share lines. This appliance is not intended for shaving, eging or lighting bars on lower body parts or soup but take your lime when your first start to use the appliance. You have to acquire practice with the appliance.

Note: This appliance can only be used without cord (Fig. 4).

Switching the appliance on and off

1 to switch on the amplifier press, he only button once (Fig. 6).

2 To switch off the appliance, press the on/off button once.

Shaving

Warning: Before you use the appliance, always check the blade for damage or wear. If the blade is damaged or worn, do not use the appliance, as injury may occur. Replace a damaged blade before you use the appliance (see chapter 'Replacement').

Shaving tips and tricks

- Make sure that the blade is in full contact with the skin by opening flat on the skin. For the best result, move the appliance against the grain.

- Move long strokes while pressing lightly. You can use the appliance cry or wet with gel or foam. You can ever use the appliance in the shower.

Shaving a clean scare and face gives the best results.

Shaving

Before you use the appliance, always check the blade for damage or wear. If the blade is damaged or worn, do not use the appliance, as injury may occur. Replace a damaged blade before you use the appliance.

1 Switch on the appliance.

2 Face the blade on the skin and move the appliance up or again. The grain in long strokes while you press it lightly (Fig. 7). No. e. Make sure you hold the surface of the blade (u. again, your skin (Fig. 8).

1. Switch of and clean the appliance after every use (see 'Cleaning and maintenance').

Edging

- You can also use gold wugs of the blade to create share lines and perfect copies. - Hold the appliance in such a way that, the blade is perpendicular to the skin and one of its wugs touches the skin. This allows more precise detailing of sideburns and the area around the mouth and nose.

1 Switch on the appliance.

2 Place the cone of the black perpendicular onto the skin (Fig. 9)

Note: To use the blade for creating sharp edges and lines, use either edge of the blade (Fig. 10)

3 Make straight, so does white applying gentle pressure (Fig. 1).

4 Switch oil and clear the appliance after every use (see 'cleaning and maintenance).

Cleaning and maintenance

Clean the appliance after every use.

Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Do not tap the appliance against a surface to remove water from it, as this may cause damage (Fig. 12). Replace the blade if it is damaged.

Never dry the blade with a towel or tissue, as this may cause damage.

Cleaning the appliance

1 Dow off any hairs that have accumulated on the black

2 Switch on the appliance and rinse the blade with Lickwarm water (Fig. 4).

Caution: Do not dry the blade with a towel or a tissue as this may cause damage.

1. Carefully shake off excess water and let all oars air dry completely.

Note: The blade's fragile. Handle't carefully. Realise the place if it is camargo.

Storage

Always attach the protection can on the blade to protect the blade from damage during traveling or storage.

We arrive you: e. The appliance and its

attachments are completely dry before you store their for the next use.

1 Place the protection cap to the edge of the trade (-ig. 15).

2 Close the protection cap (Fig. 16)

Replacement

Usage indicator

For optimal cutting and plding performance, we also serve to replace the plane every 1 month is, when the longer provides the sharing or trimming results you expect. The plane is equipped with a usage note for A green bar will gradually happen on the blade as you use it (Fig. 17). When it is highly visible, it is recommended to replace your blade for the best. One black experience always replace the blade with original Pips places. Depending on your usage occasion, the exact lifetime of the blade could be longer or shorter. Similar to a manual blade, the blade becomes burnt over time, which results in increased hair pulling and recovers outing performance.

Replacing the blade

1 Switch of the appliance.

2 Push the mode release slide towards carefully, and hold the blade or its sides, or remove the blade and prevent it from flying away (Fig. 8). 3 Hold the new blade on its sides and press it into the handle (cl x) (-ig. 19).

Note: Be careful, the copies of the blade are sharo. When you hear a click the new blade is placed correctly and ready for use.

Ordering accessories

To buy accessories or soare parts, visit www.philips.com/parts-and-accessories or go to your Philips reader. You can also contact the Philips Consumer Care Center in your country (see the international warranty learnt for contact details).

The following parts are available:

Q20 Blade 1 pack

Q220 Blade 2-pack

Recycling

- Do not know away the product with the normal household waste at the end of its for hand is in at an official collection point for recycling. By doing this, you help to preserve the environment. This product contains a built-in rechargeable battery which shall not be disposed of with normal household waste. Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery. Follow your country's rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the product. Before you remove the battery, make sure that the product is disconnected from the wall socket and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the product and when you dispose of the rechargeable battery.

Removing the rechargeable battery

Only remove the rechargeable battery when you discard the product. Before you remove the battery, make sure that the product is disconnected from the wall socket and that the battery is completely empty.

Take any necessary safety precautions when you handle tools to open the product and when you dispose of the rechargeable battery.

I Check if there are screws in the back or front of the appliance. If so, remove them

2 Remove the back and/or front panel of the appliance with a screwdriver. If necessary, also remove additional screws and/or parts until you see the printed circuit board with the rechargeable battery. 3 Remove the rechargeable battery.

Troubleshooting

This chapter summarizes the risks, correct problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Scheme in your country.

Problem Possible cause		Solution
The appliance does not charge when it is connected to the mains.	The appliance has to be swept down of when you create it.	Switch off the appliance.

I cannot switch on the appliance when it is connected to the mains.	You cannot use the appliance when it is charging. You can only use the appliance without cord.	Disconnect the appliance from the mains be done use
Problem	Possible cause	Solution
The appliance does not work anymore.	The rechargeable battery is empty.	Charge the appliance (see chapter "Chung ng"). Q72630, Q72530; During charging, the battery charge indicator flashes. Q72630, Q72500 During charging, the charge indicator on the adapter lights up. If the battery charge indicator does not flash or light up, check whether there is a power full, re or if the wall socket is "ve." There is no power failure and the wall socket is "ve" but the battery charge indicator still does not flash or light up, take the appliance to your dealer on a Philix service center.
	The place is blocked by dirt.	Switch on the appliance and use the blade under the tap with warm water
		Hold the place in a cup with warm water (SOPC and no hotte) for aporex 30 seconds
The appliance doesn't cut bars anymore.	The place is placed at the handle incorrectly.	Push the blade into the appliance until you hear a click.
	The place is damaged or worn.	Replace the blade with a new one See chapter Replacement.
The appliance makes a range noise.	The place is damaged or worn.	Replace the blade with a new one See chapter Replacement.
	The place is placed or to the handle incorrectly.	Remove and contatch the blade. Push it into the appliance until you hear a click.
	The place is blocked by dirt.	Remove the blade and clean it I'm roughly.
The appliance doesn't function opt muly anymore.	The place is blocked by dirt.	Remove the blade and clean it I'm roughly.
	The place is subject to wear and therefore is performance decreases over time.	Replace the blade with a new one See chapter Replacement.
	The place is a delicate part of the appliance and can easily be damaged if the blade is damaged, it may no function opt muly anymore.	Replace the blade with a new one See chapter Replacement.
