USER MANUAL TVCC55512 ABUS

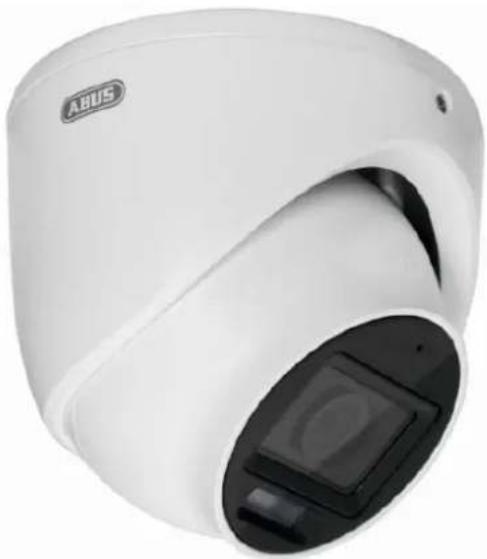

TVCC52512 / TVCC55512

White and black product camera with visible lens and screen (no text or symbols)

White and black product device with a circular lens and logo (no visible text or symbols on the device itself)

Bedienungsanleitung

Version 10/2024 (V1.0)

CE

Diagram showing three connected electrical connectors with labeled pins 6, 7, and 8

Diagram of a device with labeled parts and directional arrows indicating motion or movement

Simple line drawing of a circular mechanical component mounted on a base, with three vertical supports and diagonal hatching above (no text or symbols)

Diagram of a surveillance camera with sensor components and directional arrows indicating movement (no text or symbols)

(C) Rotation 360^

White and black product camera with visible lens and screen (no text or symbols)

Operating instructions

Version 10/2024 (V1.0)

CE

Original operating instructions in German. Keep for future use!

Introduction

Dear customer,

Thank you for purchasing this product.

The device fulfils the requirements of the following EU directives: EMC Directive 2014/30/EU and RoHS Directive 2011/65/EU.

To maintain this condition and ensure safe operation, you as the user must observe these operating instructions!

Read the complete operating instructions before using the product and observe all operating and safety instructions!

All company names and product designations are trademarks of their respective owners. All rights reserved.

If you have any questions, please contact your specialist installer or specialist retail partner!

Disclaimer

These operating instructions have been compiled with the utmost care. However, should you notice any omissions or inaccuracies, please let us know in writing at the address given on the back of the manual. ABUS Security-Center GmbH & Co. KG accepts no liability whatsoever for technical and organisational problems. typographical errors and reserves the right to make changes to the product and operating instructions at any time without prior notice. ABUS Security-Center is not liable or responsible for any direct or indirect consequential damage arising in connection with the equipment, performance and use of this product. No guarantee is given for the content of this document.

Explanation of symbols

	The symbol with the lightning bolt in the triangle is used when there is danger to the health, e.g. due to electric shock.
	An exclamation mark in the triangle indicates important information in these operating instructions that must be observed.
	This symbol can be found when you are to be given special tips and information on operation.

Important safety instructions

	Damage caused by non-compliance with these operating instructions will invalidate the warranty. We accept no liability for consequential damage!
	We accept no liability for damage to property or personal injury caused by improper handling or failure to observe the safety instructions. In such cases, all warranty claims are void!

Dear customer, the following safety and hazard information is intended not only to protect your health, but also to protect the appliance. Please read the following points carefully:

• There are no serviceable parts inside the product. Disassembly also invalidates the approval (CE) and the guarantee/warranty.
• The product can be damaged by falling from even a small height.
• Mount the product in such a way that direct sunlight cannot fall on the device's image sensor. Observe the installation instructions in the corresponding chapter of these operating instructions.
• The device is designed for indoor and outdoor use (IP67).

Avoid the following adverse ambient conditions during operation:

• Moisture or excessive humidity
  • Extreme cold or heat
• Direct sunlight
• Dust or flammable gases, vapours or solvents
  • strong vibrations
  • strong magnetic fields, such as in the vicinity of machines or loudspeakers.
• The camera must not be installed on unstable surfaces.

General safety instructions:

• Do not leave the packaging material lying around carelessly! Plastic film/bags, polystyrene pieces etc. could become dangerous toys for children.
• For safety reasons, the video surveillance camera must not be given to children due to small parts that can be swallowed.
• Please do not insert any objects through the openings into the inside of the appliance
• Only use the additional devices/accessories specified by the manufacturer. Do not connect any incompatible products.
• Please observe the safety instructions and operating instructions for the other connected devices.
• Check the appliance for damage before commissioning; if this is the case, please do not operate the appliance!
• Observe the limits of the operating voltage specified in the technical data. Higher voltages can destroy the device and jeopardise your safety (electric shock).

Safety instructions

1. Power supply: Observe the information on the rating plate for the supply voltage and power consumption.

2. Overload

Avoid overloading mains sockets, extension cables and adapters, as this can lead to fire or electric shock.

3. Cleaning

Only clean the appliance with a damp cloth without using harsh cleaning agents.

The appliance must be disconnected from the mains.

Warnings

All safety and operating instructions must be observed before initial start-up!

1. Observe the following instructions to prevent damage to the mains cable and mains plug:

2. When disconnecting the appliance from the mains, do not pull on the mains cable, but grasp the plug.

3. Ensure that the mains cable is as far away as possible from heating appliances to prevent the plastic sheathing from melting.

4. Follow these instructions. Failure to do so may result in an electric shock:

5. Never open the housing or the power supply unit.

6. Do not insert any metal or flammable objects inside the appliance.

7. To avoid damage caused by overvoltage (e.g. thunderstorms), please use overvoltage protection.

8. Please disconnect defective appliances from the power supply immediately and inform your specialist dealer.

When installing in an existing video surveillance system, make sure that all devices are disconnected from the mains and low-voltage circuits.

If in doubt, do not carry out the assembly, installation and wiring yourself, but leave this to a specialist. Improper and unprofessional work on the power grid or domestic installations not only poses a risk to yourself, but also to other people.Wire the installations so that the mains and low-voltage circuits always run separately and are not connected to each other at any point or cannot be connected due to a fault.

Unpacking

Handle the appliance with the utmost care when unpacking it.

If the original packaging is damaged, check the appliance first. If the appliance is damaged, send it back with the packaging and inform the delivery service.

Table of contents

1. Intended use....23
2. Scope of delivery ....23
3. Features and functions ......24
4. Description of the camera....24
5. Assembly / Installation....25
   5.1. Mounting the camera 25
   5.2. Aligning the camera 26
   5.3. Power supply....26
   5.4. Attaching the video cable....27
6. On-screen menu 28
   6.1. Opening the on-screen menu (OSD) 28
   6.2. Description of the on-screen menu (OSD)....28
7. Maintenance and cleaning....32
   7.1. Maintenance....32
   7.2. Cleaning....32
8. Waste disposal 32

1. Intended use

This camera is suitable for both day and night operation. It delivers video images in full HD resolution and the output signal is available in HD-TVI format. This enables the use of conventional coaxial cable for signal transmission. It is used for video surveillance in conjunction with a recording device. The device is designed for indoor and outdoor use.

2. Scope of delivery

Outdoor HD-TVI Mini Dome IR	Safety instructions
Quick guide Drilling template

3. Features and functions

• 2 or 5 megapixel resolution (TVCC52512 or TVCC55512)
• Transmission via conventional CCTV infrastructure (up to 500 metres via RG59 cable)
• 2.8 mm fixed lens
• 4-in-1 video output (switchable TVI / AHD / CVI / CVBS)
• IR LEDs and white light LED for night vision
• DNR for noise-free images
• Digital WDR function for equalising image contrasts
• Weatherproof camera housing (IP67)
- On-screen menu for camera configuration (control via DVR via coax cable)

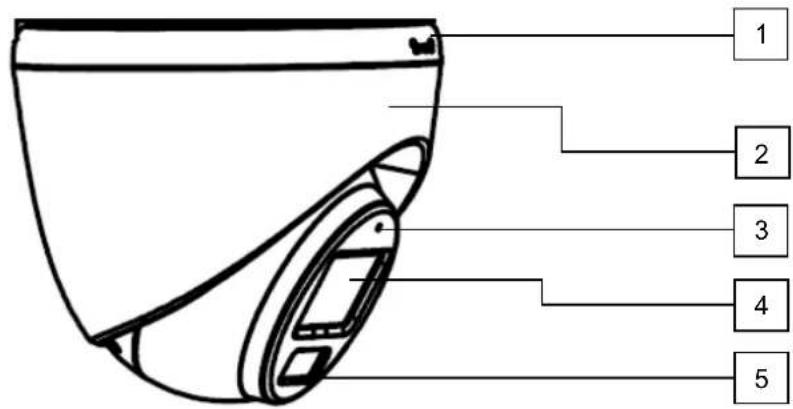

4. Description of the camera

1 2 3 4 5

Diagram showing three connected electrical connectors with labeled pins 6, 7, and 8

1	Camera base plate with fixing screw
2	Camera cap
3	Microphone
4	Lens
5	IR LEDs / white light LED

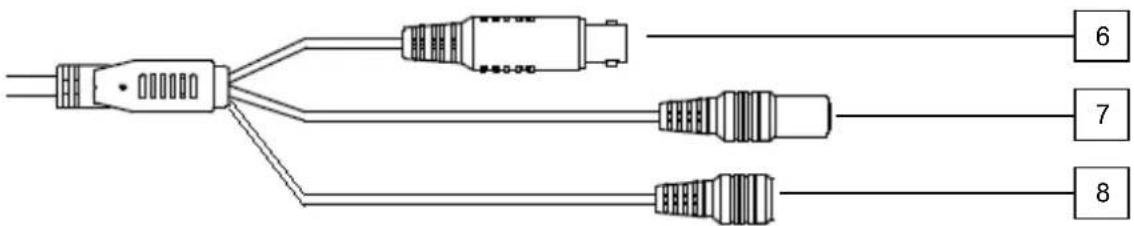

6	Video output (BNC, labelled "TVI")
7	Voltage connection (5.5x2.1mm, hollow plug)
8	Button for switching between different video formats:TVI / AHD / CVI / FBAS (press and hold the button for longer than 5 seconds)

5. Assembly / Installation

5.1 Mounting the camera

ATTENTION!

The camera must be disconnected from the mains voltage during installation.

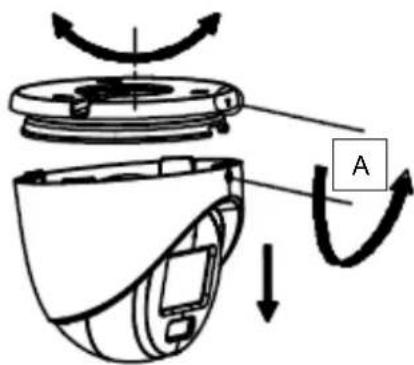

Loosen the fixing screw (A) on the camera base plate and remove the base plate by turning it slightly. If the arrow marked on the base plate points exactly to the fixing screw, the base plate can be removed.

Use the enclosed drilling template to drill the fixing holes.

Diagram of a device with labeled parts and directional arrows indicating motion or movement

Simple line drawing of a circular mechanical component mounted on a base, with three vertical supports and diagonal hatching above (no text or symbols)

If the cables are to be laid laterally, a channel is provided on the underside of the base plate. Now fix the base plate in place.

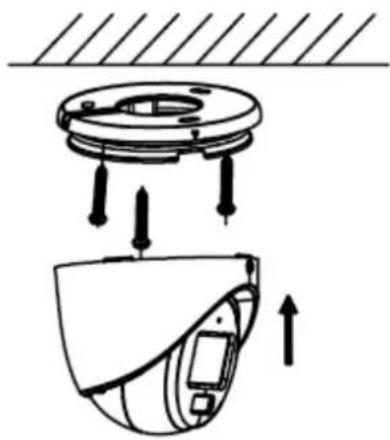

Then fix the camera head by attaching the camera cap (arrow points to the fixing screw). Then turn the camera cap with the camera head, these are then connected to the base plate.

Tighten the fixing screw for the camera cap only slightly to carry out the subsequent camera alignment.

Diagram of a surveillance camera with sensor components and directional arrows indicating movement (no text or symbols)

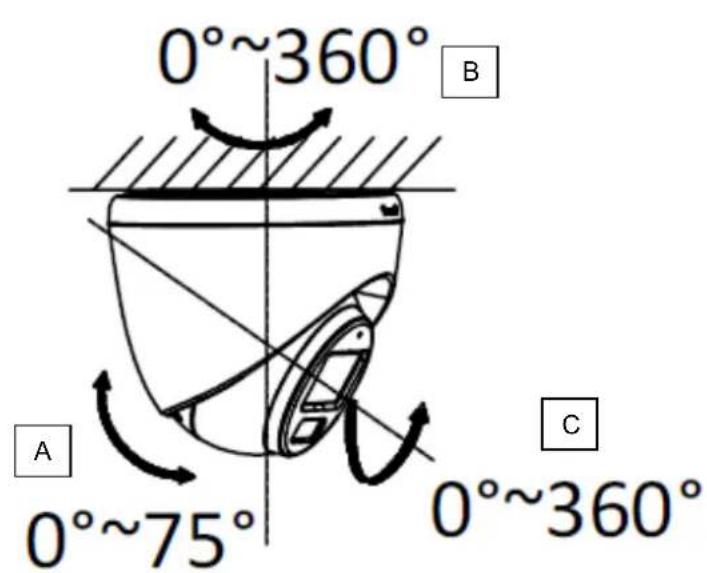

5.2 Alignment of the camera

If necessary, loosen the fixing screw on the camera base plate. The camera centre section can now be aligned in 3 axes. Then tighten the fixing screw again.

0°~360° B A 0°~75° C 0°~360°

(A) Tilt 75°

(B) Swivelling 360°

(C) Rotation 360°

The effective IR / white light range depends on the location. Light-absorbing surfaces or no light-reflecting objects in the field of vision reduce the IR / white light range or cause the video image to be too dark. Furthermore, reflective objects in the direct vicinity of the camera (gutter, wall) can result in disturbing reflections of the IR / white light in the image.

Please make sure that the IR / white light LEDs of the TVCC52512 and TVCC55512 models are not covered by the camera cap, as this will result in reflections.

5.3. Power supply

	ATTENTION!Before starting the installation, make sure that the supply voltage and the rated voltage of the camera match.
		12 VDC, barrel connector, 5.5x2.1mm

The cameras require a 12 VDC power supply. The polarity of the DC voltage supply must be observed!

5.4 Attaching the video cable

To transmit the HD-TVI video signal from the camera to a recorder, a coaxial cable of type RG59 with BNC connector (male, male) must be connected to the connection labelled "TVI". The cable length to the next device must not exceed 500 metres.

To ensure optimum HD-TVI signal transmission quality, it is essential that the cable is not kinked, crushed or laid at too small a radius (minimum bending radius 6 cm). If the cable is damaged or has become porous due to the ageing process, this can also affect the signal or image quality (e.g. shadows around edges).

6. On-screen menu

6.1. Opening the on-screen menu (OSD)

The on-screen display (OSD) of this camera can only be opened via the ABUS Analogue HD Recorder (TVVR33*** or HDCC900**). Please refer to the operating instructions for the ABUS recorder.

6.2. Description of the on-screen menu (OSD)

Press the OSD menu control button to open the OSD on-screen menu (local interface (HDMI) of the recorder / camera / PTZ menu / menu) ("Shutter+" for Enter). Detailed settings can be made via this on-screen menu.

MAIN MENU

MAIN MENU
VIDEO FORMAT <2M25>
EXPOSURE↓
LIGHT SETTINGS↓
VIDEO SETTINGS ↓
AUDIO SETTINGS↓
FACTORY DEFAULT ↓
EXIT ↓
SAVE&EXIT ↓

Video format

Function Description of the
Video format Setting for the video resolution
	Options:3K20: Megapixel @20 fps (TVCC55512 only)4M25: 4 Megapixel @ 25 fps (TVCC55512 only)4M30: 4 Megapixel @ 30 fps (TVCC55512 only)2M25: Megapixel @ 25 fps2M30: Megapixel @ 30 fps

Exposure

General exposure settings are set in this menu item, e.g. whether the camera should process high contrasts or whether the camera requires special settings for night vision.

Function	Description of the
Exposure Mode	Global:	General automatic exposure setting without WDR function
	BLC:	Automatic exposure settingwith back light compensation (BLC). The BLC function improves the image display with medium image contrasts.
	HLC:	High Light Compensation (Spot Light Cancellation)
	D:	Automatic exposure setting withdigital WDR
	function (Wide Dynamic Range). The DWDR function is used to improve the display of high image contrasts.HLS: High Light Suppression: If the brightness in the video image exceeds a certain threshold value at various points, these areas or pixels are displayed in black.
AGC Automatic gain control.	The higher the setting, the brighter the video image appears in low lighting conditions, but the higher the image noise.Low: LowMedium: MediumHigh: High
Anti-banding Function for suppressing horizontal banding in the video image (also "anti-flicker")OFF: Function deactivatedLevel 1-5: Level selection for more or less suppression of streaking
Back Back to the previous menu page
Exit	Exiting the menu
Save&Exit	Saving and exiting the menu

LIGHT SETTINGS

The mode for day/night switching (or Gecko/IR switching) is set in this menu item.

Function Description of the
SMART Event-controlled switching from IR (night) mode to gecko/white light mode. An event can be motion detection, intrusion detection or tripwire detection with person/vehicle detection.An ABUS TVVR33603 or TVVR33803 video recorder is required for this function. These recorders have the corresponding event detectors with person/vehicle recognition. The recorder controls the switching.IR Light: On: IR LEDs active in night modeOff: IR LEDs deactivated in night modeSmart IR: Function to reduce the over-illumination of IRlight with close objectsOn: Function activeOff: Function deactivatedD->N Threshold (1-9): Switching threshold from day to night modeN->D Threshold (1-9): Switching thresholdfrom night to day modeBack: Back to previous menu page
IR Automatic activation/deactivation of day or night mode. The picture brightness controls the switchover depending on the light intensity.IR Light: On: IR LEDs active in night modeOff: IR LEDs deactivated in night modeSmart IR: Function to reduce the over-illumination of IRlight with close objectsOn: Function activeOff: Function deactivatedD->N Threshold (1-9): Switching threshold from dayto night mode
	N->D Threshold (1-9): Switching thresholdfrom night to day modeBack: Back to previous menu page
WHITE LIGHT The camera remains permanently in colour or gecko mode.	White Light: Auto: Automatic activation of the white light LEDs in the darkOFF: Deactivation of the white light LEDs. To obtain an acceptable video image, there must be some residual light in the scene (e.g. street lamp or front door lamp)Threshold: Threshold value, but at which brightness level the white light is switched on.Level: Brightness level of the white light LEDs

Video settings

General image settings such as contrast or mirroring of the video image are made in this menu item.

Function Description of the
Image Mode Two different basic camera settings can be set here.
White Balance Auto: Automatic white balance
Brightness	(1~9): Setting for the picture brightness
Contrast	(1~): Setting for the image contrast
Sharpness	(1~9): This function can be used to electronically change the perception of image sharpness.
Saturation	(1~9): of the video image
DNR	(1~9): Setting for the noise reduction function. The higher the set value, the more noise is removed from the video image by the software.
Back	Back to the previous menu page
Exit	Exiting the menu
Save&Exit	Saving and exiting the menu

Audio Settings

Function Description of the

Audio Deactivation or activation of the built-in microphone. An ABUS video recorder TVVR33603 or TVVR33803 is required for this function.OFF: Deactivation of the microphoneON: Activation of the microphoneNote Observe country-specificregulations for the use of the audio function.
Volume	1-9. Volume settingfor the built-in microphone
Back Back to the previous menu page
Exit	Exiting the menu
Save&Exit	Saving and exiting the menu

Factory Default (Reset)

Function Description of the
Factory Default Reset all cam	era settings in the main menu to factory settingsConfirm processCancel Cancel process

Exit

Function Description of the
Back Exit the menu without saving

Save&Exit

Function Description of the
Save&Exit Saving all settings	and exiting the OSD menu

7. Maintenance and cleaning

7.1. Maintenance

Regularly check the technical safety of the product, e.g. damage to the housing.

If it can be assumed that safe operation is no longer possible, the product must be taken out of service and secured against unintentional operation.

It can be assumed that safe operation is no longer possible if

• the device shows visible damage,
  • the device no longer works

Please note:

The product is maintenance-free for you. There are no components inside the product for you to check or maintain, never open it.

7.2. Cleaning

Clean the product with a clean, dry cloth. For heavier soiling, the cloth can be lightly moistened with lukewarm water.

Make sure that no liquids get into the appliance.

Do not use chemical cleaners, as this could damage the surface of the housing and the screen (discolouration).

8. Waste disposal

Attention: EU Directive 2002/96/EC regulates the proper return, treatment and recycling of used electronic devices. This symbol means that, in the interests of environmental protection, the appliance must be disposed of at the end of its service life in accordance with the applicable legal regulations and separately from household or commercial waste. The old appliance can be disposed of at official collection centres in your country. Follow the local regulations when disposing of the materials. For further details on take-back (also for non-EU countries), please contact your local administration. Separate collection and recycling conserves natural resources and ensures that all regulations for the protection of health and the environment are observed when recycling the product.

TVCC52512 / TVCC55512

White and black product camera with visible lens and screen (no text or symbols)

Mode d'emploi

Version 10/2024 (V1.0)

CE

Diagram showing three connected electrical connectors with labeled pins 6, 7, and 8

Diagram of a device with labeled parts and directional arrows indicating motion or movement

Simple line drawing of a circular mechanical component with three vertical supports and a horizontal bar above (no text or symbols)

Diagram of a surveillance camera with sensor components and directional arrows indicating movement (no text or symbols)

White and black product camera with visible lens and screen (no text or symbols)

Diagram showing three connected electrical connectors with labeled pins 6, 7, and 8

Diagram of a device with labeled parts and directional arrows indicating motion or movement

Simple line drawing of a circular mechanical component with three vertical supports and a horizontal bar above (no text or symbols)

Diagram of a surveillance camera with sensor components and directional arrows indicating movement (no text or symbols)

Exterior view of a white and black product camera (no visible text or symbols)

Diagram showing three connected electrical connectors with labeled pins 6, 7, and 8

5. Montering / installation

Diagram of a device with labeled parts and directional arrows indicating motion or movement

Simple line drawing of a circular mechanical component with three vertical supports and a horizontal bar above (no text or symbols)

Diagram of a camera module with directional arrows indicating movement or force (no text or symbols present)

5.2 Justering af kameraet

Exterior view of a white and black product camera (no visible text or symbols)

Diagram showing three connected electrical connectors with labeled pins 6, 7, and 8

Diagram of a device with labeled parts and directional arrows indicating motion or movement

Simple line drawing of a circular mechanical component mounted on a base, with three vertical supports and diagonal hatching above (no text or symbols)

Diagram of a surveillance camera with sensor components and directional arrows indicating movement (no text or symbols)
